Proline Promag 10P
Electromagnetic flowmeter
Flow measurement of liquids in chemical or process applications
Application
Electromagnetic flowmeter for bidirectional measurement of
liquids with a minimum conductivity of 50 μS/cm:
• Acid, alkalis
•Paints
•Pastes
• Water, wastewater etc.
• Flow measurement up to 9600 m³/h (42268 gal/min)
• Fluid temperature up to +130 °C (266 °F)
• Process pressures up to 40 bar (580 psi)
• Lengths in accordance with DVGW/ISO
Application-specific lining material:
•PTFE
Your benefits
Promag measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide range of
process conditions.
The uniform Proline transmitter concept comprises:
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
Page 2
Table of contents
Proline Promag 10P
Function and system design . . . . . . . . . . . . . . . . . . . . . .3
Measuring principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Measured variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Measuring ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operable flow range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Output signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Signal on alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Low flow cutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Galvanic isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power supply failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical connection, measuring unit . . . . . . . . . . . . . . . . . . . . . 5
Electrical connection, remote version . . . . . . . . . . . . . . . . . . . . . 5
Potential equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cable entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote version cable specifications . . . . . . . . . . . . . . . . . . . . . . 8
Mechanical construction . . . . . . . . . . . . . . . . . . . . . . . 21
Design, dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Measuring tube specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fitted electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Process connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Surface roughness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Remote operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Certificates and approvals . . . . . . . . . . . . . . . . . . . . . . 33
CE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
C-tick symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Ex approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Other standards and guidelines . . . . . . . . . . . . . . . . . . . . . . . . . 33
Pressure measuring device approval . . . . . . . . . . . . . . . . . . . . . 33
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Performance characteristics . . . . . . . . . . . . . . . . . . . . . .9
Reference operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maximum measured error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Inlet and outlet runs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Length of connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shock and vibration resistance . . . . . . . . . . . . . . . . . . . . . . . . . 14
Electromagnetic compatibility (EMC) . . . . . . . . . . . . . . . . . . . . 14
Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Medium temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Conductivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure-temperature ratings . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Medium pressure range (nominal pressure) . . . . . . . . . . . . . . 18
Pressure tightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Limiting flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Pressure loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Vibrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . . . 34
2 Endress+Hauser
Page 3
Proline Promag 10P
Ue
I
I
B
L
V
Function and system design
Measuring principle Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a
magnetic field.
In the electromagnetic measuring principle, the flowing medium is the moving conductor.
The voltage induced is proportional to the flow velocity and is supplied to the amplifier by means of
two measuring electrodes. The flow volume is calculated by means of the pipe cross-sectional area.
The DC magnetic field is created through a switched direct current of alternating polarity.
Ue = B · L · v
Q = A · v
Ue Induced voltage
B Magnetic induction (magnetic field)
L Electrode spacing
v Flow velocity
Q Volume flow
A Pipe cross-section
I Current strength
Measuring system The measuring system consists of a transmitter and a sensor.
Two versions are available:
• Compact version: Transmitter and sensor form a mechanical unit.
• Remote version: Sensor is mounted separate from the transmitter.
Transmitter:
• Promag 10 (key operation, two-line, unilluminated display)
Sensor:
• Promag P (DN 25 to 600 / 1 to 24")
Input
Measured variable Flow velocity (proportional to induced voltage)
A0003191
Measuring ranges Measuring ranges for liquids
Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with the specified accuracy
Operable flow range Over 1000 : 1
Endress+Hauser 3
Page 4
Output
Output signal Current output
• Galvanically isolated
• Active: 4 to 20 mA, RL < 700 (for HART: RL 250 )
• Full scale value adjustable
• Temperature coefficient: typ. 2 μA/°C, resolution: 1.5 μA
Pulse/status output
• Galvanically isolated
• Passive: 30 V DC/250 mA
• Open collector
• Can be configured as:
– Pulse output: Pulse value and pulse polarity can be selected, max. pulse width adjustable (5 to
2000 ms), pulse frequency max. 100 Hz
– Status output: for example, can be configured for error messages, empty pipe detection, flow
recognition, limit value
Signal on alarm • Current output Failsafe mode can be selected
• Pulse output Failsafe mode can be selected
• Status output "Not conductive" in the event of fault or power supply failure
Proline Promag 10P
Load See "output signal"
Low flow cutoff Switch-on points for low flow are selectable.
Galvanic isolation All circuits for inputs, outputs and power supply are galvanically isolated from each other
Power supply
Terminal assignment
Supply voltage • 85 to 250 V AC, 45 to 65 Hz
Power consumption • 85 to 250 V AC: < 12 VA (incl. sensor)
Order code for
"Input / Output"
24 (+) 25 (–) 26 (+) 27 (–) 1 (L1/L+) 2 (N/L–)
A Pulse/status output HART current output Power supply
Functional values → 4, Section "output signal" → 4 Section "Supply voltage"
• 20 to 28 V AC, 45 to 65 Hz
• 11 to 40 V DC
• 20 to 28 V AC: < 8 VA (incl. sensor)
• 11 to 40 V DC: < 6 W (incl. sensor)
Switch-on current:
• Max. 16 A (< 5 ms) for 250 V AC
• Max. 5.5 A (< 5 ms) for 28 V AC
• Max. 3.3 A (< 5 ms) for 24 V DC
Terminal No.
Power supply failure Lasting min. ½ cycle frequency: EEPROM saves measuring system data
4 Endress+Hauser
Page 5
Proline Promag 10P
b
a
e
e
b
2127
–
25–26
+
24
+
L1
(L+)
N
(L-)
e
g
b
d
h
i
c
f
b
n.c.
S1
E1
E2
S2
GND
E
S
42 41
6
5
7
8
4
37 36
dc
a
d
c
E1
E2
E
5
7
4
37
42 41
n.c. n.c.
Electrical connection, measuring unit
Connecting the transmitter (aluminum field housing), cable cross-section max. 2.5 mm2 (14 AWG)
a Electronics compartment cover
bPower supply cable
c Ground terminal for power supply cable
d Terminal connector for power supply cable
e Electrode cable
f Ground terminal for electrode cable
g Terminal connector for electrode cable
h Service connector for connecting service interface FXA 193 (Fieldcheck, FieldCare)
i Ground terminal for potential equalization
A0003192
Electrical connection, remote version
A0012461
Connecting the remote version
a Wall-mount housing connection compartment
b Sensor connection housing cover
c Electrode cable
d Coil current cable
n.c. Not connected, insulated cable shields
Terminal numbers and cable colours:
5/6=brown, 7/8=white, 4=green, 37/36=yellow
Endress+Hauser 5
Page 6
Potential equalization
DN 300£
DN 350³
!
Proline Promag 10P
Note!
The measuring system must be included in the potential equalization.
Perfect measurement is only ensured when the fluid and the sensor have the same electrical potential.
This is ensured by the reference electrode integrated in the sensor as standard.
The following should also be taken into consideration for potential equalization:
• Internal grounding concepts in the company
• Operating conditions, such as the material/ grounding of the pipes (see table)
Standard situation
Operating conditions Potential equalization
When using the measuring device in a:
• Metal, grounded pipe
Potential equalization takes place via the ground terminal
of the transmitter.
Note!
!
When installing in metal pipes, we recommend you connect
the ground terminal of the transmitter housing with the
piping.
Via the ground terminal of the transmitter
Special situations
Operating conditions Potential equalization
When using the measuring device in a:
• Metal pipe that is not grounded
This connection method also applies in situations where:
• Customary potential equalization cannot be ensured.
• Excessively high equalizing currents can be expected.
Both sensor flanges are connected to the pipe flange by
means of a ground cable (copper wire, at least 6 mm² /
0.0093 in²) and grounded. Connect the transmitter or
sensor connection housing, as applicable, to ground
potential by means of the ground terminal provided for the
purpose.
•DN 300 (12"): the ground cable is mounted directly on
the conductive flange coating with the flange screws.
•DN 350 (14"): the ground cable is mounted directly on
the transportation metal support.
Note!
!
The ground cable for flange-to-flange connections can be
ordered separately as an accessory from Endress+Hauser.
A0010831
A0010832
Via the ground terminal of the transmitter and the
flanges of the pipe
6 Endress+Hauser
Page 7
Proline Promag 10P
1
2 2
Operating conditions Potential equalization
When using the measuring device in a:
• Plastic pipe
• Pipe with insulating lining
This connection method also applies in situations where:
• Customary potential equalization cannot be ensured.
• Excessively high equalizing currents can be expected.
Potential equalization takes place using additional ground
disks, which are connected to the ground terminal via a
ground cable (copper wire, at least 6 mm² / 0.0093 in²).
When installing the ground disks, please comply with the
enclosed Installation Instructions.
Via the ground terminal of the transmitter and the
optionally available ground disks
When using the measuring device in a:
• Pipe with a cathodic protection unit
The device is installed potential-free in the pipe.
Only the two flanges of the pipe are connected with a
ground cable (copper wire, at least 6 mm² / 0.0093 in²).
Here, the ground cable is mounted directly on the
conductive flange coating with flange screws.
Note the following when installing:
• The applicable regulations regarding potential-free
installation must be observed.
•There should be no electrically conductive connection
between the pipe and the device.
• The mounting material must withstand the applicable
torques.
Potential equalization and cathodic protection
1 Power supply isolation transformer
2 Electrically isolated
A0010833
A0010834
Cable entries Power supply and electrode cables (inputs/ outputs):
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Connecting cable for remote version:
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Endress+Hauser 7
Page 8
Proline Promag 10P
1
2
3
4
5
6
7
a
b
Remote version cable specifications
Coil current cable
• 2 × 0.75 mm2 (18 AWG) PVC cable with common, braided copper shield ( 7 mm / 0.28")
• Conductor resistance: 37 /km (0.011 /ft)
• Capacitance core/core, shield grounded: 120 pF/m (37 pF/ft)
• Operating temperature: –20 to +80 °C (–68 to +176 °F)
• Cable cross-section: max. 2.5 mm
2
(14 AWG)
• Test voltage for cable insulation: 1433 AC r.m.s. 50/60 Hz or 2026 V DC
Electrode cable
• 3 × 0.38 mm2 (20 AWG) PVC cable with common, braided copper shield ( 7 mm / 0.28") and
individual shielded cores
• With empty pipe detection (EPD): 4 × 0.38 mm
2
(20 AWG) PVC cable with common, braided copper
shield ( 7 mm / 0.28") and individual shielded cores
• Conductor resistance: 50 /km (0.015 /ft)
• Capacitance core/shield: 420 pF/m (128 pF/ft)
• Operating temperature: –20 to +80 °C (–68 to +176 °F)
• Cable cross-section: max. 2.5 mm
2
(14 AWG)
!
A0003194
a Electrode cable
b Coil current cable
1Core
2 Core insulation
3 Core shield
4 Core jacket
5 Core reinforcement
6 Cable shield
7 Outer jacket
Operation in zones of severe electrical interference
The measuring device complies with the general safety requirements in accordance with EN 61010
and the EMC requirements of IEC/EN 61326.
Note!
Grounding is by means of the ground terminals provided for the purpose inside the connection
housing. Ensure that the stripped and twisted lengths of cable shield to the ground terminal are as
short as possible.
8 Endress+Hauser
Page 9
Proline Promag 10P
2.5
[%]
2.0
1.5
1.0
0.5
0
0.5 %
0
1
2 4 6 8 10 [m/s]
v
5 10 15 20 25 30 32 [ft/s]0
Performance characteristics
Reference operating conditions
As per DIN EN 29104 and VDI/VDE 2641:
• Fluid temperature: +28 °C ± 2 K (+82 °F ± 2 K)
• Ambient temperature: +22 °C ±2 K (+72 °F ± 2 K)
• Warm-up period: 30 minutes
Installation conditions:
• Inlet run > 10 × DN
• Outlet run > 5 × DN
• Sensor and transmitter grounded.
• The sensor is centered in the pipe.
Maximum measured error • Current output: also typically ± 5 μA
• Pulse output: ±0.5% o.r. ± 2 mm/s (±0.5% o.r. ± 0.08 in/s) (o.r. = of reading)
Fluctuations in the supply voltage do not have any effect within the specified range.
Max. measured error in % of reading
Repeatability Max. ±0.2% o.r. ± 2 mm/s (±0.2% o.r. ± 0.08 in/s) (o.r. = of reading)
A0003200
Endress+Hauser 9
Page 10
Proline Promag 10P
h2DN³´
³´5DN
³ 2
´ DN
Installation
Mounting location Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring
errors.
Avoid the following installation locations in the pipe:
• Highest point of a pipeline. Risk of air accumulating!
• Directly upstream from a free pipe outlet in a vertical pipeline.
!
A0003202
Mounting location
Installation of pumps
Sensors may not be installed on the pump suction side. This precaution is to avoid low pressure and the
consequent risk of damage to the lining of the measuring tube. Information on the pressure tightness
of the measuring tube lining → 18, Section "Pressure tightness".
Pulsation dampers may be needed when using piston pumps, piston diaphragm pumps or hose pumps.
Information on the shock and vibration resistance of the measuring system → 14, Section "Shock and
vibration resistance".
A0003203
Installation of pumps
Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration.
The empty pipe detection function (EPD) provides additional security in detecting empty or partially
filled pipes.
Note!
Risk of solids accumulating. Do not install the sensor at the lowest point in the drain. It is advisable to
install a cleaning valve.
A0003204
Installation with partially filled pipes
10 Endress+Hauser
Page 11
Proline Promag 10P
h
2
1
A
1
22
A
3
Down pipes
Install a siphon or a vent valve downstream of the sensor in down pipes h 5 m (16.4 ft). This
precaution is to avoid low pressure and the consequent risk of damage to the lining of the measuring
tube. This measure also prevents the liquid current stopping in the pipe which could cause air locks.
Information on the pressure tightness of the measuring tube lining → 18, "Pressure tightness".
Installation measures for vertical pipes
1Vent valve
2Pipe siphon
h Length of the down pipe
Orientation Orientation
An optimum orientation helps avoid gas and air accumulations and deposits in the measuring tube.
However, the measuring device also offers the additional function of empty pipe detection (EPD) for
detecting partially filled measuring tubes or if outgassing fluids or fluctuating operating pressures are
present.
A0008157
!
Vertical orientation
This is the ideal orientation for self-emptying piping systems and for use in conjunction with empty
pipe detection.
A0008158
Vertical orientation
Horizontal orientation
The measuring electrode axis should be horizontal. This prevents brief insulation of the two measuring
electrodes by entrained air bubbles.
Note!
Empty pipe detection only works correctly with horizontal orientation if the transmitter housing is
facing upwards. Otherwise there is no guarantee that empty pipe detection will respond if the
measuring tube is only partially filled or empty.
Endress+Hauser 11
Horizontal orientation
1 EPD electrode for empty pipe detection
2 Measuring electrodes for signal detection
3 Reference electrode for potential equalization
A0003207
Page 12
Proline Promag 10P
³ 5DNx
³ 2DNx
100
10
0.5
d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
D
d
max. 8°
Inlet and outlet runs If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows etc.
Note the following inlet and outlet runs to comply with measuring accuracy specifications:
• Inlet run: 5 × DN
•Outlet run: 2 × DN
A0003210
Inlet and outlet run
Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger-
diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slowmoving fluids. The nomogram shown here can be used to calculate the pressure loss caused by reducers
and expanders.
!
Note!
The nomogram only applies to liquids of viscosity similar to water.
1. Calculate the ratio of the diameters d/D.
2. From the nomogram read off the pressure loss as a function of flow velocity (downstream from
the reduction) and the d/D ratio.
Pressure loss due to adapters
12 Endress+Hauser
A0003213
Page 13
Proline Promag 10P
L
max
[]ft
200 6000
400
200
100
50 100 200
[m]
[ S/cm]µ
L
max
50
Length of connecting cable When mounting the remote version, please note the following to achieve correct measuring results:
• Fix cable run or lay in armored conduit. Cable movements can falsify the measuring signal especially
in the case of low fluid conductivities.
• Route the cable well clear of electrical machines and switching elements.
• If necessary, ensure potential equalization between sensor and transmitter.
• The permitted cable length L
is determined by the fluid conductivity. A minimum conductivity of
max
50 μS/cm is needed for all fluids.
• When the empty pipe detection function is switched on (EPD), the maximum connecting cable
length is 10 m (33 ft).
Permitted length of connecting cable for remote version
Area marked in gray = permitted range; L
= length of connecting cable in [m] ([ft]); fluid conductivity in [μS/cm]
max
A0003214
Endress+Hauser 13
Page 14
Proline Promag 10P
Environment
Ambient temperature range Transmitter
• –20 to +60 °C (–4 to +140 °F)
Sensor
• Flange material carbon steel: –10 to +60 °C (14 to +140 °F)
• Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
!
Storage temperature The storage temperature corresponds to the operating temperature range of the measuring
!
Note!
The permitted temperature range of the measuring tube lining may not be undershot or overshot
(→ 15, Section "Medium temperature range").
Please note the following points:
• Install the device in a shady location. Avoid direct sunlight, particularly in warm climatic regions.
• The transmitter must be mounted separate from the sensor if both the ambient and fluid
temperatures are high.
transmitter and the appropriate measuring sensors.
Note!
• The measuring device must be protected against direct sunlight during storage in order to avoid
unacceptably high surface temperatures.
• A storage location must be selected where moisture does not collect in the measuring device. This
will help prevent fungus and bacteria infestation which can damage the liner.
Degree of protection • Standard: IP 67 (NEMA 4X) for transmitter and sensor.
• Optional: IP 68 (NEMA 6P) for sensor for remote version.
• For information regarding applications where the device is buried directly in the soil or is installed
in a flooded wastewater basin please contact your local Endress+Hauser Sales Center.
Shock and vibration resistance
Electromagnetic compatibility (EMC)
Acceleration up to 2 g following IEC 600 68-2-6
• As per IEC/EN 61326
• Emission: to limit value for industry EN 55011
14 Endress+Hauser
Page 15
Proline Promag 10P
1
Esc
E
-+
0
0
-20 20
20
40
60
TA[°C]
40 60 80
TF[°C]
100 120 140 160 180
PTFE
-40
-10
10
30
50
Process
Medium temperature range PTFE: –40 to +130 °C (–40 to +266 °F) (DN 25 to 600 / 1 to 24"), restrictions see diagrams
Compact version (TA = ambient temperature range, TF = fluid temperature)
À = gray area
Remote version (TA = ambient temperature range, TF = fluid temperature)
temperature range from –10 to –40 °C (–14 to –40 °F) applies only to stainless steel flanges
Conductivity The minimum conductivity is: 50 μS/cm
!
Note!
In the remote version, the necessary minimum conductivity also depends on the cable length
(→ 13, Section "Length of connecting cable").
A0003449
A0003446

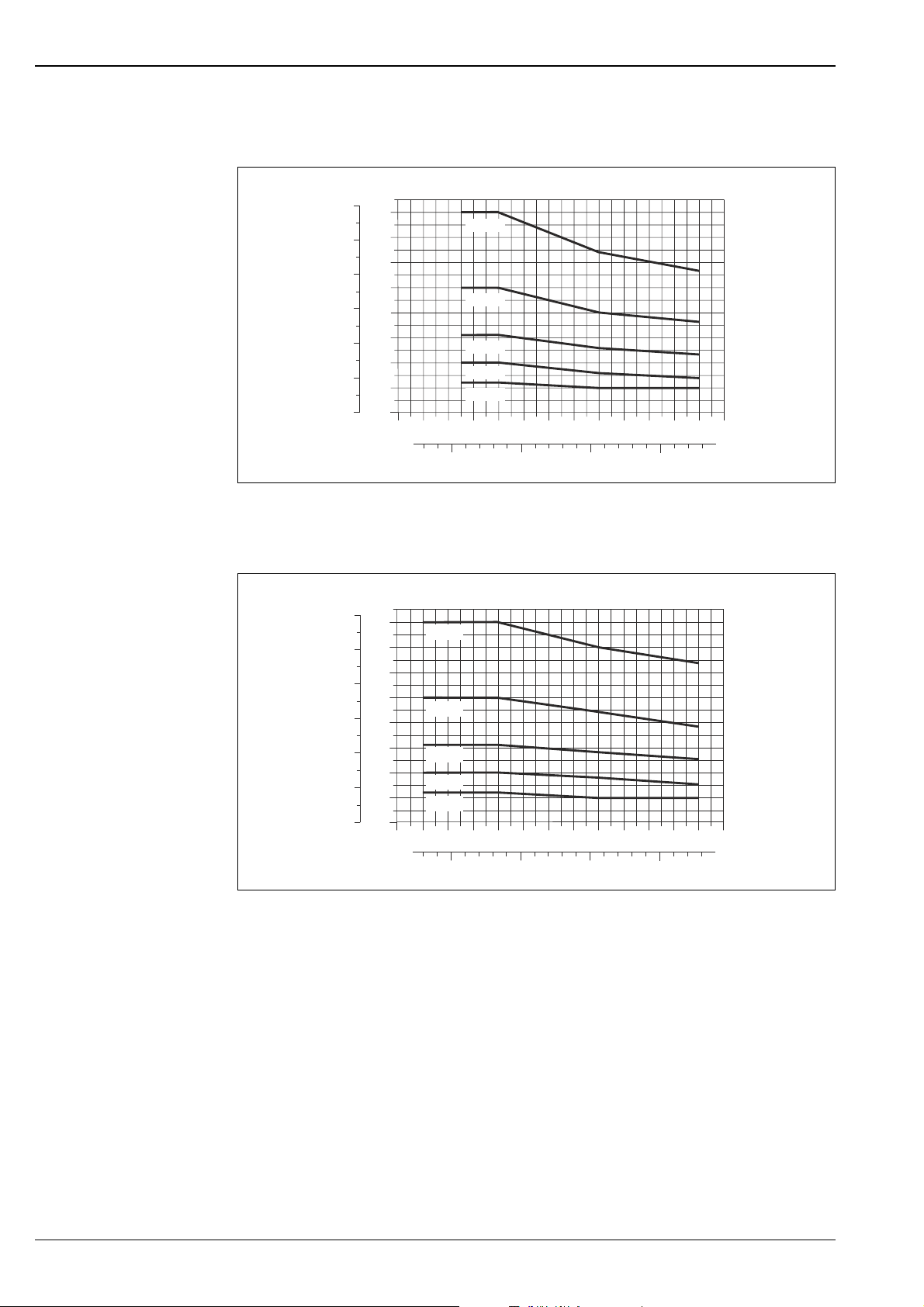

Pressure-temperature ratings
!
Note!
The following diagrams contain material load diagrams (reference curves) for flange materials with
regard to the medium temperature. However, the maximum medium temperatures permitted always
depend on the lining material of the sensor and/or the sealing material (→ 15).
Endress+Hauser 15
Page 16
Flange connection to EN 1092-1 (DIN 2501)
0
5
10
15
20
25
35
30
40
[bar][psi]
-40
-20
020
40 60 80 100 120 140 160180 [°C]
360 [°F]
0-40 100 200 300
200
100
400
300
500
600
0
PN25
PN16
PN10
PN6
PN40
PN16
PN10
PN40
PN6
0
5
10
15
20
25
35
30
40
[bar][psi]
-60
-40
-20
020
40 60 80 100120140 160180 [°C]
360 [°F]
0-40 100 200 300
200
100
400
300
500
600
0
PN25
Material: S235JRG2, S235JR+N, P250GH, P245GH, E250C, A105
Proline Promag 10P
A0021188-EN
Flange connection to EN 1092-1 (DIN 2501)
Material: 1.4571, 1.4404, F316L
A0021184-EN
16 Endress+Hauser
Page 17
Proline Promag 10P
Class 300
Class 150
0
10
20
30
40
50
[bar][psi]
-40
-20
020
40 60 80 100 120140 160180 [°C]
360 [°F]
0-40 100 200 300
200
100
400
300
500
600
700
800
900
60
0
Class 300
Class 150
0
10
20
30
40
50
[bar][psi]
-40
-20
020
40 60 80 100 120140 160180 [°C]
360 [°F]
0-40 100 200 300
200
100
400
300
500
600
700
800
900
0
60
10K
20K
-40
-20
020
40 60 80 100 120140 160180 [°C]
0
10
20
30
[bar]
360 [°F]
0-40 100 200 300
[psi]
200
100
400
300
0
Flange connection to ASME B16.5
Material: A 105
A0021182-EN
Flange connection to ASME B16.5
Material: F316L
A0021185-EN
Flange connection to JIS B2220
Material: A105, A350 LF2, F316L
Endress+Hauser 17
A0021183-EN
Page 18
Flange connection to AS 2129 Table E
-40
-20
020
40 60 80 100 120140 160 [°C]
0
10
5
20
15
[bar]
0-40 100 200
300 [°F]
[psi]
200
100
300
0
TableE
-40
-20
020
40 60 80 100 120140 160 [°C]
0
10
5
20
15
[bar]
0-40 100 200
300 [°F]
[psi]
200
100
300
0
PN16
Material: A105, P235GH, P265GH, S235JRG2
Flange connection to AS 4087 PN 16
Material: A105, P265GH, S275JR
Proline Promag 10P
A0021189-EN
Medium pressure range (nominal pressure)
• EN 1092-1 (DIN 2501)
– PN 10 (DN 200 to 600 / 8 to 24")
– PN 16 (DN 65 to 600 / 3 to 24")
– PN 25 (DN 200 to 600 / 8 to 24")
– PN 40 (DN 25 to 150 / 1 to 6")
•ASME B 16.5
– Class 150 (DN 1 to 24")
– Class 300 (DN 1 to 6")
• JIS B2220
– 10 K (DN 50 to 600 / 2 to 24")
– 20 K (DN 25 to 600 / 2 to 24")
• AS 2129
– Table E (DN 25, 50 / 1", 2")
• AS 4087
– PN 16 (DN 50 / 2")
Pressure tightness Measuring tube lining: PTFE
18 Endress+Hauser
Nominal diameter Limit values for abs. pressure [mbar] ([psi]) at fluid temperatures:
25 °C (77 °F) 80 °C (176 °F) 100 °C (212 °F) 130 °C (266 °F)
[mm] [inch] [mbar] [psi] [mbar] [psi] [mbar] [psi] [mbar] [psi]
251"0000001001.45
32–0000001001.45
A0023077-EN
Page 19
Proline Promag 10P
Nominal diameter Limit values for abs. pressure [mbar] ([psi]) at fluid temperatures:
25 °C (77 °F) 80 °C (176 °F) 100 °C (212 °F) 130 °C (266 °F)
[mm] [inch] [mbar] [psi] [mbar] [psi] [mbar] [psi] [mbar] [psi]
401½"0000001001.45
502"0000001001.45
65 – 0 0 * * 40 0.58 130 1.89
80 3" 0 0 * * 40 0.58 130 1.89
100 4" 0 0 * * 135 1.96 170 2.47
125 – 135 1.96 * * 240 3.48 385 5.58
150 6" 135 1.96 * * 240 3.48 385 5.58
200 8" 200 2.90 * * 290 4.21 410 5.95
250 10" 330 4.79 * * 400 5.80 530 7.69
300 12" 400 5.80 * * 500 7.25 630 9.14
350 14" 470 6.82 * * 600 8.70 730 10.6
400 16" 540 7.83 * * 670 9.72 800 11.6
450 18"
Partial vacuum is impermissible!500 20"
600 24"
* No value can be specified.
Limiting flow The diameter of the pipe and the flow rate determine the nominal diameter of the sensor.
The optimum flow velocity is between 2 to 3 m/s (6.5 to 9.8 ft/s). The velocity of flow (v), moreover,
has to be matched to the physical properties of the fluid:
• v < 2 m/s (6.5 ft/s): for abrasive fluids such as potter's clay, lime milk, ore slurry etc.
• v > 2 m/s (6.5 ft/s): for fluids causing build-up such as wastewater sludges etc.
Flow characteristic values (SI units)
Diameter Recommended flow rate Factory settings
Min./max. full scale value
(v ~ 0.3 or 10 m/s)
[mm] [inch]
25 1" 9 to 300 dm
32 – 15 to 500 dm
40 1½" 25 to 700 dm
50 2" 35 to 1100 dm
65 – 60 to 2000 dm
80 3" 90 to 3000 dm
100 4" 145 to 4700 dm
125 – 220 to 7500 dm
150 6" 20 to 600 m
200 8" 35 to 1100 m
250 10" 55 to 1700 m
300 12" 80 to 2400 m
350 14" 110 to 3300 m
400 16" 140 to 4200 m
450 18" 180 to 5400 m
500 20" 220 to 6600 m
/min 75 dm/min 0.50 dm
/min 125 dm/min 1.00 dm
/min 200 dm/min 1.50 dm
/min 300 dm/min 2.50 dm
/min 500 dm/min 5.00 dm
/min 750 dm/min 5.00 dm
/min 1200 dm/min 10.0 dm
/min 1850 dm/min 15.0 dm
/h 150 m/h 0.03 m
/h 300 m/h 0.05 m
/h 500 m/h 0.05 m
/h 750 m/h 0.10 m
/h 1000 m/h 0.10 m
/h 1200 m/h 0.15 m
/h 1500 m/h 0.25 m
/h 2000 m/h 0.25 m
Full scale value, current
output
(v ~ 2.5 m/s)
Pulse value
(~ 2 pulses/s)
Low flow cut off
(v ~ 0.04 m/s)
1.00 dm/min
2.00 dm/min
3.00 dm/min
5.00 dm/min
8.00 dm/min
12.0 dm/min
20.0 dm/min
30.0 dm/min
2.50 m/h
5.00 m/h
7.50 m/h
10.0 m/h
15.0 m/h
20.0 m/h
25.0 m/h
30.0 m/h
Endress+Hauser 19
Page 20
Proline Promag 10P
L
Flow characteristic values (SI units)
Diameter Recommended flow rate Factory settings
Min./max. full scale value
(v ~ 0.3 or 10 m/s)
[mm] [inch]
600 24" 310 to 9600 m/h 2500 m/h 0.30 m
Flow characteristic values (US units)
Diameter Recommended flow rate Factory settings
Min./max. full scale value
[inch] [mm]
1" 25 2.5 to 80 gal/min 18 gal/min 0.20 gal 0.25 gal/min
1½" 40 7 to 190 gal/min 50 gal/min 0.50 gal 0.75 gal/min
2" 50 10 to 300 gal/min 75 gal/min 0.50 gal 1.25 gal/min
3" 80 24 to 800 gal/min 200 gal/min 2.00 gal 2.50 gal/min
4" 100 40 to 1250 gal/min 300 gal/min 2.00 gal 4.00 gal/min
6" 150 90 to 2650 gal/min 600 gal/min 5.00 gal 12.0 gal/min
8" 200 155 to 4850 gal/min 1200 gal/min 10.0 gal 15.0 gal/min
10" 250 250 to 7500 gal/min 1500 gal/min 15.0 gal 30.0 gal/min
12" 300 350 to 10600 gal/min 2400 gal/min 25.0 gal 45.0 gal/min
14" 350 500 to 15000 gal/min 3600 gal/min 30.0 gal 60.0 gal/min
16" 400 600 to 19000 gal/min 4800 gal/min 50.0 gal 60.0 gal/min
18" 450 800 to 24000 gal/min 6000 gal/min 50.0 gal 90.0 gal/min
20" 500 1000 to
24" 600 1400 to
(v ~ 0.3 or 10 m/s)
gal/min 7500 gal/min 75.0 gal 120.0gal/min
30000
gal/min 10500 gal/min 100.0 gal 180.0gal/min
44000
Full scale value, current
output
(v ~ 2.5 m/s)
Full scale value, current
output
(v ~ 2.5 m/s)
Pulse value
(~ 2 pulses/s)
Pulse value
(~ 2 pulses/s)
Low flow cut off
Low flow cut off
(v ~ 0.04 m/s)
40.0 m/h
(v ~ 0.04 m/s)
Pressure loss • No pressure loss if the sensor is installed in a pipe with the same nominal diameter.
• Pressure losses for configurations incorporating adapters according to DIN EN 545
(→ 12, Section "Adapters").

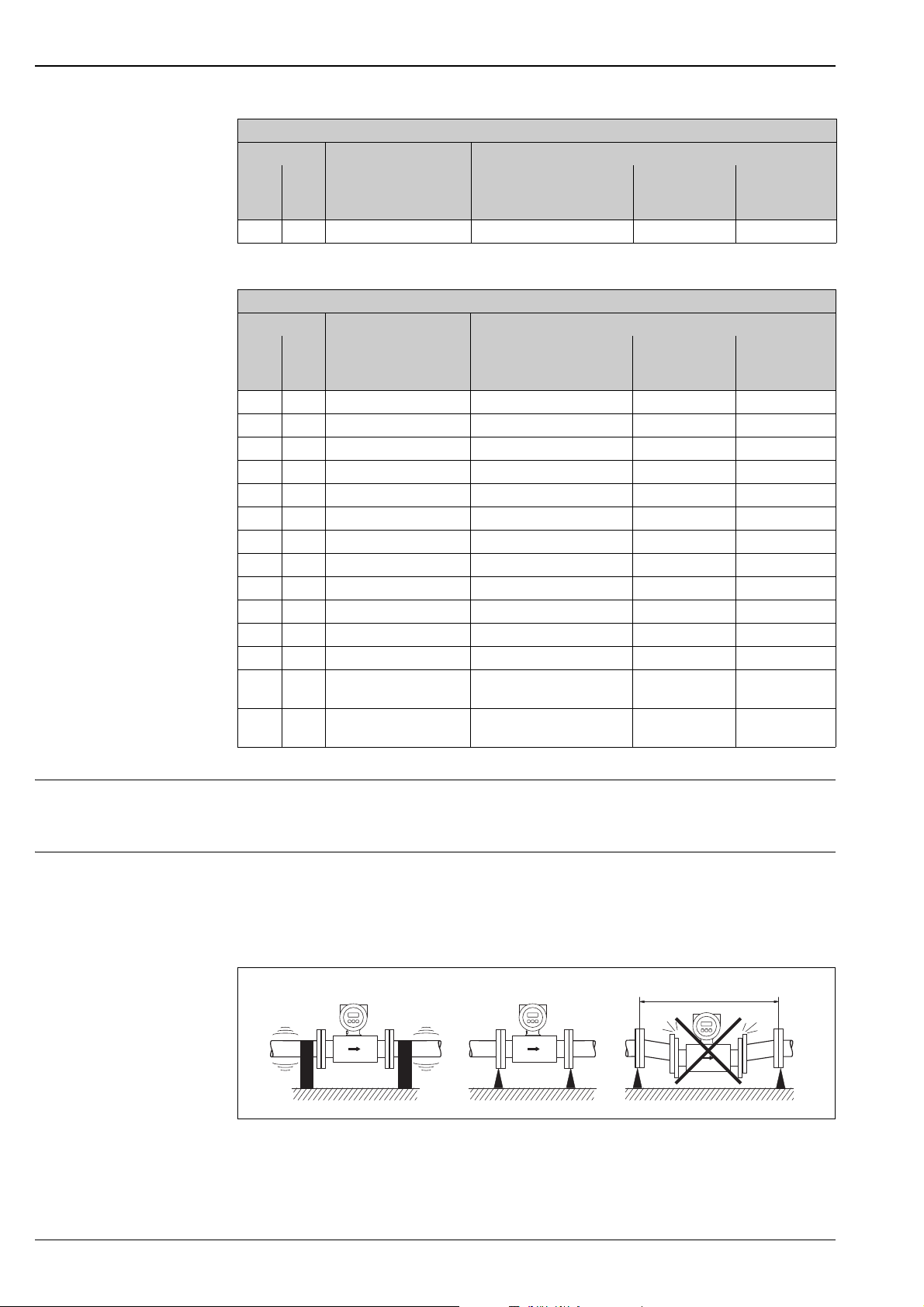

Vibrations Secure the piping and the sensor if vibration is severe.
!
Note!
If vibrations are too severe, we recommend the sensor and transmitter be mounted separately.
Information on the permitted shock and vibration resistance → 14, Section "Shock and vibration
resistance".
Measures to prevent vibration of the measuring device
L > 10 m (33 ft)
A0003208
20 Endress+Hauser
Page 21
Proline Promag 10P
K
F
E
D
A
H
L
N
O
P
J
G
B
C
M
Mechanical construction

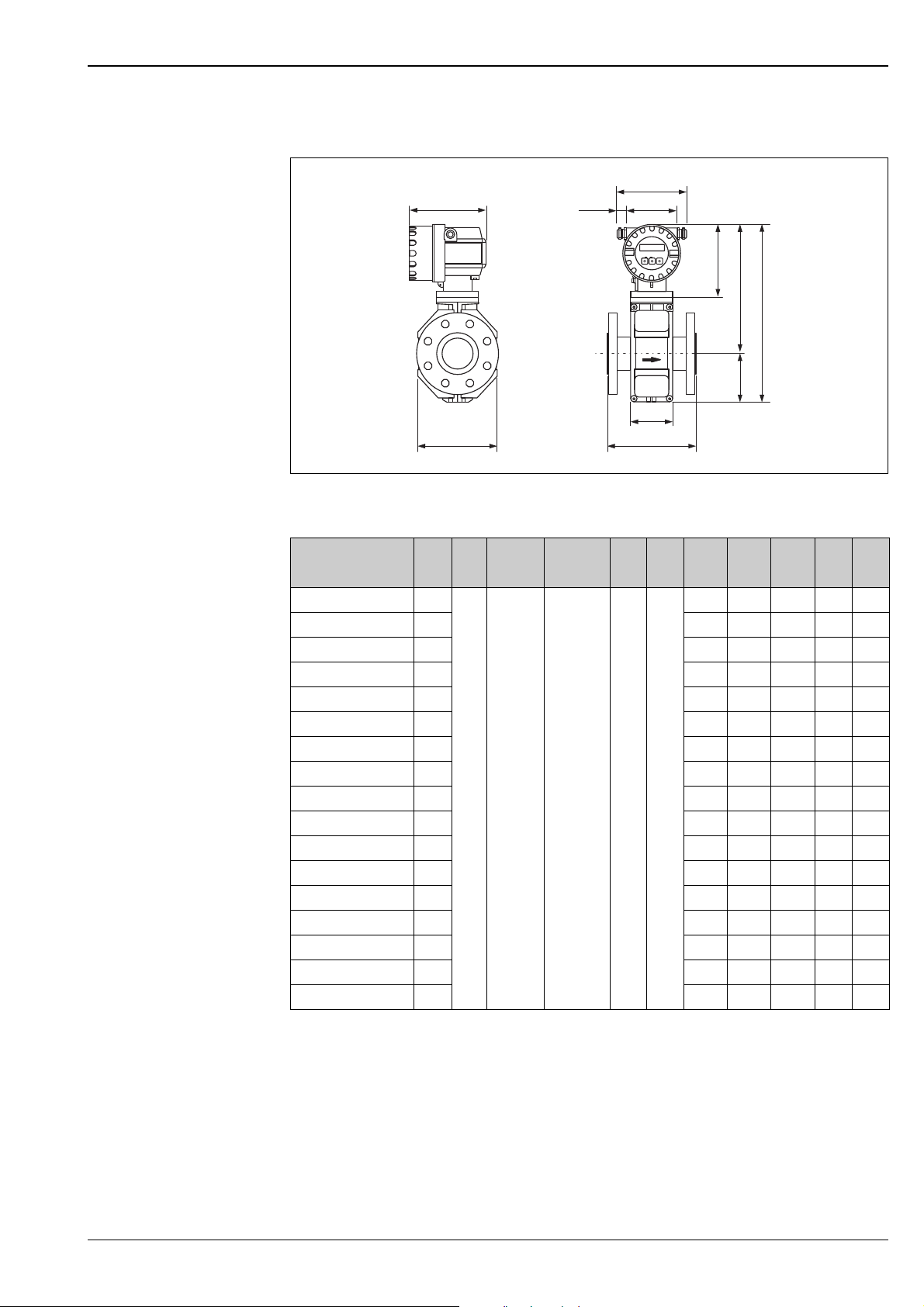

Design, dimensions Transmitter, remote version
A0010718
Transmitter dimensions, remote version
Dimensions in SI units
A B C D E F G Ø H
178 113 135 20 to 30 161 to 181 121 100 8.6 (M8)
J K L M N O P
123 150 100 25 133 177.5 327.5
All dimensions in [mm]
Dimensions in US units
A B C D E F G Ø H
7.00 4.45 5.31 0.79 to 1.81 6.34 to 7.13 4.76 3.94 0.34 (M8)
J K L M N O P
4.84 5.90 3.94 0.98 5.24 6.99 12.89
All dimensions in [inch]
Endress+Hauser 21
Page 22
Transmitter mounting, remote version. Engineering unit mm (in)
248 ±2
(9.76 ±0.08)
238 (9.37)
AB
ANSCHLUSSKLEMMEN - FIELD TERMINALS
A Direct wall mounting
BPipe mounting
Proline Promag 10P
A0010719
22 Endress+Hauser
Page 23
Proline Promag 10P
K
J
L
F
H
G
Esc
E
-
+
E
A
D
B
C
Compact version
A0012464
Dimensions in SI units
DN L
EN (DIN) / JIS / AS
25 200
32 200 341 257 84 94 120
40 200 341 257 84 94 120
50 200 341 257 84 94 120
65 200 391 282 109 94 180
80 200 391 282 109 94 180
100 250 391 282 109 94 180
125 250 472 322 150 140 260
150 300 472 322 150 140 260
200 350 527 347 180 156 324
250 450 577 372 205 156 400
300 500 627 397 230 166 460
350 550 738.5 456.5 282 276 564
400 600 790.5 482.5 308 276 616
450 650 840.5 507.5 333 292 666
500 650 891.5 533.5 358.5 292 717
600 780 995.5 585.5 410.5 402 821
1)
The length (L) is regardless of the pressure rating selected. Fitting length to DVGW.
2)
Only DN 80, 100 and 150 to 300 are available for flanges according to AS.
All dimensions in [mm]
1)
A B C D E F G H J K
2)
341 257 84 94 120
178 20 to 30
161 to
181
113 150
Endress+Hauser 23
Page 24
Proline Promag 10P
Dimensions in US units
DN L
ASME
1" 7.87
1½" 7.87 13.4 10.1 3.32 3.70 4.72
2" 7.87 13.4 10.1 3.32 3.70 4.72
3" 7.87 15.4 11.1 4.30 3.70 7.10
4" 9.84 15.4 11.1 4.30 3.70 7.10
6" 11.8 18.6 12.7 5.91 5.51 10.2
8" 13.8 20.8 13.7 7.10 6.14 12.8
10" 17.7 22.7 14.7 8.08 6.14 15.8
12" 19.7 24.7 15.6 9.06 6.54 18.1
14" 21.7 29.1 18.0 11.1 10.9 22.2
16" 23.6 31.1 19.0 12.1 10.9 24.3
18" 25.6 33.1 20.0 333 11.5 26.2
20" 25.6 35.1 21.0 13.1 11.5 28.2
24" 30.7 39.2 23.1 16.2 15.8 32.3
1)
The length (L) is regardless of the pressure rating selected. Fitting length to DVGW.
All dimensions in [inch]
1)
A B C D E F G H J K
13.4 10.1 3.32 3.70 4.72
7.01
0.79 to
1.81
6.34 to
7.13
4.45 5.91
24 Endress+Hauser
Page 25
Proline Promag 10P
J
L
E
G
F
H
B
C
A
D
Sensor, remote version
A0012462
Dimensions in SI units
DN L
EN (DIN) / JIS / AS
25 200
32 200 286 202 84 120 94
40 200 286 202 84 120 94
50 200 286 202 84 120 94
65 200 336 227 109 180 94
80 200 336 227 109 180 94
100 250 336 227 109 180 94
125 250 417 267 150 260 140
150 300 417 267 150 260 140
200 350 472 292 180 324 156
250 450 522 317 205 400 156
300 500 572 342 230 460 166
350 550 683.5 401.5 282 564 276
400 600 735.5 427.5 308 616 276
450 650 785.5 452.5 333 666 292
500 650 836.5 478 358.5 717 292
600 780 940.5 530 410.5 821 402
1)
The length (L) is regardless of the pressure rating selected. Fitting length to DVGW.
2)
Only DN 80, 100 and 150 to 300 are available for flanges according to AS.
All dimensions in [mm]
1)
A B C D E F G H J
2)
286 202 84 120 94
129 163 143 102
Endress+Hauser 25
Page 26
Proline Promag 10P
Dimensions in US units
DN L
ASME
1" 7.87
1½" 7.87 11.3 7.95 3.32 4.72 3.70
2" 7.87 11.3 7.95 3.32 4.72 3.70
3" 7.87 13.2 8.94 4.30 7.10 3.70
4" 9.84 13.2 8.94 4.30 7.10 3.70
6" 11.8 16.4 10.5 5.91 10.2 5.51
8" 13.8 18.6 11.5 7.10 12.8 6.14
10" 17.7 20.6 12.5 8.08 15.8 6.14
12" 19.7 22.5 13.5 9.06 18.1 6.54
14" 21.7 26.9 15.8 11.1 22.2 10.9
16" 23.6 29.0 16.8 12.1 24.3 10.9
18" 25.6 30.9 17.8 333 26.2 11.5
20" 25.6 32.9 18.8 13.1 28.2 11.5
24" 30.7 37.0 20.9 16.2 32.3 15.8
1)
The length (L) is regardless of the pressure rating selected. Fitting length to DVGW.
All dimensions in [inch]
1)
A B C D E F G H J
5.08 6.42 5.63 4.02
11.3 7.95 3.32 4.72 3.70
26 Endress+Hauser
Page 27
Proline Promag 10P
D
D
DN £ 300 (12")
t
E
Æ
B
Æ
A
Æ
C
Æ
A
Æ
B
Æ
t
³DN 350 (14")
C
Æ
E
Æ

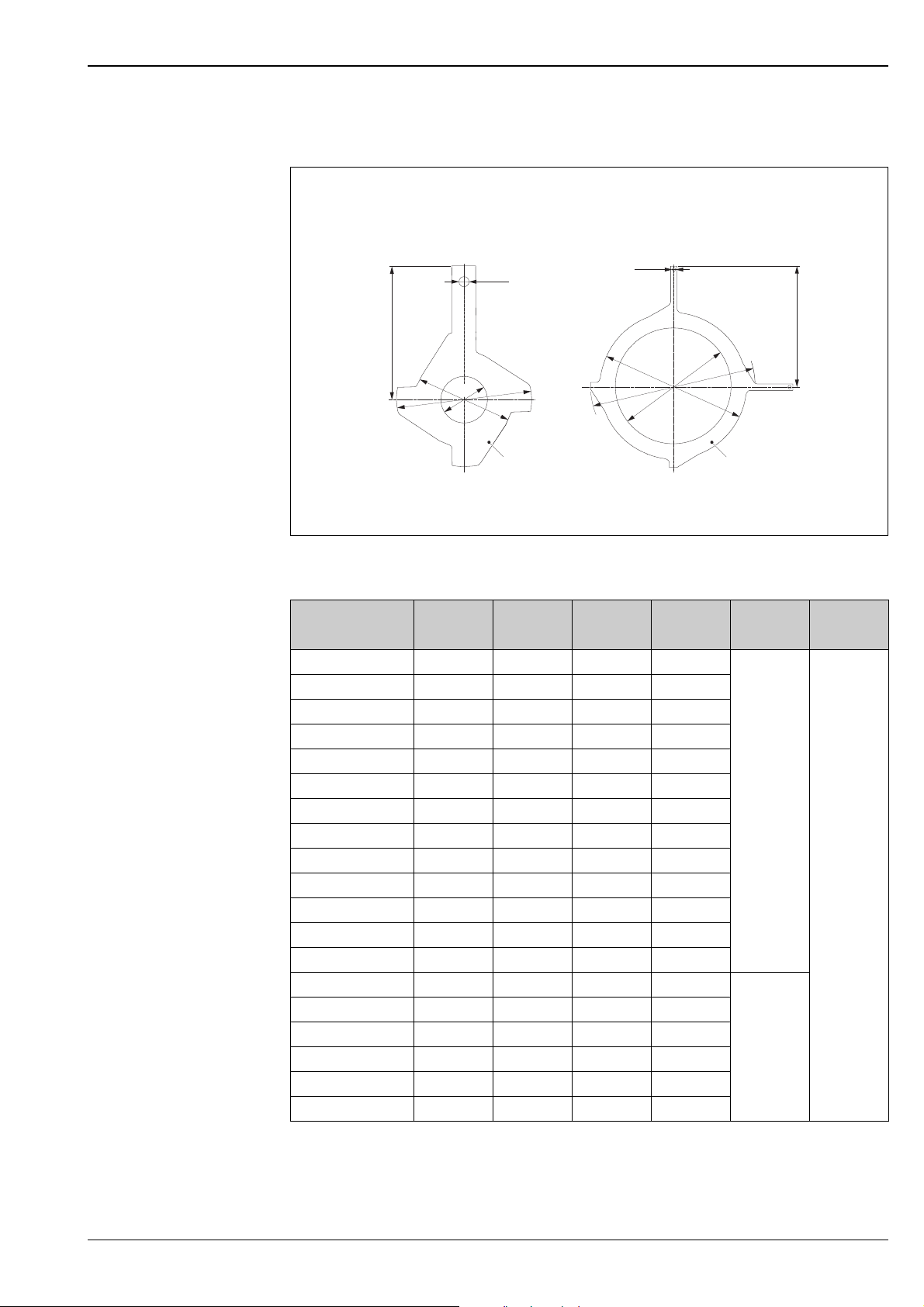

Ground disk for flange connections
A0003221
Dimensions (SI units)
1)
DN
EN (DIN) / JIS / AS
2)
25 26 62 77.5 87.5
32 35 80 87.5 94.5
40 41 82 101 103
50 52 101 115.5 108
65 68 121 131.5 118
80 80 131 154.5 135
100 104 156 186.5 153
125 130 187 206.5 160
150 158 217 256 184
200 206 267 288 205
250 260 328 359 240
3)
300
4)
300
3)
350
3)
375
3)
400
3)
450
1)
Ground disks at DN 25 to 250 (1 to 10") can be used for all flange standards/pressure ratings.
2)
Only DN 25 and DN 50 are available for flanges according to AS.
3)
PN 10/16
4)
PN 25, JIS 10K/20K
All dimensions in [mm]
3)
500
3)
600
A B C D E t
6.5
312 375 413 273
310 375 404 268
343 433 479 365
393 480 542 395
393 480 542 395
439 538 583 417
9.0
493 592 650 460
593 693 766 522
2
Endress+Hauser 27
Page 28
Dimensions (US units)
1)
DN
ASME
1" 1.02 2.44 3.05 3.44
1½" 1.61 3.23 3.98 4.06
2" 2.05 3.98 4.55 4.25
3" 3.15 5.16 6.08 5.31
4" 4.09 6.14 7.34 6.02
6" 6.22 8.54 10.08 7.24
8" 8.11 10.5 11.3 8.07
10" 10.2 12.9 14.1 9.45
12" 12.3 14.8 16.3 10.8
14" 13.5 17.1 18.9 14.4
15" 15.45 18.9 21.3 15.6
16" 15.45 18.9 21.3 15.6
18" 17.3 21.2 23.0 16.4
20" 19.4 23.3 25.6 18.1
24" 23.4 27.3 30.1 20.6
1)
Ground disks can be used for all flange standards/pressure ratings.
All dimensions in [inch]
A B C D E t
Proline Promag 10P
0.26
0.08
0.35
28 Endress+Hauser
Page 29
Proline Promag 10P
Weight Weight in SI units
Weight data in kg
Nominal
diameter
[mm] [inch]EN (DIN) /
25 1"
32 – 8.0 7.3 – 6.0 5.3 –
40 1½" 9.4 8.3 9.4 7.4 6.3 7.4
50 2" 10.6 9.3 10.6 8.6 7.3 8.6
65 –
80 3" 14.0 12.5 14.0 12.0 10.5 12.0
100 4" 16.0 14.7 16.0 14.0 12.7 14.0
125 – 21.5 21.0 – 19.5 19.0 –
150 6" 25.5 24.5 25.5 23.5 22.5 23.5
200 8"
250 10" 65 69.4 75 63 67.4 73
300 12" 70 72.3 110 68 70.3 108
350 14" 115 81.0 175 113 79.0 173
400 16" 135 102 205 133 100 203
450 18" 175 130 255 173 128 253
500 20" 175 144 285 173 142 283
600 24" 235 190 405 233 188 403
1)
For flanges to AS, only DN 25 and 50 are available.
• Transmitter (compact version): 1.8 kg
• Weight data valid for standard pressure ratings and without packaging material.
Compact version Remote version (without cable)
Sensor Transmitter
AS
1)
7.3
JIS ASME /
7.3
PN 40
12.0 11.1 –
PN 16
10K
45 41.9 45
PN 10
AWWA
Class 150
7.3
EN (DIN) /
1)
AS
5.3
JIS ASME /
5.3
PN 40
10.0 9.1 –
PN 16
10K
43 39.9 43
PN 10
AWWA
Class 150
Wall-mount
housing
5.3
6.0
Endress+Hauser 29
Page 30
Proline Promag 10P
Weight in US units (only ASME/ AWWA)
Weight data in lbs
Nominal diameter Compact version Remote version (without cable)
Sensor Transmitter
[mm] [inch] ASME / AWWA ASME / AWWA Wall-mount housing
25 1"
40 1½" 20.7 16.3
50 2" 23.4 19.0
80 3" 30.9 26.5
100 4" 35.3 30.9
150 6" 56.2 51.8
200 8" 99.2 94.8
250 10" 165.4 161.0
300 12" 242.6 238.1
350 14" 385.9 381.5
400 16" 452.0 447.6
450 18" 562.3 557.9
500 20" 628.4 624.0
600 24" 893.0 888.6
• Transmitter (compact version): 3.9 lbs
• Weight data valid for standard pressure ratings and without packaging material.
Class 150
16.1
11.7
13.2
Class 150
30 Endress+Hauser
Page 31
Proline Promag 10P
Measuring tube specifications
Diameter Pressure rating Internal diameter
EN (DIN) AS 2129 AS 4087 ASME JIS PFA PTFE
[mm] [inch] [bar] [lbs] [mm] [inch] [mm] [inch]
25 1" PN 40 Table E PN 16 Cl.150 20K 23 0.91 26 1.02
32 – PN 40 Table E – – 20K 32 1.26 35 1.38
40 1½" PN 40 – – Cl.150 20K 36 1.42 41 1.61
50 2" PN 40 – – Cl.150 10K 48 1.89 52 2.05
65 – PN 16 – – – 10K 63 2.48 67 2.64
80 3" PN 16 – – Cl.150 10K 75 2.95 80 3.15
100 4" PN 16 – – Cl.150 10K 101 3.98 104 4.09
125 – PN 16 – – – 10K 126 4.96 129 5.08
150 6" PN 16 – – Cl.150 10K 154 6.06 156 6.14
200 8" PN 10 – – Cl.150 10K 201 7.91 202 7.95
250 10" PN 10 – – Cl.150 10K – – 256 10.1
300 12" PN 10 – – Cl.150 10K – – 306 12.0
350 14" PN 10 – – Cl.150 10 K – – 337 13.3
400 16" PN 10 – – Cl.150 10 K – – 387 15.2
450 18" PN 10 – – Cl.150 10 K – – 432 17.0
500 20" PN 10 – – Cl.150 10 K – – 487 19.2
600 24" PN 10 – – Cl.150 10 K – 23 593 23.3
Endress+Hauser 31
Page 32
Material • Housing: powder-coated die-cast aluminum
•Sensor housing
– DN 25 to 300 (1 to 12"): powder-coated die-cast aluminum
– DN 350 to 2000 (14 to 78"): with protective lacquering
• Measuring tube
–DN 300 (12"): stainless steel 1.4301 or 1.4306 (304L);
(Flange material: carbon steel with Al/Zn protective coating)
–DN 350 (14"): stainless steel 1.4301 or 1.4306 (304L);
(Flange material: carbon steel with protective lacquering)
• Electrodes: 1.4435 (316L), Alloy C-22
•Flange
– EN 1092-1 (DIN2501):
– Stainless-steel, 1.4571, F316L
– Carbon steel, S235JRG2, S235JR+N, P250GH, P245GH, E250C, A105
– ASME B16.5: A105, F316L
(DN ≤ 300 with Al/Zn protective coating; DN ≥ 350 with protective lacquering)
– JIS B2220:
– Stainless-steel, F316L
– Carbon steel, A105, A350 LF2
– AS 2129 Carbon steel, A105, P235GH, P265GH, S235JRG2
– AS 4087: Carbon steel, A105, P265GH, S275JR
• Seals: to DIN EN 1514-1
• Ground disks: 1.4435 (316L) or Alloy C-22
Proline Promag 10P
Fitted electrodes Measuring electrodes, reference electrodes and empty pipe detection electrodes available as standard
with:
•1.4435
• Alloy C-22
Process connections Flange connection:
• EN 1092-1 (DIN 2501), DN 300 (12") form A, DN 350 (14") form B
(Dimensions to DIN 2501, DN 65 PN 16 and DN 600 (24") PN 16 exclusively to EN 1092-1)
•ASME B16.5
• JIS B2220
• AS 2129 Table E
• AS 4087 PN 16
Surface roughness Electrodes with 1.4435 (AISI 316L), Alloy C-22: 0.3 to 0.5 μm (11.8 to 19.7 μin)
(All data refer to parts in contact with medium)
32 Endress+Hauser
Page 33
Proline Promag 10P
Operability
Local operation Display elements
• Liquid crystal display: unilluminated, two-line, 16 characters per line
• Display (operating mode) preconfigured: volume flow and totalizer status
• 1 totalizer
Operating elements
Local operation via three keys (S, O, F)
Remote operation Operation via HART protocol and FieldCare
Certificates and approvals
CE mark The measuring system is in conformity with the statutory requirements of the EC Directives.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
C-tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media
Authority (ACMA)".
Ex approval Information about currently available Ex versions (ATEX, FM, CSA etc.) can be supplied by your
Endress+Hauser Sales Center on request. All explosion protection data are given in a separate
documentation which is available upon request.
Other standards and guidelines
Pressure measuring device approval
• EN 60529
Degrees of protection by housing (IP code)
• EN 61010
Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory
Procedures.
• IEC/EN 61326
"Emission in accordance with requirements for Class A".
Electromagnetic compatibility (EMC requirements)
• ANSI/ISA-S82.01
Safety Standard for Electrical and Electronic Test, Measuring, Controlling and related Equipment General Requirements Pollution degree 2, Installation Category II.
• CAN/CSA-C22.2 No. 1010.1-92
Safety requirements for Electrical Equipment for Measurement and Control and Laboratory Use.
Pollution degree 2, Installation Category II
Measuring devices with a nominal diameter smaller than or equal to DN 25 correspond to Article 4 (3)
of the EC Directive 2014/68/EU (Pressure Equipment Directive) and have been designed and
manufactured according to good engineering practice. Where necessary (depending on the medium
and process pressure), there are additional optional approvals to Category II/III for larger nominal
diameters.
Endress+Hauser 33
Page 34
Proline Promag 10P
Ordering information
Your Endress+Hauser service organization can provide detailed ordering information and information
on the order codes on request.
Accessories
Various accessories, which can be ordered separately from Endress+Hauser, are available for the
transmitter and the sensor. Your Endress+Hauser service organization can provide detailed
information on the order codes in question.
Documentation
• System Information Promag 10 (SI042D/06)
• Operating Instructions Promag 10 (BA082D/06)
Registered trademarks
HART®
Registered trademark of the HART Communication Foundation, Austin, USA
FieldCare®, Fieldcheck
Registered or registration-pending trademarks of the Endress+Hauser Group
®
34 Endress+Hauser
Page 35
Proline Promag 10P
Endress+Hauser 35
Page 36
www.addresses.endress.com
Loading...
