The Light pack contains:
The following tools may be required:
Muni – CH - F

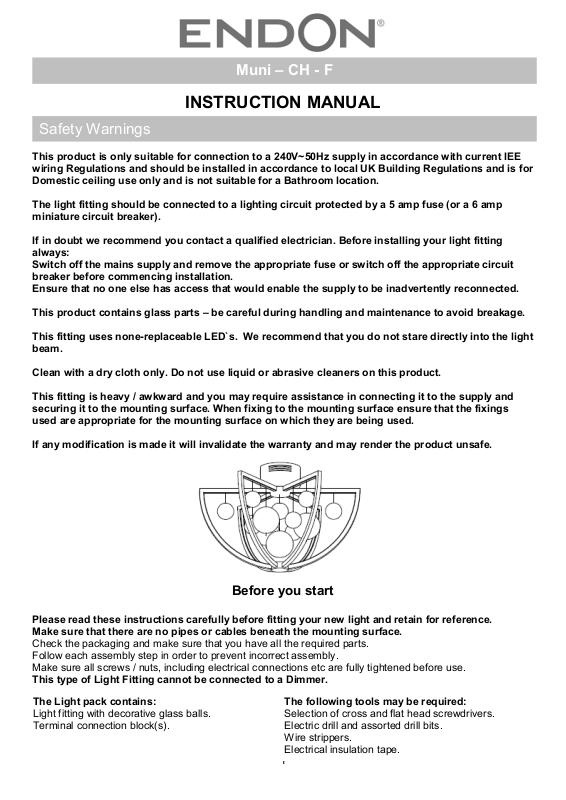

Safety Warnings
INSTRUCTION MANUAL
This product is only suitable for connection to a 240V~50Hz supply in accordance with current IEE
wiring Regulations and should be installed in accordance to local UK Building Regulations and is for
Domestic ceiling use only and is not suitable for a Bathroom location.
The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp
miniature circuit breaker).
If in doubt we recommend you contact a qualified electrician. Before installing your light fitting
always:
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit
breaker before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
This product contains glass parts – be careful during handling and maintenance to avoid breakage.
This fitting uses none-replaceable LED`s. We recommend that you do not stare directly into the light
beam.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.
This fitting is heavy / awkward and you may require assistance in connecting it to the supply and
securing it to the mounting surface. When fixing to the mounting surface ensure that the fixings
used are appropriate for the mounting surface on which they are being used.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Make sure that there are no pipes or cables beneath the mounting surface.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly.
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
This type of Light Fitting cannot be connected to a Dimmer.
Light fitting with decorative glass balls.
Terminal connection block(s).
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
1
Assembly/ User Instructions
B640 10
Diagram A
1. Decide on the position of the light fitting / or remove
Details of terminal wiring.
Diagram B
Diagram C
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
existing light fitting. Take a note of the position of the
electrical connections. Ensure there is a solid
mounting surface, preferably a wooden joist or joist
bridge to support the weight of the light fitting.
2. Diagram A. Remove the fixing bracket, by undoing the
2 side screws (1), retain these for re-use.
3. Use the fixing bracket (2) as a template to mark
the screw holes, mark the screw holes and
secure to the ceiling with the screws (3) supplied.
4. Diagram B. Support your fitting and connect the
house wiring to the terminal block (4) – see also details
of terminal wiring. NOTE: This is a Class II fitting
and must not be earthed. If you have any earth
cables make sure that they are connected to each
other – to maintain earth continuity throughout
your property – and wrap the earth terminal and
connections in 2 layers of good quality insulation
tape and keep them away from the terminal
connections of the fitting. Open the terminal block
box and take out the long tailed grommet, sliding it up
the house supply cable. Cut and strip the cable and
connect it to the terminal block as shown. Close the
box. The additional single terminal block connector is
used for the “loop” wires of the “Ring Circuit”. There
may be more than one set of cables in the “loop”
connections. This additional connector must be
wrapped in 2 layers of good quality insulation tape to
prevent the conductors touching the main terminal
block connections or the metal of the fitting. If there is
a “Ring Circuit” and you do not understand the
connections you must consult an electrician.
5. Secure the fitting back onto the fixing bracket with the 2
side screws (1), removed in 2 above. Make sure that
all the internal cables and connections are inside the
Ceiling cup taking care not to trap or strain the internal
cables.
6. Diagram C. Carefully hang the decorative glass ball
assemblies onto the frame according to the diagram.
7. Turn on the power and test.
