Emerson Process Management LF-Series User Manual

Download

Installation Manual

P/N 20002372, Rev. B June 2005

Micro Motion

LF-Series Flowmeters

Sensor/Transmitter Installation Manual

©2005, Micro Motion, Inc. All rights reserved. Micro Motion is a registered trademark of Micro Motion, Inc. The Micro Motion and Emerson logos are trademarks of Emerson Electric Co. All other trademarks are property of their respective owners.

Chapter 1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Flowmeter components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 Transmitter codes used in this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.5 Installation procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.6 LF-Series model numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.7 Additional documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2 Installing the Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 European installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Determining a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3.1 Hazardous area installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3.2 Distance from transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3.3 Pipe run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3.4 Shutoff valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4 Orienting the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4.1 Flow direction arrow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4.2 Vertical pipeline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.5 Mounting the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.6 Grounding the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 3 Installing the Field-Mount Transmitter. . . . . . . . . . . . . . . . . . . . . . . 9

3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2 Determining an appropriate location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2.1 Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.2.2 Hazardous area classifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.2.3 Power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.2.4 Distance from sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2.5 Accessibility for maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.3 Mounting the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.4 Grounding the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.5 Supplying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.6 Rotating the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 4 Installing the DIN Rail Mount Transmitter . . . . . . . . . . . . . . . . . . . 17

4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2 Determining an appropriate location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2.1 Temperature requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2.2 Hazardous area classifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2.3 Power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2.4 Distance from sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2.5 Accessibility for maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

LF-Series Flowmeters: Sensor/Transmitter Installation i

Contents

4.3 Mounting and removing the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.4 Grounding the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.5 Supplying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Chapter 5 Wiring the Sensor to the Transmitter. . . . . . . . . . . . . . . . . . . . . . . 23

5.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2 Cable types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.3 Wiring to FM or DIN transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.4 MVD Direct Connect wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.4.1 Power supply requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.4.2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 6 I/O Wiring – FM AN Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2 Output terminals and output types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 Output wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 7 I/O Wiring – FM CIO Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.2 Channel configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.3 mA output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.4 Frequency output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.5 Discrete output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.6 Discrete input wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Chapter 8 I/O Wiring – FM FB and PA Transmitters . . . . . . . . . . . . . . . . . . . . 43

8.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.2 F

8.3 Profibus-PA wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

OUNDATION fieldbus wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Chapter 9 I/O Wiring – DIN AN Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.2 Transmitter outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.2.1 mA output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.2.2 Frequency output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.2.3 Wiring to a remote host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Chapter 10 I/O Wiring – DIN CIO Transmitters. . . . . . . . . . . . . . . . . . . . . . . . . 53

10.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

10.2 Channel configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

10.3 mA output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

10.4 Frequency output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.5 Discrete output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

10.6 Discrete input wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

10.7 Wiring to a remote host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

ii LF-Series Flowmeters: Sensor/Transmitter Installation

Contents

Appendix A Dimensions and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 67

A.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

A.2 LF-Series sensor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

A.3 LF-Series transmitter specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

A.3.1 Output options and output option codes . . . . . . . . . . . . . . . . . . . . . . . . . 71

A.3.2 LF-Series FM transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

A.3.3 LF-Series DIN transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Appendix B Return Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

B.1 New and unused equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

B.2 Used equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Appendix C CE Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

C.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

C.2 CE compliance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

LF-Series Flowmeters: Sensor/Transmitter Installation iii

iv LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 1

Before You Begin

1.1 Overview

This chapter provides an orientation to the use of this manual. This manual describes the procedures required to install the following components:

• All LF-Series sensors

• All LF-Series field-mount transmitters

• All LF-Series DIN rail mount transmitters

If you do not know what sensor or transmitter you have, see Section 1.6 for instructions on identifying the component type from the part number on the tag.

1.2 Safety

Safety messages are provided throughout this manual to protect personnel and equipment. Read each safety message carefully before proceeding to the next step.

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

WARNING

Improper installation in a hazardous area can cause an explosion.

For information about hazardous applications, refer to Micro Motion approvals documentation, shipped with the transmitter or available from the Micro Motion web site.

WARNING

Hazardous voltage can cause severe injury or death.

Make sure power is disconnected before installing transmitter.

CAUTION

Improper installation could cause measurement error or flowmeter failure.

Follow all instructions to ensure transmitter will operate correctly.

LF-Series Flowmeters: Sensor/Transmitter Installation 1

Before You Begin

1.3 Flowmeter components

The LF-Series flowmeter includes the following components:

• One of the following LF-Series sensors:

-LF2M

-LF3M

-LF4M

• One of the following LF-Series transmitters:

- LF-Series field-mount transmitter with the 1 mA/1 FO outputs option board (flow-only)

- LF-Series field-mount transmitter with the 1 mA/1 FO outputs option board (multivariable)

- LF-Series field-mount transmitter with the 2 mA/1 FO outputs option board (multivariable, configurable)

- LF-Series field-mount transmitter with the F

- LF-Series field-mount transmitter with the Profibus-PA outputs option board

- LF-Series DIN rail mount transmitter with the 1 mA/1 FO outputs option board (flow-only)

- LF-Series DIN rail mount transmitter with the 2 mA/1 FO outputs option board (multivariable, configurable)

To identify your sensor and transmitter type, see Section 1.6.

OUNDATION

™

fieldbus outputs option board

1.4 Transmitter codes used in this manual

In this manual, codes are used to identify specific LF-Series transmitter types. The codes are listed in Tabl e 1 -1 .

Tabl e 1-1 Transmitter codes

Transmitter type Code

LF-Series field-mount transmitter with the 1 mA/1 FO outputs option board (flow-only or multivariable)

LF-Series field-mount transmitter with the 2 mA/1 FO outputs option board (multivariable, configurable)

LF-Series field-mount transmitter with the F LF-Series field-mount transmitter with the Profibus-PA outputs option board FM PA LF-Series DIN rail mount transmitter with the 1 mA/1 FO outputs option board (flow-only) DIN AN LF-Series DIN rail mount transmitter with the 2 mA/1 FO outputs option board (multivariable,

configurable)

FM AN

FM CIO

OUNDATION fieldbus outputs option board FM FB

DIN CIO

2 LF-Series Flowmeters: Sensor/Transmitter Installation

Before You Begin

1.5 Installation procedures

To install the LF-Series flowmeter, the following procedures are required:

• Install the sensor (all models) – see Chapter 2

• Install the transmitter

- LF-Series field-mount transmitters – see Chapter 3

- LF-Series DIN rail mount transmitters – see Chapter 4

• Wire the transmitter to the sensor – see Chapter 5

• Wire the transmitter outputs or connect the communication wires:

- LF Series FM AN transmitters – see Chapter 6

- LF-Series FM CIO transmitters – see Chapter 7

- LF-Series FM FB or PA transmitters – see Chapter 8

- LF-Series DIN AN transmitters – see Chapter 9

- LF-Series DIN CIO transmitters – see Chapter 10

1.6 LF-Series model numbers

The LF-Series sensor model number has the following form:

LFxMxxxxxxxxxxx

The first four characters identify the sensor model. The LF-Series transmitter model number has the following form:

LFTxxxxxxxx

where the fourth character identifies the transmitter type:

•

1 and 3 = FM AN

•

2 = DIN AN

•

4 = FM CIO

•

5 = DIN CIO

•

6 = FM FB

•

7 = FM PA

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

1.7 Additional documentation

For information on transmitter configuration and use, and flowmeter troubleshooting, see LF-Series Transmitters: Configuration and Use, LF-Series Transmitters with F

OUNDATION Fieldbus:

Configuration and Use, or LF-Series Transmitters with Profibus-PA: Configuration and Use.

LF-Series Flowmeters: Sensor/Transmitter Installation 3

4 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 2

Installing the Sensor

2.1 Overview

This chapter describes how to install Micro Motion LF-Series sensors. The following general steps are required:

• Determine the location of the sensor (see Section 2.3)

• Orient the sensor (see Section 2.4)

• Mount the sensor (see Section 2.5)

• Ground the sensor (see Section 2.6)

2.2 European installations

This Micro Motion product complies with all applicable European directives when properly installed in accordance with the instructions in this manual. Refer to the EC declaration of conformity for directives that apply to this product.

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

The EC declaration of conformity, with all applicable European directives, and the complete ATEX Installation Drawings and Instructions are available on the internet at www.micromotion.com/atex

or through your local Micro Motion support center.

2.3 Determining a location

Choose a location for the sensor based on the requirements described in this section. The following general guidelines can help you select an appropriate location for the sensor.

• You should be able to stop flow through the sensor to facilitate the zeroing procedure.

• For optimal performance, the sensor should remain full of process fluid.

• The sensor must be installed in an area that is compatible with the classification specified on the approvals tag (see Table A-4).

2.3.1 Hazardous area installations

Make sure the hazardous area specified on the sensor approvals tag is suitable for the environment in which the sensor is installed (see Table A-4).

LF-Series Flowmeters: Sensor/Transmitter Installation 5

Installing the Sensor

2.3.2 Distance from transmitter

The maximum cable length between the sensor and the transmitter is 1000 ft (300 m). If you are installing the LF-Series sensor for use in an MVD

• The maximum cable length between the sensor and the direct host is 1000 ft (300 m).

• The maximum cable length between the sensor and the power supply depends on the wire size, as shown in Table 2-1. The wire must be sized to provide a minimum of 15 V at the sensor. See the discussion in Section 5.4.1.

Tabl e 2-1 Power supply wire size and cable length – MVD Direct Connect installations

Wire size Maximum length

22 AWG (0,35 mm2) 300 ft (90 m) 20 AWG (0,5 mm 18 AWG (0,8 mm2) 500 ft (150 m)

™

) 500 ft (150 m)

Direct Connect™ installation:

Micro Motion supplies 4-wire cable to connect the sensor to the transmitter or remote host. The cable is fitted with a Eurofast ranging from 6.5 ft (2 m) to 500 ft (150 m). For longer cable lengths, contact the factory.

2.3.3 Pipe run

Micro Motion sensors do not require a straight run of pipe upstream or downstream.

2.3.4 Shutoff valve

After the sensor and transmitter have been installed, you must perform the zeroing procedure. During the zeroing procedure, flow through the sensor must be halted and the sensor tubes must be completely full of process fluid. A shutoff valve, downstream from the sensor, is recommended to halt flow during the zeroing procedure. For more information about zeroing, refer to the instruction manual shipped with the transmitter.

2.4 Orienting the sensor

The sensor will function properly in any orientation if the sensor tubes remain filled with process fluid.

2.4.1 Flow direction arrow

The sensor has a flow direction arrow to help you configure the transmitter for flow direction. If possible, install the sensor so that the flow direction arrow matches actual process flow.

connector for connection to the sensor. Cable can be ordered in lengths

2.4.2 Vertical pipeline

If the sensor is installed in a vertical pipeline, liquids and slurries should flow upward through the sensor. Gases may flow upward or downward.

6 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the Sensor

2.5 Mounting the sensor

Use your common practices to minimize torque and bending load on process connections. Figure 2-1 illustrates how to mount the sensor.

Figure 2-1 Mounting an LF-Series sensor

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

2.6 Grounding the sensor

The sensor’s mounting plate must be grounded to earth.

Improper grounding could cause measurement error.

To reduce the risk of measurement error:

• Ground the flowmeter to earth, or follow ground network requirements for the facility.

• For hazardous area installations in Europe, refer to standard EN 60079-14 if national standards do not apply.

If national standards are not in effect, follow these grounding guidelines:

• Use copper wire, 14 AWG (2,5 mm

• Keep all ground leads as short as possible, less than 1 Ω impedance.

• Connect ground leads directly to earth, or follow plant standards.

CAUTION

) or larger wire size, for grounding.

LF-Series Flowmeters: Sensor/Transmitter Installation 7

8 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 3

Installing the Field-Mount Transmitter

3.1 Overview

This chapter describes how to install Micro Motion LF-Series field-mount transmitters. The following general steps are required:

• Determine the location of the transmitter and other flowmeter components (see Section 3.2)

• Mount the transmitter (see Section 3.3)

• Ground the transmitter (see Section 3.4)

• Supply power to the flowmeter (see Section 3.5)

• Rotate the display, if desired and the transmitter has a display (see Section 3.6)

3.2 Determining an appropriate location

To determine an appropriate location for the transmitter, you must consider the environmental requirements of the transmitter, hazardous area classification, location of power source, cable lengths, accessibility for maintenance, and visibility of the display (if the transmitter is equipped with a display).

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

The field-mount installation architecture is shown in Figure 3-1.

Figure 3-1 Installation architecture

Eurofast connector

(supplied with Micro Motion cable)

LF-Series sensor

4-wire cable

LF-Series FM transmitter

LF-Series Flowmeters: Sensor/Transmitter Installation 9

Installing the Field-Mount Transmitter

3.2.1 Environmental requirements

The transmitter’s environmental requirements include temperature, humidity, and vibration.

Temperature limits

Install the transmitter in an environment where ambient temperature is between –40 and +140 °F (–40 and +60 °C). If possible, install the transmitter in a location that will prevent direct exposure to sunlight.

Different ambient temperature requirements may apply, depending on your installation. Refer to the approvals documentation shipped with the transmitter or available on the Micro Motion web site.

Humidity limits

Install the transmitter in an environment where relative humidity is between 5 and 95%, noncondensing at 140 °F (60 °C).

Vibration limits

The transmitter meets IEC 68.2.6, endurance sweep, 5 to 2000 Hz, 50 sweep cycles at 1.0 g.

3.2.2 Hazardous area classifications

If you plan to mount the transmitter in a hazardous area, verify that the transmitter has the appropriate hazardous area approval. Each transmitter has a hazardous area approvals tag attached to the transmitter housing.

For more information about hazardous area classifications and requirements, see Section A.3.2, Tabl e A -1 6.

3.2.3 Power source

The transmitter must be connected to an AC or DC voltage source. The transmitter automatically recognizes the source voltage.

AC power requirements

If you are using AC power, the following requirements apply:

• 85–265 VAC

•50/60 Hz

• 6 watts typical, 11 watts maximum

10 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the Field-Mount Transmitter

DC power requirements

Note: These requirements assume a single transmitter per cable. Connecting multiple transmitters to a single cable should generally be avoided.

If you are using DC power, the following requirements apply:

• 18–100 VDC

• 6 watts typical, 11 watts maximum

• At startup, the transmitter power source must provide a minimum of 1.5 amps of short-term current per transmitter.

• Length and conductor diameter of the power cable must be sized to provide 18 VDC minimum at the power terminals, at a load current of 0.5 amps. To size the cable, refer to Table 3-1 and use the following formula as a guideline:

MinimumSupplyVoltage 18V CableResistance CableLength× 0.5A×()+=

Tabl e 3-1 Typical power cable resistances at 68 °F (20 °C)

Gauge Resistance

14 AWG 0.0050 Ω/foot 16 AWG 0.0080 Ω/foot 18 AWG 0.0128 Ω/foot 20 AWG 0.0204 Ω/foot

2,5 mm

1,5 mm

1 mm 0,75 mm 0,5 mm

(1) These values include the resistance of both high and low conductors in a cable.

Example

The transmitter is mounted 350 feet from a DC power supply. If you want to use

0,0136 Ω/meter 0,0228 Ω/meter 0,0340 Ω/meter 0,0460 Ω/meter 0,0680 Ω/meter

16 AWG cable, calculate the required voltage at the DC power supply as follows:

(1)

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

MinimumSupplyVoltage 18V CableResistance CableLength× 0.5 A×()+=

MinimumSupplyVoltage 18 V 0.0080 ohms/ft 350 ft× 0.5A×()+=

MinimumSupplyVoltage 19.4V=

3.2.4 Distance from sensor

The maximum cable length between the sensor and the transmitter is 1000 ft (300 m). Micro Motion supplies 4-wire cable to connect the sensor to the transmitter. The cable is fitted with a

Eurofast connector for connection to the sensor. Cable can be ordered in lengths ranging from 6.5 ft (2 m) to 500 ft (150 m). For longer cable lengths, contact the factory.

LF-Series Flowmeters: Sensor/Transmitter Installation 11

Installing the Field-Mount Transmitter

3.2.5 Accessibility for maintenance

Ensure that the transmitter is mounted in a location and orientation that will allow easy access to the terminals and to the display (if your transmitter has a display).

3.3 Mounting the transmitter

You can mount the transmitter in any orientation as long as the conduit and wiring openings do not point upward. For transmitter dimensions, see Figure A-1 or Figure A-2

Condensation or excessive moisture entering the transmitter could damage the transmitter and result in measurement error or flowmeter failure.

To reduce the risk of measurement error or flowmeter failure:

• Ensure the integrity of gaskets and O-rings.

• Grease the O-rings every time the transmitter housing is opened and closed.

• Do not mount the transmitter with the conduit openings pointing upward.

• Install drip legs on conduit or cable.

• Seal the conduit openings.

• Fully tighten the transmitter cover.

CAUTION

See Figure 3-2 for a diagram of the mounting bracket supplied with the transmitter. Both pipe mounting and wall mounting are shown. Ensure that the transmitter is mounted and oriented in a way that will allow easy access to the terminals and to the display (if your transmitter has a display).

Figure 3-2 4-wire remote – Wall mount or pipe mount

Mounting bracket

(wall mount)

Mounting bracket

(pipe mount)

12 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the Field-Mount Transmitter

To mount the transmitter:

1. Identify the components shown in Figure 3-3. For dimensions, see Appendix A.

2. If desired, re-orient the transmitter on the bracket. a. Remove the junction end-cap from the junction housing. b. Loosen each of the four cap screws (4 mm) inside the junction housing. c. Rotate the bracket so that the transmitter is oriented as desired. d. Tighten the cap screws, torquing to 30 to 38 in-lbs (3 to 4 N-m). e. Replace the junction end-cap.

3. Attach the mounting bracket to an instrument pole or wall. For pipe mount, two user-supplied U-bolts are required. Contact Micro Motion to obtain a pipe-mount installation kit if required.

Figure 3-3 Transmitter components – field-mount transmitters

Ground screw

Mounting bracket

4 X Cap screws

(4 mm)

Junction end-cap

Mating connector

Mating connector socket

3.4 Grounding the transmitter

CAUTION

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

Main enclosure

Conduit opening for 4-wire cable

Junction housing

Improper grounding could cause measurement error.

To reduce the risk of measurement error:

• Ground the transmitter to earth, or follow ground network requirements for the facility.

• For hazardous area installations in Europe, refer to standard EN 60079-14 if national standards do not apply.

If national standards are not in effect, follow these transmitter grounding guidelines:

• Use copper wire, 14 AWG (2,5 mm

) or larger wire size, for grounding.

• Keep all ground leads as short as possible, less than 1 Ω impedance.

• Connect ground leads directly to earth, or follow plant standards.

LF-Series Flowmeters: Sensor/Transmitter Installation 13

Installing the Field-Mount Transmitter

The transmitter has both an internal and an external grounding screw (see Figures 3-3 and 3-4). Ground the transmitter according to applicable local standards.

3.5 Supplying power

In all installations, power must be provided to the transmitter. Refer to Section 3.2.3 for information on the transmitter’s power supply requirements.

1. Connect the power supply to terminals 9 and 10, under the Warning flap (see Figure 3-4). Terminate the positive (line) wire on terminal 10 and the return (neutral) wire on terminal 9.

2. Ground the power supply using the equipment ground, also under the Warning flap.

3. A user-supplied switch may be installed in the power supply line. For compliance with lowvoltage directive 73/23/EEC (European installations), a switch in close proximity to the transmitter is required.

Figure 3-4 Wiring the transmitter power supply

Warning flap

3.6 Rotating the display

If your transmitter has a display, you can rotate the display on the transmitter up to 360° in 90° increments.

Equipment ground

WARNING

Removing the display cover in explosive atmospheres while the power is on can cause an explosion.

To reduce the risk of an explosion, before removing the display cover in explosive atmospheres, be sure to shut off the power and wait five minutes.

14 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the Field-Mount Transmitter

Using a dry cloth to clean the display cover can cause static discharge, which could result in an explosion in an explosive atmosphere.

To reduce the risk of an explosion, always use a damp cloth to clean the display cover in an explosive atmosphere.

To rotate the display, follow the instructions below:

1. Power down the transmitter.

2. Remove the end-cap clamp by removing the cap screw. See Figure 3-5.

3. Turn the display cover counterclockwise to remove it from the main enclosure.

4. Carefully loosen (and remove if necessary) the semicaptive display screws while holding the display module in place.

5. Carefully pull the display module out of the main enclosure until the sub-bezel pin terminals are disengaged from the display module.

6. Rotate the display module to the desired position.

WARNING

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

7. Insert the sub-bezel pin terminals into the display module pin holes to secure the display in its new position.

8. If you have removed the display screws, line them up with the matching holes on the subbezel, then reinsert and tighten them.

9. Place the display cover onto the main enclosure. Turn the display cover clockwise until it is snug.

10. Replace the end-cap clamp by reinserting and tightening the cap screw.

11. Restore power to the transmitter.

LF-Series Flowmeters: Sensor/Transmitter Installation 15

Installing the Field-Mount Transmitter

Figure 3-5 Display components

Main enclosure

Pin terminals

Sub-bezel

Display module

Display cover

Display screws

End-cap clamp

Cap screw

16 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 4

Installing the DIN Rail Mount Transmitter

4.1 Overview

This chapter describes how to install LF-Series DIN rail mount transmitters. The following general steps are required:

• Determine the location of the transmitter and other flowmeter components (see Section 4.2)

• Mount the transmitter (see Section 4.3)

• Ground the transmitter (see Section 4.4)

• Supply power to the flowmeter (see Section 4.5)

4.2 Determining an appropriate location

See Figure 4.2.5 for the DIN rail mount installation architecture. To determine an appropriate location for the transmitter, you must consider the temperature

requirements of the transmitter, hazardous area issues, location of power source, cable lengths, and accessibility for maintenance.

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

Figure 4-1 Installation architecture

Eurofast connector

(supplied with Micro Motion cable)

LF-Series sensor

4.2.1 Temperature requirements

Install the transmitter in an environment where ambient temperature is between –40 and +131 °F (–40 and +55 °C).

Hazardous area Safe area

4-wire cable

LF-Series DIN transmitter (top view)

LF-Series Flowmeters: Sensor/Transmitter Installation 17

Installing the DIN Rail Mount Transmitter

Different ambient temperature requirements may apply, depending on your installation. Refer to the approvals documentation shipped with the transmitter or available on the Micro Motion web site.

4.2.2 Hazardous area classifications

The LF-Series DIN rail mount transmitter is designed for installation in a safe area. It can be connected to a sensor located in a hazardous area.

For more information about hazardous area classifications, see Appendix A.

4.2.3 Power source

The transmitter must be connected to a DC voltage source. Do not use an AC power supply.

Applying AC voltage to the transmitter will damage the device.

To avoid damaging the transmitter, do not connect it to an AC power supply.

CAUTION

The following requirements apply:

• 19.2 to 28.8 VDC at the power terminals, at a load current of 330 mA

• 6.3 watts maximum

• At startup, the transmitter power source must provide a minimum of 1.0 amp of short-term current per transmitter

To size the cable, refer to Table 4-1 and use the following formula as a guideline:

MinimumSupplyVoltage 19.2V CableResistance CableLength× 0.33 A×()+=

Tabl e 4-1 Typical power cable resistances at 68 °F (20 °C)

Gauge Resistance

14 AWG 0.0050 Ω/foot 16 AWG 0.0080 Ω/foot 18 AWG 0.0128 Ω/foot 20 AWG 0.0204 Ω/foot 2,5 mm 1,5 mm

1 mm 0,75 mm 0,5 mm

0,0136 Ω/meter 0,0228 Ω/meter 0,0340 Ω/meter 0,0460 Ω/meter 0,0680 Ω/meter

(1)

(1) These values are based on copper wire, and include the resistance of both wires in a cable. If you are using a material other

than copper, refer to the resistivity specifications for your wire type.

18 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the DIN Rail Mount Transmitter

Example

The transmitter is mounted 350 feet from a DC power supply. If you want to use 16 AWG cable, calculate the required voltage at the DC power supply as follows:

MinimumSupplyVoltage 19.2 CableResistance CableLength× 0.33 A×()+=

MinimumSupplyVoltage 19.2V 0.0080 ohms/ft 350 ft× 0.33 A×()+=

MinimumSupplyVoltage 20.1V=

4.2.4 Distance from sensor

The maximum cable length between the sensor and the transmitter is 1000 ft (300 m). Micro Motion supplies 4-wire cable to connect the sensor to the transmitter. The cable is fitted with a

Eurofast

connector for connection to the sensor. Cable can be ordered in lengths ranging from 6.5 ft

(2 m) to 500 ft (150 m). For longer cable lengths, contact the factory.

4.2.5 Accessibility for maintenance

Ensure that the transmitter is mounted in a location that will allow easy access to the terminals and the front panel.

4.3 Mounting and removing the transmitter

Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin Installing the Sensor Installing the DIN TransmitterInstalling the FM TransmitterBefore You Begin

The transmitter is designed to be mounted on a 35 mm rail. The DIN rail must be grounded. See Figure A-3 for dimensions.

If the temperature is above 113 °F (45 °C) and you are mounting multiple transmitters, they must be mounted at least 0.33 in (8,5 mm) apart. Use an end bracket or end stop to space the transmitters. See Figure 4-2.

Figure 4-2 Mounting multiple transmitters

Dimensions in

inches

(mm)

0.33 or greater (8,5 or greater)

End bracket or end stop

0.33 in (8,5 mm) minimum spacing

LF-Series Flowmeters: Sensor/Transmitter Installation 19

Installing the DIN Rail Mount Transmitter

To mount the transmitter:

1. Locate the transmitter in the desired position on the DIN rail.

2. Place the slot on back of the transmitter against the rail (see Figure 4-3

3. Apply pressure to the transmitter until the spring clamp snaps onto the rail.

Figure 4-3 Mounting and removing the transmitter

Spring clamp

To remove the transmitter:

1. Slide a screwdriver into the spring clamp release loop (see Figure 4-3

2. Pull the spring clamp away from the transmitter.

3. Lift the transmitter from the rail.

4.4 Grounding the transmitter

Improper grounding could cause measurement error.

To reduce the risk of measurement error:

• Ground the transmitter to earth, or follow ground network requirements for the facility.

• For hazardous area installations in Europe, refer to standard EN 60079-14 if national standards do not apply.

DIN rail

Spring clamp release loop

CAUTION

If national standards are not in effect, follow these transmitter grounding guidelines:

• Use copper wire, 14 AWG (2,5 mm

) or larger wire size, for grounding.

• Keep all ground leads as short as possible, less than 1 Ω impedance.

• Connect ground leads directly to earth, or follow plant standards.

20 LF-Series Flowmeters: Sensor/Transmitter Installation

Installing the DIN Rail Mount Transmitter

To ground the transmitter, ground the DIN rail. A rail clip in the base of the transmitter housing grounds the transmitter to the DIN rail.

4.5 Supplying power

In all installations, power must be provided to the transmitter. Refer to Section 4.2.3 for information on the transmitter’s power supply requirements.

Connect the power supply to terminals 11 and 12. Terminate the positive wire on terminal 11 and the negative wire on terminal 12. See Figure 4-4.

Terminals 13 and 14 are used to jumper power to another LF-Series DIN transmitter. A maximum of five transmitters can be jumpered together.

Figure 4-4 Wiring the transmitter power supply

–

Primary power supply

(DC)

–

Power supply jumper to a maximum of four other LF-Series DIN transmitters

LF-Series Flowmeters: Sensor/Transmitter Installation 21

22 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 5

Wiring the Sensor to the Transmitter

5.1 Overview

This chapter describes how to connect Micro Motion LF-Series sensors to LF-Series transmitters. This chapter also describes how to connect the LF-Series sensor to a remote host, for use in MVD Direct Connect installations.

CAUTION

Large electromagnetic fields can interfere with flowmeter communication signals.

Improper installation of cable or conduit can cause measurement error or flowmeter failure. To reduce the risk of measurement error or flowmeter failure, keep cable or conduit away from devices such as transformers, motors, and power lines which produce large electromagnetic fields.

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

5.2 Cable types

Micro Motion offers 4-wire cable with a factory-installed Eurofast connector.

5.3 Wiring to FM or DIN transmitters

To connect the cable, follow the steps below.

1. To connect the cable to the sensor, plug the Eurofast connector onto the top of the sensor connection. The connector is keyed for appropriate orientation.

2. Identify the wires in the 4-wire cable. The 4-wire cable supplied by Micro Motion consists of one pair of 18 AWG (0,75 mm connection, and one pair of 22 AWG (0,35 mm for the RS-485 connection.

3. To connect:

• To a field-mount transmitter, connect the four wires from the sensor to terminals 1–4 on

the mating connector of the transmitter. See Figure 5-1. Do not ground the shield, braid, or drain wire(s) at the transmitter.

• To a DIN rail mount transmitter, connect the four wires from the sensor to terminals 1–4

on the transmitter. See Figure 5-2. Do not ground the shield, braid, or drain wire(s) at the transmitter.

) wires (brown and black), which should be used for the VDC

) wires (blue and white), which should be used

LF-Series Flowmeters: Sensor/Transmitter Installation 23

Wiring the Sensor to the Transmitter

Figure 5-1 4-wire cable between sensor and FM transmitter

Sensor terminals

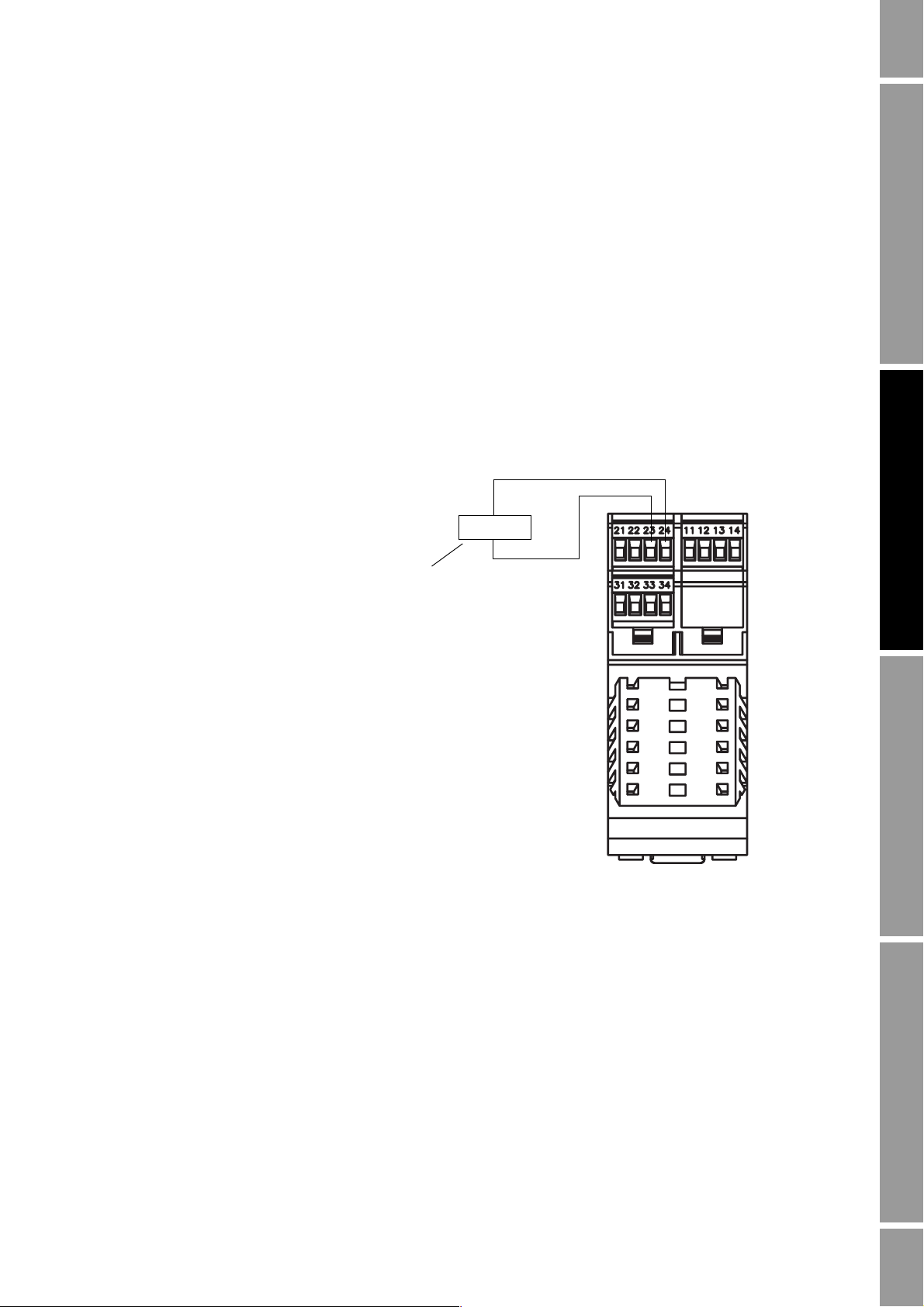

Figure 5-2 4-wire cable between sensor and DIN transmitter

Sensor terminals 4-wire cable Transmitter terminals for

4-wire cable Mating connector

Maximum cable length:

1000 ft (300 m)

User-supplied or

factory-supplied cable

VDC+ (Brown)

VDC– (Black)

RS-485/A (Blue)

{

RS-485/B (White)

(transmitter)

sensor connection

Maximum cable length:

1000 ft (300 m)

User-supplied or

factory-supplied cable

RS-485/B (White)

RS-485/A (Blue)

{

VDC– (Black)

VDC+ (Brown)

24 LF-Series Flowmeters: Sensor/Transmitter Installation

Wiring the Sensor to the Transmitter

5.4 MVD Direct Connect wiring

Note: This section applies only to LF-Series sensors used in MVD Direct Connect installations.

Note: MVD Direct Connect installations based on the LF-Series sensor cannot include the MVD Direct Connect I.S. barrier.

In MVD Direct Connect installations, you must connect the sensor to a remote host and to a power supply.

5.4.1 Power supply requirements

The power supply must meet the following requirements:

• Power must be supplied from a common floating regulated power supply with the correct voltage.

• The voltage requirement for a single sensor is 15–26 VDC. The maximum power consumption of a single sensor is approximately 3 W.

• The power supply may be used to power any number of sensors, but must not be used to power other devices.

• Use shielded wiring.

• The power supply must not allow power surges or conducted radio frequency interference (RFI) to propagate through to its output.

• The power supply must not be grounded.

CAUTION

Grounding the power supply to the sensor can cause damage to the sensor or the remote host.

To avoid damaging the sensor or the remote host, ensure that the power supply to the sensor is not grounded.

• In EU countries, the power supply must meet the requirements of the EMC directive.

• The power supply cable must comply with the size and length requirements listed in Table 2-1. A minimum DC input of 15 V is required for each sensor. At startup, the power source must provide a minimum of 0.2 A of short-term current per sensor. The maximum steady state current is 0.15 A. For assistance in sizing the power supply cable, refer to Table 5-1 and use the equation below:

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

MinimumSupplyVoltage 15V CableResistance CableLength× 0.15A×()+=

LF-Series Flowmeters: Sensor/Transmitter Installation 25

Wiring the Sensor to the Transmitter

Tabl e 5-1 Typical power cable resistances at 68 °F (20 °C)

Gauge Resistance

14 AWG 0.0050 Ω/foot 16 AWG 0.0080 Ω/foot 18 AWG 0.0128 Ω/foot 20 AWG 0.0204 Ω/foot 22 AWG 0.0328 Ω/foot

2,5 mm

1,5 mm

1 mm 0,75 mm 0,5 mm

(1) These values include the resistance of both high and low conductors in a cable.

Example

The sensor is mounted 350 feet from a DC power supply. If you want to use

0,0136 Ω/meter 0,0228 Ω/meter 0,0340 Ω/meter 0,0460 Ω/meter 0,0680 Ω/meter

(1)

18 AWG cable, calculate the required voltage at the DC power supply as follows:

MinimumSupplyVoltage 15V CableResistance CableLength× 0.15A×()+=

MinimumSupplyVoltage 15V 0.0128 ohms/ft 350 ft× 0.15A×()+=

MinimumSupplyVoltage 15.7V=

5.4.2 Wiring

To connect the cable, follow the steps below.

1. To connect the cable to the sensor, plug the Eurofast connector onto the top of the sensor connection. The connector is keyed for appropriate orientation.

2. At the remote host: a. Open the wiring compartment and identify the RS-485 terminals. Refer to the vendor

documentation if required.

b. Connect the RS-485 wires from the sensor to the RS-485 terminals at the remote host. The

blue wire is RS-485/A; the white wire is RS-485/B. c. Do not terminate the shield, braid, or drain wire(s) at the remote host. d. Do not terminate the RS-485 lines using the standard 60-ohm termination resistor. If

possible, do not terminate the RS-485 lines at all. If the RS-485 cable is 1000 feet (300

meters) long or longer, and termination is required, the total termination must be 175 ohm

or above. e. Close the wiring compartment.

3. At the power supply, connect the power supply wires from the sensor to the power supply, matching positive and negative (+ and –). The brown wire is VDC+; the black wire is VDC–.

26 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 6

I/O Wiring – FM AN Transmitters

6.1 Overview

This chapter explains how to wire outputs for LF-Series field-mount AN transmitters. If you don’t know your transmitter type, see Section 1.6.

It is the user’s responsibility to verify that the specific installation meets the local and national safety requirements and electrical codes.

6.2 Output terminals and output types

Table 6-1 describes the outputs and communication protocols available for the LF-Series field-mount AN transmitter.

Tabl e 6-1 Terminals and output types

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Terminals Output type Communication

1 & 2 Milliamp/Bell 202 3 & 4 Frequency None 5 & 6 RS-485 • Modbus (default)

(1) The Bell 202 signal is superimposed on the mA output.

6.3 Output wiring

Output wiring requirements depend on how you will use the analog functionality and the HART or Modbus protocol. This chapter describes several possible configurations:

• Figure 6-1 shows the wiring requirements for the mA output (terminals 1 and 2) and the frequency output (terminals 3 and 4).

• Figure 6-2 shows the wiring requirements for the mA output (terminals 1 and 2) if it will be used for HART communications in addition to the mA signal.

• Figure 6-3 shows the wiring requirements for RS-485 communications using the RS-485 output (terminals 5 and 6).

• Figure 6-4 shows the wiring requirements for connecting the transmitter to a HART multidrop network.

(1)

HART

•HART

LF-Series Flowmeters: Sensor/Transmitter Installation 27

I/O Wiring – FM AN Transmitters

Figure 6-1 Basic analog wiring

mA output loop 820 Ω maximum loop resistance

–

00042

Frequency receiving device

Output voltage level is +24 VDC ± 3%

Figure 6-2 HART/analog single-loop wiring

–

HART-

compatible host

or controller

820 Ω maximum loop resistance

For HART communications:

• 600 Ω maximum loop resistance

• 250 Ω minimum loop resistance

–

28 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM AN Transmitters

Figure 6-3. RS-485 point-to-point wiring

Primary

controller

Multiplexer

RS-485/A

RS-485/B

Other devices

Note: The RS-485 communication wires must be shielded.

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Figure 6-4 HART multidrop wiring with SMART FAMILY

HART-compatible

transmitters

HART-compatible

host or controller

600 Ω maximum resistance 250 Ω minimum resistance

LF-Series FM AN transmitter

Note: For optimum HART communication, make sure the output loop is single-point-grounded to an instrument-grade ground.

™

transmitters and a configuration tool

™

SMART FAMILY

transmitters

24 VDC loop power

supply required for

passive transmitters

LF-Series Flowmeters: Sensor/Transmitter Installation 29

30 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 7

I/O Wiring – FM CIO Transmitters

7.1 Overview

This chapter explains how to wire outputs for LF-Series field-mount CIO transmitters. If you don’t know your transmitter type, see Section 1.6.

It is the user’s responsibility to verify that the specific installation meets the local and national safety requirements and electrical codes.

7.2 Channel configuration

The six output terminals are divided into three pairs. The pairs are called Channels A, B, and C. Channel A is terminals 1 and 2; Channel B is terminals 3 and 4; and Channel C is terminals 5 and 6. Variable assignments are governed by channel configuration.

Output wiring requirements depend on how you will configure the transmitter channels. The configuration options are shown in Table 7-1 and Figure 7-1. You can use a HART Communicator or ProLink II software to configure channels. See the transmitter configuration manual for more information.

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

If Channel B is configured as a frequency output or discrete output, it can also be configured to use either internal or external power. Channel C can be configured to use either internal or external power, independent of its output configuration.

• “Internal power” means that the terminals are powered automatically by the transmitter. The output wiring instructions do not include power setup and power wiring.

• “External power” means that the terminals must be connected to an independent power supply. The output wiring instructions include power setup and power wiring.

Note: The terms “active” and “passive” are sometimes used to describe internally and externally powered outputs.

Note: You cannot configure the following combination: Channel B = discrete output, Channel C = frequency output. If you need both a frequency output and a discrete output, use the following: Channel B = frequency output, Channel C = discrete output. For more information, see the transmitter configuration manual.

LF-Series Flowmeters: Sensor/Transmitter Installation 31

I/O Wiring – FM CIO Transmitters

Tabl e 7-1 Channel configuration

Channel Terminals Configuration options Power

A 1 & 2 mA output with HART/Bell 202 B 3 & 4 • mA output (default) Internal

• Frequency output Internal or external

• Discrete output Internal or external

C 5 & 6 • Frequency output (default)

• Discrete output Internal or external

• Discrete input Internal or external

(1) The Bell 202 signal is superimposed on the mA output. (2) You must provide power to the outputs when a channel is set to external power. (3) When configured for two frequency outputs (dual pulse), frequency output 2 is generated from the same signal that is sent

to the first frequency output. Frequency output 2 is electrically isolated but not independent.

Figure 7-1 Configuration of configurable I/O terminals

+ Terminals 1 and 2 (Channel A) mA1 output Internal power only HART (Bell 202) communications

Terminals 3 and 4 (Channel B) mA2 output OR FO OR DO1 Power:

• mA – internal only

• FO or DO – internal or external No communications

Terminals 5 and 6 (Channel C) FO OR DO2 OR DI Power: internal or external No communications

–

(1)

(3)

Internal

(2)

Internal or external

mA = milliamp FO = frequency output DO = discrete output DI = discrete input

7.3 mA output wiring

The following 4–20 mA wiring diagrams are examples of proper basic wiring for the LF-Series FM CIO transmitter’s primary and secondary mA outputs. The following options are shown:

• Basic mA wiring (Figure 7-2)

• HART/analog single-loop wiring (Figure 7-3)

• HART multidrop wiring (Figure 7-4)

32 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM CIO Transmitters

Figure 7-2 Basic mA wiring

820 Ω maximum loop resistance

420 Ω maximum loop resistance

Figure 7-3 HART/analog single-loop wiring

–

mA1

–

mA2

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

820 Ω maximum loop resistance

For HART communications:

•600 Ω maximum loop resistance

•250 Ω minimum loop resistance

HART-

compatible host

–

or controller

LF-Series Flowmeters: Sensor/Transmitter Installation 33

I/O Wiring – FM CIO Transmitters

Figure 7-4 HART multidrop wiring with SMART FAMILY™ transmitters and a configuration tool

HART-compatible

host or controller

600 Ω maximum resistance 250 Ω minimum resistance

HART-compatible transmitters

LF-Series FM CIO transmitter (externally powered outputs)

LF-Series FM CIO transmitter (internally powered outputs)

Note: For optimum HART communication, make sure the output loop is single-pointgrounded to an instrument-grade ground.

SMART FAMILY™

transmitters

24 VDC loop power

supply required for

HART 4–20 mA

passive transmitters

7.4 Frequency output wiring

Frequency output wiring depends on whether you are wiring terminals 3 and 4 (Channel B) or terminals 5 and 6 (Channel C), and also on whether you have configured the terminals for internal or external power. The following diagrams are examples of proper wiring for these configurations:

• Channel B, internal power – Figure 7-5

• Channel B, external power – Figure 7-6

• Channel C, internal power – Figure 7-7

• Channel C, external power – Figure 7-8

Note: If both Channel B and Channel C are configured for frequency output, the Channel C signal is generated from the Channel B signal, with a user-specified phase shift. The signals are electrically isolated but not independent. This configuration is used to support dual-pulse and quadrature modes. For more information, see the transmitter configuration manual.

34 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM CIO Transmitters

Figure 7-5 Frequency output – Terminals 3 & 4 (Channel B) – Internal power

–

00042

Counter

Output voltage level is +15 VDC ± 3%

Note: See Figure 7-13 for output voltage versus load resistance.

Figure 7-6 Frequency output – Terminals 3 & 4 (Channel B) – External power

+ –

–

Counter

3–30 VDC

00042

–

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Pull-up resistor

Note: See Figure 7-15 for recommended resistor versus supply voltage.

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

LF-Series Flowmeters: Sensor/Transmitter Installation 35

I/O Wiring – FM CIO Transmitters

Figure 7-7 Frequency output – Terminals 5 & 6 (Channel C) – Internal power

–

00042

Counter

Output voltage level is +15 VDC ± 3%

Note: See Figure 7-14 for output voltage versus load resistance.

Figure 7-8 Frequency output – Terminals 5 & 6 (Channel C) – External power

+ –

–

Counter

3–30 VDC

00042

–

Pull-up resistor

Note: Refer to Figure 7-15 for recommended resistor versus supply voltage.

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

36 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM CIO Transmitters

7.5 Discrete output wiring

Discrete output (DO) wiring depends on whether you are wiring terminals 3 and 4 (Channel B) or terminals 5 and 6 (Channel C), and also on whether you have configured the terminals for internal or external power. The following diagrams are examples of proper wiring for these configurations:

• Channel B, internal power – Figure 7-9

• Channel B, external power – Figure 7-10

• Channel C, internal power – Figure 7-11

• Channel C, external power – Figure 7-12

Figure 7-9 Discrete output 1 – Terminals 3 & 4 (Channel B) – Internal power

–

Total load

Note: See Figure 7-13 for output voltage versus load information.

Figure 7-10 Discrete output 1 – Terminals 3 & 4 (Channel B) – External power

3–30 VDC

+ –

Pull-up resistor or DC relay

–

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Note: See Figure 7-15 for recommended resistor versus supply voltage.

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

LF-Series Flowmeters: Sensor/Transmitter Installation 37

I/O Wiring – FM CIO Transmitters

Figure 7-11 Discrete output 2 – Terminals 5 & 6 (Channel C) – Internal power

–

Total load

Note: See Figure 7-14 for output voltage versus load.

Figure 7-12 Discrete output 2 – Terminals 5 & 6 (Channel C) – External power

3–30 VDC

+ –

Pull-up resistor or DC relay

–

Note: See Figure 7-15 for recommended resistor versus supply voltage

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

38 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM CIO Transmitters

Figure 7-13 Output voltage vs. load resistance – Terminals 3 & 4 (Channel B) – Internal power

Maximum output voltage = 15 VDC ± 3%

16 15 14 13

12 11 10

9 8 7

6 5

High level output voltage (volts)

3 2 1

0 500 1000 1500 2000 2500

Load resistance (ohms)

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Figure 7-14 Output voltage vs load resistance – Terminals 5 & 6 (Channel C) – Internal power

Maximum output voltage = 15 VDC ± 3%

High level output voltage (volts)

16 15 14 13

12 11 10

9 8 7

6 5 4 3 2 1 0

0 1000 2000 3000 4000 5000

Load resistance (ohms)

LF-Series Flowmeters: Sensor/Transmitter Installation 39

I/O Wiring – FM CIO Transmitters

Figure 7-15 Recommended pull-up resistor versus supply voltage – External power

4400 4200 4000 3800 3600 3400 3200 3000 2800 2600 2400 2200 2000 1800 1600

External pull-up resistor range (ohms)

1400 1200 1000

800 600 400

51015202530

Recommended

resistor value range

Note: When using a discrete output to drive a relay, choose external pull-up to limit current to less than 500 mA.

7.6 Discrete input wiring

Discrete input wiring depends on whether you have configured terminals 5 and 6 (Channel C) for internal or external power. The following diagrams are examples of proper wiring for these configurations.

If external power is configured, power may be supplied by a PLC or other device, or by direct DC input. See Table 7-2 for input voltage ranges.

Tabl e 7-2 Input voltage ranges for external power

VDC Range

3–30 High level 0–0.8 Low level

0.8–3 Undefined

Supply voltage (volts)

40 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM CIO Transmitters

Figure 7-16 Discrete input – Terminals 5 & 6 (Channel C) – Internal power

–

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Figure 7-17 Discrete input – Terminals 5 & 6 (Channel C) – External power

PLC or

other device

(see Table 7-2

ORVDC

)

–

Direct DC input (see Table 7-2

)

LF-Series Flowmeters: Sensor/Transmitter Installation 41

42 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 8

I/O Wiring – FM FB and PA Transmitters

8.1 Overview

This chapter explains how to connect communication wires for LF-Series field-mount transmitters with the F transmitter type, see Section 1.6.

OUNDATION fieldbus or Profibus-PA outputs option board. If you don’t know your

8.2 F

It is the user’s responsibility to verify that the specific installation meets the local and national safety requirements and electrical codes.

OUNDATION fieldbus wiring

Connect the communication wires according to the diagram in Figure 8-1. Follow all local safety regulations.

WARNING

A transmitter that has been improperly wired or installed in a hazardous area could cause an explosion.

• Make sure the transmitter is wired to meet or exceed local code requirements.

• Install the transmitter in an environment that complies with the hazardous area approval tag on the transmitter. See Appendix A.

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

LF-Series Flowmeters: Sensor/Transmitter Installation 43

I/O Wiring – FM FB and PA Transmitters

Figure 8-1 Connecting the fieldbus communication wires

Fieldbus

power

supply

Spur to fieldbus per

OUNDATION fieldbus

wiring specification

Terminals 3–6

OUNDATION fieldbus per FOUNDATION

fieldbus wiring specification

Terminals 1–2

{

Note: Terminals 3 through 6 are not used.

Note: The fieldbus communication terminals (1 and 2) are polarity-insensitive.

8.3 Profibus-PA wiring

Wire the transmitter to the Profibus-PA segment according to the diagram in Figure 8-2. Follow all local safety regulations.

A transmitter that has been improperly wired or installed in a hazardous area could cause an explosion.

• Make sure the transmitter is wired to meet or exceed local code requirements.

• Install the transmitter in an environment that complies with the hazardous area approval tag on the transmitter. See Appendix A.

WARNING

44 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – FM FB and PA Transmitters

Figure 8-2 Connecting the Profibus-PA communication wires

Bus

power

supply

Spur to Profibus-PA segment

per Profibus-PA User and

Installation Guideline

published by PNO

Terminals 3–6

Note: Terminals 3 through 6 are not used.

Note: The Profibus communication terminals (1 and 2) are polarity-insensitive.

➯

{

Profibus-PA segment per ProfibusPA User and Installation Guideline

published by PNO

Terminals 1–2

I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring I/O Wiring – FM AN I/O Wiring – FM FB and PAI/O Wiring – FM CIOSensor Wiring

Note: If you want intrinsically safe wiring, see the Profibus-PA User and Installation Guide published by PNO.

LF-Series Flowmeters: Sensor/Transmitter Installation 45

46 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 9

I/O Wiring – DIN AN Transmitters

9.1 Overview

This chapter describes how to wire the outputs for LF-Series DIN AN transmitters. If you don’t know your transmitter type, see Section 1.6.

It is the user’s responsibility to verify that the specific installation meets the local and national safety requirements and electrical codes.

9.2 Transmitter outputs

Table 9-1 describes the outputs and communication protocols available for the LF-Series DIN rail mount AN transmitter.

Note: The term “channel” is used to refer to the output terminal pairs.

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Tabl e 9-1 Terminals, channels, and output types

Terminals Channel Output type Communication

21 & 22 A Milliamp HART/Bell202 23 & 24 B Not used None 31 & 32 C Frequency None 33 & 34 N/A Digital Modbus/RS-485

9.2.1 mA output wiring

The following wiring diagrams are examples of proper wiring for the mA output on the LF-Series DIN rail mount AN transmitter. The following options are shown:

• Basic mA output wiring – Figure 9-1

• HART/analog single-loop wiring – Figure 9-2

• HART multidrop wiring – Figure 9-3

LF-Series Flowmeters: Sensor/Transmitter Installation 47

I/O Wiring – DIN AN Transmitters

Figure 9-1 Basic mA output wiring

820 Ω maximum loop resistance

mA output

–

Figure 9-2 HART/analog single-loop wiring

820 Ω maximum loop resistance

For HART communications:

• 600 Ω maximum loop resistance

• 250 Ω minimum loop resistance

–

HART-compatible host or controller

48 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN AN Transmitters

Figure 9-3 HART multidrop wiring with SMART FAMILY™ transmitters and a configuration tool

ProLink II v2.x,

HART Communicator, or

AMS software

600 Ω maximum resistance 250 Ω minimum resistancee

HART-compatible transmitters

LF-Series DIN AN transmitter

24 VDC loop power

™

SMART FAMILY

transmitters

supply required for

HART 4–20 mA

passive transmitters

Note: For optimum HART communication, make sure the output loop is single-point-grounded to an instrument-grade ground.

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

9.2.2 Frequency output wiring

Figure 9-4 shows an example of proper wiring for the frequency output on the LF-Series DIN AN transmitter.

Figure 9-4 Basic frequency output wiring

–

000042

Counter

Output voltage level is +15 VDC ±3%

with high resistance load.

Note: Refer to Figure 9-5 for output voltage versus load resistance.

LF-Series Flowmeters: Sensor/Transmitter Installation 49

I/O Wiring – DIN AN Transmitters

Figure 9-5 Frequency output wiring – Output voltage versus load resistance

Open circuit output voltage = 15 VDC ±3%

15 14 13

12 11 10

9 8 7

6 5 4

High level output voltage (volts)

3 2 1

0 1000 2000 3000 4000 5000

Load resistance (ohms)

9.2.3 Wiring to a remote host

Terminals 33 and 34 support Modbus/RS-485 communication with a remote host. For an example of wiring, see Figure 9-6. For terminal information, see Table 9-2.

Figure 9-6 Wiring to a remote host

RS-485/B

RS-485/A

Remote host

50 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN AN Transmitters

Tabl e 9-2 Wire terminal assignments for Modbus/RS-485

RS-485 signal Transmitter terminal

A33 B34

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

LF-Series Flowmeters: Sensor/Transmitter Installation 51

52 LF-Series Flowmeters: Sensor/Transmitter Installation

Chapter 10

I/O Wiring – DIN CIO Transmitters

10.1 Overview

This chapter describes how to wire the inputs and outputs for LF-Series DIN CIO transmitters. If you don’t know your transmitter type, see Section 1.6.

It is the user’s responsibility to verify that the specific installation meets the local and national safety requirements and electrical codes.

10.2 Channel configuration

The six output terminals are divided into three pairs. The pairs are called Channels A, B, and C. Channel A is terminals 21 and 22; Channel B is terminals 23 and 24; and Channel C is terminals 31 and 32. Variable assignments are governed by channel configuration.

Output wiring requirements depend on how you will configure the transmitter terminals. The configuration options are shown in Table 10-1 and Figure 10-1. You can use ProLink II software to configure the channels. See the transmitter configuration manual for more information.

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

• “Internal power” means that the terminals are powered automatically by the transmitter. The output wiring instructions do not include power setup and power wiring.

• “External power” means that the terminals must be connected to an independent power supply. The output wiring instructions include power setup and power wiring.

Note: The terms “active” and “passive” are sometimes used to describe internally and externally powered outputs.

LF-Series Flowmeters: Sensor/Transmitter Installation 53

I/O Wiring – DIN CIO Transmitters

Tabl e 10- 1 Channel configuration

Channel Terminals Configuration options Power

A 21 & 22 mA output with HART/Bell 202 B 23 & 24 • mA output (default) Internal

C 31 & 32 • Frequency output (default)

D 33 & 34 Modbus/RS-485 Internal

(1) The Bell 202 signal is superimposed on the mA output. (2) Can be configured for active high or active low polarity. Default is active high. (3) You must provide power to the outputs when a channel is set to external power. (4) Because discrete output 1 uses the same circuitry as the frequency output, it is not possible to configure both a frequency

ouput and discrete output 1. If both a frequency output and a discrete output are required, configure Channel B as the frequency output and Channel C as the discrete output (discrete output 2).

(5) When configured for two frequency outputs (dual pulse), frequency output 2 is generated from the same signal that is sent

to the first frequency output. Frequency output 2 is electrically isolated but not independent.

• Frequency output

• Discrete output

(4)

(1)

(2)

(5)

Internal

Internal or external Internal or external Internal or external

• Discrete output Internal or external

• Discrete input Internal or external

(3)

Figure 10-1 Configuration of configurable I/O terminals

Terminals 21 & 22 (Channel A) mA1 output Internal power only HART (Bell 202) communications

Terminals 31 & 32 (Channel C) FO OR DO2 OR DI Power: internal or external No communications

mA = milliamp FO = frequency output DO = discrete output DI = discrete input

Terminals 23 & 24 (Channel B) mA2 output OR FO OR DO1 Power:

• mA – internal only

• FO or DO1 – internal or external No communications

Terminals 33 & 34 Service port OR Modbus RS-485 (Modbus RTU or Modbus ASCII)

54 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

10.3 mA output wiring

The wiring diagrams in this section are examples of proper wiring for the LF-Series DIN CIO transmitter’s primary and secondary mA outputs. The following options are shown:

• Basic mA output wiring – Figure 10-2

• HART/analog single-loop wiring – Figure 10-3

• HART multidrop wiring – Figure 10-4

Figure 10-2 Basic mA output wiring

820 Ω maximum

loop resistance

+–

mA1 output mA2 output

–

420 Ω maximum loop resistance

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

LF-Series Flowmeters: Sensor/Transmitter Installation 55

I/O Wiring – DIN CIO Transmitters

Figure 10-3 HART/analog single-loop wiring

820 Ω maximum loop resistance

For HART communications:

•600 Ω maximum loop resistance

•250 Ω minimum loop resistance

–

HART-compatible host or controller

Figure 10-4 HART multidrop wiring with SMART FAMILY

HART-compatible transmitters

ProLink II v2.x,

HART Communicator, or

AMS software

600 Ω maximum resistance 250 Ω minimum resistance

LF-Series DIN CIO transmitter

™

transmitters and a configuration tool

24 VDC loop power

™

supply required for

SMART FAMILY

transmitters

HART 4–20 mA

passive transmitters

Note: For optimum HART communication, make sure the output loop is single-point-grounded to an instrument-grade ground.

56 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

10.4 Frequency output wiring

Frequency output wiring depends on whether you are wiring terminals 23 and 24 (Channel B) or terminals 31 and 32 (Channel C), and also on whether you have configured the terminals for internal or external power. The following diagrams are examples of proper wiring for these configurations:

• Channel B, internal power – Figure 10-5

• Channel B, external power – Figure 10-6

• Channel C, internal power – Figure 10-7

• Channel C, external power – Figure 10-8

Figure 10-5 Frequency output wiring – Terminals 23 & 24 (Channel B) – Internal power

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

–

000042

Counter

Output voltage level is +15 VDC ±3%

with high resistance load.

Note: See Figure 10-13 for output voltage versus load resistance.

LF-Series Flowmeters: Sensor/Transmitter Installation 57

I/O Wiring – DIN CIO Transmitters

Figure 10-6 Frequency output wiring – Terminals 23 & 24 (Channel B) – External power

3–30 VDC

Note: See Figure 10-15 for recommended resistor versus supply voltage.

– +

Counter

000042

–

Pull-up resistor

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

Figure 10-7 Frequency output wiring – Terminals 31 & 32 (Channel C) – Internal power

–

000042

Counter

Output voltage level is +15 VDC ±3%

with high resistance load.

Note: Refer to Figure 10-14 for output voltage versus load resistance.

58 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

Figure 10-8 Frequency output wiring – Terminals 31 & 32 (Channel C) – External power

3–30 VDC

–

– +

000042

Note: Refer to Figure 10-15 for recommended resistor versus supply voltage.

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

10.5 Discrete output wiring

Discrete output wiring depends on whether you are wiring terminals 23 and 24 (Channel B) or terminals 31 and 32 (Channel C), and also on whether you have configured the terminals for internal or external power. The following diagrams are examples of proper wiring for these configurations:

• Channel B (DO1), internal power – Figure 10-9

• Channel B (DO1), external power – Figure 10-10

Counter

Pull-up resistor

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

CAUTION

• Channel C (DO2), internal power – Figure 10-11

• Channel C (DO2), external power – Figure 10-12

LF-Series Flowmeters: Sensor/Transmitter Installation 59

I/O Wiring – DIN CIO Transmitters

Figure 10-9 Discrete output 1 wiring – Terminals 23 & 24 (Channel B) – Internal power

Total load

–

Note: See Figure 10-13 for output voltage versus load information.

Figure 10-10 Discrete output 1 wiring – Terminals 23 & 24 (Channel B) – External power

3–30 VDC

– +

Pull-up resistor or

DC Relay

Maximum sink current: 500 mA

Note: Refer to Figure 10-15 for recommended resistor versus supply voltage.

CAUTION

Excessive current will damage the transmitter.

–

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

60 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

Figure 10-11 Discrete output 2 wiring – Terminals 31 & 32 (Channel C) – Internal power

Total load

–

Note: See Figure 10-14 for output voltage versus load.

Figure 10-12 Discrete output 2 wiring – Terminals 31 & 32 (Channel C) – External power

–

3–30 VDC

– +

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Pull-up resistor or DC Relay

Maximum sink current: 500 mA

Note: Refer to Figure 10-15 for recommended resistor versus supply voltage.

CAUTION

Excessive current will damage the transmitter.

Do not exceed 30 VDC input. Terminal current must be less than 500 mA.

LF-Series Flowmeters: Sensor/Transmitter Installation 61

I/O Wiring – DIN CIO Transmitters

Figure 10-13 Output voltage vs. load resistance – Terminals 23 & 24 (Channel B) – Internal power

Open circuit output voltage = 15 VDC ±3%

16 15 14 13

12 11 10

9 8 7

6 5 4

High level output voltage (volts)

3 2 1

0 500 1000 1500 2000 2500

Load resistance (ohms)

Figure 10-14 Output voltage vs load resistance – Terminals 31 & 32 (Channel C) – Internal power

Open circuit output voltage = 15 VDC ±3%

16 15 14 13

12 11 10

9 8 7

6 5 4

High level output voltage (volts)

3 2 1

0 1000 2000 3000 4000 5000

Load resistance (ohms)

62 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

Figure 10-15 Recommended pull-up resistor versus supply voltage – External power

4400 4200 4000 3800 3600 3400 3200 3000 2800 2600 2400

External pull-up resistor range (ohms)

2200 2000 1800 1600 1400 1200 1000

800 600 400

51015202530

Recommended

resistor value range

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Note: When using a discrete output to drive a relay, choose external pull-up to limit current to less than 500 mA.

10.6 Discrete input wiring

Discrete input wiring depends on whether you have configured terminals 31 and 32 (Channel C) for internal or external power. The following diagrams are examples of proper wiring for these configurations:

• Internal power – Figure 10-16

• External power – Figure 10-17

If external power is configured, power may be supplied by a PLC or other device, or by direct DC input. See Table 10-2 for input voltage ranges.

Tabl e 10- 2 Input voltage ranges for external power

VDC Range

3–30 High level 0–0.8 Low level

0.8–3 Undefined

Supply voltage (volts)

LF-Series Flowmeters: Sensor/Transmitter Installation 63

I/O Wiring – DIN CIO Transmitters

Figure 10-16 Discrete input – Terminals 31 & 32 (Channel C) – Internal power

–

Figure 10-17 Discrete input – Terminals 31 & 32 (Channel C) – External power

PLC or

other device

(see Table 10-2

+ –

ORVDC

)

Direct DC input (see Table 10-2

–

)

64 LF-Series Flowmeters: Sensor/Transmitter Installation

I/O Wiring – DIN CIO Transmitters

10.7 Wiring to a remote host

Terminals 33 and 34 support Modbus/RS-485 communication with a remote host. For an example of wiring, see Figure 10-18. For terminal information, see Table 10-3.

Figure 10-18 Wiring to a remote host

Remote host

RS-485/B

RS-485/A

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Tabl e 10- 3 Terminal assignments for Modbus/RS-485

RS-485 signal Transmitter terminal

A33 B34

LF-Series Flowmeters: Sensor/Transmitter Installation 65

66 LF-Series Flowmeters: Sensor/Transmitter Installation

Appendix A

Dimensions and Specifications

A.1 Dimensions

Figure A-1 shows the dimensions of the LF-Series FM transmitter with a display. Figure A-2 shows the dimensions of the LF-Series FM transmitter without a display. Figure A-3 shows the dimensions of the LF-Series DIN transmitter.

Figure A-1 LF-Series FM transmitter with display

Dimensions in

2 13/16

(71) 4 1/2 (114)

inches

(mm)

2 13/16

(71)

4X Ø3/8

3 11/16

(10)

Wall mount

3X 1/2″–14 NPT

or M20 X 1.5

(25)

2 1/4

(93)

(57)

To centerline of 2″ pipe (pipe mount)

6 13/16

4 5/16

(110)

9 5/16

(237)

(174)

3 15/16

(99)

1 3/4

(45)

8 7/16

(214)

2 11/16

(69)

1 7/8

(47)

To 1/2 NPT or M20

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

2 7/16

(62)

∅ 4 11/16

(119)

4 11/16

(119)

4 1/2 (114)

2 1/4

(57)

4 3/4 (120)

LF-Series Flowmeters: Sensor/Transmitter Installation 67

Dimensions and Specifications

Figure A-2 LF-Series FM transmitter without display

Dimensions in

2 13/16

(71)

4 1/2 (114)

inches

(mm)

2 13/16

4X Ø3/8

(71)

(10)

3X 1/2″–14 NPT

or M20 X 1.5

3 11/16

(93)

(25)

2 1/4

(57)

4 5/16

(110)

5 13/16

(148)

8 5/16

(211)

2 15/16

7 7/16

(188)

(74)

13/16

(21)

1 3/4

(45)

2 11/16

(69)

1 7/8

(47)

2 7/16

(62)

∅ 4 1/16

(104)

4 7/16

(113)

4 1/2 (114)

2 1/4

(57)

4 3/4

(120)

2″ pipe (pipe mount)

Wall mountTo centerline of

To 1/2 NPT or M20

68 LF-Series Flowmeters: Sensor/Transmitter Installation

Dimensions and Specifications

Figure A-3 LF-Series DIN transmitter

Dimensions in

inches

(mm)

Side view

1.39 (35)

DIN rail

Bottom view

3.90 (99)

4.41

(112)

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

1.78 (45)

A.2 LF-Series sensor specifications

Tabl e A-1 Liquid flow rates

Mass Volume

lb/hr kg/hr gal/hr l/hr

Nominal flow range

Maximum flow rate LF2M 0.948 0,43 0.114 0,43

(1) Volume measurement is based on a process-fluid density of 1 g/cm3 (1000 kg/m3). For fluids with density other than 1 g/cm3, the

volumetric flow rate equals the maximum mass flow rate divided by the fluid’s density.

(2) Micro Motion has adopted the terminology “nominal flow range.” The upper limit of this range is the flow rate at which water at

reference conditions causes approximately 15 psid (1 bar) of pressure drop.

(2)

LF2M 0.474 0,215 0.057 0,215 LF3M 3.020 1,37 0.362 1,37 LF4M 30.422 13,8 3.646 13,8

LF3M 3.307 1,5 0.396 1,5 LF4M 60.845 27,6 7.291 27,6

(1)

LF-Series Flowmeters: Sensor/Transmitter Installation 69

Dimensions and Specifications

Tabl e A-2 Gas flow rates

(1)

Mass Volume

lb/hr kg/hr SCFH SCCM

Typical flow rate LF2M 0.225 0,102 2.99 1408,0

LF3M 0.881 0,400 11.7 5521,8 LF4M 8.343 3,78 110.82 52300

(1) Flow rates that produce approximately 14.5 psid (1.0 bar) pressure drop on air at 70 °F (21.1 °C) and 500 psi (35 bar)

Tabl e A-3 Liquid and gas performance

zero stability

Mass flow accuracy

(1)

Standard ±1.0% of rate or % of rate, whichever is greater

Optional ±0.5% of rate or % of rate, whichever is greater

Mass flow repeatability ±0.05% of rate or % of rate, whichever is greater

Mass flow

±0.05% of rate or % of rate, whichever is greater

reproducibility Zero stability lb/hr kg/hr

LF2M 0.0004 0,0002 LF3M 0.0022 0,001 LF4M 0.1264 0,012

Liquid density Range

(2)

Accuracy

(3)

Repeatability ±0.002 g/cm

Temperature Ambient and process 0 to 65 °C (32 to 149 °F)

Accuracy ±0.5 °C (±1.0 °F)

Maximum operating pressure

Standard 35 bar (500 psi) Optional 100 bar (1500 psi)

⎛⎞

---------------------------------

⎝⎠

flow rate

zero stability

⎛⎞

---------------------------------

⎝⎠

flow rate

zero stability

⎛⎞

---

---------------------------------

⎝⎠

flow rate

zero stability

⎛⎞

---

---------------------------------

⎝⎠

flow rate

0 to 0.3 g/cm ±0.005 g/cm

100×

and 0.5 to 2.0 g/cm

100

100×

(1) Stated flow accuracy includes the combined effects of repeatability, linearity, and hysteresis. All specifications for liquids are based

on reference conditions of water at 70 °F (21.1 °C). (2) Contact factory for applications with fluid density between 0.3 and 0.5 g/cm3. (3) At temperatures other than 70 °F (21.1 °C), you can expect an additional density error of approximately 0.0005 g/cm3 per °C.

70 LF-Series Flowmeters: Sensor/Transmitter Installation

Dimensions and Specifications

Tabl e A-4 Hazardous area classifications

Approvals agency Classification

(1)

CSA

Class I Division 2 Groups A, B, C, D Class II Division 2 Groups F and G Class III Division 2

(2)

ATEX

II 3 G EEx nA II T4 II 3 D IP65 T135°C

(1) CSA is a Canadian approvals agency that provides approvals accepted both in the U.S.A. and in Canada. (2) ATEX is a European directive.

Tabl e A-5 Materials of construction

Component Material

Wetted parts 316L stainless steel, 316L VAR and high alloy ferritic stainless steel 17-7PH Process seals Viton® fluoroelastomer Housing Epoxy-painted aluminum

(1) Viton

is a registered trademark of DuPont Performance Elastomers.

(1)

, Buna, Kalrez, or EPDM

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Tabl e A-6 Physical specifications

Weight 3.5 lb (1,6 kg) Fittings See product data sheet

A.3 LF-Series transmitter specifications

A.3.1 Output options and output option codes

Tabl e A-7 Transmitter outputs

Outputs

1 mA output, 1 frequency/pulse output Output option codes 1 and 3 (FM AN) Output option code 2 (DIN AN) 2 mA outputs, 1 frequency/pulse output

(configurable) FOUNDATION fieldbus Output option code 6 (FM FB) (Not available) Profibus-PA Output option code 7 (FM PB) (Not available)

FM transmitters DIN transmitters

Output option code 4 (FM CIO) Output option code 5 (DIN CIO)

LF-Series Flowmeters: Sensor/Transmitter Installation 71

Dimensions and Specifications

Tabl e A-8 Output options for transmitters with configurable I/O

Termi na ls

Default process

Channel

A 1 & 2 21 & 22 mA output 1

B 3 & 4 23 & 24 mA output 2 (default) Density Internal (active)

C 5 & 6 31 & 32 FO (default)

(1) When configured for two FOs (dual pulse), FO2 is generated from the same FO signal sent to the first FO. FO2 is electrically

isolated but not independent.

Configuration option

(with Bell 202 HART)

Frequency output (FO) Discrete output 1 (DO1) Fwd/Rev

(1)

Discrete output 2 (DO2) Flow switch Discrete input (DI) None

(1)

variable assignment PowerFM DIN

Mass flow Internal (active)

Mass flow Internal (active) or

external (passive)

A.3.2 LF-Series FM transmitters

Tabl e A-9 FM transmitter physical specifications

Weight With display: 8 lb (3, 6 kg)

Without display: 7 lb (3,2 kg)

Mounting and cabling Transmitters include a mounting bracket and 6.5 ft (2 m) of 4-wire twisted-pair

shielded signal cable. Additional lengths up to 1000 ft (300 m) can be purchased. Hardware for installing the transmitter on the mounting bracket is included. The transmitter can be rotated on the mounting bracket, 360° in 90° increments.

Interface/Display (optional) Segmented 2-line display with LCD screen with optical controls and flowmeter-

status LED is standard.

• LCD line 1 lists the process variable.

• LCD line 2 lists engineering unit of measure. Non-glare tempered glass lens. Available in both backlit and non-backlit versions. Display is suitable for hazardous area installation. To facilitate various mounting orientations, the display can be rotated on the transmitter, 360° in 90° increments. Display controls feature optical switches that are operated through the glass with a red LED for visual feedback to confirm when a “button” is pressed. Display functions:

• View process variables

• Start, stop and reset totalizers

• View and acknowledge alarms

• Off-line (where applicable):

• Zero flowmeter

• Simulate outputs

• Change measurement units

• Configure ouputs

• Set RS-485 communications options

Status light Three-color LED status light on display panel indicates flowmeter condition at a

glance.

72 LF-Series Flowmeters: Sensor/Transmitter Installation

Dimensions and Specifications

Tabl e A-1 0 FM transmitter electrical connections

Input and output connections One (output option codes 6 and 7), two (output option codes 1 and 3), or three

(output option code 4) pairs of wiring terminals for transmitter outputs Screw terminals accept one or two solid conductors, 14 to 12 AWG (2,0 to 3,5 mm (0,34to2,5mm

); or one or two stranded conductors, 22 to 14 AWG

)

Power connections One pair of wiring terminals accepts AC or DC power

One internal ground lug for power-supply ground wiring Screw terminals accept one or two solid conductors, 14 to 12 AWG (2,0 to 3,5 mm (0,34to2,5mm

); or one or two stranded conductors, 22 to 14 AWG

) Service port connection Two clips for temporary connection to the service port Sensor connection Two pairs of terminals for the 4-wire connection to the sensor

• One pair is used for the RS-485 connection to the sensor

• One pair is used to supply power to the sensor Plug connectors accept stranded or solid conductors, 24 to 12 AWG (0,2 to 2,5 mm

)

Tabl e A-1 1 FM transmitter input/output signals

All transmitters One 4-wire sensor signal input connection with ground Output option code 1 or 3

(1 mA, 1 FO)

One active 4–20mA output

• Not intrinsically safe

• Isolated to ±50 VDC from all other outputs and earth ground

• Maximum load limit: 600 ohms

• Flow-only transmitter can report mass flow or volume flow

• Multivariable transmitter can report mass flow, volume flow, density, temperature,

or drive gain

• Output is linear with process from 3.8 to 20.5 mA, per NAMUR NE43 (June 1994) One active or passive frequency/pulse output

• Not intrinsically safe

• Can report mass flow or volume flow, which can be used to indicate flow rate or

total

• Flow-only transmitter: frequency output reports the same flow variable as the mA

output

• Multivariable transmitter: frequency output is independent of the mA output

• Scalable to 10,000 Hz

• Maximum output of +24 VDC ±3% with a 2.2 kohm internal pull-up resistor Output is linear with flow rate to 12,500 Hz

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

LF-Series Flowmeters: Sensor/Transmitter Installation 73

Dimensions and Specifications

Tabl e A-1 1 FM transmitter input/output signals continued

Output option code 4 (2 mA, 1 FO configurable, multivariable transmitter only)

Output option code 6 (F

OUNDATION fieldbus)

Output option code 7 (Profibus-PA)

One or two active 4–20 mA outputs

• Not intrinsically safe

• Isolated to ±50 VDC from all other outputs and earth ground

• Maximum load limit:

- mA1: 820 ohms

- mA2: 420 ohms

• Can report mass flow, volume flow, density, temperature, or drive gain

• Output is linear with process from 3.8 to 20.5 mA, per NAMUR NE43 (June 1994)

One active or passive frequency/pulse output

• Not intrinsically safe

• Can report mass flow or volume flow, which can be used to indicate flow rate or total

• Scalable to 10,000 Hz

•Power:

- Internal (active): +15 VDC ±3% with a 2.2 kohm internal pull-up resistor

- External (passive): +30 VDC maximum, +24 VDC typical

• Output is linear with flow rate to 12,500 Hz

One or two active or passive discrete outputs

• Not intrinsically safe

• Can report event 1, event 2, event 1 and event 2, flow switch, forward/reverse flow, calibration in progress, or fault

•Power:

- Internal (active): +15 VDC ±3% with a 2.2 kohm internal pull-up resistor

- External (passive): +30 VDC maximum, +24 VDC typical

• Maximum sink capability: 500 mA

One discrete input

• Can be configured for internal or external power

• Not intrinsically safe

•Power:

- Internal (active): +15 VDC, 7 mA maximum source current

- External (passive): +3 to 30 VDC maximum

• Can report reset all totals, reset mass total, reset volume total, or start sensor zero

OUNDATION fieldbus H1 output

One F Manchester-encoded digital signal conforms to IEC 1158-2

One Profibus-PA output Manchester-encoded digital signal conforms to IEC 1158-2

Tabl e A-1 2 FM transmitter digital communications

All transmitters One service port can be used for temporary connection only

Uses RS-485 Modbus signal, 38.4 kilobaud, one stop bit, no parity

Output option code 1, 3, or 4 HART Bell 202 signal is superimposed on the primary milliamp output, and is

available for host system interface:

• Frequency: 1.2 and 2.2 kHz

• Amplitude: to 0.8 V peak-to-peak

• 1200 baud

• Requires 250 to 600 ohms resistance

Output option code 1 or 3 One RS-485 output can be used for direct connection to a HART or Modbus host

system. Modbus communications supports 7-bit or 8-bit protocol (default: 8-bit), 1200 to 38,400 baud (default: 9600), one or two stop bits (default: one), and odd, even, or no parity (default: odd). Configuration can be changed using ProLink II software or the display (if applicable).

74 LF-Series Flowmeters: Sensor/Transmitter Installation

Dimensions and Specifications

Tabl e A-1 2 FM transmitter digital communications continued

Output option code 6

OUNDATION fieldbus)

Output option code 7 (Profibus-PA)

Transmitters are registered with the Fieldbus Foundation, and conform to the FOUNDATION fieldbus H1 protocol specification. Input frequency from sensor:

• Mass flow: 20 Hz

• Volume flow: 20 Hz

•Density: 20Hz

• Temperature: 1Hz

Analog input function blocks:

• Cycle time: Host dependent

• Update rate: 50 milliseconds

• Refresh rate: Host dependent

Transmitters are registered with the Profibus Organization, and fulfill the requirements of the Profibus-PA Profile for Process Control Devices. Input frequency from sensor:

• Mass flow: 20 Hz

• Volume flow: 20 Hz

•Density: 20Hz

• Temperature: 1Hz

Analog input function blocks:

• Cycle time: Host dependent

• Update rate: 50 milliseconds

• Refresh rate: Host dependent

Siemens Simatic PDM required for configuration.

Tabl e A-1 3 FM transmitter power supply

Self-switching AC/DC input, automatically recognizes supply voltage. Complies with low voltage directive 73/23/EEC per IEC 61010-1 Installation (Overvoltage) Category II, Pollution Degree 2. The transmitter fieldbus circuit is passive, and draws its power from the fieldbus segment. Current draw from the fieldbus segment is 11.5 mA.

AC power 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum DC power 18 to 100 VDC, 6 watts typical, 11 watts maximum

At startup, transmitter power source must provide a minimum of 1.5 amperes of short-term current at a minimum of 18 volts at the transmitter's power input terminals. Minimum 22 VDC with 1000 feet of 18 AWG (300 meters of 0,8 mm cable

Fuse IEC 127-1.25 fuse, slowblow

) power supply

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

Tabl e A-1 4 FM transmitter environmental limits

Ambient temperature limits Operating and storage: –40 to +140 °F (–40 to +60 °C)

Display responsiveness decreases and display may become difficult to read below –4 °F (–20 °C). Above 131 °F (55 °C), some darkening of the display might occur.

ATEX requires limiting ambient temperature to below 131 °F (55 °C). Humidity limits 5 to 95% relative humidity, non-condensing at 140 °F (60 °C) Vibration limits Meets IEC68.2.6, endurance sweep, 5 to 2000 Hz, 50 sweep cycles at 1.0 g.

Tabl e A-1 5 FM transmitter environmental effects

EMI effects Meets EMC directive 89/336/EEC per EN 61326 Industrial Ambient temperature effect On analog outputs ±0.005% of span per °C

LF-Series Flowmeters: Sensor/Transmitter Installation 75

Dimensions and Specifications

Tabl e A-1 6 FM transmitter hazardous area classifications

Approvals agency Classification

(1)

CSA

Class I Division 2 Groups A, B, C, D Class II Division 2 Groups F and G Class III Division 2

(2)

ATEX

With display:

II 3 G EEx nC [L] IIB+H2 T6 II 3 D IP66/IP67 T65°C

Without display or with optional display cover:

II 3 G EEx nC [L] IIC T6 II 3 D IP66/IP67 T65°C

(1) CSA is a Canadian approvals agency that provides approvals accepted both in the U.S.A. and in Canada. (2) ATEX is a European directive.

A.3.3 LF-Series DIN transmitters

Tabl e A-1 7 DIN transmitter physical specifications

Housing Polyamide PA 6.6 Weight 0.52 lbs (0,24 kg) Mounting and cabling DIN rail transmitters are mounted on a 35 mm rail. The rail must be grounded.

Transmitters include a mounting bracket and 6.5 ft (2 m) of 4-wire twisted-pair shielded signal cable. Additional lengths up to 1000 ft (300 m) can be purchased.

Status LED Three-color LED status light on face of transmitter indicates flowmeter condition at

a glance, using a solid green, yellow or red light. Zero in progress is indicated by a flashing yellow light.

Zero button A zero button on the face of the transmitter can be used to start the transmitter zero

process.

Tabl e A-1 8 DIN transmitter electrical connections

Input and output connections Three pairs of wiring terminals for transmitter outputs

One pair of terminals for digital communications (Modbus/RS-485) Plug connectors accept stranded or solid conductors, 24 to 12 AWG (0,2 to 3,5 mm

Power connections Two pairs of terminals

• Either pair accepts DC power

• The remaining pair is used for making a jumper connection to a second transmitter

Plug connectors accept stranded or solid conductors, 24 to 12 AWG (0,2 to 3,5 mm

Sensor connection The transmitter has two pairs for the 4-wire connection to the sensor

• One pair is used for the RS-485 connection to the sensor

• One pair is used to supply power to the sensor

Plug connectors accept stranded or solid conductors, 24 to 12 AWG (0,2 to 3,5 mm

)

76 LF-Series Flowmeters: Sensor/Transmitter Installation

Dimensions and Specifications

Tabl e A-1 9 DIN transmitter input/output signals

All transmitters One 4-wire sensor signal input connection with ground Output option code 2

(1 mA, 1 FO)

Output option code 5 (2 mA, 1 FO configurable, multivariable transmitter only)

One active 4–20mA output

• Not intrinsically safe

• Isolated to ±50 VDC from all other outputs and earth ground

• Maximum load limit: 600 ohms

• Can report mass flow or volume flow

• Output is linear with process from 3.8 to 20.5 mA, per NAMUR NE43 (June 1994)

One active or passive frequency/pulse output

• Not intrinsically safe

• Can report mass flow or volume flow, which can be used to indicate flow rate or total

• Frequency output reports the same flow variable as the mA output

• Scalable to 10,000 Hz

• Maximum output of +24 VDC ±3% with 2.2 kohm internal pull-up resistor

• Output is linear with flow rate to 12,500 Hz

One or two active 4–20 mA outputs

• Not intrinsically safe

• Isolated to ±50 VDC from all other outputs and earth ground

• Maximum load limit:

- mA1: 820 ohms

- mA2: 420 ohms

• Can report mass flow, volume flow, density, temperature, or drive gain

Output is linear with process from 3.8 to 20.5 mA, per NAMUR NE43 (June 1994) One active or passive frequency/pulse output

• Not intrinsically safe

• Can report mass flow or volume flow, which can be used to indicate flow rate or total

• Scalable to 10,000 Hz

•Power:

- Internal (active): +15 VDC ±3% with 2.2 kohm internal pull-up resistor

- External (passive): +30 VDC maximum, 24 VDC typical, sinking up to 500 mA at

30 VDC

Output is linear with flow rate to 12,500 Hz One or two active or passive discrete outputs

• Not intrinsically safe

• Can report event 1, event 2, event 1 and event 2, flow switch, forward/reverse flow, calibration in progress, or fault

•Power:

- Internal (active): +15 VDC ±3% with 2.2 kohm internal pull-up resistor

- External (passive): +30 VDC maximum, +24 VDC typical, sinking up to 500 mA

at 30 VDC

Maximum sink capability: 500 mA One discrete input

• Can be configured for internal or external power

• Not intrinsically safe

•Power:

- Internal: +15 VDC, 7 mA maximum source current

- External: +3 to 30 VDC maximum

Can reset all totals, reset mass total, reset volume total, or start sensor zero

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

LF-Series Flowmeters: Sensor/Transmitter Installation 77

Dimensions and Specifications

Tabl e A-2 0 DIN transmitter digital communications

All transmitters One pair of terminals supports Modbus/RS-485 signal or SP (service port) mode.

HART/Bell 202 signal is superimposed on the primary mA output, and is available for host system interface

• Frequency: 1.2 and 2.2 kHz

• Amplitude: 0.8 V peak-to-peak

• 1200 baud

• Requires 250 to 600 ohms load resistance

Tabl e A-2 1 DIN transmitter power supply

Requires DC power Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements Contains an IEC 1.6A slowblow fuse

Power requirements 19.2 to 28.8 VDC, 6.3 watts maximum

At startup, transmitter power source must provide a minimum of 1.0 amperes of short-term current per transmitter Length and conductor diameter of the power cable must be sized to provide

19.2 VDC minimum at the power terminals, at a load current of 330 mA

Tabl e A-2 2 DIN transmitter environmental limits

Ambient temperature limits Operating: –40 to +131 °F (–40 to +55 °C)

Humidity limits 5 to 95% relative humidity, non-condensing at 140 °F (60 °C) Vibration limits Meets IEC68.2.6, endurance sweep, 5 to 2000 Hz, 50 sweep cycles at 1.0 g

Storage: –40 to +185 °F (–40 to +85 °C) If temperature is above 113 °F (45 °C) and you are mounting multiple transmitters, they must be mounted at least 8.5 mm apart.

Tabl e A-2 3 DIN transmitter environmental effects

EMI effects Meets EMC directive 89/336/EEC per EN 61326 Industrial Ambient temperature effect On analog outputs ±0.005% of span per °C

Tabl e A-2 4 DIN transmitter hazardous area classifications

Approvals agency Classification

(1)

CSA

(2)

ATEX

(1) CSA is a Canadian approvals agency that provides approvals accepted both in the U.S.A. and in Canada. (2) ATEX is a European directive.

Class I Division 2 Groups A, B, C, D Class II Division 2 Groups F and G Class III Division 2

Transmitter has no ATEX classification, and should be installed only in safe areas. Transmitter outputs are acceptable for connecting to a sensor (II 3G EEx nA) in a hazardous area.

78 LF-Series Flowmeters: Sensor/Transmitter Installation

Appendix B

Return Policy

Micro Motion procedures must be followed when returning equipment. These procedures ensure legal compliance with government transportation agencies and help provide a safe working environment for Micro Motion employees. Failure to follow Micro Motion procedures will result in your equipment being refused delivery.

Information on return procedures and forms is available on our web support system at www.micromotion.com, or by phoning the Micro Motion Customer Service department.

B.1 New and unused equipment

Only equipment that has not been removed from the original shipping package will be considered new and unused. New and unused equipment requires a completed Return Materials Authorization form.

I/O Wiring – DIN CIO Return PolicySpecificationsI /O Wiring – DIN AN

B.2 Used equipment

All equipment that is not classified as new and unused is considered used. This equipment must be completely decontaminated and cleaned before being returned.

Used equipment must be accompanied by a completed Return Materials Authorization form and a Decontamination Statement for all process fluids that have been in contact with the equipment. If a Decontamination Statement cannot be completed (e.g., for food-grade process fluids), you must include a statement certifying decontamination and documenting all foreign substances that have come in contact with the equipment.

LF-Series Flowmeters: Sensor/Transmitter Installation 79

80 LF-Series Flowmeters: Sensor/Transmitter Installation

Appendix C

CE Certification

C.1 Overview

This appendix contains information related to compliance with Electro Magnetic Compatibility (EMC) directive 89/336/EEC, Low Voltage Directive 73/23/EEC, and ATEX directive 94/9/EC.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 81

CE Certification

C.2 CE compliance information

Micro Motion equipment bearing the CE mark has been successfully tested to the regulations of Electro Magnetic Compatibility (EMC) directive 89/336/EEC, Low Voltage Directive 73/23/EEC, and ATEX directive 94/9/EC. This section contains a brief overview of the installation requirements. For complete information, refer to the installation instructions earlier in this manual, and to the ATEX D-IS instructions, available on the Micro Motion web site.

Table C-1 Compliance requirements

Directive Applies to Requirement

Electro Magnetic Compatibility (EMC) Directive 89/336/EEC

Low Voltage Directive 73/23/EEC

ATEX Directive 94/9/EC

All LF-Series flowmeters

All LF-Series transmitters that use AC power

Transmitter models LFT(1/3/4/6/7)**L****

Transmitter models LFT(6/7)**L****

Transmitter models LFT(2/5)**L****

Sensor models LF(2/3/4)*******L***** (all sensors)

• The sensor mounting plate must be grounded to earth.

• The transmitter must be grounded to earth.

• For the cable used between the sensor and the transmitter:

- Micro Motion supplies high-quality cable that meets the specifications for CE certification.

- If you provide your own signal cable, you should use a cable which is overall completely shielded with a 100% shield.

- If “Circular” type connectors are used, they should be shielded with a metal shield. If applicable, metal cable glands providing cable shield clamping must be used.

- The cable shield should be terminated to earth ground.

• A user-supplied switch must be installed in the power supply line in close proximity to the transmitter.

• When cable entries are used, they shall conform to clause 7.2.6 of EN 50021.

• In an ambient temperature of less than –20 °C, suitable cable and cable entries or conduit entries for this condition shall be used.

• A type of protection of at least IP 54 according to EN 60529 will be achieved only when cable and conduit entries providing IP 54 according to EN 60529 are used.

• The cover of the terminal compartment containing terminals 1–6 may be removed for short periods when the apparatus is in service to permit checking or adjustment of energized energy-limited circuits.

• When multiple transmitters are stacked on a single DIN rail and the ambient temperature is above 45 °C, the units must be spaced at least 10 mm apart.

• When the temperature under rated conditions is higher than 70 °C at the cable or conduit entry point, or 80 °C at the branching point of the conductors, the temperature rating of the cable used between the sensor and the transmitter shall be higher than the actually measured temperature values.

• Provisions shall be made to prevent the rated voltage being exceeded by transient disturbances of more than 40%.

82 LF-Series Flowmeters: Sensor/Transmitter Installation

CE Certification

Oplysninger om CE-overensstemmelse – Danish

Udstyr fra Micro Motion med CE-mærket er gennemprøvet i overensstemmelse med reglerne for elektromagnetisk kompatibilitet (EMC)-direktivet 89/336/EØF, Lavspændingsdirektivet 73/23/EØF og ATEX-direktivet 94/9/EF. Dette afsnit indeholder en kort oversigt over installationskravene. For mere fyldestgørende oplysninger henvises til installationsvejledningen tidligere i denne manual og til ATEX D-IS-vejledningen, som kan ses på Micro Motions hjemmeside.

Tabel C-1 Krav til overensstemmelse

Direktiv Gælder for Krav

Elektromagnetisk kompatibilitet (EMC)-direktivet 89/336/EØF

Lavspændingsdirektiv 73/23/EØF

ATEX-direktivet 94/9/EF

Alle flowmålere i LF-serien

Alle transmittere i LF-serien, som bruger vekselstrøm

Transmittermodeller LFT(1/3/4/6/7)**L****

Transmittermodeller LFT(6/7)**L****

Transmittermodeller LFT(2/5)**L****

Sensormodeller LF(2/3/4)*******L***** (alle sensorer)

• Sensorens monteringsplade skal have jordforbindelse.

• Transmitteren skal have jordforbindelse.

• Vedørende kablet, der anvendes mellem sensoren og transmitteren:

- Micro Motion leverer et kabel af høj kvalitet, som er i overensstemmelse med specifikationerne for CE-certificering.

- Hvis man bruger sit eget signalkabel, skal der bruges et kabel, som er helt afskærmet med en 100% skærm.

- Hvis der bruges stik af ”cirkulationstypen”, skal de være afskærmede med en metalskærm. Hvis relevant, skal der bruges kabelforskruninger med påsat kabelskærm.

- Kabelskærmen skal være afsluttes i en jordforbindelse.

• Der skal installeres en brugerleveret kontakt til netstrømsledningen i nærheden af transmitteren.

• Hvis der bruges kabelindgange, skal de være i overensstemmelse med paragraf 7.2.6 i EN 50021.

• Når den omgivende temperatur er under –20°C, skal der anvendes kabler og kabelindgange eller ledningsrørindgange, der passer til denne tilstand.

• Beskyttelse af typen IP 54 i henhold til EN 60529 kan som minimum kun opnås, hvis der bruges kabler og ledningsrørindgange, som giver beskyttelse af typen IP 54 i henhold til EN 60529.

• Dækslet på klemmerummet med klemmerne 1–6 kan fjernes i en kortere periode, når apparatet skal serviceres, så tilsluttede energibegrænsede kredsløb kan kontrolleres eller justeres.

• Når flere transmittere er stablet på en enkelt DIN-skinne og den omgivende temperatur er over 45°C, skal enhederne være placeret med en afstand på mindst 10 mm fra hinanden.

• Når temperaturen under klassificerede forhold er højere end 70°C ved kablet eller rørindgangspunktet, eller 80°C ved ledernes forgreningspunkt skal temperaturklassificeringen for det kabel, der anvendes mellem sensoren og transmitteren, være højere end de faktisk målte temperaturværdier.

• Der skal tages forholdsregler for at forhindre, at mærkespændingen overskrides af transientudsving på mere end 40%.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 83

CE Certification

Informatie CE-compliantie – Dutch

De Micro Motion apparatuur die is voorzien van het CE merk is met succes getest wat betreft de voorschriften van de EMC (Electro Magnetic Compatibility)-richtlijn 89/336/EEG, Laagspanningrichtlijn 73/23/EEG, en ATEX richtlijn 94/9/EG. Deze sectie bevat een kort overzicht van de installatievereisten. Raadpleeg voor complete informatie de installatie-instructies eerder in deze handleiding, en de ATEX D-IS instructies, beschikbaar op de website van Micro Motion.

Tabel C-1 Compliantievereisten

Richtlijn geldig voor vereisten

Elektromagnetische compatibiliteit (EMC) 89/336/EEG

Laagspanningrichtlijn 73/23/EEG

ATEX-richtlijn 94/9/EG

Alle flowmeters uit de LF-serie

Alle transmitters uit de LF-serie die wisselstroom gebruiken

Transmitter modellen LFT(1/3/4/6/7)**L****

Transmitter modellen LFT(6/7)**L****

Transmitter modellen LFT(2/5)**L****

Sensor modellen LF(2/3/4)*******L***** (alle sensoren)

• De sensormontageplaat moet op de massa worden geaard.

• De transmitter moet op de massa worden geaard.

• Voor de kabel tussen de sensor en de transmitter:

- Micro Motion levert een hoge kwaliteit kabel die voldoet aan de specificaties voor CE-certificatie.

- Als u uw eigen signaalkabel gebruikt, dient u een kabel te gebruiken die overal geheel is afgeschermd met een 100% afscherming.

- Als u stekkers van het ronde type gebruikt, moeten zij zijn afgeschermd met een metalen afscherming. Indien van toepassing moeten metalen kabeldoorvoeren worden gebruikt die de kabel afschermend vastklemmen.

- De kabelafscherming moet zijn aangesloten op de massaverbinding.

• Een door de gebruiker aangeschafte schakelaar moet vlakbij de transmitter in de stroomvoorzieningsleiding worden geïnstalleerd.

• Als er kabelingangen worden gebruikt, moeten zij voldoen aan clausule

7.2.6 van EN 50021.

• Als de omgevingstemperatuur lager is dan –20°C, moeten kabels en kabelingangen of leidingingangen worden gebruikt die geschikt zijn voor die omstandigheden.

• Er wordt uitsluitend een type bescherming van tenminste IP 54 overeenkomstig EN 60529 bereikt als er kabels en leidingingangen worden gebruikt die IP 54 leveren, overeenkomstig EN 60529.

• De kap van het aansluitingscompartiment met aansluitingen 1–6 kan gedurende korte periodes worden verwijderd terwijl het apparaat in bedrijf is zodat onder spanning staande energie-begrensde circuits kunnen worden gecontroleerd of afgesteld.

• Als meerdere transmitters op een enkele DIN-rail zijn gestapeld en de omgevingstemperatuur is hoger dan 45°C, moeten de units tenminste 10 mm van elkaar staan.

• Als de temperatuur onder de gespecificeerde omstandigheden bij de kabel of het ingangsleidingpunt hoger is dan 70°C, of 80°C bij het aftakpunt van de geleiders, zal de temperatuurspecificatie van de kabel tussen de sensor en de transmitter hoger zijn dan de werkelijk gemeten temperatuurwaarden.

• Er dienen maatregelen te worden getroffen om te voorkomen dat de gespecificeerde spanning wordt overschreden door transiënt-storingen van meer dan 40%.

84 LF-Series Flowmeters: Sensor/Transmitter Installation

CE Certification

CE-vaatimustenmukaisuustiedot – Finnish

CE-merkillä varustetut Micro Motion -laitteet ovat läpäisseet sähkömagneettista yhteensopivuutta koskevan direktiivin 89/336/ETY, matalajännitedirektiivin 73/23/ETY ja ATEX-direktiivin 94/9/EY vaatimusten mukaiset testit. Tässä osassa on annettu lyhyt yhteenveto asennusvaatimuksista. Täydelliset tiedot vaatimuksista ovat nähtävissä tässä käsikirjassa aiemmin annetuista asennusohjeista sekä Micro Motionin verkkosivuilla olevista ATEX D-IS -ohjeista.

Taulukko C-1 Vaatimustenmukaisuus

Direktiivi Koskee seuraavia Vaatimus

Sähkömagneettista yhteensopivuutta koskeva direktiivi 89/336/ETY

Matalajännitedirektiivi 73/23/ETY

ATEX-direktiivi 94/9/EY

Kaikki LF-sarjan virtausmittarit

Kaikki vaihtovirtaa käyttävät LF-sarjan lähettimet

Lähetinmallit LFT(1/3/4/6/7)**L****

Lähetinmallit LFT(6/7)**L****

Lähetinmallit LFT(2/5)**L****

Lähetinmallit LFT(2/3/4)*******L***** (kaikki anturit)

• Anturin asennuslevy on maadoitettava.

• Lähetin on maadoitettava.

• Anturin ja lähettimen välinen kaapeli:

- Micro Motion toimittaa hyvälaatuisen kaapelin, joka täyttää CE-todistuksen vaatimukset.

- Jos käytät omaa signaalikaapelia, sen on oltava 100-prosenttisesti suojattu kaikkialta.

- Jos käytät pyöreitä liittimiä, niissä on oltava metallisuojus. Tarvittaessa on käytettävä kaapelinsuojuskiristimellä varustettuja metallisia kaapelin läpivientiholkkeja.

- Kaapelinsuojuksen pää on maadoitettava.

• Käyttäjän on asennettava kytkin jännitteensyöttölinjaan lähelle lähetintä.

• Jos käytetään kaapeliläpivientejä, niiden on täytettävä standardin EN 50021 lausekkeen 7.2.6 vaatimukset.

• Ympäröivän lämpötilan ollessa kylmempää kuin –20 °C, on käytettävä tällaisiin oloihin sopivia kaapeleita tai kaapeli- tai johdinläpivientejä.

• Suojausluokka IP 54 standardin EN 60529 mukaisesti saadaan vain käytettäessä kaapeli- ja johdinläpivientejä, joiden luokitus on IP 54 standardin EN 60529 mukaisesti.

• Liittimet 1–6 sisältävän liitinkotelon kansi voidaan poistaa lyhyiksi ajoiksi koneen huoltoa varten, jotta virroitettuja energiarajoitteisia piirejä voidaan tarkistaa tai muuttaa.

• Kun useita lähettimiä pinotaan yhteen DIN-kiskoon ympäristön lämpötilan ollessa yli 45 °C, laitteiden väliin on jätettävä vähintään 10 mm.

• Jos lämpötila on nimellisolosuhteissa yli 70 °C kaapeli- tai johdinläpivientikohdassa tai 80 °C johtimien haarautumiskohdassa, anturin ja lähettimen välisen kaapelin arvon on oltava suurempi kuin todellisuudessa mitatut lämpötila-arvot.

• On ryhdyttävä varotoimenpiteisiin, jotta ohimenevät häiriöt eivät ylitä nimellisjännitettä enempää kuin 40 %.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 85

CE Certification

Informations relatives à la conformité CE – French

Les instruments Micro Motion portant la marque CE ont été testés afin de garantir leur conformité aux directives 89/336/EEC (compatibilité électromagnétique), 73/23/EEC (basses tensions) et 94/9/EC (ATEX). Cette section comporte une brève description des règles d’installation. Pour plus d’informations, se reporter aux instructions d’installation incluses dans ce manuel ainsi qu’aux instructions d’installation ATEX disponibles sur le site Internet de Micro Motion.

Tableau C-1 Exigences de conformité aux directives européennes

Appareil

Directive

Directive 89/336/EEC (compatibilité électromagnétique)

Directive 73/23/EEC (basses tensions)

Directive 94/9/EC (ATEX)

concerné Exigences

Tous les débitmètres Série LF

Tous transmetteurs Série LF avec alimentation c.a.

Transmetteurs modèles LFT(1/3/4/6/7)**L****

Transmetteurs modèles LFT(6/7)**L****

Transmetteurs modèles LFT(2/5)**L****

Capteurs modèles LF(2/3/4)*******L***** (tous capteurs)

• Le support de montage du capteur doit être relié à la terre.

• Le transmetteur doit être relié à la terre.

• Pour le câble de liaison entre le capteur et le transmetteur :

- Micro Motion livre un câble de haute qualité qui répond aux normes de certification CE.

- Si le câble utilisé n’est pas fourni par Micro Motion, il doit être entièrement blindé.

- Si des connecteurs de type « circulaire » sont utilisés, ils doivent être blindés à l’aide d’un blindage métallique. Si nécessaire, utiliser des presse-étoupe métalliques pour assurer la terminaison du blindage du câble.

- Le blindage du câble doit être relié à la terre.

• Un interrupteur fourni par l’utilisateur doit être installé sur la ligne d’alimentation électrique à proximité immédiate du transmetteur.

• Les entrées de câble utilisées doivent être conformes à la clause 7.2.6 de la norme EN 50021.

• Si la température ambiante est inférieure à –20 °C, il faut utiliser des câbles et des entrées de câble qui sont certifiés pour cette température.

• Une protection de type IP 54 minimum selon la norme EN 60529 n’est garantie que si le câble et les entrées de câble utilisés assurent un degré de protection IP 54 selon la norme EN 60529.

• Le couvercle du compartiment de câblage renfermant les bornes 1 à 6 peut être ôté brièvement lorsque l’appareil est en service pour permettre la vérification et l’ajustement de circuits à énergie limitée qui sont sous tension.

• Si plusieurs transmetteurs sont placés sur un même rail DIN et que la température ambiante est supérieure à 45 °C, ils doivent être espacés de 10 mm au minimum.

• Si aux conditions nominales la température est supérieure à 70 °C au niveau de l’entrée du câble ou du conduit, ou à 80 °C au niveau du point d’embranchement des conducteurs, la tenue en température du câble utilisé entre le capteur et le transmetteur devra être supérieure à la température mesurée.

• Les dispositions nécessaires devront être prises afin de s’assurer que les surtensions transitoires ne soient pas supérieures de 40 % de la tension nominale.

86 LF-Series Flowmeters: Sensor/Transmitter Installation

CE Certification

Informationen zur CE Konformität – German

Micro Motion Produkte erhalten das CE Zeichen nach erfolgreichen Tests gemäss der Richtlinie für die Elektromagnetische Verträglichkeit (EMV) 89/336/EEC, der Niederspannungsrichtlinie 73/23/EEC und der ATEX Richtlinie 94/9/EC. Dieser Abschnitt enthält eine Übersicht über die Installations-Anforderungen. Die kompletten Informationen finden Sie weiter vorne in dieser Betriebsanleitung in den Installationsanweisungen und in den ATEX D-Eigensicheren Anweisungen, verfügbar auf der Micro Motion Website.

Tabelle C-1 Konformitäts-Anforderungen

Richtlinie Zutreffend auf Anforderung

Elektromagnetische Verträglichkeit (EMV) Richtlinie 89/336/EEC

Niederspannungsrichtlinie 73/23/EEC

ATEX Richtlinie 94/9/EC

Alle LF-Serie DurchflussMesssysteme

Alle LF-Serie Auswerteelektroniken die eine AC Spannungsversorgung haben

Auswerteelektronik Modell LFT(1/3/4/6/7)**L****

Auswerteelektronik Modell LFT(6/7)**L****

Auswerteelektronik Modell LFT(2/5)**L****

Auswerteelektronik Modell LFT(2/3/4)*******L***** (alle Sensoren)

• Die Sensor Montageplatte muss geerdet werden.

• Die Auswerteelektronik muss geerdet werden.

• Zu verwendendes Kabel zwischen Sensor und Auswerteelektronik:

- Micro Motion liefert hoch qualitatives Kabel, das die Spezifikationen der CE Zertifizierung erfüllt.

- Wenn Sie Ihr eigenes Signalkabel verwenden, sollten Sie ein Kabel verwenden, das komplett mit einem 100 %-igen Schirm abgeschirmt ist.

- Wenn Sie „Rundanschlussklemmen“ („Circular“) verwenden, sollten diese mit einem Metallschirm abgeschirmt sein. Falls geeignet, müssen Kabelverschraubungen aus Metall mit Kabelschirm Befestigung verwendet werden.

- Der Kabelschirm sollte an Erde aufgelegt werden.

• Ein vom Anwender beigestellter Schalter, muss in der Zuleitung der Spannungsversorgung, nahe der Auswerteelektronik installiert werden.

• Werden Kabelverschraubungen verwendet, sollten diese konform mit Absatz 7.2.6 der EN 50021 sein.

• Wenn die Umgebungstemperatur unterhalb –20 °C liegt, verwenden Sie Kabel und Kabelverschraubungen oder Kabelschutzrohrverschraubungen die für diese Bedingung geeignet sind.

• Eine Schutzart von mindestens IP 54 gemäss EN 60529 wird nur dann erreicht, wenn Kabel und Kabelverschraubungen mit IP 54 gemäss EN 60529 verwendet werden.

• Es kann sein, dass der Gehäusedeckel des Anschlussklemmenraums für die Anschlussklemmen 1–6 kurzzeitig, während des Betriebs, geöffnet werden muss, um die unter Spannung stehenden, Energie begrenzten Schaltkreise zu prüfen oder zu justieren.

• Werden mehrere Auswerteelektroniken in einem DIN Rack gesteckt und die Umgebungstemperatur über 45 °C liegt, muss der Abstand zwischen den Geräten mindestens 10 mm betragen.

• Wenn die Temperatur unter Nennbedingungen höher als 70 °C am Kabel oder Kabelverschraubung ist oder 80 °C am Abzweigpunkt der Leitung, sollte die Nenntemperatur des zwischen Sensor und Auswerteelektronik verwendeten Kabels höher sein als der aktuell gemessene Temperaturwert.

• Vorkehrungen sollten getroffen werden, dass die Nennspannung durch Überspannungsstörungen nicht um mehr als 40 % überschritten wird.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 87

CE Certification

Informazione sulla conformità CE – Italian

L’attrezzatura di Micro Motion marcata CE è stata testata con successo in conformità agli standard della Compatibilità Elettromagnetica (EMC) direttiva 89/336/EEC, Direttiva per Bassa Tensione 73/23/EEC, e la Direttiva ATEX 94/9/EC. Questa sezione contiene un breve sommario sui requisiti d’installazione. Per informazioni complete, fare riferimento alle istruzioni in questo manuale, e alle istruzioni ATEX D-IS, disponibili sul internet di Micro Motion.

Tabella C-1 Requisiti di conformità

Direttiva Applicabile per Requisito

Compatibiltià Elettromagnetica (EMC) Direttiva 89/336/EEC

Direttiva per Bassa Tensione 73/23/EEC

Direttiva ATEX 94/9/EC

Tutti i misuratori Serie LF

Tutti i trasmettitori Serie LF che usano la potenza AC

Trasmettitore Modello LFT(1/3/4/6/7)**L****

Trasmettitore Modelli LFT(6/7)**L****

Trasmettitore Modelli LFT(2/5)**L****

Sensore Modelli LFT(2/3/4)**L**** (tutti i sensori)

• La piastra di montaggio deve essere messa a terra.

• Il trasmettitore deve essere messo a terra.

• Per il cablaggio usato fra il sensore e il trasmettitore:

- Micro Motion fornisce del cavo ad alta qualità in conformità alle norme per la certificazione CE.

- Se non si usa il cavo del segnale in dotazione, bisogna usare del cavo totalmente schermato con una schermatura del 100%.

- Se sono usati connettori “Circolari”, questi devono essere schermati con una schermatura in metallo. Se con dadi di serraggio per la schermatura del cavo.

- La schermatura del cavo deve essere terminata a terra.

• Bisogna installare un interruttore non in dotazione nella linea d’alimentazione in prossimità al trasmettitore.

• Se sono usati degli ingressi del cavo, questi saranno in conformità alla clausola 7.2.6 di EN 50021.

• Se la temperatura ambiente è meno di –20 °C, vanno usati cavo e ingressi del cavo o ingressi del condotto adatti a questa condizione.

• Il tipo di protezione di almeno IP 54 in conformità a EN 60529 sarà solo raggiunto se sono usati degli ingressi del cavo e del condotto provvedendo IP 54 in conformità a 60529.

• Il coperchio della morsettiera contenendo i terminali 1–6 può essere rimosso per brevi periodi quando i circuiti limitati in corrente alimentati dell'apparato sono in servizio per essere controllati o aggiustati.

• Nel caso che siano posizionati vari trasmettitori su una singola guida DIN e la temperatura ambiente superi 45 °C, la distanza fra le unità deve essere almeno 10 mm.

• Nel caso che la temperatura in condizioni classificate superi 70 °C all’ingresso del cavo o del condotto, o 80 °C al punto di diramazione dei conduttori, il rating della temperatura del cavo usato fra il sensore e il trasmettitore deve essere più alto dei valori di temperatura effettivamente misurati.

• Bisogna fare delle provviste per evitare che il voltaggio classificato sia superato da disturbi transitori di più del 40%.

88 LF-Series Flowmeters: Sensor/Transmitter Installation

CE Certification

CE-samsvarsinformasjon – Norwegian

Micro Motion-utstyr med CE-merke er testet i henhold til forskriftene i direktiv 89/336/EEC om elektromagnetisk kompatibilitet, lavvoltsdirektiv 73/23/EEC og ATEX-direktiv 94/9/EC. Dette avsnittet gir en kortfattet oversikt over installasjonskravene. For utfyllende informasjon vises det til installasjonsanvisningene tidligere i denne håndboken samt anvisningene for ATEX D-IS (finnes på Micro Motions nettsted).

Tabell C-1 Samsvarskrav

Direktiv Gjelder Krav

Direktiv om elektromagnetisk kompatibilitet (EMC) 89/336/EEC

Lavvoltsdirektivet 73/23/EEC

ATEX-direktiv 94/9/EC

Alle strømningsmålere i LF-serien

Alle transmittere i LF-serien som bruker vekselstrøm

Transmittermodellene LFT(1/3/4/6/7)**L****

Transmittermodellene LFT(6/7)**L****

Transmittermodellene LFT(2/5)**L****

Sensormodellene LF(2/3/4)*******L***** (alle sensorer)

• Sensorens festeplate må jordes.

• Transmitteren må jordes.

• For kabelen som benyttes mellom sensoren og transmitteren:

- Micro Motion leverer kabler av høy kvalitet som møter spesifikasjonene for

CE-sertifisering.

- Dersom du bruker din egen signalkabel, skal du bruke en kabel som er

100 % skjermet over det hele.

- Dersom “runde” koplinger brukes, skal disse skjermes med metallvern.

Hvis det er aktuelt, skal kabelmuffer med kabelvernsklemme brukes.

- Kabelvernet skal jordes.

• Det må monteres en bryter (skaffes av kunden) på strømforsyningsledningen i nærhet av transmitteren.

• Dersom kabelinnføringer brukes, skal disse være i samsvar med paragraf

7.2.6 av EN 50021.

• Når omgivelsestemperaturen er under –20 °C, skal det brukes kabel og kabelinnføringer sertifisert for disse forholdene.

• En beskyttelse på minst IP 54 i henhold til EN 60529 vil kun oppnås dersom det brukes kabel og kabelinnføring med beskyttelse på IP 54 i henhold til EN 60529.

• Dekselet på koplingshuset for polene 1–6 kan fjernes i korte perioder når enheten er i drift, slik at man kan kontrollere eller justere strømførende energibegrensede kretser.

• Dersom det er flere transmittere på en enkelt DIN-skinne, og omgivelsestemperaturen er over 45 °C, må det være en avstand på minst 10 mm mellom enhetene.

• Dersom temperaturen under merkede forhold er høyere enn 70 °C ved kabelens eller koplingens inngangspunkt, eller 80 °C ved ledernes forgreningspunkt, skal temperaturmerkingen for kabelen som benyttes mellom sensoren og transmitteren være høyere enn de faktiske, målte temperaturene.

• Ta forholdregler, slik at merkespenningen ikke overskrides med mer enn 40 % ved kortvarige svingninger i strømtilførselen.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 89

CE Certification

Informação de cumprimento das normas CE – Portuguese

O equipamento Micro Motion que possua uma etiqueta com a marca CE foi testado com sucesso de acordo com os regulamentos da directiva da Compatibilidade Electro-Magnética (EMC) 89/336/EEC, da directiva de Baixas Tensões 73/23/EEC, e a directiva ATEX 94/9/EC. Esta secção contêm uma breve descrição geral dos requisitos de instalação. Para obter informação completa, consulte as instruções de instalação que se encontram numa secção prévia deste manual, e as instruções ATEX D-IS que se encontram disponíveis na página na Internet da Micro Motion.

Quadro C-1 Requisitos de cumprimento

Directiva Aplica-se a Requisito

Directiva da Compatibilidade Electro-Magnética (EMC) 89/336/EEC

Directiva de Baixas Tensões 73/23/EEC

Directiva ATEX 94/9/EC

Todos os caudalímetros da Série LF

Todos os transmissores da Série LF que utilizam corrente CA

Transmissor modelos LFT(1/3/4/6/7)**L****

Transmissores modelos LFT(6/7)**L****

Transmissores modelos LFT(2/5)**L****

Sensores modelos LF(2/3/4)*******L***** (todos os sensores)

• A placa de montagem do sensor deve estar ligada à terra.

• O transmissor tem de estar ligado à terra.

• No que diz respeito ao cabo utilizado entre o sensor e o transmissor:

- A Micro Motion fornece um cabo de alta qualidade que cumpre as especificações do certificado CE.

- Se você disponibilizar o seu próprio cabo de sinal, tem de utilizar um cabo que se encontre completamente revestido com um escudo a 100%.

- Se forem utilizados conectores de tipo “Circular”, estes devem ser revestidos com um escudo metálico. Se aplicável, devem ser utilizadas pegas metálicas do cabo que forneçam um bloqueio do escudo do cabo.

- O escudo do cabo deve ser concluído com uma ligação à terra.

• O utilizado tem de instalar um interruptor na linha de fornecimento de corrente perto do transmissor.

• Quando são utilizadas entradas de cabo, estas devem estar em conformidade com os termos da cláusula 7.2.6 da EN 50021.

• Quando a temperatura ambiente for inferior a –20°C, devem ser utilizados o cabo e entradas de cabo ou entradas de conduta adequados para estas condições.

• Um tipo de protecção de pelo menos IP 54 de acordo com os termos da EN 60529 só será alcançado quando forem utilizadas entradas de cabo ou entradas de conduta que disponibilizem IP 54 de acordo com os termos da EN 60529.

• A tampa do compartimento do terminal que contém os terminais 1–6 pode ser retirada durante períodos curtos de tempo quando o aparelho se encontra em manutenção para fins de inspecção ou ajuste dos circuitos de trabalho com limite de tensão.

• Quando são empilhados múltiplos transmissores numa única guia DIN e a temperatura ambiente é superior a 45°C, as unidades devem ter uma distância de pelo menos 10 mm entre si.

• Quando a temperatura sob condições atribuídas é superior a 70°C no ponto de entrada do cabo ou da entrada da conduta, ou de 80°C no ponto de ramificação dos condutores, a classificação da temperatura do cabo utilizado entre o sensor e o transmissor irá ser superior aos valores de temperatura medidos de facto.

• Serão tomadas medidas para impedir que a tensão atribuída seja ultrapassada por causa de distúrbios temporários superiores a 40%.

90 LF-Series Flowmeters: Sensor/Transmitter Installation

CE Certification

Información de cumplimiento CE – Spanish

El equipo de Micro Motion que tiene la marca CE ha pasado con éxito las pruebas de las regulaciones de la directiva de compatibilidad electromagnética (EMC, por sus siglas en inglés) 89/336/EEC, directiva de bajo voltaje 73/23/EEC y directiva ATEX 94/9/EC. Esta sección contiene generalidades breves sobre los requerimientos de instalación. Para obtener información completa, consulte las instrucciones de instalación que se encuentran en una sección anterior en este manual, y las instrucciones ATEX D-IS, disponibles en el sitio web de Micro Motion.

Tabla C-1 Requerimientos de cumplimiento

Directiva Aplica a Requerimiento

Directiva de compatibilidad electromagnética (EMC) 89/336/EEC

Directiva de bajo voltaje 73/23/EEC

Directiva ATEX 94/9/EC

Todos los medidores de caudal de la serie LF

Todos los transmisores de la serie LF que usen alimentación de CA

Modelos de transmisores LFT(1/3/4/6/7)**L****

Modelos de transmisores LFT(6/7)**L****

Modelos de transmisores LFT(2/5)**L****

Modelos de transmisores LF(2/3/4)*******L***** (todos los sensores)

• La placa de montaje del sensor se debe conectar a tierra física.

• El transmisor se debe conectar a tierra física.

• Para el cable que se usa entre el sensor y el transmisor:

- Micro Motion suministra cable de alta calidad que cumple con las especificaciones para certificación CE.

- Si usted proporciona su propio cable de señal, debe usar un cable que esté completamente blindado con una pantalla de 100%.

- Si se usan conectores tipo “Circular”, deben estar blindados con una pantalla metálica. Si procede, se deben usar prensaestopas metálicos que proporcionen sujeción de la pantalla del cable.

- La pantalla del cable se debe terminar en tierra física.

• Se debe instalar un interruptor suministrado por el usuario en la línea de la fuente de alimentación cerca del transmisor.

• Cuando se usan entradas de cable, éstas deben cumplir con la cláusula

7.2.6 de EN 50021.

• En un entorno con temperatura ambiental menor a –20 °C, se deben usar cable y entradas de cable o entradas de conducto adecuados para esta condición.

• Se logrará un tipo de protección de al menos IP 54 de acuerdo a EN 60529 sólo cuando se use cable y entradas de conducto que proporcionen IP 54 de acuerdo a EN 60529.

• La cubierta del compartimiento de terminales que contiene los terminales 1–6 se puede quitar por períodos breves cuando el aparato está en servicio para permitir la revisión o ajuste de los circuitos energizados limitados por energía.

• Cuando se ponen múltiples transmisores en un solo carril DIN y la temperatura ambiental es superior a 45 °C, las unidades deben estar separadas cuando menos 10 mm.

• Cuando la temperatura bajo las condiciones clasificadas es superior a 70 °C en el punto de entrada de conducto o de cable, u 80 °C en el punto de ramificación de los conductores, el valor nominal de temperatura del cable usado entre el sensor y el transmisor debe ser mayor que los valores de temperatura realmente medidos.

• Se deben tomar las precauciones necesarias para evitar que se exceda el voltaje nominal debido a disturbios transitorios de más de 40%.

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 91

CE Certification

CE överensstämmelseinformation – Swedish

Micro Motion-utrustning med CE-märke har framgångsrikt testats mot föreskrifterna i EMC-direktivet 89/336/EEC, lågspänningsdirektivet 73/23/EEC och ATEX-direktivet 94/9/EC. Detta avsnitt innehåller en kort översikt om installationskraven. För fullständig information se installationsanvisningarna tidigare i denna handbok och ATEX D-IS-anvisningarna som finns på Micro Motions webbplats.

Tabell C-1 Överensstämmelsekrav

Direktiv Gäller för Krav

Elektromagnetisk kompatibilitet (EMC) direktiv 89/336/EEC

Lågspänningsdirektivet 73/23/EEC

ATEX-direktiv 94/9/EC

Alla LF-seriens flödesmätare

Alla LF-seriens transmittrar som använder växelström

Transmittermodeller LFT(1/3/4/6/7)**L****

Transmittermodeller LFT(6/7)**L****

Transmittermodeller LFT(2/5)**L****

Sensormodeller LF(2/3/4)*******L***** (alla sensorer)

• Sensorns fästplatta måste vara jordad.

• Transmittern måste vara jordad.

• För kabeln som används mellan sensorn och transmittern:

- Micro Motion levererar högkvalitetskabel som uppfyller kraven för

CE-godkännande.

- Om du tillhandahåller din egen signalkabel skall du använda en kabel

som är fullständigt skärmad med en 100 % skärm.

- Om ”cirkulär”-typskontakter används skall de vara skärmade

med metallskärm. Om tillämpligt måste kabelförskruvningar med metallskärmsklämmor användas.

- Kabelskärmen skall avslutas mot jord.

• En användarlevererad brytare måste installeras i strömförsörjningsledningen nära transmittern.

• När kabelingångar används skall de uppfylla artikel 7.2.6 i EN 50021.

• I en omgivningstemperatur lägre än –20 °C, skall kabel och kabelingångar eller skyddsrör lämpliga för detta tillstånd användas.

• En typ av skyddskapsling på minst IP 54 enligt EN 60529 uppnås bara när kabel- och skyddsrörsingångar som ger IP 54 enligt EN 60529 används.

• Locket till kopplingsplinten med kontakterna 1–6 kan tas bort korta perioder när apparaten servas för att tillåta kontroll eller justering av strömsatta energibegränsade kretsar.

• När flera transmittrar är staplade på en enkel DIN-skena och omgivningstemperaturen är över 45 °C, måste enheterna sitta minst 10 mm från varandra.

• När temperaturen under nominella prestanda är högre än 70 °C vid kabeleller skyddsrörsingången eller 80 °C vid ledarnas förgreningspunkt skall temperaturmärkdata för kabeln som används mellan sensor och transmitter vara högre än de faktiskt uppmätta temperaturvärdena.

• Åtgärder skall vidtas för att förhindra att märkspänningen överskrids av transientstörningar på mer än 40 %.

92 LF-Series Flowmeters: Sensor/Transmitter Installation

Index

AC power

See Power source

Analog output wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter field-mount AN transmitter field-mount CIO transmitter

Cable

types

Cable length Channel configuration

DIN rail mount CIO transmitters field-mount CIO transmitters

Codes used in this manual

Transmitter

DC power

See Power source

Dimensions

transmitter

Discrete input wiring

DIN rail mount CIO transmitter field-mount CIO transmitter

Discrete output wiring

DIN rail mount CIO transmitter field-mount CIO transmitter

Display

components rotating

Environmental requirements

field-mount transmitter

6, 11, 19

codes

DIN rail mount FM

with display without display

19, 69

Flow direction arrow Flowmeter

components

OUNDATION fieldbus wiring 43

F Frequency output wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter field-mount AN transmitter field-mount CIO transmitter

Grounding

DIN rail mount transmitter field-mount transmitter

sensor

HART multidrop wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter field-mount AN transmitter field-mount CIO transmitter

HART/analog single-loop wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter field-mount AN transmitter field-mount CIO transmitter

Hazardous areas

DIN rail mount transmitter field-mount transmitter sensor installation

Humidity limits

field-mount transmitter

Installation

cable types channel configuration

DIN rail mount CIO transmitters field-mount CIO transmitters

DIN rail mount transmitter

dimensions distance from sensor grounding hazardous areas

19, 69

47, 49

Index CE Certification

LF-Series Flowmeters: Sensor/Transmitter Installation 93

Index

installation architecture 17 location mounting multiple transmitters power source temperature limits wiring power supply

field-mount transmitter

dimensions

distance from sensor environmental requirements grounding hazardous areas humidity limits installation architecture location mounting power source rotating display temperature limits vibration limits

wiring power supply overview sensor

distance from transmitter

grounding

hazardous areas

location

mounting

orientation wiring

MVD Direct Connect

outputs

sensor to transmitter

LF-Series

model numbers sensor transmitter

Location

DIN rail mount transmitter field-mount transmitter

with display without display

DIN rail mount AN transmitters DIN rail mount CIO transmitters field-mount AN transmitters field-mount CIO transmitters

mA output wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter field-mount AN transmitter field-mount CIO transmitter

Modbus/RS-485 wiring

DIN rail mount AN transmitter DIN rail mount CIO transmitter

Mounting

DIN rail mount

multiple transmitters DIN rail mount transmitter field-mount transmitter sensor

MVD Direct Connect

wiring

Orientation

sensor

Output wiring

DIN rail mount AN transmitters DIN rail mount CIO transmitters field-mount AN transmitters field-mount CIO transmitters

Power source

DIN rail mount transmitter field-mount transmitter

Power supply wiring

DIN rail mount transmitter field-mount transmitter

Profibus-PA wiring

Remote host
