Emerson LC321EM9 User Manual

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSO N RADIO CORP., PARSIPPANY, NEW JERS EY, U.S .A.

NEED HELP?

PLEASE CALL TOLL FREE!

INTRODUCTION PREPARATION WATCHING TV

Owner’s Manual

LC321EM9

OPTIONAL SETTING

1-800-256-2487

OR VISIT OUR WEB SITE AT

www.EmersonAudioVideo.com

TROUBLESHOOTING

HIGH-DEFINITION TELEVISION

INFORMATION

TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.

NTRODUCTION

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

Model No.:

Serial No.:

Precautions5

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 3.2 inches (8cm) or more around this apparatus.

INTRODUCTION

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

• Do not remove this unit cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this

• unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center. Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

•

LOCATION AND HANDLING

The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

•

NOTE ABOUT RECYCLING

This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance

• with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local

• regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

At least two people are required when carrying this unit.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

•

PREPARATION

WATCHING TV INFORMATION

OPTIONAL SETTING TROUBLESHOOTING

Trademark Information

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

• Licensing LLC.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

• Laboratories.

Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

•

NTRODUCTION

Supplied Accessories5

owner’s manual (1EMN23761)

If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

• customer support line found on the cover of this manual. Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).

• Contact your local electronics store for these items.

Attaching the Stand

You must attach the stand to the unit to display upright. Be sure the front and rear of the stand match the proper direction.

quick start guide (1EMN23762)

remote control (NF027UD)

batteries (AA x 2)

Phillips pan screw for attaching the stand x 3 (FPH34100)

Spread a thick and soft cloth over a

table. Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step.

Insert the stand all the way to the

main unit slowly until it clicks. Make sure not to put the AC power cord between the stand and the unit.

Drive Phillips pan screws in the 3

threaded holes at the bottom of the stand with a screwdriver tightly.

screw holes

lever

To remove the stand from this unit

Unscrew the Phillips pan screws indicated by “1”, then lift the lever on the bottom stand and remove the stand from the unit slowly. Be careful not to drop the stand when you remove it.

Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

: Digital TV operation

DTV

If neither symbol appears under the function heading, operation is applicable to both.

•

: Analog TV operation

INTRODUCTION

Features5

•

DTV/TV/CATV

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

•

Information Display (DTV only)

You can display the title, contents and other information of the current DTV program on the TV screen.

•

Auto Channel Scan

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

•

V-chip

This feature allows you to block children’s access to inappropriate programs.

•

Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption supported programs.

•

MTS/SAP Tuner

Audio can be selected from the remote control.

•

Auto Shut Off Function

If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically.

•

Sleep Timer

This feature will automatically turn off the power of the unit at a specific time.

•

Choices for On-screen Language

Select your on-screen language: English, Spanish or French.

•

Stereo Sound Function

•

PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.

•

HDMI Input

•

Component Video Input

•

S-video Input

•

AV Input

•

Digital Audio Coaxial Output

Contents5

INTRODUCTION

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Buttons on the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PREPARATION

Basic Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

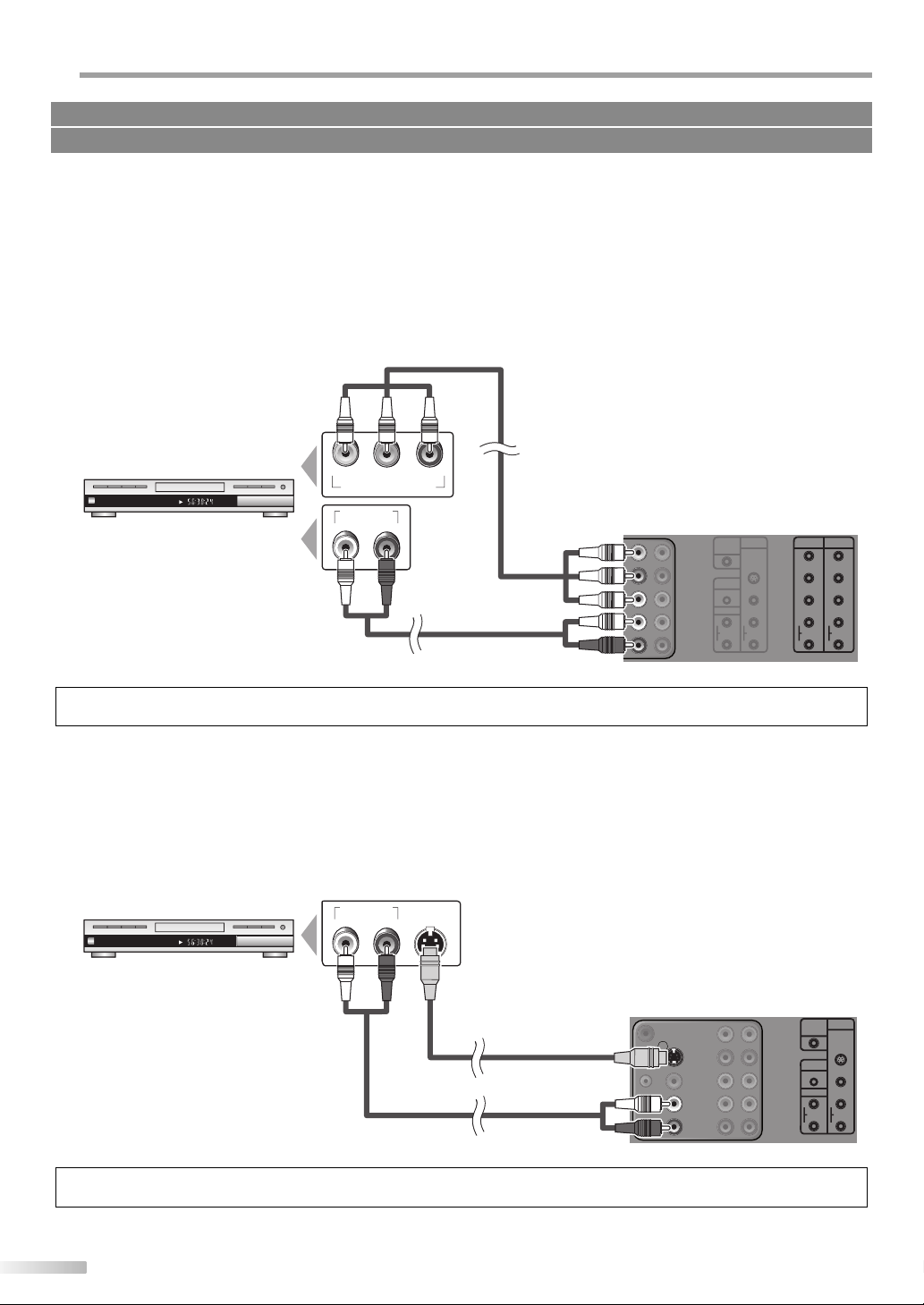

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WATCHING TV

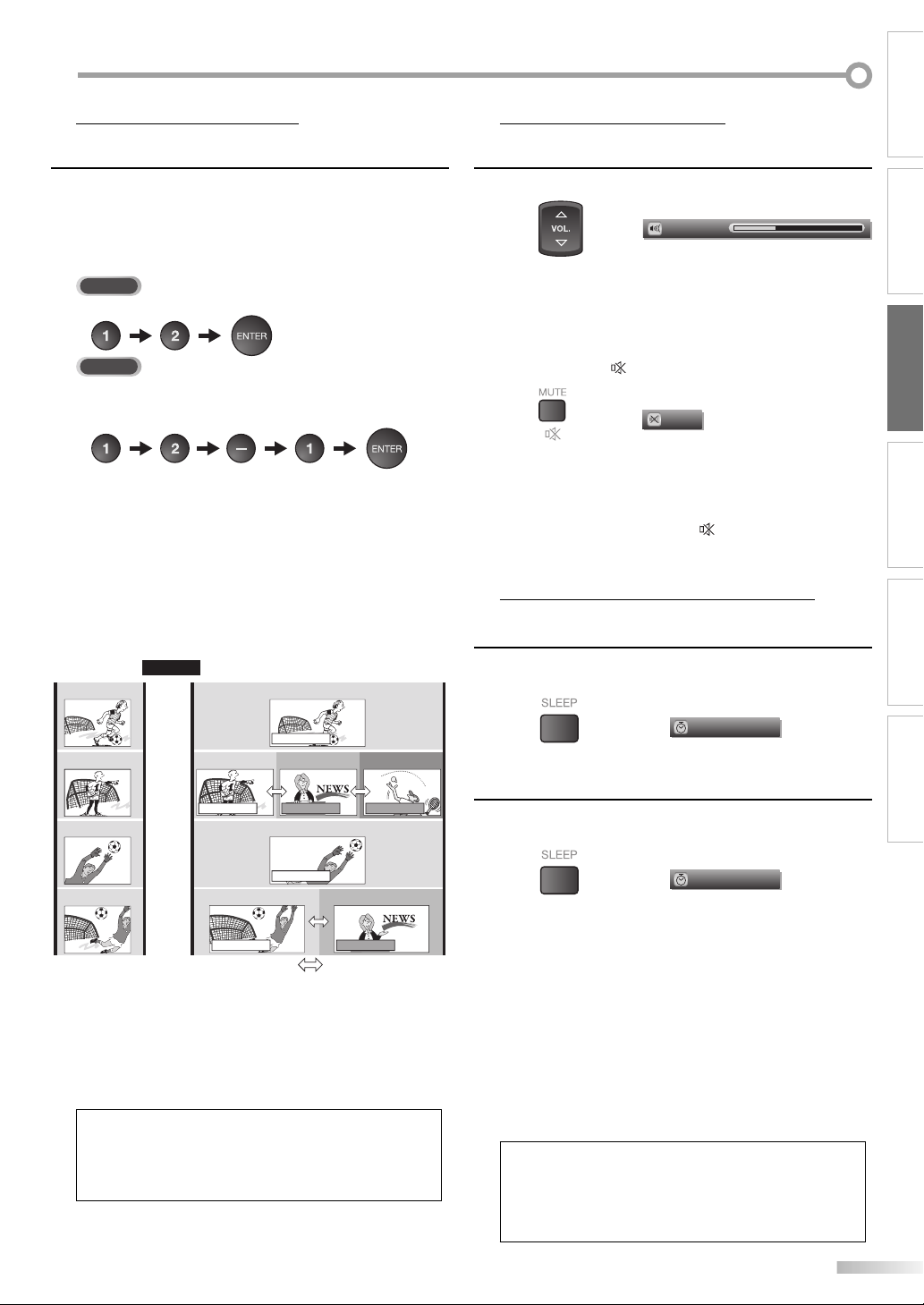

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

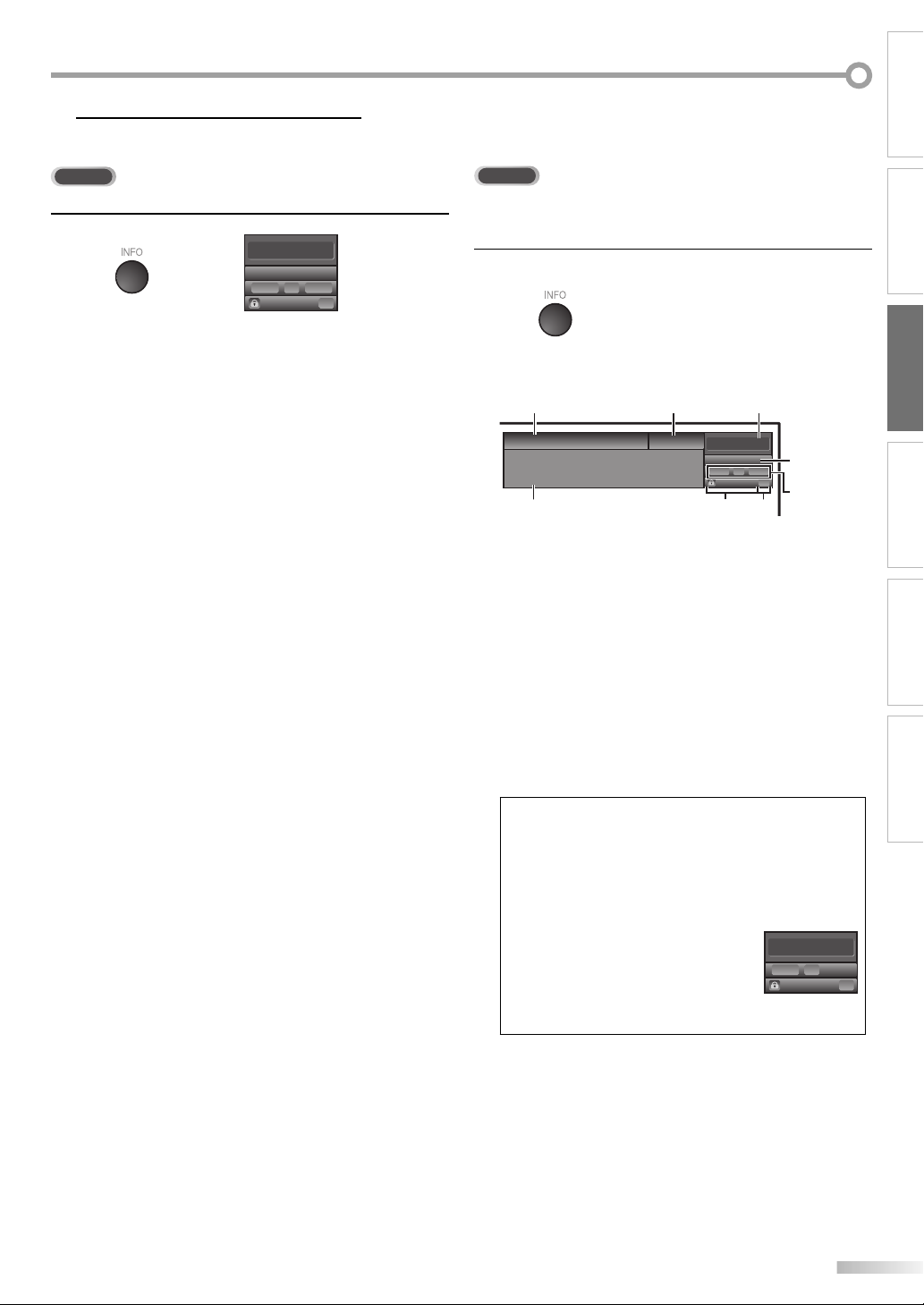

Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

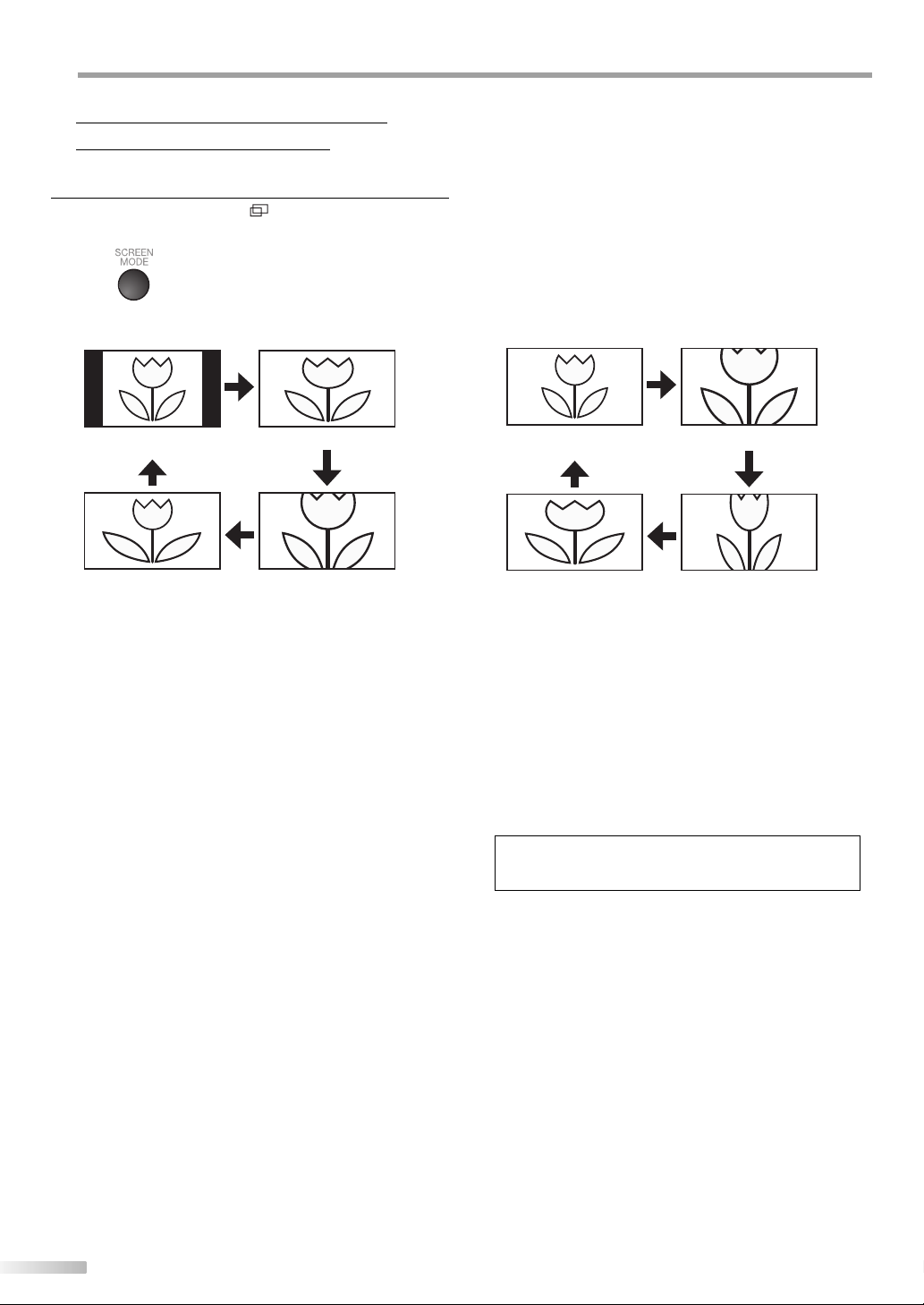

TV Screen Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OPTIONAL SETTING

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Antenna Confirmation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

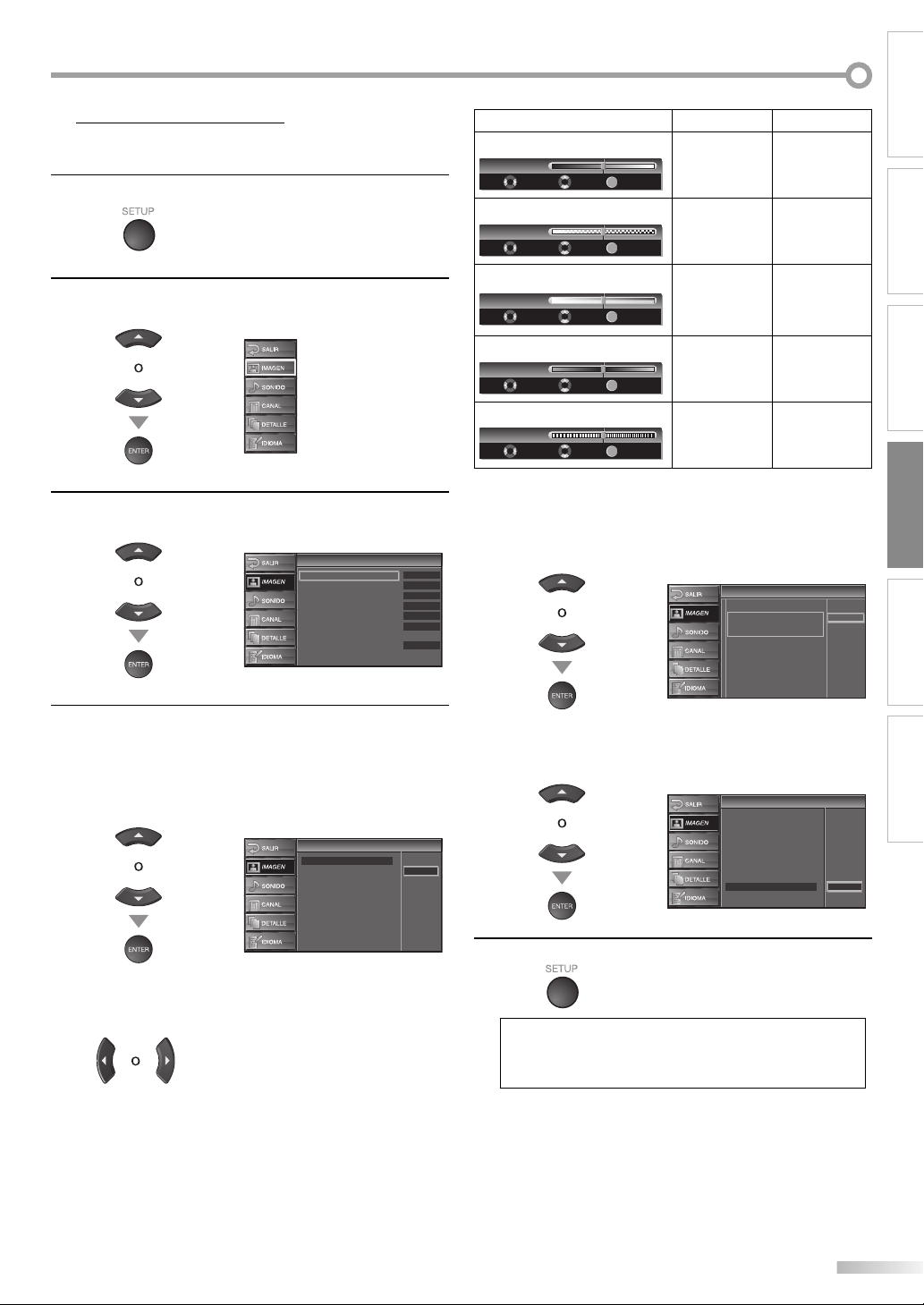

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

DTV Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

CC Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

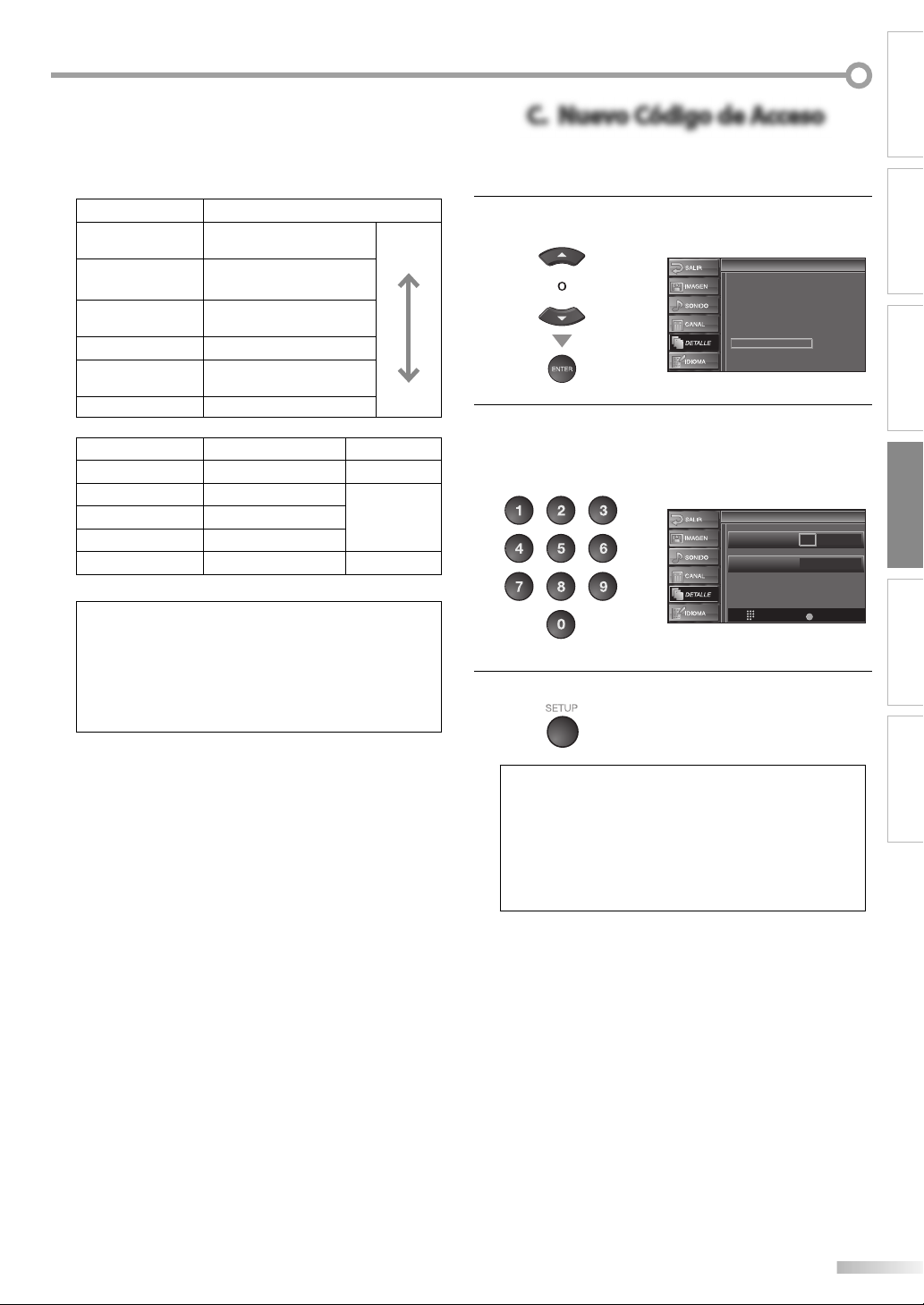

V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

HDMI Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

TROUBLESHOOTING

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back cover

PREPARATION

WATCHING TV INFORMATION

OPTIONAL SETTING TROUBLESHOOTING

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

NTRODUCTION

Buttons on the Remote Control5

CH RECALL

1. POWER (p. 12)

Press to turn the unit on and off.

2. Number buttons (p. 13)

•

Press to select channels.

- (hyphen)

•

Press to shift the minor channel

from the major channel.

3. SETUP (p. 12)

Press to display the main menu.

/ B / K / L (p. 12)

Press to move left/ right/ up/

down through the items.

5. ENTER (p. 12)

Press to decide the command of setting when the main menu is displayed.

6. BACK (p. 15)

Press to return to the previous menu operation.

7. CH RECALL (p. 13)

Press to return to the previously viewed channel.

8. VOL. X / Y (p. 13)

Press to adjust the volume.

9. MUTE

Press to turn the sound on and off.

10. INPUT SELECT (p. 14)

Press to access connected external devices like a BD/DVD player or VCR.

(p. 13)

11. SLEEP (p. 13)

Press to activate the sleep timer.

12. AUDIO (p. 14)

Digital Mode (DTV)

Press to select the audio

• language.

Analog Mode (TV)

Press to select the audio mode.

•

13. STILL (p. 14)

Press to pause screen image.

14. SCREEN MODE

Press to select aspect ratio available for the TV screen.

15. INFO (p. 15)

Digital Mode (DTV)

Press to display the channel

• information, signal type and TV setting.

Analog Mode (TV)

Press to display the channel

• number, signal type and TV setting.

External Input Mode

Press to display the external

• input modes, signal type and TV setting.

16. CH K / L (p. 13)

Press to select channels and the external input modes.

(p. 16)

Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

INTRODUCTION

Control Panel5

1. POWER (p. 12)

Press to turn the unit on and off.

2. INPUT SELECT/ENTER (p. 14)

•

Press to access connected external devices like a BD/DVD player or VCR.

•

Press to decide the command of setting when the menu is displayed.

3. CHANNEL K / L (p. 13)

Press to select channels or move up/down through the main menu items.

4. VOLUME X / Y (p. 13)

Press to adjust the volume or move right (X) / left (Y) through the main menu items.

6 7 8

5. SETUP (p. 12)

Press to display the main menu.

6. infrared sensor window

Receives infrared rays transmitted from the remote control.

7. power on indicator

Lights up when power is on.

8. stand by indicator

Rear Panel5

Lights up in standby mode.

PREPARATION

WATCHING TV INFORMATION

OPTIONAL SETTING TROUBLESHOOTING

1. HDMI input jack (p. 8)

HDMI connection for HDMI devices.

2. antenna input jack (p. 8)

RF coaxial cable connection for your antenna or cable receiver / satellite box.

3. AC power cord

Connect to a standard AC outlet to supply power to this unit.

4. coaxial digital audio output jack (p. 11)

Coaxial digital audio connection for a decoder or an

audio receiver.

5. S-video input jack (p. 10)

S-video connection for external devices.

6. video input jack (p. 11)

RCA video connection for external devices.

DIGITAL AUDIO OUT (COAXIAL)

HDMI-IN

AUDIO

VIDEO 1

S-VIDEO

COMPONENT 1 COMPONENT 2

VIDEO 2

S-VIDEO

VIDEO

AUDIO

VIDEO

AUDIO

7. audio input jack (p. 9)

RCA audio connection for DVI devices. (For HDMI1 input jack only)

8. audio input jack (p. 10)

RCA audio connection for external devices.

9. component video and audio input jack (p. 8)

RCA component video and RCA audio connection for external devices.

REPARATION

Cables not included.

Please purchase the necessary cables at your local store.

Basic Connection

This section describes how to connect the unit to an antenna, cable receiver or satellite box.

Note:

• Be sure your antenna or other device is connected properly before plugging in the AC power cord.

[Antenna Connection]

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF antenna

rear of this unit

RF coaxial cable

cable TV signal

Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area. (Refer to “Initial Setup” on page 12.)

Note:

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

• To switch your reception source easily between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATV installer.

[Connection to Cable Receiver or Satellite Box]

Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jack, connect an RCA audio cable to the audio L/R jack of COMPONENT1 or COMPONENT2 accordingly.

e.g.)

satellite dish

RF coaxial cable

ANT IN

cable TV signal including PPV

cable receiver / satellite box

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video

HDMI OUT

AUDIO OUT

STEREO PCM

HDMI cable

COMPONENT VIDEO OUT

Pr/CrPb/CbY

RCA component video cable and RCA audio cable

(red)(blue)(green)

(green)

(blue)

(red)

ed)

rear of this unit

DIGITAL

COMPONENT 1 COMPONENT 2

VIDEO 1

VIDEO 2

AUDIO OUT

(COAXIAL)

HDMI-IN

S-VIDEO

VIDEO

AUDIO

S-VIDEO

VIDEO

AUDIO

output jack because they might have different output jacks. Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear

QAM may differ depending on the cable/satellite provider. For more information, please contact your cable/satellite provider.

Cables not included.

Please purchase the necessary cables at your local store.

External Device Connection

[HDMI Connection]

HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. It ensures that the content sent from the source to the unit is of the highest possible resolution. Use an HDMI cable to connect the unit to external video devices equipped with HDMI output jack.

e.g.)

rear of this unit

INTRODUCTION

PREPARATION

WATCHING TV

TITLE 5 CHAPTER 15 REPEAT A-B

HDMI OUT

HDMI cable

BD/DVD player with the HDMI output jack

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select “PCM” for the digital audio output of the device connected or the check HDMI audio setting. There may be no audio output if you select “Bitstream”, etc.

• This unit only accepts signals compliant with EIA861.

[HDMI-DVI Connection]

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.

e.g.)

STEREO PCM

cable receiver or satellite box with the DVI output jack

DVI OUT

AUDIO OUT

RCA audio cable

HDMI-DVI conversion cable

To HDMI1 input jack only

HDMI-IN

AUDIO

rear of this unit

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

• HDMI-DVI connection requires separate RCA audio connection as well.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not compliant with EIA/CEA-861/861B.

REPARATION

CA audio cable

Cables not included.

Please purchase the necessary cables at your local store.

[Component Video Connection]

RCA component video connection offers better picture quality for video devices connected to the unit. Use an RCA component video cable to connect the unit to external video devices equipped with component video output jack. If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jack, connect an RCA audio cable to the audio L/R jack of COMPONENT1 or COMPONENT2 accordingly.

e.g.)

RCA component video cable

(red)(blue)(green)

Pr/CrPb/CbY

green

blue

red

DIGITAL AUDIO OUT (COAXIAL)

HDMI-IN

AUDIO

VIDEO 1

S-VIDEO

rear of this unit

COMPONENT 1 COMPONENT 2

VIDEO 2

S-VIDEO

VIDEO

AUDIO

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD player with the component video output jack

COMPONENT VIDEO OUT

AUDIO OUT

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

[S-video Connection]

S-video connection offers good picture quality for video devices connected to the unit. Use an S-video cable to connect the unit to external video devices equipped with S-video output jack. If you connect to the unit’s VIDEO1 S-video or VIDEO2 S-video input jack, connect an RCA audio cable to the audio L/R jack of VIDEO1 or VIDEO2 accordingly.

e.g.)

S-VIDEO

OUT

rear of this unit

DIGITAL

VIDEO 1

AUDIO OUT

S-video cable

(COAXIAL)

HDMI-IN

S-VIDEO

VIDEO

AUDIO

TITLE 5 CHAPTER 15 REPEAT A-B

BD/DVD player with the S-video output jack

AUDIO OUT

AUDIO

VIDEO 2

S-VIDEO

VIDEO

AUDIO

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

decode

Cables not included.

Please purchase the necessary cables at your local store.

[Video Connection]

RCA video connection offers standard picture quality for video devices connected to the unit. Use an RCA video cable to connect the unit to external video devices equipped with video output jack. If you connect to the unit’s VIDEO1 or VIDEO2 video input jack, connect an RCA audio cable to the audio L/R jack of VIDEO 1 or VIDEO 2 accordingly. When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.

e.g.)

INTRODUCTION

PREPARATION

WATCHING TV

AUDIO OUT

VIDEO

OUT

camcorder video game

STEREO

STAND-BY

RCA video cable

VCR

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

[Audio Output Connection]

À Digital (for digital broadcasting only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices.

e.g.)

digital audio coaxial cable

DIGITAL AUDIO

COAXIAL IN

Dolby Digital

rear of this unit

DIGITAL

VIDEO 1

AUDIO OUT (COAXIAL)

HDMI-IN

rear of this unit

VIDEO 2

S-VIDEO

VIDEO

AUDIO

AUDIO OUT (COAXIAL)

HDMI-IN

AUDIO

DIGITAL

VIDEO 1

S-VIDEO

VIDEO

AUDIO

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

REPARATION

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and auto channel scan, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure if the unit is connected to antenna or cables.

After making all the necessary connections, press

[POWER] to turn on the unit.

This operation may take a few moments.

•

Use [Cursor K / L] to select the on-screen language

from the choices on the right side of the TV screen. (English / Español / Français)

Initial Setup

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

ENTER

Select Enter Skip

•

“Initial Setup” menu on step 3 will be displayed in the selected language after you press [ENTER].

Use [Cursor K / L] to select “Air” for TV channels or

“Cable” for CATV channels, then press [ENTER].

English

Español

Français

SETUP

Use [Cursor s / B] to select the desired mode for

energy saving, then press [ENTER].

Initial Setup

Select “Retail” or “Home” for your location.

ENTER

Select Enter

Select “Retail” if you want backlight to be brighter.

• Select “Home” to reduce the power consumption.

•

When the initial setup is completed, the lowest

• memorized channel with the confirmation message of the energy saving mode will be displayed on the TV screen.

Note:

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during auto channel scan, this setting will be canceled.

• The initial auto channel scan function can be executed for either “Air” or “Cable” only once. When you change the connection (Air/Cable), set auto channel scan again. (Refer to page 17.)

• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.

HomeRetail

SETUP

Exit

2-2

Initial Setup

Make sure the antenna is connected to "ANT.IN" jack. Select the destination of "ANT.IN" jack.

Air

Cable

BACK

ENTER

Select Enter Skip

Scanning and memorizing of channels start

• automatically.

Initial Setup

Now the system is scanning for channels,please wait.

Analog channels 1ch

Digital channels 0ch

No channel is registered. Press and hold "ENTER" key on the remote control for 3 seconds.

Air

Cable

ANT.IN

SETUP

Back

• When you select “Home”, brightness of backlight darkens

Contact support hotline provided on manual or back of unit.

Sin canal registrado. Pulse durante 3 segundos la tecla "ENTER" en el control remoto. Llame teléfono de apoyo en manual o atrás de TV.

Pas de chaîne consign. Enfoncez "ENTER" 3 secondes sur la télécommande. Contacter numero d'urgence dans manuel ou arrière appareil.

compared to “Retail”. This is not a malfunction.

After an initial setup is completed...

If you want to scan the channels automatically again,

• refer to “Auto Channel Scan” on page 17.

You can add the desired channels unmemorized by

•

SETUP

Skip

“Autoscan”. Refer to “Manual Register” on page 19.

If you want to change the other language from the

• one you chose, refer to “Language Selection” on page 20.

If you want to change the mode for energy saving,

• refer to “Energy Saving Mode” on page 30.

ATCHING TV

Channel Selection

Select channels by using [CH K / L] or [the Number buttons].

To select the memorized channels, use [CH

•

[the Number buttons]. To select the non-memorized channels, use

•

[the Number buttons].

To Use [the Number buttons]

When selecting analog channel 12

DTV

When selecting digital channel 12-1

Be sure to press [–] before entering the minor channel number.

Press [CH RECALL] to return to the previously viewed

• channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable/satellite provider or local TV stations.

NTSC

(analog mode)

(Soccer)

CH4

Air time

18:00

ATSC

(digital mode)

(Soccer)

CH4-1

L] or

Volume Adjustment

This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

Use [VOL.

The volume bar will be displayed at the bottom of

•

] to adjust the audio volume.

Volume 20

the TV screen when adjusting the volume. The volume bar will automatically disappear in a few

• seconds.

Press [MUTE ] to turn off and on the sound.

Mute

“Mute” is displayed on the TV screen for a few

• seconds.

Press [MUTE ] again or [VOL.

] to recover the

original volume.

Sleep Timer

The sleep timer can be set to automatically turn off the unit after an incremental period of time.

Press [SLEEP] to set the sleep timer.

INTRODUCTION PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

major chann el

CH4-2

CH4-1

major chann el

(News)

(Soccer)

minor channel

CH4-3

minor chan nelminor chan nel

CH4-2

(Tennis)

(News)

(Soccer)

can be changed by using [C H K / L].

CH4

(Soccer)

18:30

19:00

19:30

20:00

CH4-1

major channel

CH4-1

major chann el

What is the minor channel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

Note:

• “No Signal” will appear on the TV screen after the minor channel broadcast is over.

• “Audio only program“ message will appear on the TV screen, when you receive only sound signal.

Sleep timer display appears on the TV screen.

•

Press [SLEEP] repeatedly to change the amount of time

Sleep

Off

until shut off.

You can set your unit to turn off after a set period of

•

Sleep

120min.

time (from 30 to 120 minutes). Each press of [SLEEP] will increase the time by 30

• minutes. After setup, the sleep timer display can be called up

• for checking by pressing [SLEEP].

To cancel the sleep timer

Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.

Note:

• The sleep timer display will automatically disappear in a few seconds.

• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

ATCHING TV

Still Mode

You can pause the image shown on the TV screen.

Switching Audio Mode

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Press

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.

[STILL] to pause the image shown on the TV

screen.

Still

The sound output will not be paused.

• If no signal is detected or protected signal is received

• during still mode, the image remains paused and the sound output will be muted. The still function will be released after 5 minutes.

•

To cancel still mode, press any button except [POWER].

Switching Each Input Mode

Press [INPUT SELECT] or [CH K] repeatedly to cycle through the input modes.

DTV/TV channel

Video1

Video2

Component1

Component2

HDMI1

Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

DTV

Press [AUDIO] to display the currently selected

language and the number of available languages.

SAP / STEREO SAP / MONO

SAP / STEREO

MONO / STEREO MONO / STEREO

SAP / MONO SAP / MONO

(Cannot be switched)

SAP / STEREO

MONO

6-1

English 1/3

HDMI2

Pressing [CH L] reverses the direction of the input

• modes. To use the VIDEO1 input jack on the unit, select

• “Video1”. To use the VIDEO2 input jack on the unit, select

• “Video2”. To use the COMPONENT1 input jack on the unit,

• select “Component1”. To use the COMPONENT2 input jack on the unit,

• select “Component2”. To use the HDMI1 input jack on the unit, select

• “HDMI1”. To use the HDMI2 input jack on the unit, select

• “HDMI2”.

Press [AUDIO] repeatedly to cycle through the

available audio languages.

Available languages differ depending on the

• broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note:

• Pressing [AUDIO] does not control external audio devices.

• The information display will automatically disappear in a few seconds.

Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

In the analog mode, the current channel number and the audio mode are displayed.

INTRODUCTION PREPARATION

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press [INFO].

SAP / STEREO

480i

The current channel number, audio mode, type of

• resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen. To clear the display, press [INFO] again. You can also

• press [BACK].

TV-PG DLSV

4:3

Press [INFO] to display the details of the currently selected program.

Broadcasting information

The following information is displayed.

A Day of Memories

A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues.Department stores and supermarket were

KABC

English 1/2

1080i

TV-PG DLSV

1 program title 2 broadcast station 3 program guide

(The program guide added to broadcasting information is displayed to a maximum of 4 lines.)

4 channel number 5 audio language

(Refer to “Switching Audio Mode” on page 14.)

6 effective scanning lines and scan mode 7 digital TV format 8 program aspect ratio 9 V-chip rating 10 CC (not available if CC is set to “Off”)

6-1

16:9HDHD

16:9

WATCHING TV

OPTIONAL SETTING

6, 7, 8

TROUBLESHOOTING

INFORMATION

Note:

• When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll.

• “No description provided.” is displayed when the program guide is not provided.

• While the program guide is displayed, the closed caption function is interrupted.

• In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO1 input

jack.

Video1

480iSDSD

480i

TV-PG DLSV

• The information display will automatically disappear in 1 minute.

ATCHING TV

TV Screen Display Mode

4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal.

Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.

For 4:3 video signal

Sidebar

(normal)

Wide

Sidebar

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

Full

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.

Cinema

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally.

Full

Cinema

For 16:9 video signal

Full

(normal)

Expand

Full

Display a 16:9 picture at its original size.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Cinema

Display a vertically stretched picture.

Expand

Display a horizontally stretched picture.

Note:

• You may not switch the display mode depending on the program.

Zoom

Cinema

PTIONAL SETTING

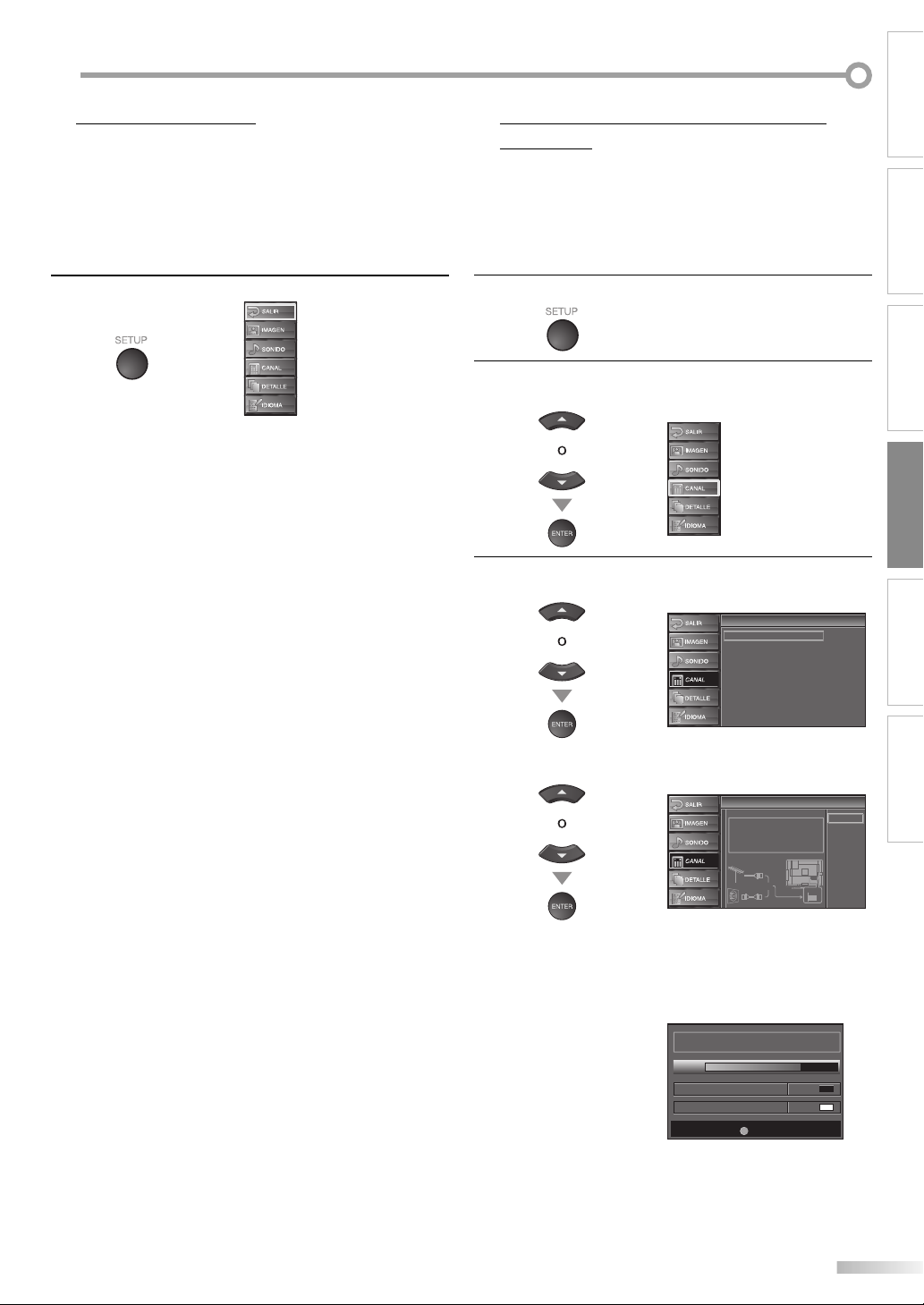

Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

Press [SETUP].

EXIT

To exit settings.


You can adjust the picture quality. (Refer to “Picture Adjustment” on page 21.)

SOUND

You can adjust the sound quality. (Refer to “Sound Adjustment” on page 22.)

CHANNEL

•

You can automatically scan the viewable channels. (Refer to “Auto Channel Scan” on page 17.)

•

You can skip the undesired channels when selecting the channels using [CH K / L]. (Refer to “Channel List” on page 18.)

•

You can add the channels that were not scanned by the auto channel scan. (Refer to “Manual Register” on page 19.)

DETAIL

•

You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 23.)

•

You can set the viewing limitations. (Refer to “V-chip” on page 27.)

•

You can select the sound input for the HDMI1 input jack if your unit is connected to an HDMI or DVI device. (Refer to “HDMI Audio” on page 30.)

•

You can select the energy saving mode. (Refer to “Energy Saving Mode” on page 30.)

LANGUAGE

You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 20.)

Auto Channel Scan

If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setup, or if you restore the DTV channel you deleted, you will need to perform auto channel scan.

Before you begin:

Make sure if the unit is connected to antenna or cables.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL” , then press

[ENTER].

Use [Cursor K / L] to select “Autoscan”, then press

[ENTER].

Use [Cursor K / L] to select an appropriate option, then press [ENTER].

When aerial antenna is connected, select “Air”.

• When connected to CATV, select “Cable”.

• Scanning and memorizing of channels start

• automatically.

Channel

Autoscan Channel List Manual Register Antenna

Autoscan

Autoscan will rescan all channels. This may take a while to complete.

Select the destination of "ANT.IN" jack.

Air

Cable

Now the system is scanning for channels, please wait.

72%

Analog channels 10ch

Digital channels 6ch

SETUP

ANT.IN

Exit

Back

Air

Cable

Cable 1 hour

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

When the scanning and memorizing are completed,

• the lowest memorized channel will be displayed.

PTIONAL SETTING

Note:

• After setting “Auto Channel Scan”, using [CH K / L] on the remote control skips unavailable programs automatically.

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during auto channel scan, the setting will be canceled.

• Channel settings will be saved even if the power fails.

• Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER].

Channel List

The channels selected here can be skipped when selecting the channels

using [CH

Those channels can still be selected with [the Number buttons].

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

Use [Cursor K / L] to select “Channel List”, then press

[ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [Cursor K / L] to select the channel you want to

skip, then press [ENTER].

Channel List

Highlight channels for Ch Up/Down key selection.

ENTER

Ch Select Watch/Skip Back

The selected channel darkens in the channel list,

• and it skips when selecting the channels by using [CH K / L]. To re-register the skipping channels, use [Cursor K / L]

• and press [ENTER]. The registered channels will be gray in the channel list, and you can select those channels by using [CH K / L] again. When you skip a major channel, its minor channels

• are skipped as well.

Note:

• The channel with “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC.

DTV 6

DTV 8

DTV 48

DTV 67

BACK

Press [SETUP] to exit.

Manual Register

5 Antenna Confirmation

The manual register function lets you add the channels that were not scanned by the auto channel scan due to the reception condition at the initial setup.

DTV

This function lets you check the digital signal strength of each channel.

INTRODUCTION PREPARATION WATCHING TV

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

Use [Cursor K / L] to select “Manual Register”, then

press [ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].

Use [Cursor K / L] to select “Antenna”, then press

[ENTER].

Channel

Autoscan Channel List Manual Register Antenna

Use [the Number buttons] or [CH K / L] to select the

channel for which you want to check the digital signal strength.

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

Manual Register

For analog channels, select a channel to register using number keys. For digital channels, you must perform Autoscan function.

Press [SETUP] to exit.

Note:

• If set up completes successfully, “Registered to the channel list” is displayed.

• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.

• By using [CH K/ channels only.

L], you can select the memorized

Ch Change

Antenna

BACK

Back

Antenna

Now 70 80 Peak

11-1

Back

Ch Change

If the channel is set to analog channel or external

• input, you cannot confirm the antenna condition.

Antenna

Press [SETUP] to exit.

Antenna

Indicator is available for digital broadcasting only.

Ch Change

Back

PTIONAL SETTING

Language Selection

You can choose English, Spanish, or French as your on-screen language.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “LANGUAGE”, then press

[ENTER].

Use [Cursor K / L] to select “English”, “Español” or

“Français”, then press [ENTER].

Press [SETUP] to exit.

Language

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

Note:

• If you need the English menus instead of the Spanish or French menus you are having, press [SETUP]. Use

[Cursor K / L] to select “IDIOMA” or “LANGUE”, then press [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu.

English

Español

Français

Picture Adjustment

You can adjust brightness, contrast, color, tint and sharpness.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “PICTURE”, then press

[ENTER].

Use [Cursor K / L] to select the item you want to adjust,

then press [ENTER].


Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Reset Settings

Color Temp.

Dynamic

Neutral

Cursor

Brightness

Brightness 30

Adjust

Contrast

Adjust Move

Color

Adjust Move

to decrease

ENTER

Move

Enter

ENTER

Enter

ENTER

Enter

brightness

to decrease contrast

to decrease color intensity

Cursor

to increase brightness

to increase contrast

to increase color intensity

Tint

Adjust Move

ENTER

Enter

to add red to add green

Sharpness

0Sharpness

Adjust Move

ENTER

Enter

to make soft to make clear

Reset Settings

Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore “Picture Mode” settings to the default.

Reset Settings

This function resets the "Dynamic" setting for Picture Mode to factory default.

INTRODUCTION PREPARATION WATCHING TV

OPTIONAL SETTING

Cancel

TROUBLESHOOTING

Reset

Adjust the picture quality.

Picture Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Standard, Dynamic, Movie and News)


Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Reset Settings

Color Temp.

Brightness, Contrast, Color, Tint, Sharpness

Use [Cursor

] to adjust.

Standard

Dynamic

Movie

News

Color Temp.

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Cool, Neutral and Warm)


Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Reset Settings

Color Temp.

Press [SETUP] to exit.

Note:

• To cancel picture adjustment, press [SETUP].

• When this unit is connected to DVI devices, you cannot select “Sharpness”.

Cool

Neutral

Warm

INFORMATION

PTIONAL SETTING

Sound Adjustment

You can adjust treble and bass.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “SOUND”, then press

[ENTER].

Use [Cursor K / L] to select the sound type you want to

adjust, then press [ENTER].

Sound

Treble

Bass

Reset Settings

Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore “Sound“ settings to the default.

Reset Settings

Press [SETUP] to exit.

Reset Settings

This function resets the Sound settings to factory default.

Cancel

Reset

Note:

• To cancel sound adjustment, press [SETUP].

Adjust the sound setting.

Treble, Bass

Use [Cursor s / B] to adjust.

Treble

Bass

Adjust

Move

ENTER

Enter

Cursor

to decrease higher-pitched sounds

to decrease lower-pitched sounds

Cursor

to increase higher-pitched sounds

to increase lower-pitched sounds

INTRODUCTION PREPARATION WATCHING TV

Closed Caption

You can view closed captioning (cc) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed onscreen.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “DETAIL”, then press

[ENTER].

Use [Cursor K / L] to select “Closed Caption”, then

press [ENTER].

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

Auto

Caption mode

CC1 and Text1;

are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels. The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.

There are 3 display modes according to programs:

•

Paint-on mode:

Displays input characters on the TV screen immediately.

Pop-on mode:

Once characters are stored in memory, they are displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling (max. 4 lines).

Press [SETUP] to exit.

OPTIONAL SETTING

TROUBLESHOOTING

Use [Cursor K / L] to select “Conventional CC”, then

press [ENTER].

Closed Caption

Conventional CC DTV CC CC Style

Use [Cursor K / L] to select the desired closed caption,

then press [ENTER].

Closed Caption

Conventional CC Off

DTV CC CC Style

Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the closed caption for a few seconds.

Off Off

CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4

• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a problem with the unit.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

• Closed caption will not be displayed when you are using an HDMI connection.

• When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

INFORMATION

PTIONAL SETTING

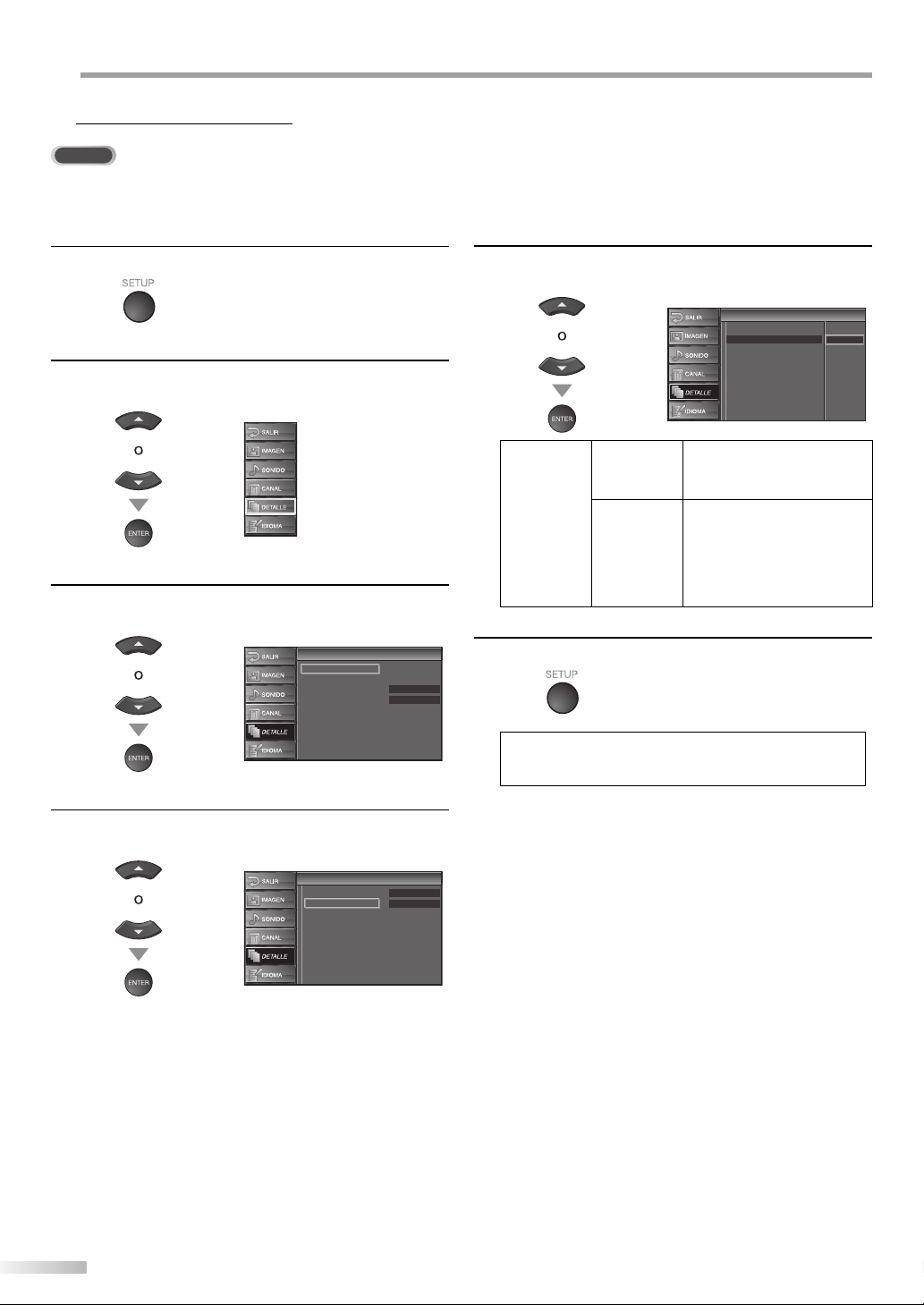

DTV Closed Caption

DTV

In addition to the basic closed caption described on page 23, DTV has its own closed caption called DTV CC. Use this menu to change the settings for DTV CC.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].

Use [Cursor

L] to select the desired DTV closed

caption, then press [ENTER].

Closed Caption

Conventional CC

DTV CC

CC Style

Off

Service1

Service2

Service3

Service4

Service5

Service6

Use [Cursor

press [ENTER].

Use [Cursor

[ENTER].

L] to select “Closed Caption”, then

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

L] to select “DTV CC”, then press

Closed Caption

Conventional CC DTV CC CC Style

Off

DTV CC

Service1~6

Press [SETUP] to exit.

Auto

Select if you do not want DTV CC. This is the default.

Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances.

Note:

• “DTV CC” that you can switch differs depending on the broadcast description.

Off Off

CC Style

You can change the CC style such as font, color or size, etc.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “On”, then press [ENTER].

INTRODUCTION PREPARATION WATCHING TV

Use [Cursor

[ENTER].

Use [Cursor

press [ENTER].

Use [Cursor

[ENTER].

Use [Cursor

[ENTER].

L] to select “DETAIL”, then press

L] to select “Closed Caption”, then

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

L] to select “CC Style”, then press

Closed Caption

Conventional CC DTV CC CC Style

L] to select “User Setting”, then press

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Auto

Off Off

Off

Font0

Middle

White

Solid

Black

Solid

Black

None

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Use [Cursor

[ENTER]. Then use [Cursor

L] to select an item, then press

L] to select the desired

setting and press [ENTER].

Picture display

ABCDEFGHIJKL

Edge (Edge Color and Edge Type)

Font (Font Style, Font Size, Font Color and Font Opacity)

Back (Back Color and Back Opacity)

The setting description for each item is shown below.

•

Font Style

Closed Captioning font style can be changed as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Font Size

Font size of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

Off

Closed Caption

Large

Middle

Small

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

PTIONAL SETTING

Font Color

Font color of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red

Green

Blue

Yellow

Magenta

Cyan

Font Opacity

Font opacity of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

Solid

Flash

Translucent

Transparent

Back Color

Background color of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red

Green

Blue

Yellow

Magenta

Cyan

Edge Type

Edge type of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Press [SETUP] to exit.

Edge Type

Closed Caption

None

Raised

Depressed

Uniform

L.Shadow

R.Shadow

Back Opacity

Background opacity of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

Solid

Flash

Translucent

Transparent

Edge Color

Edge color of the displayed caption can be switched as below.

CC Style

User Setting

Font Style

Font Size

Font Color

Font Opacity

Back Color

Back Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red

Green

Blue

Yellow

Magenta

Cyan

V-chip

V-chip reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programming inappropriate for children.

INTRODUCTION PREPARATION WATCHING TV

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].

Use [Cursor K / L] to select “V-chip”, then press

[ENTER].

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

Use [the Number buttons] to enter the 4-digit

numbers for your password.

V-chip

Enter password.

See the following description for setting each item.

V-ch ip

MPAA Rating

TV Rating

Canadian English Rating

Canadian French Rating

Downloadable Rating

Clear Downloadable Rating

New Password

A B

...

“A. MPAA Rating”

...

“B. TV Rating”.

...

“C. New Password”

D page 28

D page 29

OPTIONAL SETTING

Note:

• When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

• When you set the highest rating to “View”, all ratings turn to “View” automatically.

• To block any inappropriate programming, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”.

• The V-chip setting will be retained after a power failure (except the access code reverts to 0000).

Auto

• If the rating is blocked, will appear.

• “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system.

• If the broadcasting signal does not have the downloadable rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the downloadable rating information, and the new information has not been downloaded since.

• To clear the downloadable rating information and its setting, select “Clear Downloadable Rating”.

• The Canadian rating systems on this unit are based on CEA-766-A and the Canadian Ratio-Television and Telecommunications Commission (CRTC) policy.

TROUBLESHOOTING

INFORMATION

PIN Code

When you have not set up your password, enter

•

0000. When the password is correct, “V-chip” menu is

• displayed.

BACK

Back

PTIONAL SETTING

A. MPAA Rating

B. TV Rating

A. MPAA Rating

MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).

B. TV Rating

Use [Cursor K / L] to select “MPAA Rating”, then press

[ENTER].

V-ch ip

V-chip

MPAA Rating

TV Rating

Canadian English Rating

Canadian French Rating

Downloadable Rating

Clear Downloadable Rating

New Password

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

V-ch ip

V-chip

X NC-17 R PG-13 PG G NR

ENTER

Select View/Block Back

Rating Category X Mature audience only NC-17 No one under 17 admitted

PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating

Press [SETUP] to exit.

Restricted; under 17 requires accompanying parent or adult guardian

Use [Cursor K / L] to select “TV Rating”, then press

[ENTER].

V-ch ip

V-chip

MPAA Rating

TV Rating

Canadian English Rating

Canadian French Rating

Downloadable Rating

Clear Downloadable Rating

New Password

Use [Cursor K / L / s

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

V-ch ip

V-chip

V S L D

TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

BACK

Select View/Block Back

BACK

ENTER

Press [SETUP] to exit.

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

Use [Cursor K / L / then press [ENTER] repeatedly to switch between “View” and “Block”.

] to select the desired rating,

V-ch ip

V-chip

TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

ENTER

Select View/Block Back

V S L D

BACK

C. New Password

Although the default code “0000” is supplied with the unit, you can set your own password.

INTRODUCTION PREPARATION WATCHING TV

Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience

TV-Y7

Appropriate for all children 7 and older

TV-Y Appropriate for all children lower

Sub Rating Category Rating FV Fantasy Violence TV-Y7 V Violence S Sexual Situation L Coarse Language

TV-PG TV-14 TV-MA

D Suggestive Dialogue TV-PG, TV-14

Note:

• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.

• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).

Use [Cursor K / L] to select “New Password”, then press

[ENTER].

V-chip

V-ch ip

MPAA Rating

TV Rating

Canadian English Rating

Canadian French Rating

Downloadable Rating

Clear Downloadable Rating

New Password

Press [the Number buttons] to enter the new 4-digit

password.

Enter password again in “Confirm password.” entry

• field.

V-chip

V-ch ip

Enter password.

Confirm password.

PIN Code

----

BACK

Press [SETUP] to exit.

OPTIONAL SETTING

TROUBLESHOOTING

Back

Note:

• Make sure new password and confirm password must be exactly the same. If they are different, the space is cleared for reentering.

• Your password will be erased and return to the default (0000) when a power failure occurs. If you forget the password, unplug the AC power cord for 10 seconds to restore the password to 0000.

INFORMATION

PTIONAL SETTING

HDMI Audio

5 Energy Saving Mode

You can set the method of sound input for the HDMI1 input jack.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].

Use [Cursor

L] to select “HDMI1 Audio”, then press

[ENTER].

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

Auto

You can set whether the power consumption is saved or not.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

press [ENTER].

L] to select “DETAIL”, then press

L] to select “Energy Saving Mode”, then

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

Auto

Use [Cursor

then press [ENTER].

HDMI1

Audio

Press [SETUP] to exit.

L] to select the desired sound input,

Detail

Closed Caption

V–chip

HDMI1 Audio

Energy Saving Mode

Select if you have connected both

Auto

Digital

Analog

digital device to the HDMI1 input jack and analog device to the audio sources. Digital audio input signal will have priority.

Select if you have connected a digital device to the HDMI1 input jack for digital audio input signal.

Select if you have connected an analog device to the analog audio jack for analog audio input signal.

Auto

Digital

Analog

Use [Cursor

then press [ENTER].

Energy Saving

Mode

Press [SETUP] to exit.

L] to select the desired mode,

Energy Saving Mode

When set to “On”, power consumption is reduced by decreasing backlight brightness.

Off

Select if you want to reduce the power consumption.

Select if you want backlight to be brighter.

Off

Note:

• Select “Auto” or “Analog” if you have connected a DVI device to the HDMI1 input jack.

+ 78 hidden pages

Emerson LC321EM9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
