Emerson LC320EM9 B, LC320EM9 3, LC320EM9 User Manual

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSO N RADIO CORP., PARSIPPANY, NEW JERS EY, U.S .A.
NEED HELP?
PLEASE CALL TOLL FREE!
1-800-256-2487
OR VISIT OUR WEB SITE AT
www.EmersonAudioVideo.com
TM
Owner’s Manual
LC320EM9 B LC320EM9 3 LC320EM9
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING OPTIONAL SETTING
HIGH-DEFINITION TELEVISION
TO RECEIVE DIGITAL/ANALOG SIGNAL, YOU MUST CONNECT ANTENNA.
TROUBLESHOOTING
INFORMATION
© 2008 Funai Electric Co., Ltd.
NTRODUCTION
I
The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.
Model No.:
Serial No.:
Precautions5
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The caution marking is located on the rear or bottom of the cabinet.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacture’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.
FCC WARNING
This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
2
EN
This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 3.2 inches (8cm) or more around this apparatus.
Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.
WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.
TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE
Do not handle the power cord with wet hands.
• Do not remove this unit cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this
• unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center. Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit.
LOCATION AND HANDLING
The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.
• Do not install the unit near or over a radiator or heat register.
• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.
• Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
NOTE ABOUT RECYCLING
This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance
• with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local
• regulations concerning chemical wastes.
WHEN CARRYING THIS UNIT
At least two people are required when carrying this unit.
• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.
INTRODUCTION
PREPARATION
INITIAL SETTING
WATCHING TV INFORMATION
OPTIONAL SETTING TROUBLESHOOTING
Supplied Accessories5
owner’s manual (1EMN22959A)
If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free
• customer support line found on the cover of this manual. Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).
• Contact your local electronics store for these items.
quick start guide (1EMN22999A)
remote control (NF027UD)
batteries (AA x 2)
Phillips pan screw for attaching the stand x 3 (FPH34100)
3
EN
NTRODUCTION
f
r
o
n
t
s
i
d
e
I
Attaching the Stand
5
You must attach the stand to the unit to display upright. Be sure the front and rear of the stand match the proper direction.
Spread a thick and soft cloth over a
1
table. Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step.
Insert the stand all the way to the
2
main unit slowly until it clicks. Make sure not to put the AC cord between the stand and the unit.
f
f
r
o
n
t
s
i
d
e
Drive Phillips pan screws in the 3
3
threaded holes at the bottom of the stand with a screwdriver tightly.
screw holes
1
lever
To Remove the Stand from this Unit
Unscrew the Phillips pan screws indicated by “1”, then lift the lever on the bottom stand and remove the stand from the unit slowly. Be careful not to drop the stand when you remove it.
Note:
• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.
• Make sure to use a table which can support the weight of this unit and is larger than this unit.
• Make sure the table is in a stable location.
Symbols Used in this Manual
5
The following is the description for the symbols used in this manual. Description refers to:
: Digital TV operation
DTV
If neither symbol appears under the function heading, operation is applicable to both.
Trademark Information
5
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
• Licensing LLC.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
• Laboratories.
Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.
: Analog TV operation
TV
4
EN
INTRODUCTION
Features5
DTV/TV/CATV
-
You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.
Information Display (DTV only)
-
You can display the title, contents and other information of the current DTV program on the TV screen.
Auto Channel Scan
-
This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.
V-chip
-
This feature allows you to block children’s access to inappropriate programs.
Closed Caption Decoder
-
Built-in closed caption decoder displays text for closed caption supported programs.
MTS/SAP Tuner
-
Audio can be selected from the remote control.
Auto Shut Off Function
-
If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically.
Sleep Timer
-
This feature will automatically turned off the power of the unit at a specific time.
Choices for On-screen Language
-
Select your on-screen language: English, Spanish or French.
Stereo Sound Function
PLL Frequency Synthesized Tuning
-
Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.
Resume
-
This unit automatically memorizes settings if a power failure occurs.
HDMI Input
Component Video Input
S-video Input
AV Input
Digital Audio Coaxial Output
Contents5
INTRODUCTION
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Buttons on the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PREPARATION
Basic Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INITIAL SETTING
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WATCHING TV
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TV Screen Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
OPTIONAL SETTING
Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Antenna Confirmation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DTV Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CC Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
HDMI Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TROUBLESHOOTING
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
INFORMATION
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back cover
PREPARATION
INITIAL SETTING
WATCHING TV INFORMATION
OPTIONAL SETTING TROUBLESHOOTING
© 2008 Funai Electric Co., Ltd. All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in
any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.
with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.
EN
5
NTRODUCTION
I
Buttons on the Remote Control5
CH. RECALL
1. POWER (p12)
Press to turn the unit on and off.
2. Number buttons (p15)
Press to select channels.
- (hyphen)
Press to shift the minor channel
• from the major channel.
3. SETUP (p13)
Press to display the main menu.
4. s / B / K / L (p12)
Press to move left/ right/ up/ down through the items.
5. ENTER (p12)
Press to decide the command of setting when the main menu is displayed.
6. BACK (p17)
Press to return to the previous menu operation.
7. CH. RECALL (p15)
Press to return to the previous
channel.
8. VOL. X / Y (p15)
Press to adjust the volume.
9. MUTE (p15)
Press to turn the sound on and off.
10. INPUT SELECT (p16)
Press to access connected external devices like a DVD player or VCR.
11. SLEEP (p15)
Press to activate the sleep timer.
12. AUDIO (p16)
Digital Mode (DTV)
Press to select the audio
• language.
Analog Mode (TV)
Press to select the audio mode.
13. STILL (p16)
Press to pause screen image.

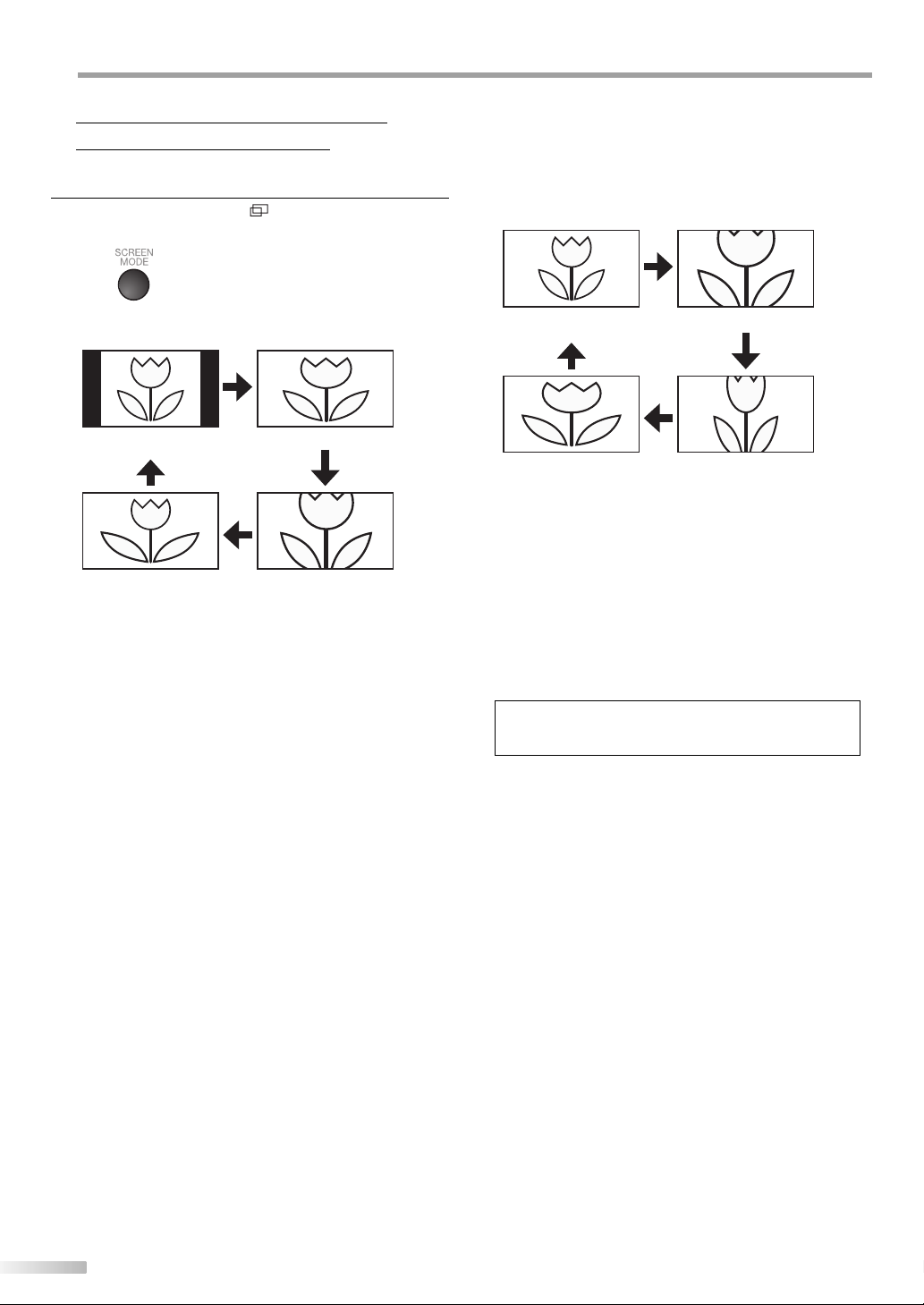

14. SCREEN MODE (p18)
Press to select aspect ratio available for the TV screen.
15. INFO (p17)
Digital Mode (DTV)
Press to display the channel
• information, signal type and TV setting.
Analog Mode (TV)
Press to display the channel
• number, signal type and TV setting.
External Input Mode
Press to display the external
• input modes, signal type and TV setting.
16. CH K / L (p15)
Press to select channels and the external input modes.
Installing the Batteries
5
Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.
Battery Precautions:
• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.
6
EN
INTRODUCTION
Control Panel5
Rear Panel5
rear of this unit
1
2
3
4
5
6
7
8
9
AUDIO OUT (COAXIAL)
HDMI-IN
L
R
side of this unit
1
2
Press to turn the unit on and off.
2. INPUT SELECT/ENTER (p16)
Press to access connected external devices like a
• DVD player or VCR. Press to decide the command of setting when the
PREPARATION
menu is displayed.
1. POWER (p12)
3
3. CHANNEL K / L (p15)
Press to select channels or move up/down through the
4
main menu items.
INITIAL SETTING
4. VOLUME X / Y (p15)
5
Press to adjust the volume or move right (X) / left (Y) through the main menu items.
5. SETUP (p13)
6 7 8
Press to display the main menu.
6. infrared sensor window
Receives infrared rays transmitted from the remote
WATCHING TV INFORMATION
control.
7. power on indicator
Lights up when power is on.
8. stand by indicator
Lights up in standby mode.
OPTIONAL SETTING TROUBLESHOOTING
1. HDMI input jack (p9)
HDMI connection for HDMI devices.
2. antenna input jack (p8)
RF coaxial cable connection for your antenna or cable/satellite box.
3. AC power cord
Connect to a standard AC outlet to supply power to this unit.
4. coaxial digital audio output jack (p11)
Coaxial digital audio connection for a decoder or an audio receiver.
5. S-video input jack (p10)
S-video connection for external devices.
6. video input jack (p11)
RCA video connection for external devices.
DIGITAL
L
AUDIO
R
VIDEO 1
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO 2
S-VIDEO
VIDEO
AUDIO
COMPONENT 1 COMPONENT 2
Y
Y
Pb
Pb
Pr
Pr
L
L
AUDIO
AUDIO
R
R
7. audio input jack (p9)
RCA audio connection for DVI devices. (For HDMI1 input jack only)
8. audio input jack (p10)
RCA audio connection for external devices.
9. component video and audio input jack (p10)
RCA component video and RCA audio connection for external devices.
EN
7
REPARATION
P
Cables not included.
Please purchase the necessary cables at your local store.
Basic Connection
5
This section describes how to connect the unit to an antenna, cable/satellite box, etc.
Note:
• Be sure your antenna or other device is connected properly before plugging in the power cord.

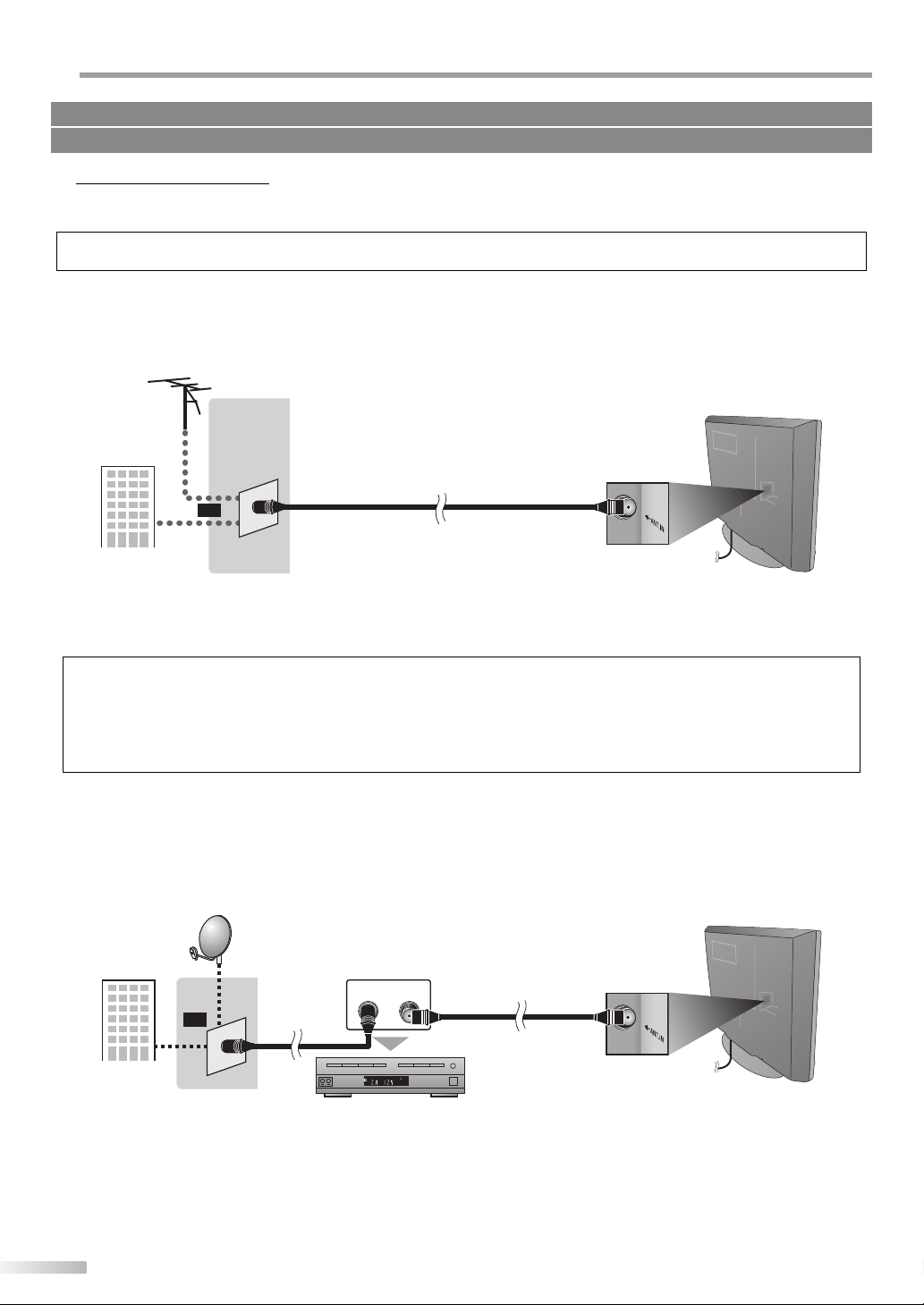

[Antenna Connection]
Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.
e.g.)
VHF / UHF antenna
RF coaxial cable
or
cable TV
company
Once connections are completed, turn on the unit and begin initial setup.
*
Channel scanning is necessary for the unit to memorize all available channels in your area. (Refer to “Initial Setup” on page 12.)
rear of this unit
Note:
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.
• To switch your reception source easily between antenna and cable, install an antenna selector.
• If you connect to the cable system directly, contact the CATV installer.
[Connection to Cable Box or Satellite Box]
Use an RF coaxial cable to connect the antenna input jack of the unit to the antenna output jack of the cable/satellite box.
e.g.)
satellite dish
ANT OUTANT IN
or
cable TV
company
cable/satellite box
*
Required cables and connecting methods differ depending on the cable/satellite box. For more information, please contact your cable/satellite provider.
STEREO PCM
RF coaxial cable
rear of this unit
8
EN
Cables not included.
Please purchase the necessary cables at your local store.
External Device Connection
5
[HDMI Connection]
HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. It ensures that the content sent from the source to the unit is of the highest possible resolution. Use an HDMI cable to connect the unit to external video devices equipped with HDMI output jack.
e.g.)
rear of this unit
PREPARATION
INITIAL SETTING
HDMI cable
TITLE 5 CHAPTER 15 REPEAT A-B
HDMI OUT
DVD player with the HDMI output jack
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select “PCM” for the digital audio output of the device connected or check the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc.
• This unit only accepts signals compliant with EIA861.
[HDMI-DVI Connection]
Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.
e.g.)
STEREO PCM
cable box or satellite box with the DVI output jack
DVI OUT
AUDIO OUT
HDMI-DVI conversion cable
RL
To HDMI1 input jack only
rear of this unit
WATCHING TVINTRODUCTION
OPTIONAL SETTING
TROUBLESHOOTING
INFORMATION
RCA audio cable
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• HDMI-DVI connection requires separate RCA audio connection as well.
• Audio signals are converted from digital to analog for this connection.
• DVI does not display 480i image that is not compliant with EIA/CEA-861/861B.
L
R
HDMI-IN
AUDIO
9
EN
REPARATION
P
Cables not included.
Please purchase the necessary cables at your local store.
[Component Video Connection]
RCA component video connection offers better picture quality for video devices connected to the unit. Use an RCA component video cable to connect the unit to external video devices equipped with component video output jacks. If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jacks, connect an RCA audio cable to the audio L/R jacks of COMPONENT1 or COMPONENT2 accordingly.
e.g.)
TITLE 5 CHAPTER 15 REPEAT A-B
DVD player with the component video output jacks
RCA component video cable
(red)(blue)(green)
COMPONENT VIDEO OUT
AUDIO OUT
Pr/CrPb/CbY
RL
RCA audio cable
(green)
(blue)
(red)
AUDIO OUT (COAXIAL)
HDMI-IN
L
R
DIGITAL
L
AUDIO
R
rear of this unit
COMPONENT 1 COMPONENT 2
VIDEO 1
VIDEO 2
Y
S-VIDEO
S-VIDEO
Pb
VIDEO
VIDEO
Pr
L
L
AUDIO
AUDIO
R
R
AUDIO
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• When the noise appears on the TV screen, disconnecting the VGA cable may reduce it.
[S-video Connection]
S-video connection offers good picture quality for video devices connected to the unit. Use an S-video cable to connect the unit to external video devices equipped with S-video output jack. If you connect to the unit’s VIDEO1 S-video or VIDEO2 S-video input jack, connect an RCA audio cable to the audio L/R jacks of VIDEO1 or VIDEO2 accordingly.
e.g.)
S-VIDEO
OUT
RL
TITLE 5 CHAPTER 15 REPEAT A-B
AUDIO OUT
Y
Pb
Pr
L
AUDIO
R
DVD player with the S-video output jack
S-video cable
RCA audio cable
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
10
EN
rear of this unit
DIGITAL
VIDEO 1
AUDIO OUT (COAXIAL)
HDMI-IN
L
R
VIDEO 2
S-VIDEO
S-VIDEO
VIDEO
VIDEO
L
L
AUDIO
AUDIO
AUDIO
R
R
Cables not included.
Please purchase the necessary cables at your local store.
[Video Connection]
RCA video connection offers standard picture quality for video devices connected to the unit. Use an RCA video cable to connect the unit to external video devices equipped with video output jack. If you connect to the unit’s VIDEO1 or VIDEO2 video input jack, connect an RCA audio cable to the audio L/R jacks of VIDEO 1 or VIDEO 2 accordingly. When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
e.g.)
camcorder video game
STEREO
STAND-BY
VCR
AUDIO OUT
VIDEO
RL
OUT
rear of this unit
DIGITAL AUDIO OUT (COAXIAL)
RCA video cable
HDMI-IN
RCA audio cable
L
AUDIO
R
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
[Audio Output Connection]
L
R
VIDEO 1
S-VIDEO
VIDEO
AUDIO
VIDEO 2
S-VIDEO
L
R
PREPARATION
INITIAL SETTING
WATCHING TVINTRODUCTION
VIDEO
AUDIO
OPTIONAL SETTING
À Digital (for digital broadcasting only)
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices.
e.g.)
Dolby Digital
decoder
DIGITAL AUDIO
COAXIAL IN
digital audio coaxial cable
rear of this unit
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI-IN
L
AUDIO
R
VIDEO 1
S-VIDEO
L
R
TROUBLESHOOTING
INFORMATION
VIDEO
AUDIO
EN
11
NITIAL SETTING
I
These operations are accessible by remote control. Some may also be accessible by controls on the main unit.
Initial Setup
5
This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and auto channel scan, which automatically scans and memorizes viewable channels.
Before you begin:
Make sure if the unit is connected to antenna or cables.
After making all the necessary connections, press
1
[POWER] to turn on the unit.
This operation may take a few moments.
Use [Cursor K / L] to select the on-screen language
2
from the choices on the right side of the TV screen. (English / Español / Français)
Initial Setup
Initial Setup
Select the language for setup display.
Elija el idioma de ajuste.
Sélectionner langue écran config.
ENTER
Select Enter Exit
“Initial Setup” menu on step 3 will be displayed in the selected language after you press [ENTER].
English
Español
Français
SETUP
Note:
• If you connect the cable system directly, contact the CATV installer.
• If you press [POWER] or [SETUP] during auto channel scan, this setting will be canceled.
• The initial auto channel scan function can be executed for either “Air” or “Cable” only once. When you change the connection (Air/Cable), set auto channel scan again. (Refer to page 13.)
• You can cancel or exit the initial auto channel scan menu by pressing [SETUP].
• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.
2-2
No channel is registered. Press and hold "ENTER" key on the remote control for 3 seconds. Contact support hotline provided on manual or back of unit.
Sin canal registrado. Pulse durante 3 segundos la tecla "ENTER" en el control remoto. Llame teléfono de apoyo en manual o atrás de TV.
Pas de chaîne consign. Enfoncez "ENTER" 3 secondes sur la télécommande. Contacter numero d'urgence dans manuel ou arrière appareil.
Use [Cursor K / L] to select “Air” for TV channels or
3
“Cable” for CATV channels, then press [ENTER].
Initial Setup
Initial Setup
Make sure the antenna is connected to "ANT.IN" jack. Select the destination of "ANT.IN" jack.
Air
Or
Cable
ENTER
Select Enter Exit
Scanning and memorizing of channels start automatically.
Initial Setup
Initial Setup
Now the system is scanning for channels,please wait.
5%
Analog channels 1ch
Digital channels 0ch
When the scanning and memorizing of channels are completed, the lowest memorized channel will be displayed.
12
EN
Air Cable
ANT.IN
SETUP
BACK
Back
SETUP
Exit
Main Menu
5 Auto Channel Scan
This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.
5
If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform auto channel scan.
Before you begin:
Make sure if the unit is connected to antenna or cables.
Press [SETUP].
EXIT
To exit settings.
You can adjust the picture quality. (Refer to “Picture Adjustment” on page 21.)
SOUND
You can adjust the sound quality. (Refer to “Sound Adjustment” on page 22.)
CHANNEL
You can automatically scan the viewable channels and remove the undesired channels. (Refer to “Auto Channel Scan” on page 13.)
DETAIL
You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 23.) You can set the viewing limitations. (Refer to “V-chip” on page 27.) You can select the sound input for the HDMI1 input jack if your unit is connected to an HDMI or DVI device. (Refer to “HDMI Audio” on page 30.)
LANGUAGE
You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 14.)
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “CHANNEL” , then press
2
[ENTER].
Use [Cursor K / L] to select “Autoscan”, then press
3
[ENTER].
Use [Cursor K / L] to select an appropriate option, then press [ENTER].
When aerial antenna is connected, select “Air”.
• When connected to CATV, select “Cable”.
Scanning and memorizing of channels start automatically.
Channel
Channel
Autoscan Channel List Manual Register Antenna
Autoscan
Autoscan
Autoscan will rescan all channels. This may take a while to complete.
Select the destination of "ANT.IN" jack.
Air
Or
Cable
ANT.IN
Back Air Cable Cable
1 hour
INITIAL SETTING
WATCHING TVINTRODUCTION PREPARATION
OPTIONAL SETTING
TROUBLESHOOTING
INFORMATION
Now the system is scanning for channels, please wait.
72%
Analog channels 10ch
When the scanning and memorizing are completed,
Digital channels 6ch
SETUP
Exit
the lowest memorized channel will be displayed.
13
EN
NITIAL SETTING
I
Note:
• After setting “Auto Channel Scan”, using [CH K / L] on the remote control skips unavailable programs automatically.
• If you connect the cable system directly, contact the CATV installer.
• If you press [POWER] or [SETUP] during auto channel scan, the setting will be canceled.
• Channel settings will be saved even if the power fails.
• If you need the English menus instead of the Spanish or French menus you are having, press [SETUP]. Use
[Cursor K [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu.
• With regard only to the digital channel, even after the scanning is completed if you unplug the AC power cord before turning off the unit by pressing [POWER], the channel setting may be lost.
/ L] to select “IDIOMA” or “LANGUE”, then press
Language Selection
5
You can choose English, Spanish, or French as your on-screen language.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “LANGUAGE”, then press
2
[ENTER].
Use [Cursor K / L] to select “English”, “Español” or
3
“Français”, then press [ENTER].
Press [SETUP] to exit.
4
Language
Language
Select the language for setup display.
Elija el idioma de ajuste.
Sélectionner langue écran config.
English
Español
Français
14
EN
ATCHING TV
W
Channel Selection
5
Select channels by pressing [CH
K /
] or [the Number buttons].
L
Volume Adjustment
5
This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.
INTRODUCTION
To select the memorized channels, use [CH
[the Number buttons]. To select the non-memorized channels, use
[the Number buttons].
To Use [the Number buttons]
TV
When selecting analog channel 12
-
DTV
When selecting digital channel 12-1
-
Be sure to press [–] before entering the minor channel number.
Press [CH. RECALL] to return to the previously
• viewed channel.
About digital TV broadcasting:
With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality.
What is the minor channel?
By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.
NTSC (analog mode)
CH4
: change automatically : change manually by using [CH
[Air Time]
18:00
18:30
19:00
19:30
20:00
20:30
major channel
ATSC (digital mode)
No signal
CH4
CH4
(high definition TV)
CH4
CH4-1
CH4
No signal
CH4
CH4-1
minor channel
K / L]
Note:
• “No Signal” will appear on the TV screen after the minor channel broadcast is over.
• “Audio only program“ message will appear on the TV screen, when you receive only sound signal.
/
K
L] or
No signal
No signal
CH4-2
CH4-2
/
X
Use [VOL.
The volume bar will be displayed at the bottom of
• the TV screen when adjusting the volume. The volume bar will automatically disappear in a few
• seconds.
Press [MUTE ] to turn off and on the sound.
“Mute” is displayed on the TV screen for a few
• seconds.
Press [MUTE ] again or [VOL. original volume.
Sleep Timer
5
The sleep timer can be set to automatically turn off the unit after an incremental period of time.
Press [SLEEP] to set the sleep timer.
1
Sleep timer display appears on the TV screen.
Press [SLEEP] repeatedly to change the amount of time
2
until shut off.
You can set your unit to turn off after a set period of
• time (from 30 to 120 minutes). Each press of [SLEEP] will increase the time by 30
• minutes. After setup, the sleep timer display can be called up
• for checking by pressing [SLEEP].
Y
] to adjust the audio volume.
Volume 20
Mute
/
X
Y
Sleep
Sleep
] to recover the
Off
120min.
To Cancel the Sleep Timer
Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.
Note:
• The sleep timer display will automatically disappear in a few seconds.
• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.
PREPARATION INITIAL SETTING OPTIONAL SETTING
WATCHING TV
TROUBLESHOOTING
INFORMATION
15
EN
ATCHING TV
Video1
Video2
Component1
Component2
HDMI1
HDMI2
W
Still Mode
5
You can pause the image shown on the TV screen.
Switching Audio Mode
5
This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.
Press
5
You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.
[STILL] to pause the image shown on the TV
screen.
Still
The sound output will not be paused.
• If no signal is detected or protected signal is received
• during still mode, the image remains paused and the sound output will be muted. The still function will be released after 5 minutes.
To cancel still mode, press any button except [POWER].
Switching Each Input Mode
Press [INPUT SELECT] or [CH K] repeatedly to cycle through the input modes.
DTV/TV channel
TV
Press [AUDIO] to display the currently selected
1
audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.
6
When all audio are available
When stereo and monaural audio are available
When SAP and monaural audio are available
When only monaural audio is available
STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio
SAP / STEREO SAP / MONO
SAP / STEREO
MONO / STEREO MONO / STEREO
SAP / MONO SAP / MONO
(Cannot be switched)
SAP / STEREO
MONO
or
Pressing [CH L] reverses the direction of the input
• modes. To use the video or S-video input jack of VIDEO1 on
• the unit, select “Video1”. To use the video or S-video input jack of VIDEO2 on
• the unit, select “Video2”. To use the component video input jacks of
• COMPONENT1 on the unit, select “Component1”. To use the component video input jacks of
• COMPONENT2 on the unit, select “Component2”. To use the HDMI1 input jack on the unit, select
• “HDMI1”.
To use the HDMI2 input jack on the unit, select “HDMI2”.
DTV
Press [AUDIO] to display the currently selected
1
language and the number of available languages.
6-1
Press [AUDIO] repeatedly to cycle through the
2
available audio languages.
Available languages differ depending on the
• broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.
English 1/3
Note:
• Pressing [AUDIO] does not control external audio devices.
• The information display will automatically disappear in a few seconds.
16
EN
Screen Information
6-1
English 1/2
TV-PG DLSV
1080i
1080i
16:9
16:9HDHD
CC
CC
A Day of Memories
A Day of Memories
KABC
KABC
A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues.Department stores and supermarket were
1
24
39
5
6, 7, 8
10
5
You can display the currently selected channel or other information such as the audio mode on the TV screen.
TV
In the analog mode, the current channel number and the audio mode are displayed.
DTV
In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.
INTRODUCTION
PREPARATION INITIAL SETTING OPTIONAL SETTING
Press [INFO].
6
SAP / STEREO
480i
480i
The current channel number, audio mode, type of
• resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen. To clear the display, press [INFO] again. You can also press [BACK].
SD
SD
TV-PG DLSV
4:3
4:3
CC
CC
Press [INFO] to display the details of the currently selected program.
Broadcasting Information
The following information is displayed.
1 program title 2 broadcast station 3 program guide
(The program guide added to broadcasting information is displayed. Maximum display of 4 lines.)
4 channel number 5 audio language
(Refer to “Switching Audio Mode” on page 16.)
6 effective scanning lines and scan mode 7 program format 8 program aspect ratio 9 program rating 10 CC (not available if CC is set to “Off”)
WATCHING TV
TROUBLESHOOTING
Note:
• When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll.
• “No description provided” is displayed when the program guide is not provided.
• While the program guide is displayed, the closed caption function is interrupted.
• In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO1 input
jack.
Video1
480iSDSD
480i
TV-PG DLSV
• The information display will automatically disappear in 1 minute.
CC
CC
INFORMATION
17
EN
ATCHING TV
W
TV Screen Display Mode
5
4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal.
Press [SCREEN MODE ] repeatedly to switch the TV aspect ratio.
For 4:3 video signal
Sidebar
(normal)
Wide
Sidebar
Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.
Full
Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.
Cinema
Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture.
Wide
Display the picture with its center at the original size and the edges stretched horizontally.
Full
Cinema
For 16:9 video signal
Full
(normal)
Expand
Full
Display a 16:9 picture at its original size.
Zoom
Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.
Cinema
Display a vertically stretched picture.
Expand
Display a horizontally stretched picture.
Note:
• You may not switch the display mode depending on the program.
Zoom
Cinema
18
EN
PTIONAL SETTING
O
Channel List
5
The channel list function lets you remove undesired channels from the channel registration list.
Manual Register
5
The manual register function lets you add the channels that were not added by the auto channel scan due to the reception condition at the initial setting.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “CHANNEL”, then press
2
[ENTER].
Use [Cursor K / L] to select “Channel List”, then press
3
[ENTER].
Channel
Channel
Autoscan Channel List Manual Register Antenna
Use [Cursor K / L] to select the channel you want to
4
remove, then press [ENTER].
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “CHANNEL”, then press
2
[ENTER].
Use [Cursor K / L] to select “Manual Register”, then
3
press [ENTER].
Channel
Channel
Autoscan Channel List Manual Register Antenna
Use [the Number buttons] to enter the number of the
4
channel you want to add, then press [ENTER].
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
OPTIONAL SETTING
TROUBLESHOOTING
Channel List
Channel List
Highlight channels for Ch Up/Down key selection.
Ch Select Watch/Skip Back
The channel display for the removed channel
• darkens. You will not be able to select the channel again using [CH K / L]. To reactivate a removed channel, use [Cursor K / L] and
• press [ENTER]. The registered channels are highlighted. When you remove a major channel, its minor
• channels are removed as well.
Note:
• The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC.
Press [SETUP] to exit.
5
DTV 6
DTV 6
27
DTV 8
DTV 8
9
9
DTV 48
DTV 48
58
58
DTV 67
BACK
ENTER
Manual Register
Manual Register
For analog channels, select a channel to register using number keys. For digital channels, you must perform Autoscan function.
Ch Chan
ge
11
Register
INFORMATION
BACK
Back
Press [SETUP] to exit.
5
Note:
• If set up completes successfully, “Registered to the channel list” is displayed.
• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.
19
EN
PTIONAL SETTING
Antenna
Antenna
Back
Ch Chan
ge
CH
Indicator is available for digital signal only.
11
O
Antenna Confirmation
5
DTV
This function lets you check the digital signal strength of each channel.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “CHANNEL”, then press
2
[ENTER].
Use [Cursor K / L] to select “Antenna”, then press
3
[ENTER].
Channel
Channel
Autoscan Channel List Manual Register Antenna
Use [the Number buttons] or [CH K / L] to select the
4
channel for which you want to check the digital signal strength.
Antenna
Antenna
Now 70 80 Peak
CH
If the channel is set to analog channel or external
• input, you cannot confirm the antenna condition.
Ch Chan
11-1
Back
ge
Press [SETUP] to exit.
5
20
EN
Picture Adjustment
5
You can adjust brightness, contrast, color, tint and sharpness.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “PICTURE”, then press
2
[ENTER].
Use [Cursor K / L] to select the item you want to adjust,
3
then press [ENTER].
Picture Mode Brightness Contrast Color Tint Sharpness Reset Settings Color Temp. Energy Saving
Adjust the picture quality.
4
Picture Mode
Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Standard, Dynamic, Movie and News)
Picture Mode
Brightness Contrast Color Tint Sharpness Reset Settings Color Temp. Energy Saving
Dynamic
Neutral
Standard
Dynamic
Movie News
Cursor
Brightness
Brightness 30
Adjust
Contrast
Contrast
Adjust Move
Color
Color
Adjust Move
s
to decrease
ENTER
Move
Enter
30
30
ENTER
Enter
ENTER
Enter
brightness
to decrease contrast
to decrease color
Cursor
to increase brightness
to increase contrast
to brighten color
B
Tint
Tint
0
Adjust Move
ENTER
Enter
to add red to add green
Sharpness
0Sharpness
Adjust Move
ENTER
Enter
to make soft to make clear
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
Reset Settings
Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore the “Picture Mode” settings to the default.
Reset Settings
Reset Settings
30 30 30
0 0
Off
This function resets the "Dynamic" setting for Picture Mode to factory default.
Cancel Reset
OPTIONAL SETTING
Color Temp.
Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Cool, Neutral and Warm)
Picture Mode Brightness Contrast Color Tint Sharpness Reset Settings
Color Temp.
Energy Saving
Cool
Neutral
Warm
TROUBLESHOOTING
INFORMATION
Energy Saving
Use [Cursor
/
s
B
] to adjust the brightness of the backlight.
Brightness, Contrast, Color, Tint, Sharpness
Use [Cursor
/
s
B
] to adjust.
: To brighten
Energy Saving Off
Adjust
: To darken
Press [SETUP] to exit.
5
Note:
• To cancel picture adjustment, press [SETUP].
• When this unit is connected to DVI devices, you cannot select “Sharpness”.
ENTER
Enter
21
EN
PTIONAL SETTING
O
Sound Adjustment
5
You can adjust treble and bass.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “SOUND”, then press
2
[ENTER].
Use [Cursor K / L] to select the sound type you want to
3
adjust, then press [ENTER].
Sound
Sound
Treble Bass Reset Settings
Reset Settings
Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore the sound settings to the default.
Reset Settings
Press [SETUP] to exit.
5
Reset Settings
This function resets the Sound settings to factory default.
Cancel Reset
Note:
• To cancel sound adjustment, press [SETUP].
0 0
Adjust the sound setting.
4
Treble, Bass
Use [Cursor s / B] to adjust.
Treble
0
Treble
Bass
Bass
Adjust
0
Adjust
Move
Move
ENTER
ENTER
Enter
Enter
Cursor
s
to decrease higher-pitched sounds
to decrease lower-pitched sounds
Cursor
B
to increase higher-pitched sounds
to increase lower-pitched sounds
22
EN
Closed Caption
5
You can view closed captioning (cc) for TV programs, movies and news. Closed caption refer to text of dialogue or descriptions displayed on-screen for the hearing impaired.
Press [SETUP] to display the main menu.
1
Use [Cursor K / L] to select “DETAIL”, then press
2
[ENTER].
Use [Cursor K / L] to select “Closed Caption”, then
3
press [ENTER].
Detail
Detail
Closed Caption V–chip HDMI1 Audio
Auto
Caption Mode
CC1 and Text1;
are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).
CC3 and Text3;
serve as the preferred data channels. The captioning or text is often a secondary language.
CC2, CC4, Text2 and Text4;
are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.
There are 3 display modes according to programs:
Paint-on mode:
Displays input characters on the TV screen immediately.
Pop-on mode:
Once characters are stored in memory, they are displayed all at once.
Roll-up mode:
Displays the characters continuously by scrolling (max. 4 lines).
Press [SETUP] to exit.
6
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
OPTIONAL SETTING
Use [Cursor K / L] to select “Conventional CC”, then
4
press [ENTER].
Closed Caption
Closed Caption
Conventional CC DTV CC CC Style
Use [Cursor K / L] to select the desired closed caption,
5
then press [ENTER].
Closed Caption
Closed Caption
Conventional CC Off
DTV CC CC Style
Note:
• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.
• Not all TV programs and commercials have the closed caption or all types of the closed caption.
• Captions and texts may not match the TV voice exactly.
• Changing channels may delay the closed caption for a few seconds.
Off Off
• Adjusting or muting the volume may delay the closed caption for a few seconds.
• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a problem with the unit.
• The caption or text characters will not be displayed while the main menu or functions display is shown.
• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.
• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:
- Automobile ignition noise
- Electric motor noise
- Weak signal reception
CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4
- Multiplex signal reception (ghosts or screen flutter)
• The unit retains the closed caption setting if the power fails.
• Closed caption will not be displayed when you are using an HDMI connection.
• When the unit receives a special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.
TROUBLESHOOTING
INFORMATION
EN
23
PTIONAL SETTING
O
DTV Closed Caption
5
DTV
In addition to the basic closed caption described on page 23, DTV has its own closed caption called DTV CC. Use this menu to change the settings for DTV CC.
Press [SETUP] to display the main menu.
1
/
K
Use [Cursor
2
L] to select “DETAIL”, then press
[ENTER].
/
K
Use [Cursor
5
L] to select the desired DTV closed
caption, then press [ENTER].
Closed Caption
Closed Caption
Conventional CC
DTV CC
CC Style
Off
Service1 Service2 Service3 Service4 Service5 Service6
Use [Cursor
3
press [ENTER].
Use [Cursor
4
[ENTER].
/
K
L] to select “Closed Caption”, then
Detail
Detail
Closed Caption V–chip HDMI1 Audio
/
K
L] to select “DTV CC”, then press
Closed Caption
Closed Caption
Conventional CC DTV CC CC Style
Off
DTV CC
Service1~6
Press [SETUP] to exit.
6
Auto
Select if you do not want DTV CC. This is the default.
Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances.
Note:
• “DTV CC” that you can switch differs depending on the broadcast description.
Off Off
24
EN
CC Style
CC Style
CC Style
Font Style Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type
User Setting
Off
Closed Caption
On
5
You can change the CC style such as font, color or size, etc.
Press [SETUP] to display the main menu.
1
/
K
Use [Cursor
2
L] to select “DETAIL”, then press
[ENTER].
Use [Cursor
3
/
K
L] to select “Closed Caption”, then
press [ENTER].
Detail
Detail
Closed Caption V–chip HDMI1 Audio
/
K
Use [Cursor
6
Use [Cursor
7
[ENTER]. Then use [Cursor
L] to select “On”, then press [ENTER].
/
K
L] to select an item, then press
/
K
L] to select the desired
setting and press [ENTER].
Picture display
ABCDEFGHIJKL
ABCDEFGHIJKL
Edge (Edge Color and Edge Type)
Font
Auto
(Font Style, Font Size, Font Color and Font Opacity)
Back (Back Color and Back Opacity)
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
OPTIONAL SETTING
Use [Cursor
4
[ENTER].
Use [Cursor
5
[ENTER].
/
K
L] to select “CC Style”, then press
Closed Caption
Closed Caption
Conventional CC DTV CC CC Style
/
K
L] to select “User Setting”, then press
CC Style
CC Style
User Setting Font Style Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type
Off Off
Off
Font0
Middle White
Solid Black Solid Black None
The setting description for each item is shown below.
Font Style
Closed Captioning font style can be changed as below.
CC Style
CC Style
User Setting
Font Style
Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type
Closed Caption
Font Size
Font size of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style
Font Size
Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type
Closed Caption
Large
Middle
Small
TROUBLESHOOTING
INFORMATION
25
EN
PTIONAL SETTING
O
Font Color
Font color of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style Font Size
Font Color
Font Opacity Back Color Back Opacity Edge Color Edge Type
Closed Caption
White
Black Red Green Blue Yellow Magenta Cyan
Font Opacity
Font opacity of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style Font Size Font Color
Font Opacity
Back Color Back Opacity Edge Color Edge Type
Closed Caption
Solid
Flash Translucent Transparent
Back Color
Background color of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style Font Size Font Color Font Opacity
Back Color
Back Opacity Edge Color Edge Type
Closed Caption
White
Black
Red Green Blue Yellow Magenta Cyan
Edge Type
Edge type of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style Font Size Font Color Font Opacity Back Color
Back Opacity
Edge Color
Press [SETUP] to exit.
8
Edge Type
Closed Caption
None
Raised Depressed Uniform L.Shadow R.Shadow
Back Opacity
Background opacity of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style
Font Size
Font Color Font Opacity Back Color
Back Opacity
Edge Color Edge Type
Closed Caption
Solid
Flash Translucent Transparent
Edge Color
Edge color of the displayed caption can be switched as below.
CC Style
CC Style
User Setting Font Style Font Size
Font Color
Font Opacity Back Color Back Opacity
Edge Color
Edge Type
Closed Caption
White
Black
Red Green Blue Yellow Magenta Cyan
26
EN

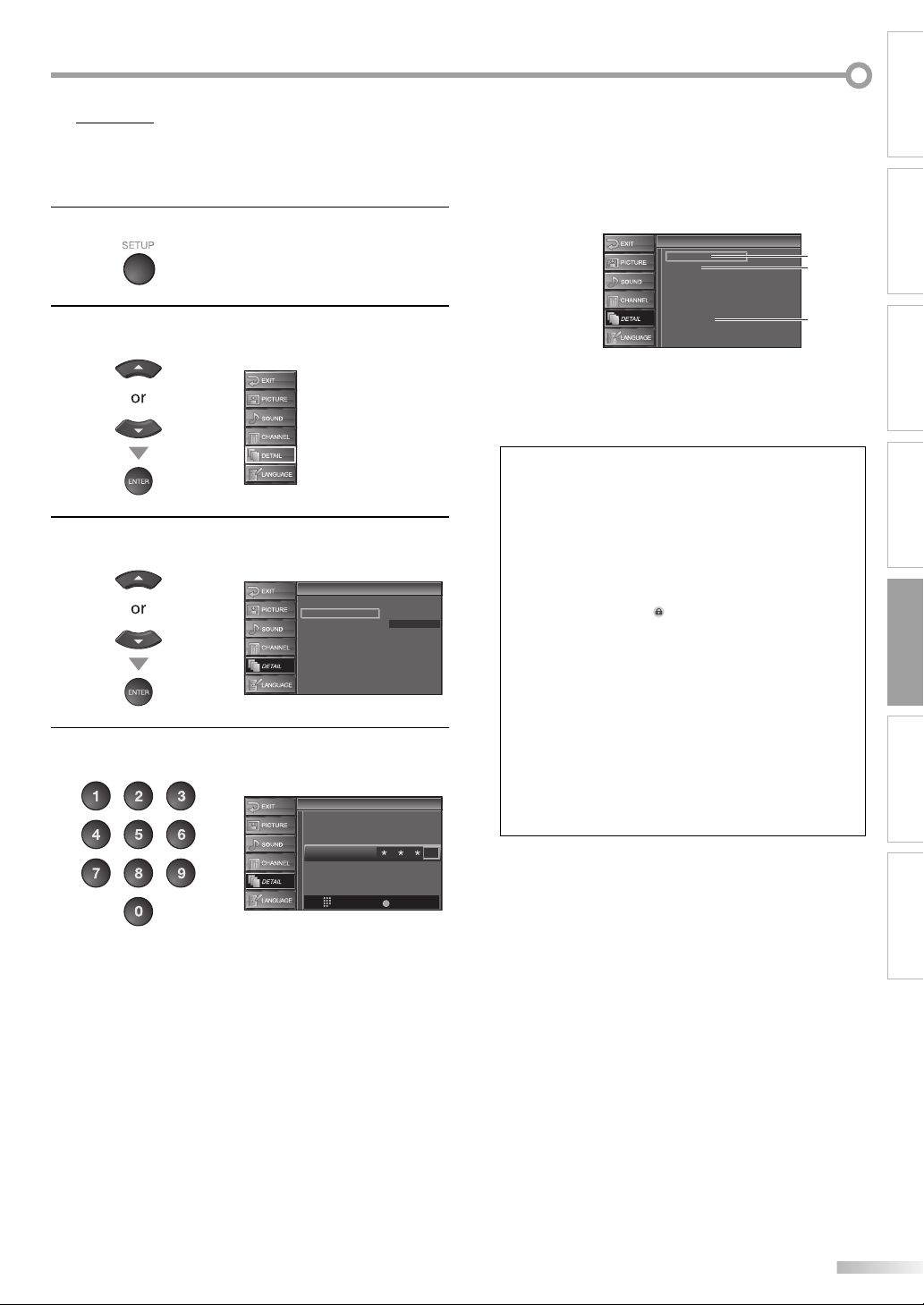

V-chip
5
V-chip reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programming inappropriate for children.
Press [SETUP] to display the main menu.
1
/
K
Use [Cursor
2
L] to select “DETAIL”, then press
[ENTER].
Use [Cursor K / L] to select “V-chip”, then press
3
[ENTER].
Detail
Detail
Closed Caption V–chip HDMI1 Audio
Use [the Number buttons] to enter the 4-digit
4
numbers for your password.
V-chip
V-chip
Enter password.
PIN Code
See the following description for setting each item.
V-ch ip
V-ch ip
MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password
A B
C
...
A
“A. MPAA Rating”
...
B
“B. TV Rating”.
...
C
“C. New Password”
Note:
• When you select a rating and set it to “Block”, the higher
D page 28
D page 28
D page 29
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
ratings will be blocked automatically. The lower ratings will be available for viewing.
• When you set the highest rating to “View”, all ratings turn to “View” automatically.
• To block any inappropriate programming, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”.
• The V-chip setting will be retained after a power failure (except the access code reverts to 0000).
Auto
• If the rating is blocked, will appear.
• “Downloadable Rating” will be available when the unit
OPTIONAL SETTING
receives a digital broadcast using the new rating system.
• If the broadcasting signal does not have the downloadable rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the downloadable rating information, and the new
TROUBLESHOOTING
information has not been downloaded since.
• To clear the downloadable rating information and its setting, select “Clear Downloadable Rating”.
• The Canadian rating systems on this unit are based on CEA-766-A and the Canadian Radio-Television and Telecommunications Commission (CRTC) policy.
-
INFORMATION
BACK
Back
When you have not set up your password, enter
0000. When the password is correct, the “V-chip” menu is
• displayed.
27
EN
PTIONAL SETTING
A. MPAA Rating
B. TV Rating
O
A. MPAA Rating
MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).
B. TV Rating
Use [Cursor K / L] to select “MPAA Rating”, then press
5
[ENTER].
V-ch ip
V-chip
MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password
Use [Cursor K / L] to select the desired rating, then
6
press [ENTER] repeatedly to switch between “View” and “Block”.
V-ch ip
V-chip
X NC-17 R PG-13 PG G NR
ENTER
Select View/Block Back
Rating Category X Mature audience only NC-17 No one under 17 admitted
R
PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating
Press [SETUP] to exit.
7
Restricted; under 17 requires accompanying parent or adult guardian
Use [Cursor K / L] to select “TV Rating”, then press
5
[ENTER].
V-ch ip
V-chip
MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password
Use [Cursor K / L / s
6
/
B
] to select the desired rating,
then press [ENTER] repeatedly to switch between “View” and “Block”.
V-ch ip
V-chip
V S L D
FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y
BACK
Select View/Block Back
BACK
ENTER
Press [SETUP] to exit.
7
To Set the Sub Ratings
As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.
/
s
B
Use [Cursor K / L / then press [ENTER] repeatedly to switch between “View” and “Block”.
] to select the desired rating,
28
EN
V-ch ip
V-chip
FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y
ENTER
Select View/Block Back
V S L D
BACK
C. New Password
C. New Password
Although the default code “0000” is supplied with the unit, you can set your own password.
Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience
TV-Y7
Appropriate for all children 7 and older
TV-Y Appropriate for all children lower
Sub Rating Category Rating
FV Fantasy Violence TV-Y7 V Violence S Sexual Situation L Coarse Language
TV-PG TV-14 TV-MA
D Suggestive Dialogue TV-PG, TV-14
Note:
• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.
• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.
• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).
Use [Cursor K / L] to select “New Password”, then press
5
[ENTER].
V-chip
V-ch ip
MPAA Rating TV Rating Canadian English Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password
Press [the Number buttons] to enter the new 4-digit
6
password.
Enter password again in “Confirm password.” entry
• field.
V-chip
V-ch ip
Enter password.
Confirm password.
PIN Code
----
----
BACK
Press [SETUP] to exit.
7
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING
OPTIONAL SETTING
Back
Note:
• Make sure new password and confirm password must be exactly the same. If they are different, the space is cleared for reentering.
• Your password will be erased and return to the default (0000) when a power failure occurs. If you forget the password, unplug the power cord for 10 seconds to restore the password to 0000.
TROUBLESHOOTING
INFORMATION
EN
29
PTIONAL SETTING
O
HDMI Audio
5
You can set the method of sound input for the HDMI1 input jack.
Press [SETUP] to display the main menu.
1
/
K
Use [Cursor
2
L] to select “DETAIL”, then press
[ENTER].
Use [Cursor
3
/
K
L] to select “HDMI1 Audio”, then press
[ENTER].
Detail
Detail
Closed Caption V–chip HDMI1 Audio
Note:
• Select “Auto” or “Analog” if you have connected a DVI device to the HDMI1 input jack.
Auto
Use [Cursor
4
then press [ENTER].
HDMI1
Audio
Press [SETUP] to exit.
5
30
EN
/
K
L] to select the desired sound input,
Detail
Detail
Closed Caption V–chip
HDMI1 Audio
Select if you have connected both
Auto
Digital
Analog
digital device to the HDMI1 input jack and analog device to the audio sources. Digital audio input signal will have priority.
Select if you have connected a digital device to the HDMI1 input jack for digital audio input signal.
Select if you have connected an analog device to the analog audio jacks for analog audio input signal.
Auto
Digital Analog
ROUBLESHOOTING
T
Troubleshooting Guide
5
If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the following chart and all connections once before calling for service.
Symptom Remedy
Be sure the power cord is plugged in.
No power
No picture or sound
No color
T
Sound OK, picture poor
V
• If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to
• reset itself.
Check if the power is on.
• Check if the right input mode is selected.
• View other TV channels. The problem might be limited to the broadcasting station.
• Turn off the power and wait for about 1 minute, then turn on the unit again.
View other TV channels. The problem might be limited to the broadcasting station.
• Adjust the “Color” in the main menu.
Electrical interference from nearby appliances may affect picture quality.
• Adjust “Contrast” and “Brightness” in the main menu.
• View other TV channels. The problem might be limited to the broadcasting station.
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING OPTIONAL SETTING
Ghosts,lines or streaks in picture
Different color marks on TV screen
Picture OK, sound poor
Captions are displayed as a white box. No caption is displayed in the
C
Closed Caption-supported
A
program.
P
T
No caption is displayed when
I
playing the discs or cassette tape
O
containing captions.
N
Black box is displayed in the screen.
Electrical interference from nearby appliances may affect picture quality.
• View other TV channels. The problem might be limited to the broadcasting station.
Move your TV away from nearby electric appliances. Turn off the power and wait
• 30 minutes before turning it back on. View other TV channels. The problem might be limited to the broadcasting station.
View other TV channels. The problem might be limited to the broadcasting station.
• Check if the audio cable is plugged in correctly .
Interference from buildings or weather conditions may cause captioning to be
• incomplete. Broadcasting station may shorten the program to insert advertisement.
• The closed caption decoder cannot read the information of the shortened program.
The disc or cassette tape may be illegally copied, or the caption signal might not
• have been read during copying.
The text mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.
Note:
The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of
• blue, green or red. This is not to be considered a defect in the LCD screen. Some functions are not available in specific modes, but this is not a malfunction. Read the description in this owner’s manual for more
• details on correct operations.
TROUBLESHOOTING
INFORMATION
EN
31
ROUBLESHOOTING
T
FAQ5
Question Answer
Check the antenna or cable connection to the main unit.
• Check the batteries of the remote control.
• Check if there is an obstacle between the infrared sensor window and
• the remote control. Test the signal output. If OK, then possible infrared sensor trouble.
• (Refer to “IR Signal Check” on page 33.) Aim the remote control directly at the infrared sensor window on the
My remote control does not work. What should I do?
How come the Initial setup appears every time I turn on this unit?
Why I cannot watch some of TV programs?
How come there is no image from the connected external devices?
Whenever I entered channel number, it changes automatically.
Why are captions not displayed entirely? Or, captions are delayed behind the dialogue.
How can I set the clock ? There is no clock function on this unit.
• front of the unit. Reduce the distance to the unit.
• Re-insert the batteries with their polarities (+/– signs) as indicated.
• When there is an infrared-equipped device such as PC near this unit, it
• may interrupt the remote control signal of this unit. Move the infrared-equipped device away from this unit, change the
• angle of the infrared sensor or turn off the infrared communication function.
Connect the RF cable to the unit directly and run the initial setup.
• Make sure to complete the channel scan before turning off the unit.
• Make sure auto channel scan has been completed.
• (Refer to “Auto Channel Scan” on page 13.) Auto channel scan must be completed when you set up the unit for the
• first time or move it to a location where previously unavailable channels are broadcast. The selected channel may not be broadcasting.
• When auto channel scan is interrupted and not completed,
• some channels will not be received. Make sure to complete. (Refer to “Auto Channel Scan” on page 13.) The selected channel cannot be viewed by the V-chip setting.
• (Refer to “V-chip” on page 27.) The unit requires some kind of antenna input. An indoor antenna (rabbit
• ears), an external antenna, or an RF coaxial cable from your wall or cable /satellite box needs to be plugged into the unit.
Check if the right input mode is selected by pressing [INPUT SELECT] or
• using [CH K / L ]. (Refer to “Switching Each Input Mode” on page 16.) Check the antenna or cable connection to the unit.
• Many digital channels have alternate channel numbers. The unit changes
• the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts.
Captions that are delayed a few seconds behind the actual dialogue are
• common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue.
32
EN
NFORMATION
I
Glossary5
ATS C
Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.
Aspect Ratio
The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).
Component Video
This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr.
Dolby Digital
The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio.
HDMI (high-definition multimedia interface)
Interface that supports all uncompressed, digital audio/video formats including set-top box, DVD player or digital television, over a single cable.
HDTV (high definition TV)
Ultimate digital format that produces high resolution and high picture quality.
NTSC
Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards.
Password
A stored 4-digit number that allows access to parental control features.
SAP (secondary audio program)
Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.
SDTV (standard definition TV)
Standard digital format that is similar to the NTSC picture quality.
S-video
Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through separate cables
.
WATCHING TVINTRODUCTION PREPARATION INITIAL SETTING OPTIONAL SETTING
Maintenance5
Cabinet Cleaning
• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.
Panel Cleaning
Wipe the panel of the unit with a soft cloth. Before cleaning the
panel, disconnect the power cord.
Servicing
Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn o the unit, unplug the power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center.
IR Signal Check
If the remote control is not working properly, you can use an AM radio or digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.
• With an AM radio:
Tune the AM radio station to a non-broadcasting frequency. Point the remote control towards it, push any button and listen. If the sound from the radio  utters, it is receiving the remote control’s infrared signal.
• With a digital camera (including built-in cell phone cameras):
Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.
TROUBLESHOOTING
INFORMATION
EN
33
NFORMATION
I
Cable Channel Designations5
If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.
CATV channel
TV Display
CATV channel
TV Display
CATV channel
TV Display
CATV channel
TV Display
CATV channel
TV Display
CATV channel
TV Display
CATV channel
TV Display
5
TV format: ATSC / NTSC-M TV standard Closed caption system:
§15.122/FCC (digital CC) §15.119/FCC (analog CC)
Channel coverage (ATSC/NTSC):
Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84),
A-5~A-1, 5A
Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard,
Programmable scan, and up/down
5
Sound output: 5W, 8Ω x 2
5A122334455667788991010111112121313A14B15C16D17E18F19G20H
I22J23K24L25M26N27O28P29Q30R31S32T33U34V35W36W+1
W+743W+844W+945W+1046W+1147W+1248W+1349W+1450W+1551W+16
W+2864W+2965W+3066W+3167W+3268W+3369W+3470W+3571W+3672W+3773W+3874W+3975W+4076W+4177W+4278W+4379W+4480W+4581W+4682W+4783W+48
W+4985W+5086W+5187W+5288W+5389W+5490W+5591W+5692W+5793W+5894A-595A-496A-397A-298A-199W+59
W+65
W+66
W+67
W+68
W+69
W+70
W+71
W+72
106
W+86
127
107
W+87
128
108
W+88
129
109
W+89
130
110
W+90
131
111
W+91
132
112
W+92
133
113
W+93
134
W+73
114
W+94
135
General Specifications
W+1753W+1854W+1955W+2056W+2157W+2258W+2359W+2460W+2561W+2662W+27
52
W+74
W+75
W+76
W+77
W+78
115
116
117
118
Other Specifications
5
119
W+79
120
W+2 W+339W+440W+541W+6
37 38
W+60
W+61
100
W+80
121
101
W+81
122
102
W+82
123
W+62
103
W+83
124
Terminals:
Antenna input: VHF/UHF/CATV 75Ω unbalanced (F-type) S-video input: Mini DIN 4-pin jack x 2 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω) Video input: RCA jack x 2 1Vp-p (75Ω) Audio input: RCA jack (L/R) x 10 500mV rms
Component video input: RCA jack x 6 Y: 1Vp-p (75Ω) Pb: 700mVp-p (75Ω) Pr: 700mVp-p (75Ω) HDMI input: HDMI 19pin x 2
Coaxial digital audio output:
Electrical Specification
RCA jack x1 500mVp-p (75Ω)
Remote control:
Digital encoded infrared light system
Operating temperature:
41°F (5°C) to 104°F (40°C)
Power requirements: 120V~ AC +/- 10%, 60Hz +/- 0.5%
Power consumption (maximum): 155W LCD: 32 inches class
(31.5 inches measured diagonally) Dimensions: <Without stand> H: 20.4 inches (516mm) W: 30.6 inches (776mm) D: 4.3 inches (108mm) <With stand> H: 22.2inches (562mm) W: 30.6 inches (776mm) D: 10.7 inches (272mm) Weight: 24.3 lbs. (11kg)
W+63
104
W+84
125
W+64
W+85
21
42
63
84
105
126
• Designs and speci cations are subject to change without notice and without our legal obligation.
• If there is a discrepancy between languages, the default language will be English.
34
EN
M
EMO
EN
35
TM
LIMITED WARRANTY
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION:
PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year
from the date of original retail purchase. Certain parts and LCD image burn-in are excluded from this warranty.
LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the
date of original retail purchase.
LIMITS AND EXCLUSIONS:
THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY. This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP., or damage, which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.
FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGED.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.
WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:
To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:
FUNAI CORPORATION
Customer Service
Tel : 1-800-256-2487
www.EmersonAudioVideo.com
19900 Van Ness Avenue, Torrance, CA 90501
Printed in China A8AF7UH / A8AF3UH / A8AF1UH
1EMN22959B ★★★
EMERSON Y EL LOGOTIPO G-CLEF SON MARCAS REGISTRADAS DE EMERSO N RADIO CORP., PARSIPPANY, NEW JERS EY, EE .UU.
AYUDA?
LLAME AL TELEFONO GRATUTITO!
1-800-256-2487
Ó VISITE NUESTRO SITIO WEB EN
www.EmersonAudioVideo.com
TM
Manual del Usuario
LC320EM9 B LC320EM9 3 LC320EM9
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
HIGH-DEFINITION TELEVISION
PARA RECIBIR LA SEÑAL DIGITAL/ ANALÓGICA, DEBE CONECTAR LA ANTENA.
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
© 2008 Funai Electric Co., Ltd.
NTRODUCCIÓN
I
El modelo y el número de serie de esta unidad se pueden encontrar en la caja. Deberá anotar y guardar el modelo y el número de serie para consultarlos, si los necesita, en el futuro.
Número de modelo:
Número de serie:
Precauciones5
ADVERTENCIA:
EL APARATO NO DEBERÁ EXPONERSE A LOS GOTEOS NI A LAS SALPICADURAS, Y ENCIMA DE ÉL NO
AVISO:
NO QUITE LA CUBIERTA (O EL PANEL POSTERIOR). EN EL INTERIOR DEL APARATO NO HAY PIEZAS QUE DEBA MANIPULAR EL USUARIO. SOLICITE EL SERVICIO DE REPARACIONES AL PERSONAL DE SERVICIO CUALIFICADO.
La marca de aviso está situada en la parte inferior o posterior de la caja.
PARA REDUCIR EL RIESGO DE SUFRIR UNA DESCARGA ELÉCTRICA
PARA REDUCIR EL RIESGO DE QUE SE PRODUZCA UN INCENDIO O SE RECIBA UNA DESCARGA ELÉCTRICA, NO EXPONGA ESTE APARATO A LA LLUVIA NI A LA HUMEDAD.
DEBERÁN PONERSE OBJETOS CON LÍQUIDOS EN SU INTERIOR COMO, POR EJEMPLO, FLOREROS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
El símbolo del rayo con punta de flecha, en el interior de un triángulo equilátero, tiene la finalidad de avisar al usuario de la presencia de “tensión peligrosa” dentro de la caja del aparato que podría ser de suficiente intensidad como para constituir un riesgo para las personas en caso de que éstas recibiesen una descarga eléctrica.
El signo de exclamación dentro de un triángulo equilátero tiene la finalidad de avisar al usuario de la presencia de instrucciones de utilización y mantenimiento (servicio) en el material impreso que acompaña al aparato.
Instrucciones de Seguridad Importantes
1. Lea estas instrucciones.
2. Guarde estas instrucciones.
3. Haga caso de todas las advertencias.
4. Siga todas las instrucciones.
5. No utilice este aparato cerca del agua.
6. Limpie el aparato con un paño seco.
7. No tape ninguna abertura de ventilación. Haga la
instalación siguiendo las instrucciones del fabricante.
8. No instale el aparato cerca de fuentes de calor como, por
ejemplo, radiadores, salidas de aire caliente, estufas u otros aparatos (incluyendo amplificadores) que produzcan calor.
9. No anule la función de seguridad de la clavija polarizada o con
conexión a tierra. Una clavija polarizada tiene dos patillas, una de la cuales es más ancha que la otra. Una clavija del tipo de conexión a tierra tiene dos patillas y una espiga de conexión a tierra. La patilla más ancha y la espiga se incluyen para su seguridad. Si la clavija suministrada no se puede conectar en su toma de corriente, consulte a un electricista para que le reemplace la toma de corriente obsoleta.
No coloque la unidad sobre un mueble que pueda volcar si algún niño o adulto lo inclina, empuja, se coloca encima o trepa por él. La caída de la unidad puede provocar lesiones graves e incluso la muerte.
ADVERTENCIA DE LA FCC
Este aparato puede generar o utilizar energía radioeléctrica. Los cambios o las modificaciones que se hagan en este aparato podrán causar interferencias a menos que éstos sean aprobados expresamente en este manual. El usuario podrá perder la autorización que tiene para utilizar este aparato si hace algún cambio o modificación que no haya sido autorizado.
10. Proteja el cable para que nadie lo pise ni sea pellizcado,
particularmente en la clavija, receptáculo de conveniencia o punto por donde sale del aparato.
11.
Utilice solamente los accesorios especificados por el fabricante.
12. Utilice el aparato sólo con el carrito, soporte,
trípode, ménsula o mesa especificado por el fabricante, o vendido con el aparato. Cuando utilice un carrito, tenga cuidado para mover la combinación del carrito/aparato, para evitar causar heridas o que el aparato se caiga.
13. Desenchufe este aparato durante las tormentas eléctricas o
cuando no se vaya a utilizar durante mucho tiempo.
14. Solicite todas las reparaciones al personal de servicio
cualificado. Las reparaciones serán necesarias cuando el aparato se haya estropeado de cualquier forma como, por ejemplo, cuando el cable o la clavija de alimentación se hayan dañado, cuando se hayan derramado líquidos o hayan caído objetos en el interior del aparato, cuando el aparato haya estado expuesto a la lluvia o a la humedad, cuando no funcione normalmente o cuando se haya caído.
INTERFERENCIA DE RADIO Y TV
Este aparato ha sido probado y ha demostrado cumplir con los límites existentes para los dispositivos digitales de la Clase B, de conformidad con el Apartado 15 de las Normas de la FCC. Este aparato genera, utiliza y puede radiar energía radioeléctrica, y, si no se instala y utiliza de acuerdo con las instrucciones, puede causar interferencias perjudiciales en las comunicaciones por radio. Sin embargo, no existen garantías de que no se produzcan interferencias en una instalación particular. Si este aparato causa interferencias perjudiciales en la recepción de la radio o la televisión, lo que se puede determinar apagando y luego encendiendo el aparato, al usuario se le recomienda intentar eliminar la interferencia tomando una, o más, de las medidas siguientes:
1) Cambie la orientación y la ubicación de la antena de recepción.
2) Aumente la separación entre el aparato y el receptor.
3) Conecte el aparato en una toma de corriente o circuito que sean diferentes de aquellos a los que está conectado el receptor.
4) Consulte a su concesionario o técnico en radio/TV con experiencia para solicitar su ayuda.
Este aparato digital de la clase B cumple con la norma canadiense ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
2
ES
Este aparato no deberá colocarse en una instalación empotrada como, por ejemplo, una librería o estantería, a menos que disponga de una ventilación apropiada. Asegúrese de dejar un espacio libre de unos 3,2 pulgadas (8cm) alrededor de este aparato.
INTRODUCCIÓN
Desconecte la clavija de alimentación de la toma de corriente cuando busque un problema o no utilice el aparato. La clavija de la alimentación deberá estar siempre lista para ser conectada.
AVISO: Si la pila se sustituye incorrectamente existe el riesgo de que se produzca una explosión. Sustitúyala siempre por
ADVERTENCIA:
otra de tipo equivalente.
Las baterías y las pilas (la batería o la pila que está instalada) no deberán exponerse a un calor excesivo como, por
ejemplo, el del sol, el de un incendio u otro similar.
LA LUZ DE LA LCD CONTIENE MERCURIO, DESHÁGASE DE ELLA CUMPLIENDO LA LEY LOCAL, ESTATAL O FEDERAL.
ADVERTENCIA:
PARA EVITAR PELIGROS DE DESCARGA ELÉCTRICA O INCENDIO
No maneje el cable de alimentación con las manos mojadas.
No retire la caja de este aparato. Tocar las piezas del interior de la caja puede causar una descarga eléctrica y/o daños
en este aparato. Para realizar reparaciones y ajustes en el interior de este aparato, llame a un concesionario cualificado o a un centro de reparaciones autorizado. No tire del propio cable cuando lo desconecte de una toma de CA. Sujete la clavija y tire de ella.
No meta sus dedos ni otros objetos en la unidad.
COLOCACIÓN Y MANEJO
Las aberturas no deberán taparse colocando la unidad en una cama, sofá, alfombra u otra superficie similar.
No instale la unidad cerca de un radiador o salida de aire caliente.
No instale la unidad expuesta a la luz solar directa, cerca de campos magnéticos o en lugares expuestos al polvo o a
vibraciones fuertes. Evite colocar la unidad donde se produzcan cambios extremos de temperatura.
Instale la unidad en una posición horizontal y estable. No ponga nada directamente encima o debajo de la unidad.
Dependiendo de los dispositivos externos, es posible que se produzcan ruidos y alteraciones en la imagen y/o sonido si la unidad se coloca demasiado cerca de ellos. En este caso, deje un buen espacio entre los dispositivos externos y la unidad. Dependiendo del medio ambiente, la temperatura de esta unidad puede aumentar un poco, pero esto no indica
ningún fallo de funcionamiento.
NOTA ACERCA DEL RECICLADO
Los materiales de embalaje de esta unidad son reciclables y pueden volver a utilizarse. Disponga de ellos
según los reglamentos de reciclado locales. Las baterías y las pilas nunca deberán tirarse a la basura ni incinerarse, sino que se deberá disponer de ellas
según los reglamentos locales relacionados con la basura química.
TRANSPORTE DE ESTA UNIDAD
Esta unidad deberá ser llevada por un mínimo de dos personas.
Asegúrese de sujetar firmemente los bastidores superior e inferior de la unidad como se muestra en la ilustración.
Para impedir lesiones, este aparato deberá fijarse firmemente al suelo/pared siguiendo las instrucciones.
PREPARACIÓN
AJUSTE INICIAL
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMASPARA VER LA TELEVISIÓN
Accesorios Suministrados5
manual del usuario (1EMN22959A)
Si necesita cambiar estos accesorios, consulte el número de pieza que aparece junto a las ilustraciones y llame a
• nuestro teléfono de atención al cliente, que encontrará en la portada de este manual. Según su sistema de antena, puede necesitar diferentes tipos de combinadores (mezcladores) o separadores
• (divisores). Para obtener estos elementos, acuda a su establecimiento de electrónica local.
guía de inicio rápido (1EMN22999A)
mando a distancia (NF027UD)
pilas (AA x 2)
tornillo Phillips para enganchar el soporte x 3 (FPH34100)
INFORMACIÓN
3
ES
NTRODUCCIÓN
p
a
n
e
l
d
e
l
a
n
t
e
r
o
I
Conectar el Soporte
5
Tiene que poner el soporte a la unidad para que se muestre recta. Compruebe que la parte trasera y la delantera del soporte coinciden en la dirección apropiada.
Extienda un paño grueso y suave
1
sobre una mesa. Coloque la unidad principal con la pantalla hacia abajo sobre la mesa. Compruebe que no daña la pantalla. Se necesitan al menos dos personas para llevar a cabo este paso.
Lentamente, introduzca por
2
completo la base en la unidad principal hasta que encaje. Compruebe que el cable de alimentación de CA no esé entre el soporte y la unidad.
p
p
a
n
e
l
d
e
l
a
n
t
e
r
o
Atornille firmemente los tornillos
3
phillips para enganchar el soporte en los 4 orificios roscados en la parte inferior de la base.
agujeros de tornillo
1
Para retire es sporte de esta unidad
Desatornille los tornillos Phillips de cabeza plana que están indicados con un “1”, luego levante la palanca que se encuentra en la base inferior y quite la base de la unidad lentamente.
palanca
Nota:
• Al poner el soporte, compruebe que todos los tornillos están bien apretados. Si el soporte no está bien puesto, podría hacer que se caiga la unidad con el resultado de heridas así como daños a la unidad.
• Asegúrese de utilizar una mesa que pueda soportar el peso de la unidad y que sea más grande que la unidad.
• Asegúrese de que la mesa se encuentra en posición estable.
Símbolos Utilizados en este Manual
5
Ésta es la descripción de los símbolos utilizados en este manual. La descripción se refiere a:
: Funcionamiento de TV digital
DTV
Si no aparece ninguno de los símbolos bajo el encabezamiento de función, el funcionamiento es aplicable a ambos.
5
Información sobre Marcas Registradas
HDMI, el logotipo de HDMI y High-Definition Multimedia Interface son marcas comerciales o marcas registradas de
• HDMI Licensing LLC.
Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo de la doble D son marcas comerciales de Dolby
• Laboratories.
Los Productos que han conseguido el ENERGY STAR® están diseñados para proteger el medio ambiente a través de una
• mejor eficiencia en el consumo de energía.
: Funcionamiento de TV analógica
TV
4
ES
INTRODUCCIÓN
Características5
DTV/TV/CATV
Puede utilizar su mando a distancia para seleccionar
-
canales emitidos en formato digital y en formato analógico convencional. Además, los suscriptores de cable pueden acceder a sus canales de televisión por cable.
Pantalla de Información de Programas
• (solamente DTV)
Puede visualizar el título, el contenido y otra
-
información del actual programa DTV en la pantalla del televisor.
Exploración Automática de Canales
Esta unidad explora y memoriza automáticamente
-
los canales disponibles en su zona, eliminando complicados procedimientos de configuración.
V-chip
Esta función le permite bloquear el acceso de los
-
niños a programas inapropiados.
Decodificador de Subtítulos
El decodificador de subtítulos incorporado muestra
-
el texto de la programas que contiene subtítulos.
Sintonizador MTS/SAP
Puede seleccionarse el audio desde el mando a
-
distancia.
Función de Apagado Automático
Si no hay entrada de señal desde el terminal de
-
antena y no se realiza ninguna operación durante 15 minutos, la unidad se apagará automáticamente.
Temporizador de Apagado
Esta función apagará automáticamente la unidad a
-
una hora especificada.
Opciones para Idioma de Pantalla
Seleccione el idioma que aparecerá en la pantalla:
-
Inglés, español o francés.
Función de Sonido Estéreo
• Sintonización de Frecuencia PLL Sintonizada
Proporciona una selección de canales gratuita y
-
sencilla y le permite sintonizar directamente con cualquier canal mediante los botones de número de canal del mando a distancia.
Resumen
Esta unidad memoriza automáticamente la
-
configuración en caso de ocurrir algún corte de alimentación.
Entrada HDMI
• Entrada de Vídeo en Componentes
• Entrada de S-video
• Entrada AV
• Salida de Audio Digital Coaxial
Contenido5
INTRODUCCIÓN
Precauciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accesorios Suministrados . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Conectar el Soporte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Símbolos Utilizados en este Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Información sobre Marcas Registradas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Características . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Botones en el Mando a Distancia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Instalación de las Pilas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Panel de Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Panel Trasero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PREPARACIÓN
Conexión Básica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Conexión de Dispositivo Externo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AJUSTE INICIAL
Configuración Inicial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Menú Principal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Exploración Automática de Canales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selección de Idioma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PARA VER LA TELEVISIÓN
Selección de Canal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ajuste de Volumen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Temporizador de Apagado . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Modo Fijo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Para Cambiar Entre Cada Modo de Entrada. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Para Cambiar el Modo de Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Información de Pantalla . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Modo de Visualización de Pantalla del Televisor . . . . . . . . . . . . . . . . . . . . . 18
AJUSTE OPCIONAL
Lista de Canales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Registro Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Confirmación de la Antena . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Ajuste de Imagen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Ajuste de Sonido . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Subtítulos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Subtítulos en DTV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Estilo CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Audio HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SOLUCIÓN DE PROBLEMAS
Guía de Solución de Problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Preguntas Frecuentes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
INFORMACIÓN
Glosario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Denominaciones de Canales de Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Especificaciones Generales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Especificación Eléctrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Otras Especificaciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Garantía Limitada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tapa trasera
PREPARACIÓN
AJUSTE INICIAL
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMASPARA VER LA TELEVISIÓN
INFORMACIÓN
© 2008 Funai Electric Co., Ltd. Todos los derechos reservados. No se permite la reproducción total o parcial de este manual, ni su copia, transmisión, difusión,
transcripción, descarga o almacenamiento en ningún soporte de almacenamiento, en forma alguna o con fin alguno sin la autorización expresa y previa por escrito de Funai. Además, toda distribución comercial no autorizada de este manual o toda revisión del mismo queda estrictamente prohibida.
La información contenida en este documento puede ser objeto de cambios sin previo aviso. Funai se reserva el derecho de cambiar el contenido de este documento sin la obligación de notificar dichos cambios a ninguna persona u organización.
con el diseño es una marca comercial registrada de Funai Electric Co., Ltd y no se puede utilizar en modo alguno sin la autorización expresa por escrito de Funai. Todas las restantes marcas comerciales utilizadas en este documento siguen siendo propiedad exclusiva de sus respectivos propietarios. Nada de lo contenido en este manual debe ser entendido como concesión, implícita o de otro tipo, de cualquier licencia o derecho de uso de cualquiera de las marcas comerciales en él visualizadas. El uso indebido de cualquier marca comercial o de cualquier otro contenido de este manual queda estrictamente prohibido. Funai hará cumplir enérgicamente sus derechos de propiedad intelectual dentro de los límites máximos establecidos por la ley.
ES
5
NTRODUCCIÓN
I
Botones en el Mando a Distancia5
CH. RECALL
1. POWER (p. 12)
Presione para activar y desactivar la unidad.
2. Botones numéricos (p. 15)
Presione para seleccionar los canales.
- (guión)
Presione para separar el canal menor del canal mayor.
3. SETUP (p. 13)
Presione para visualizar el menú principal.
4.
s
/ B / K / L (p. 12)
Presione para desplazarse por los elementos, izquierda/ derecha/ arriba/ abajo.
5. ENTER (p. 12)
Presione para decidir el comando de ajuste cuando aparezca el menú principal.
6. BACK (p. 17)
Presione para volver a la operación de menú anterior.
7. CH. RECALL (p. 15)
Presione para volver al canal anterior.
8. VOL. X / Y(p. 15)
Presione para ajustar el volumen.
9. MUTE
Presione para activar y desactivar el sonido.
10. INPUT SELECT (p. 16)
Presione para acceder a los dispositivos externo conectado,
como un reproductor de DVD o
aparato de vídeo (VCR).
(p. 15)
11. SLEEP (p. 15)
Presione para activar el temporizador de apagado.
12. AUDIO (p. 16)
Modo Digital (DTV)
Presione para seleccionar el idioma de audio.
Modo Analógico (TV)
Presione para seleccionar el modo de audio.
13. STILL (p. 16)
Presione para detener momentáneamente la imagen.
14. SCREEN MODE
Presione para seleccionar las relaciones de aspecto disponibles para la pantalla del televisor.
15. INFO (p. 17)
Modo Digital (DTV)
Presione para mostrar la información de canal, el tipo de señal y el ajuste de TV.
Modo Analógico (TV)
Presione para mostrar el número de canal, el tipo de señal y el ajuste de TV.
Modo de Entrada Externa
Presione para mostrar los
• modos de entrada externa, el tipo de señal y el ajuste de TV.
16. CH K / L (p. 15)
Presione para seleccionar los canales y los modos de entrada externo.
(p. 18)
Instalación de las Pilas
5
Instale las pilas (AA x 2) de manera que coincida la polaridad indicada en el interior del compartimiento de las pilas del mando a distancia.
Precauciones sobre las Pilas:
• Asegúrese de seguir la polaridad correcta según lo indicado en el compartimiento de las pilas. Unas pilas en posición invertida pueden causar daños en el dispositivo.
• No mezcle diferentes tipos de pilas (por ejemplo, Alcalinas y de Carbono-Zinc), ni pilas viejas con pilas nuevas.
• Si el dispositivo no se va a usar durante un período prolongado de tiempo, quite las pilas para evitar daños o lesiones por posibles fugas de las pilas.
• No intente recargar las pilas; ya que podrían sobrecalentarse y romperse.
6
ES
INTRODUCCIÓN
Panel de Control5
Panel Trasero5
parte trasera de la unidad
1
2
3
4
5
6
7
parte lateral de la unidad
AUDIO OUT (COAXIAL)
HDMI-IN
L
R
DIGITAL
L
AUDIO
R
VIDEO 1
S-VIDEO
VIDEO
AUDIO
VIDEO 2
S-VIDEO
L
R
VIDEO
AUDIO
COMPONENT 1 COMPONENT 2
Y
Y
Pb
Pb
Pr
Pr
L
L
AUDIO
AUDIO
R
R
1. POWER (p. 12)
Presione para activar y desactivar la unidad.
2. INPUT SELECT / ENTER (p. 16)
Presione para acceder a los dispositivos externo conectado, como un reproductor de DVD o aparato
1
2
3
de vídeo (VCR).
Presione para decidir el commando de ajuste cuando aparezca el menú.
3. CHANNEL K / L (p. 15)
Presione para seleccionar canales o desplazarse arriba/ abajo por los elementos del menú principal.
4
4. VOLUME X / Y(p. 15)
Presione para ajustar el volumen o para moverse a
5
derecha (X) / izquierda (Y) por los elementos del menú principal.
5. SETUP (p. 13)
6 7 8
Presione para visualizar el menú principal.
6. ventana del sensor de infrarrojos
Recibe los rayos infrarrojos transmitidos desde el mando a distancia.
7. indicador de encendido
Se ilumina en modo encendido.
8. indicador de espera
Se ilumina en el modo de espera.
1. toma de entrada HDMI (p. 9)
Conexión HDMI para dispositivos HDMI.
2. toma de entrada de antena (p. 8)
Conexión de cable coaxial RF para su antena o caja de cable/satélite.
3. cable de alimentación de CA
Conéctelo a una toma estándar de CA para suministrar alimentación eléctrica a esta unidad.
4. toma de salida de audio digital y coaxial (p. 11)
Conexión de audio digital y coaxial para decodificador o receptor de audio.
5. toma de entrada de S-video (p. 10)
Conexión de S-video para dispositivos externo.
6. toma de entrada de vídeo (p. 11)
Conexión de vídeo RCA para dispositivos externo.
7. toma de entrada de audio (p. 9)
Conexión de audio RCA para dispositivos DVI. (Solamente para la toma de entrada HDMI1)
8. toma de entrada de audio (p. 10)
Conexión de audio RCA para dispositivos externo.
9. toma de entrada de vídeo en componentes y audio (p. 10)
Conexión de vídeo en componentes RCA y de audio RCA para dispositivos externo.
PREPARACIÓN
AJUSTE INICIAL
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMASPARA VER LA TELEVISIÓN
INFORMACIÓN
8
9
7
ES
REPARACIÓN
P
Cables no incluidos.
Deberá adquirir los cables necesarios en su establecimiento local.
Conexión Básica
5
En esta sección se describe cómo conectar la unidad a una antena, caja de cable/satélite, etc.
Nota:
• Asegúrese de que su antena u otra dispositivo está conectada correctamente antes de enchufar el cable de alimentación.
[Conexión de Antena]
Conecte el cable coaxial RF de su toma de corriente a la toma de entrada de antena de esta unidad.
p. ej.)
antena VHF/UHF
cable coaxial RF
o
empresa de TV por cable
Una vez completadas las conexiones, encienda la unidad e inicie la configuración inicial.
*
La exploración de canales es necesaria para que la unidad memorice todos los canales disponibles en su zona. (Consulte la sección “Configuración Inicial” en la página 12).
parte trasera de la unidad
Nota:
• Para su seguridad y para evitar daños en esta unidad, desenchufe el cable coaxial RF de la toma de entrada de antena antes de mover la unidad.
• Si utiliza una antena para recibir televisión analógica, ésta debería funcionar también para recepción de DTV. Las antenas de exterior tejado serán más eficaces que las de versiones de sobremesa.
• Para cambiar fácilmente su fuente de recepción entre antena y cable, instale un selector de antena.
• Si se conecta directamente al sistema de cable, póngase en contacto con el instalador de CATV.
[Conexión a Caja de Cable o Caja de Satélite]
Utilice un cable coaxial RF para conectar la toma de entrada de antena de la unidad a la toma de salida de antena de la caja de cable/satélite.
p. ej.)
plato de
satélite
parte trasera de la unidad
ANT OUTANT IN
o
empresa de TV por cable
caja de cable/satélite
Los cables necesarios y los métodos de conexión varían según la caja de cable/satélite.
*
Para más información, póngase en contacto con su proveedor de cable/satélite.
STEREO PCM
cable coaxial RF
8
ES
Cables no incluidos.
Deberá adquirir los cables necesarios en su establecimiento local.
Conexión de Dispositivo Externo
5
[Conexión HDMI]
HDMI (High-Definition Multimedia Interface/Interfaz multimedia de alta definición) es una interfaz que transmite vídeo y audio digital por canales múltiples de alta definición mediante un solo cable. Esto asegura que las señales que se envían desde la fuente hacia la unidad son de la más alta definición posible. Utilice un cable HDMI para conectar la unidad a dispositivos de vídeo externos equipados con toma de salida HDMI.
p. ej.)
parte trasera de la unidad
INTRODUCCIÓN
PREPARACIÓN
AJUSTE INICIAL
TITLE 5 CHAPTER 15 REPEAT A-B
HDMI OUT
cable HDMI
reproductor de DVD con toma de salida HDMI
Nota:
• Esta unidad acepta señales de vídeo de 480i / 480p / 720p / 1080i, y señales de audio de 32 kHz / 44,1 kHz / 48 kHz.
• Esta unidad solamente acepta señal de audio de 2 canales (LPCM).
• Debe seleccionar “PCM” para la salida de audio digital del dispositivo conectado o revisar la configuración de audio HDMI. Puede que no haya señal de audio si selecciona “Bitstream” (Secuencia de bits), etc.
• Esta unidad solamente acepta señales compatibles con la norma EIA861.
[Conexión HDMI-DVI]
Si su dispositivo de vídeo tiene una toma de salida DVI, utilice un cable conversor HDMI-DVI para esta conexión.
p. ej.)
caja de cable o caja de satélite con toma de salida DVI
DVI OUT
STEREO
PCM
AUDIO OUT
RL
HDMI-DVI
cable de audio RCA
cable de conversión
Sólo para la toma de entrada HDMI1
HDMI-IN
L
AUDIO
R
parte trasera de la unidad
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
Nota:
• Esta unidad acepta señales de vídeo de 480i / 480p / 720p / 1080i.
• La conexión HDMI-DVI también requiere una conexión de cable de audio RCA separada.
• Las señales de audio se convierten de digitales a analógicas para esta conexión.
• DVI no muestra la imagen de resolución 480i que no es compatible con la norma EIA/CEA-861/861B.
9
ES
REPARACIÓN
P
Cables no incluidos.
Deberá adquirir los cables necesarios en su establecimiento local.
[Conexión de Vídeo en Componentes]
La conexión de vídeo en componentes RCA ofrece una mejor calidad de imagen para dispositivos de vídeo conectados a la unidad. Utilice un cable de vídeo en componentes RCA para conectar la unidad a dispositivos de vídeo externos equipados con tomas de salida de vídeo en componentes.
Si lo conecta a las tomas de entrada de vídeo COMPONENT1 ó COMPONENT2 de la unidad, conecte el cable de audio RCA a las tomas de audio L/R de COMPONENT1 ó COMPONENT2 respectivamente.
p. ej.)
cable de vídeo en
(rojo)(azul)(verde)
componentes RCA
Pr/CrPb/CbY
RL
cable de audio RCA
(verde)
(azul)
(rojo)
parte trasera de la unidad
AUDIO OUT (COAXIAL)
HDMI-IN
L
R
DIGITAL
L
AUDIO
R
VIDEO 1
S-VIDEO
VIDEO
AUDIO
VIDEO 2
S-VIDEO
L
R
VIDEO
AUDIO
COMPONENT 1 COMPONENT 2
Y
Pb
Pr
L
AUDIO
R
TITLE 5 CHAPTER 15 REPEAT A-B
reproductor de DVD con las tomas de salida de vídeo en componentes
COMPONENT VIDEO OUT
AUDIO OUT
Nota:
• Esta unidad acepta señales de vídeo de 480i / 480p / 720p / 1080i.
• Cuando sienta el ruido en la pantalla del televisor, desconectar el cable VGA puede reducirlo.
[Conexión de S-video]
La conexión S-video ofrece una buena calidad de imagen para dispositivos de vídeo conectados a la unidad. Utilice un cable S-video para conectar la unidad a dispositivos de vídeo externos equipados con toma de salida de S-video. Si lo conecta a las tomas de entrada de vídeo S-video1 VIDEO1 ó S-video2 VIDEO2 de la unidad, conecte el cable de audio RCA a las tomas de audio L/R de S-video1 VIDEO1 ó S-video2 VIDEO2 respectivamente.
p. ej.)
S-VIDEO
OUT
RL
parte trasera de la unidad
DIGITAL AUDIO OUT (COAXIAL)
cable S-video
cable de audio RCA
HDMI-IN
L
R
AUDIO
TITLE 5 CHAPTER 15 REPEAT A-B
reproductor de DVD con toma de salida de S-video
AUDIO OUT
VIDEO 1
S-VIDEO
L
R
Y
Pb
Pr
L
AUDIO
R
VIDEO 2
S-VIDEO
VIDEO
VIDEO
L
AUDIO
AUDIO
R
Nota:
• Si se conecta a la toma de entrada de S-video y a la toma de entrada de vídeo al mismo tiempo, tendrá prioridad la conexión S-video.
10
ES
Cables no incluidos.
Deberá adquirir los cables necesarios en su establecimiento local.
INTRODUCCIÓN
[Conexión de Vídeo]
La conexión de vídeo RCA ofrece una calidad normal de imagen para dispositivos de vídeo conectados a la unidad. Utilice un cable de vídeo RCA para conectar la unidad a dispositivos de vídeo externos equipados con tomas de salida de vídeo. Si lo conecta a las tomas de entrada de vídeo VIDEO1 ó VIDEO2 de la unidad, conecte el cable de audio RCA a las tomas de audio L/R de VIDEO1 ó VIDEO2 respectivamente. Cuando la toma de audio del dispositivo de vídeo sea monoaural, conecte el cable de audio RCA a la toma de entrada de audio L (izquierda).
p. ej.)
cámara de vídeo
aparato de vídeo
STEREO
AUDIO OUT
videojuego
STAND-BY
VIDEO
RL
OUT
parte trasera de la unidad
DIGITAL
VIDEO 1
AUDIO OUT
(COAXIAL)
S-VIDEO
cable de vídeo RCA
cable de audio RCA
HDMI-IN
L
R
VIDEO
L
AUDIO
AUDIO
R
R
Nota:
• Si se conecta a la toma de entrada de S-video y a la toma de entrada de vídeo al mismo tiempo, tendrá prioridad la conexión S-video.
VIDEO 2
S-VIDEO
VIDEO
L
AUDIO
PREPARACIÓN
AJUSTE INICIAL
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
[Conexión de Salida de Audio]
À Digital (solamente para la emisión digital)
Si conecta esta unidad a un dispositivo de audio digital externo, podrá disfrutar de audio multicanal, como el sonido de emisiones digitales de 5+1 canales (5.1ch). Utilice un cable coaxial de audio digital para conectar la unidad a un dispositivo de audio digital externo.
p. ej.)
decodificador
Dolby Digital
DIGITAL AUDIO
COAXIAL IN
cable coaxial de audio digital
parte trasera de la unidad
DIGITAL
VIDEO 1
AUDIO OUT
(COAXIAL)
S-VIDEO
VIDEO
HDMI-IN
L
L
AUDIO
AUDIO
R
R
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
11
ES
JUSTE INICIAL
A
Se puede acceder a estas operaciones mediante el mando a distancia. Algunas también pueden ser accesibles mediante los mandos de la unidad principal.
Configuración Inicial
5
Esta sección le guiará a través del ajuste inicial de la unidad, que incluye la selección de un idioma para sus menús de pantalla y la exploración automática de canales, que explora y memoriza automáticamente los canales visibles.
Antes de empezar:
Asegúrese de que la unidad está conectada a la antena o al cables.
Después de hacer todas las conexiones necesarias,
1
presione [POWER] para encender la unidad.
Esta operación tardará unos momentos.
Utilice [Cursor K / L] para seleccionar el idioma de
2
pantalla entre las opciones de la derecha de la pantalla del televisor. (English / Español / Français)
Initial Setup
Initial Setup
Select the language for setup display.
Elija el idioma de ajuste.
Sélectionner langue écran config.
ENTER
Select Enter Exit
Aparecerá en pantalla el menú “Ajuste Inicial” en
• el paso 3, en el idioma seleccionado después de presionar [ENTER].
English
Español
Français
SETUP
Nota:
• Si se conecta directamente al sistema de cable, póngase en contacto con el instalador de CATV.
• Si presiona [POWER] o [SETUP] durante la exploración automática de canales, este ajuste se cancelará.
• La función de exploración automática inicial de canales puede ejecutarse, para “Aire” o “Cable”, solamente una vez. Al cambiar la conexión (aire/cable), establezca de nuevo la exploración automática de canales. (Consulte la página 13).
• Puede cancelar o salir del menú de exploración automática de canales presionando [SETUP].
• Si no hay entrada de señal desde el terminal de antena y no se produce ninguna operación durante varios segundos después de encender la unidad, aparecerá “Sugerencias Útiles”. Siga las instrucciones de la pantalla del televisor.
2-2
No channel is registered. Press and hold "ENTER" key on the remote control for 3 seconds. Contact support hotline provided on manual or back of unit.
Sin canal registrado. Pulse durante 3 segundos la tecla "ENTER" en el control remoto. Llame teléfono de apoyo en manual o atrás de TV.
Pas de chaîne consign. Enfoncez "ENTER" 3 secondes sur la télécommande. Contacter numero d'urgence dans manuel ou arrière appareil.
Utilice [Cursor K / L] para seleccionar “Aire” para
3
canales de televisión o “Cable” para canales CATV y luego presione [ENTER].
Ajuste Inicial
Ajuste Inicial
Confirme que antena está conectada a toma "ANT.IN". Elija el destino de la toma "ANT.IN".
Aire
O
Cable
ENTER
Seleccionar Entre Salir
Comienza automáticamente la exploración y la
• memorización de los canales.
Ajuste Inicial
Ajuste Inicial
Sistema escanea canales, espere.
5%
Canales analógicos 1ca
Canales digitales 0ca
Cuando la exploración y la memorización de
• los canales han finalizado, se muestra el canal memorizado más bajo de la emisión.
12
ES
Aire Cable
ANT.IN
Atrás
SETUP
SETUP
Salir
BACK
Menú Principal
5 Exploración Automática de
En esta sección se describen los aspectos generales del menú principal que aparece al presionar [SETUP]. Para más detalles, consulte la página de referencia de cada elemento. El menú principal se compone de los siguientes elementos de ajuste de función.
5
Canales
Si cambia los cables (por ejemplo, entre antena y CATV) o si mueve la unidad a otro lugar después del ajuste inicial, o si recupera un canal DTV eliminado, tendrá que realizar la exploración automática de canales.
Antes de empezar:
Presione [SETUP].
SALIR
Permite abandonar la configuración.
IMAGEN
Puede ajustar la calidad de la imagen. (Consulte la sección “Ajuste de Imagen” en la página
21).
SONIDO
Puede ajustar la calidad de sonido. (Consulte la sección “Ajuste de Sonido” en la página
22).
CANAL
Usted puede explorar automáticamente los canales visibles y quitar los canales no deseados. (Consulte la sección “Exploración Automática de Canales” en la página 13).
DETALLE
Puede cambiar el formato de pantalla para subtítulos para sordos, que muestran el diálogo de un programa de televisión u otra información en la pantalla del televisor. (Consulte la sección “Subtítulos” en la página 23). Ajuste las limitaciones de visualización. (Consulte la sección “V-chip” en la página 27). Y, si su unidad está conectado al dispositivo HDMI, seleccione la entrada de sonido para la toma de entrada HDMI1. (Consulte la sección “Audio HDMI” en la página 30).
IDIOMA
Puede cambiar el idioma (Inglés, Español, Francés) visualizado en el menú principal. (Consulte la sección “Selección de Idioma” en la página
14).
Asegúrese de que la unidad está conectada a la antena o al cables.
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “CANAL”, y luego
2
presione [ENTER].
Utilice [Cursor K / L] para seleccionar “Autoscan”, y
3
luego presione [ENTER].
Canal
Canal
Autoscan Lista Canales Registro Manual Antena
Utilice [Cursor K / L] para seleccionar la opción apropiada y presione [ENTER].
Autoscan
Autoscan
Autoscan volverá a explorer todos los canales. Puede llevar un poco de tiempo en completarse
Elija el destino de la toma “ANT. IN”.
Aire
O
Cable
Cuando la antena aérea esté conectada, seleccione
ANT.IN
“Aire”. Cuando se conecte a un CATV, seleccione “Cable“.
• Comienza automáticamente la exploración y la
• memorización de los canales.
Atrás Aire Cable Cable
1 hora
INTRODUCCIÓN PREPARACIÓN
AJUSTE INICIAL
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
Sistema escanea canales, espere.
72%
Canales analógicos 10ca
Cuando la exploración y la memorización han
Canales digitales 6ca
SETUP
Salir
finalizado, se muestra el canal memorizado más bajo.
13
ES
JUSTE INICIAL
A
Nota:
• Luego de configurar el “Configuracion Inicial”, utilice las opciones [CH K / L] del control remoto para saltar automáticamente los programas no disponibles.
• Si se conecta directamente al sistema de cable, póngase en contacto con el instalador de CATV.
• Si presiona [POWER] o [SETUP] durante la exploración automática de canales, este ajuste se cancelará.
• El ajuste del canal se guardará incluso si se produzca un corte de energía.
• Si tiene menús el inglés o en francés y necestia en español, presione [SETUP]. Utilice [Cursor K ”LANGUAGE” o “LANGUE”, y luego presione [ENTER]. Utilice [Cursor K / L] para seleccionar ”Español”, y luego presione [ENTER]. Presione [SETUP] para eliminar el menú principal.
• Solamente con respecto al canal digital, incluso después de finalizar la exploración, si desenchufa el cable de alimentación de CA antes de apagar la unidad presionando [POWER], el ajuste del canal puede perderse.
/ L] para seleccionar
Selección de Idioma
5
Puede elegir Inglés, Español, Francés como idioma de pantalla.
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “IDIOMA”, y
2
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar “English”,
3
“Español” o “Français” y presione [ENTER].
Presione [SETUP] para salir.
4
Idioma
Idioma
Select the language for setup display.
Elija el idioma de ajuste.
Sélectionner langue écran config.
English
Español
Français
14
ES
ARA VER LA TELEVISIÓN
P
Selección de Canal
5
K /
Seleccione los canales presionando [CH
Para seleccionar los canales memorizados, utilice
/
K
[CH
L] o [los botones numéricos].
Para seleccionar los canales no memorizados, utilice [los botones numéricos].
L
] o [los botones numéricos].
Para utilizar [los botones numéricos]
TV
Cuando seleccione el canal analógico 12
-
Ajuste de Volumen
5
En esta sección se describe cómo ajustar el volumen. También se describe la función de silenciamiento, que activa y desactiva el sonido.
/
X
Utilice [VOL.
La barra de volumen se mostrará en la parte inferior
• de la pantalla del televisor cuando ajuste el volumen. La barra de volumen automáticamente dentro de
• unos segundos.
Y
] para ajustar el volumen de audio.
Volumen 20
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL AJUSTE OPCIONAL
DTV
-
Cuando seleccione el canal digital 12-1 Asegúrese de presionar [–] antes de introducir el número de canal menor.
Presione [CH. RECALL] para volver al canal anteriormente visualizado.
Acerca de la emisión de televisión digital:
Con su emisión de alta definición, la emisión digital es muy superior a la emisión analógica en su calidad tanto de imagen como de sonido.
¿Qué es el canal menor?
Mediante una tecnología de alta compresión, la emisión digital ofrece un servicio que permite el envío simultáneo de múltiples señales. Por tanto, puede seleccionar más de un programa por canal mayor, dado que la tecnología de emisión digital distingue entre múltiples canales emitidos por una determinada red.
[Hora de
NTSC (modo analógico)
CA4
emisión]
18:00
18:30
19:00
19:30
20:00
20:30
ATSC (modo digital)
CA4
CA4-1
CA4-1
Sin señal
Sin señal
CA4-2
CA4-2
Sin señal
CA4
(televisión de alta definición)
CA4
CA4
Sin señal
CA4
Presione [MUTE
“Mudo” (silencio) aparece en la pantalla del televisor
• durante unos segundos.
Presione nuevamente [MUTE para recuperar el volumen original.
Temporizador de Apagado
5
El temporizador de apagado puede configurarse para apagar automáticamente la unidad después de un período incremental de tiempo.
Presione [SLEEP] para ajustar el temporizador de
1
apagado.
La visualización del temporizador de apagado
• aparece en la pantalla del televisor.
Presione [SLEEP] repetidamente para cambiar el
2
tiempo que debe transcurrir hasta el apagado.
Puede preparar su unidad para que se apague
• después de transcurrir un período de tiempo (de 30 a 120 minutos). Cada presión de [SLEEP] aumentará el tiempo en 30
• minutos. Después del ajuste, puede visualizarse el
• temporizador de apagado, para su comprobación, presionando [SLEEP].
] para activar y desactivar el sonido.
Mudo
/
X
] o utilice [VOL.
Reposar
Reposar
Off
120min.
Y
]
PARA VER LA TELEVISIÓN
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
canal mayor
: cambie automáticamente : cambie manualmente utilizando [CH
canal menor
K / L]
Nota:
• Aparecerá “Sin Señal” en la pantalla del televisor una vez terminada la emisión del canal menor.
• El mensaje “Programa de sólo audio” aparecerá en la pantalla del televisor cuando se reciba solamente una señal de sonido.
Para cancelar el temporizador de apagado
Presione [SLEEP] repetidamente hasta que aparezca “Reposar Off” en la pantalla del televisor.
Nota:
• La pantalla del temporizador de apagado desaparecerá automáticamente de unos segundos.
• Cuando desconecte la unidad de la toma de CA o cuando se produzca un fallo de suministro eléctrico, el ajuste del temporizador de apagado quedará anulado.
15
ES
ARA VER LA TELEVISIÓN
P
Modo Fijo
5
Puede fijo la imagen mostrada en la pantalla del televisor.
Presione imagen mostrada en pantalla.
Para anular el modo fijo, presione cualquier botón excepto el botón [POWER].
Para Cambiar Entre Cada Modo
5
[STILL] para detener momentáneamente la
La salida de sonido no se detiene. Si no se detecta ninguna señal y no se recibe ninguna señal protegida en el modo fijo, la imagen permanece detenida y se desactiva la salida de sonido. La función fijo debe reactivarse después de 5
minutos.
Imagen Fija
de Entrada
Puede cambiar fácilmente entre DTV (ATSC) y TV (NTSC) o acceder a dispositivos externo con el mando a distancia cuando estén conectados a la unidad.
Presione [INPUT SELECT] o [CH K] varias veces para pasar a través de todos los modos de entrada.
Para Cambiar el Modo de Audio
5
En esta sección se describe cómo cambiar el audio en el modo analógico y cómo cambiar el idioma de audio en el modo digital.
TV
Presione [AUDIO] para mostrar por pantalla el modo de
1
audio actualmente seleccionado. Durante la recepción de una emisión MTS, presione repetidamente para recorrer los canales de audio disponibles.
6
Cuando todo el audio está disponible
Cuando los modos de audio estéreo y mono están disponibles
Cuando los modos de audio SAP y mono están disponibles
Cuando únicamente el modo de audio mono está disponible
SAP / ESTÉREO
SAP / ESTÉREO
MONO /
ESTÉREO
SAP / MONO SAP / MONO
SAP / ESTÉREO
SAP / MONO
MONO /
ESTÉREO
Canal DTV/TV
Video1
Video2
o
Al presionar [CH L] cambia el modos de entrada en
• sentido contrario.
Para utilizar la toma de entrada de vídeo o de S-video VIDEO1 de la unidad, seleccione “Video1”.
Para utilizar la toma de entrada de vídeo o de S-video VIDEO2 de la unidad, seleccione “Video2”.
Para utilizar la tomas de entrada de vídeo en componentes COMPONENT1 de la unidad, seleccione “Component1”.
Para utilizar la tomas de entrada de vídeo en componentes COMPONENT2 de la unidad, seleccione “Component2”.
Para utilizar la toma de entrada HDMI1 en la unidad, seleccione “HDMI1”.
Para utilizar la toma de entrada HDMI2 en la unidad, seleccione “HDMI2”.
Component1
Component2
HDMI1
HDMI2
MONO
(no puede cambiarse)
ESTÉREO : Emite audio en estéreo SAP : Emite un segundo programa de audio MONO : Emite audio en mono
DTV
Presione [AUDIO] para visualizar el idioma actualmente
1
seleccionado y el número de idiomas disponibles.
6-1
Presione [AUDIO] repetidamente para recorrer los
2
idiomas de audio disponibles.
Los idiomas disponibles difieren según la emisión.
• Se muestra “Otro” cuando no puede obtenerse el idioma de audio o si los idiomas que se obtienidos no son Inglés, Español o Francés.
Inglés 1/3
Nota:
• Presionando [AUDIO] no se controla el dispositivo de audio externo.
• La visualización de información desaparecerá automáticamente dentro de unos segundos.
16
ES
Información de Pantalla
5
Puede visualizar el canal actualmente seleccionado u otra información, por ejemplo el modo de audio, en la pantalla del televisor.
TV
En el modo analógico se visualizan el número del canal actual y el modo de audio.
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL AJUSTE OPCIONAL
DTV
En el modo digital se visualiza la información de emisión detallada para el canal actual como, por ejemplo, el título del programa y las guías de programas.
Presione [INFO].
6
SAP / ESTÉREO
480i
480i
El número de canal actual, el modo de audio, el tipo
• de resoluciones para señales de vídeo, la relación de aspecto del televisor, los subtítulos y la clase de Clasificación de programas de televisión en la esquina superior derecha de la pantalla del televisor. Para borrar la pantalla, presione [INFO] nuevamente. También puede presionar [BACK].
SD
SD
TV-PG DLSV
4:3
4:3
CC
CC
Presione [INFO] para mostrar por pantalla los detalles del programa seleccionado actualmente.
Información de emisión
Se muestra la siguiente información.
1 título de programa 2 emisora 3 guía de programas
(Se muestra la guía de programas añadida a la información de emisión. Se muestra un máximo de 4 líneas).
4 número de canal 5 idioma de audio
(Consulte la sección “Para Cambiar el Modo de Audio” en la página 16).
6 líneas de exploración efectivas y modo de
exploración
7 formato de programa 8 relación de aspecto del programa 9 clasificación del programa 10 CC (opción no disponible cuando el CC está
ajustado en “Off”)
1 2 4
Un día de recuerdos
Un día de recuerdos
Hace un cuarto de siglo, en una época que ahora puede considerarse como los viejos tiempos de la prensa, los anuncios en medios impresos suponeeían el 80 % de los ingresos por publicidad de la industria. Los grandes almacenes y los supermercados eran
3
KABC
KABC
Inglés 1/2
1080i
1080i
TV-PG DLSV
9
6-1
16:9HDHD
16:9
CC
10
5
CC
6, 7, 8
PARA VER LA TELEVISIÓN
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
Nota:
• Cuando la guía de programas tenga más de 4 líneas, utilice [Cursor K/ L] para desplazarse.
• Se visualiza “No se proporciona descripción.” cuando no se facilita la guía de programas.
• Mientras se visualiza la guía de programas se interrumpe la función de subtítulos.
• En el modo de entrada externa, se muestra la siguiente pantalla; p. ej.) Cuando se ha conectado un dispositivo externo a la
toma de entrada VIDEO1.
Video1
480iSDSD
480i
TV-PG DLSV
• La visualización de información desaparecerá automáticamente en 1 minuto.
CC
CC
17
ES
ARA VER LA TELEVISIÓN
P
Modo de Visualización de
5
Pantalla del Televisor
Pueden seleccionarse 4 tipos de modos de visualización cuando la emisora envía una señal de vídeo de 4:3 o 16:9.
Presione [SCREEN MODE ] repetidamente para cambiar la relación del aspecto del televisor.
Para señal de vídeo 4:3
Para señal de vídeo 16:9
Total
(normal)
Zoom
Sidebar
(normal)
Ancha Cine
Sidebar
Visualización de una imagen 4:3 en su tamaño original. Las barras laterales aparecen en ambos extremos de la pantalla.
Total
Visualización de una imagen 4:3 en un tamaño a escala 16:9; la imagen se extiende horizontalmente para llenar la pantalla.
Cine
Visualización de una imagen 4:3 en un tamaño a escala 16:9; la imagen se extiende horizontal y verticalmente para llenar la pantalla. Esto recorta las partes superior e inferior de la imagen.
Ancha
La imagen se muestra con su centro en tamaño original y los extremos se extienden horizontalmente.
Total
Ampl
ía Cine
To ta l
Visualización de una imagen 16:9 en su tamaño original.
Zoom
Visualización de una imagen 16:9 en su mayor tamaño sin modificar el aspecto horizontal o vertical.
Cine
Visualización de una imagen que se extiende verticalmente.
Amplía
Visualización de una imagen que se extiende horizontalmente.
Nota:
• Según el programa, es posible que el modo de visualización no cambie.
18
ES
JUSTE OPCIONAL
A
5
Lista de Canales
La función Lista de canales le permite eliminar los canales no deseados de la lista de inscripción de canales.
Registro Manual
5
La función de registro manual permite agregar los canales que no se agregaron mediante la exploración automática de canales debido al estado de la recepción en el ajuste inicial.
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “CANAL”, y luego
2
presione [ENTER].
Utilice [Cursor K / L] para seleccionar “Lista Canales”, y
3
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar el canal que
4
desee eliminar, luego presione [ENTER].
Los canales eliminados se oscurecen en la pantalla.
Canal
Canal
Autoscan Lista Canales Registro Manual Antena
Lista Canales
Lista Canales
Subraye canales para selección Ch Up/Down.
ENTER
Selección Ca
Ver/Saltar Atrás
No le será posible seleccionar el canal otra vez utilizando [CH K / L].
Para reactivar un canal que ha sido eliminado, Utilice [Cursor K / L], luego presione [ENTER]. Los canales registrados están marcados
Cuando elimina un canal principal, se eliminan también sus canales menores conexos.
Nota:
• El canal con la indicación “DTV” en la pantalla es ATSC. En caso contrario, el canal es NTSC.
Presione [SETUP] para salir.
5
DTV 6
DTV 6
DTV 8
DTV 8
DTV 48
DTV 48
DTV 67
BACK
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “CANAL”, y luego
2
presione [ENTER].
PARA VER LA TELEVISIÓN
Utilice [Cursor K / L] para seleccionar “Registro
3
Manual”, y luego presione [ENTER].
Canal
Canal
Autoscan Lista Canales Registro Manual Antena
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
Utilice [los botones numéricos] para introducir el
4
número de canal que desea agregar, luego presione [ENTER].
27
9
9
58
58
Registro Manual
Registro Manual
Para los canales analógicos, seleccione un canal a registrar con la tecla numérica. Para los canales digitales, debe realizar la función Autoscan.
Cambia Ca
11
Registra
BACK
Atrás
INFORMACIÓN
Presione [SETUP] para salir.
5
Nota:
• Si la configuración se completa correctamente, se muestra el mensaje “Registro en lista canales”.
• Si se utiliza una señal externa, no es posible registrar el canal y el mensaje “No disponible” se mostrará en la pantalla del televisor.
19
ES
JUSTE OPCIONAL
A
Confirmación de la Antena
5
DTV
Esta función le permite comprobar la intensidad de la digital señal de cada canal.
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “CANAL” y luego
2
presione [ENTER].
Utilice [Cursor K / L] para seleccionar “Antena”, y luego
3
presione [ENTER].
Utilice [los botones numéricos] o [CH K / L] para
4
seleccionar el canal respecto del cual desea comprobar
Canal
Canal
Autoscan Lista Canales Registro Manual Antena
la intensidad de la señal.
Antena
Antena
Ahora Pico70 80
CH
Cambia Ca
Si el canal está ajustado a canal analógico o una
• entrada externa, no puede confirmar el estado de la antena.
Antena
Antena
Indicador disponible sólo para señal antena.
11-1
Atrás
1111
Atrás
Presione [SETUP] para salir.
5
20
ES
CH
Cambia Ca
Ajuste de Imagen
5
Puede ajustar el brillo, el contraste, el color, el matiz y la nitidez.
Presione [SETUP] para visualizar el menú principal.
1
Claridad
Claridad 30
Ajuste
Contraste
Contraste 30
Ajuste Mover
Mover
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
Cursor
s
para reducir el
ENTER
Entre
ENTER
Entre
brillo
para reducir el contraste
Cursor
B
para aumentar el brillo
para aumentar el contraste
Utilice [Cursor K / L] para seleccionar “IMAGEN”, y
2
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar el elemento que
3
desea ajustar, luego presione [ENTER].
Ajuste la calidad de imagen.
4
Modo de Imagen Claridad Contraste Color Matiz Nitidez Restablecer Ajustes Tempe. De Color Ahorro Eléctrico
Modo de Imagen
Utilice [Cursor K / L] para seleccionar el ajuste deseado, y presione [ENTER]. (Normal, Dinámico, Cine y Noticia)
Modo de Imagen
Claridad Contraste Color Matiz Nitidez Restablecer Ajustes Tempe. De Color Ahorro Eléctrico
Dinámico
Neutral
Normal
Dinámico
Cine Noticia
Color
Color 30
Matiz
Matiz 0
Ajuste
Ajuste Mover
Mover
ENTER
Entre
ENTER
Entre
para reducir el color
para agregar rojo
para dar más brillo al color
para agregar verde
Nitidez
Nitidez 0
Ajuste Mover
ENTER
Entre
para suavizar para aclarar
PARA VER LA TELEVISIÓN
Restablecer Ajustes
Utilice [Cursor K / L] para seleccionar “Restablecer”, y luego presione [ENTER] para cambiar el ajuste “Modo de Imagen” al ajuste inicial.
Restablecer Ajustes
30 30 30
0 0
Off
Restablecer Ajustes
Esta función restablece ajuste predeterminado de "Dinámico" en modo Imagen.
Tempe. de Color
Utilice [Cursor K / L] para seleccionar el ajuste
Cancelar Restablecer
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
deseado, y presione [ENTER]. (Frío, Neutral y Caliente)
Modo de Imagen Claridad Contraste Color Matiz Nitidez Restablecer Ajustes
Tempe. De Color
Ahorro Eléctrico
Frío
Neutral
Caliente
INFORMACIÓN
Ahorro Eléctrico
Utilice [Cursor trasera.
/
s
B
] para ajustar el brillo de la lámpara
Claridad, Contraste, Color, Matiz, Nitidez
Utilice [Cursor
/
s
B
] para ajustar.
o
: Para iluminar
Ahorro Eléct. Off
Ajuste
: Para oscurecer
Presione [SETUP] para salir.
5
Nota:
• Para cancelar el ajuste de la imagen, presione [SETUP].
• Cuando esta unidad está conectada a dispositivos DVI, no puede seleccionar la opción “Sharpness”.
ENTER
Entre
21
ES
JUSTE OPCIONAL
A
Ajuste de Sonido
5
Puede ajustar el treble y el bajo.
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “SONIDO”, y
2
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar el tipo de sonido
3
que desea ajustar, luego presione [ENTER].
Sonido
Sonido
Agudo Grave Restablecer Ajustes
Restablecer Ajustes
Utilice [Cursor K / L] para seleccionar “Restablecer”, y luego presione [ENTER] para cambiar el ajustes sonido al ajuste inicial.
Restablecer Ajustes
Presione [SETUP] para salir.
5
Restablecer Ajustes
Esta función restaura los ajustes de sonido a los valores de fábrica.
Cancelar Restablecer
Nota:
• Para cancelar el ajuste del sonido, presione [SETUP].
0 0
Haga el ajuste del sonido.
4
Agudo, Grave
Utilice [Cursor s / B] para ajustar.
o
Agudo
Agudo 0
Ajuste
Grave
Grave 0
Ajuste
Mover
Mover
ENTER
Entre
ENTER
Entre
Cursor
s
para reducir los sonidos con más altura tonal
para reducir los sonidos con menos altura tonal
Cursor
B
para aumentar los sonidos con más altura tonal
para aumentar los sonidos con menos altura tonal
22
ES
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
Subtítulos
5
Puede ver los subtítulos (cc) para programas de televisión, películas e informativos. Subtítulo se refiere al texto de diálogo o descripciones visualizadas en pantalla para personas con problemas auditivos.
Presione [SETUP] para visualizar el menú principal.
1
Utilice [Cursor K / L] para seleccionar “DETALLE”, y
2
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar
3
“Subtítulo Cerrado”, y luego presione [ENTER].
Detalle
Detalle
Subtítulo Cerrado V–chipV–chip Audio HDMI1
Automático
Utilice [Cursor K / L] para seleccionar
4
“S.C. Convencional”, luego presione [ENTER].
Subtítulo Cerrado
Subtítulo Cerrado
S.C. Convencional S.C. DTV Estilo S.C.
Utilice [Cursor K / L] para seleccionar el subtítulo
5
deseado, luego presione [ENTER].
Subtítulo Cerrado
Subtítulo Cerrado
S.C. Convencional Off
S.C. DTV Estilo S.C.
Off Off
S.C.1 S.C.2 S.C.3 S.C.4 Texto 1 Texto 2 Texto 3 Texto 4
Modo de subtítulos
S.C.1 y Texto1;
son los servicios primarios de subtítulos y texto. Los subtítulos o el texto se muestran en el mismo idioma que el diálogo del programa (hasta 4 líneas de escritura sobre la pantalla del televisor, sin tapar zonas relevantes de la imagen).
S.C.3 y Texto3;
sirven como canales de datos preferidos. Los subtítulos o el texto se muestran con frecuencia en un idioma secundario.
S.C.2, S.C.4, Texto2 y Texto4;
están raramente disponibles y las emisoras los utilizan solamente en circunstancias especiales, por ejemplo cuando “S.C.1” y “S.C.3” o “Texto1” y “Texto3” no están disponibles.
Hay 3 modos de visualización según los programas:
Modo “Paint-on”:
Visualiza inmediatamente en la pantalla del televisor los caracteres introducidos.
Modo “Pop-on”:
Una vez que los caracteres son almacenados en memoria, se muestran todos a la vez.
Modo “Roll-up”:
Muestra los caracteres continuadamente mediante desplazamiento de líneas (máximo 4 líneas).
Presione [SETUP] para salir.
6
Nota:
• Para mostrar los subtítulos en la pantalla de su televisor, la señal de emisión debe contener los datos de los subtítulos.
• No todos los programas y anuncios de TV contienen subtítulos o todo tipo de subtítulos.
• Los subtítulos y textos pueden no coincidir exactamente con la voz del televisor.
• El cambio de canales puede retrasar los subtítulos unos segundos.
• Ajustar o silenciar el volumen puede retrasar los subtítulos unos segundos.
• Pueden utilizarse abreviaciones, símbolos y otras abreviaturas gramaticales para sincronizar el texto con la acción en pantalla. Esto no supone un problema de la unidad.
• Los subtítulos o caracteres de texto no se visualizarán mientras se muestren el menú principal o la pantalla de funciones.
• Si aparece un recuadro negro en la pantalla del televisor, esto significa que los subtítulos están configurados en modo texto. Para borrar ese recuadro, seleccione “S.C.1”, “S.C.2”, “S.C.3”, “S.C.4” o “Off”.
• Si la unidad recibe señales de televisión de calidad deficiente, los subtítulos podrán contener errores, o es posible que no aparezcan los subtítulos. Algunas posibles causas de señales de calidad deficiente son:
- Ruido de ignición de automóviles
- Ruido de motor eléctrico
- Recepción de señal débil
- Recepción de señal multiplex (imágenes fantasmas o fluctuaciones en pantalla)
• La unidad conserva la configuración de subtítulos si se produce un corte de suministro eléctrico.
• Los subtítulos no se mostrarán cuando se utilice una conexión HDMI.
• Cuando la unidad recibe una señal de reproducción con efectos especiales (es decir, búsqueda, cámara lenta e imagen congelada) del canal de salida de vídeo del VCR (CA3 o CA4), la unidad podría dejar de mostrar el título o texto correcto.
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
23
ES
JUSTE OPCIONAL
A
Subtítulos en DTV
5
DTV
Además de los subtítulos básicos descritos en la página 23, DTV tiene sus propios subtítulos denominados DTV CC. Utilice este menú para cambiar la configuración de DTV CC.
Presione [SETUP] para visualizar el menú principal.
1
/
K
Utilice [Cursor
2
luego presione [ENTER].
Utilice [Cursor
3
“Subtítulo Cerrado”, y luego presione [ENTER].
L] para seleccionar “DETALLE”, y
/
K
L] para seleccionar
/
K
Utilice [Cursor
5
DTV deseados, y luego presione [ENTER].
S.C. DTV
L] para seleccionar los subtítulos
Off
Servicio1-6
Selecciónelo si no desea DTV CC. Éste es el ajuste predeterminado.
Seleccione uno de ellos antes de cambiar cualquier otro elemento del menú “Subtítulo Cerrado”. Seleccione “Servicio1” en circunstancias normales.
Subtítulo Cerrado
Subtítulo Cerrado
S.C. Convencional
S.C. DTV
Estilo S.C.
Off
Servicio1 Servicio2 Servicio3 Servicio4 Servicio5 Servicio6
Utilice [Cursor
4
luego presione [ENTER].
Detalle
Detalle
Subtítulo Cerrado V–chipV–chip Audio HDMI1
/
K
L] para seleccionar “S.C. DTV”, y
Subtítulo Cerrado
Subtítulo Cerrado
S.C. Convencional S.C. DTV Estilo S.C.
Automático
Off Off
Presione [SETUP] para salir.
6
Nota:
• “S.C. DTV” se puede cambiar dependiendo de la descripción de la emisión.
24
ES
Estilo CC
5
Puede cambiar el estilo de CC, por ejemplo fuente, color o tamaño, etc.
Presione [SETUP] para visualizar el menú principal.
1
/
K
Utilice [Cursor
2
luego presione [ENTER].
Utilice [Cursor
3
“Subtítulo Cerrado”, y luego presione [ENTER].
Utilice [Cursor
4
luego presione [ENTER].
Utilice [Cursor
5
y luego presione [ENTER].
L] para seleccionar “DETALLE”, y
/
K
L] para seleccionar
Detalle
Detalle
Subtítulo Cerrado V–chipV–chip Audio HDMI1
/
K
L] para seleccionar “Estilo S.C.”, y
Subtítulo Cerrado
Subtítulo Cerrado
S.C. Convencional S.C. DTV Estilo S.C.
/
K
L] para seleccionar “Config. Usuarid”,
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente Tamaño Fuente Color Fuente Opaco Fuente Color Fondo Opaco Atrás Color Borde Tipo Borde
Automático
Off Off
Off
Fuente0
Mediano Blanco
Rellena Negro Rellena Negro Ninguno
/
Utilice [Cursor
6
presione [ENTER].
Utilice [Cursor
7
luego presione [ENTER]. Utilice [Cursor
K
L] para seleccionar “On”, y luego
Estilo S.C.
Estilo S.C.
Config. Usuarid
Estilo Fuente Tamaño Fuente Color Fuente Opaco Fuente Color Fondo Opaco Atrás Color Borde Tipo Borde
/
K
L] para seleccionar un elemento,
/
K
L] para
seleccionar el ajuste deseado, y presione [ENTER].
Visualización de la imagen
ABCDEFGHIJKL
ABCDEFGHIJKL
Borde (Color y Tipo de Borde)
Fuente (Estilo, Tamaño, Color y Opacidad de la Fuente)
Lado posterior (Color Posterior y Opacidad Posterior)
A continuación se muestra la descripción del ajuste
• para cada uno de los elementos.
Estilo Fuente
El estilo de fuente de los subtítulos puede modificarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid
Estilo Fuente
Tamaño Fuente Color Fuente Opaco Fuente Color Fondo Opaco Atrás Color Borde Tipo Borde
Tamaño Fuente
El tamaño de fuente del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente Opaco Fuente Color Fondo Opaco Atrás Color Borde Tipo Borde
Subtítulo Cerrado
On
Off
Subtítulo Cerrado
Subtítulo Cerrado
Grande
Mediano
Pequeño
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
25
ES
JUSTE OPCIONAL
A
Color Fuente
El color de fuente del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente
Opaco Fuente Color Fondo
Opaco Atrás
Color Borde Tipo Borde
Subtítulo Cerrado
Blanco
Negro Rojo Verde Azul Amarillo Magenta Cyan
Opaco Fuente
La opacidad de la fuente del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente
Opaco Fuente
Color Fondo
Opaco Atrás
Color Borde Tipo Borde
Subtítulo Cerrado
Rellena
Destello Translucida Transparente
Color Fondo
El color de fondo del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente Opaco Fuente
Color Fondo
Opaco Atrás
Color Borde Tipo Borde
Subtítulo Cerrado
Blanco
Negro
Rojo Verde Azul Amarillo Magenta Cyan
Opaco Atrás
La opacidad de fondo del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente Opaco Fuente Color Fondo
Opaco Atrás
Color Borde Tipo Borde
Subtítulo Cerrado
Rellena
Destello Translucida Transparente
Color Borde
El color del borde del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente
Tamaño Fuente
Color Fuente Opaco Fuente Color Fondo
Opaco Atrás
Color Borde
Tipo Borde
Subtítulo Cerrado
Blanco
Negro
Rojo Verde Azul Amarillo Magenta Cyan
Tipo Borde
El tipo de borde del subtítulo mostrado puede cambiarse como sigue.
Estilo S.C.
Estilo S.C.
Config. Usuarid Estilo Fuente Tamaño Fuente Color Fuente Opaco Fuente Color Fondo Opaco Atrás Color Borde
Presione [SETUP] para salir.
8
Tipo Borde
Subtítulo Cerrado
Ninguno
Elevado Hundido Uniforme Sombra Izq. Sombra Der.
26
ES
V-chip
5
V-chip lee las clases de los programas, y niega el acceso a los programas que exceden el nivel de clasificación establecido. Con esta función, puede bloquear determinados programas inapropiados para niños.
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
Presione [SETUP] para visualizar el menú principal.
1
/
K
Utilice [Cursor
2
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar “V-chip”, luego
3
presione [ENTER].
Utilice [los botones numéricos] para introducir los
4
números de 4 dígitos de su contraseña.
L] para seleccionar “DETALLE”, y
Detalle
Detalle
Subtítulo Cerrado V–chipV–chip Audio HDMI1
V-chip
V-chip
Introduzca cód. de acceso.
Código Id.
Cuando no haya configurado su contraseña,
• introduzca 0000. Cuando la contraseña es la correcta, se muestra el
• menú de “V-chip”.
BACK
Automático
Atrás
Consulte la siguiente descripción para ajustar cada elemento.
V-chip
V-chip
Clase de MPAA Clase de TV Clasif. inglés canad. Clasif. francés canad. Clase descargada Eliminar clase descargada Nuevo Código de Acceso
A B
C
...
A
“A. Clase de MPAA”
...
B
“B. Clase de TV”
...
C
“C. Nuevo Código de Acceso”
D página 28
D página 28
D página 29
PARA VER LA TELEVISIÓN
Nota:
• Cuando seleccione una clasificación y la ajuste en “Bloque”, las clasificaciones más altas quedarán bloqueadas automáticamente. Las clasificaciones más bajas estarán disponibles para su visión.
• Cuando seleccione la clasificación más alta en “Mirar”, todas las clases cambian automáticamente a “Mirar”.
• Para bloquear cualquier programa inadecuado, ajuste los límites en “Clase de MPAA”, “Clase de TV” y “Clase descargada”.
• El ajuste V-chip se mantendrá después de producirse un corte en el suministro eléctrico (pero el código de acceso vuelve a 0000).
• Si la clasificación se bloquea, aparecerá .
• “Clase descargada” estará disponible cuando la unidad reciba una emisión digital utilizando el nuevo sistema de clasificación.
• Si la señal emitida no cuenta con la información descargable de calificación, aparecerá “La clase descargada no se encuentra disponible actualmente.” Este mensaje aparecerá también cuando usted trate de acceder a “Clase descargada” después de haber borrado
-
la información descargable de calificación, y no haya descargado nueva información desde entonces.
• Para borrar la información de calificación descargable y sus ajustes,seleccionar “Eliminar clase descargada”.
• El sistema de clasificación canadiense de esta unidad se basa en el estándar CEA-766-A y la política de la Comisión de Radio, Televisión y Telecomunicaciones Canadiense (CRTC).
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
27
ES
JUSTE OPCIONAL

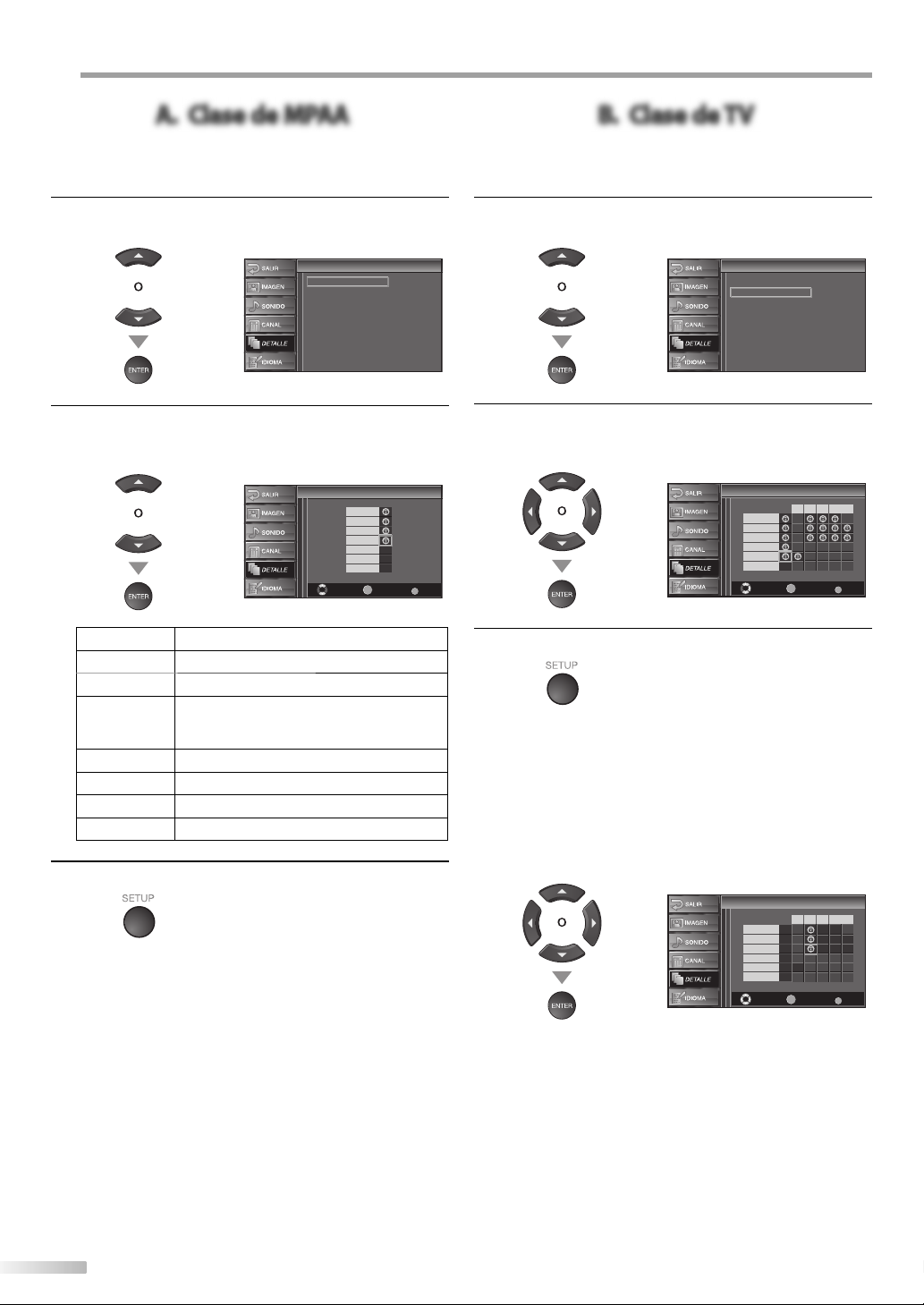

A. Clase de MPAA
B. Clase de TV
A
A. Clase de MPAA
Clase de MPAA es el sistema de clasificación creado por la MPAA (Motion Picture Association of America).
Utilice [Cursor K / L] para seleccionar “Clase de MPAA”,
5
y luego presione [ENTER].
V-chip
V-chip
Clase de MPAA Clase de TV Clasif. inglés canad. Clasif. francés canad. Clase descargada Eliminar clase descargada Nuevo Código de Acceso
Utilice [Cursor K / L] para seleccionar la clasificación
6
deseada y luego presione [ENTER] repetidamente para cambiar entre “Mirar” y “Bloque”.
V-chip
V-chip
X NC-17 R PG-13 PG G NR
Seleccionar
ENTER
Mirar / Bloque
BACK
Atrás
B. Clase de TV
Utilice [Cursor K / L] para seleccionar “Clase de TV”, y
5
luego presione [ENTER].
V-chip
V-chip
Clase de MPAA Clase de TV Clasif. inglés canad. Clasif. francés canad. Clase descargada Eliminar clase descargada Nuevo Código de Acceso
Utilice [Cursor K / L / s
6
clasificación deseada y luego presione [ENTER]
/
B
] para seleccionar la
repetidamente para cambiar entre “Mirar” y “Bloque”.
V-chip
V-chip
FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y
ENTER
Seleccionar
V S L D
Mirar / Bloque
BACK
Atrás
Clasificación Categoría X Exclusivamente para público adulto NC-17 No apto para menores de 17 años
Restringido; menores de 17 años tienen que
R
estar acompañados por un progenitor o un tutor adulto
PG-13 No apto niños menores de 13 años PG Se sugiere orientación de los padres G Todos los públicos NR Sin clasificación
Presione [SETUP] para salir.
7
Presione [SETUP] para salir.
7
Para Ajustar las Subcategorías
En lo referente a TV-MA, TV-14, TV-PG, ó TV-Y7, puede seguir ajustando las subcategorías para bloquear elementos específicos de la programación. Para ajustar las subcategorías, siga el paso indicado.
Utilice [Cursor K / L / clasificación deseada y luego presione [ENTER] repetidamente para cambiar entre “Mirar” y “Bloque”.
/
s
B
] para seleccionar la
V-chip
V-chip
FV TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y
ENTER
Seleccionar
Mirar / Bloque
V S L D
BACK
Atrás
28
ES
C. Nuevo Código de Acceso
C. Nuevo Código de Acceso
Aunque el código predeterminado “0000” viene incorporado con la unidad, usted puede ajustar su propia contraseña.
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL
Clasificación Categoría
TV-MA
TV-14
TV-PG
Exclusivamente para público adulto
No apto niños menores de 14 años
Se sugiere orientación de los padres
superior
TV-G Todos los públicos
TV-Y7
Apto para todos los niños desde los 7 años
TV-Y Apto para todos los niños inferior
Subclasificación Categoría Clasificación FV Fantasía Violencia TV-Y7 V Violencia S Situación Sexual L Lenguaje Grosero
TV-PG TV-14 TV-MA
D Diálogo Sugerente TV-PG, TV-14
Nota:
• Las subcategorías bloqueadas aparecerán junto a la categoría de clasificación principal en el menú “Clase de TV”.
• No podrá bloquear una subcategoría (D, L, S o V) si la clase principal está ajustada en “Mirar”.
• Al cambiar la categoría a “Bloque” o “Mirar”, cambia automáticamente todas sus subcategorías a lo mismo (“Bloque” o “Mirar”).
Utilice [Cursor K / L] para seleccionar “Nuevo Código
5
de Acceso” y luego presione [ENTER].
V-chip
V-chip
Clase de MPAA Clase de TV Clasif. inglés canad. Clasif. francés canad. Clase descargada Eliminar clase descargada Nuevo Código de Acceso
Presione [los botones numéricos] para introducir la
6
nueva contraseña de 4 dígitos.
Vuelva a introducir la contraseña en el espacio
• “Confirme cód. de acceso.”.
V-chip
V-chip
Introduzca cód. de acceso.
Confirme cód. de acceso.
Código Id.
Presione [SETUP] para salir.
7
----
----
BACK
Atrás
PARA VER LA TELEVISIÓN
AJUSTE OPCIONAL
SOLUCIÓN DE PROBLEMAS
Nota:
• Asegúrese de que la nueva contraseña y la contraseña de confirmación son exactamente iguales. Si son diferentes, el espacio queda en blanco para volver a introducirla.
• Su contraseña se borrará y volverá a la predeterminada (0000) cuando se produzca un fallo en la alimentación. Si olvida la contraseña, desenchufe el cable de alimentación durante 10 segundos para restaurar la contraseña en 0000.
INFORMACIÓN
29
ES
JUSTE OPCIONAL
A
Ajustes de PC
5
Esta función le permite ajustar la posición de la pantalla del ordenador, el reloj y la fase durante la entrada PC.
Presione [SETUP] para visualizar el menú principal.
1
/
K
Utilice [Cursor
2
luego presione [ENTER].
L] para seleccionar “DETALLE”, y
Haga el ajuste.
5
Ajuste Automático
Utilice [Cursor K / L] para seleccionar “Ajuste”, luego presione [ENTER].
Ajuste Automático
Ajuste Automático
Esta función ajusta automáticamente la posición, el reloj y la fase del elemento de la imagen.
Se ajustan automáticamente la posición Horizontal/
• Vertical, el reloj y la fase de la pantalla del ordenador.
Cancelar Ajuste
Utilice [Cursor
3
luego presione [ENTER].
Utilice [Cursor K / L] para seleccionar la opción que
4
desea ajustar, luego presione [ENTER].
/
K
L] para seleccionar “Ajustes de PC”, y
Detalle
Detalle
Subtítulo Cerrado V–chip Ajustes de PC Audio HDMI1
Ajustes de PC
Ajustes de PC
Ajuste Automático
Posición Horizontal Posición Vertical Reloj Fase
Automático
Posición Horizontal
Posición H. 0
Posición Vertical
Posición V. 0
Reloj
Fase
0 0 0 0
6
Posición Horizontal, Posición Vertical
Utilice [Cursor
-
Ajuste Mover
-
Ajuste Mover
/
s
B
] para ajustar.
ENTER
Entre
ENTER
Entre
Cursor
para mover la pantalla del
+
ordenador hacia la izquierda
para mover la pantalla del
+
ordenador hacia abajo
s
Cursor
B
para mover la pantalla del ordenador hacia la derecha
para mover la pantalla del ordenador hacia arriba
Reloj, Fase
Mover
/
s
B
] para hacer ajustar el “Reloj” y
Cursor
s
ENTER
Entre
para disminuir el valor del ajuste
ENTER
Entre
Cursor
B
para aumentar el valor de ajuste
Utilice [Cursor estabilizar la pantalla del ordenador y el ajuste “Fase” mejorando así la claridad de la pantalla del ordenador.
Reloj 0
Ajuste Mover
Fase 0
Ajuste
Presione [SETUP] para salir.
30
Nota:
• Ajuste la opción “Fase” después de haber ajustado correctamente la opción “Reloj”.
• Con el ajuste automático puede que no obtenga una pantalla apropiada para algunas señales. En este caso, ajuste las opciones manualmente.
ES
OLUCIÓN DE PROBLEMAS
S
Guía de Solución de Problemas
5
Si la unidad no funciona correctamente cuando se siguen las instrucciones de este manual del usuario, compruebe la siguiente tabla antes de llamar al servicio técnico.
Síntoma Solución
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL AJUSTE OPCIONAL
No hay corriente
No hay imagen ni sonido
No hay color
T
Sonido correcto, imagen deficiente
V
Imágenes fantasma, líneas o rayas en la imagen
Marcas de diferente color en la pantalla del televisor
Imagen correcto, sonido deficiente
Los subtítulos aparecen en un recuadro blanco. No aparece ningún subtítulo
C
en el programa de soporte de
A
subtítulos.
P
T
No aparece ningún subtítulo
I
cuando se reproduce una cinta
O
de vídeo con subtítulos.
N
Aparece un recuadro negro en la pantalla del televisor.
• Asegúrese de que el cable de alimentación está enchufado.
• Si se produce un corte de alimentación, desenchufe el cable de alimentación durante 30 minutos para permitir que la unidad se reinicie.
• Compruebe si la unidad está encendido.
• Compruebe la conexión eléctrica.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• Apague la unidad y espere aproximadamente 1 minuto para volver a encenderlo.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• Ajuste “Color” en el menú principal.
• La interferencia eléctrica de aparatos cercanos puede afectar a la calidad de la imagen.
• Ajuste “Contraste” y “Claridad” en el menú principal.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• La interferencia eléctrica de aparatos cercanos puede afectar a la calidad de la imagen.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• Separe la unidad de los aparatos eléctricos cercanos. Apague la unidad y espere aproximadamente 30 minutos para volver a encenderla.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• Vea otros canales de televisión. El problema podría limitarse a una emisora.
• Verifique que el cable de audio esté enchufado correctamente.
• Las interferencias procedentes de edificios o condiciones climatológicas pueden hacer que los subtítulos aparezcan incompletos.
• La emisora puede acortar el programa para insertar publicidad. El decodificador de subtítulos no puede leer la información del programa acortado.
• Es posible que la cinta de vídeo se haya copiado ilegalmente o que la señal de subtítulos no se haya leído durante la copia.
• Se ha seleccionado el modo texto para subtítulos. Seleccione “S.C.1”, “S.C.2”, “S.C.3”, “S.C.4” ó “Off”.
PARA VER LA TELEVISIÓN
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
Nota:
• El panel LCD ha sido fabricado de manera que puede tener muchos años de vida útil. Ocasionalmente, pueden aparecer píxeles inactivos, como un punto fijo de color azul, verde o rojo. Esto no debe considerarse un defecto de la pantalla LCD.
• Algunas funciones no están disponibles en modos específicos, pero esto no es un fallo de funcionamiento. Para más detalles sobre las operaciones correctas, lea la descripción de este manual del usuario.
31
ES
OLUCIÓN DE PROBLEMAS
S
Preguntas Frecuentes5
Question Answer
Compruebe la conexión de antena o de cable con la unidad principal.
• Compruebe las pilas del mando a distancia.
• Compruebe si hay algún obstáculo entre la ventana del sensor de
• infrarrojos y el mando a distancia. Pruebe la salida de la señal. Si es correcta, es posible que haya algún
• problema con el sensor de infrarrojos. (Consulte “Comprobación de la Señal de Infrarrojos (IR)” en la página 33.) Con el mando a distancia, apunte directamente hacia la ventana del
Mi control remoto no funciona. ¿Qué debo hacer?
¿Por qué aparece la configuración inicial cada vez que enciendo esta unidad?
¿Por qué no puedo ver algunos programas de televisión?
¿Por qué no veo las imágenes de los dispositivos externos conectados?
Cada vez que selecciono un número de canal, éste se cambia automáticamente.
¿Por qué no aparecen los subtítulos completos? O: los subtítulos están retrasados con respecto al diálogo.
¿Cómo puedo ajustar el reloj? Esta unidad no cuenta con función de reloj.
• sensor de infrarrojos en la parte delantera de la unidad. Reduzca la distancia con respecto a la unidad.
• Reinserte las pilas con sus polaridades (signos +/–) como indicadas.
• Cuando hay un dispositivo provisto de infrarrojos como un ordenador
• cerca de esta unidad, puede interferir con la señal del mando a distancia de esta unidad. Retire dicho dispositivo con infrarrojos alejándolo de la unidad, cambie
• el ángulo del sensor de infrarrojos y desactive la función que habilita la comunicación por infrarrojos.
Conecte el cable RF directamente a la unidad y ejecute la configuración
• inicial. Asegúrese de completar la exploración de canales antes de apagar la
• unidad.
Asegúrese de que la exploración automática de canales ha finalizado.
• (Consulte “Exploración Automática de Canales” en la página 13.) La exploración automática de canales debe haberse finalizado cuando configure la unidad por primera vez o cuando la traslade a un lugar donde se emitan canales anteriormente no disponibles. Es posible que el canal seleccionado no se esté emitiendo.
• Cuando la exploración automática de canales se interrumpe y no se
• finaliza, algunos canales no se recibirán. Asegúrese de finalizar. (Consulte “Exploración Automática de Canales” en la página 13.) El canal seleccionado no puede visualizarse debido a la configuración
• V-chip. (Consulte “V-chip” en la página 27.) La unidad necesita algún tipo de entrada de antena. Se debe conectar
• una antena interna (tipo orejas de conejo), una antena externa o un cable coaxial RF que provenga de la pared o caja de cable/satélite a la unidad.
Verifique que esté seleccionado el modo de entrada correcto
• presionando [INPUT SELECT] o utilizando [CH K / L ]. (Consulte “Para Cambiar Entre Cada Modo de Entrada” en la página 16.) Compruebe la conexión de antena o de cable con la unidad principal.
• Muchos canales digitales tienen números de canal alternativos.
• La unidad cambia dichos números automáticamente a los correspondientes a las emisoras activas. Estos son los números utilizados para emisiones analógicas.
Los subtítulos que se retrasan unos segundos con respecto al diálogo
• real son habituales en las emisiones en directo. La mayoría de las empresas de producción de subtítulos pueden mostrar un diálogo hasta un máximo de 220 palabras por minuto. Si un diálogo supera ese límite, se utiliza una edición selectiva para garantizar que los subtítulos se mantienen actualizados con el diálogo de la pantalla del televisor en cada momento.
32
ES
NFORMACIÓN
I
Glosario5
ATS C
Acrónimo de “Advanced Television Systems Committee” (Comité de sistemas avanzados de televisión) y el nombre de unas normas de emisión digital.
Contraseña
Un número almacenado de 4 dígitos que permite el acceso a las funciones de control parental
Dolby Digital
El sistema desarrollado por Dolby Laboratories para comprimir el sonido digital. Ofrece un sonido estéreo (2 canales) o audio multicanal.
HDMI (interfaz multimedia de alta definción)
Interfaz compatible con todos los formatos de audio/vídeo digitales no comprimidos incluyendo un receptor de cable, un grabador DVD ou un televisor digital, en un solo cable.
HDTV (televisión de alta definición)
Reciente formato digital que produce una alta resolución y una elevada calidad de imagen.
NTSC
Acrónimo de “National Television Systems Committee” (Comité de sistemas nacionales de televisión) y el nombre de unas normas de emisión analógica.
Relación de Aspecto
La anchura de una pantalla de televisión con respecto a su altura. Los televisores convencionales son de 4:3 (en otras palabras, la pantalla del televisor es casi cuadrada); los modelos de pantalla ancha son de 16:9 (la pantalla del televisor es casi dos veces más ancha que alta).
SAP (programa de audio secundario)
Segundo canal de audio transmitido por separado del canal de audio principal. Este canal de audio se utiliza como alternativo en la emisión bilingüe.
SDTV (televisión de definición estándar)
Formato digital estándar similar a la calidad de imagen de NTSC.
S-video
Ofrece imágenes de mayor calidad al transmitir cada señal, color (c) y luminancia (y) de manera independiente entre sí a través de cables separados.
Vídeo en Componentes
Se trata de un formato de señal de vídeo que transmite cada uno de los 3 colores principales de luz (rojo, azul y verde) a través de diferentes líneas de señal. Esto permite a los espectadores experimentar colores de imagen muy similares a los originales. Existen diversos formatos de señal, incluidos el denominado Y/Pb/Pr y el denominado Y/Cb/Cr.
INTRODUCCIÓN PREPARACIÓN AJUSTE INICIAL AJUSTE OPCIONAL
PARA VER LA TELEVISIÓN
Mantenimiento5
Limpieza del Mueble
• Limpie el panel delantero y otras superficies exteriores de la unidad con un trapo suave inmerso en agua templada y bien escurrido.
• No utilice nunca disolvente ni alcohol. No suelte líquido insecticida en aerosol cerca de la unidad. Estos productos químicos pueden causar daños y decoloración en las superficies expuestas.
Limpieza de Panel
Limpie el panel con un paño blando. Antes de limpiar el panel
desconecte el cable de la alimentación.
Reparación
Si su aparato deja de funcionar, no intente corregir el problema usted mismo. En su interior no contiene piezas que puedan ser reparadas por el usuario. Apague la unidad, desenchufe el cable de alimentación y llame a nuestro teléfono gratuito de atención al cliente, que encontrará en la portada de este manual para localizar un centro de servicio autorizado.
Comprobación de la Señal de Infrarrojos (IR)
Si el mando a distancia no funciona correctamente, puede utilizar una radio AM o una cámara digital (incluso un teléfono móvil con cámara incorporada) para comprobar si está enviando una señal de infrarrojos.
• Con una radio AM:
Sintonice la emisora de radio AM en una frecuencia de no emisión. Apunte con el mando a distancia hacia ella, presione cualquier botón y escuche. Si el sonido de la radio fluctúa, significa que está recibiendo la señal de infrarrojos del mando a distancia.
• Con una cámara digital (incluidas las cámaras incorporadas en teléfonos móviles):
Apunte con la cámara digital hacia el mando a distancia. Presione cualquier botón del mando a distancia y mire en el visor de la cámara digital. Si la luz infrarroja aparece en la cámara, el mando a distancia funciona.
SOLUCIÓN DE PROBLEMAS
INFORMACIÓN
33
ES
NFORMACIÓN
I
Denominaciones de Canales de Cable5
Si se suscribe a la televisión por cable, los canales se muestran como 1-135. Las empresas de cable a menudo denominan los canales con letras o combinaciones de letra-número. Compruebe este detalle con su empresa local de cable. La tabla siguiente incluye las denominaciones de canal de cable habituales.
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
Canal CATV
Pantalla de TV
5
Formato de TV: ATSC / NTSC-M TV estándar Subtítulos (CC) sistema:
§15.122/FCC (Subtítulos digitales)
§15.119/FCC (Subtítulos analógicos)
Cobertura de canales (ATSC/NTSC):
Terrestre VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analógico W+1~W+84),
A-5~A-1, 5A
Sistema de sintonización:
Acceso a los canales:
5
Salida de sonido: 5W, 8Ω x 2
5A122334455667788991010111112121313A14B15C16D17E18F19G20H
I22J23K24L25M26N27O28P29Q30R31S32T33U34V35W36W+1
W+743W+844W+945W+1046W+1147W+1248W+1349W+1450W+1551W+16
W+2864W+2965W+3066W+3167W+3268W+3369W+3470W+3571W+3672W+3773W+3874W+3975W+4076W+4177W+4278W+4379W+4480W+4581W+4682W+4783W+48
W+4985W+5086W+5187W+5288W+5389W+5490W+5591W+5692W+5793W+5894A-595A-496A-397A-298A-199W+59
W+65
W+66
W+67
W+68
W+69
W+70
W+71
W+72
106
W+86
127
107
W+87
128
108
W+88
129
109
W+89
130
110
W+90
131
111
W+91
132
112
W+92
133
113
W+93
134
W+73
114
W+94
135
Especificaciones Generales
W+1753W+1854W+1955W+2056W+2157W+2258W+2359W+2460W+2561W+2662W+27
52
W+74
W+75
W+76
W+77
W+78
115
116
117
118
5
Otras Especificaciones
119
W+79
120
W+2 W+339W+440W+541W+6
37 38
W+60
W+61
100
W+80
121
101
W+81
122
102
W+82
123
W+62
103
W+83
124
Terminales:
Entrada de antena: VHF/UHF/CATV 75Ω desequilibrados (tipo F) Entrada de S-video: Minitoma DIN de 4 patillas x 2 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω) Entrada de vídeo: Toma RCA x 2 1Vp-p (75Ω) Entrada de audio:
Sistema de sintonización sintetizada de frecuencia de canales
Toma RCA (L/R) x 10 500mV rms Entrada de vídeo en componentes:
Toma RCA x 6 Y: 1Vp-p (75Ω) Teclado de acceso directo,exploración programable y arriba/abajo
Pb: 700mVp-p (75Ω)
Pr: 700mVp-p (75Ω)
Entrada HDMI: HDMI de 19patillas x 2
Especificación Eléctrica
Salida de audio digital coaxial:
Toma RCA x 1 500mVp-p (75Ω)
Mando a distancia:
Sistema de luz infrarroja codificada digitalmente
Temperatura de funcionamiento:
41°F (5°C) a 104°F (40°C)
Potencia:
120V~ AC +/- 10%, 60Hz +/- 0.5%
Consumo de potencia (máximo):
155W
LCD: Clase de 32 pulgadas
(31,5 pulgadas medido diagonalmente)
Dimensiones: <Sin soporte>
Altura: 20 pulg. (516mm)
Ancho: 30 pulg. (776mm)
Profundidad: 4,3 pulg. (108mm)
<Con soporte>
Altura: 22,2 pulg. (562mm)
Ancho: 30,6 pulg. (776mm)
Profundidad: 10,7 pulg. (272mm)
Peso: 24,3 lbs. (11,0kg)
W+63
104
W+84
125
21
42
63
84
W+64
105
W+85
126
• Los diseños y las especificaciones pueden ser objeto de modificaciones sin previo aviso y sin obligaciones legales por nuestra parte.
• Si se produce una discrepancia entre idiomas, el idioma predeterminado será el Inglés.
34
ES
M
EMO
35
ES
TM
GARANTÍA LIMITADA
FUNAI CORP. reparará este producto, de forma gratuita en Estados Unidos, en caso de defecto de materiales o fabricación, del modo siguiente:
DURACIÓN:
PIEZAS: FUNAI CORP. suministrará piezas de repuesto de las piezas defectuosas de forma gratuita
durante un (1) año desde la fecha de compra minorista original. Determinadas piezas y el efecto de persistencia de la imagen en la pantalla LCD están excluidas de esta garantía.
MANO DE OBRA: FUNAI CORP. suministrará la mano de obra de forma gratuita durante un
periodo de noventa (90) días desde la fecha de compra minorista original.
LÍMITES Y EXCLUSIONES:
ESTA GARANTÍA SE EXTIENDE SOLAMENTE AL COMPRADOR MINORISTA ORIGINAL. UN RECIBO DE COMPRA U OTRA PRUEBA DE COMPRA MINORISTA ORIGINAL SERÁ EXIGIDA JUNTO CON EL PRODUCTO PARA OBTENER SERVICIO BAJO ESTA GARANTÍA. Esta garantía no se extenderá a ninguna otra persona o beneficiario.
Esta garantía quedará invalidada y sin efecto en caso de alteración, sustitución, borrado o pérdida de los números de serie del producto o si se intentó una reparación por parte de un centro de servicio no autorizado. Esta garantía limitada no se aplica a ningún producto no comprado y utilizado en Estados Unidos.
Esta garantía solamente cubre los fallos debidos a defectos de material o fabricación que se produzcan durante su uso normal. No cubre daños producidos durante el transporte, ni daños ocasionados por reparaciones, alteraciones o productos no suministrados por FUNAI CORP., o daños resultantes de accidente, uso indebido, abuso, trato indebido, aplicación indebida, alteración, instalación defectuosa, mantenimiento inadecuado, uso comercial (por ejemplo, el uso de este producto en hoteles, establecimientos de alquiler u oficinas) o daños resultantes de incendio, inundación, tormenta eléctrica o catástrofes naturales.
ESTA GARANTÍA NO CUBRE LOS MATERIALES DE EMBALAJE, NINGÚN TIPO DE ACCESORIOS (EXCEPTO EL MANDO A DISTANCIA), NINGUNA PIEZA DE ADORNO, PIEZAS DE MONTAJE COMPLETAS, MODELOS DE DEMOSTRACIÓN O DE TALLER.
FUNAI CORP. Y SUS REPRESENTANTES O AGENTES NO SERÁN EN NINGÚN CASO CONSIDERADOS RESPONSABLES DE DAÑOS GENERALES, INDIRECTOS O CONSECUENCIALES, RESULTANTES DE O PROVOCADOS POR EL USO O LA IMPOSIBILIDAD DE USO DE ESTE PRODUCTO. ESTA GARANTÍA SUSTITUYE A CUALQUIER OTRA GARANTÍA, EXPRESA O IMPLÍCITA, Y CUALQUIER OTRA RESPONSABILIDAD CIVIL POR PARTE DE FUNAI, CUALQUIER OTRA GARANTÍA QUE INCLUYA LA GARANTÍA DE COMERCIABILIDAD E IDONEIDAD PARA UN FIN CONCRETO, QUEDAN POR LA PRESENTE EXCLUIDAS POR DE FUNAI Y SUS REPRESENTANTES EN ESTADOS UNIDOS.
TODAS LAS INSPECCIONES Y REPARACIONES BAJO GARANTÍA DEBEN SER EFECTUADAS POR UN CENTRO DE SERVICIO AUTORIZADO. ESTA GARANTÍA ES VÁLIDA EXCLUSIVAMENTE CUANDO EL APARATO SEA ENTREGADO A UN CENTRO DE SERVICIO AUTORIZADO.
EL PRODUCTO DEBE IR ACOMPAÑADO POR UNA COPIA DEL RECIBO DE COMPRA MINORISTA ORIGINAL. SI NO SE ADJUNTA PRUEBA DE COMPRA, LA GARANTÍA NO SE APLICARÁ Y SE COBRARÁN LOS COSTES DE LA REPARACIÓN.
IMPORTANTE:
ESTA GARANTÍA LIMITADA LE OTORGA DERECHOS LEGALES ESPECÍFICOS. ES POSIBLE QUE SEA USTED BENEFICIARIO DE OTROS DERECHOS QUE VARÍEN DE UN ESTADO A OTRO. SI, EN CUALQUIER MOMENTO DURANTE EL PERIODO DE GARANTÍA, NO PUEDE USTED OBTENER SATISFACCIÓN CON RESPECTO A LA REPARACIÓN DE ESTE PRODUCTO, LE ROGAMOS QUE SE PONGA EN CONTACTO CON FUNAI CORP.
ATENCIÓN:
FUNAI CORP. SE RESERVA EL DERECHO DE MODIFICAR CUALQUIER DISEÑO DE ESTE PRODUCTO SIN PREVIO AVISO.
DECLARACIÓN DE GARANTÍA CON RESPECTO A REPARACIONES NO AUTORIZADAS:
Para obtener servicio de garantía, debe usted aceptar el producto, o hacer entrega del producto con portes pagados, ya sea en su embalaje original o en un embalaje que proporcione el mismo grado de protección, a cualquier CENTRO DE SERVICIO AUTORIZADO. FUNAI CORP. no efectuará reembolso por ningún servicio realizado por proveedores de servicio no autorizados sin autorización previa por escrito.
Para localizar su CENTRO DE SERVICIO AUTORIZADO más próximo o para solicitudes generales de servicio, puede ponerse en contacto con nosotros en:
FUNAI CORPORATION
Servicio de Atención al Cliente
Tel : 1-800-256-2487
www.EmersonAudioVideo.com
19900 Van Ness Avenue, Torrance, CA 90501
A8AF7UH / A8AF3UH / A8AF1UH
Loading...
