Product Bulletin
A31D Valve
D500213X012
September 2014
Fisherr POSI-SEALt A31D Double-Flange
High-Performance Butterfly Valve
The Fisher A31D double-flange high-performance
butterfly valve provides outstanding performance
under extreme pressure and temperature conditions.
The A31D valve is available with face-to-face
dimensions conforming to ISO 5752 Butterfly Valve
Short (CL150) or Long (CL300) Series (for other
face-to-face dimension requirements, consult your
Emerson Process Management sales office). A splined
shaft combines with a variety of Fisher
spring-and-diaphragm or pneumatic piston actuators.
A keyed drive shaft combines with a variety of
handlevers, handwheels, or pneumatic double-acting
or spring-return piston actuators. These combinations
make the A31D valve a reliable, high-performance
butterfly valve for both throttling and on-off
applications in the process industries.
TheA31Dvalvecanbesuppliedwithoneofseveral
dynamic seals (figure 1) that can be used in a variety of
demanding applications. With the appropriate seal
selection and materials of c onstruction, the
pressure-assisted seal provides excellent shutoff
against the full ASME class pressure range.
X0704
Fisher A31D Valve with 2052 Actuator
21.1:A31D
Features
Excellent Shutoff Integrity-- The pressure-assisted
seal design provides tight shutoff and permits the
use of smaller actuators in applications requiring full
ASME B16.34 shutoff capabilities.
True Bi-directional Shutoff Performance-- A31D
valve design helps to ensure that the torque
necessary to open and close the valve is the same
regardless of the direction in which the differential
pressure is applied.
Safety-- Shaft-blowout protection is designed into
the A31D valve (figure 2). For NPS 3 through 12
valves, the packing follower and an anti-blowout
follower hold an anti-blowout gland securely around
the valve shaft. Under the anti-blowout gland, a
formed wire ring around the shaft completes the
protection design. For NPS 14 through 24 valves,
the anti-blowout gland fits securely over the valve
shaft which has been turned down to form a
circumferential shoulder that contacts the
anti-blowout gland.
www.Fisher.com
Product Bulletin
21.1:A31D
September 2014
A31D Valve
D500213X012
Excellent Emissions Capabilities-- The optional
ENVIRO-SEAL™ packing system is designed with
improved sealing, guiding, and loading force
transmission. The ENVIRO-SEAL packing system can
control emissions to below the EPA (Environmental
Protection Agency) limit of 100 ppm (parts per
million) for valves.
Shaft Versatility-- This valve will meet your actuator
needs with a choice of splined or keyed shaft
connections.
Table of Contents
Features 1.....................................
Specifications 3................................
Installation 4..................................
Standard Seal Configurations 4...................
Sour Service Capability-- Trim and bolting materials
are available for applications involving sour liquids
and gases. These constructions comply with NACE
MR0175-2002, MR0103, and MR0175/ISO 15156.
Reliable Flange Gasketing Surface-- Seal retainer
screws are located so there is no interference with
the sealing function of either flat sheet or spiral
woundlineflangegaskets.
Easy Installation-- The valve body self-centers on the
line flange bolts as a fast, accurate means of
centering the valve in the pipeline.
Tables
Materials of Construction and Temperature Ranges 6

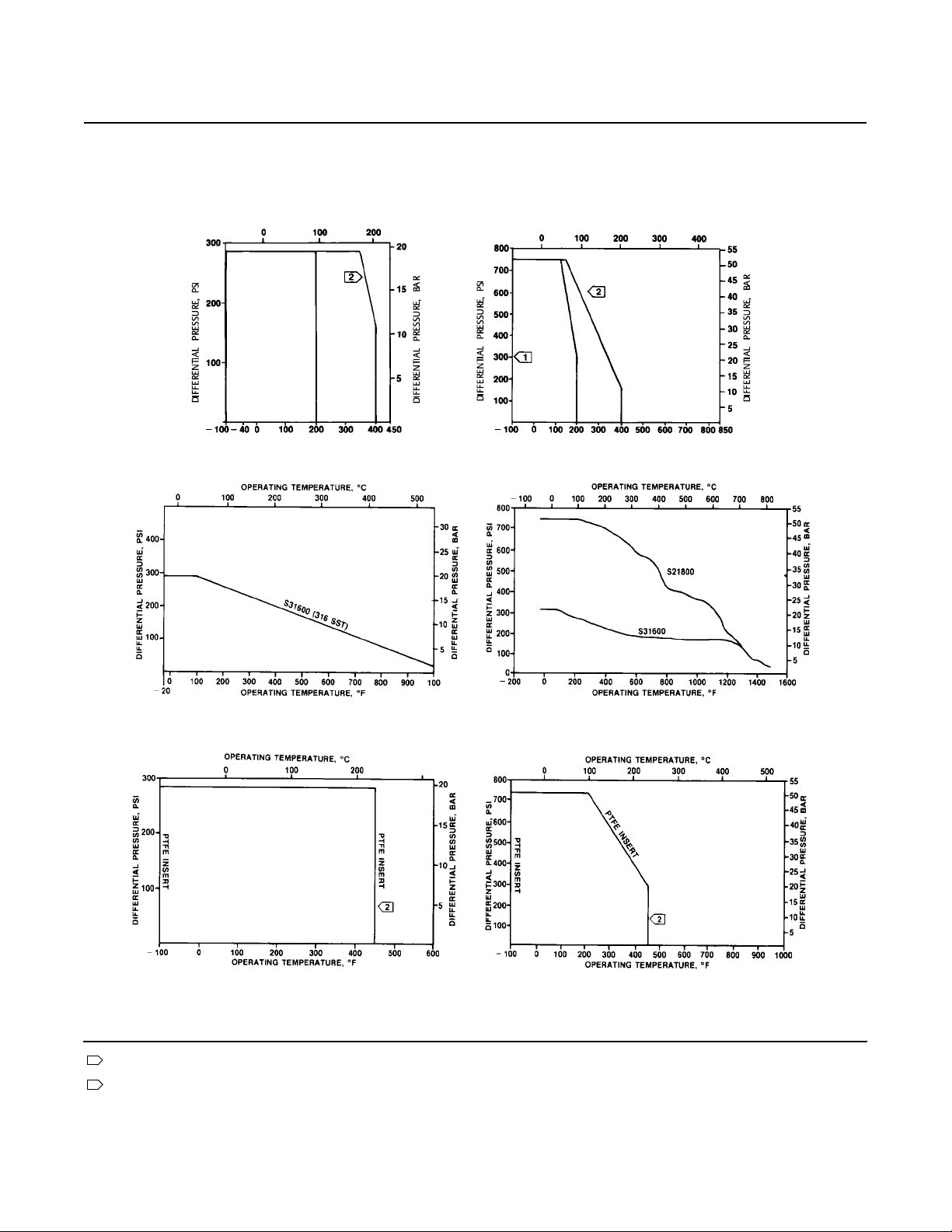

Valve Body Material Pressure/Temperature
Ratings 8...................................
Dimensions and Weights 10......................
2
Product Bulletin
A31D Valve
D500213X012
21.1:A31D
September 2014
A31D Valve Specifications and Materials of Construction
Table 1. Fisher A31D Valve Specifications
SPECIFICATION
Valve Body Size NPS 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, and 24
Pressure Rating Consistent with CL150 and 300 perASME B16.34
Valve Body Materials
Disk Materials CF8M Stainless Steel
End Connections Mates with RF flangesper ASMEB16.5
Valve Body Style Double Flange
Shaft Connection
Face-to-Face Dimensions
Shutoff
Flow Direction Reverse (flow direction is into the shaft side of the disk)
Flow Characteristic Approximately Linear
Disk Rotation Clockwise (CW) to close
1, See table 4 and figure 4 for additional information. The pressure/temperature limits in this bulletin and any applicable codes or standard limitation should not be exceeded.
2. 0.1 scfhper unit of NPS at 80 psi.
CL150: ISO5752 ButterflyValve ShortSeries
CL300: ISO5752 ButterflyValve LongSeries
Soft Seal: Bidirectional ANSI/FCI 70-2 Class VI
NOVEX Seal: Unidirectional MSS SP-61
Phoenix III Seal: ANSI/FCI 70-2 Class VI
WCC Steel
CF8M Stainless Steel
Spline (standard)
Keyed (optional)
(1)
(2)
3
Product Bulletin
21.1:A31D
September 2014
A31D Valve
D500213X012
Figure 1. Available Seal Configurations
BACK-UP
RING
SEAL RING
RETAINING
RING
E0578
Notes:
This unidirectional seal must be installed so that the retaining ring is downstream from the high pressure side of the valve at shutoff, as shown.
1
For this bidirectional seal, The “preferred” valve orientation places the retaining ring downstream from the high pressure side of the valve at shutoff.
2
BODY
VALVE DISC
SOFT SEAL WITH
BACK-UP O-RING
RETAINING
RING
LARGEST
OUTSIDE
DIAMETER
HIGH PRESSURE
AT SHUTOFF
NOVEX SEAL
GRAPHITE
GASKET
2
BODY
VALVE DISC
BACK-UP
RING
BODY
VALVE DISC
PHOENIX III
FIRE-TESTED SEAL
LARGEST
OUTSIDE
DIAMETER
SEAL RING
HIGH PRESSURE
AT SHUTOFF
1
LARGEST
OUTSIDE
DIAMETER
SEAL
RING
RESILIENT INSERT
HIGH PRESSURE
AT SHUTOFF
1
Installation
Recommended or “preferred” installation for the A31D
valve is with the flow into the shaft side of the disk
(retaining ring downstream from the high pressure
side of the valve).
The standard soft seal offers ANSI/FCI 70-2 Class VI,
bidirectional shutoff. The Phoenix III seal should be
installed in the preferred direction to obtain optimal
shutoff performance, and it must be installed in the
preferred direction for fire-tested applications. The
NOVEX seal is uni-directional and should be installed in
the preferred direction.
For assistance in selecting the appropriate
combination of actuator action and open valve
position, contact your Emerson Process Management
sales office.
Standard Seal
Configurations
Standard Soft Seal (PTFE)-- A resilient dynamic seal
with an elastomeric back-up ring for low to
moderate temperature applications.
NOVEX Seal-- The NOVEX stainless steel seal is
available for severe service, Cryogenic, and
high-temperature applications.
Phoenix III Seal-- This three-component,
metal-and-polymeric seal is available for severe
service with low to moderate temperature
applications.
4
A31D Valve
D500213X012
Figure 2. Blowout Protection (NPS 3 through 24)
Product Bulletin
21.1:A31D
September 2014
PACKING
FLANGE
PACKING
FOLLOWER
TYPICAL
PACKING
C0766
SPRING PACK
ASSEMBLY
ANTI-BLOWOUT
WIRE
STANDARD PACKING ARRANGEMENT
CUTAWAY, NPS 3 THROUGH 12
PACKING
FLANGE
ANTIBLOWOUT
RING
ANTIBLOWOUT
FLANGE
VALVE
BODY
STUD AND
HEX NUT
HEX JAM
NUT
ANTI-BLOWOUT
FLANGE
PACKING
FLANGE
ANTI-BLOWOUT
FLANGE
SHAFT
SHOULDER
A7090
HEX NUT
PACKING
FLANGE
SPRING PACK
ASSEMBLY
SHAFT
SHOULDER
SHAFT
HEX NUT
STUD
HEX NUT
PACKING
FOLLOWER
TYPICAL PTFE V-RING
PACKING
STANDARD PACKING ARRANGEMENT
CUTAWAY, NPS 14 THROUGH 24
STUD
LUBRICANT
HEX NUT
ANTI-BLOWOUT
FLANGE
TYPICAL
PACKING
B2449
ENVIRO-SEAL ARRANGEMENT (PTFE SHOWN)
NPS 3 THROUGH 12
VALVE BODY
ANTI-EXTRUSION
RING
ENVIRO-SEAL ARRANGEMENT (PTFE SHOWN)
PACKING
SET
PACKING
BOX RING
NPS 14 THROUGH 24
5
Product Bulletin
21.1:A31D
September 2014
Table 2. Materials of Construction and Temperature Ratings
COMPONENT AND MATERIAL OF CONSTRUCTION
Valve Body
Carbon steel (SA216 WCC)
CF8M (316 SST)
Disc
CF8M (316 SST)
Disc Edge Coating
Chrome Plating (Standard with NOVEX or Phoenix III Seals)
Chrome Coating
Shaft
S20910
S17400 (H1025)
S17400 (H1150M)
N07718
Bearings
PEEK (standard)
(1)
S31600
R30006 (Alloy 6)
Packing
PTFE Packing and PTFE ENVIRO-SEAL Packing
Graphite packing
Graphite packing with oxidizing media
Graphite ENVIRO-SEAL Packing
PTFE Seal Ring
Nitrile Backup O-Ring
Chloroprene Backup O-Ring
EPR Backup O-Ring
Fluorocarbon Backup O-Ring (std)
UHMWPE
Seal Ring and Backup Ring
Phoenix III and/or Fire Tested Construction
NOVEX S31600 Seal
Seal Ring
1. For a complete material description, contact yo u r Emerson Process Managementsales office.
2. UHMWPE standsfor ultra high molecularweight polyethylene.
NOVEX S31600 Seal
NOVEX S21800 Seal
(2)
Nitrile Backup O-Ring
Chloroprene Backup O-Ring
EPR Backup O-Ring
Fluorocarbon Backup O-Ring (std)
S31600 and PTFE SealRing with Nitrile BackupO-Ring
Chloroprene Backup O-Ring
EPR Backup O-Ring
Fluorocarbon Backup O-Ring (std)
Seal Ring (CL150 Only)
(1)
Ring (CL150)
(1)
Ring (CL300)
(1)
Ring (CL300)
A31D Valve
D500213X012
TEMPERATURE RANGE
_C _F
—29 to427
—198 to538
—198 to538 —325 to1000
—254 to316
-254 to593
—198 to538
—73 to427
-196 to427
-254 to704
—73 to260
—198 to816
—198 to816
—148 to232
—198 to916
—198 to538
-148 to315
—29 to93
—43 to149
—54 to182
—29 to204
—29 to93
—43 to93
—54 to93
—29 to93
—40 to149
—54 to149
—62 to204
—40 to232
—254 to816
—254 to816
-254 to816
—20 to800
—325 to1000
—425 to600
-425 to1100
—325 to1000
—100 to800
—320 to800
-425 to1300
—100 to500
—325 to1500
—325 to1500
—325 to450
—325 to1500
—325 to1000
-325 to600
—20 to200
—45 to300
—65 to360
—20 to400
—20 to200
—45 to200
—65 to200
-20 to200
—40 to300
—65 to300
—80 to400
—40 to450
—425 to1500
—425 to1500
—425 to1500
6
A31D Valve
D500213X012
Table 3. Valve/Actuator Combinations
TEMPERATURE RANGE
-46 to343_C
(-50 to650_F)
343 to426_C
(650 to800_F)
426 to538_C
(800 to1000_F)
1. Select keyed shaft option.
2. See figure3 for actuatormounting positions.
3. Consult your Emerson ProcessManagement sales office.
Figure 3. Mounting Styles and Positions
1052, 1061, or 2052
Valve (select appropriate trim) and standard
actuator
Mounting positions 1 and 3: Valve (select
appropriate trim) and standard actuator
Mounting positions 1 and 3: Valve (select
appropriate trim) and standard actuator
STYLE D
(2)
SELECTION GUIDELINES
Valve (select appropriate trim) and standard
Valve (select appropriate trim) and actuator with
Valve (select appropriate trim) and actuator with
Product Bulletin
21.1:A31D
September 2014
(1)
Bettist
actuator
high-temperature O-rings option
high-temperature O-rings option
STYLE C
NORMAL
FLOW
GE37285
POSITION 1
STANDARD
2
4
33
STYLE A
POSITION 1
STANDARD
2
4
3
4
4
3
POSITION 1
STANDARD
2
STYLE B
POSITION 1
STANDARD
2
NORMAL
FLOW
7
Product Bulletin
21.1:A31D
September 2014
A31D Valve
D500213X012
Table 4. Valve Body Material Pressure/Temperature Ratings
TEMPERATURE
RANGE
_C Bar
-254 to-29 --- 19.0 --- 49.6
-29 to 38 20 19.0 51.7 49.6
93 17.9 16.2 51.7 42.7
149 15.9 14.8 50.3 38.6
204 13.8 13.4 48.6 35.5
260 11.7 11.7 45.9 33.1
316 9.7 9.7 41.7 31.0
343 8.6 8.6 40.7 30.3
371 7.6 7.6 38.3 30.0
399 6.6 6.6 34.8 29.3
427 5.5 5.5 28.3 29.0
454 --- 4.5 --- 29.0
482 --- 3.4 --- 28.6
510 --- 2.4 --- 26.5
538 --- 1.4 --- 25.2
_F Psi
-450 to-20 --- 275 --- 720
-20 to100 290 275 750 720
200 260 235 750 620
300 230 215 730 560
400 200 195 705 515
500 170 170 665 480
600 140 140 605 450
650 125 125 590 440
700 110 110 555 435
750 95 95 505 425
800 80 80 410 420
850 --- 65 --- 420
900 --- 50 --- 415
950 --- 35 --- 385
1000 --- 20 --- 365
1. For pressure/temperature ratings of other materials, contact your Emerson Process Management sales office.
WCC CF8M WCC CF8M
CL150 CL300
(1)
PRESSURE RANGE
8
Product Bulletin
A31D Valve
D500213X012
Figure 4. Maximum Pressure/Temperature Ratings for Soft Seal, NOVEX Seal and Phoenix III Seal, CL150 and CL300
OPERATING TEMPERATURE, _COPERATING TEMPERATURE,_C
21.1:A31D
September 2014
OPERATING TEMPERATURE,_F
CL150 SOFT SEAL
CL150 NOVEX SEAL
OPERATING TEMPERATURE,_F
CL300 SOFT SEAL
CL300 NOVEX SEAL
CL150 PHOENIX III SEAL
C0759-1
Note
1
Because of potential erosive and premature seal failure that can occur, throttling PTFE seals at differential pressures greater than 300 psid at disk angles less than
20 degrees open is not recommended.
2
Temperature limitations do not account for the additional limitations imposed by the backup O-ring used with this seal. To determine the effective temperature
limitation of the appropriate seal backup O-ring combination, refer to table 2.
CL300 PHOENIX III SEAL
9
Product Bulletin
21.1:A31D
September 2014
Figure 5. Dimensions and Weights, CL150 Double-Flange Valves (also see tables 5 and 7)
D
C
A
T
A31D Valve
D500213X012
B
E
K
M
S
4X V
JBOLT
CIRCLE
EACH SIDE
HTHRU
JBOLTCIRCLE
GHOLES
T
U
LKEYSQ.
4X PTHRU
N
R
PACKING
CLEARANCE
K
OPTIONAL KEYED DRIVE SHAFT
Table 5. CL150, Double-Flange Dimensions
VALVE
SIZE,
NPS
3 191 114 143 132 57.2 4 19.1 152 14.3 14.3 3.18 117 --- 14.2 65.0 85.9 187 102 47.8 ---
4 229 127 159 154 63.5 4 19.1 191 15.9 17.5 4.76 117 --- 14.2 69.9 111 187 102 47.8
6 279 140 206 186 69.9 4 22.2 241 22.2 23.8 6.35 152 31.8 14.2 79.2 160 214 102 47.8
8 343 152 222 198 76.2 4 22.2 298 22.2 23.8 6.35 152 31.8 14.2 79.2 202 214 102 47.8
10 406 165 279 203 82.6 8 25.4 362 28.4 28.6 6.35 235 46.0 17.5 88.9 265 208 102 47.8
12 483 178 305 236 88.9 8 25.4 432 31.8 31.8 6.35 235 46.0 17.5 88.9 316 208 102 47.8
14 533 191 327 295 95.3 8 28.4 476 31.8 30.2 6.35 235 46.0 17.5 117 338 208 146 64
16 597 216 371 318 108 12 28.4 540 31.8 31.8 6.35 235 46.0 17.5 117 384 208 146 64
18 635 222 400 349 111 12 31.8 578 39.7 38.1 9.53 273 50.8 20.6 133 432 356 229 79
20 699 229 432 381 114 16 31.8 635 44.5 44.5 9.53 273 50.8 20.6 133 480 356 229 79
24 813 267 492 438 133 16 35.0 749 57.2 57.2 12.7 337 76.2 23.9 155 594 356 254 105
3 7.50 4.50 5.62 5.18 2.25 4 3/4 6.00 9/16 9/16 1/8 4.62 --- 0.56 2.56 3.38 7.38 4.00 1.88
4 9.00 5.00 6.25 6.06 2.50 4 3/4 7.50 5/8 11/16 3/16 4.62 --- 0.56 2.75 4.38 7.38 4.00 1.88
6 11.00 5.50 8.12 7.31 2.75 4 7/8 9.50 7/8 15/16 1/4 6.00 1.25 0.56 3.12 6.28 8.44 4.00 1.88
8 13.50 6.00 8.75 7.81 3.00 4 7/8 11.75 7/8 15/16 1/4 6.00 1.25 0.56 3.12 7.97 8.44 4.00 1.88
10 16.00 6.50 11.00 8.00 3.25 8 1 14.25 1-1/8 1-1/8 1/4 9.25 1.81 0.69 3.50 10.44 8.19 4.00 1.88
12 19.00 7.00 12.00 9.31 3.50 8 1 17.00 1-1/4 1-1/4 1/4 9.25 1.81 0.69 3.50 12.44 8.19 4.00 1.88
14 21.00 7.50 12.88 11.62 3.75 8 1-1/8 18.75 1-1/4 1-3/16 1/4 9.25 1.81 0.69 4.62 13.31 8.19 5.75 2.50
16 23.50 8.50 14.62 12.50 4.25 12 1-1/8 21.25 1-1/4 1-1/4 1/4 9.25 1.81 0.69 4.62 15.12 8.19 5.75 2.50
18 25.00 8.75 15.75 13.75 4.38 12 1-1/4 22.75 1-9/16 1-1/2 3/8 10.75 2.00 0.81 5.25 17.00 14 9.00 3.12
20 27.50 9.00 17.00 15.00 4.50 16 1-1/4 25.00 1-3/4 1-3/4 3/8 10.75 2.00 0.81 5.25 18.88 14 9.00 3.12
24 32.00 10.50 19.38 17.25 5.25 16 1-3/8 29.50 2-1/4 2-1/4 1/2 13.25 3.00 0.94 6.12 23.38 14 10.00 4.12
1. Splined shaft connection.
2. Optional keyed shaft connection.
3. ISO 5752 Butterfly Valve Short Series
A B
(3)
C D E
(3)G(3)
CL150DIMENSIONA,C,D,E,&HTHROUGHU
H J
K
(1) (2) (1) (2) (2)
L M N P R S
mm
Inches
T U
V
5/8--11
3/4--10
3/4--10
7/8--9
7/8--9
1--8
1--8
1-1/8--8
1-1/8--8
1-1/4--8
---
5/8--11
3/4--10
3/4--10
7/8--9
7/8--9
1--8
1--8
1-1/8--8
1-1/8--8
1-1/4--8
10
A31D Valve
D500213X012
Figure 6. Dimensions and Weights, CL300 Double-Flange Valves (also see tables 6 and 7)
Product Bulletin
21.1:A31D
September 2014
D
C
T
E
A
K
M
B
4X V
JBOLT
CIRCLE
EACH SIDE
HTHRU
JBOLTCIRCLE
GHOLES
T
U
LKEYSQ.
4X PTHRU
N
K
OPTIONAL KEYED DRIVE SHAFT
Table 6. CL300, Double-Flange Dimensions
VALVE
SIZE,
A B
(3)
C D E
(3)G(3)
NPS
3 210 180 143 121 90.2 8 22.2 168 14.3 14.3 3.05 117 --- 14.2 65.0 85.9 187 102
4 254 191 159 145 95.0 8 22.2 200 15.9 17.5 4.83 117 --- 14.2 69.9 112 187 102
6 318 210 207 181 105 12 22.2 270 22.2 23.8 6.35 152 31.8 14.2 79.2 163 214 102
8 387 230 249 215 115 12 25.4 330 31.8 31.8 6.35 235 46.0 17.5 105 195 208 102
10 448 250 324 263 125 16 31.8 387 38.1 41.3 9.65 235 46.0 17.5 105 246 208 152
12 521 270 334 279 135 12 31.8 451 44.5 47.6 12.7 273 50.8 20.6 118 291 356 229
14 584 290 363 319 145 16 31.8 514 44.5 44.5 9.50 273 50.8 20.6 124 321 356 229
16 648 310 397 353 155 16 34.8 572 44.5 44.5 9.50 273 50.8 20.6 130 383 356 229
18 711 330 419 384 165 20 34.8 629 57.2 57.2 12.7 337 76.2 23.9 143 430 356 254
20 767 350 483 416 175 20 34.8 686 76.2 69.9 15.7 337 76.2 23.9 187 468 265 273
24 914 390 546 483 195 20 41.1 813 76.2 69.9 15.7 337 76.2 23.9 202 551 265 273
3 8.25 7.09 5.63 4.78 3.55 8 0.875 6.62 9/16 9/16 0.12 4.62 --- 0.56 2.56 3.38 7.38 4.00
4 10.00 7.50 6.25 5.72 3.74 8 0.875 7.87 5/8 11/16 0.19 4.62 --- 0.56 2.75 4.39 7.38 4.00
6 12.50 8.27 8.13 7.12 4.14 12 0.875 10.62 7/8 15/16 0.25 6.00 1.25 0.56 3.12 6.40 8.44 4.00
8 15.25 9.06 9.81 8.47 4.53 12 1.00 13.00 1-1/4 1-1/4 0.25 9.25 1.81 0.69 4.12 7.68 8.19 4.00
10 17.62 9.84 12.75 10.36 4.92 16 1.25 15.25 1-1/2 1-5/8 0.38 9.25 1.81 0.69 4.12 9.68 8.19 6.00
12 20.50 10.63 13.13 11.00 5.32 12 1.25 17.75 1-3/4 1-7/8 0.50 10.75 2.00 0.81 4.63 11.46 14 9.00
14 23.00 11.41 14.31 12.56 5.70 16 1.25 20.25 1-3/4 1-3/4 0.38 10.75 2.00 0.81 4.88 12.65 14 9.00
16 25.50 12.20 15.63 13.88 6.10 16 1.37 22.50 1-3/4 1-3/4 0.38 10.75 2.00 0.81 5.12 15.07 14 9.00
18 28.00 13.00 16.50 15.12 6.50 20 1.37 24.75 2-1/4 2-1/4 0.50 13.25 3.00 0.94 5.62 16.91 14 10.00
20 30.20 13.78 19.00 16.38 6.89 20 1.37 27.00 3 2-3/4 0.62 13.25 3.00 0.94 7.38 18.93 10.44 10.75
24 36.00 15.35 21.50 19.00 7.67 20 1.62 32.00 3 2-3/4 0.62 13.25 3.00 0.94 7.94 21.69 10.44 10.75
1. Splined shaftconnection.
2. Optional keyedshaft connection.
3. ISO 5752Butterfly Valve LongSeries
CL300DIMENSIONA,C,D,E,&HTHROUGHU
H J
K
(1) (2) (1) (2) (2)
L M N P R S
mm
Inches
S
R
PACKING
CLEARANCE
T U
47.8
47.8
47.8
47.8
66.5
76.2 1-1/8--8
79.5 1-1/8--8
79.5 1-1/4--8
1.88
1.88
1.88
1.88
2.62
3.00 1-1/8--8
3.13 1-1/8--8
3.13 1-1/4--8
4.13 1-1/4--8
4.88 1-1/4--8
4.88 1-1/2--8
V
---
---
---
---
---
105 1-1/4--8
124 1-1/4--8
124 1-1/2--8
---
---
---
---
---
11
Product Bulletin
21.1:A31D
September 2014
Table 7. Valve Weights
SIZE CL150 CL300
NPS kg lb kg lb
3 15 33 28 63
4 25 56 35 77
6 34 76 65 143
8 54 118 156 343
10 81 178 176 388
12 110 243 294 649
14 152 335 345 760
16 201 443 563 1240
18 243 535 591 1303
20 277 611 706 1556
24 434 956 1307 2881
A31D Valve
D500213X012
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of anyproduct. Responsibility for proper selection, use, and maintenance of any product remains solelywith the purchaser and end user.
Fisher, POSI-SEAL, ENVIRO-SEAL, and Bettis are marks owned by one of the companies in the Emerson Process Management business unit of Emerson
Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are
the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are availableupon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
E 1994, 2014 Fisher ControlsInternational LLC. All rightsreserved.
12
Loading...
