Emerson 775 THUM Data Sheet

Thum Adapter
D103306X012
775 Smart Wireless THUMt Adapter
Product Bulletin
62.1:775
August 2012
The Smart Wireless THUM adapter is a device for use on HARTr communicating instruments such as the Fisherr FIELDVUEt digital valve controller. The THUM adapter adapts the wired HART protocol to the WirelessHARTr protocol.
In many process facilities, HART communicating field devices have been installed and working for years. However, getting important information such as valve health to the people who need it is a challenge, as diagnostic information is often inaccessible.
A wireless network can be deployed to gain access to valve diagnostics. The THUM adapter is installed on field devices one at a time - significantly reducing the risk and impact of installation error. Plus, the network is scalable. Start with one THUM adapter on a FIELDVUE digital valve controller. Then, as you see the value it brings, add more devices to the network.
Features
n Loop Powered—No batteries; power scavenging
technology. No maintenance required.
n Reliable Wireless—The WirelessHART
communication protocol provides the high level of communication reliability required in process control applications.
n Rugged Construction—The electronics are fully
encapsulated and enclosed in an aluminum housing.
n Security—The WirelessHART self‐organizing mesh
network includes encryption, authentication, and authorization mechanisms to provide industry leading security.
nWireless Connectivity—The THUM adapter enables
configuration, calibration, and valve health monitoring via AMS.
n Installation Flexability—The THUM adapter can be
installed anywhere along the control wires.
WIRELESS THUM ADAPTER
www.Fisher.com
FIELDVUE DVC6200 DIGITAL VALVE CONTROLLER, AND THE WIRELESS THUM ADAPTER
FISHER CONTROL‐DISK WITH 2052 ACTUATOR,
Product Bulletin
62.1:775 August 2012
Specifications
THUM Adapter
D103306X012
Functional Specifications
Input
Any 2‐ or 4‐wire HART 5.0 powered device
Output
WirelessHART Communication Protocol
Humidity Limits
0-100% relative humidity
Burst Rate
User selectable, 8 sec. to 60 min.
Physical Specifications
Electrical Connections
The THUM adapter is connected in series with the 4-20 mA loop.
Power Requirements
SmartPowert: Power scavenging technology (no battery required)
The THUM adapter draws power by drawing voltage from the loop. The drop is linear from 2.25 volts at 3.5 mA to 1.2 volts at 25 mA, but does not affect the 4-20 mA current signal. Under fault conditions, the maximum voltage drop is 2.5 volts.
Enclosure Rating
NEMA 4X and IP66
Mounting
May be installed anywhere on the control wiring loop. Typically, mounting will be on or near the control valve. May be mounted directly on the available conduit opening of the terminal box or remotely using remote mount kit.
Mounting Connection: 1/2 NPT external
Dimensions
50.8
(2.00)
36.1
130.8 (5.15)
(1.42)
Performance Specifications
48.5
(1.91)
Materials of Construction
Enclosure
Housing:
J Low‐copper aluminum or J 316 SST
Paint: Polyurethane M20‐Conduit Adapter: SST M20‐Conduit Adapter O-ring: Buna‐n
Antenna
Poly butadine terephthalate (PBT)/Polycarbonate (PC) integrated omnidirectional antenna
Weight
THUM Adapter only AL 0.29 kg (0.65 lb) THUM Adapter only SST 0.5 kg (1.1 lb) AL THUM Adapter with AL remote kit 3.2 lbs. (1.45 kg) SST THUM Adapter with SST remote kit 5.8 lbs. (2.65 kg) AL THUM Adapter with M20 conduit adapter 0.85 lbs. (0.38 kg) SST THUM Adapter with M20 conduit adapter 1.3 lbs. (0.59 kg)
ElectroMagnetic Compatibility (EMC)
Meets all relevant requirements of EN 61326‐1 (2006) when installed with shielded wiring. The sub‐device must also use shielded wiring for installation.
Vibration Effect
Output unaffected when tested per the requirements of IEC60770‐1 field with general application or pipeline with low vibration level (10-60 Hz 0.15mm displacement peak amplitude / 60-500 Hz 2g).
When the THUM adapter is used on wired devices that are subject to vibration levels greater than 2 g, it is recommended that the THUM adapter be remotely mounted.
Temperature Limits
Operating and Storage Limits: -40 to 85_C (-40 to 185_F)
2
THUM Adapter
D103306X012
Smart Wireless THUM Adapter Applications

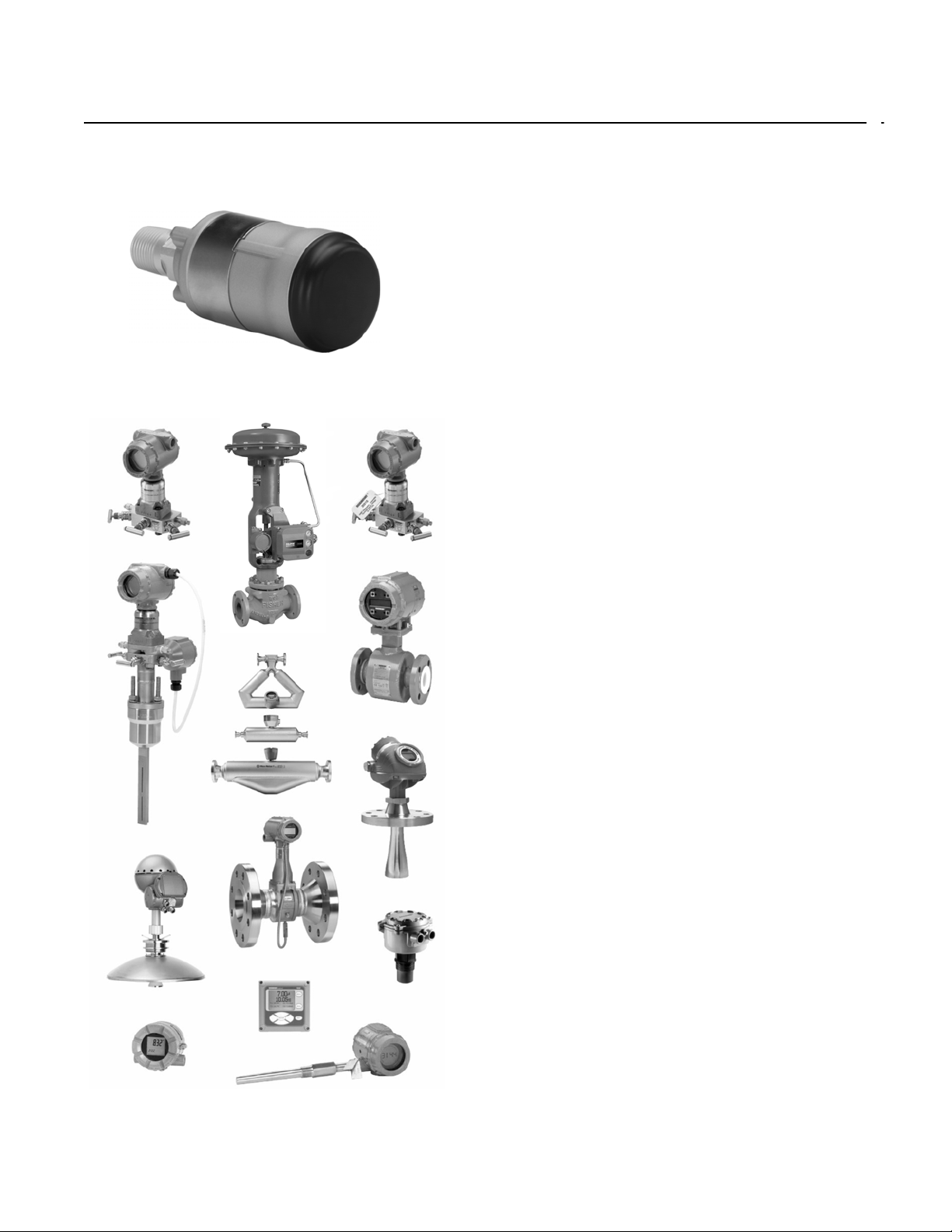

Figure 1. THUM Adapter
Enable Enhanced Valve Capabilities
n Online, in‐service valve testing through AMS
ValveLinkt SNAP‐ONt Application
n Monitor alerts such as travel deviation, supply
pressure, and electronics health with AMS Device Manager
n Trend actual valve position
Gain Access to Advanced Instrument
Figure 2. HART Devices Available from Emerson Process Management
Diagnostics
n Rosemountr 3051S with Advanced Process
Diagnostics
n Micro Motiont Coriolis Meter Verification with
optional AMS Meter Verification SNAP‐ON
n Rosemount Radar Echo Curve n Rosemount Magnetic Flow Meter Verificationt with
AMS Device Manager
Product Bulletin
62.1:775
August 2012
Efficiently Gather Data from Multivariable Devices
n Rosemount 3051SMV MultiVariablet and 3095
Mass Flow Transmitters
n Rosemount 3300 and 5300 Radar Level
Transmitters
n Micro Motion Coriolis Meters n Rosemount TankRadar Rex and TankRadar Pro n Rosemount Magnetic Flowmeters n Rosemount Multivariable Vortex Flowmeter
Make any HART Device Wireless to Enable New Measurement Points
n Level n Flow n Valves n Liquid and Gas Analytical n Pressure n Temperature
Remotely Manage Device and Monitor Health with AMS Device Manager
n Reduce troubleshooting time n As found, as left data n Calibration tracking
3
Product Bulletin
62.1:775 August 2012
THUM Adapter
D103306X012
Product Certifications
European Directive Information
The EC declaration of conformity for all applicable European directives for this product can be found at www.rosemount.com. A hard copy may be obtained by contacting an Emerson Process Management representative.
Emerson Process Management complies with following directives:
D ATEX Directive (94/9/EC) D Electro Magnetic Compatibility (EMC) (2004/108/EC) D Radio and Telecommunications Terminal Equipment
Directive (R&TTE) (1999/5/EC)
Telecommunication Compliance
All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world in order to comply with country directives and laws that govern wireless device usage.
FCC and IC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons.
Ordinary Location Certification for FM
As standard, the transmitter has been examined and tested to determine that the design meets basic electrical, mechanical, and fire protection requirements by FM, a nationally recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).
Hazardous Locations Certificates
North American Certificates
Factory Mutual (FM) Approvals
FM Intrinsically Safe and Non‐incendive
Intrinsically Safe for Class I/II/III, Division 1, Groups A, B, C, D, E, F, G. Zone Marking: Class I, Zone 0, AEx ia IIC Temperature Codes T4 (-50_C ≤ Tamb ≤ 70_C) Non‐incendive for Class I, Division 2, Groups A, B, C, D. Intrinsically safe and non‐incendive when installed according to Rosemount Drawing 00775‐0010. Enclosure Type 4X/IP66
CSA - Canadian Standards Association
CSA Intrinsically Safe
Intrinsically Safe for Class I, Division 1, Groups A, B, C, D. T3C (-50_C ≤ Tamb ≤ 70_C) Intrinsically Safe when installed according to Rosemount Drawing 00775‐0012. Suitable for Class 1, Division 2, Groups A, B, C, D. Enclosure Type 4X / IP66
European Certifications
ATEX Intrinsic Safety
Certificate No.: Baseefa09ATEX0125X II 1G Ex ia IIC T4 (-50_C ≤ Tamb ≤ 70_C) IP66 Loop Power: Ui = 30V; Li = 200 mA; Pi = 1.0 W; Ci = 0; Li = 0
Special conditions for safe use (X)
The surface resistivity of the antenna is greater than one gigaohm. To avoid electrostatic charge build‐up, it must not be rubbed or cleaned with solvents or a dry cloth.
The enclosure is made of aluminium alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a zone 0.
ATEX Type n
Certificate No.: Baseefa09ATEX0131 II 3G Ex nA IIC T4 (-50_C ≤ Tamb ≤ 70_C) Ui = 45 Vdc MAX IP66
IECEx Certifications
IECEx Intrinsic Safety
Certificate No.: IECEx BAS 09.0050X Ex ia IIC T4 (-50_C ≤ Tamb ≤ 70_C) IP66
Loop Power: Ui = 30V; Li = 200 mA; Pi = 1.0 W; Ci = 0; Li = 0
Special conditions for safe use (X)
The surface resistivity of the antenna is greater than one gigaohm. To avoid electrostatic charge build‐up, it must not be rubbed or cleaned with solvents or a dry cloth.
The enclosure is made of aluminium alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a zone 0.
IECEx Type n
Certificate No.: IECEx BAS 09.0058 Ex nA IIC T4 (-50_C ≤ Tamb ≤ 70_C) Ui = 45 Vdc MAX IP66
Additional Certifications/Appprovals Available
INMETRO, NEPSI, CCoE, KOSHA, and GOST. Contact your Emerson Process Mangement sales office for certification specific information.
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
THUM, FIELDVUE, ValveLink, SNAP‐ON, Rosemount, Micro Motion, and Fisher are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without notice.
Emerson Process Management Marshalltown, Iowa 50158 USA Sorocaba, 18087 Brazil Chatham, Kent ME4 4QZ UK Dubai, United Arab Emirates Singapore 128461 Singapore
www.Fisher.com
4
E 2009, 2012 Fisher Controls International LLC. All rights reserved.
