Emerson LC320EM1, LC320SL1, 32MF330B/F7, LC320SS1, 32MF360B/F7 Service Manual

Download

LCD TV

chassis FL10.3

SERVICE MANUAL

Contents

32” LC320EM1 EMERSON (Serial No. : DS1A**********)

32” LC320EM1 EMERSON (Serial No. : DS2A**********)

32” LC320EM1 EMERSON (Serial No. : DS3A**********)

32” LC320EM1 EMERSON (Serial No. : DS4A**********)

32” LC320EM1 EMERSON (Serial No. : DS5A**********)

32” LC320EM1 EMERSON (Serial No. : DS6A**********)

32” LC320SL1 SYLVANIA

32” 32MF330B/F7 MAGNAVOX

32” LC320SS1 SYLVANIA

32” 32MF360B/F7 MAGNAVOX

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

A01F4/F3/F0/FF/FH/FA/F1/F5/FJ/FGUH

100423

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 18

18 18

2. Synchronizing Sens.

TV.ch.4 CA.ch.31 CA.ch.87

dBµ dBµ dBµ

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4 ch.10 ch.41

dBm dBm dBm

---

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

1366

768

310 ---

-85 to 85

20 20 23

-76/0

-76/+4

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

[LC320EM1,

LC320SL1]

1. Audio Output 10% Distortion (ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W

6dB: Lch

6dB: Rch

Hz Hz

5.0/5.0

[32MF330B/F7,

LC320SS1,

32MF360B/F7]

10.0/10.0

70 to 10 k 70 to 10 k

[LC320EM1,

LC320SL1]

4.5/4.5

[32MF330B/F7,

LC320SS1,

32MF360B/F7]

9.0/9.0

---

1-1 FL10.3SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

EARTH GROUND

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Fig. 2

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

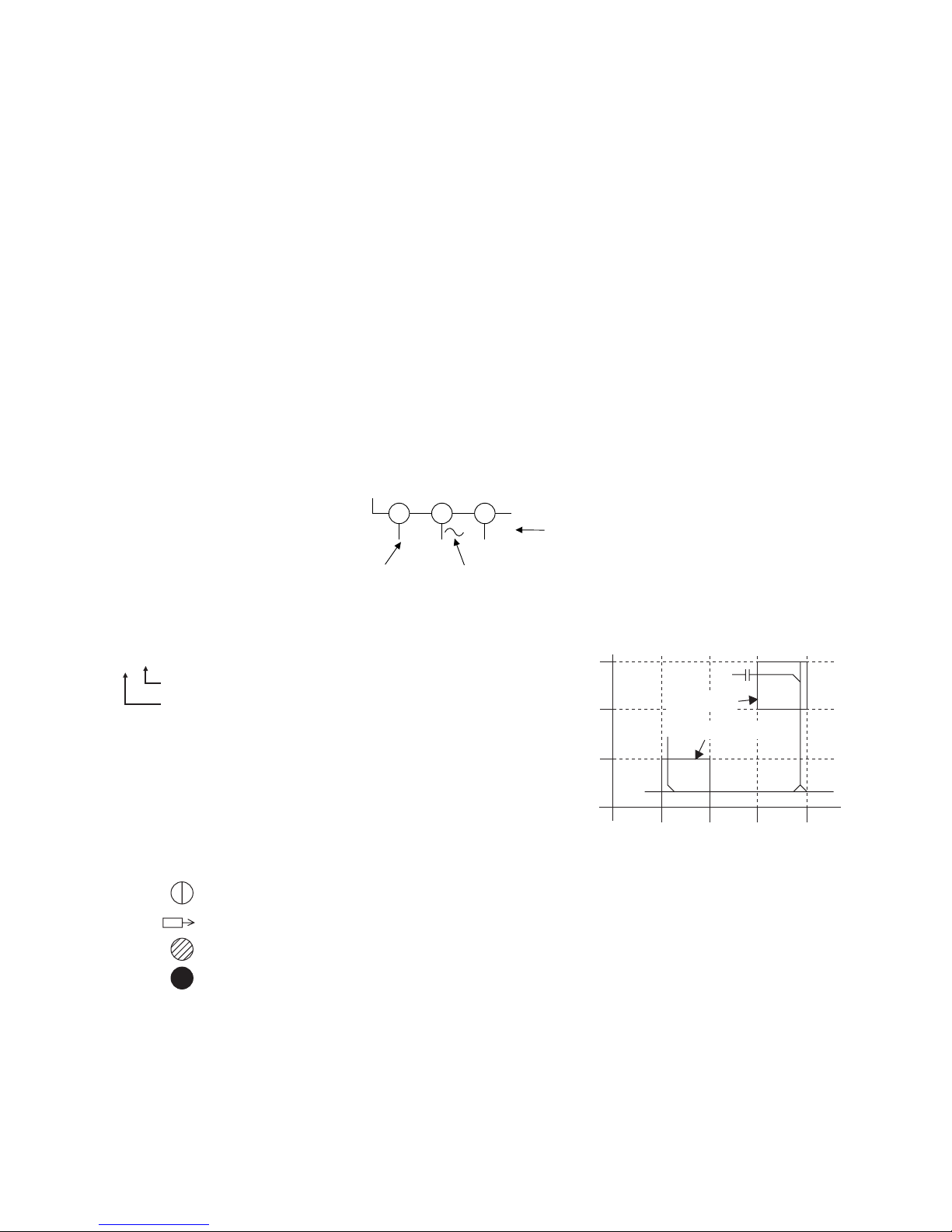

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

Fig. S-1-4

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] Stand

Assembly

[10] Junction CBA

[2] Rear Cabinet

[3] Inverter CBA

[4] Jack CBA

[5] Power Supply CBA

[6] Jack Holder

[7] Digital Main CBA Unit

[13] LCD Module Assembly

[14] Front Cabinet

[8] Speaker Holder (L,R)

[9] Speaker

[11] IR Sensor CBA

[12] Function CBA

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand

[1]

Assembly Rear

[2]

Cabinet

Inverter

[3]

CBA

[4] Jack CBA

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1) ---

D1 13(S-2), 2(S-3), 3(S-4) ---

6(S-5), *CN1001,

*CN1003, *CN1050,

*CN1100, *CN1150, *CN1200, *CN1900

2(S-6), *CL701B ---

---

Removal

Step/

Loc.

No.

Part

Fig.

Remove/*Unhook/

Unlock/Release/

No.

Unplug/Unclamp/

Note

Desolder

Digital Main

[7]

CBA UnitD2D4

4(S-9), 2(S-10), 4(S-11), *CN3902, Shield Box

---

Speaker

[8]

Holder

D3 *Hook ---

(L,R)

[9] Speaker D3 4(S-12) ---

[10]

[11]

[12]

Junction CBA

IR Sensor CBA

Function CBA

Desolder ---

D4 D3D42(S-13), 2(S-14),

*CL103B

--------------- ---

---

LCD

[13]

Module

D3 (S-15) ---

Assembly Front

[14]

↓

(1)

Cabinet

↓

(2)

D3 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

7(S-7), *CN101,

*CN301, *CN302,

*CN801, *CN802

[5]

Power Supply CBA

[6] Jack Holder D2 2(S-8) ---

---

4-1 FL10.3DC

(S-4)

(S-2)

[2] Rear Cabinet

[1] Stand Assembly

(S-2)

(S-1)

(S-3)

(S-4)

(S-2)

(S-4)

(S-2)

Fig. D1

4-2 FL10.3DC

[3] Inverter CBA

(S-5)

(S-11)

[7] Digital Main CBA Unit

(S-8)

[4] Jack CBA

Shield Box

[6] Jack Holder

(S-6)

(S-9)

(S-10)

(S-9)

(S-7)

(S-5)

[5] Power Supply CBA

Fig. D2

4-3 FL10.3DC

[14] Front Cabinet

[13] LCD Module Assembly

Hook

[10] Junction CBA

(S-12)

[9] Speaker

[8] Speaker Holder (L)

(S-15)

Hook

[8] Speaker Holder (R)

[11] IR Sensor CBA

(S-13)

(S-12)

[9] Speaker

[12] Function CBA

(S-14)

Fig. D3

4-4 FL10.3DC

TV Cable Wiring Diagram

Jack CBA

Inverter CBA

CN1050

Power Supply CBA

CL701B

CN302

CN301

CN101

Digital Main CBA Unit

CL701A

CN802

To Speaker

CN801

CN201

CN602

AC CORD

CN1001

CN1900

CN1003

To LCD Module Assembly

CN1100

CN1150

CN1200

CN3702

CN3701

CN3902

To LCD Module Assembly

Junction CBA

CN101

CL102A

IR Sensor CBA

CL103C

4-5 FL10.3DC

Function CBA

CL103B

CL101B

Fig. D4

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [4], [2], [5], [7], [4] and [Info] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code :

*******-***-*-*****-****

Pic code :

**-*******-*****-**

MIPS :

Push 0key

Press "POWER" key to exit.

Tuner :

****-*****-**** safety_Non

Safety :

5-1 FL10.3EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the remote control unit, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the remote control unit so that the color analyzer value becomes minimum.

6. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [PREV CH] button.

5-2 LC8NEA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point

Screen

Adj. Point Mode Input

[VOLUME

DOWN]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

(APL 40%)

5. [CUTOFF] Press [1] button to select “COR” for Red Cutoff adjustment. Press [3] button to select “COB” for Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive adjustment. Press [6] button to select “DB” for Blue Drive adjustment.

6. In each color mode, press [CHANNEL UP/DOWN] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000°K (x

0.272 / y

0.278 ±0.005).

8. To cancel or to exit from the White Balance Adjustment, press [PREV CH] button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

Hight

Light

100IRE

40%=40IRE

70%=70IRE

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOLUME DOWN] button on the remote control unit and select “C/D” mode.

100IRE

5-3 LC8NEA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

6-1 PL10.3INT

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

The identification of User Upgrade and Factory Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as shown below.

Rear Cabinet

USB storage device

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the following will appear on the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after restarting TV, shift to initial screen menu in service mode. "INITIALIZED" will appear on the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

3. Plug the AC cord in the wall outlet and turn the power on.

4. The update will start and the following will appear on the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

Current Version:

New Version:

Downloading...

*******-***-*-***-**** *******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

7-1 FL10.3FW

TROUBLESHOOTING

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again several seconds?

Ye s

Is the AL+33V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if de

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (C605, D601, D602, D603, D604, Q601, Q602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on secondary side operate normally?

Check IC601, D circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if defec D631, D632, D633, D638, D641, D642, D646, D647)

FLOW CHART NO.5

AL+33V is not output.

Is approximately +34V voltage supplied to the cathode of D638?

Check D657, R661 and their periphery circuit, and service it if de

609, D611 and their periphery,

tive. (IC631, Q207, Q209, Q210, Q211, Q501, Q635, Q636, Q637, Q640, Q

fective.

the

Ye s

Check IC601, D652, Q631 and their periphery circuit, and service it if defective.

in each rec

Check C638, D638, D639 and their periphery circuit, and service it if defective.

tifying circuit of the secondary side,

641, Q642, Q643,

8-1 FL10.3TR

FLOW CHART NO.6

LCD+24.5V is not output.

Is approximately +30V voltage supplied to the collector of Q210?

Ye s

Check Q207, Q208, D205, P-ON-H1 line and their peripher

y circuit, and service it if defective.

FLOW CHART NO.7

LCD+16V is not output.

Is approximately

+19.5V voltage supplied to the

collector of Q209?

Ye s

Is approximately +16V voltage supp

lied to the

base of Q209?

Ye s

Replace Q209.

FLOW CHART NO.8

INV+16V is not output.

See FLOW CHART No.5 <AL+33V is not output.>

Check C631, D and service it if de

631, D635 and their periphery circuit,

fective.

Check Q207, Q208, D203, D204, D211 and their periphery circuit, and ser

vice it if defective.

Is approximately +

19.5V voltage supplied to the

collector of Q501?

Ye s

Is approximately +16V voltage supplied to the base of Q501?

Ye s

Replace Q501.

FLOW CHART NO.9

P-ON+7V is not output.

Is approximately + collector o

f D646?

7V voltage supplied to the

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

Check C631, D631, D635 and service it if de

fective.

and their periphery circuit,

Check Q207, Q208, D203, D204, D211 periphery circuit, and ser

Check C644, D

646 and their periphery circuit,

and service it if def

vice it if defective.

ective.

and their

8-2 FL10.3TR

FLOW CHART NO.10

P-ON+5V is not output. (LCD+16V is outputted normally.)

Is approximately +6.8V voltage supplied to the collector of Q641 and the collector of Q643?

Ye s

Is approximately +6V voltage supplied to the base of Q641 and the b

ase of Q643?

Ye s

Replace Q641 or Q643.

FLOW CHART NO.11

TUNER+5V is not output. (LCD+16V is outputted normally.)

Is approximately +6.7V voltage supplied to the collector of Q640?

Ye s

Is approximately +6V voltage supplied to the base of Q640?

Ye s

Replace Q640.

See FLOW CHART No.9 <P-ON+7V is not output.>

Check D645 and their periphery circuit, and service it if defective.

See FLOW CHAR

T No.9 <P-ON+7V is not output.>

Check D645 and their periphery circuit, and service it if defective.

FLOW CHART NO.12

AL+13V(M+13V) is not output.

Is approximately +13V voltage supplied to the cathode of D641 and D642?

Ye s

Check if there is the loaded circuit, and ser

any leak or short-circuit on

vice it if defective.

FLOW CHART NO.13

P-ON+3V is not output.

Is approximately +

3V voltage supplied to the

cathode of D647?

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

Check C639, D and service it if de

641, D642 and their periphery circuit,

fective.

Check C645, D647 and their periphery circuit, and service it if de

fective.

8-3 FL10.3TR

FLOW CHART NO.14

P-ON+3.3V is not output.

Is approximately +5V voltage supplied to the cathode of D633?

Ye s

Is the "H" signal (approximately +3.5V) inputted to the base of Q637?

Ye s

Replace Q637.

FLOW CHART NO.15

P-ON+9V is not output. (LCD+16V is outputted normally.)

Is approximately +13V voltage supp

lied to the

collector of Q642?

Ye s

Is approximately +10V voltage supplied to the base of Q642?

Ye s

Replace Q642.

Check C633, D633 and their periphery circuit, and service it if defective.

Check Q638, Q639, D666, P-ON-H2 line and their peripher

y circuit, and service it if defec

tive.

See FLOW CHART No.12 <AL+13V(M+13V) is not output.>

Check D670 an

d their periphery circuit, and service

it if defective.

FLOW CHART NO.16

AL+3.3V is not output.

Is approximately +34V voltage supplied to the collector of Q635?

Ye s

Is approximately +5V voltage supplied to Pin(3) of IC631?

Ye s

Replace IC631.

FLOW CHART NO.17

LCD-6.8V is not output.

Is approximately -9V voltage supplied to the Anode of D632?

Ye s

Is approximately -

8V voltage supplied to the

base of Q211?

Ye s

See FLOW CHART No.5 <AL+33V is not output.>

Check Q635, D659 and their periphery circuit, and service it if defective.

Check C632, D632 and their periphery circuit, and service it if def

Check Q207, Q208, D208, P-ON-H1 line a periphery circuit, and ser

ective.

nd their

vice it if defective.

Replace Q211.

8-4 FL10.3TR

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW101A, SW103A~SW107A) nor

Ye s

When pressing each switches (SW101A, SW103A~ SW107A) do the v

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is pos

Is 3.3V voltage supplied to Pin(2) terminal of the remote control receiver (RS102)?

Is the "L" pulse sent out Pin(1) ter control receiver (RS102) when the infrared remote

control is activated?

Is the "L" pulse supplied to Pin(25

Replace Digital Main CBA Unit.

oltage of Pin(29) of CN302 increase?

Ye s

sible from the unit.

Ye s

minal of remote

Ye s

) of CN301?

Ye s

mal?

Re-install the switches (SW101A, SW103A~SW107A) correctly or replace the poor switch.

Check the switches (SW101A, SW103A~SW107A) and their periphery circuit, and service it if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS102) or the remote control unit.

Check the line between Pin(1) terminal of remote control receiver(RS102) and Pin(25) of CN301, and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal inputted to Pin

Is the "H" level

Replace Digital Main CBA Unit or LCD Module Assembly.

signal inputted to the Pin(5) of CN302?

(4) of CN302?

Ye s

Check the line b JK752, and service it if defective.

Check JK751, R763 and their periphery circuit, and service it if de

etween Pin(4) of CN302 and

fective.

8-5 FL10.3TR

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to the Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal o

utputted to the Pin(6, 8) of

CN302?

Pin(6): S-VIDEO-C Pin(8): S-VIDEO-Y

Ye s

Is the "L" level signal inputted to the Pi

n(5) of CN302?

Ye s

Replace Digital Main

CBA Unit or LCD Module

Assembly.

Check the line between Pin(26, 28) of CN302 and Pin(10, 11) of TU301, and service it if defective.

Check the line between Pin(6, 8 JK751, and service it if defec

Is the "L" level signal inputted to the Pin(19) of CN70

) of CN302 and

tive.

1A?

Check CL701 and their

Replace JK751 periphery circuit, and service it if defective.

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

Are the video signal i

nputted to the Pin(15, 17, 19) of

CN302?

Pin(15): VIDEO-Y Pin(17): VIDEO-Pb Pin(19): VIDEO-Pr

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

Check the line between Pin(15, 17, 19) of CN302 and input terminals(JK731, JK732, JK733), and service it if defective.

8-6 FL10.3TR

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

Are the audio(L/R) signals inputted to the Pin of IC801?

Are the audio(L/R) signals inputted to the Pin of IC871?

Are the audio(L/R) signals outputte of CN801 and CN80

Are the audio(L/R) signals outputte output terminal?

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

(1, 44)

(3, 5)

Ye s

d to the Pin(1, 2)

CN801: SP(L) CN802: SP(R)

d to the audio

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Ye s

Check the line between Pin(2, 15) of IC771 and input terminal(JK753, JK754), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line between Pin(2, 4 Pin(3, 5) of IC871, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser defective.

etween Pin(6, 8) of CN301 and

service it if defec

) of CN301 and

, 7) of IC871 and audio

tive.

vice it if

8-7 FL10.3TR

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to the Pin(4, 11) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

Are the audio(L/R) si

gnals inputted to the Pin(1, 44)

of IC801?

Are the audio(L/R) si

gnals inputted to the Pin(3, 5)

of IC871?

Ye s

Are the audio(L/R) signals outputte

d to the Pin(1, 2)

of CN801 and CN802?

CN801: SP(L) CN802: SP(R)

Are the audio(L/R) signals outputte

d to the audio

output terminal?

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Ye s

Check the line between Pin(4, 11) of IC771 and input terminal(JK741, JK742), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

Pin(3, 5) of IC871, and service it if defective.

Check IC801 an

d their periphery circuit, and

service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1, 7) of IC871 and audio output terminal(JK871, JK872), and ser

vice it if

defective.

8-8 FL10.3TR

FLOW CHART NO.3

Audio is not outputted normally.(HDMI Audio input)

Are the audio(L/R) signals inputted to Pin(5, 14) of IC771?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

Are the audio(L/R) si

gnals inputted to the Pin(1, 44)

of IC801?

Are the audio(L/R) si

gnals inputted to the Pin(3, 5)

of IC871?

Ye s

Are the audio(L/R) signals outputte

d to the Pin(1, 2)

of CN801 and CN802?

CN801: SP(L) CN802: SP(R)

Are the audio(L/R) signals outputte

d to the audio

output terminal?

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Check the line between Pin(5, 14) of IC771 and input terminal(JK721, JK722), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

Pin(3, 5) of IC871, and service it if defective.

Check IC801 an

d their periphery circuit, and

service it if defective.

Ye s

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser

, 7) of IC871 and audio

vice it if

defective.

8-9 FL10.3TR

FLOW CHART NO.4

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to the Pin(26, 28) of CN302?

Ye s

Are the audio(L/R) signals inputted to each pin of CN301?

Pin(6) : Pin(8) : Pin(2) : Pin(4) :

AMP(L)-OUT AMP(R)-OUT AUDIO(L)-OUT AUDIO(R)-OUT

Ye s

Are the audio(L/R) si

gnals inputted to the Pin(1, 44)

of IC801?

Are the audio(L/R) si

gnals inputted to the Pin(3, 5)

of IC871?

Ye s

Are the audio(L/R) signals outputte

d to the Pin(1, 2)

of CN801 and CN802?

CN801: SP(L) CN802: SP(R)

Are the audio(L/R) signals outputte

d to the audio

output terminal?

JK871: AUDIO(L)-OUT JK872: AUDIO(R)-OUT

Check TU301 and their periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(1, 44) of IC801, and

Check the line b

etween Pin(6, 8) of CN301 and

service it if defective.

etween Pin(2, 4) of CN301 and

Pin(3, 5) of IC871, and service it if defective.

Check IC801 an

d their periphery circuit, and

service it if defective.

Ye s

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check the line between Pin(1 output terminal(JK871, JK872), and ser

, 7) of IC871 and audio

vice it if

defective.

8-10 FL10.3TR

BLOCK DIAGRAMS

System Control Block Diagram

[LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1, 32MF330B/F7,32MF360B/F7]

AL+3.3V

D104

POWER

STANDBY

D105

SENSOR

REMOTE

RS102

JUNCTION

CBA

CL101B

LED144

REMOTE22

P-ON-H155

KEY-IN166

CL102A

CN101

LED144

REMOTE22

P-ON-H155

KEY-IN166

CN101

Q172

Q171

CN302CN3702

KEY-IN129 29

IR SENSOR CBAFUNCTION CBA

CL103C

KEY-IN133

CL103B

KEY SWITCH

CN301

P-ON-H199

LED-R13 13

REMOTE25 25

LED127 27

P-ON-H211

CN3701

POWER SUPPLY

P-ON-H2

P-ON-H1

CN301CN3701

BLOCK DIAGRAM

PROTECT1

PROTECT2

PROTECT2 15

CN201

PROTECT3 5

INVERTER

BLOCK

DIAGRAM

(CN1001)

PROTECT35BACKLIGHT-SW4BACKLIGHT-ADJ14VCOM 6

DRIVE

IC201,Q203,

VCOM-PWM

BACKLIGHT-SW

BACKLIGHT-ADJ

Q204,Q205

SCL

SDA

TU301 (TUNER UNIT)

SCL

SDA

CN3702 CN302

POWER SUPPLY CBA

KEY-IN1

REMOTE

IC3301

(MAIN MICRO CONTROLLER)

LED1

P-ON-H2

P-ON-H1

LED-R

INPUT0

G19

INPUT0

INPUT1

TO AUDIO

BLOCK

AUDIO-MUTE

INPUT1

G20

AUDIO-MUTE

DIAGRAM

SIN

SOUTCSWP

L19

L20

K21

SCL1

F21

SDA1

CLKOUT-25M

CLKIN-25M

CLKOUT-32K

CLKIN-32K

C22BACKLIGHT-ADJ

PROTECT3

PROTECT2 L3

PROTECT1 L2

VCOM-PWM M4

BACKLIGHT-SW E19

SCK

K22

DIGITAL MAIN CBA UNIT

25MHz

OSC

9-1

652

SCK

IC3101 (MEMORY)

X3101

32.768kHz

X3102

OSC

FL10.3BLS

System Control Block Diagram [LC320EM1(Serial No.:DS6A)]

AL+3.3V

D104

D105

STANDBY

POWER

SENSOR

REMOTE

RS102

JUNCTION

CBA

CN302CN3006

CL101B

LED144

REMOTE22

P-ON-H155

KEY-IN166

CL102A

CN101

LED144

REMOTE22

P-ON-H155

KEY-IN166

CN101

Q172

Q171

CN301

IR SENSOR CBAFUNCTION CBA

CL103C

KEY-IN133

CL103B

KEY SWITCH

POWER SUPPLY

P-ON-H2

P-ON-H1

CN301CN3002

BLOCK DIAGRAM

PROTECT2

PROTECT1

PROTECT35BACKLIGHT-SW4BACKLIGHT-ADJ14VCOM 6

CN201

INVERTER

BLOCK

DIAGRAM

(CN1001)

DRIVE

IC201,Q203,

Q204,Q205

SCL

SDA

TU301 (TUNER UNIT)

POWER SUPPLY CBA

IC3005

(MAIN MICRO CONTROLLER)

KEY-IN129 29

G21

KEY-IN1

P-ON-H199

REMOTE25 25

CN3002

K21

REMOTE

LED-R13 13

LED127 27

P-ON-H211

Q3006

AL+3.3V

J21

K19

K20

Y22

LED1

LED-R

P-ON-H2

P-ON-H1

Q3005

INPUT0

INPUT1

TO AUDI O

BLOCK

AUDIO-MUTE

INPUT1

L19

AUDIO-MUTE

DIAGRAM

PROTECT1

PROTECT2

H21

G22

PROTECT2

PROTECT1

VCOM-PWM

PROTECT3

BACKLIGHT-SW

H22

AB21

W20

PROTECT3

VCOM-PWM

BACKLIGHT-SW

SCL

SIN

SOUTCSWP

Y21

AA22

CN3006 CN302

SCL

Y20

SDA 21

SDA

AA21

XIN25

T22

XOUT25

T21

BACKLIGHT-ADJ 28

W17

BACKLIGHT-ADJ

SCK

V19

DIGITAL MAIN CBA UNIT

25MHz

OSC

652

SCK

IC3006 (MEMORY)

X3001

9-2

FL10.3BLS2

Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

LC320SL1, LC320SS1, 32MF330B/F7, 32MF360B/F7

*1 LC320EM1 (Serial No.:DS1A, DS2A, DS3A, DS4A, DS5A),

*2 LC320EM1 (Serial No.:DS6A)

CN3006

CN3702

*1 *2

VIDEO-IN4 4

S-VIDEO-C-IN6 6

S-VIDEO-Y-IN88

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

S-VIDEO-SW5 5

15 15

17 17

19 19

CN302

WF1WF2

WF3

WF6

WF4 WF5

*1 *2

DIF-OUT1

CN3006

CN3702

DIF-OUT126 26

CN302

IF-AGC

DIF-OUT2

IF-AGC24 24

DIF-OUT228 28

DIGITAL MAIN CBA UNIT

CL701A

VIDEO-IN 5

S-VIDEO-C-IN

S-VIDEO-Y-IN 1

S-VIDEO-SW 22

531

CL701B

JACK CBA

JK752

VIDEO-IN

JK751

S-VIDEO

-IN

COMPONENT

-Y-IN

JK731

JK732

POWER SUPPLY CBA

IF-AGC

DIF-OUT1

DIF-OUT2

TU301

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK733

(TUNER UNIT)

9-3 FL10.3BLV

Audio Block Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1, 32MF330B/F7,32MF360B/F7]

TO DIGITAL

SIGNAL

PROCESS

BLOCK

(AUDIO DSP)

IC3803

IC3802

(D/A CONVERTER)

DIAGRAM

BCLK

LRCLK

876

(L-CH)

AD ATA 1

D/A

(R-CH)

DSP

333437

CONVERTER

ACLK

AD ATA 0

876

D/A

(L-CH)

(R-CH)

CONVERTER

32MF330B/F7, 32MF360B/F7,LC320SS1

IC3801

(D/A CONVERTER)

AUDIO SIGNAL

TO DIGITAL

SIGNAL

AUDIO(L)

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

TO SYSTEM

CONTROL

BLOCK

INPUT0

INPUT1

DIAGRAM

AUDIO-MUTE

AMP(L)-OUT

AMP(R)-OUT

AUDIO(L)-OUT

AUDIO(R)-OUT

SPDIF

LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A)

LC320SL1

CL701A

AUDIO(L)-IN 77

CL701B

IC771

AUDIO(R)-IN 9

(AUDIO SELECTOR)

241

DRIVE

Q873,Q874

MUTE

Q872

MUTE

CN3702

SPDIF

CN302

BUFFER

2020

AUDIO-MUTE

IC801 (AUDIO AMP)

Q841

PWM1

DRIVE1

9,10

13,14

PWM2

DRIVE2

35,36

31,32

CN801CL801

MUTE CONTROL

SP(L)- 1

SP(L)+ 2

Q801

CN802

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

SP(R)- 1

SP(R)+ 2

CN3702CN302

WF7

151112

CN3702CN302

AUDIO(L)13 13

AUDIO(R)11 11

INPUT110 10

INPUT012 12

Q771

109

CONTROL

LOGIC

Q772

CN3701CN301

AUDIO(R)-OUT44

AMP(R)-OUT88

AUDIO(L)-OUT22

AMP(L)-OUT66

IC871

(OP AMP)

1 3

Q871

JACK CBA

COMPONENT-

AUDIO(L)-IN

AUDIO(L)

JK753

-IN

AUDIO(R)

-IN

JK754

JK741

COMPONENT-

JK742

AUDIO(R)-IN

HDMI-

JK721

AUDIO(L)-IN

HDMI-

JK722

AUDIO(R)-IN

9-4

AUDIO(L)-OUT

JK871

AUDIO(R)-OUT

JK872

DIGITAL

JK841

AUDIO-OUT

(COAXIAL)

SP801

SPEAKER

L-CH

CL802

SP802

SPEAKER

R-CH

FL10.3BLA

Audio Block Diagram [LC320EM1(Serial No.:DS6A)]

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

SPDIF

AUDIO SIGNAL

TO DIGITAL

SIGNAL

AUDIO(L)

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

TO SYSTEM

CONTROL

INPUT0

INPUT1

BLOCK

DIAGRAM

AUDIO-MUTE

BCLK

LRCLK

876

ACLK

ADATA

AMP(L)-OUT

AMP(R)-OUT

(AUDIO SELECTOR)

IC771

241

7 6

PWM1

DRIVE1

9,10

13,14

Q801

PWM2

DRIVE2

35,36

31,32

MUTE CONTROL

POWER SUPPLY CBA DIGITAL MAIN CBA UNIT

D/A

CONVERTER

IC3010

(D/A CONVERTER)

(L-CH)

(R-CH)

CN3006CN302

WF7

151112

CN3006CN302

AUDIO(L)13 13

AUDIO(R)11 11

INPUT110 10

INPUT012 12

Q772

Q771

109

CONTROL

LOGIC

CN3002CN301

AUDIO(R)-OUT44

AMP(R)-OUT88

AUDIO(L)-OUT22

AMP(L)-OUT66

IC871

(OP AMP)

1 3

Q873,Q874

CN3006

CN302

DRIVE

2020

AUDIO-MUTE

SPDIF

IC3015

(OP AMP)

IC801 (AUDIO AMP)

CL701A

AUDIO(L)-IN 77

AUDIO(R)-IN 9

CL701B

JACK CBA

COMPONENT-

AUDIO(L)-IN

AUDIO(L)

JK753

-IN

AUDIO(R)

-IN

JK754

JK741

COMPONENT-

JK742

AUDIO(R)-IN

HDMI-

JK721

AUDIO(L)-IN

HDMI-

JK722

AUDIO(R)-IN

9-5

AUDIO(L)-OUT

JK871

MUTE

Q871

AUDIO(R)-OUT

JK872

Q872

MUTE

BUFFER

DIGITAL

JK841

Q841

AUDIO-OUT

(COAXIAL)

CN801CL801

SP(L)+

SP801

SP(L)-

SPEAKER

L-CH

CN802

SP(R)-

SP(R)+

CL802

SP802

SPEAKER

R-CH

FL10.3BLA2

Digital Signal Process Block Diagram

[LC320EM1(Serial No.: DS1A, DS3A,

DS4A,DS5A), LC320SL1, LC320SS1, 32MF330B/F7,32MF360B/F7]

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3902

AUDIO SIGNAL

IC3201

DATA(0-15)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

D1,D3,D7,D9,

ADDESS(0-12)

N2,N3,N7,N8,

P2,P3,P7,P8,R2

VIDEO SIGNAL

(DDR2 SDRAM)

IC3301 (DIGITAL SIGNAL PROCESS)

A10

A11

B12

B10

B11

A12

LVD S T X

A/D

CONVERTER

B13

A13

C12

C13

DEMODULATOR

/MPEG DECODER

S-VIDEO-SW

IF-AGC

G22

B22

A21

A20

D20

C20

STV

POL

CPV

AA7,AA8-10,AA12,AA13,

AA15,AA16,AB7-10,AB12,

AB13,AB15,AB16

Y20,AA1-AA4,AA20-AA22,

AB1-AB3,AB21,AB22

DIGITAL

SIGNAL

PROCESS

HDMI

AUDIO I/F

A5C8B6

J20

J19

J21

J22

H20

AUDI O

DECODER

I/F

P21

P22

N21

N22

M21

M22

26272324202117

L21

HDMI

L22

VIDEO

DECODER

AUDIO(R)

AUDIO(L)

AUDIO(L)-OUT

S-VIDEO-SW

DIF-OUT1

DIF-OUT2

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

IF-AGC

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK DIAGRAM

TO VIDEO

BLOCK DIAGRAM

(L)-OUT

AUDIO(R)-OUT

AMP

SPDIF

TO AUDIO

(R)-OUT

BCLK

AMP

BLOCK DIAGRAM

ACLK

LRCLK

IC3702 (HDMI SW)

414544484739383637

ADATA1

ADATA0

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

SDA

SCL

TMDS-CLOCK(+)

JK3701

7 42

94613

TMDS-CLOCK(-)

101216

HDMI-IN1

9-6

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

JK3702

79461

111014

TMDS-D1(-)

TMDS-D2(+)

541

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

HDMI-IN3

575660596362545351

SDA

SCL

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

JK3704

79461

TMDS-D2(-)

HDMI-IN2

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

FL10.3BLD

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3902

[LC320EM1(Serial No.: DS2A]

AUDIO SIGNAL

VIDEO SIGNAL

IC3901 (TINING CONTROLLER)

48474645444338373635343342416364303132

LVD S

OUTPUT

FRC

LINE BUFFER

GAMMA

CORRECTOR

DATA

PROCESSING

7109

B10

LVDS TX

DATA

INPUT

LATCH

LVD S

1211161514

A10

A11

B11

B12

A12

DIGITAL

SIGNAL

PROCESS

IC3201

DATA(0-15)

(DDR2 SDRAM)

B1,B9,C2,C8,

F1,F9,G2,G8,

D1,D3,D7,D9,

AA7,AA8-10,AA12,AA13,

AA15,AA16,AB7-10,AB12,

ADDESS(0-12)

H1,H3,H7,H9

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

AB13,AB15,AB16

Y20,AA1-AA4,AA20-AA22,

AB1-AB3,AB21,AB22

A/D

CONVERTER

DEMODULATOR

IC3301 (DIGITAL SIGNAL PROCESS)

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

/MPEG DECODER

IF-AGC

S-VIDEO-SW

DIF-OUT1

DIF-OUT2

IF-AGC

S-VIDEO-SW

G22

AUDIO(R)

AUDIO(L)

AUDIO(L)-OUT

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK DIAGRAM

TO VIDEO

BLOCK DIAGRAM

A5C8B6

AUDIO(R)-OUT

SPDIF

AUDIO I/F

(R)-OUT

(L)-OUT

AMP

TO AUDIO

BLOCK DIAGRAM

J20

BCLK

J19

ACLK

LRCLK

J21

HDMI

AUDI O

DECODER

J22

H20

IC3702 (HDMI SW)

414544484739383637

ADATA1

ADATA0

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

SDA

SCL

TMDS-CLOCK(+)

JK3701

7 42

94613

TMDS-CLOCK(-)

101216

HDMI-IN1

I/F

P21

P22

N21

N22

M21

26272324202117

TMDS-D0(+)

TMDS-D0(-)

JK3702

79461

L21

L22

M22

HDMI

111014

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

HDMI-IN3

TMDS-D2(-)

9-7

VIDEO

541

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

DECODER

575660596362545351

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

JK3704

79461

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

HDMI-IN2

FL10.3BLD2

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3005

AUDIO SIGNAL

VIDEO SIGNAL

[LC320EM1(Serial No.: DS6A]

IC3002

SD-DQ(0-15)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

D1,D3,D7,D9,

SD-A(0-12)

N2,N3,N7,N8,

P2,P3,P7,P8,R2

(DDR2 SDRAM)

IC3005 (DIGITAL SIGNAL PROCESS)

A12

AA17

AB17

AA16

A/D

AB16

CONVERTER

B12D8A11

AA15

AB15

C14

AA13

LVD S T X

AA12

AA11

AB12

AB13

DEMODULATOR

/MPEG DECODER

AB11

AA14

S-VIDEO-SW

IF-AGC

AB22

AB14

AB19

Y19

POL

AA18

AB20

AA19

STV

CPV

N4,P2,P4,R1-R4,T2,

T4,U4,V1,V4,W1-W3

W5,W7,AA4-AA8,

AB3-AB8

DIGITAL

SIGNAL

PROCESS

HDMI

D15

I/F

A19

B19

A18

HDMI

B18

A17

B17

AUDIO I/F

L1M1L3

G2L2G1

E19

E20

AUDI O

DECODER

D21

D22

C21

C22

F19

F20

D16

A20

B20

C17

VIDEO

D17

DECODER

A21

A22

D19

D20

C19

C20

B21

B22

C16

A16

VIDEO-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

IF-AGC

AUDIO(R)

AUDIO(L)

S-VIDEO-SW

DIF-OUT1

DIF-OUT2

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK DIAGRAM

TO VIDEO

BLOCK DIAGRAM

(L)-OUT

AMP

SPDIF

(R)-OUT

BCLK

AMP

TO AUDIO

BLOCK DIAGRAM

ACLK

LRCLK

BUFFER

Q3020

ADATA

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

JK3003

TMDS-D1(-)

79461

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

101216

HDMI-IN1

Q3015

BUFFER

SDA

SCL

TMDS-CLOCK(-)

TMDS-D0(+)

JK3002

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

TMDS-D2(+)

9-8

Q3016

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

101216

HDMI-IN3

BUFFER

SCL

Q3018

BUFFER

TMDS-D0(+)

JK3004

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

BUFFER

Q3019

Q3017

BUFFER

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

HDMI-IN2

FL10.3BLD3

Inverter Block Diagram

BACK

LIGHT

CN1050

786

BACK

CN1100

LIGHT

786

BACK

LIGHT

CN1150

786

BACK

CN1200

LIGHT

786

LCD MODULE

Q1061

ASSEMBLY

OVER VOLTAGE

PROTECTOR

VCOM

CN1003

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

Q1161

Q1211

PROTECTOR

Q1111

T1050

INVERTER CBA

INV+16V

Q1801,Q1802,

SW+16V

Q1803,Q1804

SW+16V

Q1800,Q1815

T1100

VCC

IC1000

(PWM CONTROL)

DCT

Q1004,

Q1005

Q1500

Q1501,

Q1502,

CURRENT

CONTROL

SWITCH

DRIVE

Q1503

Q1550

Q1551,

Q1552,

PWM

CONTROL

T1150

CURRENT

CONTROL

DRIVE

Q1553

LOGIC

SWITCH

OSC

T1200

Q1003

Q1001

5 6

Q1972

Q1210

OVER VOLTAGE

PROTECTOR

Q1160

IC1700

(COMPARATOR)

Q1600

OVER VOLTAGE

Q1621

PROTECTOR

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

PROTECTOR

Q1060

Q1110

67523

23457

T1950

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CN1900

ACL2

HOT CIRCUIT. BE CAREFUL.

HOT-GND1

TO POWER

SUPPLY

BLOCK

DIAGRAM

(CN602)

Q1930

IC1930

SWITCHING

3 2

Q1932

Q1970

IC1931

Q1931

3 2

COLD

HOT

9-9

Q1971

CN1001

PROTECT3 10

TO SYSTEM

BACKLIGHT-ADJ

VCOM

BACKLIGHT-SW

CONTROL

BLOCK

DIAGRAM

(CN201)

FL10.3BLINV

Power Supply Block Diagram

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

LCD+16V

LCD-6.8V

INV+16V

VGH

P-ON+3.3V

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

P-ON+5V

AL+33V

P-ON+9V

P-ON+5V

AL+13V

AL+3.3V

TUNER+5V

TO SYSTEM

CONTROL

P-ON-H1

P-ON-H2

PROTECT1

BLOCK

DIAGRAM

PROTECT2

INVERTER CBA

LCD-6.8V13

CN201 CN1001

SW-6.8V

Q211

7,8

P-ON+3.3V12

INV+16V2

VGH10

LCD+16V8,9

Q201, Q202, Q212

SW+24.5V

Q210

DIGITAL MAIN CBA UNIT

CN3002

CN3701

*1 *2

CN301

Q207,Q208

21,22

P-ON+7V16

P-ON+3V10

AL+3.3V21,22

SWITCHING

19,20

P-ON+3.3V19,20

LC320SL1, LC320SS1, 32MF330B/F7, 32MF360B/F7

*1 LC320EM1 (Serial No.:DS1A, DS2A, DS3A, DS4A, DS5A),

P-ON+5V14

Q401

Q501

*2 LC320EM1 (Serial No.:DS6A)

SW+16V

Q209,D204

SW+16V

Q642

SW+9V

SW+3.3V

Q637,D666

SWITCHING

Q638,Q639

Q640

SW+5V

Q634

SW+5V

Q641,643

IC631

+3.3V

Q635

+5V REG.

REG.

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L602

LINE

FILTER

L601

F601

AC601

AC CORD

4A/125V

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

4A/125V

CN602

ACL2

INVERTER

HOT-GND1

BLOCK

DIAGRAM

(CN1900)

FEED

IC601

BACK

Q631

3 2

HOT COLD

CONTROL

Q602

SWITCHING

POWER SUPPLY CBA

SWITCHING

Q601

9-10

FL10.3BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

This schematic diagrams are masterized version that should cover the entire FL10.3 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the FL10.3 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

, M = 106).

-6

µF).

10-1 FL10.3SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

10-2 FL10.3SC

10-3

FL10.3SCM1

Power Supply 1 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

10-4

FL10.3SCM2

Power Supply 2 Schematic Diagram

10-5

FL10.3SCM3

Power Supply 3 & Jack Schematic Diagram

10-6

FL10.3SCM4

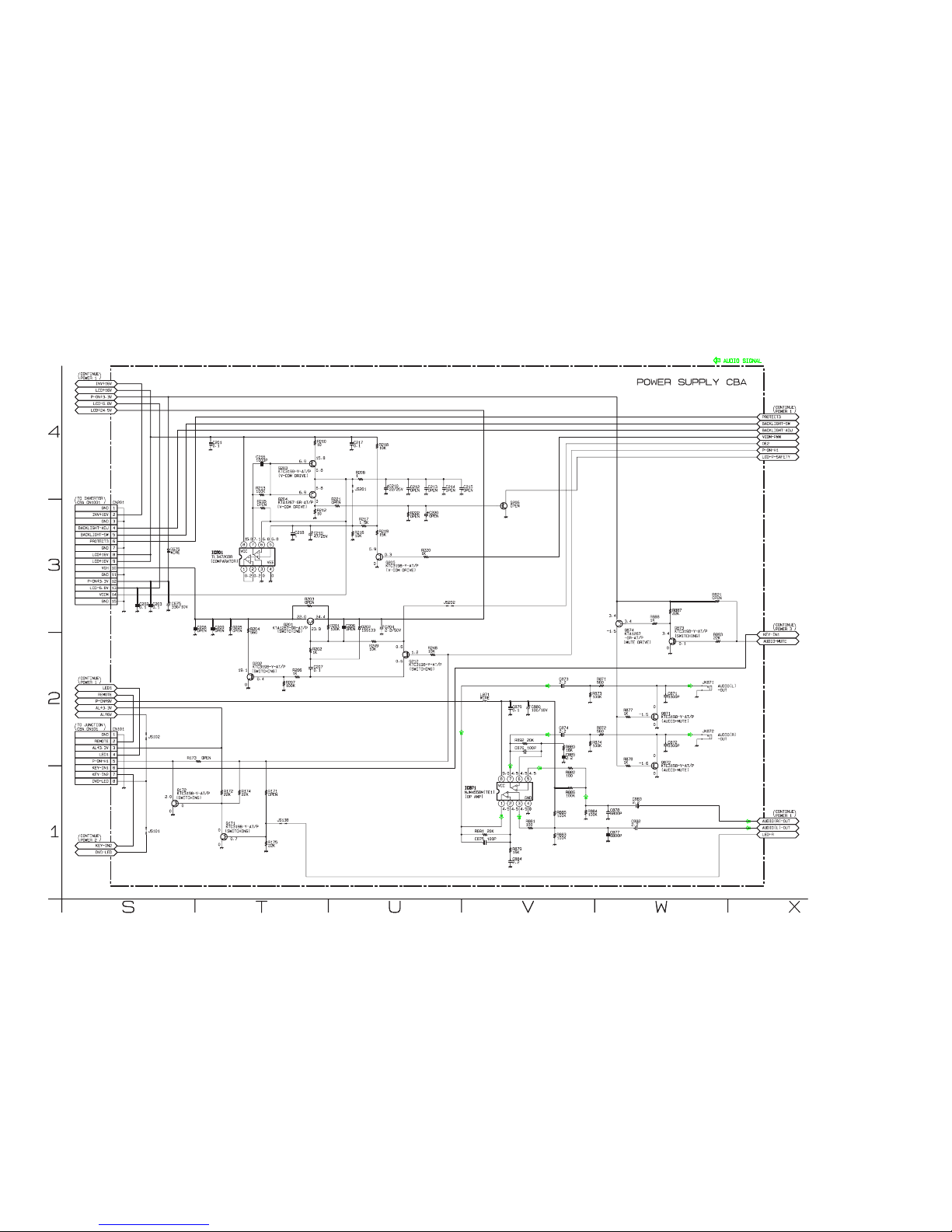

Power Supply 4 Schematic Diagram

10-7

FL10.3SCINV

Inverter Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-8

FL10.3SCF

Function Schematic Diagram

10-9

FL10.3SCIR

IR Sensor & Junction Schematic Diagram

10-10

FL10.3SCD1

Digital Main 1 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-11

FL10.3SCD2

Digital Main 2 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-12

FL10.3SCD3

Digital Main 3 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-13

FL10.3SCD4

Digital Main 4 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-14

FL10.3SCD5

Digital Main 5 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-15

Digital Main 6 Schematic Diagram [LC320EM1(Serial No.:DS1A,DS2A,DS3A,DS4A,DS5A), LC320SL1,LC320SS1,32MF330B/F7,32MF360B/F7]

FL10.3SCD6

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-16

Digital Main 1 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD1

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-17

Digital Main 2 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD2

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-18

Digital Main 3 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD3

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-19

Digital Main 4 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD4

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-20

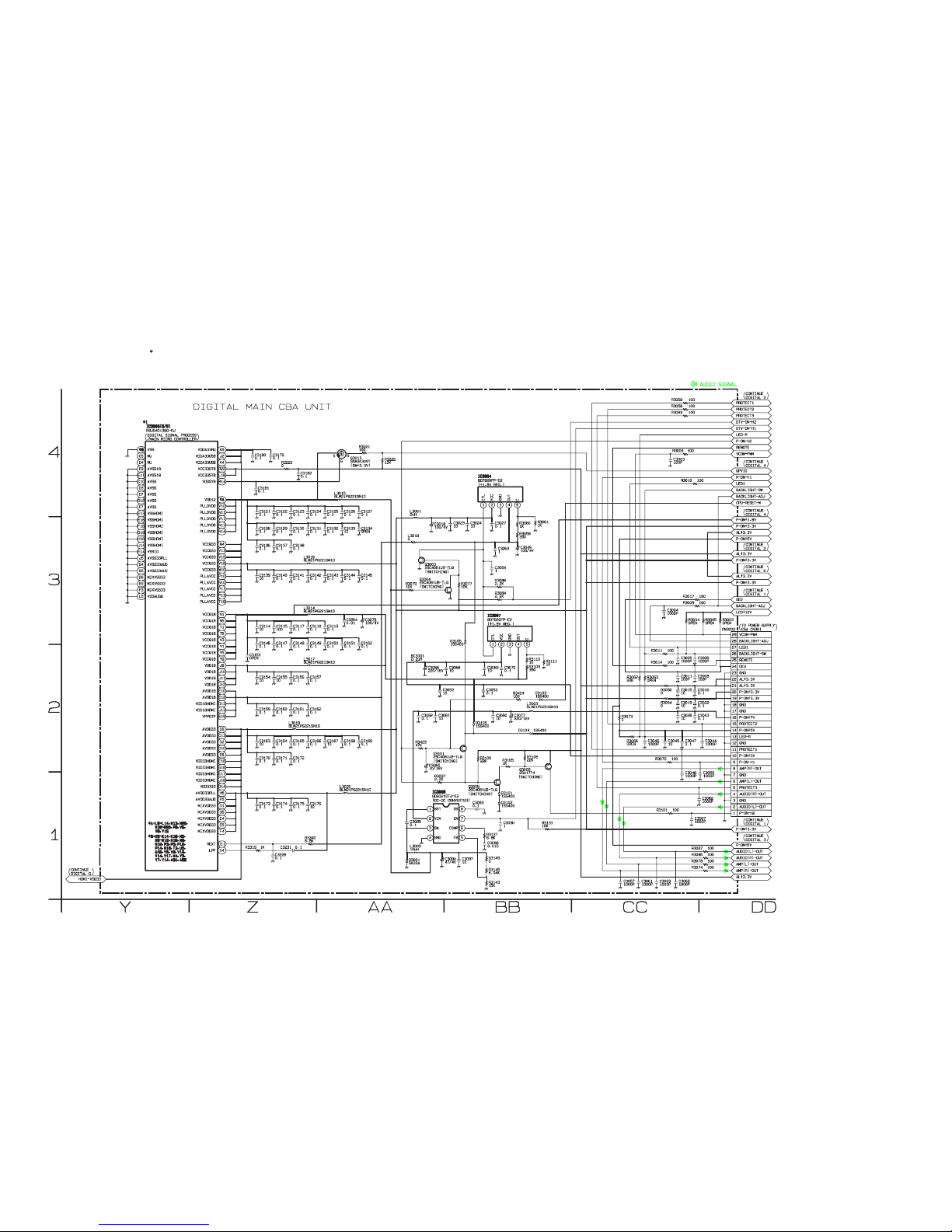

Digital Main 5 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD5

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-21

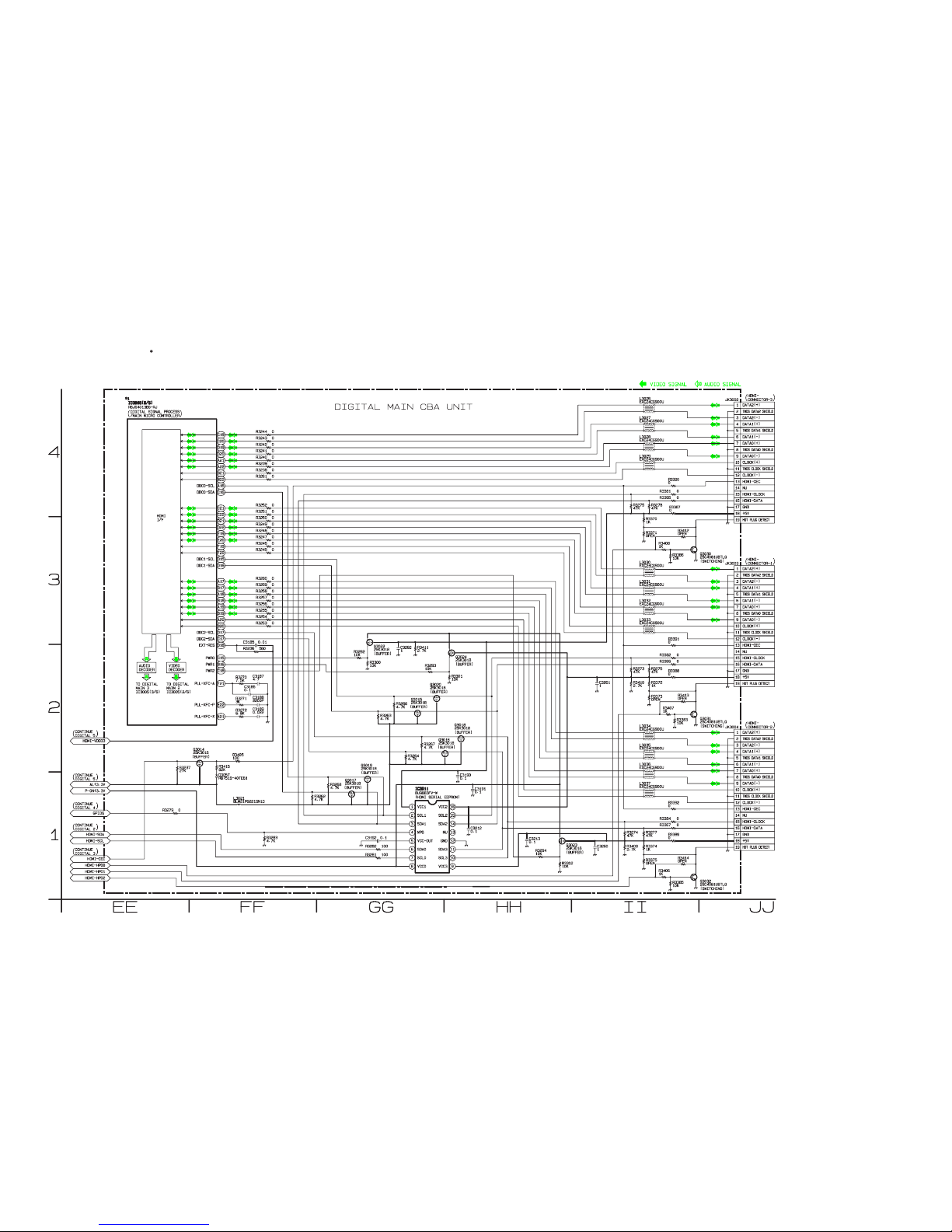

Digital Main 6 Schematic Diagram [LC320EM1(Serial No.:DS6A)]

FL10.3_2SCD6

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into five and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-22

BA94F0F01025

Power Supply CBA & Jack CBA Top View

Jack CBA

Power Supply CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

CAUTION !

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

10-23

WF1

PIN 4 OF CN302

WF3

PIN 6 OF CN302

WF1

PIN 4 OF CN302

WF3

PIN 6 OF CN302

WF2

PIN 8 OF CN302

WF7

PIN 13 OF CN302

WF4

PIN 15 OF CN302

WF5

PIN 17 OF CN302

WF6

PIN 19 OF CN302

Power Supply CBA & Jack CBA Bottom View

BA94F0F01025

Jack CBAPower Supply CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

10-24

BA01F4F01031

Inverter CBA, Function CBA, IR Sensor CBA & Junction CBA Top View

Function CBA

Not Used

IR Sensor CBA

Junction CBA

Not Used

Inverter CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-25

BA01F4F01031

Inverter CBA, Function CBA, IR Sensor CBA & Junction CBA Bottom View

Function CBANot UsedIR Sensor CBA

Junction CBA

Not Used

Inverter CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 17 of CN302

VIDEO-Pb 0.2V 20µs

Pin 19 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 6 of CN302

S-VIDEO-C 0.2V

Pin 15 of CN302

VIDEO-Y 0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

LC7NWF11-1

CN3902

CN3005

CN1050

STV

CL3902

BACK

LIGHT

CN1900

WIRING DIAGRAM

HDMI-

CONNECTOR-1

6TP5

POL

OE1

CPV

XAO

BACK

LIGHT

CN1100

CN1001

151

142

GND

133

LLV5(-)

124

LLV4(-)

LLV5(+)

BACK

CN1150

115

106

HDMI-

CONNECTOR-2

LLV3(-)

LLV3(+)

LLV4(+)

LIGHT

GND

LLVCLK(-)

BACK

CN1200

610

511

HDMI-

CONNECTOR-3

GND

LLV2(-)

LLVCLK(+)

LIGHT

412

313

214

LLV1(-)

LLN2(+)

CL1003

GND

CN1003

115

LLV0(-)

LLV0(+)

LLV1(+)

LCD+16V

GND

P-ON+3.3V

GND4VGH3LCD+16V

GND8LCD-6.8V

P-ON+3.3V

LCD MODULE

ASSEMBLY

GND10VCOM

INVERTER CBA

VIDEO-IN

CL701B

AUDIO(L)

-IN

JACK CBA

AUDIO(R)

-IN

S-VIDEO

-IN

CL101B

GND

CL102A

CN101 CL101

REMOTE

CL103BCL103C

CL103

AL+3.3V

LED1

GND

AL+3.3V

P-ON-H1

KEY-IN1

KEY-IN2

DVD-LED

JUNCTION CBA IR SENSOR CBA FUNCTION CBA

CL602

CL201

HOT-GND22ACL

GND

INV+16V

GND

BACKLIGHT-ADJ

CN602

CN201

DIGITAL MAIN CBA UNIT

POWER SUPPLY CBA

TUNER UNIT

CN3002

LC320SL1, LC320SS1, 32MF330B/F7, 32MF360B/F7

*1 LC320EM1 (Serial No.:DS1A, DS2A, DS3A, DS4A, DS5A),

CN3701

*1 *2

*2 LC320EM1 (Serial No.:DS6A)

513

BACKLIGHT-SW

PROTECT397GND88LCD+16V79LCD+16V

172220

VGH

GND

P-ON+3.3V

LCD-6.8V

VCOM

GND

231921

S-VIDEO-Y-IN

S-VIDEO-C-IN

S-VIDEO-SW

GND

VIDEO-IN77AUDIO(L)-IN

GND

172220

AUDIO(R)-IN

CL701A CL701

CN3006

CN3702

*1 *2

513

141012

CN101

SP801

CN801

231921

GND

REMOTE

SPEAKER

L-CH

CL801

SP(L)-

SP(L)+

AL+3.3V

LED1

P-ON-H1

KEY-IN1

SP802

SP(R)-

CN802

KEY-IN2

DVD-LED

SPEAKER

R-CH

CL802

SP(R)+

CL3701

P-ON-H2

AUDIO(L)-OUT

GND

AUDIO(R)-OUT

PROTECT3

AMP(L)-OUT

GND

AMP(R)-OUT

P-ON-H1

P-ON+3V

PROTECT1

GND

LED-R

P-ON+5V

CN301

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

COMPONENT-

AUDIO(L)-IN

PROTECT2

COMPONENT-

AUDIO(R)-IN

P-ON+7V

GND

HDMI-

GND

P-ON+3.3V

192321

AUDIO(L)-IN

HDMI-

AL+3.3V

GND

DIGITAL

AUDIO-OUT

AUDIO(R)-IN

OE2

REMOTE

(COAXIAL)

BACKLIGHT-SW

LED1

AUDIO(L)

-OUT

BACKLIGHT-ADJ

VCOM-PWM

AUDIO(R)

-OUT

CL3702

GND

CN302

PC-AUDIO

-IN

SPDIF

GND

VIDEO-IN

S-VIDEO-SW

WITH PC INPUT

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

GND

INPUT1

AUDIO(R)

INPUT0

AUDIO(L)

AC601

AC CORD

GND

COM-VIDEO-Y-IN

GND

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

192321

SDA

SCL

RESET

IF-AGC

GND

DIF-OUT1

GND

DIF-OUT2

KEY-IN1

FL10.3WI12-1

13-1 FL10.3CEX

EXPLODED VIEWS

Cabinet

A12

A15

B15

*1: LC320EM1, LC320SL1

*2: 32MF330B/F7, LC320SS1, 32MF360B/F7

A10

L16

See Electrical Parts List for parts with this mark.

Digital Main CBA Unit

Inverter CBA

AC601

IR Sensor CBA

Function CBA

CL802

CL801

SP801

SP802

Power Supply CBA

B15

A13

Stand Assembly

Jack CBA

B27

B44

B14

B13

B11

LCD1

CL3902

CL1003

B15

L16

Junction CBA

CL101

CL103

A11

CL3701

CL3702

CL701

CL201

Packing

Some Ref. Numbers are not in sequence.

X2S5X8 X6 X10

Ta pe

Stand Assembly

Packing Tape

FRONT

Ta pe

Packing Tape

FRONT

13-2 FL10.3PEX

PARTS LIST [LC320EM1 (Serial No. : DS1A)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A91F1UH 1ESA19883 A1 FRONT CABINET A91FNUH 1EM024585 A2 CONTROL PLATE A91F3UH 1EM325778 A5 DECORATION PLATE A01F4UH 1EM124476 A6 REAR CABINET A01F0UH 1EM025226 A8 AC CORD HOLDER A94F0UH 1EM325557 A10# RATING LABEL A01F4UH ---------A11 JACK LABEL A01F4UH 1EM430762 A13 JACK HOLDER A94F0UH 1EM123173 A15 LOGO LABEL A8A71UH ---------B1 SHIELD BOX A01F2UH 1EM224323 B4 STAND HOLDER 32W A94F0UH 1EM222763 B5 WALL MOUNT BRACKET A84N0UH 1EM323797 B8 SPEAKER HOLDER (L) A94F0UH 1EM123233 B9 SPEAKER HOLDER (R) A94F0UH 1EM123234 B15 CLOTH(10X180XT0.5) L0336JG 0EM408827 B27 GASKET A8AF0UH 1EM425861 B44 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003 CL201 WIRE ASSEMBLY 15PIN FFC 15PIN 140MM WX1A94F0-104 CL801 WIRE ASSEMBLY 2PIN 2PIN 310MM RED

CL802 WIRE ASSEMBLY 2PIN 2PIN 100MM RED

CL1003 WIRE ASSEMBLY 11PIN FFC 11PIN 129MM WX1A91F6-101 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 70MM WX1A94F0-111 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 117.5MM WX1A91F6-102 L1 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140 L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L6 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L7 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L8 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B L9 STAND SCREW KIT A91F0UH 1ESA19881 LCD1 LCD MODULE CMO 6BIT A GRADE UJ32MXA SP801 SPEAKER MAGNETIC S0412F06A DSD0809XQ006 SP802 SPEAKER MAGNETIC S0412F06A DSD0809XQ006

BLACK

PACKING

S1 CARTON A01F4UH 1EM430758 S2 STYROFOAM TOP A91F0UH 1EM023566 S3 STYROFOAM BOTTOM A91F0UH 1EM023567 S4 SET BAG (900X850) A8AFFUH 1EM324904A S5 SERIAL NO. LABEL A01P0UH ---------S6 STAND BAG A94F0UH 1EM428757 S9 STAND HOLD PAD A94F1UH 1EM023746

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

WX1A94F0-202

WX1A94F0-203

Ref. No. Description Part No.

X2# OWNERS MANUAL A01F4UH 1EMN25720 X3 REMOTE CONTROL NH001UD NH001UD X4 DRY BATTERY R03/2S XB0M451T0006 X6 QUICK START GUIDE A01F4UH 1EMN25724 X8 CHILD SAFETY SHEET A94F1UH 1EMN24522 X10 REGISTRATION CARD (EMERSON) A91F4UH 1EMN24701

20100205 14-1 A01F4CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01F4MMA-001

MPW CBA

Ref. No. Description Part No.

MPW CBA Consists of the following:

POWER SUPPLY CBA(MPW-1) JACK CBA(MPW-2)

POWER SUPPLY CBA(MPW-1)

Ref. No. Description Part No.

POWER SUPPLY CBA(MPW-1) Consists of the following:

CAPACITORS

C201 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C202 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C203 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C204 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C207 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C210 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C216 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C217 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104 C218 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C219 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C221 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C222 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C223 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C224 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C303 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C306 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C309 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C501 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C601# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004

A01F4MPWS001

A01F4MPWS001-PW A01F4MPWS001-JK

----------

Ref. No. Description Part No.

C602# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004 C605 CAP ELECTROLYTIC 470µF/200V M CA2D471DYG07 C609 POLYESTER FILM CAP. (PB FREE) 0.047µF/

C611 CERAMIC CAP. 470pF/2KV CA3D471PAN04 C612 POLYESTER FILM CAP. (PB FREE) 0.068µF/

C613 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C631 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C632 ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221 C633 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C637 CERAMIC CAP. 2200pF/1KV CCD3AKA0R222 C638 ELECTROLYTIC CAP. 220µF/50V M CE1JMASDL221 C639 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102 C642 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C644 ELECTROLYTIC CAP 3300µF/16V M CE1CMZNDL332 C645 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C646 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C647 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C648 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C653 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C654 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C656 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C657 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C676 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C681 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C682 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C683 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C684 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C691# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C693# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C723 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C724 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C743 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C744 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C771 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C775 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C776 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C801 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C802 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C803 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C804 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C805 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C806 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C807 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C808 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C809 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C811 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C815 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C816 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C817 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C818 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104

100V J

CA2A473DT018

CA2A683DT018

CA2A152DT018

CA2A222DT018

20100205 14-2 A01F4EL

Ref. No. Description Part No.

C819 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C820 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C822 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C823 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C824 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C825 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C826 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C827 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C828 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C829 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C830 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474 C832 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C833 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C834 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C835 CHIP CERAMIC CAP. B K 560pF/50V CHD1JK30B561 C836 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C837 CHIP CERAMIC CAP. B K 560pF/50V CHD1JK30B561 C838 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C839 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C841 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C842 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C843 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C844 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C845 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C846 CHIP CERAMIC CAP.(1608) CH J 470pF/50V CHD1JJ3CH471 C847 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C871 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C872 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332 C873 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C874 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C875 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C876 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C877 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C878 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C879 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104 C880 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C882 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C883 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C884 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C885 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

CONNECTORS

CN101 242 SERIES CONNECTOR 224202108W1 J322C08TG001 CN201 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007 CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN602 WIRE ASSEMBLY 2PIN 2PIN 145MM RED

CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

BLACK

(LF)(SN)

WX1A94F0-201

J3PHC02JG029

DIODES

D202 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D204 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D205 DIODE ZENER 24BSC-T26 NDTC024BST26 D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D207 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D208 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D209 DIODE ZENER 39BSB-T26 NDTB039BST26 D210 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D303 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D406 DIODE ZENER 15BSB-T26 NDTB015BST26 D407 DIODE ZENER 10BSB-T26 NDTB010BST26 D409 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D415 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D416 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D417 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D418 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26 D419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D420 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D421 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D601# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D602# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D603# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D604# DIODE GENERAL PURPOSE 1N5406-BU NDLZ1N5406BU D606# DIODE ZENER 27BSB-T26 NDTB027BST26 D607 DIODE ZENER 4V3BSB-T26 NDTB4R3BST26 D609# SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D611 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D612# DIODE ZENER 39BSB-T26 NDTB039BST26 D631 DIODE FR154 NDLZ000FR154 D632 DIODE FR104-B NDLZ000FR104 D633 DIODE FAST RECOVERY FR151-B/P NDWZ0FR151BP D635 DIODE ZENER 24BSB-T26 NDTB024BST26 D637 SCHOTTKY BARRIER DIODE SB160 NDWZ000SB160 D638 DIODE FR154 NDLZ000FR154 D639 DIODE ZENER 1ZB43BB NDWZ0001ZB43 D641 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D642 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390 D643 DIODE FR104-B NDLZ000FR104 D644 DIODE ZENER 10BSB-T26 NDTB010BST26 D645 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038 D646 DIODE SCHOTTKY SB360BH NDWZ000SB360 D647 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240 D648 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140 D649 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D650 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D652 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D655 RECTIFIER DIODE 1N4005 NDQZ001N4005 D657 DIODE ZENER 33BSB-T26 NDTB033BST26 D658 DIODE ZENER 3V3BSB-T26 NDTB3R3BST26 D659 DIODE ZENER 6V8BSA-T26 NDTA6R8BST26 D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D661 DIODE FR154 NDLZ000FR154 D662 DIODE FR154 NDLZ000FR154 D664 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26 D665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D666 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D670 DIODE ZENER 10BSB-T26 NDTB010BST26 D671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D675 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D676 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D801 DIODE ZENER 20BSB-T26 NDTB020BST26 D802 DIODE ZENER 20BSB-T26 NDTB020BST26 D803 DIODE ZENER 20BSB-T26 NDTB020BST26 D804 DIODE ZENER 20BSB-T26 NDTB020BST26

20100205 14-3 A01F4EL

Ref. No. Description Part No.

D806 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC201 IC TL3472CDR NSZBA0TTY115 IC601# PHOTO COUPLER LTV817MCF NPECLTV817MF IC631 IC LD1117V NSZBA0SSS046 IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162 IC801 IC D-AMP BD5426EFS-E2 QSZBA0TRM137 IC871 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089

COILS

L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L601# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029 L602# COIL LINE FILTER ST0807ET28-009 10MH LLEG0Z0Y2029 L801 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L802 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L803 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L804 RADIAL LEAD INDUCTORS 33µH LLARKGQTU330 L871 WIRE COPPER 6111-06003-0120 XZ40C0SHG002

TRANSISTORS

Q171 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q172 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q201 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q202 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q203 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q204 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q205 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q207 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q208 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q209 TRANSISTOR 2SD400(E) QQUE002SD400 Q210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q212 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q402 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q501 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q601# FET MOS 2SK3563(Q) QFWZ2SK3563Q Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q631 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q634 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q635 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q636 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q637 NPN TRANSISTOR POWER 2SC4881F HFE

Q638 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q639 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q640 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q641 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q642 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q643 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q771 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q772 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q801 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q802 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q841 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q871 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q872 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q873 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q874 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P

MAX320

QQWZ2SC4881F

RESISTORS

R172 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R175 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R201 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R202 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

Ref. No. Description Part No.

R204 RES CARBON FILM T 1/4W J 560 Ω RCX4561T1001 R206 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R207 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R208 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R210 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R212 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R213 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R216 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R217 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R218 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R219 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R220 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R223 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R224 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R225 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R226 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R227 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R228 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R229 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R231 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R232 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R233 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500 R234 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R235 RES CARBON FILM T 1/4W J 330 Ω RCX4331T1001 R236 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R237 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R238 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R240 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R241 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R242 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R243 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R245 RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001 R247 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R248 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R301 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R302 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R303 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R304 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R305 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R311 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R401 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R402 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R403 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R404 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R405 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R407 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R408 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R410 CHIP RES. 1/10W F 43.0 k Ω RRXAFR5H4302 R411 CHIP RES. 1/10W F 56k Ω RRXAFR5H5602 R412 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R501 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R601# RES. CARBON FILM J 1/2W J 560k Ω RCX2564T1003 R602# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10 R604 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001 R605 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001 R606 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001 R610 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R611 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R613 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R614# METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R615 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R616 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R617# CEMENT RESISTOR 5W J 2.2 Ω H 10MM RW052R2PAK10

20100205 14-4 A01F4EL

Ref. No. Description Part No.

R618 RES CARBON FILM T 1/4W J 390k Ω RCX4394T1001 R636 RES. CARBON FILM J 1/2W J 2.7 Ω RCX22R7T1003 R637 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R638 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R639 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R641 RES CHIP.(1608) 1/10W D 1.1k Ω RRXADR5H1101 R642 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R643 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R644 CHIP RES. 1/10W F 820 Ω RRXAFR5H8200 R645 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R646 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R648 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R650 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R651 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R652 CHIP RES. 1/10W F 24k Ω RRXAFR5H2402 R653 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R654 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R658 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R659 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R660 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R661 RES. CARBON FILM J 1/2W J 390 Ω RCX2391T1003 R662 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R663 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R664 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R665 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R666 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R667 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R668 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200 R669 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R670 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R671 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R672 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R673 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R674 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R675 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R676 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R677 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R678 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R679 CHIP RES. 1/10W F 3.6k Ω RRXAFR5H3601 R680 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R682 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R683 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R685 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001 R686 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R687 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R688 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R689 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R691 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R692 RES CARBON FILM T 1/4W J 2.7 Ω RCX42R7T1001 R693 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R694 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R696 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001 R697 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3ZU001 R723 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R724 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R725 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R726 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R731 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R732 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R733 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R734 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R735 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R736 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100

Ref. No. Description Part No.

R743 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R744 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R745 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R746 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R763 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R771 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R772 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R773 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R774 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R775 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R776 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R777 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R778 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R779 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R802 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702 R803 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R804 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R806 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R810 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R813 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R814 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R815 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R816 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R817 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R818 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R819 RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R820 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R843 CHIP RES. 1/10W J 110 Ω RRXAJR5Z0111 R844 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R847 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R848 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472 R871 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R872 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561 R873 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R874 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R877 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R878 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R879 CHIP RES. 1/10W J 16k Ω RRXAJR5Z0163 R880 CHIP RES. 1/10W J 16k Ω RRXAJR5Z0163 R881 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R882 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R883 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R884 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R885 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R886 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R887 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R888 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R891 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R892 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R893 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223

MISCELLANEOUS

AC601# AC CORD W/O A GND WIRE UL/CSA 1770 NO

B11 POW HEAT SINK A7120UH 1EM423993 BC301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC802 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC803 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC804 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC805 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC841 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 CL701 WIRE ASSEMBLY 9P 9PIN/170MM WX1A94F0-002

BLACK

WAC0172LW022

20100205 14-5 A01F4EL

Ref. No. Description Part No.

F601# FUSE STC4A125V U/CT PAGE20CW3402 FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03 JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04 JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK742 JACK SW RCA PCB S RED RCA-102H(RD) JYRJ010YUQ03 JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06 JK871 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK872 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JS138 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS202 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 JS304 INDUCTOR 22µH-K-5FT LLARKBSTU220 L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T601# TRANS POWER BCK-28-9932 LTT2PC0XB043 TM601 EYELET TYPE D-1 0VM406868 TM602 EYELET TYPE D-1 0VM406868 TU301 TUNER UNIT ATSC UC130AF UTNATS0SP004

JACK CBA(MPW-2)

Ref. No. Description Part No.

JACK CBA(MPW-2) Consists of the following:

CAPACITORS

C754 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C755 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 C757 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225 C758 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225

RESISTORS

R751 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R752 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R753 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R756 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R757 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R758 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R759 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R760 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R761 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393 R762 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393

MISCELLANEOUS

JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03 JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12 JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13 JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05

----------

INVERTER ASSEMBLY

Ref. No. Description Part No.

INVERTER ASSEMBLY Consists of the following:

INVERTER CBA

--------------------------------------------------------------------FUNCTION CBA IR SENSOR CBA JUNCTION CBA

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA Consists of the following:

CAPACITORS

C1001 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1002 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1003 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1004 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1005 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1006 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1007 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1008 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1009 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C1011 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1012 POLYESTER FILM CAP. (PB FREE) 0.0039µF/

C1013 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1014 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C1040 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474 C1050 CAP CERAMIC HV 4700pF/500V/B/K CCA472YNA001 C1051 CAP CERAMIC HV 4700pF/500V/B/K CCA472YNA001 C1052 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101 C1053 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101 C1056 ELECTROLYTIC CAP 100µF/100V CE2AMZNDL101 C1061 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1062 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1063 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1064 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1065 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1066 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1067 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1068 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1072 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1111 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1112 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1113 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1114 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1115 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1116 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1117 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1118 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1122 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1161 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1162 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1163 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1164 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1165 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1166 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1167 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1168 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1172 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1211 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1212 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

100V J

A01F0M1V-001

A01F0M1V-001-IV

---------------------------A01F0M1V-001-FNIRJN

----------

CA2A392DT018

20100205 14-6 A01F4EL

Ref. No. Description Part No.

C1213 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1214 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1215 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1216 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1217 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1218 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1222 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1500 CERAMIC CAP. 470pF/2KV CA3D471PAN04 C1502 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1550 CERAMIC CAP. 470pF/2KV CA3D471PAN04 C1552 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1600 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1620 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C1702 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224 C1703 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224 C1800 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C1801 ELECTROLYTIC CAP. 22µF/35V M CE1GMASDL220 C1802 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1905# SAFTY CAP. 2200pF/250V KX CA2E222MR101 C1910 CAP ELECTROLYTIC 270µF/200V CEA271DYG005 C1930 CERAMIC CAP. 820pF/2KV CA3D821PAN04 C1931# POLYESTER FILM CAP. (PB FREE) 0.001µF/

C1932 POLYESTER FILM CAP. (PB FREE) 0.027µF/

C1933 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT018

C1970 POLYESTER FILM CAP. (PB FREE) 0.047µF/

C1981 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C1982 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47 C1990 CAP CERAMIC HV 820pF/1KV B K CA3A821TE006 C1992# ELECTROLYTIC CAP 470µF/100V CE2AMZNDL471

100V J

CA2A102DT018

CA2A273DT018

CA2A473DT018

CONNECTORS

CN1001 FFC CONNECTOR 15P IMSA-9615S-15A-PP-A JC96J15ER007 CN1003 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007 CN1050# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1100# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1150# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1200# CONNECTOR/JACK 1747386-1 JB17J02AP002 CN1900# CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001

DIODES

D1000 DIODE ZENER 15BSB-T26 NDTB015BST26 D1001 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D1003 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1004 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D1005 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D1006 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1040 DIODE ZENER 36BSB-T26 NDTB036BST26 D1050 DIODE FR104-B NDLZ000FR104 D1051 DIODE FR104-B NDLZ000FR104 D1060 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1061 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1062 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1063 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1064 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1065 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1066 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1067 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1068 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1069 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1070 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1071 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1072 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D1073 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1074 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1110 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1111 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1112 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1113 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1114 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1115 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1116 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1117 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1118 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1119 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1120 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1121 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1122 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1123 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1124 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1160 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1161 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1162 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1163 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1164 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1165 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1166 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1167 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1168 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1169 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1170 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1171 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1172 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1173 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1174 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1213 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1214 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1215 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1216 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1217 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1218 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1219 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1220 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1221 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1222 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1223 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1224 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1500 DIODE ZENER 20BSB-T26 NDTB020BST26 D1550 DIODE ZENER 20BSB-T26 NDTB020BST26 D1630 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1700 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1701 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1702 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1703 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1801 DIODE ZENER 10BSB-T26 NDTB010BST26 D1802 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 D1930# DIODE ZENER 27BSB-T26 NDTB027BST26 D1931 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1932 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1933 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1934# DIODE ZENER 39BSB-T26 NDTB039BST26 D1970 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D1971 DIODE ZENER 33BSB-T26 NDTB033BST26

20100205 14-7 A01F4EL

Ref. No. Description Part No.

D1972 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1973 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1990 DIODE FAST RECOVERY 31DF4-FC QDWZ031DF4FC D1994 DIODE ZENER 1ZB100BB NDWZ001ZB100

ICS

IC1000 IC PULSE-WIDTH-MODULATION CONT

IC1700 IC BA10324AF-E2 QSZBA0TRM032 IC1930# PHOTO COUPLER LTV817MCF NPECLTV817MF IC1931# PHOTO COUPLER LTV817MCF NPECLTV817MF

TL494CDR

NSCA0T0TY006

TRANSISTORS

Q1001 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1003 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1004 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1005 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1060 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1061 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1110 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1111 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1160 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1161 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1210 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1211 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1500 FET MOS 2SK2417(FT) QFWZSK2417FT Q1501 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q1502 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q1503 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1550 FET MOS 2SK2417(FT) QFWZSK2417FT Q1551 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q1552 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q1553 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1600 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1621 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1800 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1801 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q1802 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1803 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1804 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1815 TRANSISTOR 2SA950-O (TE2 F T) QQS002SA950F Q1930# MOS FET TK7A50D QEWZTK7A50DQ Q1931# TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1932# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q1970 NPN TRANSISTOR KTC3200-GR-AT/P NQSGKTC3200P Q1971 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1972 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P

RESISTORS

R1001 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R1002 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1003 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1004 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1005 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001 R1006 RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001 R1007 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1008 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1009 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R1010 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1011 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R1012 CHIP RES. 1/10W F 24k Ω RRXAFR5H2402 R1013 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1014 CHIP RES. 1/10W F 4.7k Ω RRXAFR5H4701 R1015 CHIP RES. 1/10W F 7.50 k Ω RRXAFR5H7501 R1016 CHIP RES. 1/10W J 120k Ω RRXAJR5Z0124 R1017 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

Ref. No. Description Part No.

R1018 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1019 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R1021 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1022 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R1023 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301 R1024 CHIP RES. 1/10W F 100k Ω RRXAFR5H1003 R1026 CHIP RES. 1/10W F 220 Ω RRXAFR5H2200 R1028 CHIP RES. 1/10W F 36k Ω RRXAFR5H3602 R1030 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1031 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R1032 RES CARBON FILM T 1/4W J 24k Ω RCX4243T1001 R1033 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1034 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1035 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R1036 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1040 METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R1041 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1043 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1044 METAL OXIDE FILM RES. 2W J 0.39 Ω RN02R39ZU001 R1050 METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 R1051 METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 R1060 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1061 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1062 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1063 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1064 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1065 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1066 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1067 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1068 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1069 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1070 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1071 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1072 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1080 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R1081 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R1110 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1111 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1112 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1113 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1114 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1115 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1116 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1117 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1118 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1119 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1120 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1121 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1122 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1160 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1161 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1162 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1163 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1164 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1165 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1166 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1167 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1168 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1169 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1170 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1171 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1172 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1210 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

20100205 14-8 A01F4EL

Ref. No. Description Part No.

R1211 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1212 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1213 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1214 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1215 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1216 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1217 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203 R1218 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1219 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1220 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R1221 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1222 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105 R1500 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1501 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1502 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R1503 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1504 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1505 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1506 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1550 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1551 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R1552 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R1553 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1554 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1555 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1556 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1600 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183 R1601 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1620 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1621 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1630 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1631 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1700 CHIP RES. 1/10W F 9.1k Ω RRXAFR5H9101 R1701 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1800 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1801 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1802 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1803 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R1804 RES CARBON FILM T 1/4W J 1.2 Ω RCX41R2T1001 R1805 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R1806 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1807 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1808 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R1809 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R1810 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R1811 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R1812 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R1930 RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001 R1931 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R1932 RES CARBON FILM T 1/4W J 82 Ω RCX4820T1001 R1933 RES CARBON FILM T 1/4W J 82 Ω RCX4820T1001 R1934 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R1935 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R1936 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R1937# METAL OXIDE FILM RES. 2W J 0.33 Ω RN02R33ZU001 R1939 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1940 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001 R1941 RES CARBON FILM T 1/4W J 220k Ω RCX4224T1001 R1942 RES CARBON FILM T 1/4W J 120k Ω RCX4124T1001 R1943 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002 R1944 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002 R1945 RES CARBON FILM 1/4W J 390k Ω RCX4394FS002 R1967 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001

Ref. No. Description Part No.

R1968 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R1969 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R1970 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R1971 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R1972 CHIP RES. 1/10W J 68k Ω RRXAJR5Z0683 R1973 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1975 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1976 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R1977 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702 R1979 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801 R1980 CHIP RES. 1/10W F 360 Ω RRXAFR5H3600 R1981 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1982 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272 R1983 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1984 RES CARBON FILM T 1/4W J 15k Ω RCX4153T1001 R1986 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1987 RES CARBON FILM T 1/4W J 820k Ω RCX4824T1001 R1988 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R1989 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002 R1990 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002 R1991 RES CARBON FILM 1/4W J 330k Ω RCX4334FS002

MISCELLANEOUS

B13 HEAT SINK PNA A94F0UH 1EM428121 B14 HEAT SINK PNB ASSEMBLY A94F0UH 1EM428123 BC1301 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 BC1500 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020 BC1501 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020 BC1550 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020 BC1551 COIL BEADS CORE FBR07VA850TB-00 LLBF00ZTU020 BC1930 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC1931 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 T1050# TRANS INVERTER HVT-153 LTZ3PZ0XB009 T1100# TRANS INVERTER HVT-153 LTZ3PZ0XB009 T1150# TRANS INVERTER HVT-153 LTZ3PZ0XB009 T1200# TRANS INVERTER HVT-153 LTZ3PZ0XB009 T1950# TRANS POWER BCK-28-9919 LTT2PC0XB051

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

CAPACITOR

C108 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

RESISTORS

R108 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R109 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002 R111 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R112 RES CARBON FILM T 1/4W G 2.7k Ω RCX4272T1002 R113 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R114 RES CARBON FILM T 1/4W G 8.2k Ω RCX4822T1002 R115 RES CARBON FILM T 1/4W G 18k Ω RCX4183T1002

SWITCHES

SW101A TACT SWITCH SKHHLMA010 SST0101AL049 SW103A TACT SWITCH SKHHLMA010 SST0101AL049 SW104A TACT SWITCH SKHHLMA010 SST0101AL049 SW105A TACT SWITCH SKHHLMA010 SST0101AL049 SW106A TACT SWITCH SKHHLMA010 SST0101AL049 SW107A TACT SWITCH SKHHLMA010 SST0101AL049

----------

20100205 14-9 A01F4EL

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA Consists of the following:

----------

CAPACITORS

C113 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C115 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

DIODES

D104 LED GREEN 333GT/E(FNA) NPWZ33GTEFNA D105 LED L-53HT NP4Z000L53HT

RESISTORS

R123 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R124 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R126 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R127 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R128 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

MISCELLANEOUS

CL101 WIRE ASSEMBLY 8P 8PIN/170MM WX1A94F0-001 CL103 WIRE ASSEMBLY 4P 4PIN/250MM WX1A94F0-003 RS102 SENSOR REMOTE RECEIVER KSM-712TH2E USESJRSKK044

JUNCTION CBA

Ref. No. Description Part No.

JUNCTION CBA Consists of the following:

CONNECTOR

CN101 242 SERIES CONNECTOR TUC-P08X-B1 WHT STJCTUB08TG002

----------

20100205 14-10 A01F4EL

PARTS LIST [LC320SL1]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

A1 FRONT CABINET A91F3UH 1EM023528A A10# RATING LABEL A01F3UH ---------L16 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

S1 CARTON A01F3UH 1EM430757 S5 SERIAL NO. LABEL A01PBUH ---------X2# OWNERS MANUAL A01F3UH 1EMN25719 X6 QUICK START GUIDE A01F3UH 1EMN25723 X10 REGISTRATION CARD (SYLVANIA) A94F1UH 1EMN24700

20100303 14-11 A01F3CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01F4MMA-003

20100303 14-12 A01F3EL

PARTS LIST [32MF330B/F7]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

STAND ASSEMBLY A91F0UH 1ESA19880 A1 FRONT CABINET A91F0UH 1EM023625 A10# RATING LABEL A01F0UH ---------A12 POP LABEL A01F0UH ---------A15 Not used A2 CONTROL PLATE A91F0UH 1EM325799 A5 DECORATION PLATE A01F0UH 1EM124474 A7 STAND COVER A94F0UH 1EM023407 L16 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

S1 CARTON A01F0UH 1EM430959 S5 SERIAL NO. LABEL A01PBUH ---------S9 STAND HOLD PAD A94F0UH 1EM023745 X2# OWNERS MANUAL A01F0UH 1EMN25839 X3 REMOTE CONTROL NF804UD NF804UD X6 QUICK START GUIDE A01F0UH 1EMN25840 X8 CHILD SAFETY SHEET A94F0UH 1EMN24439 X10 REGISTRATION CARD (MAGNAVOX)

A94F0UH

1EMN24699

20100303 14-13 A01F0CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01F0MMA-001

MPW CBA Consists of the following:

POWER SUPPLY CBA(MPW-1) JACK CBA(MPW-2)

POWER SUPPLY CBA ---------C835 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C837 CHIP CERAMIC CAP.(1608) B K 2700pF/50V CHD1JK30B272 C875 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 C876 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271 R814 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R816 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R879 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R880 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

A01F0MPWS001

A01F0MPWS001-PW A01F0MPWS001-JK

20100303 14-14 A01F0EL

PARTS LIST [LC320EM1 (Serial No. : DS2A)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

A10# RATING LABEL A01FAUH ---------CL201 WIRE ASSEMBLY 15PIN FFC 15PIN 140MM WX1A01F4-102 CL1003 WIRE ASSEMBLY 11PIN FFC 11PIN 129MM WX1A01F4-101 L16 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

LCD1 LCD MODULE IPS ALPHA 6BIT UJ32AXA S5 SERIAL NO. LABEL A01PBUH ---------X2# OWNERS MANUAL A01F4UH 1EMN25720A

20100401 14-15 A01FACA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01FAMMA-001

MPW CBA Consists of the following:

POWER SUPPLY CBA(MPW-1) JACK CBA(MPW-2)

POWER SUPPLY CBA ---------D205 DIODE ZENER 33BSA-T26 NDTA033BST26 D210 DIODE ZENER 5V1BSB-T26 NDTB5R1BST26 D406 DIODE ZENER 27BSB-T26 NDTB027BST26 D644 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 R204 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R228 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R229 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R232 CHIP RES. 1/10W F 9.1k Ω RRXAFR5H9101 R233 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R235 RES CARBON FILM T 1/4W J 68 Ω RCX4680T1001 R236 WIRE COPPER 6111-06003-0120 XZ40C0SHG002 R238 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R243 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R412 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R501 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R686 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R689 RES CARBON FILM T 1/4W J 560 Ω RCX4561T1001 T601# TRANS POWER BCK-28-9900 LTT2PC0XB063

A01FAMPWS001

A01FAMPWS001-PW A01FAMPWS001-JK

20100401 14-16 A01FAEL

PARTS LIST [LC320EM1 (Serial No. : DS6A)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

A10# RATING LABEL A01FJUH ---------L16 SCREW TAP TIGHT M3X10 BIND HEAD+BLK NIGBHS3100

S5 SERIAL NO. LABEL A01PBUH ---------X2# OWNERS MANUAL A01F4UH 1EMN25720A

20100413 14-17 A01FJCA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model LC320EM1 (Serial No. : DS1A)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A01FJMMA-002

20100413 14-18 A01FJEL

REVISION HISTORY

Chassis FL10.3

• 2010-02-16 LC320EM1 (Serial No. : DS1A) added

• 2010-03-12 LC320SL1 added

• 2010-03-12 32MF330B/F7 added

• 2010-04-23 LC320EM1 (Serial No. : DS2A) added

• 2010-04-23 LC320EM1 (Serial No. : DS6A) added

• TBD LC320EM1 (Serial No. : DS3A) added

• TBD LC320EM1 (Serial No. : DS5A) added

• TBD LC320SS1 added

• TBD 32MF360B/F7 added

• TBD LC320EM1 (Serial No. : DS4A) added

15-1 FL10.3REV

Emerson LC320EM1, LC320SL1, 32MF330B/F7, LC320SS1, 32MF360B/F7 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
