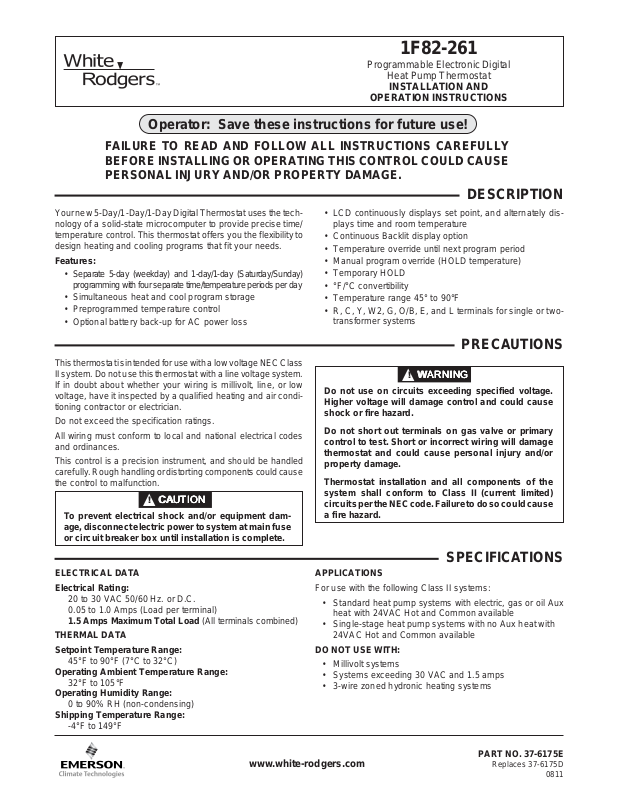

1F82-261
Programmable Electronic Digital
Heat Pump Thermostat
INSTALLATION AND
OPERATION INSTRUCTIONS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
DESCRIPTION
Your new 5-Day/1-Day/1-Day Digital Thermostat uses the technology of a solid-state microcomputer to provide precise time/
temperature control. This thermostat offers you the flexibility to
design heating and cooling programs that fit your needs.
Features:
• Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday)
programming with four separate time/temperature periods per day
• Simultaneous heat and cool program storage
• Preprogrammed temperature control
• Optional battery back-up for AC power loss
This thermostat is intended for use with a low voltage NEC Class
II system. Do not use this thermostat with a line voltage system.
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air conditioning contractor or electrician.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical codes
and ordinances.
This control is a precision instrument, and should be handled
carefully. Rough handling or distorting components could cause
the control to malfunction.
CACA
UTIONUTION
!
CA
UTION
CACA
UTIONUTION
▲
To prevent electrical shock and/or equipment damage, disconnect electric power to system at main fuse
or circuit breaker box until installation is complete.
• LCD continuously displays set point, and alternately displays time and room temperature
• Continuous Backlit display option
• Temperature override until next program period
• Manual program override (HOLD temperature)
• Temporary HOLD
• °F/°C convertibility
• Temperature range 45° to 90°F
• R, C, Y, W2, G, O/B, E, and L terminals for single or twotransformer systems
PRECAUTIONS
WW
ARNINGARNING
!
W
ARNING
WW
ARNINGARNING
▲
Do not use on circuits exceeding specified voltage.
Higher voltage will damage control and could cause
shock or fire hazard.
Do not short out terminals on gas valve or primary
control to test. Short or incorrect wiring will damage
thermostat and could cause personal injury and/or
property damage.
Thermostat installation and all components of the
system shall conform to Class II (current limited)
circuits per the NEC code. Failure to do so could cause
a fire hazard.
ELECTRICAL DATA
Electrical Rating:
20 to 30 VAC 50/60 Hz. or D.C.
0.05 to 1.0 Amps (Load per terminal)
1.5 Amps Maximum Total Load (All terminals combined)
THERMAL DATA
Setpoint Temperature Range:
45°F to 90°F (7°C to 32°C)
Operating Ambient Temperature Range:
32°F to 105°F
Operating Humidity Range:
0 to 90% RH (non-condensing)
Shipping Temperature Range:
-4°F to 149°F
www.white-rodgers.com
SPECIFICATIONS
APPLICATIONS
For use with the following Class II systems:
• Standard heat pump systems with electric, gas or oil Aux
heat with 24VAC Hot and Common available
• Single-stage heat pump systems with no Aux heat with
24VAC Hot and Common available
DO NOT USE WITH:
• Millivolt systems
• Systems exceeding 30 VAC and 1.5 amps
• 3-wire zoned hydronic heating systems
PART NO. 37-6175E
Replaces 37-6175D
0811
INSTALLATION
REMOVE OLD THERMOSTAT
1. Shut off electricity at the main fuse box until installation is
complete. Ensure that electrical power is disconnected.
2. Remove the front cover of the old thermostat. With wires
still attached, remove wall plate from the wall. If the old
thermostat has a wall mounting plate, remove the thermostat and the wall mounting plate as an assembly.
3. Identify each wire attached to the old thermostat using
the labels enclosed with the new thermostat.
4. Disconnect the wires from old thermostat one at a time. DO
NOT LET WIRES FALL BACK INTO THE WALL.
5. Install new thermostat using the following procedures.
ATTENTION!
This product does not contain mercury. However, this product
may replace a unit which contains mercury.
Do not open mercury cells. If a cell becomes damaged, do not
touch any spilled mercury. Wearing nonabsorbent gloves, take
up the spilled mercury and place into a container which can be
sealed. If a cell becomes damaged, the unit should be discarded.
Mercury must not be discarded in household trash. When the
unit this product is replacing is to be discarded, place in a
suitable container. Refer to www.white-rodgers.com for location to send the product containing mercury.
ATTACH THERMOSTAT BASE TO WALL
1. Remove the packing material from the thermostat. Gently pull
the cover straight off the base. Forcing or prying on the
thermostat will cause damage to the unit.
2. Connect wires beneath terminal screws on base using
appropriate wiring schematic (see figs. 2 through 4).
3. Place base over hole in wall and mark mounting hole
locations on wall using base as a template.
4. Move base out of the way. Drill mounting holes.
5. Fasten base loosely to wall, as shown in fig. 1, using two
mounting screws. Place a level against bottom of base,
adjust until level, and then tighten screws. (Leveling is for
appearance only and will not affect thermostat operation.) If
you are using existing mounting holes, or if holes drilled are
too large and do not allow you to tighten base snugly, use
plastic screw anchors to secure subbase.
6. Push excess wire into wall and plug hole with a fire-resistant
material (such as fiberglass insulation) to prevent drafts
from affecting thermostat operation.
ELECTRIC/GAS JUMPER (Fan Option)
Read the following information before clipping the nonelectric
heat jumper. If you are unsure of your application, contact a
qualified service person.
If your emergency or auxiliary system will energize the blower,
then jumper, W904, on the thermostat base must be cut (see
fig. 1).
If your emergency or auxiliary heat system requires that the
thermostat energize the fan circuit, do not cut jumper W904.
OPTIONAL BATTERIES
With two "AA" batteries installed, your thermostat will maintain
time and continuously display the temperature during a loss of
Optional (2) "AA" batteries
Screw anchors
O/B
0
4
Mounting
hole
switch
Mounting
hole
(below Fan switch)
Reset switch
W904
Electric/Gas
jumper
W
9
Figure 1. Thermostat Base
AC power. Installed batteries will also allow programming prior
to installation. For best results, use new premium brand
batteries such as Duracell® or Energizer®.
ENERGY MANAGEMENT RECOVERY
(EMR)
When the EMR feature is activated the thermostat's microcomputer calculates the time it will take to change the room
temperature to the next heat or cool program setting. Then the
thermostat will start the system before the next programmed
period so that the desired temperature is reached at or near the
beginning of the period (the thermostat calculates 15 minutes
for every 1°F temperature change). This minimizes the use of
auxiliary stages during the transition period to reduce energy
costs.
For example: The thermostat is programmed to provide an
overnight heating temperature of 66°F, and during the next
program period, beginning at 6:00 AM, the programmed temperature is 70°F. With EMR activated, the thermostat will
automatically start the heating system at 5:00 AM, so that the
programmed temperature of 70°F is reached by about 6:00 AM.
If the overnight room temperature drops only to 68F°, the
thermostat will start the system at 5:30 to reach the programmed
temperature of 70°F at 6:00.
The thermostat is shipped with the EMR feature active, which
means that the thermostat will start the heating system before
the beginning of the next program period. This feature provides
better efficiency by allowing gradual temperature changes
using only the first stage of heat.
To deactivate the EMR function, see the Configuration menu
on Page 5). The thermostat will then wait until the programmed
time to start the system for a temperature change.
O/B TERMINAL SWITCH SELECTION
The O/B switch on this thermostat is factory set to the “O”
position. This will accommodate the majority of heat pump
applications, which require the changeover relay to be energized in COOL. If the thermostat you are replacing or the heat
pump being installed with this thermostat requires a “B” terminal, to energize the changeover relay in HEAT, the O/B switch
must be moved to the “B” position.
2
G W2
Aux
Relay
See Note **
Emergency
Changeover
Relay*
Compressor
Contactor
* Changeover Relay is energized in COOL when O/B switch is in the “O” position
Changeover Relay is energized in HEAT when O/B switch is in the “B” position
Fan
Relay
(Stage 2)
** Jumper required to use a single Aux Heat for both Second Stage Heat and Emergency
Figure 2. Typical wiring diagram for single transformer systems
NOTE
If safety circuits are in
only one of the systems,
remove the transformer
of the system with NO
safety circuits.
CUT AND
TAPE OFF!
HOT
120 VAC
NEUTRAL
* Changeover Relay is energized in COOL when O/B switch is in the “O” position
Changeover Relay is energized in HEAT when O/B switch is in the “B” position
** Jumper required to use a single Aux Heat for both Second Stage Heat and Emergency
24 VAC
Changeover
Relay*
Compressor
Contactor
Figure 3. Typical wiring diagram for two transformer systems with NO safety circuits
G W2
Fan
Relay
See Note **
Emergency
Aux
Relay
(Stage 2)
TWO COMMONS MUST
BE JUMPERED TOGETHER!
E
Relay
E
Relay
CYO/B
CYO/B
SYSTEM
MONITOR
SWITCH
SYSTEM
MONITOR
SWITCH
L
THERMOSTAT
R
SYSTEM
24 VAC
TRANSFORMER
(Class II Current Limited)
L
THERMOSTAT
R
Limit or
Safety
Switches
24 VAC
(Class II Current Limited)
120 VAC
Neutral
SYSTEM
TRANSFORMER
Hot
Hot
120 VAC
Neutral
G W2
See Note **
Changeover
Relay*
Compressor
Contactor
* Changeover Relay is energized in COOL when O/B switch is in the “O” position
Changeover Relay is energized in HEAT when O/B switch is in the “B” position
** Jumper required to use a single Aux Heat for both Second Stage Heat and Emergency
Fan
Relay
Aux
Relay
(Stage 2)
E
CYO/B
Emergency
Relay
TWO COMMONS MUST
BE JUMPERED TOGETHER!
SYSTEM
MONITOR
SWITCH
Figure 4. Typical wiring diagram for two transformer systems with safety circuits in BOTH systems
L
R
COMMON
Limit or
Switches
Limit or
Safety
Switches
Polarity must be observed. If the HOT side of
NOTE
the second transformer is jumpered to the
COMMON side of the first transformer a short
will be made. Damage to equipment will occur
when power is restored.
THERMOSTAT
Safety
ACCESSORY
RELAY N.O.
24 VAC
24 VAC
CONTACT
COMMON
Current Limited)
24 VAC 120 VAC
Heat Pump Transformer
(Class II Current Limited)
SYSTEM
Auxiliary
Heating
Transformer
(Class II
120 VAC
Limit or
Safety
Switches
NOTE
The accessory relay scheme
is required when safety
circuits exist in both systems.
Limit or
Safety
Switches
NEUTRAL
HOT
NEUTRAL
HOT
3
CHECK THERMOSTAT OPERATION
If at any time during testing your system does not operate
properly, contact a qualified service person.
Turn on power to the system.
Fan Operation
If your system does not have a G terminal connection, skip to
Heating System.
1. Move fan switch to ON position. The blower should begin to
operate.
2. Move fan switch to AUTO position. The blower should stop
immediately.
Heating System
1. Move SYSTEM switch to HEAT position. If the auxiliary
heating system has a standing pilot, be sure to light it.
2. Press
temperature. The Heat Pump system should begin to operate. However, if the Flame icon (
are flashing, the compressor lockout feature is operating
(see Configuration menu, item 7).
3. Adjust temperature setting to 4° above room temperature.
The auxiliary heat system should begin to operate and the
Flame icon will be flashing.
4. Press to adjust temperature setting below room temperature. The heating system should stop operating.
to adjust thermostat setting to 1° above room
) and Snowflake icon ( )
Emergency System
EMER bypasses the Heat Pump to use the heat source wired to
terminal E on the thermostat. EMER is typically used when
compressor operation is not desired, or you prefer back-up heat
only.
1. Move SYSTEM switch to EMER position, EMER will flash on
the display.
2. Press
ture. The Aux heating system will begin to operate. The
Flame icon (
system is operating.
3. Press to adjust the thermostat below room temperature. The Aux heating system should stop operating.
to adjust the thermostat above room tempera-
)will display flashing to indicate that the Aux
Cooling System
CACA
UTIONUTION
!
CA
UTION
CACA
UTIONUTION
▲
To prevent compressor and/or property damage, if the
outdoor temperature is below 50°F, DO NOT operate
the cooling system.
1. Move SYSTEM switch to COOL position.
2. Press
ture. The blower should come on immediately on high
speed, followed by cold air circulation
3. Press to adjust temperature setting above room temperature. The cooling system should stop operating.
to adjust thermostat setting below room tempera-
OPERATION
Before you begin programming your thermostat, you should be
familiar with its features and with the display and the location
and operation of the thermostat buttons. Your thermostat consists of two parts: the thermostat cover and the base. To
remove the cover, pull it straight out from the base. To replace
the cover, line up the cover with the base and press until the
cover snaps onto the base.
THE THERMOSTAT BASE
Other than and , the following buttons and switches are
located on the bottom of the thermostat cover (see fig. 5).
The Thermostat Buttons and Switches
1
Raises temperature setting.
Lowers temperature setting.
2
3
TIME button.
PRGM (program) button.
4
5
RUN (program) button.
6
HOLD temperature button.
CACA
UTIONUTION
!
CA
UTION
CACA
UTIONUTION
▲
Do not allow the compressor to run unless the compressor oil heaters have been operational for 6 hours
and the system has not been operational for at least 5
minutes.
1
2
FAN
TIME PRGM RUN HOLD
Fltr
ON AUTO COOL
3 4 5 6 7
9
MO TU WETH FR
FLTR
13 13
Figure 5. Thermostat display, buttons, and switches
AM
11 1416 121511
OFF HEAT
EMER
8
SA MALF
EMERHOLD
9
10
SU
PM
7
FAN switch (ON, AUTO).
SYSTEM switch (COOL, OFF, HEAT, EMER).
8
4
The Display
Press HOLD to change to the next menu item or press TIME to
go backwards to the previous item in the menu. To exit the menu
9
Indicates day of the week.
and return to the program operation, press RUN. If no keys are
pressed within fifteen minutes, the thermostat will revert to
10
Indicates a malfunction with the system.
11
Flame icon ( ) is displayed when the SYSTEM switch is in
the HEAT position. Flame icon (
) is displayed flashing
when 2nd-stage heat (Aux or Emergency) is energized.
Snowflake icon (
) is displayed (non-flashing) when the
SYSTEM switch is in the COOL position. Snowflake and
Flame are displayed (flashing) if the thermostat is in lockout
mode to prevent the compressor from cycling too quickly.
normal operation.
1) Select Temporary Hold Time - The thermostat can hold
any temperature you set it to for the amount of time you
select on this option. Your choices are 0:00 to 8:00 hours in
15 minute increments. 0:00 disables the function
Example: Using the Temporary Hold Function
1. You have selected 3:00 hours for the Temporary Hold
time period.
2. With the thermostat set to Heat or Cool, press HOLD for
EMER is displayed flashing when the system switch is in
12
EMER position.
13
Alternately displays current time and temperature.
14
The word HOLD is displayed when the thermostat is in the
HOLD mode. HOLD is displayed flashing when the thermo-
stat is in a temporary HOLD Mode.
15
Displays currently programmed set temperature (this is
blank when SYSTEM switch is in the OFF position).
five seconds (time will show 3:00 hours as a setting
reminder).
3. HOLD on the display will blink. Release the HOLD
button after the temporary hold time is displayed.
4. Use or to set the temperature to your preference. The thermostat will maintain this temperature
setting for 3 hours with HOLD blinking to remind you it is
in Temporary Hold. After 3 hours the thermostat will go
back to the program temperature and HOLD will no
longer blink or display.
2) Select FA or SL (Fast or Slow) Heat Pump stage Cycle
16
Displays FLTR when the system has run for the programmed filter time period as a reminder to change or clean
your air filter.
Rate - The FA setting is used to produce shorter heating
cycles. The SL setting produces a longer heating/cooling
cycle. Both settings produce very accurate temperature
control and can be set to your personal preference. FA
CONFIGURATION MENU
The configuration menu allows you to set certain thermostat
operating characteristics to your system or personal requirements.
Press RUN to make sure the thermostat is in the run program
mode, then press PRGM and RUN at the same time to enter the
configuration menu. The display will show the first item in the
configuration menu.
cycles the system just under .75°F and the SL setting
cycles at approximately 1.2°F.
3) Select FA or SL (Fast or Slow) Auxiliary or Emergency
Cycle Rate - The FA setting is frequently used for gas, oil
or electric heat. The SL setting produces a longer heating
cycle. Both settings produce very accurate temperature
control and can be set to your personal preference. FA
cycles the system just under .6°F and the SL setting cycles
at approximately 1.°F.
The configuration menu chart summarizes the configuration
options. An explanation of each option follows.
Configuration Menu
Step Press Button(s) Displayed (Factory Default) Press or to select: COMMENTS
1
2
3
4
5
6
7
8
9
10
11
* Press
PRGM
and RUN
HOLD
*
*
HOLD
HOLD
*
HOLD
*
HOLD
*
HOLD
*
HOLD
*
HOLD
*
HOLD
*
RUN
HOLD to advance to next item or TIME to move backwards to previous item
HOLD
(0:00)
(SL)
EMER
(FA)
d-L
(on)
E
(on)
Filter
(000)
LOC
(OFF)
0 HI
(0)
(F) C
FA
(on)
0 to 8 hrs (in
15 minute increments)
FA
SL
OFF
OFF
0 to 1950 hours
(in 50 hour increments)
on
4 LO to
4 HI
OFF
5
Select temporary Hold time
Select FA or SL (Fast or Slow) pump cycle rate
Select FA or SL (Fast or Slow) Auxiliary and
Emergency Aux heating cycle rate
Select display backlight OFF or ON
Select Energy Management Recovery OFF or ON
Select filter replacement run time
Select Compressor lockout OFF or ON
Select temperature display adjustment higher or lower
Select temperature display to F or C
Select fast second stage ON or OFF
Returns to normal operation
4) Select backlit display - The display backlight improves
display contrast in low lighting conditions. Selecting backlight ON will keep the light on continuously. Selecting OFF
will keep the light off.
5) Select Energy Management Recovery OFF or ON Energy Management Recovery (EMR) causes the thermostat to start heating or cooling early to make the building
temperature reach the program setpoint at the time you
specify.
6) Select filter replacement run time - The thermostat will
display FLTR after a set time of operation. This is a
reminder to change or clean your air filter. This time can be
set from 0 to 1950 hours in 50 hour increments. A selection
of 000 will cancel this feature. When FLTR is displayed,
you can clear it by pressing HOLD and RUN at the same
time. This resets the timer and starts counting the hours
until the next filter change. Contact your heat pump manufacturer for a specific replacement/maintenance interval.
7) Select Compressor Lockout LOC OFF or ON - Selecting
LOC ON will cause the thermostat to wait 5 minutes before
turning on the compressor if the heating and cooling system loses power. It will also wait 5 minutes minimum
between cooling or heating cycles. This is intended to help
protect the compressor from short cycling. Some newer
compressors already have a time delay built in and do not
require this feature. Your compressor manufacturer can tell
you if the lockout feature is already present in their system.
When the thermostat compressor time delay occurs it will
flash the Snowflake and Flame icons for about five minutes.
8) Select Temperature Display Adjustment 4 LO to 4 HI Allows you to adjust the room temperature display up to 4°
higher or lower. Your thermostat was accurately calibrated
at the factory but you have the option to change the display
temperature to match your previous thermostat. The current or adjusted room temperature will be displayed on the
right side of the display.
9) Select F° or C° Readout - Changes the display readout to
Celsius or Fahrenheit as required. The current room temperature will be displayed on the right side of the display.
10) Select Fast second stage - In the RUN mode, if the
temperature is manually raised by 3°F ( 2°C) or more above
room temperature using
and the fast second stage
feature is enabled, FA on, the second stage will energize
immediately. With FA off, the second stage will not energize
until the setpoint temperature is 10°F or more above room
temperature.
MANUAL OPERATION
• HOLD TEMPERATURE — With the SYSTEM switch set to
HEAT or COOL, momentarily press HOLD button. HOLD
will be displayed. Use or to adjust the temperature.
The thermostat will hold the room temperature at the
selected setting until you press RUN button to start program operation again.
• TEMPERATURE OVERRIDE — Press
or until the
temperature you want is displayed. The thermostat will
override current programming and keep the room temperature at the selected temperature until the next program
period begins. Then the thermostat will automatically revert
to the program.
• TEMPORARY HOLD TEMPERATURE — The thermostat
can hold any temperature within its range for the length of
time selected in the configuration menu. See Configuration
Menu section, step 1.
PROGRAMMING YOUR THERMOSTAT
This section will help you plan your thermostat’s program to
meet your needs. For maximum comfort and efficiency, keep
the following guidelines in mind when planning your program.
• When heating (cooling) your building, program the temperatures to be cooler (warmer) when the building is vacant
or during periods of low activity.
• During early morning hours, the need for cooling is usually
minimal.
Planning Your Program
Look at the factory preprogrammed times and temperatures
shown in the sample schedule. If this program will suit your
needs, simply press the RUN button to begin running the factory
preset program.
If you want to change the preprogrammed times and temperatures, follow these steps.
Determine the time periods and temperatures for your program.
You must program four periods for each day. However, you may
use the same heating and cooling temperatures for consecutive
time periods. You can choose start times, heating temperatures, and cooling temperatures independently (for example,
you may select 5:00 AM and 70° as the weekday 1st period
heating start time and temperature, and also choose 7:00 AM
and 76° as the weekday 1st period cooling start time and
temperature).
70°F
62°F
70°F
62°F
78°F
85°F
78°F
82°F
SAMPLE
SATURDAY
Start
Time Temp
6:00 AM
8:00 AM
5:00 PM
10:00 PM
6:00 AM
8:00 AM
5:00 PM
10:00 PM
(1 Day)
70°F
62°F
70°F
62°F
78°F
85°F
78°F
82°F
Heating/Cooling Schedule Plan (Factory Program)
WEEKDAYS
(5 Day)
Period
1ST
2ND
3RD
HEAT
4TH
1ST
2ND
COOL
3RD
4TH
Start
Time Temp
6:00 AM
8:00 AM
5:00 PM
10:00 PM
6:00 AM
8:00 AM
5:00 PM
10:00 PM
SUNDAY
(1 Day)
Start
Time Temp
6:00 AM
8:00 AM
5:00 PM
10:00 PM
6:00 AM
8:00 AM
5:00 PM
10:00 PM
70°F
62°F
70°F
62°F
78°F
85°F
78°F
82°F
Heating/Cooling Schedule Plan
SUNDAY
(1 Day)
Start
Time Temp
Period
1ST
2ND
3RD
HEAT
4TH
1ST
2ND
COOL
3RD
4TH
WEEKDAYS
(5 Day)
Start
Time Temp
SATURDAY
(1 Day)
Start
Time Temp
6
Use the table to plan your program time periods and the
temperatures you want during each period. Fill in the complete
table to have a record of your programs.
Entering Your Program
Set Current Time and Day
1. Press TIME button once. The display will show the hour only.
EXAMPLE:
2. Press and hold either or until you reach the correct
hour and AM/PM designation (AM begins at midnight; PM
begins at noon).
3. Press TIME once again. The display window will show the
minutes only.
EXAMPLE:
4. Press and hold either or until you reach the correct
minutes.
5. Press TIME once again. The display will show the day of the
week.
6. Press
7. Press RUN once. The display will show the correct time and
room temperature alternately.
or until you reach the current day of the week.
Enter Heating Program
1. Move the SYSTEM switch to HEAT.
2. Press PRGM once. “MO TU WE TH FR” (indicating weekday
program) will appear in the display. Also displayed are the
currently programmed start time for the 1st heating period
and the currently programmed temperature (flashing).
MO TUWE TH FR
EXAMPLE:
This display window shows that for the 1st weekday period,
the start time is 6:00 AM, and 68° is the programmed
temperature (this example reflects factory preprogramming).
3. Press
your selected temperature for the 1st heating program
period.
4. Press TIME once (the programmed time will flash). Press
change in 15 minute increments. When your selected time
is displayed, press TIME again to return to the change
temperature mode.
5. Press PRGM once. The currently programmed start time
and setpoint temperature for the 2nd heating program
period will appear.
or to change the displayed temperature to
or until your selected time appears. The time will
PM
AM
6. Repeat steps 3 and 4 to select the start time and heating
temperature for the 2nd heating program period.
7. Repeat steps 3 through 5 for the 3rd and 4th heating
program periods.
8. Press PRGM once. “SA” (indicating Saturday program) will
appear in the display, along with the start time for the 1st
heating period and the currently programmed temperature.
9. Repeat steps 3 through 7 to complete Saturday heating
programming.
9. Press PRGM once to change to SU (Sunday) heating
programming and repeat steps 3 through 7 to complete
Sunday programming.
11.When you have completed entering your heating program,
press RUN.
Enter Cooling Program
CACA
UTIONUTION
CA
UTION
!
CACA
UTIONUTION
▲
If the outside temperature is below 50°F, disconnect
power to the cooling system before programming.
Energizing the air conditioner compressor during
cold weather may cause personal injury or property
damage.
1. Move SYSTEM switch to COOL position.
2. Follow Enter Heating Program for entering your cooling
program, using your selected cooling times and temperatures.
CHECK YOUR PROGRAMMING
Follow these steps to check your thermostat programming one
final time before beginning thermostat operation.
1. Move SYSTEM switch to HEAT position.
2. Press PRGM to view the 1st weekday heating period time
and temperature. Each time you press PRGM, the next
heating period time and temperature will be displayed in
sequence for weekday, then Saturday and Sunday program
periods (you may change any time or temperature during
this procedure).
3. Press RUN.
4. Move SYSTEM switch to COOL position.
5. Repeat step 2 to check cooling program.
6. Move SYSTEM switch to HEAT or COOL and press RUN to
begin program operation.
NOTE: Batteries are not required to keep your programming or
menu data. With two optional “AA” batteries installed, your
thermostat will maintain time and continuously display the
temperature during a loss of AC power. Installed batteries
will also allow programming prior to installation.
YOUR THERMOSTAT IS NOW PROGRAMMED AND READY TO
PROVIDE MAXIMUM COMFORT AND EFFICIENCY!
White-Rodgers is a division
of Emerson Electric Co.
www.white-rodgers.com
HOMEOWNER HELP LINEHOMEOWNER HELP LINE
HOMEOWNER HELP LINE
HOMEOWNER HELP LINEHOMEOWNER HELP LINE
7
: 1-800-284-2925: 1-800-284-2925
: 1-800-284-2925
: 1-800-284-2925: 1-800-284-2925
The Emerson logo is a
trademark and a service mark
of Emerson Electric Co.
TROUBLESHOOTING
Reset Operation
If a voltage spike or static discharge blanks out the display or
causes erratic thermostat operation, reset the thermostat by
Symptom Possible Cause Corrective Action
No HeaNo Hea
t/No Cool/No Ft/No Cool/No F
No Hea
t/No Cool/No F
No HeaNo Hea
t/No Cool/No Ft/No Cool/No F
(common problems)(common problems)
(common problems) 2. Furnace power switch to OFF. Turn switch to ON.
(common problems)(common problems)
No HeaNo Hea
tt
No Hea
t 1. System Switch not set to Heat. Set System Switch to Heat and raise setpoint
No HeaNo Hea
tt
No CoolNo Cool
No Cool 1. System Switch not set to Cool. Set System Switch to Cool and lower setpoint
No CoolNo Cool
Heat, Cool or Fan Runs Constantly.Heat, Cool or Fan Runs Constantly.
Heat, Cool or Fan Runs Constantly. 1. Possible short in wiring. Check each wire connection to verify they are
Heat, Cool or Fan Runs Constantly.Heat, Cool or Fan Runs Constantly.
Furnace Cycles Too Fast or Too SlowFurnace Cycles Too Fast or Too Slow
Furnace Cycles Too Fast or Too Slow 1. The location of the thermostat and/or the size Item 2 in the Configuration Menu is the adjustment
Furnace Cycles Too Fast or Too SlowFurnace Cycles Too Fast or Too Slow
(narrow or wide temperature swing)(narrow or wide temperature swing)
(narrow or wide temperature swing) of the Heating System may be influencing the that controls the cycle rate. If an acceptable cycle
(narrow or wide temperature swing)(narrow or wide temperature swing)
Cooling Cycles Too Fast or Too SlowCooling Cycles Too Fast or Too Slow
Cooling Cycles Too Fast or Too Slow 1. The location of the thermostat and/or the size The cycle rate for cooling is fixed and can not be
Cooling Cycles Too Fast or Too SlowCooling Cycles Too Fast or Too Slow
(narrow or wide temperature swing)(narrow or wide temperature swing)
(narrow or wide temperature swing) of the Cooling System may be influencing the adjusted. Contact a local service person for
(narrow or wide temperature swing)(narrow or wide temperature swing)
Thermostat Setting and ThermometerThermostat Setting and Thermometer
Thermostat Setting and Thermometer 1. Thermostat thermometer setting requires The thermometer can be adjusted +/- 4 degrees as
Thermostat Setting and ThermometerThermostat Setting and Thermometer
DisagreeDisagree
Disagree adjustment. listed in item 8 of the Configuration Menu. No other
DisagreeDisagree
Clock Loses or Gains TimeClock Loses or Gains Time
Clock Loses or Gains Time 1. Loss of power to thermostat. The thermostat will maintain its program in memory
Clock Loses or Gains TimeClock Loses or Gains Time
Heat or Cool Starts EarlyHeat or Cool Starts Early
Heat or Cool Starts Early 1. EMR activated See Configuration Menu (Item 5).
Heat or Cool Starts EarlyHeat or Cool Starts Early
Thermostat Does Not Follow ProgramThermostat Does Not Follow Program
Thermostat Does Not Follow Program 1. AM or PM set incorrectly in program. Check current clock and program settings including
Thermostat Does Not Follow ProgramThermostat Does Not Follow Program
Blank Display and/or Keypad NotBlank Display and/or Keypad Not
Blank Display and/or Keypad Not 1. Voltage Spike or Static Discharge. If a voltage spike or static discharge occurs use the
Blank Display and/or Keypad NotBlank Display and/or Keypad Not
RespondingResponding
Responding Reset Operation listed above.
RespondingResponding
anan
an 1. Blown fuse or tripped circuit breaker. Replace fuse or reset breaker.
anan
3. Furnace blower compartment door or Replace door panel in proper position to engage
panel loose or not properly installed. safety interlock or door switch.
2. Loose connection to thermostat or system. Verify ther mostat and system wires are securely
3. Heating System requires service or Diagnostic: Set System Switch to Heat and raise
thermostat requires replacement. the setpoint above room temperature. Within a five
2. Loose connection to thermostat or system. Verify thermostat and system wires are securely
3. Cooling System requires service or thermostat Same procedure as diagnostic for No Heat
requires replacement. condition except set the thermostat to Cool and
2. Possible short in thermostat. not shorted or touching together. No bare wire
3. Possible short in Heat/Cool/Fan system. should stick out from under terminal screws. Try
4. Fan Switch set to Fan On. resetting the thermostat as described below.
cycle rate. rate is not achieved using the FA (Fast) or SL
cycle rate. suggestions.
2. AM or PM set incorrectly on the clock. the AM or PM designations for each time period.
3. Voltage spike or static discharge. If a voltage spike or static discharge occurs use the
pressing the reset switch (see Fig 1). If the thermostat has
power, has been reset and still does not function correctly
contact your heating/cooling service person or place of purchase.
above room temperature.
attached.
minutes the thermostat should make a soft click
sound. This sound usually indicates the thermostat
is operating properly. If the thermostat does not
click, try the reset operation listed above. If the
thermostat does not click after being reset contact
your heating and cooling service person or place
of purchase for a replacement. If the thermostat
clicks, contact the furnace manufacturer or a
service person to verify the heating system is
operating correctly.
below room temperature.
attached.
lower the setpoint below the room temperature.
There may be up to a five minute delay before
the thermostat clicks in Cooling if the compressor
lock-out option is selected in the configuration
menu (Item 7).
If the condition persists, the manufacturer of
your system or service person can instruct you
on how to test the Heat/Cool system for correct
operation. If the system operates correctly,
replace the thermostat.
(Slow) adjustment contact a local service person
for additional suggestions.
adjustment is possible.
even with no power but the clock time will be
incorrect when power is restored. See No
Heat/No Cool/No Fan (common problems) above
for items to check in the system.
Reset Operation listed above.
Loading...
