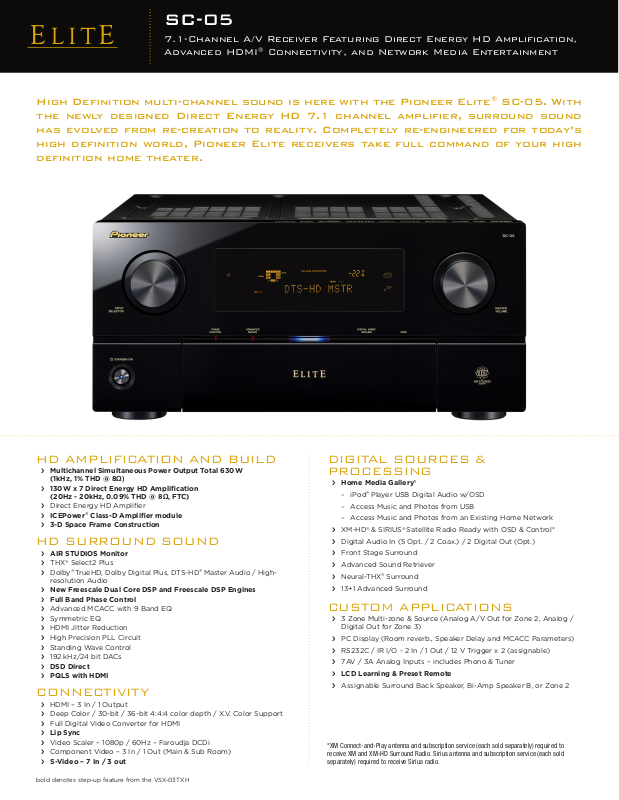

SC-05
7.1-Channel A/V Receiver Featuring Direct Energy HD Amplification,
Advanced HDMI® Connectivity, and Network Media Entertainment
High Definition multi-channel sound is here with the Pioneer Elite® SC-05. With
the newly designed Direct Energy HD 7.1 channel amplifier, surround sound
has evolved from re-creation to reality. Completely re-engineered for today’s
high definition world, Pioneer Elite receivers take full command of your high
definition home theater.
HD AMPLIFICATION AND BUILD
Multichannel Simultaneous Power Output Total 630W ›
(1kHz, 1% THD @ 8Ω)
130W x 7 Direct Energy HD Amplication ›
(20Hz - 20kHz, 0.09% THD @ 8Ω, FTC)
Direct Energy HD Amplier ›
ICEPower ›
3-D Space Frame Construction ›
®
Class-D Amplier module
HD SURROUND SOUND
AIR STUDIOS Monitor ›
®
THX ›
Select2 Plus
®
Dolby ›
TrueHD, Dolby Digital Plus, DTS-HD® Master Audio / High-
resolution Audio
New Freescale Dual Core DSP and Freescale DSP Engines ›
Full Band Phase Control ›
Advanced MCACC with 9 Band EQ ›
Symmetric EQ ›
HDMI Jitter Reduction ›
High Precision PLL Circuit ›
Standing Wave Control ›
192 kHz/24 bit DACs ›
DSD Direct ›
PQLS with HDMI ›
CONNECTIVITY
HDMI – 3 In / 1 Output ›
Deep Color / 30-bit / 36-bit 4:4:4 color depth / X.V. Color Support ›
Full Digital Video Converter for HDMI ›
Lip Sync ›
Video Scaler – 1080p / 60Hz – Faroudja DCDi ›
Component Video – 3 In / 1 Out (Main & Sub Room) ›
S-Video – 7 In / 3 out ›
DIGITAL SOURCES &
PROCESSING
Home Media Gallery ›
®
iPod –
Player USB Digital Audio w/OSD
Access Music and Photos from USB –
Access Music and Photos from an Existing Home Network –
®
XM-HD ›
& SIRIUS® Satellite Radio Ready with OSD & Control*
Digital Audio In (5 Opt. / 2 Coax.) / 2 Digital Out (Opt.) ›
Front Stage Surround ›
Advanced Sound Retriever ›
Neural-THX ›
13+1 Advanced Surround ›
®
1
Surround
CUSTOM APPLICATIONS
3 Zone Multi-zone & Source (Analog A/V Out for Zone 2, Analog / ›
Digital Out for Zone 3)
PC Display (Room reverb., Speaker Delay and MCACC Parameters) ›
RS232C / IR I/O - 2 In / 1 Out / 12 V Trigger x 2 (assignable) ›
7AV / 3A Analog Inputs – includes Phono & Tuner ›
LCD Learning & Preset Remote ›
Assignable Surround Back Speaker, Bi-Amp Speaker B, or Zone 2 ›
*XM Connect-and-Play antenna and subscription service (each sold separately) required to
receive XM and XM-HD Surround Radio. Sirius antenna and subscription service (each sold
separately) required to receive Sirius radio.
bold denotes step-up feature from the VSX-03TXH
CONNECTIONS
Rear Panel
SC-05
7.1-Channel A/V Receiver Featuring Direct Energy HD Amplification,
Advanced HDMI® Connectivity, and Network Media Entertainment
PRODUCT DIMENSIONS
W x H x D: 16.54” x 7.87” x 18.09” ›
Weight: 40 lbs. 13 oz. (18.5 kg) ›
INTEGRATED TECHNOLOGIES
PIONEER, ELITE and the Pioneer and Elite logos are registered trademarks of Pioneer Corporation.
Specifications and design subject to modification without notice.
1
Previously existing or new home network, Microsoft Windows
Connect software (Free for licensed users of Microsoft Windows
Updates) required for all Home Media Gallery features. For best results use wired connection.
Manufactured under license from Dolby Laboratories, “Dolby”, “Pro-logic”, “Surround EX”, and the
Double-D symbol are trademarks of Dolby Laboratories.
“DTS” is a registered trademark of DTS, Inc. and “DTS-HD Master Audio.
HDMI and the HDMI logo are registered trademarks of HDMI Licensing LLC.
THX, the THX logo, and Select2 Plus are trademarks of THX Ltd., which may be registered in some
jurisdictions.
Microsoft, Windows Media, and the Windows logo are registered trademarks of Microsoft Corporation.
XM and XM Connect-&-Play are registered trademarks of XM Satellite Radio Inc.
®
XP, and Microsoft Windows® Media
®
operating system through Win dows®
CARTON DIMENSIONS
W x H x D: 20.43” x 12.91” x 21.65” ›
Weight : 48 lbs. 8 oz. (22 kg) ›
SIRIUS and related marks are trademarks of Sirus Satellite Radio Inc.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
The AIR STUDIOS logo is a trademark of Air Sudios, Inc.
Neural Surround™ is a trademark of Neural Audio Corporation.
Sharc is a registered trademark of Analog Devices, Inc.
Faroudja and DCDI are registered trademarks of Genesis Microchip Inc.
ICEpower and the ICEpower logo are registered trademarks of Bang & Olufsen ICEpower a/s.
HDMI connection may not allow transmission of copyright-protected material, depending on the
capability of the signal source.
