FACTORY PARTS CATALOG
RANGE
PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET
PLEB30T8CCB PLEB30T8C 37057393H30S2 stainless North America
WIRING DIAGRAM - # 318046110
OWNER’S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200130
INSTALLATION INSTRUCTIONS - # 318201509
ELECTRIC
WALL OVEN
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
Publication No.
5995386132
030219
-EN/SERVICE /ECL
377
©2003 Electrolux Home Products, Inc.
All rights reserved
Model No.
PLEB30T8C
Publication No. PLEB30T8CCB
5995386132
CONTROL PANEL
02/03 2
PLEB30T8CCB Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
19 318030214 Panel,control ,black ,back
19A 318192813 Panel,control ,stainless ,front
20 # 318010501 Clock/Timer,EOC
21 318029700 Trim,top ,stainless
23 318015110 Bracket,clock mtg
42 318027410 Trim,vent ,black
80 # 318022001 Relay Board
81 # 318022002 Relay Board,w/transformer
82A 5303317199 Support,snap-in ,(3)
99 5303300265 Screw,8-18 x 0.500 ,chrome
* 218490900 Cleaner,stainless steel
* 3201861 Screw,6 x 0.375
* 5303211311 Screw,8 x 0.500
5995386132
# = Functional Parts 3 02/03
* = Non-Illustrated Parts
Publication No. PLEB30T8CCB
5995386132
UPPER OVEN
02/03 4
PLEB30T8CCB Publication No.
UPPER OVEN
POS. NO PART NO DESCRIPTION
1 318066402 Panel,main back
2 318102101 Shield,oven top
2A 318071705 Shield,oven top
6 318025304 Rack,oven
6A 318219500 Rack,broiler pan
9 5303317977 Pan,broiler
10 5303317976 Insert,broiler pan
12 # 318089913 Switch,light
14 5308011085 Receptacle,oven light
15 5303013071 Bulb/Lamp,oven light
16 3201911 Cover,oven light ,glass
17 5304400195 Retainer,light cover
37 # 316111203 Sensor,oven temp probe
41 5303310526 Cover,hinge cutout
54 5303310514 Housing,oven light
58A 318133744 Insulation,oven wrapper
58B 318133769 Insulation,oven back
59 318072506 Tube,oven vent
62 # 5303310518 Terminal Block
62* 5303323144 Nut,10-32
66 # 5303310513 Element,broil ,2750 W
67 # 5303310512 Element,bake ,3000 W
68 5304403015 Support,element hanger
70 5303300142 Shield,insulation
76 318056202 Front,oven
80 5303320846 Plate,oven mtg
81 318192400 Spring,oven
82 318072301 Shield,oven bottom
83 318089616 Liner,oven complete
86 5303310524 Receptacle,hinge
88 5303311222 Rod,latch
89 # 318095934 Motor,latch assy ,w/brkt & switch
89* 318120711 Switch
107 318219401 Cover,fan
108# 318073012 Motor,blower
109 5303311203 Blade,fan
111 316136600 Nut,fan retainer
119# 318004900 Switch,thermal
125# 5303311202 Motor,convection
127 5303310542 Adapter,vent tube ,with converter
128 5303311163 Bushing
129 5303311164 Spring
131 318102301 Cover,control housing
132 318101704 End,cover ,RH ,control housing
132A 318101705 End,cover ,LH ,control housing
177 318053800 Gasket,vent
185 318014700 Spacer,oven shield
222 318080000 Plate,oven temp probe
263 316136500 Washer,fan motor
264 318143815 Shield,wire
5995386132
* # 318078507 Box & wires assy
* 5303311207 Tube,protector
* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box
* 5303211311 Screw,8 x 0.500
* 5303302745 Screw,10-16x1-1/8 ,square drive
* 5303311528 Screw,oval hd sq dr ,6-20AB x 0.625 ,black
* 5303323139 Screw,10-24 x 0.906
# = Functional Parts 5 02/03
* = Non-Illustrated Parts
Publication No. PLEB30T8CCB
5995386132
LOWER OVEN
02/03 6
PLEB30T8CCB Publication No.
LOWER OVEN
POS. NO PART NO DESCRIPTION
1 318066402 Panel,main back
2A 318071704 Shield,oven top
6 318025304 Rack,oven
12 # 318089913 Switch,light
14 5308011085 Receptacle,oven light
15 5303013071 Bulb/Lamp,oven light
16 3201911 Cover,oven light ,glass
17 5304400195 Retainer,light cover
37 # 316111203 Sensor,oven temp probe
41 5303310526 Cover,hinge cutout
54 5303310514 Housing,oven light
56 318029111 Trim,bodyside ,stainless ,RH
56A 318029110 Trim,bodyside ,stainless ,LH
58A 318133744 Insulation,oven wrapper
58B 318133769 Insulation,oven back
58C 318133755 Insulation
58D 318133757 Insulation
59 318072504 Tube,oven vent
59A 5303320844 Tube,oven vent
66 # 5303310513 Element,broil ,2750 W
67 # 5303310512 Element,bake ,3000 W
68 5304403015 Support,element hanger
70 5303300142 Shield,insulation
71 318071211 Shield,wire
76 318056202 Front,oven
80 5303320846 Plate,oven mtg
81 318192400 Spring,oven
82 318072302 Shield,oven bottom
83 318089615 Liner,oven complete
86 5303310524 Receptacle,hinge
88 5303311222 Rod,latch
89 # 318095934 Motor,latch assy ,w/brkt & switch
89* 318120711 Switch
96 5303317197 Duct,oven vent ,assy
96A 3016325 Duct,oven vent ,center
99 318055410 Support,adjustable ,(2)
102 318090900 Support,oven front ,(2)
103 318028500 Trim,base ,black
103A 318027700 Trim,base ,stainless ,outer
107 318219401 Cover,fan
109 5303311203 Blade,fan
111 316136600 Nut,fan retainer
119# 318004900 Switch,thermal
124 318076903 Box,vent
125# 5303311202 Motor,convection
125* 318142100 Washer,motor ,convection
127 5303310542 Adapter,vent tube ,with converter
128 5303311163 Bushing
129 5303311164 Spring
150 318072205 Bracket,support ,LH
150A 318072204 Bracket,support ,RH
156 5303317198 Bracket,oven vent
177 318053800 Gasket,vent
185 318014700 Spacer,oven shield
188 318014110 Spacer
209 318086200 Plate,retainer
222 318080000 Plate,oven temp probe
263 316136500 Washer,fan motor
5995386132
* 5303311207 Tube,protector
* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box
* 5303211311 Screw,8 x 0.500
# = Functional Parts 7 02/03
* = Non-Illustrated Parts
Publication No. PLEB30T8CCB
5995386132
DOOR
02/03 8
PLEB30T8CCB Publication No.
5995386132
DOOR
POS. NO PART NO DESCRIPTION
6 318056811 Shield,air wash
7 318133754 Insulation,oven door
9 318048612 Liner,oven door
10 5303311174 Screw,10-24 x 3/8
12 318053103 Gasket,oven door seal
13 318187931 Stainless Panel,oven door ,lower oven ,w/ glass
13 318187933 Stainless Panel,oven door ,upper oven ,w/ glass/nmplt
15 318172904 Stiffener,glass
16 318041603 Panel,glass ,inner oven door
17 318042102 Spacer,glass
18 318053001 Seal,window
23 318024700 Hinge,oven door
31 318065102 Latch,door
39 318197903 Handle,oven door ,stainless
54 5303300265 Screw,8-18 x 0.500 ,chrome
* 218490900 Cleaner,stainless steel
* 5303211311 Screw,8 x 0.500
* 5303323277 Screw (8-18X13/32)
# = Functional Parts 9 02/03
* = Non-Illustrated Parts
Publication No. PLEB30T8CCB
5995386132

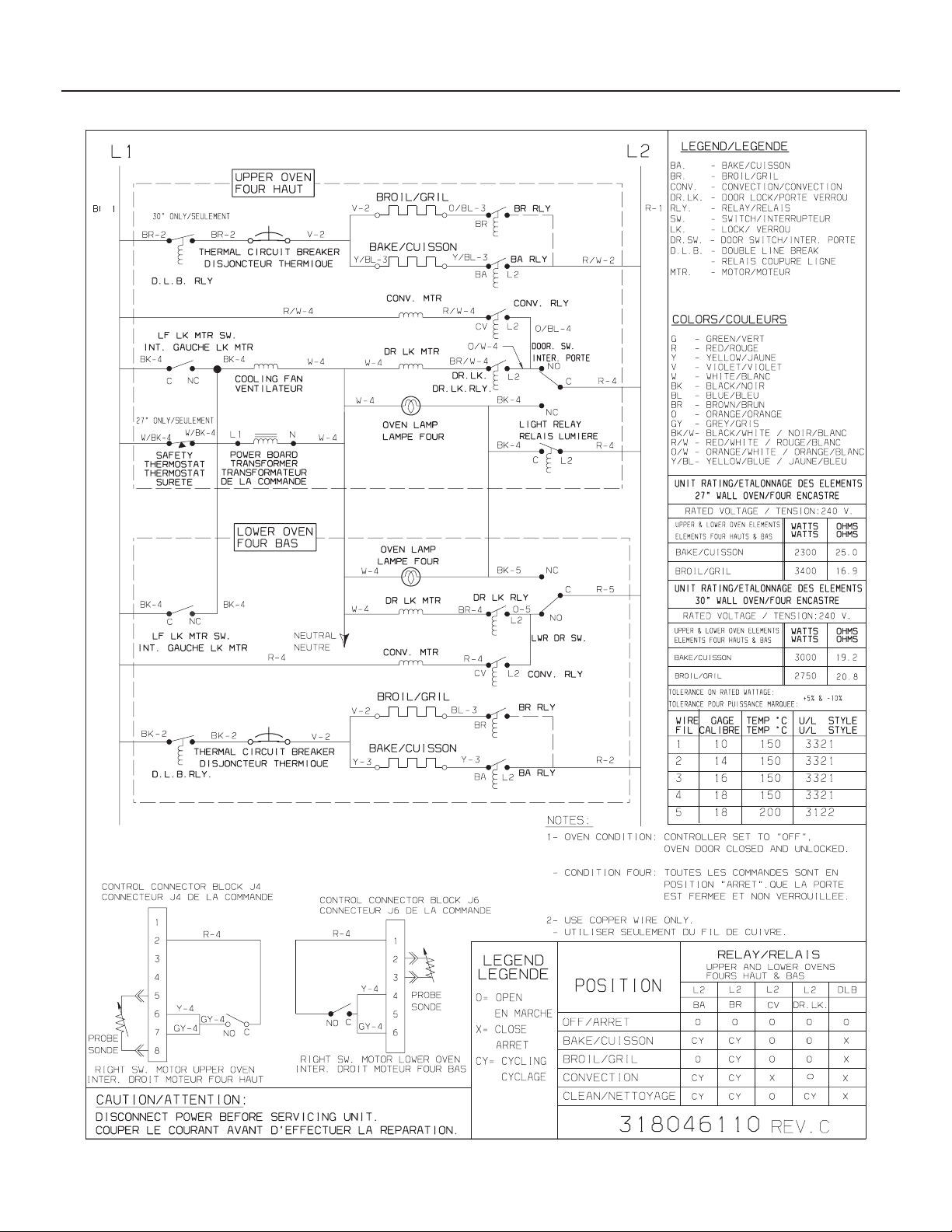

WIRING DIAGRAM
02/03 10
