EN DISHWASHER USER MANUAL 2
DE GESCHIRRSPÜLER BENUTZERINFORMATION 26
www.electrolux.com2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 6
4. CONTROL PANEL...............................................................................................7
5. PROGRAMMES...................................................................................................7
6. SETTINGS........................................................................................................... 9
7. OPTIONS...........................................................................................................13
8. BEFORE FIRST USE..........................................................................................14
9. DAILY USE........................................................................................................ 15
10. HINTS AND TIPS............................................................................................. 17
11. CARE AND CLEANING....................................................................................18
12. TROUBLESHOOTING......................................................................................20
13. TECHNICAL INFORMATION............................................................................24
14. GUARANTEE ..................................................................................................24
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH
3
1.2 General Safety
• This appliance is intended to be used in household and
similar applications such as:
– farm houses; staff kitchen areas in shops, offices and
other working environments;
– by clients in hotels, motels, bed & breakfast and
other residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (MPa)
• Obey the maximum number of 15 place settings.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
www.electrolux.com4
• Put the cutlery in the cutlery basket with the sharp ends
pointing down or put them in the cutlery drawer in a
horizontal position with the sharp edges down.
• Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Do not use high pressure water sprays and/or steam to
clean the appliance.
• If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
• The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA
(BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Without electrical power, the water
protection system is not active. In this
case there is a risk of flooding.

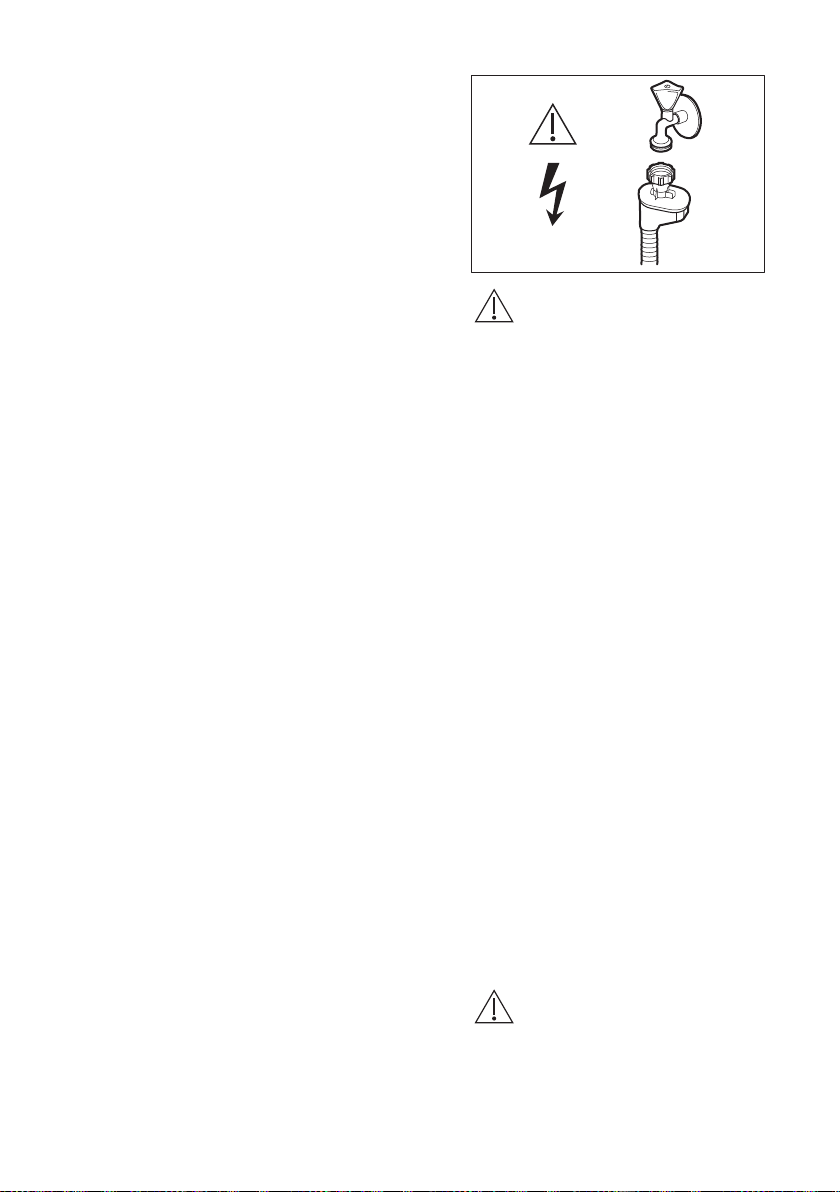

• The water inlet hose has a safety valve
and a sheath with an inner mains
cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may remain
on the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
ENGLISH
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Internal light
WARNING!
Risk of injury.
• This appliance has an internal lamp
that comes on when you open the
door and goes off when the door is
closed.
• The lamp in this appliance is not
suitable for household room
illumination.
• To replace the lamp, contact the
Service.
2.6 Service
• Contact the Authorised Service Centre
to repair the appliance. We
recommend only the use of original
spare parts.
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
5
5
4
10
9
67
11
12
2
3
1
8
www.electrolux.com6

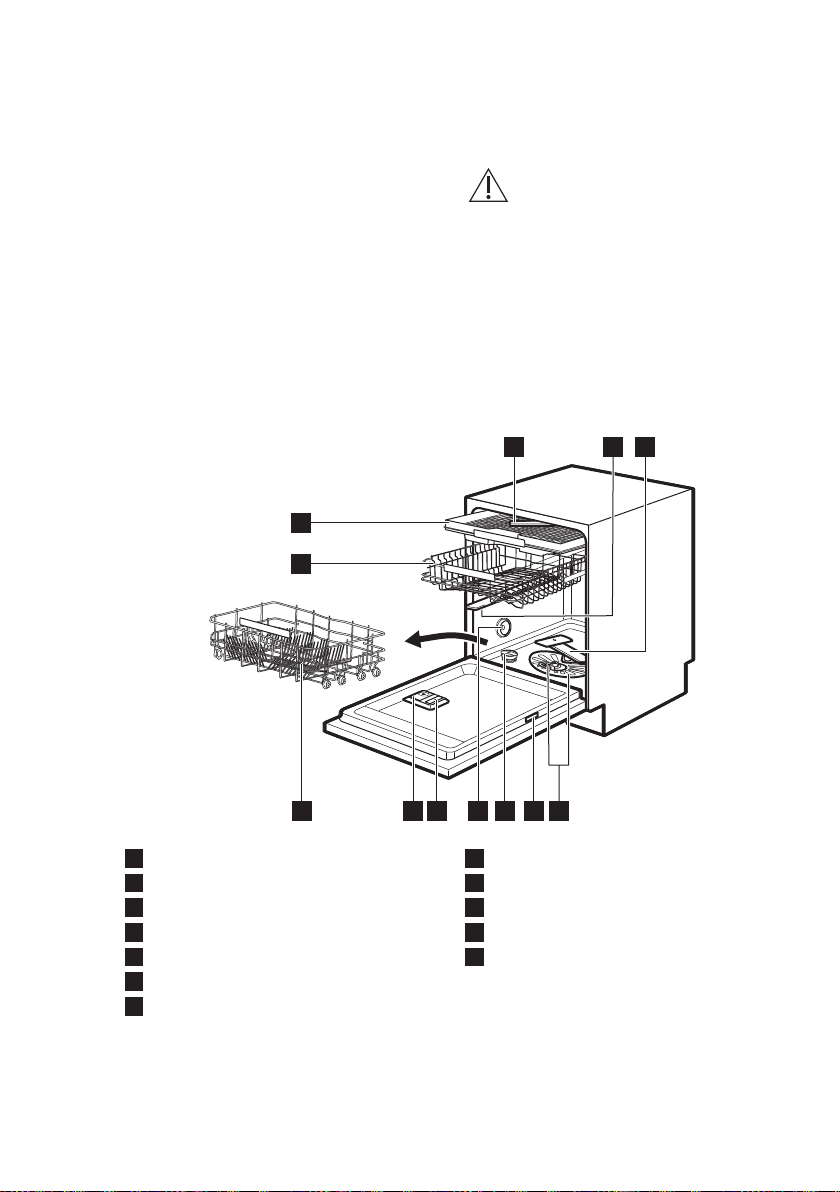

3. PRODUCT DESCRIPTION
Top spray arm
1
Upper spray arm
2
Lower spray arm
3

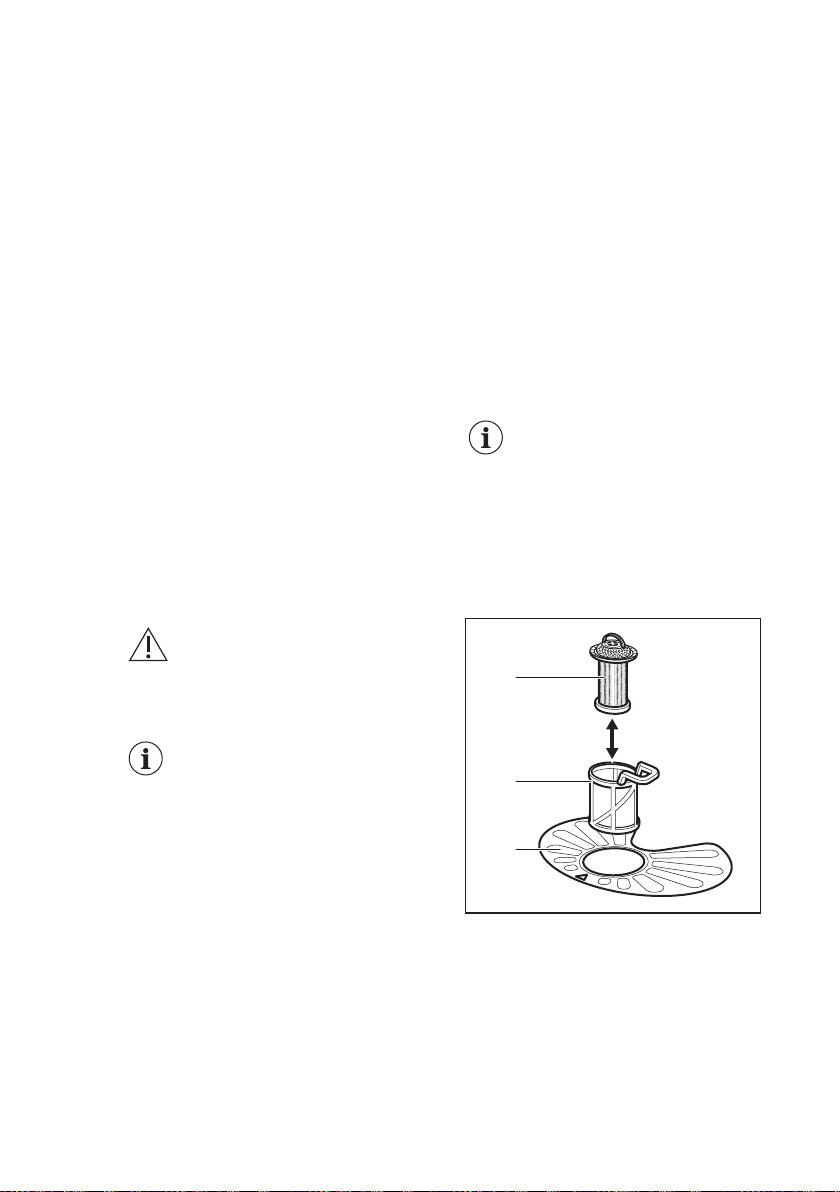

Filters
4
Rating plate
5
Salt container
6
Air vent
7
3.1 TimeBeam
The TimeBeam is a display that is shown
on the floor below the appliance door.
• When the programme starts, the
programme duration comes on.
• When the programme is completed,
0:00 and CLEAN come on.
• When the delay start starts, the
countdown duration and DELAY come
on.
• When the appliance has a malfunction,
an alarm code appears.
Rinse aid dispenser
8

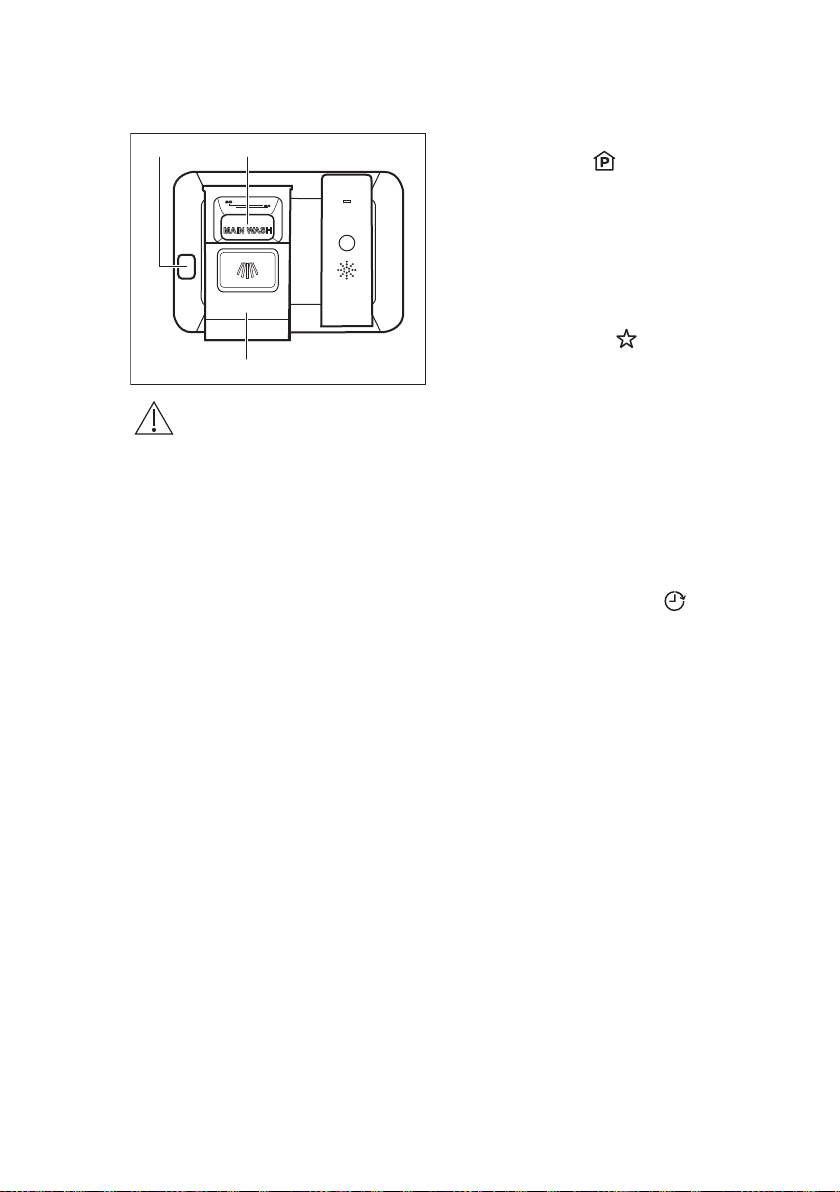

Detergent dispenser
9
Lower basket
10
Upper basket
11
Cutlery drawer
12
When AirDry is activated
1
2
3
4
5
6
7
8
9
during the drying phase, the
projection on the floor may
not be completely visible. To
check the remaining time of
the running programme, look
at the control panel display.

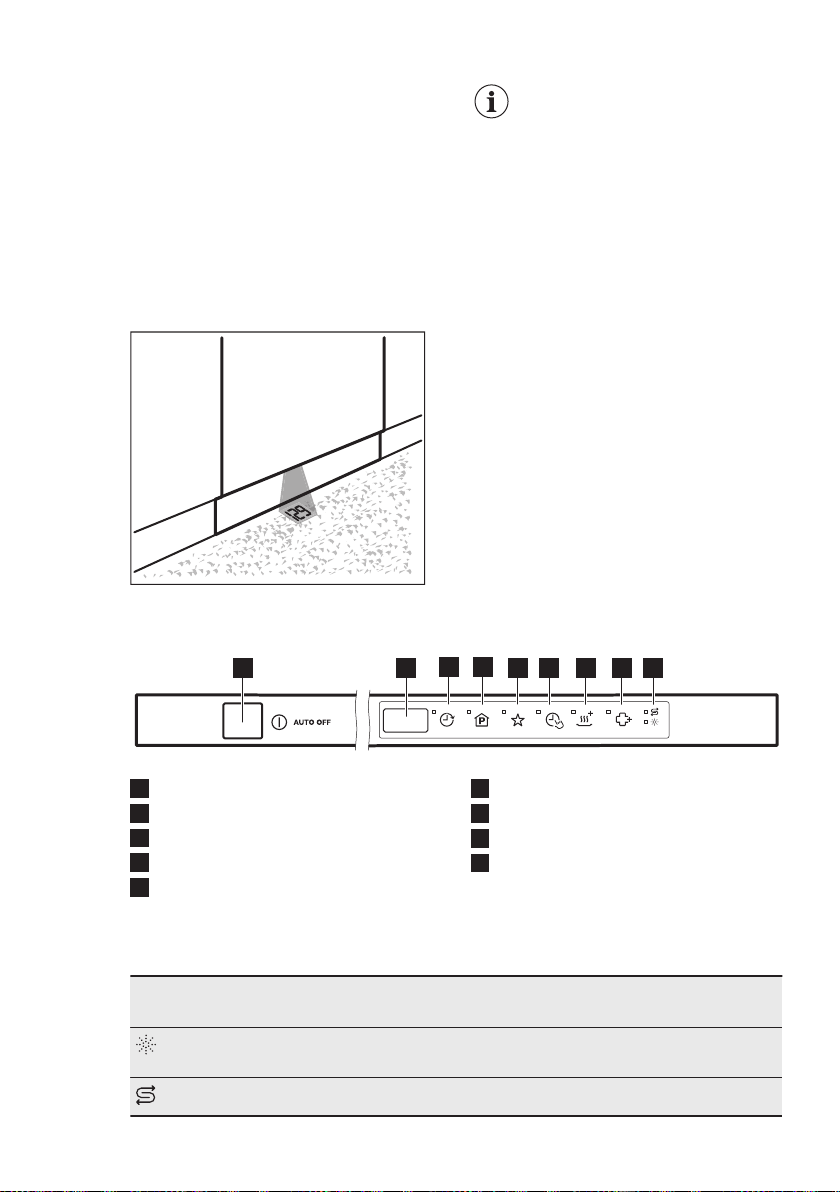

4. CONTROL PANEL
ENGLISH
7
On/off button
1
Display
2
Delay button
3
Program button
4
MyFavourite button
5
4.1 Indicators
Indicator Description
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
P1
1)
ECO
P2
AutoSense
Type of load
• Normal soil
• Crockery and
• All
• Crockery, cut-
2)
cutlery
lery, pots and
pans
TimeSaver button
6
XtraDry button
7
ExtraHygiene button
8
Indicators
9
Programme phases Options
• Prewash
• Wash 50 °C
• Rinses
• Dry
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
• ExtraHygiene
• TimeSaver
• XtraDry
• ExtraHygiene
• XtraDry
www.electrolux.com8
Programme Degree of soil
Programme phases Options
Type of load
P3
Pro
P5
Gläser
• Heavy soil
• Crockery, cutlery, pots and
pans
• Normal or light
soil
• Delicate crock-
• Prewash
• Wash 70 °C
• Rinses
• Dry
• Wash 45 °C
• Rinses
• Dry
• TimeSaver
• XtraDry
• XtraDry
ery and glassware
P4
Quick 30 Min.
P7
Vorspülen
P6
ExtraSilent
• Fresh soil
• Crockery and
3)
• Wash 60 °C or 65 °C
• Rinses
cutlery
• All • Prewash
4)
• Normal soil
• Crockery and
5)
cutlery
• Prewash
• Wash 50 °C
• Rinses
• ExtraHygiene
• XtraDry
• XtraDry
• Dry
1)
With this programme, you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. This is the standard programme for test institutes.
2)
The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3)
With this programme, you can wash a half-load dishwasher with fresh soil. It gives good
washing results in a short time.
4)
With this programme, you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
5)
This is the most silent programme. The pump works at a very low speed to decrease the
level of noise. Because of the low speed, the programme duration is long.
5.1 Consumption values
Programme
P1
ECO
P2
AutoSense
P3
Pro
P5
Gläser
1)
12.5-14.5 1.4-1.7 170-190
Water
(l)
Energy
(kWh)
Duration
(min)
11 0.857 232
7 - 14 0.6 - 1.6 40 - 170
12 - 14 0.7 - 0.9 82-92
ENGLISH
9
Programme
P4
Quick 30 Min.
P7
Vorspülen
P6
ExtraSilent
1)
The pressure and the temperature of the water, the variations of the mains supply, the op-
tions and the quantity of dishes can change the values.
5.2 Information for test institutes
For all the necessary information for test
performance, send an email to:
info.test@dishwasher-production.com
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
• The selection of the colour for
TimeBeam.
• The activation or deactivation of the
rinse aid empty notification.
• The level of rinse aid according to the
required dosage.
• The activation or the deactivation of
AirDry.
These settings will be saved until you
change them again.
How to set the programme selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
1)
Water
(l)
10 0.9 30
4 0.1 14
9 - 10 1.1 - 1.3 230 - 250
Energy
(kWh)
Write down the product number (PNC)
that is on the rating plate.
When you activate the appliance, usually it
is in programme selection mode.
However, if this does not happen, you can
set the programme selection mode in the
following way:
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Duration
(min)
6.2 The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
www.electrolux.com10
Water hardness
German de-
grees (°dH)
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5
1)
Factory setting.
2)
Do not use salt at this level.
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
1)
5
2)
1
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to soften
hard water.
How to set the water softener level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators
and flash and the display is blank.
2. Press
•
The indicators
are off.
• The indicator still flashes.
• The display shows the current
setting: e.g. = level 5.
3. Press repeatedly to change the
setting.
, , , ,
.
, , , and
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
You can set the released quantity of rinse
aid between level 1 (minimum quantity)
and level 6 (maximum quantity). Level 0
will deactivate the rinse aid dispenser and
no rinse aid will be released.
Factory setting: level 4.
How to set the rinse aid level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , , ,
and start flashing and the display
is blank.
2. Press .
• The indicators , , , and
are off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 4.
– The levels of rinse aid range
from 0A to 6A where level 0A
means rinse aid is not used.
3. Press repeatedly to change the
setting.
4. Press on/off to confirm the setting.
6.4 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying to
refill rinse aid. If you are using multi-tabs
containing rinse aid and you are satisfied
with the drying result, you can deactivate
the notification for refilling rinse aid.
However, we recommend that you always
use rinse aid for best drying performance.
If you use standard detergent or multitablets without rinse aid, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid empty notification
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , , ,
and start flashing and the display
is blank.
2. Press .
• The indicators , , , and
are off.
• The indicator still flashes.
ENGLISH
• The display shows the current
setting: = the rinse aid empty
notification is activated (factory
setting).
3. Press to change the setting.
= the rinse aid empty notification is
deactivated.
4. Press on/off to confirm the setting.
6.5 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to activate
it.
How to activate the acoustic signal for the end of programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously
the indicators
and flash and the display is blank.
2. Press
• The indicators , , , and
are off.
• The indicator still flashes.
• The display shows the current
setting:
3. Press to change the setting.
= Acoustic signal on.
4. Press on/off to confirm the setting.
and until
, , , ,
= Acoustic signal off.
6.6 How to set the colour of the
TimeBeam
It is possible to change the colour of the
TimeBeam to match the colour of the
kitchen floor. There are several colours
available. The TimeBeam can also be
deactivated.
11
www.electrolux.com12
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , , ,
and flash and the display is blank.
2. Press .
• The indicators , , , and
are off.
• The indicator still flashes.
• The display shows a number and
letter C. Each number refers to a
different colour.
–
= TimeBeam deactivated.
3. Press repeatedly to change the
colour.
4. Press on/off to confirm the setting.
6.7 AirDry
AirDry improves the drying results with
less energy consumption.
CAUTION!
In case of presence of
children, the AirDry system
can be deactivated if you
want to keep the door closed
in the end of the cycle.
AirDry is automatically activated with all
programmes excluding Vorspülen
To improve the drying performance refer
to the XtraDry option or activate AirDry.
How to deactivate AirDry
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators
and start flashing and the display
is blank.
2. Press
•
The indicators
are off.
• The indicator still flashes.
• The display shows the current
setting: = AirDry activated.
3. Press to change the setting:
= AirDry deactivated.
4. Press on/off to confirm the setting.
, , , ,
.
, , , and

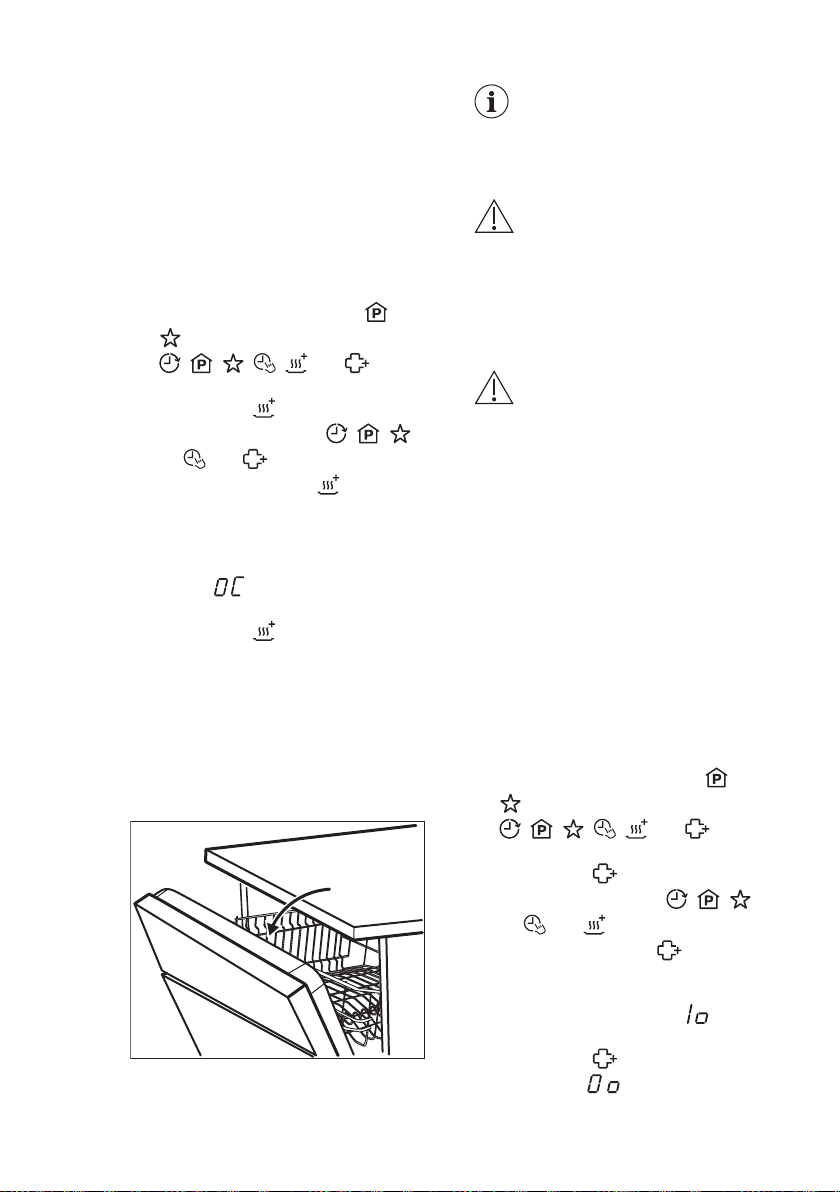

While the drying phase
operates, a device opens the
appliance door. The door is
then kept ajar.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic open.
This can cause damage to
the appliance.
6.8 MyFavourite
With this option you can set and save the
programme that you use more frequently.
You can only save 1 programme. A new
setting cancels the previous one.
How to save the MyFavourite programme
1. Set the programme that you want to
save
You can also set applicable options
together with the programme.
2. Press and hold until the related
indicator comes on with fixed light.
How to set the MyFavourite programme
Press .
• The MyFavourite indicator comes
on.
7. OPTIONS
ENGLISH
• The display shows the number and
the duration of the programme.
• If options have been saved
together with the programme, the
indicators related to the options
come on.
13
Desired options must be
activated every time before
you start a programme.
It is not possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you have
selected non compatible
options, the appliance will
automatically deactivate one
or more of them. Only the
indicators of the options still
active will stay on.
7.1 XtraDry
Activate this option when you want to
boost the drying performance. With use of
this option, the duration of some
programmes, water consumption and the
last rinse temperature can be affected.
The XtraDry option is a permanent option
for all programmes other than ECO and
need not to be selected at every cycle.
Every time ECO is activated, XtraDry
option is off and needs to be chosen
manually. In other programmes, the
setting of XtraDry is permanent and it is
automatically used in next cycles. This
configuration can be changed at any time.
Activating XtraDry option deactivates
TimeSaver.
How to activate XtraDry
The display shows the updated
programme duration.
7.2 TimeSaver
The TimeSaver allows to reduce the time
of the selected programme.
The total programme duration decreases
by approximately 50%.
The washing results are the same as with
the normal programme duration. The
drying results can decrease.
This option increases the pressure and the
temperature of the water. The washing
and the drying phases are shorter.
By default, TimeSaver is off, but it is
possible to activate it manually. This
option cannot be combined with XtraDry
at the same time.
How to activate TimeSaver
Press , the related indicator comes on.
If the option is not applicable to the
programme, the related indicator does not
come on or it flashes quickly for a few
seconds and then goes off.
The display shows the updated
programme duration.
7.3 ExtraHygiene
This option provides better hygiene results
by keeping the temperature at 70 °C for at
least 10 minutes during the last rinsing
phase.
Press . The related indicator comes on.
If the option is not applicable to the
programme, the related indicator does not
appear or it flashes quickly for a few
seconds and then goes off.
How to activate ExtraHygiene
Press , the related indicator comes on
If the option is not applicable to the
programme, the related indicator does not
www.electrolux.com14
come on or it flashes quickly for a few
seconds and then goes off.
8. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
After starting a programme, it may take up
to 5 minutes for the appliance to recharge
the resin in the water softener. It seems
that the appliance is not working. The
washing phase starts only after this
procedure is completed. The procedure is
repeated periodically.
8.1 The salt container
CAUTION!
Only use salt specifically
designed for dishwashers.
The salt is used to recharge the resin in
the water softener and to assure good
washing results in the daily use.

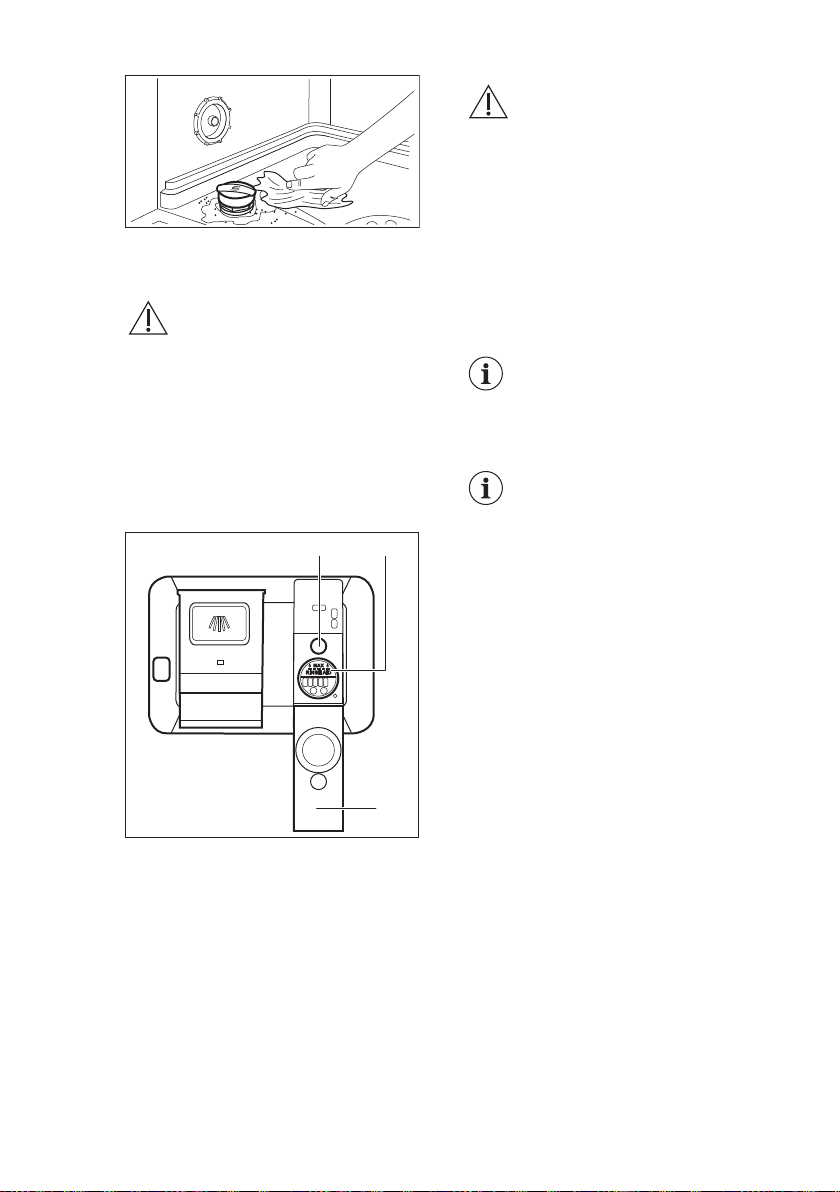

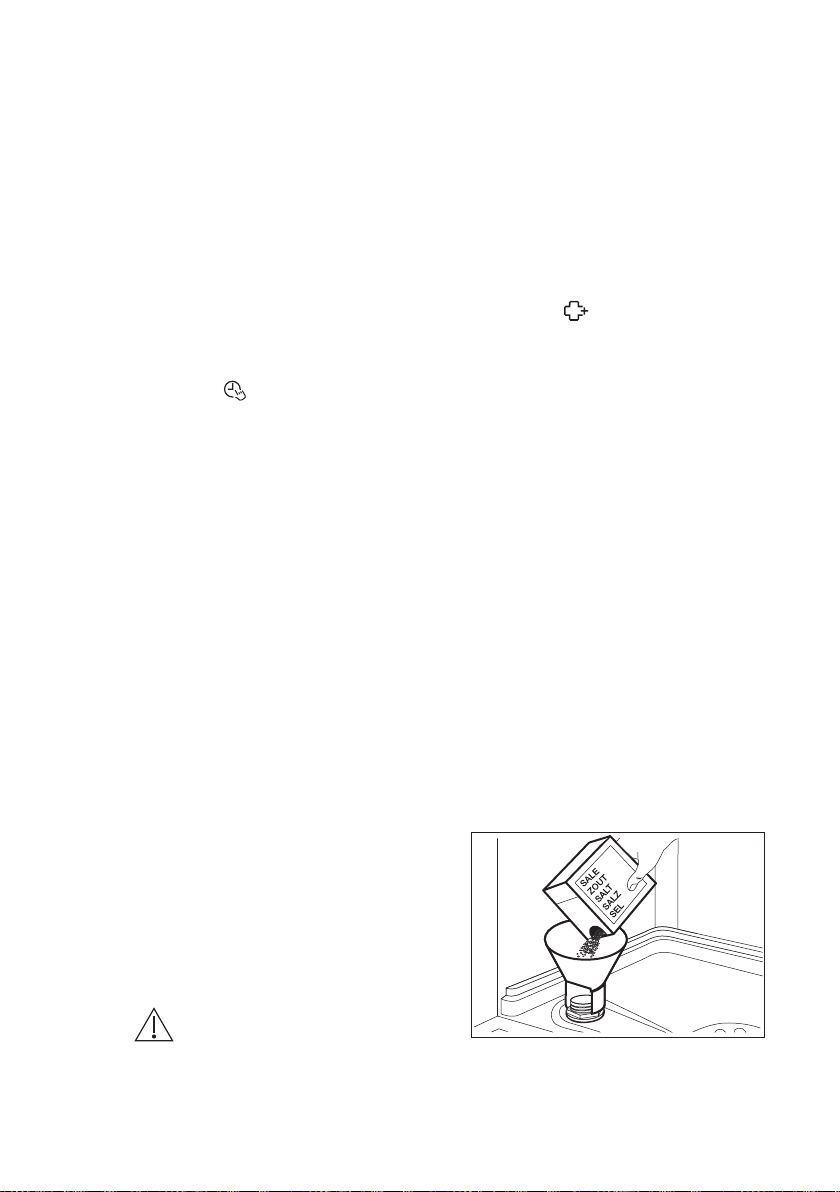

How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt container
(Only for the first time).
3. Fill the salt container with dishwasher
salt.
The display shows the updated
programme duration.
4. Remove the salt around the opening
of the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
CAUTION!
Water and salt can come out
of the salt container when
you fill it. After you fill the salt
container, immediately start a
programme to prevent
corrosion.
8.2 How to fill the rinse aid
A
B
C
A
B
C
dispenser
CAUTION!
Only use rinse aid specifically
designed for dishwashers.
9. DAILY USE
ENGLISH
1. Open the lid (C).
2. Fill the dispenser (B) until the rinse aid
reaches the marking ''MAX''.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the lid
locks into position.
Fill the rinse aid dispenser
when the indicator (A)
becomes clear.
If you use multi-tablets and
the drying performance is
satisfactory, the rinse aid refill
indication can be disabled.
We recommend to always
use rinse aid for better drying
performance, also in
combination with multitablets containing rinsing
agent.
15
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill
the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme
for the type of load and the degree of
soil.
9.1 Using the detergent
CAUTION!
Only use detergent
specifically designed for
dishwashers.
1. Press the release button (A) to open
the lid (C).
2. Put the detergent, in powder or
tablets, in the compartment (B).
3. If the programme has a prewash
phase, put a small quantity of
www.electrolux.com16
detergent on the inner part of the
appliance door.
4. Close the lid. Make sure that the lid
locks into position.
9.2 Setting and starting a
programme
3. Close the appliance door to start the
countdown.
While a countdown is running it is possible
to increase the delay time but not to
change the selection of the programme
and options.
When the countdown is completed, the
programme starts.
The Auto Off function
This function decreases energy
consumption by deactivating automatically
the appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the
appliance is in programme selection
mode.
3. Press repeatedly until the display
shows the number of the programme
you want to start. The display will
show the programme number for
approximately 3 seconds and then
show the programme duration.
• If you want to select the
MyFavourite programme, press
.
• The indicators of the options
related to the MyFavourite
programme come on.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with delay start
1. Set a programme.
2. Press again and again until the
display shows the delay time you want
to set (from 1 to 24 hours).
The delay indicator comes on.
Opening the door while the appliance operates
If you open the door while a programme is
running, the appliance stops. It may affect
the energy consumption and the
programme duration. When you close the
door, the appliance continues from the
point of interruption.
If the door is opened for more
than 30 seconds during the
drying phase, the running
programme will end. This will
not happen if the door is
opened by AirDry.
CAUTION!
Do not try to close the
appliance door within 2
minutes after AirDry
automatically opens it, as this
may cause damage to the
appliance. If, afterwards, the
door is closed for another 3
minutes, the running
programme ends.
Cancelling the delay start while the countdown operates
When you cancel the delay start you have
to set the programme and options again.
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Cancelling the programme
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Loading...
