Electrolux ESF 68040 User Manual

user manual

Dishwasher

ESF 68040

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2
Product description 4
Control panel 5
Display 6
Use of the appliance 7
Setting the water softener 7
Use of dishwasher salt 8
Use of rinse aid 8

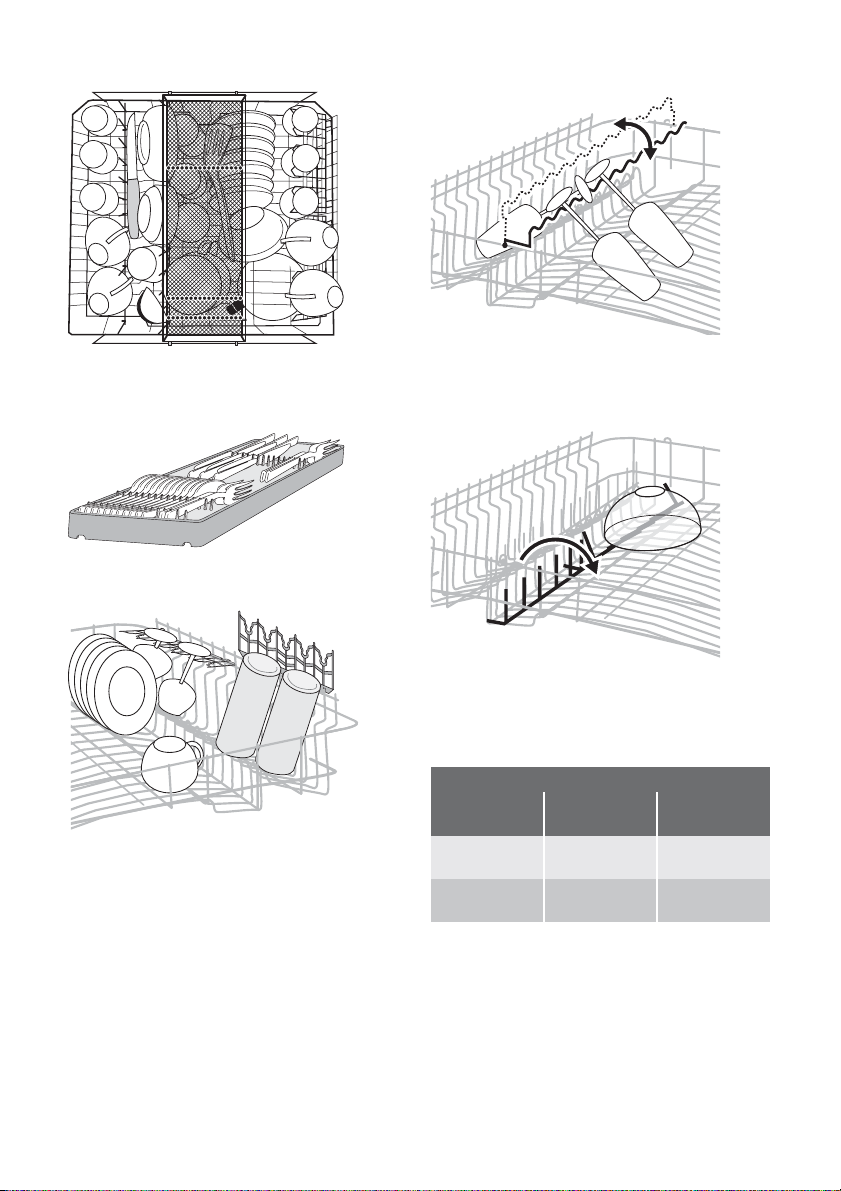

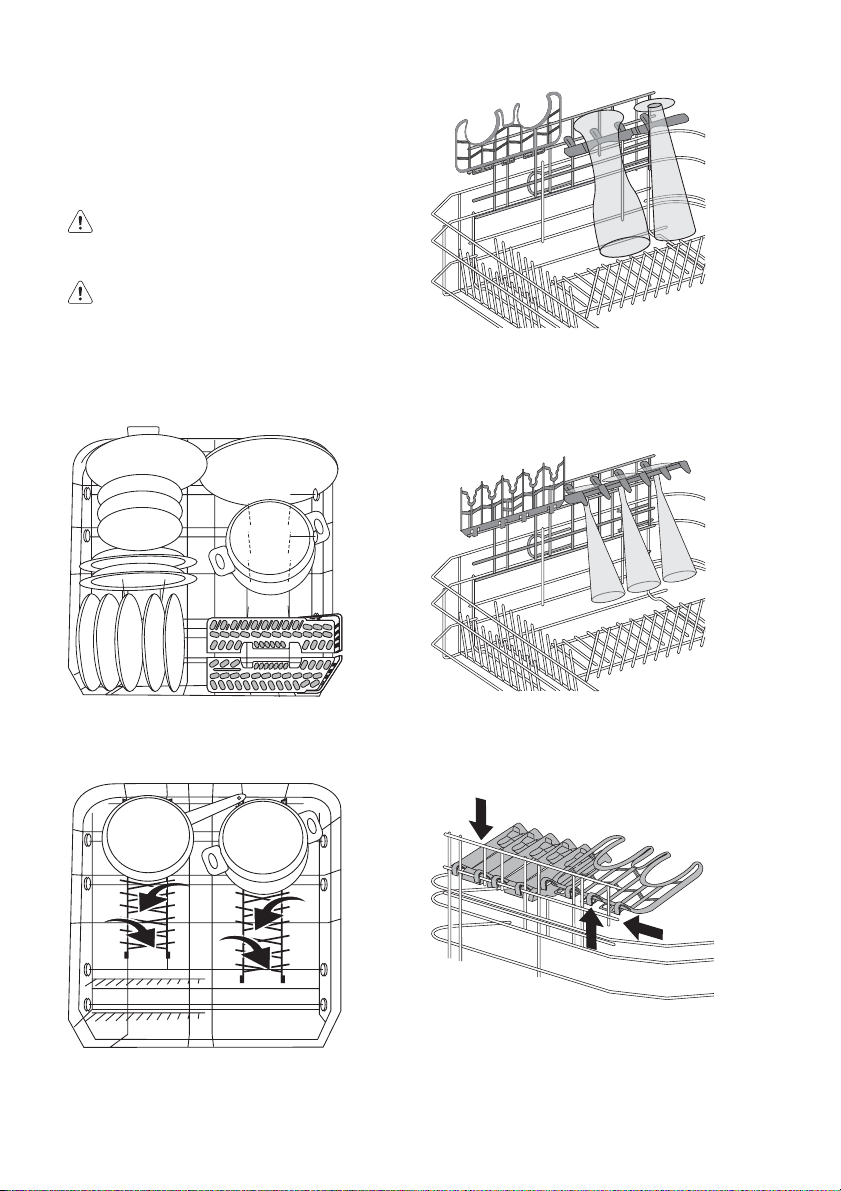

Loading cutlery and dishes 9
Use of detergent 13
Multitab function 14

Subject to change without notice

Select and start a washing program 14
Washing programs 16
Care and cleaning 18
What to do if… 19
Technical data 20

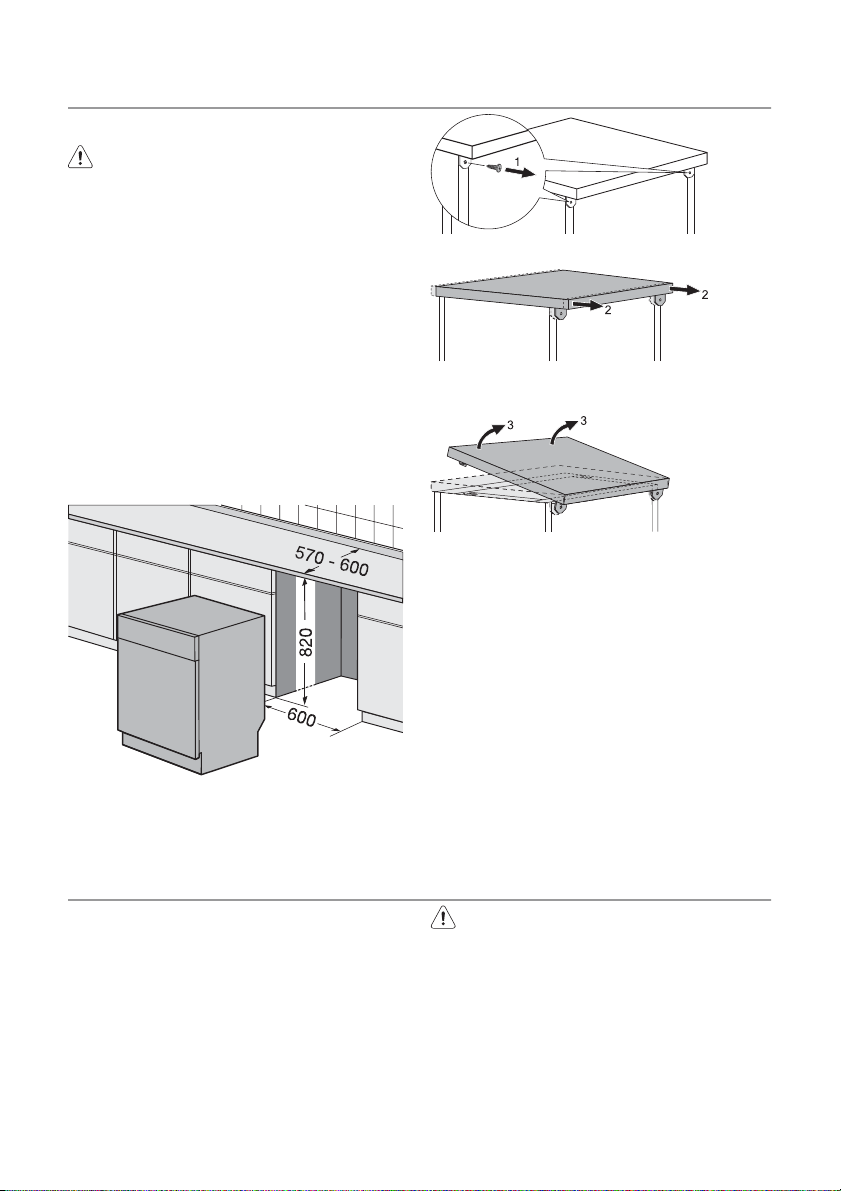

Installation 21
Water connection 21
Electrical connection 23
Environment concerns 23
Warranty 23

Safety information

For your safety and correct operation of
the appliance, read this manual carefully
before installation and use. Always keep
these instructions with the appliance
even if you move or sell it. Users must
fully know the operation and safety fea­tures of the appliance.

Correct use

• Only use the appliance to clean household
utensils that are suitable for dishwashers.

• Do not put solvents in the appliance. Risk
of explosion.

• Put the knives and all items with sharp
points in the cutlery basket with their
points down. If not, put them in a horizontal
position in the upper basket.

• Use only products specified for dishwash­ers (detergent, salt, rinse aid).

• If you open the door while the appliance is
in operation, hot steam can escape. Risk
of skin burns.

•Do not remove dishes from the dishwasher
before the end of the washing program.

• When the washing program is completed,
disconnect the mains plug from the mains
socket and close the water tap.

• Only an authorised service engineer can
repair this appliance. Use only original
spare parts.

• Do not do repairs yourself to prevent injury
and damage to the appliance. Always con­tact the Customer Care Centre.

General safety

• Dishwasher detergents are very danger­ous. Be careful they do not touch eyes,
mouth and skin. Keep the children away
from the appliance when the door is
open. .

• Obey the safety instructions from the man­ufacturer of the dishwasher detergent to
prevent burns to eyes, mouth and throat.

• Only put detergent in the dispenser before
you start a washing program. Make sure
that the detergent dispenser is empty at
the end of the washing program.

• Do not drink the water from the dishwash­er. Detergent residues can stay in your ap­pliance.

• Always close the door when you do not
use the appliance to prevent injury and not
to stumble over the open door.

• Do not sit or stand on the open door.

Child safety

• Children or infirm persons must not use
this appliance. They must get supervision
to make sure that they do not play with the
appliance.

• Keep all the packaging away from children.
There is a risk of suffocation.

• Keep all detergents in a safe area. Do not
let children touch the detergents.

• Keep the children and pets away from the
appliance when the door is open.

electrolux 3

Installation

• Make sure that the appliance is not dam­aged because of transport. Do not con­nect a damaged appliance. If necessary,
contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must do
the electrical installation.

• A qualified and competent person must do
the plumbing installation.

• Do not change the specifications or modify
this product. Risk of injury and damage to
the appliance.

• Do not use the appliance:

– if the mains cable or water hoses are

damaged,

– if the control panel, worktop or plinth

area are damaged so that you can get
access to the inner side of the appli­ance.

Contact your local Customer Care Centre.

• Do not drill into the sides of the appliance
to prevent damage to hydraulic and elec­trical components.

Warning! Carefully obey the
instructions for electrical and water
connections.

4 electrolux

Product description

11

10

9

1 Ceiling spray arm
2 Upper basket
3 Water hardness dial
4 Salt container
5 Detergent dispenser
6 Rinse aid dispenser
7 Rating plate
8 Filters
9 Lower spray arm

10 Upper spray arm
11 Worktop

This appliance has an internal light that
comes on when the door opens and
goes off when it is closed.
Internal light equipped with LED lamp
CLASS 1 in accordance with IEC
60825-1: 1993 + A1:1997+ A2:2001.
If it is necessary to replace the light, con­tact your local Customer Care Centre.

electrolux 5

Control panel

1 On/off button
2 Scroll buttons
3 Option button
4 Cancel button
5 OK//Start button
6 Display

To help you operate with the appliance,
the display shows messages and you
can hear audible signals.

Scroll buttons

These buttons have two functions:

• select in the program menu,

• select in the option menu and option sub­menu.

OK/Start button

Use this button to:

• confirm or memorise a program setting,

• start a washing program.

Cancel button

Use this button to:

• cancel a washing program or delay start,

• cancel the set of an option.

Option button

Use the option button to enter a menu of op­tions. For options available, refer to option
menu and submenu chart.

Option menu and submenu chart

Menu Submenu

DELAY START You can delay the start of the washing program with an interval

between 1 and 19 hours. Refer to 'Setting and starting a wash­ing program'.

Follow these steps to set an option:

1. Switch on the appliance.

2. Press the option button.

3. The display shows one of the these op­tions:
– DELAY START
– MULTITAB
–SETTINGS

4. Press one of the scroll buttons to select
the required option.

5. Press OK/Start button to confirm and go
into submenu.

6. Press one of the scroll buttons until the
display shows required option. Refer to
option menu chart.

7. Press the OK/Start button to confirm.

8. Press the option button to exit from
menu.

6 electrolux

Menu Submenu

MULTITAB The multitab function is for combi detergent tablets. Refer to

SETTINGS LANGUAGE

WATER HARDNESS

RINSE AID

SOUND VOLUME

BRIGHTNESS

CONTRAST

'Multitab function'.
– ON the multitab symbol shows in the display.
–OFF

You can set a different language for the messages that show in
the display.

You can adjust the water softener level. Refer to 'Set the water
softener'.

You can activate or deactivate the rinse aid dispenser.
ON
OFF

You can adjust the volume of the audible signal from level 0 to
level 5.
Level 0 turns off the audible signal.

You can increase or decrease the background brightness of the
display. 10 levels available.
Factory set: level 10.

You can increase or decrease the contrast of the display. 10
levels available.
Factory set: level 6.

Display

1 Washing program and option row

– In this row of lights there are two sec-

tions. The left section refers to the
washing programs, the right section to
the options.

– The washing programs lights come on

gradually as the program progresses.

2 Text row

– This row shows: the name of the wash-

ing program, the time duration of the
program, options set, the remaining
time of the program in progress.

3

Symbol row

– This row shows option symbols. Refer

to chart for symbols.

Symbol row

DELAY START
This symbol comes on when the
option is set. It flashes while the
countdown is in progress.

MULTITAB
This symbol comes on when the
multitab function is set.

SOUND VOLUME
This symbol comes on when the
audible signal is off.

Use of the appliance

Switch on for the first time - set the
display language

1. Switch on the appliance.

2. When the display shows LANGUAGE
ENGLISH and the word ENGLISH flash­es, you can confirm or change the lan­guage.

3. Press the OK/Start button to confirm
english or follow these steps to change
the language:
– press the up-and-down scrolling but-

tons until the display shows the re­quired language.

– Press the OK/Start button to confirm.

Refer to specified instructions for each step
of the procedure.

1. Make a check if the water softener level
is correct for the water hardness in your
area. If necessary set the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the dish­washer.

5. Set the correct washing program for the
type of load and soil.

6. Fill the detergent dispenser with the cor­rect quantity of detergent.

7. Start the washing program.

Setting the water softener

The water softener removes minerals and
salts from the water supply. Minerals and
salts can have bad effect on the operation of
the appliance.
Water hardness is measured in equivalent
scales:

• mg/I (millimol per litre)

Water hardness Water hardness setting

mg/l ppm mmol/l manually electronically

910 - 1250 910 - 1250 9,1 - 12,5 2 10

760 - 909 760 - 909 7,6 - 9,0 2 9

650 - 759 650 - 759 6,5 - 7,5 2 8

510 - 649 510 - 649 5,1 - 6,4 2 7

400 - 509 400 - 509 4,0 - 5,0 2 6

330 - 399 330 - 399 3,3 - 3,9 2 5

260 - 329 260 - 329 2,6 - 3,2 1 4

190 - 259 190 - 259 1,9 - 2,5 1 3

70 - 189 70 - 189 0,7 - 1,8 1 2

< 70 < 70 < 0,7 1

1) No use of salt required.

You must set the water softener man­ually and electronically.

Manual adjustment

The appliance is set at the factory at po­sition 2.

1. Open the door.

2. Remove the lower basket.

3. Turn the water hardness dial to position
1 or 2 (refer to the chart).

• ppm (parts per million),

• mmol/l (millimol per litre - international unit
for the hardness of water).

Adjust the water softener in to the water
hardness in your area. If necessary, contact
your local water authority.

4. Install the lower basket.

5. Close the door.

electrolux 7

1)

1

8 electrolux

Electronic adjustment

The dishwasher is factory set at lev­el 5.

1. Switch on the appliance.

2. Select the option menu.

Use of dishwasher salt

Caution! Only use dishwasher salt.
Types of salt that are not suitable for
dishwashers cause damage to the water
softener.

Caution! Grains of salt and salty water
on the bottom of the appliance can
cause corrosion. Fill the appliance with
salt before you start a washing program
to prevent corrosion.

Do these steps to fill the salt container:

1. Turn the cap anticlockwise to open the
salt container.

2. Fill the salt container with 1 litre of water
(only the first operation).

3. Use the funnel to fill the salt container with
salt.

3. Select SETTINGS.

4. Select WATER HARDNESS.

5. Use the scroll buttons to set the water
softener level.

6. Press the Ok/Start button to confirm.

4. Remove the salt around the opening of
the salt container.

5. Turn the cap clockwise to close the salt
container.

It is normal that water overflows from the
salt container when you fill it with salt.

When the salt container is empty, the
display shows a message. This mes­sage does not show in the display while
a washing program operates.

Use of rinse aid

Caution! Only use rinse aid specified for
dishwashers.
Do not fill the rinse aid dispenser with
other products (e.g. dishwasher clean­ing agent, liquid detergent). This can
cause damage to the appliance.

Rinse aid makes it possible to dry the
dishes without streaks and stains.

Rinse aid is automatically added during
the last rinsing phase.

Follow these steps to fill the rinse aid dis­penser:

1. Press the release button (A) to open the
rinse aid dispenser.

2. Fill the rinse aid dispenser with rinse aid.
The mark 'max.' shows the maximum
level.

3. Remove the spilled rinse aid with an ab­sorbent cloth to prevent too much foam
during the subsequent washing program.

4. Close the rinse aid dispenser.

electrolux 9

Adjusting the rinse aid dosage

The rinse aid is set at the factory at position

4.
You can set the rinse aid dosage between
position 1 (lowest dosage) and position 6
(highest dosage).

Turn the rinse aid dial to increase or decrease
the dosage.
– Increase the dosage if there are water

droplets or limescale on the dishes.

– Decrease the dosage if there are streaks,

whitish stains or bluish layers on the
dishes.

Wash hands to remove any residue of
rinse aid from skin.

When the rinse aid container is empty,
the display shows a message. This mes­sage does not show in the display while
a washing program operates.

Loading cutlery and dishes

Helpful hints and tips

Caution! Only use the appliance for

household utensils that are suitable for
dishwashers.

Do not use the appliance to clean objects
that can absorb water (sponges, household
cloths, etc.).

• Before you load cutlery and dishes, do

these steps:
– Remove all food remainings and debris.
– Make burnt, remaining food in pans soft.

• While you load cutlery and dishes, do

these steps:

– Load hollow items (e.g. cups, glasses

and pans) with the opening down.

– Make sure that water does not collect in

the container or in a deep base.

– Make sure that cutlery and dishes do not

lie inside one another.

– Make sure that cutlery and dishes do not

cover other cutlery and dishes.

– Make sure that glasses do not touch

other glasses.

– Put small objects in the cutlery basket.

10 electrolux

• Plastic items and pans with non-stick

coatings can retain water droplets. Plastic
items do not dry as well as porcelain and
steel items.

• Put light items in the upper basket. Make

sure that the items do not move.

Caution! Make sure that the spray arms
can move freely before you start a
washing program.

Warning! Always close the door after
you load or unload the appliance. An
open door can be dangerous.

Lower basket

Put large and heavily soiled dishes and pans
in the lower basket.

If you do not use the beer glass holders, fold
them up.
You can replace the beer glass holders with
the two cup racks. You can use the cup
racks for cups or for glasses with long stems.

The rows of prongs in the lower basket can
be adjusted flat to load large dishes, pots,
pans and bowls.

Beer glass holders

The beer glass holders on the left side in the
lower basket can hold a maximum of four
beer glasses.

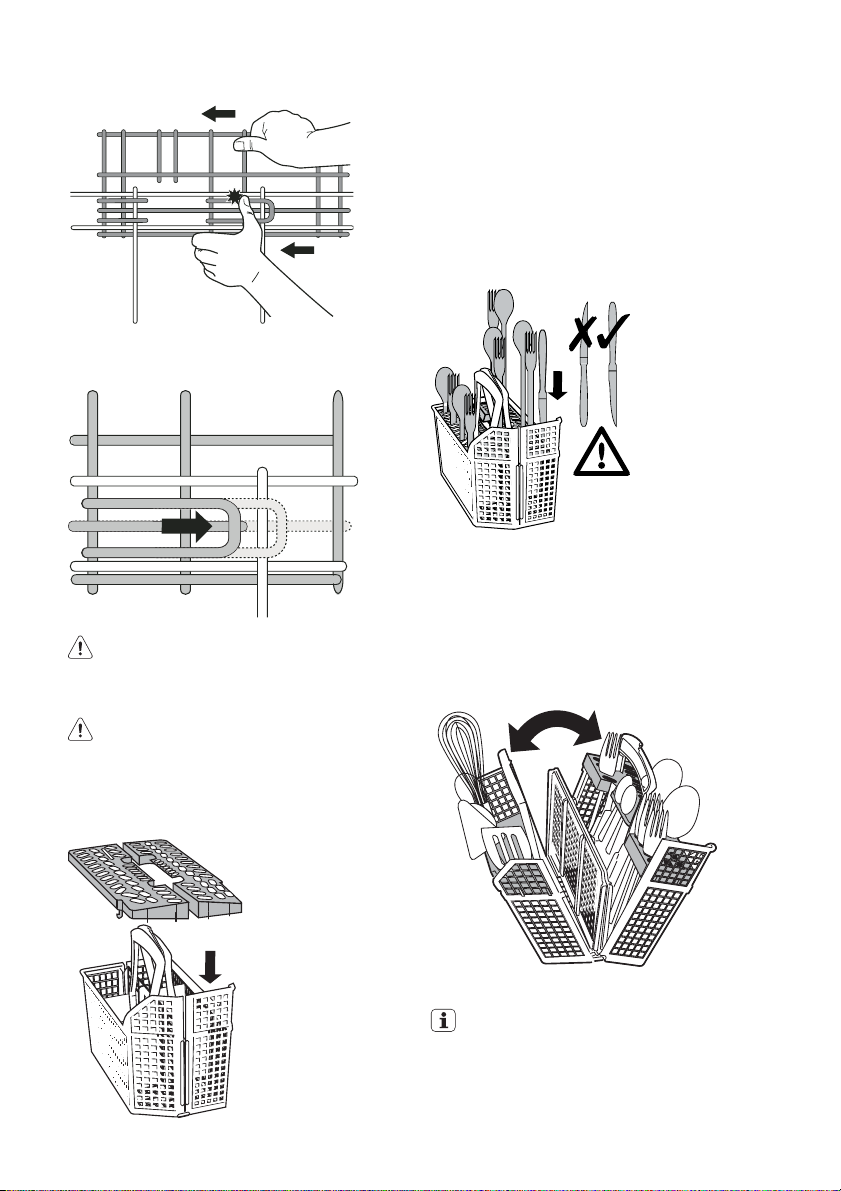

Do these steps to remove the beer glass
holders:

1. Pull up the hooks and push them lightly
from below.

2. Use the hooks to put the cup racks on the
horizontal bar.

Push the support to the rear to remove the
support of the beer glass holders.

Push the support to the front to attach the
support of the beer glass holders.

Warning! Be careful when you remove
or attach the support.

Cutlery basket

Warning! Do not put long-bladed knives

in a vertical position. Arrange long and
sharp cutlery horizontally in the upper
basket. Be careful with sharp items.

Use the cutlery grids for best washing results.

electrolux 11

• For larger items use only one of the cutlery

grids

• Put forks and spoons with the handles

down.

• Put knives with the handles up. If the points

of the knives or other thin items come out
from the bottom of the basket, they can
prevent the rotation of the lower spray arm.
Put knives and other thin items with the
handles down.

•Mix spoons with other cutlery to prevent

them nesting together.
You can open the cutlery basket to remove
the cutlery more easily. Follow these steps to
remove the cutlery:

1. Put the cutlery basket on a table or work

surface.

2. Open the handle.

•Put the grids on the cutlery basket.

3. Remove the cutlery.

Hold the two parts of the handle tightly
when you move the cutlery basket.

The upper basket

The upper basket is for saucers, salad bowls,
cups, glasses, pots and lids. Arrange the
items to let water touch all surfaces.

12 electrolux

• Put knives and small cutlery in the cutlery
tray. Cutlery too large for the cutlery tray
must be put in the cutlery basket.

• For longer items fold the cup racks up.

• Y ou ca n fold up or dow n the row of pron gs
on the left side of the upper basket to in­crease load flexibility.

• Put glasses with long stems in the cup
racks with the stems up.

• For glasses with long stems, turn the glass
holder to the left or to the right.

Adjustment of the height of the upper
basket

You can put the upper basket in two posi­tions to increase load flexibility.

Maximum height of the dishes in:

the upper

Upper posi­tion

Lower posi­tion

basket

22 cm 30 cm

24 cm 29 cm

the lower

basket

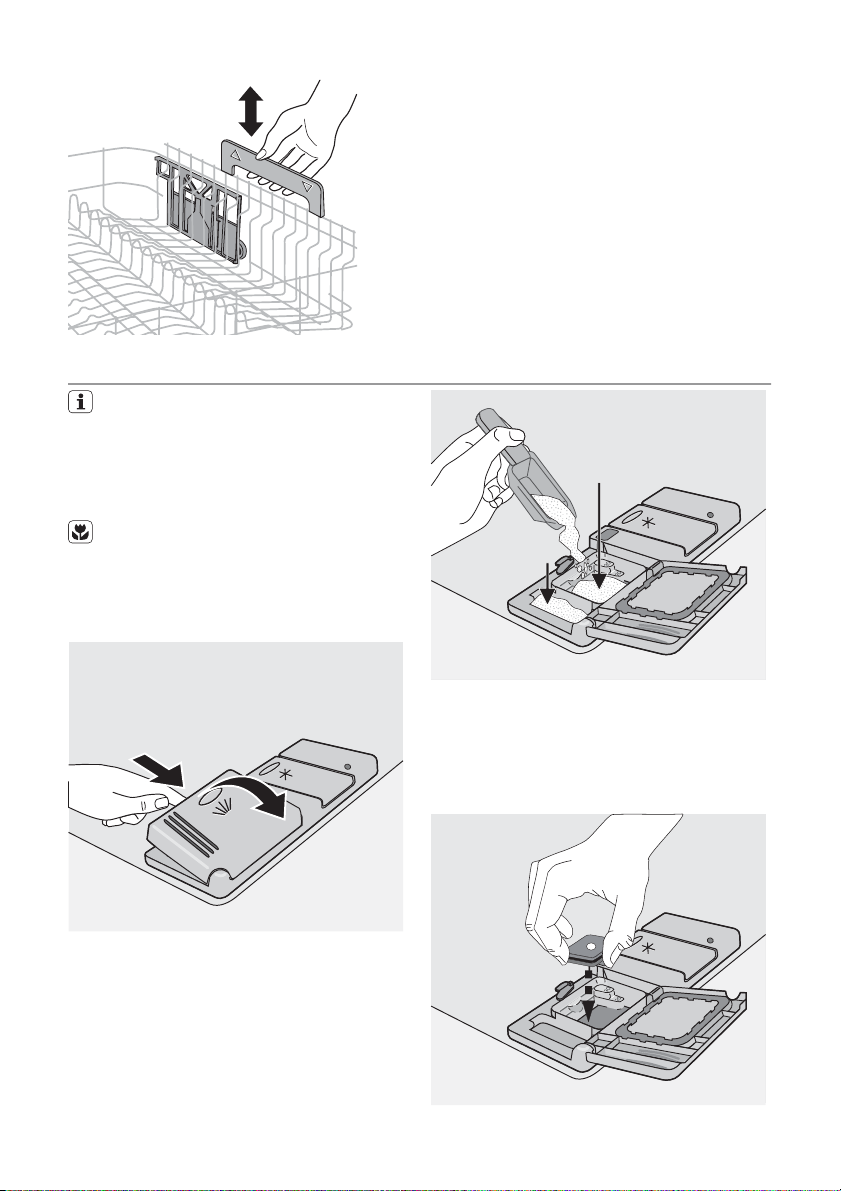

Follow these steps to move to the upper
basket to the lower/upper position:

1. Pull out the upper basket until it stops.

Use of detergent

Only use detergents (powder, liquid or
tablet) that are suitable for dishwashers.
Follow the data on the packaging:

• dosage recommended by the manu­facturer,

• storage recommendations.

Do not use more than the correct quan­tity of detergent to decrease pollution.

Follow these steps to fill the detergent dis­penser:

1. Open the lid of the detergent dispenser.

electrolux 13

2. Hold the upper basket by the handle, lift
it as far as possible and lower it vertically.
The upper basket latches into the lower
or the upper position.

A

B

2. Fill the detergent dispenser (A) with de­tergent. The marking shows the dosage:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.

3. If you use a washing program with pre­wash, put more detergent in the prewash
detergent compartment (B).

4. If you use detergent tablets, put the de­tergent tablet in the detergent dispenser
(A) .

5. Close the lid of the detergent dispenser.
Press the lid until it locks into position.

14 electrolux

Different brands of detergent dissolve in
different times. Some detergent tablets
do not have the best cleaning results
during short washing programs. Use
long washing programs when you use
detergent tablets to fully remove the de­tergent.

Use of combi detergent tablets

These products are detergents with a com­bined cleaning and rinsing functions. They
can contain also other cleaning agents.
Refer to the instructions from the manufac­turer for the use of these products.
With tablets that contain rinse aid:

Multitab function

The multitab function is for combi detergent
tablets.
These tablets contain agents such as deter­gent, rinse aid and dishwasher salt. Some
types of tablets can contain other agents.
Do a check if these tablets are suitable for the
local water hardness. Refer to the instruc­tions from the manufacturer.
The multitab function can be set with any
program.
When you set the multitab function, it stays
on until you deactivate it.
The multitab function automatically stops the
rinse aid and water softener operation. The
rinse aid and salt messages are deactivated.
The program duration can increase if you use
the multitab function.

Activate or deactivate the multitab func­tion before the start of a washing pro­gram.
You cannot activate or deactivate the
multitab function when the program op­erates. Cancel the washing program,
then set the program again.

• set the lowest position for the rinse aid

dosage,

• do not put rinse aid in the rinse aid dis-

penser. In this condition rinse aid indicator
light is always on when you switch on the
appliance.

.

Do these steps if the drying results are
not satisfactory:

1. Fill the rinse aid dispenser with rinse aid.

2. Set the rinse aid dosage to position 2.

If you go back to use normal detergents
again, fill the rinse aid dispenser and ad­just the rinse aid dosage.

Follow these steps if the drying re­sults are not satisfactory:

1. Fill the rinse aid dispenser with rinse
aid.

2. Activate the rinse aid dispenser.

3. Set the rinse aid dosage to position

2.

• You can only activate or deactivate

the rinse aid dispenser when the mul­titab function is activated.

To use normal detergent again:

1. Deactivate the multitab function.

2. Fill the salt container and rinse aid
dispenser.

3. Adjust the water hardness setting to
the highest level.

4. Do a washing program without
dishes.

5. Adjust the water softener to the wa­ter hardness in your area.

6. Adjust the rinse aid dosage.

Select and start a washing program

Follow these steps to set and start a washing
program:

1. Switch on the appliance.

2. Set options (if required). Refer to 'Option
menu'.

3. Select the washing program by pressing
the scroll buttons until the desired pro­gram is shown, then press OK/Start. Re-

fer to the 'Washing programs' chart for
program details.

4. Set the delay start (if required). Refer to
'Option menu'.

To start a washing program the appli­ance must be in program selection
mode. If you are still in option set mode,
press OK/Start button to return to pro­gram selection mode.

electrolux 15

5. Press the OK/Start button. The washing
program or the delay start countdown
starts automatically.

If the rinse aid and/or salt is required,
these messages appear after pressing
the OK/Start button and the appliance
will not start automatically. Press the
OK/Start button again.

When the washing program operates,
you cannot change the program. Cancel
the washing program. Refer to 'Cancel­ling a washing program'.

If you open the door during the count­down, it will interrupt the countdown.
When you close the door again, the
countdown continues from the point of
interruption.

Warning! Only interrupt or cancel a
washing program if necessary.
Attention! Open the door carefully.
Hot steam and water can escape.

Interrupting a washing program

Open the door.

• The program stops. The display shows the

message PLEASE CLOSE DOOR.

Close the door.

• The program continues from the point of

interruption.

Cancelling a washing program

1. Press the cancel button.

2. Follow the messages that the display
shows to cancel the washing program.

At this point, you can follow these steps:

1. Switch off the appliance.

2. Set a new washing program.

Fill the detergent dispenser with detergent
before you set a new washing program.

Cancelling a delay start

1. Press the cancel button.

2. The display shows the message CON­FIRM CANCEL?.

3. Press the OK/Start button to confirm. The
set program will automatically start.

End of the washing program

The washing program is complete when:

• The appliance stops automatically.

• The audible signal for the end of the pro-

gram operates.

• The display shows the messages PRO-

GRAMME END and PLEASE SWITCH
OFF.

It can occur that rinse aid and/or salt
messages show in the display as on al­ternative to PLEASE SWITCH OFF. You
can switch off the appliance in any case.

1. Switch off the appliance.

2. Open the door.
– For better drying results, keep the door

ajar for some minutes before you re-

move the dishes.
Let the dishes cool down before you remove
them from the appliance. Hot dishes are
easily damaged.

Turbo dry

Turbo dry consists of a fan that condenses
water vapour from the cabinet, ensuring op­timum drying performance and avoiding re­sidual steam recondensing on the dishes as
water droplets.
If you press the on/off button or open the
door during the 20 minutes when turbo dry­ing is in operation, you will deactivate the de­vice.

Removing the load

• First remove items from the lower basket,

then from the upper basket.

• There can be water on the sides and door

of the appliance. Stainless steel becomes
cool more quickly than the dishes.

16 electrolux

Washing programs

Washing programs

Program Degree of soil Type of load Program description

AUTOMATIC

30 MINUTES

70° INTENSIVE Heavy soil Crockery, cutlery,

50° ECO

55° 1 HOUR Light soil Crockery and cut-

45° GLASS Normal or light soil Delicate crockery

PLATE WARMER This programme heats dishes before

PREWASH Any Partial load (to be

1) During the AUTOMATIC program, the soil level of the dishes is given by how cloudy the water is. The
program duration and consumptions can change. This depends if the appliance is fully or not and on
the level of soil on the dishes. The appliance adjusts automatically the temperature of the water during
the main wash.

2) This is the perfect daily program to clean a partial load. Ideal for a family of 4 persons who only want
to load breakfast and dinner crockery and cutlery.

3) Test program for test institutes. Please refer to separate leaflet supplied, for test data.

1)

2)

3)

Consumption values

Program Duration (in minutes)1)Energy (in kWh) Water (in litres)

Any Crockery, cutlery,

pots and pans

Normal or light soil Crockery and cut-

lery

pots and pans

Normal soil Crockery and cut-

lery

lery

and cutlery

serving or removes dust from dishes
which have not been used for a long
time.

completed later in
the day).

Prewash
Main wash up to 50°C or 65°C
1 or 2 intermediate rinses
Final rinse
Drying

Main wash up to 60°C
Final rinse

Prewash
Main wash up to 70°C
2 intermediate rinses
Final rinse
Drying

Prewash
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying

Main wash up to 55°C
1 intermediate rinse
Final rinse

Main wash up to 45°C
1 intermediate rinse
Final rinse
Drying

1 hot rinse

1 cold rinse (to prevent food scraps
to bond).
Detergent is not necessary with this
programme.

AUTOMATIC - 1,1 - 1,8 12 - 25

30 MINUTES - 0,9 9

70° INTENSIVE - 1,8 - 2,0 23 - 25

50° ECO - 0,8 - 0,88 10 - 11

55° 1 HOUR - 1,0 - 1,2 11 - 12

Program Duration (in minutes)1)Energy (in kWh) Water (in litres)

45° GLASS - 0,8 - 0,9 14 - 15

PLATE WARMER - 0,8 4

PREWASH - 0,1 4

1) The display shows the program duration.

The pressure and temperature of the
water, the variations of power supply

and the quantity of dishes can change
these values.

electrolux 17

A

18 electrolux

Care and cleaning

Warning! Switch the appliance off
before you clean it.

Cleaning the filters

Caution! Do not use the appliance

without the filters. Make sure that the
installation of the filters is correct.
Incorrect installation will cause
unsatisfactory washing results and
damage to the appliance.

If necessary, clean the filters. Dirty filters de­crease the washing results.

At intervals, the display shows a mes­sage to remind you to clean the filters.

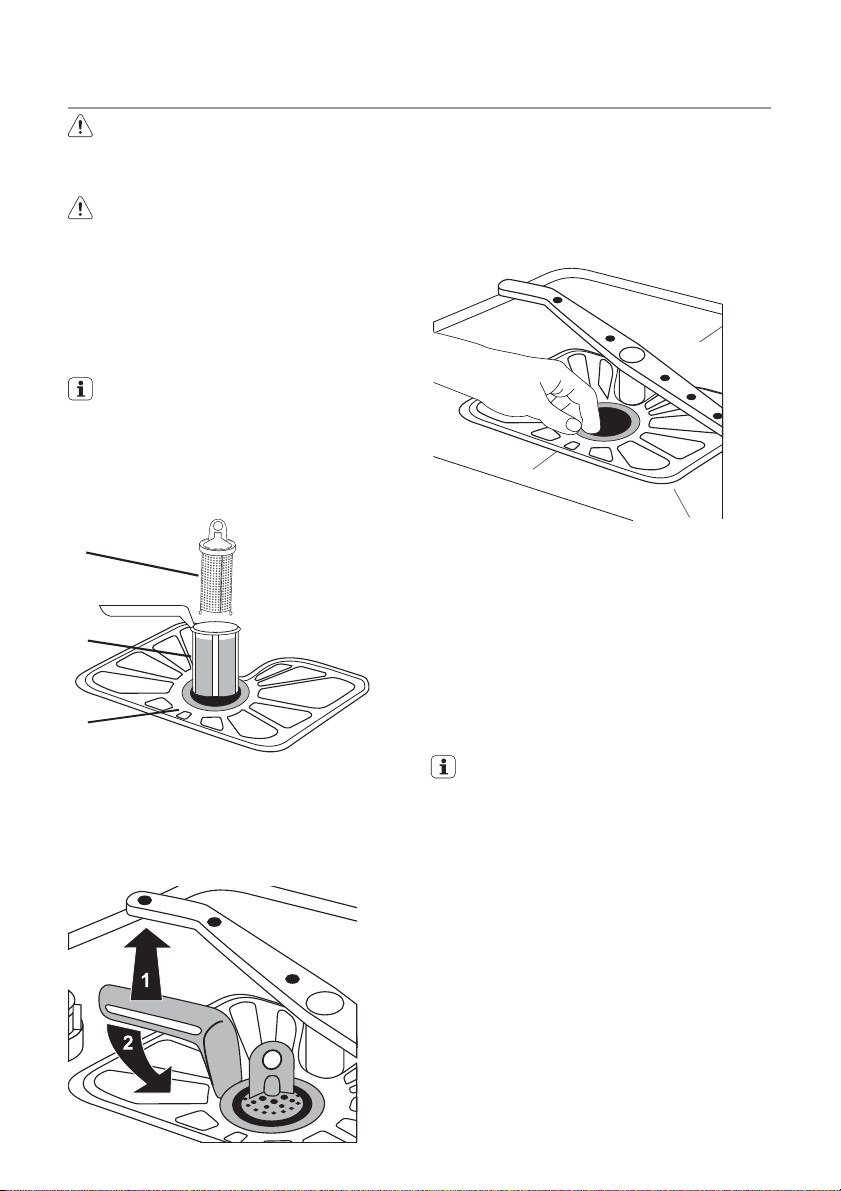

The dishwasher has three filters:

1. coarse filter (A)

2. microfilter (B)

3. flat filter (C)

B

C

Follow these steps to clean the filters:

1. Open the door.

2. Remove the lower basket.

3. To unlock the filter system, turn the han-

dle on the microfilter (B) approximately
1/4 anticlockwise.

4. Remove the filter system.

5. Hold the coarse filter (A) by the handle
with the hole.

6. Remove the coarse filter from the micro­filter.

7. Remove the flat filter (C) from the bottom
of the appliance.

8. Clean the filters below running water.

9. Put the flat filter (C) in the bottom of the
appliance.

10. Put the coarse filter (A) in the microfilter
(B) and push the filters together.

11. Put the filter system in position.

12. To lock the filter system, turn the handle
on the microfilter (B) clockwise until it
locks in position.

13. Install the lower basket.

14. Close the door.

Do not remove the spray arms.

If the holes in the spray arms become clog­ged, remove remaining parts of soil with a
cocktail stick.

External cleaning

Clean the external surfaces of the appliance
and control panel with a damp soft cloth.
Only use neutral detergents. Do not use
abrasive products, scouring pads or solvents
(acetone, trichloroethylene etc.).

Internal cleaning

Do an inspection at intervals of 3 months. Set
a washing program for heavily soiled dishes.
Use detergent, but do not put dishes in the
appliance.

electrolux 19

Long periods of non-operation

Do these steps when you do not use the ap­pliance for a long period:

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Keep the door open to prevent unpleas­ant smells.

4. Keep the inner side of the appliance
clean.

Frost precautions

Caution! Do not install the appliance

where the temperature is below 0 °C.

The manufacturer is not responsible for
damage because of frost.

If not possible, empty the appliance and
close the door. Disconnect the water inlet
hose and remove water from the water inlet
hose.

Moving the machine

Do these steps to move the appliance:

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Remove the appliance and the hoses.

4. Do not tilt the appliance during transport.

What to do if…

The appliance does not start or stops during
operation.
If there is a fault, first try to find a solution to
the problem yourself. Refer to 'What to do

Fault code and malfunction Possible cause and solution

• the display shows the message
OPEN THE TAP

The appliance does not fill with water

• the display shows the message
DRAIN BLOCKED

The appliance will not drain

• the digital display shows the mes­sage SERVICE CODE

The anti-flood device operates

The program does not start • The appliance door is not closed. The display shows the

• The water tap is blocked or restricted with limescale.
Clean the water tap.

• The water tap is closed.
Open the water tap.

• The filter in the water inlet hose is blocked.
Clean the filter.

• The installation of the water inlet hose is not correct. The
hose can be kinked or squashed.
Make sure that the installation is correct.

• There is a blockage in the sink spigot.
Clean the sink spigot.

• The installation of the water drain hose is not correct. The
hose can be kinked or squashed.
Make sure that the installationis correct.

• Close the water tap and contact your Customer Care Centre.

message PLEASE CLOSE DOOR.
Close the door.

• Mains plug is not connected.
Plug-in appliance to the mains.

• The fuse has blown out in the household fuse box.
Replace the fuse.

• Delay start is set.
Cancel the delay start to start the program immediately.

After the check, switch on the appliance. The
program continues from the point of inter­ruption. If the malfunction shows again, con­tact your Customer Care Centre.
These data are necessary to help you quickly
and correctly:

if...'. If you cannot find a solution to the prob­lem yourself, contact your dealer or the Cus­tomer Care Centre.

• Model (Mod.)

• Product number (PNC)

• Serial number (S.N.)
For these data, refer to the rating plate.
Write the necessary data here:

Model description : ..........

20 electrolux

Product number : .......... Serial number : ..........

The cleaning results are not satisfactory

The dishes are not clean • The selected washing program is not applicable for the type of load

Limescales particles on the
dishes

The dishes are wet and dull • No rinse aid has been used.

There are streaks, milky spots
or a bluish coating on glasses
and dishes

Dry water drop signs on
glasses and dishes

and soil.

• The baskets are loaded incorrectly so that water cannot reach all
surfaces.

• Spray arms do not turn freely because of incorrect arrangement of
the load.

• The filters are dirty or not correctly installed.

• The quantity of detergent is too little or missing.

• The salt container is empty.

• The water softener is adjusted on a wrong level.

• The salt container cap is not closed correctly.

• The rinse aid dispenser is empty.

• Decrease the rinse aid dosage.

• Increase rinse aid dosage.

• The detergent can be the cause.

Technical data

Dimensions Width cm 60

Height cm 85

Depth cm 63,5

Electrical connection - Voltage ­Overall power - Fuse

Water supply pressure Minimum 50 kPa (7 psi)

Maximum 800 kPa (116 psi)

Capacity Place settings 12

Information on the electrical connection is given on the rating plate
on the inner edge of the dishwasher door.

Installation

Fitting under a counter

Warning! Make sure that mains plug is

disconnected from the mains socket
during installation.

Put the appliance adjacent to a water tap and
a water drain.
The plinth of a freestanding appliance is not
adjustable.
Do not remove the appliance's worktop if you
want to use it as a freestanding unit.
It is not necessary to remove the worktop
when installing under a standard kitchen
bench top.
Only remove the appliance worktop to install
it under a close fitting sink unit or kitchen
worktop (820mm).
Make sure that the dimensions of the recess
agree with the given dimensions.

Follow steps listed below to remove the
appliance worktop

1. Remove the rear screws (1).

electrolux 21

2. Pull the worktop behind the appliance (2).

3. Lift the worktop and move it from the front
slots (3).

4. Level of the appliance using the adjusta­ble feet.

5. Install the appliance under the kitchen
worktop. Ensure that water hoses are not
kinked or squashed.

The appliance must be easily accessible to
the technician if a repair is necessary.

Adjusting the level of the appliance

Make sure that the appliance is level to close
and seal the door correctly. If the level of the
appliance is correct, the door does not catch
on the sides of the cabinet. If the door does
not close correctly, loosen or tighten the ad­justable feet until the appliance is level.

Water connection

Water inlet hose

Connect the appliance to a cold water sup­ply.
Connect the inlet hose to a water tap with an
external BSP thread spout of 3/4”.

Inlet water supply

• Cold water pressure: 800 kPa max - 50
kPa min.

• Water flow rate 10 L / minute min.

• If cold water pressure is in excess of 800
kPa, a pressure reducing valve should be
used. Check for leaks.

Caution! Always use new hoses when
you connect the appliance to the water
mains. Old hoses must not be used. The
water inlet hose must be examined at an
interval of twelve months for
deterioration and replaced if necessary.

The water pressure must be in the limits (refer
to 'Technical data'). Make sure that the local
water authority gives you the average mains
pressure in your area.

22 electrolux

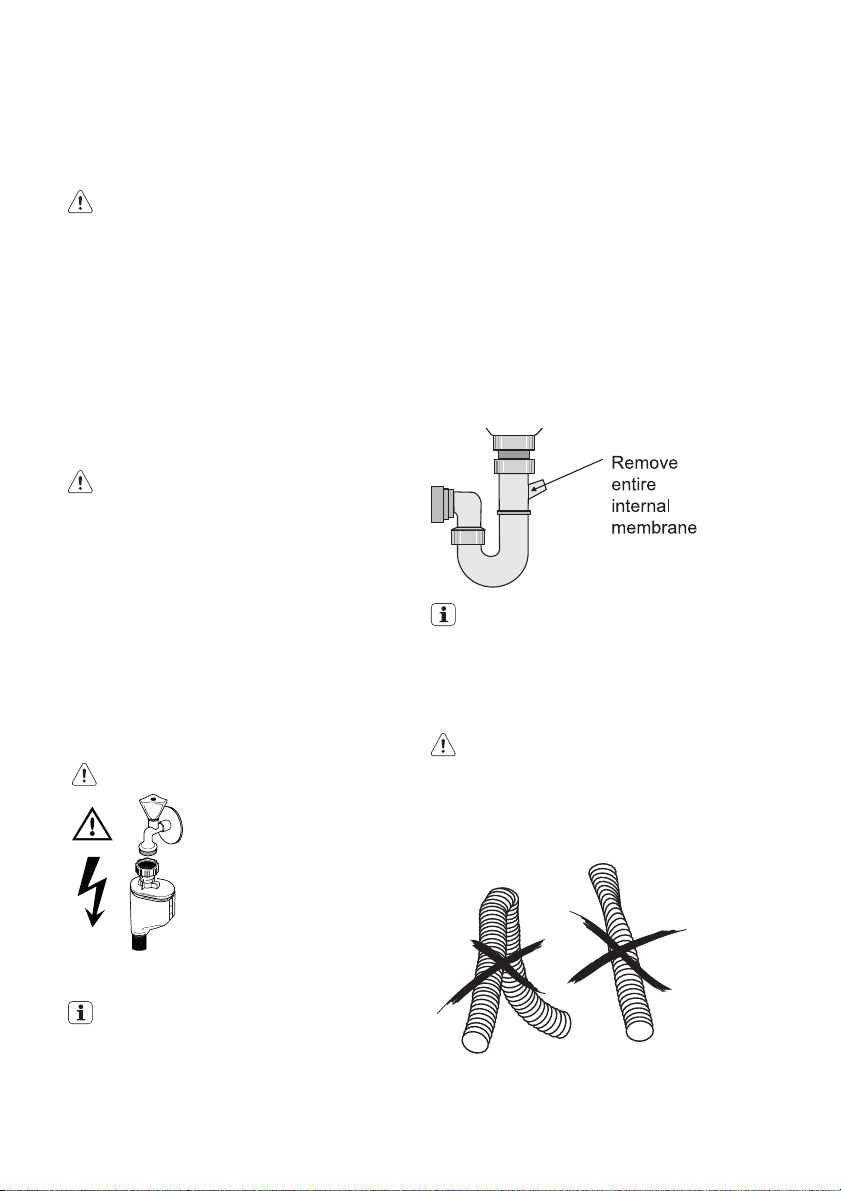

Make sure that there are no kinks in the water
inlet hose and that the water inlet hose is not
squashed or entangled.
Fit the hose nut correctly to prevent water
leaks.

Caution! Do not connect the appliance
to new pipes or pipes that have been not
used for a long time. Let the water run
for some minutes, then connect the inlet
hose.

The water inlet hose is double-walled and
has an inner mains cable and a safety valve.
The water inlet hose is under pressure only
while the water is running. If there is a leak in
the water inlet hose, , the safety valve inter­rupts the running water.
Be careful when you install the water inlet
hose.

Warning!

• The mains cable is in the double-wal­led inlet hose. Do not immerse the wa­ter inlet hose or the safety valve in wa­ter.

• Do not attempt to shorten the inlet
hose.

• If the water inlet hose or the safety
valve is damaged, immediately turn off
the power and remove the mains plug
from the mains socket.

• Only a qualified Service Engineer can
replace the water inlet hose with safe­ty valve.

Warning!

have a continuous fall to the plumbing con­nection.
The drain hose can be lengthened using ad­ditional lengths and connectors. These must
be purchased from Electrolux Spare Parts.
The extension length must not exceed 2 me­tres.
The drain hose must be free of kinks and ob­structions.
Remove the sink plug when the appliance
drains the water to prevent that the water
goes back into the appliance.
If you connect the water drain hose to a trap
spigot under the sink, remove the plastic
membrane. If you do not remove the mem­brane, remaining food can cause a blockage
in the drain hose spigot.

The appliance has a security feature to
prevent dirty water going back into the
appliance. If, the spigot of the sink has a
'non-return valve', this valve can cause
the appliance to drain incorrectly. Re­move the non-return valve.

Caution! Make sure that the water
couplings are tight to prevent water
leakage.
Ensure that hoses are not crushed or
kinked under or behind the appliance.

Dangerous voltage

In order to pass the safety valve through
the kitchen cabinets, an opening of at
least 45mm x 90mm is needed.

Water drain hose

The highest point of the drain hose must be
no more than 60 cm from the floor and must

Once connected the inlet hose to the
water tap, turn the tap on and check that
there are no leaks.

Electrical connection

Warning! Safety standards require the
appliance to be earthed.
Prior to using the appliance for the first
time, ensure that the rated voltage and
type of supply on the rating plate match
that of the supply where the appliance is
to be installed.
Th e fuse rat i ng is als o to be fou n d on the
rating plate.
Always plug the mains plug onto a cor­rectly installed approved socket.
Do not use multi-ways plugs, connec­tors and extension cables. This can con­stitute a fire hazard through overheating.
If necessary, have the domestic wiring
system socket replaced. If the mains ca-

Environment concerns

The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Discard the packaging
materials in the applicable container at the
community waste disposal facilities.

Warning! To discard the appliance,
follow the procedure:

• Pull the mains plug out of the socket.

• Cut off the mains cable and mains
plug and discard them.

• Discard the door catch. This prevents
children closing themselves inside the
appliance and endangering their lives.

electrolux 23

ble has to be replaced, contact your lo­cal Customer Care centre.
The mains plug must be accessible after
the appliance has been installed.
Never unplug the appliance by pulling on
the cable. Always pull the plug.
Test the appliance. Run a quick washing
programme and ensure that the appli­ance fills with water, washes and drains
with no leaks.
The manufacturer accepts no liability for
failure to observe the above safety pre­cautions.

Old appliance

Make sure that the appliance goes to the ap­plicable collection point for recycle.
Make sure that this appliance is discarded
correctly. Inappropriate waste discard of the
appliance causes negative consequences
for the environment and human health.
For more information about the recycle of this
appliance, contact your local city office, your
household waste disposal service or the
shop where you purchased the appliance.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEA­LAND

This document sets out the terms and
conditions of product warranties for
Electrolux branded appliances. It is an
important document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
you require service for your Electrolux
appliance. General Terms and Condi­tions

1. In this warranty

– Electrolux' means Electrolux Home

Products Pty Ltd ABN 51 004 762 341
in respect of Appliances purchased in
Australia and Electrolux (NZ) Limited in
respect of Appliances purchased in
New Zealand;

– 'Appliance' means any Electrolux

product purchased by you accompa­nied by this document;

24 electrolux

– 'Warranty Period' means

i) where you use the Appliance for per­sonal, domestic or household purpo­ses in Australia the period of 24
months and in New Zealand the peri­od of 24 months;
ii) where you use the Appliance for
commercial purposes, in Australia the
period of 3 months and in New Zea­land the period of 3 months, (if the pe­riod stated is 0 months you are not
covered by this product warranty) fol­lowing the date of original purchase of
the Appliance;

– 'you' means the purchaser of the Ap-

pliance not having purchased the ap­pliance for re-sale, and 'your' has a
corresponding meaning.

2. This warranty only applies to Appliances
purchased and used in Australia or New
Zealand and is in addition to (and does
not exclude, restrict, or modify in any
way) any non-excludable statutory war­ranties in Australia or New Zealand.

3. Electrolux warrants that, when dispatch­ed from an Electrolux warehouse, the
Appliance is free from defects in materi­als and workmanship for the Warranty
Period.

4. During the Warranty Period Electrolux or
its Authorised Service Centre will, at no
extra charge if your appliance is readily
accessible without special equipment,
and subject to these terms and condi­tions, repair or replace any parts which it
considers to be defective. You agree that
any replaced Appliances or parts be­come the property of Electrolux. This
warranty does not apply to light globes,
batteries, filters or similar perishable
parts.

5. Parts and Appliances not supplied by
Electrolux are not covered by this war­ranty.

6. Where you are within an Electrolux serv­ice area, this warranty covers the cost of
transport of the Appliance to and from
Authorised Service Centres of Electrolux
and travelling costs for representatives of
the Authorised Service Centre to and
from your home or business. If you are
outside an Electrolux service area, you
will bear these costs. For information
about whether you are within an Electro-

lux service area, please phone 13 13 49
in Australia, or 0800 10 66 10 in New
Zealand.

7. Proof of purchase is required before you
can make a claim under this warranty.

8. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or work­manship. Electrolux is not liable in the
following situations (which are not ex­haustive):
– The Appliance is damaged by

i) accident
ii) misuse or abuse, including failure to
properly maintain or service
iii) normal wear and tear
iv) power surges, electrical storm
damage or incorrect power supply
v) incomplete or improper installation
vi) incorrect, improper or inappropriate
operation
vii) insect or vermin infestation.

– The Appliance is modified without au-

thority from Electrolux in writing.

– The Appliance's serial number or war-

ranty seal has been removed or de­faced.

– The Appliance was serviced or re-

paired by anyone other than Electrolux
or its Authorised Service Centres.

9. This warranty, the contract to which it
relates and the relationship between you
and Electrolux are governed by the law
applicable in the Australian State where
the Appliance was purchased or the law
applicable in New Zealand if the Appli­ance was purchased in New Zealand.
Where the Appliance was purchased in
New Zealand for business purposes the
Consumer Guarantee Act does not ap­ply.

Limitation of Liability

10. To the extent permitted by law:
– Electrolux excludes all warranties oth-

er than as contained in this document;

– Electrolux shall not be liable for any

loss or damage whether direct or in­direct or consequential arising from
your purchase, use or non-use of the
Appliance.

11. Provisions of the Trade Practices Act
and State consumer legislation in Aus­tralia, and the Consumer Guarantees
Act, the Sale of Goods Act and the Fair

electrolux 25

Trading Act in New Zealand, imply war­ranties or conditions, or impose obliga­tions, upon Electrolux which cannot be
excluded, restricted or modified. To the
extent permitted by law, the liability of
Electrolux (if any) arising out of or in re­lation to the Appliance or any services
supplied by Electrolux shall be limited
(where it is fair and reasonable to do so),:
– in the case of Appliances, at its option,

to the replacement or repair of the Ap­pliances or the supply of equivalent
products or the payment of the cost of
replacing the Appliances or having the
Appliances repaired or of acquiring
equivalent Appliances. Upon being re­placed, parts and Appliances become
the property of Electrolux; or

– in the case of services, at its option, to

the supply of the services again or the

FOR SERVICE

OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SERV­ICE CENTRE IN AUSTRALIA

Please call 13 13 4 9

For the cost of a local call (Australia only)

FOR SERVICE

OR TO FIND THE ADDRESS OF
YOUR NEAREST AUTHORISED
SERVICE CENTRE IN NEW
ZEALAND

Free call 0800 10 66 10

(New Zealand only)

SERVICE AUSTRALIA

ELECTROLUX HOME PROD­UCTS

www.electrolux.com.au

SERVICE NEW ZEALAND

ELECTROLUX HOME PROD­UCTS

www.electrolux.co.nz

payment of the cost of having the

services re-supplied;
and in the case of Appliances or services
supplied in New Zealand, loss or dam­age whether direct or indirect or conse­quential that is reasonably foreseeable.

Privacy

You acknowledge that in the event that you
make a warranty claim it will be necessary for
Electrolux and its Authorised Service Centres
to exchange information in relation to you to
enable Electrolux to meet its obligations un­der this warranty.

Important Notice

Before Calling a Service Technician please
check carefully the operating instructions,
service booklet and the warranty terms and
conditions.

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE
SPARE PARTS CENTRE IN
AUSTRALIA

Please call 13 13 50

For the cost of a local call (Australia only)

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF
YOUR NEAREST SPARE
PARTS CENTRE IN NEW ZEA­LAND

Free call 0800 10 66 20

(New Zealand only)

26 electrolux

electrolux 27

www.electrolux.com

www.electrolux.com.au

117960640 - 00 - 112008
