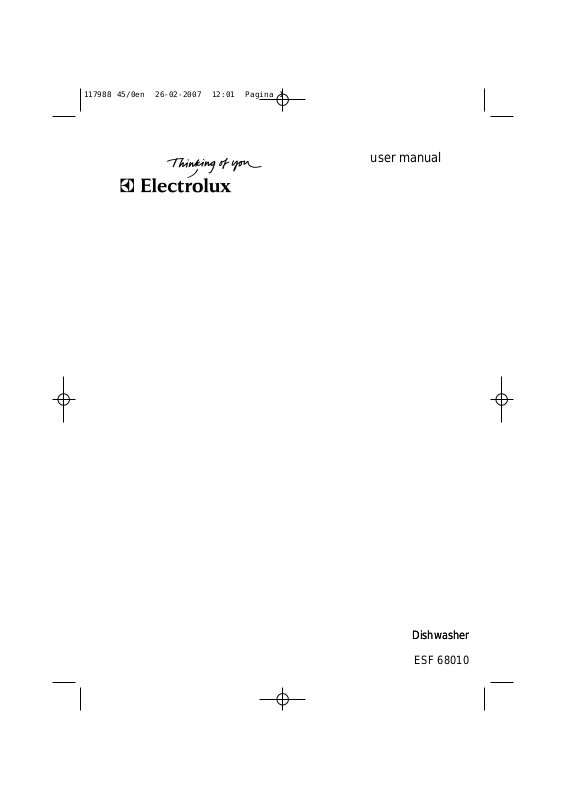

user manual
Dishwasher
ESF 68010
We were thinking of you when we made this product
welcome to the world of Electrolux |
electrolux 3 |
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!
117988 45/0
4 electrolux contents
Contents
Safety information |
5 |
Product description |
7 |
Control panel |
8 |
First use |
14 |
Daily use |
19 |
Washing programmes |
31 |
Care and cleaning |
33 |
Something not working |
35 |
Technical data |
38 |
Hints for test institutes |
40 |
Installation |
41 |
Environment concerns |
45 |
Guarantee/Customer Service |
46 |
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid damaging the appliance.
General information and tips
Environmental information
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that
they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
Correct use
●This dishwasher is only intended for washing household utensils suitable for machine washing.
●Do not put any solvents in the dishwasher. This could cause an explosion.
●Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.
●Only use products (detergent, salt and rinse aid) suitable for dishwashers.
●Avoid opening the door whilst the appliance is in operation, hot steam may escape.
safety information |
electrolux 5 |
●Do not take any dishes out of the dishwasher before the end of the dishwashing cycle.
●After use, isolate the appliance from the power supply and turn off the water supply.
●This product should be serviced only by an authorised service engineer, and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons will cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.
General safety
●Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
●The water in your dishwasher is not for drinking. Detergent residues may still be present in your machine.
●Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
●Do not sit or stand on the open door.
6 electrolux safety information
Child safety
●This appliance is designed to be operated by adults. Don’t allow children to use the dishwasher unsupervised.
●Keep all packaging well away from children. There is risk of suffocation.
●Keep all detergents in a safe place out of children’s reach.
●Keep children well away from the dishwasher when the door is open.
Installation
●Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.
●All packaging must be removed before use.
●Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.
●For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.
●Never use the dishwasher if the electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.
●All sides of the dishwasher must never be drilled to prevent damage to hydraulic and electric components.
For electrical and water connection carefully follow the instructions given in specific paragraphs.
Product description
1Upper basket
2Water hardness dial
3Salt container
4Detergent dispenser
5Rinse aid dispenser
6Rating plate
7Filters
8Lower spray arm
9Upper spray arm
10 Worktop
product description |
electrolux 7 |
This dishwasher has an internal light that turns on and off when the opening and closing of the dishwasher door occurs.
Internal light equipped with led lamp CLASS 1 in accordance with
EN 60825-1: 1994 + A1:2002 + A2:2001
In case that this light has to be replaced, please contact your local Service Force Centre.
8 electrolux control panel
Control panel
1On/Off button
2«Programme» scrolling button
3«Delay start» scrolling button
4«Options» scrolling button
5«OK» button
6«Start» button
7Display
A sequence of displayed messages audible signals will guide you in the setting of the appliance and the selection of a washing programme and available options.
First use of the appliance:
●Press the On/Off button: the button will illuminate.
●Follow the instructions displayed to set the desired language (default set language: English) and time.
The following message is displayed:
(Press one of the scrolling buttons to select the language and then OK to confirm the selection).
When the displayed message ENG flashes it is possible to select the language by pressing one of the scrolling buttons.
Press OK to confirm. The following displayed message appears:
Subsequently.
control panel |
electrolux 9 |
Once the highlighted time flashes it is possible to set the right time.
Press OK to confirm.
Once the time has been set, the display will appear divided in 3 areas:
-menu programmes
-time
-menu options
Each area is managed by the means of the beneath scrolling button:
●press one of the scrolling buttons: the selected area is displayed with a highlighted frame
●press again the beneath scrolling button to display the available menu.
«Menu programmes» area
Symbol and duration of the washing programme are displayed.
●Press the programme scrolling button to select the area.
●Press again the same button: the displayed area enlarges and
shows the list of available washing programmes, the corresponding symbol and the duration.
10 electrolux control panel |
|
Press programme |
scrolling button to |
display the list. |
|
Press OK button to confirm.
The display will show again the 3 divided areas.
In the menu programmes area is displayed the set programme and duration.
In the time area is displayed the ending time of the programme (= time + programme duration).
«Time» area
Allows to delay the start of the programme up to a time-limit of 19 hours.
Press delay start |
scrolling button |
to select the area. |
|
Press and keep pressed the button to modify the end of programme time:
-In the upper part of the area the set delay start of the programme is highlighted.
-In the lower part of the area the end of programme time is updated.
Press OK button or wait a few seconds to store the setting.
«Menu options» area |
|
Press the option |
scrolling button to |
select the area. |
|
Press again and again the button to scroll the list of the available options (the selected option is highlighted).
This area offers:
Option menu |
Submenu |
Extra rinse
Adds another rinse phase.
See "Washing programmes" chart
3-in-1
Option for the use of 3 in 1 combi detergents.
The option remains active until it will be deactivated
Press OK to change the setting. Press the option scrolling button to go to another option.
Press another scrolling button or wait a few seconds to come out from the option menu.
Once selected, the options will remain displayed as shown in the example below.
|
|
control panel |
electrolux 11 |
|
|
|
|
Option menu |
Submenu |
Notes |
|
|
|
|
|
Wash guide |
Program guide |
provides informations |
|
|
|
concerning the programmes |
|
|
Option guide |
provides informations |
|
|
|
concerning the options |
|
|
Demo mode |
It is a short demonstration |
|
|
|
concerning the use of the |
|
|
|
controls of the appliance. |
|
|
|
Demo mode active: |
|
|
Back |
allows to return to the options |
|
|
|
|
|
● |
Press OK to enter in submenu. |
|
● |
Press the option |
scrolling button |
|
to display the list. |
|
●Press again OK to select the submenu.
For «Program guide» and «Option guide»:
● Press the option scrolling button to look through the informations.
●Press OK .
●Select Back and press OK to return to the Option menu.
●Press another scrolling button or wait a few seconds to come out from the option menu.
For «Demo mode»:
●By default the Demo mode is
not active : press OK to activate it.
The display will appear divided in 3 areas and in the upper left-hand corner appears the message
DEMO .
It is now possible, using the buttons, to simulate the different selections and settings available and to start a washing programme simulation.
To return back to the normal condition of the appliance it is necessary to deactivate the "Demo mode".
12 electrolux control panel |
|
|
|
|
|
Option menu |
Submenu |
Notes |
|
|
|
Settings |
Language (*) |
allows to select the language |
|
for the display of the |
|
|
|
messages |
|
Sound volume (*) |
5 levels available: level 0 = |
|
volume deactivated |
|
|
Voice message |
Not selectable. (Option not |
|
|
available with this model). |
|
Time (*) |
allows to set the time |
|
Brightness (*) |
10 levels available |
|
Contrast (*) |
10 levels available |
|
Reset settings |
Resets the factory settings |
|
Water hardness (*) |
Allows you to set the water |
|
softener according to the |
|
|
|
|
|
|
hardness of the water (10 |
|
|
levels available) |
|
Rinse aid |
Available only with the "3-in- |
|
|
1" option active. Allows to |
|
|
reactivate the rinse aid |
|
|
dosage. |
|
Key lock |
Allows to lock the use |
|
of the buttons to avoid |
|
|
|
|
|
|
an incorrect use of |
|
|
the controls |
|
Back |
press OK to return the options |
|
|
|
control panel |
electrolux 13 |
● Scroll the option menu until
Settings appears.
●Press OK .
●Scroll the submenu until the the desired option appears.
For submenu indicated with (*):
●Press OK : the current setting flashes indicating that it can be modified.
●Press again and again the option scroll button to select the new setting.
●Press OK or wait a few seconds to store the setting.
Key lock:
With this function active. after 15 seconds from the last selection, the buttons are locked and will not accept any kind of controls.
It is possible to deactivate temporarily the function: press any button, the following message is displayed.
After 15 seconds the function will be activated again.
To deactivate the key lock function: go to menu options and
change the setting.
14 electrolux first use
First use
Before using your dishwasher for the first time:
●Ensure that the electrical and water connections comply with the installation instructions
●Remove all packaging from inside the appliance
●Set the water softener
●Pour 1 litre of water inside the salt container and then fill with dishwasher salt
●Fill the rinse aid dispenser
When using combi detergents
tablets («3 in 1», «4 in 1», «5 in 1», etc...) follow the instructions given
in "3 in 1 function".
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
Water hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.
The water softener must be set in both ways: manually, using the water hardness dial and electronically, using the option scrolling button.
Setting manually
The dishwasher is factory set at position 2.
1.Open the dishwasher door.
2.Remove the lower basket from the dishwasher.
3.Turn the water hardness dial to position 1 or 2 (see table).
4.Replace the lower basket.
first use electrolux 15
Setting electronically
The dishwasher is factory set at level 5.
Menu Options |
Settings |
Water |
hardness |
|
|
With the help of the below chart, set the level of the water softener according to the hardness of the water in your area.
Water hardness |
|
|
Adjusting the water |
|
Use of |
|
|
|
|
|
hardness setting |
|
salt |
Clarke |
°TH |
mmol/l |
manually |
electronically |
|
|
|
|
|
|
|
||
64 - 88 91 - 125 |
9.0 - 12.5 |
2 |
level 10 |
yes |
||
53 - 63 |
76 - 90 |
7.6 - 8.9 |
2 |
level 9 |
yes |
|
|
|
|
|
|
|
|
46 - 52 |
65 - 75 |
6.5 - 7.5 |
2 |
level 8 |
yes |
|
|
|
|
|
|
|
|
36 - 45 |
51 - 64 |
5.1 - 6.4 |
2 |
level 7 |
yes |
|
|
|
|
|
|
|
|
28 - 35 |
40 - 50 |
4.0 - 5.0 |
2 |
level 6 |
yes |
|
|
|
|
|
|
|
|
23 - 27 |
33 - 39 |
3.3 - 3.9 |
2 |
level 5 |
yes |
|
|
|
|
|
|
|
|
18 - 22 |
26 - 32 |
2.6 - 3.2 |
1 |
level 4 |
yes |
|
|
|
|
|
|
|
|
13 - 17 |
19 - 25 |
1.9 - 2.5 |
1 |
level 3 |
yes |
|
|
|
|
|
|
|
|
5 - 12 |
7 - 18 |
0.7 - 1.8 |
1 |
level 2 |
yes |
|
|
|
|
|
|
|
|
< 5 |
< 7 |
< 0.7 |
|
1 |
level 1 |
no * |
|
|
|
|
|
|
|
* no salt is necessary
16 electrolux first use
Filling with dishwasher salt
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.
To fill:
1.Open the door, remove the lower basket and unscrew the cap of the salt container by turning it anticlockwise.
2.Pour 1 litre of water inside the container (this is necessary only
before filling with salt for the first time).
4.Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.
5.Replace the cap tightly turning it clockwise until it stops with a click.
Do not worry if water overflows from the unit when filling with salt, this is quite normal.

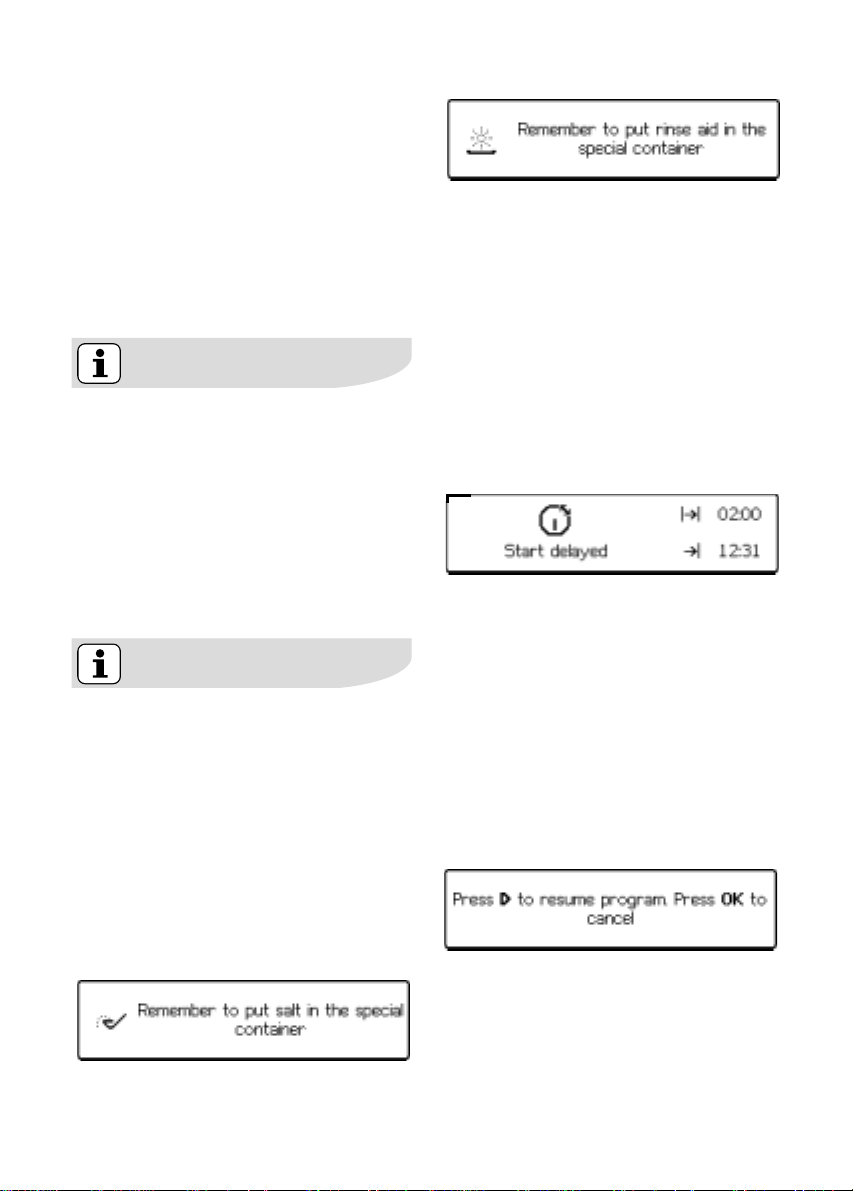

The salt container will require topping up periodically. You are reminded of this by a displayed message.
This occurs only at the start and at the end of the washing programme; during the running of the programme the indication for salt refilling is not active.
The refilling salt message can remain visible for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.
Loading...
