Electrolux ESF 6700ROW, ESF 6700ROX User Manual

ESF 6700ROW
ESF 6700ROX

................................................ .............................................

EN DISHWASHER USER MANUAL

www.electrolux.com

2

CONTENTS

1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

5. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8.

HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

10.

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

11. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

12.

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

13. WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

ENGLISH 3

1.

SAFETY INSTRUCTIONS

Before the installation and use of the ap­pliance, carefully read the supplied in­structions. The manufacturer is not re­sponsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.

1.1 Children and vulnerable
people safety

WARNING!

Risk of suffocation, injury or per­manent disability.

• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per­son who is responsible for their safety.

• Do not let children play with the appli­ance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the
appliance door when it is open.

1.2 Installation

• Remove all the packaging.

• Do not install or use a damaged appli­ance.

• Do not install or use the appliance
where the temperature is less than 0
°C.

• Do not drill into the sides of the appli­ance otherwise damage to hydraulic
and electrical components may occur.

• Do not use multi-plug adapters and ex­tension cables.

• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be re­placed, this must be carried out by our
Service centre.

• Connect the mains plug to the mains
socket only at the end of the installa­tion. Make sure that there is access to
the mains plug after the installation.

• Do not pull the mains cable to discon­nect the appliance. Always pull the
mains plug.

• Do not touch the mains cable or the
mains plug with wet hands.

• Test the appliance. Run a quick wash­ing program and ensure that the appli­ance fills with water, washes and drains
with no leaks.

Water connection

• Make sure not to cause damage to the
water hoses.

• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.

• The first time you use the appliance,
make sure that there is no leakage.

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information
on the rating plate agrees with the pow­er supply. If not, contact an electrician.

• Always use a correctly installed shock­proof socket.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged, im­mediately disconnect the mains plug
from the mains socket. Contact the
Service to replace the water inlet hose.

www.electrolux.com

4

1.3 Use

• This appliance is intended to be used in

• Do not change the specification of this

• Put knives and cutlery with sharp points

• The appliance can release hot steam if

• Do not keep the appliance door open

• Do not sit or stand on the open door.

• Obey the safety instructions from the

household and similar applications such
as:

– Farm houses.
– By clients in hotels, motels and other

residential type environments.

– Bed and breakfast type environ-

ments.

WARNING!

Risk of injury, burns, electrical
shock or fire.

appliance.

in the cutlery basket with the points
down or in a horizontal position.

you open the door while a program op­erates.

without supervision to prevent to fall on
it.

manufacturer of the dishwasher deter­gent to prevent burns to eyes, mouth
and throat.

• Only put detergent in the dispenser be­fore you start a program.

• Check that the detergent dispenser is
empty after completion of the program.

• Do not drink and play with the water in
the appliance.

• Do not remove the dishes from the ap­pliance until the program is completed.
There can be detergent on the dishes.

• Make sure the dispenser is empty after
the completion of the program.

• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.

• Do not use water spray and steam to
clean the appliance.

1.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the
mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil­dren and pets to get closed in the ap­pliance.

2. PRODUCT DESCRIPTION

ENGLISH 5

Worktop

1

Upper spray arm

2

Lower spray arm

3

Filters

4

Rating plate

5

Salt container

6

12

1

4

8

10 11

9

7

5

6

Air vent

7

Rinse aid dispenser

8

Detergent dispenser

9

Cutlery basket

10

Lower basket

11

Upper basket

12

3

2

www.electrolux.com

6

3. CONTROL PANEL

1

Auto O

50º

2 3

14

On/off button

1

Program touchpad

2

MyFavourite touchpad

3

Program indicators

4

Indicators

5

Delay touchpad

6

Option touchpad

7

Indicators Description

Salt indicator. It is always off while the program operates.

Rinse aid indicator. It is always off while the program operates.

AutoFlex

Quick Plus

1 Hour

FlexiWash

Intensive

70º

45º-70º

50º-65º

4

12

Rinse & Hold Hygiene

60º

55º

6 7

5

10

11

Start touchpad

8

EnergySaver touchpad

9

Display

10

Program bar

11

Indicators

12

TimeSaver touchpad

13

Reset touchpad

14

Multitab

3 sec

Save MyFavourite

8913

Door indicator. It comes on when the appliance door is open or
is not correctly closed.

TimeSaver indicator.

Delay indicator.

Hygiene indicator.

Multitab indicator.

Turbidity Sensor indicator. It comes on when the sensor for the
AUTO program operates.
While the sensor operates, only the related indicator is on. All the
other indicators, the display and the program bar go off. They
come on again when the Turbidity Sensor indicator goes off.

EnergySaver indicator.

3.1 Program bar

The program bar shows you information
that is related to the program and to the
option TimeSaver.

Start and progress of the program

When the program starts, the 2 lateral segments of
the program bar flash.

As the program is in progress, the middle seg­ments come on with fixed light, while the 2 lateral
segments continue to flash.

When the program is completed, all the segments
come on with fixed light.

Program bar and TimeSaver option

When you set a program that is applicable to the
TimeSaver option, all the segments of the program
bar come on with fixed light.

When you set the TimeSaver option, only the mid­dle segment stays on with fixed light.

ENGLISH 7

www.electrolux.com

8

4. PROGRAMS

Program Degree of soil

Type of load

1)

Normal soil
Crockery and cut­lery

3)

All
Crockery, cutlery,
pots and pans

Program
phases

Prewash
Wash 50 °C
Rinses
Dry

Prewash
Wash from 45 °C to
70 °C
Rinses

Options

TimeSaver
Hygiene

2)

EnergySaver
Multitab

Hygiene

2)

EnergySaver
Multitab

Dry

4)

Mixed soil
Crockery, cutlery,
pots and pans

Prewash
Wash 50 °C and 65
°C

TimeSaver
EnergySaver

Multitab
Rinses
Dry

5)

Heavy soil
Crockery, cutlery,
pots and pans

Prewash
Wash 70 °C
Rinses

TimeSaver

EnergySaver

Multitab
Dry

Normal soil
Crockery and cut-

Wash 55 °C
Rinses

Hygiene

Multitab

lery

6)

Fresh soil
Crockery and cut-

Wash 60 °C
Rinse

Hygiene

Multitab

lery

7)

1)

With this program you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard program for test institutes).

2)

It is not possible to apply together the options Hygiene and EnergySaver.

3)

The appliance senses the degree of soil and the quantity of items in the baskets. It
automatically adjusts the temperature and quantity of the water, the energy consumption
and the program duration.

4)

With this program you can wash different loads with different soil. A higher temperature and
water pressure in the lower basket, to wash items with heavy soil (e.g. pots and pans). A
lower temperature and water pressure in the upper basket, to wash items with normal soil
(e.g. glassware).

5)

This program has a high temperature rinsing phase for better hygiene results. During the
rinsing phase, the temperature stays at 70 °C for at least 10 minutes.

6)

With this program you can wash a load with fresh soil. It gives good washing results in a
short time.

7)

Use this program to quickly rinse the dishes. This prevents the remaining food to bond on
the dishes and bad odours to come out from the appliance.
Do not use detergent with this program.

All Prewash

2)

2)

ENGLISH 9

Consumption values

Program

1)

Duration
(min)

Energy
(kWh)

Water
(l)

147 - 161 0.79 - 0.96 10.4 - 12.6

40 - 150 0.5 - 1.7 7 - 14

130 - 140 1.3 - 1.5 14 - 15

150 - 160 1.4 - 1.6 13 - 14

55 - 65 1.0 - 1.2 9 - 10

30 0.9 9

14 0.1 4

1)

The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.

Information for test institutes

For all the necessary information for test performance. send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

www.electrolux.com

10

5. OPTIONS

Activate or deactivate the options
before the start of a program. You
cannot activate or deactivate the
options while a program operates.

If one or more options are set,
make sure that the related indica­tors are on before the program
starts.

5.1 TimeSaver

This option increases the pressure and
the temperature of the water. The wash­ing and drying phases are shorter. The to­tal program duration decreases by ap­proximately 50%.
The washing results are the same as with
the normal program duration. The drying
results can decrease.

How to activate the TimeSaver option

1.

Press TimeSaver. The related indica­tor and the program bar come on. In
the display you can see the update of
the program duration.

• If the option is not applicable to the
program, the related indicator flash­es quickly 3 times and then goes
off. The program bar does not come
on.

5.2 EnergySaver

This option decreases the temperature in
the last rinse phase.
The use of this option decreases the ener­gy consumption (up to 25%) and the pro­gram duration.
The dishes can be wet at the end of the
program.

How to activate the EnergySaver
option

1.

Press EnergySaver. The related indi­cator comes on. In the display you can
see the update of the program dura­tion.

• If the option is not applicable to the
program, the related indicator flash­es quickly 3 times and then goes
off.

5.3 Hygiene

With this option you have better hygiene
results. During the rinsing phase, the tem­perature stays at 70 °C for at least 10 mi­nutes.

How to activate the Hygiene option

1.

Press Option until the Hygiene indica­tor comes on. In the display you can
see the update of the program dura­tion.

• If the option is not applicable to the
program, the related indicator does
not come on.

5.4 Multitab

Activate this option only when you use
multi-tablets.
This option deactivates the use of rinse
aid and salt. The related indicators stay
off.
The program duration can increase.

How to activate the Multitab option

1.

Press Option until the Multitab indica­tor comes on.

If you stop to use the multi-tablets,
before you start to use separately
detergent, rinse aid and dishwasher
salt, do these steps:

1.

Set the water softener to the highest
level.

2.

Make sure that the salt container and
the rinse aid dispenser are full.

3. Start the shortest program with a rins-

ing phase, without detergent and with­out dishes.

4.

Adjust the water softener to the water
hardness in your area.

5.

Adjust the released quantity of rinse
aid.

5.5 Acoustic signals

The acoustic signals operate when the
appliance has a malfunction. It is not pos­sible to deactivate these acoustic signals.
There is also an acoustic signal that oper­ates when the program is completed. By
default, this acoustic signal is off, but it is
possible to activate it.

How to activate the acoustic signal
for the end of program

1. Press the on/off button to activate the

appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a program”.

2. Press and hold, at the same time, De­lay and EnergySaver until the indica-

tors
start to flash.

3. Press Delay,

•

The indicators

, and

go off.

6. BEFORE FIRST USE

and

ENGLISH 11

•
The indicator

flash.

• The display shows the current set­ting.

continues to

Acoustic signal on

Acoustic signal off

4. Press Delay to change the setting.

5. Press the on/off button to deactivate

the appliance and to confirm the set­ting.

1.

Make sure that the set level of the wa­ter softener agrees with the water
hardness in your area. If not, adjust
the water softener. Contact your local
water authority to know the water
hardness in your area.

2.

Fill the salt container.

3.

Fill the rinse aid dispenser.

4. Open the water tap.

5.

Processing residues can stay in the
appliance. Start a program to remove
them. Do not use detergent and do
not load the baskets.

6.1 Adjusting the water softener

Water hardness

German
degrees

(°dH)

47 - 50 84 - 90 8.4. - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

< 4 < 7 < 0.7 < 5

1)

Factory setting.

2)

Do not use salt at this level.

French

degrees

(°fH)

mmol/l Clarke

degrees

Water softener

adjustment

Electronic

1)

5

2)

1

www.electrolux.com

12

Electronic adjustment

1. Press the on/off button to activate the

2. Press and hold, at the same time, De-

3. Press MyFavourite,

6.2 Filling the salt container

appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a program”.

lay and EnergySaver until the indica-

tors

, and

start to flash.

•
The indicators

and

go off.

•

The indicator

continues to

flash.

• The display shows the current set­ting of the water softener. E.g.

= level 5.

4.

Press MyFavourite again and again
to change the setting.

5. Press the on/off button to deactivate

the appliance and to confirm the set­ting.

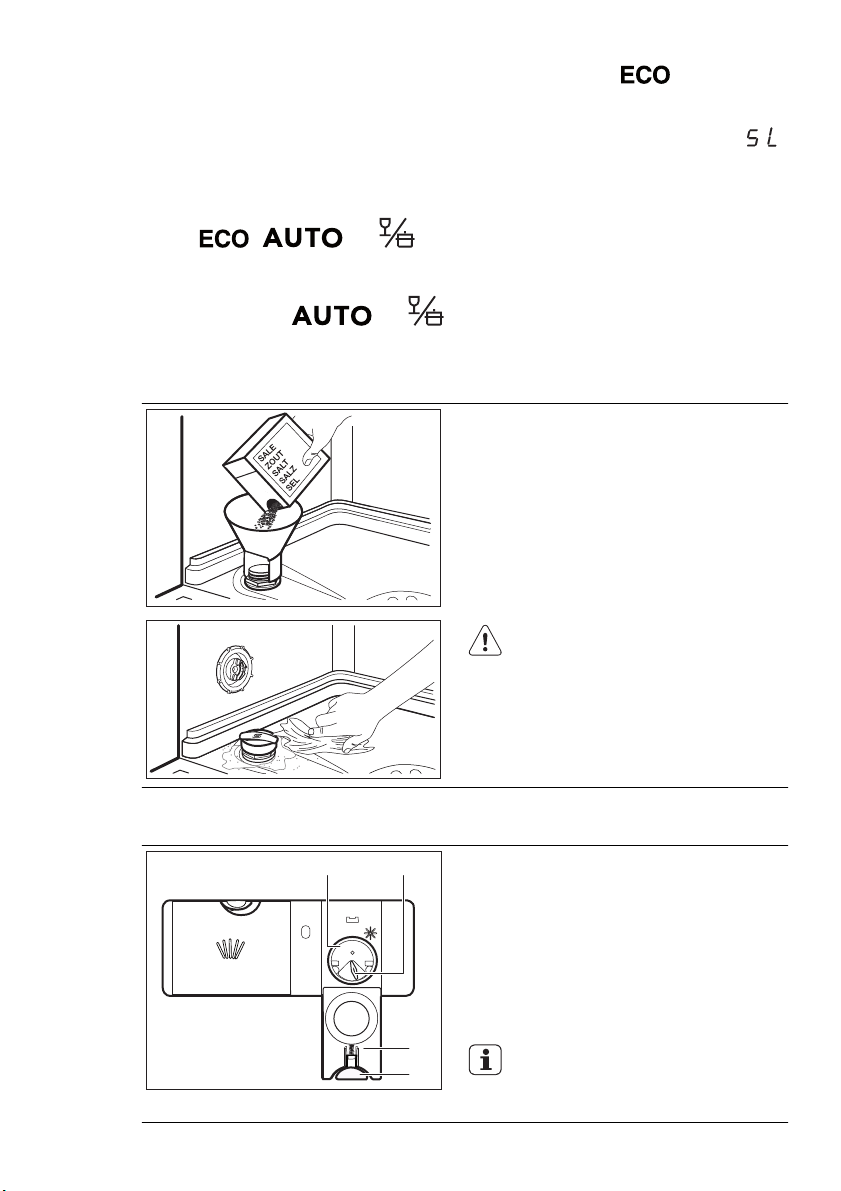

1.

Turn the cap counterclockwise and
open the salt container.

2.

Put 1 litre of water in the salt contain­er (only for the first time).

3.

Fill the salt container with dishwasher
salt.

4.

Remove the salt around the opening
of the salt container.

5.

Turn the cap clockwise to close the
salt container.

CAUTION!

Water and salt can come out from
the salt container when you fill it.
Risk of corrosion. To prevent it,
after you fill the salt container,
start a program.

6.3 Filling the rinse aid dispenser

A

+

B

A

X

M

2

1

3

4

-

C

D

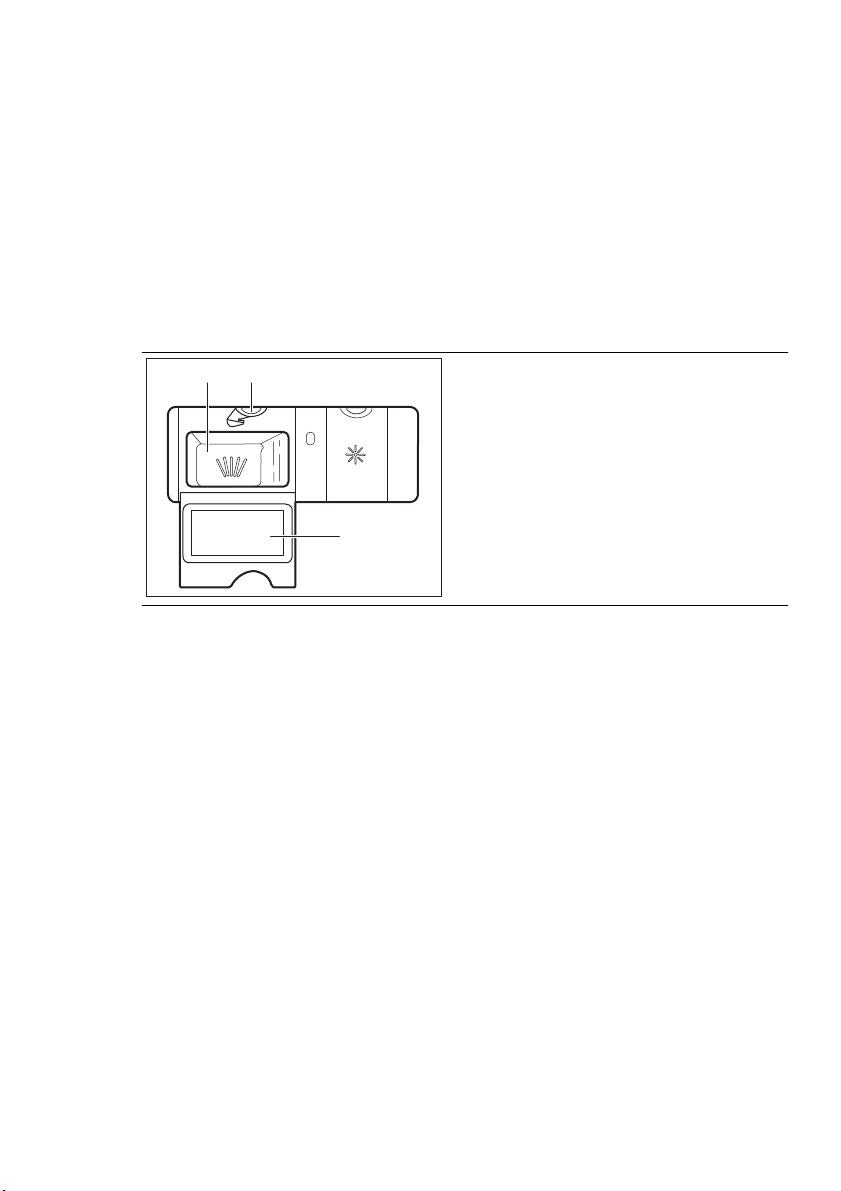

1.

Press the release button (D) to open
the lid (C).

2.

Fill the rinse aid dispenser (A), no
more than the mark 'max'.

3.

Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.

4.

Close the lid. Make sure that the re­lease button locks into position.

You can turn the selector of the
released quantity (B) between po­sition 1 (lowest quantity) and posi­tion 4 (highest quantity).

7. DAILY USE

M

A

X

1

2

3

4

+

-

ENGLISH 13

1.

Open the water tap.

2.

Press the on/off button to activate the
appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a program”.

• If the salt indicator is on, fill the salt
container.

• If the rinse aid indicator is on, fill the
rinse aid dispenser.

7.1 Using the detergent

B

A

30

20

C

7.2 Setting and starting a
program

The Auto Off function

To decrease the energy consumption, this
function automatically deactivates the ap­pliance a few minutes after:

• You have not closed the door.

• You have not pressed Start to start the

program.

• The program is completed.

Setting mode

For some settings it is necessary that the
appliance is in setting mode.
The appliance is in setting mode when,
after the activation, the indicator and the
duration of program ECO come on.
If the control panel does not show this
condition, press Reset.

3.

Load the baskets.

4.

Add the detergent.

• If you use the multi-tablets, activate
the Multitab option.

5.

Set and start the correct program for
the type of load and the degree of soil.

1.

Press the release button (B) to open
the lid (C).

2.

Put the detergent in the compartment
(A) .

3.

If the program has a prewash phase,
put a small quantity of detergent on
the inner part of the appliance door.

4.

If you use detergent tablets, put the
tablet in the compartment (A).

5.

Close the lid. Make sure that the re­lease button locks into position.

Starting a program without delay
start

1. Press the on/off button to activate the

appliance. Make sure that the appli­ance is in setting mode.

2.

Close the appliance door.

3.

Set a program. Press Program again
and again until the indicator of the pro­gram you want to set comes on. You
can also set the applicable options.

• If you want to set the MyFavourite
program, press MyFavourite. The
indicators that are related to the My­Favourite program and options
come on.

The display shows the duration of the
program.

4.

Press Start to start the program.

• When the program starts, only the
program duration and the program
bar are visible. If you want to see
which program and options are set,
press any touchpad (not Reset). The
set program and options are visible
for a few seconds.

www.electrolux.com

14

Starting a program with delay
start

1.

2. Press Delay again and again until the

3.

When the countdown is completed, the
program starts.

Opening the door while the
appliance operates

If you open the door, the appliance stops.
When you close the door, the appliance
continues from the point of interruption.

Cancelling the delay start while
the countdown operates

When you cancel the delay start you have
to set the program and options again.

1. Press Reset. The indicator and the

• The program duration starts to de­crease with steps of 1 minute.

Set the program.

display shows the delay time you want
to set (from 1 to 24 hours). The Delay
indicator comes on. The program indi­cator, the program bar and the option
indicators are no longer visible.

Press Start to start the countdown.

• If you want to see which program
and options are set, press any
touchpad (not Reset). The set pro­gram and options are visible for a
few seconds.

duration of the program ECO come
on.

Cancelling the program

1. Press Reset. The indicator and the

duration of the program ECO come
on.

Make sure that there is detergent
in the detergent dispenser before
you start a new program.

At the end of the program

The display shows 0:00.

• The program indicator goes off.

• All the segments of the program bar are
on with fixed light.

1.

Press the on/off button or wait for the
Auto Off function to automatically de­activate the appliance.

2.

Close the water tap.

Important

• For better drying results, keep the door
ajar for some minutes before you re­move the dishes.

• Let the dishes become cold before you
remove them from the appliance. Hot
dishes can be easily damaged.

• First remove the items from the lower
basket, then from the upper basket.

• There can be water on the sides and on
the door of the appliance. Stainless
steel becomes cool more quickly than
the dishes.

8. HINTS AND TIPS

8.1 The water softener

Hard water contains a high quantity of
minerals that can cause damage to the
appliance and bad washing results. The
water softener neutralises these minerals.
The dishwasher salt keeps the water soft­ener clean and in good conditions. It is
important to set the right level of the water
softener. This makes sure that the water
softener uses the correct quantity of dish­washer salt and water.

8.2 Using salt, rinse aid and

detergent

• Only use salt, rinse aid and detergent
for dishwasher. Other products can
cause damage to the appliance.

• The rinse aid helps, during the last rins­ing phase, to dry the dishes without
streaks and stains.

• Multi-tablets contain detergent, rinse
aid and other added agents. Be sure
that these tablets are applicable to the

water hardness in your area. Refer to
the instructions on the packaging of the
products.

• Detergent tablets do not fully dissolve
with short programs. To prevent deter­gent residues on the tableware, we rec­ommend that you use the tablets with
long programs.

Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
packaging.

8.3 Loading the baskets

Refer to the supplied leaflet with
examples of the load of the bas­kets.

• Only use the appliance to wash items
that are dishwasher-safe.

• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.

• Do not put in the appliance items that
can absorb water (sponges, household
cloths).

• Remove remaining food from the items.

• To remove easily remaining burned
food, soak pots and pans in water be­fore you put them in the appliance.

ENGLISH 15

• Put hollow items (cups, glasses and
pans) with the opening down.

• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.

• Make sure that glasses do not touch
other glasses.

• Put the small items in the cutlery bas­ket.

• Put the light items in the upper basket.
Make sure that they do not move.

• Make sure that the spray arms can
move freely before you start a program.

8.4 Before starting a program

Make sure that:

• The filters are clean and correctly instal­led.

• The spray arms are not clogged.

• The position of the items in the baskets
is correct.

• The program is applicable for the type
of load and for the degree of soil.

• The correct quantity of detergent is
used.

• There is dishwasher salt and rinse aid
(unless you use multi-tablets).

• The cap of the salt container is tight.

9. CARE AND CLEANING

WARNING!

Before maintenance, deactivate
the appliance and disconnect the
mains plug from the mains socket.

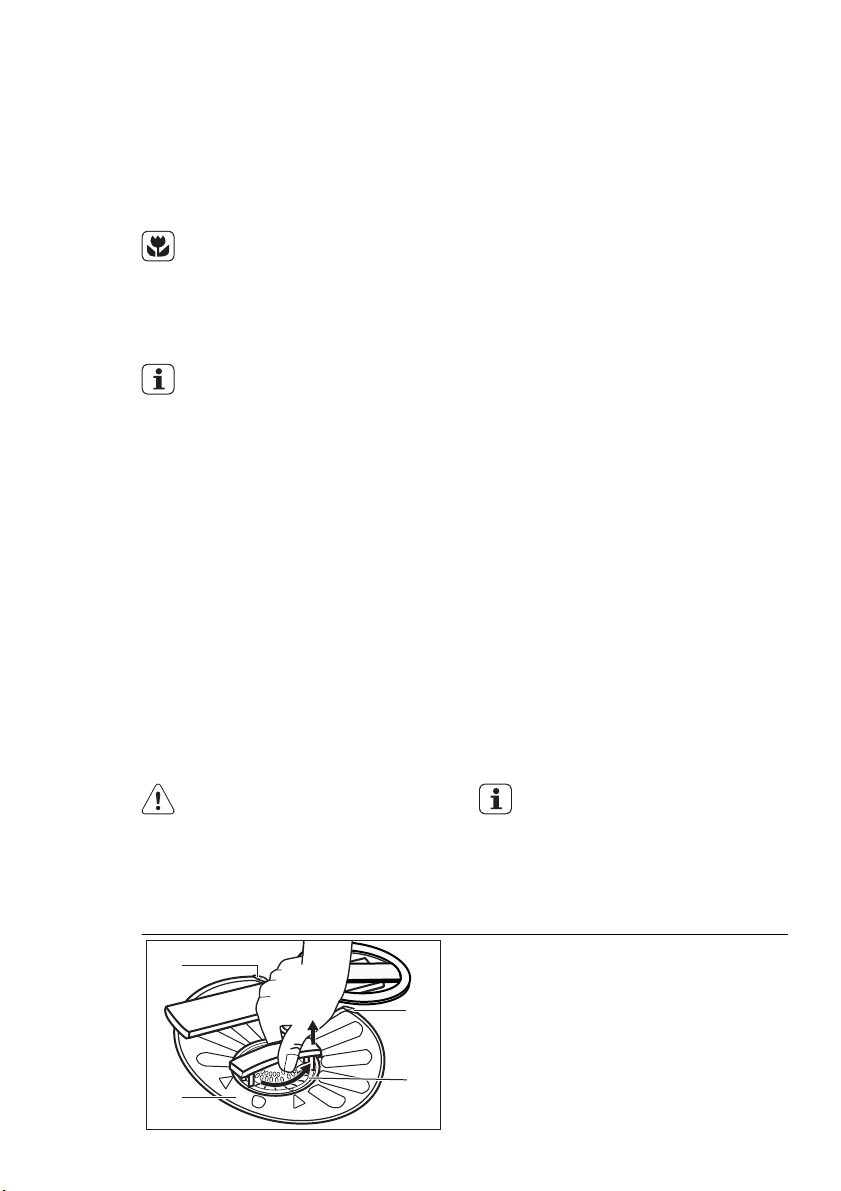

9.1 Cleaning the filters

C

B

Dirty filters and clogged spray
arms decrease the washing re­sults.
Make a check regularly and, if
necessary, clean them.

1.

Turn the filter (A) counterclockwise
and remove it.

C

A

www.electrolux.com

16

A1

A2

2.

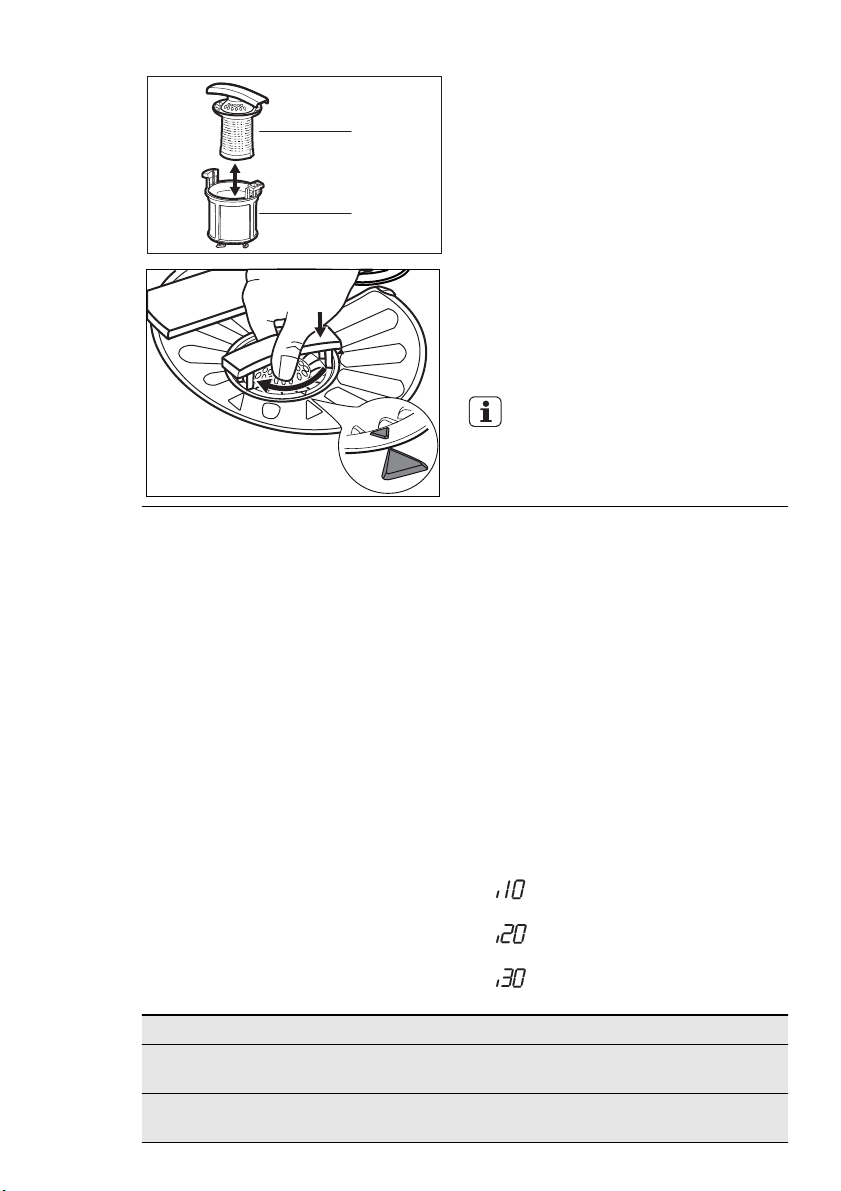

To disassemble the filter (A), pull
apart (A1) and (A2).

3.

Remove the filter (B).

4.

Wash the filters with water.

5.

Before you put the filter (B) back,
make sure that there are no residues
of food or soil in or around the edge
of the sump.

6.

Make sure that the filter (B) is cor­rectly positioned under the 2 guides
(C).

7.

Assemble the filter (A) and put it back
in filter (B). Turn it clockwise until it
locks.

An incorrect position of the filters
can cause bad washing results
and damage to the appliance.

9.2 Cleaning the spray arms

Do not remove the spray arms.
If the holes in the spray arms are clogged,
remove remaining parts of soil with a thin
pointed object.

9.3 External cleaning

Clean the appliance with a moist soft
cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads
or solvents.

10. TROUBLESHOOTING

The appliance does not start or it stops
during operation.
Before you contact the Service, refer to
the information that follows for a solution
to the problem.

With some problems, the display
shows an alarm code:

Problem Possible solution

You cannot activate the appli­ance.

Make sure that there is not a damaged fuse in

9.4 Internal cleaning

If you regularly use short duration pro­grams, these can leave deposits of grease
and limescale inside the appliance.
To prevent this, we recommend to run
long duration programs at least 2 times
per month.

•

- The appliance does not fill with

water.

•

- The appliance does not drain the

water.

•

- The anti-flood device is on.

Make sure that the mains plug is connected
to the mains socket.

the fuse box.

ENGLISH 17

Problem Possible solution

The program does not start. Make sure that the appliance door is closed.

Press Start.

If the delay start is set, cancel the setting or

wait for the end of the countdown.

The appliance does not fill with

Make sure that the water tap is open.

water.

Make sure that the pressure of the water sup-

ply is not too low. For this information, con­tact your local water authority.

Make sure that the water tap is not clogged.

Make sure that the filter in the inlet hose is not

clogged.

Make sure that the inlet hose has no kinks or

bends.

The appliance does not drain the

Make sure that the sink spigot is not clogged.

water.

Make sure that the drain hose has no kinks or

bends.

The anti-flood device is on. Close the water tap and contact the Service.

After the checks are completed, deacti­vate and activate the appliance. The pro­gram continues from the point of interrup­tion.
If the problem occurs again, contact the
Service.
If the display shows other alarm codes,
contact the Service.

10.1 If the washing and drying
results are not satisfactory

Whitish streaks or bluish layers on
glasses and dishes

• The released quantity of rinse aid is too
much. Adjust the rinse aid selector to a
lower position.

• The quantity of detergent is too much.

Stains and dry water drops on
glasses and dishes

• The released quantity of rinse aid is not
sufficient. Adjust the rinse aid selector
to a higher position.

• The quality of the detergent can be the
cause.

Dishes are wet

• The program is without a drying phase
or with a low temperature drying phase.
Leave the door ajar for some minutes
before you remove the dishes.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the
cause.

• The quality of the multi-tablets can be
the cause. Try a different brand or acti­vate the rinse aid dispenser and use
rinse aid together with multi-tablets.

Refer to “HINTS AND TIPS” for
other possible causes.

10.2 How to activate the rinse

aid dispenser

1. Press the on/off button to activate the

appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a program”.

2. Press and hold, at the same time, De-

lay and EnergySaver until the indica-

tors
start to flash.

3.

Press TimeSaver,

, and

www.electrolux.com

18

•
The indicators

off.

•

The indicator
to flash.

• The display shows the current set­ting.

and go

continues

Rinse aid dispenser off

Rinse aid dispenser on

11. TECHNICAL INFORMATION

Dimensions Width / Height / Depth (mm) 596 / 850 / 610

Electrical connection Refer to the rating plate.

Voltage 220-240 V

Frequency 50 Hz

Water supply pressure Min. / max. (bar / MPa) (0.5 / 0.05 ) / (8 / 0.8 )

Water supply

Capacity Place settings 14

1)

Connect the water inlet hose to a water tap with a 3/4'' thread.

2)

If the hot water comes from alternative sources of energy, (e.g. solar panels, wind turbine
energy), use the hot water supply to decrease energy consumption.

1)

Cold water or hot water

4. Press TimeSaver to change the set-

ting.

5.

Press the on/off button to deactivate
the appliance and to confirm the set­ting.

6. Adjust the released quantity of rinse

aid.

7.

Fill the rinse aid dispenser.

2)

max. 60 °C

12. INSTALLATION

ENGLISH 19

12.1 Fitting under a kitchen

counter

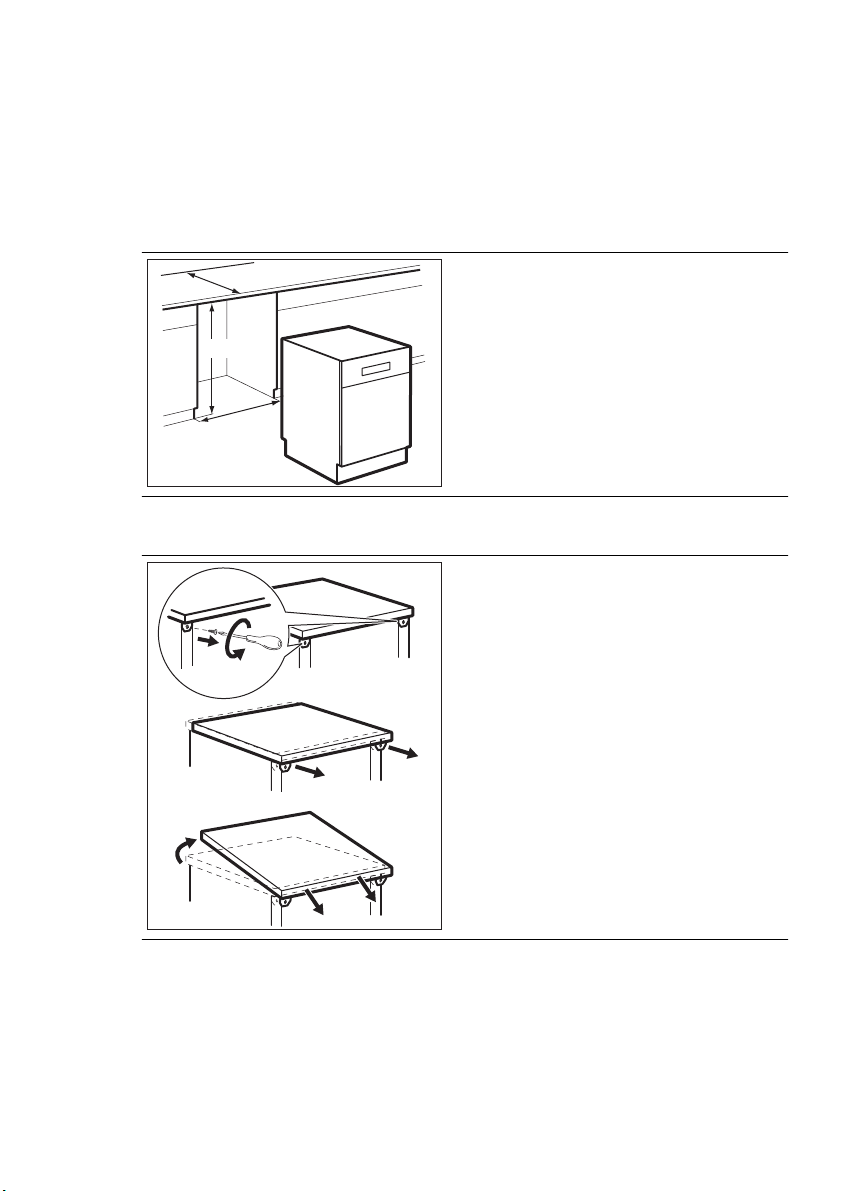

The plinth of a freestanding appliance is
not adjustable.
Do not remove the appliance worktop if
you want to use it as a freestanding unit.

min 570 mm

820 mm

600 mm

Removing the worktop

1

It is not necessary to remove the worktop
when installing under a standard kitchen
counter.
Only remove the appliance worktop to in­stall it under a close fitting sink unit or
kitchen counter (820 mm).

1.

Put the appliance adjacent to
a water tap and a water drain.

2.

Make sure that the dimensions
of the recess agree with the di­mensions in the figure.

3.

Remove the rear screws (1).

4.

Pull the worktop from behind
(2).

5.

Lift the worktop and move it
from the front slots. (3)

6.

Level the appliance using the
adjustable feet.

7.

Install the appliance under the
kitchen counter.

2

3

4

Adjusting the level of the
appliance

A correct adjustment of the level of the
appliance allows the door to close and
seal correctly.
If the door does not close correctly, loos­en or tighten the adjustable feet to level
the appliance.

12.2 Water connection

Water inlet hose

Connect the inlet hose to a water tap with
an external BSP thread spout of 3/4″.
For best washing performance it is rec­ommended to connect the appliance to a
cold water supply.

www.electrolux.com

20

Energy savings can be made by connect­ing the appliance to a Solar water system
and using economy options, however the
water temperature must not exceed 60
°C.

Inlet water supply

• Water pressure: 800 kPa max - 50 kPa

• Water flow rate 10 L / minute min.

• If water pressure is in excess of 800

• If water temperature is in excess of 60

The water pressure must be in the limits,
refer to “TECHNICAL INFORMATION”.

min.

kPa, a pressure reducing valve should
be used. Check for leaks.

°C, a tempering valve should be used.
Check for leaks.

CAUTION!

Always use new hoses when you
connect the appliance to the wa­ter mains. Old hoses must not be
used. The water inlet hose must
be examined at an interval of
twelve months for deterioration
and replaced if necessary.

Remove
entire
internal
membrane

Make sure that the local water authority
gives you the average mains pressure in
your area.

Water drain hose

The highest point of the drain hose must
be no more than 600 mm from the floor
and must have a continuous fall to the
plumbing connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux Spare
Parts. The extension length must not ex­ceed 2 metres.
The drain hose must be free of obstruc­tions.
Remove the sink plug when the appliance
drains the water to prevent that the water
goes back into the appliance.
The appliance has a security feature to
prevent dirty water going back into the
appliance. If the spigot of the sink has a
non-return valve, this valve can cause the
appliance to drain incorrectly. Remove the
non-return valve.

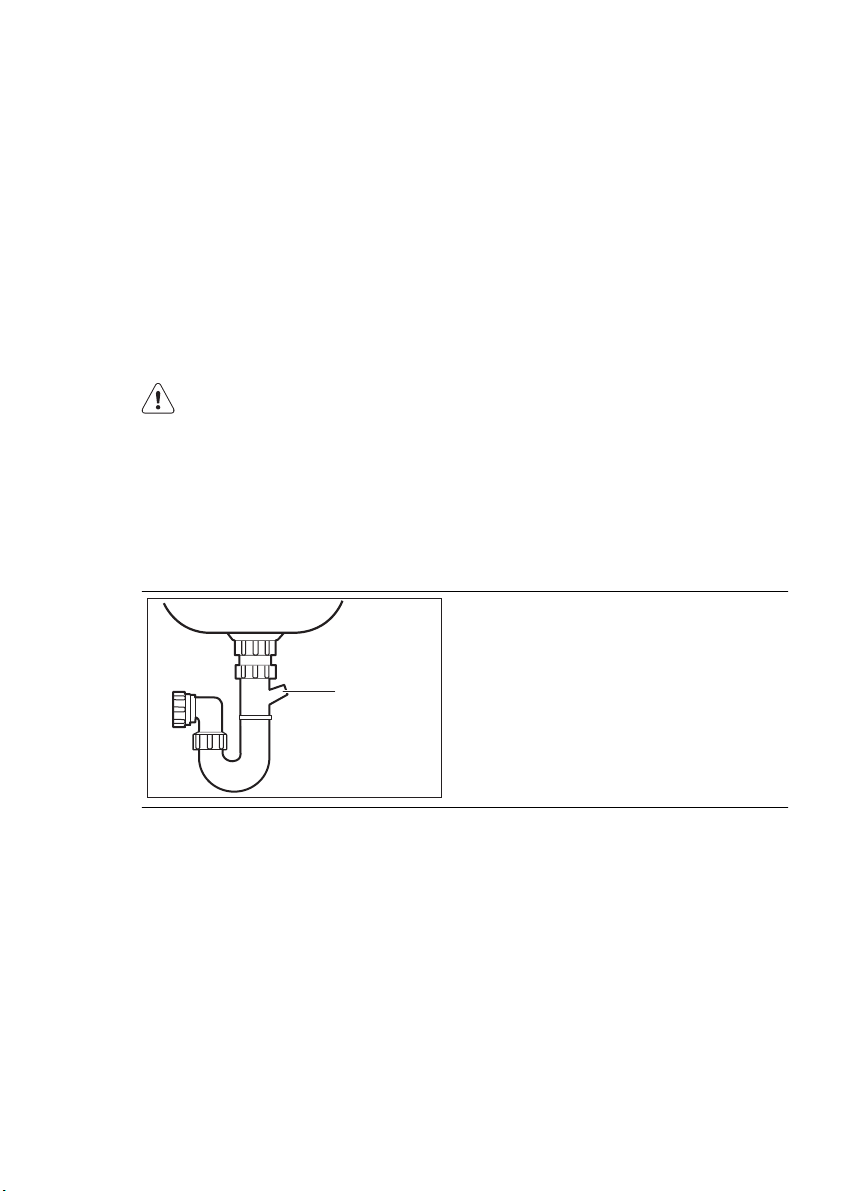

If you connect the water drain hose to a
trap spigot under the sink, remove the
plastic membrane. If you do not remove
the membrane, remaining food can cause
a blockage in the drain hose spigot.

13. WARRANTY

ENGLISH 21

FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: DISHWASHER

This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an im­portant document. Please keep it with
your proof of purchase documents in
a safe place for future reference
should you require service for your
Appliance.

1.

In this warranty

a)

‘acceptable quality’ as referred to
in clause 10 of this warranty has
the same meaning referred to in
the ACL;

b)

‘ACL’ means Trade Practices
Amendment (Australian Consumer
Law) Act (No.2) 2010;

c)

‘Appliance’ means any Electrolux
product purchased by you ac­companied by this document;

d)

‘ASC’ means Electrolux’ author­ised serviced centres;

e)

‘Electrolux’ means Electrolux
Home Products Pty Ltd of 163
O’Riordan Street, Mascot, NSW
2020, ABN 51 004 762 341 in re­spect of Appliances purchased in
Australia and Electrolux (NZ) Limi­ted of 3-5 Niall Burgess Road,
Mount Wellington, in respect of
Appliances purchased in New
Zealand;

f)

‘major failure’ as referred to in
clause 10 of this warranty has the
same meaning referred to in the
ACL and includes a situation when
an Appliance cannot be repaired
or it is uneconomic for Electrolux,
at its discretion, to repair an Appli­ance during the Warranty Period;

g)

‘Warranty Period’ means:
– where the Appliance is used for

personal, domestic or house­hold use (i.e. normal single fami­ly use) as set out in the instruc­tion manual, the Appliance is
warranted against manufactur­ing defects in Australia for 24
months and in New Zealand for

24 months, following the date of
original purchase of the Appli­ance;

– this Appliance is not designed

for commercial use and there­fore no warranty applies in this
case;

h)

‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding mean­ing.

2.

This warranty only applies to Applian­ces purchased and used in Australia
or New Zealand and is in addition to
(and does not exclude, restrict, or
modify in any way) any non-excluda­ble statutory warranties in Australia or
New Zealand.

3.

During the Warranty Period Electrolux
or its ASC will, at no extra charge if
your Appliance is readily accessible
for service, without special equipment
and subject to these terms and con­ditions, repair or replace any parts
which it considers to be defective.
Electrolux or its ASC may use rema­nufactured parts to repair your Appli­ance. You agree that any replaced
Appliances or parts become the
property of Electrolux. This warranty
does not apply to light globes, batter­ies, filters or similar perishable parts.

4.

Parts and Appliances not supplied by
Electrolux are not covered by this
warranty.

5.

You will bear the cost of transporta­tion, travel and delivery of the Appli­ance to and from Electrolux or its
ASC. If you reside outside of the serv­ice area, you will bear the cost of:

a)

travel of an authorised representa­tive;

b)

transportation and delivery of the
Appliance to and from Electrolux

or its ASC,
In all instances, unless the Appliance
is transported by Electrolux or an
Electrolux authorised representative,
the Appliance is transported at the

www.electrolux.com

22

6.

7.

8.

9.

owner’s cost and risk while in transit
to and from Electrolux or its ASC.

Proof of purchase is required before
you can make a claim under this war­ranty.

You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or
workmanship. Electrolux is not liable
in the following situations (which are
not exhaustive):

a)

the Appliance is damaged by:
–accident
– misuse or abuse, including fail-

ure to properly maintain or serv-

ice
– normal wear and tear
– power surges, electrical storm

damage or incorrect power

supply
– incomplete or improper installa-

tion
– incorrect, improper or inappro-

priate operation
– insect or vermin infestation
– failure to comply with any addi-

tional instructions supplied with

the Appliance;

b)

the Appliance is modified without
authority from Electrolux in writing;

c)

the Appliance’s serial number or
warranty seal has been removed
or defaced;

d)

the Appliance was serviced or re­paired by anyone other than Elec­trolux, an authorised repairer or
ASC.

This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by
the law applicable where the Appli­ance was purchased. Where the Ap­pliance was purchased in New Zea­land for business purposes the Con­sumer Guarantee Act does not apply.

To the extent permitted by law, Elec­trolux excludes all warranties and lia­bilities (other than as contained in this
document) including liability for any
loss or damage whether direct or indi-

Important Notice

rect arising from your purchase, use
or non use of the Appliance.

10.

For Appliances and services provided
by Electrolux in Australia, the Applian­ces come with a guarantee by Elec­trolux that cannot be excluded under
the Australian Consumer Law. You
are entitled to a replacement or re­fund for a major failure and for com­pensation for any other reasonably
foreseeable loss or damage. You are
also entitled to have the Appliance re­paired or replaced if the Appliance
fails to be of acceptable quality and
the failure does not amount to a ma­jor failure. The benefits to you given
by this warranty are in addition to
your other rights and remedies under
a law in relation to the Appliances or
services to which the warranty re­lates.

11.

At all times during the Warranty Peri­od, Electrolux shall, at its discretion,
determine whether repair, replace­ment or refund will apply if an Appli­ance has a valid warranty claim appli­cable to it.

12.

For Appliances and services provided
by Electrolux in New Zealand, the Ap­pliances come with a guarantee by
Electrolux pursuant to the provisions
of the Consumer Guarantees Act, the
Sale of Goods Act and the Fair Trad­ing Act.

13.

To enquire about claiming under this
warranty, please follow these steps:

a)

carefully check the operating in­structions, user manual and the
terms of this warranty;

b)

have the model and serial number
of the Appliance available;

c)

have the proof of purchase (eg an
invoice) available;

d)

telephone the numbers shown be­low.

14.

You accept that if you make a war­ranty claim, Electrolux and its ASC
may exchange information in relation
to you to enable Electrolux to meet its
obligations under this warranty.

ENGLISH 23

Before calling for service, please ensure that the steps listed in point 13 above have

FOR SERVICE

been followed.

SERVICE AUSTRALIA

or to find the address of
your nearest state service
centre in Australia

Please call 13 13 4 9

For the cost of a local call (Aus-

tralia only)

FOR SERVICE

or to find the address of

ELECTROLUX HOME
PRODUCTS

www.electrolux.com.au

SERVICE NEW ZEA­LAND

your nearest authorised
service centre in New
Zealand

Free call 0800 10 66 10

(New Zealand only)

ELECTROLUX HOME
PRODUCTS

www.electrolux.co.nz

14. ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable

containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical

FOR SPARE PARTS

or to find the address of
your nearest state spare
parts centre in Australia

Please call 13 13 50

For the cost of a local call (Aus-

tralia only)

FOR SPARE PARTS

or to find the address of
your nearest state spare
parts centre in New Zea­land

Free call 0800 10 66 20

(New Zealand only)

and electronic appliances. Do not dispose
appliances marked with the symbol

with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

www.electrolux.com/shop

117910941-A-202013
