Electrolux ESF 66814 User Manual

ESF 66814

................................................ .............................................

EN DISHWASHER USER MANUAL

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Product description 4
Control panel 5
Use of the appliance 7
Setting the water softener 7
Use of dishwasher salt 8
Use of detergent and rinse aid 9
Multitab function 10
Loading cutlery and dishes 10
Setting and starting a washing program

11

SAFETY INFORMATION

For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Al­ways keep these instructions with the
appliance even if you move or sell it.
Users must fully know the operation
and safety features of the appliance.

CORRECT USE

• Only use the appliance to clean house­hold utensils that are suitable for dish­washers.

• Do not put solvents in the appliance. Risk
of explosion.

• Put knives and all items with sharp points
in the cutlery basket with their points
down. If not, put them in a horizontal po­sition in the upper basket.

• Use only products specified for dish­washers (e.g. detergent, rinse aid).

• If you open the door while the appliance
is in operation, hot steam can escape.
Risk of skin burns.

• Do not remove dishes from the appliance
before the end of the washing program.

• When the washing program is comple­ted, disconnect the mains plug from the
mains socket and close the water tap.

• Only an authorised service engineer can
repair this appliance. Use only original
spare parts.

Washing programs 12
Care and cleaning 13
What to do if… 14
Technical data 17
Installation 17
Water connection 20
Electrical connection 21
Environment concerns 21
Warranty 22

Subject to change without notice.

• Do not do repairs yourself to prevent in­jury and damage to the appliance. Al­ways contact the Customer Care Centre.

GENERAL SAFETY

• This appliance is intended to be used in
household and similar applications such
as:
– Staff kitchen areas in shops, offices

and other working environments
– Farm houses
– By clients in hotels, motels and other

residential type environments
– Bed and breakfast type environments.

• Some dishwasher detergents are strongly
alkaline. They can be extremely danger­ous if swallowed. Avoid contact with skin
and eyes. Keep the children away from
the appliance when the door is open.
Check that the detergent dispenser is
empty after completion of the washing
program.

• Obey the safety instructions from the
manufacturer of the dishwasher deter­gent to prevent burns to eyes, mouth and
throat.

• Only put detergent in the dispenser be­fore you start a washing program.

• Do not drink the water from the appli­ance. Detergent residue can stay in your
appliance.

electrolux 3

• Always close the door when you do not
use the appliance to prevent injury and
not to stumble over the open door.

• Do not sit or stand on the open door.

CHILD SAFETY

• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation by a person who is respon­sible for their safety.

• Children should be supervised to ensure
that they do not play with the appliance.

• Keep all the packaging away from chil­dren. There is a risk of suffocation.

• Keep all detergents in a safe area. Do not
let children touch the detergents.

• Keep children and pets away from the
appliance when the door is open.

INSTALLATION

• Make sure that the appliance is not dam­aged because of transport. Do not con­nect a damaged appliance. If necessary,
contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must
do the electrical installation.

• A qualified and competent person must
do the plumbing installation.

• Do not change the specifications or mod­ify this product. Risk of injury and dam­age to the appliance.

• Do not use the appliance:
– If the mains cable or the water hoses

are damaged.

– If the control panel, worktop or plinth

area are damaged so that you can get
access to the inner side of the appli-

ance.
Contact your local Customer Care Cen­tre.

• Do not drill into the sides of the appliance
otherwise damage to hydraulic and elec­trical components may occur.

Warning! Follow carefully the
instructions for electrical and water
connections.

4 electrolux

PRODUCT DESCRIPTION

1

2

9

3

4

5

Upper basket

1

Air vent and water hardness dial

2

Salt container

3

Detergent dispenser

4

Rinse aid dispenser

5

Rating plate

6

Filters

7

Lower spray arm

8

Upper spray arm

9

INTERNAL LIGHT

This appliance has an internal light that
comes on when you open the door and
goes off when the door is closed.

8

7

6

Warning! Visible led radiation, do not
stare into the beam.

Internal light equipped with LED lamp
CLASS 2 in accordance with IEC 60825-1:
1993 + A1:1997+ A2:2001.
Emission wave length: 450 nm
Maximum emitted power: 548 μW

If it is necessary to replace the light,
contact your local Customer Care Cen­tre.

CONTROL PANEL

The controls are on the top of the con­trol panel. To operate with the controls
keep the appliance door ajar.

electrolux 5

1

On/off button

1

Display

2

Delay start button

3

Program button (down)

4

Program button (up)

5

Energy saver button

6

Multitab button

7

Reset button

8

Indicators

9

Program-display

10

Salt indicator. It comes on when it is necessary to fill the salt container.
After you fill the container, the salt indicator can stay on for some hours. This
does not have an unwanted effect on the operation of the appliance.

Rinse aid indicator. It comes on when it is necessary to fill the rinse aid dispenser.

1)

End indicator. It comes on when the washing program is completed.

1) When the salt container and/or the rinse aid dispenser are empty, the related indicators do not come on while a
washing program operates.

2

Indicators

ON/OFF BUTTON

Press this button to switch on or off the ap­pliance.

10

3

45

6

After 10 minutes from the end of the wash­ing program, the Auto Off function automat­ically switches off the appliance. This helps
to decrease energy consumption.

7

8 9

1)

6 electrolux

THE DISPLAY

The display shows:

• The electronic adjustment of the level of

the water softener

• The activation and deactivation of the

rinse aid dispenser (only with the multitab
function on)

• The number of the washing program

• The remaining time to the end of the

washing program

• The end of a washing program (the dis-

play shows a zero)

• The time of the delay start

• The alarm codes

• The activation and deactivation of the

acoustic signals.

DELAY START BUTTON

Press this button to delay the start of the
washing program from 1 to 24 hours. Refer
to 'Setting and starting a washing pro­gram'.

PROGRAM BUTTONS

Press one of these buttons repeatedly to
set a washing program. Each time you
press the button, the display shows a num­ber that is related to a washing program.
Refer to 'Washing programs' chart.

ENERGY SAVER BUTTON

This function decreases the temperature in
the drying phase. The power consumption
decreases by 25%. The dishes can be wet
at the end of the program when you open
the appliance door. We recommend that
you keep the door ajar and let the dishes
dry.
Press this button to activate the function.
The related indicator comes on.
The function can be activated with all wash­ing programs but has effect only on some
programs. To see where the energy saver
function has effect, refer to the 'Washing
programs' chart.

MULTITAB BUTTON

Press this button to activate or deactivate
the multitab function. Refer to 'Multitab
function'.

RESET BUTTON

Press this button to cancel a washing pro­gram in operation. Refer to 'Setting and
starting a washing program'.

PROGRAM-DISPLAY

The program-display is divided in 5 LED
lamps.

• When you switch on the appliance, all 5
LED lamps come on with a blue light.

• When you select a washing program or
the delay start, all 5 LED lamps stay on
with a blue light.

• When the washing program starts, only
the first LED lamp is on. The remaining
LED lamps come on gradually as the
washing program operates.

• When the countdown operates, only the
first LED lamp is on.

• When the washing program ends, all 5
LED lamps come on with a green light.

• When the appliance has a malfunction, all
5 LED lamps flash with a blue light

SETTING MODE

The appliance must be in setting mode
for these operations:

• To set and start a washing program.

• To set and start a delay start.

• To adjust electronically the level of the
water softener.

• To activate or deactivate the rinse aid
dispenser (only with the multitab function
on).

• To deactivate or activate the acoustic
signals.

Switch on the appliance. The appliance
is in setting mode when:

• The display shows two horizontal status
bars.

Switch on the appliance. The appliance
is not in setting mode when:

• The display shows the time of the wash­ing program or of the delay start.
– To go back to the setting mode, it is

necessary to cancel the program or
the delay start. Refer to 'Setting and
starting a washing program'.

ACOUSTIC SIGNALS

You can hear the acoustic signals when:

• The washing program is completed.

electrolux 7

• You adjust electronically the level of the
water softener.

• The appliance has a malfunction.

Factory setting: acoustic signals active.

Deactivating the acoustic signals

1. Switch on the appliance. Make sure that

the appliance is in setting mode.

2. Press and hold button (4) and button (5)

at the same time until the indicators of
buttons (3), (4) and (5) flash.

3. Release button (4) and button (5).

4. Press button (5),

• The indicators of button (3) and but­ton (4) go off.

USE OF THE APPLIANCE

Refer to the specific instructions for
each step of the procedure.

1. Check if the water softener level is cor­rect for the water hardness in your area.
If necessary set the water softener.

2. Fill the salt container with dishwasher
salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the appli­ance.

• The indicator of button (5) continues
to flash.

• The display shows the setting of the
acoustic signals.

Acoustic signals
activated.

Acoustic signals
deactivated.

5. Press button (5) to change the setting.
The display shows the new adjustment.

6. Switch off the appliance to confirm.

To activate the acoustic signals again, do
steps (1) through (6).

5. Set the correct washing program for the
type of load and soil.

6. Fill the detergent dispenser with the cor­rect quantity of detergent.

7. Start the washing program.

If you use the combi detergent tablets
('3 in 1', '4 in 1', '5 in 1'), set the multi­tab function. Refer to 'Multitab func­tion'.

SETTING THE WATER SOFTENER

The water softener removes minerals and
salts from the water supply. Minerals and
salts can have bad effect on the operation
of the appliance.
Water hardness is measured in equivalent
scales:

• mg/I (millimol per litre)

Water hardness Water hardness setting

mg/l ppm mmol/l manually electronically

910 - 1250 910 - 1250 9.1 - 12.5 2 10

760 - 909 760 - 909 7.6 - 9.0 2 9

650 - 759 650 - 759 6.5 - 7.5 2 8

510 - 649 510 - 649 5.1 - 6.4 2 7

400 - 509 400 - 509 4.0 - 5.0 2 6

330 - 399 330 - 399 3.3 - 3.9 2 5

260 - 329 260 - 329 2.6 - 3.2 1 4

190 - 259 190 - 259 1.9 - 2.5 1 3

70 - 189 70 - 189 0.7 - 1.8 1 2

• ppm (parts per million),

• mmol/l (millimol per litre - international

unit for the hardness of water).
Adjust the water softener in to the water
hardness in your area. If necessary, contact
your local water authority.

8 electrolux

Water hardness Water hardness setting

mg/l ppm mmol/l manually electronically

< 70 < 70 < 0.7 1

1) No use of salt required.

You must set the water softener man­ually and electronically.

MANUAL ADJUSTMENT

The appliance is set at the factory at
position 2.

1. Remove the lower basket.

2. Turn the water hardness dial to position
1 or 2 (refer to the chart).

1. Switch on the appliance. Make sure that
the appliance is in setting mode.

2. Press and hold button (4) and button (5)
at the same time until the indicators of
buttons (3), (4) and (5) flash.

3. Release button (4) and button (5).

4. Press button (3),

• The indicators of button (4) and but-

ton (5) go off.

• The indicator of button (3) continues

to flash.

• The acoustic signals sound.

• The display shows the setting of the

water softener (example:
hear five acoustic signals = level 5).

5. Press button (3) one time to increase
the water softener level by one step.
Continue to press button (3) until the re­quired water softener level is achieved.

6. Switch off the appliance to confirm.

3. Put back the lower basket.

1)

1

and you

ELECTRONIC ADJUSTMENT

The appliance is factory set at level 5.

USE OF DISHWASHER SALT

Caution! Only use dishwasher salt.
Types of salt that are not suitable for
dishwashers cause damage to the
water softener.

Caution! Grains of salt and salty water
on the bottom of the appliance can
cause corrosion. Fill the appliance with
salt before you start a washing
program.

Filling the salt container

1. Turn the cap counterclockwise to open
the salt container.

2. Fill the salt container with 1 litre of water
(only the first operation).

3. Use the funnel to fill the salt container
with salt.

4. Remove the salt around the opening of
the salt container.

5. Turn the cap clockwise to close the salt
container.

It is normal that water overflows from

20

30

M

A

X

1

2

3

4

+

-

the salt container when you fill it with
salt.

USE OF DETERGENT AND RINSE AID

1

2

7

USE OF DETERGENT

Caution! Only use detergents (powder,

liquid or tablet) that are suitable for
dishwashers.
Follow the recommendations on the
detergent packaging for the use and
storage of the detergent.

To help the environment, do not use
more than the correct quantity of deter­gent.

Filling with detergent

1.

Press the release button

7

lid

2.

of the detergent dispenser.

Put the detergent in the dispenser

3. If the washing program has a prewash
phase, put a small quantity of detergent
on the inner part of the appliance door.

4. If you use the detergent tablets, put the
tablet in the detergent dispenser

5. Close the detergent dispenser. Press
the lid until it locks into position.

Different brands of detergent dissolve
in different times. Some detergent tab-

3

4

USE OF RINSE AID

Rinse aid makes it possible to dry the

6

dishes without streaks and stains.

5

Rinse aid is automatically added during the
last rinsing phase.
Follow these steps to fill the rinse aid dis­penser:

Filling with rinse aid

1.

2.

3. Remove the spilled rinse aid with an ab-

2

to open the

1

4. Close the rinse aid dispenser. Press the

.

ADJUSTING THE RINSE AID DOSAGE

Factory set: position 3.
You can set the rinse aid dosage between
position 1 (lowest dosage) and position 4

1

.

(highest dosage).
Turn the rinse aid selector

reduce the dosage.

electrolux 9

lets do not have the best cleaning re­sults during short washing programs.
Use long washing programs when you
use detergent tablets to fully remove
the detergent.

Caution! Only use rinse aid specified
for dishwashers.
Do not fill the rinse aid dispenser with
other products (e.g. dishwasher clean­ing agent, liquid detergent). This can
cause damage to the appliance.

6

Press the release button

5

of the rinse aid dispenser.

lid
Fill the rinse aid dispenser

to open the

3

with rinse
aid. The mark 'max' shows the maxi­mum level.

sorbent cloth to prevent too much foam
during the washing program.

lid until it locks into position.

4

to increase or

Wash hands to remove any residue of
rinse aid from skin.

10 electrolux

MULTITAB FUNCTION

The multitab function is for combi detergent
tablets.
These tablets contain agents as detergent,
rinse aid and dishwasher salt. Some types
of tablets can contain other agents.
Be sure that these tablets are suitable for
the water hardness in your area (refer to the
instructions on the packaging of the prod­ucts).
The multitab function deactivates the flow
of rinse aid and salt.
The multitab function deactivates the indi­cators of salt and rinse aid.
The program duration can increase if you
use the multitab function.

Activate or deactivate the multitab
function before the start of a washing
program. You cannot activate or deac­tivate the function while a washing pro­gram operates.

To activate the multitab function

• Press the multitab button, the multitab in­dicator comes on. The function is activa­ted.

– When you activate the multitab func-

tion, it stays on until you deactivate it.

To deactivate the multitab function and
use separately detergent, salt and rinse
aid

1. Press the multitab button, the multitab
indicator goes off. The function is deac­tivated.

2. Fill the salt container and the rinse aid
dispenser.

3. Adjust the water hardness to the highest
level.

4. Start a washing program without dishes.

5. When the washing program is comple­ted, adjust the water softener to the wa­ter hardness in your area.

6. Adjust the rinse aid dosage.

LOADING CUTLERY AND DISHES

Refer to the leaflet 'Examples of Real­Life loads'.

HELPFUL HINTS AND TIPS

Caution! Only use the appliance for

household utensils that are suitable for
dishwashers.

Do not use the appliance to clean objects
that can absorb water (sponges, household
cloths, etc.).

• Before you load cutlery and dishes:
– Remove all remains of food and debris.
– Soften burnt remains of food.

• While you load cutlery and dishes:
– Load hollow items (e.g. cups, glasses

and pans) with the opening down.

– Make sure that water does not collect

in the container or in a deep base.

– Make sure that cutlery and dishes do

not lie inside one another.

– Make sure that cutlery and dishes do

not cover other cutlery and dishes.

– Make sure that glasses do not touch

other glasses.

– Put small objects in the cutlery basket.

• Plastic items and pans with non-stick
coatings can retain water droplets. Plas­tic items do not dry as well as porcelain
and steel items.

• Put light items in the upper basket. Make
sure that the items do not move.

Caution! Make sure that the spray
arms can move freely before you start
a washing program.

Warning! Always close the door after
you load or unload the appliance. An
open door can be dangerous.

SETTING AND STARTING A WASHING PROGRAM

STARTING THE WASHING PROGRAM
WITHOUT DELAY START

1. Switch on the appliance. Make sure that
the appliance is in setting mode.

2. Set the washing program.

• The number related to the washing

program flashes in the display.

3. Close the appliance door, the washing
program starts.

STARTING THE WASHING PROGRAM
WITH DELAY START

1. Switch on the appliance. Make sure that
the appliance is in setting mode.

2. Set the washing program.

3. Press the delay start button repeatedly
until the display shows the time of the
delay start.

• The time of the delay start flashes in

the display.

• The delay start indicator is on.

4. Close the appliance door, the count­down starts.

When the countdown is completed, the
washing program starts automatically.

The opening of the appliance door in­terrupts the countdown. When you
close the door, the countdown contin­ues from the point of interruption.

CANCELLING THE DELAY START

If the appliance door is open, and the
countdown has not started

1. Press the delay button repeatedly until
the display shows the number of the
washing program.

• The program number flashes in the

display.

2. Close the appliance door, the washing
program starts.

If the appliance door is closed, and the
countdown operates

1. Open the appliance door.

2. Press the delay button repeatedly until
the display shows the number of the
washing program.

• The number flashes for some sec-

onds and then the time of the wash­ing program shows in the display.

3. Close the appliance door, the washing
program starts.

Warning! Only interrupt or cancel a
washing program if necessary.
Attention! Open the door carefully.
Hot steam and water can escape.

INTERRUPTING A WASHING
PROGRAM

• Open the appliance door. The washing

program stops.

• Close the appliance door. The washing

program continues from the point of in­terruption.

CANCELLING THE WASHING
PROGRAM

If the washing program has not started, you
can change the selection.
To change the selection while the washing
program operates, it is necessary to cancel
the program.

• Press the Reset button until the display

shows two horizontal status bars.

Make sure that there is detergent in the
detergent dispenser before you start a
new washing program.

END OF THE WASHING PROGRAM

When the washing program is completed,
an intermittent acoustic signal sounds and
all 5 LED lamps of the program-display
come on with a green light.

1. Open the appliance door.

• The end indicator is on

• The display shows a zero.

2. Switch off the appliance.

For better drying results, keep the ap­pliance door ajar for some minutes.

REMOVING THE LOAD

• Let the dishes cool down before you re-

move them from the appliance. Hot
dishes are easily damaged.

• First remove items from the lower basket,

then from the upper basket.

• There can be water on the sides and

door of the appliance. Stainless steel be­comes cool more quickly than the dishes.

electrolux 11

12 electrolux

WASHING PROGRAMS

Program Type of soil Type of load Program description Function

1

2

3

2)

4

3)

5

All Crockery, cutlery,

1)

Heavy soil Crockery, cutlery,

Fresh soil Crockery and cut-

Normal soil Crockery and cut-

Light soil Crockery and cut-

pots and pans

pots and pans

lery

lery

lery

Prewash
Wash 45 °C or 70 °C
Rinses
Dry

Prewash
Wash 70 °C
Rinses
Dry

Wash 60 °C
Rinse

Prewash
Wash 50 °C
Rinses
Dry

Wash 55 °C
Rinses

Energy saver

Energy saver

Energy saver

6 Normal or

light soil

Delicate crockery
and glassware

Wash 45 °C
Rinses

Energy saver

Dry

7

Use this program to quickly rinse

Rinse
the dishes. This prevents the re­maining food to bond on the
dishes and bad odours to come
out from the appliance.
Do not use detergent with this
program.

1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the
temperature and quantity of the water, the energy consumption and the program time.

2) With this program you can wash a load with fresh soil. It gives good washing results in a short time.

3) This is the standard program for test institutes. With this program you have the most efficient use of water and
energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.

Consumption values

Program Program time (mi-

1

2

3

90 - 160 0.9 - 1.7 8 - 15

130 - 150 1.4 - 1.5 13 - 14

30 0.9 9

nute)

Energy (kWh) Water (litre)

electrolux 13

Program Program time (mi-

4

5

6 70 - 80 0.8 - 0.9 11 - 12

7

105 - 115 0.67 - 0.81 9.6 - 11.6

50 - 60 1.0 - 1.2 10 - 11

14 0.05 4

nute)

The water pressure and temperature,
the variations of the mains supply and

Energy (kWh) Water (litre)

the quantity of dishes can change the
consumption values.

CARE AND CLEANING

Warning! Switch the appliance off
before you do any cleaning operations.

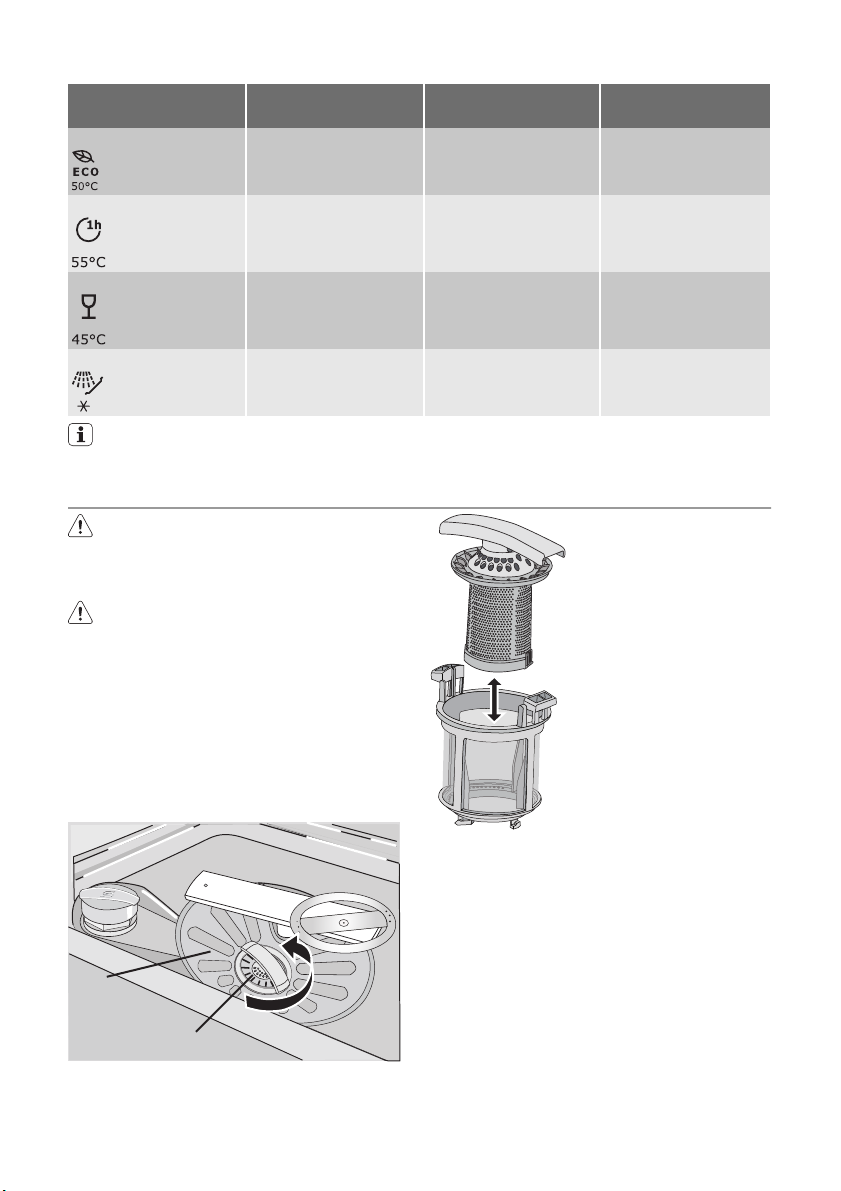

TO REMOVE AND CLEAN THE FILTERS

Warning! Switch the appliance off

before you carry out any cleaning
operation.

Dirty filters decrease the washing results.
Although the maintenance is very low with
these filters, we recommend that you regu­larly check the filters and clean them if nec­essary.

1. To remove filter (A), turn it counterclock-

wise and remove it out from filter (B).

B

A

2. Filter (A) has 2 parts. To disassemble

the filter, pull them apart.

3. Thoroughly clean the parts under run­ning water.

4. Put the 2 parts of the filter (A) together
and push. Make sure that they assem­ble correctly in each other.

5. Remove filter (B).

6. Thoroughly clean filter (B) under running
water.

7. Put filter (B) to its initial position. Make
sure that it assembles correctly under
the two guides (C).

14 electrolux

Use detergent, but do not put dishes in the
appliance.

C

8. Put filter (A) into position in filter (B) and
turn it clockwise until it locks.

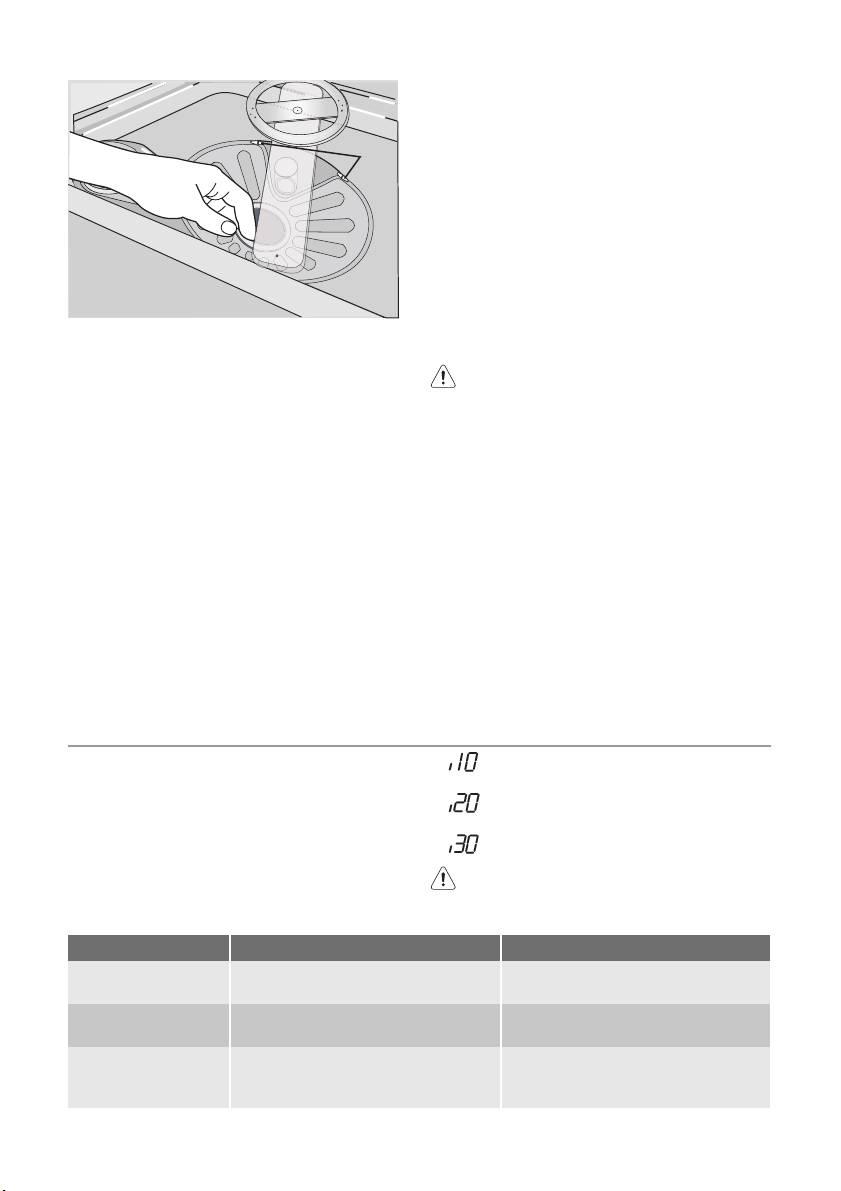

CLEANING THE SPRAY ARMS

Do not remove the spray arms.
If the holes in the spray arms become clog­ged, remove remaining parts of soil with a
thin pointed object.

EXTERNAL CLEANING

Clean the external surfaces of the appliance
and control panel with a damp soft cloth.
Only use neutral detergents. Do not use
abrasive products, scouring pads or sol­vents (e.g. acetone).

INTERNAL CLEANING

We recommend, every 3 months to run a
washing program for heavily soiled dishes.

WHEN THE APPLIANCE IS NOT TO BE
USED FOR A LONG PERIOD

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Leave the door open to prevent un­pleasant smells.

4. Keep the inner side of the appliance
clean.

FROST PRECAUTIONS

Caution! Do not install the appliance

where the temperature is below 0 °C.
The manufacturer is not responsible for
damage caused by frost.

MOVING THE APPLIANCE

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Remove the appliance and the hoses.

4. Do not tilt the appliance during trans­port.

WHAT TO DO IF…

The appliance does not start or stops dur­ing operation.
If there is a fault, first try to find a solution to
the problem yourself. Refer to following
charts. If you cannot find a solution to the
problem, contact your dealer or the Cus­tomer Care Centre.

With some malfunctions, the display
shows an alarm code:

Malfunction Possible cause Possible solution

The appliance does
not fill with water

The filter in the water inlet hose is

The installation of the water inlet

The water tap is closed. Open the water tap.

blocked.

hose is not correct. The hose is bent
or squashed.

•

- The appliance does not fill with wa-

ter

•

- The appliance does not drain the

water

•

- The anti-flood device operates.

Warning! Switch the appliance off
before you do the suggested corrective
actions.

Clean the filter.

Make sure that the installation is cor­rect.

electrolux 15

Malfunction Possible cause Possible solution

The water tap is blocked or restric-

The water pressure is too low. Contact your local water authority.

The appliance does
not drain the water

The installation of the water drain

The anti-flood device
operates

The program does
not start

Mains plug is not connected. Plug-in the appliance to the mains.

The delay start is set. • Cancel the delay start.

The fuse has blown out in the

After the check, switch on the appliance.
The program continues from the point of in­terruption. If the malfunction occurs again,
contact your Customer Care Centre.
If the display shows an alarm code, not de­scribed in the chart, contact your Customer

ted with limescale.

There is a blockage in the sink spi­got.

hose is not correct. The hose is bent
or squashed.

Close the water tap and contact

The appliance door is not closed. Close the door.

household fuse box

When you contact the Customer Care Cen­tre you will need to give some details of the
appliance that can be found on the rating
plate (e.g. model number, serial number,
product number). We recommend that you
record these details.

Clean the water tap.

Clean the sink spigot.

Make sure that the installation is cor­rect.

your Customer Care Centre.

• Wait until the countdown of the
delay start is completed.

Replace the fuse.

Care Centre.

THE WASHING RESULTS AND DRYING RESULTS ARE NOT SATISFACTORY

Problem Possible cause Possible solution

The dishes are not clean. The selected washing program

The baskets were not loaded

The spray arms could not turn

The filters are dirty or not as-

The quantity of detergent was

Limescale particles on the
dishes

The water softener is adjusted

was not suitable for the type of
load and soil.

correctly, water did not touch
all surfaces.

freely because of incorrect ar­rangement of the load.

sembled and installed correctly.

not sufficient or missing.

The salt container is empty. Fill the salt container with salt

on a wrong level.

Make sure that the washing
program is suitable for the type
of load and soil.

Load the baskets correctly.

Make sure that an incorrect ar­rangement of the load does not
cause a blockage of the spray
arms.

Make sure that the filters are
clean and correctly assembled
and installed.

Make sure that the quantity of
detergent is sufficient.

for dishwashers.

Adjust the level of the water
softener.

16 electrolux

Problem Possible cause Possible solution

The salt container cap is not

There are streaks, milky stains,
or a bluish layer on glasses and
dishes.

Dry water drop stains on
glasses and dishes.

The detergent can be the

The dishes are wet. You have set a washing pro-

The dishes are wet and dull. The rinse aid dispenser is emp-

The multitab function is activa-

ACTIVATING THE RINSE AID
DISPENSER

closed correctly.

Rinse aid dosage is too high. Decrease the rinse aid dosage.

Rinse aid dosage is too low. Increase the rinse aid dosage.

cause.

gram without drying phase or
with a decreased drying phase.

ty.

ted (this function automatically
deactivates the rinse aid dis­penser).

• The display shows the setting of the
rinse aid dispenser.

1. Switch on the appliance. Make sure that
the appliance is in setting mode.

2. Press and hold buttons (4) and (5) at the
same time until the indicators of buttons
(3), (4) and (5) flash.

3. Release button (4) and button (5).

4. Press button (4).

• The indicators of buttons (3) and (5)

5. Press button (4) to change the setting.
The display shows the new adjustment.

6. Switch off the appliance to confirm.

go off.

• The indicator of button (4) continues
to flash.

Ensure that the salt container
cap is correctly closed.

Use a different brand of deter­gent.

Let the door stay ajar for some
minutes before you remove the
dishes.

Fill the rinse aid dispenser with
rinse aid.

Activate the rinse aid dispenser.

Rinse aid dispenser
deactivated

Rinse aid dispenser
activated

electrolux 17

TECHNICAL DATA

Dimensions Width

Height
Depth

Electrical connection Voltage

Overall power
Fuse
Frequency

Water supply pressure min.

max.

800 kPa (116 psi)

Capacity Place settings 13

596 mm

818 - 878 mm

580 mm

220-240 V

2200 W

10 A

50 Hz

50 kPa (7 psi)

INSTALLATION

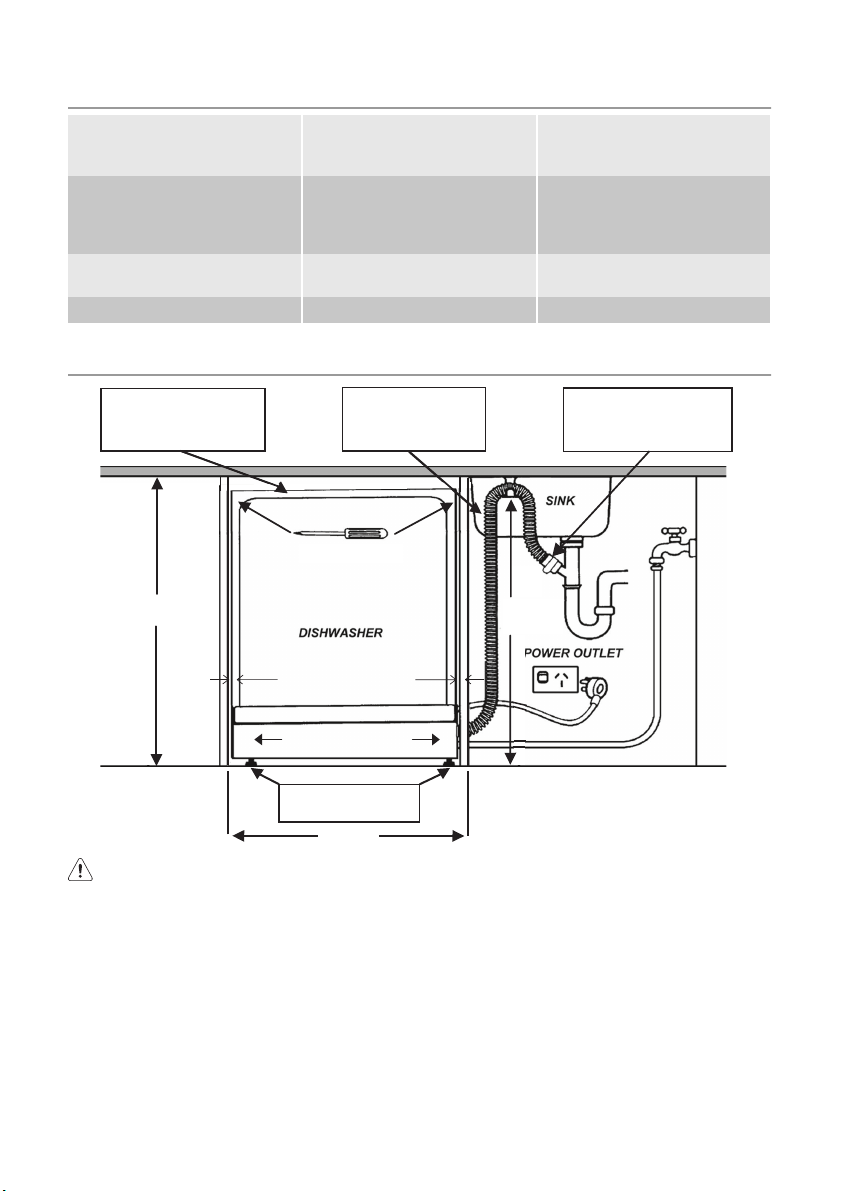

There should b e a minimum
2mm gap between the top of
the dishwasher and
underside of benc h top

820-880 mm

Secure dishwasher with
brackets and screws provided

Gap on both sides should be

equal, & no greater than

• kickplate xing screws •

If oor is not level, adjust
levelling legs to suit

The hos e s hould not be
extended by more than
2 metres or wa ter pump­out

problems ma y occu r

5 mm per side.

600 mm

Warning! Make sure that the mains
plug is disconnected from the mains
socket during installation.

Install the appliance under a kitchen coun­ter.
If a repair is necessary, the appliance must
be easily accessible for the engineer.
Put the appliance adjacent to a water tap
and drain.
For the venting of the appliance only water
hoses and mains cable openings are nec­essary.

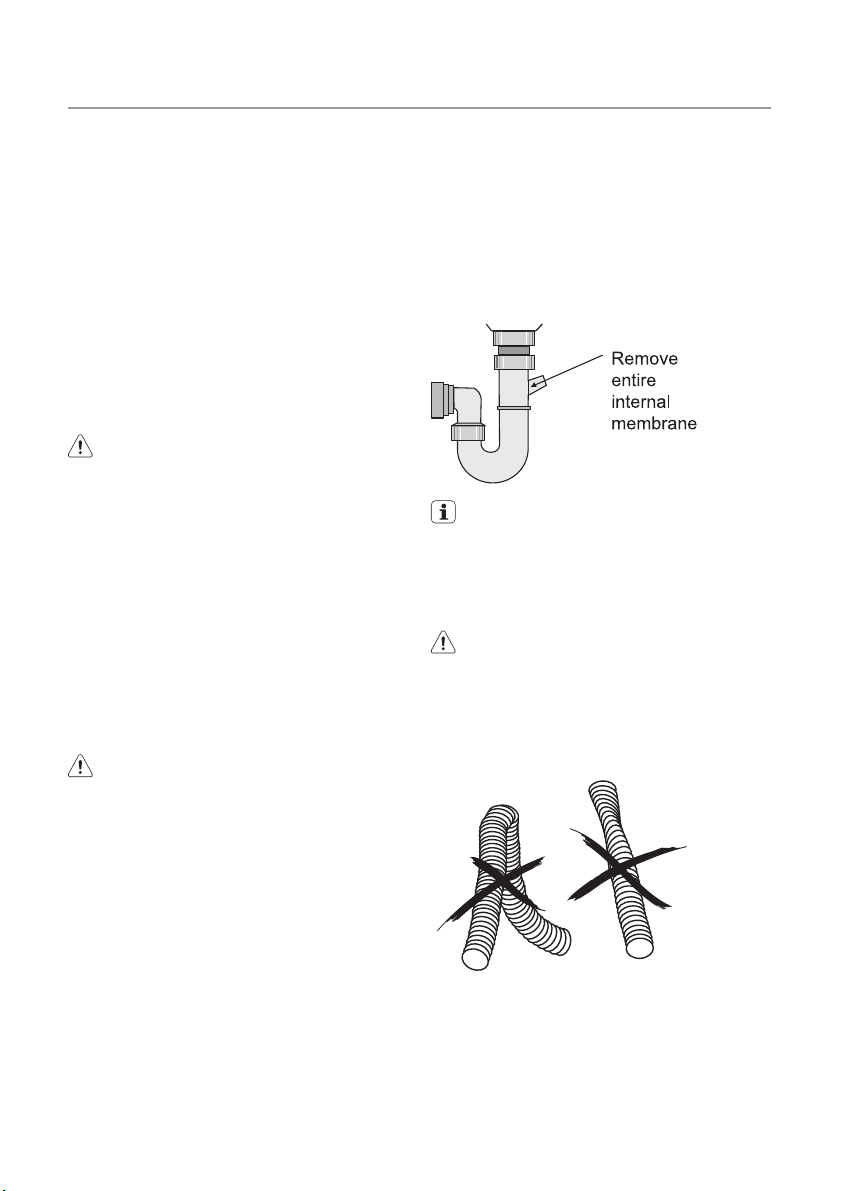

Remove entire plastic
membrane from sink trap
spigot & fit drain hose to spigot
with clamp

600 mm max.
300 mm min.

The appliance has adjustable feet to allow
the adjustment of its height.
Make sure that the water inlet hose, the
drain hose and the mains cable are not
bent or squashed, when you insert the ap­pliance.

18 electrolux

ADHESIVE STEAM PROTECTION FOIL

Fit the steam protection on the front part of
the kitchen counter along the entire width.

600 mm

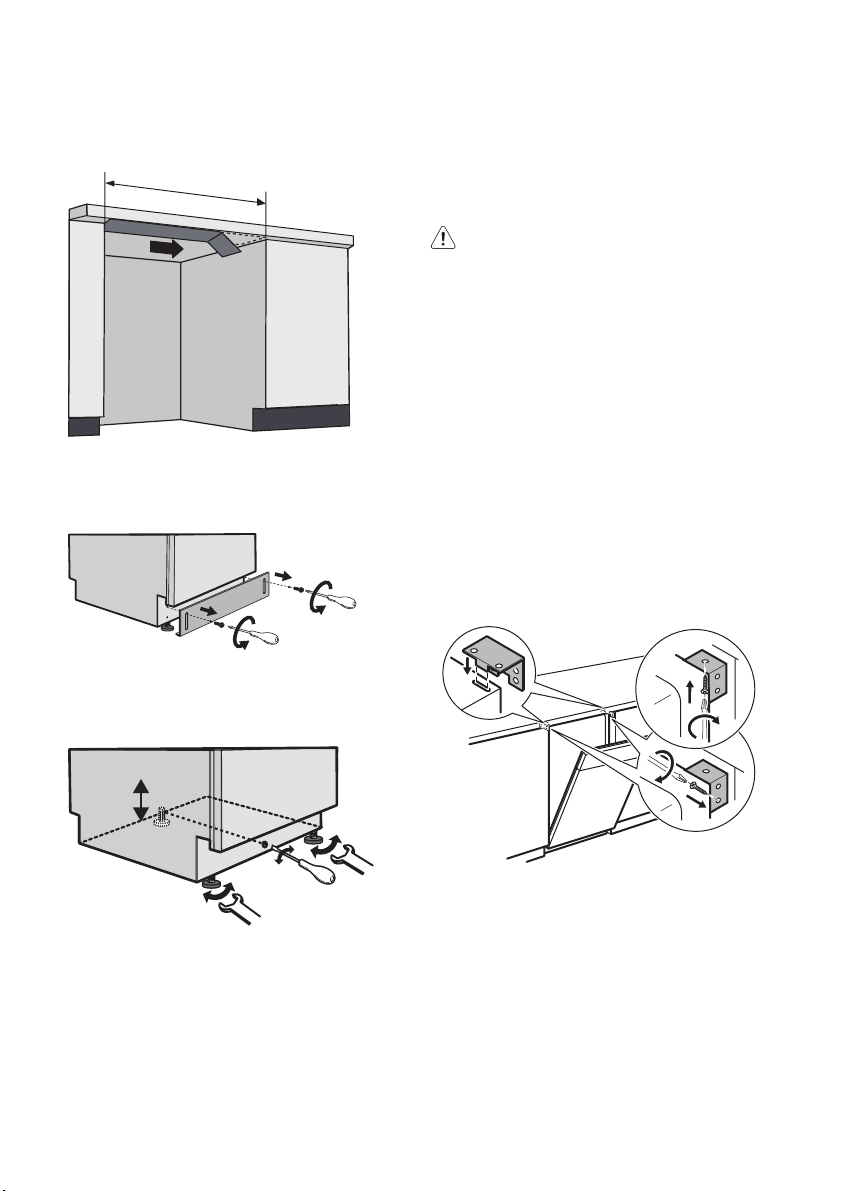

ADJUSTING THE HEIGHT OF THE
APPLIANCE

1. Remove the adjustable plinth.

2. – To lift the front of the appliance, turn
the two front feet counterclockwise.

– To lift the rear of the appliance, turn

the middle screw counterclockwise.

After the adjustment of the level of the ap­pliance, assemble the adjustable plinth on
the appliance.

INSTALLING THE APPLIANCE UNDER
THE KITCHEN COUNTER OR TO
ADJACENT UNITS

Warning! To prevent injury or damage,

make sure that the appliance is
secured to adjacent safe structures.

The appliance is provided with six fixing
points:

• Two external brackets

• Four internal fixing points.
Use the external brackets when installing
the appliance under the kitchen counter or
to the adjacent units or if the opening for
the appliance is greater than 600 mm.
Use the four internal fixing points if the
opening is 600 mm.
A combination of both fixing methods can
be used if required.

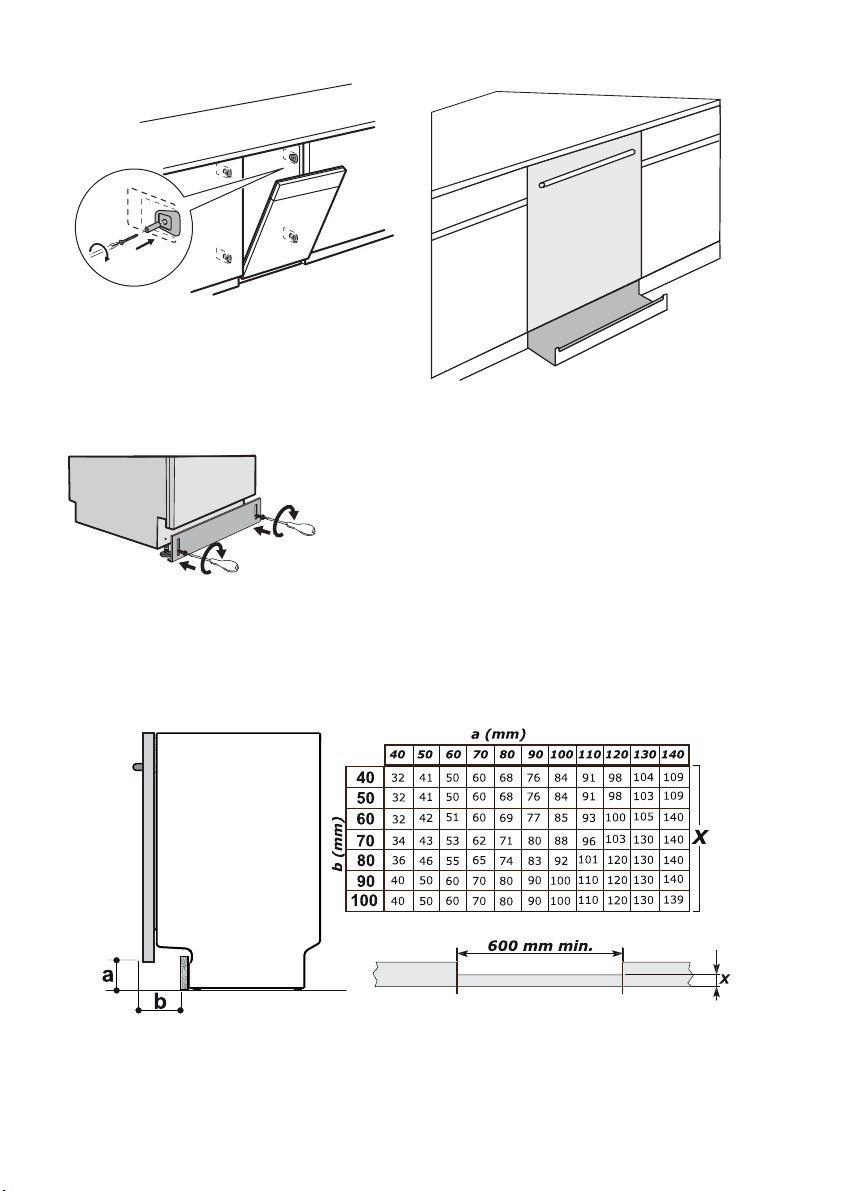

Using the external brackets

1. Install the brackets in the slots on the
top of the appliance.

ADJUSTING THE LEVEL OF THE
APPLIANCE

A correct adjustment of the level of the ap­pliance allows the door to close and seal
correctly. .
If the door does not close correctly, loosen
or tighten the adjustable feet to level the ap­pliance.

2. Adjust the height and level of the appli­ance.

3. Fix the brackets (on the top or on the
side) with the screws supplied. Make
sure that the screws are tight.

Using the internal fixing points

1. Adjust the height and the level of the ap­pliance.

x4

2. Fix laterally the appliance with the
spacers and the screws supplied. Make
sure that the screws are tight.

electrolux 19

Once the installation is completed, make
sure that the bottom of the adjustable plinth
is aligned with the ground.

CUSTOM MADE KICK-PANEL

For integrated appliances and full-stainless­steel door appliances.
We recommend that you make a custom
made kick-panel that aligns your kitchen
cabinets.

A notched continuous panel is necessary to
prevent door swing interference and to
keep kick-panel alignment with adjacent
units.

1. Cut a notch in the kick-panel sufficient
to let the door swing freely under the
appliance (refer to the chart).

2. Make a check for interference. Open
and close the door slowly. If the door
touches the kick-panel, trim to prevent
interference.

3. Attach the kick-panel to adjacent cabi­nets so that if service is necessary you
can remove it.

20 electrolux

WATER CONNECTION

WATER INLET HOSE

Connect the appliance to a cold water sup­ply.
Connect the inlet hose to a water tap with
an external BSP thread spout of 3/4”.
Once connected the inlet hose to the water
tap, turn the tap on and check that there
are no leaks.

Inlet water supply

• Cold water pressure: 800 kPa max - 50
kPa min.

• Water flow rate 10 L / minute min.

• If cold water pressure is in excess of 800
kPa, a pressure reducing valve should be
used. Check for leaks.

Caution! Always use new hoses when
you connect the appliance to the water
mains. Old hoses must not be used.
The water inlet hose must be examined
at an interval of twelve months for
deterioration and replaced if necessary.

The water pressure must be in the limits,
refer to 'Technical data'.
Make sure that the local water authority
gives you the average mains pressure in
your area.
Make sure that the water inlet hose is not
bent or squashed.
Fit the hose nut correctly to prevent water
leaks.

Caution! Do not connect the appliance
to new pipes or pipes that have been
not used for a long time. Let the water
run for some minutes, then connect the
inlet hose.

The drain hose must be free of obstruc­tions.
Remove the sink plug when the appliance
drains the water to prevent that the water
goes back into the appliance.
If you connect the water drain hose to a
trap spigot under the sink, remove the plas­tic membrane. If you do not remove the
membrane, remaining food can cause a
blockage in the drain hose spigot

The appliance has a security feature to
prevent dirty water going back into the
appliance. If, the spigot of the sink has
a 'non-return valve', this valve can
cause the appliance to drain incorrect­ly. Remove the non-return valve.

Caution! Make sure that the water
couplings are tight to prevent water
leakage.
Ensure that hoses are not bent or
squashed under or behind the appli­ance.

WATER DRAIN HOSE

Use the supplied hose clamp to connect
the water drain hose to the sink.
The highest point of the drain hose must be
no more than 600 mm from the floor and
must have a continuous fall to the plumbing
connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux Spare
Parts. The extension length must not ex­ceed 2 metres.

Once connected the inlet hose to the
water tap, turn the tap on and check
that there are no leaks.

ELECTRICAL CONNECTION

Warning!

• The manufacturer accepts no liability
for failure to observe the below safe­ty precautions.

• Safety standards require the appli­ance to be earthed.

• Prior to using the appliance for the
first time, ensure that the rated volt­age and type of supply on the rating
plate match that of the supply where
the appliance is to be installed.

• The fuse rating can be found on the
rating plate and in 'Technical data'.

• Always plug the mains plug onto a
correctly installed approved socket.

• Do not use multi-ways plugs, con­nectors and extension cables. This

ENVIRONMENT CONCERNS

The packaging materials are environmental­ly friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Discard the packaging
materials in the applicable container at the
community waste disposal facilities.

Warning! Follow these instructions to
discard the appliance:

• Pull the mains plug out of the socket.

• Cut off the mains cable and the
mains plug and discard them.

• Discard the door catch. This pre­vents children from closing them­selves inside the appliance and en­dangering their lives.

electrolux 21

can constitute a fire hazard through
overheating.

• If necessary, have the domestic wir­ing system socket replaced. If the
mains cable has to be replaced, con­tact your local Customer Care cen­tre.

• The mains plug must be accessible
after the appliance has been instal­led.

• Never unplug the appliance by pull­ing on the cable. Always pull the
plug.

• Test the appliance. Run a quick
washing program and ensure that
the appliance fills with water, washes
and drains with no leaks.

OLD APPLIANCE

Make sure that the appliance goes to the
applicable collection point for recycling.
Make sure that this appliance is discarded
correctly. Inappropriate waste discard of
the appliance causes negative consequen­ces for the environment and human health.
For more information about the recycling of
this appliance, contact your local city office,
your household waste disposal service or
the shop where you purchased the appli­ance.

22 electrolux

WARRANTY

FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: DISHWASHER

This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an im­portant document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
you require service for your Appliance.

1. In this warranty
a) ‘acceptable quality’ as referred to in

clause 10 of this warranty has the
same meaning referred to in the
ACL;

b) ‘ACL’ means Trade Practices

Amendment (Australian Consumer
Law) Act (No.2) 2010;

c) ‘Appliance’ means any Electrolux

product purchased by you accom­panied by this document;

d) ‘ASC’ means Electrolux’ authorised

serviced centres;

e) ‘Electrolux’ means Electrolux Home

Products Pty Ltd of 163 O’Riordan
Street, Mascot, NSW 2020, ABN 51
004 762 341 in respect of Applian­ces purchased in Australia and
Electrolux (NZ) Limited of 3-5 Niall
Burgess Road, Mount Wellington, in
respect of Appliances purchased in
New Zealand;

f) ‘major failure’ as referred to in

clause 10 of this warranty has the
same meaning referred to in the
ACL and includes a situation when
an Appliance cannot be repaired or
it is uneconomic for Electrolux, at its
discretion, to repair an Appliance
during the Warranty Period;

g) ‘Warranty Period’ means:

– where the Appliance is used for

personal, domestic or household
use (i.e. normal single family use)
as set out in the instruction man­ual, the Appliance is warranted
against manufacturing defects in
Australia for 24 months and in
New Zealand for 24 months, fol-

lowing the date of original pur­chase of the Appliance;

– this Appliance is not designed for

commercial use and therefore no
warranty applies in this case;

h) ‘you’ means the purchaser of the

Appliance not having purchased the
Appliance for re-sale, and ‘your’ has
a corresponding meaning.

2. This warranty only applies to Applian­ces purchased and used in Australia or
New Zealand and is in addition to (and
does not exclude, restrict, or modify in
any way) any non-excludable statutory
warranties in Australia or New Zealand.

3. During the Warranty Period Electrolux
or its ASC will, at no extra charge if
your Appliance is readily accessible for
service, without special equipment and
subject to these terms and conditions,
repair or replace any parts which it con­siders to be defective. Electrolux or its
ASC may use remanufactured parts to
repair your Appliance. You agree that
any replaced Appliances or parts be­come the property of Electrolux. This
warranty does not apply to light globes,
batteries, filters or similar perishable
parts.

4. Parts and Appliances not supplied by
Electrolux are not covered by this war­ranty.

5. You will bear the cost of transportation,
travel and delivery of the Appliance to
and from Electrolux or its ASC. If you
reside outside of the service area, you
will bear the cost of:
a) travel of an authorised representa-

tive;

b) transportation and delivery of the

Appliance to and from Electrolux or

its ASC,
In all instances, unless the Appliance is
transported by Electrolux or an Electro­lux authorised representative, the Appli­ance is transported at the owner’s cost
and risk while in transit to and from
Electrolux or its ASC.

6. Proof of purchase is required before
you can make a claim under this war­ranty.

electrolux 23

7. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or work­manship. Electrolux is not liable in the
following situations (which are not ex­haustive):
a) the Appliance is damaged by:

– accident
– misuse or abuse, including failure

to properly maintain or service
– normal wear and tear
– power surges, electrical storm

damage or incorrect power sup-

ply
– incomplete or improper installa-

tion
– incorrect, improper or inappropri-

ate operation
– insect or vermin infestation
– failure to comply with any addi-

tional instructions supplied with

the Appliance;

b) the Appliance is modified without

authority from Electrolux in writing;

c) the Appliance’s serial number or

warranty seal has been removed or
defaced;

d) the Appliance was serviced or re-

paired by anyone other than Elec­trolux, an authorised repairer or
ASC.

8. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by the
law applicable where the Appliance
was purchased. Where the Appliance
was purchased in New Zealand for
business purposes the Consumer
Guarantee Act does not apply.

9. To the extent permitted by law, Electro­lux excludes all warranties and liabilities
(other than as contained in this docu­ment) including liability for any loss or
damage whether direct or indirect aris­ing from your purchase, use or non use
of the Appliance.

10. For Appliances and services provided
by Electrolux in Australia, the Applian­ces come with a guarantee by Electro­lux that cannot be excluded under the
Australian Consumer Law. You are en­titled to a replacement or refund for a
major failure and for compensation for
any other reasonably foreseeable loss
or damage. You are also entitled to
have the Appliance repaired or re­placed if the Appliance fails to be of ac­ceptable quality and the failure does
not amount to a major failure. The ben­efits to you given by this warranty are in
addition to your other rights and rem­edies under a law in relation to the Ap­pliances or services to which the war­ranty relates.

11. At all times during the Warranty Period,
Electrolux shall, at its discretion, deter­mine whether repair, replacement or re­fund will apply if an Appliance has a val­id warranty claim applicable to it.

12. For Appliances and services provided
by Electrolux in New Zealand, the Ap­pliances come with a guarantee by
Electrolux pursuant to the provisions of
the Consumer Guarantees Act, the
Sale of Goods Act and the Fair Trading
Act.

13. To enquire about claiming under this
warranty, please follow these steps:
a) carefully check the operating in-

structions, user manual and the
terms of this warranty;

b) have the model and serial number

of the Appliance available;

c) have the proof of purchase (eg an

invoice) available;

d) telephone the numbers shown be-

low.

14. You accept that if you make a warranty
claim, Electrolux and its ASC may ex­change information in relation to you to
enable Electrolux to meet its obligations
under this warranty.

Important Notice

Before calling for service, please ensure that the steps listed in point 13 above have been

followed.

24 electrolux

FOR SERVICE

or to find the address of your
nearest state service centre in
Australia

Please call 13 13 4 9

For the cost of a local call (Australia on-

ly)

FOR SERVICE

or to find the address of your
nearest authorised service cen­tre in New Zealand

Free call 0800 10 66 10

(New Zealand only)

SERVICE AUSTRALIA

ELECTROLUX HOME
PRODUCTS

www.electrolux.com.au

SERVICE NEW ZEALAND

ELECTROLUX HOME
PRODUCTS

www.electrolux.co.nz

FOR SPARE PARTS

or to find the address of your
nearest state spare parts cen­tre in Australia

Please call 13 13 50

For the cost of a local call (Australia on-

ly)

FOR SPARE PARTS

or to find the address of your
nearest state spare parts cen­tre in New Zealand

Free call 0800 10 66 20

(New Zealand only)

electrolux 25

26 electrolux

electrolux 27

www.electrolux.com 117934892-B-512011
