Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information General information and tips Environmental information
Subject to change without notice.
ENGLISH 3
1.
SAFETY INSTRUCTIONS
Before the installation and use of the ap­pliance, carefully read the supplied in­structions. The manufacturer is not re­sponsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or per­manent disability.
• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a per­son who is responsible for their safety.
• Do not let children play with the appli­ance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
1.2 Installation
• Remove all the packaging.
• Do not install or use a damaged appli­ance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction sup­plied with the appliance.
• Do not use multi-plug adapters and ex­tension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply ca­ble need to be replaced, this must be carried out by our Service Centre.
• Connect the mains plug to the mains socket only at the end of the installa­tion. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to discon­nect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.
• This appliance complies with the E.E.C. Directives.

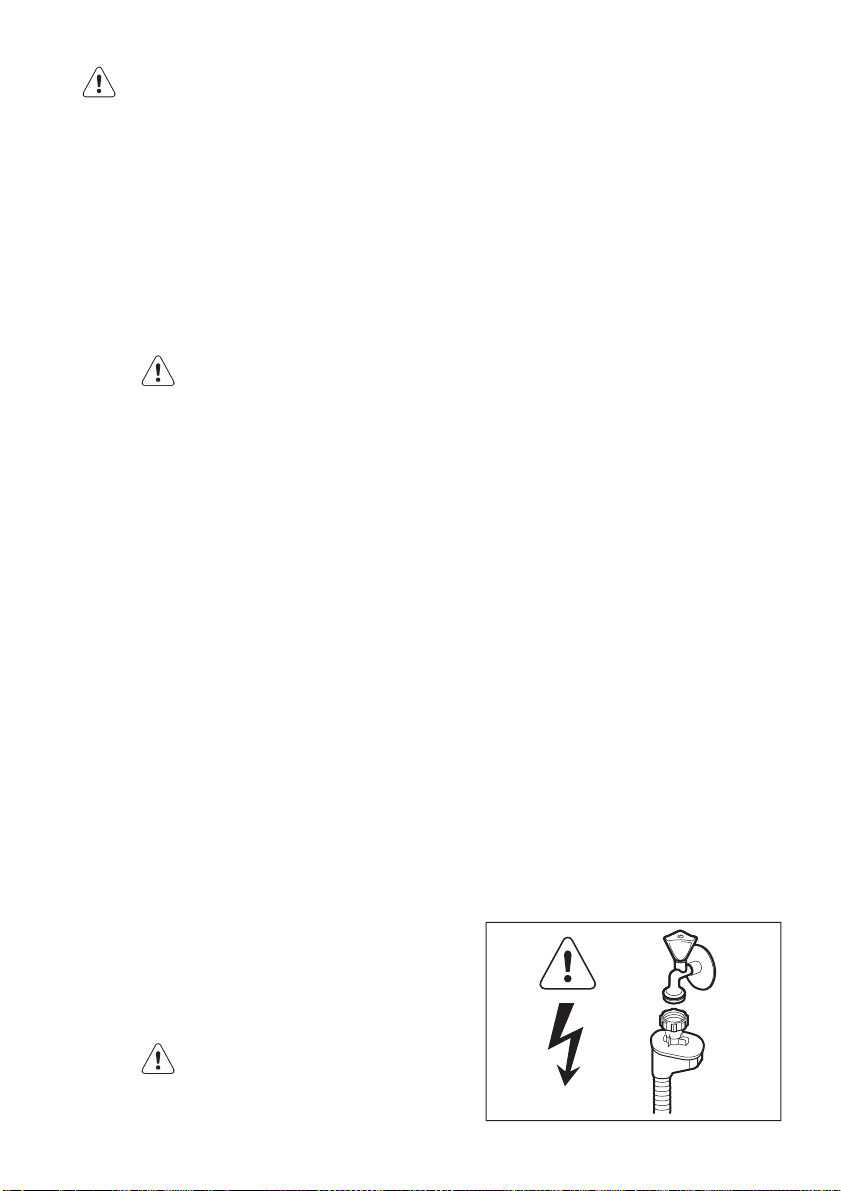

Water connection
• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the pow­er supply. If not, contact an electrician.
• Always use a correctly installed shock­proof socket.
WARNING!
Dangerous voltage.

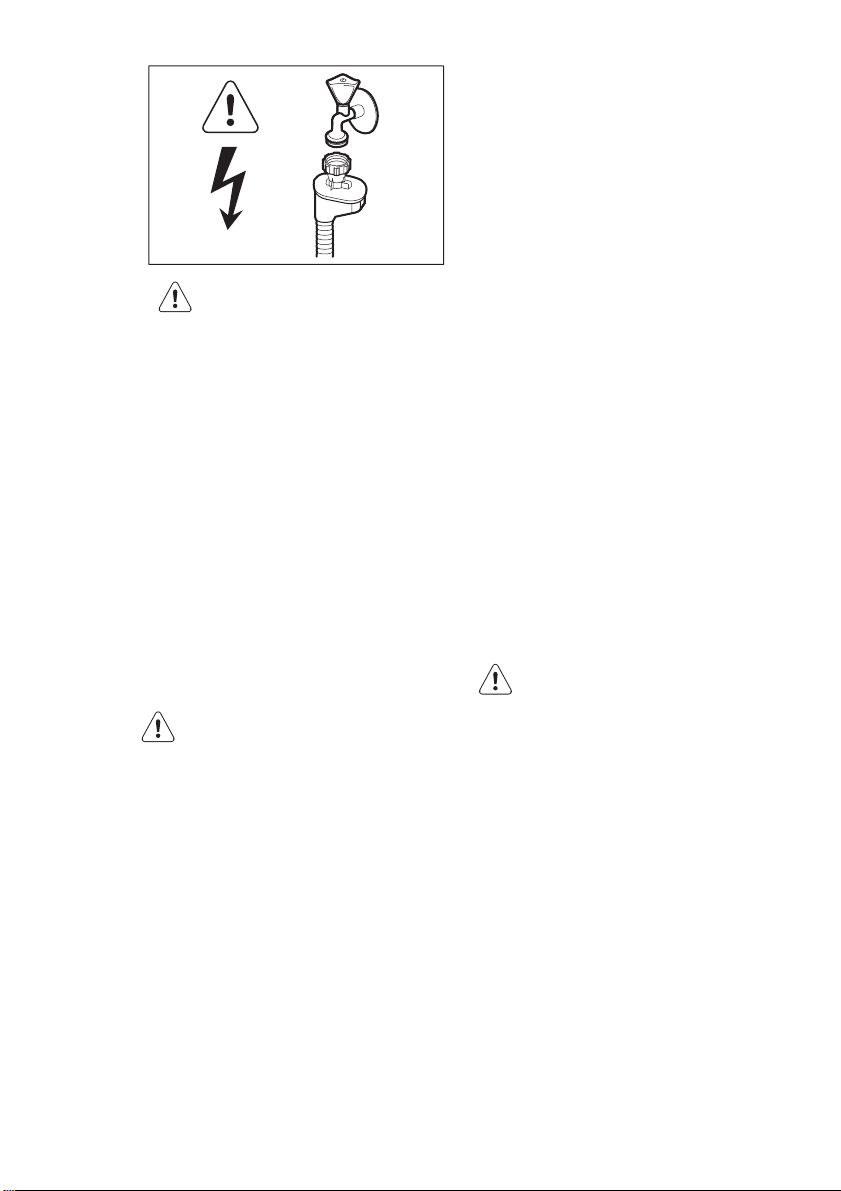

• If the water inlet hose is damaged, im­mediately disconnect the mains plug from the mains socket. Contact the Service to replace the water inlet hose.
www.electrolux.com
4
1.3 Use
• This appliance is intended to be used in
• Do not change the specification of this
• Put knives and cutlery with sharp points
• Do not keep the appliance door open
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
household and similar applications such as:
– Staff kitchen areas in shops, offices
and other working environments – Farm houses – By clients in hotels, motels and other
residential type environments – Bed and breakfast type environ-
ments.
WARNING!
Risk of injury, burns, electrical shock or fire.
appliance.
in the cutlery basket with the points down or in a horizontal position.
without supervision to prevent to fall on it.
Obey the safety instructions on the de­tergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the ap­pliance until the programme is comple­ted. There can be detergent on the dishes.
• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.
1.4 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil­dren and pets to get closed in the ap­pliance.

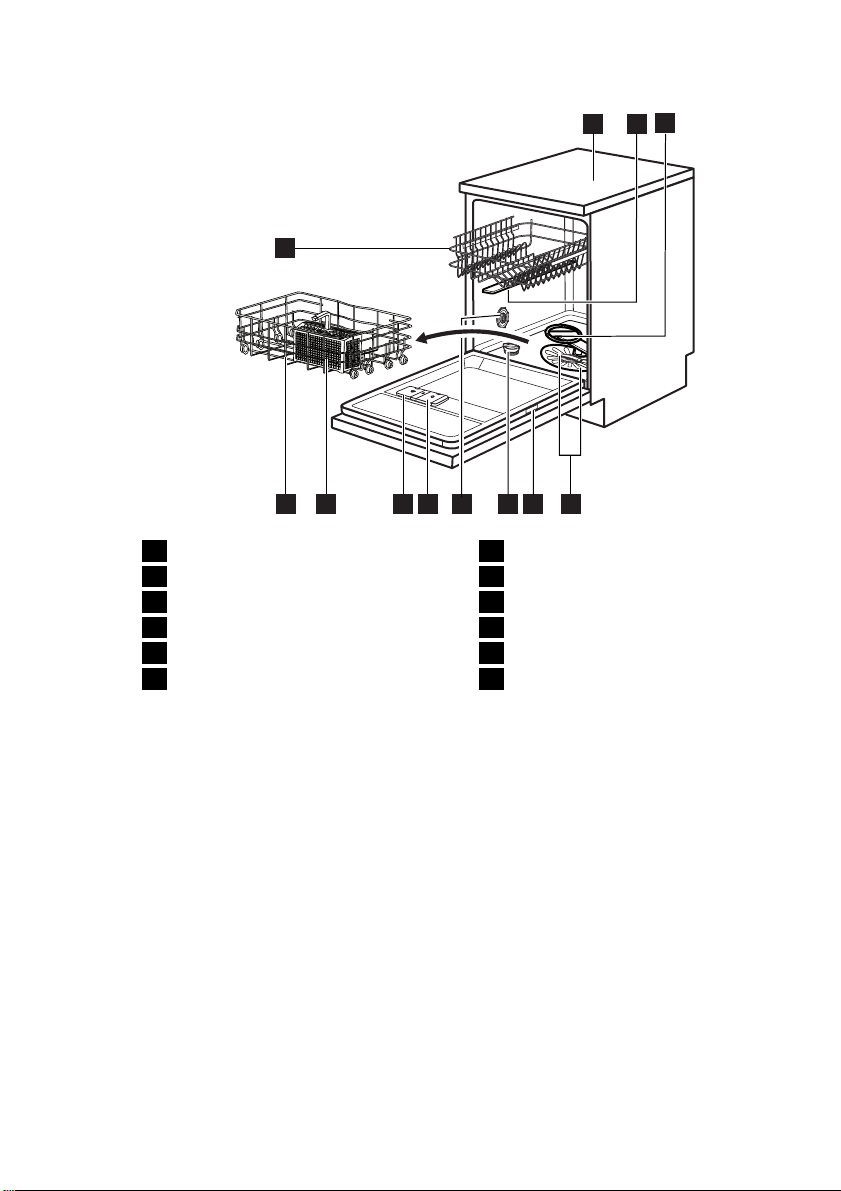

2. PRODUCT DESCRIPTION
ENGLISH 5
Worktop
1
Upper spray arm
2
Lower spray arm
3
Filters
4
Rating plate
5
Salt container
6
12
1
4
8
10 11
9
7
5
6
Water hardness dial
7
Rinse aid dispenser
8
Detergent dispenser
9
Cutlery basket
10
Lower basket
11
Upper basket
12
3
2
www.electrolux.com
6

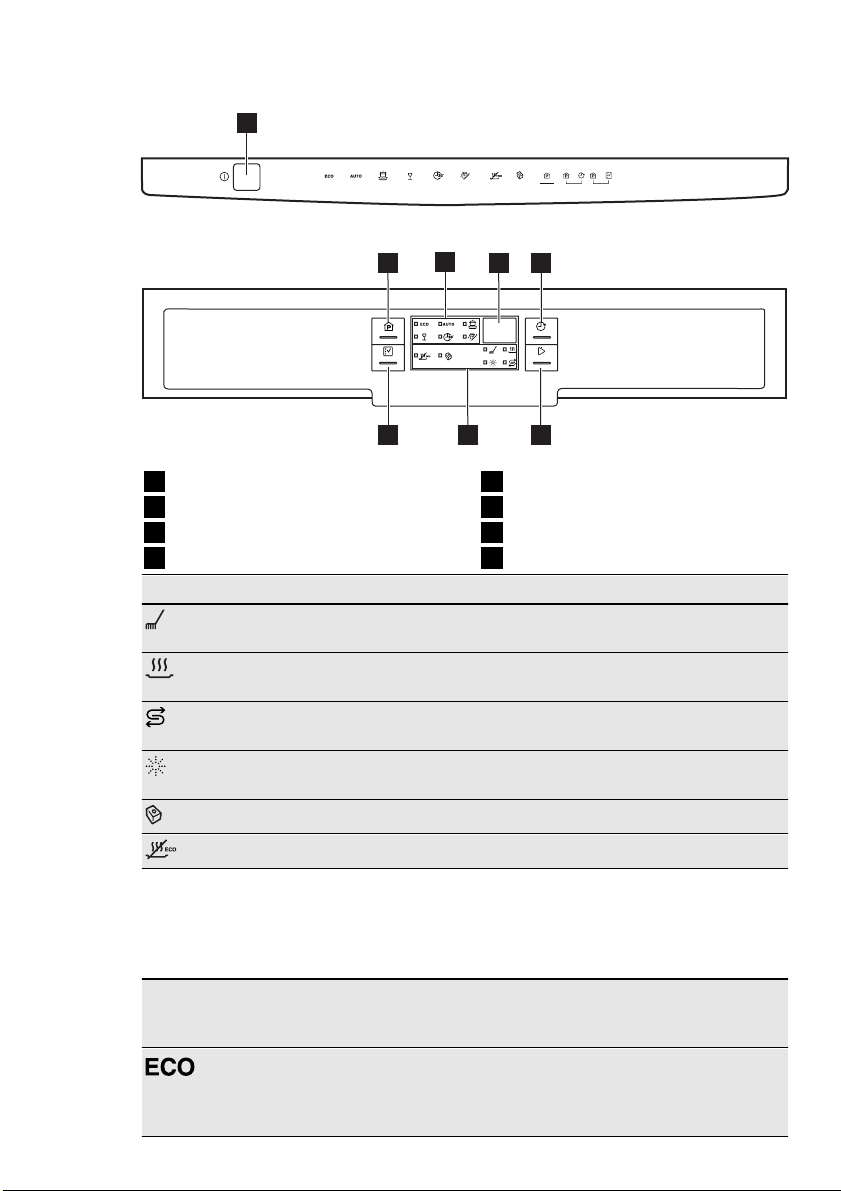

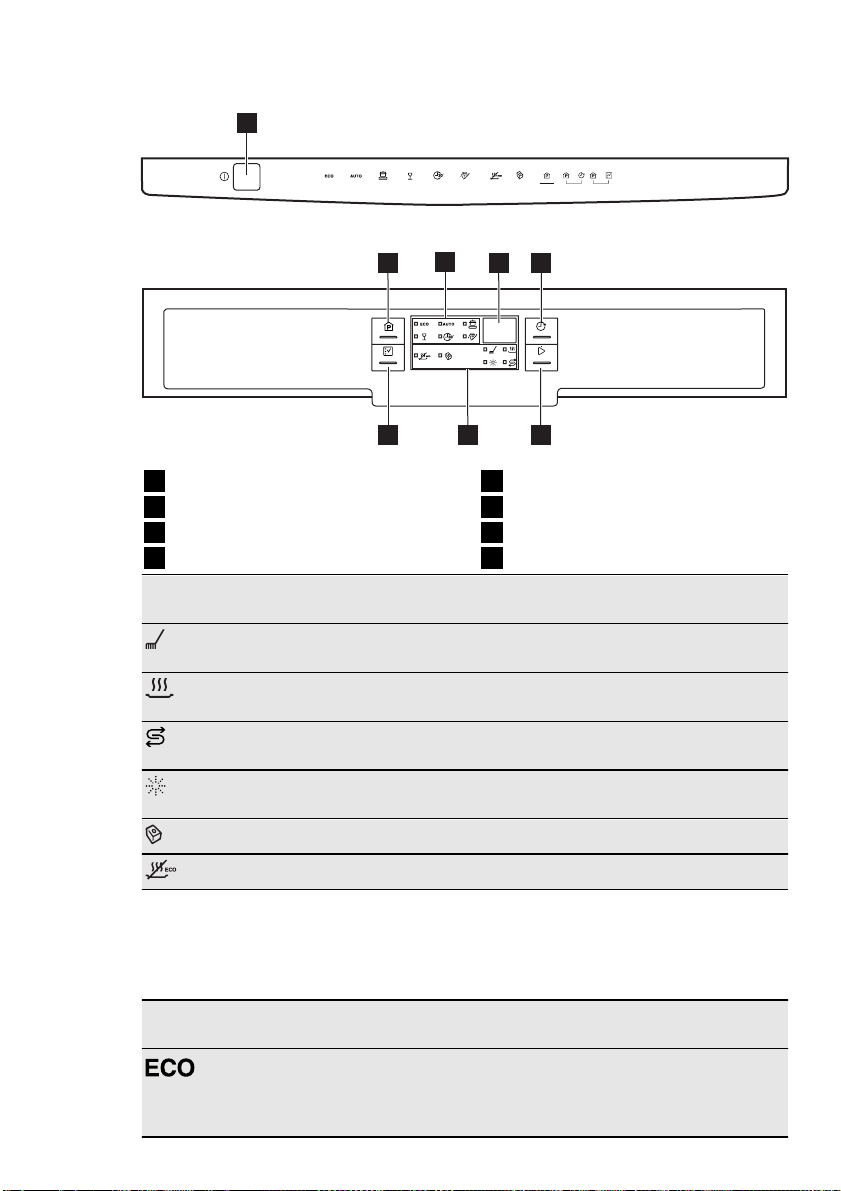

3. CONTROL PANEL
1
Auto O
On/off button
1
Program button
2
Programme indicators
3
Display
4
AutoFlex
45º-70º
50º
Indicators Description
Washing phase indicator. It comes on when the washing phase and the rinsing phases operate.
Drying phase indicator. It comes on when the drying phase oper­ates.
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme oper­ates.
Multitab indicator.
Quick Plus
Intensive
Glass Care
60º
70º
45º
2 3
Program
Option
8 7
Rinse & Hold
EnergySaver
3 sec
Multitab
MyFavourite
5
4
Delay
Start
6
Delay button
5
Start button
6
Indicators
7
Option button
8
Save
MyFavourite
Reset
4. PROGRAMMES
Programme Degree of soil
1)
EnergySaver indicator.
Type of load
Normal soil Crockery and cut­lery
Programme phases
Prewash Wash 50 °C Rinses Dry
Options
EnergySaver
ENGLISH 7
Programme Degree of soil
Type of load
2)
All Crockery, cutlery, pots and pans
Programme phases
Prewash Wash from 45 °C to 70 °C
Options
EnergySaver
Rinses Dry
Heavy soil Crockery, cutlery, pots and pans
Prewash Wash 70 °C Rinses
EnergySaver
Dry
Normal or light soil Delicate crockery and glassware
3)
Fresh soil Crockery and cut-
Wash 45 °C Rinses Dry
Wash 60 °C Rinse
EnergySaver
lery
4)
1)
With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2)
The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of the water, the energy consumption and the programme duration.
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4)
Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this programme.
All Prewash
Consumption values
Programme
1)
Duration (min)
Energy (kWh)
Water (l)
173 1.03 10 40 - 150 0.6 - 1.5 7 - 14 150 - 160 1.4 - 1.6 13 - 14
70 - 80 0.8 - 0.9 11 - 12
30 0.9 9
14 0.1 4
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.
www.electrolux.com
8
Information for test institutes
For all the necessary information for test performance. send an email to:
info.test@dishwasher-production.com
Write down the product number (PNC) that is on the rating plate.
5. OPTIONS
Activate or deactivate the options before the start of a programme. You cannot activate or deactivate the options while a programme operates.
If one or more options are set, make sure that the related indica­tors are on before the programme starts.
5.1 EnergySaver
This option decreases the temperature in the last rinse phase. The use of this option decreases the ener­gy consumption (up to 25%) and the pro­gramme duration. The dishes can be wet at the end of the programme.
How to activate the EnergySaver option
1. Press Option until the EnergySaver in-
dicator comes on. In the display you can see the update of the programme duration.
• If the option is not applicable to the programme, the related indicator does not come on.
5.2 Multitab
Activate this option only when you use the combi detergent tablets. This option deactivates the use of rinse aid and salt. The related indicators stay off. The programme duration can increase.
How to activate the Multitab option
1. Press Option until the Multitab indica-
tor comes on.
If you stop to use the combi detergent tablets, before you start to
use separately detergent, rinse aid and dishwasher salt, do these steps:
1.
Set the water softener to the highest level.
2. Make sure that the salt container and the rinse aid dispenser are full.
3.
Start the shortest programme with a rinsing phase, without detergent and without dishes.
4.
Adjust the water softener to the water hardness in your area.
5.
Adjust the released quantity of rinse aid.
5.3 MyFavourite
With this option you can set and save the programme that you use more frequently.
You can only save 1 programme at a time. A new setting cancels the previous one.
How to save a programme
1. Press the on/off button to activate the
appliance.
2.
Set the programme that you want to save. You can also set applicable op­tions together with the programme. It is not possible to save the option De­lay.
3.
Press and hold, at the same time, Program and Delay until the indica­tors of the programme and of the op­tions start to flash.
How to set the MyFavourite programme
1. Press and hold Program until the indi-
cators that are related to the MyFa­vourite programme and options come on
• The display shows the duration of
the programme.
ENGLISH 9
5.4 Acoustic signals
The acoustic signals operate when the appliance has a malfunction or when the adjustment of the level of the water soft­ener occurs. It is not possible to deacti­vate these acoustic signals. There is also an acoustic signal that oper­ates when the programme is completed. By default, this acoustic signal is off, but it is possible to activate it.

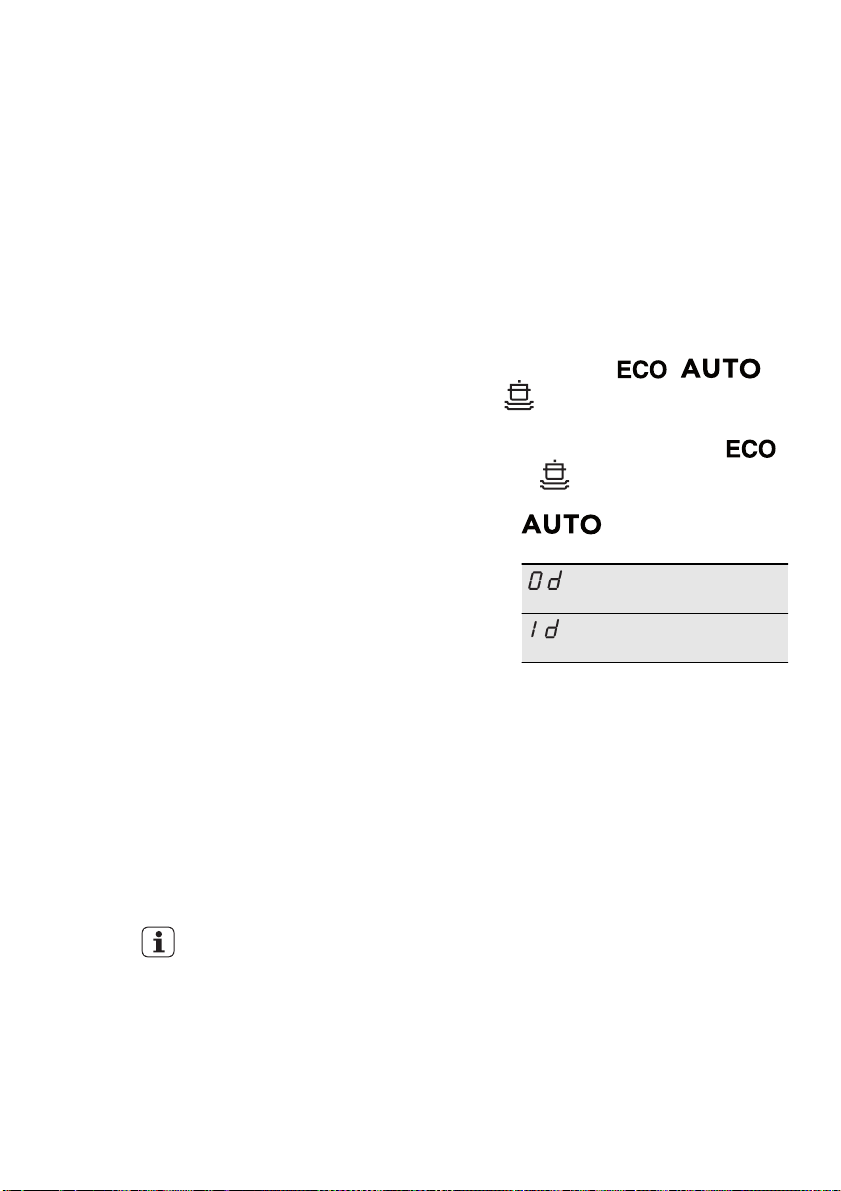

How to activate the acoustic signal for the end of programme
1.
Press the on/off button to activate the appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a programme”.
2.
Press and hold, at the same time, De­lay and Start until the programme in-
6. BEFORE FIRST USE
1.
Make sure that the set level of the wa­ter softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.
2.

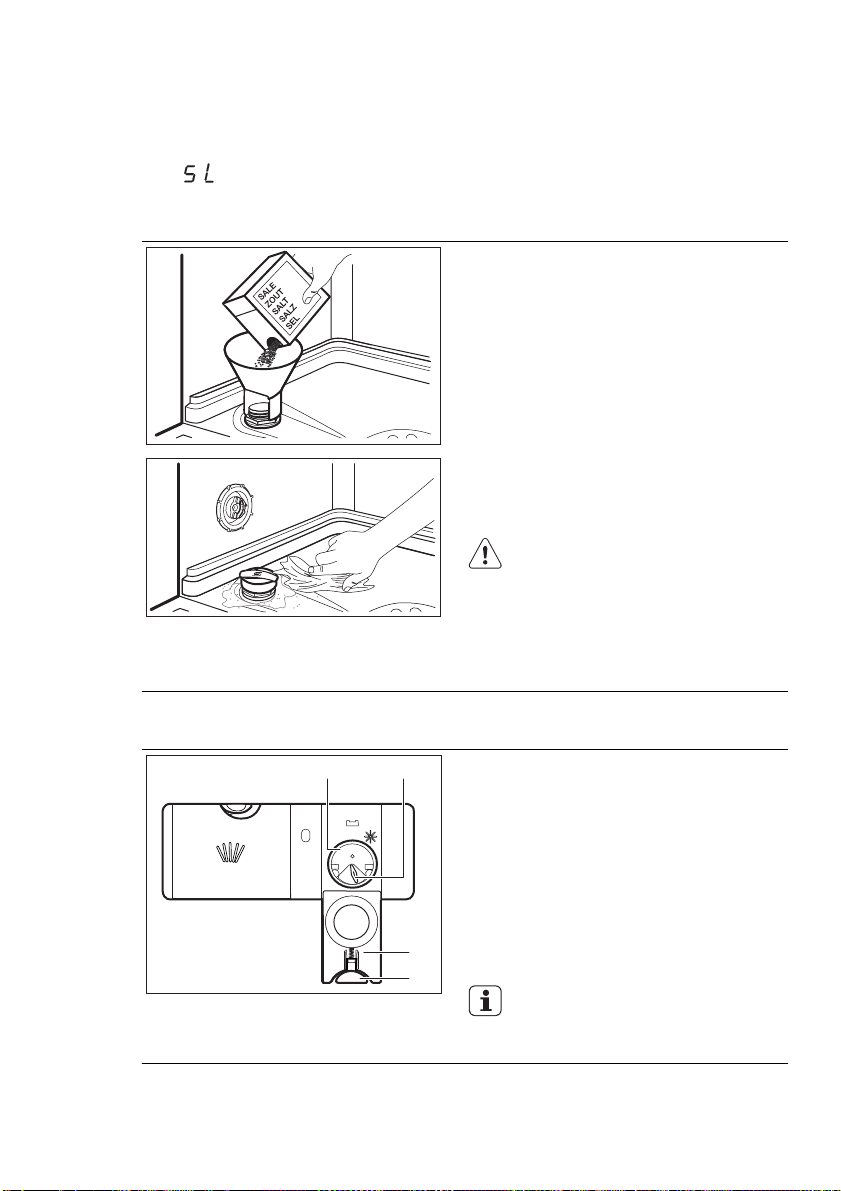

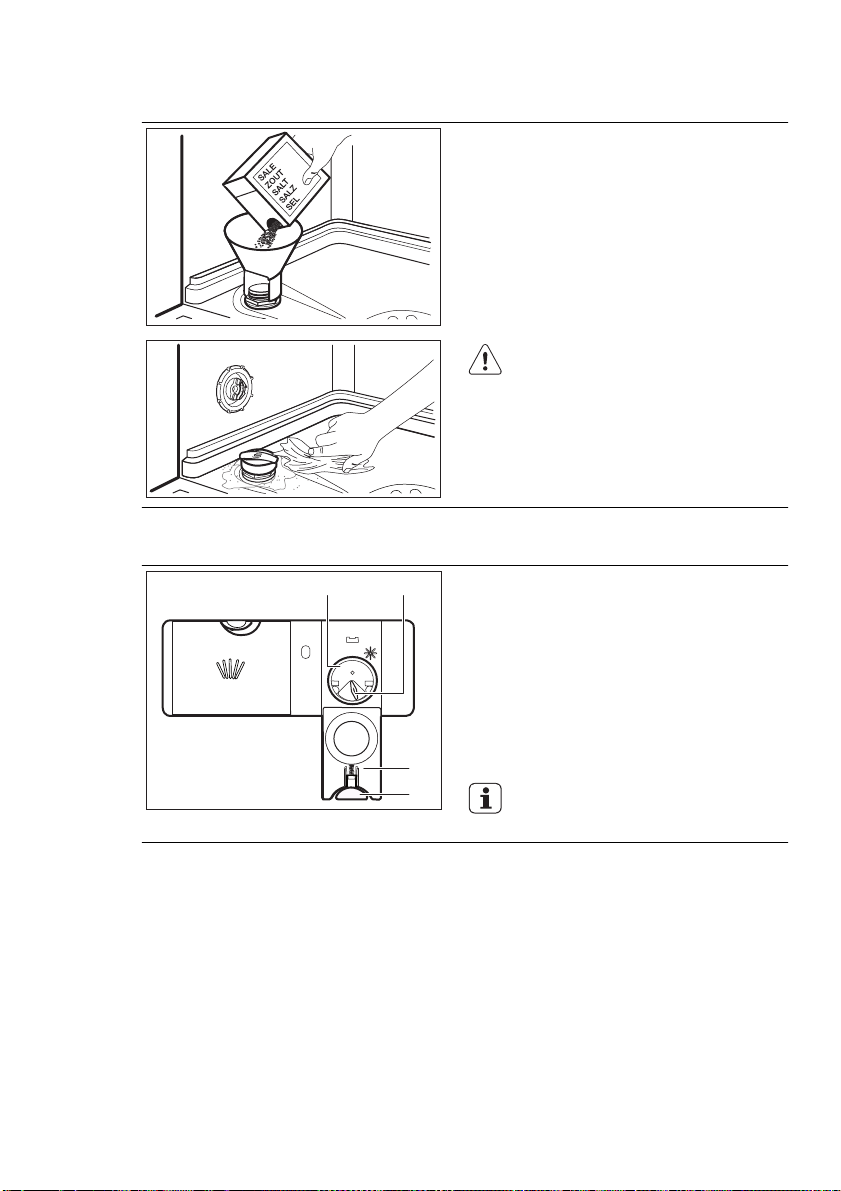

Fill the salt container.
dicators start to flash.
3. Press Delay.
The programme indicators and go off.
The programme indicator tinues to flash.
• The display shows the current set-
ting.
, and
con-
Acoustic signal on
Acoustic signal off
4. Press Delay to change the setting.
5.
Press the on/off button to deactivate the appliance and to confirm the set­ting.
3.
Fill the rinse aid dispenser.
4.
Open the water tap.
5.
Processing residues can stay in the appliance. Start a programme to re­move them. Do not use detergent and do not load the baskets.
6.1 Adjusting the water softener
Water hardness
German degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
degrees
47 - 50 84 - 90 8.4. - 9.0 58 - 63
43 - 46 76 - 83 7.6 - 8.3 53 - 57
37 - 42 65 - 75 6.5 - 7.5 46 - 52
29 - 36 51 - 64 5.1 - 6.4 36 - 45
23 - 28 40 - 50 4.0 - 5.0 28 - 35
19 - 22 33 - 39 3.3 - 3.9 23 - 27
15 - 18 26 - 32 2.6 - 3.2 18 - 22 1 4 11 - 14 19 - 25 1.9 - 2.5 13 - 17 1 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 1 2
Water softener
adjustment
Manual Elec-
1)
2
1)
2
1)
2
1)
2
1)
2
1)
2
tronic
10
9
8
7
6
1)
5
www.electrolux.com
10
Water hardness
German degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
< 4 < 7 < 0.7 < 5
1)
Factory position.
2)
Do not use salt at this level.
You must adjust the water soften­er manually and electronically.

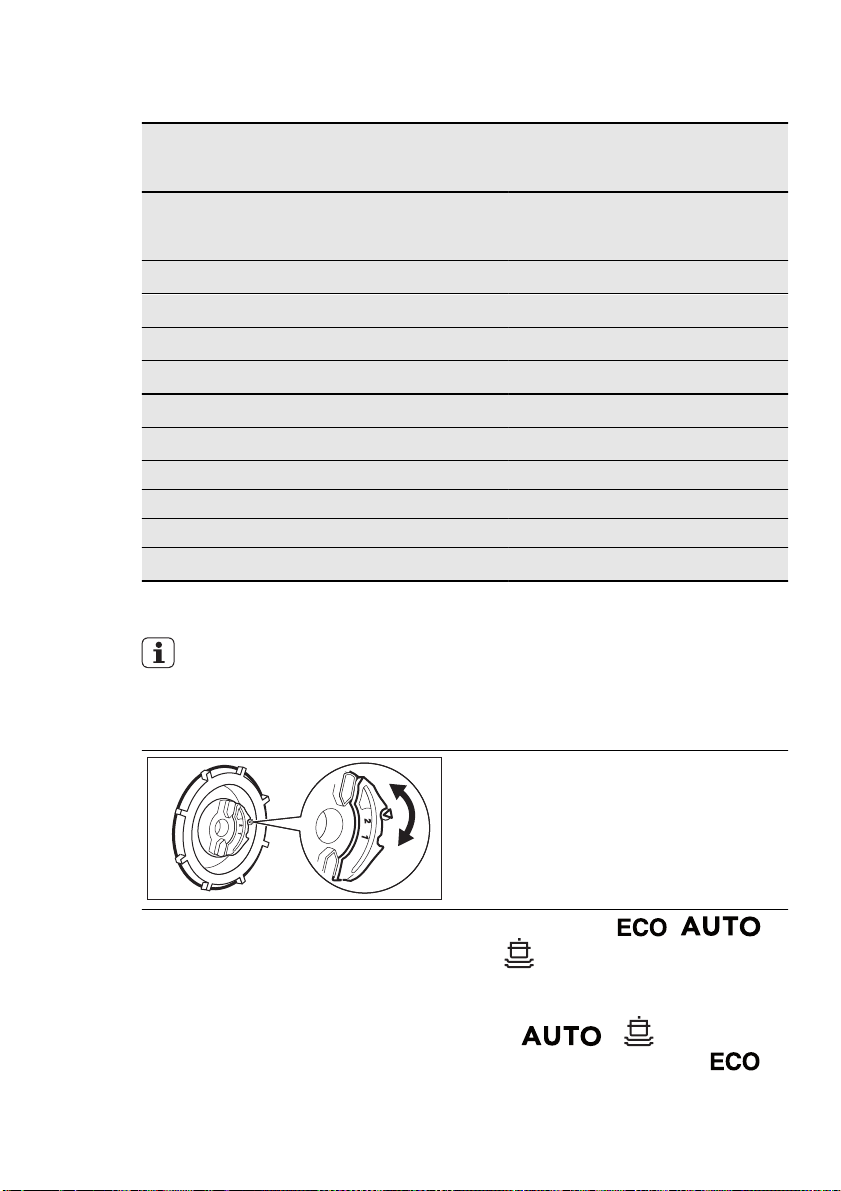

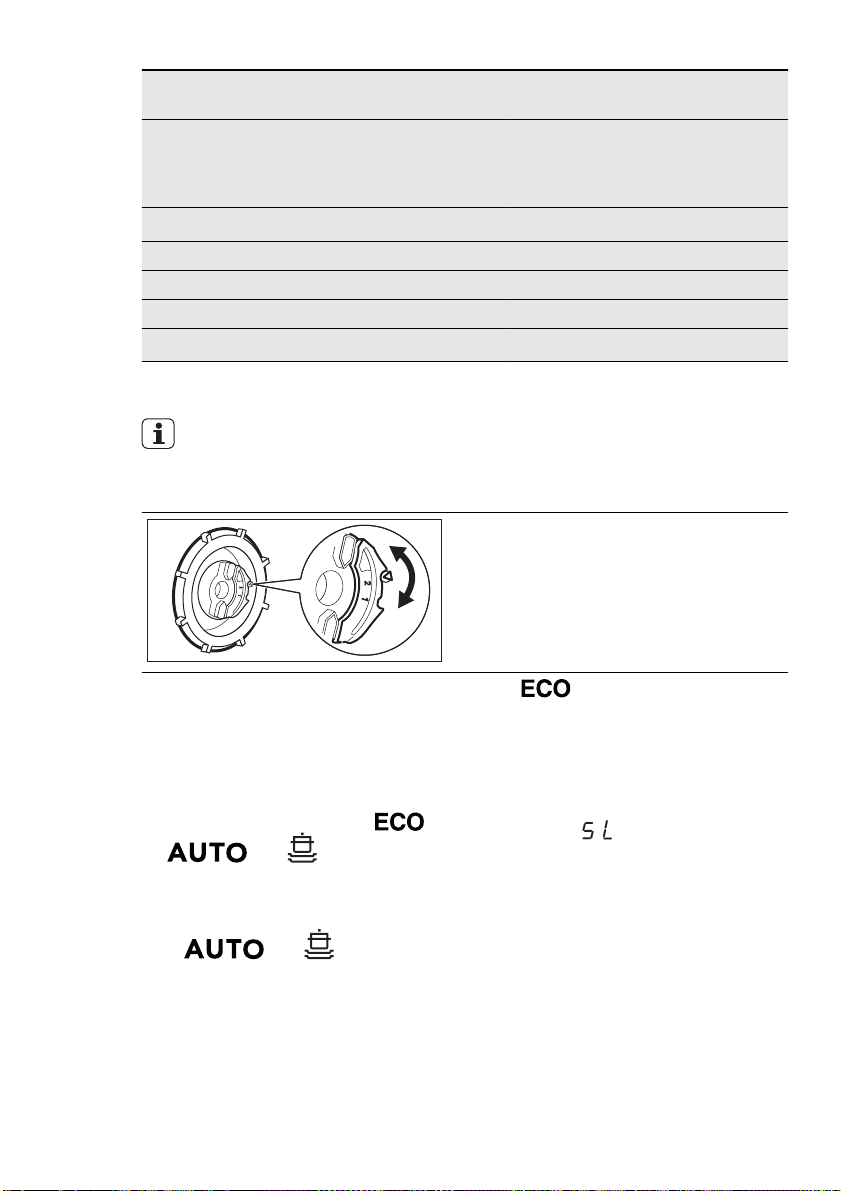

Manual adjustment
Electronic adjustment
1.
Press the on/off button to activate the appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a programme”.
2.
Press and hold, at the same time, De­lay and Start until the programme in-
dicators start to flash.
3.
Press Program.
• The programme indicators
, and
and go off.
Water softener
adjustment
Manual Elec-
degrees
2)
1
Turn the water hardness dial to the posi­tion 1 or 2.
The programme indicator continues to flash.
• The acoustic signals operate, e.g.
five intermittent acoustic signals = level 5.
• The display shows the current set-
ting of the water softener, e.g. = level 5.
4.
Press Program again and again to change the setting.
5.
Press the on/off button to deactivate the appliance and to confirm the set­ting.
tronic
2)
1
6.2 Filling the salt container
6.3 Filling the rinse aid dispenser
A
B
A
X
M
2
1
3
4
+
-
C
D
ENGLISH 11
1.
Turn the cap counterclockwise and open the salt container.
2.
Put 1 litre of water in the salt contain­er (only for the first time).
3.
Fill the salt container with dishwasher salt.
4.
Remove the salt around the opening of the salt container.
5.
Turn the cap clockwise to close the salt container.
CAUTION!
Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.
1.
Press the release button (D) to open the lid (C).
2.
Fill the rinse aid dispenser (A), no more than the mark 'max'.
3.
Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4.
Close the lid. Make sure that the re­lease button locks into position.
You can turn the selector of the released quantity (B) between po­sition 1 (lowest quantity) and posi­tion 4 (highest quantity).
7. DAILY USE
1. Open the water tap.
2.
Press the on/off button to activate the appliance. Make sure that the appli­ance is in setting mode, refer to ’Set­ting and starting a programme’.
• If the salt indicator is on, fill the salt container.
• If the rinse aid indicator is on, fill the rinse aid dispenser.
3. Load the baskets.
4.
Add the detergent.
• If you use the combi detergent tab­lets, activate the Multitab option.
5.
Set and start the correct programme for the type of load and the degree of soil.
M
A
X
1
2
3
4
+
-
www.electrolux.com
12

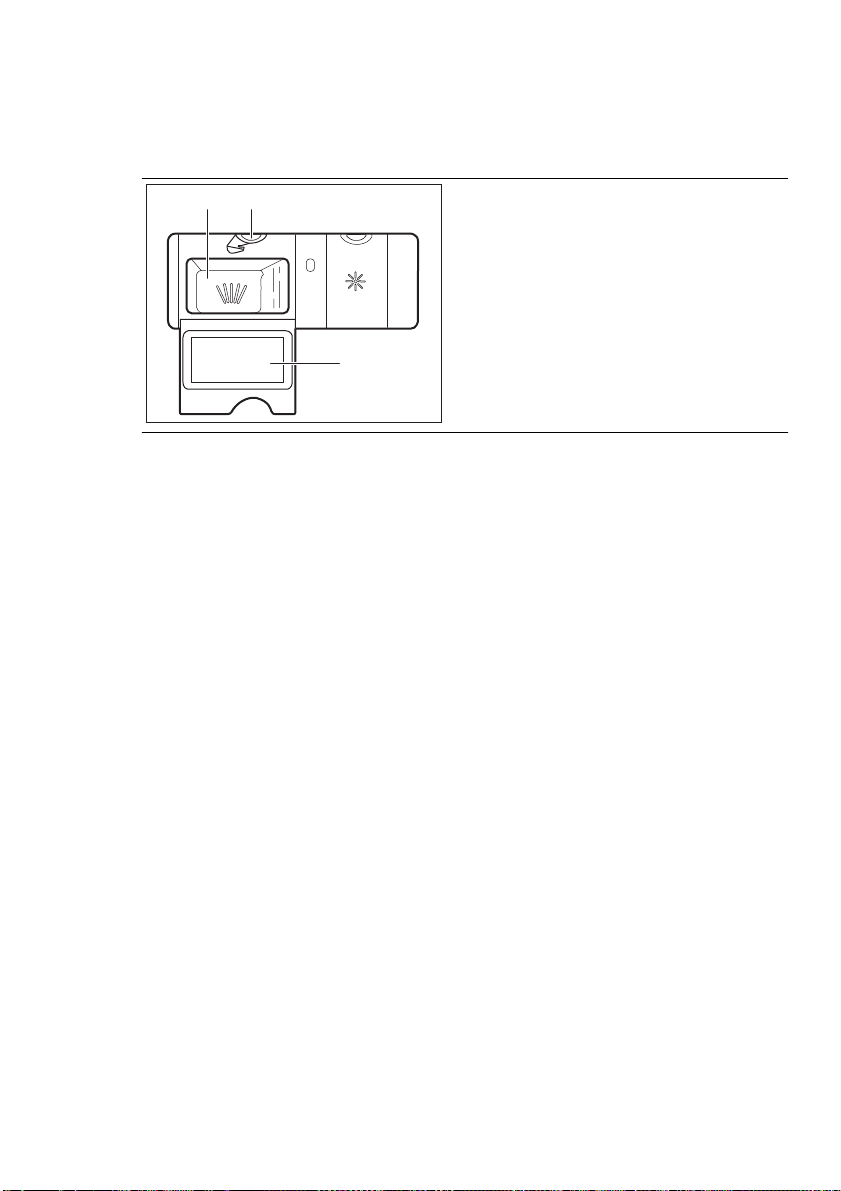

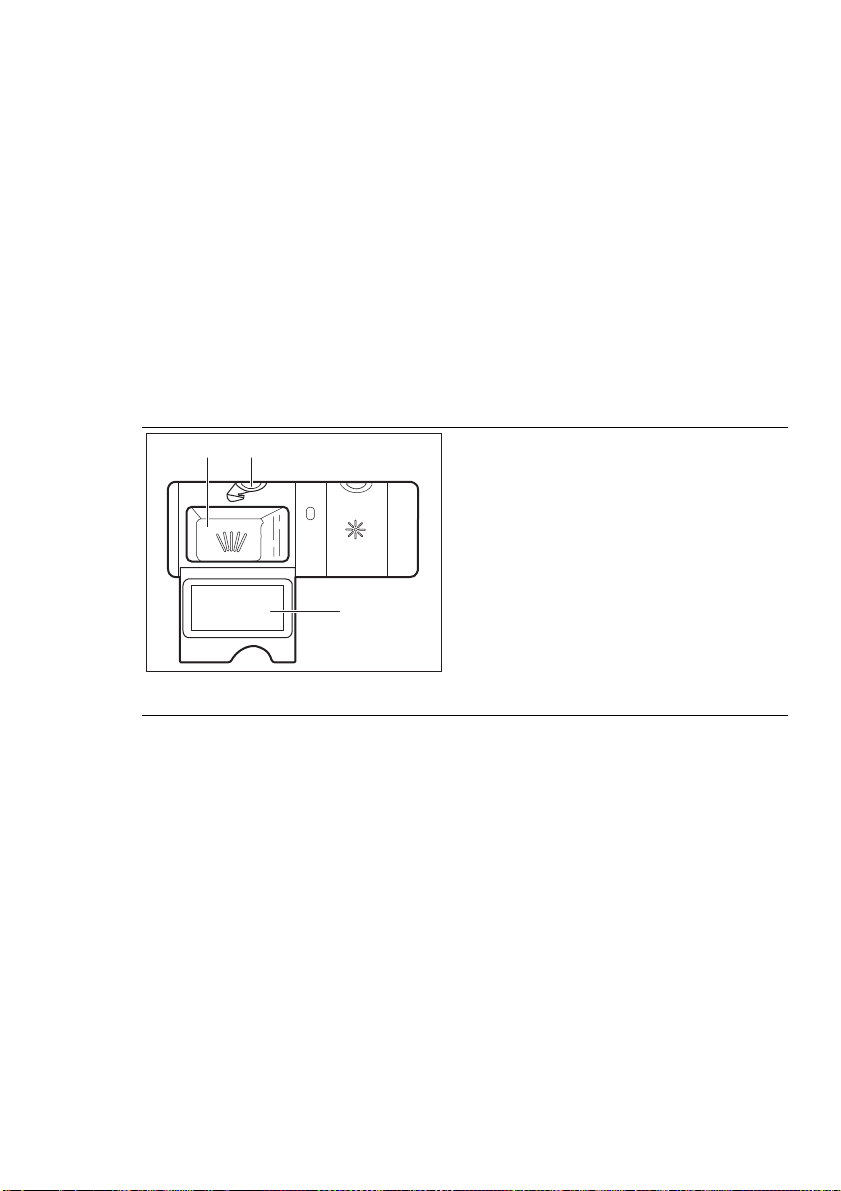

7.1 Using the detergent
7.2 Setting and starting a
programme
The Auto Off function
To decrease the energy consumption, this function automatically deactivates the ap­pliance a few minutes after:
• You have not closed the door.
• You have not pressed Start to start the
• The programme is completed.
Setting mode
For some settings it is necessary that the appliance is in setting mode. The appliance is in setting mode when, after the activation, the indicator and the duration of the programme ECO are on. If the control panel does not show this condition, press and hold, at the same time, Program and Option until the indi­cator and the duration of the programme ECO come on.
A
programme.
1.
B
Press the release button (B) to open the lid (C).
2.
Put the detergent in the compartment (A) .
30
20
3.
If the programme has a prewash phase, put a small quantity of deter­gent on the inner part of the appli­ance door.
4.
C
If you use detergent tablets, put the tablet in the compartment (A).
5.
Close the lid. Make sure that the re­lease button locks into position.
comes on. You can also set the appli­cable options.
• If you want to set the MyFavourite programme, press and hold Pro- gram until the indicators that are re­lated to the MyFavourite programme and options come on.
The display shows the duration of the programme.
5.
Press Start to start the programme.
• The washing phase indicator comes on.
• The programme duration starts to decrease with steps of 1 minute.
Starting a programme with delay start
1.
Set the programme.
2. Press Delay again and again until the display shows the delay time you want to set (from 1 to 24 hours).
3.
The countdown starts automatically.
When the countdown is completed. The programme starts.
Starting a programme without delay start
1. Open the water tap.
2.
Press the on/off button to activate the appliance. Make sure that the appli­ance is in setting mode.
3.
4.
Close the appliance door. Set a programme. Press Program
again and again until the indicator of the programme you want to set
Opening the door while the appliance operates
If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.
Cancelling the delay start while the countdown operates
When you cancel the delay start you have to set the programme and options again.
1. Press and hold, at the same time, Program and Option until the indica-
tor and the duration of the ECO pro­gramme come on.
Cancelling the programme
Press and hold, at the same time, Pro- gram and Option until the indicator and the duration of the ECO programme come on.
Make sure that there is detergent in the detergent dispenser before you start a new programme.
At the end of the programme
When the programme is completed, the display shows 0:00.
• The phase indicators go off.
8. HINTS AND TIPS
ENGLISH 13
• The indicator of the programme contin­ues to stay on.
1. Press the on/off button or wait for the
Auto Off function to automatically de­activate the appliance.
2.
Close the water tap.
Important
• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.
• First remove the items from the lower basket, then from the upper basket.
• There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.
8.1 The water softener
Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water soft­ener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dish­washer salt and water.
8.2 Using salt, rinse aid and detergent
• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• The rinse aid helps, during the last rins­ing phase, to dry the dishes without streaks and stains.
• Combi detergent tablets contain deter­gent, rinse aid and other added agents. Be sure that these tablets are applica­ble to the water hardness in your area. Refer to the instructions on the packag­ing of the products.
• Detergent tablets do not fully dissolve with short programmes. To prevent de-
tergent residues on the tableware, we recommend that you use the tablets with long programmes.
Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.
8.3 Loading the baskets
Refer to the supplied leaflet with examples of the load of the bas­kets.
• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• To remove easily remaining burned food, soak pots and pans in water be­fore you put them in the appliance.
• Put hollow items (cups, glasses and pans) with the opening down.
www.electrolux.com
14
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put the small items in the cutlery bas­ket.
• Put the light items in the upper basket. Make sure that they do not move.
• Make sure that the spray arms can move freely before you start a pro­gramme.
8.4 Before starting a
programme
Make sure that:
9. CARE AND CLEANING
• The filters are clean and correctly instal­led.
• The spray arms are not clogged.
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.
• There is dishwasher salt and rinse aid (unless you use combi detergent tab­lets).
• The cap of the salt container is tight.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

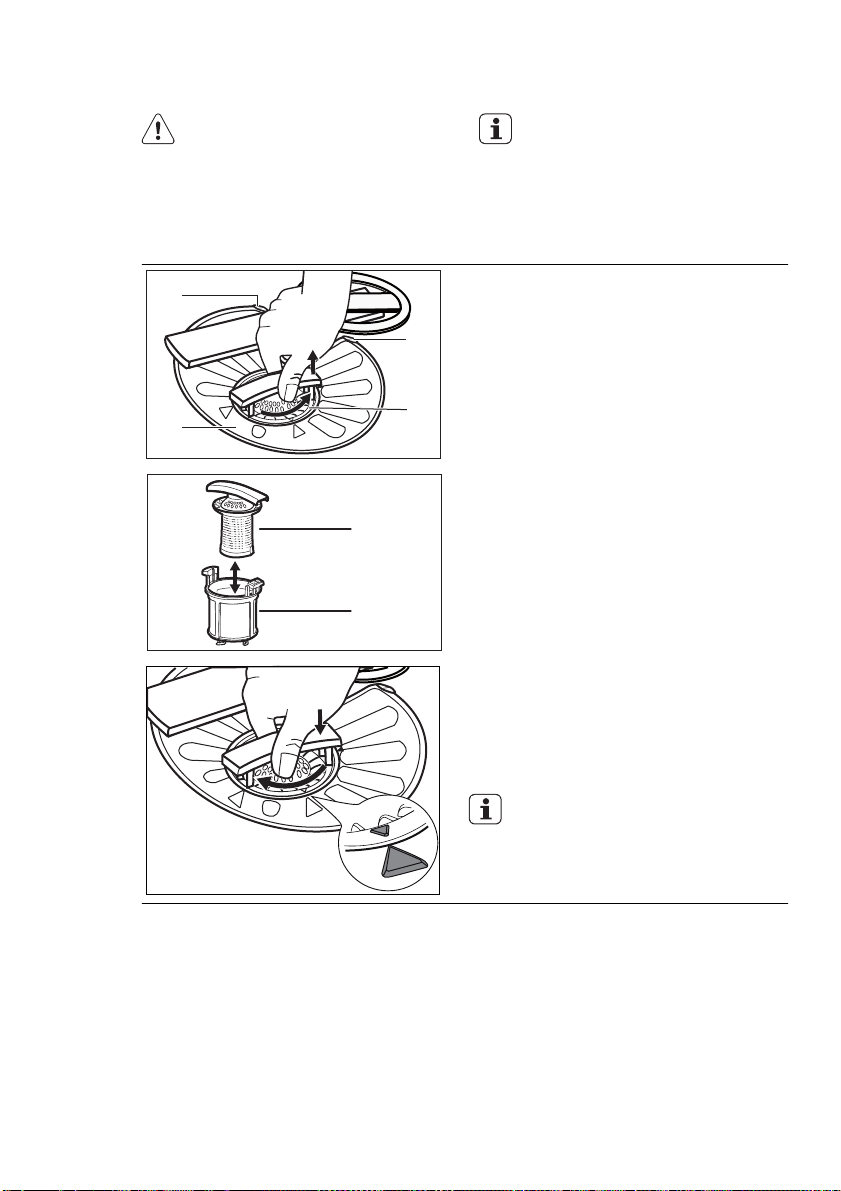

9.1 Cleaning the filters
C
B
A1
A2
Dirty filters and clogged spray arms decrease the washing re­sults. Make a check regularly and, if necessary, clean them.
1.

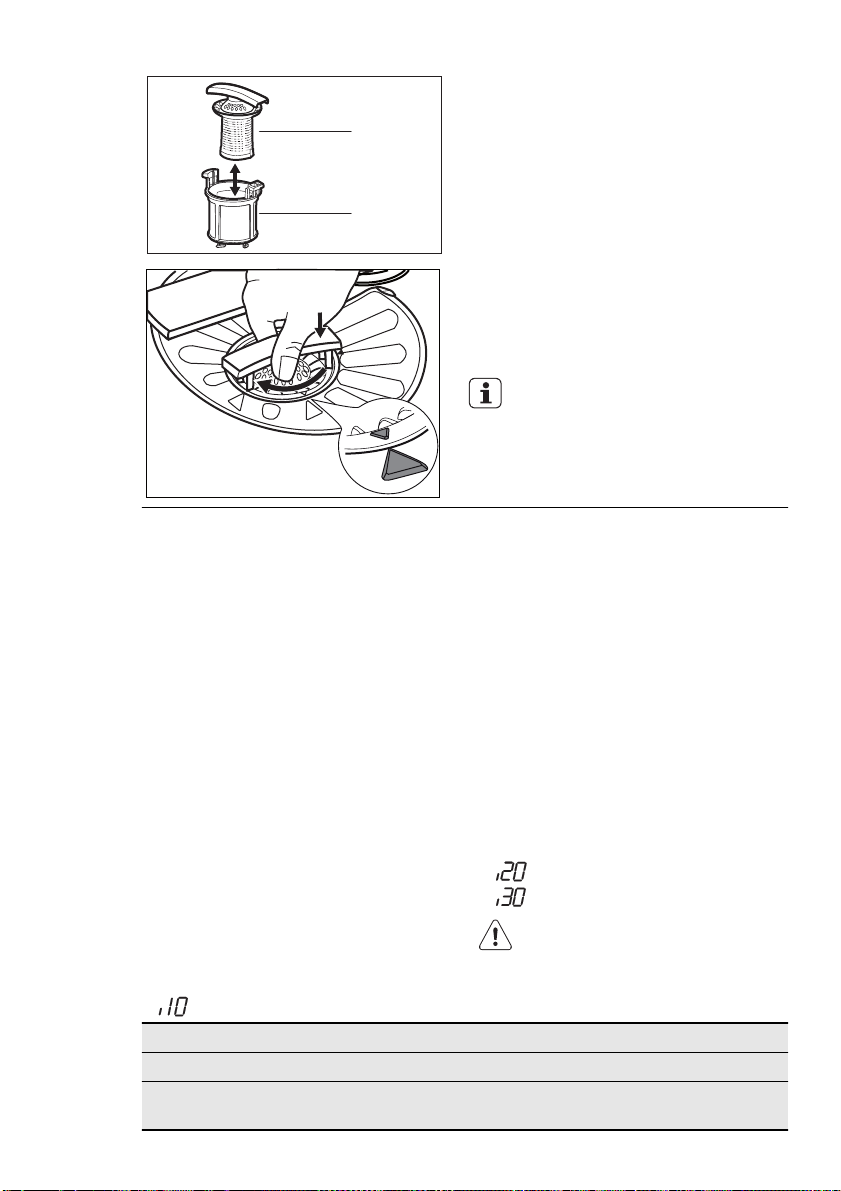

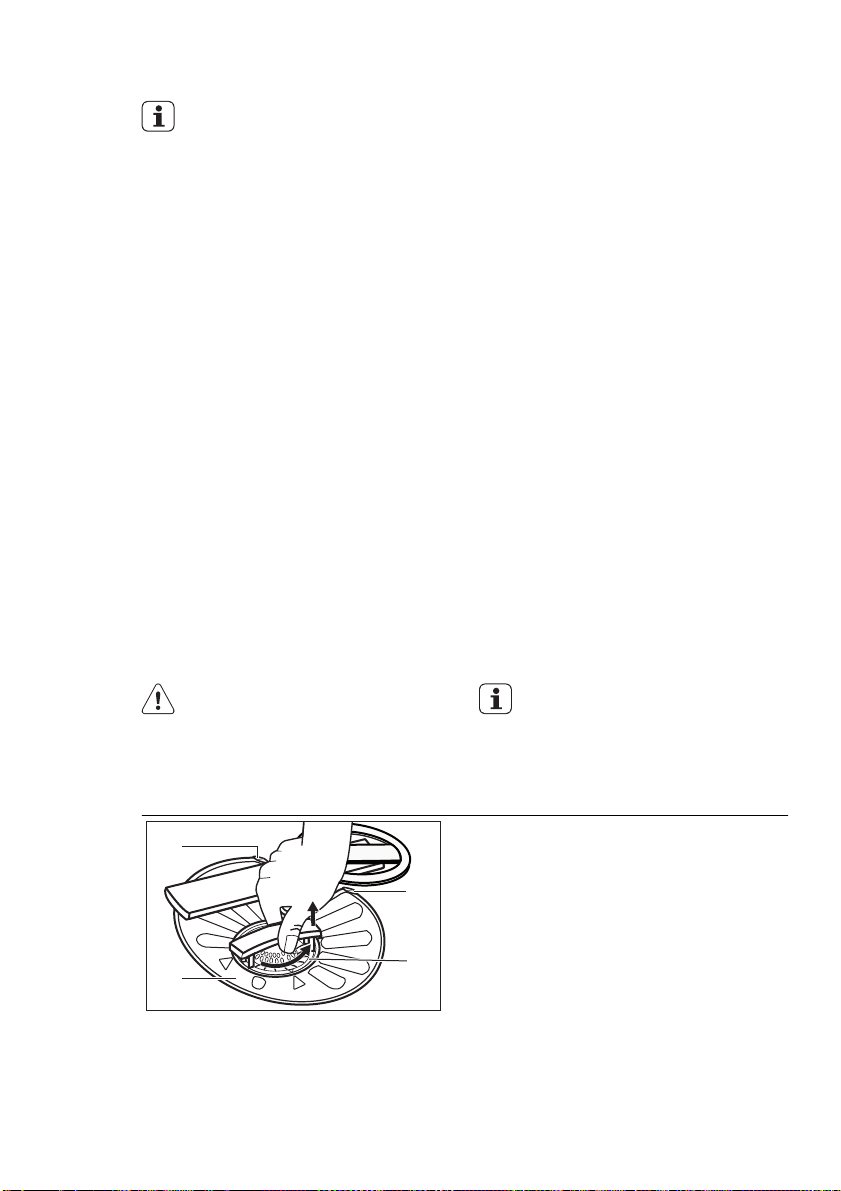

Turn the filter (A) counterclockwise and remove it.
C
A
2.
To disassemble the filter (A), pull apart (A1) and (A2).
3.
Remove the filter (B).
4.
Wash the filters with water.
5.
Before you put the filter (B) back, make sure that there are no residues of food or soil in or around the edge of the sump.
ENGLISH 15
6.
Make sure that the filter (B) is cor­rectly positioned under the 2 guides (C).
7.
Assemble the filter (A) and put it back in filter (B). Turn it clockwise until it locks.
An incorrect position of the filters can cause bad washing results and damage to the appliance.
9.2 Cleaning the spray arms
Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.
9.3 External cleaning
Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.
10. TROUBLESHOOTING
The appliance does not start or it stops during operation. Before you contact the Service, refer to the information that follows for a solution to the problem.
With some problems, the display shows an alarm code:
- The appliance does not fill with
water.
Problem Possible solution
You cannot activate the appli­ance.
Make sure that there is not a damaged fuse in
The programme does not start. Make sure that the appliance door is closed. Press Start. If the delay start is set, cancel the setting or
9.4 Internal cleaning
If you regularly use short duration pro­grammes, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend to run long duration programmes at least 2 times per month.
- The appliance does not drain the
water.
- The anti-flood device is on.
WARNING!
Deactivate the appliance before you do the checks.
Make sure that the mains plug is connected to the mains socket.
the fuse box.
wait for the end of the countdown.
www.electrolux.com
16
Problem Possible solution
The appliance does not fill with water.
Make sure that the pressure of the water sup-
Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not
Make sure that the inlet hose has no kinks or
The appliance does not drain the water.
Make sure that the drain hose has no kinks or
The anti-flood device is on. Close the water tap and contact the Service.
After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service. If the display shows other alarm codes, contact the Service.
Make sure that the water tap is open.
ply is not too low. For this information, con­tact your local water authority.
clogged.
bends. Make sure that the sink spigot is not clogged.
bends.
• The quality of the combi detergent tab­lets can be the cause. Try a different brand or activate the rinse aid dispens­er and use rinse aid together with the combi detergent tablets.
Refer to ‘HINTS AND TIPS’ for other possible causes.
10.1 If the washing and drying results are not satisfactory
Whitish streaks or bluish layers on glasses and dishes
• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.
• The quantity of detergent is too much.
Stains and dry water drops on glasses and dishes
• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.
• The quality of the detergent can be the cause.
Dishes are wet
• The programme is without a drying phase or with a low temperature drying phase.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
10.2 How to activate the rinse aid dispenser
The activation of the rinse aid dispenser can occur only with the Multitab option activated.
1.
Press the on/off button to activate the appliance. Make sure that the appli­ance is in setting mode, refer to “Set­ting and starting a programme”.
2.
Press and hold, at the same time, De­lay and Start until the programme in-
dicators start to flash.
3.
Press Option.
The programme indicators
and go off.
• The programme indicator
• The display shows the current set­ting.
, and
continues to flash.
Loading...
+ 36 hidden pages
