Electrolux EOD43103 User Manual
user manual
Built in double oven
EOD43103
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Safety information 2
Product description 3
Before first use 4
Operation 6
Care and cleaning 16
What to do if… 21
Installation 22
Subject to change without notice
Disposal 25
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service 25
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service 26
www.electrolux.com 27
Safety information
These warnings are provided in the interests
of your safety. Ensure that you understand
them all before installing or using the appliance.
Your safety is of paramount importance. If
you are unsure about any of the meanings of
these warnings please contact customer
care.

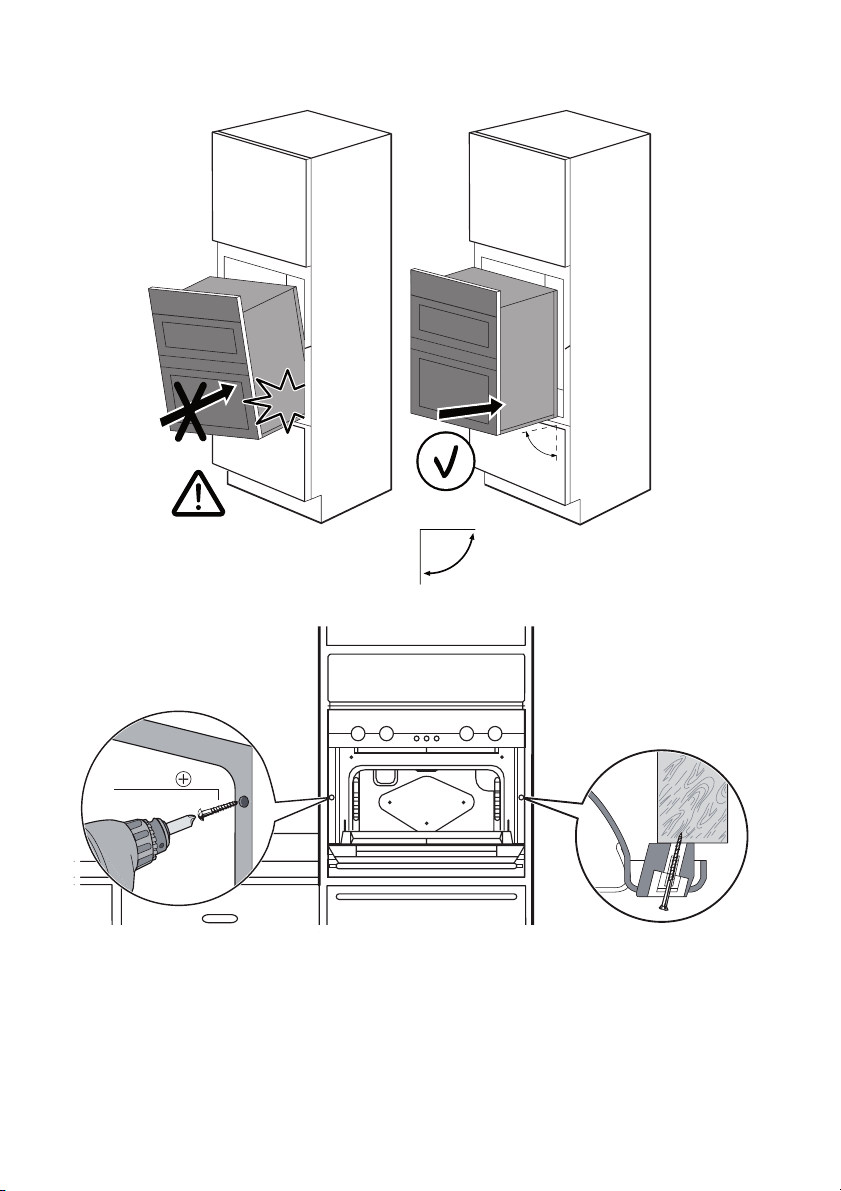

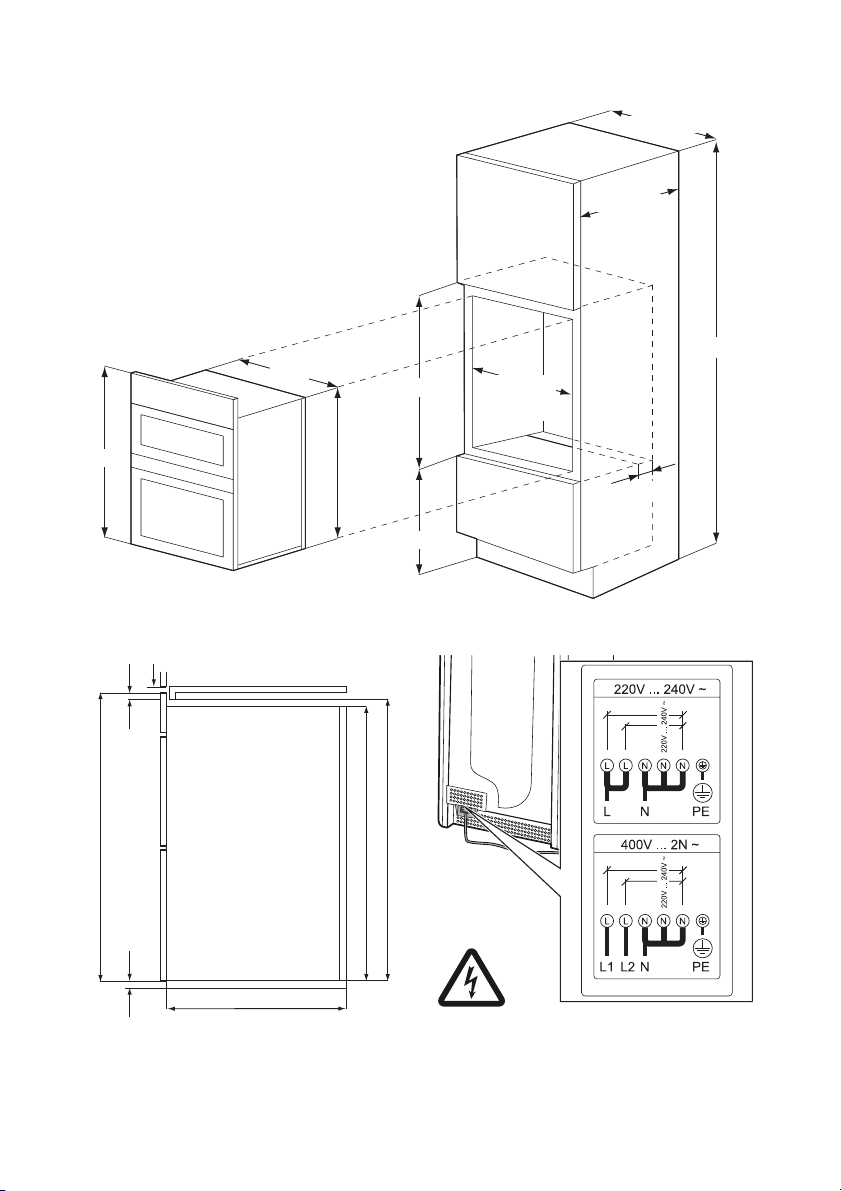

Installation
• The appliance must be installed according
to the instructions supplied.
• The installation work must be undertaken
by a qualified electrician or competent person.
• The appliance should be serviced by an
authorised Service Engineer and only genuine approved spare parts should be used.
• The appliance must be installed in an adequately ventilated room.
• It is imperative that the appliance is left in
the base to protect both the appliance and
the floor.
• This appliance is heavy and care must be
taken when moving it. Always wear safety
gloves.
• Do not attempt to lift or move this appliance by the handles.
• All packaging, both inside and outside the
appliance must be removed before the appliance is used.
• It is dangerous to alter the specifications or
modify the appliance in any way.
Child safety
• Do not allow children to play with any part
of the packaging.
• Do not allow children to sit or climb on the
drop down doors.
• This appliance is not intended for use by
children and other persons whose physical, sensory or mental capabilities or lack
of experience and knowledge prevents
them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use
the appliance safely.
• Children should be supervised to ensure
that they do not play with the appliance.
Caution! Accessible parts may be hot.
Young children should be kept away.
During use
Warning! Never leave the appliance
unattended when the oven door is open.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• This appliance has been designed for domestic use to cook edible foodstuffs only
and must not be used for any other purposes.
• Take great care when heating fats and oils
as they will ignite if they become too hot.
• Never place plastic or any other material
that may melt in or on the oven.
electrolux 3
• Always support the grill pan when it is in
the withdrawn or partially withdrawn position.
• Always use oven gloves to remove and
place food in the oven.
• During use the appliance becomes hot.
Care should be taken to avoid touching the
heating elements inside the oven.
• Ensure that all vents are not obstructed to
ensure ventilation of the oven cavity.
• Never line any part of the appliance with
foil.
• Always stand back from the appliance
when opening the oven door to allow any
build up of steam or heat to release.
• Stand clear when opening the drop down
doors. Support the doors using the handles until fully open.
• Do not place sealed cans or aerosols inside the oven. They may explode if they are
heated.
• Ensure that all control knobs are in the OFF
position when not in use.
• Do not stand on the appliance or on the
open oven doors.
• Do not hang towels, dishcloths or clothes
from the appliance or its handles.
• Do not use this appliance if it is in contact
with water. Never operate it with wet
hands.
Cleaning and maintenance
Warning! For hygiene and safety
reasons this appliance should be kept
clean at all times. A build-up of fat or
other foodstuff could result in a fire
especially in the grill pan.
• Do not leave cookware containing foodstuffs, e.g. fat or oil in the appliance in case
it is inadvertently switched on.
• Always allow the appliance to cool before
switching off at the wall prior to carrying
out any cleaning/maintenance work.
• Only clean this appliance in accordance
with the instructions given in this book.
• Never use steam or high pressure steam
cleaners to clean the appliance.
Product description
General overview 1 Control panel
2 Top oven handle
3 Top oven
4 Main oven handle
5 Main oven
4 electrolux
Control Panel Overview
8
1 2 3 74 5
1 Top oven function knoob
2 Top oven temperature knob
3 Decrease button
4 Mode button
5 Increase button
6 Main oven function knob
7 Main oven temperature knob
8 Display
Oven accessories
3 oven shelfs
Before first use
Rating plate
This is situated on the front frame of the appliance and can be seen upon opening the
door. Alternatively the rating plate may also
be found on the back or top of some models
(where applicable).
The appliance must be protected by a suitably rated fuse or circuit breaker.
The rating of the appliance is given on the
rating plate.
6
Oven grill shelf
Anti stick meat/Drip pan
Warning! Do not remove the rating plate
from the appliance as this may invalidate
the guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with a soft
cloth using hot soapy water. Wash the furniture before use.
We suggest that you run the oven(s) and grill
for 10 – 15 minutes at maximum temperature, to burn off any residue from their surfaces. Accessible parts may become hotter
than in normal use. Children should be kept
electrolux 5
away. During this period an odor may be
emitted, it is therefore advisable to open a
window for ventilation.
The cooling fan
The cooling fan comes on immediately the
top oven or grill is switched on. It may run on
after the ovens are switched off until the appliance has cooled. During the cooling down
period the cooling fan may switch on and off.
Warning! Always allow the cooling fan
to cool the appliance down before
switching off the electrical supply to
carry out cleaning or maintenance.
Control panel indicator neon(s)
The indicator neon will operate when the
oven(s) is switched on. The indicator neon
will glow. It may turn on and off during use to
show that the setting is being maintained. If
the neon does not operate as the instructions
indicate the controls have been incorrectly
set. Return all controls to zero and reset following the instructions for the required setting.
Condensation and steam
When food is heated it produces steam similar to a boiling kettle. The vents allow some
of this steam to escape. However, always
stand back from the appliance when opening
the door(s) to allow any build up of steam or
heat to release.
If the steam comes into contact with a cool
surface on the outside of the appliance, e.g.
a trim, it will condense and produce water
droplets. This is quite normal and is not
caused by a fault on the appliance.
To prevent discoloration, regularly wipe away
condensation and foodstuff from surfaces.
For your safety wall coverings at the rear of
the appliance should be securely fixed to the
wall.
Cookware
Baking trays, dishes etc., should not be
placed directly against the grid covering the
fan at the back of the oven.
Do not use baking trays larger than 30cm x
35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance.
Setting the Time
The oven only operates when the time
has been set.
1. When the appliance is connected to the
electrical supply or when there has been
a power cut, Time
flashes automati-
cally.
2.
Using the
or button, set the current
time.
3. After approx. 5 seconds, the clock stops
flashing and the clock displays the time of
day set.
The appliance is now ready to use.
Initial Cleaning
Before using the oven for the first time you
should clean it thoroughly.
Warning! Do not use any caustic,
abrasive cleaners! The surface could be
damaged.
To clean metal fronts use commercially
available cleaning agents.
1. Turn the oven function switch to oven
lighting .

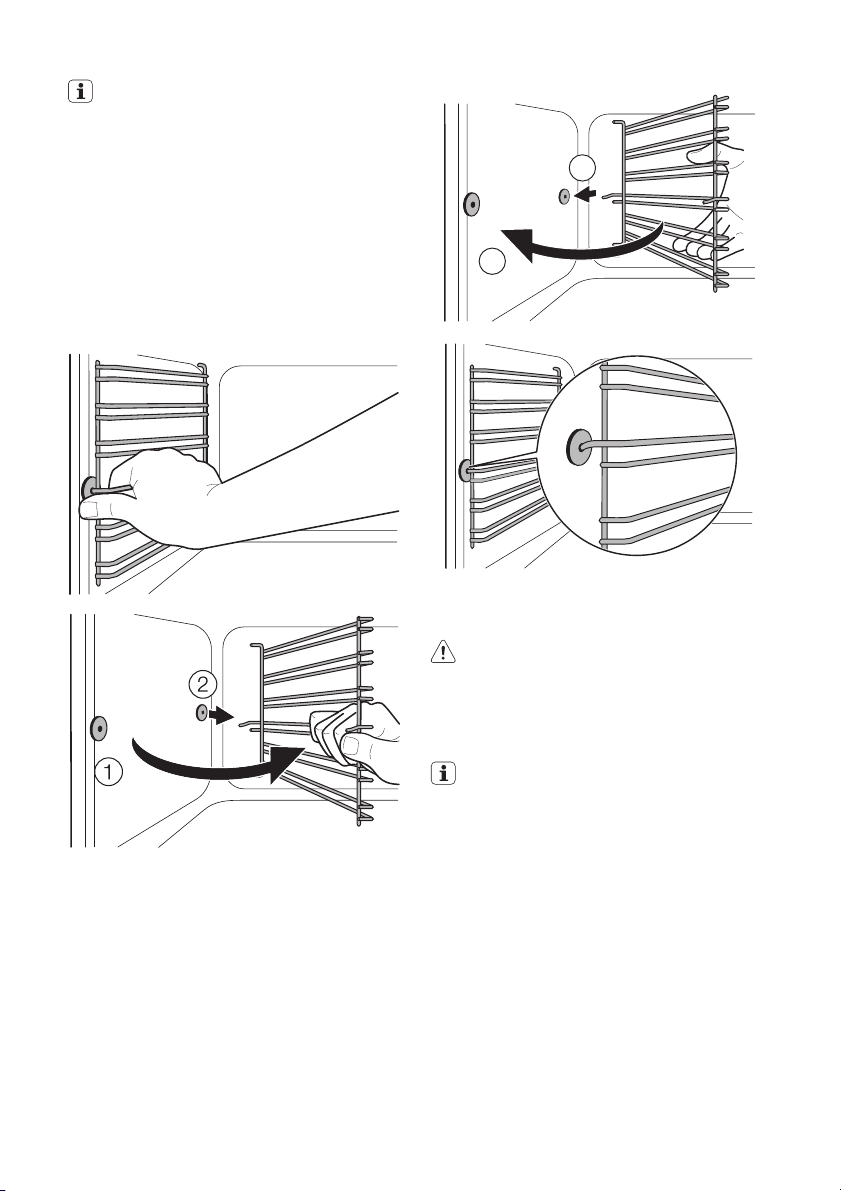

2. Remove all accessories and the shelf
support rails and wash them with warm
water and washing up liquid.
3. Then wash out the oven with warm water
and washing-up liquid, and dry.
4. Wipe the front of the appliance with a
damp cloth.
6 electrolux
Operation
The top oven
The top oven is the smaller of the two ovens.
It is heated by elements in the top and bottom of the oven. It is designed for cooking
smaller quantities of food. It gives especially
good results if used to cook fruitcakes, sweet
and savoury flans or quiche.
The top oven is ideal for use as a warming
compartment. It can be used to warm dishes
and keep food hot. Use the lowest setting on
the top oven temperature control.
Warning! Do not place cookware and
cooking pots with rough bases e.g. cast
iron on the oven door as damage to the
glass may occur.
Important! Always grill with the door
closed.
Switching the Oven On and Off
1. Turn the oven functions dial to the desired
function.
Oven Functions
Top Oven
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Conventional Cooking This form of cooking gives you the opportunity to cook without
the fan in operation. It is particularly suitable for dishes, which
require extra base browning such as pies, quiches and flans.
Gratin's, lasagne and hot pots which require extra top browning
also cook well in the conventional oven.
Top Heat This function uses the top element to give single level cooking.
This is particularly suitable for dishes which require extra top
browning
Bottom Heat For baking cakes with crispy or crusty bases.
Economy Grill For grilling flat foodstuffs placed in the middle of the grill and for
toasting.
Full Grill For grilling flat foodstuffs in large quantities and for toasting.
2. Turn the temperature selector to the desired temperature.
3. To turn the oven off, turn the oven functions dial and the temperature selector to
the Off position.
The power indicator is lit as long as the
oven is in operation.
The temperature pilot light is lit as long
as the oven is heating up.
The fan switches on automatically in order to keep the appliance’s surfaces
cool. When the oven is switched off, the
fan continues to run to cool the appliance down, then switches itself off automatically.
Bottom Oven
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
Ultra Fan The fan function is particularly suitable for cooking larger quan-
cleaning.
tities of food. Set the oven temperatures 20-40 °C lower than
when using Conventional.
Oven function Application
Pizza Setting For baking on one oven level dishes that require more intensive
Conventional Cooking This form of cooking gives you the opportunity to cook without
Bottom Heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
Economy Grill For grilling flat foodstuffs placed in the middle of the grill and
Full Grill For grilling flat foodstuffs in large quantities and for toasting.
Turbo Grill For roasting larger joints of meat or poultry on one level. The
browning and a crispy base. Set the oven temperatures 20-40
°C lower than when using Conventional
the fan in operation. It is particularly suitable for dishes, which
require extra base browning such as pies, quiches and flans.
Gratin's, lasagne and hot pots which require extra top browning also cook well in the conventional oven. For best results
cook on one level.
other frozen foods.
for toasting.
function is also suitable for gratinating and browning.
Clock Functions
•
Countdown
- See appropriate chapter
on setup. A signal sounds after the time
has elapsed. This function does not affect
the functioning of the oven.
•
Cook time
- is used to set the desired
period of cooking time.
•
End time
- when set the appliance is
turned off at desired time.
•
Time
- shows the current time.
How to use the clock functions
• After a function has been selected, the
corresponding function indicator flashes
for about 5 seconds. During this period,
the desired times can be set using the increase
or decrease button.
• When the desired time has been set, the
function indicator continues to flash for approx. 5 seconds. After that the function indicator is then lit. The set time begins to
run.
• Press any of the buttons to stop the audible signal.
• The desired oven function and temperature can be selected before or after the
clock functions Cook time
time
are set.
and End
• When the cooking process is completed,
turn the oven function dial and the temperature selector back to the OFF position.
electrolux 7
Countdown
1.
Press the Mode
button repeatedly until the function indicator Countdown
flashes.
2.
Using the increase
or decrease
button set the desired Countdown (max.
2 hours 30 minutes).
3. After approx. 5 seconds the display
shows the time remaining. The function
indicator Countdown
lights up.
4. When the time has elapsed, the function
indicator flashes and an audible signal
sounds for 2 minutes. The signal can be
stopped by pressing any button.
Cook time
1.
Press the Mode
button repeatedly un-
til the function indicator Cook time
flashes.
2.
Using the increase
or decrease
button set the desired cooking time.
After approx. 5 seconds the display returns to showing the current time. The
function indicator Cook time
lights
up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can be
stopped by pressing any button.
8 electrolux
End time
1.
Press the Mode
button repeatedly un-
til the function indicator End time
flashes.
2.
Using the increase
or decrease
button set the desired switch-off time.
After approx. 5 seconds the display returns to showing the current time. The
function indicator End time
lights up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can be
stopped by pressing any button.
Cook time
and End time
combined
Cook time and End time can
be used simultaneously, if the oven is to
Baking
Oven levels
• Baking with Conventional Cooking is only
possible on one level.
• When baking with Fan Cooking one to two
baking trays can be put into the bottom
oven at the same time:
1 tray, e.g. oven level 3
be switched on and off automatically at
a later time.
1.
Using the Cook time
function, set the
time required for cooking the dish.
2.
Using the End time
function, set the
time at which the dish should be ready.
The function indicators Cook time
and End time light up and the current
time is shown in the display.
The oven switches on automatically at the
time calculated.
And switches itself off again when the
cooking time entered has elapsed.
2 tray, e.g. oven levels 1 and 3
1 cake in cake tin, e.g. oven level 1
Baking tins
• Baking tins made from dark-coloured metal with Teflon coating are suitable for baking using Conventional Cooking.
• For baking using the Fan Cooking function,
baking tins made of shiny light-coloured
metal are suitable.
General instructions
• Insert the tray with the bevel at the front.
• When baking using Conventional Cooking
and Fan Cooking , you can also place two
baking trays next to one another on one
level. This does not significantly affect the
baking time.
When frozen items are placed on baking
trays, they can buckle during cooking.
This happens due to the large difference
in temperature between the frozen item
and the oven. After cooling, the buckling
in the trays disappears.
electrolux 9
How to use the Baking Tables
• The tables give the required temperature
settings, cooking times and oven levels for
a selection of typical dishes.
• Temperatures and baking times are for
guidance only, as these will depend on the
consistency of pastry, dough or mixture,
the amount and the type of baking tin.
• We recommend setting the oven to a lower
temperature for the first time and only setting a higher temperature when required,
e.g. if you require more browning or if the
baking is taking too long.
• If you cannot find the settings for a certain
recipe, look for similar items.
• The baking time can be 10-15 minutes
longer when baking cakes on trays or in
tins on multiple levels.
• Recipes with moist ingredients such as
pizzas or fruit flans are to be baked on one
level.
• Cakes and pastries at different heights
may brown at an uneven rate at first. You
should not change the temperature setting
if this occurs. Different rates of browning
even out as baking progresses.
• Baking and roasting times could differ from
those of your previous oven. For this reason you should adjust the settings you
usually use (temperature, cooking times,
etc.) and oven levels to the recommendations provided in the following tables.
Roasting
Ovenware for roasting
• Any heat-resistant ovenware is suitable to
use for roasting. (Please follow the manufacturer's instructions.)
• You can place large roasts directly in the
roasting tray or on the shelf with the
roasting tray underneath.
• We recommend roasting leaner cuts in a
roasting pan with a lid. The meat will be
more succulent.
• All types of meat which are supposed to
be browned or form a crust or crackling
can be roasted in a roasting pan without
a lid.
The information given in the following tables is for guidance only.
• We recommend meat and fish weighing
1 kg or more for roasting in the oven.
• To prevent escaping meat juices or fat
from burning on to the pan, we recommend placing some liquid in the roasting
cookware.
• If required, turn the roast after 1/2 - 2/3 of
the cooking time.
• Use the cooking juices to baste large
roasts and poultry several times during the
cooking time. This will give better roasting
results.
Hints and tips when using the grill
• Most foods should be placed on the grid
in the grill pan to allow maximum circulation of air and to lift the food out of the fats
and juices.
• Adjust the grid and grill pan runner position
to allow for different thicknesses of food.
• Position the food close to the element for
faster cooking and further away for gentler
cooking.
• Food should be thoroughly dried before
grilling to minimise splashing. Brush lean
meats and fish lightly with a little oil or melted butter to keep them moist during cooking.
• Accompaniments such as tomatoes and
mushrooms may be placed underneath
the grid when grilling meats.
• When toasting bread, use the shelf in the
top position with the grid in the ‘high’ position.
• Preheat the grill on a full setting for a few
minutes before sealing steaks or toasting.
Adjust the heat setting and the shelf as
necessary during cooking.
• The food should be turned over during
cooking as required.
• When using the centre section grill, ensure
food is placed centrally on the grilling grid
directly beneath the grill element.
Hints and tips when using the top oven
• Arrange the shelves in the required positions before switching the oven ON. Shelf
positions are counted from the bottom upwards.
10 electrolux
• There should always be at least 2.5cm (1”)
between the top of the food and the element. This gives best cooking results and
allows room for rise in yeast mixtures,
Yorkshire puddings etc. When cooking
cakes, pastry, scones bread etc., place
the tins or baking trays centrally on the
shelf.
• Ensure that food is placed centrally on the
shelf and there is sufficient room around
the baking tray/dish to allow for maximum
circulation.
• Stand dishes on a suitably sized baking
tray on the shelf to prevent spillage onto
the oven base and to help reduce cleaning.
• The material and finish of the baking tray
and dishes used affect base browning. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat
away and give less base browning.
• Because of the smaller cooking space and
lower temperatures, shorter cooking times
are sometimes required. Be guided by the
recommendations given in the cooking
chart.
• For economy leave the door open for the
shortest possible time, particularly when
placing food into a pre-heated oven.
Hints and tips when using fan cooking
• Arrange the shelves in the required positions before switching the oven on. Shelf
positions are counted from the bottom upwards.
• When cooking more than one dish in the
fan oven, place dishes centrally on different shelves rather than placing several
dishes on one shelf, this will allow the heat
to circulate freely for the best cooking results.
• When batch baking one type of food, e.g.
Victoria sandwich cakes, those of similar
• It is recommended that when baking larger
quantities the shelf positions should be
evenly spaced to suit the load being
cooked. A slight increase in cooking time
may be necessary.
• Do not place baking trays directly on the
oven base as it interferes with the oven air
circulation and can lead to base burning;
use the lower shelf position.
Hints and tips when defrosting
• Place the frozen food in a single layer
where possible and turn it over half way
through the defrosting process.
• The actual speed of defrosting is influenced by room temperature. On warm
days defrosting will be faster than on cooler days.
• It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function. Small or thin fish fillets, frozen peeled prawns, cubed or minced
meat, liver, thin chops, steaks etc., can be
thawed in 1 – 2 hours.
• A 1kg/2¼lb oven ready chicken will be
thawed in approximately 5 hours. Remove
the giblets as soon as possible during the
thawing process.
• Joints of meat up to 2kg/4½lb in weight
can be thawed using the defrost function.
• All joints of meat and poultry must be
thawed thoroughly before cooking.
• Always cook thoroughly immediately after
thawing.
• Do not leave food at room temperature
once it is defrosted. Cook raw food immediately or store cooked food in the fridge,
once it has cooled.
Top Oven - Full Grill
Adjust shelf position and grill pan grid to
suit different thicknesses of food
size will be cooked in the same time.
Food
Bacon Rashers 5- 6
Beefburgers 10 - 20
Chicken Joints 20 - 40
Chops
- Lamb 15 - 25
- Pork 20 - 25
Grill Time
(mins in total)
Loading...
