Electrolux EHS601210P User Manual
user manual
Ceramic glass hob
EHS60210P
We were thinking of you
when we made this product
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cover in this manual. Please take a few minutes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!
electrolux 3
4 electrolux contents
T
1
Contents
Safety instructions 5
Description of the Appliance 7
Operating the appliance 11
Tips on Cooking and Frying 22
Cleaning and Care 25
What to do if … 27
Disposal 29

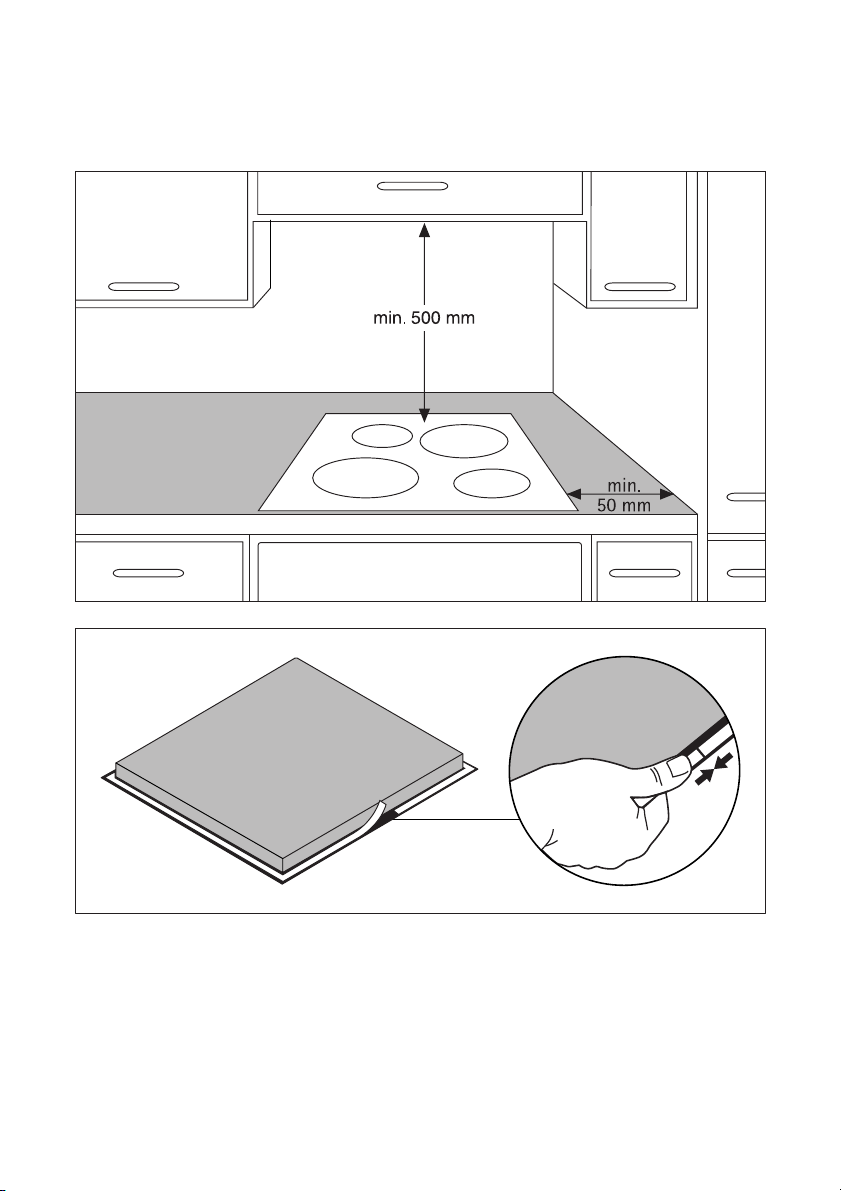

Installation Instructions 30
Assembly 31
Guarantee/Customer Service 35
Service 38
he following symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3 General information and advice
2 Information on environmental protection
z Dangerous voltage
Safety instructions
Please comply with these instructions. If
you do not, any damage resulting is not
covered by the warranty.
Correct use
• This appliance is not intended for
use by children or other persons
whose physical, sensory or mental
capabilities or lack of experience and
knowledge prevents them from using the appliance safely without supervision or instruction by a
responsible person to ensure that
they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only
for normal domestic cooking and frying of food.
• The appliance must not be used as a
work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or
fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
• Small children must be kept away
from the appliance.
• Only let bigger children work on the
appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance
on, we recommend activation of the
child safety device.
safety instructions electrolux 5
General safety
• The appliance may only be installed
and connected by trained, registered
service engineers.
• Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.
• In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.
• Repairs to the appliance must only
be carried out by trained registered
service engineers.
Safety during use
• Overheated fats and oils can ignite
very quickly. Warning! Fire hazard!
• There is the risk of burns from the
appliance if used carelessly.
• Remove stickers and film from the
glass ceramic.
• Cables from electrical appliances
must not touch the hot surface of the
appliance or hot cookware.
• Switch the cooking zones off after
each use.
Safety when cleaning
• For cleaning, the appliance must be
switched off and cooled down.
• For safety reasons, the cleaning of
the appliance with steam jet or highpressure cleaning equipment is not
permitted.
6 electrolux safety instructions
How to avoid damage to the appliance
• The glass ceramic can be damaged
by objects falling onto it.
• The edge of the glass ceramic can
be damaged by being knocked by
the cookware.
• Cookware made of cast iron, cast
aluminium or with damaged bottoms
can scratch the glass ceramic if
pushed across the surface.
• Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straightaway.
• To avoid damaging cookware and
glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with
empty cookware or without cookware.
Description of the Appliance
Cooking surface layout
Single cooking zone
1200W
description of the appliance electrolux 7
Multi-purpose zone
1500/2400W
Triple cooking zone
800/1600/2300W
Control panel layout
Child lock
with display
Triple cooking zone
switch with indicator
On/Off
with indicator
STOP+GO
with indicator
Control panel Single cooking zone
Cooking zone indicators
Timer function
Automatic
warm-up
Timer display
Timer
1200W
Cooking zone switch
with indicator
Heat setting indicator
Heat setting selection
Residual heat indicator
Automatic
switch-off
indicator
8 electrolux description of the appliance
Touch Control sensor fields
The appliance is operated using Touch
Control sensor fields. Functions are
controlled by touching sensor fields and
confirmed by displays and acoustic signals.
Touch the sensor fields from above,
without covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Child lock Locking control panel for children
Stop+Go To switch the Keep Warm setting on/ off
Cooking zone Off To switch off the cooking zone
1-9 /
Automatic warm-up Switch on the automatic warm-up
TIMER Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Multi-purpose zone switch To switch the outside ring on and off
Heat settings To set heat settings
function
Triple ring switch To switch outer rings on and off
description of the appliance electrolux 9
Displays
Display Description
Residual heat Cooking zone is still hot
Middle ring of triple-ring
function
Outer ring of triple-ring func-
tion
Outer ring of multi-purpose
function
+
number
Automatic switch off Switch off is active.
Residual heat indicator
Warning! Risk of burns from residual heat. After being switched off, the
cooking zones need some time to
cool down. Look at the residual heat
indicator
Fault Malfunction has occurred
.
The middle ring of the triple-ring function
is on
The outer ring of the triple-ring function
is on
The outer ring of the multi-purpose
function is on
Residual heat can be used for melting and keeping food warm.
10 electrolux description of the appliance
Control bar
You can set the heat setting and automatic warm-up function via the control
panel. The heat setting indicator comprises a row of lights.
Operational readiness indica-
tor for cooking zone
Cooking zone Off
Heat setting indicator
Heat setting selection
If the control bar is touched for
longer than 6 seconds, a signal
sounds and the appliance switches
itself off.
Automatic warm-up
indicator
Automatic warm-up
function
operating the appliance electrolux 11
Operating the appliance
Switching the appliance on and off
Control panel Display
To s wi tc h o n Touch for 1 second lights up. The opera-
tional readiness
indicators of the individual cooking zones
also light up.
To s wi tc h o f f Touch for 1 second goes out. The opera-
tional readiness
indicators of the individual cooking zones
also go out.
After switching on, within approx.
10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches
itself off.
12 electrolux operating the appliance
Setting the heat setting
The control bar is touched where the
desired heat setting is positioned. The
heat setting is shown in the display. Correct to the left or the right, if necessary.
Do not release before the desired heat
setting is reached.
