ELECTROLUX EHS60020K, EHS60021K User Manual
user manual
notice d’utilisation
gebruiksaanwijzing
Ceramic glass hob
Table de cuisson vitrocéramique
Glaskeramische kookplaat
EHS 60021 P
2 electrolux
T
1
Contents
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Safety instructions.................................. 3
Description of the Appliance .................. 4
Operating the appliance ......................... 6
Tips on Cooking and Frying ................... 9
Cleaning and Care ................................. 11
What to do if … ..................................... 12
5
Disposal................................................ 13
Installation Instructions 14
Service 15

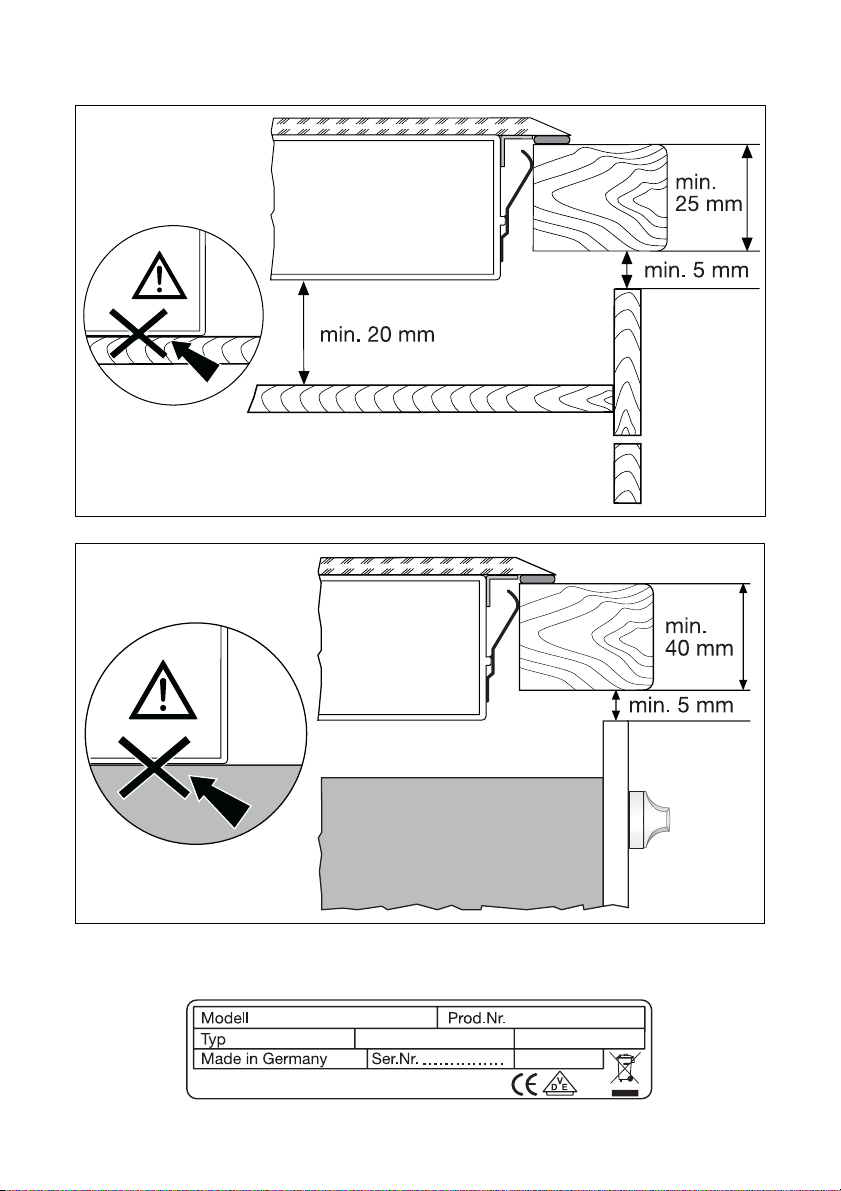

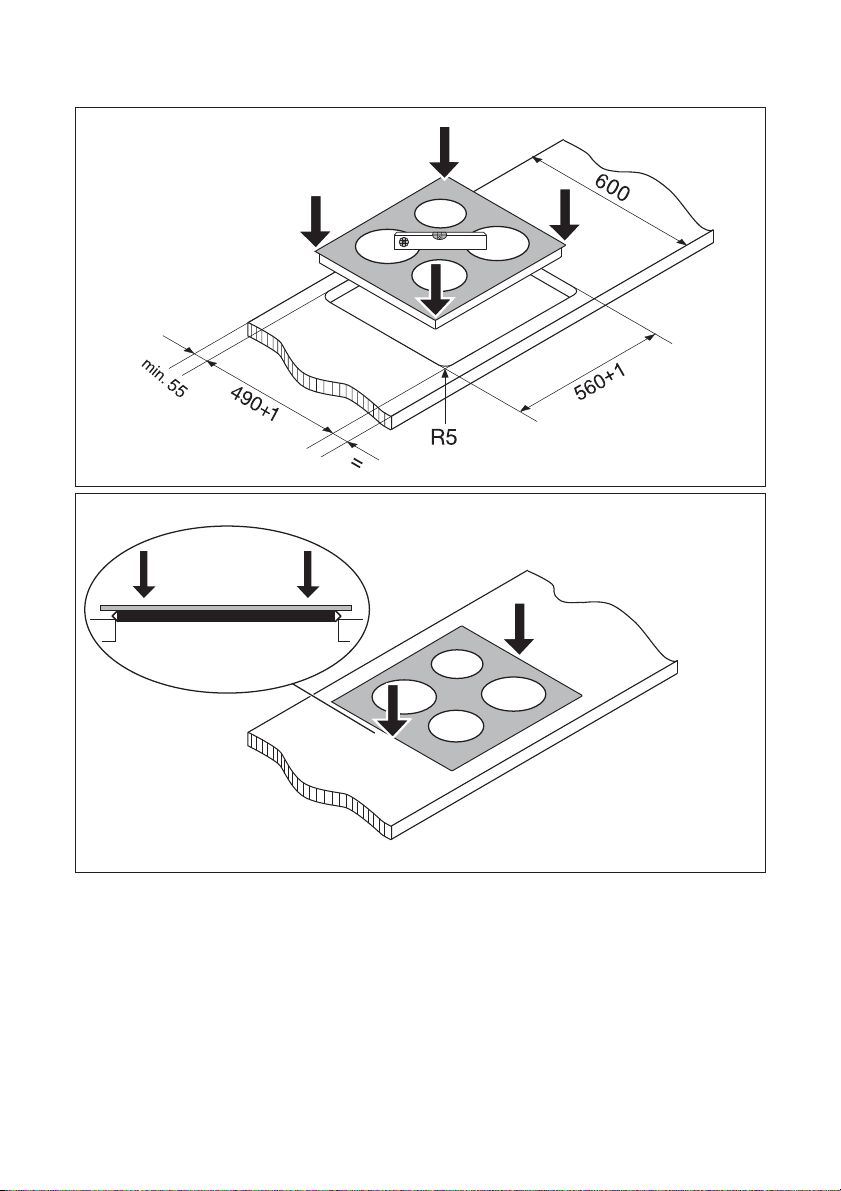

Assembly 44

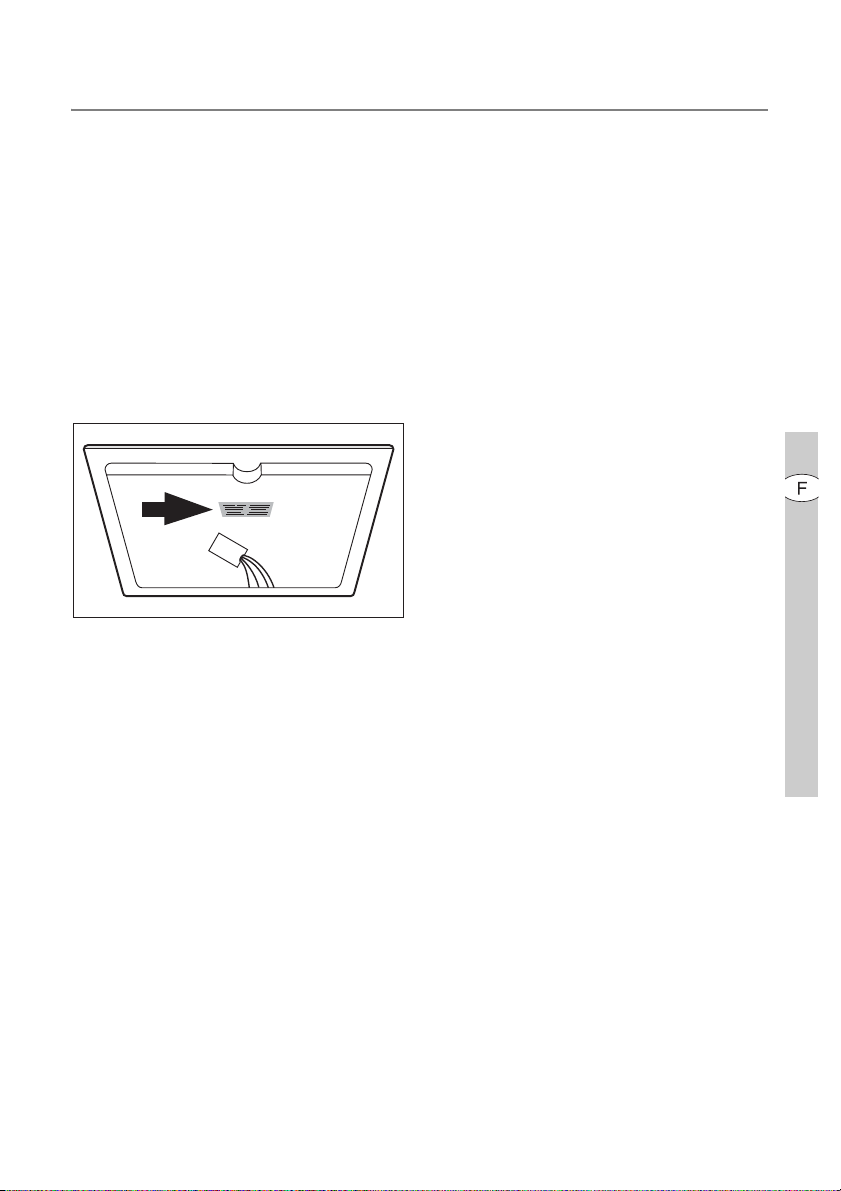

Rating Plate 47
Subject to change without notice
he following symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and information
on avoiding damage to the appliance
3 General information and advice
2 Information on environmental protection
z Dangerous voltage
1 Safety instructions
electrolux 3
Please comply with these instructions. If you
do not, any damage resulting is not covered
by the warranty.
Correct use
• This appliance is not intended for use by
children or other persons whose physical, sensory or mental capabilities or
lack of experience and knowledge prevents them from using the appliance
safely without supervision or instruction
by a responsible person to ensure that
they can use the appliance safely.
• Do not leave the appliance unattended
during operation.
• This appliance should be used only for
normal domestic cooking and frying of
food.
• The appliance must not be used as a
work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids,
highly inflammable materials or fusible
objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
• Small children must be kept away from
the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance on,
we recommend activation of the child
safety device.
General safety
• The appliance may only be installed and
connected by trained, registered service
engineers.
• Built-in appliances may only be used after they have built in to suitable built-in
units and work surfaces that meet
standards.
• In the event of faults with the appliance
or damage to the glass ceramic (cracks,
scratches or splits), the appliance must
be switched off and disconnected from
the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be
carried out by trained registered service
engineers.
Safety during use
• Overheated fats and oils can ignite very
quickly. Warning! Fire hazard!
• There is the risk of burns from the appliance if used carelessly.
• Remove stickers and film from the glass
ceramic.
• Cables from electrical appliances must
not touch the hot surface of the appliance or hot cookware.
• Switch the cooking zones off after each
use.
Safety when cleaning
• For cleaning, the appliance must be
switched off and cooled down.
• For safety reasons, the cleaning of the
appliance with steam jet or high-pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by
objects falling onto it.
• The edge of the glass ceramic can be
damaged by being knocked by the
cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the glass ceramic if pushed
across the surface.
• Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straightaway.
• To avoid damaging cookware and glass
ceramics, do not allow saucepans or
frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.
4 electrolux
Description of the Appliance

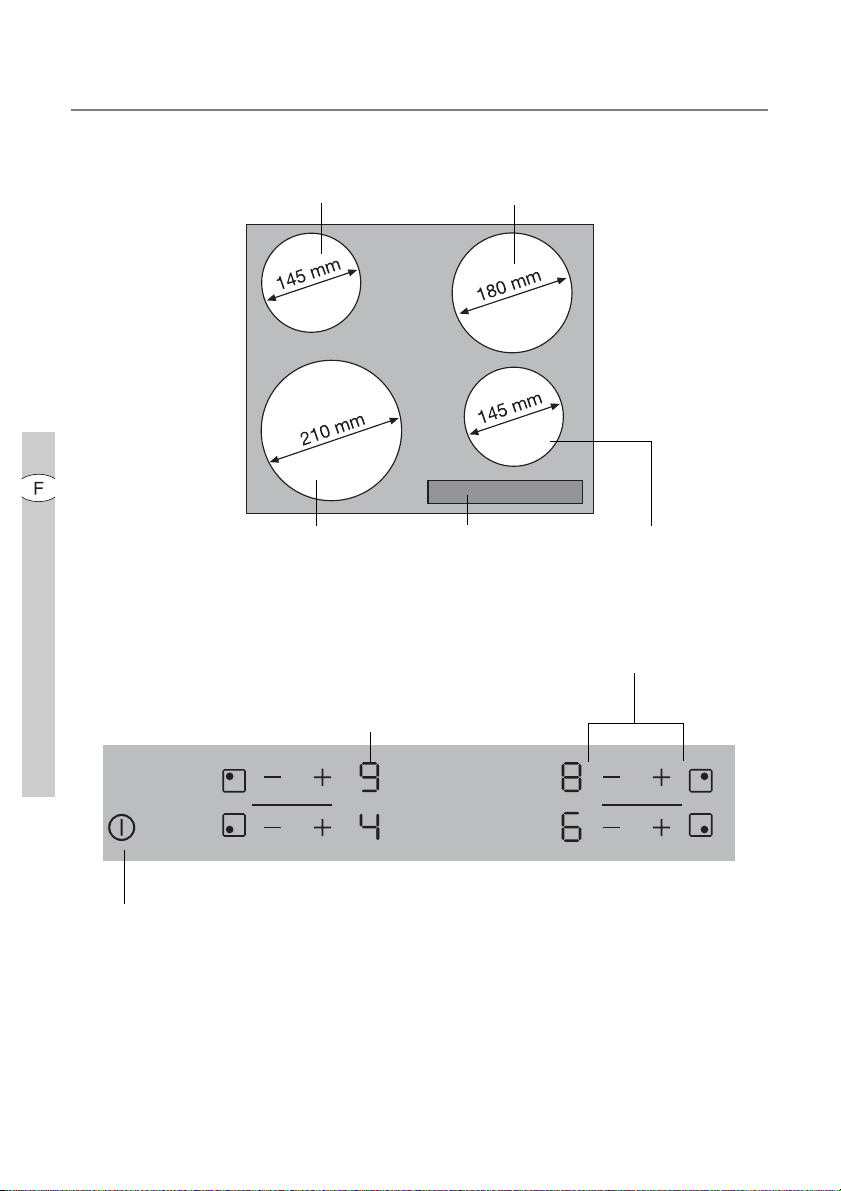

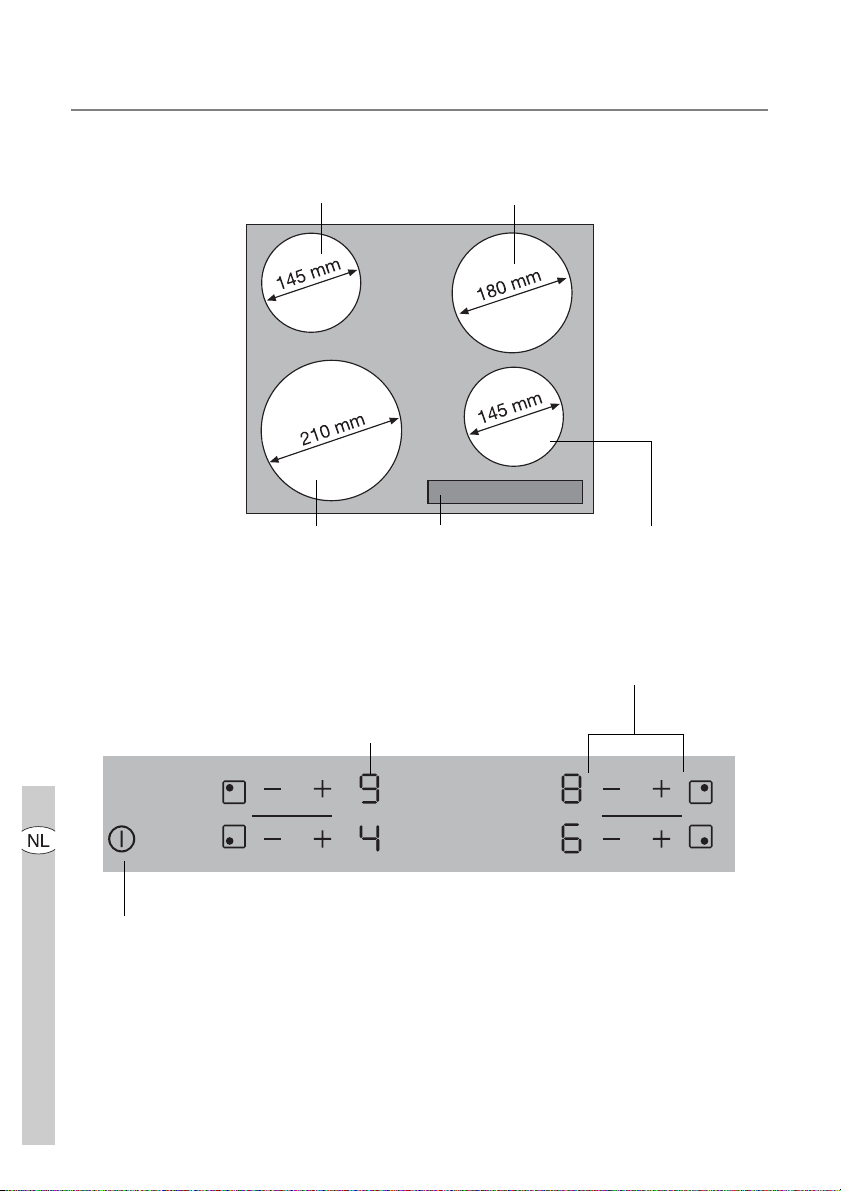

Cooking surface layout
Single cooking zone 1200 W
Single cooking zone 1800 W
Single cooking zone 2300 W
Control panel layout
On/Off
Control panel Single cooking zone 1200 W
Heat setting selection
Display
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are controlled by
touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without
covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings To increase heat settings
Reduce settings To reduce heat settings
Displays
Display Description
Cooking zone is switched off
- Heat settings Heat setting is set
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Automatic switch off Switch off is active.
electrolux 5
Residual heat indicator
1 Warning! Risk of burns from residual
heat. After being switched off, the cooking zones need some time to cool down.
Look at the residual heat indicator
3 Residual heat can be used for melting
and keeping food warm.
.
6 electrolux
Operating the appliance
Switching the appliance on and off
Control panel Display
Switch on Touch for 2 seconds /
Switch off Touch for 1 second / none
3 After switching on, within approx.
10 seconds a heat setting or a function
must be set, otherwise the appliance
automatically switches itself off.
Setting the heat setting
Control panel Indicator
To in c reas e Touch to
To de c reas e Touch to
To sw i tch o ff Touch and at the same time
electrolux 7
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Switching on the child safety device
Step Control panel Display/Signal
1. Switch on appliance. (Do not set a
heat setting.)
2. Tou ch of both the cooking zones at the
front simultaneously for 4 seconds.
3. Switch appliance off.
The child safety device is switched on.
Switching off the child safety device
Step Control panel Display/Signal
1. Switch on appliance. (Do not set a
heat setting.)
2. Tou ch of both the cooking zones at the
front simultaneously for 4 seconds.
3. Switch appliance off.
The child safety device is switched off.
3The child safety device can only be
switched on and off, if no heat setting is set.
Overriding the child safety device
The child safety device can be switched off
in this way for a single cooking session; it remains activated afterwards.
Step Control panel Display/Signal
1. Switch appliance on
2. Tou ch of both the cooking zones at the
front simultaneously for 4 seconds.
Until the appliance is next switched off, it can used as normal. After switching off the appli-
ance, the child safety device is active again.
3 After overriding the child safety device, a
heat setting or a function must be set
within approx. 10 seconds, otherwise
the appliance automatically switches itself off.
8 electrolux
Automatic switch off
Cooking surface
• If after switching on the cooking surface,
a heat setting is not set for a cooking
zone within approx. 10 seconds, the
cooking surface automatically switches
itself off.
• If one or more sensor fields are covered
by objects (a pan, cloths, etc.) for longer
than approx. 10 seconds, a signal
sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the
cooking surface automatically switches
itself off after approx. 10 seconds.
Cooking zones
• If one of the cooking zones is not
switched off after a certain time, or if the
heat setting is not modified, the relevant
cooking zone switches off automatically.
is displayed. Before being used
again, the cooking zone must be set to
.
Heat setting Switches off after
1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hours
Tips on Cooking and Frying
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can
constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Cookware
• You can recognise good cookware from
the bottoms of the pans. The bottom
should be as thick and flat as possible.
• Cookware made of enamelled steel or
with aluminium or copper bottoms can
leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

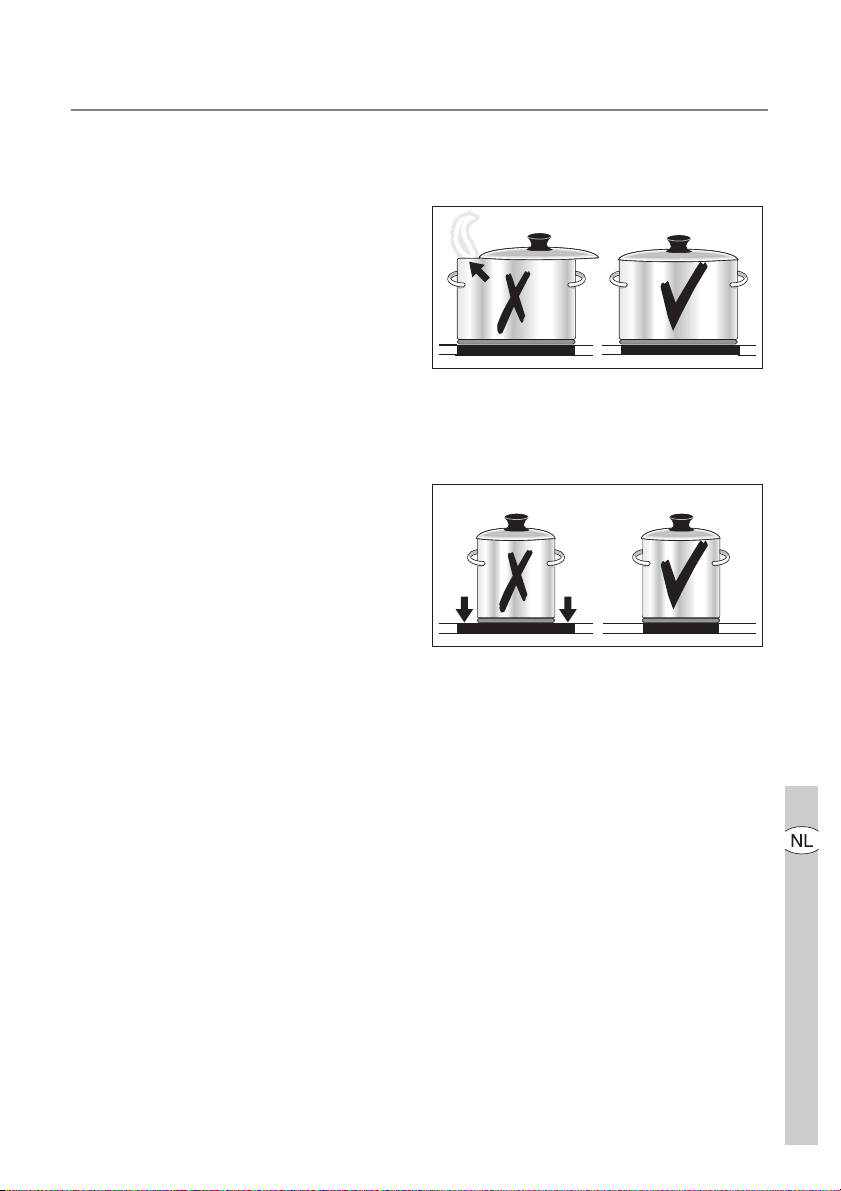

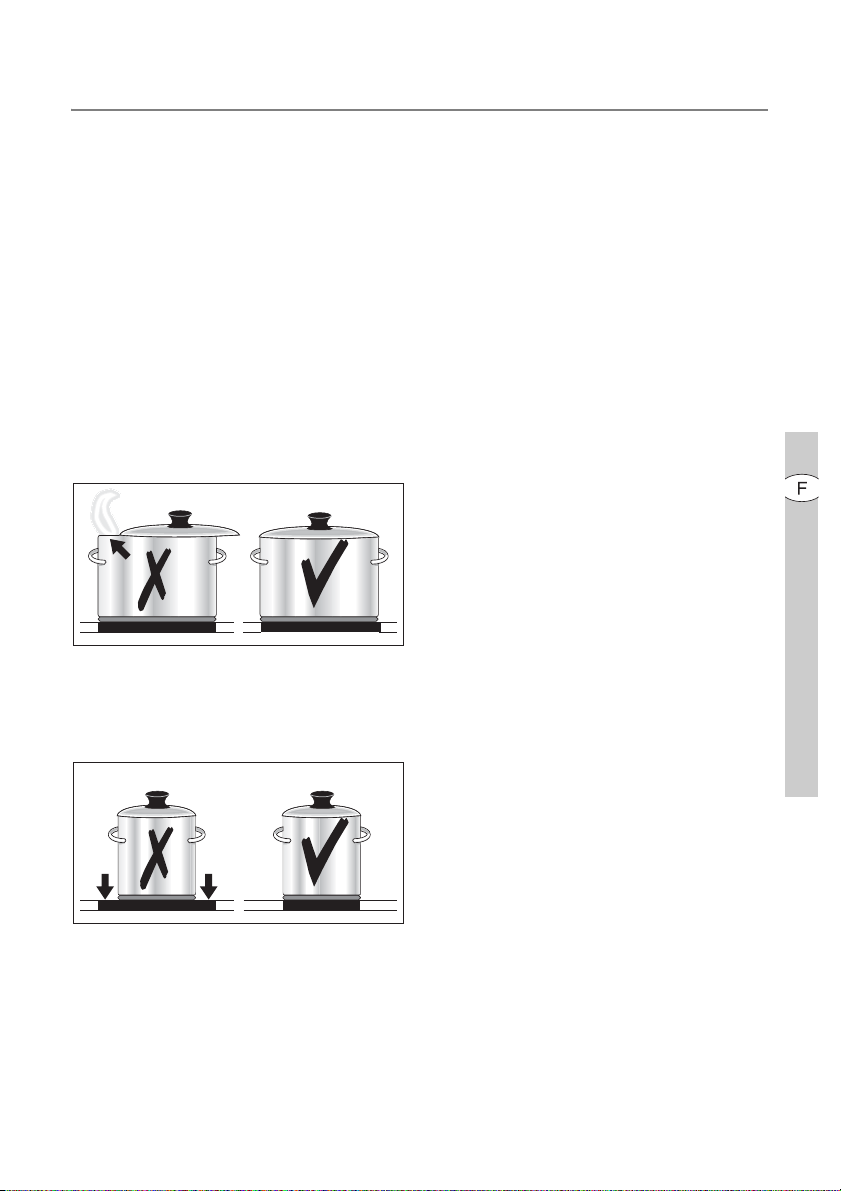

Energy saving
2 Always place cookware on the cooking
zone before it is switched on.
electrolux 9
2 If possible, always place lids on the
pans.
2 Switch cooking zones off before the end
of the cooking time, to take advantage
of residual heat.
2 Bottom of pans and cooking zones
should be the same size.
10 electrolux
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
setting
Cooking-
process
0 Residual heat, Off position
Keeping
1
food warm
9
Melting
Solidifying
Simmering
on low heat
Steaming
Braising
Boiling
Gentle
Frying
Heavy
Frying
Boiling
Searing
Deep frying
1-2
2-3
3-4
4-5
6-7
7-8
suitable for
Keeping cooked foods warm as required Cover
Hollandaise sauce,
melting butter, chocolate, gela-
tine
Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
Simmering rice and milk-based
dishes
Heating up ready-cooked meals
Steaming vegetables, fish
braising meat
Steaming potatoes 20-60 mins.
Cooking larger quantities of
food, stews and soups
Frying escalopes, veal cordon
bleu, cutlets, rissoles, sausages,
liver, roux, eggs, pancakes,
doughnuts
Hash browns, loin steaks,
steaks, Flädle (pancakes for gar-
nishing soup)
Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast),
Cooking
time
5-25 mins. Stir occasionally
25-50 mins.
20-45 mins.
60-150 mins.
Steady frying
5-15 mins.
per pan
deep frying chips
Tips/Hints
Add at least twice as much
liquid as rice, stir milk dishes
part way through cooking
With vegetables add only a
little liquid (a few table-
Use only a little liquid, e. g.:
max.
750 g potatoes
Up to 3 l liquid plus ingredi-
Turn halfway through cook-
Turn halfway through cook-
spoons)
¼
l water for
ents
ing
ing
Cleaning and Care
1 Take care! Risk of burns from residual
heat.
1 Warning! Sharp objects and abrasive
cleaning materials will damage the appliance. Clean with water and washing up
liquid.
1 Warning! Residues from cleaning
agents will damage the appliance. Remove residues with water and washing
up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth
and a little washing up liquid.
2. Rub the appliance dry using a clean
cloth.
Removing deposits
1. Place a scraper on the glass ceramic
surface at an angle.
2. Remove residues by sliding the blade
over the surface.
3. Wipe the appliance with a damp cloth
and a little washing up liquid.
4. Rub the appliance dry using a clean
cloth.
electrolux 11
Type of dirt
sugar, food containing sugar yes --plastics, tin foil yes --limescale and water rings --- yes
fat splashes --- yes
shiny metallic discolouration --- yes
*Scrapers and cleaners for glass ceramic and stain-
less steel can be purchased in specialized shops
immediately
when the appliance has
cooled down
3 Remove stubborn residues with a clean-
er for glass ceramic or stainless steel.
3 Scratches or dark stains on the glass
ceramic that cannot be removed do not
however affect the functioning of the appliance.
Remove
using
a scraper*
cleaner for glass ceramic
or stainless steel*
12 electrolux
What to do if …
Problem Possible cause Remedy
The cooking zones will not switch
on or are not functioning
Acoustic signal sounds when appliance is switched off
The residual heat indicator is not
displaying anything
Acoustic signal sounds and appliance switches itself on and then
off again; after 5 seconds another
acoustic signal sounds
is lit Overheating protection for the
and number are displayed Electronics fault Disconnect the appliance from the
More than 10 seconds have
passed since the appliance was
switched on
The child safety device is switched
on
Several sensor fields were
touched at the same time
Automatic switch off has been triggered
The control panel is wholly or partly covered by objects.
The cooking zone was only on for
a short time and is therefore not
hot
The On/Off sensor field has been
covered up, e.g. by a cloth
cooking zone has been triggered
Automatic switch off has been trig-
gered
Switch the appliance on again.
Deactivate the child safety device
(See the section “Child safety device”)
Only touch one sensor field
Remove any objects (pan, cloths,
etc.) that are lying on the control
panel. Switch the appliance on
again
Remove objects.
If the cooking zone is supposed to
be hot, call the Customer Service
Department.
Do not place any objects on the
control panel
Switch off the cooking zone.
Switch the cooking zone on again
Switch off the cooking zone.
Switch the cooking zone on again
electrical supply for a few minutes
(Take the fuse out of the house’s
wiring system)
If after switching on again, is
displayed again, call the customer
service department
If you are unable to remedy the problem
by following the above suggestions,
please contact your local Service Force
Centre.
1 Warning! Repairs to the appliance are
only to be carried out by qualified service engineers. Considerable danger to
the user may result from improper repairs.
3 If the appliance has been operated in-
correctly, the engineer's visit will be
chargeable, even during the warranty
period.
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by
markings, e.g. >PE<, >PS<, etc. Please
dispose of the packaging materials in
the appropriate container at the community waste disposal facilities.
2 Old appliance
electrolux 13
The symbol
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop
where you purchased the product.
W on the product or on its
14 electrolux
g
Installation Instructions
1 Safety instructions
Warning! This must be read!
The laws, ordinances, directives and standards in force in the country of use are to be
followed (safety regulations, proper recycling
in accordance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.

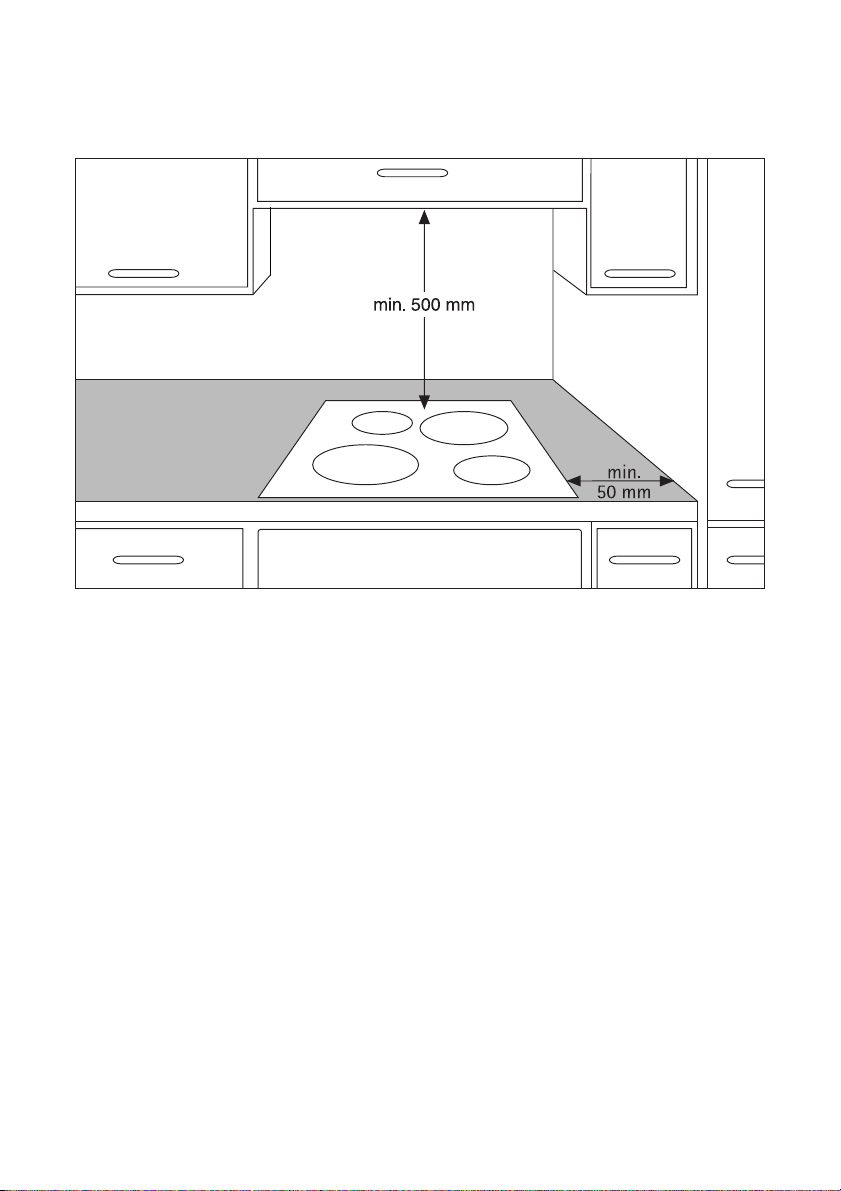

The minimum distances to other appliances
and units are to be observed.
Anti-shock protection must be provided by
the installation, for example drawers may
only be installed with a protective floor directly underneath the appliance.
The cut surfaces of the worktop are to be
protected against moisture using a suitable
sealant.
The sealant seals the appliance to the work
top with no gap.
Avoid installing the appliance next to doors
and under windows. Otherwise hot cookware may be knocked off the rings when
doors and windows are opened.
z Risk of injury from electrical cur-
rent.
• The electrical mains terminal is live.
• Make electrical mains terminal free of
voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by install-
ing correctly.
• The appliance must be connected to the
electrical supply by a qualified electrician.
z Risk of injury from electrical cur-
rent.
• Loose and inappropriate plug and socket connections can make the terminal
overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-
phase connection, the appropriate
mains cable of type H05BB-F Tmax
90°C(or higher) or an equivalent type
must be used.
• If this appliance’s mains cable is damaged, it must be replaced by a special
cable (type H05BB-F Tmax 90°C; or
higher) or an equivalent type. The latter
is available from the Customer Care Department.
A device must be provided in the electrical
installation which allows the appliance to be
disconnected from the mains at all poles with
a contact opening width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are
to be removed from the holder), earth leakage trips and contactors.

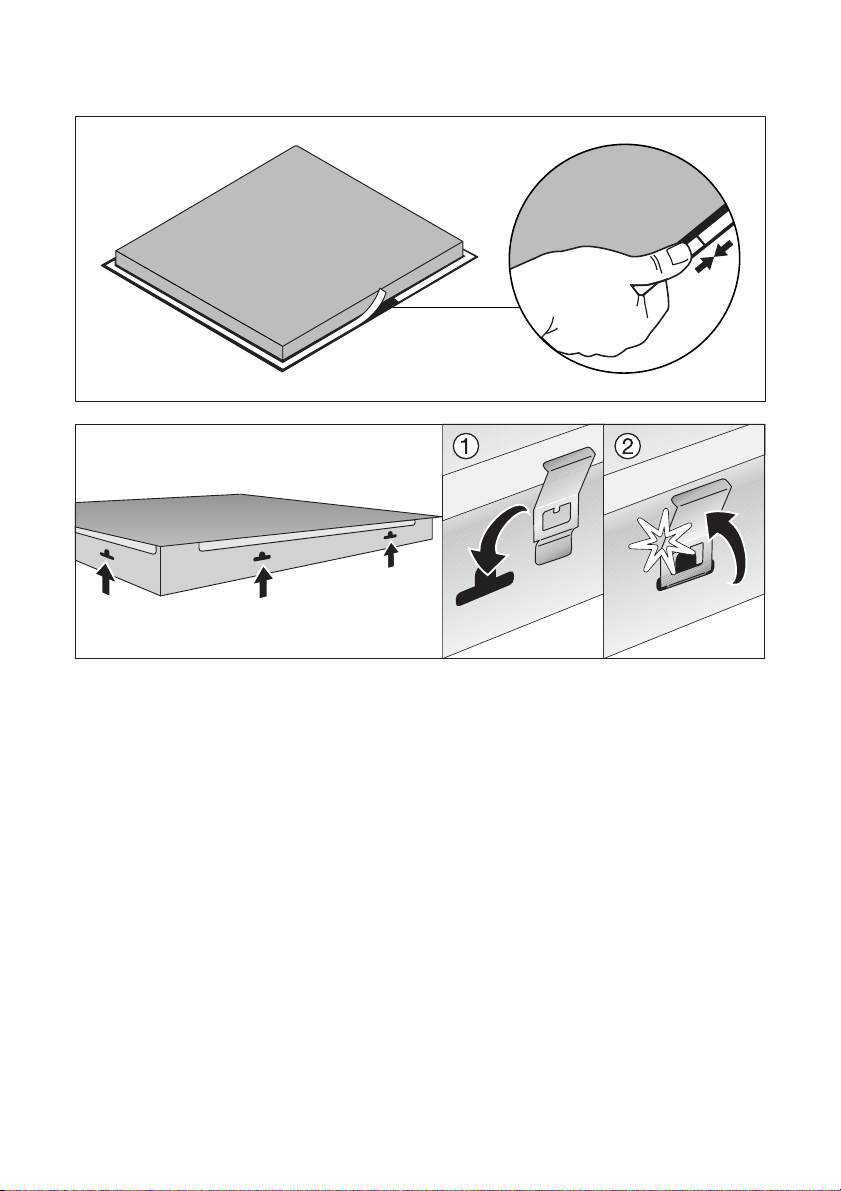

Sticking on the seal
• Clean the worktop around the cut-out
area.
• Stick the single-sided adhesive sealing
tape provided on the underside of the
hob around the outside edge ensuring
that it is not stretched. The two ends of
the tape should join in the middle of one
side. After trimming the tape (allow it to
overlap by 2-3 mm), press the two ends
to
ether.
Service
In the event of technical faults, please first
check whether you can remedy the problem
yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem
yourself, please contact the Customer Care
Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)

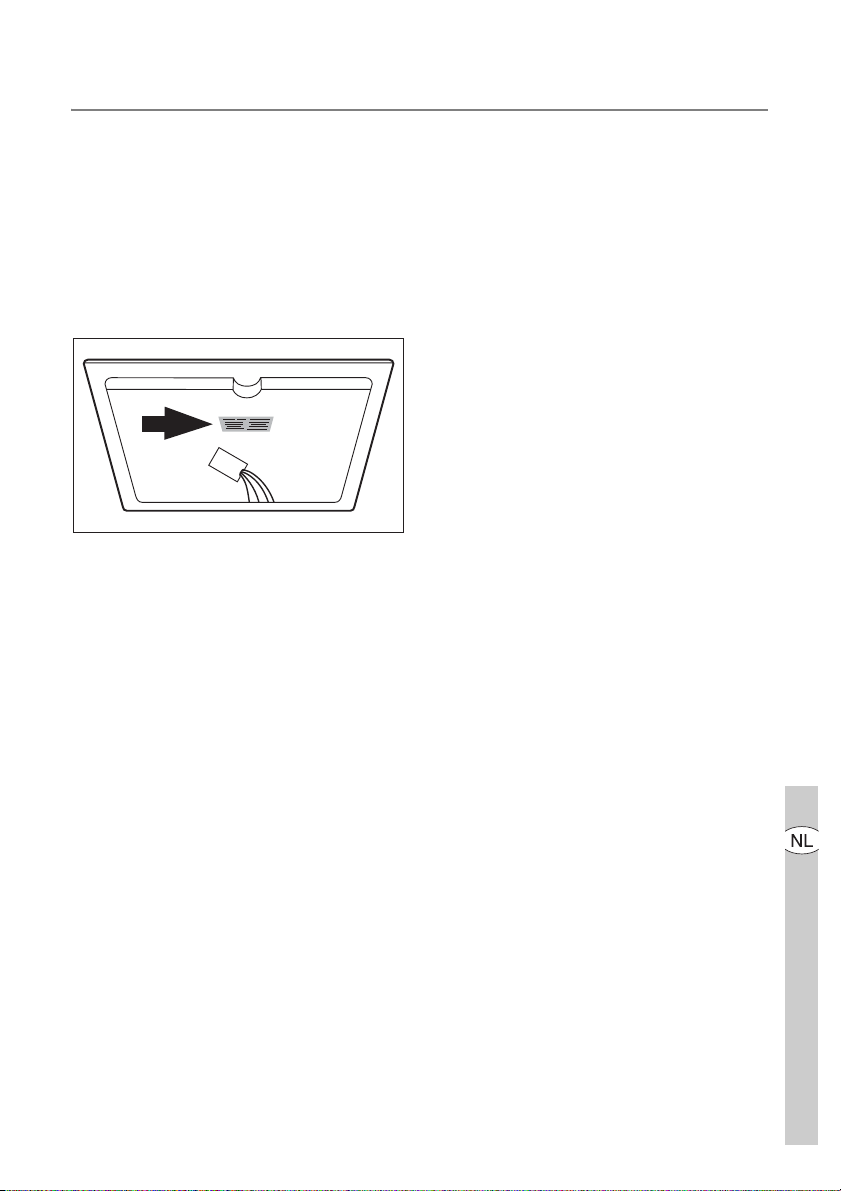

(for numbers see rating plate)
– Type o f fau l t
– Any error messages displayed by the
appliance
– three digit letter-number combination for
glass ceramic
So that you have the necessary reference
numbers from your appliance at hand, we
recommend that you write them in here:
electrolux 15
Model description: .....................................
PNC: .....................................
S No: .....................................
Loading...
