Contents
Safety warnings 54
For the user 54
For the installer 54
Description of the Appliance 56
Extractor version 56
Filter Version 56
Control Panel 57
Switching on the hood 58
Switching on the light 58
Control device for grease or charcoal filter 58
Led signal for grease filter 58
Led signal for charcoal filter 58
Re-setting the saturation signal 58
Maintenance and care 59
Cleaning the hood 59
Metal grease filter 59
Removing the frontal screens: 59
Removing the metal grease filter 60
Charcoal filter 61
Changing the light bulb 62
Special accessories 63
Technical assistance service 63
Technical Specifications 64
Mounting accessories included 64
Electrical connection 65
Wall unit mounting 66
Printed on recycled paper
AEG - putting words into action
53
Safety warnings
For the user
• The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
• Always cover heating elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
• The hot oil in the frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
• Never carry out any flambé cooking under the hood.
• Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
• It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
For the installer
• When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
• Should there already be a pipe of diameter 125 mm that ducts to the
outside through the walls or roof, it is possible to use the 150/125
mm reduction flange provided. In this case the hood will be slightly
noisier.
• When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 300 mm
gas cookers 300 mm
coal and oil cookers 400 mm min.
• The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
• The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
54
• The air outlet installation must comply with the regulations laid down
by the relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.
• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
• If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet hole of
the same size as the ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
• If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must always follow
a gentle curve.
— keep the hose as large as possible (preferably the same diameter
as the outlet hole).
• Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
55
Description of the Appliance
• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter.
• You will need an original AEG charcoal filter for this function
(Available from your local AEG Service Force Centre).
Extractor version
• In this version fumes are
extracted to the outside via
a hose connected to the
coupling ring. Fig. 1.
• In order to obtain the best
performance the hose
should have a diameter
equal to the outlet hole.
• Should there already be a
pipe of diameter 125 mm
that ducts to the outside
through the walls or roof, it
is possible to use the 150/
125 mm reduction flange
provided. In this case the
hood will be slightly noisier.
coupling ring
Fig. 1
reduction
flange
Filter Version
• The air is filtered through a
charcoal filter and returned to
the kitchen.
• You will need an original AEG
charcoal filter for the filtering
function. (See Special
Accessories).
• Fix the deflector using 2 screws
Ø 3.5x9.5 mm. Fig. 2.
56
Deflector
Fig. 2
Control Panel
• Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
disappeared.
• The hood operation can be controlled via the control ball or with the
remote control (the remote control is a special accessory and is
ordered separately).
Every change (changing speed, switching on the lights, etc.) is
recognizable from the variation of light emitted by the control ball and
by an acoustic signal.
The control ball is located below on the right side of the cooker hood.
The control ball is also a light signal :
• No signal :
The hood is switched off.
• Static green light :
Hood is switched on at power level 1 (minimum).
• Static orange light :
Hood is switched on at power level 2 (medium).
• Static red light :
Hood is switched on at power level 3 (maximum).
• Flashing red light :
Hood is switched on at intensive power level (timed at 5 minutes)
• Flashing green light :
Indicates the grease filter saturation - clean the grease filter
• Flashing orange light :
Indicates the charcoal filter saturation - clean or replace the
charcoal filter.
Attention!
The control ball flashes orange to indicate the saturation of the
charcoal filter even if the hood is used in the extractor version and no
charcoal filter is fitted.
In this case, perform the signal reset operation as follows: select the
intensive speed (the control ball lights up with a red flashing light),
depress again and hold depressed for about 3 seconds until an
audible signal indicates the reset has taken place.
57
Switching on the hood - Fig. 3
The control ball is a balancer switch.
Depressing the control ball repeatedly towards the
bottom, switches on the hood and you may select
the motor level desired, depressing once again the
hood switches off.
Switching on the light - Fig. 3
Depress the control ball towards the top :
once for submersed lighting,
once again for full lighting,
depress again to switch off the light.
depress towards the
bottom to switch on
the hood.
Indicator light for grease or
charcoal filter
The air duct, in this hood, includes a device that
signals when the filter requires cleaning or
changing .
depress towards
the top to switch
on the lights
Fig. 3
Led signal for grease filter
The LED signal flickers (flickering green light) when the grease filter
requires cleaning, occurs at about 40 operating hours.
Ensure that the indicator light is checked each time the hood is used.
Led signal for charcoal filter
The LED signal flickers (flickering orange light) when the charcoal filter
requires cleaning, occurs at about 160 operating hours.
Ensure that the indicator light is checked each time the hood is used.
Re-setting the saturation signal
After cleaning or replacing the filter, select the intensive speed (the
control ball lights up with a red flashing light), depress again and hold
depressed for about 3 seconds until an audible signal indicates the
reset has taken place.
58
Maintenance and care
• The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a mild detergent.
• Never use corrosive, abrasive or flammable cleaning products.
• Never insert pointed objects in the motor’s protective grid.
• Wash the outside surfaces using a delicate detergent solution. Never
use caustic detergents or abrasive brushes or powders.
• Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
• It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Metal grease filter
• The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
• To access the grease filter,
first remove the front panels
which conceal the grease
filter.

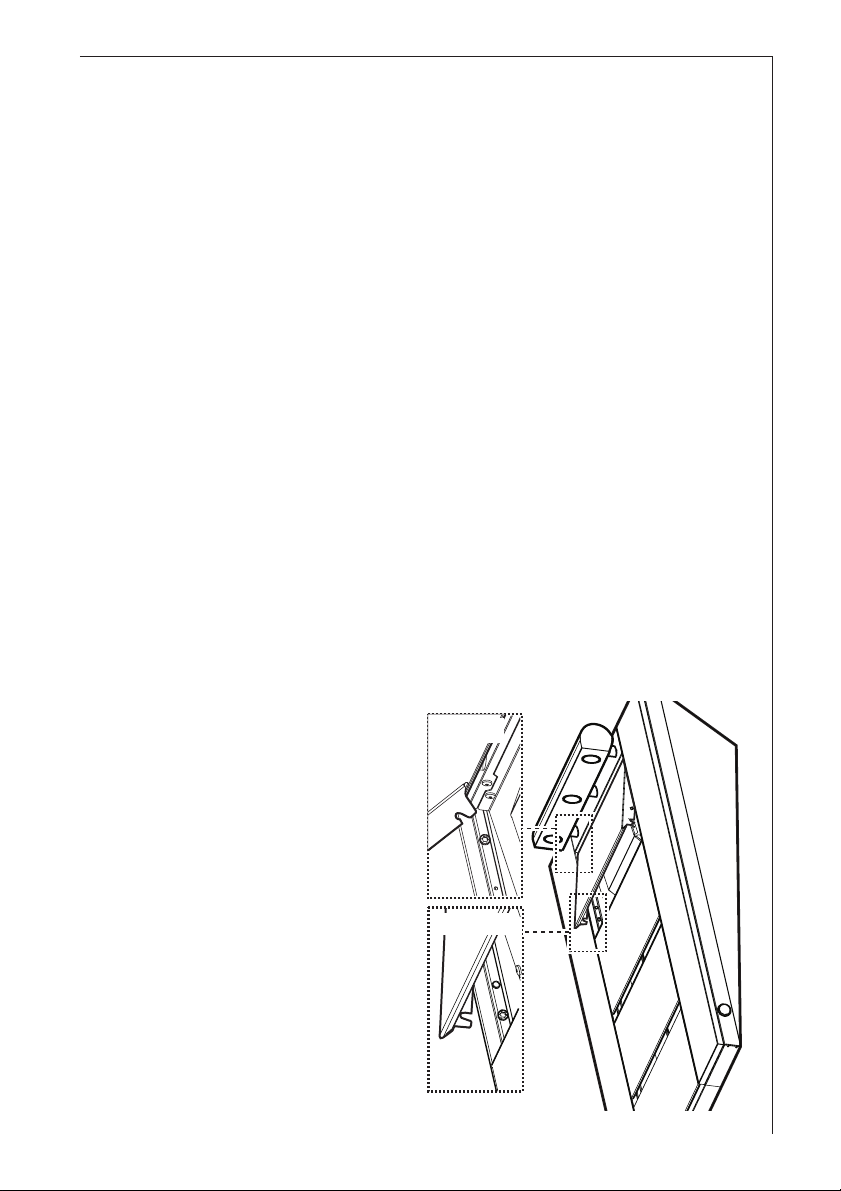

Extract
Removing the front
panels:
Extract the small panel,
rotate upwards and unhook.
Repeat the operation for all
the small panels. Fig. 4.
Unhook
Bild 3
Fig. 4
59

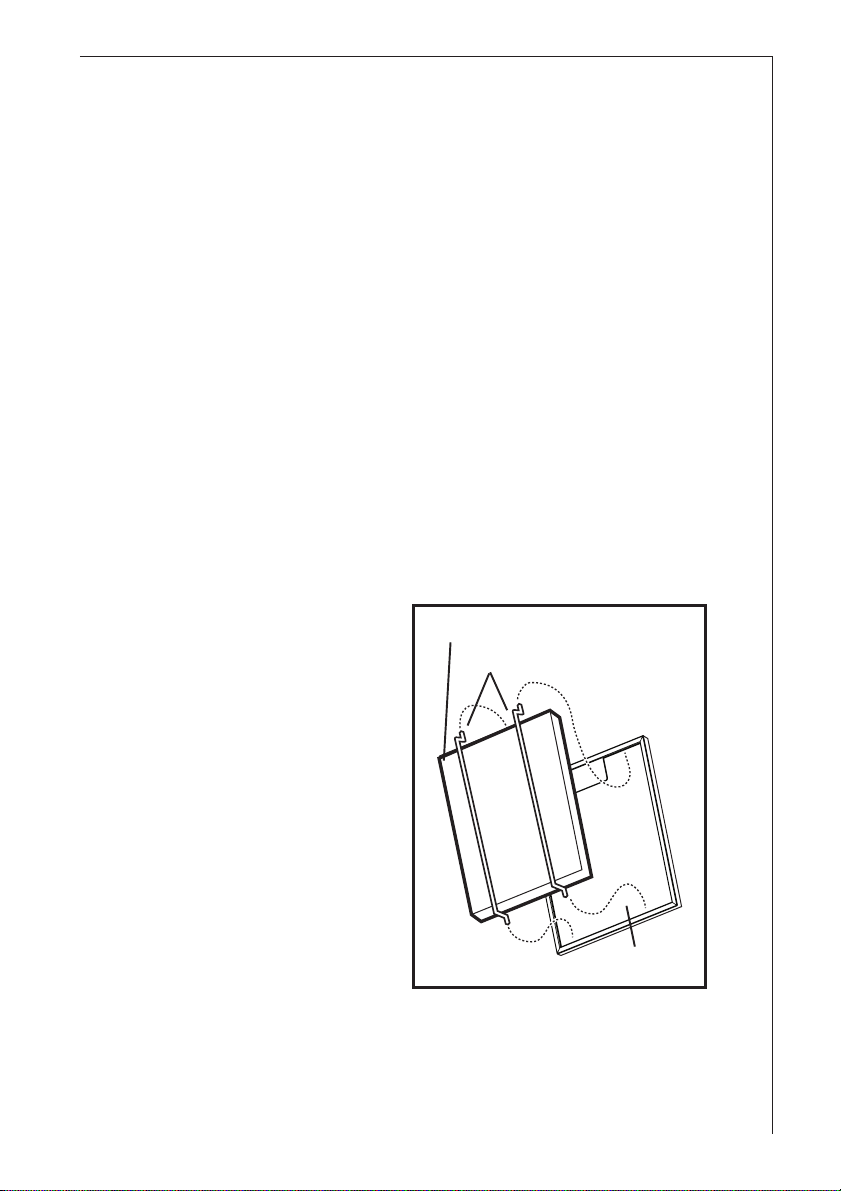

Removing the metal
Handle
grease filter
Pull the handle downards, then
extract the filter.Fig. 5.
Hand washing
Soak grease filter(s) for about one
hour in hot water with a greaseloosening cleaner, then rinse off
thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
• Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
After having re-installed the grease filter, remount the front panels
following the instructions for removal in reverse.
The narrower front panel is to be mounted at the highest position.
Fig. 5
60
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
the recirculation function.
• To do this you will need an original AEG charcoal filter (available from
your local Service Force Centre).
• Cleaning/replacing the carbon filter
Unlike other carbon filters, the LONGLIFE carbon filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month (when using the hood 2,5 hours per day, in
avarage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C). Wash
the filter separately so that no food parts gets stuck on the filter and
later causes bad odours. To reactivate the carbon, the filter should be
dried in an oven for 10 minutes with a temperature of maximum
100ºC.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
• Fitting
Fit the charcoal filter on the rear side of the grease filter, fix it with
two metal wires. Fig. 6.
• To remove proceed in the
reverse order.
• Always specify the hood
model code number and
serial number when
ordering replacement filters.
This information is shown
on the registration plate
located on the inside of the
unit.
• The charcoal filter can be
ordered from your local
AEG Service Force Centre.
charcoal filter
metal wires
Fig. 6
grease filter
61
Warning
• Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
• Disconnect the cooker hood from the
main supply.
• Remove the lamp, use a screw driver
as a lever. Fig. 7.
• Remove the connector.
• Replace the old bulb with a new one
of the same type.
• Refit the connector.
• If the light does not come on, make
sure the bulb has been inserted
correctly before contacting your local
Service Force Centre.
Connector
Fig. 7
62
Special accessories
Charcoal filter KF 14* E-Nr. 942 120 604
Remote control RM 8700* 942 120 658
Telescopic chimney
(for extractor version only)* 942 120 750
Stainless steel side panels (Only DD 8794)* 942 120 768
Aluminium side panels 942 120 769
* Not available in UK, please contact your local Service Force Centre.
Technical assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in the
unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Service and spare parts for UK
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre by
telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area. For the address of your local Service Force Centre
and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdown even the appliance is under warranty. Please note that
proof of purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name • Clear and concise details of the fault
• Address and post code • Name and model of the appliance*
• Telephone number • E number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.
63
Technical Specifications
Dimensions (in cm):
Height x Width x Depth 80 x 89,8 x 33,5
Maximum absorbed power: 235 W
Motor absorption: 175 W
Lighting: 3 x 12V 20W halogen lamps
Type GU4
Length of the cable: 150cm
Electrical connection: 230 V
Mounting accessories included
1 support bracket
1 deflector
3 Rubber strips
2 Screw caps
1 template
2 spacers
4 wood-screws 5 x 45 mm
4 wall plugs Ø 8 mm
2 metal screws 3,5 x 9,5
2 metal screws 3,5 x 32
1 reduction flange Ø 150-125 mm
2 flanges Ø 150 mm
Only DD 8795 and CHDD 8795: 2 Stainless Steel side panels
64
Electrical connection (not for UK)
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
Electrical connection for UK only
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
65
Wall unit mounting - Fig. 8-9-10-11
• Place the three rubber strips on the back of the cooker hood.
Where necessary mount the two spacers provided on the drill holes
for definitive fixing.
The spacers are useful when the wall which is to house the cooker
hood is not perfectly vertical (for example: where it is partially
covered with wall tiles).
rubber strips
rubber strips
rubber strips
definitive fixing
Fig. 8
definitive fixing
spacers
66
• Mark the wall with a centre line, this will aid mounting procedure (1),
position the template so that the mid line printed on the template
matches with the centre line previously marked, the lower side of the
template corresponds to the lower side of the hood once mounted
(2).
• Drill two holes Ø 8mm and fix the support bracket with two wall plugs
and screws (3).
• Remove the front panels (see paragraph “Removing the front panels”).
• Hang the hood (4) adjust its position (5-6) and from the inside of the
hood sign two points for definitive fixing (7), remove the hood and drill
two holes Ø 8mm (8), fit two wall plugs, hang the hood again and fix
it securely with two screws (9). Cover the drill holes for screws with
the two screw caps provided.
4
4
6
5
5
9
6
3
7
8
8
2
1
Fig. 9
67
10a
10b
11
• Fix the sides of the
cooker hood by
fastening the pins (10a)
to the sides of the
fastening screws (10b).
Only DD 8794 (not UK):
side panels are available
as a special accessory
please contact your local
Service Centre (or see
paragraph “Special
Accessory”).
Block the sides sliding
the two tabs outwards
Fig. 10
(11).
• Make electrical
connection (12), but leave the hood disconnected from the home
general electric panel.
• In the case that it is decided to use the cooker hood in the suction
version, then place one of the two flanges provided in the exit hole
(13 – Suction). Attention! The tall flange should be used when a
telescopic chimney is required to be mounted (this item should be
ordered – see special accessories), the short flange is to be used in
all other cases.
• Remount the grease filter and the front panels
according to the numbering
noted also on the back of each
screen (from 1 to 4 from the top
13
Extractor version
to the bottom).
• Connect the hood the the home
general electric panel and check
if the hood work properly.
68
14
12
1
2
3
4
Fig. 11
13
Filter version
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
http://www.aeg.co.uk
© Copyright by AEG
LI10UE Ed. 04/03
Loading...
