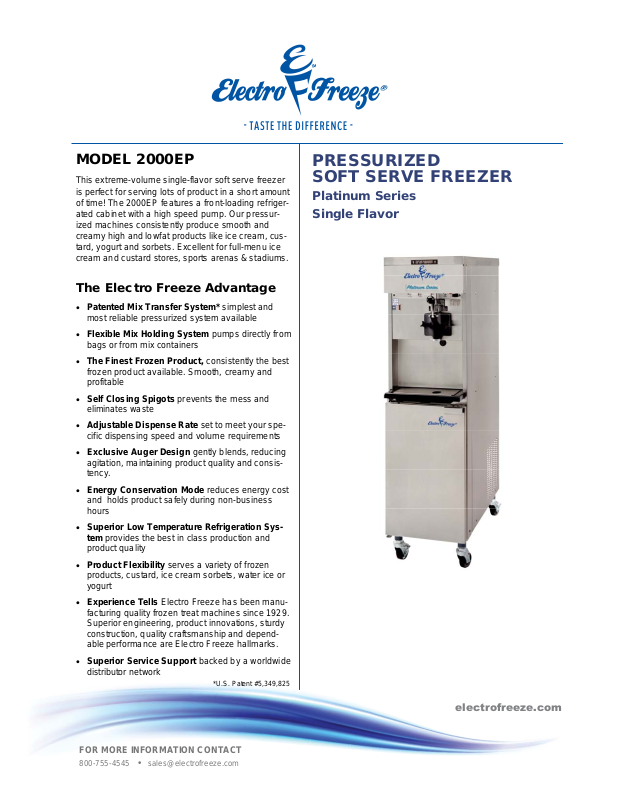

MODEL 2000EP

This extreme-volume single-flavor soft serve freezer
is perfect for serving lots of product in a short amount
of time! The 2000EP features a front-loading refriger­ated cabinet with a high speed pump. Our pressur­ized machines consistently produce smooth and
creamy high and lowfat products like ice cream, cus­tard, yogurt and sorbets. Excellent for full-menu ice
cream and custard stores, sports arenas & stadiums.

The Electro Freeze Advantage

 Patented Mix Transfer System* simplest and

most reliable pressurized system available

 Flexible Mix Holding System pumps directly from

bags or from mix containers

 The Finest Frozen Product, consistently the best

frozen product available. Smooth, creamy and
profitable

 Self Closing Spigots prevents the mess and

eliminates waste

 Adjustable Dispense Rate set to meet your spe-

cific dispensing speed and volume requirements

 Exclusive Auger Design gently blends, reducing

agitation, maintaining product quality and consis­tency.

 Energy Conservation Mode reduces energy cost

and holds product safely during non-business
hours

 Superior Low Temperature Refrigeration Sys-

tem provides the best in class production and
product quality

 Product Flexibility serves a variety of frozen

products, custard, ice cream sorbets, water ice or
yogurt

 Experience Tells Electro Freeze has been manu-

facturing quality frozen treat machines since 1929.
Superior engineering, product innovations, sturdy
construction, quality craftsmanship and depend­able performance are Electro Freeze hallmarks.

 Superior Service Support backed by a worldwide

distributor network

*U.S. Patent #5,349,825

PRESSURIZED
SOFT SERVE FREEZER

Platinum Series
Single Flavor

FOR MORE INFORMATION CONTACT

800-755-4545

• [e-mail]

electrofreeze.com

2000EP Soft Serve Freezer

MODEL 2000EP SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.
Net 530 240
Crated 677 307
cu.ft. cu.m.
Volume 58.42 1.65
Dimensions in. cm.
Width 18-1/8 46.04
Depth 36-3/16 91.92
Height 67-1/16 170.34

Electrical Maximum Minimum Circuit Poles (P)

Fuse Size Ampacity Wires (W)

208-230/60/1 Air 40 30 2P, 2W
208-230/60/1 Water 35 28 2P, 2W
208-230/60/3 Air 30 23 3P, 3W
208-230/60/3 Water 25 20 3P, 3W

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec
Electrical: Volt_______________________ Hz_______ Ph________

Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________
_______________________________________________________

Electrical

A dedicated electrical connection is required. Manufac­tured to be permanently connected. See electrical chart
for the proper requirement. Consult your local electrical
codes for cord and receptacle specifications.

Beater Motor
One, 2 hp.
Refrigeration Systems

One, 12,000 Btuh. R404a.
Separate Hopper Refrigeration, One, 1200 Btuh, R134a.
Btuh may vary depending on compressor used.

Air and Water Cooled

6" (15.2 cm) air space required at rear panel or both side
panels and 18” (45.7cm) air space above unit for proper
air circulation.

Mix Tank Capacity: 30 quarts (28.4 liters)
Freezing Cylinder Capacity: 5 quarts (4.7 liters)

Certified and/or listed by:

*

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

**Select Voltages @ 50HZ
