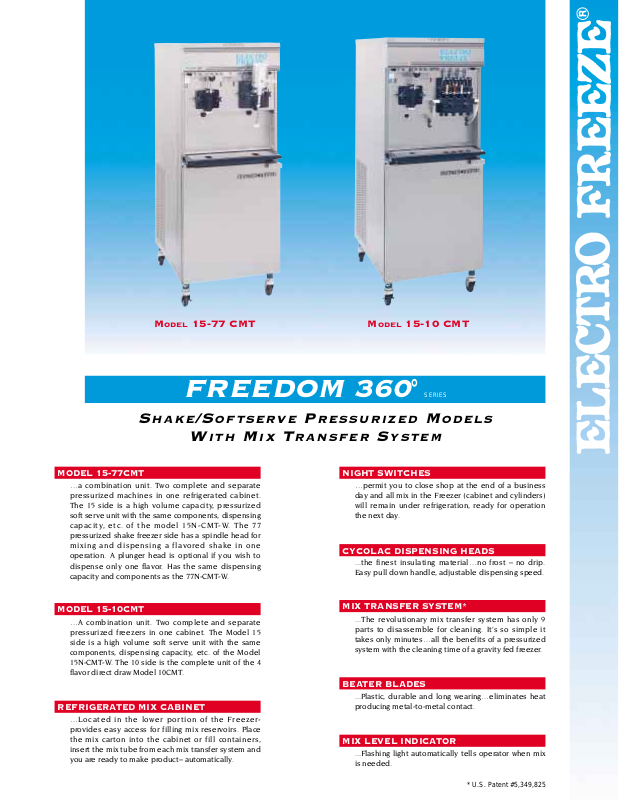

Electro Freeze 15-10CMT Specifications

FREEDOM

360

°

SERIES

MODEL 15-77CMT

MODEL 15-10CMT

CYCOLAC DISPENSING HEADS

MIX TRANSFER SYSTEM*

NIGHT SWITCHES

REFRIGERATED MIX CABINET

…a combination unit. Two complete and separate
pressurized machines in one refrigerated cabinet.
The 15 side is a high volume capacity, pressurized
soft serve unit with the same components, dispensing
capacity, etc. of the model 15N-CMT-W. The 77
pressurized shake freezer side has a spindle head for
mixing and dispensing a flavored shake in one
operation. A plunger head is optional if you wish to
dispense only one flavor. Has the same dispensing
capacity and components as the 77N-CMT-W.

…A combination unit. Two complete and separate
pressurized freezers in one cabinet. The Model 15
side is a high volume soft serve unit with the same
components, dispensing capacity, etc. of the Model
15N-CMT-W. The 10 side is the complete unit of the 4
flavor direct draw Model 10CMT.

...the finest insulating material…no frost – no drip.
Easy pull down handle, adjustable dispensing speed.

...The revolutionary mix transfer system has only 9
parts to disassemble for cleaning. It’s so simple it
takes only minutes…all the benefits of a pressurized
system with the cleaning time of a gravity fed freezer.

BEATER BLADES

MIX LEVEL INDICATOR

...Plastic, durable and long wearing…eliminates heat
producing metal-to-metal contact.

...Flashing light automatically tells operator when mix
is needed.

…permit you to close shop at the end of a business
day and all mix in the Freezer (cabinet and cylinders)
will remain under refrigeration, ready for operation
the next day.

…Located in the lower portion of the Freezer­provides easy access for filling mix reservoirs. Place
the mix carton into the cabinet or fill containers,
insert the mix tube from each mix transfer system and
you are ready to make product– automatically.

M

odel 15-77 CMT Model 15-10 CMT

SHAKE/SOFTSERVE PRESSURIZED MODELS

WITH MIX TRANSFER SYSTEM

* U.S. Patent #5,349,825

Plumbing and electrical connections

model 15-77CMT model 15-10cmt

AUTHORIZED DISTRIBUTOR

division of H.C. DUKE & SON, INC.

2116-8th AVENUE, EAST MOLINE, ILLINOIS 61244 •
Phone [phone] • FAX [phone]

184806 Printed in U.S.A. 10/99

soft serve yogurt shake slush frozen cocktail batch

SPECIFICATIONS

All specifications subject to change without notice. Check name plate for exact electrical data.

MODEL MOTOR DIMENSIONS NET TOTALAMPS

NO. Beater Compressor D. W. H. WT.

1 Phase Water 1 Phase Air 3 Phase Water 3 Phase Air

15-10CMT

2 HP 9,500 BTU (15) 36 1/2” 26” 66 1/2” 907 LB

44.5 48.9 27.3 31.7

1.5 HP 12,000 BTU (10) 93 cm 66 cm 171 cm 411 KG

15-77CMT

2 HP 9,500 BTU (15) 36 1/2” 26” 66 1/2” 1035 LB

43.0 47.4 25.1 29.5

1 HP 9,200 BTU (77) 93 cm 66 cm 171 cm 469 KG

MODEL MINIMUM CIRCUITAMPACITY

15-10CMT

(1) 27.0 (1) 28.5 (1) 16.0 (1) 18.0
(1) 26.0 (1) 28.0 (1) 15.5 (1) 17.5

15-77CMT

(1) 27.0 (1) 28.5 (1) 16.0 (1) 18.0
(1) 23.5 (1) 25.5 (1) 12.5 (1) 14.5

Water or Air cooled self contained.
15-10CMT Standard wiring–230 volts A.C., 60 HZ, Single Phase–2 wire

208 or 230 volts A.C., 60 HZ, Three Phase–3 wire

15-77CMT Standard wiring–230 volts A.C., 60 HZ Single Phase–3 wire–Neutral Required

208 or 230 volts A.C., 60HZ, Three Phase–4 wire–Neutral Required

Electrical characteristics other than above available on request from Sales Office.

MIX CABINET DIMENSIONS

D. W. H.

17” 22” 26”

43 CM 56 CM 66 CM

Certified and/or listed by:
