Sukhoi SU-26m 480 ARF
Assembly Manual
Specifications
Wingspan: 43 in (1090mm)
Length: 39 in (990mm)
Wing Area: 365 sq in (23.5 sq dm)
Weight w/o Battery: 24–26 oz (680–740 g)
Weight w/Battery: 30–32 oz (850–910 g)
Table of Contents
Introduction
Contents of Kit/Parts Layout
Introduction ............................................................... 2
Important Information Regarding
Warranty Information ............................................ 2
Using the Manual ....................................................... 2
Contents of Kit/Parts Layout ........................................ 2
Covering Colors ......................................................... 2
Recommended Radio Equipment ................................. 3
Optional Accessories .................................................. 3
Brushless Outrunner Setup .......................................... 3
Required Tools and Adhesives ..................................... 3
Note on Lithium Polymer Batteries ............................... 3
Warning .................................................................... 3
Landing Gear Installation ............................................ 4
Optional Wheel Pants Installation ................................ 5
Outrunner Motor Installation ....................................... 5
Cowling Installation .................................................... 7
Aileron Hinging ......................................................... 8
Aileron Servos and Linkages ....................................... 9
Wing Installation ...................................................... 12
Stabilizer and Elevator ............................................. 12
Rudder and Fin ........................................................ 16
Rudder and Elevator Servos ...................................... 18
Final Assembly ......................................................... 21
Control Throws......................................................... 22
Center of Gravity ..................................................... 22
Preflight ................................................................... 23
Range Test Your Radio .............................................. 23
Flying Your Sukhoi SU-26m 480 ............................... 23
Safety Do’s and Don’ts for Pilots ................................ 24
Safety Precautions .................................................... 24
Age Requirements .................................................... 24
Warranty Information ............................................... 24
CE Compliance Information for the
European Union.................................................. 26
2008 Official Academy of
Model Aeronautics Safety Code ........................... 26
In the world of competition aerobatic airplanes, the
Russian Sukhoi SU-26m is the equivalent of a top fuel
dragster that can turn on a dime. Its combination of
absurd amounts of horsepower, light weight, rugged
construction and amazing agility allows aggressive
pilots to perform to the limits of their physical
endurance.
E-flite perfectly captures the essence of this aerial hot
rod with its Sukhoi SU-26m – a scaled-down version of
the Hangar 9 Sukhoi SU-26m designed by world-class
IMAC competitor Mike McConville. The E-flite SU-26m
features an exceptionally lightweight airframe that was
designed around the powerful Park 480 BL outrunner
motor (sold separately). As with the full-scale Sukhoi,
this combination of lightweight construction and
prodigious power gives the E-flite SU-26m unlimited
performance that is ideally suited for 3D aerobatics.
Important Information
Regarding Warranty Information
Please read our Warranty and Liability Limitations
section on Page 24 before building this product. If you
as the Purchaser or user are not prepared to accept the
liability associated with the use of this Product, you are
advised to return this Product immediately in new and
unused condition to the place of purchase.
Using the Manual
This manual is divided into sections to help make
assembly easier to understand, and to provide breaks
between each major section. In addition, check boxes
have been placed next to each step to keep track
of its completion. Steps with a single circle () are
performed once, while steps with two circles ( )
indicate that the step will require repeating, such as for
a right or left wing panel, two servos, etc.
Replacement Parts
EFL2851 Wing Set
EFL2852 Fuselage w/Hatch
EFL2853 Tail Set
EFL2854 Wing Tube
EFL2855 Landing Gear Set
EFL2857 Pushrod Set
EFL2858 Canopy Hatch
EFL2859 Cowling
EFL2860 Canopy
EFL2862 Hardware Pack
EFLA222 Foam Park Wheels,
13/4-inch (45mm)
Covering Colors
HANU973 Lite Scale White
HANU877 Orange
HANU847 Pearl Purple
Remember to take your time and follow the directions.
2 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Recommended Radio Equipment
Brushless Outrunner Setup
Warning
You will need a minimum of a 6-channel transmitter,
receiver and four servos. You can choose to purchase
a complete radio system. If you are using an
existing transmitter, just purchase the other required
equipment separately. We recommend the crystalfree, interference-free Spektrum™ DX6i 2.4GHz DSM®
6-channel system. If using your own transmitter, we
recommend the E-flite S75 Sub-Micro servos.
If you own a Spektrum radio, just add a DSM2
receiver and four E-flite S75 Sub-Micro servos. We
show the installation of the AR6200 receiver in the
manual.
Radio System
SPM6600 DX6i DSM2 6CH system
Or Purchase Separately
SPMAR6200 AR6200 DSM2 6-Channel Full
Range Receiver (for DX5e, DX6i,
or DX7)
And
EFLREX6L 6-inch Extension,
Lightweight (2)
EFLREX12L 12-inch Extension,
Lightweight (2)
™
Optional Accessories
EFLA110 Power Meter
EFLC3005 Celectra™ 1- to 3-Cell
Li-Po Charger
EFLC505 Intelligent 1- to 5-Cell
Balancing Charger
EFL2856 Dummy Motor
EFLA152 1/9-scale Aerobatic Pilot
EFL2863 Wheel Pants
EFLSP175 13/4-inch (45mm) Aluminum
Spinner w/4mm & 5mm Collets
EFLM1505 Park 480 Brushless Outrunner
Motor, 1020Kv
APC12060E 12x6 Electric Propeller
EFLA1040L 40-Amp Lite Pro Switch-Mode
BEC Brushless
THP21003SPL2 2100mAh 3S 11.1V 20C Li-Po,
13AWG
Required Tools and Adhesives
Tools & Equipment
Felt-tipped pen Hobby knife (#11 blade)
Mixing sticks Nut driver: 5mm
Paper towels Pin drill
Ruler (EFLA264) Square
String/dental floss T-pins
Low tack tape Side cutters
Sand paper Petroleum jelly
Waxed paper Rubbing alcohol
Epoxy brush
Phillips screwdriver: #0, #1, #2 (EFLA257 and
EFLA258)
Hex wrench or ball driver: 3/32-inch (EFLA251)
Drill bit: 1/16-inch (1.5mm)
Adhesives
Threadlock Canopy glue
Thin CA Medium CA
Tie wrap
6-Minute Epoxy (HAN8000)
30-minute epoxy (HAN8002)
Note on Lithium Polymer Batteries
Lithium Polymer batteries are significantly
more volatile than alkaline or Ni-Cd/
Ni-MH batteries used in RC applications.
All manufacturer’s instructions and warnings
must be followed closely. Mishandling of
Li-Po batteries can result in fire. Always
follow the manufacturer’s instructions when
disposing of Lithium Polymer batteries.
An RC aircraft is not a toy! If misused, it can cause
serious bodily harm and damage to property. Fly
only in open areas, preferably at AMA (Academy of
Model Aeronautics) approved flying sites, following all
instructions included with your radio.
Keep loose items that can get entangled in the
propeller away from the prop, including loose clothing,
or other objects such as pencils and screwdrivers.
Especially keep your hands away from the propeller.
During the course of building your Sukhoi SU-26m,
we suggest that you use a soft base for the building
surface. Such things as a foam stand, large piece of
bedding foam or a thick bath towel will work well and
help protect the model from damage during assembly.
The Spektrum trademark is used with permission
of Bachmann Industries, Inc.
3E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Landing Gear Installation
Required Parts
Fuselage
Main landing gear (2)
13/4-inch (45mm) wheel (2)
3mm x 25mm machine screws (2)
#4 washers (4)
3mm nylon lock nut (4)
4-40 x 1/2-inch socket head screw (4)
Required Tools and Adhesives
Phillips screwdriver: #2
Nut driver: 5mm
Hex wrench: 3/32-inch
Threadlock
You may consider using a larger diameter
wheel, such as 21/4-inch (58mm) (EFLA224),
if your flying site has rough terrain.
1. Remove the hatch from the fuselage by lifting it
up at the rear and sliding it back to disengage the
pins at the front.
3. Slide a 3mm x 25mm machine screw through
one of the 13/4-inch wheels. Thread a 3mm nylon
lock nut on the screw as shown.
2. Slide the landing gear in the slot in the side of
the fuselage. Secure the landing gear using two
4-40 x 1/2-inch socket head screws and two #4
washers. Use threadlock on the screws before
tightening them with a 3/32-inch hex wrench or
ball driver.
4. Attach the wheel to the landing gear using a
3mm lock nut. Use a #2 Phillips screwdriver and
5mm nut driver to tighten the nut.
4 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Optional Wheel Pants Installation
Outrunner Motor Installation
Make sure the wheel can rotate freely. If not, loosen
the 3mm lock nut so the 3mm nut can be backed
away from the wheel. Retighten the assembly
and check that the wheel can rotate freely.
5. Repeat Steps 2 through 4 for the remaining wheel.
Required Parts
Fuselage assembly
Wheel pant (left and right) (EFL2863)
2mm x 4mm wood screw (4)
Required Tools and Adhesives
Phillips screwdriver: #1
1. Slide the wheel pant over the wheel. Use two
2mm x 4mm sheet metal screws to secure the
wheel pant to the landing gear. Use a #1 Phillips
screwdriver to tighten the screws. Repeat for
opposite side.
Required Parts
Fuselage Radio system
3S Li-Po battery
Plywood X-mount spacers (2)
Brushless motor with mounting hardware
Electronic speed control
4-40 x 5/8-inch socket head screw (4)
#4 washer (4)
Required Tools and Adhesives
Threadlock Tie wrap
Hex wrench: 3/32-inch
Phillips screwdriver: #2
This section covers the installation of the recommended
Park 480 Outrunner motor. The holes in the firewall
match the mounting pattern of the X-mount.
1. Attach the supplied aluminum motor X-mount to
the motor using the screws provided with the motor.
Make sure to use threadlock on the screws before
tightening them with a #2 Phillips screwdriver.
5E-flite Sukhoi SU-26m 480 ARF Assembly Manual
2. Attach the Outrunner motor to the front of the
firewall using two plywood X-mount spacers, four
#4 washers and four 4-40 x 5/8-inch socket head
screws. Tighten the screws using a 3/32-inch ball
driver or hex wrench.
IMPORTANT INFORMATION ABOUT
YOUR BRUSHLESS ESC
Make sure your ESC brake is programmed to Off.
Also, be sure to use an ESC with the proper 9V cutoff
when using 3-cell Li-Po packs, or 6V cutoff when using
2-cell Li-Po packs.
3. Solder any connectors to the speed control to
connect to the motor battery and motor if necessary.
Use hook and loop tape to secure the speed control
inside the fuselage as shown. Make sure to guide
the leads for the motor through the fuselage.
4. Connect the leads from the ESC to the leads
from the motor. Use a tie wrap (not included) to
secure the motor leads so they will not interfere
with the operation of the motor.
5. Connect the speed control to the radio system and
motor battery. Check that the motor is rotating in
the correct direction. It will rotate counterclockwise
when viewed from the front of the aircraft. Use the
instructions with your speed control to correct a
motor that is operating in the wrong direction.
6 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Cowling Installation
Required Parts
Fuselage w/motor installed
2mm x 8mm wood screw (4)
Cowling Propeller
Prop adapter (for outrunner motor)
Dummy motor (optional)
E-flite 13/4-inch aluminum spinner (optional)
Required Tools and Adhesives
Thin CA T-pin
Phillips screwdriver: #1
Optional Tools and Adhesives
30-minute epoxy Mixing stick
Epoxy brush Rubbing alcohol
Paper towel
2. Use thin CA to harden the holes in the
hardwood cowl mounts. This will help to prevent
the screws from vibrating loose in flight.
IF INSTALLING DUMMY MOTOR
4. Slide the cowling onto the fuselage. Use a #1
Phillips screwdriver to secure the cowl using four
2mm x 8mm sheet metal screws.
IMPORTANT INFORMATION ABOUT YOUR PROPELLER
1. Use a T-pin to poke a hole through the fuselage
side to locate the center of the hardwood cowl
mounts inside the fuselage.
3. After painting the dummy motor, use 30-minute
epoxy to glue it into the cowling as shown.
Make sure to allow the epoxy to fully cure before
proceeding to mount the cowl to the fuselage.
It is very important to check to be sure the propeller
is balanced before installing onto the shaft. An
unbalanced propeller may strip the gears or cause
poor flight characteristics.
Make sure to check the balance of the propeller
after enlarging the hole in the propeller.
5. Install the propeller assembly onto the motor
shaft. Tighten the propeller nut using a hex wrench
slipped through the hole in the propeller nut.
7E-flite Sukhoi SU-26m 480 ARF Assembly Manual
6. An optional 13/4-inch spinner is also available
for your model. It can be installed at this time.
Aileron Hinging
Required Parts
Wing (left and right)
Aileron (left and right)
CA hinges (8)
Required Tools and Adhesives
T-pins Thin CA
Pin drill Paper towel
Hobby knife with #11 blade
Drill bit: 1/16-inch (1.5mm)
1. Locate the positions for the hinges. Drill a 1/16-
inch (1.5mm) hole in the center of each slot of both
the wing and aileron. This creates a tunnel for the
CA, allowing the CA to penetrate into the hinge
better, bonding the hinges more securely.
2. Slide four hinges into the slits in the aileron.
Center the slot in the hinge with the hole drilled in
Step 1. Place a T-pin in each hinge to prevent it
from being pushed into the wing when installing
the aileron.
Do not use CA accelerator during the hinging
process. The CA must be allowed to soak into the
hinge to provide the best bond. Using accelerator
will not provide enough time for this process.
3. Slide the aileron into position. Check to make
sure it can move without interference at the wing
root and wing tip. Remove the T-pins and apply
Thin CA to each hinge. Make sure the hinge is fully
saturated with CA. Use a paper towel to clean up
any excess CA from the wing and aileron. Make
sure to apply CA to both sides of the hinge.
8 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Placing a #11 hobby blade between the aileron
leading edge and wing trailing edge to position
the aileron will result in a nice free-moving
hinge for 3D throws without any binding.
4. Firmly grasp the wing and aileron and gently
pull on the aileron to ensure the hinges are secure
and cannot be pulled apart. Use caution when
gripping the wing and aileron to avoid crushing
the structure.
5. Work the aileron up and down several times to
work in the hinges and check for proper movement.
Aileron Servos and Linkages
Required Parts
Radio system
Wing panel (right and left)
Micro control connector (2)
2mm x 4mm machine screw (2)
31/2-inch (89mm) pushrod (2)
Control horn (2)
Servo (2)
6-inch (150mm) servo extension (2)
Required Tools and Adhesives
Hobby knife Pin drill
6-minute epoxy Thin CA
Side cutters
Phillips screwdriver: #0, #1
Drill bit: 1/16-inch (1.5mm)
String or dental floss
We suggest using the long 3D servo arms for the
Sukhoi SU-26m 480. Replace all existing arms
before installing the servos as shown in Step 8.
6. Repeat Steps 1 through 5 for the remaining aileron.
1. Attach a 6-inch (150mm) servo extension. Use
string or dental floss to secure the servo lead and
extension to prevent them from unplugging in flight.
9E-flite Sukhoi SU-26m 480 ARF Assembly Manual
2. Place the servo in the wing. Guide the servo
lead out through the opening at the wing root.
4. Apply 2–3 drops of thin CA into each hole to
harden the surrounding wood. This will make the
screws more secure and less likely to vibrate loose.
6. Use 6-minute epoxy to attach the control horn to
the aileron.
3. Use a pin drill and 1/16-inch (1.5mm) drill bit
to drill two holes through the servo mounting tabs
into the wing. Use care not to drill through the top
of the wing by accident.
5. Use a #1 Phillips to secure the aileron servo
using the screws provided with the servo.
7. Use a #0 Phillips screwdriver to remove the stock
servo horn from the aileron servo.
10 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
8. Place a 3D servo horn on the aileron servo.
The horn should align with the hinge line when the
radio is on and the aileron servo plugged into the
receiver. There are an odd number of splines on the
servo, so you may need to remove the horn and
rotate it 180 degrees to get it to align correctly.
9. Use side cutters to remove the arm from the servo
horn that does not align with the control horn.
10. Use a pin drill and 1/16-inch (1.5mm) drill bit
to enlarge the outer hole of the aileron servo horn.
11. Attach the micro control connector to the servo
horn. Be sure to use the included retainer to secure
the micro control connector.
13. With the radio system on, make sure to center
the aileron trim and stick. Make sure the aileron
servo is operating properly using the transmitter.
Insert the z-bend of the 31/2-inch (89mm) pushrod
into the center hole of the aileron control horn.
Slide the pushrod wire through the micro connector
on the servo horn. Center the aileron, and secure
the position of the wire using the 2mm x 4mm
screw and a #1 Phillips screwdriver.
12. Secure the servo horn prepared in the last
few steps using the screw from the servo and a #0
Phillips screwdriver. Make sure the horn aligns with
the aileron hinge line when the radio system is on
and the aileron servo is centered.
14. Repeat Steps 1 through 13 for the remaining
servo and linkage.
11E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Wing Installation
Required Parts
Fuselage Wing (right and left)
Wing tube #4 washer (2)
4-40 x 3/8-inch machine screw (2)
Required Tools and Adhesives
Hex wrench: 3/32-inch
1. Slide the wing tube into one of the wing panels.
3. Secure the panels using a 4-40 x 3/8-inch
machine screws and #4 washers. Use a 3/32-inch
hex wrench to tighten the socket head screw.
4. Repeat Steps 2 and 3 to attach the remaining
wing panel to the fuselage.
Stabilizer and Elevator
Required Parts
Fuselage w/wing installed
Stabilizer Elevator
CA hinge (6)
Micro control horn with backplate
Required Tools and Adhesives
Hobby knife Felt-tipped pen
Ruler T-pins
Thin CA Medium CA
Sandpaper Paper towls
Hobby knife with #11 blade
1. Position the stabilizer into the slot in the aft end
of the fuselage. Check that the stabilizer is centered
in the fuselage.
2. Slide the wing panel with tube into position on
the fuselage. Make sure to guide the aileron servo
extension in the hole in the side of the fuselage.
12 E-flite Sukhoi SU-26m 480 ARF Assembly Manual

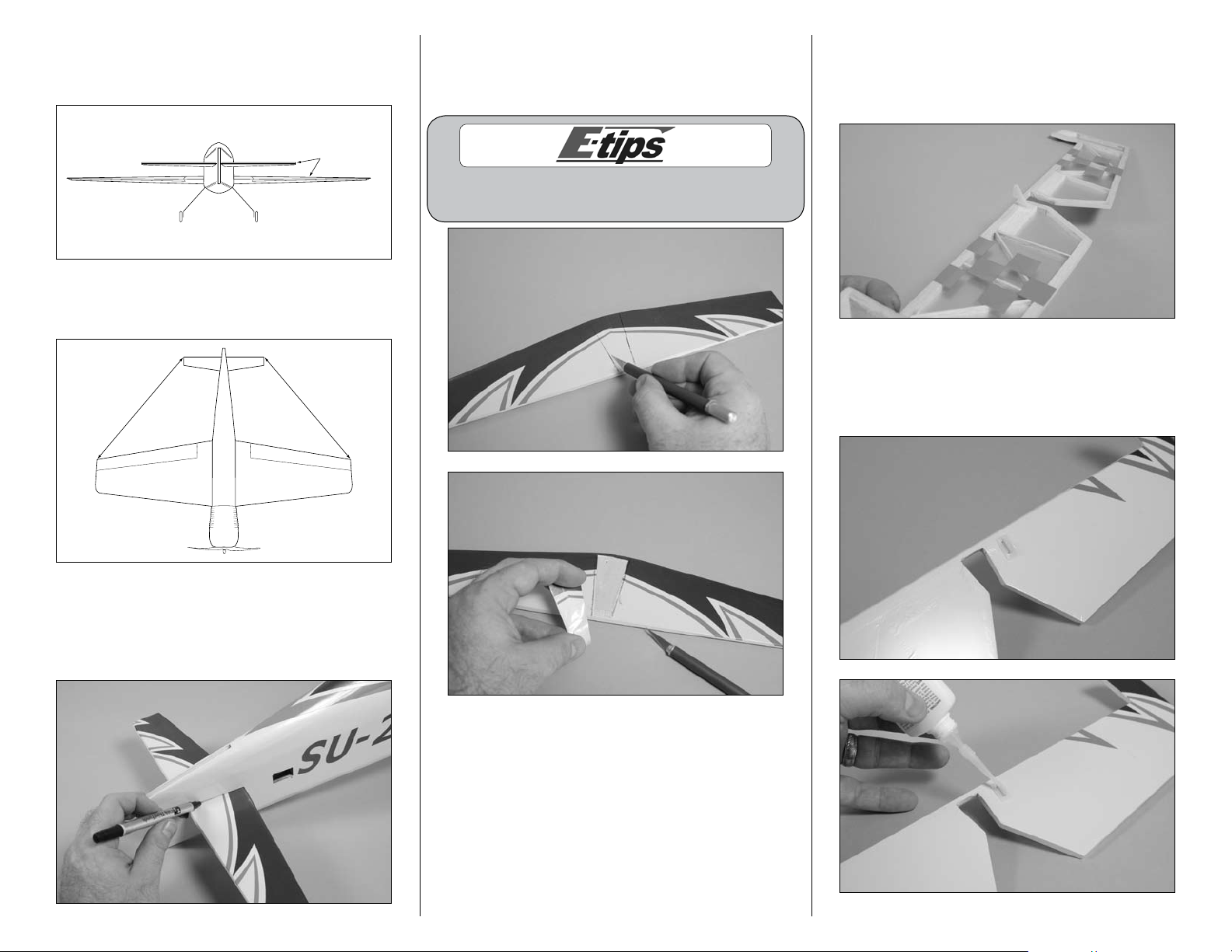

2. View the airframe from the rear and make sure
Adjust parallel
A A
A=A
the wing and stab are parallel. If not, lightly sand
the stab saddle until they are.
3. Measure from the stab tip to the wing tip. Adjust
the stab until the measurements are equal.
5. Use a sharp hobby knife to cut the covering
slightly inside the lines drawn. Be very careful not
to cut into the underlying wood, as this will weaken
the stab and cause it to fail in flight.
You can use a soldering iron instead of a knife. This
will eliminate the chances of cutting into the wood.
6. Insert the micro control horn into the slot in the
elevator. Make sure the holes in the control horn
face forward and that the horn is on the side with
the clear covering (bottom).
7. Slide the micro control horn backplate on the
control horn from the top side of the elevator.
Apply 2–3 drops of medium CA at the joint
between the horn and backplate to keep it secure.
4. Double-check the adjustments from Steps 1
through 3. Use a felt-tipped pen to trace the
outline of the fuselage onto the top and bottom
of the stabilizer.
13E-flite Sukhoi SU-26m 480 ARF Assembly Manual

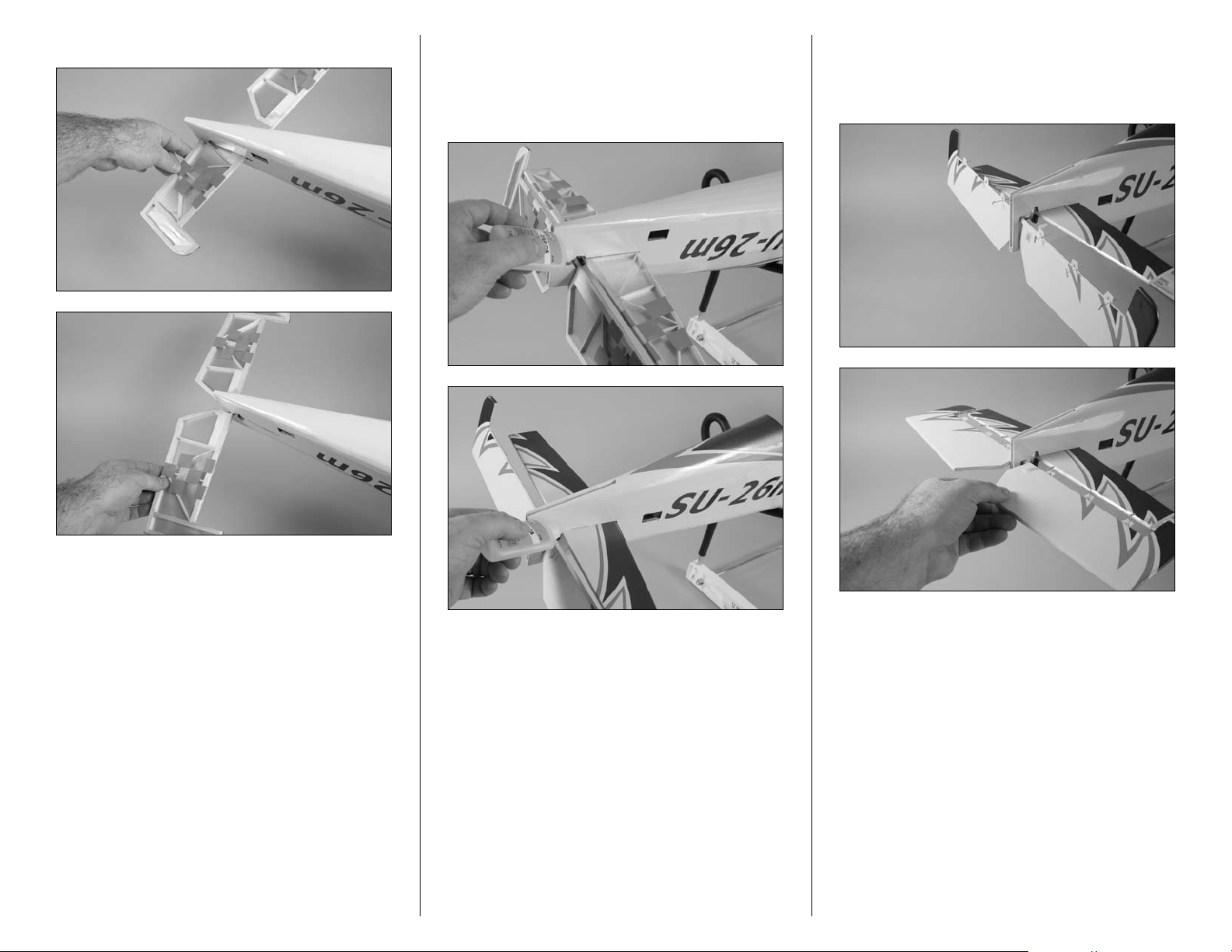

8. Slide the elevator into position, then the stabilizer. 9. Check the alignment and make sure everything
lines up. Wick thin CA into the joint between the
fuselage and stabilizer. Make sure to glue both top
and bottom. Do not use accelerator—to allow the CA
to wick in the joint, providing the best bond possible.
10. Slide six hinges into the slits in the elevator. Place
a T-pin in each hinge to prevent it from being pushed
into the elevator when attaching it to the stabilizer.
Slide the elevator tight against the stabilizer.
14 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
13. Work the elevator up and down several times to
work in the hinges and check for proper movement.
Placing a #11 hobby blade between the elevator and
stabilizer to position the two will result in a nice free-
moving hinge for 3D throws without any binding.
Do not use CA accelerator during the hinging
process. The CA must be allowed to soak into the
hinge to provide the best bond. Using accelerator
will not provide enough time for this process.
11. Remove the T-pins and apply thin CA to each
hinge. Make sure the hinge is fully saturated with
CA. Use a paper towel to clean up any excess CA
from the elevator and stabilizer. Make sure to apply
CA to both sides of the hinge.
12. Firmly grasp the stabilizer and gently pull on the
elevator to ensure the hinges are secure and cannot
be pulled apart. Use caution when gripping the
elevator and stabilizer to avoid crushing the structure.
15E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Rudder and Fin
Required Parts
Fuselage Rudder
Fin CA hinge (3)
Micro control horn with backplate
Tail wheel assembly
Required Tools and Adhesives
Hobby knife Thin CA
Felt-tipped pen Square
6-minute epoxy Petroleum jelly
T-pins Sandpaper

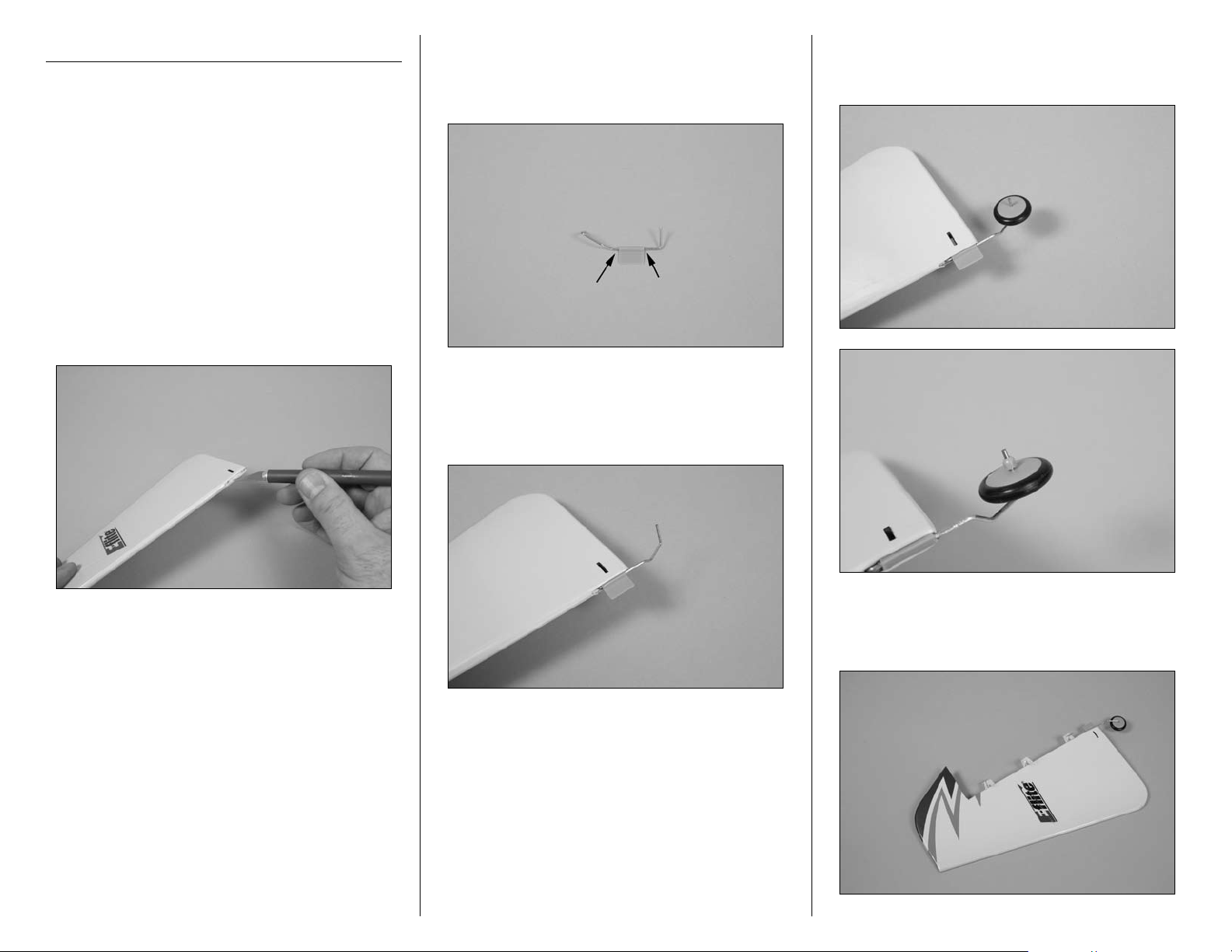

1. Use a hobby knife and #11 blade to remove the
covering and expose the slot in the bottom of the
rudder for the tail wheel assembly.
2. Apply a small amount of petroleum jelly to the
top and bottom of the tail wheel bushing. Work
the jelly into the bushing to prevent the CA from
seeping in between them and gluing them together.
3. Use 6-minute epoxy to glue the wire into the
hole in the bottom of the rudder. Take care not to
get epoxy on the bushing that could accidentally
glue it to the rudder.
4. Slide the tail wheel onto the wire. The wheel
is then secured using the tail wheel keeper and a
drop of thin CA.
5. Slide three hinges into the slits in the rudder.
Place a T-pin in each hinge to prevent it from being
pushed into the rudder when attaching it to the fin.
16 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
6. Slide the rudder tight against the fin. Make sure
to guide the tail wheel bearing into the slot at the
bottom of the fin.
Placing a #11 hobby blade between the elevator and
stabilizer to position the two will result in a nice free-
moving hinge for 3D throws without any binding.
7. Remove the T-pins and apply thin CA to each
hinge. Make sure the hinge is fully saturated with
CA. Use a paper towel to clean up any excess CA
from the rudder and fin. Make sure to apply CA to
both sides of the hinge.
8. Firmly grasp the rudder and gently pull on the
fin to ensure the hinges are secure and cannot be
pulled apart. Use caution when gripping the rudder
and fin to avoid crushing the structure.
9. Work the rudder up and down several times to
work in the hinges and check for proper movement.
10. Place the fin in position on the fuselage. Trace
the outline of the fuselage onto both sides of the fin
using a felt-tipped pen.
11. Use a hobby knife with a #11 blade to remove
the covering from the bottom of the fin using the
same technique used for the stabilizer.
17E-flite Sukhoi SU-26m 480 ARF Assembly Manual
12. Position the fin back onto the fuselage. Use a
square to check the alignment between the fin and
stabilizer. Lightly sand the bottom of the fin until the
alignment is correct. Use thin CA to glue the fin to
the fuselage. Also apply CA to the rudder post at
the back edge of the fuselage.
13. Insert the micro control horn into the slot in the
rudder. Make sure the holes in the control horn face
forward and that the horn is on the side opposite
the elevator control horn.
Rudder and Elevator Servos
Required Parts
Fuselage
41/2-inch (115mm) pushrod wire (2)
Micro control connector w/retainer (2)
Radio system Receiver
Hook and loop tape
Servo (2) 3D servo horn (2)
12-inch (305mm) servo extension (2)
Required Tools and Adhesives
Side cutters Phillips screwdriver: #0
Pin drill Thin CA
Drill bit: 1/16-inch (1.5mm)
14. Slide the micro control horn backplate on the
control horn from the opposide side of the rudder
as the control horn. Apply 2–3 drops of thin CA
at the joint between the horn and backplate to
keep it secure.
1. Secure a 12-inch (305mm) servo extension to
the servo.
18 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
2. Use a pin drill and 1/16-inch (1.5mm) drill bit
to drill holes through the servo mounting tabs and
into the fuselage.
4. Use a #0 Phillips screwdriver and the screws
provided with the servo to secure the elevator servo
in the fuselage.
6. Attach the micro control connector to the servo
horn. Be sure to use the included retainer to secure
the micro control connector.
3. Apply 2–3 drops of thin CA into each of the two
holes to harden the surrounding wood.
5. Use side cutters to remove one of the arms from
a 3D servo horn. Use a pin drill and 1/16-inch
(1.5mm) drill bit to enlarge the outer hole of the
servo horn.
7. Center the elevator servo. Use a #0 Phillips
screwdriver to remove the stock servo horn and
install the horn prepared in the previous steps.
19E-flite Sukhoi SU-26m 480 ARF Assembly Manual
8. Insert the bend in the 41/2-inch (115mm)
pushrod wire into the middle hole of the elevator
control horn.
13. With the radio system on, make sure to center
the elevator trim and stick. Make sure the elevator
servo is operating properly using the transmitter.
Slide the pushrod wire through the micro connector
on the servo horn. Center the elevator, and secure
the position of the wire using the 2mm x 4mm
screw and a #0 Phillips screwdriver.
14. Repeat Steps 1 though 13 to install the rudder
servo and linkage. The linkage will also connect to
the center hole of the rudder control horn and to
the outside hole of the 3D servo horn.
15. Use hook and loop tape to mount the receiver
and remote receiver in the fuselage. Plug the
elevator, rudder and speed control leads into the
appropriate ports of the receiver.
20 E-flite Sukhoi SU-26m 480 ARF Assembly Manual

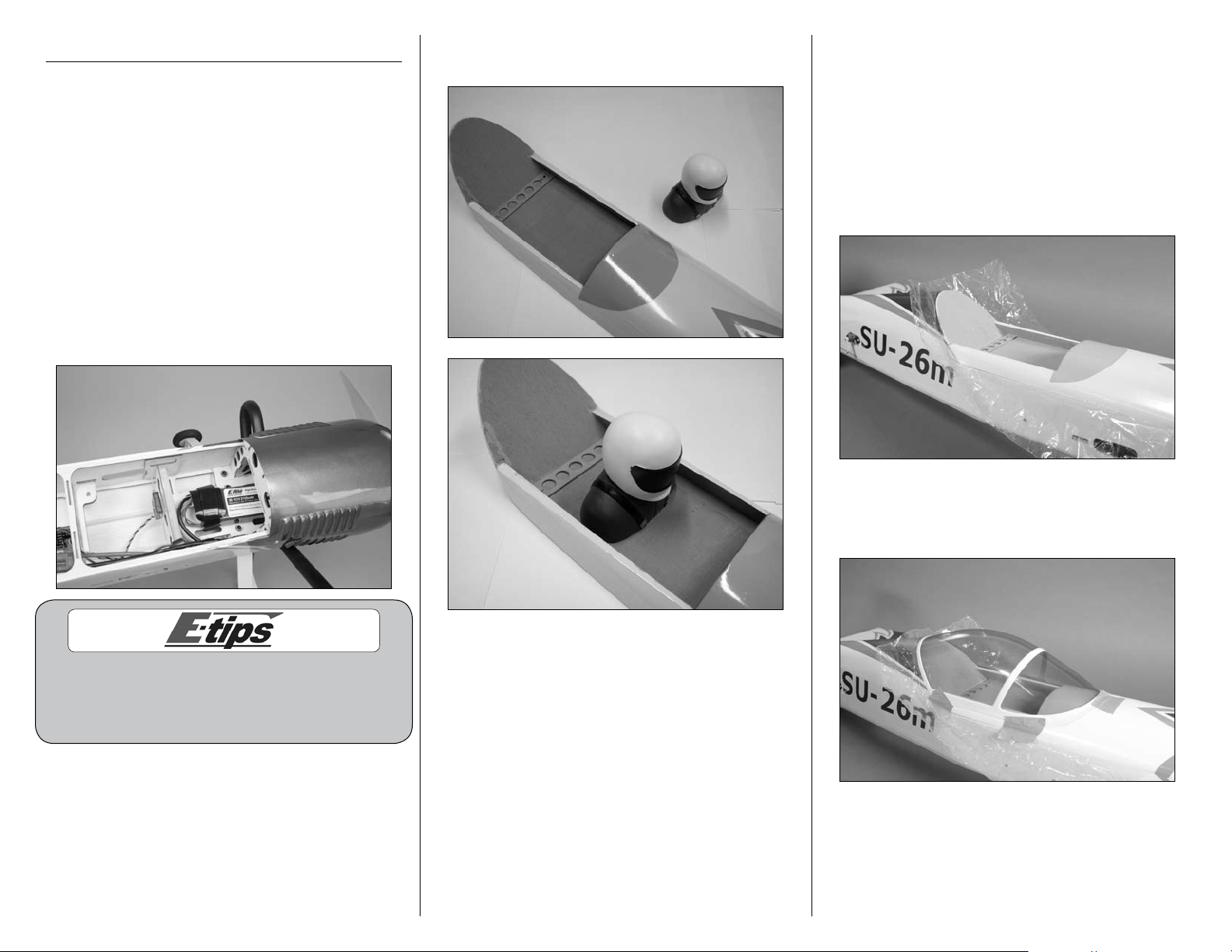

Final Assembly
Required Parts
Fuselage Canopy
Battery Battery hatch
Hook and loop tape
Hook and loop strap
Pilot (optional)
Required Tools and Adhesives
Canopy glue Low tack tape
Medium CA Waxed paper
1. With the aircraft fully assembled, install the
battery into the battery compartment. Secure the
battery using the hook and loop tape and the hook
and loop straps.
2. Use medium CA to glue the pilot (optional) to
the canopy hatch as shown.
3. Place the canopy hatch on the fuselage. Make
sure to place a piece of waxed paper or part of a
bag from the packaging of your model between the
hatch and fuselage so when the canopy is glued
to the hatch it won’t accidentally be glued to the
fuselage. Make sure that the hatch is fully seated
on the fuselage, and the magnet in engaged during
this step. If it is not seated and engaged, it could
cause your hatch to fit improperly or not engage
once the canopy is glued on.
Place a piece of hook and loop tape on the bottom
of the battery and on the fuselage where the
battery rests. This will keep the battery from shifting
forward or backward during extreme maneuvers.
4. Use canopy glue to secure the canopy to the
hatch. Use low-tack tape to keep the canopy in
opposition on the fuselage until the glue fully cures.
21E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Control Throws
1. Turn on the transmitter and receiver of your
Sukhoi SU-26m. Check the movement of the rudder
using the transmitter. When the stick is moved right,
the rudder should also move right. Reverse the
direction of the servo at the transmitter if necessary.
2. Check the movement of the elevator with the
radio system. Moving the elevator stick toward the
bottom of the transmitter will make the airplane
elevator move up.
3. Check the movement of the ailerons with the
radio system. Moving the aileron stick right will
make the right aileron move up and the left aileron
move down.
4. Use a ruler to adjust the throw of the elevator,
ailerons and rudder. Adjust the position of the
pushrod at the control horn to achieve the
following measurements when moving the sticks
to their endpoints.
Aileron Low Rate
Up 3/4-inch (19mm)
Down 3/4-inch (19mm)
Aileron High Rate
Up 11/4-inch (32mm)
Down 11/4-inch (32mm)
Elevator Low Rate
Up 1-inch (25mm)
Down 1-inch (25mm)
Elevator High Rate
Up 2-inch (50mm)
Down 2-inch (50mm)
Rudder Low Rate
Up 11/2-inch (38mm)
Down 11/2-inch (38mm)
Rudder High Rate
Up 2-inch (50mm)
Down 2-inch (50mm)
Measurements are taken at the inner or
widest point on the control surface.

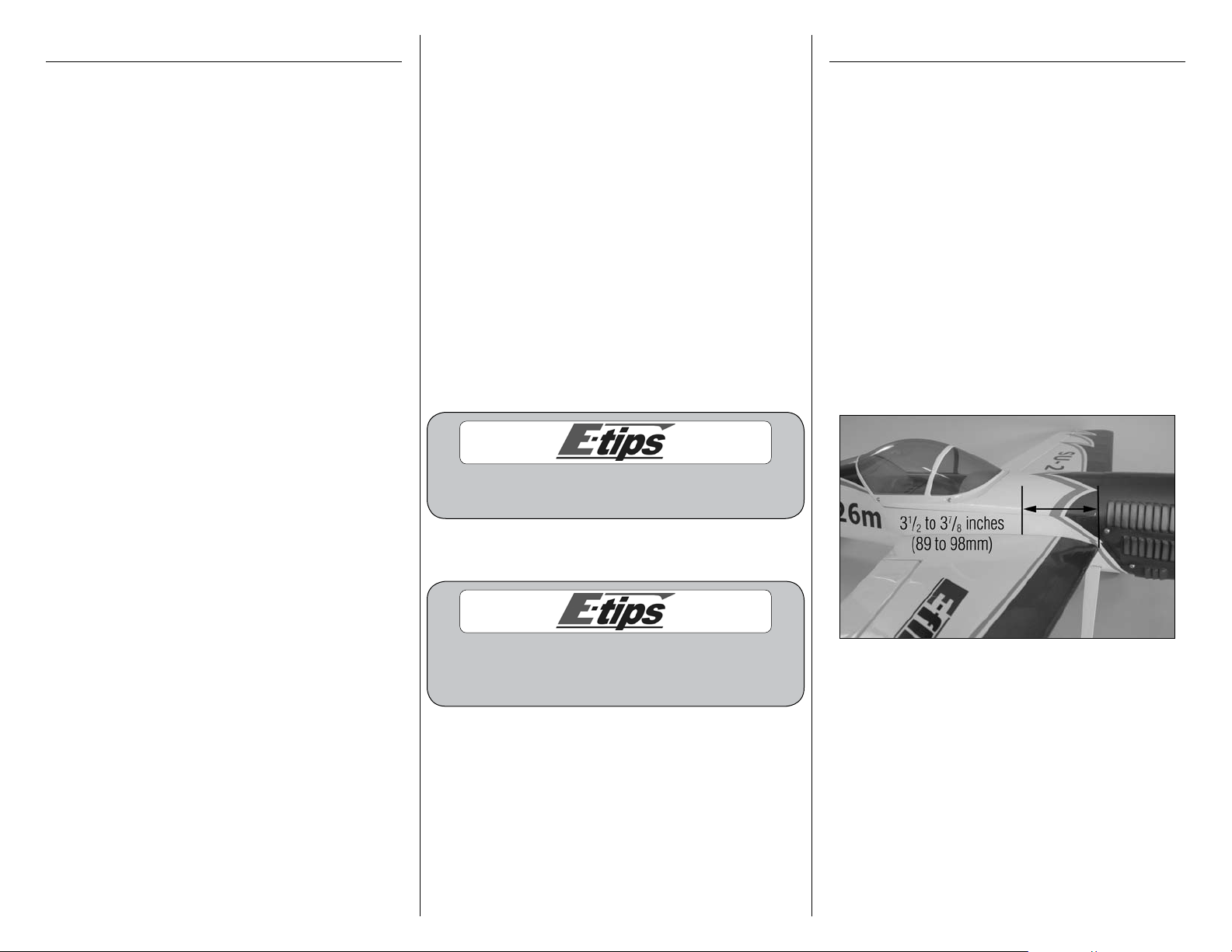

Center of Gravity
An important part of preparing the aircraft for flight is
properly balancing the model.
Caution: Do not inadvertently skip this step!
The recommended Center of Gravity (CG) location for
your model is 3
from the leading edge of the wing. Mark the location
for the Center of Gravity on the top of the wing next to
the fuselage as shown.
When balancing your model, support the plane
inverted at the marks made on the top of the wing
with your fingers or a commercially available
balancing stand. Adjust components as necessary so
the model hangs level or slightly nose down. This is
the correct balance point for your model. You might
find you may be required to add a small amount of
weight to either the front or back of the fuselage to
achieve the correct balance.
1
/2 to 37/8 inches (89 to 98mm) back
These are general guidelines measured from our own
flight tests. You can experiment with higher rates to
match your preferred style of flying.
Travel Adjust, Sub Trim and Dual Rates are
not listed and should be adjusted according
to each individual model and preference.
22 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
After the first flights, the CG position can be adjusted
for your personal preference.
Preflight
Range Test Your Radio
Flying Your Sukhoi SU-26m 480
Check Your Radio
Before going to the field, be sure that your batteries
are fully charged per the instructions included with
your radio. Charge both the transmitter and receiver
pack for your airplane. Use the recommended charger
supplied with your particular radio system, following
the instructions provided with the radio. In most cases,
the radio should be charged the night before going
out flying.
Before each flying session, be sure to range check your
radio. See your radio manual for the recommended
range and instructions for your radio system. Each
radio manufacturer specifies different procedures for
their radio systems. Next, start the motor. With the
model securely anchored, check the range again.
The range test should not be significantly affected. If
it is, don’t attempt to fly! Have your radio equipment
checked out by the manufacturer.
Keep loose items that can get entangled in
the propeller away from the prop. These
include loose clothing, or other objects such
as pencils and screwdrivers. Especially keep
your hands away from the propeller.
Double-check that all controls (aileron, elevator, rudder
and throttle) move in the correct direction.
Check the radio installation and make sure all the
control surfaces are moving correctly (i.e. the correct
direction and with the recommended throws). Test run
the motor and make sure it transitions smoothly from
off to full throttle and back. Also ensure the engine is
installed according to the manufacturer’s instructions,
and it will operate consistently.
1. Before each flying session, be sure to range
check your radio. This is accomplished by turning
on your transmitter with the antenna collapsed.
Turn on the receiver in your airplane. With
your airplane on the ground and the engine
running, you should be able to walk 30 paces
(approximately 100 feet) away from your airplane
and still have complete control of all functions.
If not, don’t attempt to fly! Have your radio
equipment checked out by the manufacturer.
2. Double-check that all controls (aileron, elevator,
rudder and throttle) move in the correct direction.
3. Be sure that your transmitter batteries are
fully charged, per the instructions included with
your radio.
Flying the Sukhoi SU-26m 480 is about as fun as it
can get at the park. A very light wing loading and
extreme control throws make for some exciting 3D
flying. Verify that your CG is at the correct location as
per the manual and that you have your rates set up to
your liking. Verify all control throws are in the correct
direction and the motor spins in the correct direction as
well.
Point the model into the wind and add some throttle
trim until the motor begins to turn. This will be your
flight idle. Now, apply power slowly. You will find the
model will become airborne very quickly and at a low
speed. This model excels at flying slow and easy as
well as fast and extreme. Trim the model for level flight
at half throttle. Only use full throttle for maneuvering.
It is not recommended to fly this model fast or at full
throttle in level flight. Doing this can result in the flight
controls fluttering and a potential catastrophic failure
of the airframe.
You will find you can adjust the CG to your liking by
moving the battery pack fore or aft on the fuselage.
Also keep the battery on the fuselage mounted high (at
least at wing centerline or above) to help in hovering
maneuvers and harriers.
To land the Sukhoi SU-26m 480, just reduce the
throttle to idle and feed in up elevator until the model
settles into a slightly nose high attitude. Gently fly the
model down to the landing spot with a final flair at
touchdown. You will find the model will have a very
short roll out. We hope you enjoy the Sukhoi SU-26m
480 as much as we do.
Happy landings.
Check all the control horns, servo horns, and
clevises to make sure they are secure and in good
condition. Replace any items that would be considered
questionable. Failure of any of these components in
flight would mean the loss of your aircraft.
23E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Safety Do’s and Don’ts for Pilots
Age Requirements
Warranty Information
• Check all control surfaces prior to each takeoff.
• Do not fly your model near spectators, parking
areas or any other area that could result in injury to
people or damage of property.
• Do not fly during adverse weather conditions.
Poor visibility can cause disorientation and loss of
control of your aircraft. Strong winds can cause
similar problems.
• Do not take chances. If at any time during flight you
observe any erratic or abnormal operation, land
immediately and do not resume flight until the cause
of the problem has been ascertained and corrected.
Safety can never be taken lightly.
• Do not fly near power lines.
Age Recommendation: 14 years or over. This is not
a toy. This product is not intended for use by children
without direct adult supervision.
Safety, Precautions and Warnings
As the user of this product, you are solely responsible
for operating it in a manner that does not endanger
yourself and others or result in damage to the product
or the property of others.
Carefully follow the directions and warnings for
this and any optional support equipment (chargers,
rechargeable battery packs, etc.) that you use.
This model is controlled by a radio signal that is
subject to interference from many sources outside
your control. This interference can cause momentary
loss of control so it is necessary to always keep a safe
distance in all directions around your model, as this
margin will help to avoid collisions or injury.
• Always operate your model in an open area away
from cars, traffic or people.
• Avoid operating your model in the street where
injury or damage can occur.
• Never operate the model out into the street or
populated areas for any reason.
• Never operate your model with low transmitter
batteries.
• Carefully follow the directions and warnings for
this and any optional support equipment (chargers,
rechargeable battery packs, etc.) that you use.
• Keep all chemicals, small parts and anything
electrical out of the reach of children.
• Moisture causes damage to electronics. Avoid water
exposure to all equipment not specifically designed
and protected for this purpose.
WARRANTY PERIOD
Exclusive Warranty- Horizon Hobby, Inc., (Horizon)
warranties that the Products purchased (the “Product”)
will be free from defects in materials and workmanship
at the date of purchase by the Purchaser.
LIMITED WARRANTY
(a) This warranty is limited to the original Purchaser
(“Purchaser”) and is not transferable. REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF THE
PURCHASER. This warranty covers only those Products
purchased from an authorized Horizon dealer. Third
party transactions are not covered by this warranty.
Proof of purchase is required for warranty claims.
Further, Horizon reserves the right to change or modify
this warranty without notice and disclaims all other
warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED,
ABOUT NON-INFRINGEMENT, MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OF THE
PRODUCT. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT THE
PRODUCT WILL SUITABLY MEET THE REQUIREMENTS
OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole obligation
hereunder shall be that Horizon will, at its option,
(i) repair or (ii) replace, any Product determined
by Horizon to be defective. In the event of a defect,
these are the Purchaser’s exclusive remedies. Horizon
reserves the right to inspect any and all equipment
involved in a warranty claim. Repair or replacement
decisions are at the sole discretion of Horizon.
This warranty does not cover cosmetic damage or
damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or modification of or
to any part of the Product. This warranty does not
cover damage due to improper installation, operation,
maintenance, or attempted repair by anyone other
than Horizon. Return of any goods by Purchaser must
be approved in writing by Horizon before shipment.
24 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
DAMAGE LIMITS
QUESTIONS, ASSISTANCE, AND REPAIRS
NON-WARRANTY REPAIRS
HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS
OF PROFITS OR PRODUCTION OR COMMERCIAL
LOSS IN ANY WAY CONNECTED WITH THE
PRODUCT, WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on
which liability is asserted. As Horizon has no control
over use, setup, final assembly, modification or misuse,
no liability shall be assumed nor accepted for any
resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared
to accept the liability associated with the use of
this Product, you are advised to return this Product
immediately in new and unused condition to the place
of purchase.
Law: These Terms are governed by Illinois law (without
regard to conflict of law principals).
SAFETY PRECAUTIONS
This is a sophisticated hobby Product and not a toy.
It must be operated with caution and common sense
and requires some basic mechanical ability. Failure to
operate this Product in a safe and responsible manner
could result in injury or damage to the Product or
other property. This Product is not intended for use by
children without direct adult supervision. The Product
manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all
the instructions and warnings in the manual, prior to
assembly, setup or use, in order to operate correctly
and avoid damage or injury.
Your local hobby store and/or place of purchase
cannot provide warranty support or repair. Once
assembly, setup or use of the Product has been
started, you must contact Horizon directly. This will
enable Horizon to better answer your questions
and service you in the event that you may need any
assistance. For questions or assistance, please direct
your email to productsupport@horizonhobby.com,
or call 877.504.0233 toll free to speak to a service
technician.
INSPECTION OR REPAIRS
If this Product needs to be inspected or repaired,
please call for a Return Merchandise Authorization
(RMA). Pack the Product securely using a shipping
carton. Please note that original boxes may be
included, but are not designed to withstand the rigors
of shipping without additional protection. Ship via a
carrier that provides tracking and insurance for lost
or damaged parcels, as Horizon is not responsible
for merchandise until it arrives and is accepted at our
facility. A Service Repair Request is available at www.
horizonhobby.com on the “Support” tab. If you do
not have internet access, please include a letter with
your complete name, street address, email address
and phone number where you can be reached during
business days, your RMA number, a list of the included
items, method of payment for any non-warranty
expenses and a brief summary of the problem.
Your original sales receipt must also be included for
warranty consideration. Be sure your name, address,
and RMA number are clearly written on the outside of
the shipping carton.
WARRANTY INSPECTION AND REPAIRS
To receive warranty service, you must include your
original sales receipt verifying the proof-of-purchase
date. Provided warranty conditions have been met,
your Product will be repaired or replaced free of
charge. Repair or replacement decisions are at the sole
discretion of Horizon Hobby.
Should your repair not be covered by warranty the
repair will be completed and payment will be required
without notification or estimate of the expense unless
the expense exceeds 50% of the retail purchase cost.
By submitting the item for repair you are agreeing
to payment of the repair without notification. Repair
estimates are available upon request. You must include
this request with your repair. Non-warranty repair
estimates will be billed a minimum of 1/2 hour of
labor. In addition you will be billed for return freight.
Please advise us of your preferred method of payment.
Horizon accepts money orders and cashiers checks,
as well as Visa, MasterCard, American Express, and
Discover cards. If you choose to pay by credit card,
please include your credit card number and expiration
date. Any repair left unpaid or unclaimed after 90
days will be considered abandoned and will be
disposed of accordingly. Please note: non-warranty
repair is only available on electronics and model
engines.
United States:
Electronics and engines requiring inspection or repair
should be shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or
repair should be shipped to the following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 or e-mail us at
productsupport@horizonhobby.com with any questions
or concerns regarding this product or warranty.
25E-flite Sukhoi SU-26m 480 ARF Assembly Manual
United Kingdom:
Electronics and engines requiring inspection or repair
should be shipped to the following address:
Horizon Hobby UK
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
Please call +44 (0) 1279 641 097 or e-mail us at
sales@horizonhobby.co.uk with any questions or
concerns regarding this product or warranty.
Germany:
Electronics and engines requiring inspection or repair
should be shipped to the following address:
Horizon Technischer Service
Hamburger Strasse 10
25335 Elmshorn
Germany
Please call +49 4121 46199 66 or e-mail us at
service@horizonhobby.de with any questions or
concerns regarding this product or warranty
CE Compliance Information for the
European Union
INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN
THE EUROPEAN UNION
This product must not be disposed of with other waste.
Instead, it is the user’s responsibility to dispose of their
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical
and electronic equipment. The separate collection
and recycling of your waste equipment at the time
of disposal will help to conserve natural resources
and ensure that it is recycled in a manner that
protects human health and the environment. For more
information about where you can drop off your waste
equipment for recycling, please contact your local city
office, your household waste disposal service or where
you purchased the product.
2009 Official Academy of Model
Aeronautics Safety Code
GENERAL
1. A model aircraft shall be defined as a non-humancarrying device capable of sustained flight in
the atmosphere. It shall not exceed limitations
established in this code and is intended to be used
exclusively for recreational or competition activity.
2. The maximum takeoff weight of a model aircraft,
including fuel, is 55 pounds, except for those flown
under the AMA Experimental Aircraft Rules.
3. I will abide by this Safety Code and all rules
established for the flying site I use. I will not
willfully fly my model aircraft in a reckless and/or
dangerous manner.
4. I will not fly my model aircraft in sanctioned events,
air shows, or model demonstrations until it has been
proven airworthy.
5. I will not fly my model aircraft higher than
approximately 400 feet above ground level, when
within three (3) miles of an airport without notifying
the airport operator. I will yield the right-of-way and
avoid flying in the proximity of full-scale aircraft,
utilizing a spotter when appropriate.
6. I will not fly my model aircraft unless it is identified
with my name and address, or AMA number, inside
or affixed to the outside of the model aircraft. This
does not apply to model aircraft flown indoors.
7. I will not operate model aircraft with metal-blade
propellers or with gaseous boosts (other than
air), nor will I operate model aircraft with fuels
containing tetranitromethane or hydrazine.
26 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
8. I will not operate model aircraft carrying
pyrotechnic devices which explode burn, or propel
a projectile of any kind. Exceptions include Free
Flight fuses or devices that burn producing smoke
and are securely attached to the model aircraft
during flight. Rocket motors up to a G-series size
may be used, provided they remain firmly attached
to the model aircraft during flight. Model rockets
may be flown in accordance with the National
Model Rocketry Safety Code; however, they may
not be launched from model aircraft. Officially
designated AMA Air Show Teams (AST) are
authorized to use devices and practices as defined
within the Air Show Advisory Committee Document.
9. I will not operate my model aircraft while under
the influence of alcohol or within eight (8) hours of
having consumed alcohol.
10. I will not operate my model aircraft while using
any drug which could adversely affect my ability to
safely control my model aircraft.
11. Children under six (6) years old are only allowed
on a flightline or in a flight area as a pilot or while
under flight instruction.
12. When and where required by rule, helmets must
be properly worn and fastened. They must be
OSHA, DOT, ANSI, SNELL or NOCSAE approved
or comply with comparable standards.
RADIO CONTROL
1. All model flying shall be conducted in a manner to
avoid over flight of unprotected people.
4. At all flying sites a line must be established, in front
of which all flying takes place. Only personnel
associated with flying the model aircraft are allowed
at or in front of the line. In the case of airshows
demonstrations straight line must be established.
An area away from the line must be maintained
for spectators. Intentional flying behind the line is
prohibited.
5. I will operate my model aircraft using only radiocontrol frequencies currently allowed by the
Federal Communications Commission (FCC). Only
individuals properly licensed by the FCC are
authorized to operate equipment on Amateur Band
frequencies.
6. I will not knowingly operate my model aircraft
within three (3) miles of any preexisting flying site
without a frequency-management agreement. A
frequency management agreement may be an
allocation of frequencies for each site, a dayuse agreement between sites, or testing which
determines that no interference exists. A frequencymanagement agreement may exist between two
or more AMA chartered clubs, AMA clubs and
individual AMA members, or individual AMA
members. Frequency-management agreements,
including an interference test report if the agreement
indicates no interference exists, will be signed by all
parties and copies provided to AMA Headquarters.
7. With the exception of events flown under official
AMA rules, no powered model may be flown
outdoors closer than 25 feet to any individual,
except for the pilot and located at the flightline.
10. The operator of a radio-controlled model aircraft
shall control it during the entire flight, maintaining
visual contact without enhancement other than by
corrective lenses that are prescribed for the pilot.
No model aircraft shall be equipped with devices
which allow it to be flown to a selected location
which is beyond the visual range of the pilot.
Sukhoi SU-26m Safe Operating Recommendations
- Inspect your model before every flight to make
certain it is airworthy.
- Be aware of any other radio frequency user who may
present an interference problem.
- Always be courteous and respectful of other users of
your selected flight area.
- Choose an area clear of obstacles and large enough
to safely accommodate your flying activity.
- Make certain this area is clear of friends and
spectators prior to launching your aircraft.
- Be aware of other activities in the vicinity of your
flight path that could cause potential conflict.
- Carefully plan your flight path prior to launch.
- Abide by any and all established AMA National
Model Aircraft Safety Code.
2. I will have completed a successful radio equipment
ground-range check before the first flight of a new
or repaired model aircraft.
3. I will not fly my model aircraft in the presence of
spectators until I become a proficient flier, unless I
am assisted by an experienced pilot.
8. Under no circumstances may a pilot or other person
touch a model aircraft in flight while it is still under
power, except to divert it from striking an individual.
9. Radio-controlled night flying is limited to lowperformance model aircraft (less than 100 mph).
The model aircraft must be equipped with a lighting
system which clearly defines the aircraft’s attitude
and direction at all times.
27E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Printed 05-09
© 2009 Horizon Hobby, Inc.
4105 Fieldstone Road
Champaign, Illinois 61822
USA
(877) 504-0233
horizonhobby.com
E-fliteRC.com
15578
Loading...
