OS MIO + 4K S2X + S2/T2/C
4K Linux Combo Receiver
Congratulations on purchasing an
EDISION OS MIO + 4K S2X + S2/T2/C
Please note that this information is valid at the time of publication.
Current information and detailed user manuals can be found on the Internet at: www.edision.gr
1

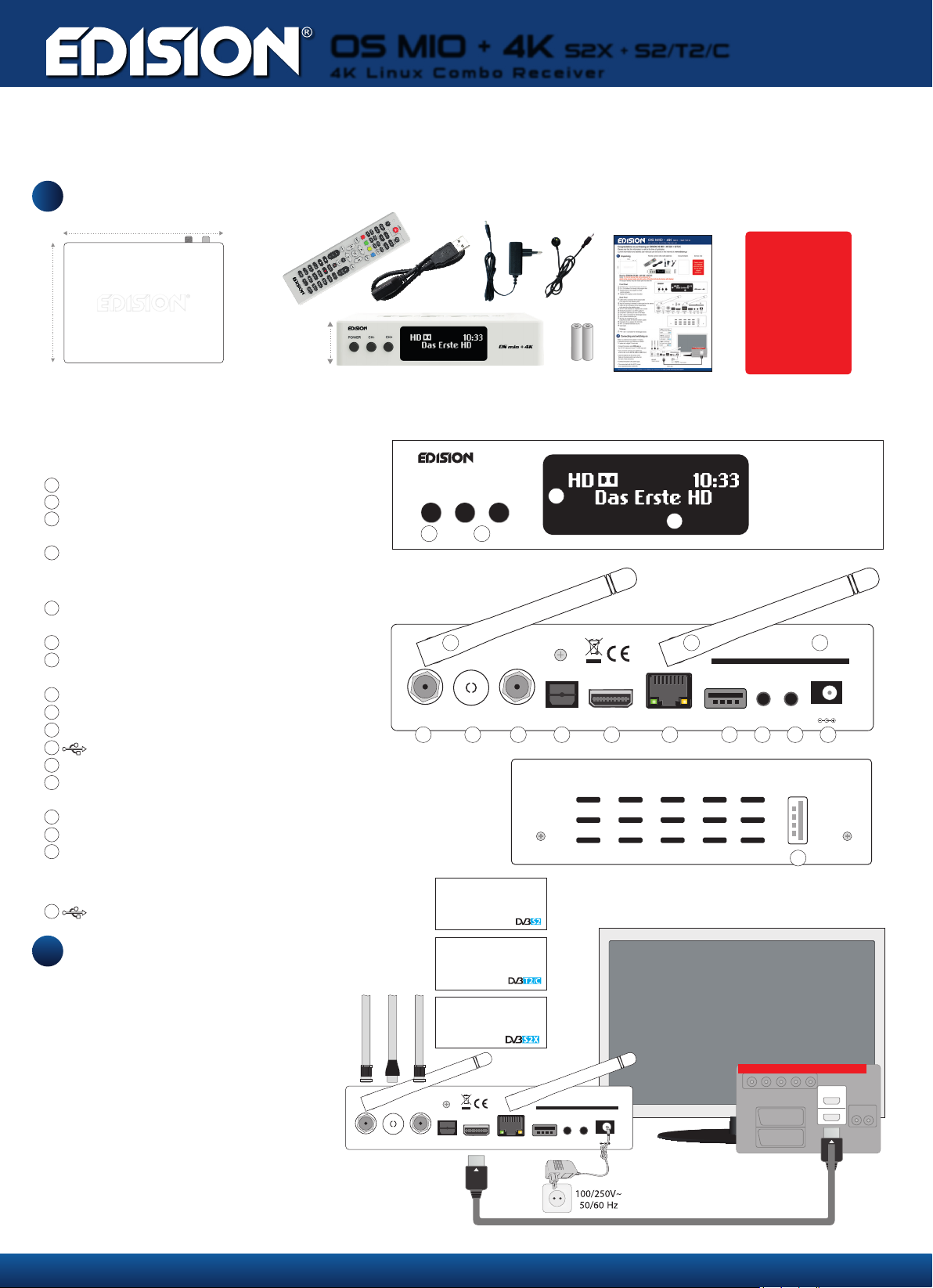

Unpacking
180mm
130mm
Receiver EDISION OS MIO + 4K S2X + S2/T2/C
Notes: The front is factory tted with a protective foil
which can be removed easily and with caution. (Protective foil only for devices with display)
The scope of delivery may also include parts not listed here
Front Panel
1
POWER button: Activates/Deactivates the device
2
CH- / CH+ buttons: for moving in the program lists
3
Infrared sensor for the reception of remote
control commands
4
Display OLED, displays current information
Remote control with 2 AAA batteries Documentation Service note
38mm
POWER CH- CH+
1 2
3
4
Please contact
your EDISION
specialist dealer
for any further
support
and service.
OS mio+ 4K
Back Panel
5
LNB B S2 IN: Connection for the coaxial cable
to the signal from the satellite system
6
Input for connecting to terrestrial or cable signal from the antenna
7
LNB A S2X IN: Connection for the coaxial cable
to the signal from the satellite system
8
S/PDIF: Audio interface for amplier/audio console
9
HD OUT: Connection to an HDTV quality TV
10
ETHERNET: Ethernet port RJ45 10/100 Mbps
11
/ USB 2: Connection for USB storage devices
12
IR IN: Infrared connection port
13
RS 232: For connecting to a PC,
using RS-232 cable, for receiver software update
14
Connection for an adapter (DC 12V/2,0A)
15
WiFi: 2 x External Antennas 5G/2.4G
16
Card reader
Subpage
17
/ USB 1: Connection for USB storage devices
2
Connecting and switching on
Note: For interference-free satellite TV reception,
a specialist technician must calibrate your satellite
TV system with a digital TV level meter
•
Connect the receiver using HDMI cable via
the HD OUT output port to your TV’s HDMI input port
•
Now connect the receiver to the satellite and
antenna cable via the ANT IN, LNB A or LNB B input.
•
Insert the batteries into the remote control.
Notes on the remote control can be found on
the back of these instructions.
•
Connect the receiver to the power supply.
•
The receiver starts with the BOOT process
and is operational within a short time
15 15 16
WIFI WIFI
LNB B S2 IN13/18V
400mA MAX
ANT IN
T2/C
LNB A S2X IN 13/18V
5 6 8 9
LNB B:
Connecting
the cable to the satellite
signal
ANT IN:
coaxial-wire
input from terrestrial /
cable signal
Antenna cable
coaxial-wire Antenna
coaxial-wire Antenna
LNB A:
Connecting
the cable to the satellite
signal
WIFI WIFI
ANT IN
T2/C
HD OUT:
LNB A S2X IN 13/18V
400mA MAX
HD OUT USB 2
S/PDIF
HDMI
kabel
LNB B S2 IN13/18V
400mA MAX
Output receiver
400mA MAX
7
ETHERNET
HDMI cable
S/PDIF
HD OUT USB 2
ETHERNET
10 121113 14
CA
DC 12V/2A
RS232IR IN
Power socket
CA
DC 12V/2A
RS232IR IN
USB 1
17
TV set connection panel
Use an HDMI input!
HDMI in
2
1
HDm i
kabel
The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support
OS MIO + 4K S2X + S2/T2/C
4K Linux Combo Receiver
3
Remote Control UNIVERSAL 2in1
EDISION UNIVERSAL 2in1 REMOTE CONTROL is compatible with all EDISION STB’s*, plus it is pre-programmed with 5 basic functions
for SAMSUNG & LG** tv sets. Alternatively, you can program its 5 programmable buttons to any 5 functions of your TV.
1
Power
Switches between operation and standby
< PREV
< (PREV)
Return to the previous channel/service or
move to the end of the Service List or the Play List
HELP
Help
This provides users with a quick guide of
using Edision OS nino
MENU
Menu
Open main menu & select sub menu using
by navigation buttons
EXIT
EXIT
Close and return to the previous menu and screen
TV/RADIO
TV / RADIO
Switch to TV mode.
Switch to Radio mode
COLOR BUTTONS
Activates certain menu functions.
Usage instructions are shown in each OSD menu
AUDIO
Audio
Select an audio track and a sound mode
/
PLAY
Starts timeshift if available
VOL +
VOL - BACK
PORTAL
PVR
/
0
_
-
TV POWER
RATIO
SUBTITLE
TIMER
TV/RADIO
CONTXT
MEDIA AUDIO TEXT
SAT FAV VIDEO HELP
MENU INFO
EXIT EPG
VOL PAGE
1
.,?!@2 ABC3 DEF
4
GHI5 JKL6 MNO
7
PQRS8 TUV9 WXYZ
< PREV NEXT >
.,?!@2 ABC3 DEF
4
GHI5 JKL6 MNO
7
PQRS8 TUV9 WXYZ
NUMERIC KEY (0-9)
Control the numerical operation
and change the Channel/Service
number directly
NEXT >
> (NEXT)
Go to the next channel/service
or move to the beginning of the
Service List or the Play List
TIMER
TIMER
Start timer function
INFO
INFO
Displays the Electronic Program Guide (EPG)
information if provided
EPG
EPG
Displays the Electronic Program Guide (EPG)
information if provided
Mute
Mutes or unmutes the audio temporarily
TEXT
TEXT
Switch between the teletext and TV modes
SUBTITLE
SUBTITLE
Display the subtitle language list
REC
Activates immediately recording-option
Notes: Many of the listed buttons have multiple functions, which, are displayed in the
menus. Some buttons and functions are optional. Important functions and buttons are
briey explained below. The buttons to be used are marked in red in the diagrams.
MANUAL INSTRUCTION FOR LEARN REMOTE CONTROL EDISION UNIVERSAL 2in1
Your set-top-box remote control has 5 learning-function keys, in the up right hand side TV keypad panel area. Each one can be used accordingly
as the following example:
1. Turning your TV set ON/OFF [TV POWER]
2. Selecting screen RATIO [Auto, 16:9, 4:3, etc)]
3. Increasing/decreasing volume [VOL+ , VOL-]
4. Command confirmation [BACK or EXIT]
The other 48 keys are for the control of the EDISION set-top-box.
SET UP FOR LEARNING FUNCTION
• Press [TV POWER] key in the up right hand side TV keypad panel area continuously for 5 Sec. until the LED lights up and keep lighting, then release the
key. This means the remote control is in the learning mode.
• Within 10 seconds, press the key in the original TV IR control, which needs to be learned, for example the [POWER] key, then the red LED is flashing. It
means this button is ready to receive the learning signal.
• Aim the emission port of the original TV remote control at the front at the emission port at the front of your set-top box remote control (distance between
these two ports has to be about 2~3 CM).
• Then press the key which is to be learned in your original TV remote control, for example the [POWER] key of your original TV remote control continuously
for 3 seconds. If the red LED flashes quickly for three times and keep lighting, it means the set-top box remote control has succeeded in receiving the
signal and you have completed the learning procedure of ON/OFF [TV POWER] key.
• Then release the [POWER] key of your original TV remote control.
If the copying procedure fails , the red LED will blink and stay OFF. In this case please repeat the procedure.
For the next programmable function, please repeat steps 1 to 3:
• Selecting screen ratio with RATIO [Auto, 16:9, 4:3, etc]
• Increasing/decreasing volume [VOL+ , VOL-]
• Command confirmation [BACK or EXIT]
Now you can operate your TV with the 5 programmed by you keys of your set-top box remote control. During the operation, the LED will flash to indicate that the
signal is transmitted!
* For EDISION STB compatibility, please visit our webpage
**LG & SAMSUNG are brand names that belong solely to LG Electronics Inc. and Samsung Electronics Co., Ltd
respectively. Any brand name reference in this text is only for informational purposes towards the consumer
that is interested in the product.
EDISION HELLAS LTD • FARMAKEIKA - 57001 N. RYSIO • THESSALONIKI - GREECE
TV POWER
VOL +
VOL - BACK
RATIO
Visit us on:
www.edision.gr
