Echo CS-330T, CS-360T User Manual

Chain Saw

Instruction Manual

MODELS : CS-330T

CS-360T

X7503242004

WARNING DANGER

Read rules for safe operation and instructions carefully. ECHO provides an Instruction Manual and a Safety Manual. Both must be read and understood for proper and safe operation.

X750007744 06/06

RULES FOR SAFE OPERATION

A. Kickback Safety Precautions for Chain Saw Users

WARNING!

KICKBACK may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a lightning fast reverse REACTION, Kicking the guide bar up and back towards the operator . Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury .

The Kick Guard ® device is not installed on the guide bar when you purchase your ECHO chain saw. The Kick Guard ® can be used in a majority of cutting operations, and is especially recommended for beginners, homeowners, or chain saw novices.

Most cutting operations can be accomplished with the Kick Guard® in place.

Do not rely exclusively upon the safety devices built into your saw. As a chain saw user , you should take several steps to keep your cutting jobs free from accident or injury .

1. With a basic understanding of kickback, you can reduce or eliminate the element of surprise. Sudden surprise contributes to accidents.

2. Keep a good firm grip on the saw with both hands, the right hand on the rear handle, and the left hand on the front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce kickback and maintain control of the saw . Don’t’ let go.

3. Make sure that the area in which you are cutting is free from obstructions. Do not let the nose of the guide bar contact a log, branch, or any other obstruction which could be hit while you are operating the saw.

4. Cut at high engine speeds.

5. Do not overreach or cut above shoulder height.

6. Follow manufacturer’s sharpening and maintenance instructions for the saw chain.

7. Only use replacement bars and chains, or the equivalent, specified by the manufacturer.

B. Other Safety Precautions

1. Do not operate a chain saw with one hand! Serious injury to the operator, helpers, byst anders, or any combination of these persons may result from one-handed operation. A chain saw is intended for two-handed use.

2. Do not operate a chain saw when you are fatigued.

3. Use safety footwear; snug-fitting clothing; protective gloves; and eye, hearing and head protection devices. Wear protective hair covering to contain long hair .

4. Use caution when handling fuel. Move the chain saw at least 3 m (10 feet) from the fueling point before starting the engine.

5. Do not allow other persons to be near the chain saw when starting or cutting with the chain saw . Keep bystanders and animals out of the work area.

6. Do not start cutting until you have a clear work area, secure footing, and a planned retreat path from the falling tree.

7. Keep all parts of your body away from the saw chain when the engine is running.

14.Keep the handles dry , clean, and free of oil or fuel mixture.

8. Before you start the engine, make sure that the saw chain is not contacting anything.

9. Carry the chain saw with the engine stopped, the guide bar and saw chain to the rear , and the muffler away from your body .

10.Do not operate a chain saw that is damaged, improperly adjusted, or not completely and securely assembled. Be sure that the saw chain stops moving when the throttle control trigger is released.

11.Shut off the engine before setting the chain saw down.

12.Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance.

13.When cutting a limb that is under tension, be alert for spring back so that you will not be struck when the tension in the wood fibers is released.

15.Operate the chain saw only in well-ventilated areas.

16.Do not operate a chain saw in a tree unless you have been specifically trained to do so.

17.All chain saw service, other than the items listed in the Instruction Manual maintenance instructions, should be performed by competent chain saw service personnel. (For example, if improper tools are used to remove the flywheel or if an improper tool is used to hold the flywheel in order to remove the clutch, structural damage to the flywheel could occur and could subsequently cause the flywheel to burst.)

18.When transporting your chain saw, use the appropriate guide bar scabbard.

19.Spark arrestor mufflers approved to SAE S tandard J335b are Standard on ECHO Chain saws to reduce the possibility of forest fires. Do not operate the chain saw with a loose or defective muffler . Do not remove the spark arrestor screen.

WARNING DANGER

• During operation, the muffler or catalytic muffler and surrounding cover become hot.

• Never suspend the saw on a lanyard with the engine running.

• Always use the saw from the right-hand side of your body – NEVER from the left side.

• Always wear proper safety clothing to protect your lower body from sharp saw chain and hot

muffler.

• Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result.

W ARNING DANGER

Using improper replacement components or removing safety devices may result in serious or fatal injury .

CONTENTS

Page

Rules for Safe Operation..................................................................................................2

T echnical Data .................................................................................................................5

Emission Data .................................................................................................................6

Description ......................................................................................................................6

Nomenclature of Parts...................................................................................................... 7

Preparation for Use.......................................................................................................... 8

Fuel and Lubricant..........................................................................................................10

Operation....................................................................................................................... 11

St arting Cold Engine ...................................................................................................... 11

St arting Warm Engine .................................................................................................... 12

Stopping ........................................................................................................................12

Cutting Instructions .........................................................................................................13

Maintenance and Care...................................................................................................16

Chain and Guide Bar Combinations...............................................................................19

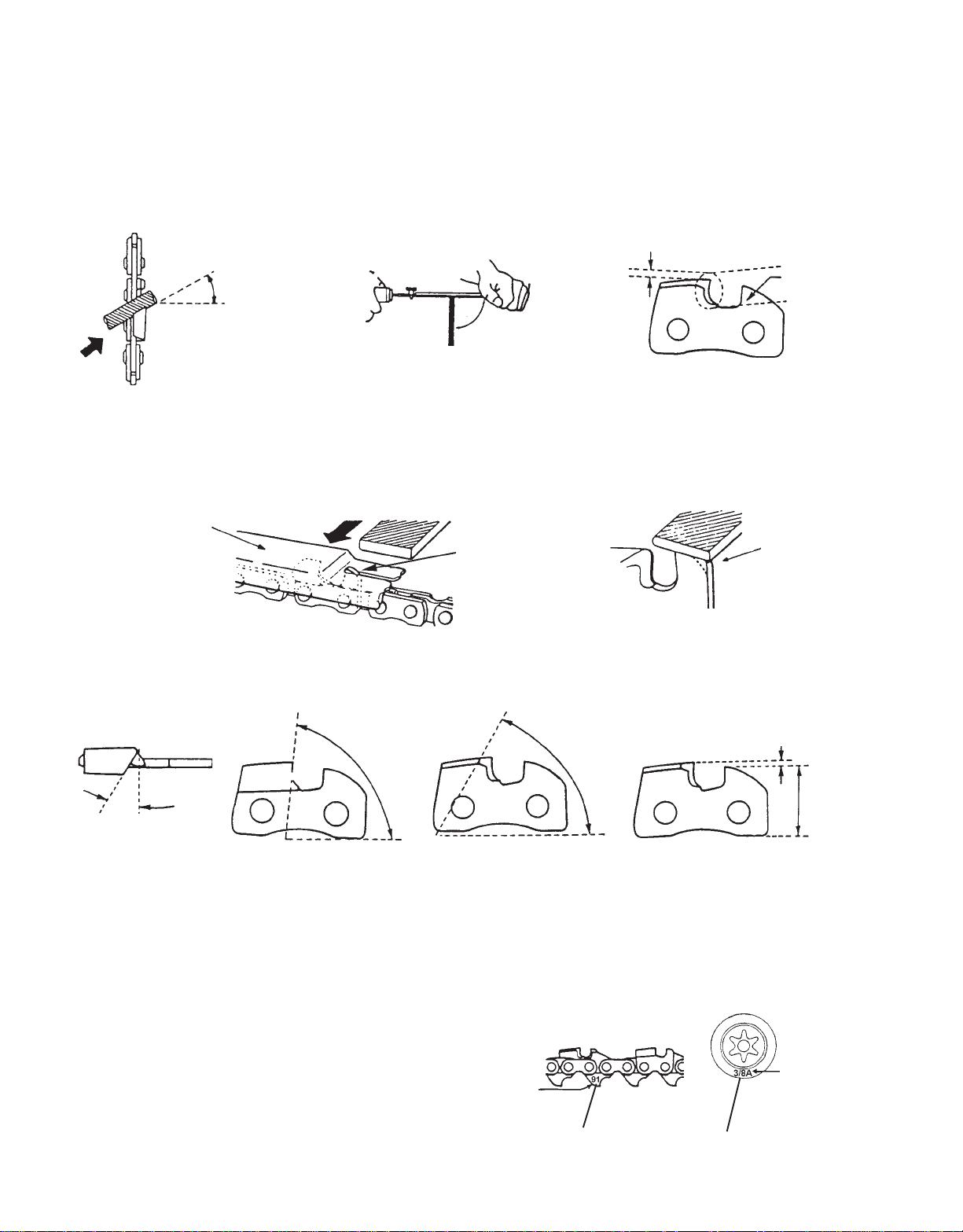

Setting the Saw Chain.................................................................................................... 20

Troubleshooting..............................................................................................................21

Storage..........................................................................................................................24

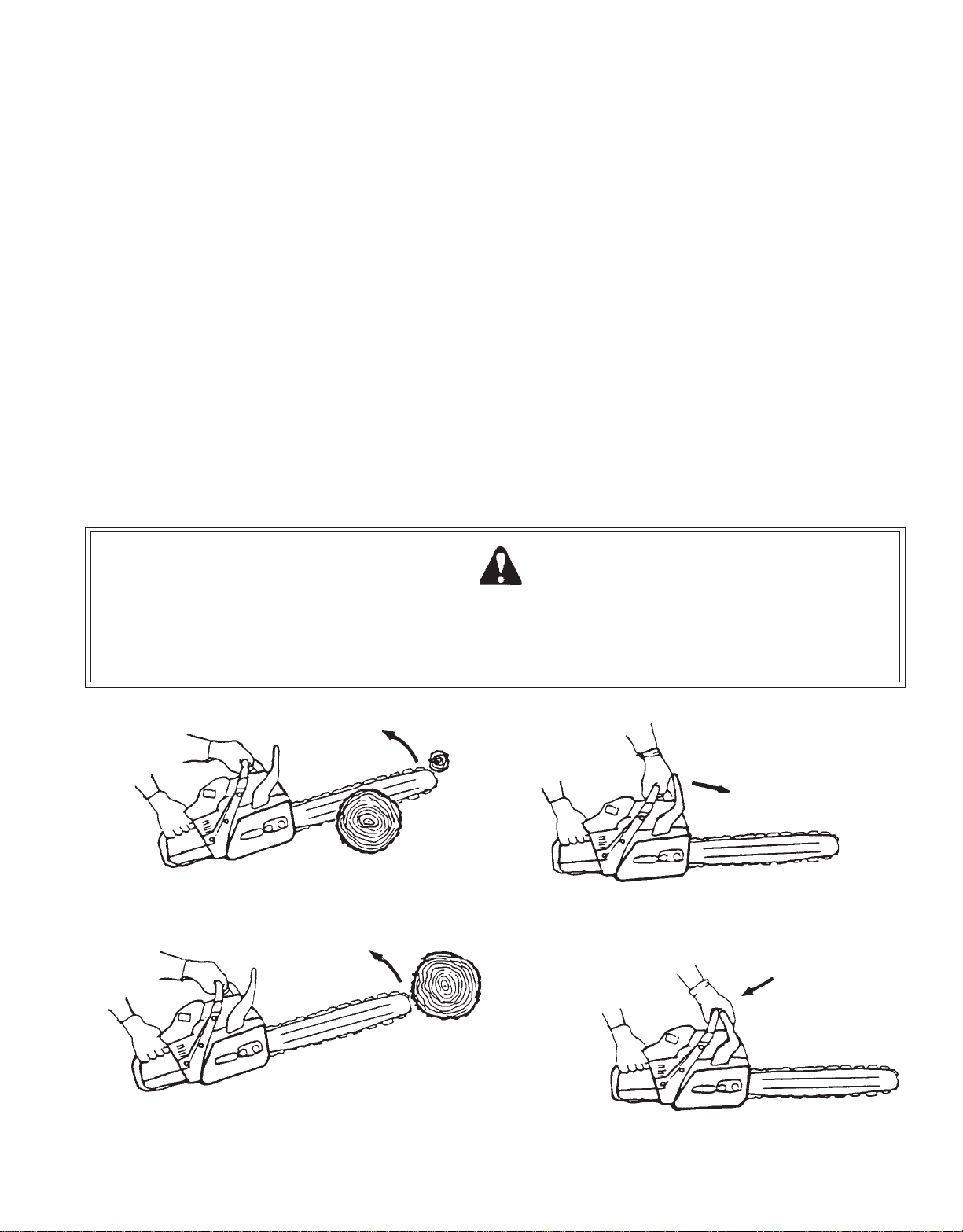

Correct Use of Chain Brake ...........................................................................................24

Servicing Information...................................................................................................... 28

INTERNATIONAL SYMBOLS

Symbol form/shape Symbol description/application Symbol form/shape Symbol description/application

Read and understand Operator's Manual.

Wear eyes, ears and head protection

Emergency stop

STOP

Choke control “Cold Start” position (choke closed)

Gasoline and oil mixture

Chain oil fill

Chain oil pump

Chain oiler adjustmentChain brake operation

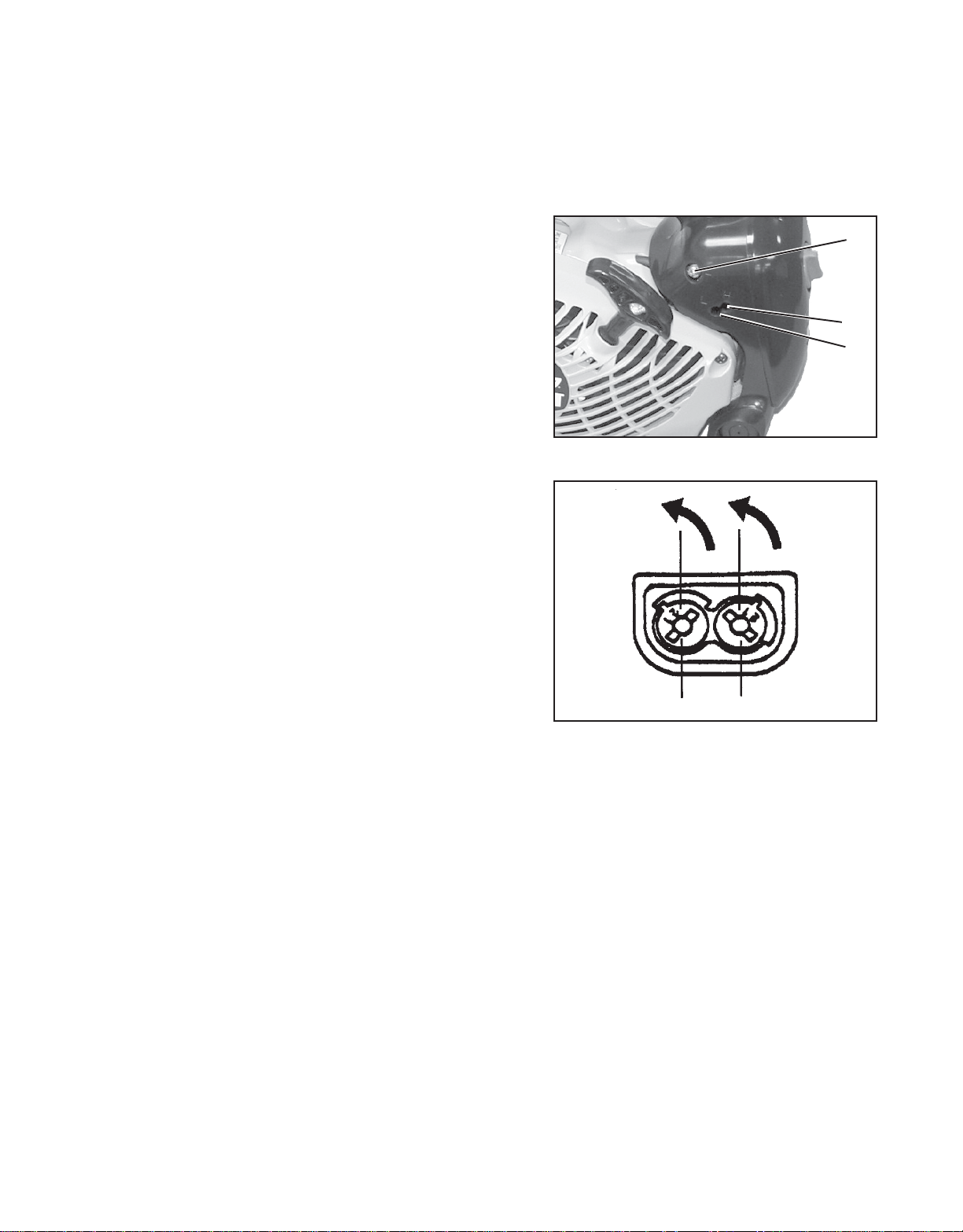

Carburetor adjustment

- Low speed mixture

Carburetor adjustment

- High speed mixture

Carburetor adjustment

- Idle speed

TECHNICAL DATA

leuF

ledoM

thgieW

enignE

noisnemiDHxWxL

mm412x742x772

hcni4.8x7.9x9.01

yrd,daehrewoPgk)bl9.7(6.3

epyT rednilycelgnis,ekorts-owt,delooc-riA

tnemecalpsiD).ni.uc989.1(6.23).ni.uc512.2(3.63

terubraC

noitingI

gulPkrapS

retratS

noissimsnartrewoP

oitarerutxiMdnelBrewoPohcEhtiwoitar1:05

yti

capaCknaTlm).zolf.S.U5.01(013

niahcdnaraB )liorotomro(lioniahcdnarabOHCE

T033-SCT063-SC

hctuohtiW

epytmgarhpaiD

560.-Y8-MPBKGN retratslioceR

rabediugdnania

metsysIDC:otengamleehwylF

paG).ni620.(mm

hctulclagufirtneccitamotuA

.lioekorts-2

,lohoclalyhtemgniniatnocleufesutonoD.dedaelnuenatco98

.EBTM%51rolohoclalyhte%01nahterom

liO

rabediuG

niahcwaS

dradnatS

serutaef

eldI

MPRenignE

kcabkciK

ytefaS

serutaeF

yticapaCknaTlm).zolf.S.U8.9(092

oitacirbuL pmupliocitamotuaelbatsujdA

dradnatS

lanoitpO

)TOW(elttorhTnepOediW

.ni41.ni61

.ni61,21.ni41,21

eldnaHpoT

draugdnahtnorF

ecivednoitarbiv-itnA

tuokcollortnocelttorhT

rehctacniahC

otserrakrapS

008,2-004,2

005,41-005,31

ciKwoLdrauGelbuoD

ekarBniahC

drauGkciK

relffumcitylatacr

raBediuGk

niahCwaSkniLdrauGkciKwoL

reveLekarBniahC/drauGdnaHtnorF

* Technical data subject to change without notice.

EMISSION CONTROL

EMISSION DATA

EPA Phase 2

The emission control system for these engines are EM/TWC (Engine Modification and Catalyst).

An Emission Control Label is located on the engine. (This is an EXAMPLE ONLY, information on label varies by engine FAMILY).

PRODUCT EMISSION DURABILITY

The 300 hour emission durability compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable California and/or U.S. EPA emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual.

IMPORTANT ENGINE INFORMATION

ENGINE FAMILY: 6EXHS.0334KB DISPLACEMENT: 32.6 CC EMISSION COMPLIANCE PERIOD: 300 HOURS

THIS ENGINE MEETS U.S. EPA PH2 AND 2005 - 2006 CALIFORNIA EMISSION REGULATIONS FOR SOREs. REFER TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

DESCRIPTION

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, guide bar and saw chain installation and other assembly may be necessary.

After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

CONTENTS

1 - Power Head 1 - Guide Bar 1 - Kick Guard 1 - Hex Head Bolt 1 - Hex Nut 1 - Saw Chain 1 - Instruction Manual 1 - Safety Manual 1 - Warranty Registration Card 1 - Limited Warranty Statement 1 - T-Wrench 1 - Echo Power Blend TM 2-stroke oil sample

CS-330T, CS-360T

NOMENCLATURE OF PARTS

P/N X5240001710

P/N 89022839131

P/N X503006550 P/N X503006590

P/N 89019130131

P/N 89016006361

P/N X503006550

P/N 89022839131

P/N X524001710

GUIDE BAR* CHAIN*

PART NO. TYPE LINKS 12” 12AOED3745 OREGON 91VG 45 14” 14AOED3752 OREGON 91VG 52 16” 16AOED3757 OREGON 91VG 57

1. Hand guard (Chain brake actuating lever)

2. Ignition/Choke Lever

3. Throttle control trigger

4. Throttle control lockout

P/N X503006590

P/N X505002060

REPLACEMENT BAR AND CHAIN

Note:There may be other replacement

components for achieving kickback protection. For details, please refer to the chain and bar combination sheet shown in the instruction manual.

5. Air cleaner cover

6. Pull starter

7. Front handle

8. Oil tank cap

9. Fuel tank cap

P/N 89019130131

P/N 89016006361

* If a decal cannot be read, a new one can be ordered

from your ECHO dealer.

10. Saw chain

11. Guide bar

12. Sprocket guard

13. Catalytic muffler

14. Spark Plug

15. Rear (Top) Handle

PREPARATION FOR USE

KICK GUARD® TO BAR INSTRUCTIONS

For saws with Kick Guard® P/N 2894901 and symmetrical or asymmetrical low-kick type guide bars.

1. Install bolt (A) in rear hole (B) of Kick Guard® and through front hole (C) in guide bar.

IMPORTANT: Dimple in Kick Guard® (D) must engage recess in guide bar (E).

3. Tighten nut (F) and bolt (A) until snug. Make certain Kick Guard® is flush against guide bar.

GUIDE BAR AND SAW CHAIN-INSTALL/ REMOVE

W ARNING DANGER

Saw Chain is sharp! Always wear gloves when handling assembly, otherwise serious personal injury may result.

1. Move chain brake lever (G) fully rearward to unlock chain brake.

IMPORTANT

Always loosen guide bar nuts before turning chain tension adjuster, otherwise clutch cover and tensioner will

be damaged.

2. Remove two guide bar nuts (H). Turn tension adjustment screw (J) counterclockwise 2 to 3 turns if bar and chain are installed.

3. Push clutch cover (K) forward, pull rear of cover out slightly , then remove.

4. Remove guide bar and saw chain if necessary .

NOTE: See “MAINTENANCE AND CARE” instructions for guide bar, sprocket, and saw chain maintenance.

5. Mount guide bar (L) on studs, and slide toward sprocket to make saw chain installation easier . Install saw chain (M) over clutch and place around sprocket and guide bar as shown, with cutters on top of guide bar facing forward.

6. Align holes of clutch cover (K) with guide bar studs, and tensioner pin (N) with lower guide bar adjuster hole. Install cover, then press and hold rear of cover to fully seat. Tighten guide bar nuts finger tight.

7. Turn saw over and check brake band (O) for correct position around clutch drum (P). If brake band is not in place around drum, remove clutch cover, make sure brake is released, and reinstall.

DANGER

Never operate saw if chain brake does not function properly, otherwise saw damage and serious personal injury could result. See “Testing the Brake” instructions.

8. Adjust saw chain tension, as instructed in “Adjustment, Chain Tension”

ADJUSTMENT, CHAIN TENSION

IMPORTANT

Always loosen guide bar nuts before turning chain tension adjuster, otherwise clutch cover and tensioner will be damaged.

1. Remove air filter cover and spark plug lead.

2. Loosen two guide bar nuts (H).

3. Hold the bar nose up, and turn the adjuster screw (J) clockwise until the chain touches the bottom of the bar.

4. Tighten both guide bar nuts with bar nose held up.

IMPORTANT!

Tighten guide bar nuts to 90 – 110 kgf/cm (80 – 95 in. lbs.) DO NOT over-tighten nuts. Damage to saw may result.

5. Pull the saw chain around the guide bar by hand. Reduce chain tension, if you feel tight spots.

NOTE

All chains require frequent adjustments.

6. Keep chain properly tensioned at all times.

7. Replace spark plug lead and air filter cover.
