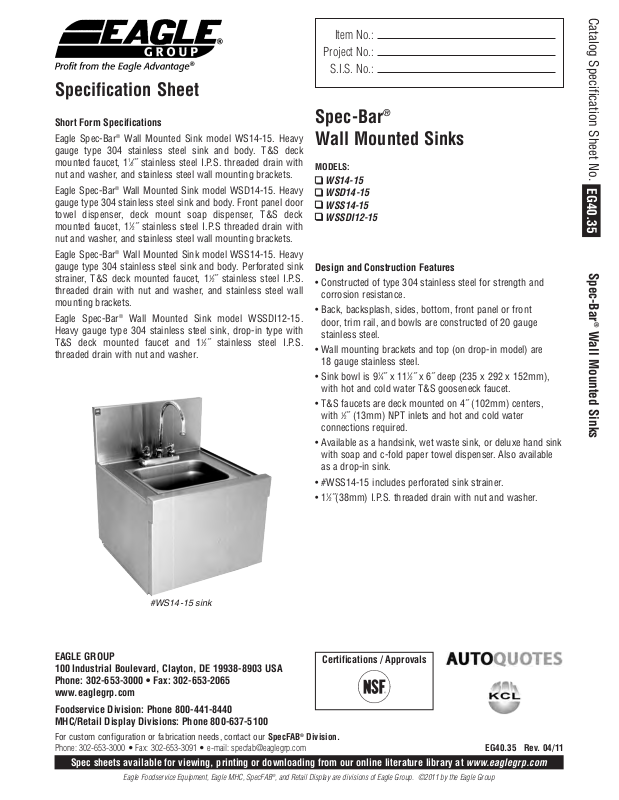

Eagle WS14-15 User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
®
Eagle Spec-Bar
Wall Mounted Sink model WS14-15. Heavy
gauge type 304 stainless steel sink and body. T&S deck
1
mounted faucet, 1
⁄2˝ stainless steel I.P.S. threaded drain with
nut and washer, and stainless steel wall mounting brackets.
Eagle Spec-Bar®Wall Mounted Sink model WSD14-15. Heavy
gauge type 304 stainless steel sink and body. Front panel door
towel dispenser, deck mount soap dispenser, T&S deck
1
mounted faucet, 1
⁄2˝ stainless steel I.P.S threaded drain with
nut and washer, and stainless steel wall mounting brackets.
®
Eagle Spec-Bar
Wall Mounted Sink model WSS14-15. Heavy
gauge type 304 stainless steel sink and body. Perforated sink
1
strainer, T&S deck mounted faucet, 1
⁄2˝ stainless steel I.P.S.
threaded drain with nut and washer, and stainless steel wall
mounting brackets.
Eagle Spec-Bar®Wall Mounted Sink model WSSDI12-15.
Heavy gauge type 304 stainless steel sink, drop-in type with
1
T&S deck mounted faucet and 1
⁄2˝ stainless steel I.P.S.
threaded drain with nut and washer.
Spec-Bar
®
Wall Mounted Sinks
MODELS:
WS14-15
WSD14-15
WSS14-15
WSSDI12-15
Design and Construction Features
• Constructed of type 304 stainless steel for strength and
corrosion resistance.
• Back, backsplash, sides, bottom, front panel or front
door, trim rail, and bowls are constructed of 20 gauge
stainless steel.
• Wall mounting brackets and top (on drop-in model) are
18 gauge stainless steel.
• Sink bowl is 9
with hot and cold water T&S gooseneck faucet.
• T&S faucets are deck mounted on 4˝ (102mm) centers,
1
⁄2˝ (13mm) NPT inlets and hot and cold water
with
connections required.
• Available as a handsink, wet waste sink, or deluxe hand sink
with soap and c-fold paper towel dispenser. Also available
as a drop-in sink.
• #WSS14-15 includes perforated sink strainer.
1
⁄2˝(38mm) I.P.S. threaded drain with nut and washer.
• 1
1
⁄4˝ x 111⁄2˝ x 6˝ deep (235 x 292 x 152mm),
EG40.35
Spec-Bar
®
Wall Mounted Sinks
#WS14-15 sink
EAGLE GROUP
Certifications / Approvals
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
EG40.35 Rev. 04/11
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2011 by the Eagle Group
EG40.35
Spec-Bar®Wall Mounted Sinks
Item No.:
Project No.:
S.I.S. No.:
Catalog Specification Sheet No.
model # description in. mm in. mm lbs. kg
WS14-15 with front panel 15˝ 381 14˝ 356 22 10.0
Wall Mounted Sinks
®
Spec-Bar
TOP VIEW
FRONT VIEW SIDE VIEW
width length weight
TOP VIEW
TOP VIEW
FRONT VIEW SIDE VIEW
model # description in. mm in. mm lbs. kg
WSD14-15
w/front door
and dispensers
TOP VIEW
width length weight
15˝ 381 14˝ 356 30 13.6
FRONT VIEW SIDE VIEW
model # description in. mm in. mm lbs. kg
WSS14-15
w/perforated
sink strainer
width length weight
15˝ 381 14˝ 356 25 11.3
FRONT VIEW SIDE VIEW
width length weight
model # description in. mm in. mm lbs. kg
WSSDI12-15 drop-in model 15˝ 381 12˝ 305 15 6.8
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2011 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 04/11
