Eagle VeriLock User Manual

User’s Guide

VeriLock

User’s Guide

for Eagle VeriLock™ Integrated Security Sensors

Limited Publication Release

Eagle Window & Door is proud to introduce VeriLock™ integrated security sensors, an innovative security option that integrates wireless security sensors into Eagle® window and door products. The sensors, when ordered, are embedded within our windows and doors and can detect when the product is open or closed. The sensors also detect whether the product is locked or unlocked, something other security sensors are not able to do. This enables a simpliﬁed “check the windows and doors routine” at bedtime or departure. Additionally, all Eagle sensors, when used with a third party security and monitoring system, can be monitored and armed, even when you’re not home.

With integrated sensors, the beauty of Eagle products is maintained without unsightly wires, sensors or holes. Plus, the product warranty is maintained. Generally, third party security systems can void the manufacturer’s warranty with the installation of sensors and wires on windows and doors.

Eagle windows and doors with VeriLock integrated security sensors are designed to work in conjunction with a security system that is compatible with Honeywell reputable security dealer.

When properly integrated into a third party security system, Eagle’s VeriLock sensors are designed to:

• Detect whether your Eagle window or door is open

or closed

• Detect whether your Eagle window or door is

locked or unlocked

• Communicate changes in open/close and lock/

unlock wirelessly in a format compatible with Honeywell 5800 Series transmitters

• Monitor sensor battery level and communicate low

battery state in a format compatible with Honeywell 5800 Series transmitters

• Deliver comparable range to other wireless sensors based on Federal Communications Commission (FCC) regulations that limit RF

transmit power levels

5800 Series transmitters installed and monitored by a

To experience the full beneﬁts of VeriLock sensors, an experienced security system dealer is required to:

• Select and install a security system compatible with

Honeywell 5800 Series transmitters

• Specify a system to accommodate the number of

Eagle windows and doors in the dwelling

• Congure each VeriLock sensor into the specied

security system, as each sensor has its own unique identiﬁcation code permanently assigned

• Program the security system using Eagle’s

recommended zone descriptors

• Adjust the system for wireless range deciencies

due to size or layout of home through the use of

wireless repeaters and/or additional wireless

receivers

Eagle Window & Door is not afﬁliated with Honeywell. Eagle’s VeriLock sensors are independent of the security system, yet communicate with it to provide added features and beneﬁts for windows and doors that only Eagle can offer.

“Eagle” and all other marks denoted are trademarks of Eagle Window & Door Manufacturing, Inc. and its parent company. “Honeywell” is a registered trademark of

User’s Guide

Table of Contents

Introduction .................................................................................1

Table of Contents .............................................................................2

General Safety Warnings........................................................................2

Operating Instructions .........................................................................3

How Sensors Work ..........................................................................3

Locking Windows and Doors ...................................................................3

Keypad and Control Panel .....................................................................3

Verication Information ........................................................................4

Battery Information............................................................................5

Battery Type................................................................................5

Battery Size and Quantity......................................................................5

Battery Speciﬁcations ........................................................................5

Battery Availability ...........................................................................5

Battery Life ................................................................................5

Battery Disposal.............................................................................5

Battery Replacement Instructions ..............................................................6 - 9

Tools Needed for Battery Replacement ...........................................................6

Casement and Awning Windows ............................................................... 6

Double-Hung and Single-Hung Windows..........................................................7

Monumental Single-Hung Windows .............................................................8

Hinged French Doors .........................................................................9

Sliding Door...............................................................................10

Finishing and General Care .................................................................10 - 12

Finishing .................................................................................10

Cleaning Hardware and Sensors ...............................................................12

Troubleshooting .........................................................................13 - 14

Frequently Asked Questions...................................................................13

Glossary ...................................................................................15

Regulatory Statements ........................................................................16

Federal Communications Commission (FCC) Part 15 Statement .......................................16

Limitations .................................................................................16

Limited Warranty for Eagle

Windows and Doors with VeriLock™ Integrated Security Sensors ............17 - 20

General Safety Warnings

Do not leave openings unattended when small children are present. Falling from an opening may result in serious injury or death.

Follow manufacturer’s instructions for hand or power tools. Always wear safety glasses. Failure to do so may

result in injury and/or product damage.

Operating Instructions

WASH

User’s Guide

Double-Hung, Single-Hung

and Monumental Single-Hung Windows

How Sensors Work

Sensors are integrated within the locking mechanisms. When properly conﬁgured into the security system, a sensor within the lock signals when the window is in the closed position. When the locking mechanism is engaged, a second signal is sent to the control panel indicating that the window or door is locked.

Locking Windows and Doors

Casement and Awning Windows

– To lock the

window, ﬁrst close the window sash. Then push the

sash lock lever(s) on the side jamb(s) from the upper

position to the lower position.

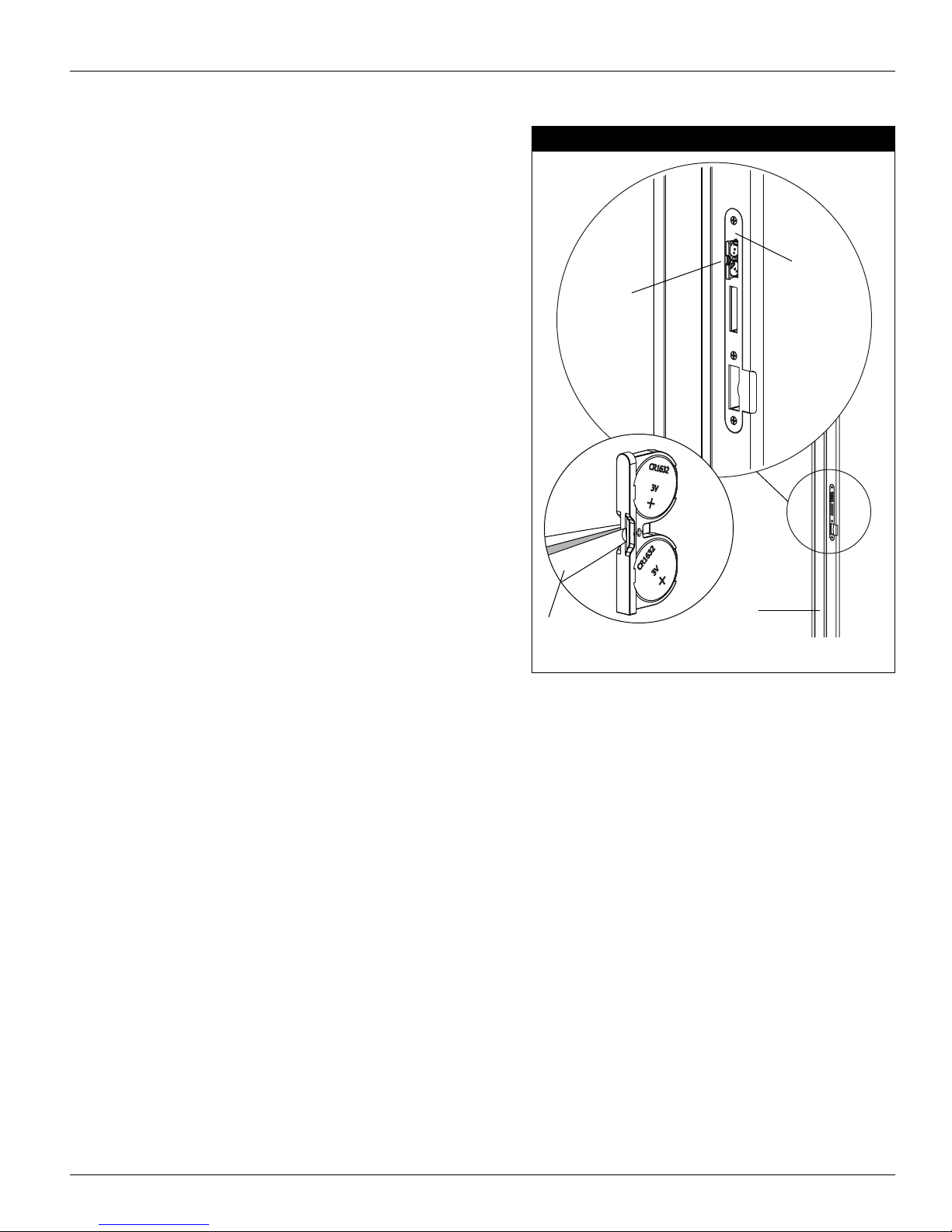

Casement and Awning Windows

Lock Lever

Unlocked

Hinged French Doors

– To lock the door, ﬁrst move

Locked

the door panel to the closed position and allow the multi-point locking mechanism to engage at top, center and bottom. Then turn the thumb turn latch to the horizontal position.

Hinged French Doors

Thumb Turn

Latch

Side Jamb

Unlocked

Lever Up

Side Jamb

Lock Lever

Locked

Double-Hung, Single-Hung and Monumental Single-

Hung Windows

– To lock the window, ﬁrst make sure

Lever Down

that both window sash are in the closed position. Then rotate each lock lever toward its respective side

jamb (left sash lock illustrated above right).

LockedUnlocked

Sliding D

oors

– To lock the door, ﬁrst slide the door panel to the closed position. Then turn the thumb turn latch to the horizontal position.

Sliding Doors

Thumb Turn

Latch

LockedUnlocked

Keypad and Control Panel

For limited warranty information and details regarding operation and limitations of your third party security system, please refer to the User’s Guide included with

your compatible security system. Contact your

security system dealer for troubleshooting and concerns regarding the keypad and control panel.

Veriﬁcation Instructions

OFF

MAX

INSTANT

READY

AWAY

TEST

CODE

STAY

BYPASS

CHIME

ARMED

READY

FAULT 10 KITCHEN WINDOW OPEN

Example of Keypad Monitoring Device

OFF

MAX

INSTANT

READY

AWAY

TEST

CODE

STAY

BYPASS

CHIME

ARMED

READY

FAULT 11 KITCHEN WINDOW UNLOCKED

Example of Keypad Monitoring Device

OFF

MAX

INSTANT

READY

AWAY

TEST

CODE

STAY

BYPASS

CHIME

ARMED

READY

DISARMED

READY TO ARM

Example of Keypad Monitoring Device

****

1. Open window/door and look for a “FAULT” message associated with window/door open on

keypad.

2. Close window/door and look for a “FAULT” message associated with window/door unlocked

on keypad.

User’s Guide

3. Lock window/door and verify that no message associated with window/door appears on

keypad.

If all other window/doors are closed and locked

the message should read:

****DISARMED**** READY TO ARM

Note 1: “FAULT” messages associated with other windows/doors may be present on keypad during verication process. It may be helpful to close and lock all other windows that are part of the security system to avoid

confusion.

Note 2: Example messages provided above are accurate only if security system dealer follows Eagle’s

recommended zone descriptors during system conﬁguration.

Battery Information

User’s Guide

Battery Type:

Lithium Coin Cell Battery

Battery Size and Quantity:

For Casement Window: CR-1632 (2 per window) For Double-Hung Window: CR-2032 (1 per window) For Single-Hung Window: CR-2032 (1 per window) For Monumental Single-Hung Window: CR-2032

(1 per window) For Hinged French Door: CR-1632 (2 per door) For Sliding Door: CR-1632 (2 per door)

Battery Speciﬁcations:

Size: CR1632 Classication: Lithium Coin Cell Chemical System: Lithium/Manganese Dioxide (Li/MnO

)

Nominal Voltage: 3.0 Volts

provided by the Eagle limited warranty for VeriLock™ integrated security sensors.

Batteries carry the risk of re, explosion and burns. Do not recharge, disassemble, heat above 212 degrees F (100 degrees C) or incinerate. Dispose of

used batteries promptly and properly. Keep away from children.

Lithium Coin Cell Batteries

Typical Capacity: 130 mAh (to 2.0 volts)

Size: CR2032 Classication: Lithium Coin Cell Chemical System: Lithium/Manganese Dioxide (Li/MnO

)

Nominal Voltage: 3.0 Volts

Typical Capacity: 240 mAh (to 2.0 volts)

Battery Availability:

3.0 Volt lithium batteries are readily available at most department, hardware or drug stores in a variety of brands.

Battery Life:

Most 3.0 Volt lithium batteries will provide years of

operation. Actual battery life is dependent upon the environment in which the sensor is used and the number of signals the sensor has had to send. Other

factors such as humidity, temperature extremes or

large ﬂuctuations, may all lead to reduction of battery life. Batteries are not included in the coverage

Battery Disposal:

Lithium/Manganese Dioxide batteries are United States Resource Conservation and Recovery Act (RCRA) non-hazardous waste. However, it’s always a

best practice to dispose of your batteries at your local

Home Chemical Collection Center.

California Only: Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/

perchlorate.

Battery Replacement Instructions

Batteries are small parts and, if swallowed, could pose a choking hazard to young children.

When replacing the battery, do not touch any of the circuitry on the sensor. Static from your body could damage the sensor.

When a low battery is detected in a wireless sensor, a low battery message will display on your keypad when properly conﬁgured with your security system.

Tools Needed for Battery Replacement:

The tools needed are dependent upon the product in which the batteries are being replaced.

User’s Guide

the battery tray is facing upward. Continue to fully

push the battery tray in. The battery tray will encounter several points of light resistance as the batteries contact the sensor.

8. Verify the proper battery polarity by observing the L.E.D. light illumination during the battery

insertion. If the L.E.D. does not illuminate, check

to make sure Steps 6 and 7 were followed correctly and insert the battery tray in sensor.

9. Replace the lock bezel.

10. Close and lock the window unit.

11. Verify that the sensor is communicating with the

security control panel by unlocking the window and checking the keypad for the window unlock message and then opening the window and checking the keypad for the window open message. See page 4 for veriﬁcation instructions.

• Safety glasses • Flashlight

• Small needle nose pliers • Phillips screwdriver

• Small at head screwdriver

Casement and Awning Windows

1. Move the window lock lever(s) from the lower locked

position to the center position. The sash can be opened or closed.

2. Remove the lock bezel using a small at head

screwdriver, taking care not to scratch the wood or

lock bezel (right-hand lock for awning windows). Removal of the lock lever is not necessary.

3. Below the lock lever in the lock bezel opening, locate the battery tray tab. Due to the recessed location of this tab, the use of a ﬂashlight may be necessary to illuminate the work area.

4. Using a small needle nose pliers, carefully pull on the tab to remove the battery tray.

5. Remove the discharged batteries (see battery disposal information on page 5).

Casement and Awning Windows

Lock Lever

Arrow Up

Battery

Tray Tab

Tray

Arrow

Side Jamb

6. Replace the batteries with two fresh CR-1632 lithium

coin cell batteries. Take care to properly position the “+” terminals of both batteries to correspond with the “+” marking on the battery tray for proper battery polarity.

7. Again using a small needle nose pliers, insert the battery tray making sure the arrow on the face of

Battery Tray

Lock Bezel

Interior View
