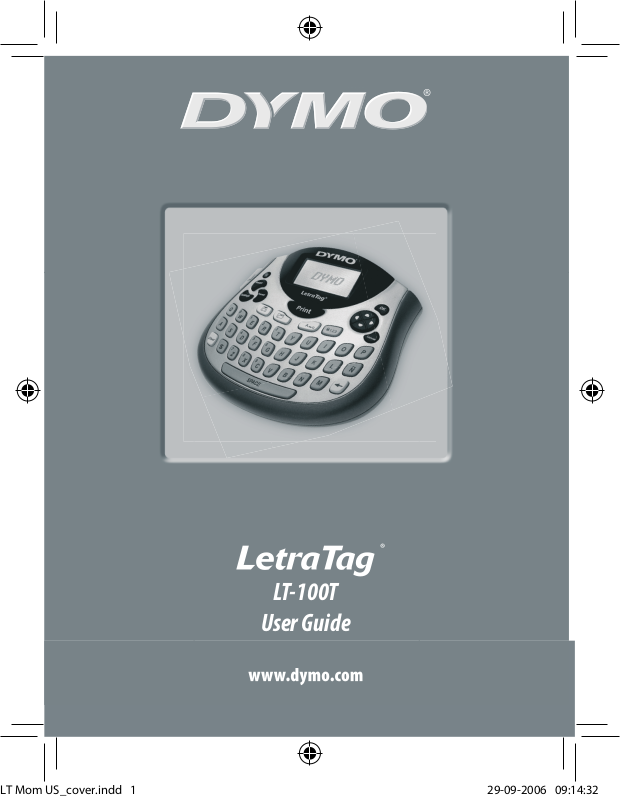

Dymo S0758370 User Manual

LT-100T

User Guide

®

LT Mom US_cover.indd 1 29-09-2006 09:14:32

LetraTag User Guide

Memory

Label Exit Print LCD Display

Power

Cutter

Insert

Format

Settings

Clear

2

Memory

Save

Recall

Clear

Space Bar

Figure 1 DYMO LetraTag Labelmaker

Cancel

Power Connector

OK
Navigation
Cancel

Num Lock

CAPs

Backspace

About Your New Labelmaker

With your new DYMO LetraTag® labelmaker, you can create a wide
variety of high-quality, self-adhesive labels. You can choose to print
your labels in many different font sizes and styles. The labelmaker
uses DYMO LetraTag (LT)
available in multiple colors of plastic and metallic tape, and in white
iron-on tape.

Visi t www.dymo.com for information on obtaining labels and
accessories for your labelmaker.

12 mm

label cassettes. LT cassettes are

Warranty Registration

Please complete the warranty registration card and return it to the
appropriate Customer Support address within seven days. Visit

www.dymo.com/registration for details or to register online.

Getting Started

Follow the instructions in this section to print your first label.

Connecting the Power

The labelmaker is powered by standard batteries or an AC power
adapter. To save power, the labelmaker will automatically turn off
after two minutes of inactivity.

3

Inserting the Batteries

The labelmaker uses four high-capacity AA alkaline batteries.

To insert the batteries

1. Remove the battery compartment
cover. See Figure 2.

2. Insert the batteries following the
polarity markings (+ and –).

3. Replace the cover.

Remove the batteries if the

!

labelmaker will not be used for a long
period of time.

Figure 2

Connecting the Optional Power Adapter

An optional 9 Volt, 1.5 A power adapter can also be used to power
the labelmaker. Connecting the AC adapter to the labelmaker
disconnects the batteries as a power source.

To connect the power adapter

1. Plug the power adapter into the power connector on the top of
the labelmaker.

2. Plug the other end of the power adapter into a power outlet.

4

Make sure the labelmaker power is turned off before you

!

disconnect the power adapter from the main power source.
Otherwise, your most recent memory settings will be lost.

Inserting the Label Cassette

Your labelmaker comes with one
label cassette. Visit
www.dymo.com for information
about purchasing additional label
cassettes.

To insert the label cassette

1. Lift the label cassette cover to
open the label compartment. See Figure 3.

Before using the

!

labelmaker for the first time,
remove the protective
cardboard insert from label exit
slot. See Figure 4.

2. Insert the cassette with the
label positioned between the

Remove
cardboard insert

print head and pinch roller.

3. Press firmly until cassette clicks into place.

Figure 3

Figure 4

5

4. Close the label cassette cover and press to turn on the
power.

Selecting a Language

The first time you turn on the power, you are asked to select your
desired language. By default, the language is set to English. The
language option you choose determines the character set that is
available.

To select a language

1. Press .

2. Use the up or down arrow key to select

3. Use the up or down arrow key to select the language you want
and press .

Language

and press .

Setting the Date and Time

You need to set the current date and time so that the date is correct
if you choose to automatically insert a date on your label.

To set the date and time

1. Press .

2. Use the up or down arrow key to select Set Date and press .

The default date is displayed.

6

3. Use the left or right arrow key to move the cursor over each
setting (month, day, and year) and use the up or down arrow
keys to increase or decrease the value.

4. When finished, press .The default time is displayed.

5. Use the left or right arrow key to move the cursor over each
setting (hours and minutes) and use the up or down arrow keys
to increase or decrease the value.

6. When finished, press .

Printing Your First Label

You are now ready to print your first label.

To print a label

1. Enter text to create a simple label.

2. Press .

3. Press the cutter button to cut the label.

Congratulations! You printed your first label. Continue reading to
learn more about the options available for creating labels.

7

Getting to Know the Labelmaker

k

Become familiar with the location of the feature and function keys
on your labelmaker. Refer to Figure 1 on the inside front cover. The
following sections describe each feature in detail.

Power

The button turns the power on and off. After two minutes of no
activity, the power is switched off automatically. The last label
created is remembered and displayed when the power is turned
back on. The previously selected style settings are also restored.

You can also press to cancel printing and return to edit mode.

LCD Display

You can enter up to 100 characters and spaces on a label; however,
the display will only show a small portion of the characters.

And, with DYMO’s exclusive graphical
display, any formatting you add is
visible instantly. For example, the
italics and rounded border added to
the text in Figure 5 are clearly
displayed.

Feature indicators appear along the
top of the display to let you know
when a feature is selected.

8

Font size # lines CAPs Num Loc

Figure 5
