User Manual
TViX HD M-4000P / 4000S
All specifications and information are subject to changes without further notices
GY
Safety Notice
Do not take out the internal hard drive by yourself. The internal hard drive is very hot when it is
working. The warranty will be void if any other hard drive is inserted into TViX.
"Do not block any ventilation openings. Ensure that a free airflow is maintained around the appliance."
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Do not expose TViX to oil, smoke, water,
humidity and dust.
Do not touch power plug with wet hands or do
not use defective power cable & loose outlet. It
may cause electric shock or fireUG
Be careful not to drop TViX from a height. It
will damage the internal hard drive.
Keep TViX away from heat or fire.
Do not block any ventilation openings. Ensure
that a free airflow is maintained around the
appliance.
Do not disassemble the device; it may
cause malfunction or fire
UG
Magnetic material may erase the data in TViX.
Keep any magnetic material away from TViX.UG
GZ
Usage Precautions
Please read the following usage precautions before using your TViX HD.
Make sure the power is off when you connect the A/V cable between the TViX and the TV.
When cleaning the TViX product, pull out the power cord and then wipe it with a soft piece of dry cloth.
When connected to the computer through the USB cable the TViX HD acts as an external USB storage
device (In this state, there is no video/audio output and the VFD will show as USB ON). For normal TViX play
mode, disconnect the USB cable connected to the computer and turn on the TViX HD.
When the TViX HD is playing and the USB is connected to the computer, a USB ON icon will be displayed
on the center of the screen. Disconnecting the USB port will show the original screen.
Make sure the jumper setting of the hard disk which is installed on the TViX HD is set as Single Master.
Otherwise the hard disk will not be recognized by TViX HD.
When detaching the HDD, please let the heat out sufficiently.
The supplied cables and accessories are recommended for customized best performance of the TViX HD.
Using other cables or accessories may not provide best performance.
If you want to unplug the device, press the Stop button in 'Unplug or Eject Hardware'.
TViX M-4000S model is supporting the SATA hard disk only and M-4000P model is supporting the
PATA(General IDE) hard disk.
Windows 98SE and Windows ME does not support NTFS file format. However, NTFS file format is
available on Windows 2000/XP. “Primary Partition” is recommended when creating two or more partitions
with a single hard disk drive.
If you choose FAT32 file format on Windows 2000/XP, the drives maximum size will be limited to 32GBs.
If you want to use a single drive letter of 32GBs or more, you have to format on Windows 98SE/ME.
The certification sticker mark is on the bottom of the device.
You can insert the character using remote-numeric key. Number 1 key is changed as @ : / _ -
when this key is pressed.
** Some functions will require you to update the firmware in first.
G[
Table of Contents
Safety Notice .............................................................................................................................................. 2
Usage Precautions ..................................................................................................................................... 3
1 Introduction.................................................................................................5
1.1 Multimedia Player ....................................................................................................................... 5
1.2 Audio Player ............................................................................................................................... 6
1.3 External Storage ......................................................................................................................... 6
1.4 Specifications.............................................................................................................................. 7
2 Name of Each Part......................................................................................8
2.1 Control Panel .............................................................................................................................. 8
2.2 Cable Connection ....................................................................................................................... 8
2.3 Package Contents ...................................................................................................................... 8
3 Installation and Connection.......................................................................9
3.1 Making an HDD Folder ............................................................................................................... 9
3.2 Video Connection ..................................................................................................................... 10
3.3 Audio Connection ..................................................................................................................... 12
3.4 LAN Connection........................................................................................................................ 13

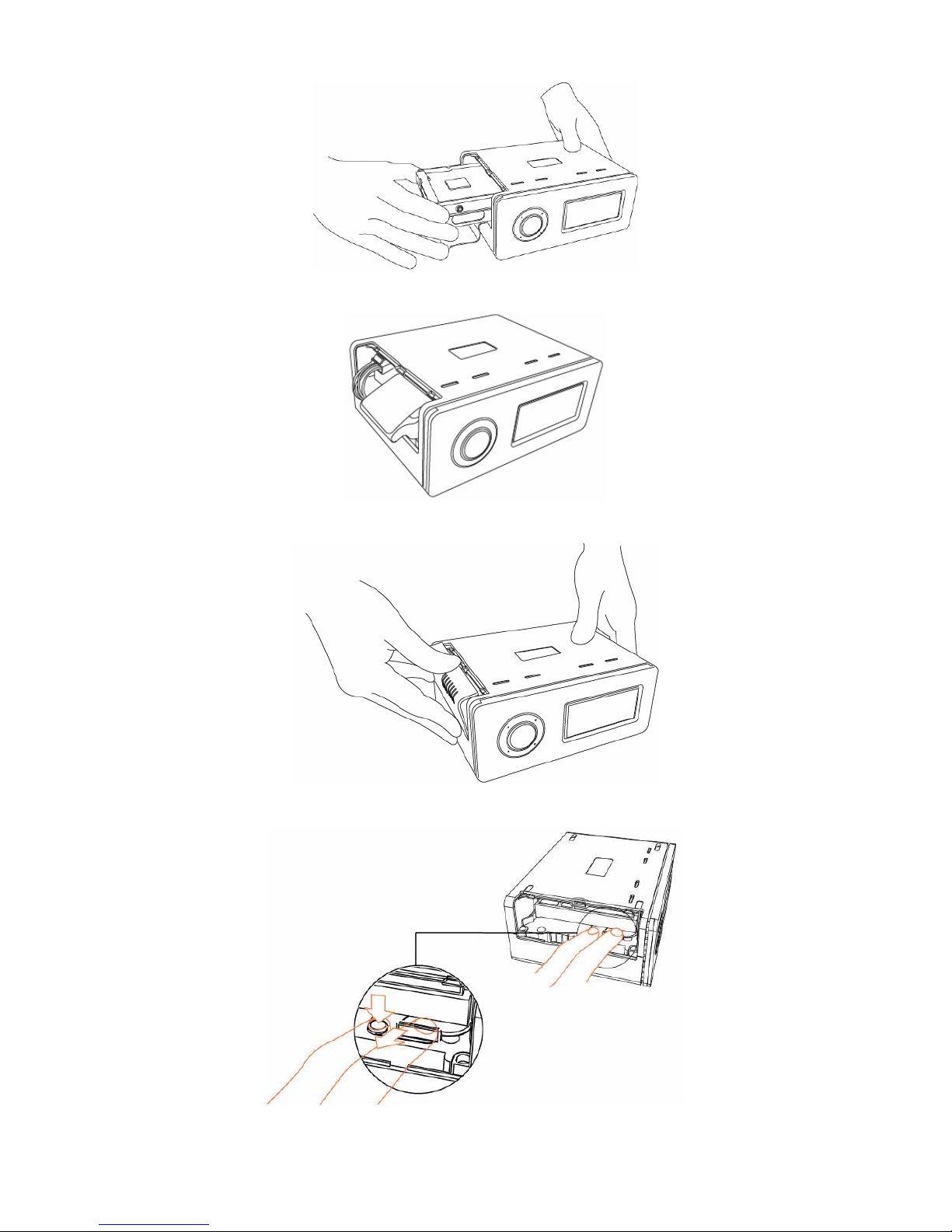

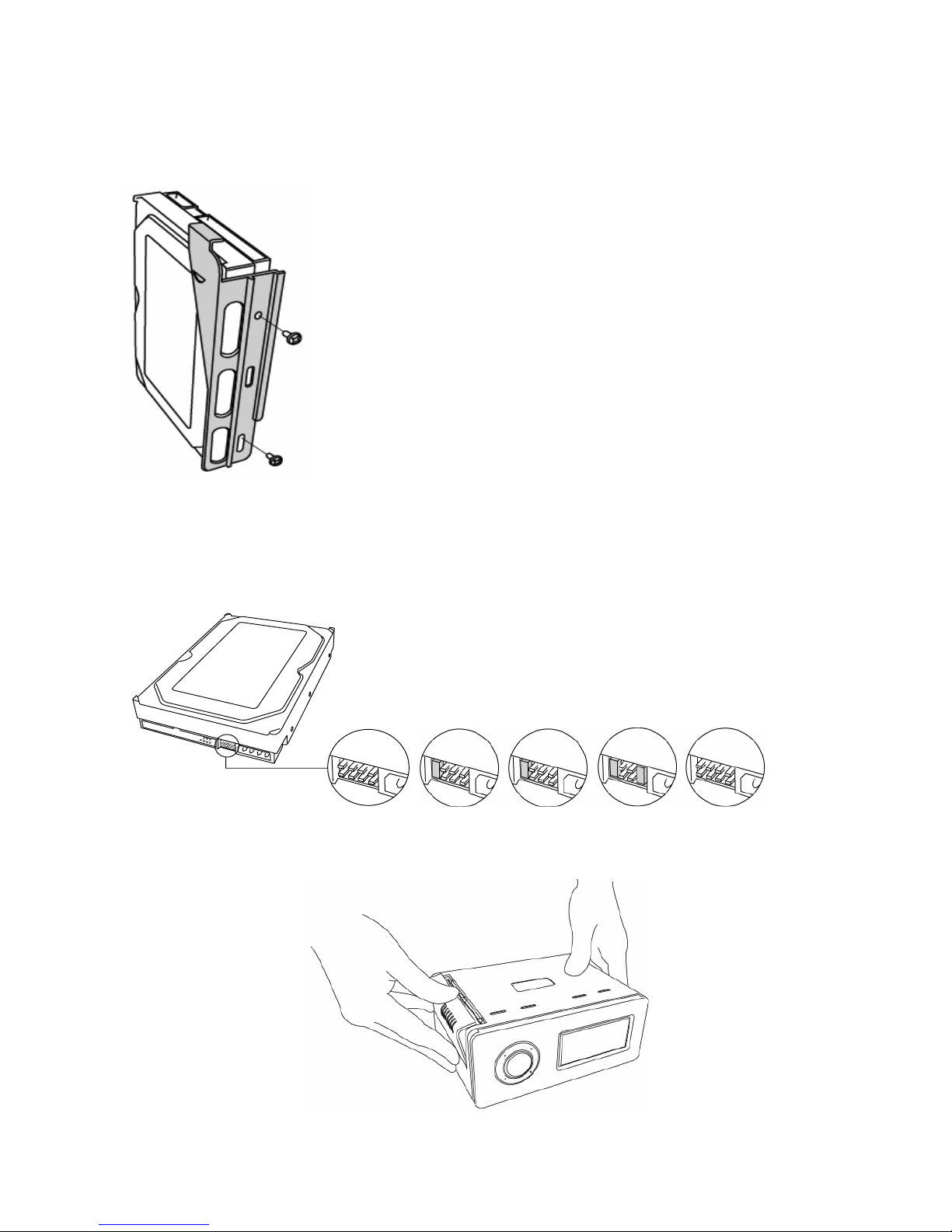

3.5 HDD Installation/Exchange....................................................................................................... 21

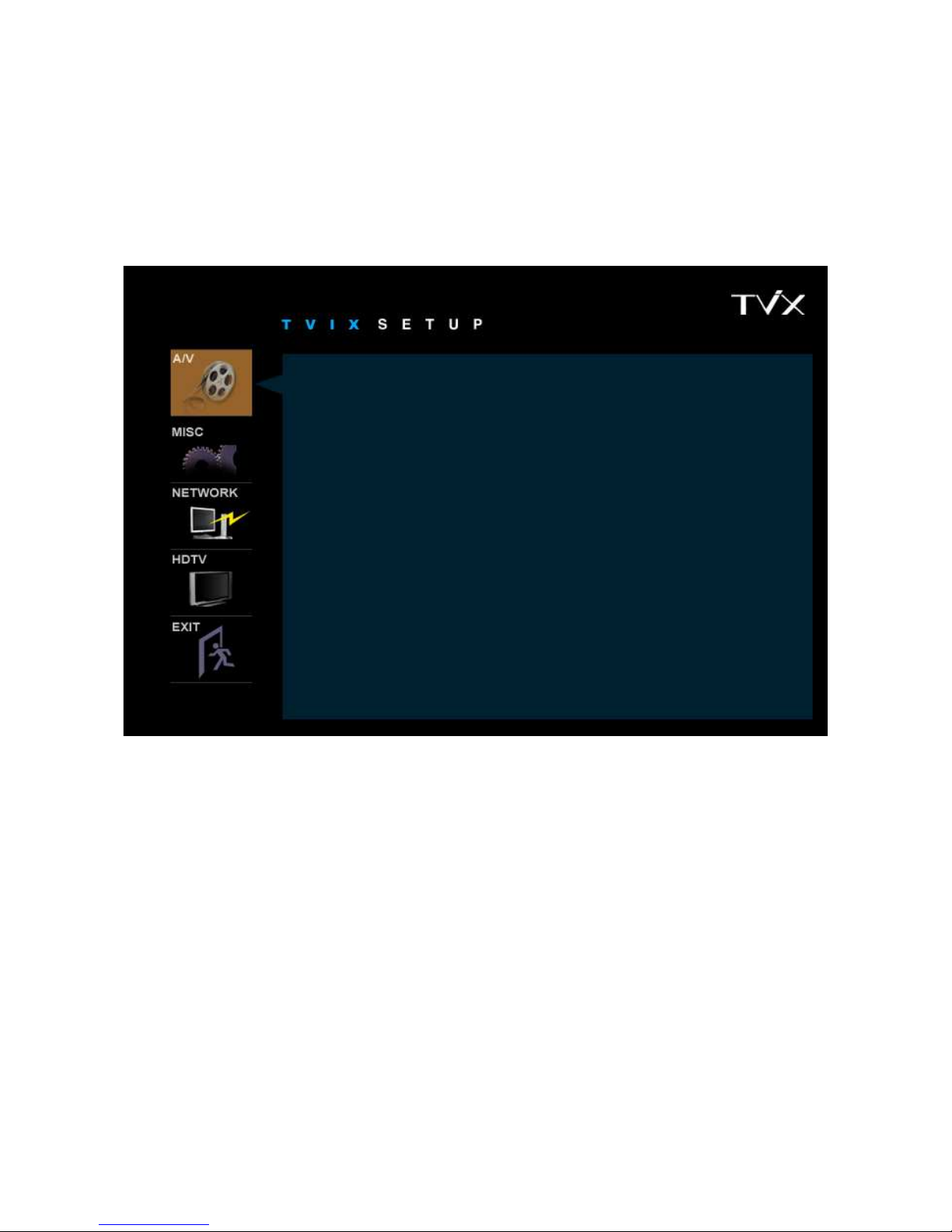

4 TViX HD Setup Menu ................................................................................ 23
4.1 Audio/Video Setting .................................................................................................................. 23

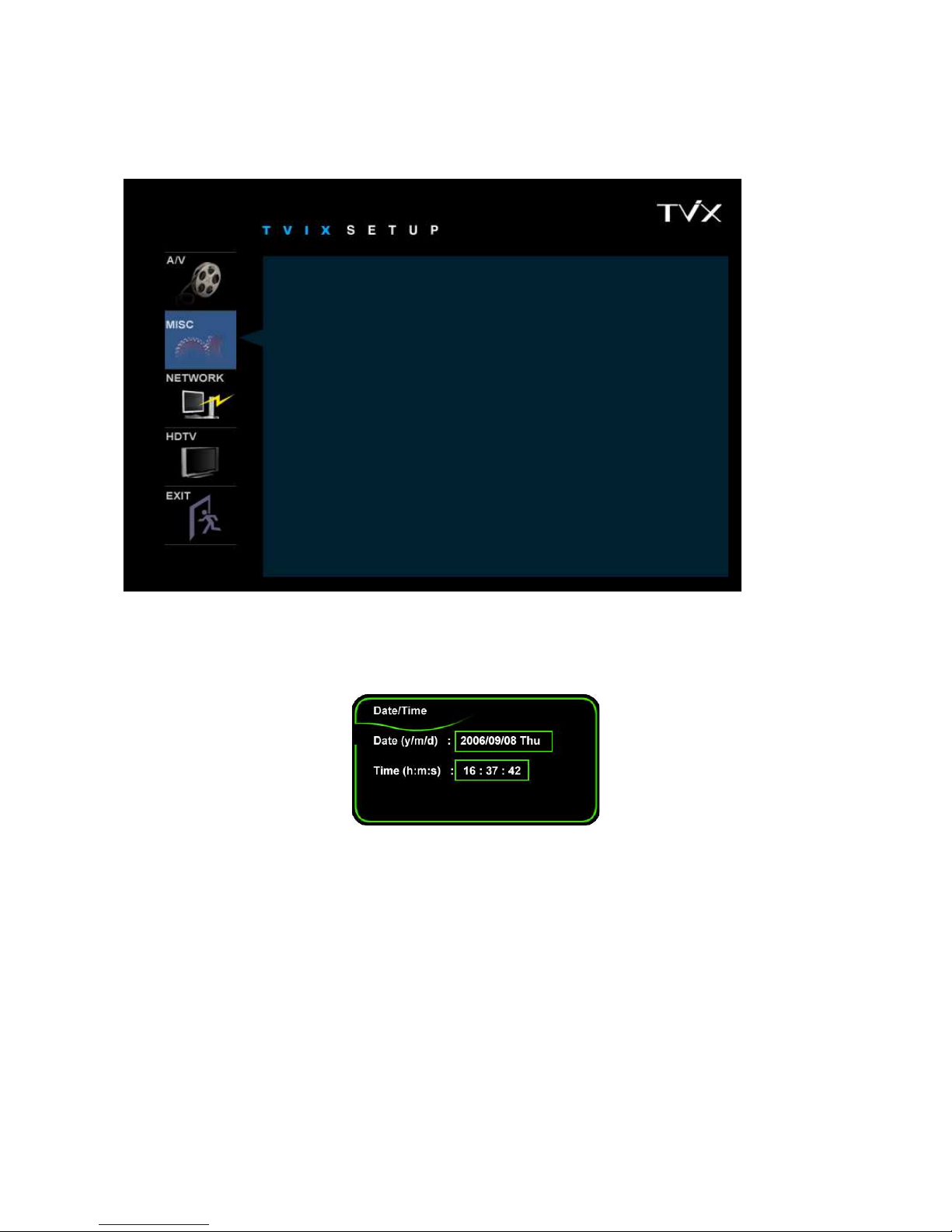

4.2 MISC Setting............................................................................................................................. 25

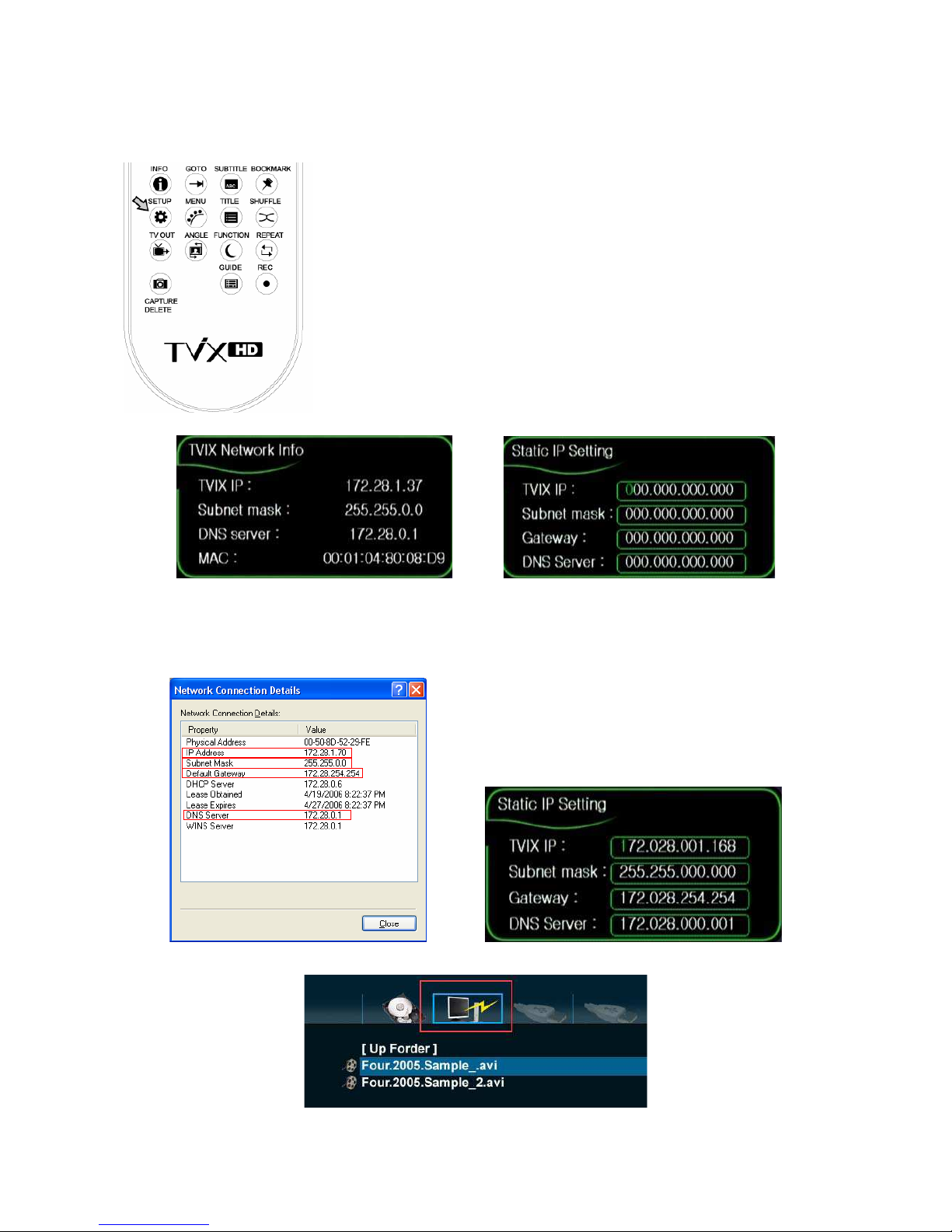

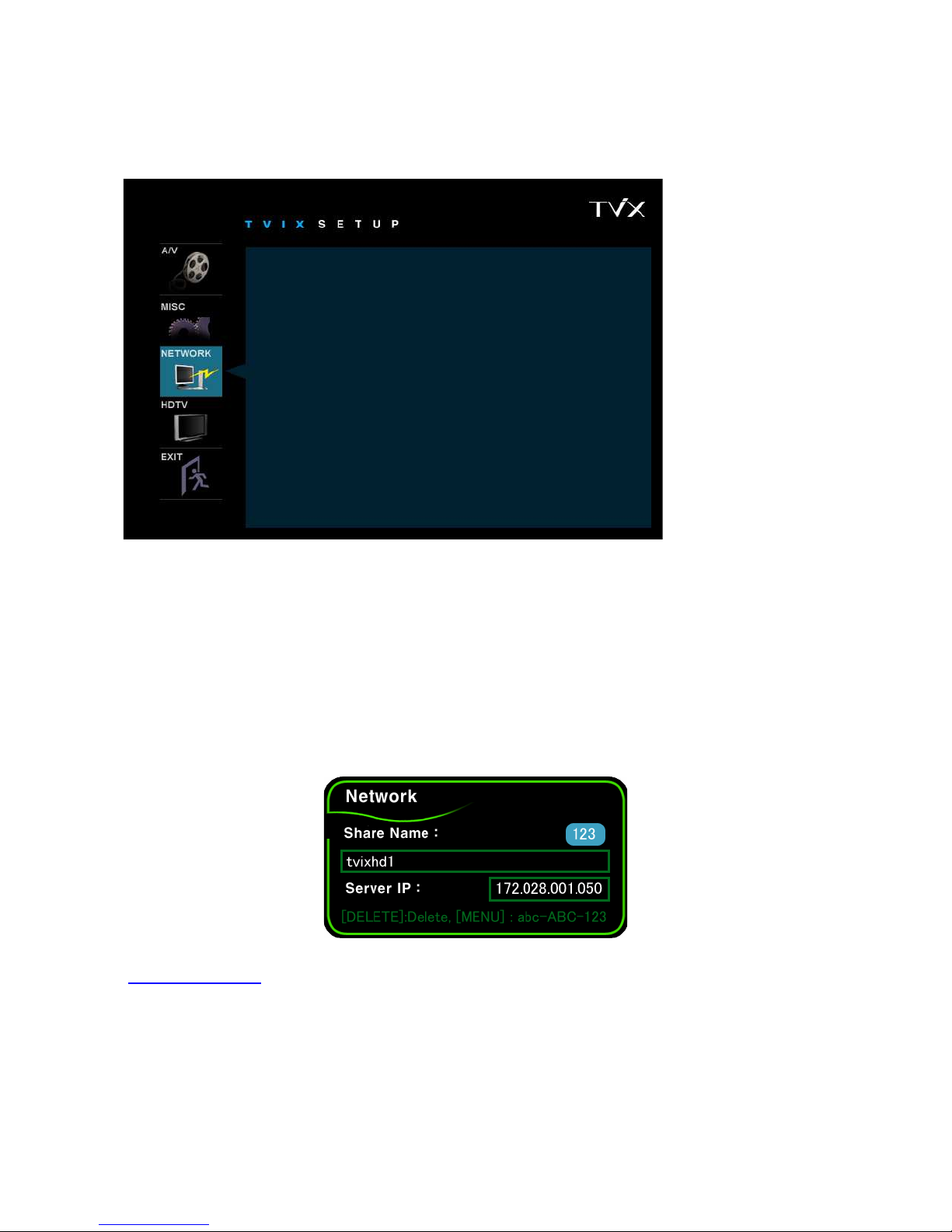

4.3 Network Setting ........................................................................................................................ 26
5 Easy Usage of TViX HD............................................................................ 27

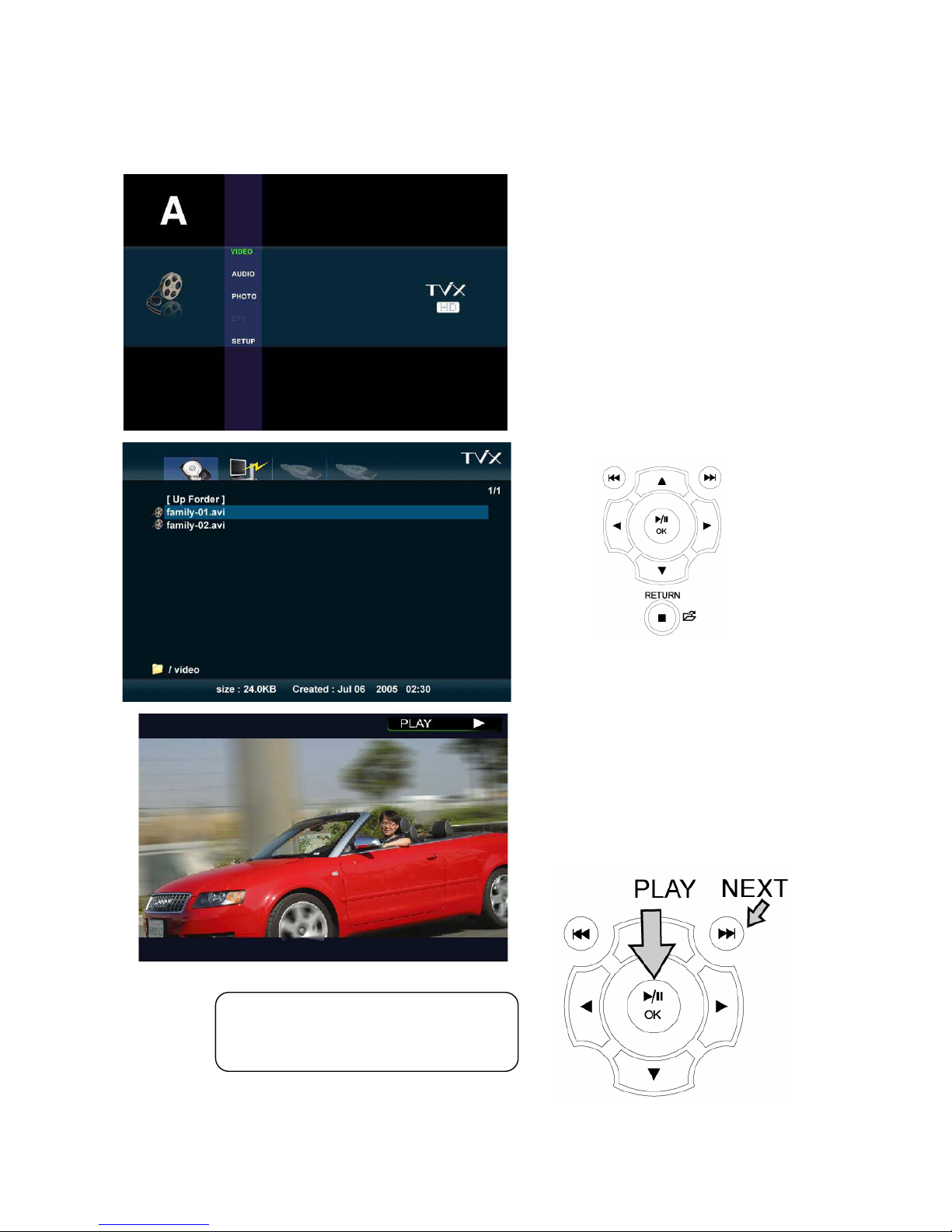

5.1 Play Video Files ........................................................................................................................ 27

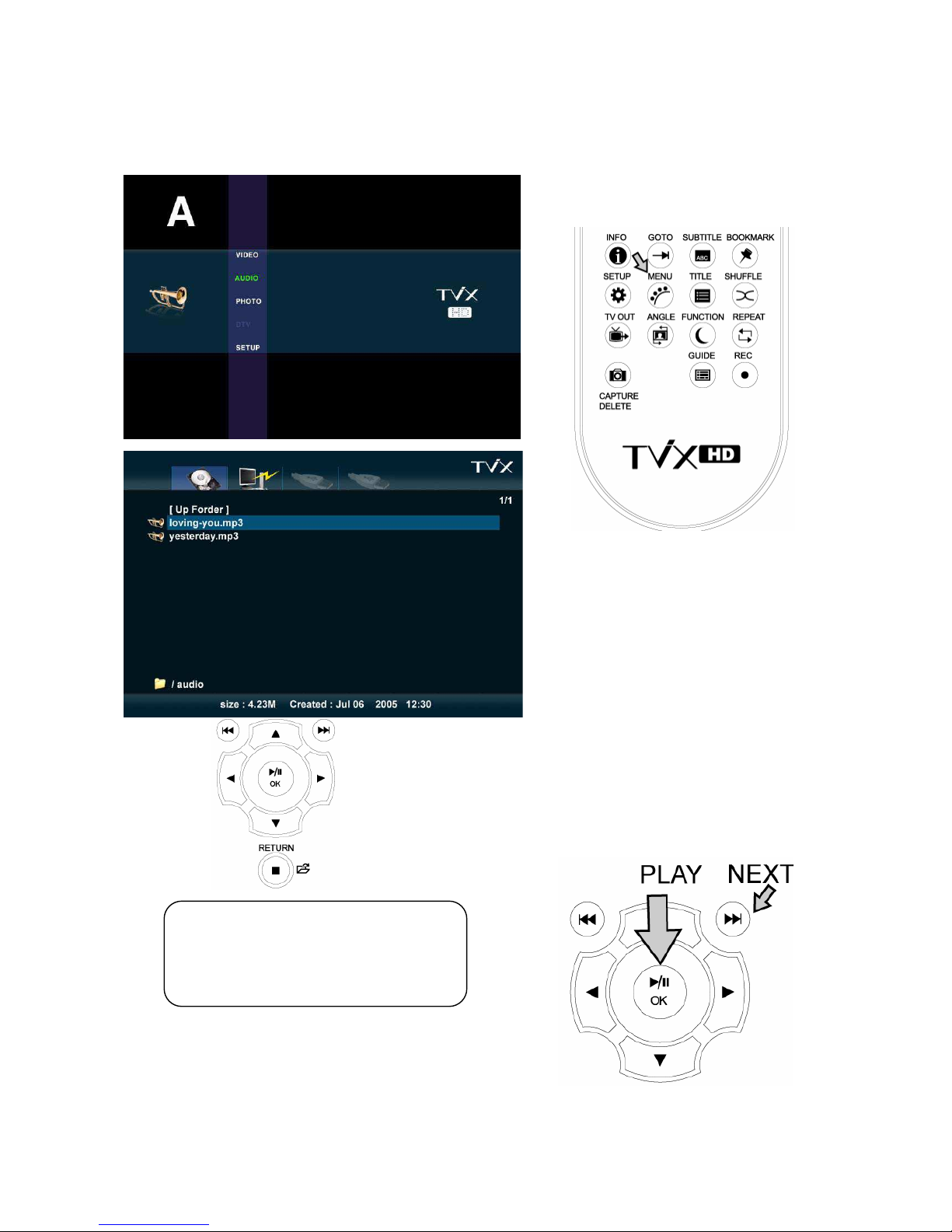

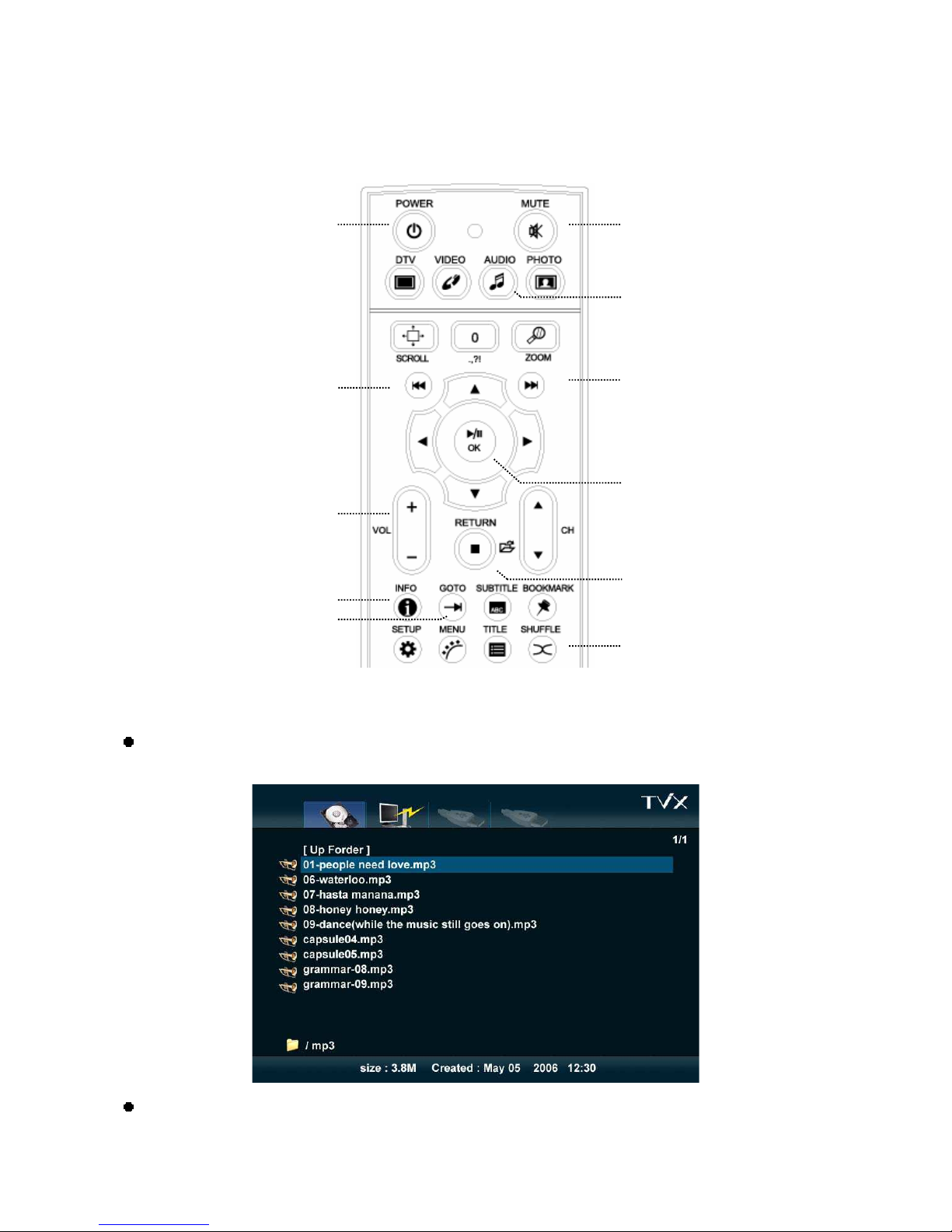

5.2 Play Audio Files ........................................................................................................................ 28

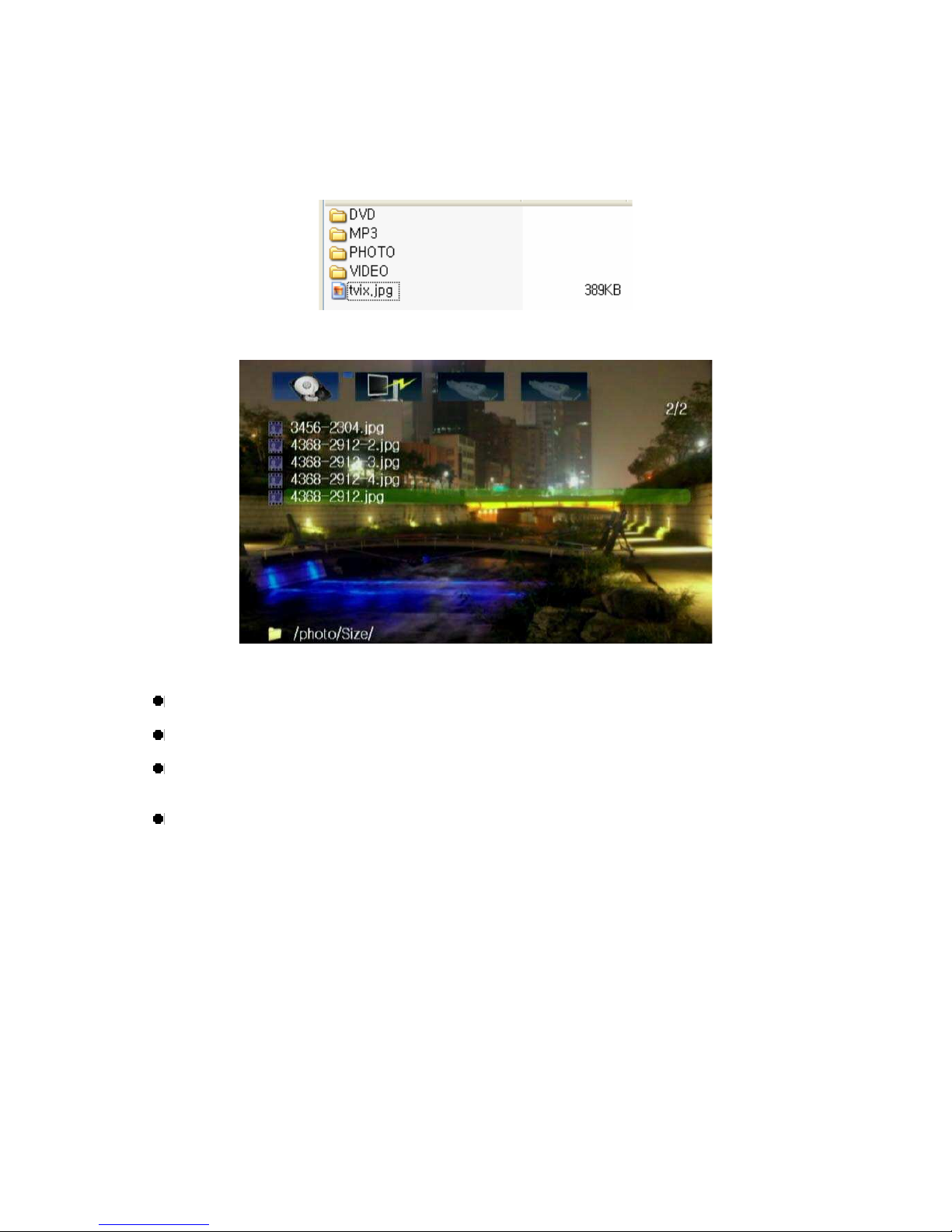

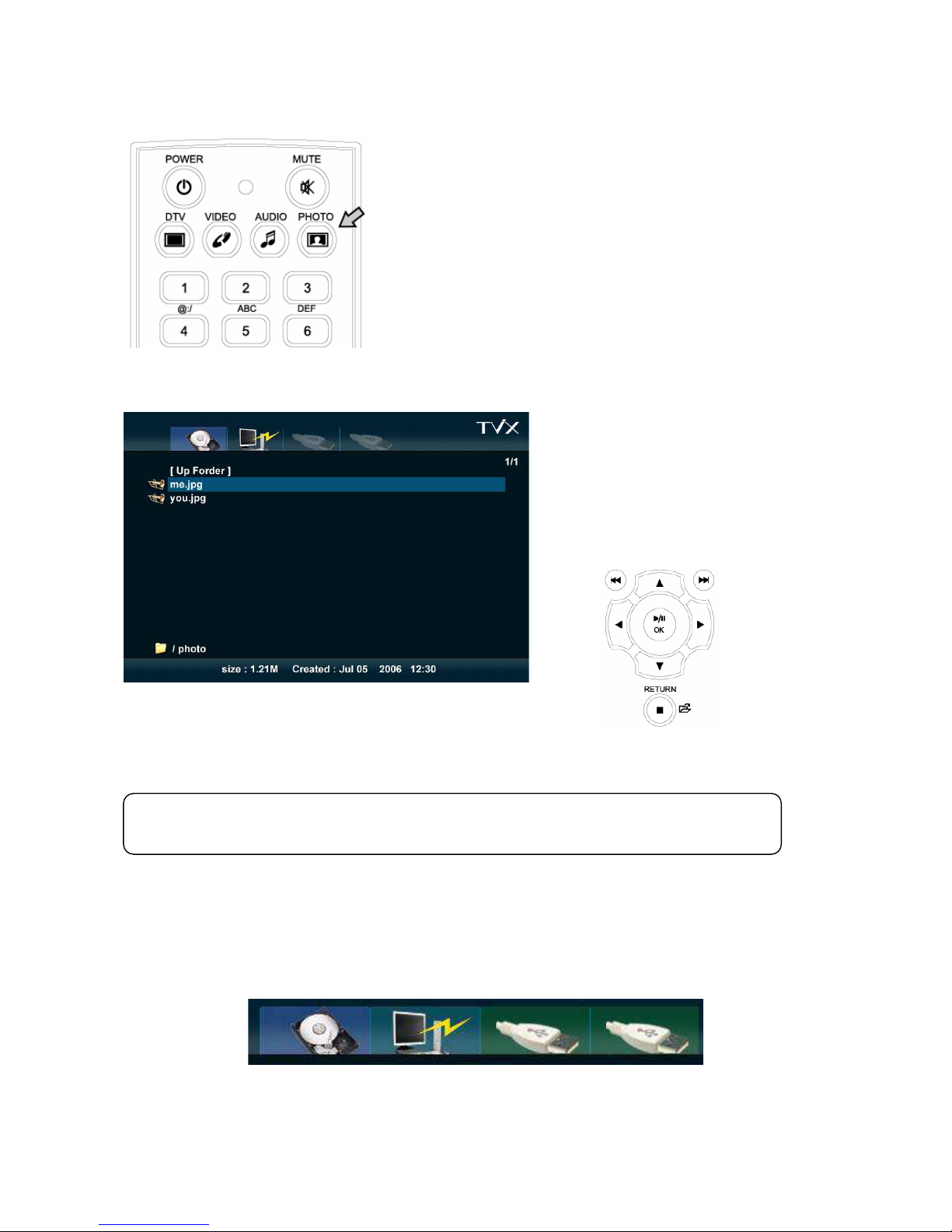

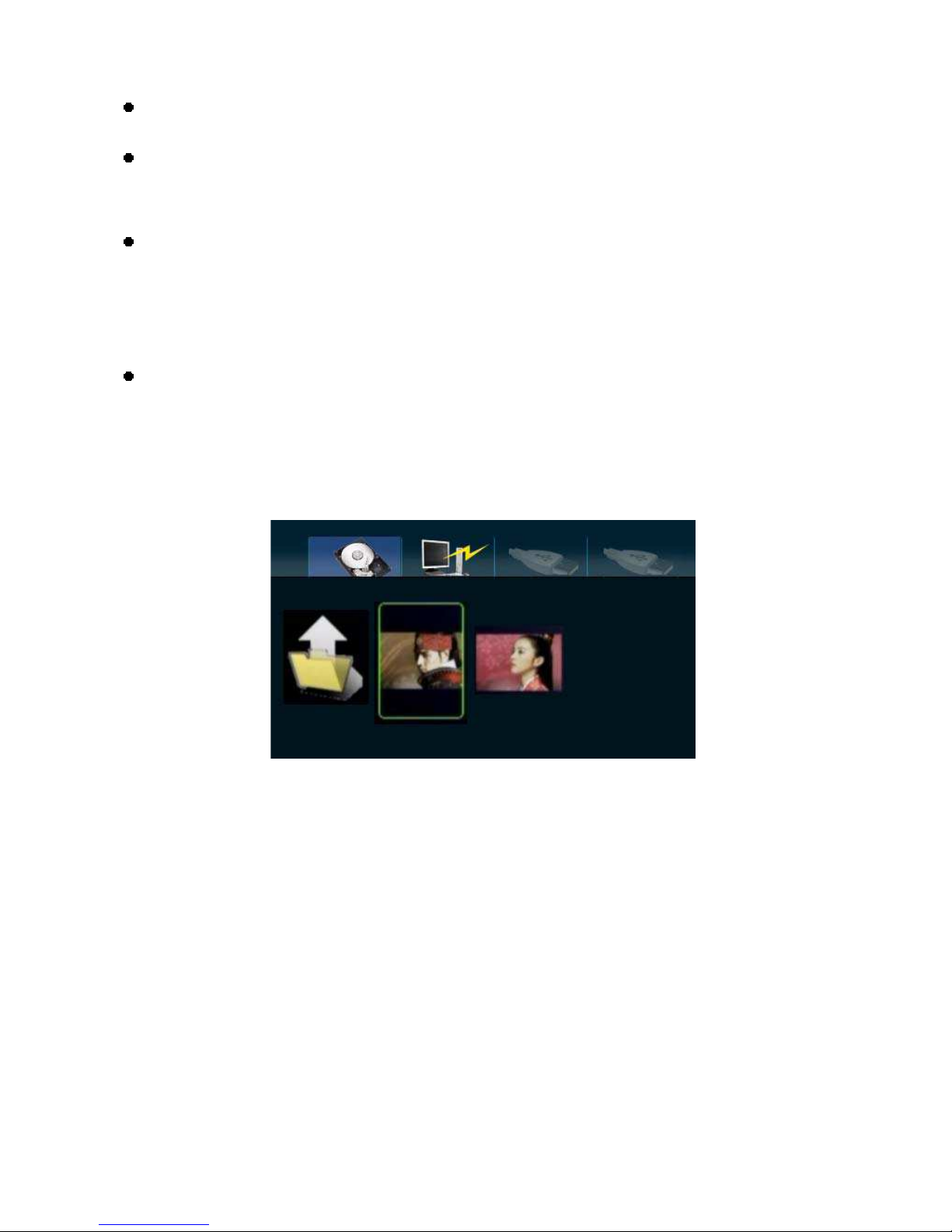

5.3 Play Image Files ....................................................................................................................... 29

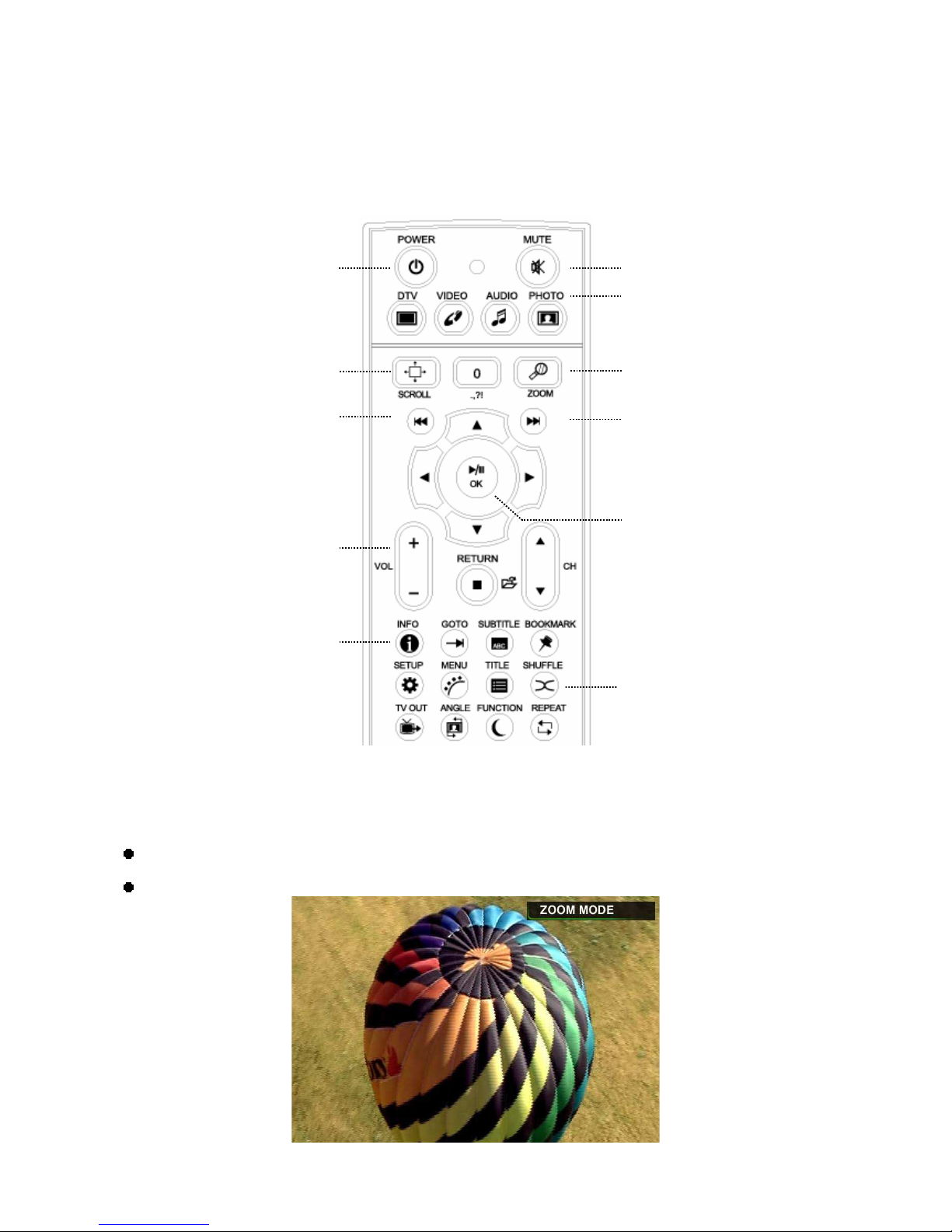

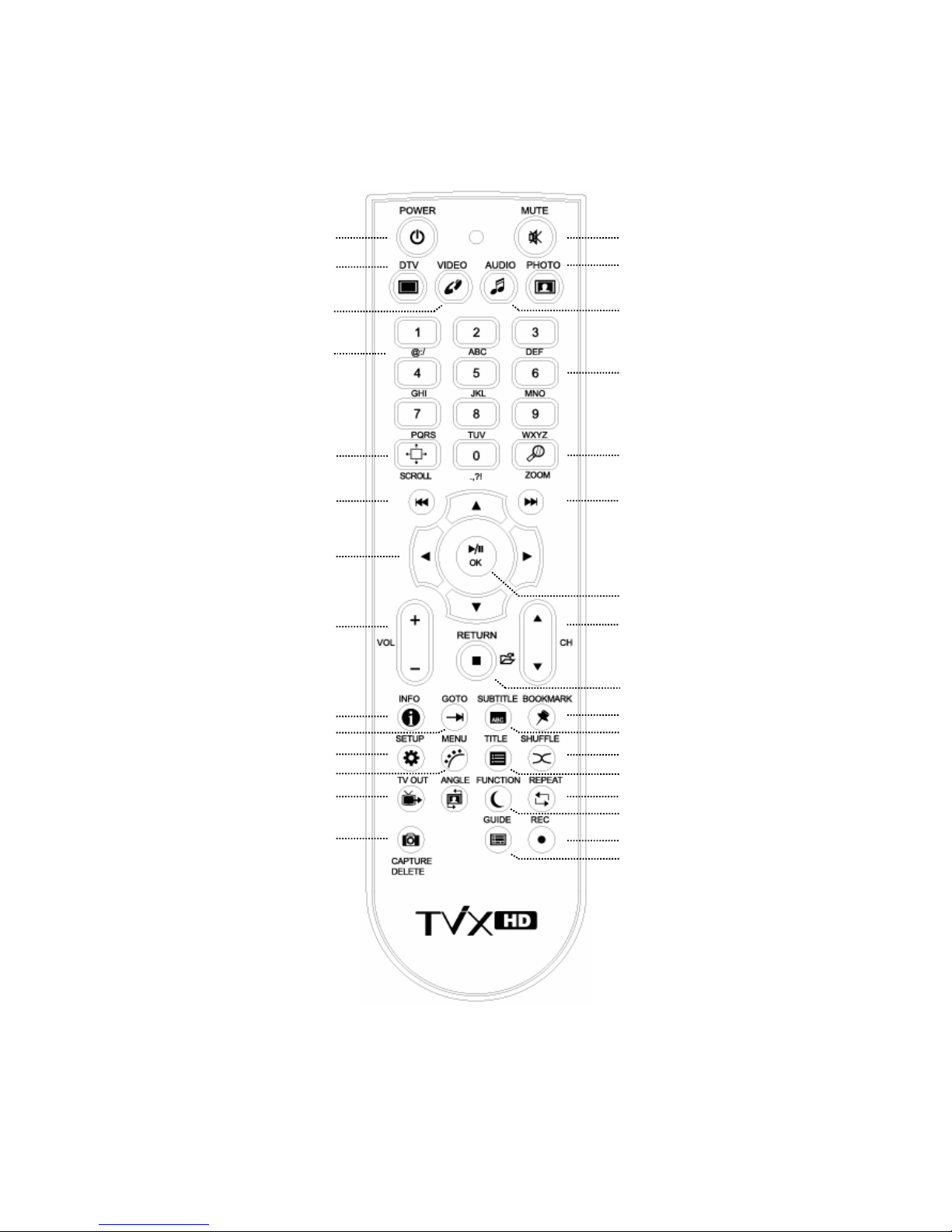

6 Using the remote control ......................................................................... 30
6.1 Basic Functions ........................................................................................................................ 30
6.2 Descriptions of Each Buttons ................................................................................................... 31
6.3 Extra Features .......................................................................................................................... 38

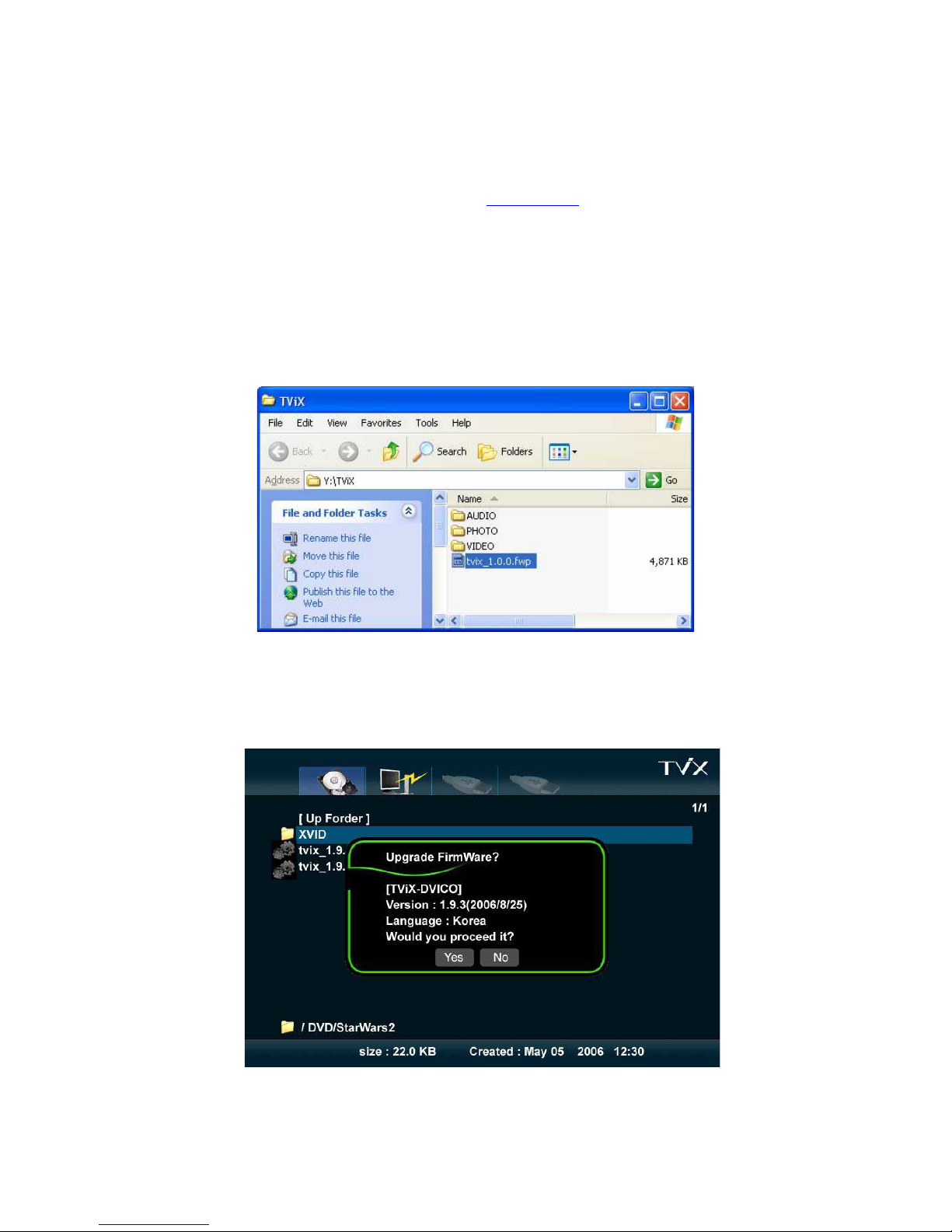

7 Firmware Upgrade .................................................................................... 42
8 Using USB Connection with the PC........................................................44

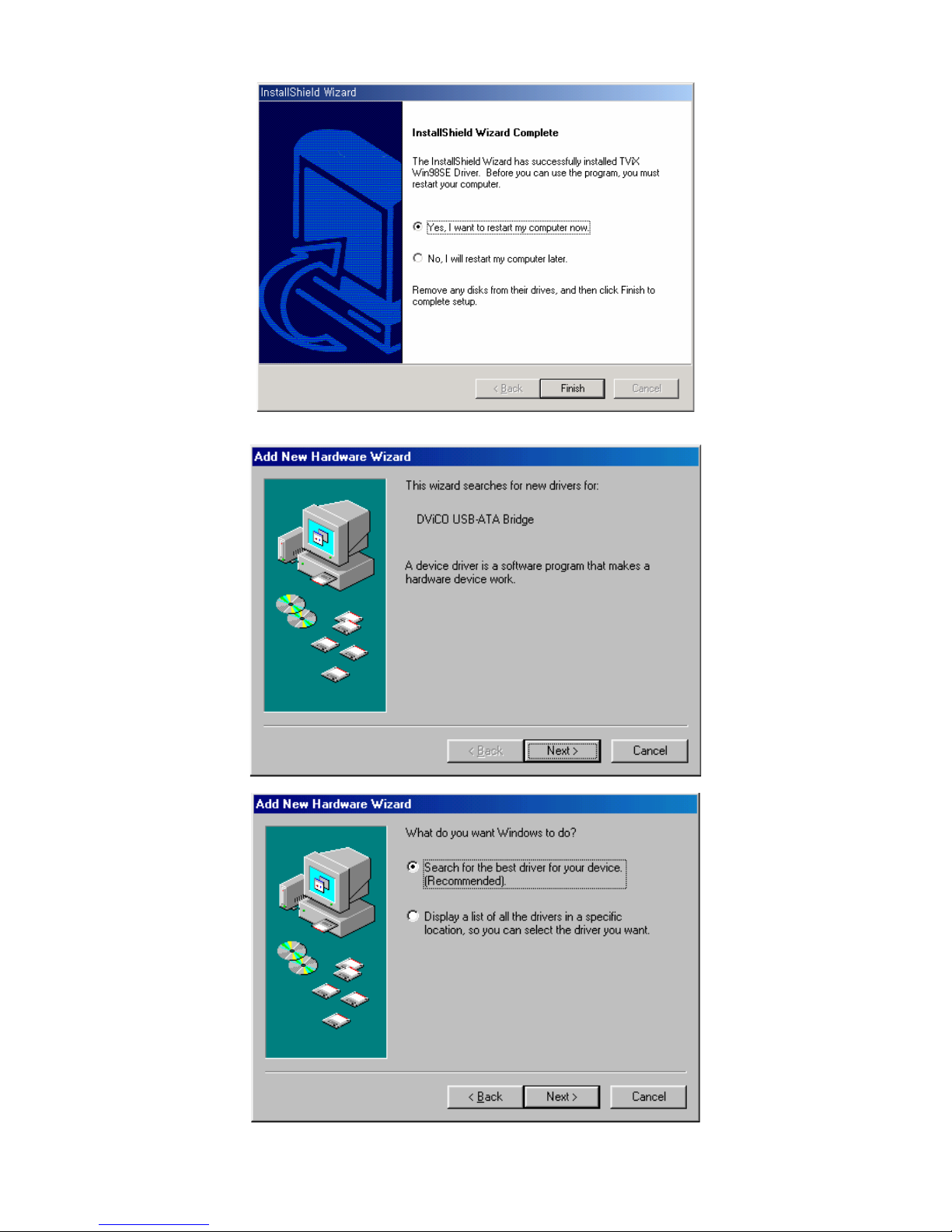

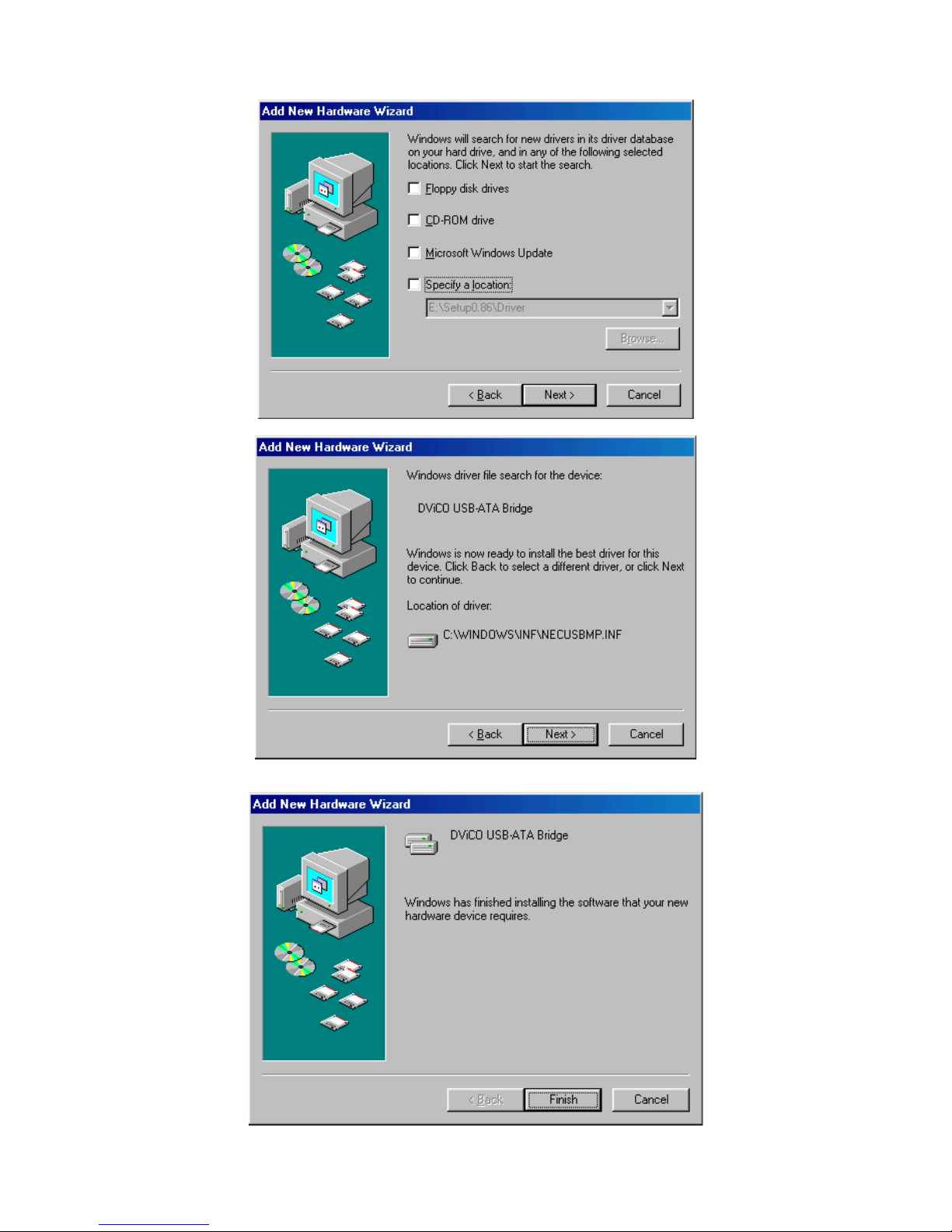

8.1 Windows 98SE Driver Installation ............................................................................................ 44

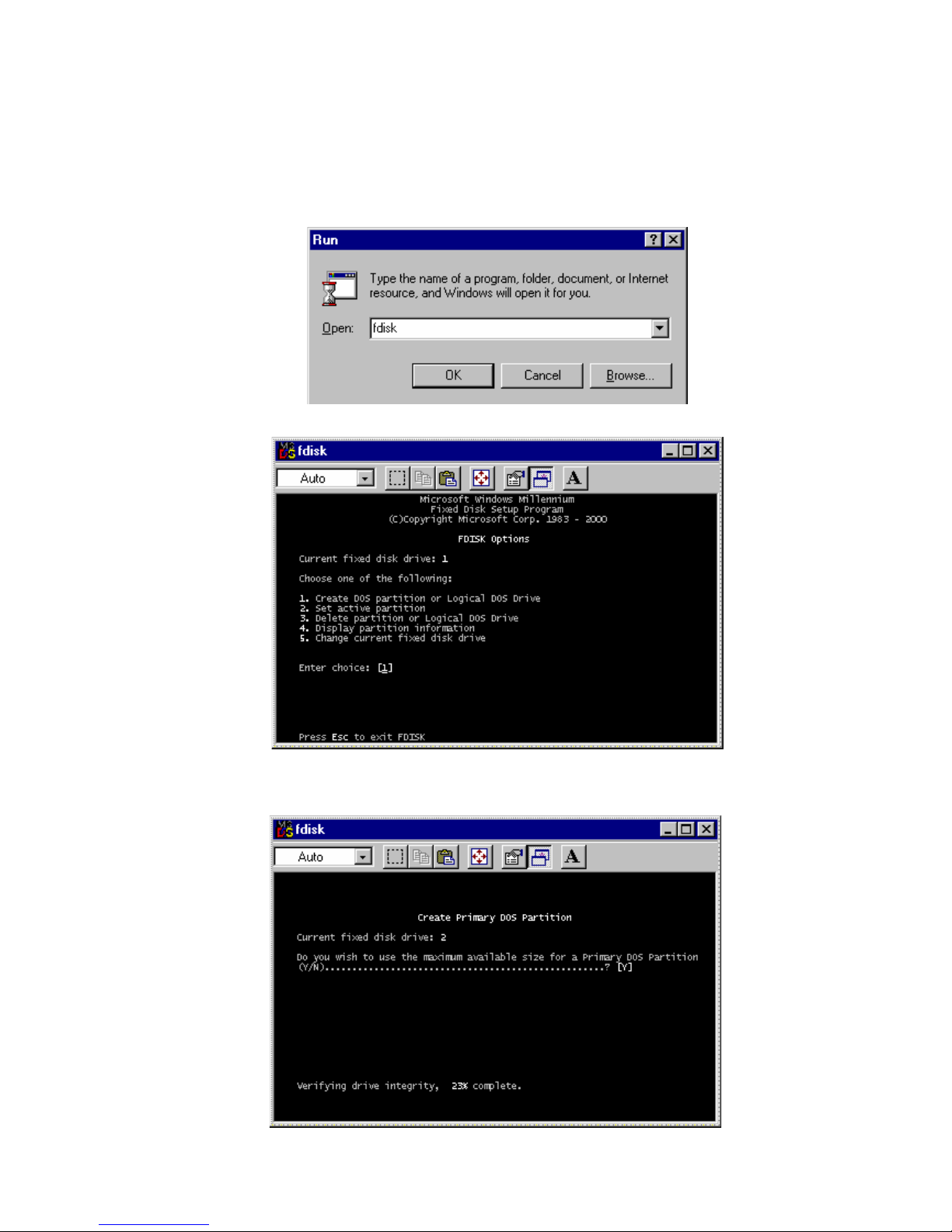

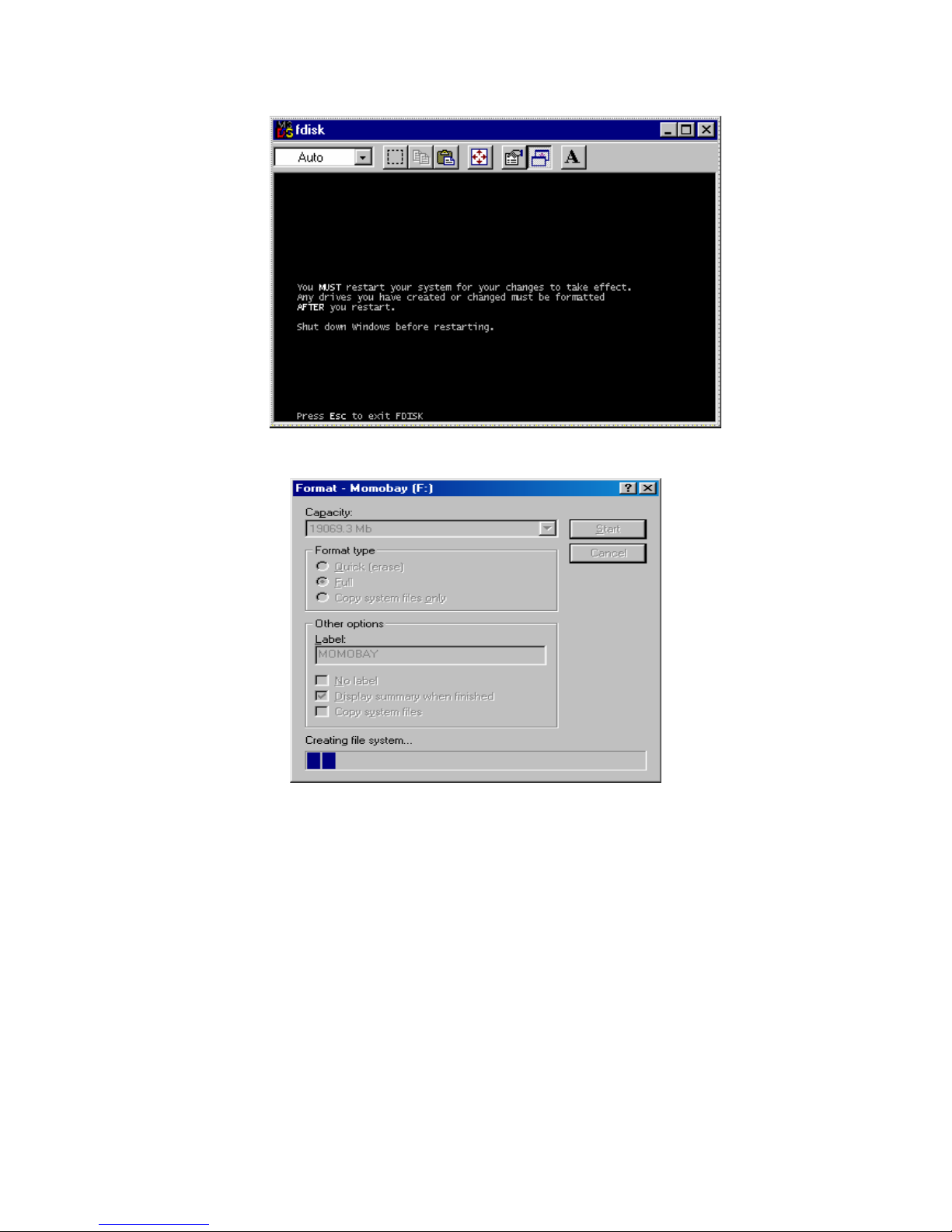

8.2 Making a Partition and Formatting the HDDs under Windows 98SE / ME............................... 48

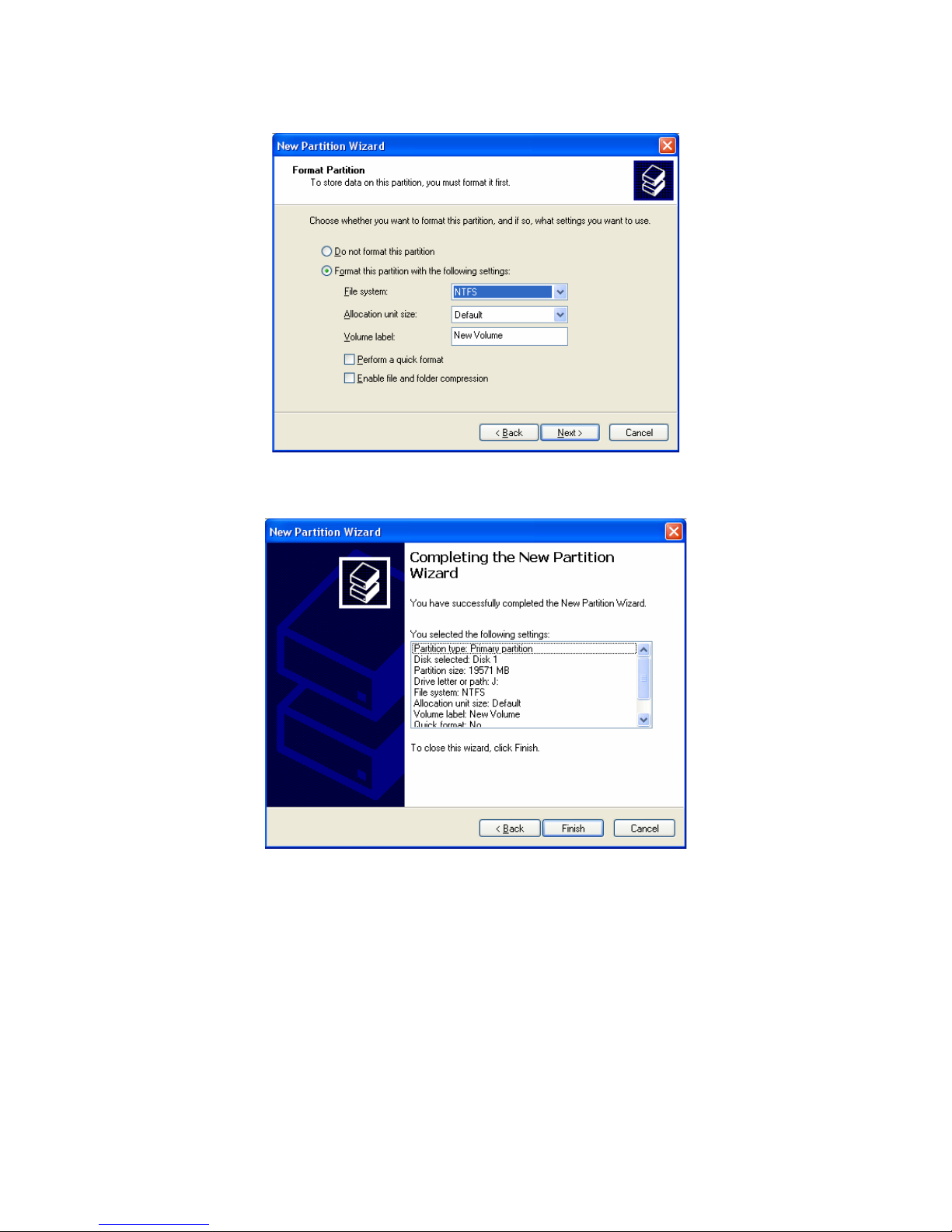

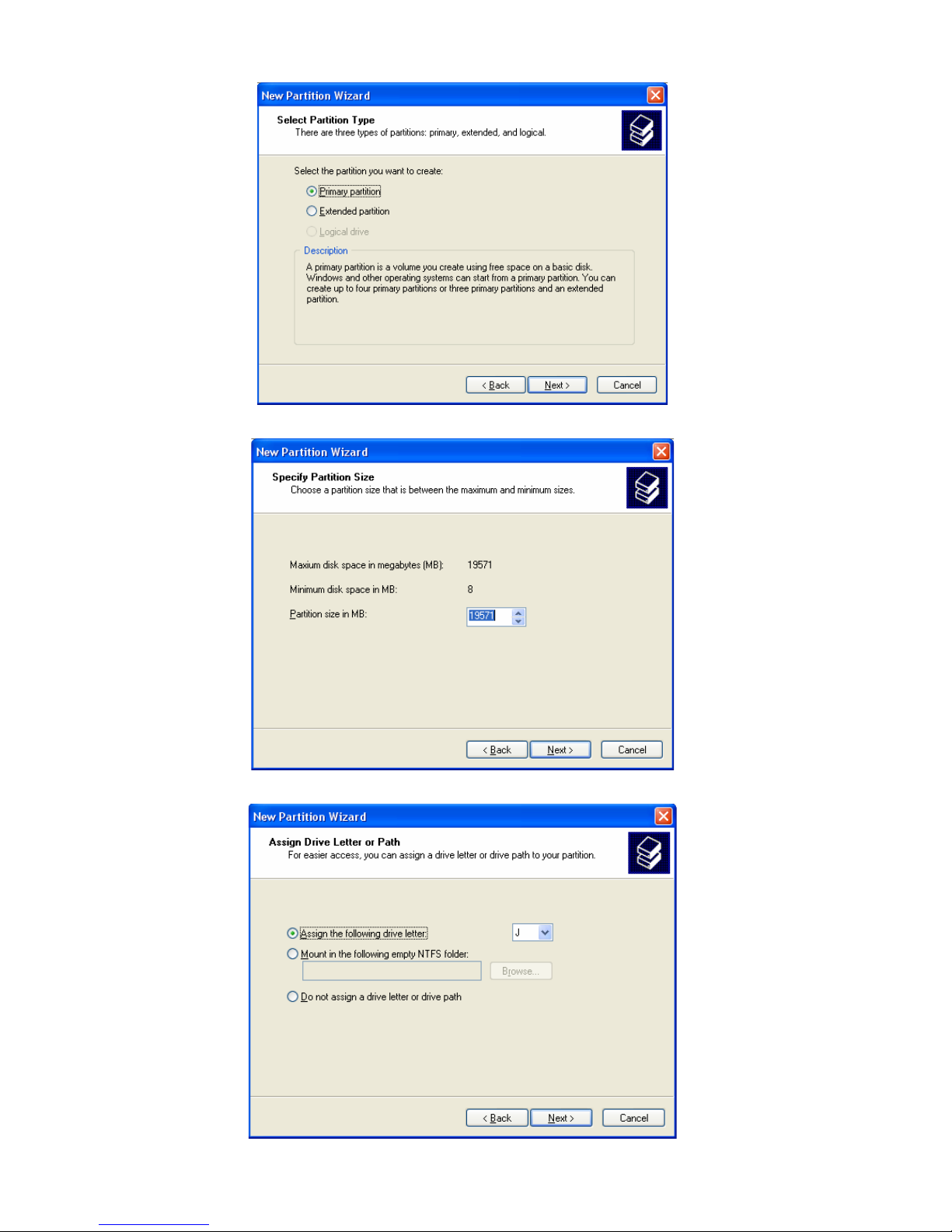

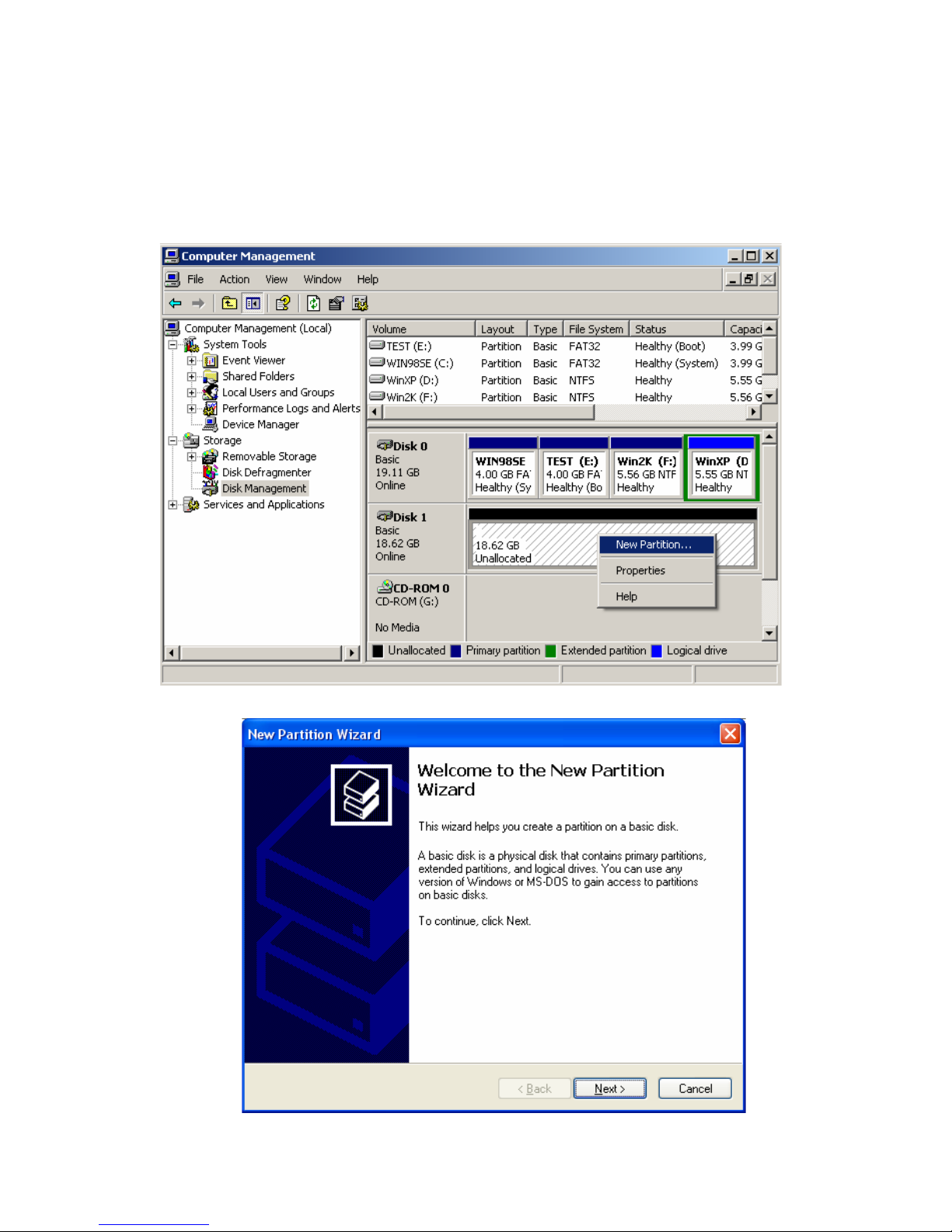

8.3 Making a Partition and Formatting the HDDs under Windows 2000 / XP ................................ 50

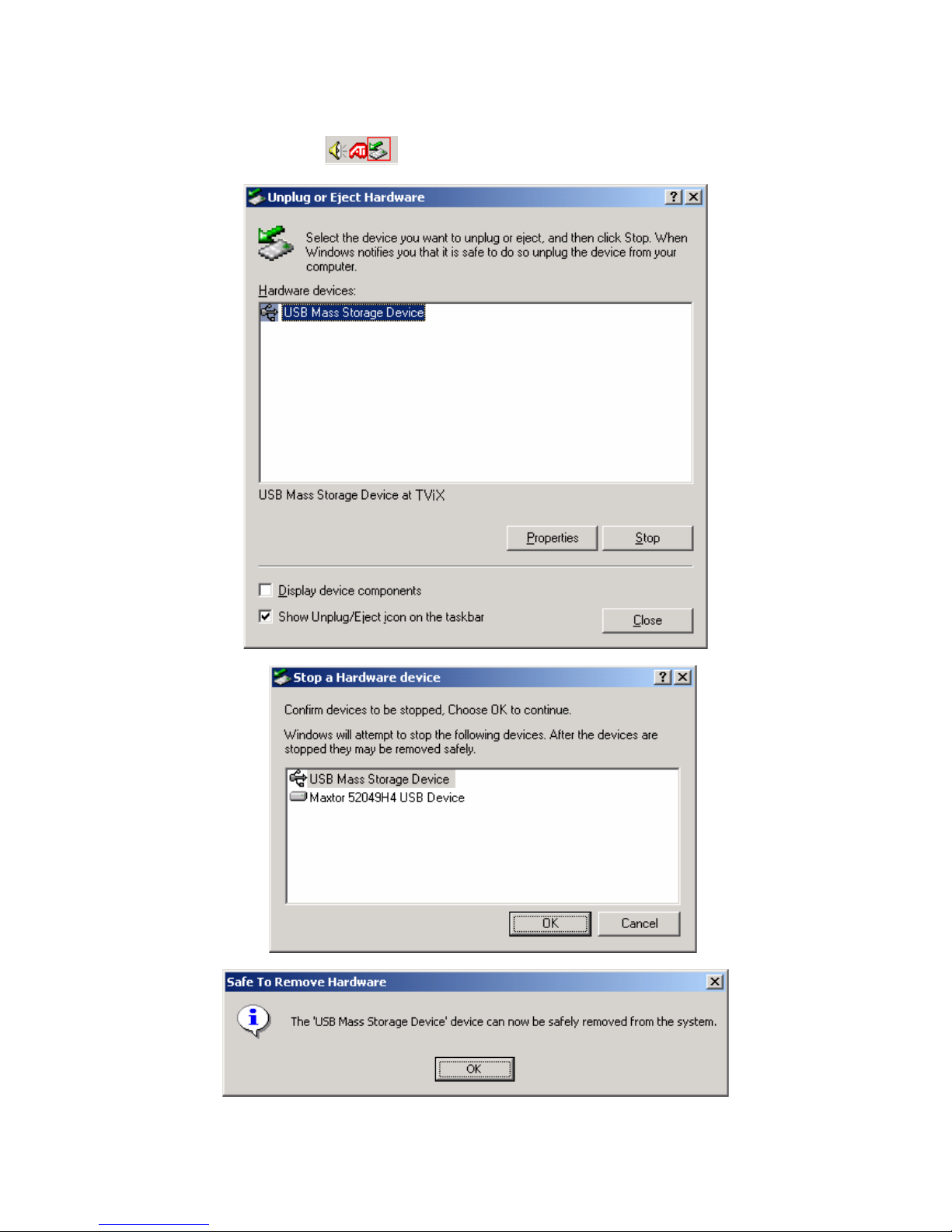

8.4 Unplug or Eject Hardware ........................................................................................................ 53
9 Appendix - Technical Terms ....................................................................54
10 GNU General Public License ................................................................... 56
G\
1 Introduction
1.1 Multimedia Player
TViX HD is a standalone, multimedia hard disk player which
plays digital videos, digital music, digital still images and DVD
files to a TV display and home entertainment system. You can
enjoy digital contents in your living room without having to burn
discs or having to play it back on a DVD or CD player anymore.
** For the further functions, please refer to following FAQ.
http://www.tvix.co.kr/eng/faq
TViX HD plays back DVD movies with the full functionality of DVD navigation. You can
create your own virtual DVD library by storing your personal collection of DVDs in .ISO
or .IFO format and watch them exactly as if they were running from the original DVDs (all
original features included: Menu, Chapter, Audio Stream, Subtitle, Fast Forward, Rewind,
Slow, Pause, Step Forward, Repeat, Search etc.).
TViX HD plays back high definition video (up to 1920x1080i) and still images. Pre-recorded
HDTV programs from a digital TV set-top box or personal digital video contents taken by a
HDV™ camcorder can be played back with the TViX HD on a high definition display. The
TViX HD features a DVI connector and component, which will match the high resolution of
HD level video contents.
Using the latest EM8621 processor, TViX HD supports the latest multimedia formats
(WMV9 & WMV HD) as well as MPEG4 3.11,4.0 , 5.0.
Using the high definition DVI output, you can directly connect the TViX HD to your HDTV.
TViX HD supports DTS hardware decoder to mix DTS sound into 2 channels for a more
dynamic sound quality.
The TViX HD can be networked with a PC system using its built-in LAN port. You are able
to navigate to a PC file through TViX HD’s network and play the file from its original
destination without having to copy it into the TViX first. We’re supporting the file copy via
LAN.
With two USB2.0 host ports, you can now attach additional external USB hard drives to
further extend the storage capacity or transfer files from another USB device such as a
thumb drive. You can also playback files from a digital camera, USB flash driver, USB flash
card reader, or a MP3 player.
G]
1.2 Audio Player
TViX HD can play a variety of audio files such as FLAC,MP3, Ogg Vorbis or WMA (Windows Media Audio)
through the TV speaker and any other audio systems. You can listen to your favorite music files nonstop, by
organizing a custom winamp playlist. Now you can enjoy music all day without changing CDs.
You can watch picture slideshows with the option of background music (supports music slideshows using
picture images).
1.3 External Storage
If you connect to a USB 1.1 port, the TViX HD will work at USB 1.1 speed, so we strongly recommend that
you use USB 2.0.
It can be used as an external device to save video, audio, image files, data, program backups, etc.
USB 2.0 enables TViX HD to become an external storage device which supports up to 480Mbps.
It supports Plug & Play, so Windows will automatically recognize TViX HD.
TViX M-4000S model is supporting the SATA hard disk and M-4000P model is supporting the
PATA(General IDE) hard disk.
If you connect the USB port when playing the TViX HD, the VFD will show as USB ON. When you
disconnect the USB, you do not have to reboot the TViX HD for continuous use.
If you are a Windows98SE user, you should download a USB storage driver from our website
www.tvix.co.kr
before you connect your TViX HD with your system. You do not need to install a driver in
Windows ME/2000/XP.
G^
1.4 Specifications
Main Chipset Sigma Design EM8621
7 Alpha-Numeric Character
VFD Display
5 Digit Numeric Display
Format :.wmv, .avi, .mpg, .vob, .mp4, .asf, .tp, .trp , .IFO, .ISO
Codec : MPEG 1 / 2 / 4, AVI, XVID
Video
Resolutions up to 1920 x 1080i,1080P
MP3, WMA, AAC, Ogg, PCM, M4A, FLAC, WAV
Audio
AC3, DTS Pass Through and Down Mixing
Photo JPG
USB2.0 Host 2 Ports
USB2.0 Target 1 Port
Connectivity
LAN (10/100Mbps)
Video
DVI, Component, S-Video, Composite,
Audio
AV In / Out
Digital : Coaxial, Optical / Analog: Stereo
File Formats NTFS, FAT32
Subtitle Text Subtitle : smi,sub,srt,aqt,utf,lrc / Image Subtitle : sub (with idx)
Hard Disk
TViX HD M-4000S : SATA
TViX HD M-4000P : PATA(IDE)
ODD Support Through USB 2.0 Host
Language
English, French, German, Spanish, Italian, Portuguese, Swedish, Norwegian,
Danish, Japanese, Korean
FAN 40mm Brushless FAN
FAN Control Temperature Sensing, Variable Speed
Flash ROM 8 Mbyte
Internal Power 90~250V Free Voltage, , 50/60Hz, 50W
Size 183x139x75 mm
Weight 1.3Kg (HDD included)
G_
2 Name of Each Part
2.1 Control Panel
Basic functions can be done without the remote control.
2.2 Cable Connection
You can connect the TViX to a TV display or audio Amplifier using the A/V cable.
2.3 Package Contents
TViX main unit Power cable A/V cable USB Cable Manual TViX Remote
USB OPTICAL USB HOST Component S-video
LAN
POWER COAXIAL L AUDIO R VIDEO
Cooling Fan
DVI OUT
G`
3 Installation and Connection
3.1 Making an HDD Folder

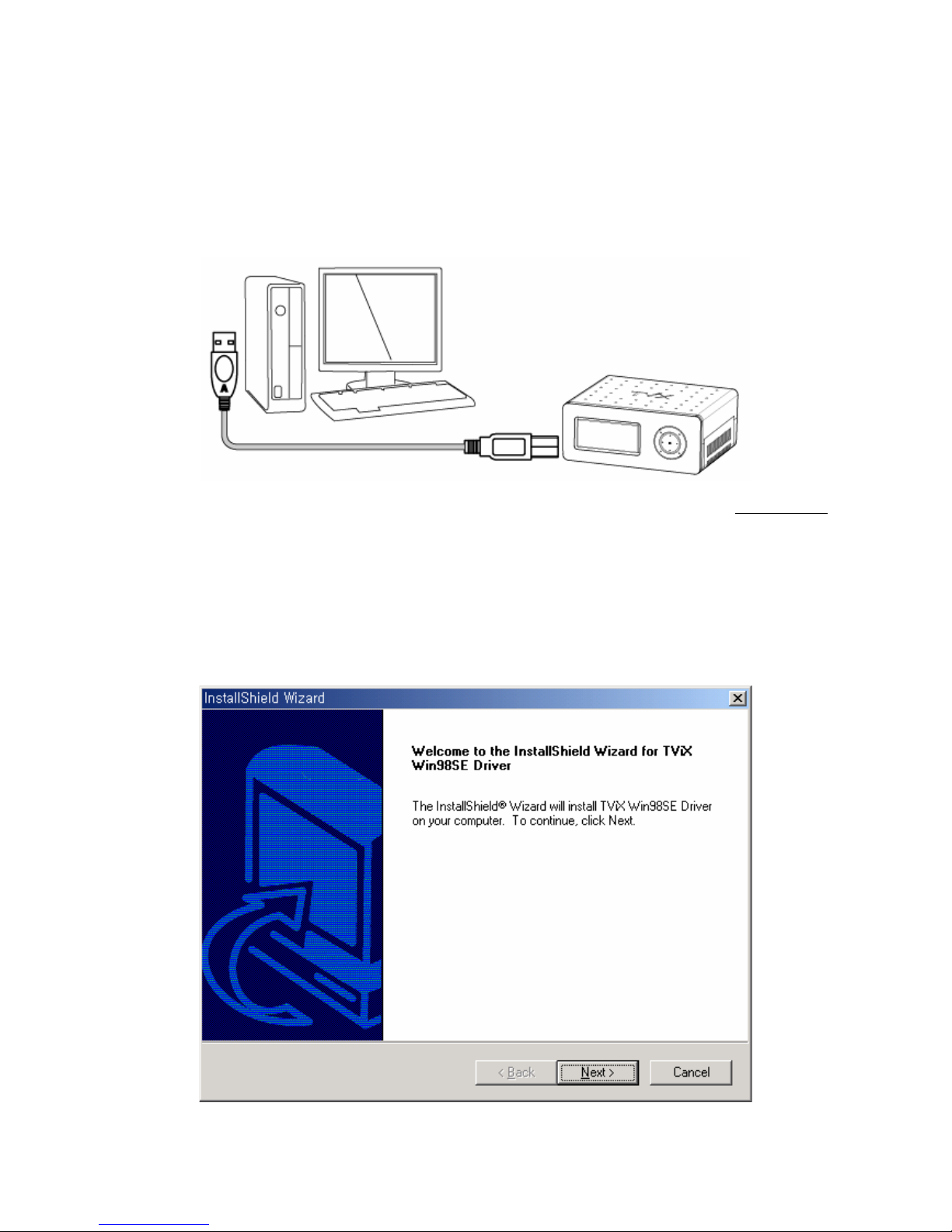

1. As shown in the picture below, one end of the USB cable should be connected to the USB connector of
the TViX and the other end to the computer.
2. After connecting to the PC, turn on
the power of the TViX.
3. Double click the icon ‘My
Computer’ on your monitor and you
will see a newly created drive; TViX
as shown in picture ‘A’.
(The name of the drive can be
changed.)
4. For easy usage, double click TVIX
and make separate folders named
video, audio, and photo. Then store
all your files accordingly to each
folder.
CAUTION!
The USB cable has a different shape on both
ends. We use a USB 2.0 type "A" Plug(male)
to "B" Plug(male).
GXW
3.2 Video Connection
We support DVI, Component, S-Video, Composite video output for connecting to the TV and each output
needed to change settings on the TViX HD.
The highest quality components are as follows: DVI > S-Video > Composite.
3.2.1 Connection with an Ordinary (Composite) TV Output
Connect the TViX HD and your TV using the yellow video cable.
Turn on the TViX HD and TV. Select an appropriate video input mode on your TV until you get the initial TViX
HD screen.
3.2.2 Connection to S-Video Output
Connect the TViX HD and your TV using the S-Video cable.
Turn on the TViX HD and TV. Select an appropriate video input mode on your TV until you get the initial TViX
HD screen.
(The S-Video cable is not included and has to be purchased separately.)
GXX
3.2.3 Connection to Component Output
Connect the TViX HD and your TV with the component cables.
Turn on the TViX HD and TV. Select an appropriate video input mode on your TV (in this case, the
Component input mode)
3.2.4 Connection to DVI Output
Simply connect your TViX HD to the DVI port on the TV.
However, if the TV has a HDMI port only, you need to buy a HDMI cable to convert the DVI data and then
you will be able to see the processing digital signal.
CAUTION

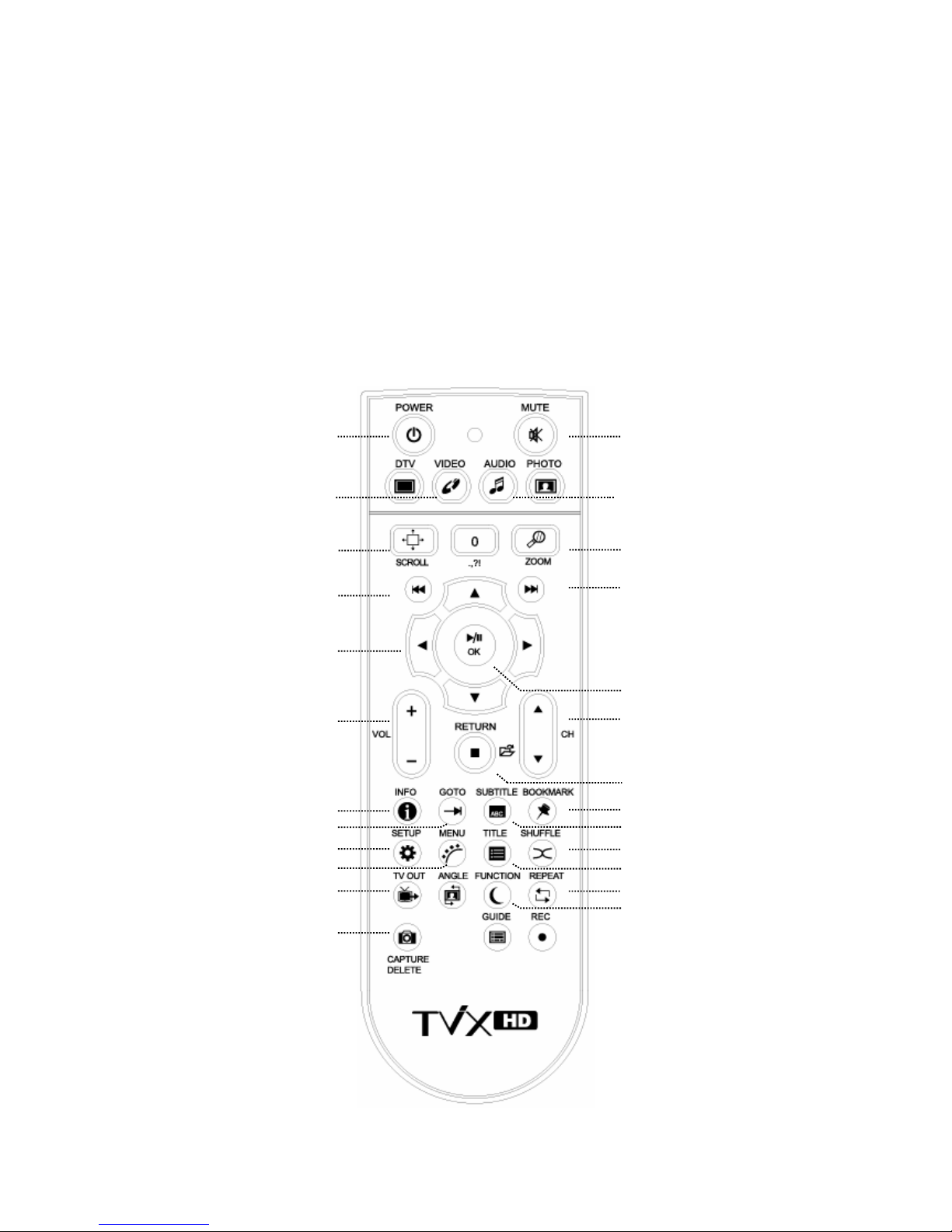

After you connect the video cable to your TV, press the TV Out button repeatedly on your remote control
until you get the initial TViX screen.
* The component cable is not included in the TViX and must be purchased separately.
GXY
3.3 Audio Connection
3.3.1 Connection to 2 CH Normal TV
Connect the left(white) and right(red) sound output to the appropriate terminal of your TV or Hi-Fi system.
3.3.2 Connection to 5.1CH Amplifier (Digital)
If you have a multi-channel decoder/amplifier with an optical/coaxial input, you can enjoy 5.1 CH high quality
sound through the coaxial or optical cables.
The illustration on the left shows where to connect the coaxial cable. Optical cable connection is done in a
similar method.
(These cables are not included in the package and must be purchased separately.)
.
CAUTION
If no sound is heard after connecting the Optical or Coaxial Cable, you have to change the audio setup of
TViX to Digital.
GXZ
3.4 LAN Connection
3.4.1 Connect PC via Network
< When connecting the computer directly to the TViX HD >
Connect the LAN cable to the LAN port of both the TViX HD and the PC.
< When connecting with IP Router or Hub >
Connect the LAN cable to the LAN port for an IP Router or Hub.
With NFS, M-4000 can play tp files on a PC flawlessly through LAN.
We recommend NFS connection than SAMBA. You need to install TViX Netshare program on a PC but the
setting became much easier SAMBA method.
You can download NetShare installer from our website www.tvix.co.kr/Eng
before you configure NFS network.
Please refer to the Netshare program manual for detailed instructions.
http://www.tvix.co.kr/eng/support/Manual.aspx
You may skip the 3.4.2 section if you select to NFS network.
TIPS
In this case, you generally use a LAN cross cable type.
If the computer’s LAN card was connected to an Internet line, you can install an additional LAN
card to your PC and connect that LAN card to the TViX.
TIPS
In this case, you generally have to use Direct LAN Cable type.
GX[
3.4.2 Set Network Configurations Under Windows XP (SAMBA mode)
1) Select the folder you want to share. Right-click that folder
and click ‘Sharing and Security’ in the popup menu.
2) Check ‘Share this folder’ on the network and type in the
share name ‘tvixhd1 (this is the only available one at the
moment)’.
3) Use ‘Everyone’ if ‘Everyone’ is displayed, otherwise you
don’t have to change anything. Also, add ‘Everyone’ to the
security tab.
4) After that, the shared folder will be displayed like the
following picture.
GX\
5) Move to 'Settings' > 'Control Panel' > 'Administrative Tools' > 'Computer Management' > 'Local Users and
Groups' > 'Users', and double click ‘Guest’.
6) Uncheck ‘Account is disabled’
CAUTION
This is for Windows XP Professional. Windows XP Home users cannot see this window. If you cannot
find ‘Administrative Tools’ in the Control Panel, click “Switch to classic view” in the upper-left corner of
the screen.
GX]
7) ‘GUEST’ must be shown as the following image (a red X mark should not be shown on ‘Guest’).

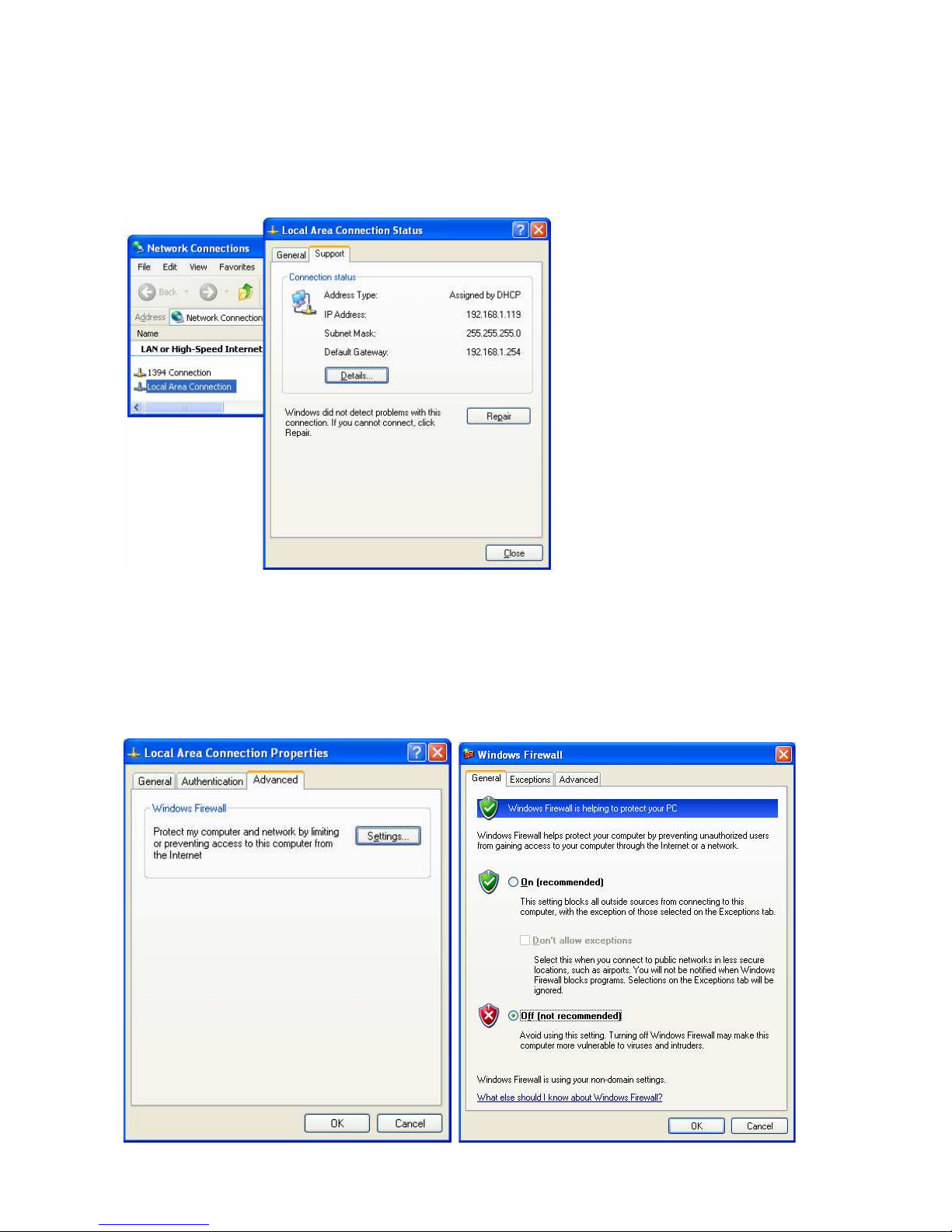

8) Move to 'Control Panel' > 'Network connections', and select ‘Local area connections’ properties by right
clicking the mouse.
9) Remove “Guest” from the ‘User Rights Assignment’ > ‘Deny access to this computer from the network’
option.
GX^
10) Move to ‘Access this computer from the network’, and then select ‘Properties’ by right clicking the mouse
or double clicking it.
11) Click ‘Add User or Group’
12) Type in “Guest” and then click the “OK” button.
13) Press OK, and Guest will be registered.
GX_
< When connecting Computer to TViX directly >
In this case, you have to use Cross LAN cable type generally..
If the computer’s LAN card was connected to Internet
line, you can mount additional LAN card to your PC
and connect that additional LAN card to TViX.
1. Move to ‘Control Panel’ > ‘Network connections’, and select ‘Properties’ properties by right click of mouse.
2. When Windows 2000 or XP, Check “Allow other network users to connect through this computer’s internet
connection”
3. Double click ‘TCP/IP->LAN card’ that you want to use on your computer. You must select the additional
LAN card.
Check ‘Specify an IP address’, and write ‘IP address’ & ‘Subnet mask’ that you want to use.
Ex) IP address : 192.168.0.1 Subnet mask : 255.255.255.0
Loading...
