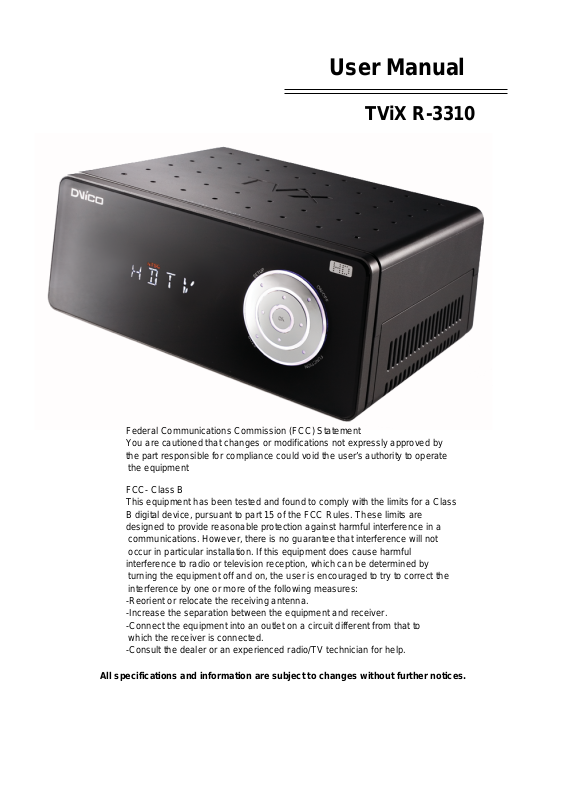

DVICO PVR3310 Users Manual

User Manual

TViX R-3310

Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved by
the part responsible for compliance could void the user’s authority to operate
the equipment

FCC- Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
communications. However, there is no guarantee that interference will not
occur in particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

All specifications and information are subject to changes without further notices.

Safety Notice

Do not disassemble the device. It may
cause malfunction or fire

.

Magnetic material may erase the data in TViX.
Keep any magnetic material away from TViX.

.

Do not expose TViX to oil, smoke,
water, humidity and dust.

Do not touch power plug with wet hands or do
not use defective power cable & loose outlet. It
may cause electric shock or fire

.

Keep TViX away from heat or fire.
Do not block any ventilation openings. Ensure
that a free airflow is maintained around the
appliance.

Be careful not to drop TViX from a height.
It will damage the internal hard drive.

Do not take out the internal hard drive by yourself. The internal hard drive is very hot when it is

working. The warranty will be void if any other hard drive is inserted into TViX.

"Do not block any ventilation openings. Ensure that a free airflow is maintained around the appliance."

The socket-outlet shall be installed near the equipment and shall be easily accessible.

2

Usage Precautions

Please read the following usage precautions before using your TViX.

Make sure the power is off when you connect the A/V cable between the TViX and the TV.

When cleaning the TViX product, pull out the power cord and then wipe it with a soft piece of dry cloth.

When connected to the computer through the USB cable the TViX acts as an external USB storage device
(In this state, there is no video/audio output displayed on the TV Screen a USB ON icon will be displayed on
the center of the TV screen and on the VFD. it will be display as USB ON). For normal TViX play mode,
disconnect the USB cable connected between computer and TViX

When detaching the HDD, please let the heat out sufficiently.

The supplied cables and accessories are recommended for customized best performance of the TViX.

Using other cables or accessories may not provide best performance.

If you want to unplug the device, press the return button to 'Unplug or Eject Hardware'.

Windows 98 SE and Windows ME does not support NTFS file format. However, NTFS file format is

available on Windows 2000/XP. “Primary Partition” is recommended when creating two or more partitions
with a single hard disk drive.

If you choose FAT32 file format on Windows 2000/XP, the drives maximum size will be limited to 32GBs.

If you want to use a single drive letter of 32GBs or more, you have to format on Windows 98SE/ME.

The certification sticker mark is on the bottom of the device.

You can insert the characters using remote-numeric key. Numeric key 1 when pressed successively

changes as @ Æ : Æ / Æ _ Æ -.

We don’t have any warranty or responsibility for broken hard disk. We recommend to backup periodically.

** Some functions will require you to update the latest firmware in first.

3

Table of Contents

Safety Notice ........................................................................................................................................ 2

Usage Precautions ................................................................................................................................ 3

1 Introduction................................................................................................. 5

1.1 Multimedia Player .................................................................................................................. 5

1.2 Audio Player .......................................................................................................................... 6

1.3 External Storage .................................................................................................................... 6

1.4 Specifications ........................................................................................................................ 7

2 Name of Each Part ...................................................................................... 8

2.1 Control Panel ......................................................................................................................... 8

2.2 Cable Connection .................................................................................................................. 8

2.3 Package Contents ................................................................................................................. 8

3 Installation and Connection ....................................................................... 9

3.1 Video Connection .................................................................................................................. 9

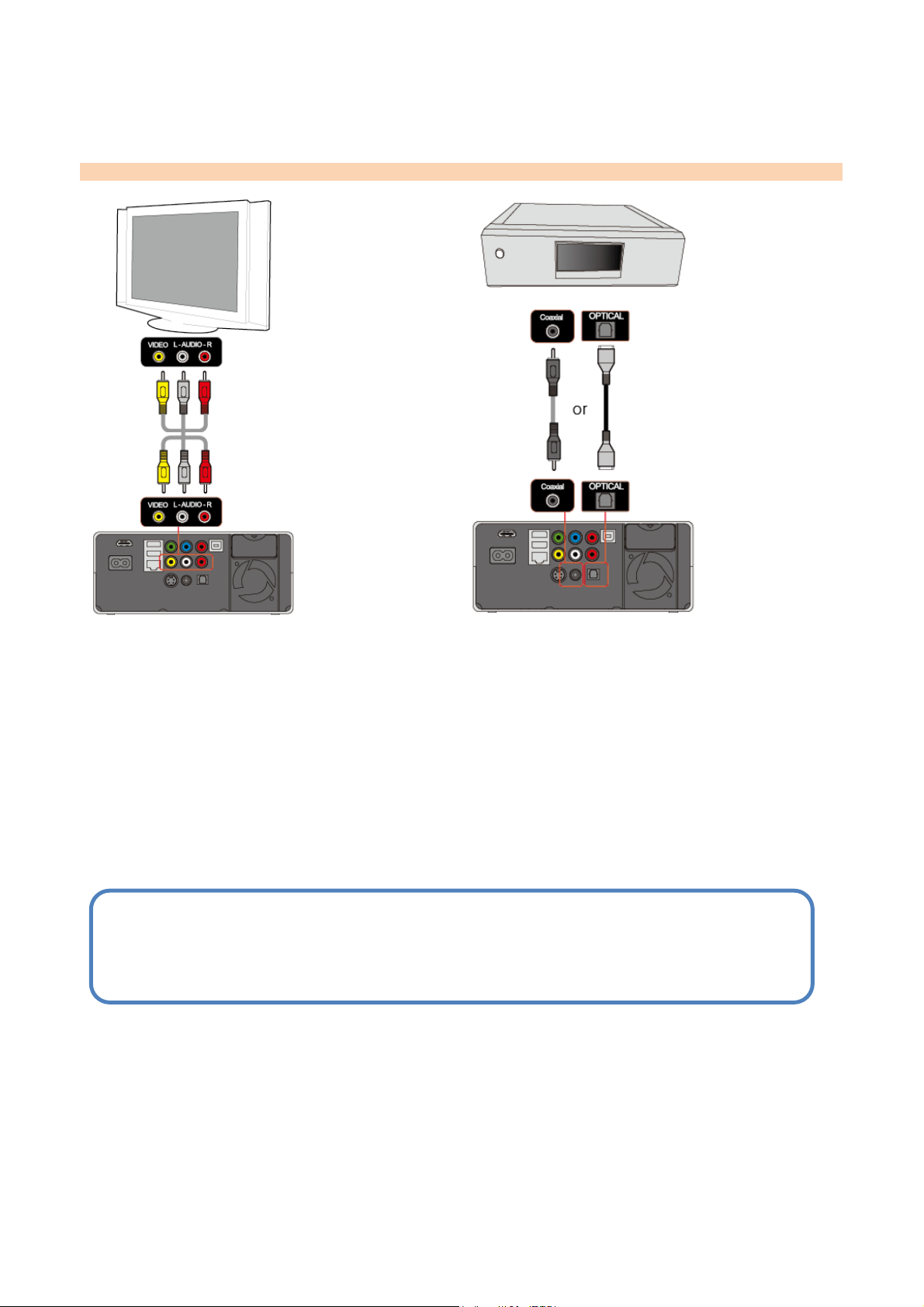

3.2 Audio Connection ................................................................................................................ 11

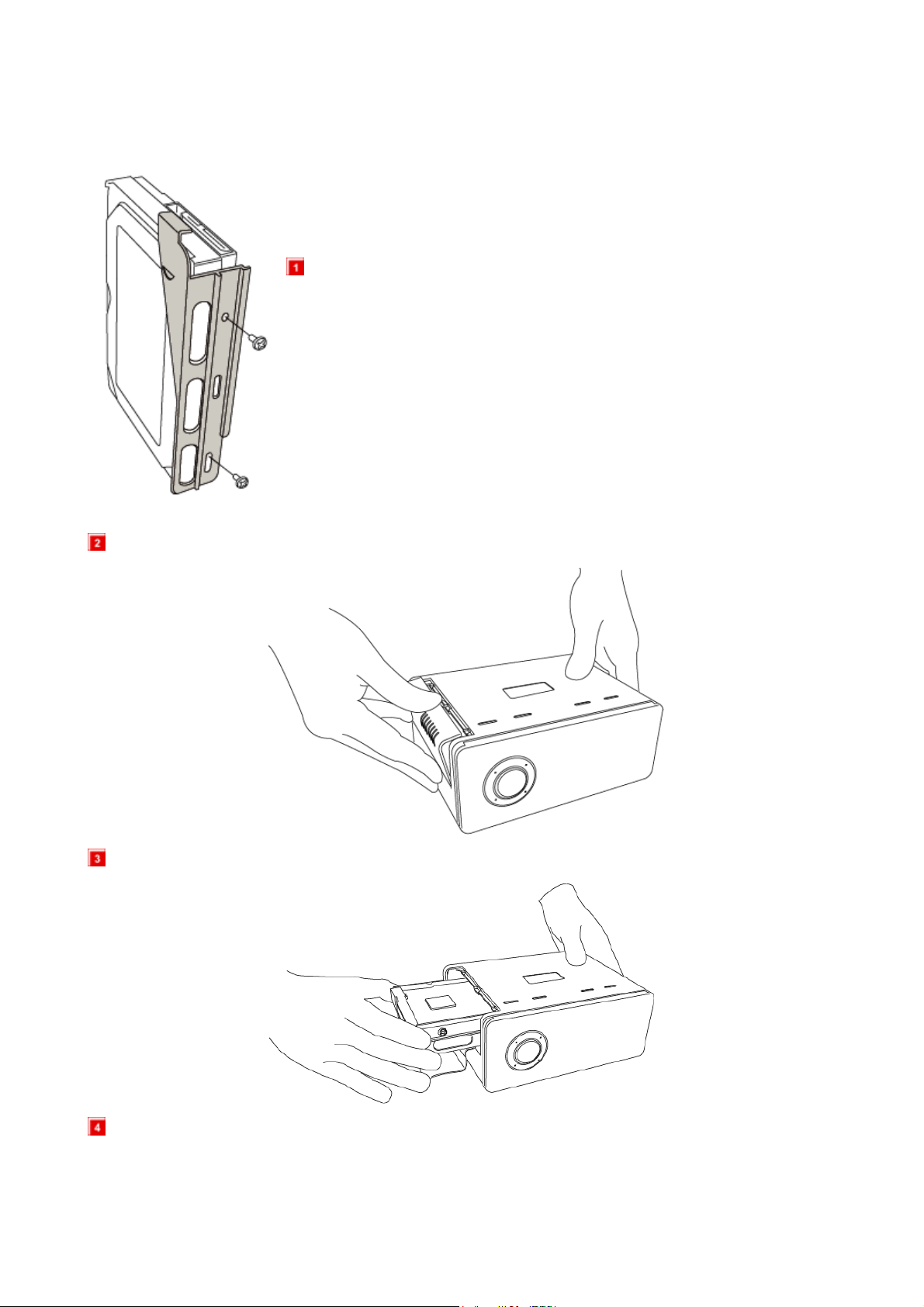

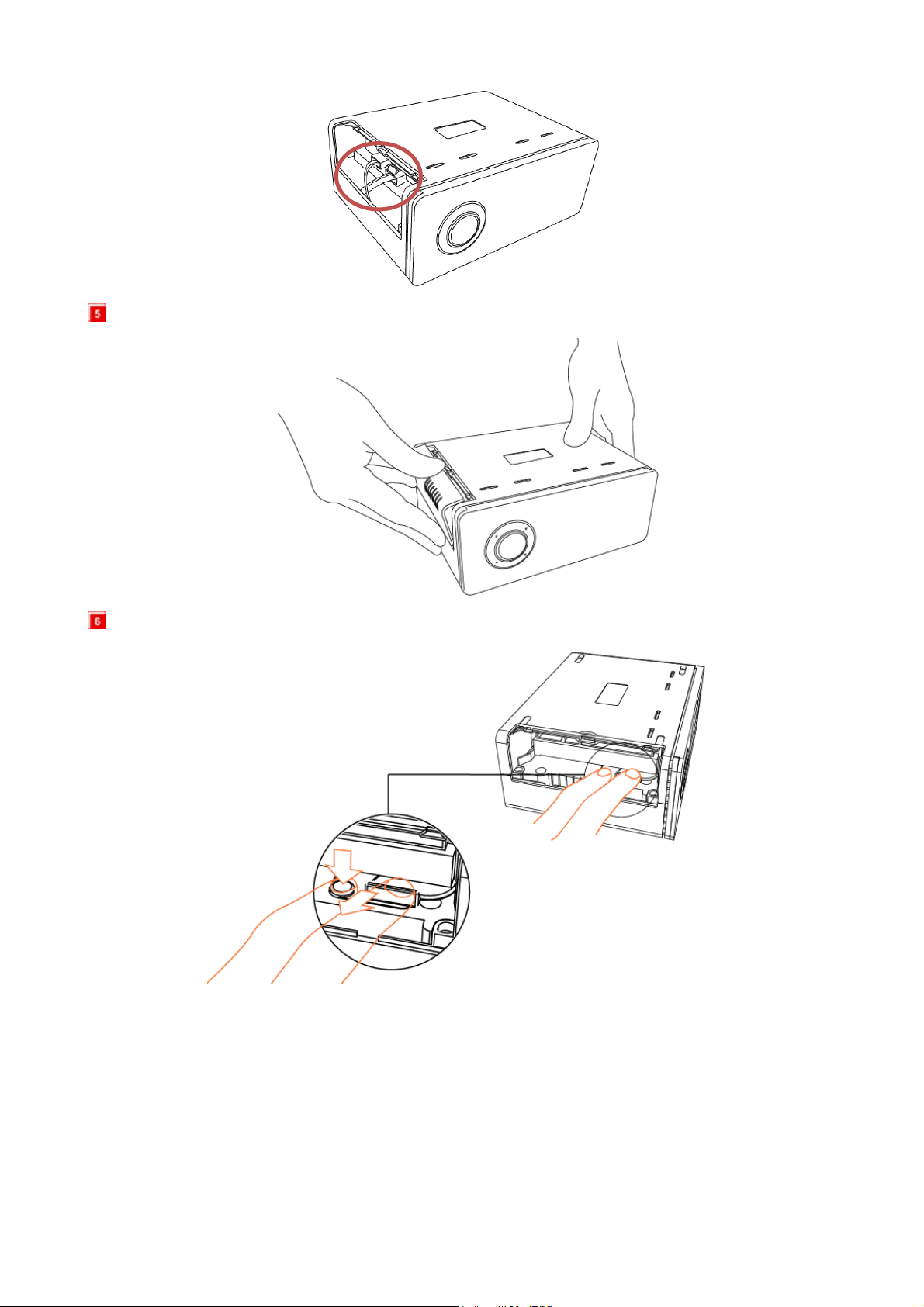

3.3 HDD Installation/Exchange .................................................................................................. 12

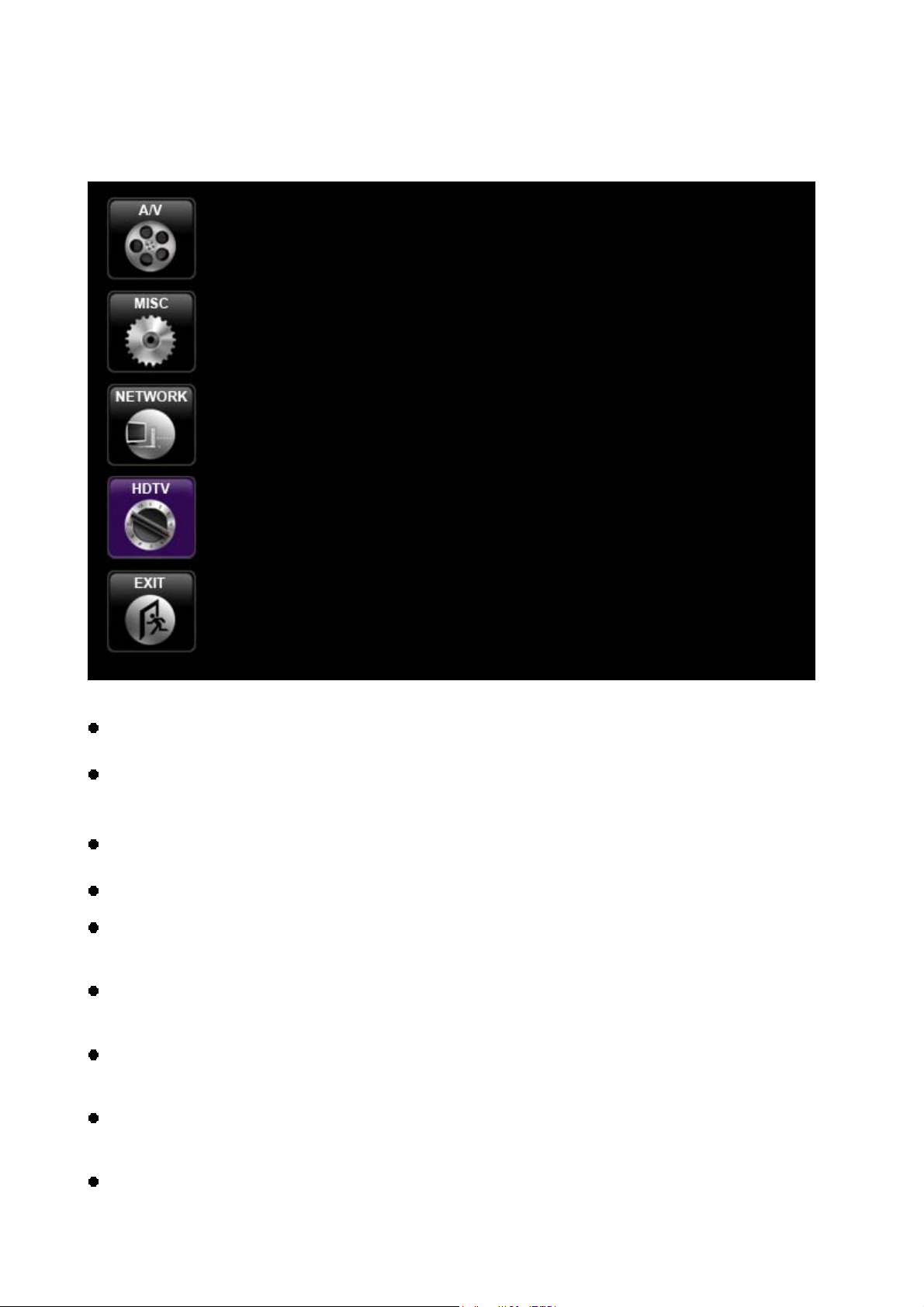

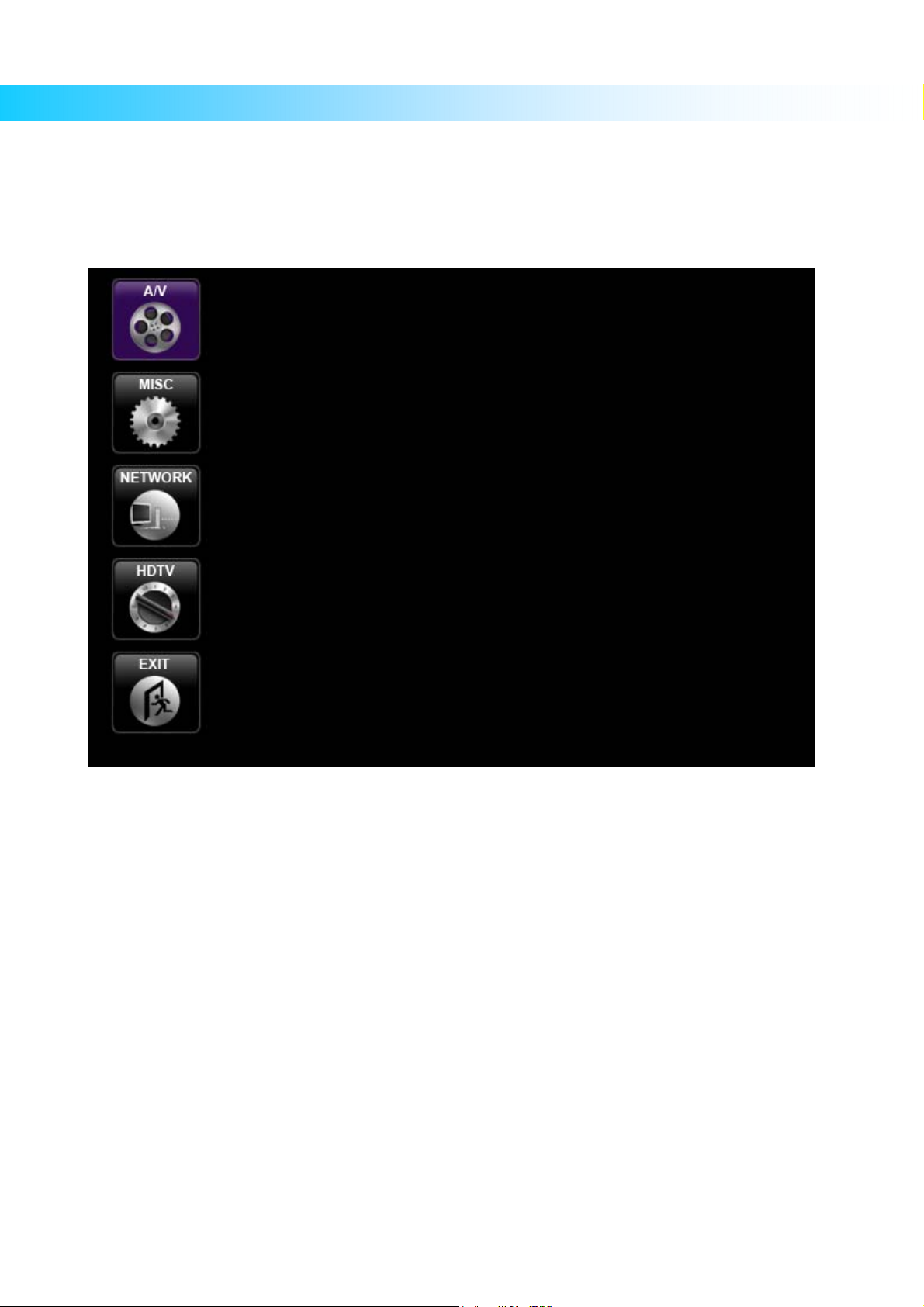

4 TViX Setup Menu ...................................................................................... 14

4.1 Audio/Video Setting ............................................................................................................. 14

4.2 MISC Setting ....................................................................................................................... 16

4.3 Network Setting ................................................................................................................... 17

4.4 HDTV Setting....................................................................................................................... 18

5 Easy Usage of TViX .................................................................................. 19

5.1 Making an HDD Folder ........................................................................................................ 19

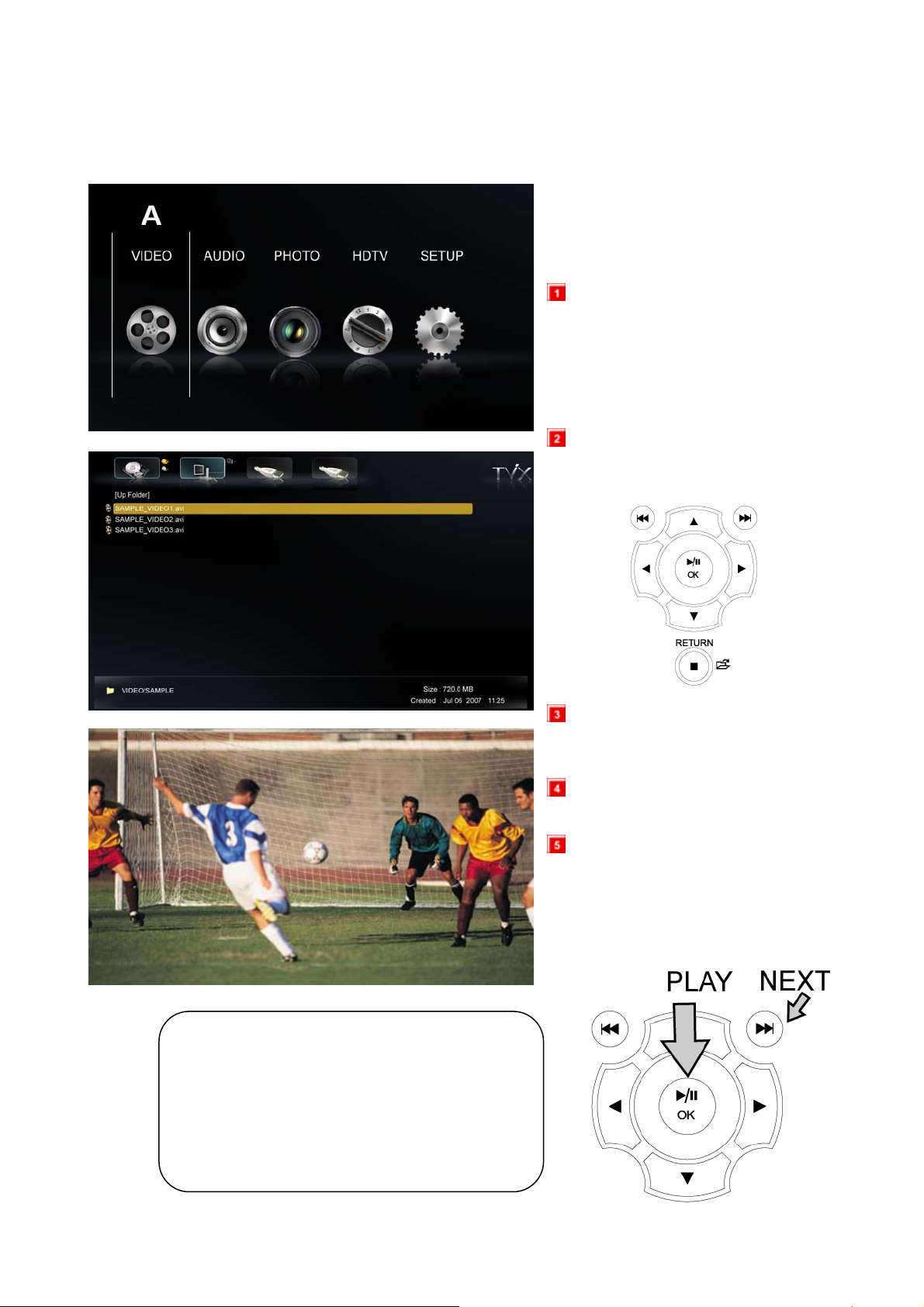

5.2 Play Video Files ................................................................................................................... 20

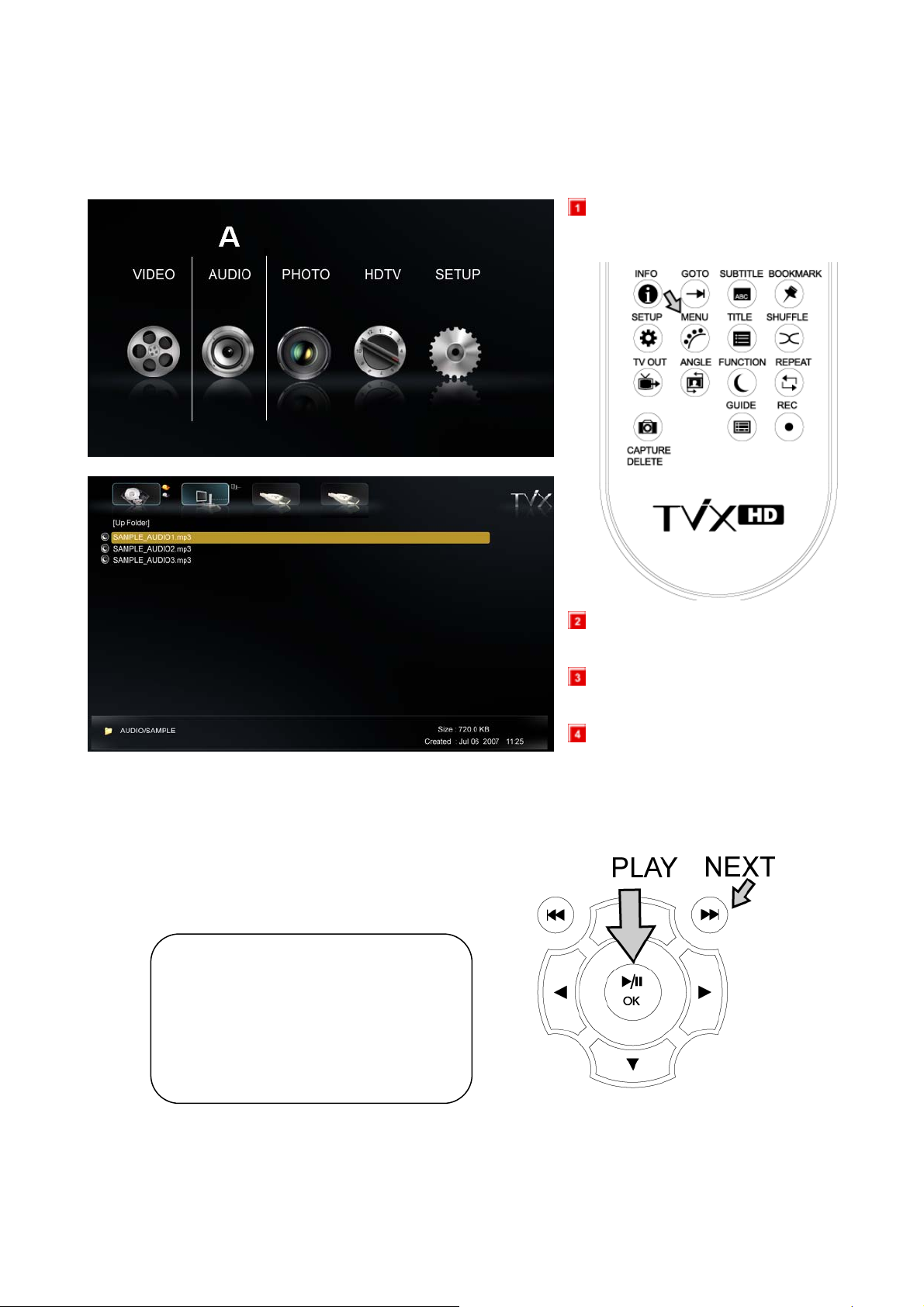

5.3 Play Audio Files ................................................................................................................... 21

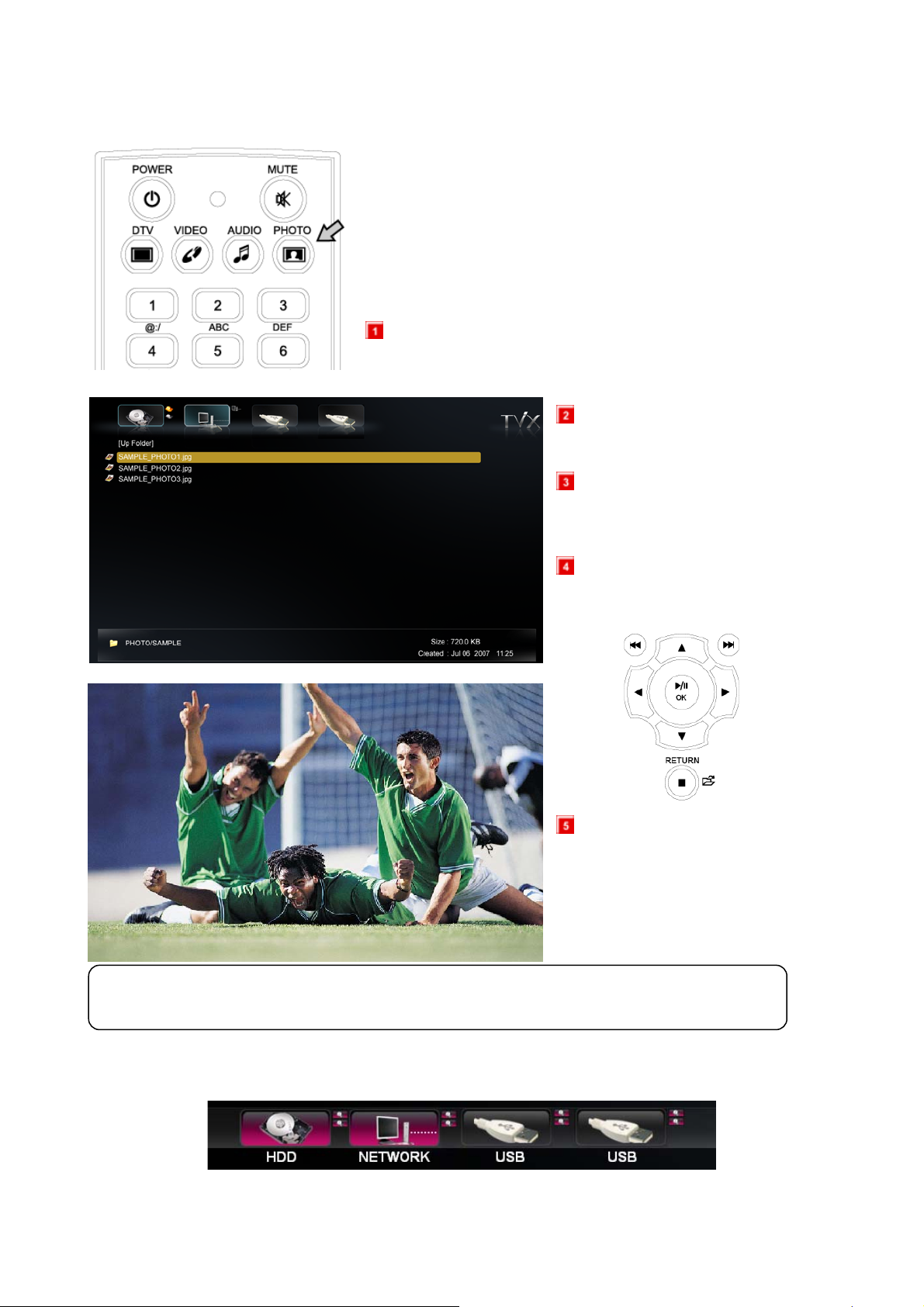

5.4 Play Image Files .................................................................................................................. 22

6

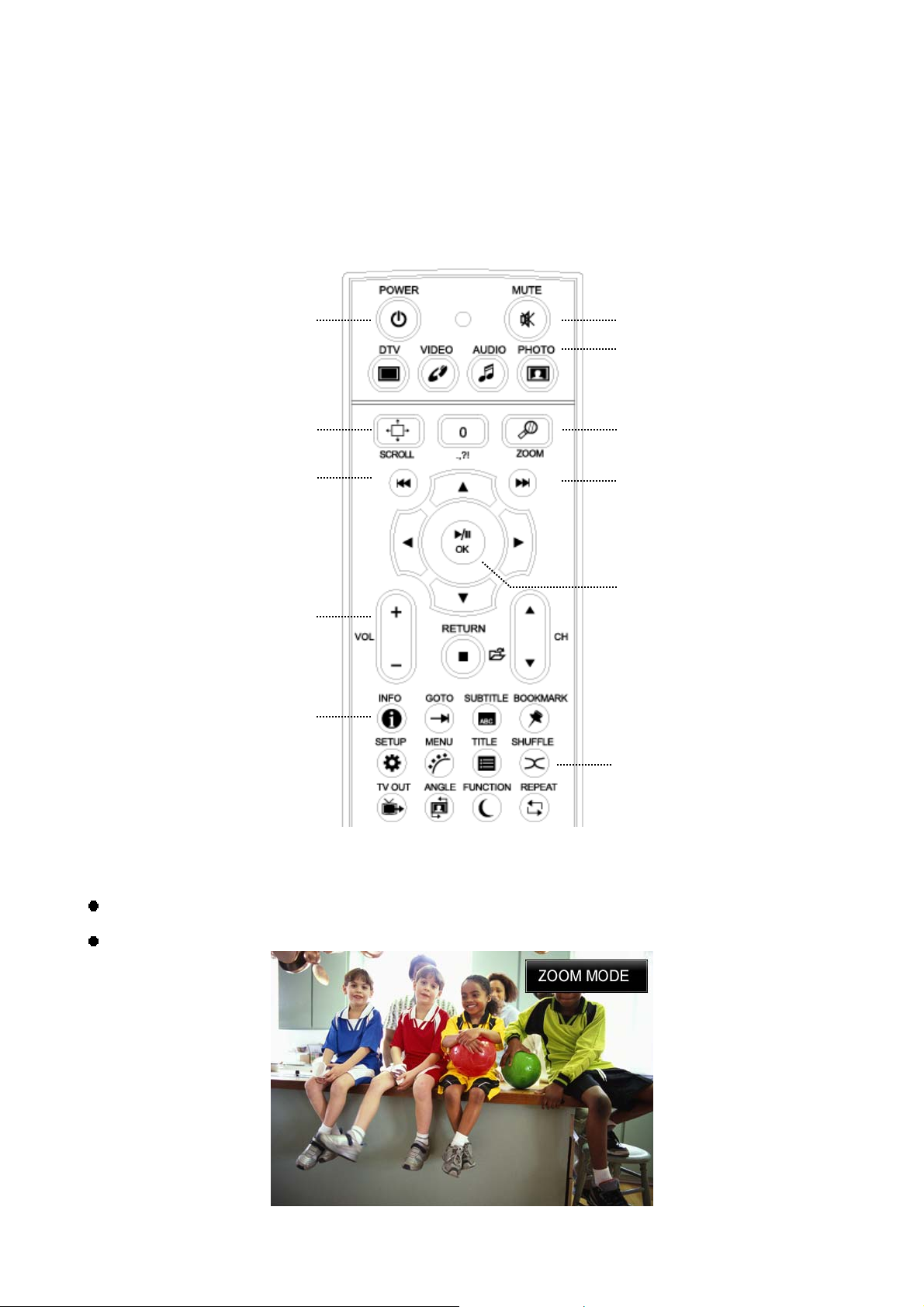

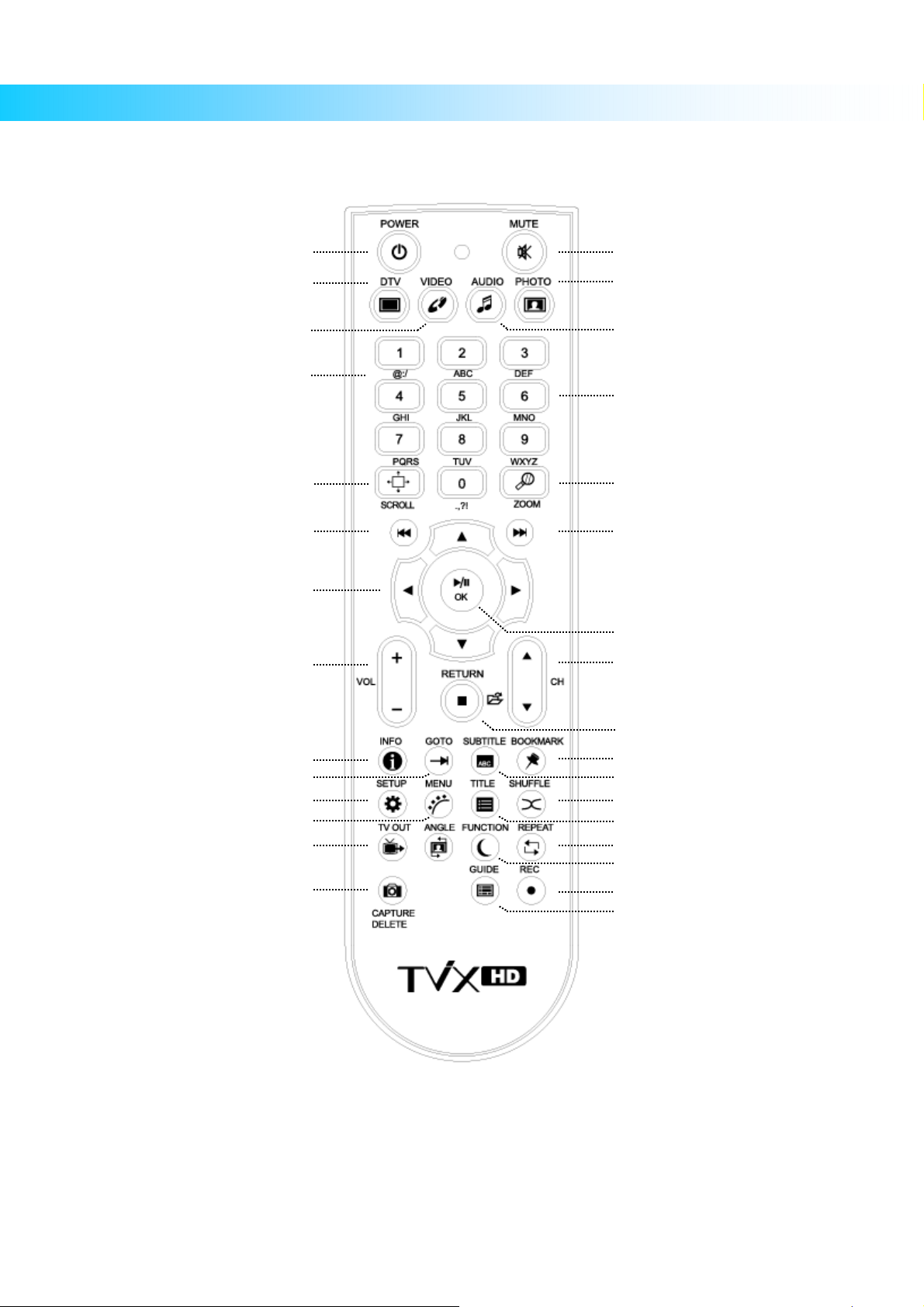

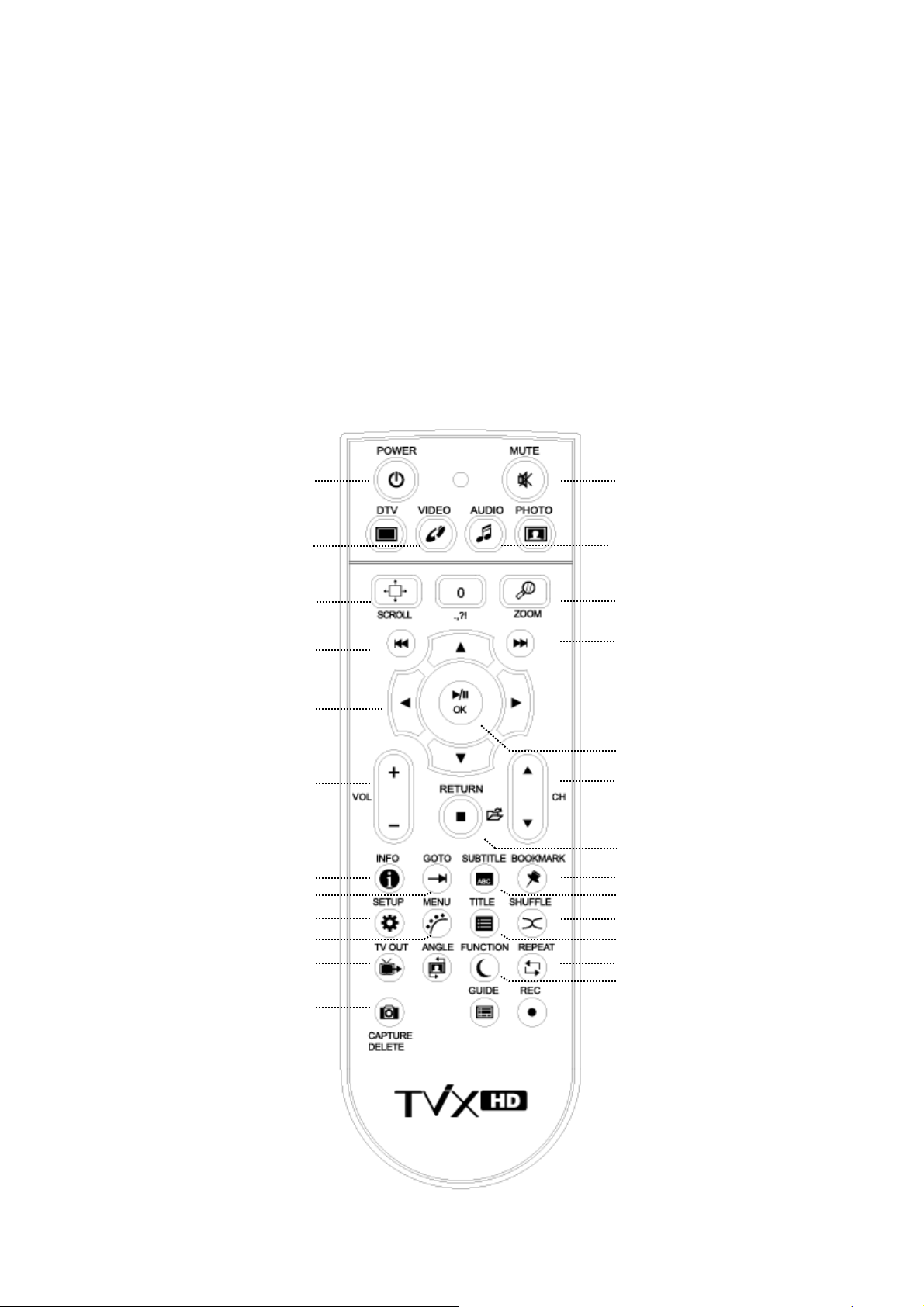

Using the remote control ......................................................................... 23

6.1 Basic Functions ................................................................................................................... 23

6.2 Descriptions of Each Buttons ............................................................................................... 24

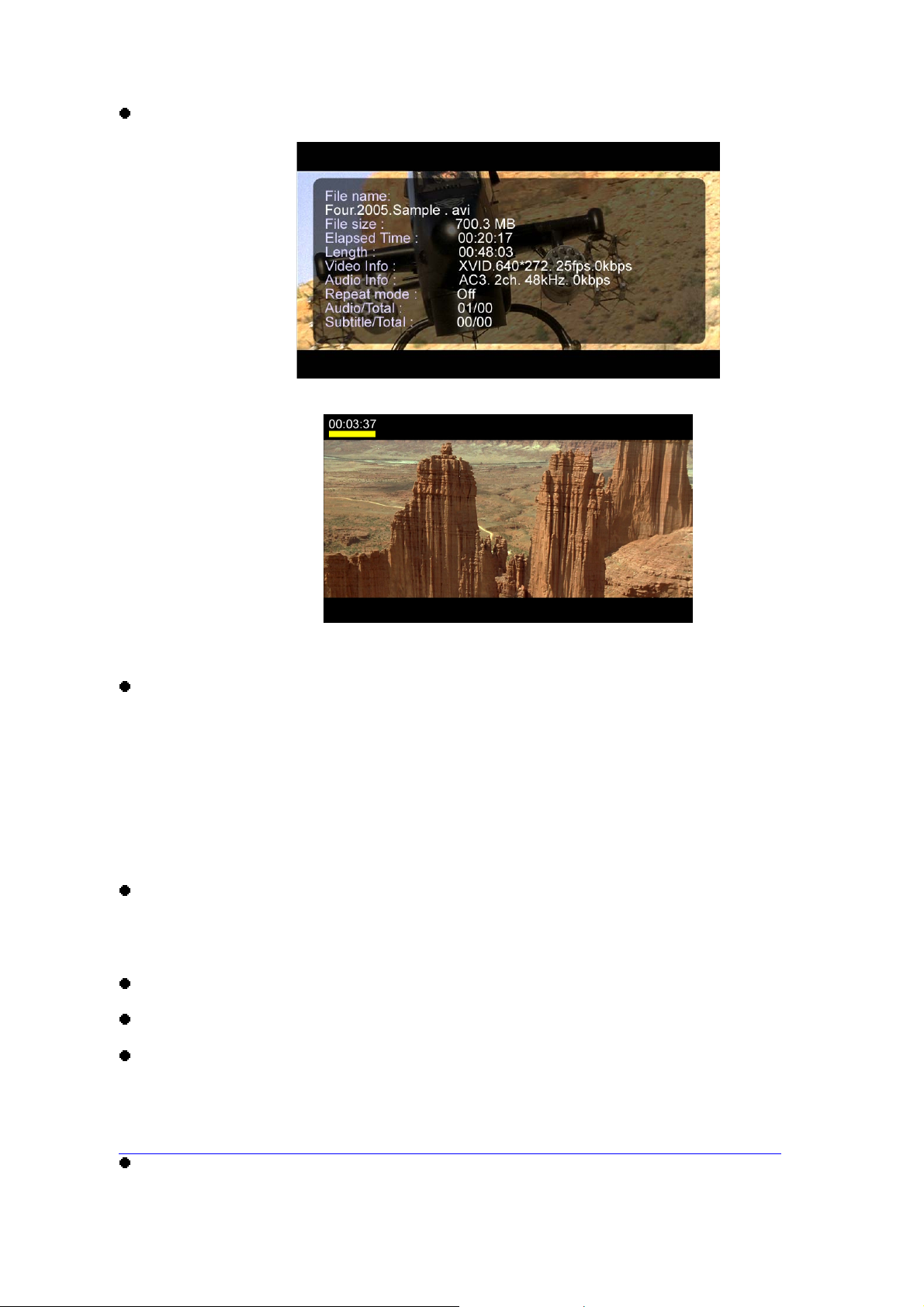

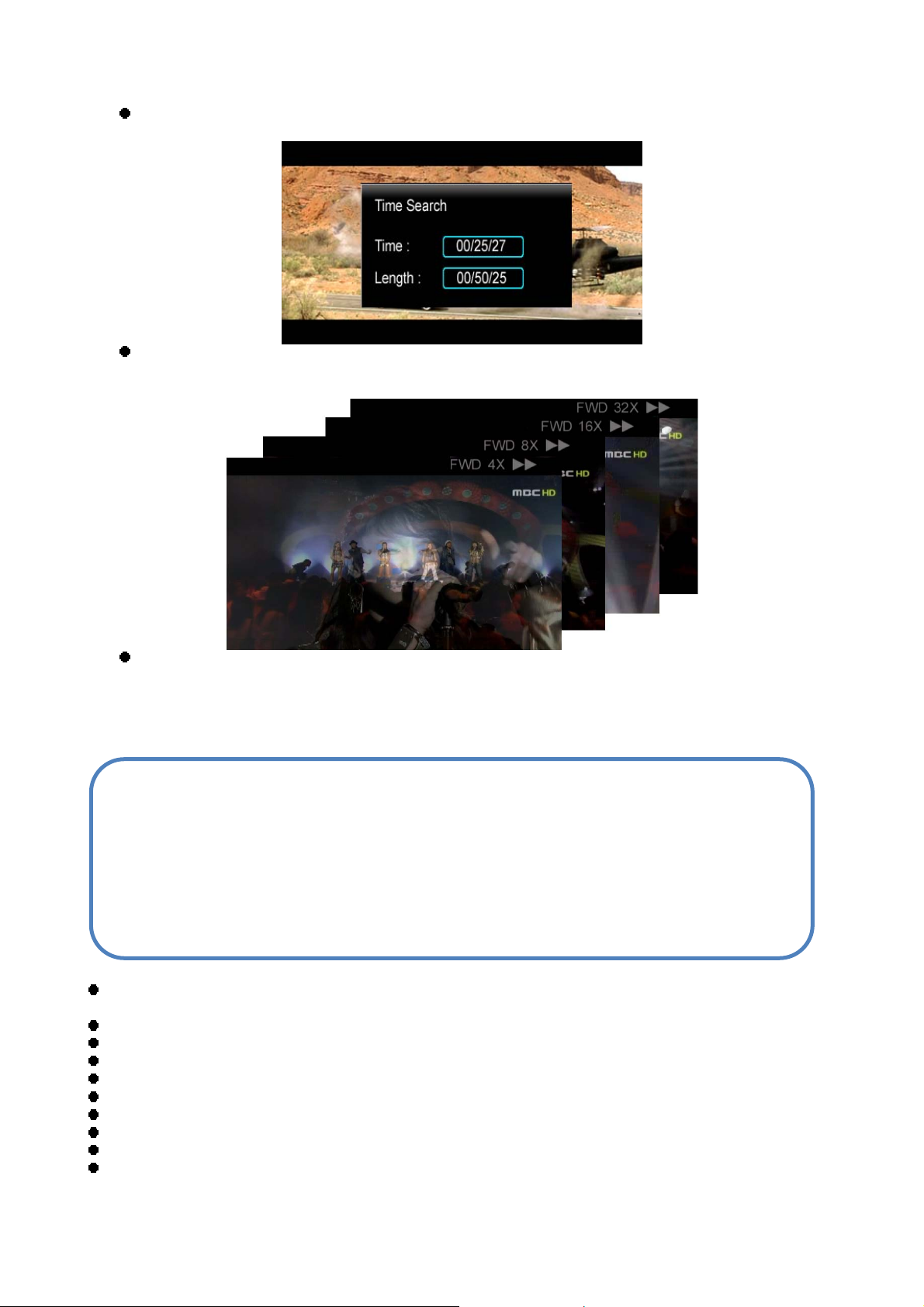

6.2.1 Video Playback ............................................................................................................ 24

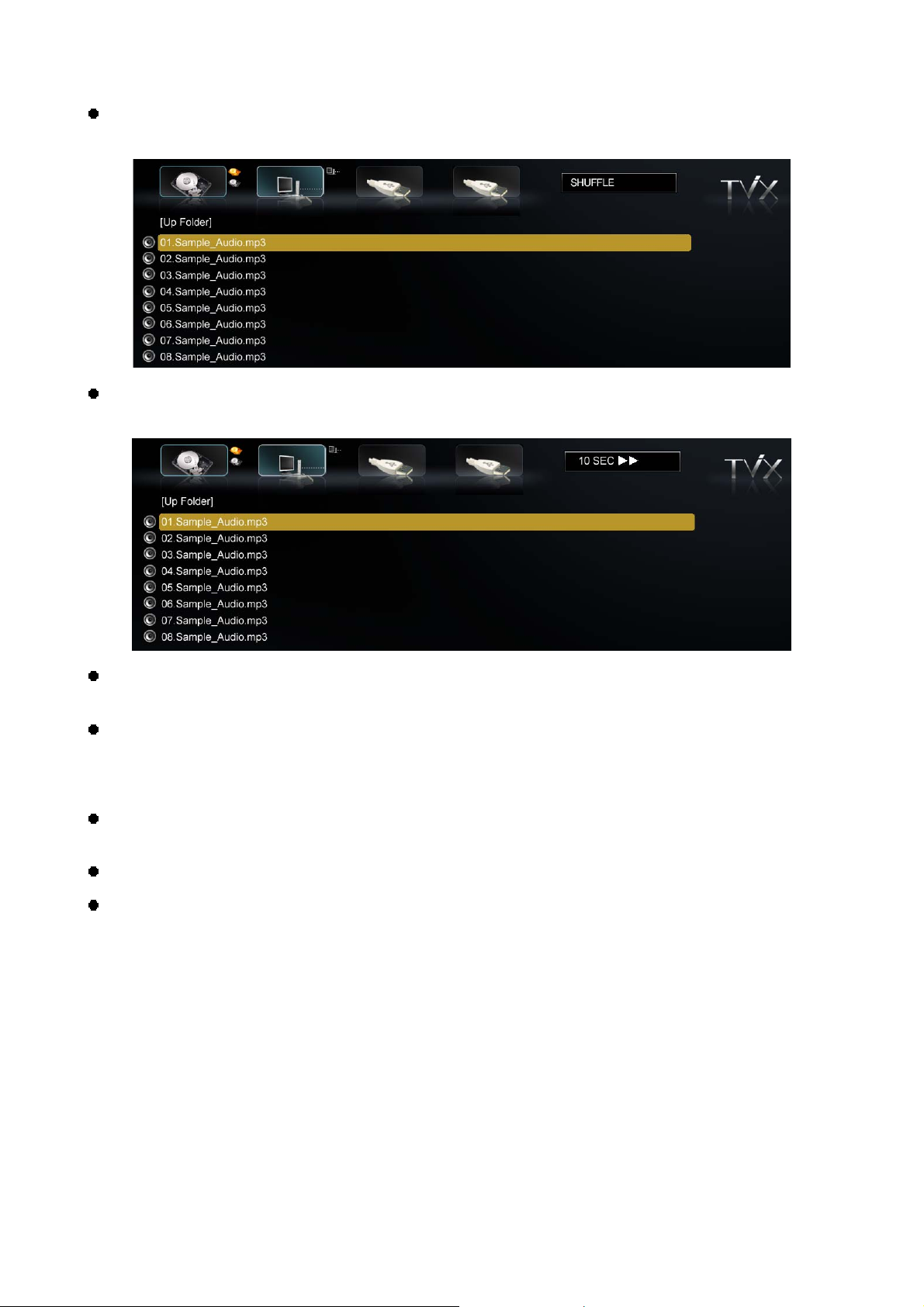

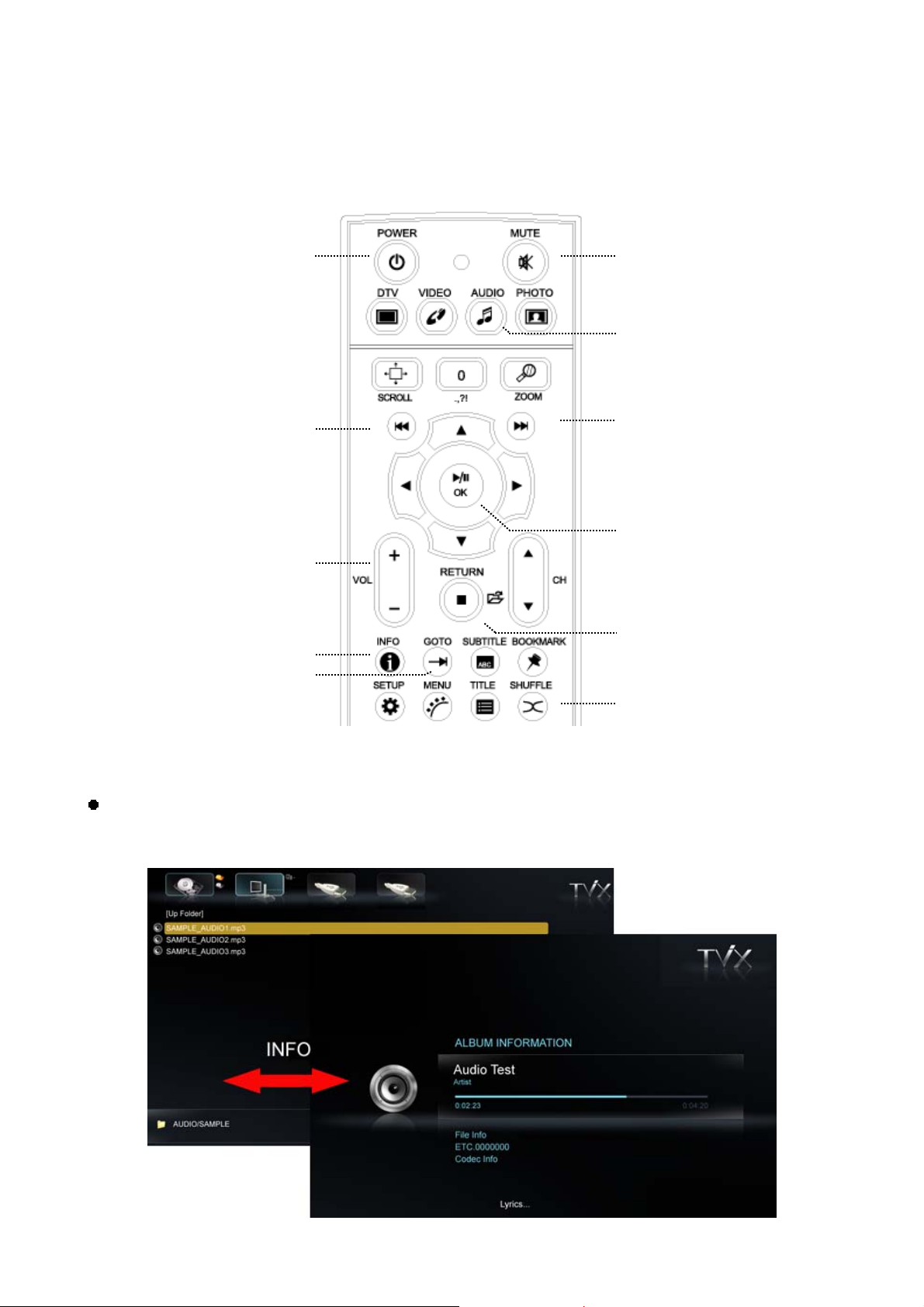

6.2.2 Audio Playback ............................................................................................................ 27

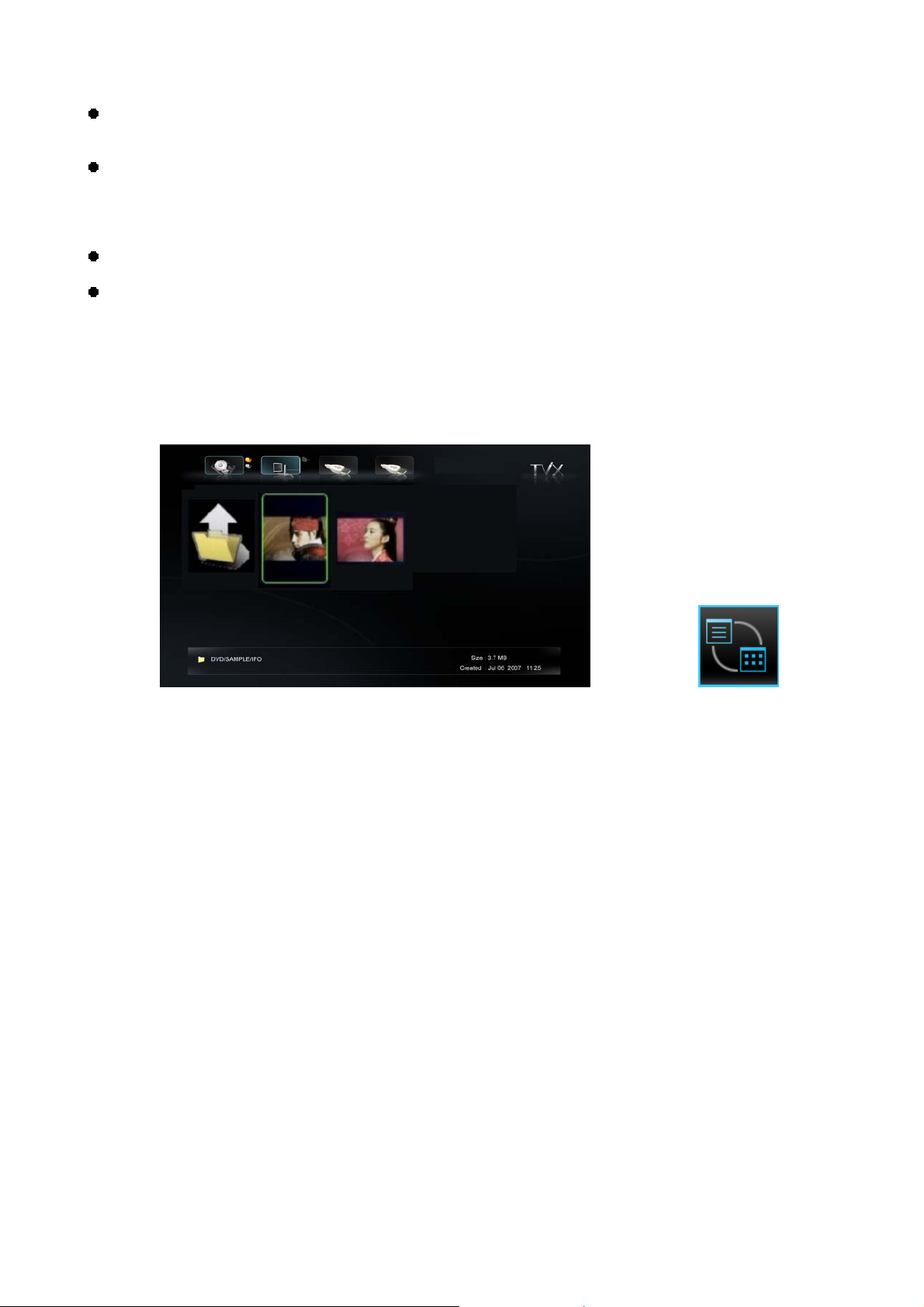

6.2.3 Image Playback ............................................................................................................ 29

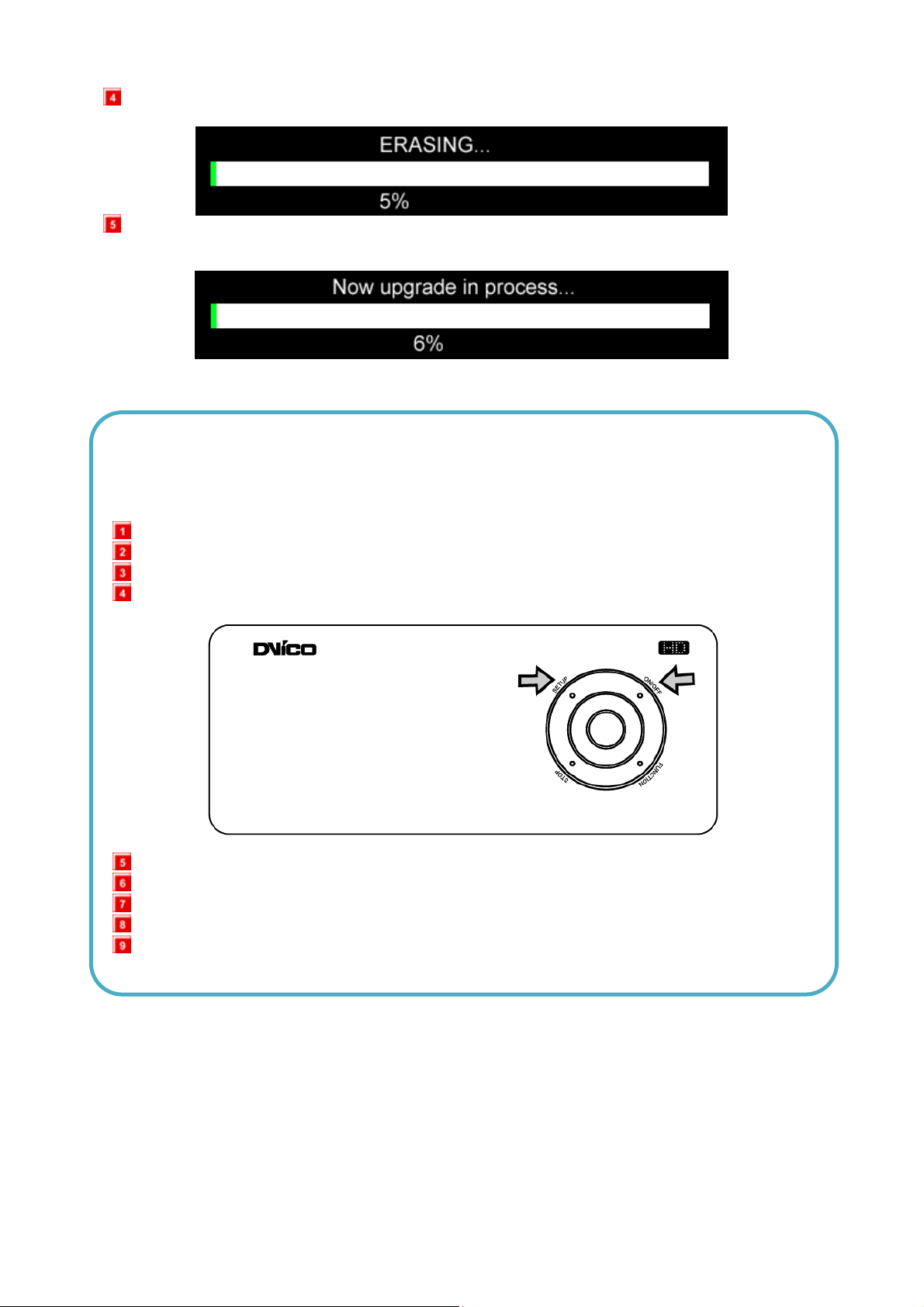

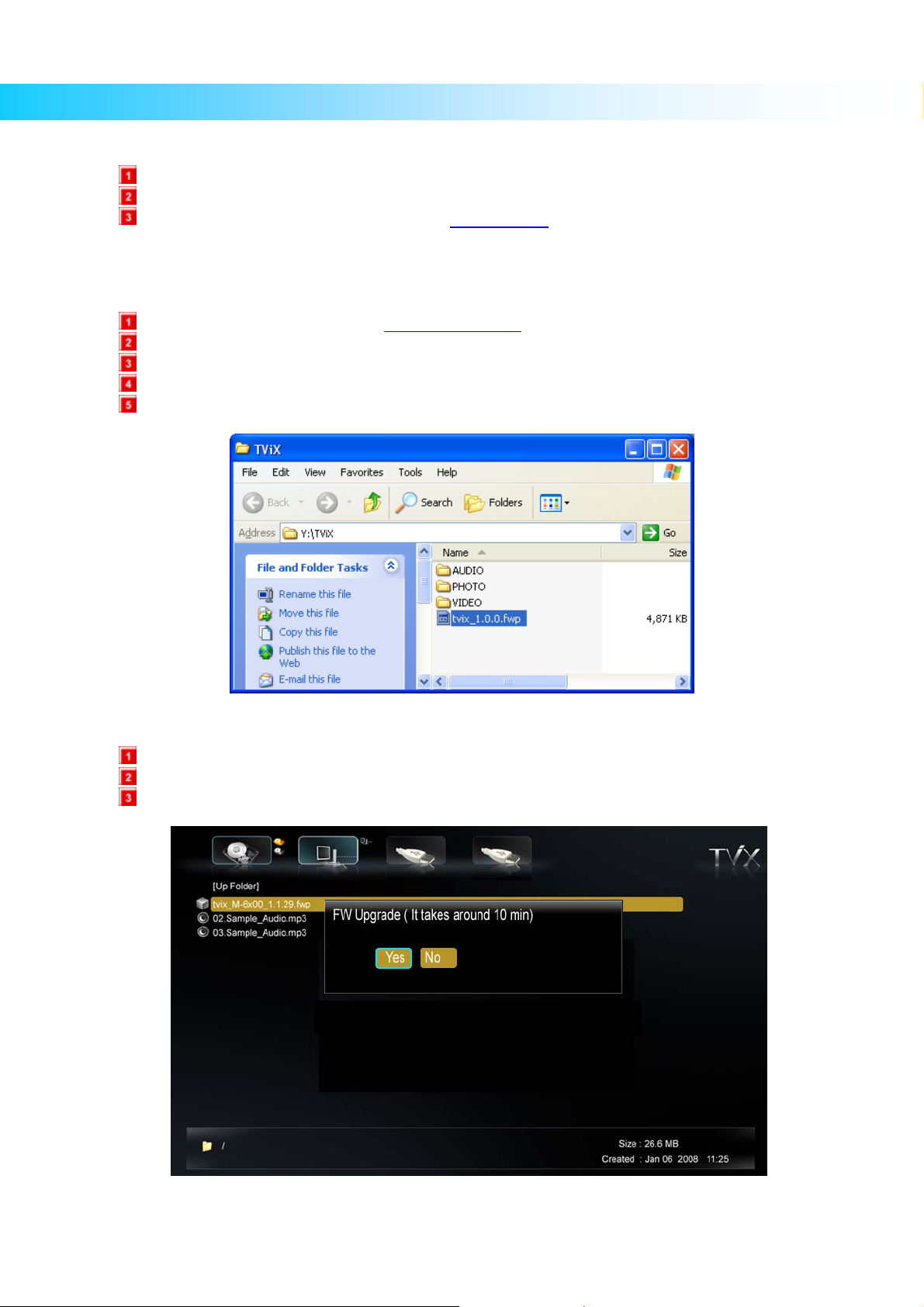

7 Firmware Upgrade .................................................................................... 31

4

1 Introduction

f

1.1 Multimedia Player

TViX plays back DVD movies with the full functionality of DVD navigation. You can create
your own virtual DVD library by storing your personal collection of DVDs in .ISO or .IFO
format and watch them exactly as if they were running from the original DVDs (all original
features included: Menu, Chapter, Audio Stream, Subtitle, Fast Forward, Rewind, Slow,
Pause, Step Forward, Repeat, Search etc.).

TViX plays back high definition video (up to 1920x1080P) and still images. Pre-recorded
HDTV programs from a digital TV set-top box or personal digital video contents taken by
a HDV™ camcorder can be played back with the TViX on a high definition display. The
TViX features a HDMI connector and component, which will match the high resolution of
HD level video contents.

TViX is a standalone, multimedia hard disk player which plays
digital videos, digital music, digital still images and DVD files to a
TV display and home entertainment system. You can enjoy digital
contents in your living room without having to burn discs or
having to play it back on a DVD or CD player anymore.

The TVIX R3300 series also functions as an ultimate digital personal video recorder or
archiving machine with OPTIONAL DIGITAL TUNERs, allowing you to capture the digital
TV signals and store them to pure digital format. It comes with all digital PVR
functionalities such time-shifting, EPG (electronic program guide) and scheduled
recording.

HDMI provides unparalleled qualities to digital video and audio, while DVI only serves
digital video. You don’t have to mess around with several AV cables. It provides single,
pure and simple way to connect your display. It can deliver uncompressed digital video
up to 1080p as well as multi-channel digital audio.

TViX supports DTS hardware decoder to mix DTS sound into 2 channels for a more
dynamic sound quality.

The TViX can be networked with a PC system using its built-in LAN port. You are able to
navigate to a PC file through TViX’s wired or wireless network and play the file from its
original destination without having to copy it into the TViX first. We’re supporting the file
copy via LAN.

With two USB2.0 host ports, you can now attach additional external USB hard drives to
further extend the storage capacity. You can also playback files from a digital camera,
USB flash driver, USB flash card reader, or a MP3 player.

actured under license from Dolby Laboratories.

Manu

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

** For the further functions, please refer to following FAQ- http://www.tvix.co.kr/eng/faq

5

1.2 Audio Player

TViX can play a variety of audio files such as MP3, Ipod, M4A, Ogg or WMA (Windows Media Audio)
through the TV speaker and any other audio systems. You can listen to your favorite music files nonstop, by
organizing a custom winamp playlist. Now you can enjoy music all day without changing CDs.

TViX supports the internet radio of shoutcast streaming format (.pls,.m3u).

You can watch picture slideshows with the option of background music (supports Simultaneous playback
of Audio and picture images).

1.3 External Storage

If you connect to a USB 1.1 port, the TViX will work at USB 1.1 speed, so we strongly recommend that
you use USB 2.0.

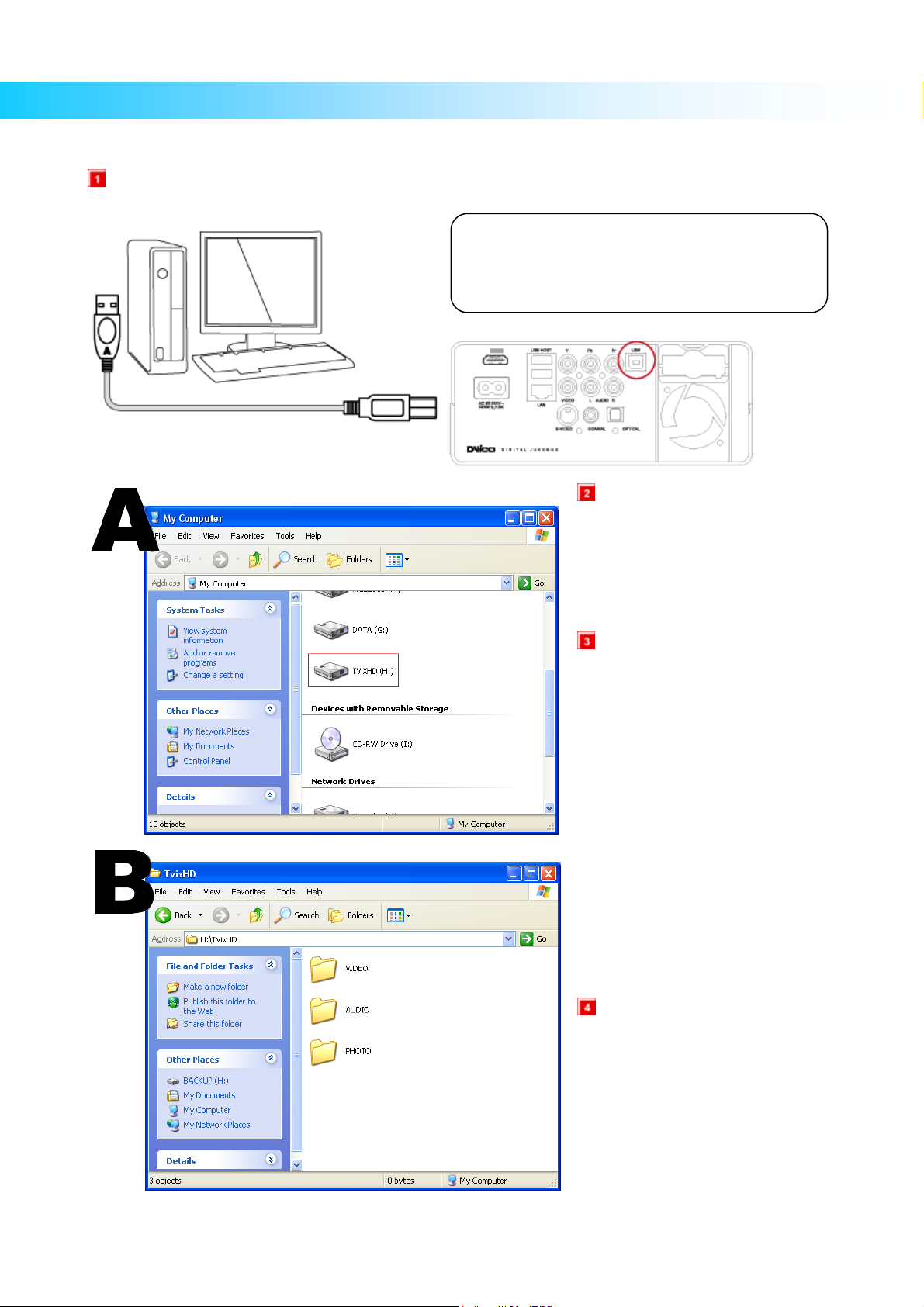

It can be used as an external device by connecting it to the System, to save video, audio, image files, data,
program backups etc.

USB 2.0 enables TViX to become as an external storage device which supports speed up to 480Mbit/s.

It supports Plug & Play, so Windows will automatically recognize TViX the instant it is connected to the
system

If you connect the USB Cable between the system and TVIX. During playback , then on VFD it will be
displayed as USB ON. When you disconnect the USB, you do not have to reboot the TViX for continuous
use.

If you are a Windows98SE user, you should download a USB storage driver from our website
www.tvix.co.kr
Windows ME/2000/XP.

You can download latest NetShare Software from our website www.tvix.co.kr/Eng before you configure

NFS network. If you select to NFS mode, you can play the TP or DVD jukebox without stutter.

6

before you connect your TViX with your system. You do not need to install a driver in

1.4 Specifications

Main Chipset Adapts superb Scorpio RT1282 200Mhz processor

VFD Display

Video

Audio

7 Alpha-Numeric Character

5 Digit Numeric Display

Format : AVI, MPEG1/2/4 (Xvid), .IFO, .ISO, .VOB, .DAT, .TP

Codec : MPEG 1 / 2 / 4, AVI, XVID

Resolutions Up to 1080i (1920x1080i) resolution

.MP3, .OGG, .WMA, .AAC, .WAV (PCM)

Multimedia digital sound, DTS pass-thru & down-mixing


JPEG (Progressive JPEG not Support)
Slideshow while background music playing

USB2.0 Host 2 Ports

Connectivity

USB2.0 Target 1 Port

LAN

Video

HDMI 1.1, Component, S-Video, Composite

Audio

AV In / Out

Digital : Coaxial, Optical , Analog: Stereo

Optional DTV Tuner Port

One analog multi AV input port for analog PVR functions (composite + SVHS +
analog audio)

Features (PVR)
with optional
input cable

File Formats

Subtitle

z Recording the external analog video inputs directly.
z Analog-video time-shifting

z 188 hrs of SD contents recording for 320GB HDD

NTFS, FAT32(S-ATA HDD only, supports S- ATA 1,2)
DTV Recording : 7200rpm, NTFS

Text Subtitle : smi, sub, srt, lrc, txt
Image Subtitle : sub (with idx)

Hard Disk 3.5” SATA HDD only (SATA I, SATA II HDD)

ODD Support Through USB 2.0 Host

Language

English, French, German, Spanish, Italian, Swedish, Czech, Russian, Japanese,
Chinese, Korean

FAN 40mm Brushless FAN

FAN Control Temperature Sensing, Variable Speed

RAM 128 Mbyte

Internal
Power

90~250V Free Voltage, , 50/60Hz, 50W

Size 183x139x75 mm

Weight 1.3Kg (HDD included)

7

2 Name of Each Part

2.1 Control Panel

Basic functions can be done without the remote control.

2.2 Cable Connection

You can connect the TViX to a TV display or audio Amplifier using the A/V cable. There is a detail instruction
for tuner box on the quick guide of optional tuner box package.

USB

POWER

HDMI OUT

USB HOST

LAN
Composite/S-video

COMPONENT

Coaxial

Stereo

AV IN

Optical Out

HD Tuner port

Cooling FAN

2.3 Package Contents

TViX main unit Power cable A/V cable USB Cable Manual TViX Remote

8

HDMI cable is enclosed.

3 Installation and Connection

3.1 Video Connection

We support HDMI, Component, S-Video, Composite video output for connecting to the TV and each output
needed to be changed on the settings menu depending on the cable used.

The highest quality expected by the components used is in the following order:

HDMI > Component > S-Video > Composite.

Connection with an Ordinary
(Composite cable) TV Output

Connection to HDMI Output

Connect the TViX Kit HD and your TV. Using the
Composite (yellow) video cable.
Turn on the TViX kit and the TV. Select Video input
mode as composite on your TV display, until you get
the initial TViX screen.
For the Audio, please connect the stereo cable
(red,White cable).

9

Connect the TViX kit along with the HD and your TV.

By using the HDMI cables.
TViX plays back high definition video (up to
1920x1080P) by using HDMI cables.
HDMI cable can transmit uncompressed audio and
Video signals together. No additional cables required
for audio

Connection to S-Video Output Connection to Component Output

Connect the TViX kit and your TV .using the S-Video

cable.

Turn on the TViX Kit and the TV. Select video input

mode as S-Video on your TV display until you get

the initial TViX screen.
Additional cables required for audio.
(The S-Video cable is not included and has to be
purchased separately.)

Connect the TViX kit and your TV. By using the

component cables.
Turn on the TViX Kit and the TV. Select video input
mode as Component on your TV display by changing
setup menu (in this case, the Component input
mode)
Additional cables required for audio.

CAUTION

After you connect the video cable to your TV, press the TV Out button repeatedly on your remote
control until you get the initial TViX screen.
When you connect to HDMI port, press TV OUT button until you can see EDID on VFD.

* The component or S-Video cable is not included in the TViX and must be purchased separately.

10
