DVICO M-5000U User Manual
User Manual

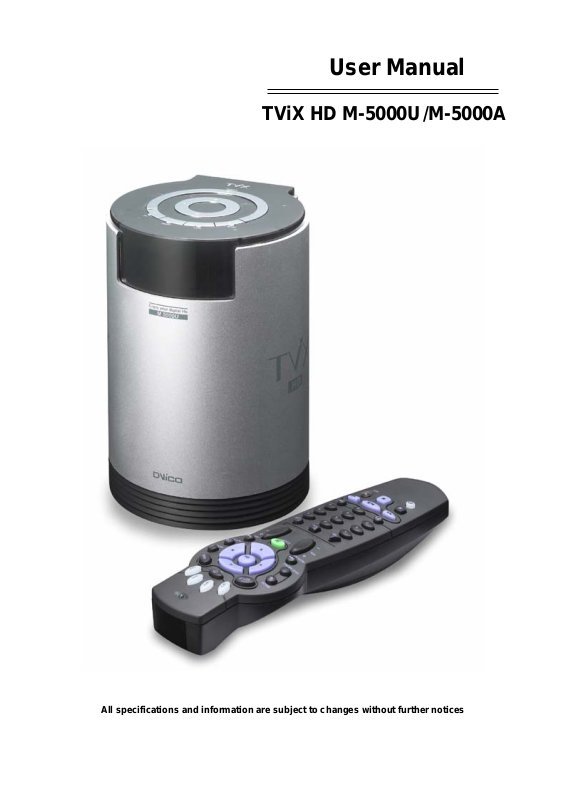

TViX HD M-5000U /M-5000A
All specifications and information are subject to changes without further notices
Safety Notice
Keep your TViX away from heated areas, such as sunlit areas,
heaters etc. Set it up in well ventilated places. Ensure that a
free airflow is maintained around the appliance.
Do not set the TViX up in places that are exposed to oil, water,
dust, humidity or rain and wind.
Keep all magnetic materials away from the TViX. Magnetic
materials such as speakers or magnets may erase or cause
damage to the data stored in the hard disk.
Do not try to disassemble or remodel the device. Doing so may
cause malfunction or fire.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Do not touch the power plug with wet hands or use defective
power cables & electric outlets. It may cause electric shocks or
fire.
Do not drop the device. Doing so may cause critical damage
to the hard drive.
2
Usage Precautions
Please read the following usage precautions before using your TViX HD.
Make sure the power is off when you connect the A/V cable between the TViX and the TV.
When cleaning the TViX product, pull out the power cord and then wipe it with a soft piece of dry cloth.
W hen connected to the com puter through the USB cable the TViX HD acts as an ex ternal USB storage
device (In this state, there is no video/audio output and the VFD will show as USB ON). For normal TViX play
mode, disconnect the USB cable connected to the computer and turn on the TViX HD.
When the TViX HD is playing and the US B is con nec t ed to th e c omputer, a USB ON icon will be displa yed
on the center of the screen. Disconnecting the USB port will show the original screen.
Make sure the jum per setting of the hard disk which is installe d on the TViX HD is set as Si ngle Master.
Otherwise the hard disk will not be recognized by TViX HD.
When detaching the HDD, please let the heat out sufficiently.
The supplied cables and accessories are recommended for customized best performance of the TViX HD.
Using other cables or accessories may not provide best performance.

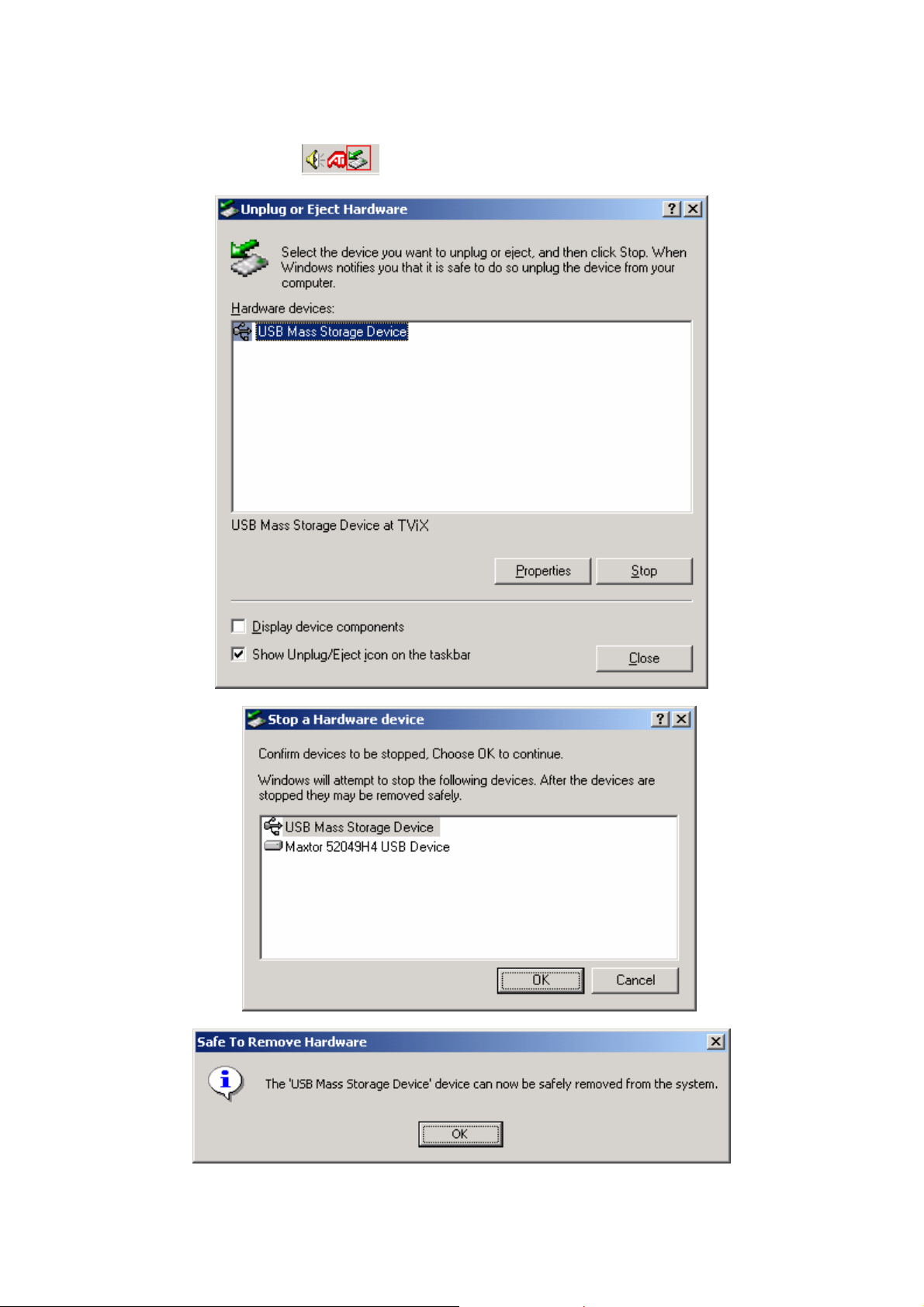

If you want to unplug the device, press the Stop button in 'Unplug or Eject Hardware'.
Windows 98SE and Windows ME does not support NTFS file format. However, NTFS file format is
available on Windows 2000/XP. “Primar y Partit ion” is r ecom m ended whe n crea ting t wo or m ore partit io ns
with a single hard disk drive.
If you choose FAT32 file format on Windows 2000/XP, the drives maximum size will be limited to 32GBs.
If you want to use a single drive letter of 32GBs or more, you have to format on Windows 98SE/ME.
The certification sticker mark is on the bottom of the device.
The Difference between M-5000A from M-5000U.
- M-5000U will power up after the main power switch (at the back of the unit) is turned on.
- M-5000A will power up only after you press power switch on the top of the unit or using remote
tranceiver.
Other functional features are exactly same and both use the same firmware.
You can insert the char acter using remote-num eric key. Number 1 key is changed as @Æ : Æ / Æ _ Æ -
when this key is pressed.
** Some functions will require you to update the firmware in first.
3
Table of Contents
Safety Notice.............................................................................................................................................. 2
Usage Precautions ..................................................................................................................................... 3
1
Introduction.................................................................................................5
1.1 Multimedia Pla yer ....................................................................................................................... 5
1.2 Audio Player ............................................................................................................................... 6
1.3 External Storage......................................................................................................................... 6
1.4 Specifications.............................................................................................................................. 7
2
Name of Each Part......................................................................................8
2.1 Unit Control................................................................................................................................. 8
2.2 Front VFD................................................................................................................................... 8
2.3 Cable Connection....................................................................................................................... 9
2.4 Package Contents ...................................................................................................................... 9
3
Installation and Connection.....................................................................10
3.1 Making an HDD Folder............................................................................................................. 10
3.2 Video Connection ......................................................................................................................11
3.3 Audio Connection ..................................................................................................................... 13
3.4 LAN Connection........................................................................................................................ 14
3.5 HDD Installation/Exchange....................................................................................................... 22
4
TViX HD Setup Menu................................................................................24
4.1 Audio/Video Setting .................................................................................................................. 24
4.2 MISC Setting............................................................................................................................. 26
5
Easy Usage of TViX HD ............................................................................28
5.1 Play Video Files........................................................................................................................ 28
5.2 Play Audio Files........................................................................................................................ 29
5.3 Play Image Files ....................................................................................................................... 30
6
Using the remote control.........................................................................31
6.1 Basic Functions ........................................................................................................................ 31
6.2 Descriptions of Each Buttons ................................................................................................... 32
6.3 Extra Features.......................................................................................................................... 39
7
Firmware Upgrade....................................................................................43
8
Using USB Connection with the PC........................................................45
8.1 Windows 98SE Driver Installation ............................................................................................ 45
8.2 Making a Partition and Formatting the HDDs under Windows 98SE / ME............................... 49
8.3 Making a Partition and Formatting the HDDs under Windows 2000 / XP................................ 51
8.4 Unplug or Eject Hardware ........................................................................................................ 54
9
Appendix - Technical Terms....................................................................55
10 GNU General Public License...................................................................57
4
1 Introduction
1.1 Multimedia Player
TViX HD is a standalone, multimedia hard disk player which plays digital
videos, digital music, digital still images and DVD files to a TV display and
home entertainm ent s yste m. You can enjoy digital c o ntents in your living room
without having to burn discs or having to play it back on a DVD or CD player
anymore.
TViX HD plays back DVD movies with the full functionality of DVD navigation. You can
create your own virtual DVD library by storing your personal collection of DVDs in .ISO
or .IFO format and watch t hem exactly as if the y were running from the original DVDs (all
original features inc luded: Menu, Chapter, Audi o Stream, Subtitle, Fas t Forward, Rewind,
Slow, Pause, Step Forward, Repeat, Search etc.).
TViX HD plays back high definition v ideo ( u p to 1920x1080i) and s t il l images. Pre-rec or ded
HDTV programs fr om a digital T V set-top box or p ersonal digit al vide o contents tak en by a
HDV™ camcorder can be played bac k with the TViX HD on a high defin ition display. T he
TViX HD features a DVI co nnector and com ponent, which will match the high r esolution of
HD level video contents.
Using the latest EM8621 processor, TViX HD supports the latest multimedia formats
(WMV9 & WMV HD) as well as MPEG4 3.11,4.0 and 5.0.
Using the high definition DVI output, you can directly connect the TViX HD to your HDTV.
TViX HD supports DT S hardware decoder to m ix DTS sound into 2 channels for a more
dynamic sound quality.
The TViX HD can b e netw orked with a PC s ystem us ing its b uilt-in L AN port. You are able
to navigate to a PC file through TViX HD’s network and play the file from its original
destination without having to copy it into the TViX first.
The TViX HD can b e netw orked with a PC s ystem us ing its b uilt-in L AN port. You are able
to navigate to a PC file through TViX HD’s network and play the file from its original
destination without hav ing to copy it into the TViX f irst. We’re supporting the f ile copy via
LAN.
With two USB2.0 h ost ports, you can now attach a dditional external USB hard dr ives to
further extend the storage capacity or transfer files from another USB device such as a
thumb drive. You can als o playback files f rom a digital camera, USB flash dr i ver, USB f lash
card reader, or a MP3 player.
** For the further functions, please refer to following FAQ.
http://www.tvix.co.kr/eng/faq
5
1.2 Audio Player
TViX HD can play a variety of audio files such as FLAC, MP3, Ogg Vorbis or WMA (W indows Media
Audio) through the TV speaker and any other audio systems. You can listen to your favorite music files
nonstop, by organizing a custom winamp playlist. Now you can enjoy music all day without changing CDs.
You can watc h picture s lides hows with the optio n of bac kground m usic ( supports m usic s lideshows us ing
picture images).
1.3 External Storage
If you connect to a USB 1.1 port, the TViX HD will work at USB 1.1 speed, so we strongly recommend that
you use USB 2.0.
It can be used as an external device to save video, audio, image files, data, program backups, etc.
USB 2.0 enables TViX HD to become an external storage device which supports up to 480Mbps.
It supports Plug & Play, so Windows will automatically recognize TViX HD.
If you connect the USB port when playing the TViX HD, the VFD will show as USB ON. When you
disconnect the USB, you do not have to reboot the TViX HD for continuous use.
If you are a Windows98SE user, you should download a USB storage driver from our website
www.tvix.co.kr/Eng
Windows ME/2000/XP.
before you connect your TViX HD with your system . You do not nee d to inst all a dri ver in
You can download NetShare installer from our website www.tvix.co.kr/Eng before you configure NFS
network. If you select to NFS mode, you can play the TP or DVD jukebox without stutter.
6
1.4 Specifications
Main Chipset Sigma Design EM8621
VFD Display
Video
Audio
Photo JPG
Connectivity
AV In / Out
File Formats NTFS, FAT32
Subtitle Text Subtitle : smi,sub,srt,aqt,utf,lrc / Image Subtitle : sub (with idx)
7 Alpha-Numeric Character
5 Digit Numeric Display
Format :.wmv, .avi, .mpg, .vob, .mp4, .asf, .tp, .trp , .IFO, .ISO
Codec : MPEG 1 / 2 / 4, AVI, XVID
Resolutions up to 1920 x 1080i
MP3, WMA, AAC, Ogg, PCM, M4A, FLAC, WAV
AC3, DTS Pass Through and Down Mixing
USB2.0 Host 2 Ports
USB2.0 Target 1 Port
LAN (10/100Mbps)
Multi I/O Jack (Optional Breakout Box)
Video
DVI, Component, S-Video, Compos ite,
Audio
Digital : Coaxial, Optical / Analog: Stereo
ODD Support Through USB 2.0 Host
Language
FAN 40mm Brushless FAN
FAN Control Temperature Sensing, Variable Speed
Main Memory Main Memory
Flash ROM 8 Mbyte
Internal Power 90~240V Free Voltage
Shape Cylindrical
Dimension 131mm (Diameter) 185mm (Height)
Weight 1,200g (without HDD) 1,800g (with HDD)
English, French, German, Spanish, Italian, Portuguese, Swedish, Norwegian,
Danish, Japanese, Korean
7
2 Name of Each Part
2.1 Unit Control
Basic functions can be done without the remote control.
POWER button
Function button
STOP button
PLAY button
SETUP button
2.2 Front VFD
Information will be displayed on the VFD.
Video out mode
Play mode and information
VFD shows current Folder/Filename while navigation. Due to display(VFD) restriction we only support
English alphabets.
8
2.3 Cable Connection
You can connect the TViX to a TV display or audio Amplifier using the A/V cable.
USB In
put Port
ptical Port
O
S-Video
ponent
Com
USB Host
Multi I/O Port
LAN Port
Cooling Fan
Video
Stereo
Coaxial
Power On/Off
Unit Power
2.4 Package Contents
TViX HD M-5000U Remote Control A/V Cable
Manual Power cable x 2 USB Cable
9
3 Installation and Connection
3.1 Making an HDD Folder

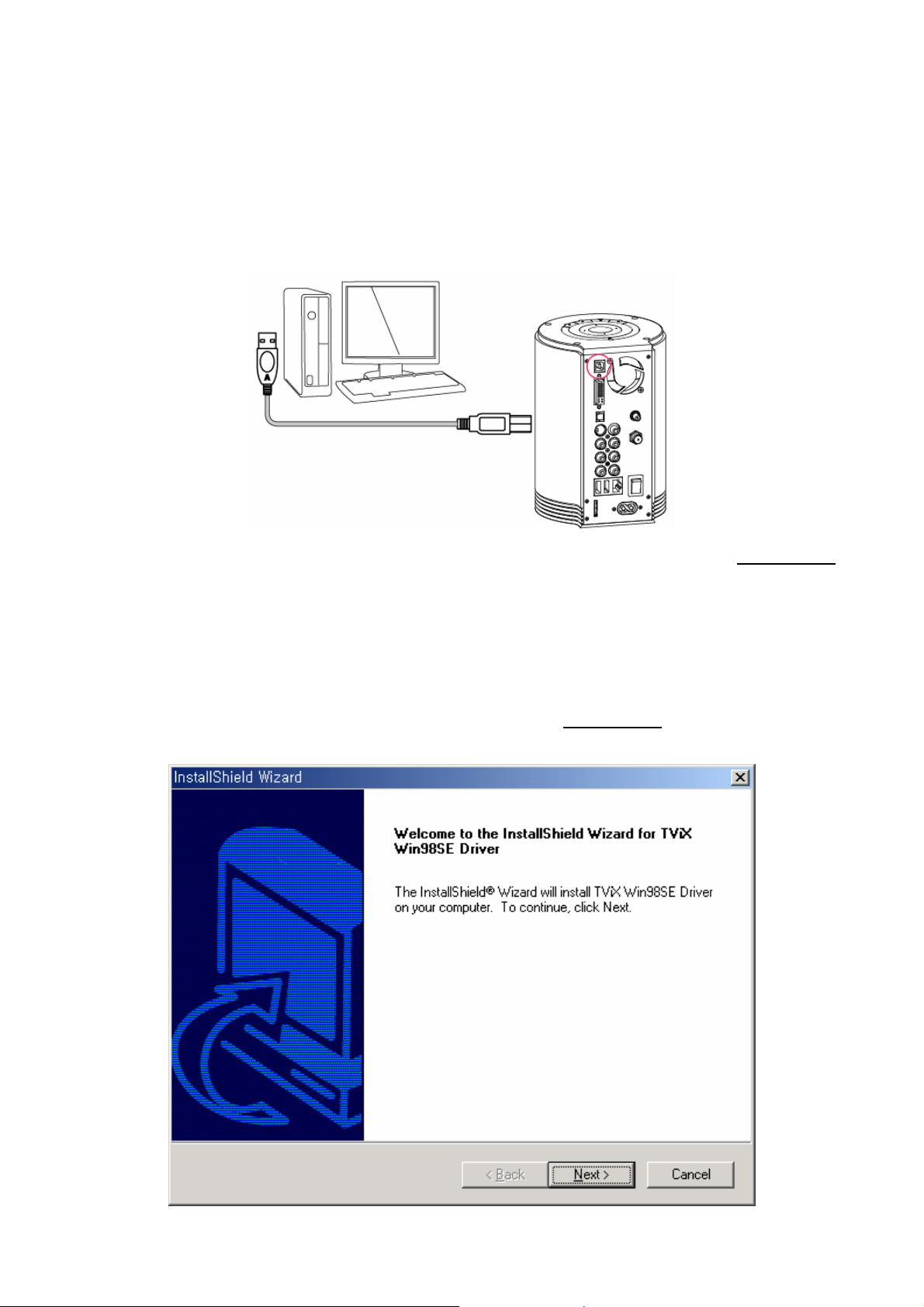

1. As shown in the picture below, one end of the USB cable should be con nected to the USB connector of
the TViX and the other end to the computer.
CAUTION!
The USB cable has a different shape on both
ends. We use a USB 2.0 type "A" Plug(male)
to "B" Plug(male).
2. After connecting to t he PC, tur n on
the power of the TViX.
3. Double click the icon ‘My
Computer’ on your monitor and you
will see a newly created drive; TViX
(D:) as shown in picture ‘A’.
(The name of the drive can be
changed.)
4. For easy usage, doub le click TVIX
(D:) and make separate folders
named video, audi o, and photo. Then
store all your files accordingly to each
folder.
10
3.2 Video Connection
We support DVI, Component, S- Video, Composite video output for connecti ng to the TV and each output
needed to change settings on the TViX HD.
The highest quality components are as follows: DVI > S-Video > Composite.
3.2.1 Connection with an Ordinary (Composite) TV Output
Connect the TViX HD and your TV using the yellow video cable.
Turn on the TViX HD and TV. Select an appropr iate video input mode on
your TV until you get the initial TViX HD screen.
3.2.2 Connection to S-Video Output
Connect the TViX HD and your TV using the S-Video cable.
Turn on the TViX HD and TV. Select an appropr iate video input mode on
your TV until you get the initial TViX HD screen.
(The S-Video cable is not included and has to be purchased separately.)
11
3.2.3 Connection to Component Output
Connect the TViX HD and your TV with the component cables.
Turn on the TViX HD and TV. Select an appropr iate video input mode on
your TV (in this case, the Component input mode).
3.2.4 Connection to DVI Output
Simply connect your TViX HD to the DVI port on the TV.
However, if the TV has a HDMI port only, you need to buy a HDMI cable
to convert the DVI data and then you will be able to see th e processing
digital signal.
CAUTION
After you connect the video cable to your T V, press the TV Out button repeatedly on your rem ote control
until you get the initial TViX screen.
* The component cable is not included in the TViX and must be purchased separately.
12
3.3 Audio Connection
3.3.1 Connection to 2 CH Normal TV
Connect the left(white) and right(red) sound output to the appropriate
terminal of your TV or Hi-Fi system.
3.3.2 Connection to 5.1CH Amplifier (Digital)
If you have a multi-channel decoder/amplifier with an optical/coaxial
input, you can enjo y 5.1 CH high quality sound through the coaxial or
optical cables.
The illustration on the left shows where to connect the coaxial cable.
Optical cable connection is done in a similar method.
(These cables are n ot included in the pack age and must be purchased
separately.)
CAUTION
If no sound is heard after connecting the Optical or Coaxial Cable, you have to change the audio setup of
TViX to Digital.
.
13
3.4 LAN Connection
3.4.1 Connect PC via Network

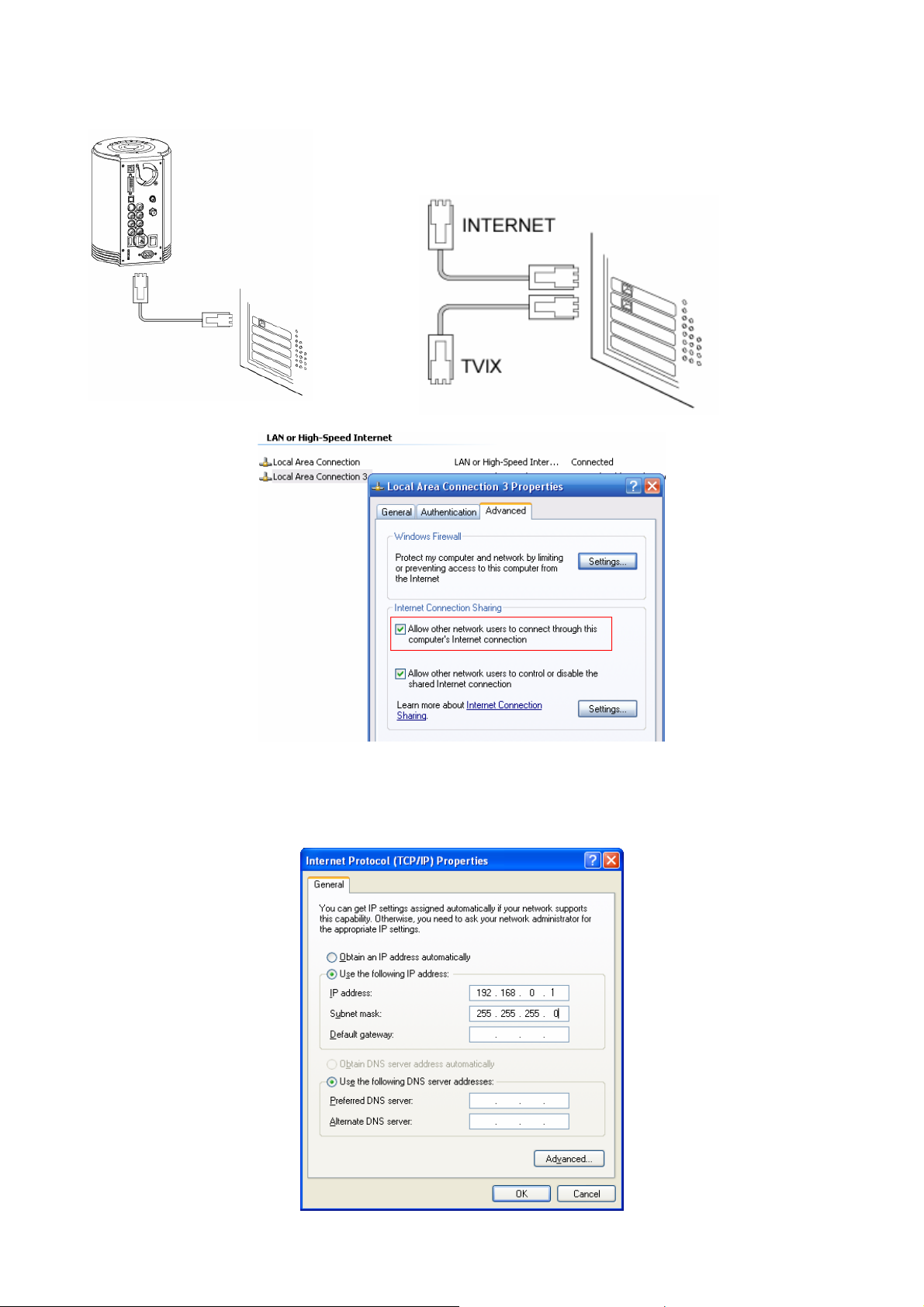

< When connecting the computer directly to the TViX HD >
Connect the LAN cable to the LAN port of both the TViX HD and the PC.
TIPS
In this case, you generally use a LAN cross cable type.
If the computer ’s LAN card was connected to an In ternet line, you can ins tall an additional LAN
card to your PC and connect that LAN card to the TViX.
< When connecting with IP Router or Hub >
Connect the LAN cable to the LAN port for an IP Router or Hub.
TIPS
In this case, you generally have to use Direct LAN Cable type.
With NFS, M-5000U can play tp files on a PC flawlessly through LAN.
We recommend NFS con nection than SAMBA. You need to install TViX Netshare pro gram on a PC but the
setting became much easier SAMBA method.
You can download NetShare installer from our website www.tvix.co.kr/Eng
Please refer to the Netshare program manual for detailed instructions.
http://www.tvix.co.kr/eng/support/Manual.aspx
You may skip the 3.4.2 section if you select to NFS network.
14
before you configure NFS network.
3.4.2 Set Network Configurations Under Windows XP (For SAMBA Mode)
1) Select the folder you want to share. Right-click that folder
and click ‘Sharing and Security’ in the popup menu.
2) Check ‘Share this folder’ on the network and type in the
share name ‘tvixhd1 (this is the only available one at the
moment)’.
3) Use ‘Ever yone’ if ‘Ever yone’ is displayed, otherwis e you
don’t have to c hange anything. Also, add ‘Everyone’ to the
security tab.
4) After that, the shared folder will be displayed like the
following picture.
15
5) Move to 'Settings ' > 'Control Panel' > 'Adm inistrativ e Tools' > 'Computer Management' > 'Loc al Users a nd
Groups' > 'Users', and double click ‘Guest’.
CAUTION
This is for W indows XP Pr ofessional. W indows X P Home user s cannot see this wind ow. If you cannot
find ‘Administrati ve Tools ’ in the Control Panel, click “Switch to classic vie w” in the upper-left cor ner of
the screen.
6) Uncheck ‘Account is disabled’
16
7) ‘GUEST’ must be shown as the following image (a red X mark should not be shown on ‘Guest’).
8) Move to 'Control Pane l' > 'Network connections', and selec t ‘Local area connections’ properties b y right
clicking the mouse.
9) Remove “Guest” f rom the ‘User Rights Assignm ent’ > ‘Deny access to this computer from the network’
option.
17
10) Move to ‘Access this c om puter fr om the network ’, and the n select ‘Prop erties ’ by right clicking the m ous e
or double clicking it.
13) Press OK, and Guest will be registered.
11) Click ‘Add User or Group’
12) Type in “Guest” and then click the “OK” button.
18
Loading...
