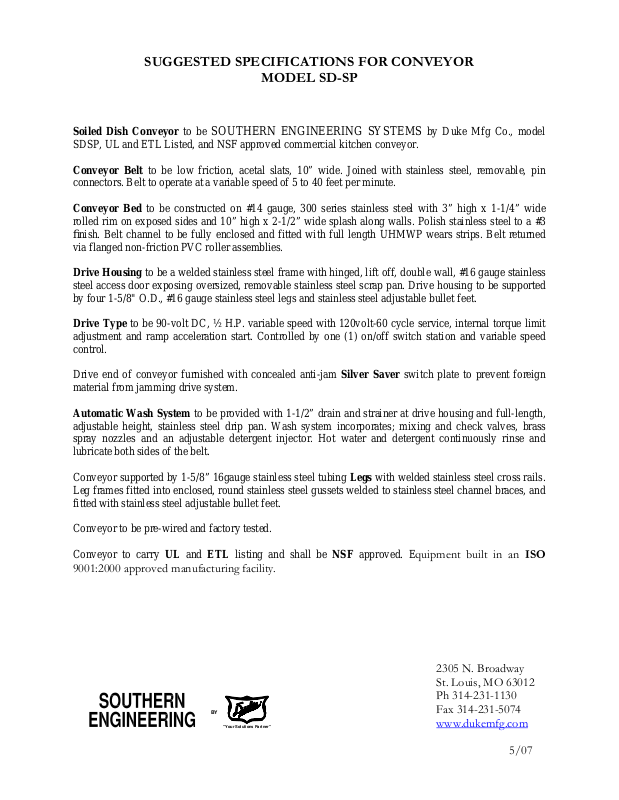

SUGGESTED SPECIFICATIONS FOR CONVEYOR
MODEL SD-SP
Soiled Dish Conveyor to be
SDSP, UL and ETL Listed, and NSF approved commercial kitchen conveyor.
Conveyor Belt to be low friction, acetal slats, 10” wide. Joined with stainless steel, removable, pin
connectors. Belt to operate at a variable speed of 5 to 40 feet per minute.
Conveyor Bed to be constructed on #14 gauge, 300 series stainless steel with 3” high x 1-1/4” wide
rolled rim on exposed sides and 10” high x 2-1/2” wide splash along walls. Polish stainless steel to a #3
finish. Belt channel to be fully enclosed and fitted with full length UHMWP wears strips. Belt returned
via flanged non-friction PVC roller assemblies.
Drive Housing to be a welded stainless steel frame with hinged, lift off, double wall, #16 gauge stainless
steel access door exposing oversized, removable stainless steel scrap pan. Drive housing to be supported
by four 1-5/8" O.D., #16 gauge stainless steel legs and stainless steel adjustable bullet feet.
Drive Type to be 90-volt DC, ½ H.P. variable speed with 120volt-60 cycle service, internal torque limit
adjustment and ramp acceleration start. Controlled by one (1) on/off switch station and variable speed
control.
Drive end of conveyor furnished with concealed anti-jam Silver Saver switch plate to prevent foreign
material from jamming drive system.
Automatic Wash System to be provided with 1-1/2” drain and strainer at drive housing and full-length,
adjustable height, stainless steel drip pan. Wash system incorporates; mixing and check valves, brass
spray nozzles and an adjustable detergent injector. Hot water and detergent continuously rinse and
lubricate both sides of the belt.
SOUTHERN ENGINEERING SYSTEMS by Duke Mfg Co., model
Conveyor supported by 1-5/8” 16gauge stainless steel tubing Legs with welded stainless steel cross rails.
Leg frames fitted into enclosed, round stainless steel gussets welded to stainless steel channel braces, and
fitted with stainless steel adjustable bullet feet.
Conveyor to be pre-wired and factory tested.
Conveyor to carry UL and ETL listing and shall be NSF approved. E
quipment built in an ISO
9001:2000 approved manufacturing facility.
2305 N. Broadway
St. Louis, MO 63012
Ph 314-231-1130
Fax 314-231-5074
www.dukemfg.com
BY
"Your Solutions Partner"
5/07
Optional Accessories
12” Slat-Pin Belt Sloped Rack Shelf – Wall Mount
Flanged Feet Sloped Rack Shelf – Cantilevered
SS Window Frame & Sill Flat Storage Shelf – Wall Mount
Removable Skirting Panels – SS Flat Storage Shelf – Cantilevered
Removable Skirting Panels - Laminate Stationary Under Shelf
Sight & Sound Barrier Removable Under Shelf
Security or Fire Door 3” High x 1-1/2” Channel Rim Sides
Prison Security Package 7/8” High x 1-1/4” Marine Edge
Additional Start-Stop Station Pre-Rinse Sink
Limit Switch – Bed Mount Disposer Sink
Limit Switch – Splash Mount Scrapping Trough
Foot Switch (Momentary Stop) Trough Wheels
Hip Switch (Constant Stop) Recessed SS Roller Section
Power Tray Discharge (Drive End) Pre-Rinse Spray – Splash Mount
Tray Storage Platform (Tail End) Pre-Rinse Spray – Bed Mount
Flush-Wash (Drip pan and Drains only.)
Other _____________________________
_____________________________
Design Option (Pick One)
32” Long Drive Housing (Standard
40” Long Drive Housing (Optional)
COMMENTS/NOTES _____________________________________________________
14GA SS FLAT STORAGE SHELF W/
ADJ 14GA SS SLEEVED BRACKETS
& 16GA SS TUBING SUPPORTS
14GA SS SLOPED RACK SHELF W/
ADJ 14GA SS SLEEVED BRACKETS
& 16GA SS TUBING SUPPORTS
REMOVABLE 16GA SS
ENCLOSURE PANELS
1 1/4"
1'-9"
2 1/2"
10"
BELT BELT
3"
2'-10" A.F.F.
10"
ADJ SS DRIP PAN
16GA SS LEGS WITH
ADJ SS BULLET FEET
1 1/4"
3"
2'-10" A.F.F.
2'-6"
2 1/2"
10"
10"
2'-10" A.F.F.
