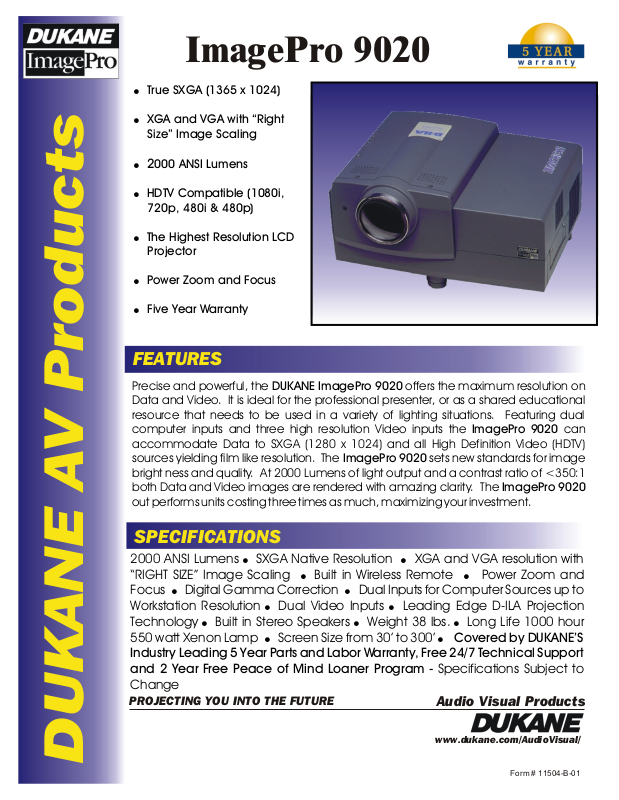

ImagePro 9020

lTrue SXGA (1365 x 1024)

lXGA and VGA with “Right

Size” Image Scaling

l2000 ANSI Lumens

lHDTV Compatible (1080i,

720p, 480i & 480p)

lThe Highest Resolution LCD

Projector

lPower Zoom and Focus

lFive Year Warranty

FEATURES

Precise and powerful, the DUKANE ImagePro 9020 offers the maximum resolution on
Data and Video. It is ideal for the professional presenter, or as a shared educational
resource that needs to be used in a variety of lighting situations. Featuring dual
computer inputs and three high resolution Video inputs the ImagePro 9020 can
accommodate Data to SXGA (1280 x 1024) and all High Definition Video (HDTV)
sources yielding film like resolution. The ImagePro 9020 sets new standards for image
bright ness and quality. At 2000 Lumens of light output and a contrast ratio of <350:1
both Data and Video images are rendered with amazing clarity. The ImagePro 9020
out performs units costing three times as much, maximizing your investment.

SPECIFICATIONS

2000 ANSI Lumens lSXGA Native Resolution lXGA and VGA resolution with
“RIGHT SIZE” Image Scaling lBuilt in Wireless Remote l Power Zoom and
Focus lDigital Gamma Correction lDual Inputs for Computer Sources up to
Workstation Resolution lDual Video Inputs lLeading Edge D-ILA Projection
Technology lBuilt in Stereo Speakers lWeight 38 lbs. lLong Life 1000 hour
550 watt Xenon Lamp lScreen Size from 30’ to 300’ l Covered by DUKANE’S

Industry Leading 5 Year Parts and Labor Warranty, Free 24/7 Technical Support
and 2 Year Free Peace of Mind Loaner Program - Specifications Subject to

Change

PROJECTING YOU INTO THE FUTURE

Audio Visual Products

DUKANE AV Products

www.dukane.com/AudioVisual/

Form # 11504-B-01

Model 28A9020
SXGA Data/Video
LCD Projector

Specifications New: 2000 Lumens Light Output

Electronic Features

LCD Type 0.9 inch Diagonal Direct Drive Liquid Crystal  
 Light Valves (3), D-ILA
Colors 16.7 Million, 24 bit
Resolution 1365 x 1024 1000 TV Lines (Video)
Contrast Ratio 350:1
Lumens 2000
Projection Distance 8' (2.5m) min. up to 65' (20m) max.
Image Size 3.5' (1.1m) min. diagonal up to
 43' (13.2m) max. diagonal
Speakers 2, Stereo, 2 Watts

Computer Compatibility

VGA (640X480), SVGA (800X600), XGA (1024X768), SXGA (1280X1024) MacIntosh
Series w/13", 16", 19", 21" (640x480, 832x624, 1024x768, 1152x870, 1280x1024)
Horizontal Frequency 15-82kHz
Vertical Frequency 50-78 Hz

Video Compatibility

NTSC/PAL/SECAM; S-Video, Composite, Component, HDTV (1080i, 720p),
and W-VHS

Optical

1.5x Projection Lens 1.5x Motorized Zoom and Focus
Keystone Correction Full shift off axis.
Projection Options Both horizontal and vertical reversal for
 rear and ceiling mounts.
Lamp  550 Watt Xenon Arc, 1,000 Hours

Sound System

Stereo Built in stereo speakers (1W + 1W stereo)

Interface Connections

Computer Input (1) Analog, D sub 15 pin
Computer Input (2) Analog, RGB
Computer Input Audio, Stereo
Video (1) Input Composite
Video (2) Input S-Video, Y/C separated
Video (3) Input Component, HDTV
Video Input Audio, Stereo
Control RS-232C
Control Jack for IR Remote
Outputs
Computer Monitor (1) D sub 15 pin

Audio Stereo, mini-jack

Controls

Main Unit Operate, Video, Computer, All Settings
Remote Operate, Video, Computer, Volume, Zoom,
 Focus, Menu Functions, Quick Align, AV
 Muting
Facility System RS-232C, interface for control by a personal
 computer or room system.

Power Requirements

Operating Voltage 100-120V, 50/60 Hz, 700 Watt

Dimensions

16 3/4"W x 13 3/8"D X 9 3/8"H (excluding lens)

Weight

Unit Weight: 38 lbs. (14.4 kg); Shipping 45 lbs. (21.4 kg)

Regulatory ComplianceUL/C-UL
Accessories (Included)

Wireless IR Remote Control with Batteries, Mac Adapters, Lens Cover, PC cable, 5' AV
Cable, 9' PC Audio Cable, BNC-RCA adapter, AC Power Cord

Accessories (Optional)

Male 13W3 to 15 pin VGA connector for workstations #200-1228,
ATA Case (#185-402)

TM

Specifications subject to change without prior notice

W

E

N

5

YEAR

Specifications (cont.)

Warranty

 Five (5) Year Limited Warranty on Parts and Labor in North America;
 LAMPS EXCLUDED (for Other Locations, Local Warranties Apply).

 Includes Dukane's FREE TWO YEAR Peace-of-Mind Loaner Program.
 Extended Peace-of-Mind Available (Continuing Coverage Plan).

Projector Features

High Resolution Image--Natural resolution of 1365x1024 pixels

provides easy handling of SXGA workstation 1280x1024 graphics and
1000 line TV images. New improved Digital TV display menu and
function for SD (Standard Definition, 480i/480p) and high definition
HDTV sources. Full 720p (progressive) and 1080i (interlocked) HDTV
display options.

Superior Image Quality--High brightness, saturated color and crisp
well defined details are provided by the color balanced Xenon lamp
with extra-high brightness along with 10 bit digital gamma correction
electronics for accurate color shades.

User Friendly--With size and weight below CRT projectors, this unit is
easy to move and install. It has a simple IR remote and easy to read
menu, and can be remotely controlled from a computer via the RS-232
serial port.

Quick and Easy Setup--The "out of box to operation" time is under 2
minutes! The single lens need only be adjusted by the power focus
and zoom control. Inputs are clear and conveniently arranged.

Versatile--There are two computer and three video inputs. Computer
images from VGA (640x480) through SXGA (1280x1024) are
automatically detected and via Adaptive DPC (Digital Pixel Conversion)
displayed in the optimum form. Composite, S-video, component or
high definition video can also be displayed. Normal NTSC is displayed
in enhanced form without visible scan lines. Full resolution of the 1080
interlace or 720 progressive HDTV images.
