GENERAL INFORMATION
The present spare parts order exactly the right spare parts
When ordering specify:
1) the part's code number followed by its description; quantity needed;
2) the motorcycle's serial number, stamped on the steering head.
Reference to right and left apply to the vehicle in terms of its direction of move-ment.
Spare parts drawings are general
The contents of this catalogue are
VALIDITY
f.m.
Until V.I.N.
d.m.
f.m.m.
d.m.m.
CATALOGUE No:
ISSUED:
From V.I.N.
Up to engine number
From engine number
915.1.150.1A 915.1.150.1A
and do not represent the part.
general and can undergo changes
10 - 01 10 - 01
without prior notice.
CATALOGUE No:
ISSUED:
Ducati Motor Holding S.p.A.
Commercial and Administation Office:
Via A. Cavalieri Ducati n. 3
40132 Bologna, Italy
Telefono 051 6413111
Fax 051 406580
Internet www.ducati.com
1
PAINTS
Colore Codice Codice Codice
Paint Code Code Code
Vernis Code Code
PPG
Code
Slacken Code Code Code
Lacas Codice Codice Codice
Giallo DUCATI
473.201
CATALOGUE No.
ISSUED
915.1.150.1A
10 - 01
CATALOGUE No.
ISSUED
915.1.150.1A
10 - 01
2
CONTENTSpage
001
4
001.1
6
001.2
8
001.3
10
002
12
003
14
004
16
005
18
006
20
007
22
008
24
009
26
010
28
011
30
012
32
013
34
014
36
015
38
016
40
017
42
017.1
44
018
46
019
48
020
50
021
52
022
54
022.1
56
023
58
024
60
025
62
026
64
027
66
028
68
029
70
030
72
031
74
032
76
033
78
034
80
034.1
82
035
84
036
86
036.1
88
037
90
038
92
WORKSHOP SPECIAL TOOLS
WORKSHOP SPECIAL TOOLS
DIAGNOSIS TESTER MATHESIS
WORKSHOP SPECIAL TOOLS
GEARCHANGE
GEAR-BOX

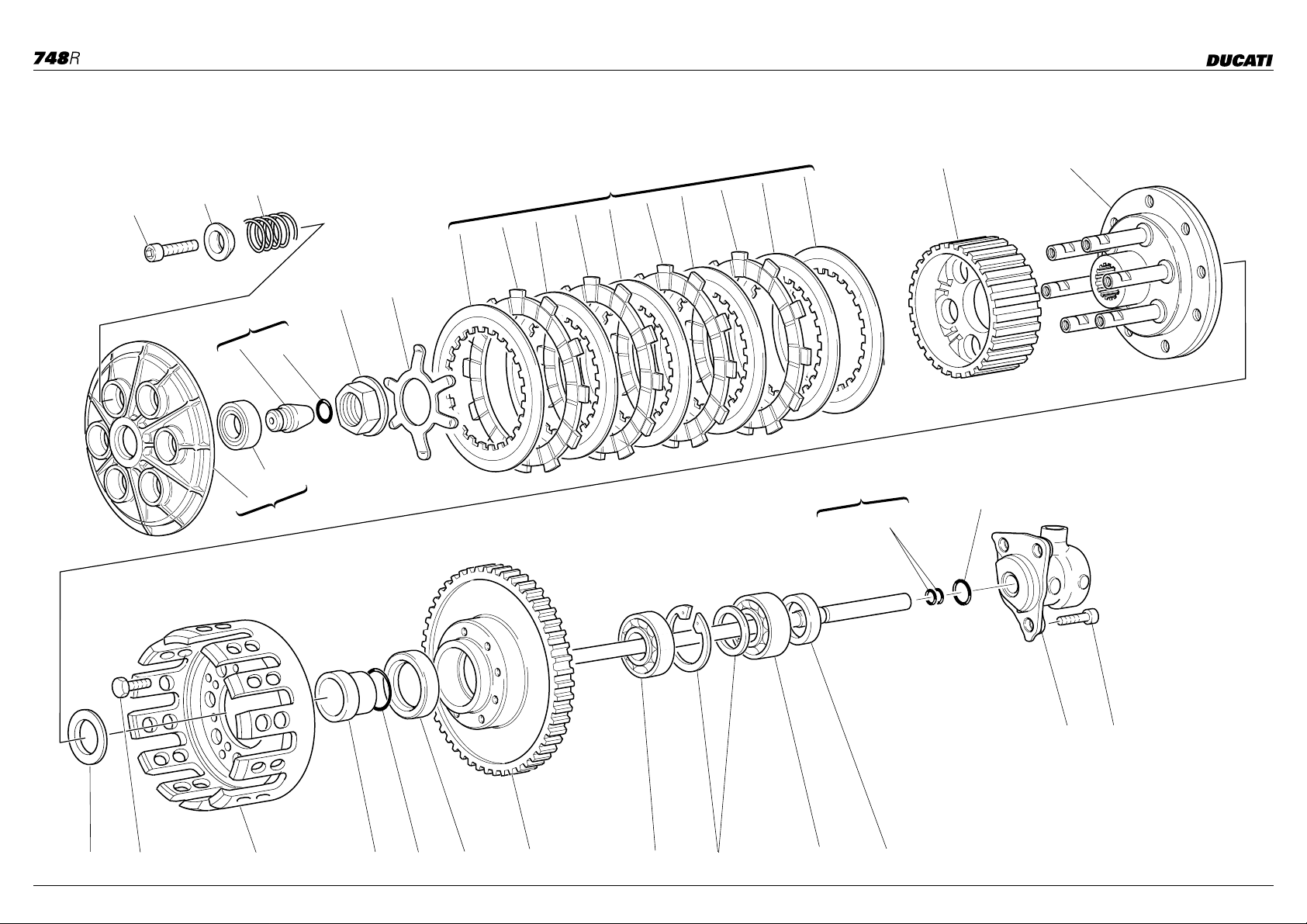

CLUTCH
CLUTCH COVER

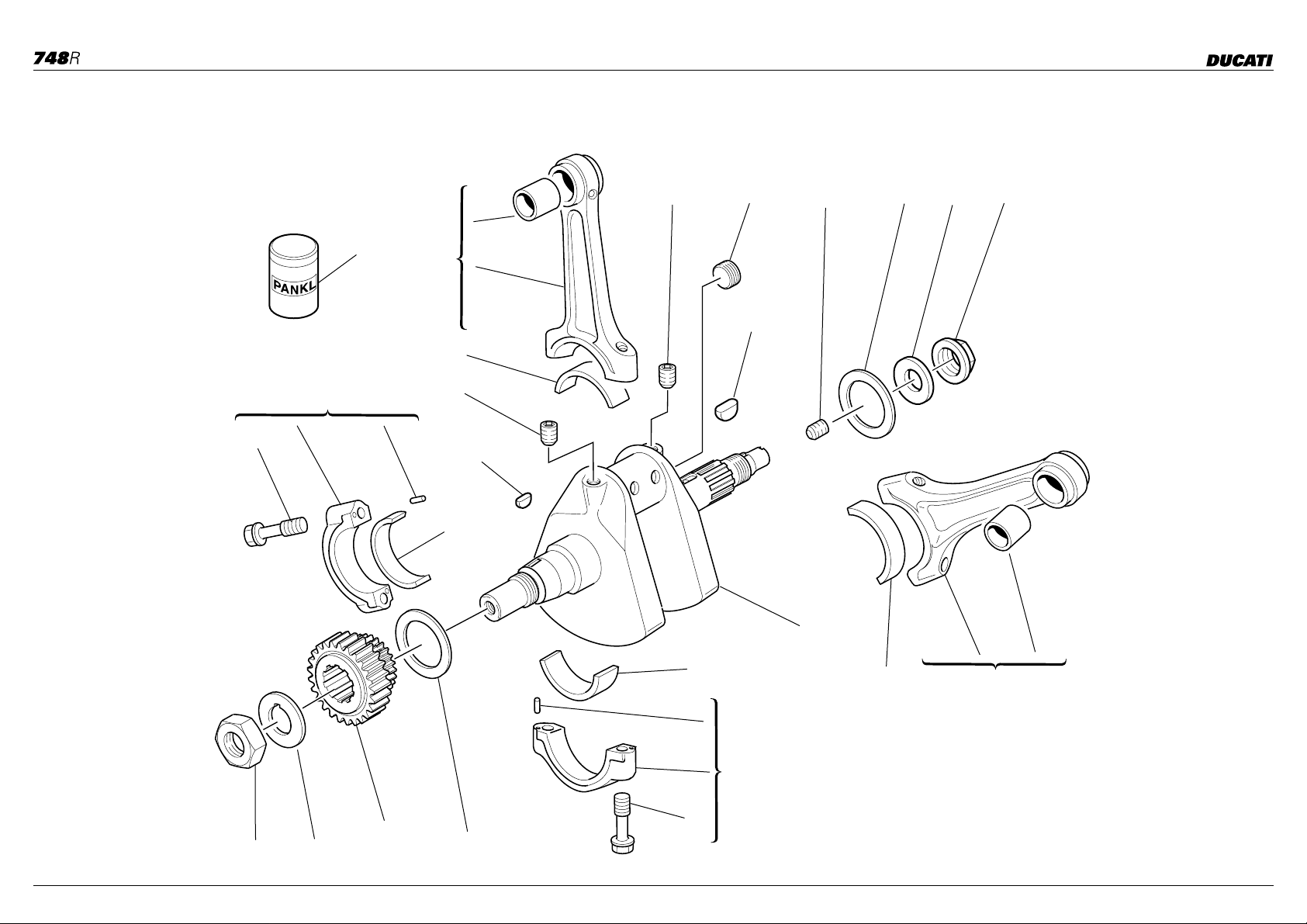

CRANKSHAFT
CYLINDERS - PISTONS
TIMING

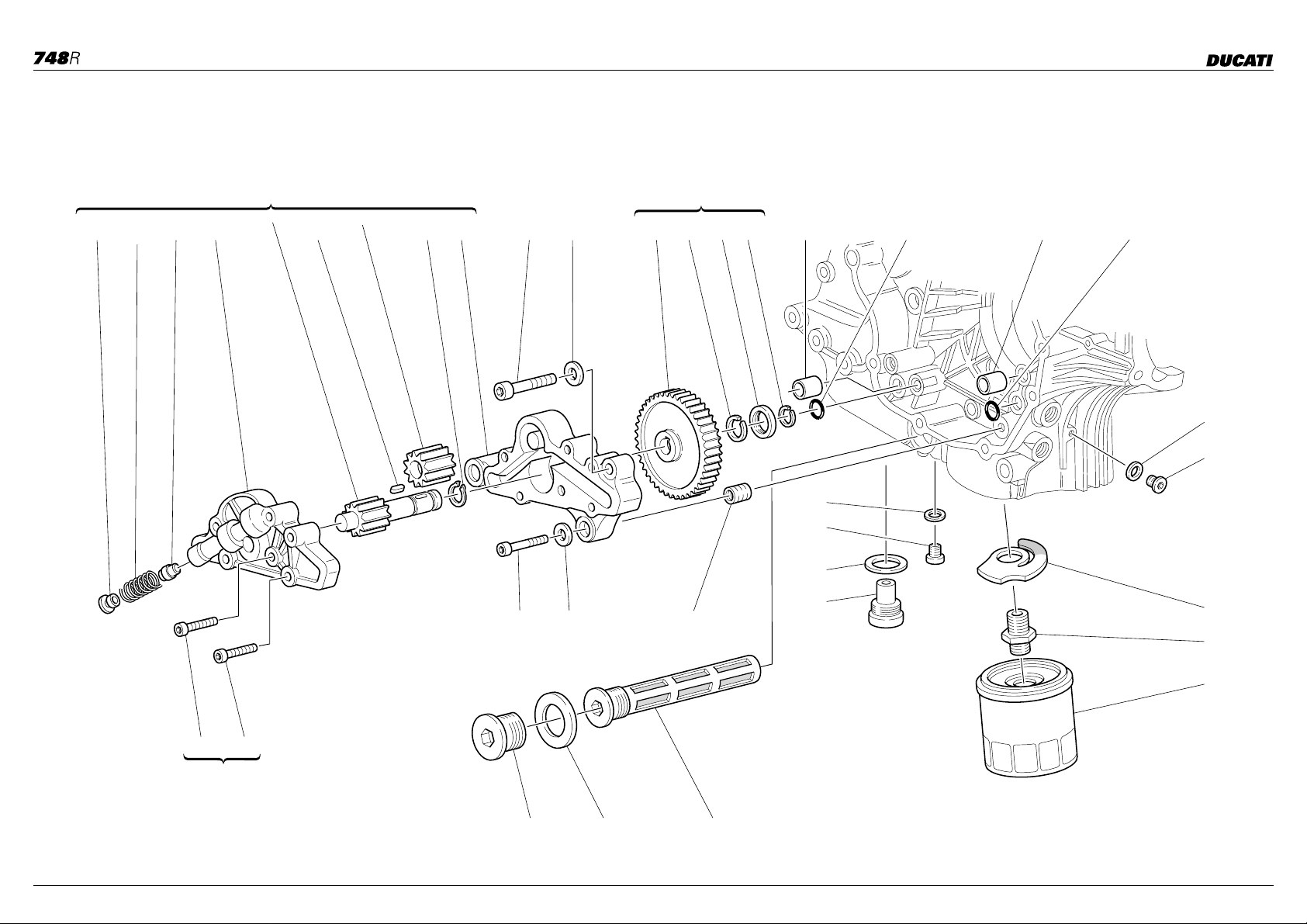

FILTERS AND OIL PUMP
HALF CRANKCASES
WATER PUMP - ALTERNATOR COVER

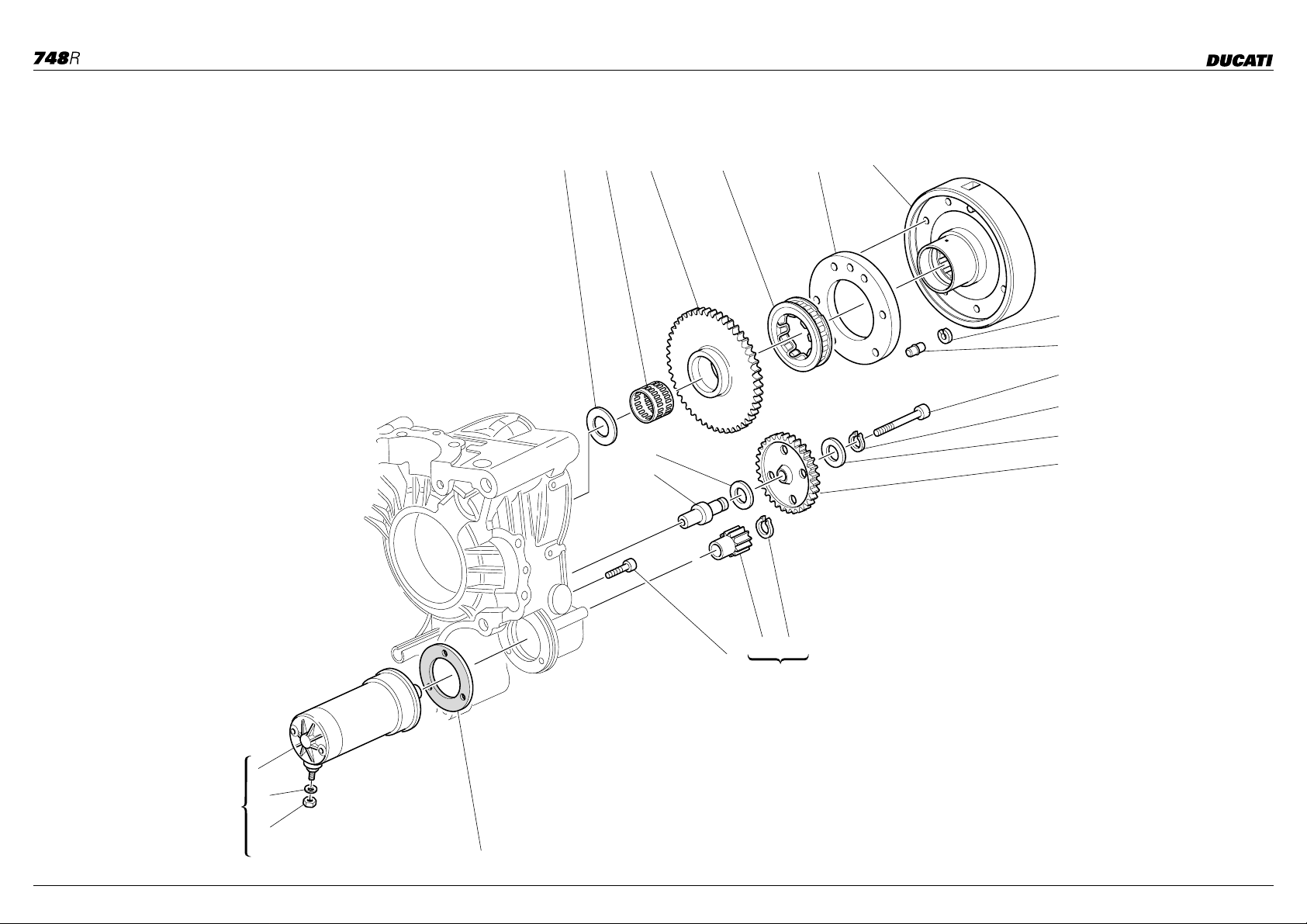

ELECTRIC STARTER AND IGNITION

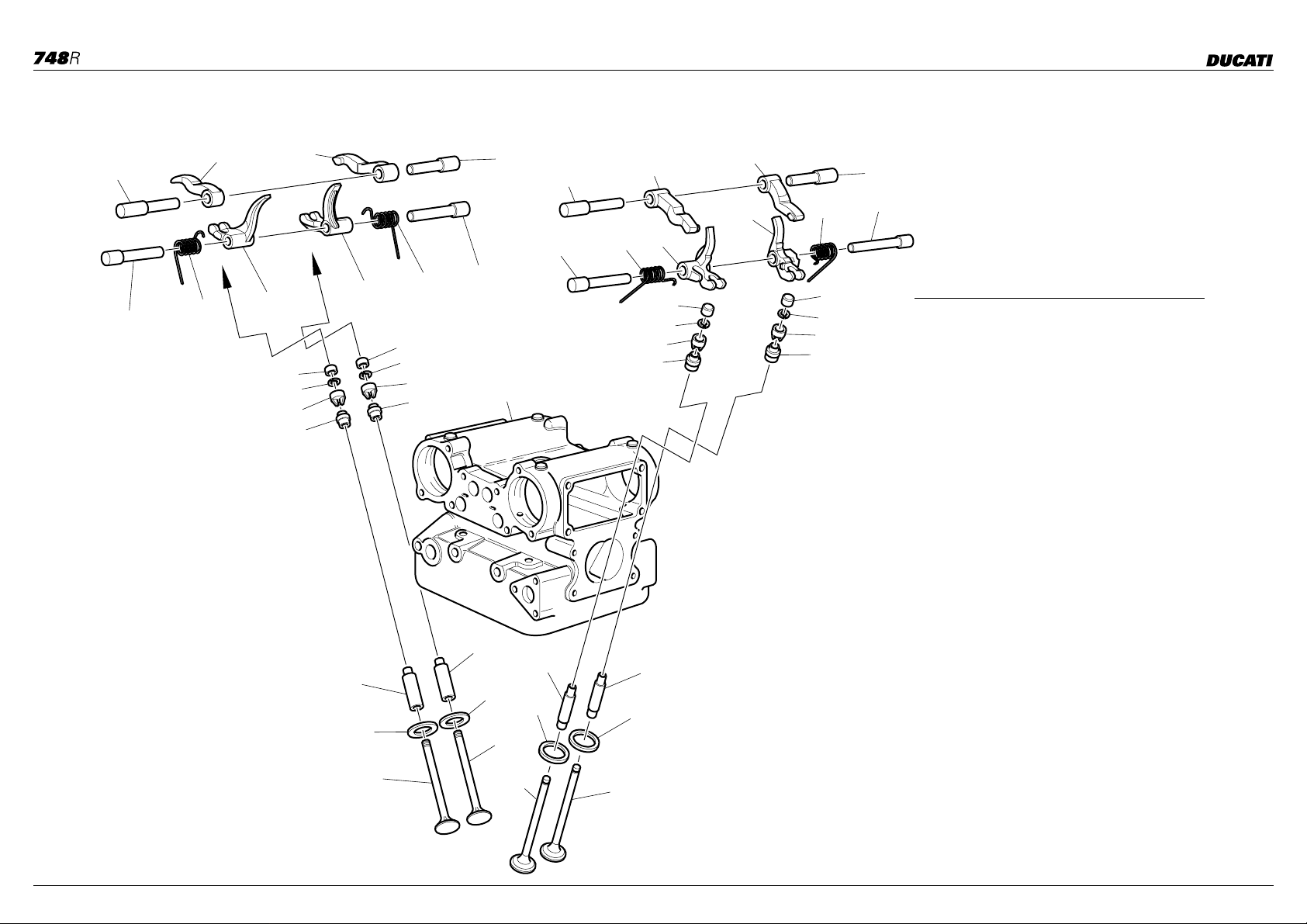

HEAD: TIMING
HEAD
COLLECTORS AND HEAD COVERS

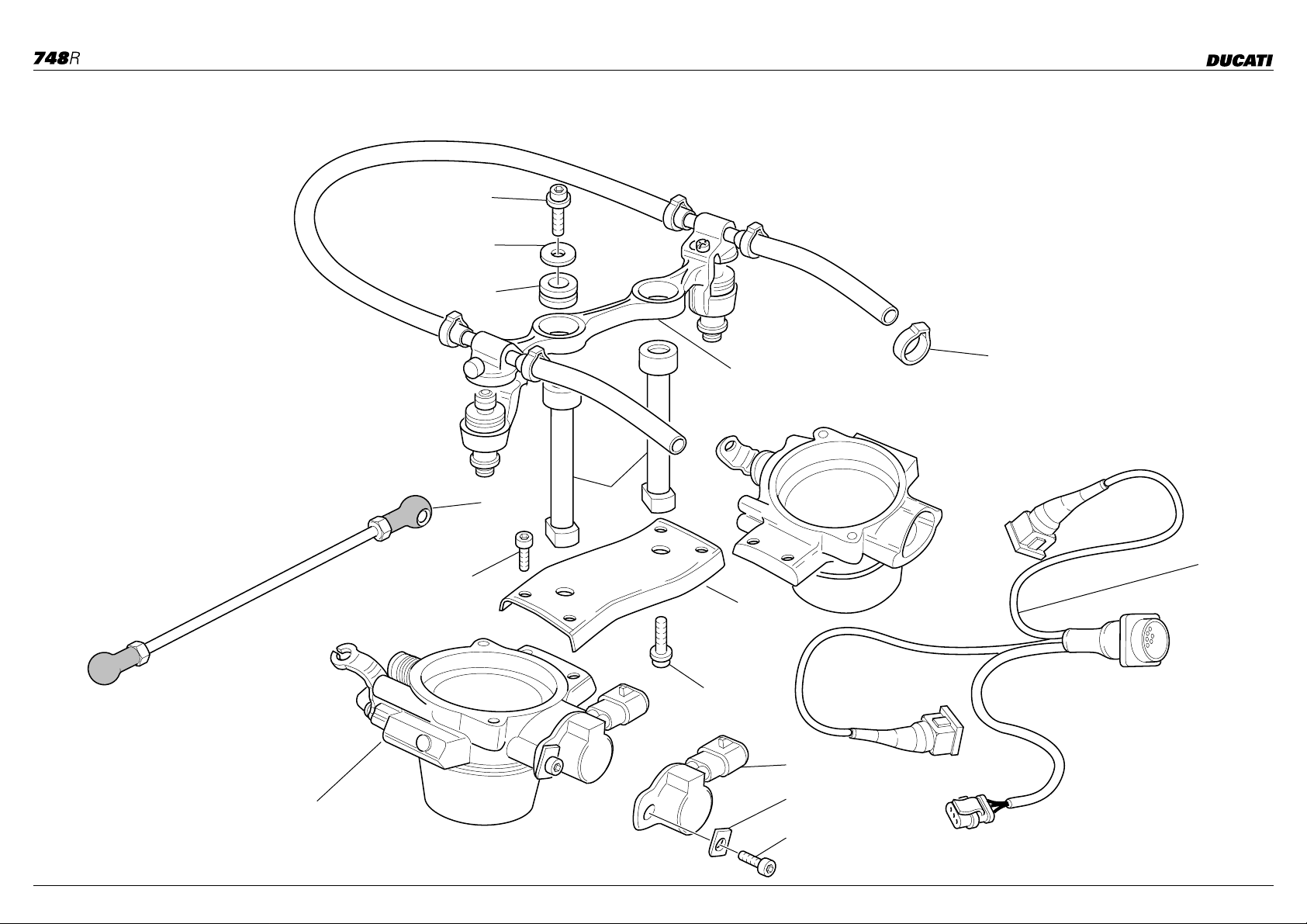

THROTTLE BODY

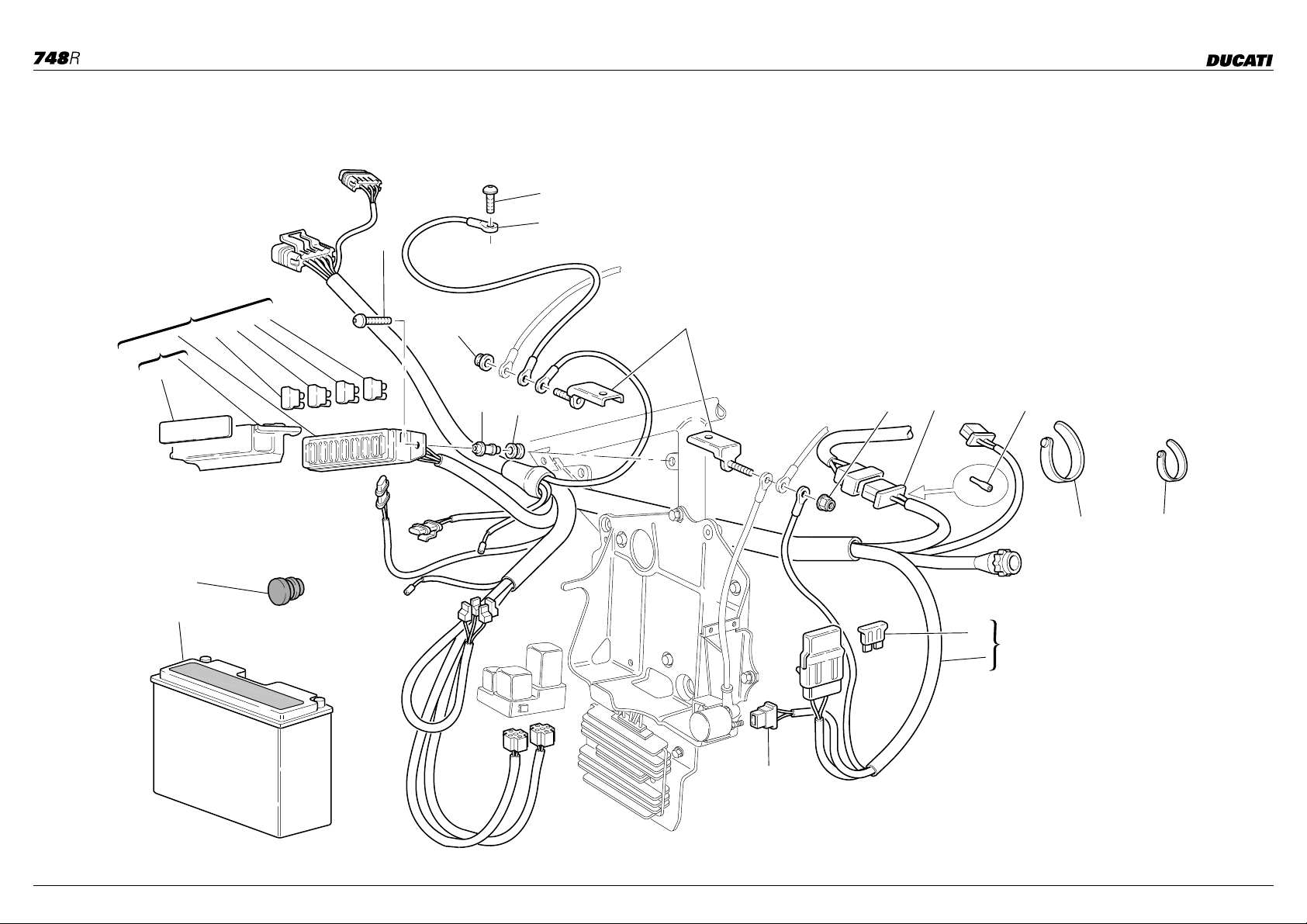

ELECTRIC SYSTEM
BATTERY BOX MOUNT
INJECTION SYSTEM
EXHAUST SYSTEM
INSTRUMENT PANEL
FRONT HEAD-LIGHT

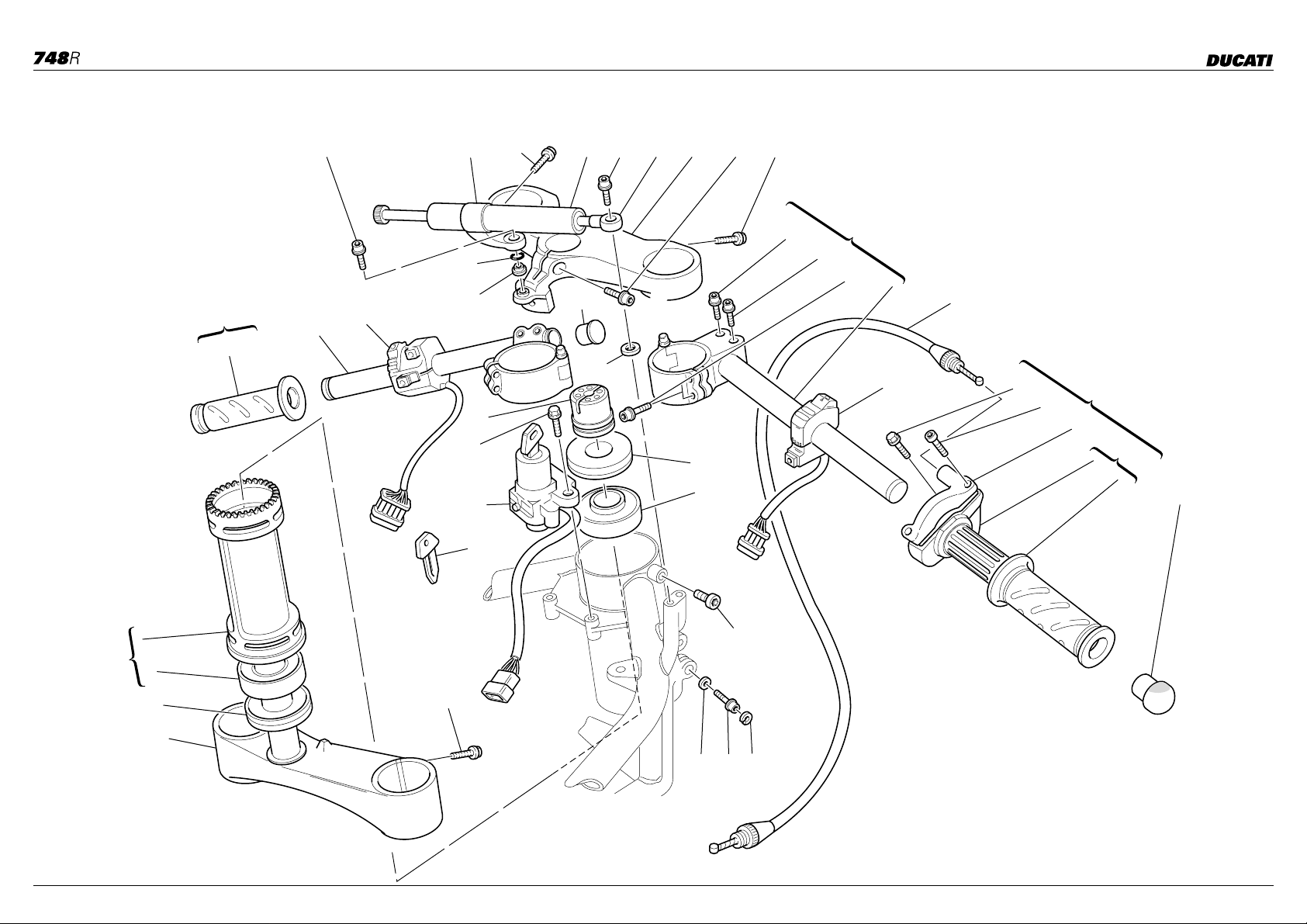

HALF-HANDLEBARS - SHOCK-ADSORBER
FRONT FORK

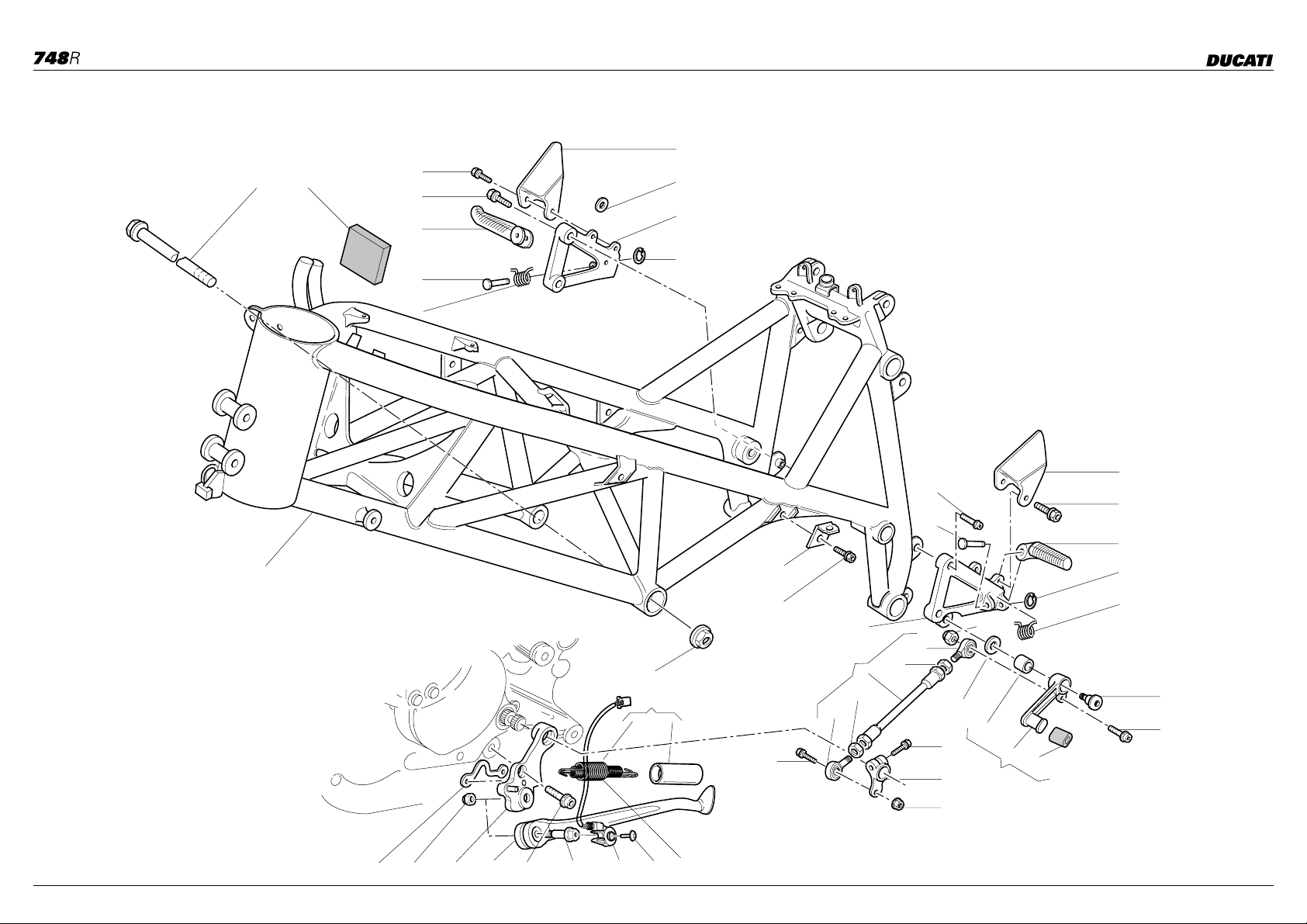

FRAME
CLUTCH CONTROL
FRONT HYDRAULIC BRAKE
REAR HYDRAULIC BRAKE

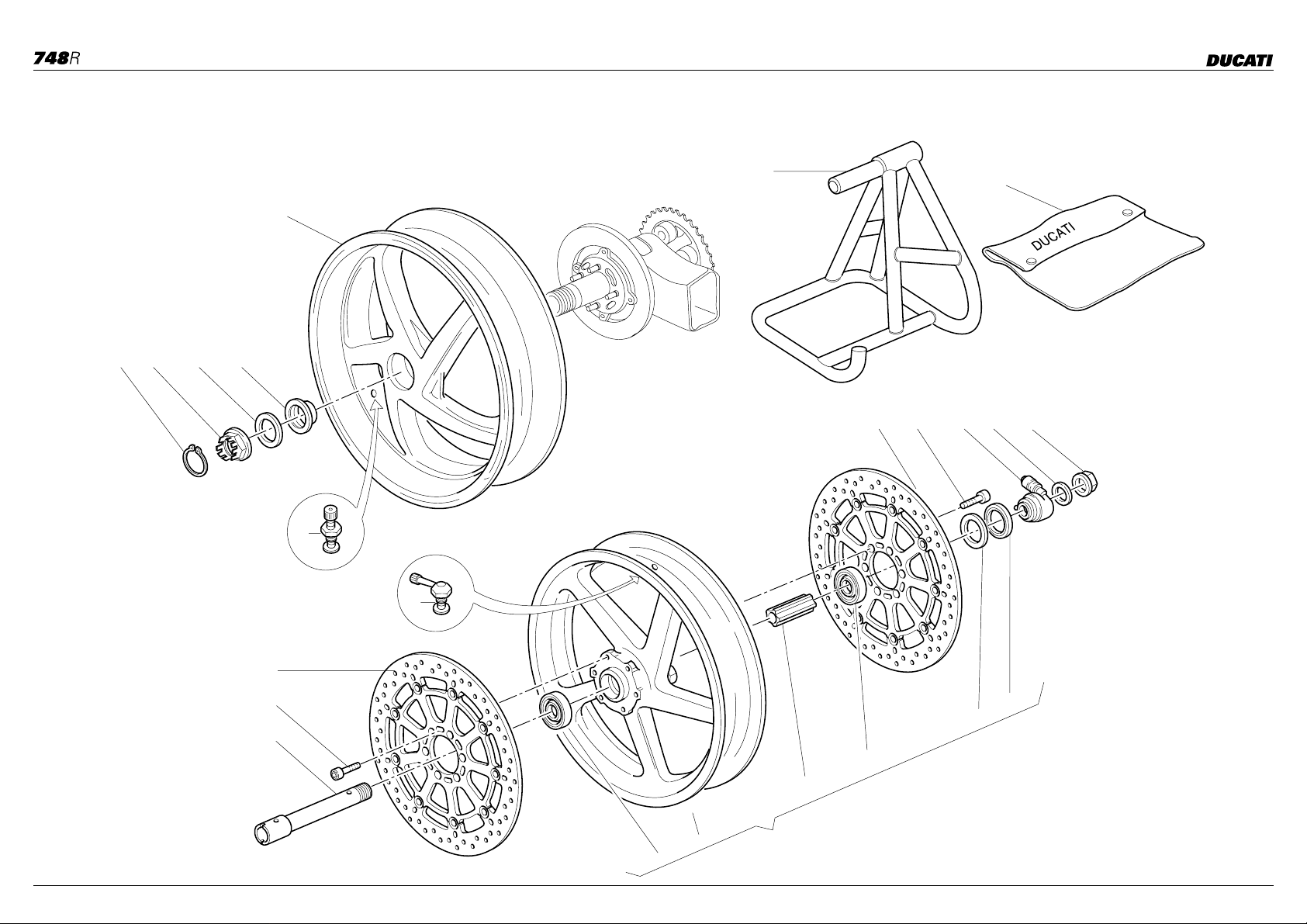

FRONT AND REAR WHEELS
REAR WHEEL PIN
REAR FRAME
REAR SUSPENSION

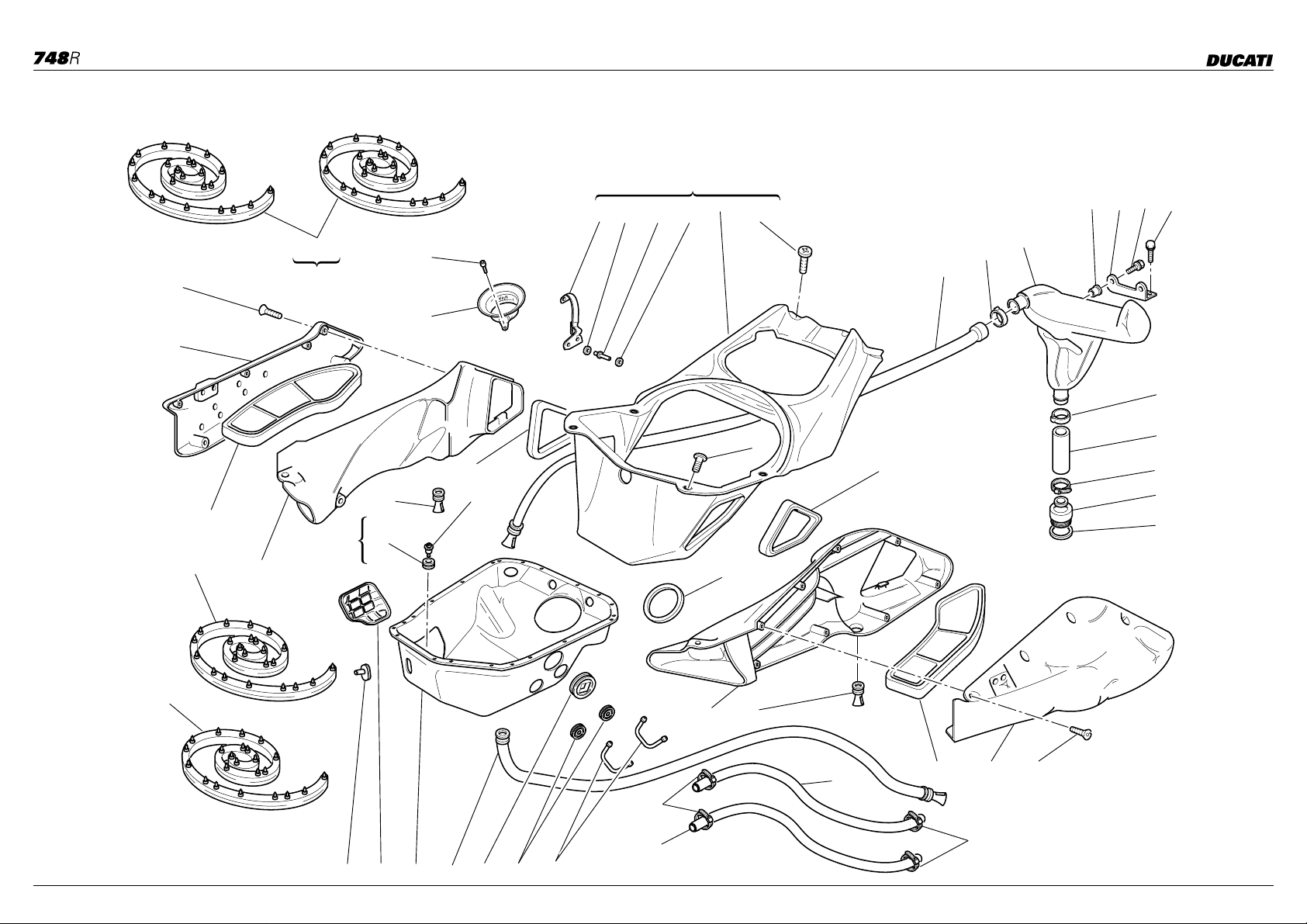

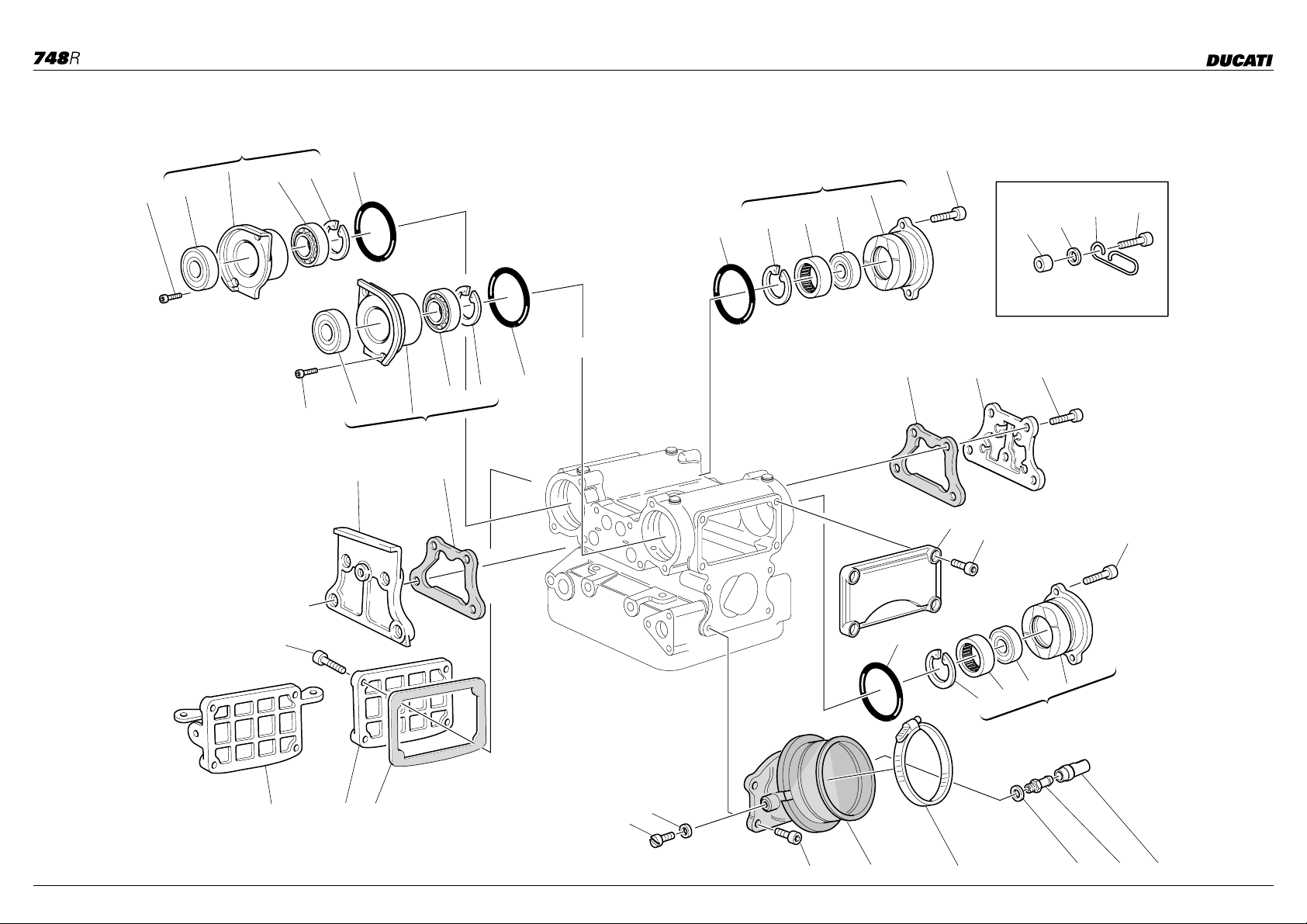

AIR INDUCTION - OIL VENT
WATER RADIATOR ASSY
COOLING CIRCUIT

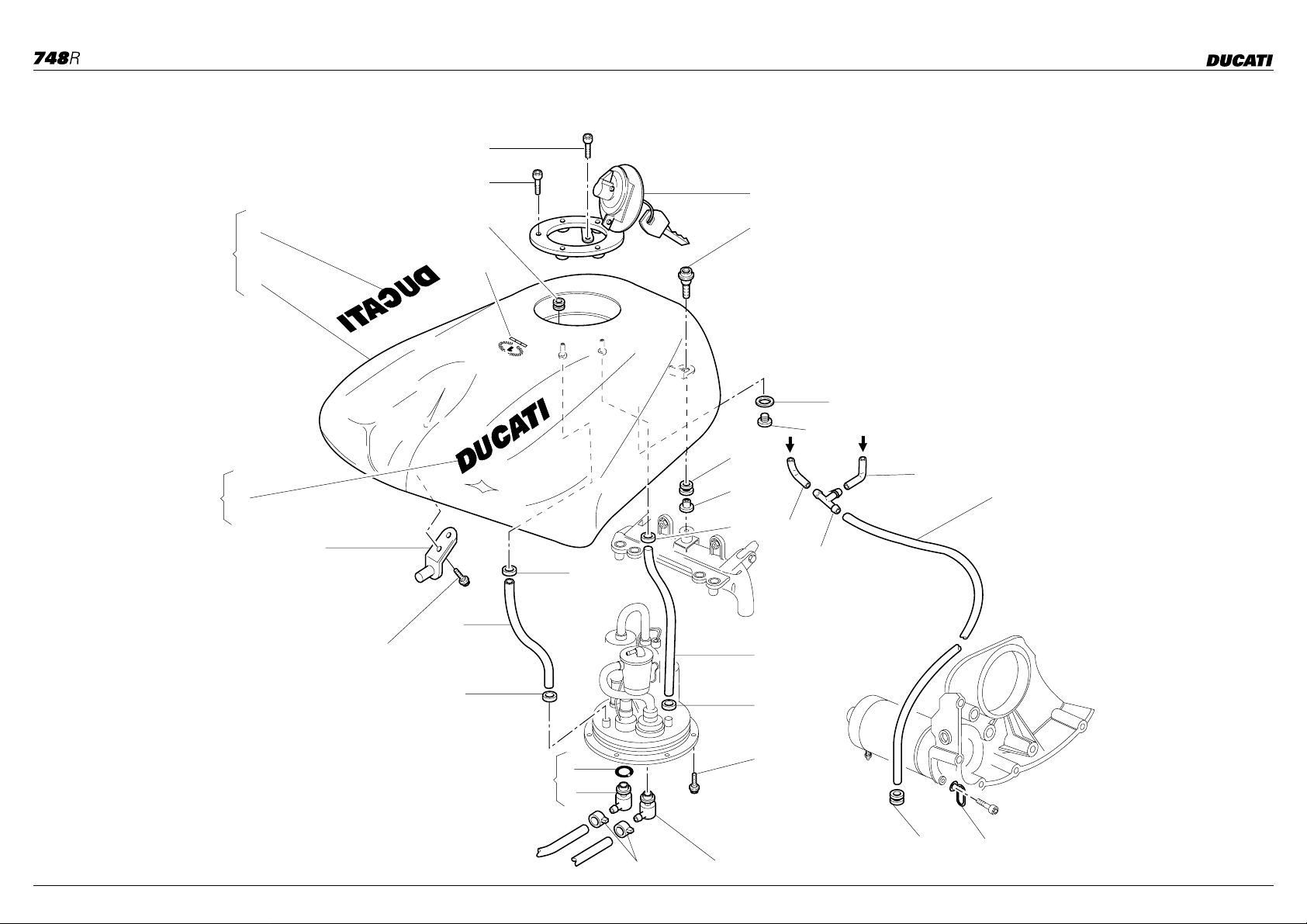

FUEL TANK
FUEL SYSTEM
SEAT
HEADLIGHT FAIRING
FAIRING

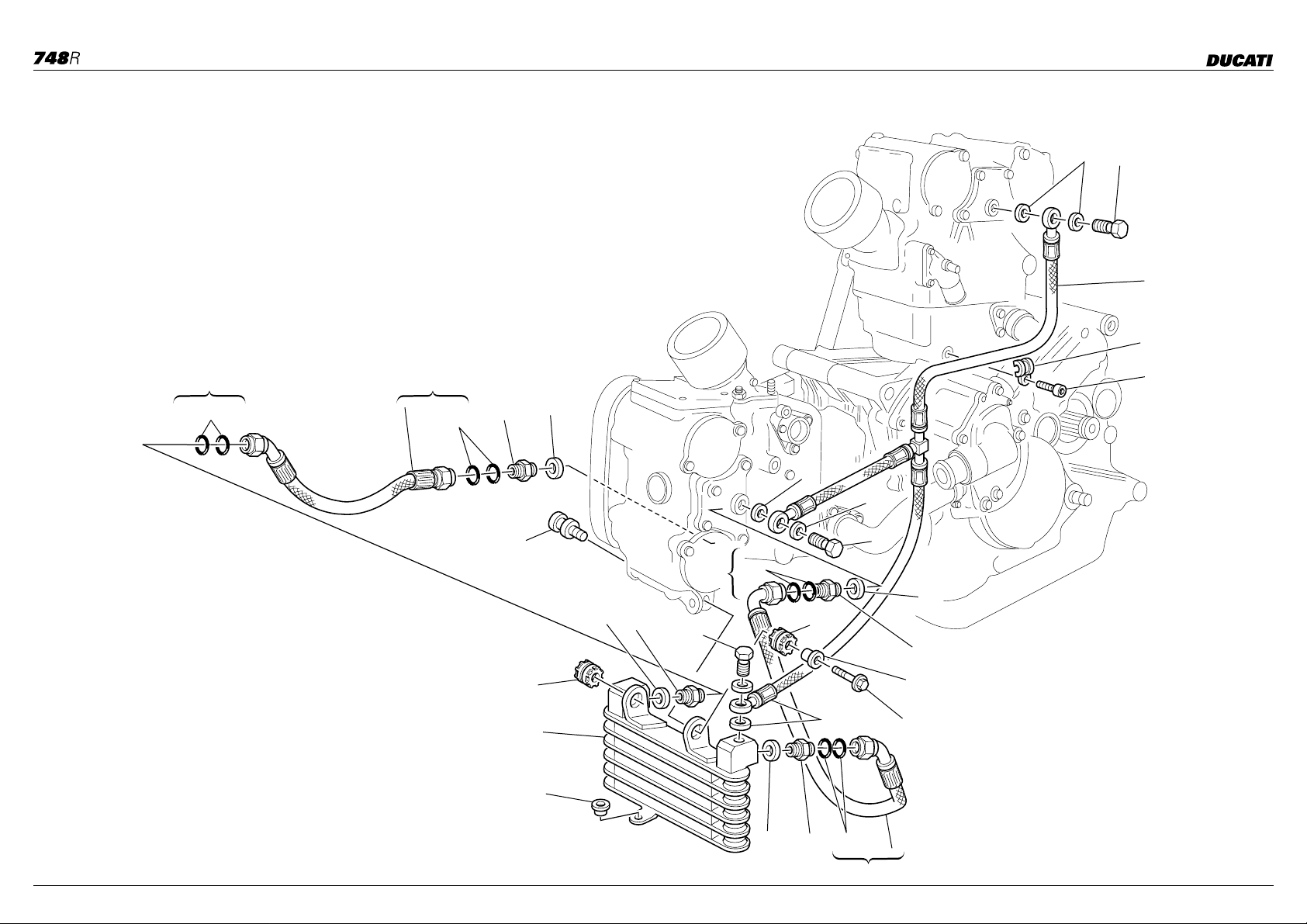

OIL COOLER
MARKING PLATES
CATALOGUE No:
ISSUED:
915.1.150.1A
10 - 01
CATALOGUE No:
ISSUED:
915.1.150.1A
10 - 01
3

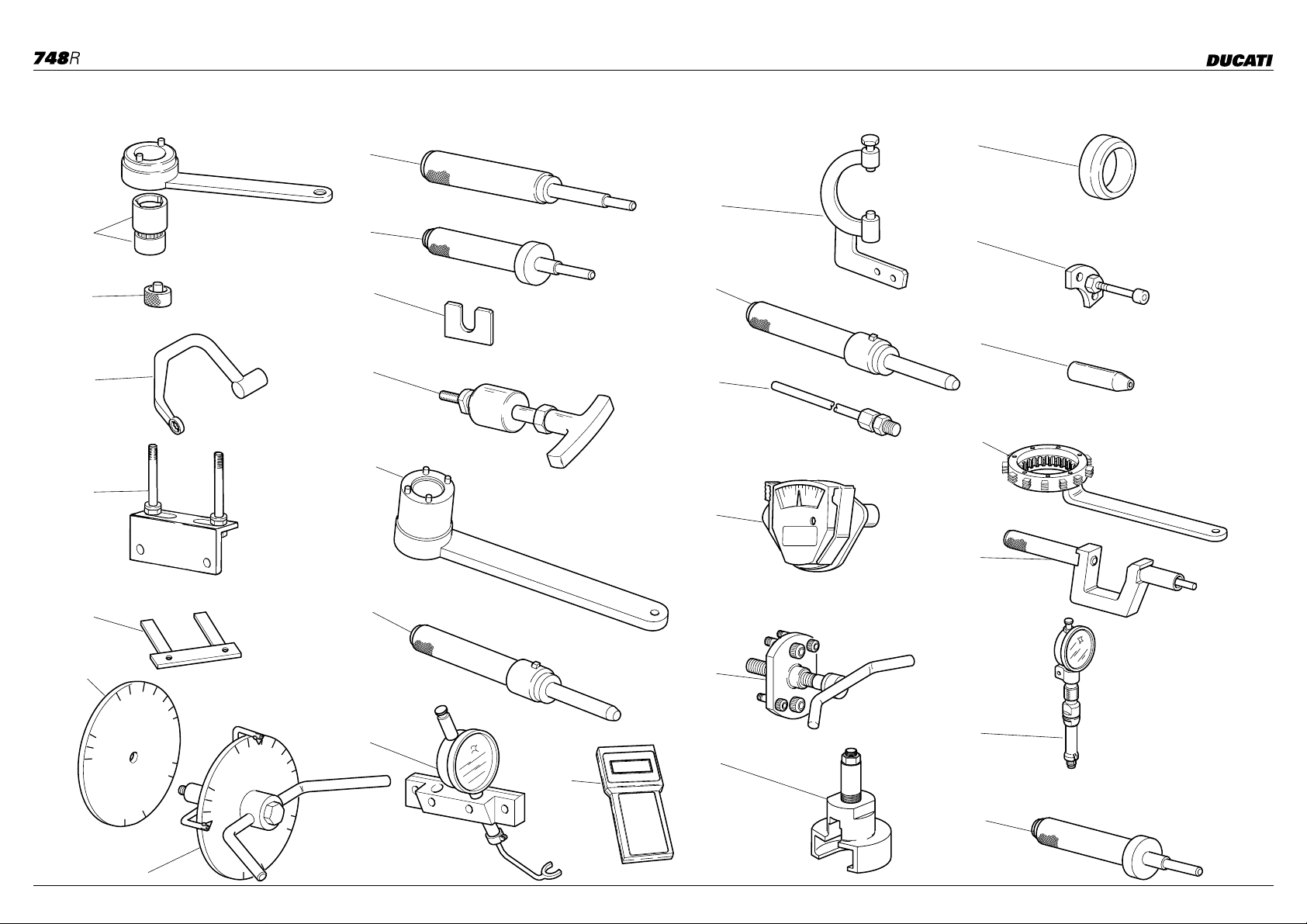

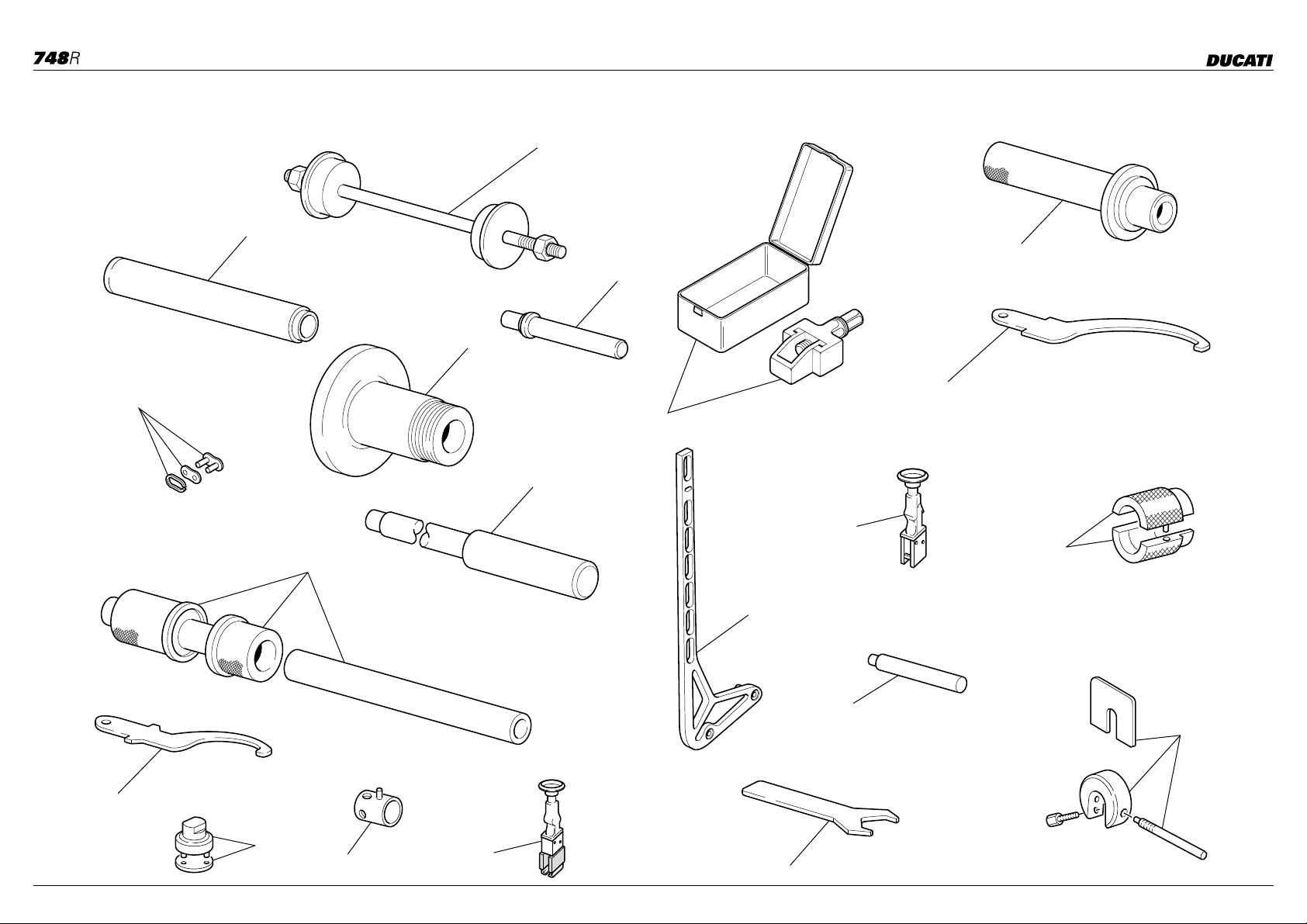

DRAWING
001
WORKSHOP SPECIAL TOOLS
8
22
16
1
2
9
10
23
17
24
3
11
18
25
12
4
19
26
5
7
10
20
0
30
10
40
50
80
90
80
90
80
10
20
0
30
10
40
50
80
90
80
90
80
13
14
20
27
21
15
28
6
4
DRAWING
001
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
1 88700.5644 Wrench for camshaft pulley ring nut adjustment 1
2 88765.1298 Spacer for checking lower valve shim 1
3 88713.2096 Head nuts holder wrench 1
4 88713.2103 Head mounting base 1
5 88765.1000 Fork feeler gauge 0.1 mm 1
5 88765.1005 Fork feeler gauge 0.2 mm 1
5 88765.1006 Fork feeler gauge 0.3 mm 1
6 88713.0123 Degree wheel holder tool for ignition advance check 1
7 98112.0002 Degree wheel 1
8 88713.0879 Punch tool to extract valve guide 1
9 88713.0875 Intake valve guide punch tool 1
10 88713.1309 Fork feeler gauge2,35 mm 1
11 88713.1994 Rocker shaft extractor 1
12 88713.0137 Crankshaft gear holder wrench for tightening nut 1
13 88713.1078 Punch tool for driving exhaust valve seat 1
14 88765.1001 Valve lift gauge 1
15 88765.1236 Check intrument 1
GB 15 88765.1237 Check intrument 1
D 15 88765.1238 Check intrument 1
F 15 88765.1239 Check intrument 1
E 15 88765.1240 Check intrument 1
16 88713.2036 Flywheel Wrench 1
17 88713.1079 Punch tool for driving intake valve seat 1
18 88713.1010 Union for exhaust gas suction 1
19 88765.0999 Timing belt control gauge 1
20 88713.1749 Drive roller puller 1
21 88713.2092 Extractor for primary drive gear 1
22 88700.5665 Sleeve for installing clutch bell gear 1
23 88713.1091 Plate for positioning gear engagement fork 1
24 88700.5749 Crankcases assembling cap 1
25 88713.2133 Wrench to hold cluch housing drum steady 1
26 88713.1429 Tool to drive valve seal ring ø7 1
27 88765.1297 T.D.C. control gauge 1
28 88713.0874 Exhaust valve guide punch tool 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
5
DRAWING
001.1
WORKSHOP SPECIAL TOOLS
9
1
17
10
2
3
18
13
4
14
19
5
11
15
20
6
7
8
12
16
6
DRAWING
001.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
1 88713.1072 Stopper for driving the half bearing of the steering head
base
2 88713.1073 Tool for balancing rear wheel 1
3 677.4.003.1A Coupling 1
4 88713.1074 Stopper for disassembling the swingarm pivot 1
5 88713.1059 Tool for assembling the swingarm ball bearings 1
6 88713.1037 Wrench for adjusting the steering head 1
7 88713.1058 Wrench for assembling the steering head cap 1
8 8000.70139 Wrench for front wheel spindle 1
9 88713.1062 Tool for assembling the steering head bearings 1
10 88713.1071 Stopper for assembling the rocker needle bearings 1
11 699.2.063.1A Geometry adjustment kit 1
12 88713.1097 EPROM extractor 1
13 88713.1344 Tool for assembling chain 1
14 88713.1140 EPROM chip introducing 1
15 88713.1057 Stopper for inserting the steering damper bearing 1
16 88713.1077 Wrench for seat lock nut 1
17 88713.1068 Stopper for assembling the rear fork roller bearings 1
18 88713.1038 Wrench for adjusting the eccentric hub 1
19 88713.1096 Tool for overhauling SHOWA forks - assembling seal
ring
20 88713.0957 Tool for holding SHOWA fork spacer 1
1
1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
7
DRAWING
001.2
DIAGNOSIS TESTER MATHESIS
2
23
5
3
715
13 10 11
19
18
9
176
20
16
14
148 1221
22
8
DRAWING
001.2
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
DIAGNOSIS TESTER MATHESIS
1 88765.1126Z Bare Mathesis 1
2 914.7.023.1A Italian manual 1
2 914.7.023.1B English manual 1
2 914.7.023.1C German manual 1
2 914.7.023.1D Franch manual 1
2 914.7.023.1E Spanish manual 1
3 88765.1126R Main cable Mathesis 1
4 88765.1126A Pickup Control cable 1
5 88765.1126Q Battery mains cable 1
6 88765.1126 Mains cable adapter for self diagnosis 1
7 88765.1126N Sensor for absolute pressure sampling 1
8 88765.1126V Amperometer plier 1
9 88765.1126E Adapter for 3 wires Pickup test cable 1
10 88765.1126P Sensor for air temperature sampling 1
11 88765.1126C Cable for potentiometer adjustement 1
12 88765.1126B Test cable and speed indicator adjustement 1
13 88765.1126F Adapter for 2 wires Pickup test cable 1
14 88765.1126D Adapter for potentiometer adjustement 1
15 552.4.028.1A Sensor for small throttle potentiometer sampling 1
16 88765.1126H Sensor for throttle potentiomer sampling 1
17 88765.1126G Sensor for air/water temperature sampling 1
18 88765.1126M Sfety remote switch 1
19 88765.1126L 2 Wires sampling Pickup sensor 1
20 88765.1126U Case with sponge 1
21 88765.1073 Italian memory card 1
21 88765.1074 English memory card 1
21 88765.1075 German memory card 1
21 88765.1076 French memory card 1
21 88765.1077 Spanish memory card 1
22 88765.1126S DUCATI sticker for case 1
23 88765.1126T DUCATI sticker RH/LH side 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
9
DRAWING
001.3
WORKSHOP SPECIAL TOOLS
1
11
2
8
3
4
5
9
6
10
7
12
13
14
16
15
10
DRAWING
001.3
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
- 88765.1241 Check intrument 1
GB - 88765.1242 Check intrument 1
D - 88765.1243 Check intrument 1
F - 88765.1244 Check intrument 1
E - 88765.1245 Check intrument 1
1 590.1.189.1A Fuel pressure line HS. 1
2 590.1.190.1A Fuel pressure line ST/SS/M. 1
3 875.1.065.1A Oil pressure line 1
4 552.1.037.1A Fitting - cylinder compression M12 1
5 552.1.038.1A Fitting - cylinder compression M10 1
6 514.1.037.1A Cable Volt PF DUC 21 1
7 552.1.039.1A Pressure sensor 1
8 814.1.114.1A Oil pressure fitting 1
9 514.1.032.1A Cable for supplementary tests 1
10 514.1.035.1A Red clamp cable 1
10 514.1.036.1A Black clamp cable 1
11 552.1.040.1A Temperature probe 1
12 514.1.034.1A Main cable PF A621 1
13 514.1.033.1A Electric lighter connection adapter (ST) 1
14 514.1.038.1A Battery connection adapter 1
15 698.1.033.1A Red case with sponge rubber 1
16 88765.1126T DUCATI sticker RH/LH side 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
11
DRAWING
002
GEARCHANGE
7
6
11
13
8
9
10
12
14
17
16
19
22
18
21
20
5
4
3
24
25
23
28
2
1
29
26
27
15 34 33 32 31 30
12
DRAWING
002
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
GEARCHANGE
1 799.1.049.1A Return spring 1
2 852.1.053.1A Washer 1
3 779.1.039.1A Special screw 1
4 455.2.003.1A Gear stopper assembly 1
5 420.2.001.0A Gasket th.1 1
6 539.1.021.1A Switch 1
7 779.1.203.1A Push rod holder 1
8 0272.91.090 Gasket 1
9 0660.13.143 Gear selector spring 1
10 76835.1134 Ball 1
11 180.1.001.1A 1st,4th-2nd,3rd gear selector fork 2
12 180.1.002.1A 5th,6th gear selector fork 1
13 0660.13.070 Fork pin 2
14 852.1.005.1A Shim th. 1 1
15 73500.1542 Circlip 1
16 882.1.006.1A Needle retaining ring (square cross-section) 1
17 821.1.070.1A Special roller (square cross-section) 6
18 182.2.010.1A Complete gearbox drum 1
19 0660.13.060 Shim th. 1 1
19 852.1.094.1A Shim th. 0.9 1
20 799.1.025.1A Fork return spring 1
21 0400.09.050 Shim th. 0.5 1
21 0765.92.205 Shim th. 0.2 2
22 0214.07.350 Ring 1
23 750.5.001.1A Nut 1
24 180.1.008.1A Gearbox drum control fork 1
25 0660.13.165 Gearchange lever pin 1
26 821.1.001.1A Pin with gearchange lever 1
27 0799.13.110 Gearchange lever return spring 1
28 60N102509 Screw 1
29 462.3.003.8A Washer 1
30 60N102555 Screw 1
31 462.3.003.7A Washer 1
32 881.1.012.1A Centering ring 1
33 826.1.009.1A Stopper plate 1
34 0400.29.125 Shim th. 0.2 2
34 0400.29.126 Shim th. 0.5 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
13
DRAWING
003
GEAR-BOX
2
11
10
7
6
4
9
6
27
8
7
6
5
4
3
7
2»
LATO CATENA
14
6»
3»
4»
1
28
LATO FRIZIONE
15
29
1»
17
5»
18
1»
19
4»
20
5»
6»
3»
6
22
4
30
4
21
6
7
16
2»
26
25
3
4
24
6
7
23
7
13
12
14
DRAWING
003
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
GEAR-BOX
1 0251.47.050 Shim th. 1 1
1 0251.47.054 Shim th. 1.2 1
1 852.1.108.1AH Shim th. 0.9 1
1 852.1.108.1AL Shim th. 1,1 1
1 852.1.108.1AN Shim th. 1,3 1
2 150.2.006.1A Gearbox main shaft 1
3 0670.16.150 Shim th. 0.5 2
4 701.4.005.1A Needle bearing 5
5 172.1.004.1C Driving gear 5th sp. 1
6 856.1.001.1A Grooved washer th. 0.5 6
7 0670.16.145 Snap ring 6
8 172.1.003.1C Driving gear 3rd/4th sp. 1
9 172.1.005.1C Driving gear 6th sp. 1
10 172.1.002.1B Driving gear 2nd sp. 1
11 0670.16.163 Shim th. 1.8 1
11 0670.16.164 Shim th. 2 1
11 713.1.014.1A Shim th. 1.5 1
11 713.1.014.1B Shim th. 1.7 1
11 713.1.014.1E Shim th. 1.6 1
11 713.1.014.1F Shim th. 1.9 1
12 449.1.033.2A Chain sprocket Z=14 1
13 826.1.011.1A Sprocket keep plate 1
14 8A00.67997 Screw 2
15 0670.16.164 Shim th. 2 1
15 0670.16.165 Shim th. 2.2 1
15 0670.16.184 Shim th. 1 1
15 0670.16.185 Shim th. 1.2 1
15 713.1.011.1A Shim th. 2.3 1
15 713.1.014.1A Shim th. 1.5 1
15 713.1.014.1E Shim th. 1.6 1
16 150.2.048.1A Complete lay shaft 1
17 76402.0002 Needle bearing 1
18 172.1.006.1B Driven gear 1st sp. 1
19 0670.16.155 Shim th. 1 1
20 172.1.010.1C Driven gear 5th sp. 1
21 172.1.009.1C Driven gear 4th sp. 1
22 172.1.008.1C Driven gear 3rd sp. 1
23 172.1.011.1C Driven gear 6th sp. 1
24 172.1.007.1B Driven gear 2nd sp. 1
25 149.1.024.1A Gearbox lay shaft 1
26 0670.16.170 Shim th. 0.8 1
26 0670.16.171 Shim th. 1 1
26 852.1.105.1AB Shim th. 0.9 1
26 852.1.105.1AD Shim th. 1,1 1
26 852.1.105.1AG Shim th. 0.7 1
27 150.2.047.1A Complete main shaft 1
28 93783.0812 Seal ring 1
29 76270.0827 Needle bearing 1
30 856.1.031.1A Grooved washer th. 0.5 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
15
DRAWING
004
4
CLUTCH
2
10 7
8
1
6
5
3
9
14
12
25
27
24
26
22
1128
13 23
15 16
17 20
19
18
21
16
DRAWING
004
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH
1 0659.16.555 Clutch spring 6
2 841.1.002.2A Retainer 6
3 818.2.011.1A Clutch control pin 1
4 771.5.043.2B Screw 6
5 799.1.066.1B Clutch spring 1
6 750.1.050.1A Nut 1
7 160.2.038.1C Flange 1
8 190.2.010.1A Clutch plates set 1
9 0400.17.030 O-ring 1
10 196.1.014.1B Clutch drum 1
11 70610.8120 Screw 8
12 194.2.013.1A Pressure plate 1
13 198.1.003.2C Clutch housing 1
14 702.5.016.1A Bearing 1
15 463.2.053.7A O-ring 1
16 463.4.026.9A Seal ring 1
17 170.2.028.1B Clutch/crankshaft gears pair 1
18 702.4.017.1A Bearing 1
19 881.2.001.1A Circlip - spacer 1
20 75113.2566 Bearing 1
21 0660.16.145 Spacer 1
22 195.4.003.1A Piston assembly 1
23 713.1.095.1A Spacer 1
24 93823.2018 O-ring 2
25 117.2.043.1A Clutch control rod 1
26 60N107335 Screw 3
27 0647.92.170 O-ring 1
28 799.1.051.2A Spring washer 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
17
DRAWING
005
CLUTCH COVER
16
20
19
3
6
17
15 14
13
7
18
20
5
17
21
8
9
10
11
12
4
2
1
18
DRAWING
005
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH COVER
1 243.1.025.1AD Clutch protection cover 1
2 60N102509 Screw 2
3 771.5.078.2B Screw 1
4 254.4.001.1A Oil level sight glass 1
5 60N102510 Screw 6
6 243.2.040.1A Cover clutch side 1
7 788.1.052.1A Clutch cover gasket 1
8 0665.49.680 Bush 1
9 930.4.021.1A Seal ring 1
10 852.1.125.1A Shim th. 0.3 1
11 884.5.013.1A Circlip 1
12 93827.0114 O-ring 1
13 0400.49.240 Locating bush 1
14 93823.2082 O-ring 1
15 893.1.005.1A Cap 1
16 539.4.030.1A Switch 1
17 0150.70.120 Gasket th.2 2
17 420.2.001.0A Gasket th.1 3
18 463.4.047.7A Ring 1
19 94247.0014 Fluid sealant 1
20 417.6.075.9A Screw 3
21 780.5.001.1A Cap 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
19
DRAWING
006
CRANKSHAFT
3
24
11
7
14
15
5
6
8
5
4
9
10
8
1
13
12
Rif. 17
Tav. 4
11
8
8
5
5
9
20
DRAWING
006
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CRANKSHAFT
1 146.2.072.1A Crankshaft (items 2-3-4 included) 1
2 779.1.109.1A Special screw 1
3 895.1.004.1A Cap 1
4 72121.2106 Threaded dowel 2
5 156.2.019.1A Complete connecting rod 2
6 74172.1008 Woodruff key 1
7 799.1.051.2A Spring washer 1
8 112.1.012.1AA Half-bearing (RED) 4
8 112.1.012.1AB Half-bearing (BLUE) 4
9 779.1.114.1A Special screw 4
10 0755.29.025 Woodruff key 1
11 852.1.104.1A Shim th. 1.9 2
11 852.1.104.1B Shim th. 1.95 2
11 852.1.104.1C Shim th. 2 2
11 852.1.104.1D Shim th. 2,05 2
11 852.1.104.1E Shim th. 2,1 2
11 852.1.104.1F Shim th. 2,15 2
11 852.1.104.1G Shim th. 2.2 2
11 852.1.104.1H Shim th. 2.25 2
11 852.1.104.1I Shim th. 2.3 2
11 852.1.104.1J Shim th. 2.35 2
11 852.1.104.1K Shim th. 2,4 2
11 852.1.104.1L Shim th. 2,45 2
11 852.1.104.1M Shim th. 2.5 2
11 852.1.104.1N Shim th. 2.55 2
12 0619.47.030 Lock washer 1
13 0660.47.040 Nut 1
14 750.1.012.2A Nut 1
15 94460.0826 Grease 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
21
DRAWING
007
CYLINDERS - PISTONS
814 17 19 20
12
11
10
13
5
19
8
16 15
GENUINE PARTS
Part - code N.
Quantity N.
Made in Italy
6
7
9
1
1819
23 4
1
17
16
8
15
14
9
21
678
10 11
22
DRAWING
007
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CYLINDERS - PISTONS
1 122.2.077.1A Complete piston 2
2 121.1.003.1A Piston pin circlip 4
3 121.1.068.1A Piston pin 2
4 121.2.024.1A Piston rings set 2
5 791.2.022.1B Gaskets set 1
6 777.5.049.2C Screw 5
7 247.1.020.1AB Cover 2
8 93823.2087 O-ring 4
9 786.1.068.1A Cylinder-crankcase gasket th. 0.4 2
10 120.2.079.1B Cylinder-piston fit 2
11 786.1.053.2A Head-cylinder gasket 2
12 0619.49.240 Bush 4
13 93823.2037 O-ring 1
14 814.1.002.1AB Water inlet union to cylinders 2
15 60N102504 Screw 2
16 420.2.000.7A Gasket 2
17 60N107335 Screw 6
18 800.1.008.1A Horizontal cylinder water inlet hose 1
19 741.4.002.1A Clamp 4
20 800.1.007.1A Vertical cylinder water inlet hose 1
21 779.1.084.1A Special screw 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
23
DRAWING
008
TIMING
FISSO
MOBILE
4
11
16
7
13
14
15
16
1
2
21
20
18
22
19
18
17
10
12
23
25
24
26
27
27
8
29
12
5
22
31
9
28
6
3
30
26
24
24
DRAWING
008
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
TIMING
1 245.1.036.1AB Vertical belt outer cover 1
2 245.1.034.1AB Outer central cover 1
3 245.1.035.1AB Horizontal belt outer cover 1
4 245.1.001.2AB Vertical belt inner cover 1
5 245.1.002.2AB Horizontal belt inner cover 1
6 462.4.037.8A Spring washer 2
7 0755.29.025 Woodruff key 1
8 60N102510 Screw 3
9 60N102511 Screw 6
10 147.1.014.1A Timing lay shaft 1
11 882.1.003.1A Snap ring 1
12 713.1.162.1A Tensioner spacer 2
13 171.2.020.2B Timing gears pair 1
14 0400.29.040 Lock washer 1
15 0124.40.060 Hexagon nut 1
16 680.1.003.1A Woodruff key plate 2° 2
16 680.1.003.1B Woodruff key plate 4° 2
16 680.1.003.1C Woodruff key plate 6° 2
16 680.1.003.1D Woodruff key plate 8° 2
16 680.1.003.1E Woodruff key plate 10° 2
16 680.1.003.1F Woodruff key plate 12° 2
17 713.1.161.1A Spacer 1
18 255.1.016.1A Timing belt roller 2
19 856.1.065.1A Belt roller separating washer 1
20 0797.69.040 Washer 1
21 72944.1542 Elastic-stop ring nut 1
22 737.4.017.1A Timing drive toothed belt 2
23 451.1.004.2A Fixed tensioner roller pin 2
24 702.5.001.4A Bearing 4
25 451.1.031.1A Fixed tensioner bush 2
26 73503.3380 Circlip 4
27 73500.1747 Snap ring 4
28 451.1.002.1A Tensioner eccentric 2
29 451.1.001.2A Movable tensioner roller pin 2
30 729908FN1 Nut 2
31 451.1.032.1A Movable tensioner roller bush 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
25
DRAWING
009
FILTERS AND OIL PUMP
1
31 30 29 2 7 25 5 8 9
10 11 26
1
24 13 2512 15 32
4
23
16
17
15
22
28
27
14
21
20
6
3
1
33 18 19
26
DRAWING
009
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FILTERS AND OIL PUMP
1 174.2.025.3A Complete oil pump 1
2 247.1.104.1A Pump cover 1
3 779.5.005.1A Screw 3
4 852.1.120.1A Aluminium gasket 1
5 250.2.030.3A Pump body 1
6 779.5.001.1A Screw 3
7 680.1.001.1B Woodruff key 1
8 60N102511 Screw 1
9 462.4.037.6A Spring washer 1
10 771.5.129.2B Screw 2
11 462.4.037.8A Spring washer 2
12 174.1.025.1A Pump drive gear 1
13 710.1.001.1A Bush 1
14 799.2.077.2A Bypass spring 1
15 0759.49.280 Locating bush 2
16 220.3.208.3A Gasket 1
17 0660.49.053 Oil drain plug with magnet 1
18 852.5.005.1A Gasket th.1,5 1
19 894.2.009.1A Oil filter 1
20 0905.49.960 Oil filter cartridge 1
21 0670.49.910 Nipple 1
22 93827.0114 O-ring 3
23 779.1.198.1A Cap 1
24 76267.0012 Snap ring 1
25 73500.1237 Circlip 2
26 0670.49.310 Reduction bush 1
27 779.1.162.1A Cap 1
28 0150.70.120 Gasket th.2 1
29 593.1.018.1A Bypass valve 1
30 799.1.055.1A Bypass spring 1
31 780.1.018.1A Bypass cap 1
32 886.4.037.1A O-ring 1
33 873.1.037.1A Cap 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
27
DRAWING
010
HALF CRANKCASES
24
24
23
22
10
23
26
1
12
7
13
27
8
29
6
5
7
22
21
2
1
28
25
19
17
9
29
18
11
13
15
14
16
20
3
4
1
28
DRAWING
010
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HALF CRANKCASES
1 225.2.054.1B Complete half-crankcases pair 1
2 771.5.136.2B Screw 6
3 710.1.070.1A Bearing holder bush 1
4 75191.3380 Bearing 1
5 72094.1616 Screw 2
6 826.1.003.1A Keep plate 1
7 75791.1747 Bearing 2
8 93783.2552 Seal ring 1
9 713.1.140.1A Spacer 2
10 94247.0014 Fluid sealant 1
11 75794.1542 Bearing 1
12 702.5.008.1A Bearing 1
13 73503.3380 Circlip 2
14 75143.3380 Bearing 1
15 710.1.069.1A Bearing holder bush 1
16 771.5.080.2B Screw 2
17 779.1.026.1A Screw 1
18 93785.1830 Seal ring 1
19 60N101079 Screw 2
20 771.5.072.2B Screw 7
21 0011.52.010 Locating dowel 2
22 766.1.001.2B Stud bolt for fastening head cylinder 8
23 856.1.025.1A Special washer 8
24 0670.92.010 Nut 8
25 420.2.006.2A Aluminium gasket 1
26 0370.49.250 Washer 1
27 711.1.095.1A Bush 2
28 779.1.029.1A Special screw 1
29 702.5.019.1A Bearing 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
29
DRAWING
011
WATER PUMP - ALTERNATOR COVER
3
2
27
13
9
13
13
16
13
20
31
30
29
25
33
32
24
23
22
11
34
8
21
7
6
26
13
28
3
18
13
1
17
4
19
16
10
38
39
13
36
15
40
12
14
37
5
35
414241
30
DRAWING
011
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WATER PUMP - ALTERNATOR COVER
1 264.4.014.3B Generator 1
2 247.1.083.1AE Chain cover 1
3 60N107335 Screw 3
4 702.5.008.1A Bearing 1
5 771.5.040.2B Screw 2
6 60N101079 Screw 2
7 462.3.003.8A Washer 2
8 884.5.011.1A A 10 Ring 1
9 702.4.010.1A Bearing 1
10 886.4.003.1A O-ring 1
11 702.4.009.1A Bearing 1
12 94247.0014 Fluid sealant 1
13 242.2.038.1BB Generator cover 1
14 0400.49.240 Locating bush 2
15 60N102511 Screw 3
16 668.1.001.2A Water pump delivery filler 2
17 73503.3380 Circlip 1
18 93783.1524 Seal ring 1
19 60N102510 Screw 8
20 771.5.066.2B Screw 5
21 0011.52.010 Locating dowel 2
22 886.4.035.1A O-ring 1
23 247.1.002.1BC Cover 1
24 777.5.049.2C Screw 2
25 254.1.001.1A Oil level sight glass 1
26 930.5.005.1A Seal 1
27 713.1.128.1B Spacer 1
28 930.5.006.2B Mechanical seal 1
29 251.2.001.3B Water pump fan "Peek" 1
30 788.1.056.1A Gasket 1
31 247.1.114.1AB Complete water pump cover 1
32 420.2.001.0A Gasket th.1 1
33 780.5.001.1A Cap 1
34 852.1.114.1A Washer 1
35 830.1.144.1A Bracket 1
36 771.4.006.1A Screw 8
37 771.5.073.2B Screw 3
38 552.4.020.1A Sensor 1
39 788.1.066.1AA Gasket th.0,6 1
39 788.1.066.1AB Gasket th.0,8 1
39 788.1.066.1AC Gasket th.1,0 1
40 771.5.072.2B Screw 1
41 734306N01 Washer 2
42 881.1.030.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
31
DRAWING
012
ELECTRIC STARTER AND IGNITION
17
19
20
9
8
1318
16
15
14
12
11
9
10
67
5
2
1
1
3
4
32
DRAWING
012
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
ELECTRIC STARTER AND IGNITION
1 270.4.001.1A Complete starter motor (8-9 included) 1
2 734006N01 Spring washer 1
3 417.9.050.6A Nut 1
4 788.1.054.1A Starter motor gasket 1
5 60N102510 Screw 3
6 176.1.001.1A Starter motor sprocket 1
7 73500.1237 Circlip 1
8 0660.50.020 Intermediate gear pin 1
9 0124.40.050 Washer 2
10 176.1.009.1A Intermediate gear assembly 1
11 73500.1440 Circlip 1
12 771.5.078.2B Screw 1
13 160.1.057.1A Flange 1
14 863.1.002.1A Locating pin 1
15 0647.29.040 Check ring 1
16 276.1.035.3A Ignition flywheel 1
17 0619.50.065 Washer 1
18 701.4.007.1A Starter clutch 1
19 701.4.003.1A Needle bearing 1
20 173.1.012.4A Electric starter driven gear 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
33
DRAWING
013
HEAD: TIMING
17
12
13
18
14
11
10
19
9
8
14
18
13
10
9
8
11
20
12
11
Registro bilanc. apertura
Adjustment
Réglage
Ventilkäppchen
840.1.031.1A — 1,8
840.1.032.1A — 1,85
840.1.033.1A — 1,9
840.1.034.1A — 1,95
840.1.001.1A — 2
840.1.002.1A — 2,05
840.1.003.1A — 2,1
840.1.004.1A — 2,15
840.1.005.1A — 2,2
840.1.006.1A — 2,25
840.1.007.1A — 2,3
840.1.008.1A — 2,35
840.1.009.1A — 2,4
840.1.010.1A — 2,45
840.1.011.1A — 2,5
840.1.012.1A — 2,55
840.1.013.1A — 2,6
840.1.014.1A — 2,65
840.1.015.1A — 2,7
840.1.016.1A — 2,75
840.1.017.1A — 2,8
840.1.018.1A — 2,85
840.1.019.1A — 2,9
840.1.020.1A — 2,95
840.1.021.1A — 3
840.1.022.1A — 3,05
840.1.023.1A — 3,1
840.1.024.1A — 3,15
840.1.025.1A — 3,2
840.1.026.1A — 3,25
840.1.027.1A — 3,3
840.1.028.1A — 3,35
840.1.029.1A — 3,4
840.1.0301A — 3,45
9
Registro bilanc. chiusura
Adjustment
Réglage
Ventilkäppchen
840.1.051.1B — 2,7
840.1.052.1B — 2,75
840.1.053.1B — 2,8
840.1.054.1B — 2,85
840.1.055.1B — 2,9
840.1.056.1B — 2,95
840.1.057.1B — 3
840.1.058.1B — 3,05
840.1.059.1B — 3,1
840.1.060.1B — 3,15
840.1.061.1B — 3,2
840.1.062.1B — 3,25
840.1.063.1B — 3,3
840.1.064.1B — 3,35
840.1.065.1B — 3,4
840.1.066.1B — 3,45
840.1.067.1B — 3,5
840.1.068.1B — 3,55
840.1.069.1B — 3,6
840.1.070.1B — 3,65
840.1.071.1B — 3,7
15
16
17
20
12
12
16
19
15
11
10
11
10
9
8
1
9
8
3
2
2
3
6
4
6
7
7
5
4
5
34
DRAWING
013
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HEAD: TIMING
1 301.2.086.1A Head (2,3,4,6 included) 2
2 303.1.009.1A Intake valve bronze guide 4
2 303.1.009.1AB Oversize valve guide 0.03 4
2 303.1.009.1AC Oversize valve guide 0.06 4
2 303.1.009.1AD Oversize valve guide 0.09 4
3 303.1.002.1A Exhaust valve bronze guide 4
3 303.1.002.1AB Oversize valve guide 0.03 4
3 303.1.002.1AC Oversize valve guide 0.06 4
3 303.1.002.1AD Oversize valve guide 0.09 4
4 304.1.034.1A Intake valve seat 4
4 304.1.034.1AB Oversize intake valve seat 0.03 4
4 304.1.034.1AC Oversize intake valve seat 0.06 4
5 210.1.022.2A Intake valve 4
6 304.1.035.1A Exhaust valve seat 4
6 304.1.035.1AB Oversize exhaust valve seat 0.03 4
6 304.1.035.1AC Oversize exhaust valve seat 0.06 4
7 211.1.005.3C Exhaust valve 4
8 764.1.002.1A Rubber pad 8
9 See table 8
10 669.1.001.1E Split rings 16
11 See table 8
12 821.1.004.1A Closing rocker shaft 8
13 799.1.015.1A L.H. valve return spring 4
14 209.1.002.7A L.H. Closing rocker 4
15 209.1.001.7A R.H. Closing rocker 4
16 799.1.014.1A R.H. valve return spring 4
17 821.1.102.1A Exhaust opening rocker shaft 4
18 208.1.002.7A L.H. Opening rocker 4
19 208.1.001.7A R.H. Opening rocker 4
20 821.1.101.1A Intake opening rocker shaft 4
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
35
DRAWING
014
HEAD
3
2
1
4
5
6
17
18
7
12
16
15
12
19
20
12
11
9
10
12
8
11
10
13
21
4
3
2
1
8
14
36
DRAWING
014
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HEAD
1 72944.1542 Elastic-stop ring nut 4
2 0797.69.040 Washer 4
3 255.1.016.1A Timing belt roller 4
4 856.1.065.1A Belt roller separating washer 4
5 713.1.160.1A Belt roller spacer 2
6 766.4.012.1A Stud bolt 6
7 148.1.100.1A Vertical exhaust camshaft 1
8 74172.1008 Woodruff key 4
9 148.1.098.1A Vertical intake camshaft 1
10 777.5.049.2C Screw 6
11 247.1.020.1AB Cover 2
12 93823.2087 O-ring 4
13 148.1.099.1A Horizontal intake camshaft 1
14 148.1.101.1A Horizontal exhaust camshaft 1
15 814.1.036.1AB Water outlet union 1
16 60N102509 Screw 3
17 60N107335 Screw 3
18 815.1.019.1A Nipple 1
19 873.1.004.1A Cap 4
20 873.1.001.1A Cap 4
21 713.1.159.1A Belt roller spacer 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
37
DRAWING
015
13
COLLECTORS AND HEAD COVERS
26
24
25
8
23
13
23
22
24
25
9
13
3
10
8
27
12
11
28
6
VERTICAL HEAD
17 16 13
8
21
2
181920
17
14
31
13
8
12
11
10
4
5
9
13 15 30 2917
38
DRAWING
015
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
COLLECTORS AND HEAD COVERS
1 140.1.022.1A Intake manifold 2
2 771.5.064.2B Screw 8
3 60N102510 Screw 1
4 420.2.000.7A Gasket 4
5 60N102504 Screw 4
6 829.1.187.1A Guide ring 1
7 741.4.022.1A Clamp 2
8 886.4.001.1A O-Ring 8
9 235.2.002.1AB Complete cap tachometer side 4
10 73503.3380 Circlip 4
11 75794.1542 Bearing 4
12 93783.1730 Seal ring 4
13 60N107335 Screw 40
14 240.1.023.1A Intake valve cover 2
15 420.2.000.7A Gasket 2
16 247.1.005.3BB Central cover 2
17 788.1.010.4A Central cover gasket 4
18 788.1.053.1A Exhaust valves cover gasket 2
19 240.1.014.1AA Exhaust valve cover 1
20 240.1.015.1AA Exaust valve cover (horizontal) 1
21 247.1.006.2AB Central cover timing side 2
22 235.2.003.1AB Complete cap timing side 2
23 0204.70.105 Seal ring 4
24 75120.1747 Bearing 4
25 73503.3683 Circlip 4
26 235.2.004.1AB Complete cap timing side 2
27 0675.49.540 Spacer 1
28 734306N01 Washer 1
29 872.1.029.1A Cap 2
30 0000.75360 Union 2
31 60N102505 Screw 8
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
39
DRAWING
016
THROTTLE BODY
8
12
6
11
4
14
5
2
13
3
8
10
1
7
9
40
DRAWING
016
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
THROTTLE BODY
1 282.4.024.1B Throttle body 1
2 510.1.059.1C Throttle body wiring 1
3 830.1.136.1A Bracket 1
4 287.2.005.1A Injectors kit with hose 1
5 684.1.047.1A Stud bolt 2
6 700.1.029.1A Vibration damper pad 2
7 852.4.010.1A Washer 2
8 779.1.240.1A Screw 4
9 779.4.062.1A Screw 2
10 284.4.002.1A Potentiometer 1
11 287.4.024.1B Clamp 4
12 852.4.004.1A Spring washer 2
13 779.4.062.1A Screw 4
14 287.4.045.1A Tie rod 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
41
DRAWING
017
ELECTRIC SYSTEM
8
9
14
1
4
7
6
5
10
13
2
3
11
12
10
20
21
18
19
22
15
16
1
17
42
DRAWING
017
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
ELECTRIC SYSTEM
1 510.1.148.1A Electric wiring 1
2 246.1.058.1A Cover 1
3 433.1.205.1A Sticker schema fusibili 1
4 389.4.006.1A Fuse 3A 2
5 389.4.007.1A Fuse 7.5A 3
6 389.4.008.1A Fuse 15A 2
7 389.4.010.1A Fuse 30A 1
8 775.1.006.1A Special screw 1
9 513.1.008.2D Battery grounding cable 1
10 8000.56443 Nut 2
11 821.1.054.1A Pin 2
12 0797.72.068 Vibration damper pad 2
13 827.1.077.1A Plate 2
14 779.1.088.1A Screw 2
15 395.4.013.1A Battery 1
16 389.4.014.1A Fuse 40A 1
17 0000.56803 Connector 1
18 741.1.013.1A Clamp 6
19 8000.53724 Clamp 8
20 8000.66526 Connector 1
21 0000.66527 End section 4
22 872.1.026.1A Cap 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
43
DRAWING
017.1
BATTERY BOX MOUNT
21718 20 1 2
16
15
19
14
3 4 5
2
2
13 8
1223
21 22
7
6971011
44
DRAWING
017.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
BATTERY BOX MOUNT
1 829.1.095.3A Battery box mount 1
2 8000.66308 Vibration damper pad 8
3 0797.72.068 Vibration damper pad 1
4 514.1.016.2A Battery-solenoid starter cable 1
5 514.1.017.2A Solenoid starter-starter motor cable 1
6 397.4.001.1A Remote switch 1
7 0364.99.020 Threaded insert 3
8 8000.62726 Screw 2
9 827.1.071.1A Plate 1
10 827.1.156.1A Plate 1
11 0000.62729 Screw 2
12 540.4.011.1C Regulator 1
13 829.1.270.1A Holder 1
14 829.1.094.1D Holder 1
15 538.4.005.1A Flashing device 1
16 287.4.014.1A Relay 1
17 772.5.025.1A Screw 1
18 827.1.195.1A Plate 1
19 541.4.003.1A Relay 2
20 0000.62726 Screw 1
21 462.4.037.6A Spring washer 2
22 417.9.050.6A Nut 2
23 772.5.023.1A Screw 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
45
DRAWING
018
INJECTION SYSTEM
14
15
16
18
21
13
12
17
12
19
32
23
35
24
1
23
2
3
4
33
6
34
8
7
22
20
20
2
3
30
6
4
34
5
10
7
8
9
28
31
11
27
26
25
29
46
DRAWING
018
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
INJECTION SYSTEM
1 510.1.111.2A Injection wiring 1
2 772.5.024.1A Screw 2
3 8000.56359 Washer 2
4 0797.72.068 Vibration damper pad 4
5 829.1.247.1A R.H. holder 1
6 0000.44099 Spacer 2
7 285.4.003.1A Coil 2
8 771.5.025.2B Screw 4
9 764.4.005.1A Rubber pad 1
10 387.4.002.1A End section 2
11 386.4.006.1A Connector 1
12 287.4.040.2A Relay 2
13 829.1.127.1A Holder 2
14 700.1.023.2A Vibration damper 4
15 80A0.06385 Washer 4
16 8000.37901 Nut 4
17 872.4.018.1A Rubber cap 1
18 546.1.115.1A EPROM 076 1
19 286.4.038.1A Injection control unit 1
20 741.1.010.1A Clamp 2
21 389.4.013.1A Fuse 20A 1
21 389.4.015.1A Fuse 5A 1
22 741.1.012.1A Clamp 5
23 741.1.013.1A Clamp 7
24 8000.53724 Clamp 2
25 832.1.012.1A Pin 3
26 552.4.002.1A Pressure sensor 1
27 764.1.016.1A Vibration damper pad 3
28 670.4.012.1A Spark plug 2
29 671.1.001.1A Head spark plug wiring 1
30 671.1.002.1A Head spark plug wiring 1
31 877.1.040.1A Tube 1
32 433.1.179.1A Plate "NON RIMUOVERE" 1
33 829.1.248.1A L.H. holder 1
34 749.5.001.1A Nut 4
35 699.2.155.1A Caps kit 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
47
DRAWING
019
EXHAUST SYSTEM
22 20 7 26 6 26
31
20
11
24
12 4 3 18 1
24
25
23
30
141316
23
15
17
21
10
29
4
11
19
27
28
10
7
20
206720
5
20
1
3
2
4
8
9
28
4
32
27
48
DRAWING
019
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
EXHAUST SYSTEM
1 790.1.001.2A Exhaust gasket 2
2 160.1.043.2A Exhaust manifold 1
3 748.4.002.7A Nut 6
4 799.1.048.1A Spring 6
5 710.1.027.1A Spacer 1
6 80A0.62649 Holder 3
7 764.1.024.1A Vibration damper pad 4
8 779.1.085.1A Screw 1
9 570.1.022.2A Horizontal head exhaust pipe 1
10 8000.56359 Washer 2
11 0000.62729 Screw 3
12 571.1.022.2A Vertical head exhaust pipe 1
13 0000.44099 Spacer 2
14 852.1.072.1A Washer 6
15 247.1.087.1A Protection 1
16 0000.55698 Screw 2
17 573.1.049.2A R.H. silencer 1
18 160.1.044.2A Exhaust manifold 1
19 574.1.049.2A L.H. silencer 1
20 713.1.082.1A Spacer 8
21 0000.62730 Screw 1
22 779.1.009.1A Screw 1
23 788.1.048.1B Gasket 2
24 576.1.036.1A Clamp 2
25 8000.56443 Nut 1
26 716.1.029.2A Spacer 8
27 780.1.007.1A Cap 2
28 0000.44240 Nut 2
29 570.1.030.2A Exhaust pipe 1
30 856.1.023.1A Washer 2
31 772.5.023.1A Screw 2
32 420.2.001.0A Gasket th.1 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
49
DRAWING
020
INSTRUMENT PANEL
12
13 14 15 16 17
22 23 24
25 26 27 28 14 15
21
17
18
19
20
16
17
18
29
16
10
11
8
16
17
18
30
9
8
7
6
4
31
3
1
2
5
50
DRAWING
020
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
INSTRUMENT PANEL
1 829.1.140.1A Front connection 1
2 552.4.012.1A Air temperature sensor 1
3 72276.0686 Screw 2
4 8B00.67545 Screw 4
5 403.1.012.1A Speedometer transmission 1
6 829.1.112.1AC Headlight holder 1
7 829.1.118.1A Holder 1
8 771.5.639.2B Screw 4
9 829.1.117.1A Holder 1
10 8000.42278 Nut 3
11 8000.56752 Rubber pad 3
12 400.2.015.1B Complete instrument panel (speedometer - miles) 1
13 510.1.061.1A Wiring 1
14 0000.56750 Warning lamp bulb12V-2.1W 4
15 8000.20602 Warning lamp bulb12V-1.2W 6
16 0000.56748 Nut 7
17 0000.56747 Washer 7
18 408.1.010.1A Rubber pad 5
19 776.4.002.1A Screw 1
20 0000.56742 Grip 1
21 407.4.001.1B Speedometer holder 1
22 0000.56741 Gasket 1
23 401.4.028.1A Speedometer 1
23 401.4.032.1A Speedometer/Speedometer miles 1
24 0000.78348 Tachometer holder 1
25 8000.77936 Vibration damper sponge 1
26 402.4.012.1A Tachometer 1
27 404.4.006.1A Water thermometer (°C) 1
28 510.1.070.1A Instrument panel wiring 1
29 886.4.043.1A O-ring 1
30 772.5.021.1A Screw 2
31 0000.44240 Nut 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
51
DRAWING
021
FRONT HEAD-LIGHT
4
1
2
12
11
10
3
1
7
8
9
5
6
52
DRAWING
021
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT HEAD-LIGHT
1 771.5.639.2B Screw 2
2 827.1.089.1A R.H. plate 1
3 827.1.090.1A L.H. plate 1
4 510.1.060.2D Electric wiring 1
5 827.1.095.1A Plate 1
6 0000.62726 Screw 2
7 0797.72.068 Vibration damper pad 2
8 741.1.012.1A Clamp 1
9 8000.53724 Clamp 2
10 827.1.181.1A Plate 1
11 829.1.190.1A Rubber holder 2
12 541.4.003.1A Relay 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
53
DRAWING
022
HALF-HANDLEBARS - SHOCK-ADSORBER
19
20
18
5
7
8
19
9
21 19 22 23 12
33
12
25
35
26
25
28
6
34
29
30
5
31
6
17
11
ON
OFF
RUN
STOP
27
2
3
24
10
32
16
4
3
2
12
1
13 14 15
54
DRAWING
022
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HALF-HANDLEBARS - SHOCK-ADSORBER
1 342.2.027.1A Steering head base assembly 1
2 930.1.004.1A Seal ring 2
3 702.4.004.1A Bearing 2
4 343.2.005.1A Tube 1
5 654.2.002.1A Throttle control 1
6 656.2.012.1A Grips pair 1
7 360.2.030.1A L.H. handlebar 1
8 651.4.008.1A L.H. switch 1
9 93823.2037 O-ring 1
10 652.4.004.3A Key-operated switch 1
11 772.5.024.1A Screw 2
12 771.5.725.2B Screw 7
13 852.1.071.1A Washer 2
14 771.5.723.2B Screw 2
15 884.5.001.1A Circlip 2
16 779.1.060.1A Special screw 1
17 703.1.013.1A Ring nut 1
18 716.1.049.1A Spacer 1
19 771.5.664.2B Screw 3
20 829.2.079.1B Holder 1
21 364.4.003.1A Steering damper 1
22 848.2.001.1B End section 1
23 341.1.011.2A Steering head 1
24 872.1.015.1A Cap 2
25 771.5.669.2B Screw 6
26 771.5.667.2B Screw 2
27 650.4.006.2A R.H. switch 1
28 656.1.032.1A Throttle control transmission 1
29 772.5.023.1A Screw 2
30 8000.66774 Screw 2
31 658.4.002.1A Cover 1
32 598.4.011.3A Wrench 1
33 872.1.011.1A Cap 2
34 734406N01 Washer 1
35 360.2.031.1A R.H. handlebar 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
55
DRAWING
022.1
3
FRONT FORK
2
5
5
7
6
1
3
4
56
DRAWING
022.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT FORK
1 340.2.128.1B L.H. fork leg assembly 1
2 340.2.129.1B R.H. fork leg assembly 1
3 8000.70127 Clamp 3
4 8000.70133 Clamp 1
5 8A00.69056 Screw 4
6 349.2.010.1A Adjusting screw 2
7 349.1.096.1A Special washer 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
57
DRAWING
023
FRAME
29
16
8
7
39
6
9
5
10
4
3
11
6
7
4
12
30
10
32131 35
38
36
37
40
2
33
24
34
14
7
28
21
3
22
27
26
25
23
15
14
20
17
13
14
18
19
21
58
DRAWING
023
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRAME
1 470.1.055.1AA Frame 1
2 750.1.054.1A Nut 2
3 799.1.045.1A Spring 2
4 821.1.051.1A Pin 2
5 464.1.006.1A Front R.H. foot peg 1
6 771.5.723.2B Screw 4
7 772.5.025.1A Screw 8
8 247.1.074.1A Protection 1
9 824.1.016.1A R.H. foot peg holder plate 1
10 884.5.003.1A Ring 2
11 247.1.073.1A Protection 1
12 464.1.005.1A Front L.H. foot peg 2
13 80A0.53548 Pin 1
14 771.5.667.2B Screw 3
15 852.1.053.1A Washer 1
16 716.1.061.1A Spacer 1
17 8000.59056 Bush 1
18 764.1.011.2A Rubber pad 1
19 456.2.007.1A Gearchange lever 1
20 456.1.006.1A Gearchange control lever 1
21 763106N01 El-stop nut 2
22 76401.0003 Ball joint 1
23 747.5.001.1A L.H. nut 1
24 779.4.005.1A Screw 1
25 60N115062 Nut 1
26 76401.0002 Ball joint 1
27 117.2.030.1A Gearbox transmission rod assembly 1
28 824.1.015.1A L.H. foot peg holder plate 1
29 779.1.213.1A Screw 2
30 827.1.067.1A Plate 4
31 750.1.048.1A Nut 1
32 829.1.260.2A Plate 1
33 799.2.001.1A Complete spring 1
34 8000.62676 Inner spring 1
35 556.2.025.1A Plate 1
36 771.5.754.2B Screw 2
37 821.1.103.1A Pin 1
38 556.1.013.2A Side stand 1
39 713.1.099.1A Spacer 2
40 539.1.023.1A Switch 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
59
DRAWING
024
CLUTCH CONTROL
16
17
18
12
13
14
15
11
14
10
9
8
7
6
5
4
1
21
3
2
20
19
17
60
DRAWING
024
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH CONTROL
1 630.4.010.1AB Clutch drive pump 1
2 631.4.009.1A Lever with dowel 1
3 626.4.011.1A Spare lever pin 1
4 626.4.010.1A Spare bracket 1
5 631.4.008.1A Spare union 1
6 771.5.669.2B Screw 2
7 779.1.092.1A Screw 1
8 0370.72.020 Vibration damper pad 1
9 829.1.228.1A Plate 1
10 70700.6N02 Screw 2
11 893.4.005.1A Cap 1
12 0000.61078 Complete oil tank 1
13 8000.56443 Nut 1
14 741.4.043.1A Clamp 2
15 877.1.037.1A Tube 1
16 779.1.058.2A Special screw 1
17 420.2.001.0A Gasket th.1 4
18 632.1.018.2A Clutch control pipe (METAL PLAITED) 1
19 779.1.082.2A Filler 1
20 0000.33552 Bleed 1
21 612.4.005.1A Dust seal 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
61
DRAWING
025
FRONT HYDRAULIC BRAKE
17
18
14
15
19
24
27
22
20
21
1
13
16
11
8
23
3
1
4
2
3
23
5
1
8
12
4
10
9
11118
25
6
726
62
DRAWING
025
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT HYDRAULIC BRAKE
1 624.4.016.1A Front brake pump 1
2 626.4.007.1B Lever with dowel 1
3 626.4.009.1A Spare lever pin 1
4 612.4.021.1A Spare pins and spring 2
5 539.4.021.1A Microswitch 1
6 771.5.431.2B Screw 4
7 610.4.025.1A R.H. brake caliper 1
8 420.2.001.0A Gasket th.1 6
9 612.4.020.1A Spare bleed union 2
10 612.4.021.1A Spare pins and spring 2
11 779.1.058.2A Special screw 3
12 612.4.005.1A Dust seal 1
13 877.1.067.1A Tube 1
14 0000.68490 Spare cap 1
15 0000.66181 Complete oil tank 1
16 741.4.043.1A Clamp 2
17 779.1.092.1A Screw 1
18 0370.72.020 Vibration damper pad 1
19 70700.6N02 Screw 1
20 626.4.008.1A Spare bracket 1
21 8000.42345 Spare union 1
22 829.1.238.1A Bracket 1
23 618.4.041.1A Caliper pump pipe 1
24 771.5.669.2B Screw 2
25 613.4.030.1A Set of 4 pads 2
26 610.4.026.1A L.H. brake caliper 1
27 729905FN1 El-stop nut 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
63
DRAWING
026
REAR HYDRAULIC BRAKE
28
20
19
18
26
29
32
30
31
23
24
23
22
25
27
11
10
22
23
12
16
17
16
15
7
13
6
5
14
21
4
987
32 1 33
64
DRAWING
026
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR HYDRAULIC BRAKE
1 829.1.078.1A Holder 1
2 771.5.754.2B Screw 1
3 852.1.054.1A Washer 1
4 73500.0624 Circlip 1
5 8000.59056 Bush 1
6 457.2.008.1A Brake control lever 1
7 60N115062 Nut 2
8 8000.67981 Threaded dowel 1
9 821.1.052.1A Pedal pin 1
10 764.1.011.2A Rubber pad 1
11 772.5.024.1A Screw 2
12 625.4.006.1A Rear brake pump 1
13 821.1.096.1A Pin 1
14 80A0.55757 Fork 1
15 117.1.025.2A Master cylinder adjusting rod ø13 1
16 741.4.043.1A Clamp 2
17 877.1.039.1A Tube 1
18 0000.61078 Complete oil tank 1
19 893.4.005.1A Cap 1
20 70700.6N02 Screw 1
21 539.4.003.1B Switch 1
22 779.1.058.2A Special screw 2
23 420.2.001.0A Gasket th.1 4
24 631.4.008.1A Spare union 1
25 626.4.013.1A Dust cover 1
26 613.4.008.1A Pads pair 1
27 619.4.001.2C Rear brake line (METAL PLAITED) 1
28 0000.69056 Screw 2
29 611.4.005.2A Rear brake caliper 1
30 612.4.008.1A Dust seal 1
31 0000.39727 Spare bleed union 1
32 612.4.013.1A Spare pins and spring 1
33 799.1.083.1B Spring 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
65
DRAWING
027
FRONT AND REAR WHEELS
19
20
16
15
141312
54 321
17
18
11
5
4
6
7
8
9
8
10
66
DRAWING
027
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT AND REAR WHEELS
1 748.1.014.1A Nut 1
2 8000.70119 Washer 1
3 498.1.009.1A Speedometer transmission 1
4 771.5.721.2B Screw 12
5 492.4.037.1A Brake disc 2
6 0000.64471 Seal ring 1
7 0000.62648 Relay drive ring 1
8 75162.2566 Bearing 2
9 714.1.028.1A Inner spacer 1
10 501.2.045.1A Front wheel rim 1
11 819.1.017.1A Front wheel spindle 1
12 759.1.009.1A Clip 1
13 750.1.019.1A Nut 1
14 852.1.057.1A Washer 1
15 714.1.027.1A Washer 1
16 502.1.023.1AA Rear wheel rim 1
17 0803.77.010 Valve 1
18 497.2.001.2A Valve 1
19 699.2.064.1AB Stand 1
20 919.1.001.2C Motrocycle's canvas cover (RED) 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
67
DRAWING
028
REAR WHEEL PIN
18
15
16
17
16
19
15
20
22
14
23
21
13
12
11
6
10
8
5
7
6
4
9
3
2
1
68
DRAWING
028
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR WHEEL PIN
1 759.1.008.1A Clip 1
2 750.1.018.1A L.H. nut 1
3 852.1.055.1A Washer 1
4 748.4.024.1A Nut 5
5 160.2.021.1B Complete rear sprocket flange 1
6 852.1.058.2A Washer 1
7 711.1.067.1A Bush 1
8 712.1.018.1A Bush 1
9 700.1.017.1A Rubber cush drive hub 5
10 494.2.009.1A Ring gear z=36 1
11 884.5.005.1A Circlip 1
12 852.1.056.1A Washer 1
13 819.2.039.2A Hub 1
14 676.4.022.1A Chain (94 Links) 1
15 852.1.059.1A Washer 2
16 886.5.003.1A O-Ring 2
17 825.1.009.1A Caliper holder plate 1
18 884.5.004.1A Circlip 1
19 676.2.036.1A Final drive kit 1
20 492.4.011.1B Rear brake disc 1
21 772.1.005.1A Screw 4
22 771.5.266.2B Screw 4
23 863.1.001.1A Pin 4
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
69
DRAWING
029
REAR FRAME
24
6
14 13 7
15
5
4
19
18
DUCATI
23
1
10
9
2
22
3
11
21
20
13
3
12
8
17
70
DRAWING
029
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR FRAME
1 471.2.034.1D Rear frame 1
2 852.1.071.1A Washer 8
3 0364.99.020 Threaded insert 7
4 8000.56443 Nut 2
5 777.5.038.2B Screw 2
6 732.2.002.1A Lock latch 1
7 559.1.003.1A Tool box 1
8 732.1.017.1A Helmet anti-theft wire 1
9 433.1.171.1A Sticker 1
10 486.1.038.1A Panel (BLACK) 1
11 0000.07051 Fairlead 1
12 760.4.003.1A Hook 1
13 72237.0657 Self-tapping screw 6
14 759.1.010.1A Rubber 1
15 598.2.028.1A Locks kit 1
16 0000.44240 Nut 4
17 771.5.723.2B Screw 7
18 697.2.008.2A Tool bag 1
19 913.7.063.1H Owner's manual 1
20 598.2.023.1A Seat lock 1
21 750.1.024.1A Nut 1
22 747.1.005.1A Nut 4
23 741.1.011.1A Clamp 2
24 771.5.125.2C Screw 4
25 60N115548 Washer 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
71
DRAWING
030
REAR SUSPENSION
14
16 15 11
33
34
21
32
30
13
36
22
8
10
9
9
10
112
5
6
39
40
38
35
32
2
22
23
4
3
18
41
28
28
27
29
7
20
25
24
31
21
43
1737
28
42
19
26
72
DRAWING
030
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR SUSPENSION
1 365.2.016.1B Shock absorber (monoposto) 1
2 875.1.022.2A Tie rod 1
3 76401.0009 Ball joint 1
4 750.1.022.1A Nut 1
5 76401.0010 Ball joint 1
6 750.1.021.1A Nut 1
7 710.1.025.1A Bush 4
8 372.2.004.1A Rocker assembly 1
9 701.4.004.1A Needle bearing 2
10 930.4.011.1A Seal ring 2
11 771.5.937.2B Screw 1
12 771.5.938.2B Screw 1
13 715.1.003.1A Spacer 1
14 772.1.002.1A Screw 1
15 729910FF1 Nut 1
16 0023.37.153 Washer 1
17 771.1.003.1A Screw 1
18 710.1.026.1A Bush 1
19 370.1.014.1A Swingarm 1
20 76400.0001 Needle bearing 2
21 0412.02.295 Seal ring 2
22 75162.2566 Bearing 2
23 713.1.078.1A Inner spacer 1
24 832.1.003.1A Pin 1
25 447.1.019.1A Upper chain sliding shoer 1
26 447.1.020.1A Lower chain sliding shoe 1
27 8000.62653 Spacer 3
28 0000.62726 Screw 6
29 872.1.016.1A Cap 1
30 872.1.017.1A Cap 1
31 772.1.004.2A Screw 2
32 712.1.019.1A Outer spacer 2
33 710.1.023.1A Bush 1
34 710.1.024.1A Bush 1
35 772.1.003.1A Screw 1
36 852.1.068.1A Washer 1
37 369.1.003.1A Swingarm pivot 1
38 830.1.127.1A Bracket 1
39 772.5.024.1A Screw 2
40 460.1.040.1A Protection 1
41 446.1.002.1A Chain guard 1
42 433.1.167.1A Chain adjustment sticker 1
43 716.1.044.1A Spacer 3
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
73
DRAWING
031
AIR INDUCTION - OIL VENT
1
38 8
9
16
20 21 22 23
41
5
1
46
17
19
18
13
6
24
25
15
35
10
2
42
32
7
14
1
4
34
26
27
28
36
43 45 33 11 12 37 40
44
39
31
2
38
30 29 5
44
74
DRAWING
031
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
AIR INDUCTION - OIL VENT
1 442.2.047.1B Air box (CARBON) 1
2 0000.48971 Rubber pad 3
3 850.2.002.1A Hook 4
4 442.1.015.1B R.H. air filter box 1
5 774.5.002.1B Screw 16
6 246.1.005.1A R.H. filter case cover 1
7 426.2.003.1A R.H. air filter 1
8 852.1.079.1A Washer 8
9 736.4.013.1B Shear rivet 8
10 788.1.045.1A R.H. gasket 1
11 877.2.002.1A Tube 1
12 764.1.028.1A Rubber pad 1
13 802.1.019.1A Air funnel 2
14 700.1.029.1A Vibration damper pad 4
15 772.1.008.1A Special screw 2
16 772.1.017.1A Special screw 4
17 876.2.002.1A Tube 1
18 8000.50450 Clamp 1
19 585.1.017.1A Oil breather tank 1
20 8000.63150 Insert 2
21 827.1.099.2A Plate 1
22 8A00.67997 Screw 2
23 772.5.025.1A Screw 2
24 8000.50454 Clamp 1
25 876.1.053.1A Breather pipe 1
26 741.5.027.1B Clamp 1
27 593.1.003.1B Breather valve 1
28 0660.49.920 Gasket 1
29 246.1.004.1A L.H. filter case cover 1
30 426.2.002.1A L.H. air filter 1
31 442.1.014.1B L.H. air filter box 1
32 788.1.044.1A L.H. gasket 1
33 442.1.048.1A Lower airbox 1
34 791.1.043.1A Gasket 2
35 791.1.044.1A Gasket 1
36 791.1.045.1A Gasket 1
37 764.1.025.1A Seal 2
38 590.1.155.1A Tube 1
39 590.1.156.1A Tube 1
40 590.1.147.1B Tube 2
41 791.1.041.1B Airbox-tank gasket 1
42 779.1.194.1B Special screw 4
43 764.1.027.1B Fairlead rubber ring 1
44 287.4.024.1A Clamp 4
45 05610221A Insert 1
46 771.5.040.2B Screw 4
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
75
DRAWING
032
WATER RADIATOR ASSY
5
6
3
1
2
4
7 4 4 8
76
DRAWING
032
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WATER RADIATOR ASSY
1 548.4.008.1A Water radiator 1
2 550.4.007.1A Electric fan 1
3 772.5.025.1A Screw 3
4 764.1.022.1A Vibration damper pad 4
5 0000.62652 Spacer 1
6 0000.62729 Screw 1
7 830.1.077.1A Holder 1
8 779.1.059.1A Special screw 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
77
DRAWING
033
COOLING CIRCUIT
4
34
1
5
2
3
8
29
31
13
7
11
10
9
30
12
6
14
11
25
18
17
27
16
33
35
30
19
22
A
30
20
21
15
28
26
35
35
23
35
24
35
32
A
78
DRAWING
033
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
COOLING CIRCUIT
1 585.1.011.1A Water tank 1
2 893.1.004.1A Tank cap 1
3 668.1.026.1B Filler 1
4 93823.0119 O-ring 1
5 707006N02 Screw 2
6 741.1.011.1A Clamp 2
7 876.1.058.1A Tube 1
8 876.1.059.1A Breather pipe 1
9 876.1.074.1A Tube 1
10 741.4.001.1A Clamp 2
11 741.4.064.1A Clamp 2
12 585.1.025.1A Water tank 1
13 779.1.121.2A Union 1
14 829.1.278.1A Holder 1
15 814.1.037.1AB Union 1
16 93823.2087 O-ring 1
17 420.2.001.0A Gasket th.1 1
18 8000.53249 Thermistor 1
19 552.4.013.1A Sensor 1
20 552.4.008.1A Thermal switch 1
21 0593.68.505 Copper gasket 1
22 60N107335 Screw 3
23 800.1.036.1A Hose 1
24 553.4.003.1A Thermostat 1
25 734306N01 Washer 2
26 800.1.038.1A Hose 1
27 772.5.025.1A Screw 2
28 800.1.035.1A Cooler/thermostat hose 1
29 800.1.040.1A Hose 1
30 741.4.002.1A Clamp 5
31 8000.50442 Clamp 1
32 800.1.037.1A Thermostat/pump hose 1
33 800.1.061.1A Union/head hose 1
34 866.1.021.1A Rubber pad 1
35 741.4.025.1A Clamp 6
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
79
DRAWING
034
FUEL TANK
20
28
5
4
6
7
1
27
2
19
18
9
28
1
17
10
8
10
22
23
21
24
11
16
10
15
11
10
3
12
25
26
1314
80
DRAWING
034
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FUEL TANK
1 586.1.048.1AB Fuel tank (YELLOW) 1
2 586.1.025.0AA Fuel tank (unpainted) 1
3 0400.17.030 O-ring 2
4 791.1.012.1A Gasket 1
5 771.5.045.7E Screw 3
6 895.4.001.2A Tank cap 1
7 771.1.004.1A Special screw 1
8 716.1.021.2A Spacer 1
9 700.1.019.1A Rubber pad 1
10 741.4.013.1B Clamp 4
11 590.1.057.1A Exhaust pipe 2
12 772.1.007.1A Special screw 3
13 588.4.011.1A Quick-coupling union 1
14 287.4.024.1B Clamp 2
15 588.4.012.1A Quick-coupling union 1
16 8000.62726 Screw 2
17 587.1.023.1A Front connection 1
18 8000.77921 Screw 1
19 420.2.001.0A Gasket th.1 1
20 771.5.040.2B Screw 1
21 590.1.076.1A Tube 1
22 590.1.077.1A Breather pipe 1
23 616.1.002.1A Union 1
24 590.1.060.1A Breather pipe 1
25 8000.18048 Rubber pad 1
26 829.1.129.1A Clip 1
27 435.1.111.1AB Sticker ”alloro Ducati” (for RED,YELOW) 1
28 435.1.090.1AB Sticker "DUCATI" (YELLOW) 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
81
DRAWING
034.1
FUEL SYSTEM
21
10
12
1
25
24
4
13
8
7
4
6
1514
17
16
4
5
4
3
2
27
28
19
20
11
22
9
18
1
26
23
82
DRAWING
034.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FUEL SYSTEM
1 160.9.037.1A Flange 1
2 420.2.001.0A Gasket th.1 1
3 780.1.008.1A Cap 1
4 741.4.004.1A Clamp 4
5 590.1.056.1A Filter/pump pipe 1
6 425.4.004.1B Fuel filter 1
7 829.1.104.1A Holder 1
8 0419.50.115 Hexagon nut 1
9 588.4.010.1A End section 1
10 590.1.055.1A Tube 1
11 886.4.021.1A O-ring 1
12 72237.0974 Self-tapping screw 2
13 0419.50.045 Screw 1
14 430.4.004.1A Fuel pump 1
15 829.1.077.2B Pump holder 1
16 590.1.059.1A Tube 1
17 427.4.002.1A Air separator 1
18 886.4.022.1A O-ring 1
19 590.1.058.1A Tube 1
20 427.1.003.1A Fuel pump filter 1
21 886.5.001.1A O-Ring 1
22 283.4.003.1A Pressure regulator 1
23 73503.3449 Circlip 1
24 592.1.007.3B Tank wiring 1
25 789.1.001.1A Gasket 1
26 588.4.009.1A End section 1
27 484.1.029.1B Manifold 1
28 850.4.031.1A Snap ring 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
83
DRAWING
035
SEAT
1
20
10
19
18
17
16
34
10
11
21 32
333
I
T
A
C
U
D
3
15
22 Dx
23 Sx
29 Dx
28 Sx
26 Dx
34
25 Sx
27
9
2
24
12
7
8
6
4
31
13
30
14
13
5
84
DRAWING
035
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
SEAT
1 483.2.039.1AB Rear fairing (YELLOW) 1
2 0659.03.810 Plastic rivet 4
3 438.1.240.1AB Sticker "DUCATI SUPERBIKE" (YELLOW) 2
4 829.2.004.2A Holder 1
5 8H00.67545 Screw 2
6 866.1.020.1A Rubber pad 2
7 60N115548 Washer 4
8 8000.56443 Nut 4
9 866.1.019.1A Rubber pad 4
10 821.1.057.1A Pin 2
11 455.1.005.1A Linkage 1
12 595.1.050.1A Seat 1
13 60N102482 Screw 2
14 827.1.085.1A Bracket 1
15 438.1.058.1AB Sticker (YELLOW) 1
16 799.1.057.1A Spring 1
17 856.1.043.1A Spacer 1
18 764.1.014.1A Rubber pad 1
19 777.5.234.2B Screw 2
20 827.1.086.1A Bracket 1
21 483.3.019.2A Rear fairing (unpainted) 1
22 866.1.023.1A R.H. pad 1
23 866.1.024.1A L.H. pad 1
24 827.1.108.1A Plate 1
25 460.1.052.1B L.H. protection 1
26 460.1.051.1B R.H. protection 1
27 832.1.008.1A Pin 2
28 460.1.054.1A L.H. protection 1
29 460.1.053.1A R.H. protection 1
30 713.1.099.1A Spacer 2
31 772.5.025.1A Screw 2
32 437.1.115.1AA Sticker (for RED,YELLOW) 2
33 435.1.106.1A Sticker 1
34 437.1.116.1A Sticker 3
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
85
DRAWING
036
HEADLIGHT FAIRING
15
6
13
9
10
7
14
4
3
5
11
1
2
16
12
8
86
DRAWING
036
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HEADLIGHT FAIRING
1 481.2.012.1BB Headlight fairing (YELLOW) 1
2 481.3.012.1A Headlight fairing (unpainted) 1
3 417.7.007.1A Cap 4
4 779.1.008.1A Screw 2
5 0056.91.050 El-stop nut 2
6 699.2.072.1A Fairing fastening kit 9
7 487.1.011.1A Windshield 1
8 0000.55698 Screw 2
9 829.2.123.1AB R.H. mirror holder 1
10 0000.62726 Screw 2
11 0364.99.020 Threaded insert 2
12 8000.56391 Nylon washer 2
13 829.2.122.1AB L.H. mirror holder 1
14 8000.66336 Spring 4
15 736.4.012.1A Shear rivet 8
16 873.1.042.1AB Cap (YELLOW) 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
87
DRAWING
036.1
FAIRING
10
8
7
26
24 Dx
25 Sx
23
26
22
7
8
20
21
1
5
17
10
19
26
7
8
2
12
9
18
10
13
11
6
3
4
21
8
27
8
16
15
14
88
DRAWING
036.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FAIRING
1 480.1.118.1AB R.H. upper half-fairing (YELLOW) 1
2 480.1.113.1AB R.H. lower half-fairing (YELLOW) 1
2 480.3.101.1A R.H. lower half-fairing (unpainted) 1
3 699.2.072.1A Fairing fastening kit 14
4 460.1.067.1A Panel (BLACK) 3
5 480.1.111.1A R.H. upper half-fairing (unpainted) 1
6 480.1.119.1AB L.H. upper half-fairing (YELLOW) 1
7 850.4.019.1A Quik fastening 10
8 856.1.042.1A Nylon washer 26
9 850.1.003.1A Clip 1
10 850.4.023.1A Long pin 10
11 480.1.112.1A L.H. upper half-fairing (unpainted) 1
12 852.1.075.1A Washer 2
13 438.1.254.1AB L.H. Sticker "DUCATI 748R" (YELLOW) 1
14 480.3.042.1EB L.H. lower half-fairing (YELLOW) 1
14 480.3.102.1A L.H. lower half-fairing (UNPAINTED) 1
15 484.1.019.2AB Air manifold (YELLOW) 1
15 484.3.019.2A Manifold (unpainted) 1
16 772.5.023.1A Screw 4
17 564.1.018.1CB Front mudguard (YELLOW) 1
17 564.A.018.1A Front mudguard (unpainted) 1
18 736.4.013.1B Shear rivet 1
19 764.1.017.1A Vibration damper pad 1
20 438.1.253.1AB R.H. Sticker "DUCATI 748R" (YELLOW) 1
21 437.1.101.1AB Sticker"desmoquattro" (YELLOW) 2
22 486.1.057.1A L.H. side panel 1
23 486.1.058.1A R.H. side panel 1
24 460.1.106.1B Net 1
25 460.1.105.1B Net 1
26 850.4.044.1A Quik fastening 14
27 772.5.025.1A Screw 2
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
89
DRAWING
037
OIL COOLER
4
5
6
7
18
1
1
218
3
8
4
4
12
5
1813
3
14
2
17
9
2
9
4
16
10
11
15
1413218
90
DRAWING
037
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
OIL COOLER
1 875.1.059.1A Oil return pipe 1
2 815.1.022.1A Nipple 4
3 420.2.006.4A Aluminium gasket 2
4 420.2.001.0A Gasket th.1 6
5 779.1.165.1B Special screw 2
6 875.1.044.2A Oil delivery pipe 1
7 741.4.033.1A Clamp 1
8 60N102505 Screw 1
9 764.1.022.1A Vibration damper pad 2
10 0000.62652 Spacer 1
11 0000.62729 Screw 1
12 779.1.083.1A Special screw 1
13 875.1.054.1A Oil delivery pipe 1
14 220.2.017.6A Aluminium gasket 2
15 8000.69069 Vibration damper 1
16 548.4.012.1A Oil cooler 1
17 779.1.058.1A Special screw 1
18 886.5.015.1A O-Ring 8
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
91
DRAWING 038
MARKING PLATES
92
DRAWING
038
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
MARKING PLATES
1 432.1.228.1B Sticker 1
2 432.1.227.1A Sticker 1
3 432.1.229.1B Sticker 1
4 433.1.170.1A Sticker 1
5 433.1.164.1A Sticker 1
6 432.1.230.1B Sticker 1
7 433.1.165.1A Sticker 1
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
93
INDEX
CODENo.
Drwg.
13 9
13 11
0000.07051 29 11
0000.33552 24 20
0000.39727 26 31
0000.44099 18 6
0000.44099 19 13
0000.44240 19 28
0000.44240 20 31
0000.44240 29 16
0000.48971 31 2
0000.55698 19 16
0000.55698 36 8
0000.56741 20 22
0000.56742 20 20
0000.56747 20 17
0000.56748 20 16
0000.56750 20 14
0000.56803 17 17
0000.61078 24 12
0000.61078 26 18
0000.62648 27 7
0000.62652 32 5
0000.62652 37 10
0000.62726 17.1 20
0000.62726 21 6
0000.62726 30 28
POS.
N.
CODENo.
Drwg.
0000.62726 36 10
0000.62729 17.1 11
0000.62729 19 11
0000.62729 32 6
0000.62729 37 11
0000.62730 19 21
0000.64471 27 6
0000.66181 25 15
0000.66527 17 21
0000.68490 25 14
0000.69056 26 28
0000.75360 15 30
0000.78348 20 24
0011.52.010 10 21
0011.52.010 11 21
0023.37.153 30 16
0056.91.050 36 5
0124.40.050 12 9
0124.40.060 8 15
0150.70.120 5 17
0150.70.120 9 28
0204.70.105 15 23
0214.07.350 2 22
0251.47.050 3 1
0251.47.054 3 1
0272.91.090 2 8
0364.99.020 17.1 7
POS.
N.
CODENo.
Drwg.
0364.99.020 29 3
0364.99.020 36 11
0370.49.250 10 26
0370.72.020 24 8
0370.72.020 25 18
0400.09.050 2 21
0400.17.030 34 3
0400.17.030 4 9
0400.29.040 8 14
0400.29.125 2 34
0400.29.126 2 34
0400.49.240 11 14
0400.49.240 5 13
0412.02.295 30 21
0419.50.045 34.1 13
0419.50.115 34.1 8
05610221A 31 45
0593.68.505 33 21
0619.47.030 6 12
0619.49.240 7 12
0619.50.065 12 17
0647.29.040 12 15
0647.92.170 4 27
0659.03.810 35 2
0659.16.555 4 1
0660.13.060 2 19
0660.13.070 2 13
POS.
N.
CODENo.
Drwg.
0660.13.143 2 9
0660.13.165 2 25
0660.16.145 4 21
0660.47.040 6 13
0660.49.053 9 17
0660.49.920 31 28
0660.50.020 12 8
0665.49.680 5 8
0670.16.145 3 7
0670.16.150 3 3
0670.16.155 3 19
0670.16.163 3 11
0670.16.164 3 11
0670.16.164 3 15
0670.16.165 3 15
0670.16.170 3 26
0670.16.171 3 26
0670.16.184 3 15
0670.16.185 3 15
0670.49.310 9 26
0670.49.910 9 21
0670.92.010 10 24
0675.49.540 15 27
0755.29.025 6 10
0755.29.025 8 7
0759.49.280 9 15
0765.92.205 2 21
POS.
N.
CODENo.
Drwg.
0797.69.040 14 2
0797.69.040 8 20
0797.72.068 17 12
0797.72.068 17.1 3
0797.72.068 18 4
0797.72.068 21 7
0799.13.110 2 27
0803.77.010 27 17
0905.49.960 9 20
112.1.012.1AA 6 8
112.1.012.1AB 6 8
117.1.025.2A 26 15
117.2.030.1A 23 27
117.2.043.1A 4 25
120.2.079.1B 7 10
121.1.003.1A 7 2
121.1.068.1A 7 3
121.2.024.1A 7 4
122.2.077.1A 7 1
140.1.022.1A 15 1
146.2.072.1A 6 1
147.1.014.1A 8 10
148.1.098.1A 14 9
148.1.099.1A 14 13
148.1.100.1A 14 7
148.1.101.1A 14 14
149.1.024.1A 3 25
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
A
INDEX
CODENo.
Drwg.
150.2.006.1A 3 2
150.2.047.1A 3 27
150.2.048.1A 3 16
156.2.019.1A 6 5
160.1.043.2A 19 2
160.1.044.2A 19 18
160.1.057.1A 12 13
160.2.021.1B 28 5
160.2.038.1C 4 7
160.9.037.1A 34.1 1
170.2.028.1B 4 17
171.2.020.2B 8 13
172.1.002.1B 3 10
172.1.003.1C 3 8
172.1.004.1C 3 5
172.1.005.1C 3 9
172.1.006.1B 3 18
172.1.007.1B 3 24
172.1.008.1C 3 22
172.1.009.1C 3 21
172.1.010.1C 3 20
172.1.011.1C 3 23
173.1.012.4A 12 20
174.1.025.1A 9 12
174.2.025.3A 9 1
176.1.001.1A 12 6
176.1.009.1A 12 10
POS.
N.
CODENo.
Drwg.
180.1.001.1A 2 11
180.1.002.1A 2 12
180.1.008.1A 2 24
182.2.010.1A 2 18
190.2.010.1A 4 8
194.2.013.1A 4 12
195.4.003.1A 4 22
196.1.014.1B 4 10
198.1.003.2C 4 13
208.1.001.7A 13 19
208.1.002.7A 13 18
209.1.001.7A 13 15
209.1.002.7A 13 14
210.1.022.2A 13 5
211.1.005.3C 13 7
220.2.017.6A 37 14
220.3.208.3A 9 16
225.2.054.1B 10 1
235.2.002.1AB 15 9
235.2.003.1AB 15 22
235.2.004.1AB 15 26
240.1.014.1AA 15 19
240.1.015.1AA 15 20
240.1.023.1A 15 14
242.2.038.1BB 11 13
243.1.025.1AD 5 1
243.2.040.1A 5 6
POS.
N.
CODENo.
Drwg.
245.1.001.2AB 8 4
245.1.002.2AB 8 5
245.1.034.1AB 8 2
245.1.035.1AB 8 3
245.1.036.1AB 8 1
246.1.004.1A 31 29
246.1.005.1A 31 6
246.1.058.1A 17 2
247.1.002.1BC 11 23
247.1.005.3BB 15 16
247.1.006.2AB 15 21
247.1.020.1AB 14 11
247.1.020.1AB 7 7
247.1.073.1A 23 11
247.1.074.1A 23 8
247.1.083.1AE 11 2
247.1.087.1A 19 15
247.1.104.1A 9 2
247.1.114.1AB 11 31
250.2.030.3A 9 5
251.2.001.3B 11 29
254.1.001.1A 11 25
254.4.001.1A 5 4
255.1.016.1A 14 3
255.1.016.1A 8 18
264.4.014.3B 11 1
270.4.001.1A 12 1
POS.
N.
CODENo.
Drwg.
276.1.035.3A 12 16
282.4.024.1B 16 1
283.4.003.1A 34.1 22
284.4.002.1A 16 10
285.4.003.1A 18 7
286.4.038.1A 18 19
287.2.005.1A 16 4
287.4.014.1A 17.1 16
287.4.024.1A 31 44
287.4.024.1B 16 11
287.4.024.1B 34 14
287.4.040.2A 18 12
287.4.045.1A 16 14
301.2.086.1A 13 1
303.1.002.1A 13 3
303.1.002.1AB 13 3
303.1.002.1AC 13 3
303.1.002.1AD 13 3
303.1.009.1A 13 2
303.1.009.1AB 13 2
303.1.009.1AC 13 2
303.1.009.1AD 13 2
304.1.034.1A 13 4
304.1.034.1AB 13 4
304.1.034.1AC 13 4
304.1.035.1A 13 6
304.1.035.1AB 13 6
POS.
N.
CODENo.
Drwg.
304.1.035.1AC 13 6
340.2.128.1B 22.1 1
340.2.129.1B 22.1 2
341.1.011.2A 22 23
342.2.027.1A 22 1
343.2.005.1A 22 4
349.1.096.1A 22.1 7
349.2.010.1A 22.1 6
360.2.030.1A 22 7
360.2.031.1A 22 35
364.4.003.1A 22 21
365.2.016.1B 30 1
369.1.003.1A 30 37
370.1.014.1A 30 19
372.2.004.1A 30 8
386.4.006.1A 18 11
387.4.002.1A 18 10
389.4.006.1A 17 4
389.4.007.1A 17 5
389.4.008.1A 17 6
389.4.010.1A 17 7
389.4.013.1A 18 21
389.4.014.1A 17 16
389.4.015.1A 18 21
395.4.013.1A 17 15
397.4.001.1A 17.1 6
400.2.015.1B 20 12
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
B
INDEX
CODENo.
Drwg.
401.4.028.1A 20 23
401.4.032.1A 20 23
402.4.012.1A 20 26
403.1.012.1A 20 5
404.4.006.1A 20 27
407.4.001.1B 20 21
408.1.010.1A 20 18
417.6.075.9A 5 20
417.7.007.1A 36 3
417.9.050.6A 12 3
417.9.050.6A 17.1 22
420.2.000.7A 15 4
420.2.000.7A 15 15
420.2.000.7A 7 16
420.2.001.0A 11 32
420.2.001.0A 19 32
420.2.001.0A 2 5
420.2.001.0A 24 17
420.2.001.0A 25 8
420.2.001.0A 26 23
420.2.001.0A 33 17
420.2.001.0A 34 19
420.2.001.0A 34.1 2
420.2.001.0A 37 4
420.2.001.0A 5 17
420.2.006.2A 10 25
420.2.006.4A 37 3
POS.
N.
CODENo.
Drwg.
425.4.004.1B 34.1 6
426.2.002.1A 31 30
426.2.003.1A 31 7
427.1.003.1A 34.1 20
427.4.002.1A 34.1 17
430.4.004.1A 34.1 14
432.1.227.1A 38 2
432.1.228.1B 38 1
432.1.229.1B 38 3
432.1.230.1B 38 6
433.1.164.1A 38 5
433.1.165.1A 38 7
433.1.167.1A 30 42
433.1.170.1A 38 4
433.1.171.1A 29 9
433.1.179.1A 18 32
433.1.205.1A 17 3
435.1.090.1AB 34 28
435.1.106.1A 35 33
435.1.111.1AB 34 27
437.1.101.1AB 36.1 21
437.1.115.1AA 35 32
437.1.116.1A 35 34
438.1.058.1AB 35 15
438.1.240.1AB 35 3
438.1.253.1AB 36.1 20
438.1.254.1AB 36.1 13
POS.
N.
CODENo.
Drwg.
442.1.014.1B 31 31
442.1.015.1B 31 4
442.1.048.1A 31 33
442.2.047.1B 31 1
446.1.002.1A 30 41
447.1.019.1A 30 25
447.1.020.1A 30 26
449.1.033.2A 3 12
451.1.001.2A 8 29
451.1.002.1A 8 28
451.1.004.2A 8 23
451.1.031.1A 8 25
451.1.032.1A 8 31
455.1.005.1A 35 11
455.2.003.1A 2 4
456.1.006.1A 23 20
456.2.007.1A 23 19
457.2.008.1A 26 6
460.1.040.1A 30 40
460.1.051.1B 35 26
460.1.052.1B 35 25
460.1.053.1A 35 29
460.1.054.1A 35 28
460.1.067.1A 36.1 4
460.1.105.1B 36.1 25
460.1.106.1B 36.1 24
462.3.003.7A 2 31
POS.
N.
CODENo.
Drwg.
462.3.003.8A 11 7
462.3.003.8A 2 29
462.4.037.6A 17.1 21
462.4.037.6A 9 9
462.4.037.8A 8 6
462.4.037.8A 9 11
463.2.053.7A 4 15
463.4.026.9A 4 16
463.4.047.7A 5 18
464.1.005.1A 23 12
464.1.006.1A 23 5
470.1.055.1AA 23 1
471.2.034.1D 29 1
480.1.111.1A 36.1 5
480.1.112.1A 36.1 11
480.1.113.1AB 36.1 2
480.1.118.1AB 36.1 1
480.1.119.1AB 36.1 6
480.3.042.1EB 36.1 14
480.3.101.1A 36.1 2
480.3.102.1A 36.1 14
481.2.012.1BB 36 1
481.3.012.1A 36 2
483.2.039.1AB 35 1
483.3.019.2A 35 21
484.1.019.2AB 36.1 15
484.1.029.1B 34.1 27
POS.
N.
CODENo.
Drwg.
484.3.019.2A 36.1 15
486.1.038.1A 29 10
486.1.057.1A 36.1 22
486.1.058.1A 36.1 23
487.1.011.1A 36 7
492.4.011.1B 28 20
492.4.037.1A 27 5
494.2.009.1A 28 10
497.2.001.2A 27 18
498.1.009.1A 27 3
501.2.045.1A 27 10
502.1.023.1AA 27 16
510.1.059.1C 16 2
510.1.060.2D 21 4
510.1.061.1A 20 13
510.1.070.1A 20 28
510.1.111.2A 18 1
510.1.148.1A 17 1
513.1.008.2D 17 9
514.1.016.2A 17.1 4
514.1.017.2A 17.1 5
514.1.032.1A 1.3 9
514.1.033.1A 1.3 13
514.1.034.1A 1.3 12
514.1.035.1A 1.3 10
514.1.036.1A 1.3 10
514.1.037.1A 1.3 6
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
C
INDEX
CODENo.
Drwg.
514.1.038.1A 1.3 14
538.4.005.1A 17.1 15
539.1.021.1A 2 6
539.1.023.1A 23 40
539.4.003.1B 26 21
539.4.021.1A 25 5
539.4.030.1A 5 16
540.4.011.1C 17.1 12
541.4.003.1A 17.1 19
541.4.003.1A 21 12
546.1.115.1A 18 18
548.4.008.1A 32 1
548.4.012.1A 37 16
550.4.007.1A 32 2
552.1.037.1A 1.3 4
552.1.038.1A 1.3 5
552.1.039.1A 1.3 7
552.1.040.1A 1.3 11
552.4.002.1A 18 26
552.4.008.1A 33 20
552.4.012.1A 20 2
552.4.013.1A 33 19
552.4.020.1A 11 38
552.4.028.1A 1.2 15
553.4.003.1A 33 24
556.1.013.2A 23 38
556.2.025.1A 23 35
POS.
N.
CODENo.
Drwg.
559.1.003.1A 29 7
564.1.018.1CB 36.1 17
564.A.018.1A 36.1 17
570.1.022.2A 19 9
570.1.030.2A 19 29
571.1.022.2A 19 12
573.1.049.2A 19 17
574.1.049.2A 19 19
576.1.036.1A 19 24
585.1.011.1A 33 1
585.1.017.1A 31 19
585.1.025.1A 33 12
586.1.025.0AA 34 2
586.1.048.1AB 34 1
587.1.023.1A 34 17
588.4.009.1A 34.1 26
588.4.010.1A 34.1 9
588.4.011.1A 34 13
588.4.012.1A 34 15
590.1.055.1A 34.1 10
590.1.056.1A 34.1 5
590.1.057.1A 34 11
590.1.058.1A 34.1 19
590.1.059.1A 34.1 16
590.1.060.1A 34 24
590.1.076.1A 34 21
590.1.077.1A 34 22
POS.
N.
CODENo.
Drwg.
590.1.147.1B 31 40
590.1.155.1A 31 38
590.1.156.1A 31 39
590.1.189.1A 1.3 1
590.1.190.1A 1.3 2
592.1.007.3B 34.1 24
593.1.003.1B 31 27
593.1.018.1A 9 29
595.1.050.1A 35 12
598.2.023.1A 29 20
598.2.028.1A 29 15
598.4.011.3A 22 32
60N101079 10 19
60N101079 11 6
60N102482 35 13
60N102504 15 5
60N102504 7 15
60N102505 15 31
60N102505 37 8
60N102509 14 16
60N102509 2 28
60N102509 5 2
60N102510 11 19
60N102510 12 5
60N102510 15 3
60N102510 5 5
60N102510 8 8
POS.
N.
CODENo.
Drwg.
60N102511 11 15
60N102511 8 9
60N102511 9 8
60N102555 2 30
60N107335 11 3
60N107335 14 17
60N107335 15 13
60N107335 33 22
60N107335 4 26
60N107335 7 17
60N115062 23 25
60N115062 26 7
60N115548 29 25
60N115548 35 7
610.4.025.1A 25 7
610.4.026.1A 25 26
611.4.005.2A 26 29
612.4.005.1A 24 21
612.4.005.1A 25 12
612.4.008.1A 26 30
612.4.013.1A 26 32
612.4.020.1A 25 9
612.4.021.1A 25 4
612.4.021.1A 25 10
613.4.008.1A 26 26
613.4.030.1A 25 25
616.1.002.1A 34 23
POS.
N.
CODENo.
Drwg.
618.4.041.1A 25 23
619.4.001.2C 26 27
624.4.016.1A 25 1
625.4.006.1A 26 12
626.4.007.1B 25 2
626.4.008.1A 25 20
626.4.009.1A 25 3
626.4.010.1A 24 4
626.4.011.1A 24 3
626.4.013.1A 26 25
630.4.010.1AB 24 1
631.4.008.1A 24 5
631.4.008.1A 26 24
631.4.009.1A 24 2
632.1.018.2A 24 18
650.4.006.2A 22 27
651.4.008.1A 22 8
652.4.004.3A 22 10
654.2.002.1A 22 5
656.1.032.1A 22 28
656.2.012.1A 22 6
658.4.002.1A 22 31
668.1.001.2A 11 16
668.1.026.1B 33 3
669.1.001.1E 13 10
670.4.012.1A 18 28
671.1.001.1A 18 29
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
D
INDEX
CODENo.
Drwg.
671.1.002.1A 18 30
676.2.036.1A 28 19
676.4.022.1A 28 14
677.4.003.1A 1.1 3
680.1.001.1B 9 7
680.1.003.1A 8 16
680.1.003.1B 8 16
680.1.003.1C 8 16
680.1.003.1D 8 16
680.1.003.1E 8 16
680.1.003.1F 8 16
684.1.047.1A 16 5
697.2.008.2A 29 18
698.1.033.1A 1.3 15
699.2.063.1A 1.1 11
699.2.064.1AB 27 19
699.2.072.1A 36 6
699.2.072.1A 36.1 3
699.2.155.1A 18 35
700.1.017.1A 28 9
700.1.019.1A 34 9
700.1.023.2A 18 14
700.1.029.1A 16 6
700.1.029.1A 31 14
701.4.003.1A 12 19
701.4.004.1A 30 9
701.4.005.1A 3 4
POS.
N.
CODENo.
Drwg.
701.4.007.1A 12 18
702.4.004.1A 22 3
702.4.009.1A 11 11
702.4.010.1A 11 9
702.4.017.1A 4 18
702.5.001.4A 8 24
702.5.008.1A 10 12
702.5.008.1A 11 4
702.5.016.1A 4 14
702.5.019.1A 10 29
703.1.013.1A 22 17
70610.8120 4 11
70700.6N02 24 10
70700.6N02 25 19
70700.6N02 26 20
707006N02 33 5
710.1.001.1A 9 13
710.1.023.1A 30 33
710.1.024.1A 30 34
710.1.025.1A 30 7
710.1.026.1A 30 18
710.1.027.1A 19 5
710.1.069.1A 10 15
710.1.070.1A 10 3
711.1.067.1A 28 7
711.1.095.1A 10 27
712.1.018.1A 28 8
POS.
N.
CODENo.
Drwg.
712.1.019.1A 30 32
713.1.011.1A 3 15
713.1.014.1A 3 11
713.1.014.1A 3 15
713.1.014.1B 3 11
713.1.014.1E 3 11
713.1.014.1E 3 15
713.1.014.1F 3 11
713.1.078.1A 30 23
713.1.082.1A 19 20
713.1.095.1A 4 23
713.1.099.1A 23 39
713.1.099.1A 35 30
713.1.128.1B 11 27
713.1.140.1A 10 9
713.1.159.1A 14 21
713.1.160.1A 14 5
713.1.161.1A 8 17
713.1.162.1A 8 12
714.1.027.1A 27 15
714.1.028.1A 27 9
715.1.003.1A 30 13
716.1.021.2A 34 8
716.1.029.2A 19 26
716.1.044.1A 30 43
716.1.049.1A 22 18
716.1.061.1A 23 16
POS.
N.
CODENo.
Drwg.
72094.1616 10 5
72121.2106 6 4
72237.0657 29 13
72237.0974 34.1 12
72276.0686 20 3
72944.1542 14 1
72944.1542 8 21
729905FN1 25 27
729908FN1 8 30
729910FF1 30 15
732.1.017.1A 29 8
732.2.002.1A 29 6
734006N01 12 2
734306N01 11 41
734306N01 15 28
734306N01 33 25
734406N01 22 34
73500.0624 26 4
73500.1237 12 7
73500.1237 9 25
73500.1440 12 11
73500.1542 2 15
73500.1747 8 27
73503.3380 10 13
73503.3380 11 17
73503.3380 15 10
73503.3380 8 26
POS.
N.
CODENo.
Drwg.
73503.3449 34.1 23
73503.3683 15 25
736.4.012.1A 36 15
736.4.013.1B 31 9
736.4.013.1B 36.1 18
737.4.017.1A 8 22
741.1.010.1A 18 20
741.1.011.1A 29 23
741.1.011.1A 33 6
741.1.012.1A 18 22
741.1.012.1A 21 8
741.1.013.1A 17 18
741.1.013.1A 18 23
741.4.001.1A 33 10
741.4.002.1A 33 30
741.4.002.1A 7 19
741.4.004.1A 34.1 4
741.4.013.1B 34 10
741.4.022.1A 15 7
741.4.025.1A 33 35
741.4.033.1A 37 7
741.4.043.1A 24 14
741.4.043.1A 25 16
741.4.043.1A 26 16
741.4.064.1A 33 11
741.5.027.1B 31 26
74172.1008 14 8
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
E
INDEX
CODENo.
Drwg.
74172.1008 6 6
747.1.005.1A 29 22
747.5.001.1A 23 23
748.1.014.1A 27 1
748.4.002.7A 19 3
748.4.024.1A 28 4
749.5.001.1A 18 34
750.1.012.2A 6 14
750.1.018.1A 28 2
750.1.019.1A 27 13
750.1.021.1A 30 6
750.1.022.1A 30 4
750.1.024.1A 29 21
750.1.048.1A 23 31
750.1.050.1A 4 6
750.1.054.1A 23 2
750.5.001.1A 2 23
75113.2566 4 20
75120.1747 15 24
75143.3380 10 14
75162.2566 27 8
75162.2566 30 22
75191.3380 10 4
75791.1747 10 7
75794.1542 10 11
75794.1542 15 11
759.1.008.1A 28 1
POS.
N.
CODENo.
Drwg.
759.1.009.1A 27 12
759.1.010.1A 29 14
760.4.003.1A 29 12
76267.0012 9 24
76270.0827 3 29
763106N01 23 21
764.1.002.1A 13 8
764.1.011.2A 23 18
764.1.011.2A 26 10
764.1.014.1A 35 18
764.1.016.1A 18 27
764.1.017.1A 36.1 19
764.1.022.1A 32 4
764.1.022.1A 37 9
764.1.024.1A 19 7
764.1.025.1A 31 37
764.1.027.1B 31 43
764.1.028.1A 31 12
764.4.005.1A 18 9
76400.0001 30 20
76401.0002 23 26
76401.0003 23 22
76401.0009 30 3
76401.0010 30 5
76402.0002 3 17
766.1.001.2B 10 22
766.4.012.1A 14 6
POS.
N.
CODENo.
Drwg.
76835.1134 2 10
771.1.003.1A 30 17
771.1.004.1A 34 7
771.4.006.1A 11 36
771.5.025.2B 18 8
771.5.040.2B 11 5
771.5.040.2B 31 46
771.5.040.2B 34 20
771.5.043.2B 4 4
771.5.045.7E 34 5
771.5.064.2B 15 2
771.5.066.2B 11 20
771.5.072.2B 10 20
771.5.072.2B 11 40
771.5.073.2B 11 37
771.5.078.2B 12 12
771.5.078.2B 5 3
771.5.080.2B 10 16
771.5.125.2C 29 24
771.5.129.2B 9 10
771.5.136.2B 10 2
771.5.266.2B 28 22
771.5.431.2B 25 6
771.5.639.2B 20 8
771.5.639.2B 21 1
771.5.664.2B 22 19
771.5.667.2B 22 26
POS.
N.
CODENo.
Drwg.
771.5.667.2B 23 14
771.5.669.2B 22 25
771.5.669.2B 24 6
771.5.669.2B 25 24
771.5.721.2B 27 4
771.5.723.2B 22 14
771.5.723.2B 23 6
771.5.723.2B 29 17
771.5.725.2B 22 12
771.5.754.2B 23 36
771.5.754.2B 26 2
771.5.937.2B 30 11
771.5.938.2B 30 12
772.1.002.1A 30 14
772.1.003.1A 30 35
772.1.004.2A 30 31
772.1.005.1A 28 21
772.1.007.1A 34 12
772.1.008.1A 31 15
772.1.017.1A 31 16
772.5.021.1A 20 30
772.5.023.1A 17.1 23
772.5.023.1A 19 31
772.5.023.1A 22 29
772.5.023.1A 36.1 16
772.5.024.1A 18 2
772.5.024.1A 22 11
POS.
N.
CODENo.
Drwg.
772.5.024.1A 26 11
772.5.024.1A 30 39
772.5.025.1A 17.1 17
772.5.025.1A 23 7
772.5.025.1A 31 23
772.5.025.1A 32 3
772.5.025.1A 33 27
772.5.025.1A 35 31
772.5.025.1A 36.1 27
774.5.002.1B 31 5
775.1.006.1A 17 8
776.4.002.1A 20 19
777.5.038.2B 29 5
777.5.049.2C 11 24
777.5.049.2C 14 10
777.5.049.2C 7 6
777.5.234.2B 35 19
779.1.008.1A 36 4
779.1.009.1A 19 22
779.1.026.1A 10 17
779.1.029.1A 10 28
779.1.039.1A 2 3
779.1.058.1A 37 17
779.1.058.2A 24 16
779.1.058.2A 25 11
779.1.058.2A 26 22
779.1.059.1A 32 8
POS.
N.
CATALOGUE No:
ISSUED:
915.1.150.1A 915.1.150.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
F
Loading...
