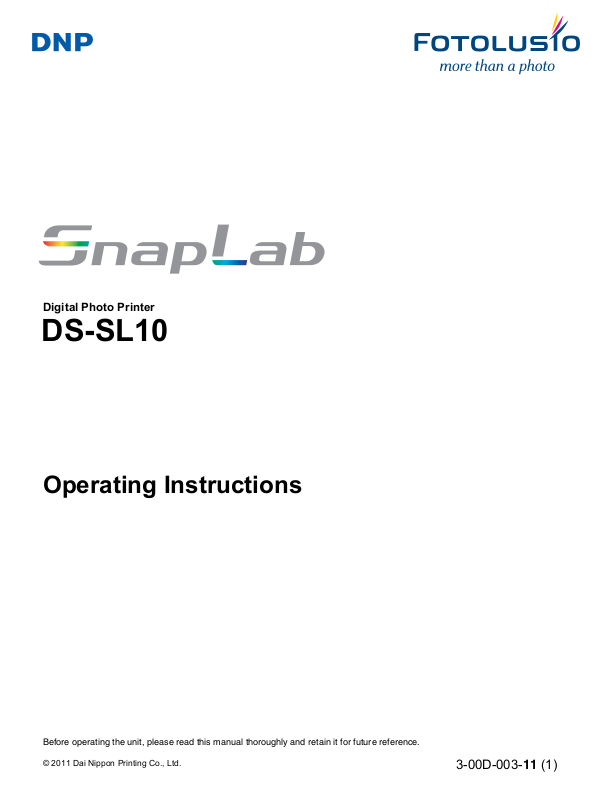

DNP DS-SL10 Operating Instructions Manual
Digital Photo Printer
DS-SL10
Operating Instructions
Before operating the unit, please read this manual thoroughly and retain it for future reference.
© 2011 Dai Nippon Printing Co., Ltd.
3-00D-003-11 (1)
Owner’s Record
The model and serial numbers are located at the rear.
Record these number in the space provided below.
Refer to these numbers whenever you call upon your
dealer regarding this product.
Model No. ____________________
Serial No. ____________________
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
THIS APPARATUS MUST BE EARTHED.
To disconnect the main power, unplug the AC IN
connector.
If you have questions on the use of the above Power Cord/
Appliance Connector/Plug, please consult a qualified
service personnel.
For the customers in Europe
The manufacturer of this product is Dai Nippon Printing
Co., Ltd., 1-1-1, Ichigaya Kagacho, Shinjuku-ku, Tokyo,
Japan.
The Authorized Representative for EMC and product
safety is DNP PHOTO IMAGING EUROPE SAS, ZI
PARIS NORD II - BP 51077, 22 AVENUE DES
NATIONS, PARC SILIC - VILLEPINTE, 95948
ROISSY CDG CEDEX, FRANCE.
This apparatus shall not be used in the residential area.
For the customers in Europe
WARNING
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.
For the customers in the U.S.A.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
Warning on power connection
Use a proper power cord for your local power supply.
For kundene i Norge
Dette utstyret kan kobles til et IT-strømfordelingssystem.
For the customers in the USA
Lamp in this product contains mercury. Disposal of these
materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the
Telecommunications Industry Association
(www.eiae.org).
For the State of California, USA only
Perchlorate Material - special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains
perchlorate.
For the customers in Taiwan only
1. Use the approved Power Cord (3-core mains lead)/
Appliance Connector/Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
2. Use the Power Cord (3-core mains lead)/Appliance
Connector/Plug conforming to the proper ratings
(Voltage, Ampere).
2
For the customers in Europe
If you want to dispose this product, do not mix
with general household waste. There is a
separate collection system for used electronics
products in accordance with legislation under
the WEEE Directive (Directive 2002/96/EC) and is
effective only within European Union.
Disposal of waste batteries
(applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery provided with this
product shall not be treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol.
The chemical symbols for mercury (Hg) or lead (Pb) are
added if the battery contains more than 0.0005% mercury
or 0.004% lead.
By ensuring these batteries are disposed of correctly, you
will help prevent potentially negative consequences for the
environment and human health which could otherwise be
caused by inappropriate waste handling of the battery. The
recycling of the materials will help to conserve natural
resources.
In case of products that for safety, performance or data
integrity reasons require a permanent connection with an
incorporated battery, this battery should be replaced by
qualified service staff only.
To ensure that the battery will be treated properly, hand
over the product at end-of-life to the applicable collection
point for the recycling of electrical and electronic
equipment.
For all other batteries, please view the section on how to
remove the battery from the product safely. Hand the
battery over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic Office,
your household waste disposal service or the shop where
you purchased the product.
3
Table of Contents
Chapter 1 Outline
What This Product Can Do .............................................................7
Applications for This Printer ..........................................................8
Print Services...................................................................................8
Supported Media and File Formats................................................9
Chapter 2 Preparations
Supplied Accessories ...................................................................11
Controls and Functions ................................................................12
Installation......................................................................................14
Loading Paper Roll and Ink Ribbon .............................................14
Replacing the Paper Roll and Ink Ribbon ...................................20
Startup and Shutdown ..................................................................22
Front .................................................................................................... 12
Rear ..................................................................................................... 13
Connecting the Power Cord ................................................................ 14
Adjusting the Display Angle ............................................................... 14
Handling the paper roll and ink ribbon ............................................... 14
Before Loading the Paper Roll and Ink Ribbon .................................. 15
Loading the Paper Roll and Ink Ribbon.............................................. 15
Attaching the Paper Tray..................................................................... 19
Checking the Ink Ribbon Remainder .................................................. 19
Removing the paper roll and ink ribbon.............................................. 20
Loading the Paper Roll and Ink Ribbon.............................................. 22
If the Ink Ribbon Breaks during Use................................................... 22
Startup ................................................................................................. 22
Shutdown............................................................................................. 23
Checking the Remaining Ink Ribbon .................................................. 23
Chapter 3 Setup
4
Table of Contents
Displaying the Administration Screen.........................................25
About Operation Modes ................................................................26
Flow of Operations in Each Mode ...................................................... 27
Basic Settings Used in All Operation Modes..............................28

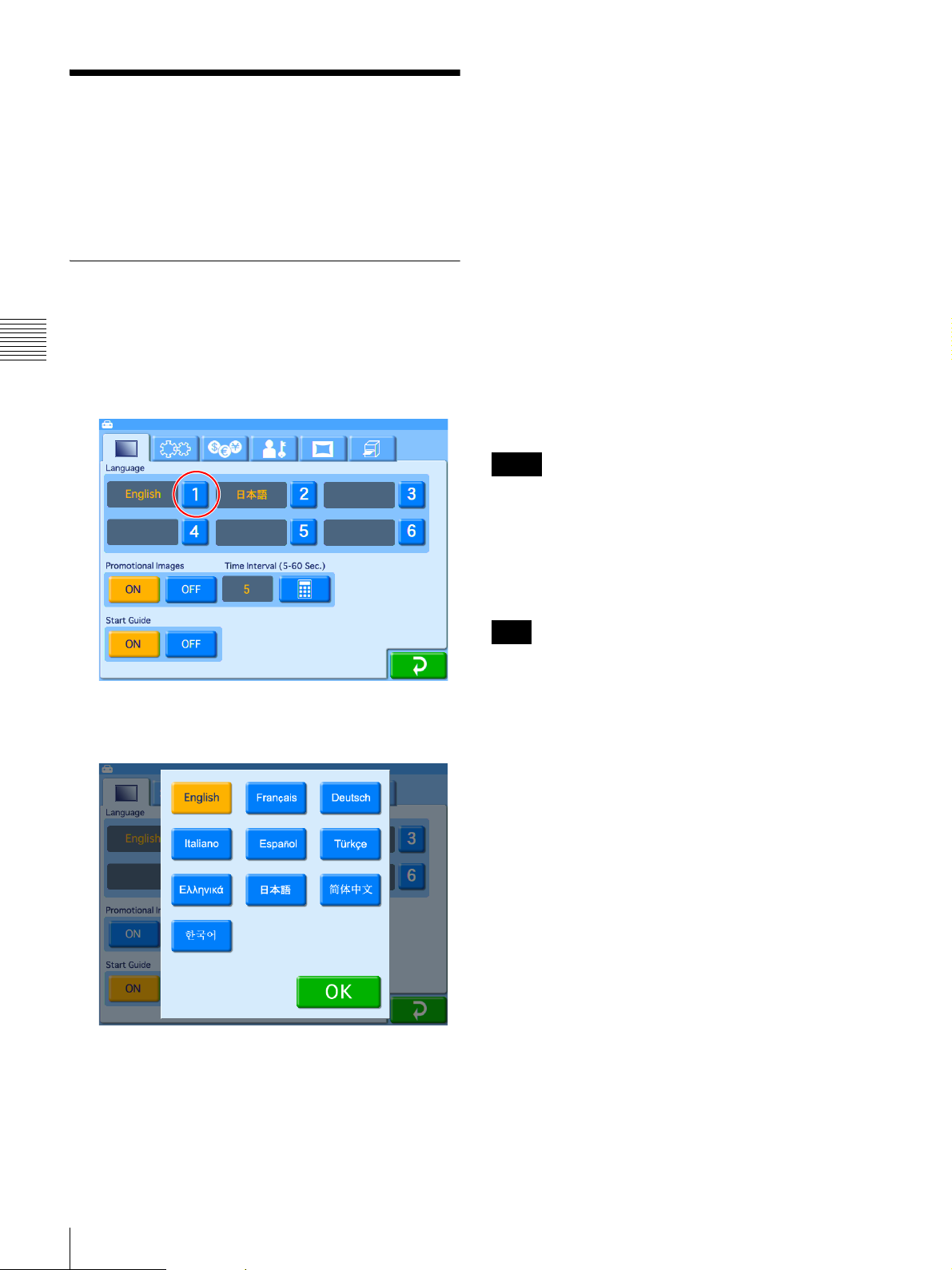

Selecting the Language ....................................................................... 28

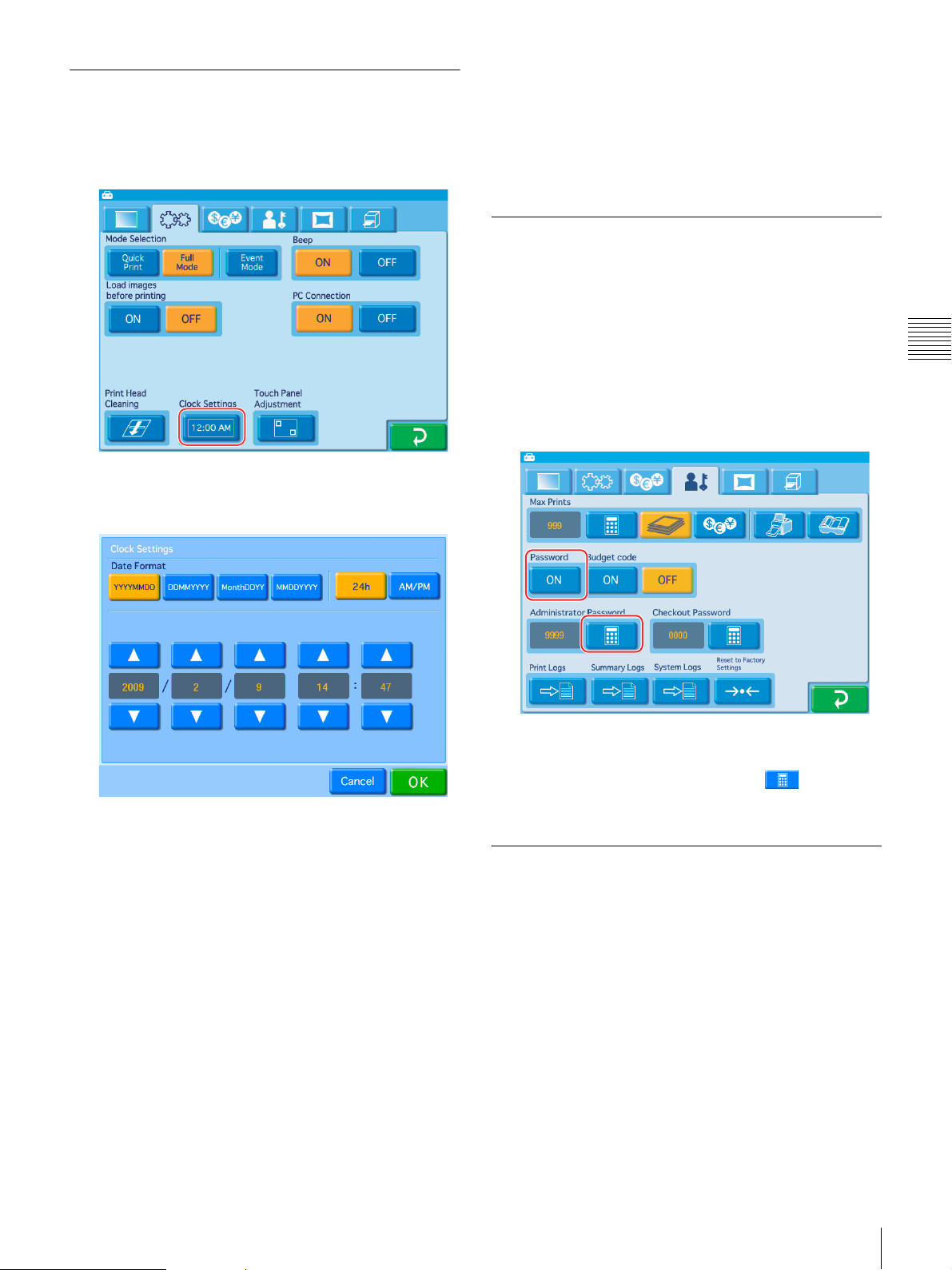

Setting the Time .................................................................................. 29
Setting the Administrator Password .................................................... 29

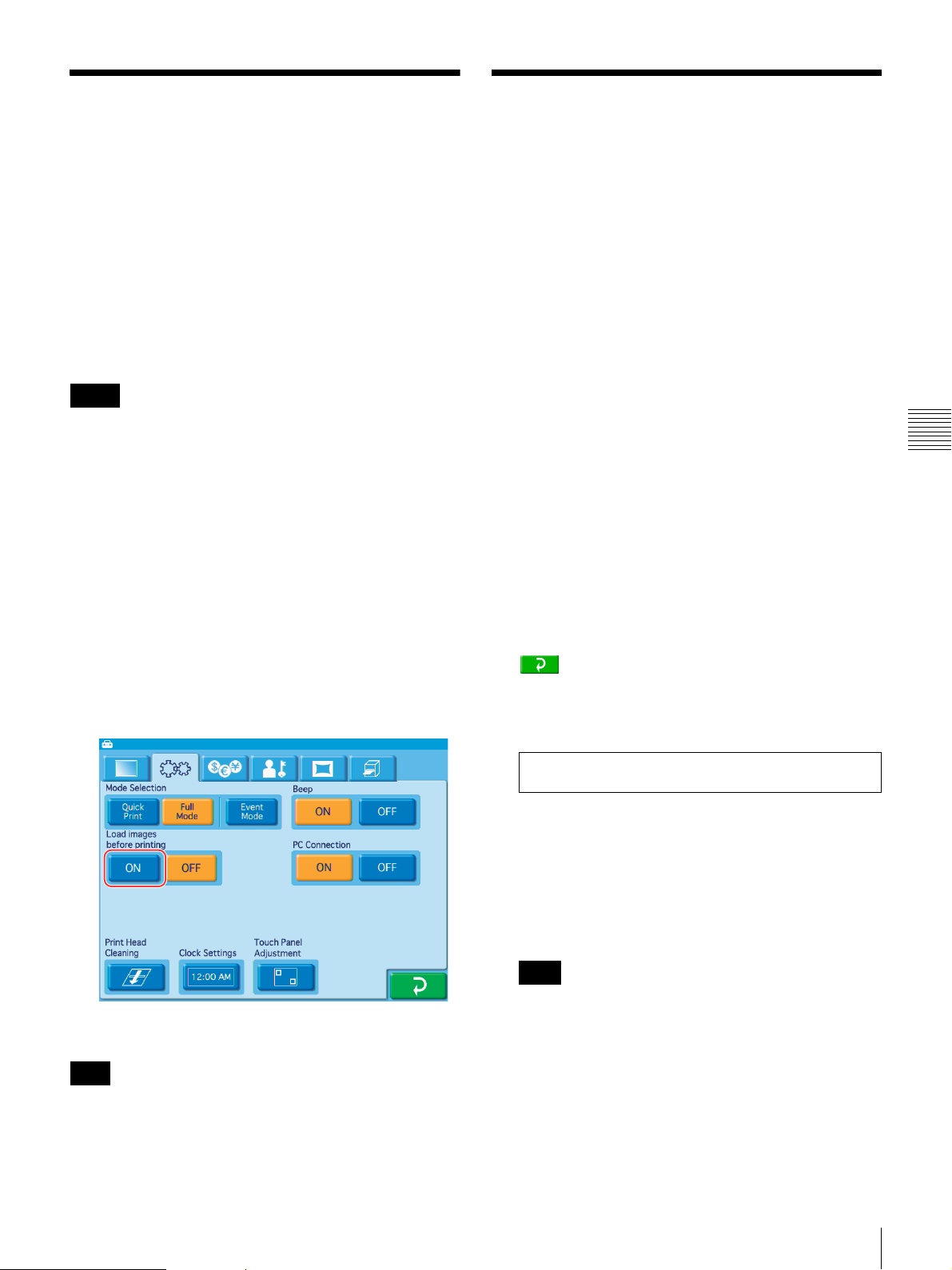

Selecting the Operation Mode............................................................. 29
Settings in Full Mode and Quick Print Mode...............................30

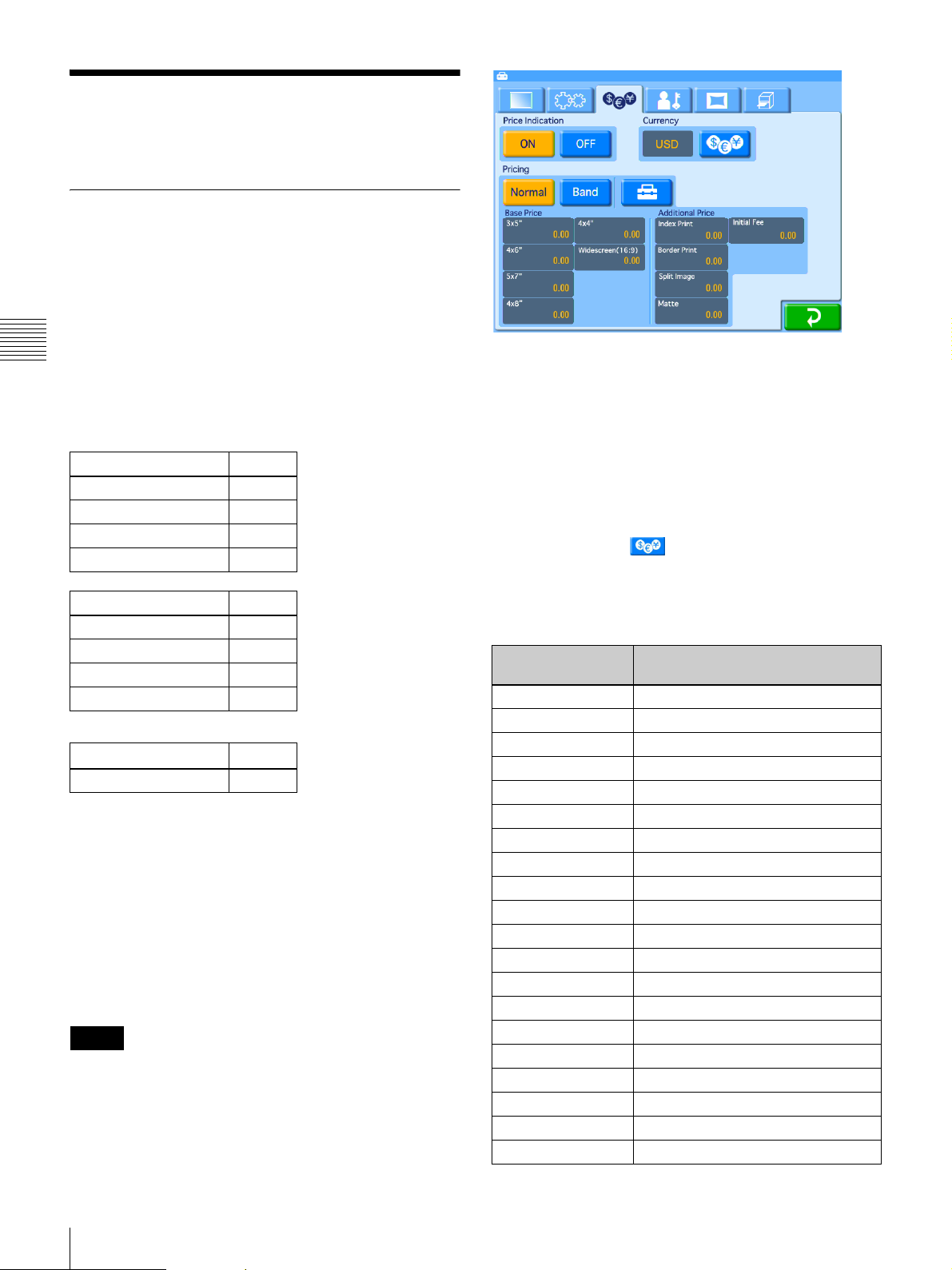

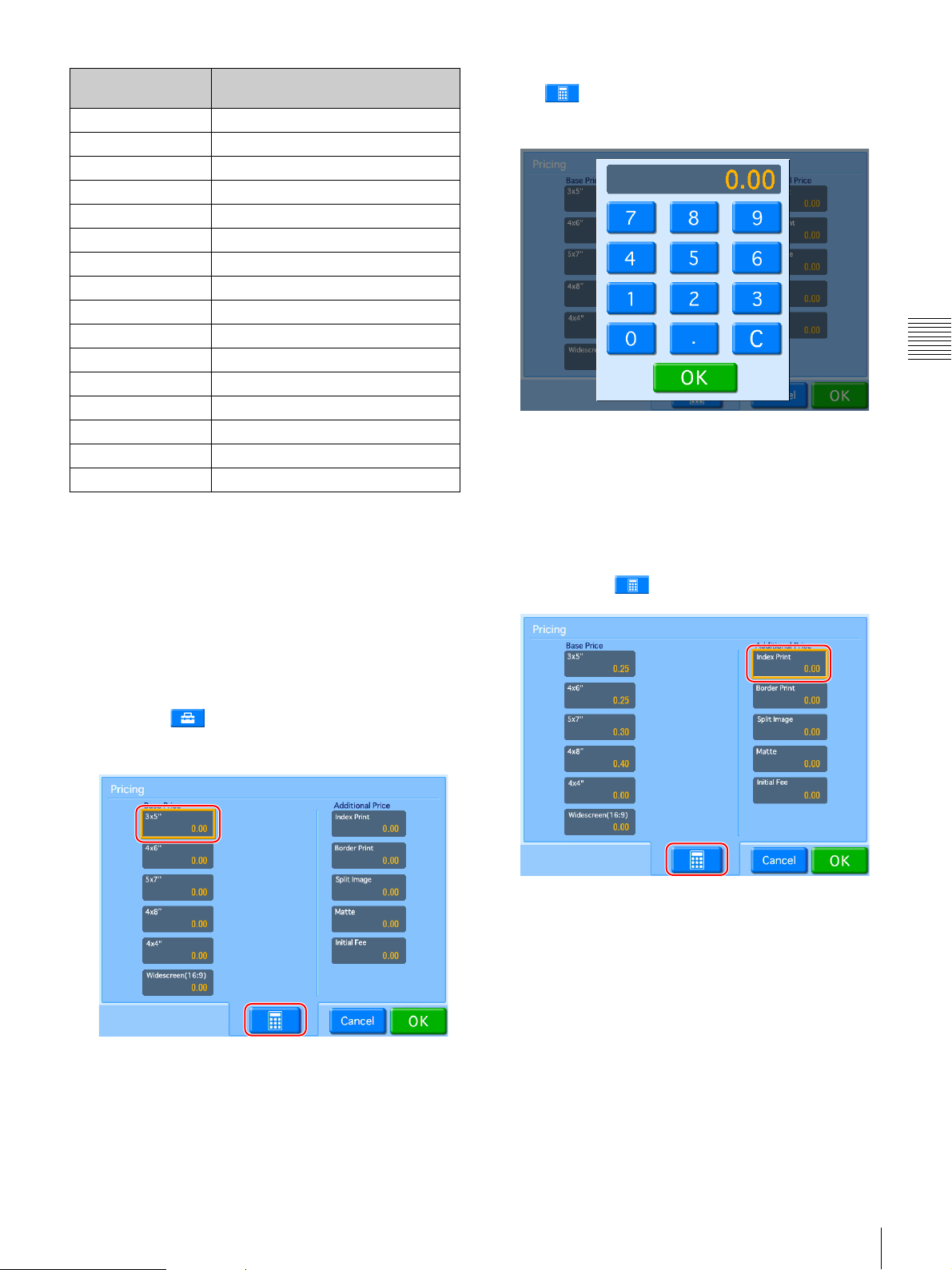

Setting Prices....................................................................................... 30

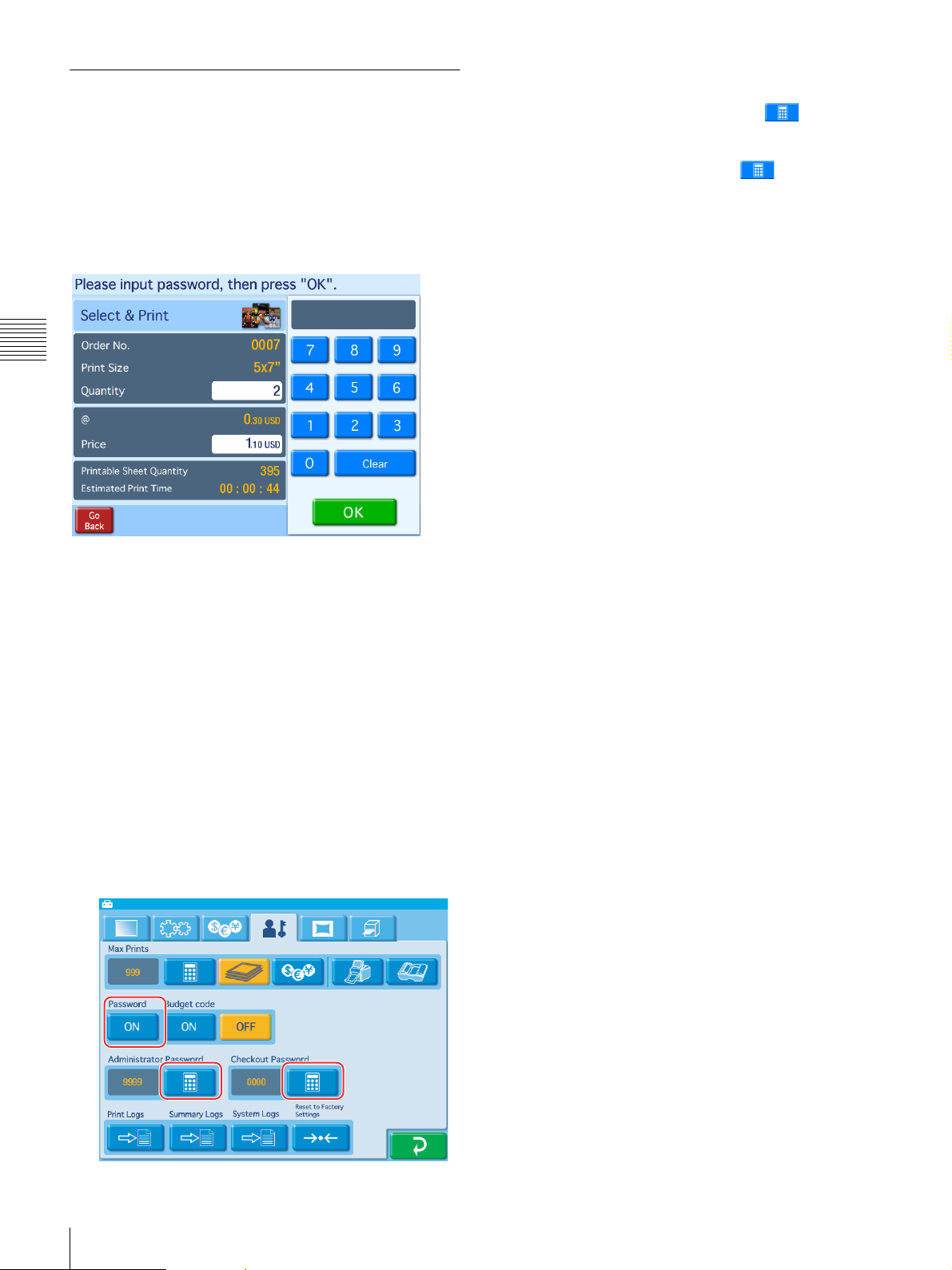

Setting the Passwords.......................................................................... 32
Chapter 4 Advanced Settings

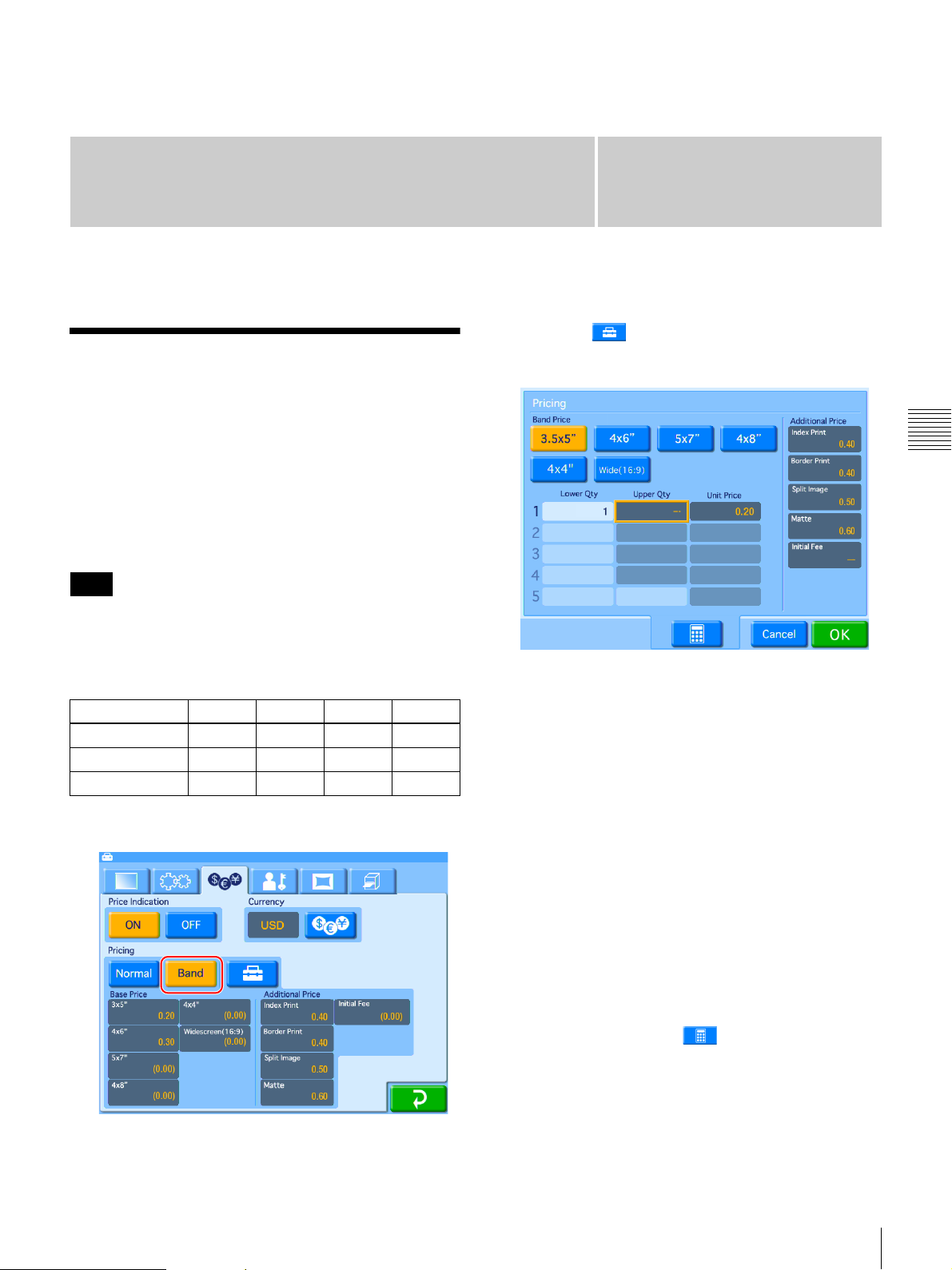

Band Pricing...................................................................................33

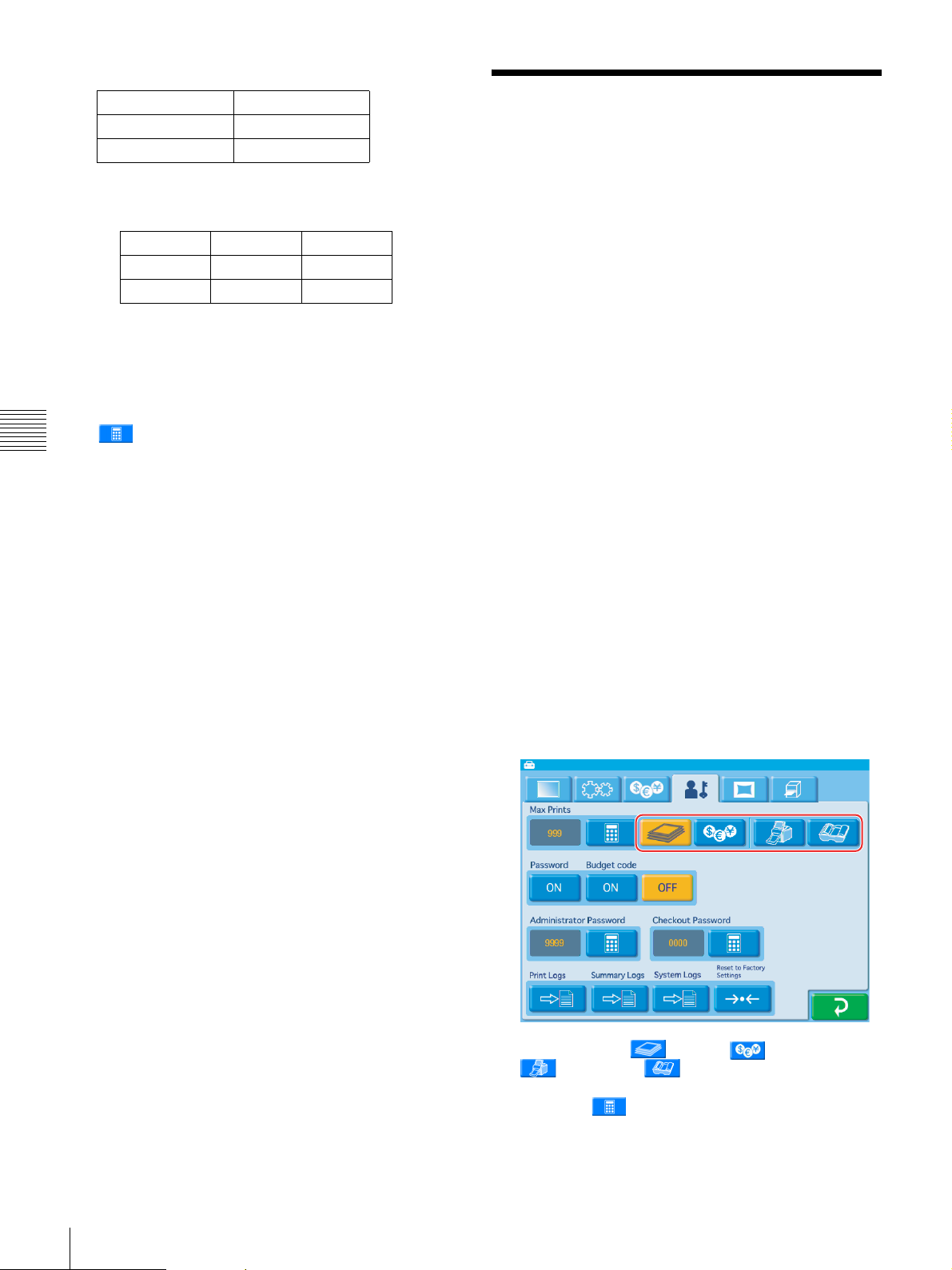

Setting the Maximum Number of Prints ......................................34

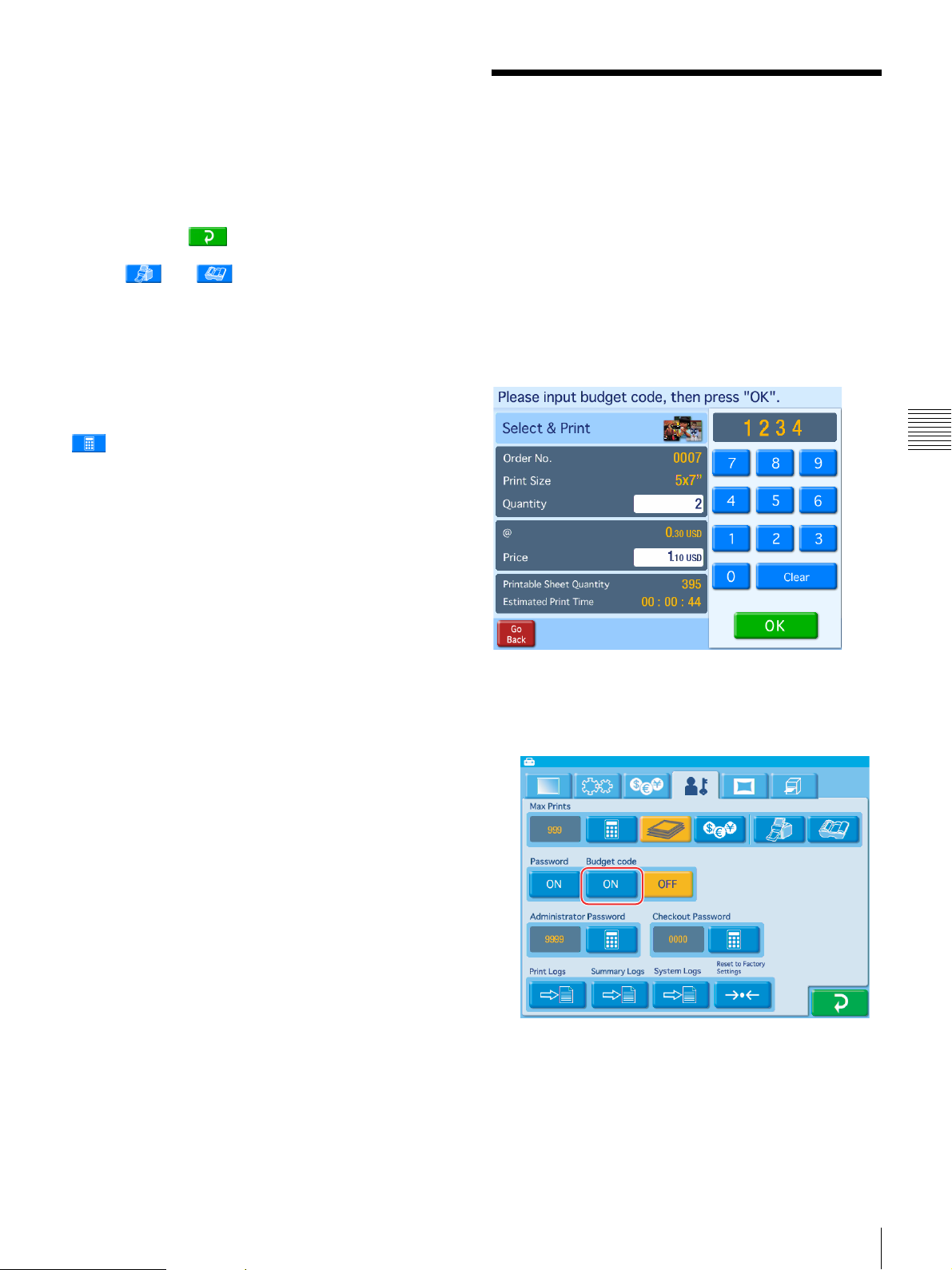

Using Budget Codes .....................................................................35

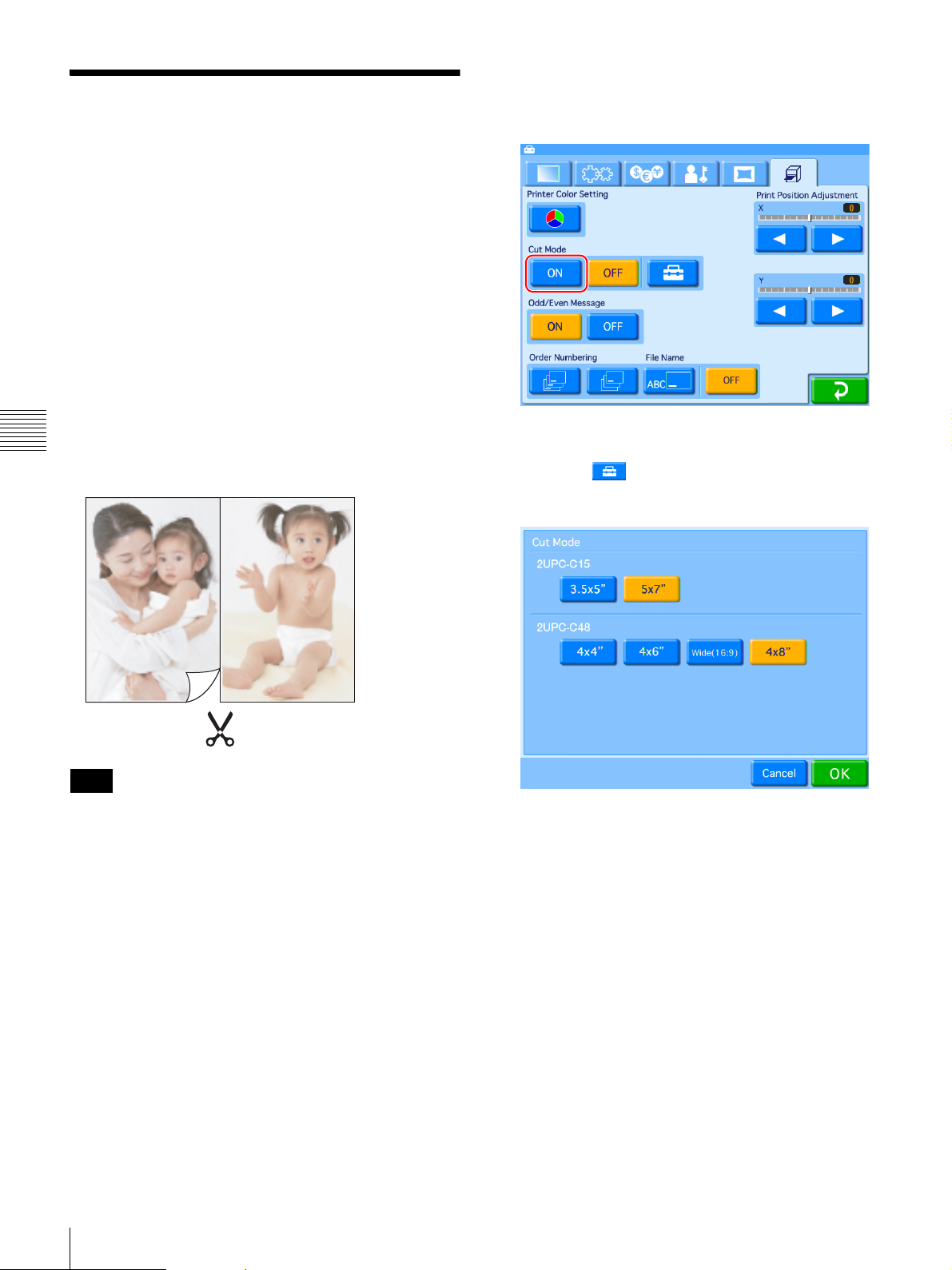

Setting Cut Mode ...........................................................................36

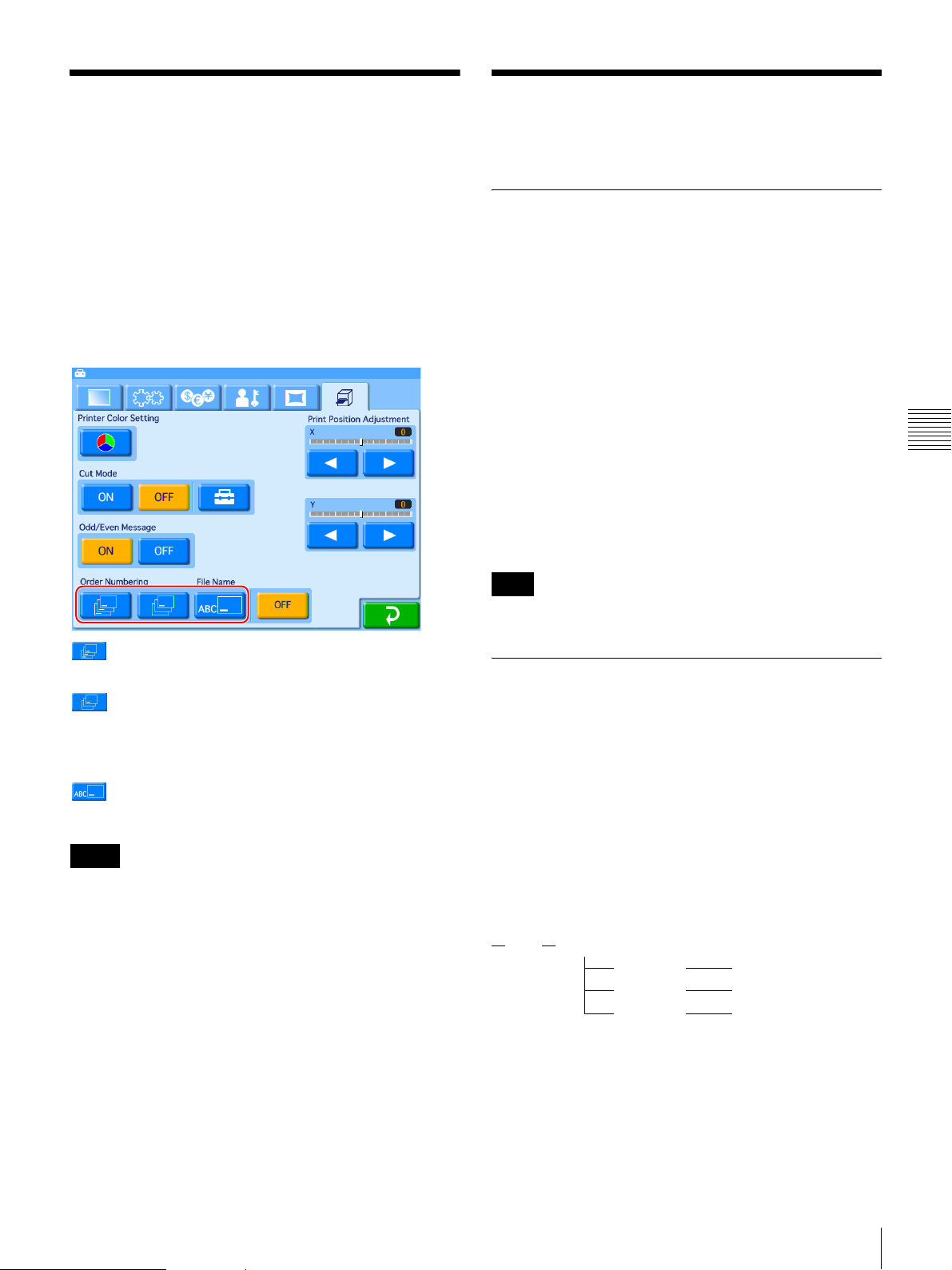

Watermarking Order Numbers or File Names on Prints ............ 37
Using Expansion CompactFlash Cards.......................................37
Functions That Require an Expansion CompactFlash Card................ 37
Directory Structure for Expansion CompactFlash Folders ................. 37
Creating an Expansion CompactFlash Card........................................ 38
Installing a CompactFlash Card in the Unit ........................................ 38
Checking the Remaining Capacity on the Expansion CompactFlash
Card............................................................................................ 39
Copying User Created Data................................................................. 39
Deleting All Data on the Expansion CompactFlash Card................... 39
Setting Promotional Images ................................................................ 39

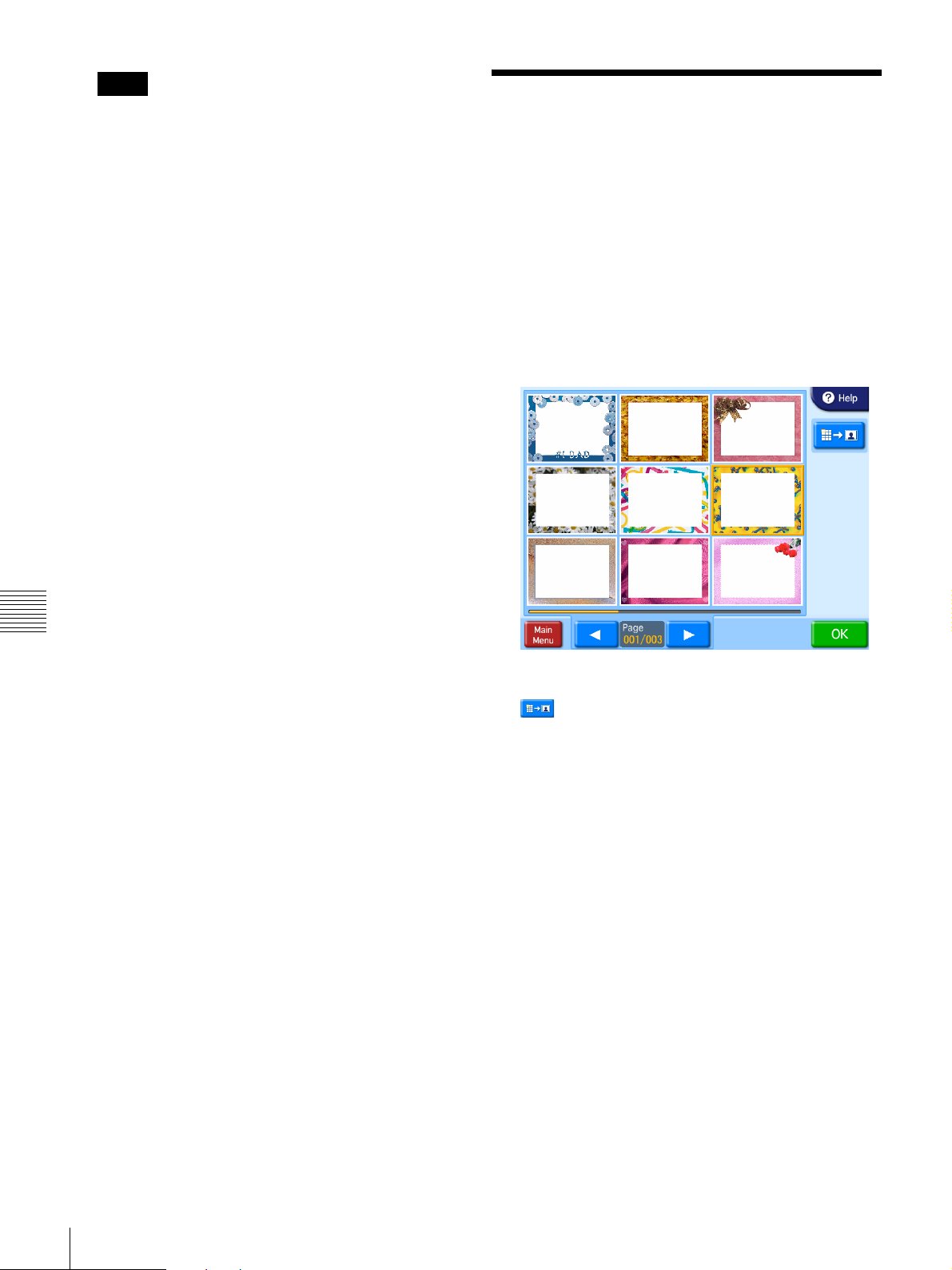

Adding Borders ................................................................................... 40

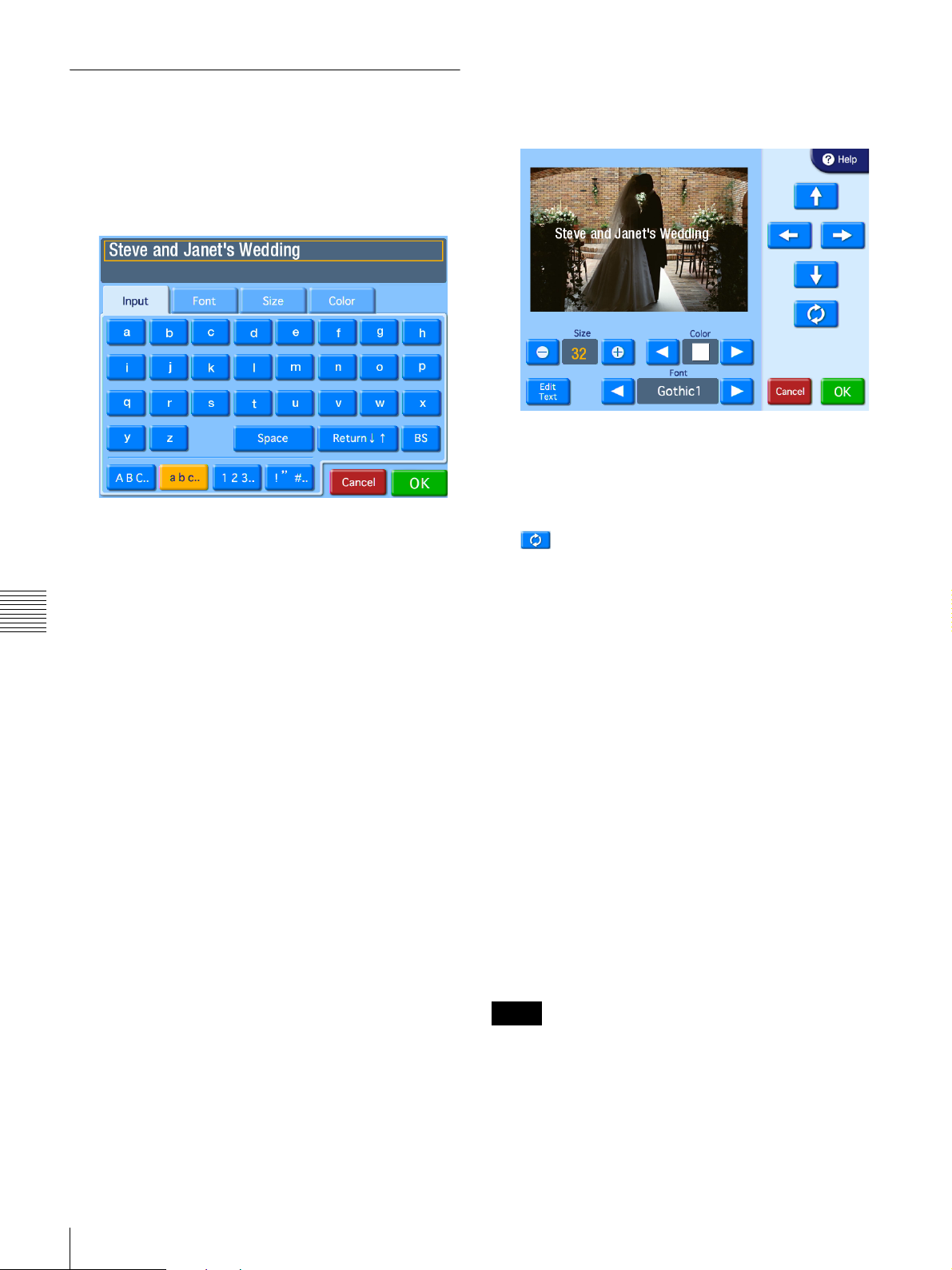

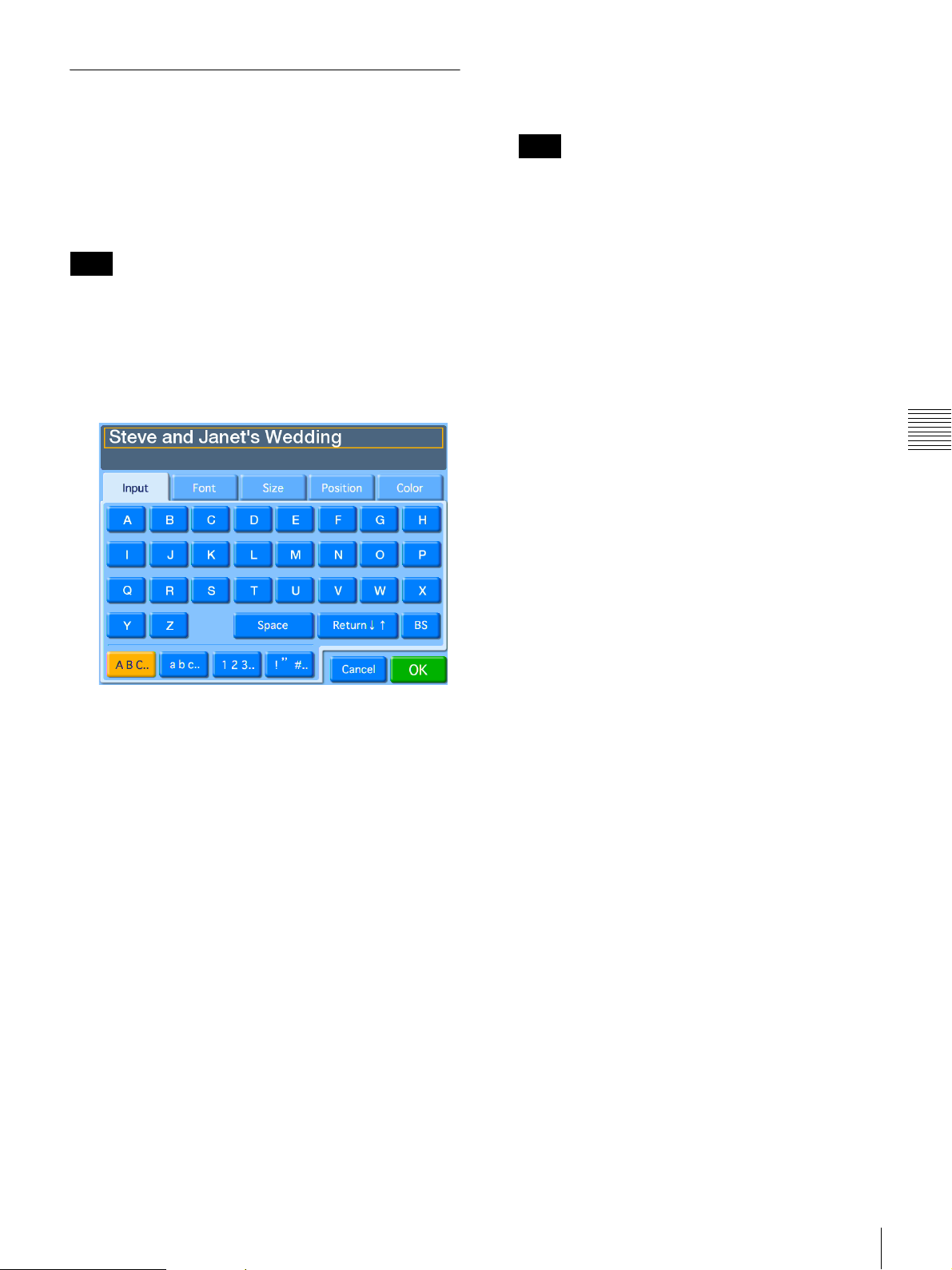

Adding Text to Images ........................................................................ 41
Printing with Watermarks .............................................................42
Creating Watermark Templates........................................................... 42
Copying Watermark Templates onto the Expansion CompactFlash
Card............................................................................................ 42
Printing with Watermarks ................................................................... 42
Setting Image Preload...................................................................43
Entering Passwords Using Memory Cards (Remote Password
Input) ........................................................................................43
System Settings.............................................................................44
Beep Setting ........................................................................................ 44
Chapter 5 Maintenance
Cleaning..........................................................................................45
Setting the Printer Image Quality.................................................48
Cleaning the Interior............................................................................ 45
Cleaning the Cabinet ........................................................................... 47
Cleaning the Display ........................................................................... 47
Cleaning the Filter for the Ventilation Holes ...................................... 47
Cleaning the Printer Roller.................................................................. 47

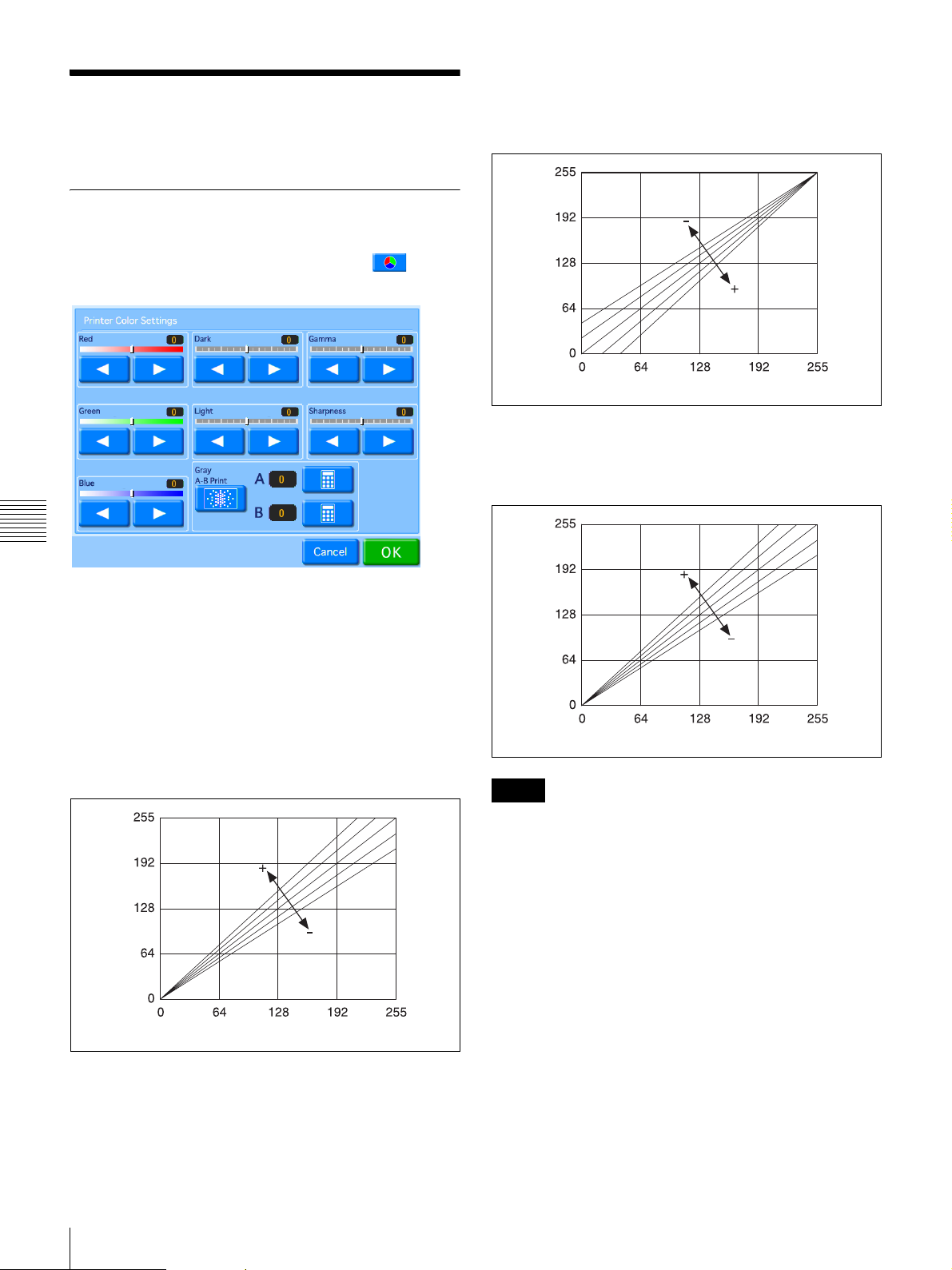

Adjusting the Printer Image Quality ................................................... 48
Adjusting the Gray Balance ................................................................ 49
Table of Contents
5
Chapter 6 Operation

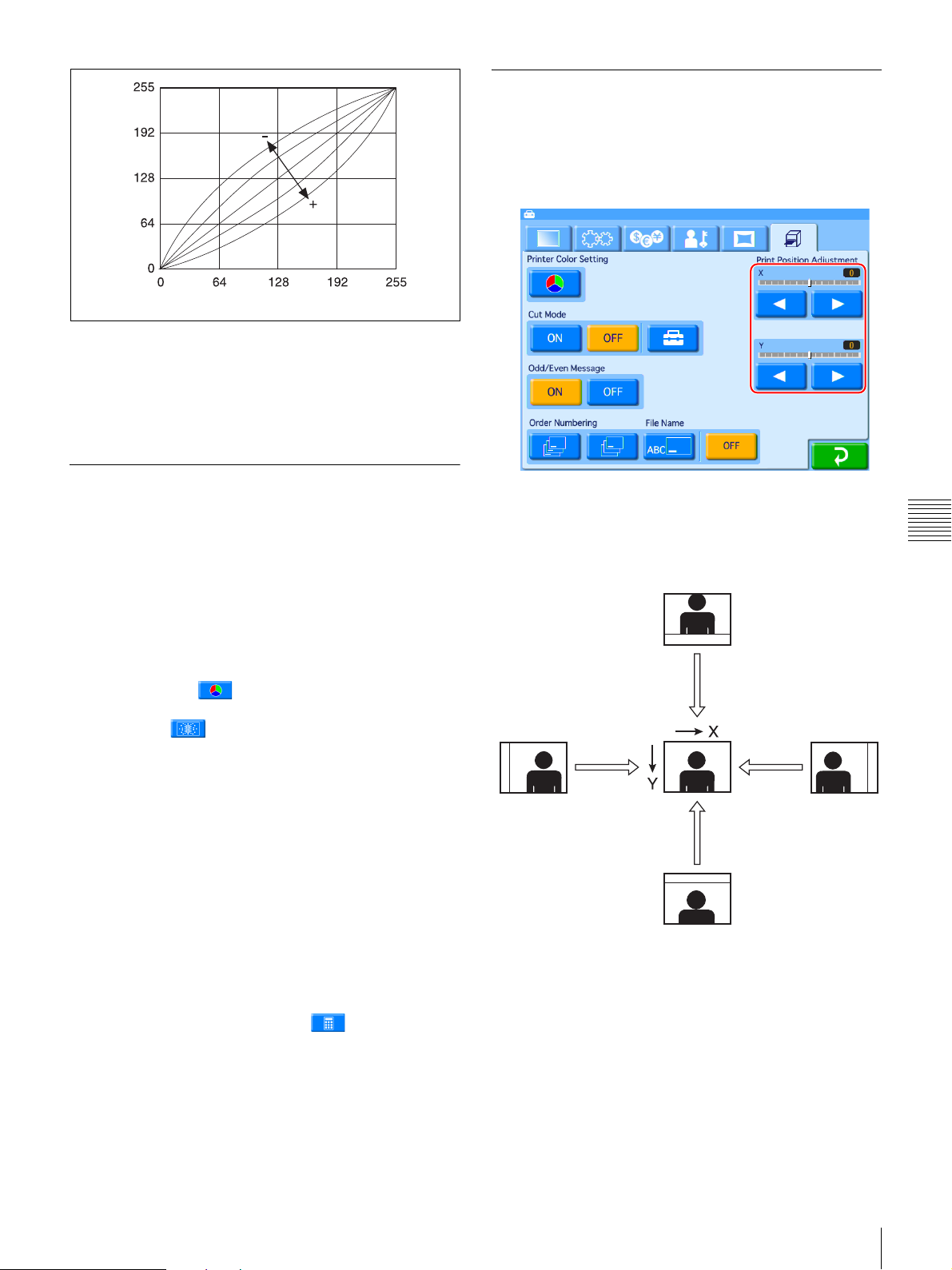

Adjusting the Print Position ................................................................ 49

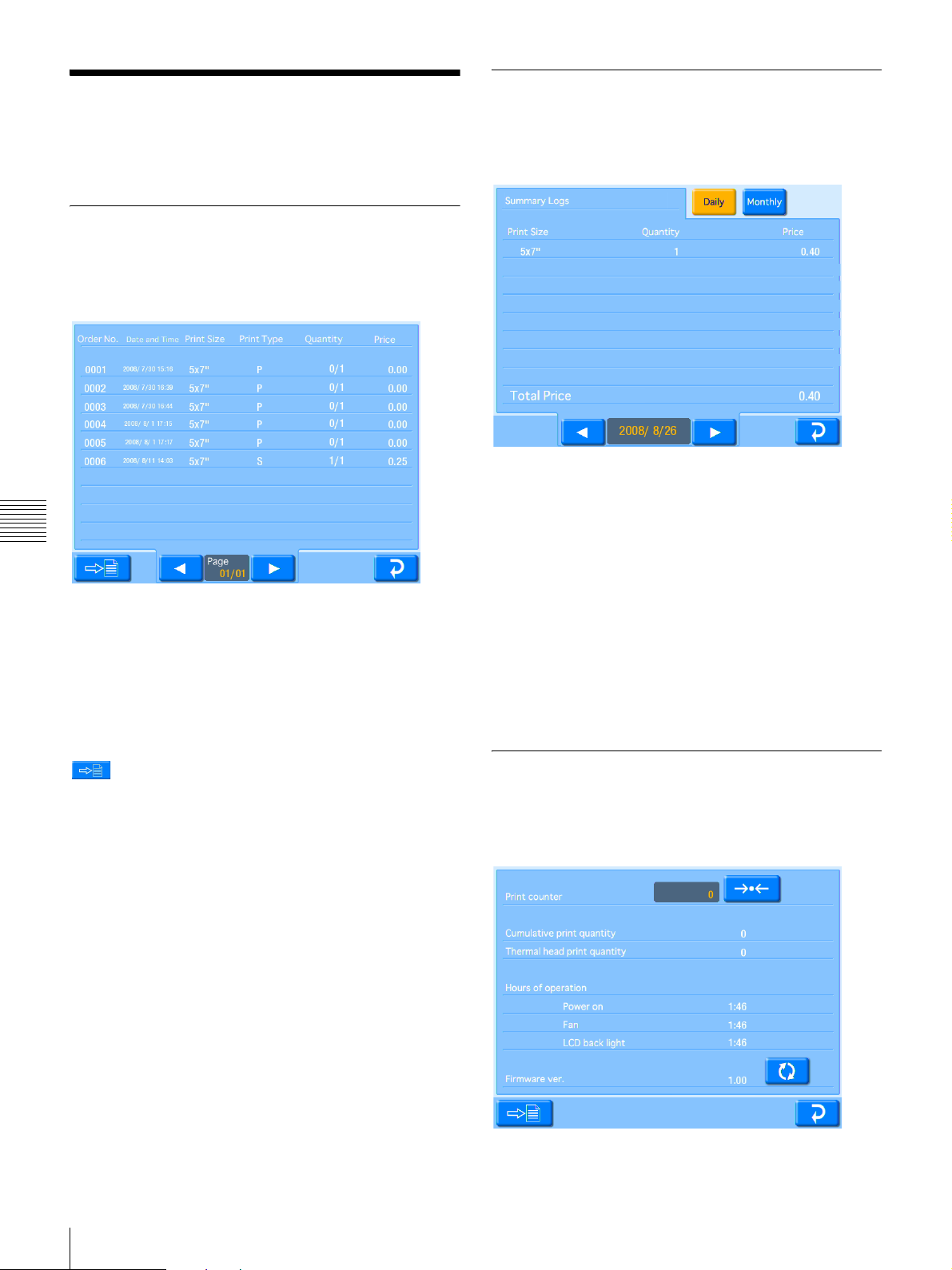

Displaying Logs .............................................................................50
Displaying the Print Log ..................................................................... 50
Displaying the Sales Log..................................................................... 50
Displaying the System Log ................................................................. 50
Adjusting the Touch Panel ...........................................................51
Restoring the Factory Settings ....................................................52
Starting Operation .........................................................................53

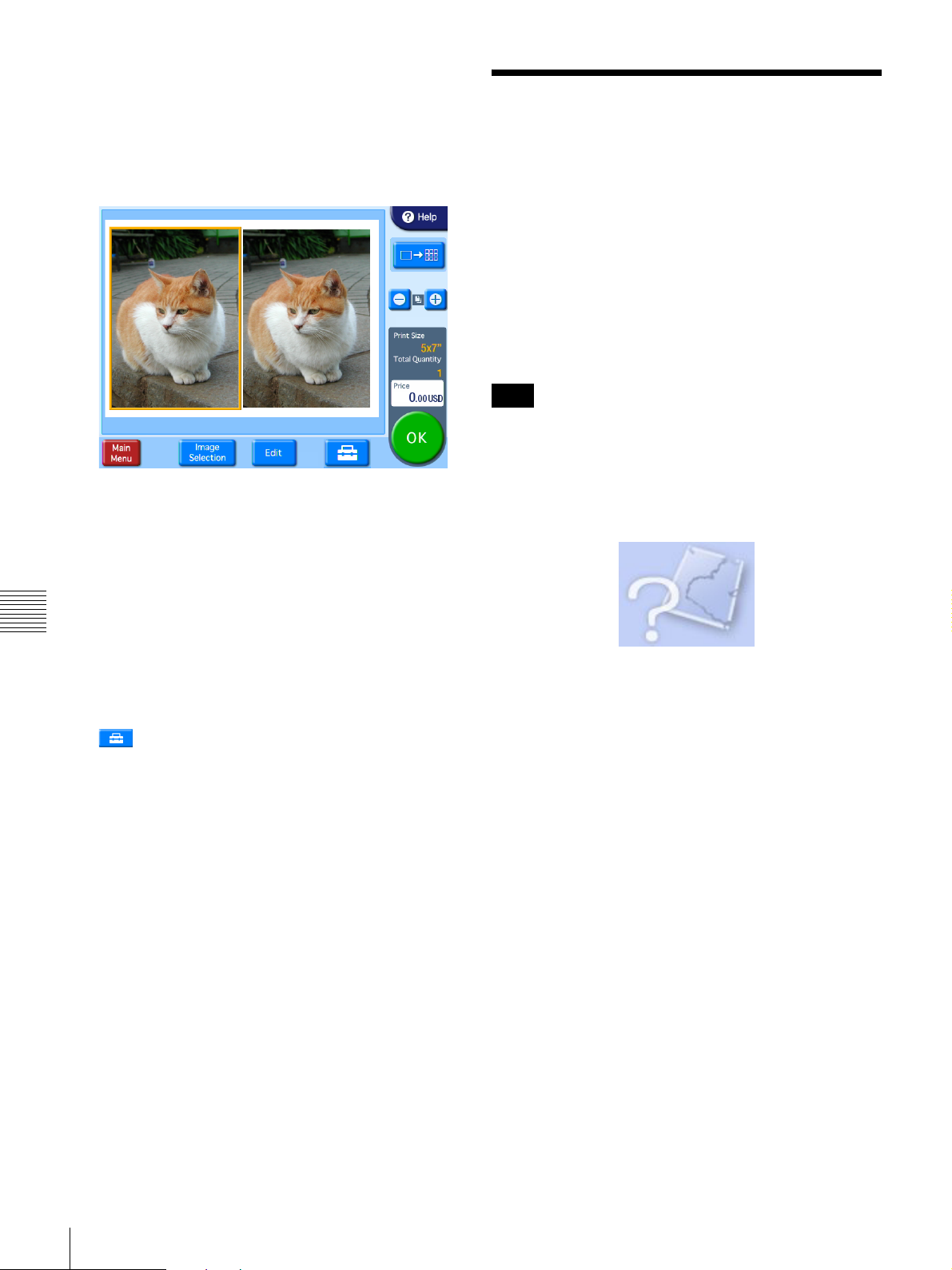

Selecting and Printing Images .....................................................55
Using Border Print.........................................................................56

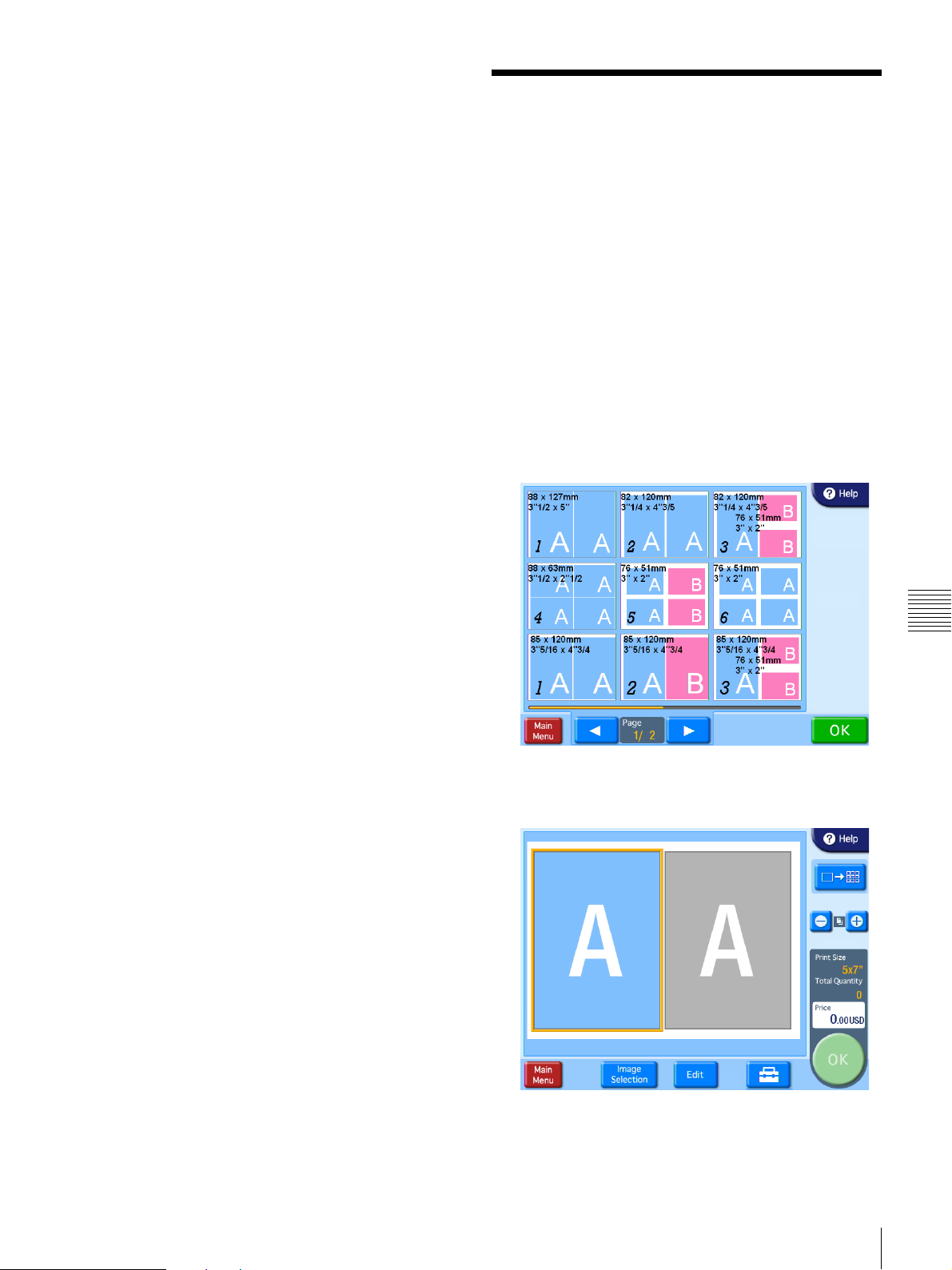

Using Split Image Print .................................................................57
Using Index Print ...........................................................................58
Printing All Images ........................................................................59

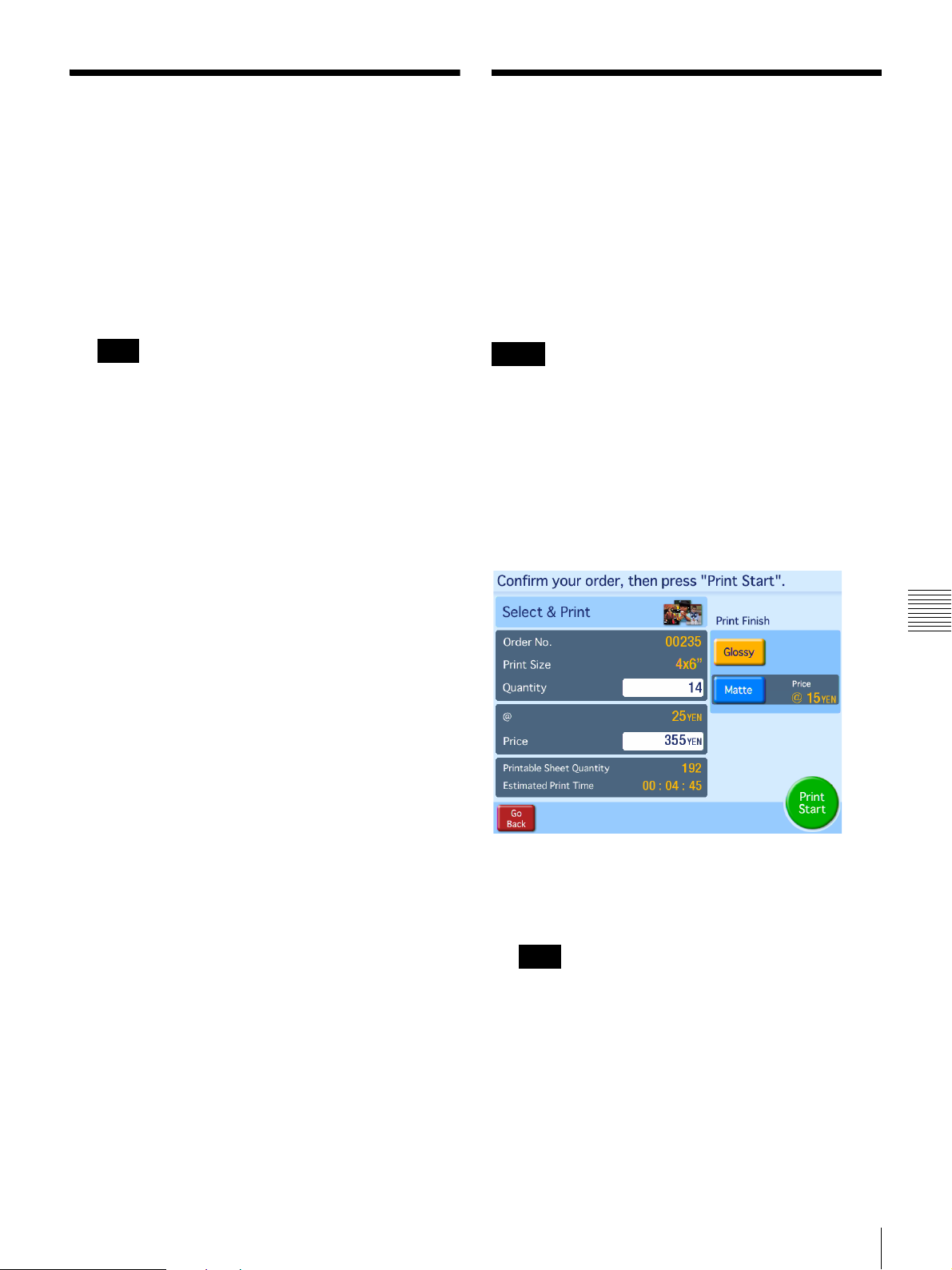

Confirming and Printing the Order ..............................................59
Canceling Print Operations ..........................................................60
Image Editing .................................................................................61
Specifying the Layout (Crop and Rotate)............................................ 61
Inputting Text ...................................................................................... 62

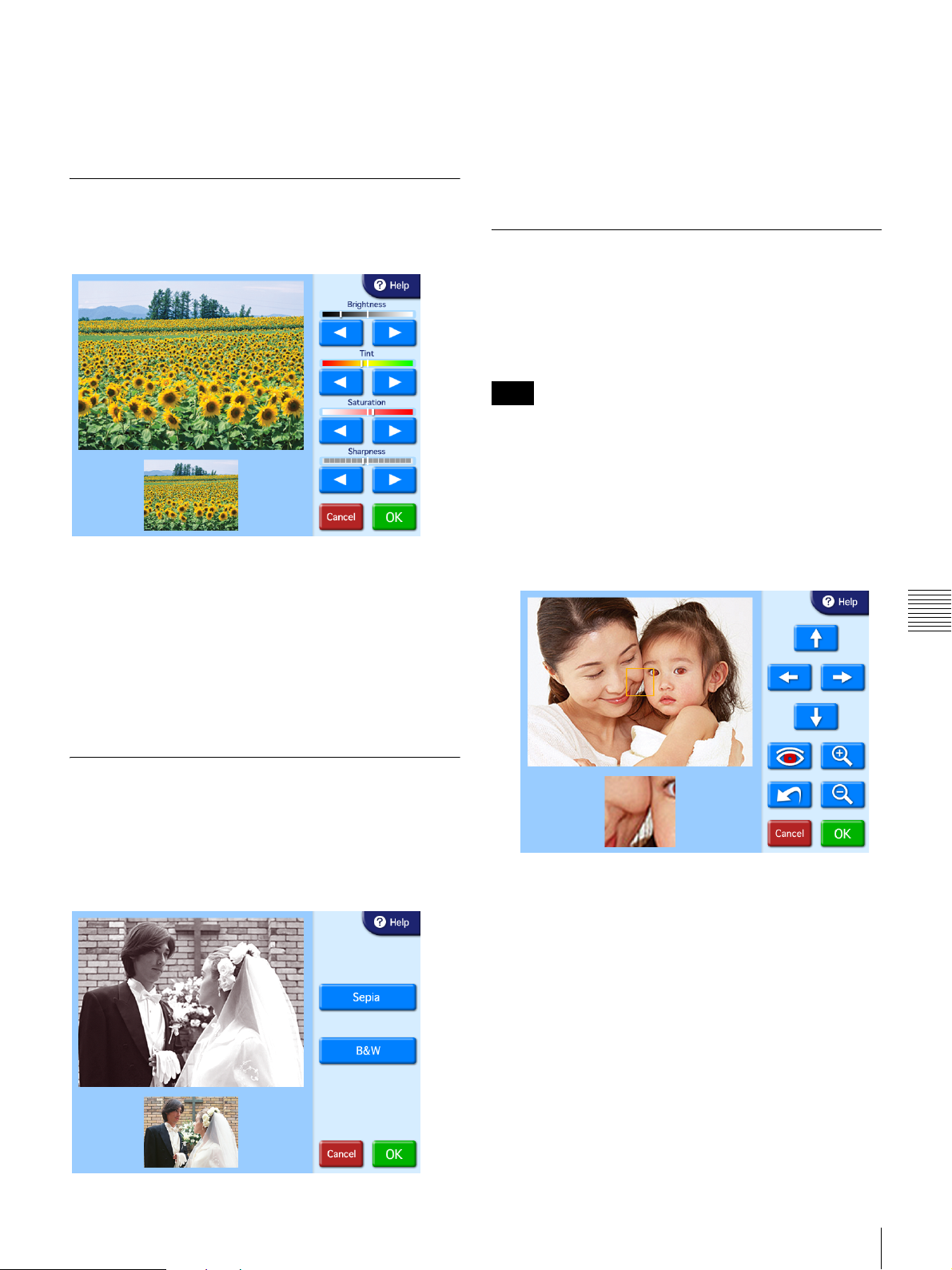

Adjusting the Image Quality ............................................................... 63
Printing in Sepia or Black and White.................................................. 63
Compensating for the Red Eye Effect................................................. 63
Selecting the Print Finish..............................................................64
Printing from DPOF Settings ........................................................65
Printing From a Computer ............................................................66
Installing the Printer Driver................................................................. 66
Computer Connection Setting ............................................................. 66

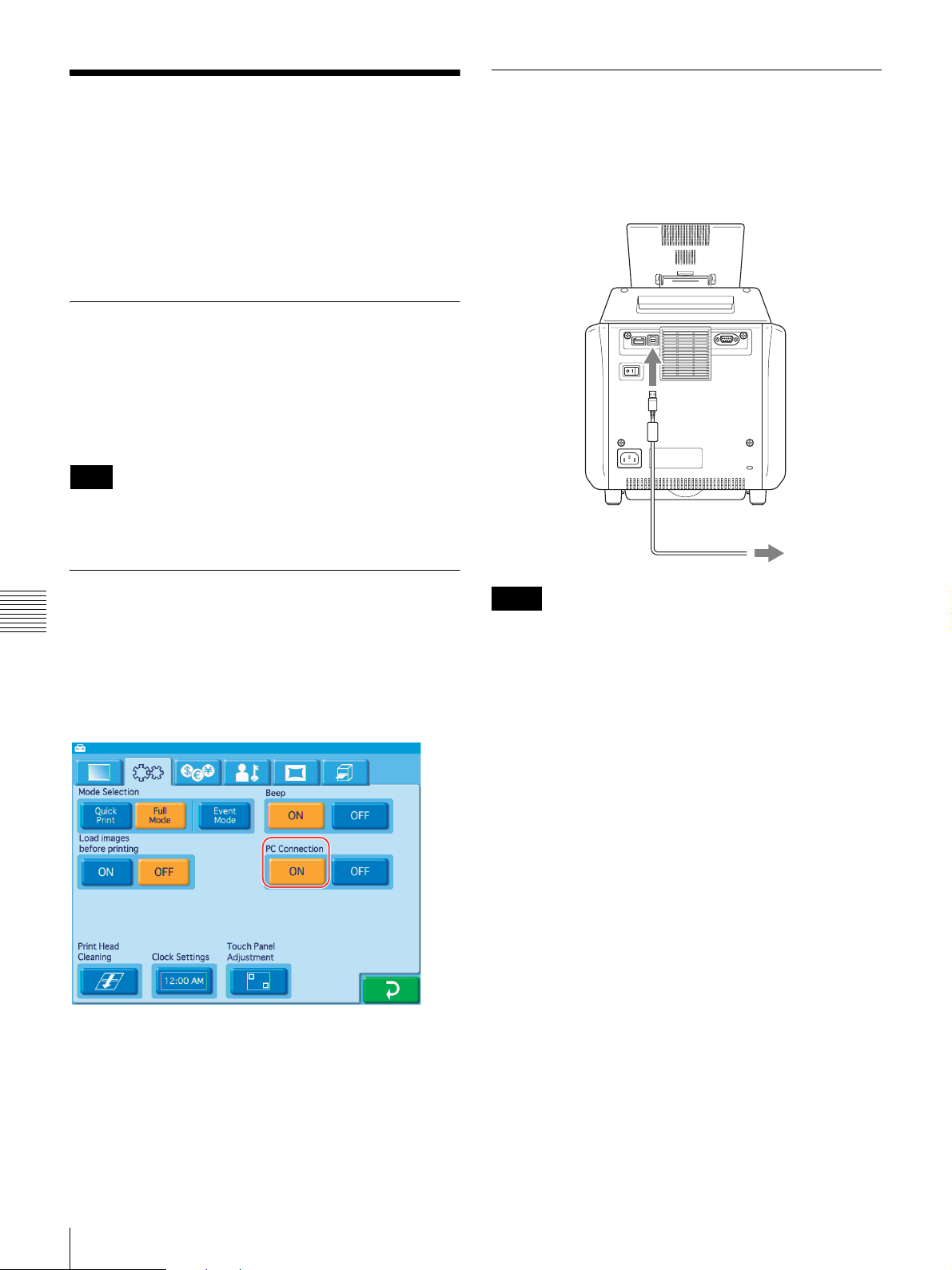

Connecting to a Computer................................................................... 66
Appendix
6
Table of Contents
Precautions ....................................................................................67
Memory Cards................................................................................68
Notes on Using “Memory Stick”......................................................... 68
Notes on Using Other Types of Memory Cards.................................. 69
Notes on USB Memory ....................................................................... 70
Troubleshooting ............................................................................71
Ink Ribbon and Paper....................................................................72
Specifications ................................................................................72
Outline
What This Product Can Do
This unit reads image data stored on a memory card and
allows quick and easy printing of photos taken with a
digital camera or other device.
The product has the following features.
Versatile print services
Besides regular photo printout, the unit can produce split
image prints, prints with borders, and index prints. It also
allows the user to edit images before printing with
functions such as trimming and color adjustment.
Order numbers and file names can be printed as a
watermark, making print sorting easy.
Chapter
Customizable with original data
By inserting a memory card (expansion CompactFlash
card) carrying promotional images and border data into the
expansion slot, screen savers can be displayed and photos
can be combined with borders for printing.
images can be used for the advertisement and border data.
1) A commercially available CompactFlash card is required.
Printing watermarks for logos and text
By storing logos, text, and other custom designs on an
expansion CompactFlash card and installing the card, you
can print the designs onto photos as watermarks.
Printing from computers
By connecting the unit to a computer using the supplied
USB cable, data sent from the computer can be printed on
the unit.
1)
1
1)
Original
Chapter 1 Outline
Selectable operation modes
To fit the specific purpose for which the unit is used, Full
mode, Quick Print mode, and Event mode can be selected.
Support for a wide range of memory cards
All major memory card formats used in digital cameras are
supported: “Memory Stick,” xD-Picture Card, SD Card,
MultiMediaCard, and CompactFlash card.
The unit also supports USB memory.
High-speed high-quality printing
Using a newly developed print engine that features a
dyesublimation thermal transfer technology, it is possible
to print images of lasting beauty at high speed.
Easy operation by touch panel
A 8-inch touch panel display is used, allowing for easy
operation with just a touch of the screen.
1) The supplied printer driver must be installed on the computer before
connecting it to the unit.
Compact, integrated body
The display and printer are housed in a single enclosure
which does not take up much space and easily fits on a
shop counter or similar.
In addition, the screen angle can be adjusted to seven
different settings to fit operation conditions.
What This Product Can Do
7
Applications for This Printer
Chapter 1 Outline
This printer can be used for any of the following
applications. The appropriate operation mode can be
selected according to the intended application.
• Self-service photo kiosk in a store
Customers can bring media containing data for photos
taken with a digital camera to the store and use this unit
themselves to print their photos.
Both Full mode and Quick Print mode are designed for
this type of application.
Full mode provides customers with a wide variety of
options, while Quick Print mode allows customers to
print their photos quickly and easily.
As customers must pay for the photos they have selected
for printing in this application, the unit can be set to
require store staff to confirm the order and input a
password before the photos can be printed.
• Photo printing at events such as parties or weddings
This unit can be used for onsite printing of photos at
events. Both guests and staff can operate the unit to print
photos free of charge.
Event mode is designed for this type of application.
Because photo printing is free of charge, there is no need
to confirm the order or input a password.
For details, see “About Operation Modes” on page 26.
Print Services
This unit can print photos taken with a digital camera in
several different ways, as listed below.
Select & Print
This function lets you select the desired images from the
contents of the memory card, specify the number of copies,
and print them.
Border Print
This function lets you select from a variety of border
designs to be printed around the images, or you can input
text to be added to the images.
You can also add your own original border designs.
Split Image
This function lets you print several images on a single
sheet.
This function also lets you print images of a prescribed
size, such as for passport photos.
Index Print
This function lets you print all images on a memory card
as thumbnails.
This is convenient for checking the contents of a memory
card and visually sorting through a large number of images
when selecting images for printing.
Express Print
This function lets you print all images on the memory card
in one operation. There is no need to select images.
Print Sizes
You can print in the following sizes, depending on the
printing pack that you are using.
Dimensions: mm
(inches)
89 × 127 (3.5 × 5) 2UPC-C13 series,
102 × 102 (4 × 4)
102 × 152 (4 × 6) 2UPC-C14 series,
127 × 178 (5 × 7) 2UPC-C15 series
102 × 178 (4 × 7)
102 × 203 (4 × 8) 2UPC-C48 series
1) Can be used for printing when using Cut mode. For details, see “Setting
Cut Mode” on page 36.
Printing Pack
2UPC-C15 series1)
2UPC-C48 series
2UPC-C48 series
2UPC-C48 series
1)
1)
1)
8
Applications for This Printer / Print Services
Memo
For details on print sizes that can be printed from your
computer using the supplied printer driver, refer to the
operating instructions for the printer driver.
Supported Media and File Formats
Supported memory cards
This unit supports the following types of memory cards.
•“Memory Stick”
•“Memory Stick PRO”
• “Memory Stick Duo”
• CompactFlash Card
•SD Card
• miniSD Card
• MultiMediaCard
• xD-Picture Card
• USB memory
1) Microdrive is not supported.
2) SDXC is not supported.
For details on “Memory Stick,” “Memory Stick PRO,” and
“Memory Stick DUO,” see “Notes on Using “Memory
Stick”” on page 68.
For details on other types of memory cards, see “Notes on
Using Other Types of Memory Cards” on page 69.
For details on USB memory, see “Notes on USB Memory”
on page 70.
2)
1)
Chapter 1 Outline
Supported file formats
This unit supports the file formats listed below. The
maximum data size that can be read by the unit is 8,000 ×
6,000 pixels.
•JPEG
JFIF 4:4:4, 4:2:2, 4:2:0 (baseline JPEG)
* Progressive JPEG and 8-bit grayscale JPEG not
supported.
Exif 2.2.1 compliant
DCF 2.0 compliant
•TIFF
Exif 2.2.1 compliant (RGB non-compressed)
•BMP
24-bit Windows format
(Some format versions may not be supported. In addition,
playback of images edited on a computer may not be
possible.)
Up to eight levels are supported for directories on a
memory card or disc, and up to 9,999 files can be handled
in a single operation. If a file path consists of more than
200 characters or includes non-alphanumeric characters,
the unit may not be able to read the file.
TIFF, BMP, and images with large file sizes may take
longer to load.
The unit does not support files for which the date is before
January 1, 1980 or after December 31, 2079.
Supported Media and File Formats
9
About DCF
DCF is the abbreviation for “Design rule for Camera File
System”. It is the standards that have been regulated by
Japan Electronics and Information Technology Industries
Association, or JEITA, to promote environments mainly
for users to easily utilize image files, such as ones from
Chapter 1 Outline
digital still cameras, among related products. DCF
standards, however, do not guarantee complete
compatibility among products.
Trademarks
The following words are trademarks of their respective
owners.
• “Memory Stick” and are trademarks or registered
trademarks of Sony Corporation.
• CompactFlash is a trademark of SanDisk Corporation,
registered in the United States and other countries.
• MultiMediaCard is a trademark of Infineon
Technologies AG.
• Microdrive is a registered trademark of Hitachi Global
Storage Technologies.
• SD, miniSD and SDXC are trademarks of SD-3C, LLC.
• Adobe and Photoshop are either registered trademarks or
trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
• xD-Picture Card is a trademark of Fuji Photo Film Co.,
Ltd.
• Other product names are the registered trademarks or
trademarks of their respective manufacturers.
• Rasterize processing for TrueType font is based on
software from the FreeType Team.
• This software is based in part on the work of the
Independent JPEG Group.
• Libtiff
Copyright © 1988-1991 Sam Leffler
Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and sell this
software and its documentation for any purpose is
hereby granted without fee.
•Zlib
© 1995-2002 Jean-loup Gailly and Mark Adler
10
Supported Media and File Formats
Preparations
Supplied Accessories
Make certain you have received the following accessories:
Chapter
2
Chapter 2 Preparations
Paper Tray (1)
1)
Paper Holder (1)
USB Cable (1)
CD-ROM (1)
1) These items are stored in the printer. Be sure to remove these items from the inside of the printer before turning the power on.
2) For information on use, see the section “Cleaning the Interior” on page 45.
Notes
Cleaning Cartridge (1)
These accessories are stored in the paper holder.
Paper Core (1) Adaptor (left,1) Adaptor (right,1)
Before Using this Printer (1)
2)
• When taking the unit out of the carton box, be careful not
to hurt your back.
• The packaging materials are needed when transporting
the unit, so we suggest you keep them.
• Before transporting the unit, remove the ink ribbon and
paper roll from the unit.
• Before transporting the unit, also remove any paper
remnants from the paper holder. The paper remnants
may slip into the inner parts of the unit and result in
damage if not removed.
Supplied Accessories
11
Controls and Functions
Front
Chapter 2 Preparations
(1)
(2)
(5)
(3) (4)
(6) (7)
(10)
(1) Display
Shows the operation screen. Because the display is a touch
screen, the user simply touches the field for the desired
operation. The angle of the display can be adjusted for best
viewing.
(2) USB port (USB memory) (page 54)
Holds a USB memory device with stored image data.
(3) SD Card/MultiMediaCard slot (page 53)
Holds an SD Card, miniSD Card, or MultiMediaCard with
stored image data.
(4) “Memory Stick” slot (page 53)
Holds a “Memory Stick” with stored image data.
(5) Access indicator
Lights when a memory card is inserted a slot, and flashes
when a memory card is being accessed.
(6) xD-Picture Card slot (page 53)
Holds an xD-Picture Card with stored image data.
(12)(11)(9)(8)
Note
To avoid loss of image data or damage to the main unit,
never attempt to insert a “Memory Stick,” SD Card, or
MultiMediaCard into a CompactFlash type adapter set in
the CompactFlash slot.
(8) Eject slot
The printed photo emerges from this slot.
(9) Paper tray (page 19)
Printed photos are collected in this tray.
(10) Paper eject stopper (page 19)
Raise this stopper when printout size is small.
(11) Front door (page 15)
Open this door to change the paper roll.
(7) CompactFlash card slot (page 53)
Holds a CompactFlash card with stored image data.
12
Controls and Functions
Front door open
Rear
(5)
(A) (B)
(A) Paper holder (page 15)
The paper roll is inserted here.
The white areas between printouts are cut off and
collected in the top portion of the paper holder.
(B) Paper holder release button (page 15)
Press this button to remove the paper holder.
(12) Side door (page 18)
Open this door for replacing the ink ribbon and inserting
the expansion CompactFlash card.
Side door open
(B)
(A)
(1)
(6)
(2)
(3)
(7)
(4)
(1) USB port (host)
Allows connection of a USB device.
You can connect a commercially available card reader or
USB memory device to this port and use it to read data.
1) Correct operation with every card reader and USB
memory device is not guaranteed.
Operation is not guaranteed when connected by a USB
hub.
PictBridge is not supported.
(2) POWER switch
Turns the unit on or off.
(3) USB port (device) (page 66)
Use the supplied USB cable to connect the unit to a
computer.
1) Operation is not guaranteed when connected by a USB
1)
hub.
1)
Chapter 2 Preparations
(A) Ink ribbon access opening (page 18)
Mount the ink ribbon here.
(B) Expansion CompactFlash card slot (page 38)
When using features such as border print or
promotional images, insert the expansion
CompactFlash card here.
(4) ~ AC IN (Power Source) Connector (page 14)
Connect the supplied power cord here.
(5) Display stand
Use this stand to adjust the angle of the display.
(6) RS-232C interface
Allows connection of a commercially available thermal
sheet printer or similar device.
(7) Air vent
Features a built-in filter for the thermal head cooling fan.
Controls and Functions
13
Installation
Connecting the Power Cord
Loading Paper Roll and Ink Ribbon
Connect the power cord to the ~ AC IN connector on the
back of the unit, and then connect the plug to a power
outlet.
Chapter 2 Preparations
Power cord (not supplied)
Power outlet
Handling the paper roll and ink ribbon
Notes
• The print pack contains two ink ribbons and two paper
rolls. Be sure to use the ink ribbon and paper roll in the
same carton as a set. (See “Ink Ribbon and Paper” on
page 72.)
• The ink ribbon and paper roll are not meant to be used up
completely. Even if there is some ink ribbon and paper
remaining, be sure to load a new ink ribbon and paper
roll as a set. Using leftover paper may result in
malfunction.
• Make sure to use a matching paper roll and ink ribbon
set. Using an unmatched combination will not only
prevent you from obtaining normal print results but may
cause a paper jam or a malfunction.
• Do not touch the printing surface of the paper roll or the
ink on the ink ribbon. Fingerprints and other pollutants
can lead to reduced print quality.
• The number of sheets that can be printed depends on the
print pack type. The table below lists the image count for
one ink ribbon and paper roll set.
Adjusting the Display Angle
The display angle can be adjusted to make the display
more easily viewable. Seven settings are available for
angle adjustment.
When storing the unit, pull the display forward until
completely upright and then push it backward until
horizontal.
Print
pack
Number of
sheets
Print size
2UPC-C13
series
300
(sheets)
89 × 127 mm
±2 mm
(3.5 × 5 inches
±3/32 inch)
2UPC-C14
series
200
(sheets)
102 × 152 mm
±2 mm
(4 × 6 inches
±3/32 inch)
2UPC-C15
series
172
(sheets)
127 × 178 mm
±2 mm
(5 × 7 inches
±3/32 inch)
2UPC-C48
series
150
(sheets)
102 × 203 mm
±2 mm
(4 × 8 inches
±3/32 inch)
• Do not replace the ink ribbon and paper roll before they
are used up. Otherwise the above number of sheets may
not be achieved.
• Place the paper roll vertically. If you place the paper roll
horizontally, the paper roll may roll around and fall. This
may cause an injury.
14
Installation / Loading Paper Roll and Ink Ribbon
• Hold the paper roll with both hands so that you do not
drop it, because it is heavy. Dropping may result in an
injury.
Hold the paper roll with both hands.
• If inserting the paper core into the paper roll is difficult
when loading the paper roll, squeeze the roll from both
sides to restore its shape.
Loading the Paper Roll and Ink Ribbon
When using the printer for the first time, you must first
load a paper roll and ink ribbon.
Notes
• Always use a designated print pack.
• Always replace the paper roll and ink ribbon together as
a set.
Attaching adaptors to paper holder
Paper roll widths vary according to the print pack. When
using the 2UPC-C14 series or 2UPC-C48 series print pack,
attach an adaptor to the paper holder to compensate for the
width difference.
1
Open the front door.
Chapter 2 Preparations
Squeeze from both sides.
• An IC board is incorporated in the ink ribbon cartridge.
Do not touch the terminal of the IC board with anything,
including your fingers or metallic objects. Also, do not
strike, bend, or drop the IC board.
IC board
Notes on storage
• Avoid placing where subject to:
– high temperatures
– high humidity or dust
– direct sunlight
• After opening the bag, use the ink ribbon and the paper
as soon as possible.
• When storing after partial use, put the ribbon and the
paper back in their bags.
Before Loading the Paper Roll and
2
Press the paper holder release button and pull the paper
holder out.
Ink Ribbon
Clean the thermal head and rollers regularly, whenever
you load a new paper roll and ink ribbon. For detailed
information on cleaning, see “Cleaning the Interior” on
page 45.
Loading Paper Roll and Ink Ribbon
15
3
Press the latch on top of the paper holder and open the
holder.
Chapter 2 Preparations
4
Adjust the width of the paper holder.
When using the print pack 2UPC-C13 series or
2UPC-C15 series
Remove the adaptors from the paper holder.
When using the print pack 2UPC-C14 series or
2UPC-C48 series
Attach adaptors to both ends of the paper holder.
Memo
Make sure the color of the label on the upper part of the
adaptors matches the color of the label on the paper
holder.
Note
Insert the adaptors firmly and completely into the
paper holder.
Note
Store the adaptors in a safe place so as not to lose them.
Loading the paper roll
1
Insert the paper core into the paper roll.
Notes
• If the edges of the paper roll are uneven, make sure
to even them out before installing the paper roll.
Otherwise a malfunction may occur.
16
Loading Paper Roll and Ink Ribbon
• If the paper is wound loosely around the core, make
sure to wind it tightly before installing the paper roll.
Otherwise a malfunction may occur.
• Do not grasp the paper too tightly or strike it against
a hard object, because the paper may tear or crease,
effecting the print quality.
2
Open the front door.
3
Press the paper holder release button and pull the paper
holder out.
5
Insert the paper roll into the paper holder.
The arrow on the label in the center of the paper roll
must point inwards.
Note
When installing the paper roll, make sure the paper
holder is completely open. Otherwise a malfunction
may occur.
6
Remove the label in the center of the paper roll.
Chapter 2 Preparations
4
Press the latch on top of the paper holder and open the
holder.
Notes
• Make sure to fully remove all labels from the paper
roll. If labels remain inside the printer, operation
problems may occur.
• After inserting the paper roll, do not touch the
printing surface (the inner surface of the rolled
paper). Fingerprints, sweat, creases etc. can lead to
reduced print quality.
• Insert the paper roll firmly and completely into the
paper holder.
7
Close the paper holder.
Loading Paper Roll and Ink Ribbon
17
Note
Loading the ink ribbon
When closing the paper holder, take care that the
leading edge of the paper roll does not stick out of the
paper feed opening.
Chapter 2 Preparations
8
Return the paper holder into the unit.
Insert the paper holder until you hear a sharp click.

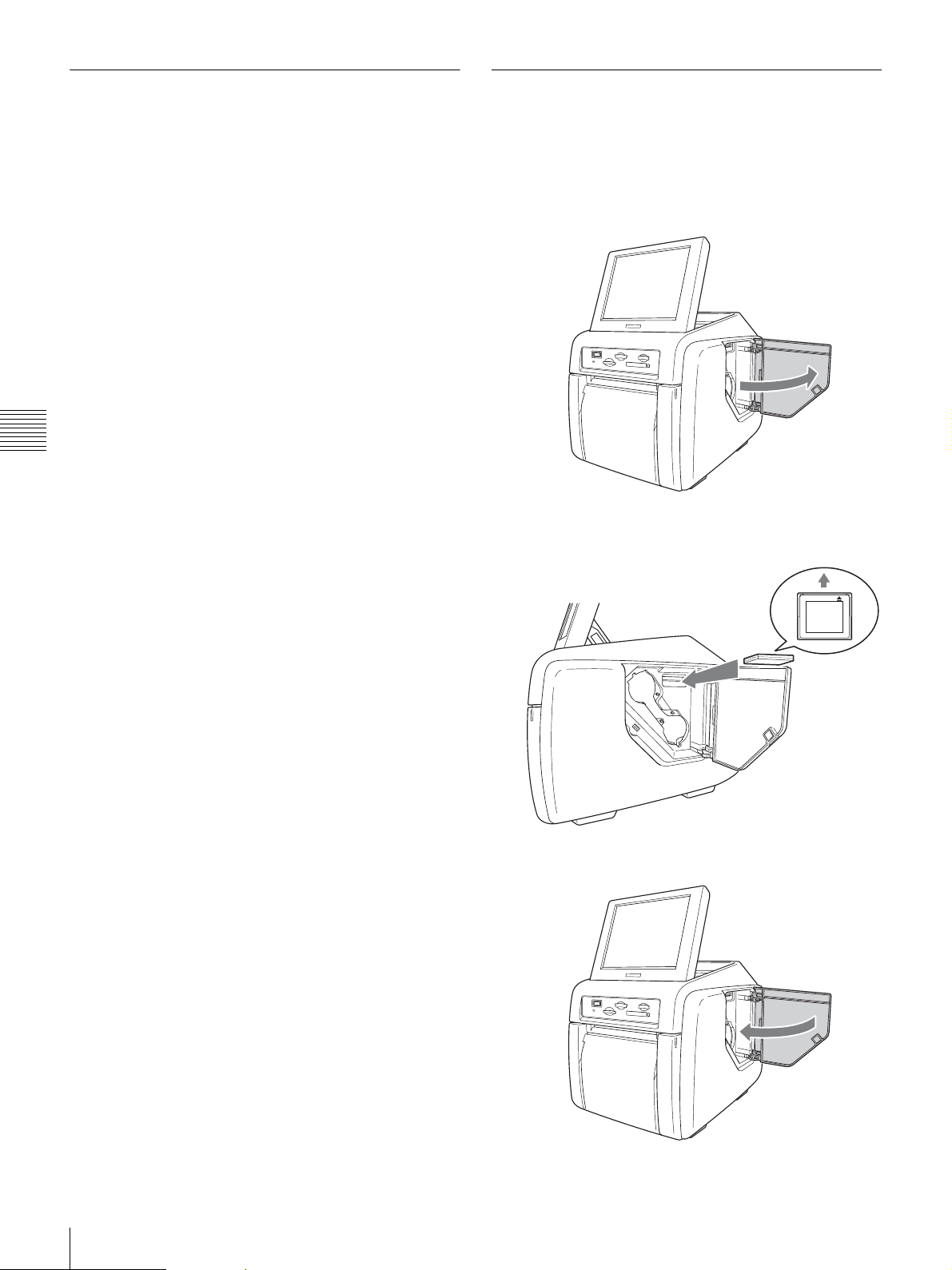

1
Open the side door.
2
Insert the ink ribbon cartridge completely.
9
Close the front door.
Notes
• If it is difficult to insert the ink ribbon cartridge,
remove it and try inserting it again. Reduce the
ribbon slack by turning the cartridge spool in the
direction of the arrow only if the ink ribbon cartridge
cannot be inserted due to slack in the ribbon.
• Do not rewind the ink ribbon cartridge for reuse in
printing. Printing will not be performed properly,
and it may cause a malfunction to occur.
• Do not try to replace the ink ribbon cartridge while
printing is in progress.
• Immediately after printing, the thermal head inside
the unit will be hot. When loading a cartridge, do not
insert your hand into the ink ribbon access opening,
to prevent the risk of burns.
18
Loading Paper Roll and Ink Ribbon
3
Close the side door.
Chapter 2 Preparations
Raise the eject paper stopper.

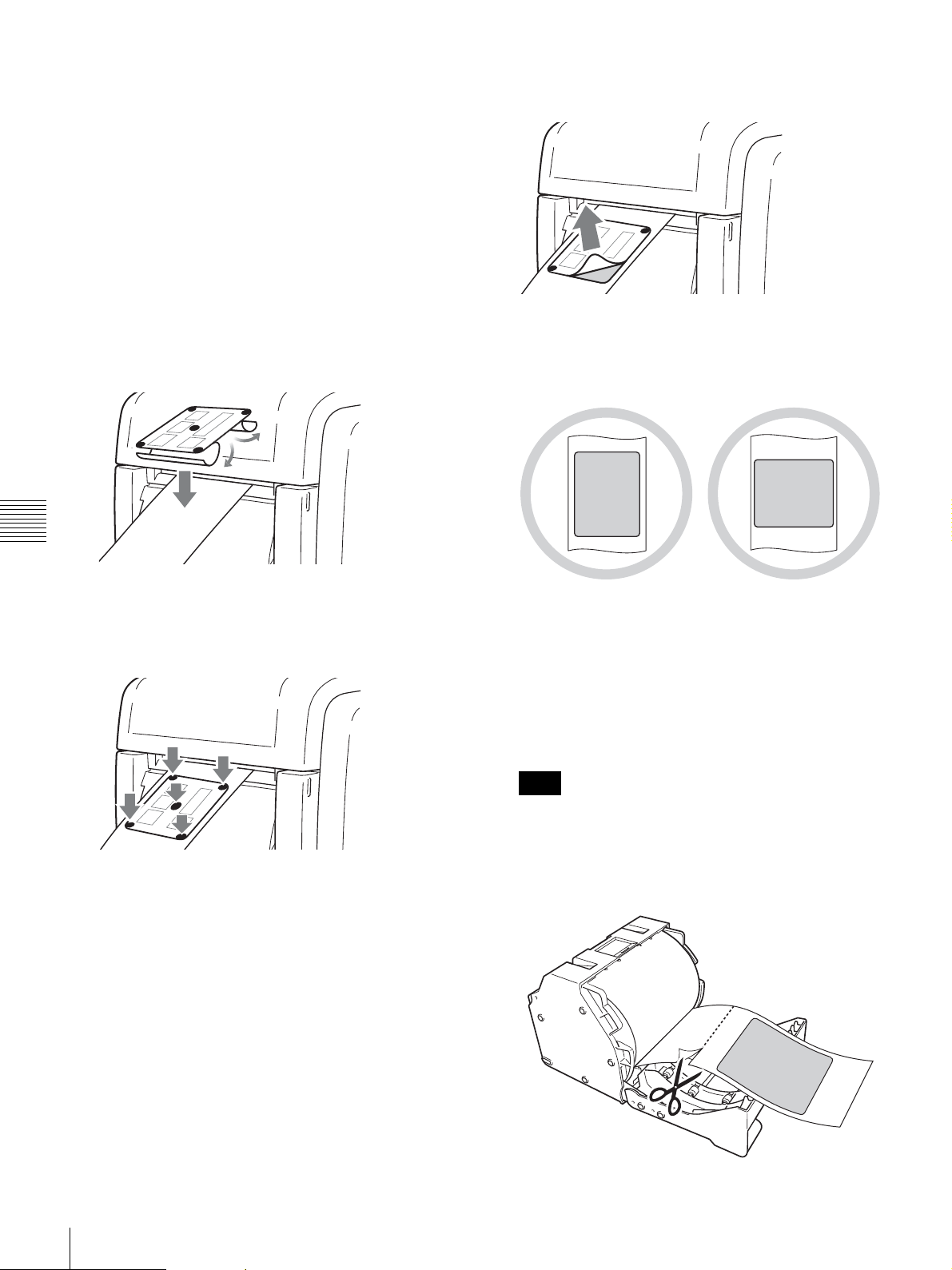

Attaching the Paper Tray
Attach the supplied paper tray.
About 50 sheets of printouts can be left on this paper tray.
However, the number of printouts which can be
accumulated on the paper tray changes according to the
environment condition where the printer is used or the
printed image. Remove the printed sheets accumulated on
the paper tray as soon as possible.
Note
Do not touch the printouts until they have been ejected
from the printer. If a printout gets stuck in the eject slot,
remove it from the slot immediately.
Checking the Ink Ribbon Remainder
You can turn on the POWER switch and check the
remainder of the ink ribbon in the Start Guide screen.
For details, see the section “Checking the Remaining Ink
Ribbon” on page 23.
Raise the paper eject stopper when printout size is small.
Loading Paper Roll and Ink Ribbon
19
Replacing the Paper Roll and Ink Ribbon
If the paper roll or ink ribbon runs out while printing, the
following error message appears. Proceed as follows to
replace the paper roll and ink ribbon.
Chapter 2 Preparations
2
Open the front door.
3
Press the paper holder release button and pull the paper
holder out.
Removing the paper roll and ink ribbon
Note
The ink ribbon and paper roll are not meant to be used
up completely. Even if there is some ink ribbon and
paper remaining, be sure to load a new ink ribbon and
paper roll as a set. Using leftover paper may result in
malfunction.
Removing the paper roll
1
Lift the paper tray so that it is level, and pull the paper
tray outward to remove it.
4
Remove any paper remnants from the paper holder.
Note
If the paper holder becomes full, the paper remnants
that are cut off may not eject from the printer. These
remnants may get stuck inside the printer and cause a
malfunction. Be sure to remove any remnants from the
paper holder each time you replace the paper roll.
20
Replacing the Paper Roll and Ink Ribbon
5
Press the latch on top of the paper holder and open the
holder.
6
Remove the paper roll.
Removing the ink ribbon
1
Open the side door.
2
Pull back the latch on the ink ribbon cartridge to
release the lock, and then grasp the ink ribbon
cartridge and remove it.
Chapter 2 Preparations
7
Pull out the paper core from the paper roll.
Note
You will need to reuse the paper core. Be careful
not to misplace it.
Memo
If the ink ribbon breaks, you can reconnect it with a
piece of tape and use the remaining ribbon.
Note
Immediately after printing, the thermal head inside the
unit will be hot. When removing a cartridge, do not
insert your hand into the ink ribbon access opening, to
prevent the risk of burns.
Replacing the Paper Roll and Ink Ribbon
21
Loading the Paper Roll and Ink Ribbon
For details on loading the paper roll and ink ribbon, see
“Loading the Paper Roll and Ink Ribbon” on page 15.
Startup and Shutdown
Startup
When you are finished loading the paper roll and ink
ribbon, touch the [OK] button in the error message screen.
The error message screen closes, and you can continue
operations.
Chapter 2 Preparations
If the Ink Ribbon Breaks during Use
The remaining ribbon can be used after repairing it with
adhesive tape.
1
Open the side door, and remove the ink ribbon
cartridge.
2
Pull the ribbon on the spool, attach one edge of a strip
of adhesive tape along the entire length of the ribbon’s
end, and then attach the other edge of the tape to the
ribbon on the other spool.
3
Remove any slack from the ribbon.
Note
Be sure to wind the taped portion completely so that
the tape is not exposed.
1
Verify that no memory card is inserted in any of the
front-side memory card slots of the unit. Then turn on
the POWER switch.
The unit starts up, and the start guide screen appears.
4
Hold the center of the ink ribbon cartridge, and load it
into the unit.
5
Close the side door.
Depending on the position of the ribbon break, a single
printout’s worth of ribbon may be lost.
For details on subsequent steps, see the section
“Operation” on page 53.
If the ink ribbon or paper roll is empty, the following
screen appears.
22
Startup and Shutdown
Shutdown
1
Complete any pending operations, and then bring up
the start guide screen.

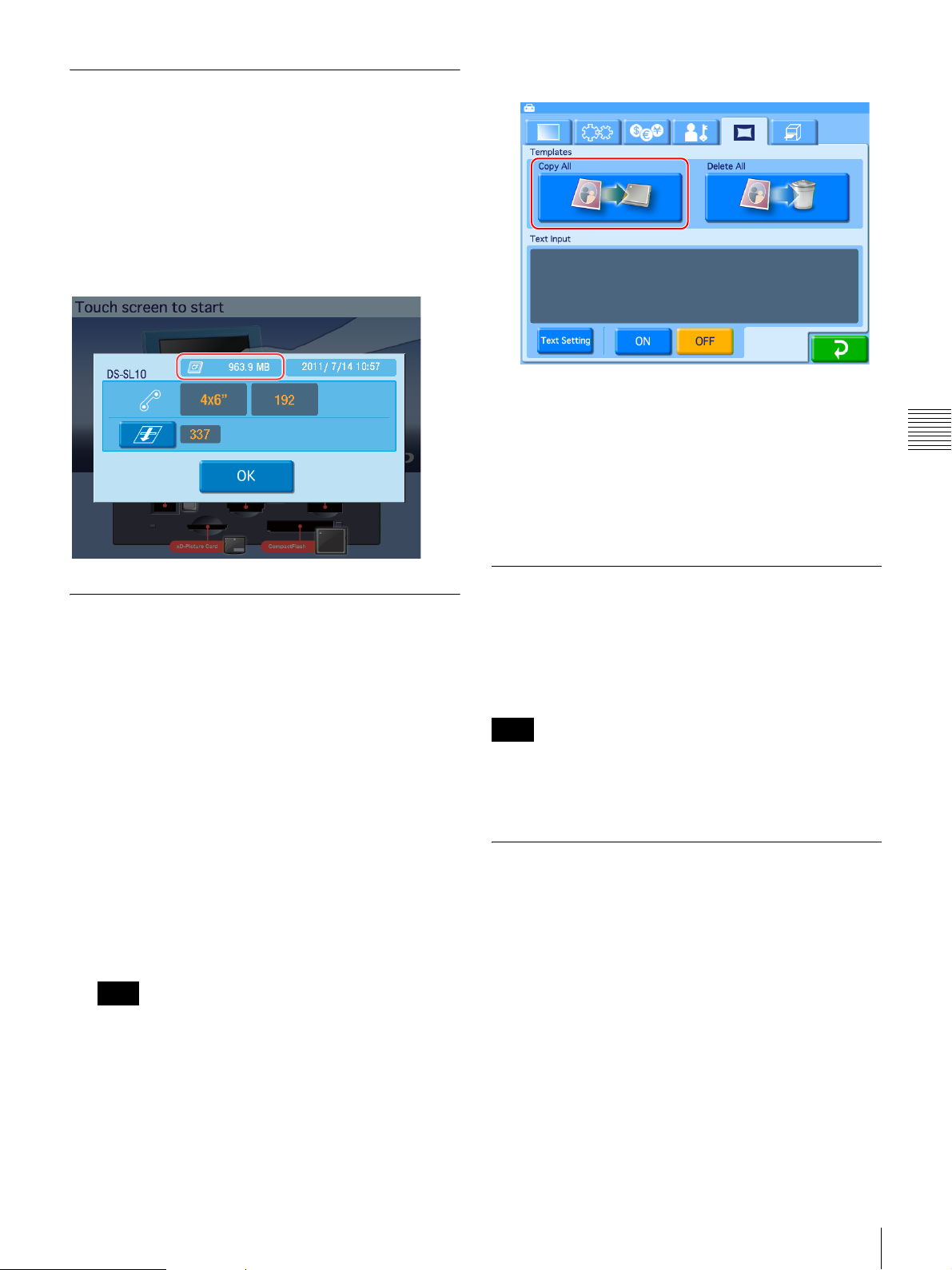

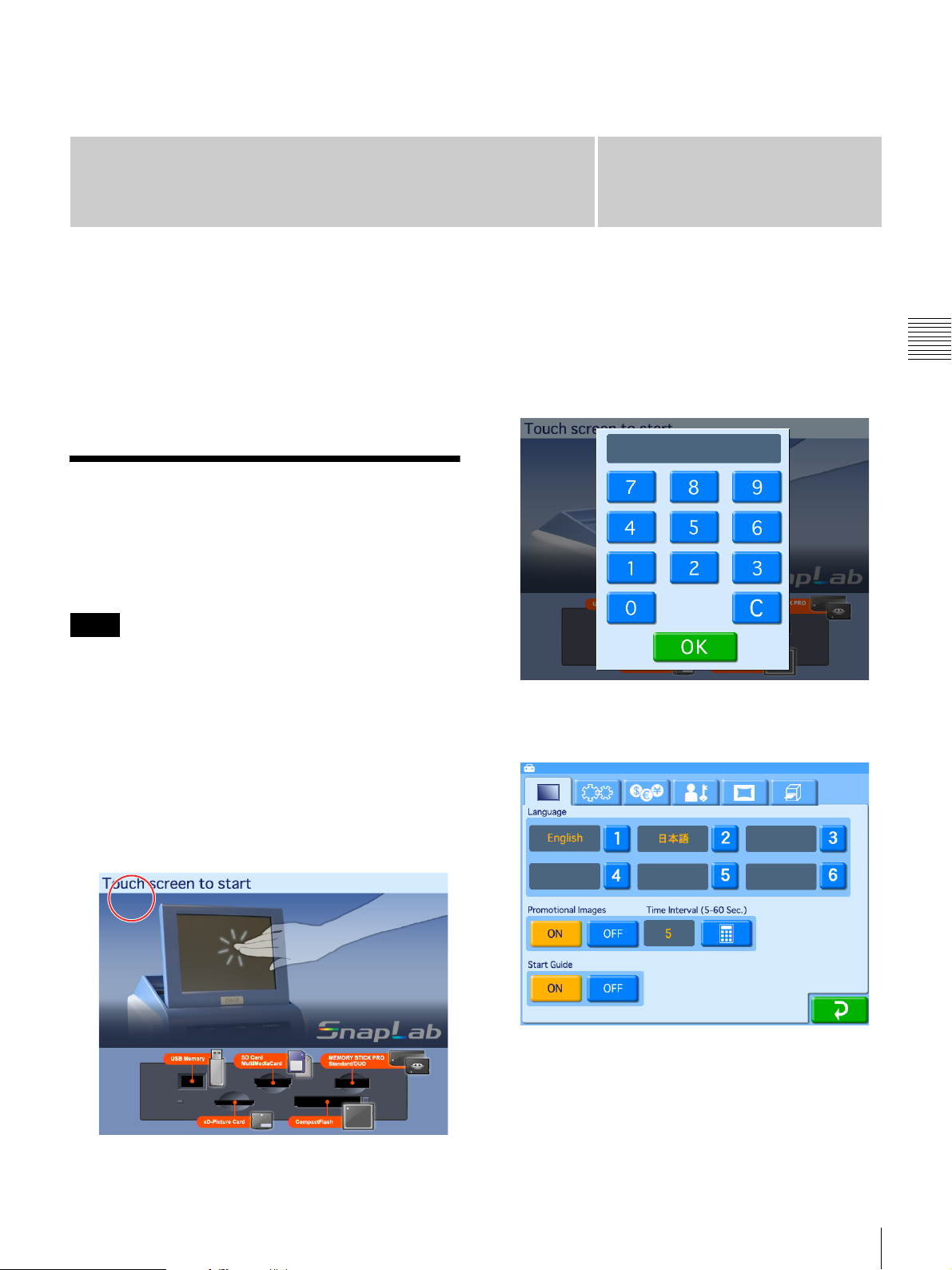

Checking the Remaining Ink Ribbon
You can check the amount of ink ribbon that remains from
the Start Guide screen.
1
Display the Start Guide screen.
2
Touch the top right corner of the Start Guide screen
twice in succession.
The confirmation screen for the remaining ink ribbon
appears.
Chapter 2 Preparations
2
Verify that no memory card is inserted in any of the
front-side memory card slots of the unit. Then turn off
the POWER switch.
Note
After turning off the unit, wait at least 5 seconds before
turning it on again.
Print Size
Displays the size selected for prints.
Ribbon Remain
Displays the remaining number of prints for the ink ribbon.
When the remaining number of prints reaches 0, replace
the ink ribbon and paper roll.
For details, see “Loading the Paper Roll and Ink Ribbon”
on page 15.
Startup and Shutdown
23
