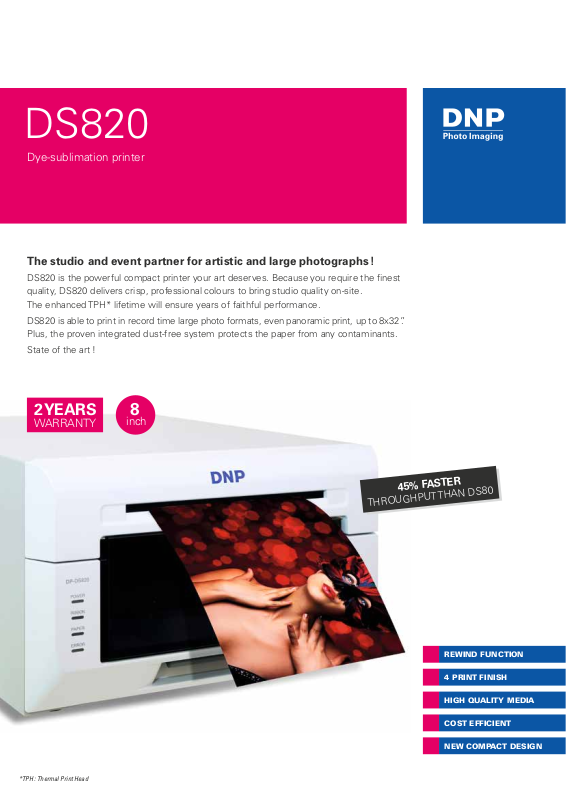

DS820

Dye-sublimation printer

The studio and event partner for artistic and large photographs !

DS820 is the powerful compact printer your art deserves. Because you require the finest
quality, DS820 delivers crisp, professional colours to bring studio quality on-site.
The enhanced TPH* lifetime will ensure years of faithful performance.

DS820 is able to print in record time large photo formats, even panoramic print, up to 8x32”.
Plus, the proven integrated dust-free system protects the paper from any contaminants.

State of the art !

2 YEARS

WARRANTY

8

inch

45% FASTER

THROUGHPUT THAN DS80

REWIND FUNCTION

4 PRINT FINISH

*TPH : Thermal Print Head

HIGH QUALITY MEDIA

COST EFFICIENT

NEW COMPACT DESIGN

MATTE

FINE MATTE

DS820

GET MORE PRODUCTIVE AND PROFITABLE

f New rewind function: optimise your prints and reduce waste for

both matte and glossy finish for normal density mode

f Easier use: reduce your stock references
f Eco energy: ≤ 0.5 W at standby mode

f Produce 2 print sizes from 1 media paper!

for optimal use

SIZE 1

SIZE 2

SIZE 2

ENJOY DURABLE PERFORMANCE

f Reliable technology proven on-site

f 2 years warranty

EXALT EMOTIONS BY HIGH QUALITY MEDIA

f Vibrant and crisp colors

PRINT AS MUCH SIZE AS YOU WANT

f 4 x 8” (10 x 20 cm)

f 5 x 8” (13 x 20 cm)

f 6 x 8” (15 x 20 cm)

f 8 x 10” (20 x 25)

f 8 x 12” (20 x 30 cm)

Exclusive sizes

f Large square size :

8 x 8” (20x 20 cm)

f Panoramic print with SDK

8 x 22” (20 x 55 cm) and 8 x 32” (20 x 80 cm)

f International standard :

(1)

:

f Smooth back coating to achieve

longer TPH

(3)

life

f 2 medias quality: “Digital” and

“Pure Premium Digital”

f High quality for studio with

Pure Premium Digital:

high density mode, higher glossiness,
black and white enhanced

A5 (15 x 21cm) and A4 (21 x 29,7cm) format

BENEFIT FROM FAST PRINTING

High speed mode
on Glossy finish

Pure
Premium
Digital

Print size

8 x 10” 29.3 sec
8 x 12” 33.9 sec
A4 33.2 sec

(2)

Consumables Prints/box

DS820_810 260
DS820_812 220
DS820_A4 220

BE CREATIVE WITH PARTIAL COATING

f With only one media, print

different finish coating on
selected areas of your design
with SDK

(1)

8 x 10” 33.7 sec

Digital

8 x 12” 39.2 sec
A4 38.4 sec

DS80

Faster throughput

DS820

+ 45%

Compatible with DNP’s range of software products: Hot Folder Print, Party Print and Tomo.

f 4 exclusive print finish

MATTE

GLOSSY

(1)

(2)

Actual printing speed varies depending on printing condition

Software Development Kit

FINE MATTE

LUSTER

SPECIFICATIONS

Print deck Simplex

Print technology

Gradations 256 (8-bit) for each color

Resolution (dpi)

Ribbon rewind function For Matte and Glossy

4 print finish Matte, Fine Matte, Glossy and Luster

Possible connectivity SL620, DST4 or WPS

Buffer memory 128MB

Interface USB 2.0

Approx. weight 14 kg

Footprint 0.12 m

Media loading Front loading

Power consumption (printing) AC 240V-100V, 50/60Hz 1.6A / 3.9 A

Power saving 0.5W or less at standby mode

Compatibilities PC / MAC

Specification is subject to change without prior notice.

DNP PHOTO IMAGING EUROPE

22, Avenue des Nations
Immeuble Raphaël
CS 51077 Villepinte
95948 ROISSY C.D.G. Cedex
FRANCE

Dye-Sublimation thermal transfer

3-color ribbon YMC + Overcoat

300x300 (high speed mode)

300x600 (high quality mode)

2

Tel : [phone]
Fax : [phone]

www.dnpphoto.eu

TECHNICAL DRAWING

Front

DS820

Side

322 mm

366 mm

170 mm
