DNP DS40, DS80 User manual

DS-40, DS-80 Printer Basics

Acknowledgements

ACKNOWLEDGEMENTS

The information contained in this document represents the current view of DNP Photo Imaging America Corp. on the issues discussed as of the date of
publication. Because DNP Photo Imaging America Corp. must respond to changing market conditions, it should not be interpreted to be a commitment on
the part of DNP Photo Imaging America Corp., and DNP Photo Imaging America Corp. cannot guarantee the accuracy of any information presented after
the date of publication.

This document is for informational purposes only. DNP Photo Imaging America Corp. MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, AS TO
THE INFORMATION IN THIS DOCUMENT.

Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be
reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording,
or otherwise), or for any purpose, without the express written permission of DNP Photo Imaging America Corp..

DNP Photo Imaging America Corp. may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject
matter in this document. Except as expressly provided in any written license agreement from DNP Photo Imaging America Corp., the furnishing of this
document does not give you any license to these patents, trademarks, copyrights, or other intellectual property.

ScanStation™, PrintMaster™, iStation™, PicViewer™, Photo Theater™, MyPhotoLab™, NexLab™, PixelWare™, LabServer™, One Touch Digital
Prints™ and One Touch Digital Printing™ are trademarks of DNP Photo Imaging America Corp.. The names of actual companies and products mentioned
herein may be the trademarks of their respective owners.

PrintRush™ is a trademark of Dai Nippon Printing Company LTD.

Dell® is a registered trademark of Dell Inc., pcAnywhere® is a registered trademark of Symantec Corporation, Kodak™ is a trademark of Eastman Kodak
Company, Epson Stylus® is a registered trademark of Seiko Epson Corporation, and Sony® is a registered trademark of Sony Electronics Corporation.
GO Software™, PC-Charge™, Win-Charge™ are trademarks of GO Software, Inc. IrDA® is a registered trademark of Infrared Data Association.
Bluetooth® is a registered trademark of the Bluetooth SIG, and Macromedia® and Flash® are registered trademarks of Macromedia, Inc. All other
trademarks are the property of their respective owners.

DNP Photo Imaging America Corp. • PO Box 767 • San Marcos, TX 78667 • USA

© 2000-2006 DNP Photo Imaging America Corp.. All rights reserved.

DNP Photo Imaging America Corp. 2

Acknowledgements

3 DNP Photo Imaging America Corp.

CONTENTS

Acknowledgements

1. Printer Basics

General Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2. Installing media

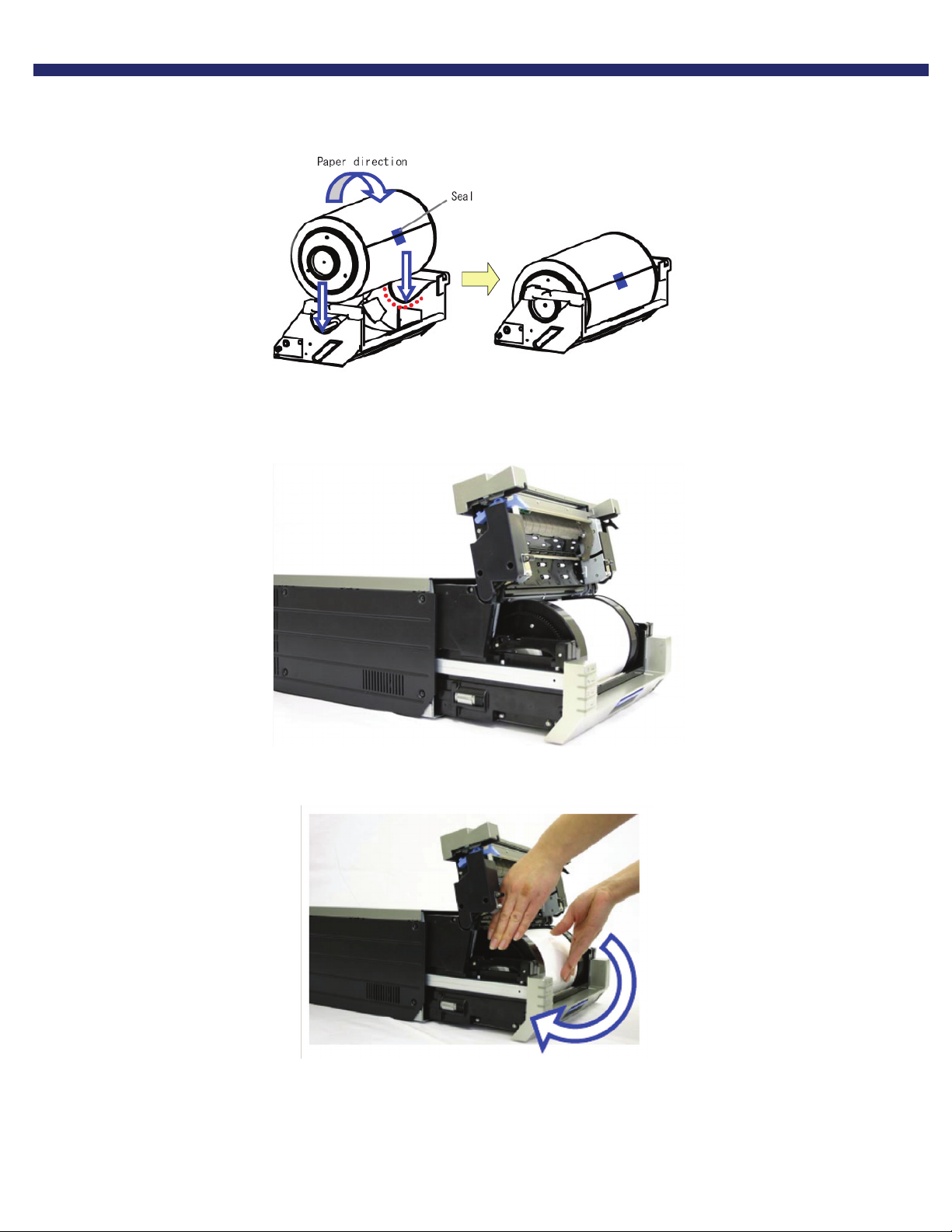

Installing the paper cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

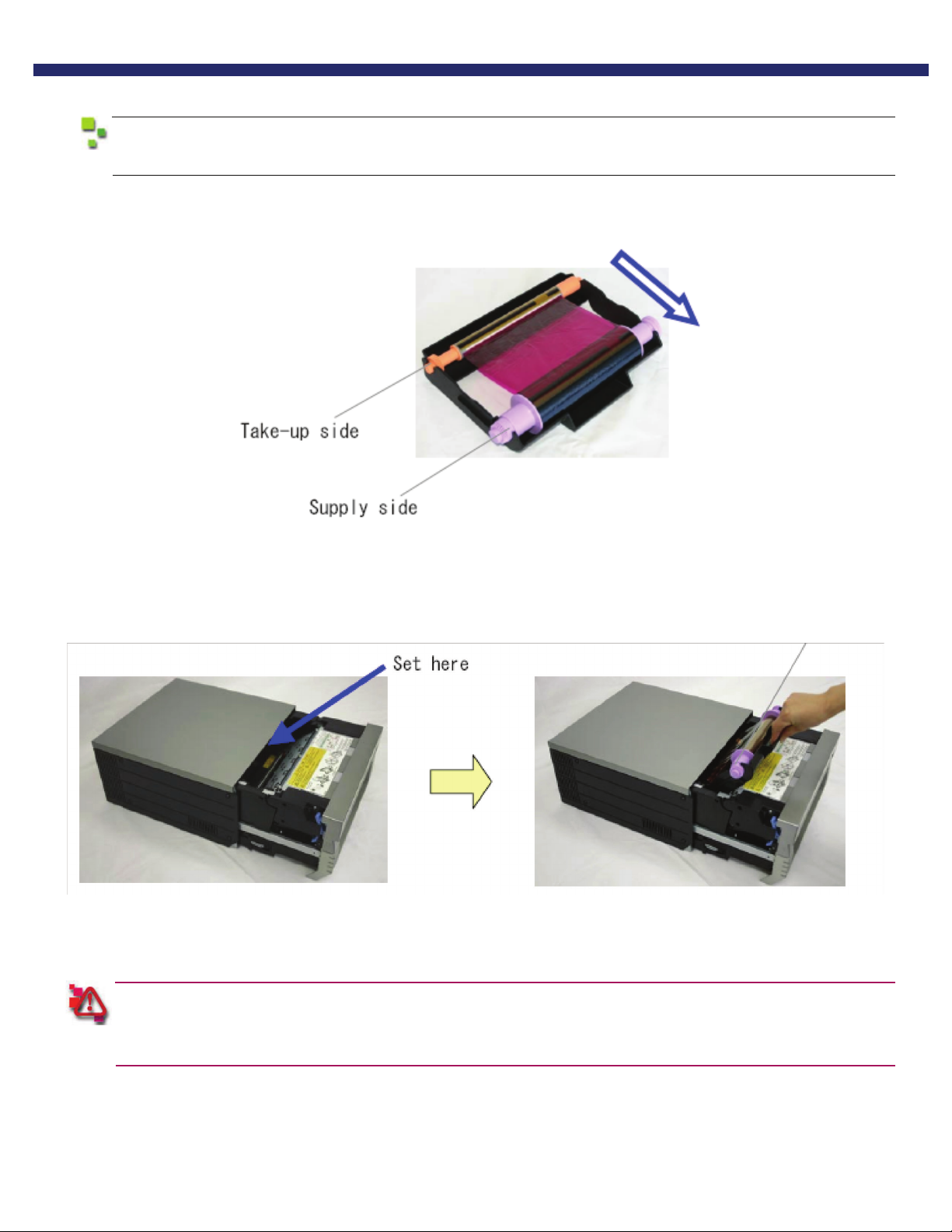

Installing the ribbon cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Maintaining the Printers

Emptying the Scrap Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Cleaning the Ventilation Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Cleaning the Thermal Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cleaning the Platen Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4. Troubleshooting

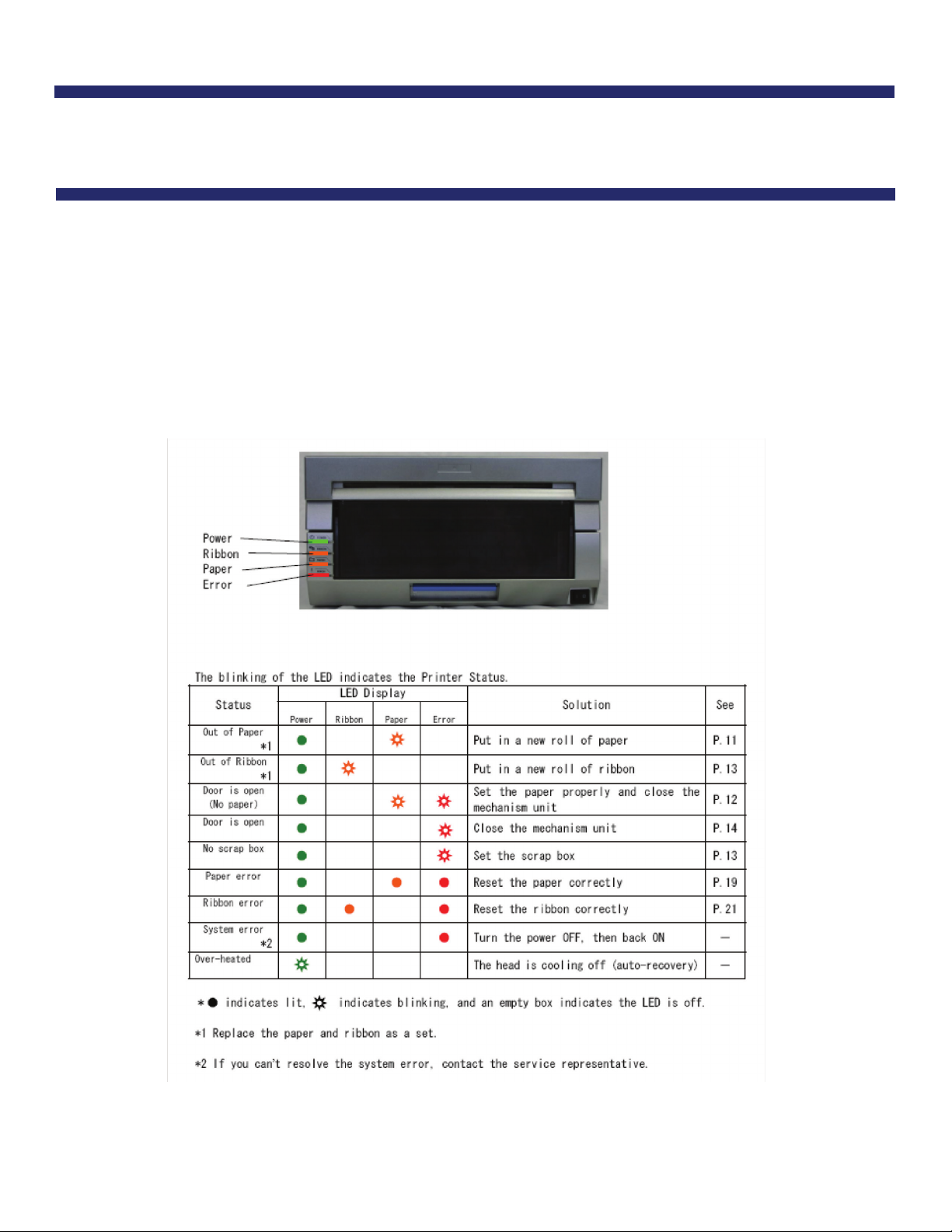

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Resolving Media Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

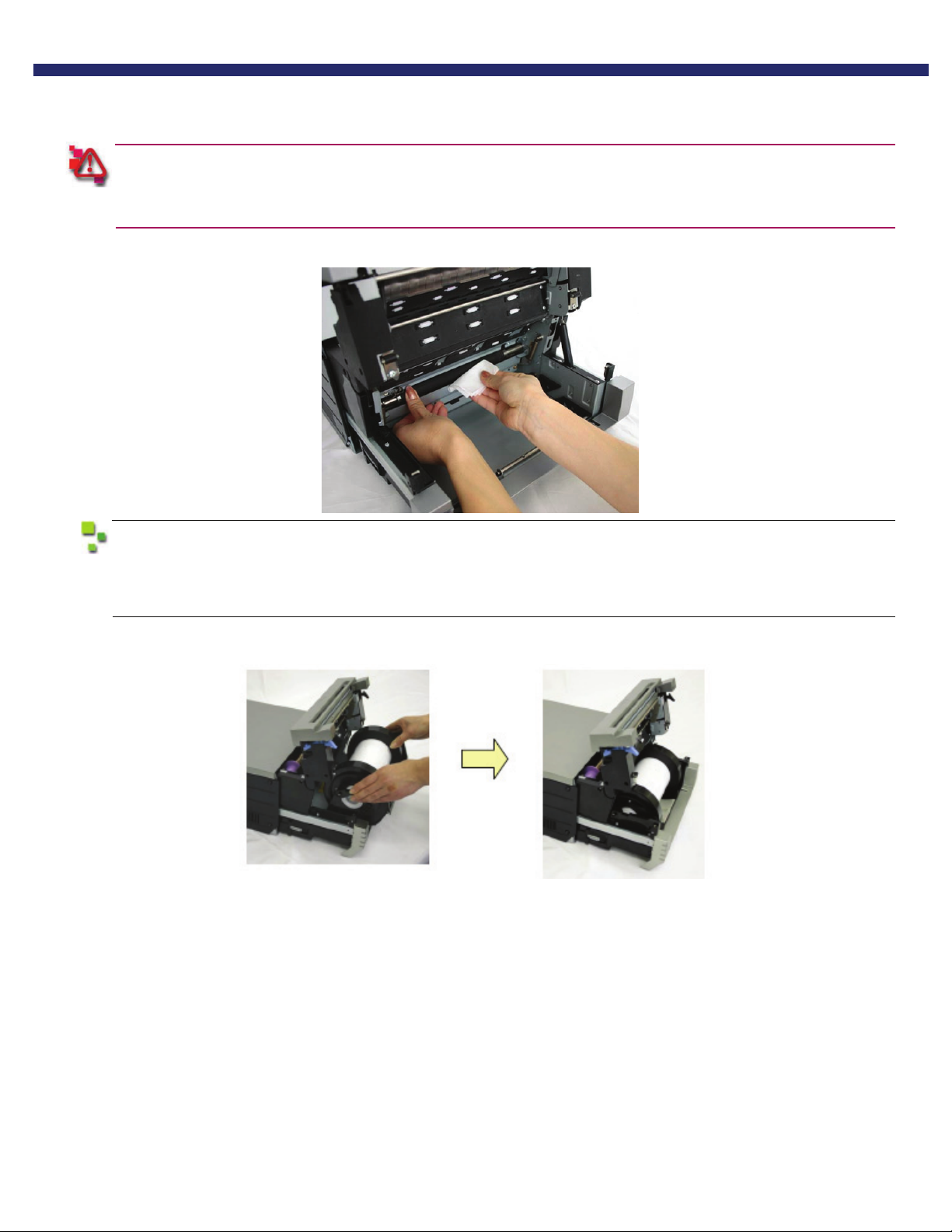

If there is a Paper Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

If the Ribbon is Torn or Has Been Pulled Into the Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

If the Printer is Stopped Mid-action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

If the Power is Cut Mid Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DNP Photo Imaging America Corp. 1

Table of Contents

2 DNP Photo Imaging America Corp.

1

PRINTER BASICS

This chapter provides you with basic information on how to maintain and troubleshoot your printer.

GENERAL MAINTENANCE

Part of the normal maintenance cycle for printers includes removing dust buildup fro the printer vents. This is done to free
ventilation holes from dust and foreign matter and to imporve printer longevity. the following instructions are writen in a
generic fashion to include all printers for the systems:

1. Power OFF the system at the main power source.

2. Using a small hand vacuum with a non-metallic extension and nozzle, vacuum all of the printers ventilation ports.

3. Vacuum the base of the system and external ventilation ports.

4. Power ON the system and remaining components.

You have now performed basic maintenance on the printer.

DNP Photo Imaging America Corp. 1

DS-40 and DS-80 Printers Printer Basics

Attention

Note

DS-40 AND DS-80 PRINTERS

Distinguishing Your DS-40 and DS-80 Printer Model

The DS series are versatile photo printers for use in photo labs by professional photographers, or in other commercial
situations which demand high speed and exceptional quality. Other information on the printers can be found in the printer’s
field service manual or your system’s documentation suite.

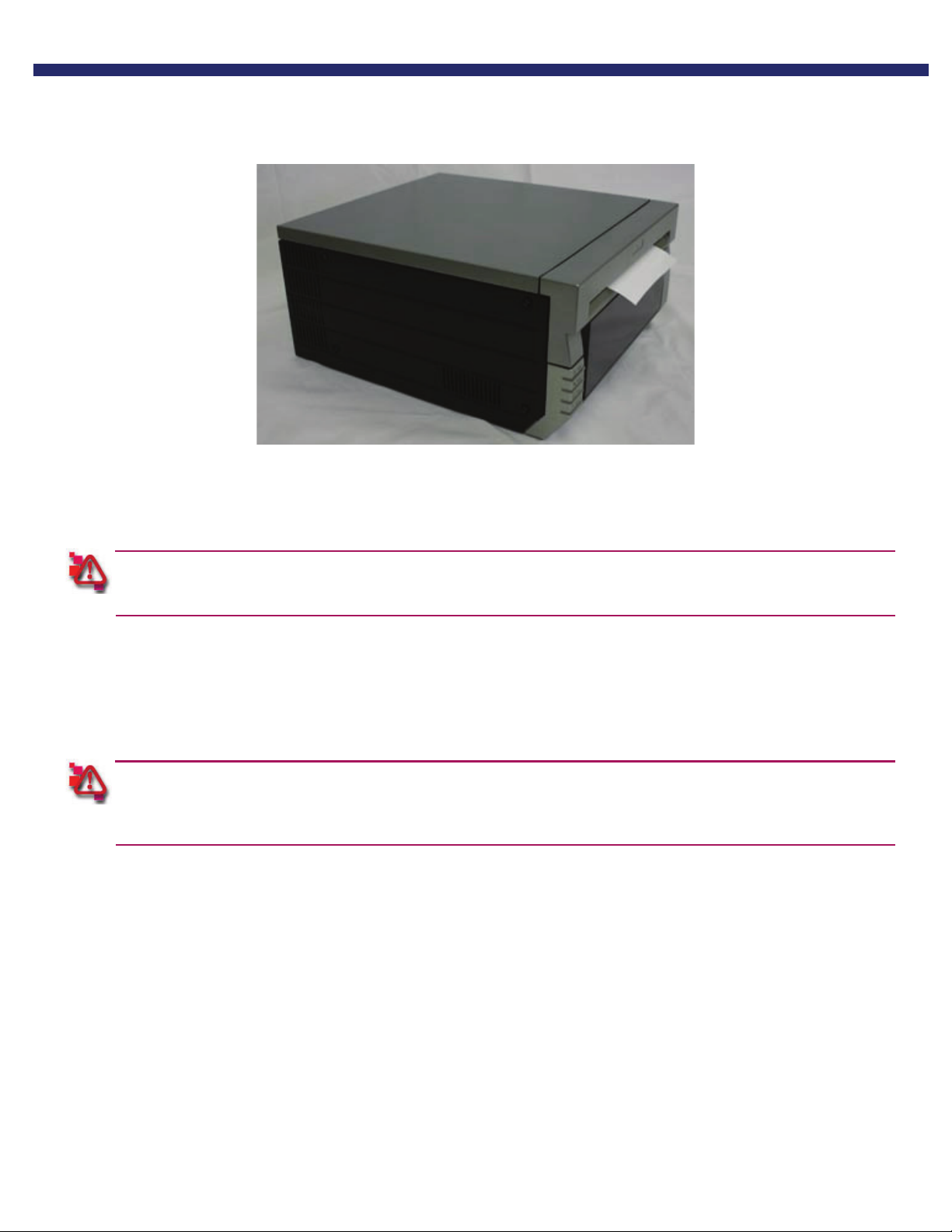

Figure 1. The DS-40 or DS-80 printer

prior to moving the printer, the ink ribbon cassette and paper roll should be removed from the printer. Always
take care when lifting the printer so as not to cause physical injury.
When reinstalling, check that the ribbon and paper are properly positioned before resuming printing. If either is
positioned incorrectly, paper jams, print position errors, or other unexpected problems can occur.

The DS-40 and DS-80 printers are quite similar. The instructions written for one will work for the other. The main difference
is in paper size; DS-40 printers print 4x6 size prints, and DS-80 printers print 8x10 size prints.

If your printer is configured for use in a tower system, the printer will have small rubber feet. These
feet are essential to aligning the output for the printer with the tower conveyor system and keeping
the printer from moving inside the unit. Do not remove the feet.

2 DNP Photo Imaging America Corp.
