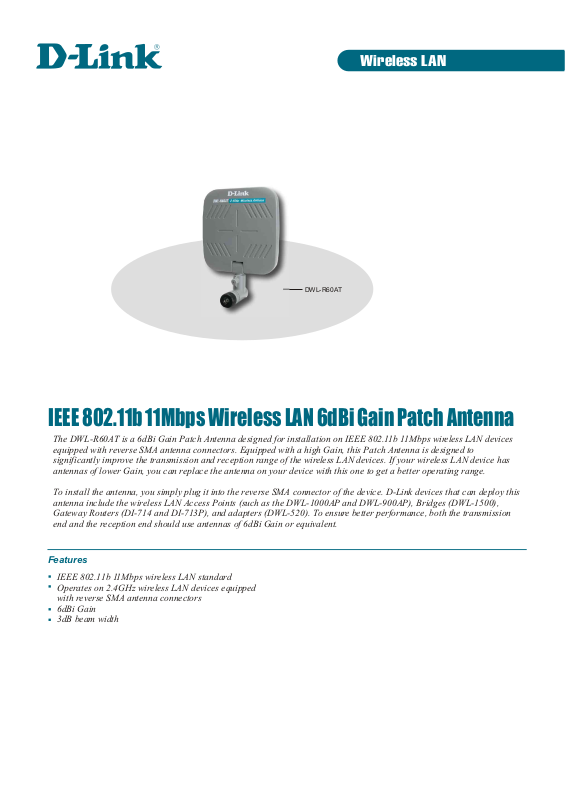

DWL-R60AT
Wireless LAN
IEEE 802.11b 11Mbps Wireless LAN 6dBi Gain Patch Antenna
The DWL-R60AT is a 6dBi Gain Patch Antenna designed for installation on IEEE 802.11b 11Mbps wireless LAN devices
equipped with reverse SMA antenna connectors. Equipped with a high Gain, this Patch Antenna is designed to
significantly improve the transmission and reception range of the wireless LAN devices. If your wireless LAN device has
antennas of lower Gain, you can replace the antenna on your device with this one to get a better operating range.
To install the antenna, you simply plug it into the reverse SMA connector of the device. D-Link devices that can deploy this
antenna include the wireless LAN Access Points (such as the DWL-1000AP and DWL-900AP), Bridges (DWL-1500),
Gateway Routers (DI-714 and DI-713P), and adapters (DWL-520). To ensure better performance, both the transmission
end and the reception end should use antennas of 6dBi Gain or equivalent.
Features
IEEE 802.11b 11Mbps wireless LAN standard
Operates on 2.4GHz wireless LAN devices equipped
with reverse SMA antenna connectors
6dBi Gain
3dB beam width
![](/html/60/60e1/60e16aefcaeaf59429a595fccf75a774e570a751929d1313b6689d11ff2bcb5a/bg2.png)
DWL-R60AT
Technical Specifications
Standard
IEEE 802.11b Wireless LAN
Operating Frequency
2400 2500 Mhz
Antenna Type
Micro-strip Patch
VSWR
2.0:1 Max.
Antenna Gain
6.0dBi Typical
Polarization Type
Linear
Cross-Polarization Level
18 dB Min.
Patch Antenna
Front-to-Back gain Ratio
13 dB Min.
3 dB Beam Width
- 70 @H-plane
- 85 @H-plane
Antenna Dimension
80 x 85 x 12.8 mm
Elevation Adjustment Range
0 180
Azimuth Adjustment Range
0 360
Antenna Connector Type
Ordering Information
IEEE 802.11b 11Mbps Wireless LAN Antenna
DWL-R60AT 6dBi Gain Patch Antenna
Specifications subject to change
without prior notice.
D-Link is a registered trademark
of D-Link Corporation/D-Link
System Inc. All other trademarks
belong to their proprietors.
RECYCLABLE
Rev. 01 (Apr. 2002)
Printed in Taiwan
