DWL-G650M User’s Manual
Networking Basics
Using the Network Setup Wizard in Windows XP
In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com and http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000,/Me/98SE. Go to Start>Control Panel>Network Connections Select Set up a home or small office network
Networking Basics
When this screen appears, click Next.
D-Link Systems, Inc.
21
DWL-G650M User’s Manual
Please follow all the instructions in this window:
Networking Basics
Click Next
In the following window, select the best description of your computer. If your computer connects to the Internet through a router, select the second option as shown.
.
Click Next.
D-Link Systems, Inc.
22
DWL-G650M User’s Manual
Enter a Computer description and a Computer name (optional.)
Networking Basics
Click Next.
Enter a Workgroup name. All computers on your network should have same Workgroup name.
the
Click Next.
D-Link Systems, Inc.
23
DWL-G650M User’s Manual
Please wait while the Network Setup Wizard applies the changes.
Networking Basics
When the changes are complete, click Next.
Please wait while the Network Setup Wizard configures the computer. This may take a few minutes.
D-Link Systems, Inc.
24
DWL-G650M User’s Manual
In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next
Networking Basics
.
Insert a disk into the Floppy Disk Drive, in this case drive
A.
Click Next
D-Link Systems, Inc.
.
25
DWL-G650M User’s Manual
Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. Click Next.
Networking Basics
D-Link Systems, Inc.
26
DWL-G650M User’s Manual

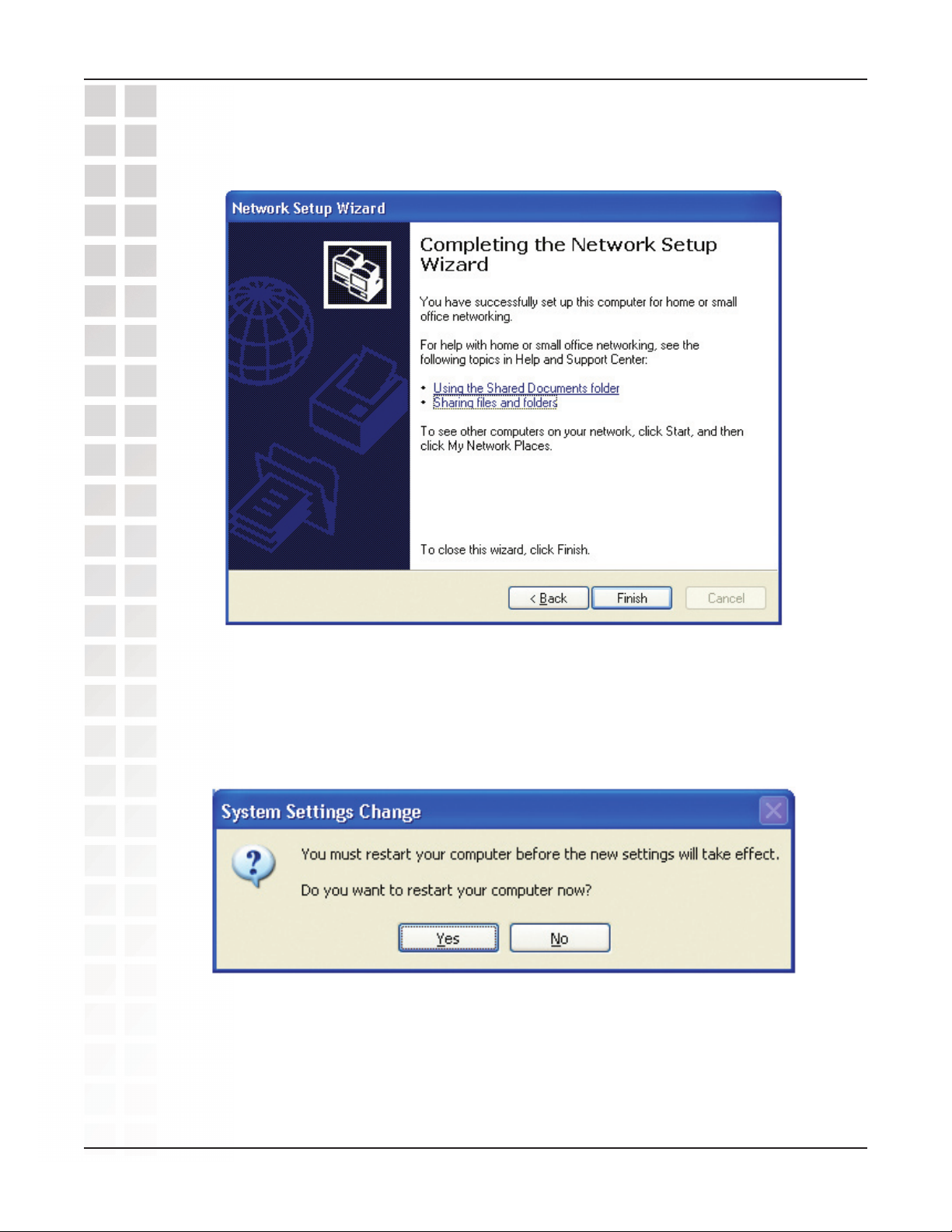

Please read the information on this screen, then click Finish to complete the Network Setup Wizard.
Networking Basics
The new settings will take effect when you restart the computer. Click Yes to restart the computer.
You have completed configuring this computer. Next, you will need to run the Network
Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use.
D-Link Systems, Inc.
27
DWL-G650M User’s Manual
Please read the information on this screen, then click Finish to complete the Network Setup Wizard.
Networking Basics
The new settings will take effect when you restart the computer. Click Yes to restart the computer.
You have completed configuring this computer. Next, you will need to run the Network
Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use.
D-Link Systems, Inc.
28
DWL-G650M User’s Manual
Naming your Computer
To name your computer using Windows XP, please follow these directions:
Click Start (in the lower left corner of the screen).
Networking Basics
Right-click
Select Properties.
on My Computer.
Select the Computer Name Tab in the System Properties window.
You may enter a Computer Description if you wish; this field is
To rename the computer and join a domain, click Change
.
D-Link Systems, Inc.
29
DWL-G650M User’s Manual
Naming Your Computer

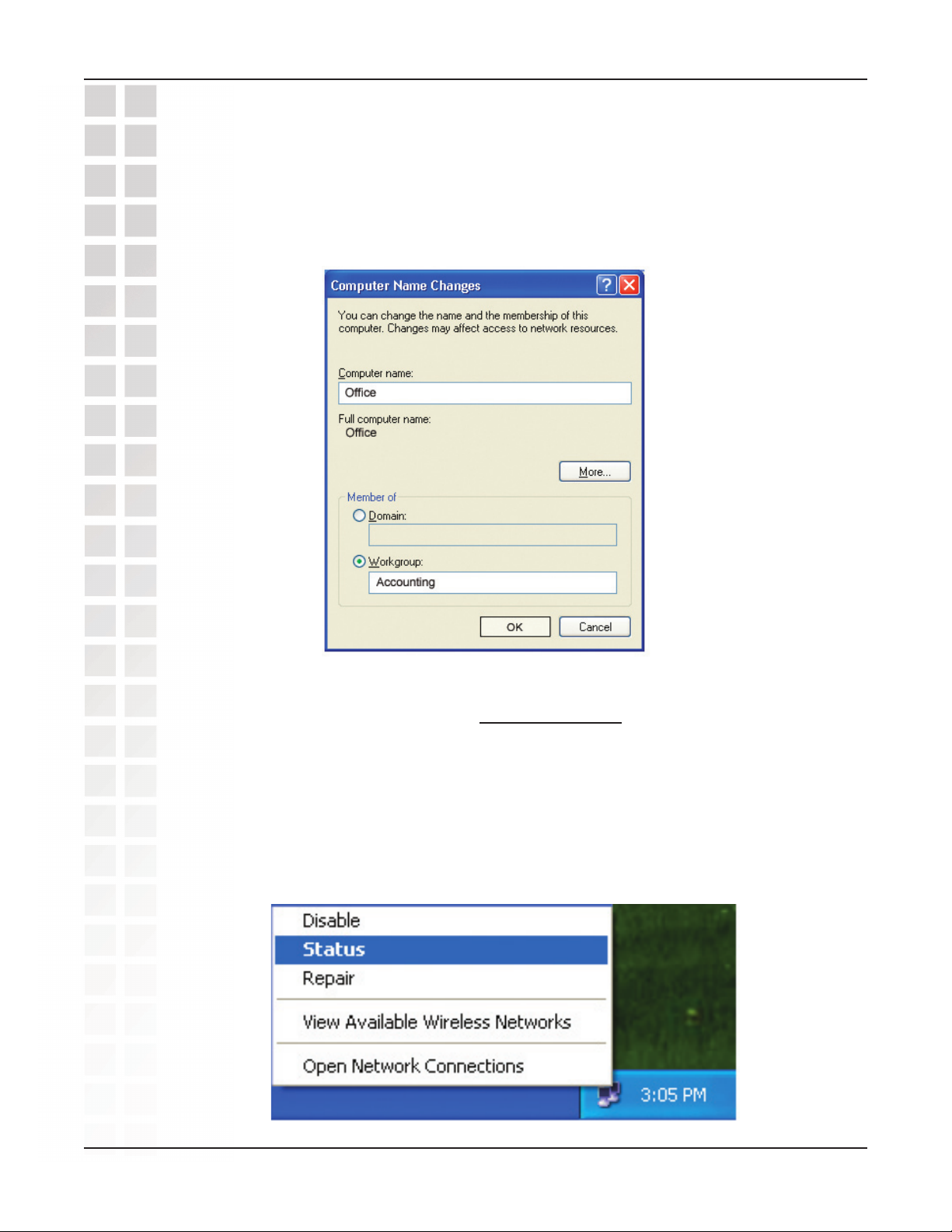

In this window, enter the Computer name.
Select Workgroup and enter the name of the Workgroup.
All computers on your network must have the same Workgroup name.
Click OK.
Networking Basics
Checking the IP Address in Windows XP
All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the following:
Right-click
Click on Status.
D-Link Systems, Inc.
on the Local Area Connection icon in the task bar.
30
