DSL-522T
ADSL Router
User Guide
May 2006
ESL522TEU.A1G
Table Of Contents
BEFORE YOU START ...................................................................................................... IV
Installation Overview.......................................................................................................................................iv
Setup Wizard ....................................................................................................................................................iv
Packing List......................................................................................................................................................iv
Installation Notes..............................................................................................................................................v
Installing the USB Driver ...............................................................................................................................vii
INTRODUCTION .................................................................................................................1
Router Description and Operation..................................................................................................................1
Router Features ................................................................................................................................................2
Front Panel Display ..........................................................................................................................................3
Rear Panel Connections ..................................................................................................................................4
HARDWARE INSTALLATION ............................................................................................5
Power on Router ...............................................................................................................................................5
Factory Reset Button .......................................................................................................................................5
Network Connections.......................................................................................................................................6
BASIC ROUTER CONFIGURATION ..................................................................................7
Computer IP Settings......................................................................................................................................7
Access the Configuration Manager ................................................................................................................8
Login to Home Page .......................................................................................................................................8
Configure the Router........................................................................................................................................9
Wizard ............................................................................................................................................................. 10
WAN ................................................................................................................................................................ 18
Bridge Mode................................................................................................................................................. 18
Dynamic IP Address..................................................................................................................................... 20
Static IP Address.......................................................................................................................................... 23
PPPoE/PPPoA ............................................................................................................................................. 26
LAN.................................................................................................................................................................. 31
DHCP............................................................................................................................................................... 32
DNS ................................................................................................................................................................. 36
Dynamic DNS ................................................................................................................................................. 37
Save Settings and Reboot ............................................................................................................................ 38
Multiple Virtual Connections ........................................................................................................................ 39
ADVANCED ROUTER MANAGEMENT ...........................................................................41
UPnP............................................................................................................................................................ 42
Virtual Server ............................................................................................................................................... 43

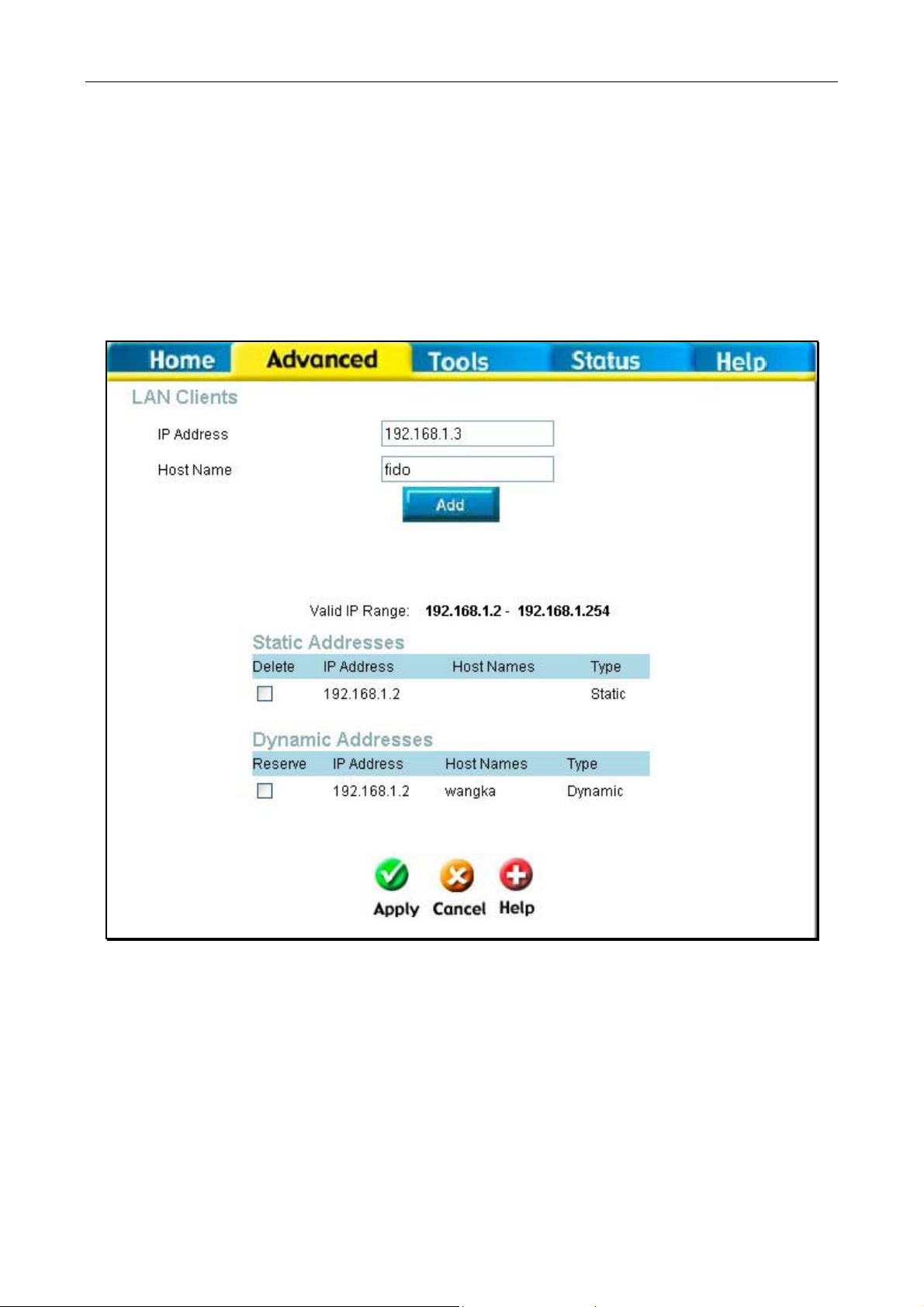

LAN Clients .................................................................................................................................................. 46
SNMP........................................................................................................................................................... 47
Filters ........................................................................................................................................................... 48
Bridge Filters ................................................................................................................................................ 50
Static Routing............................................................................................................................................... 51
DMZ ............................................................................................................................................................. 52
Firewall......................................................................................................................................................... 53
RIP ............................................................................................................................................................... 54
PPP .............................................................................................................................................................. 55

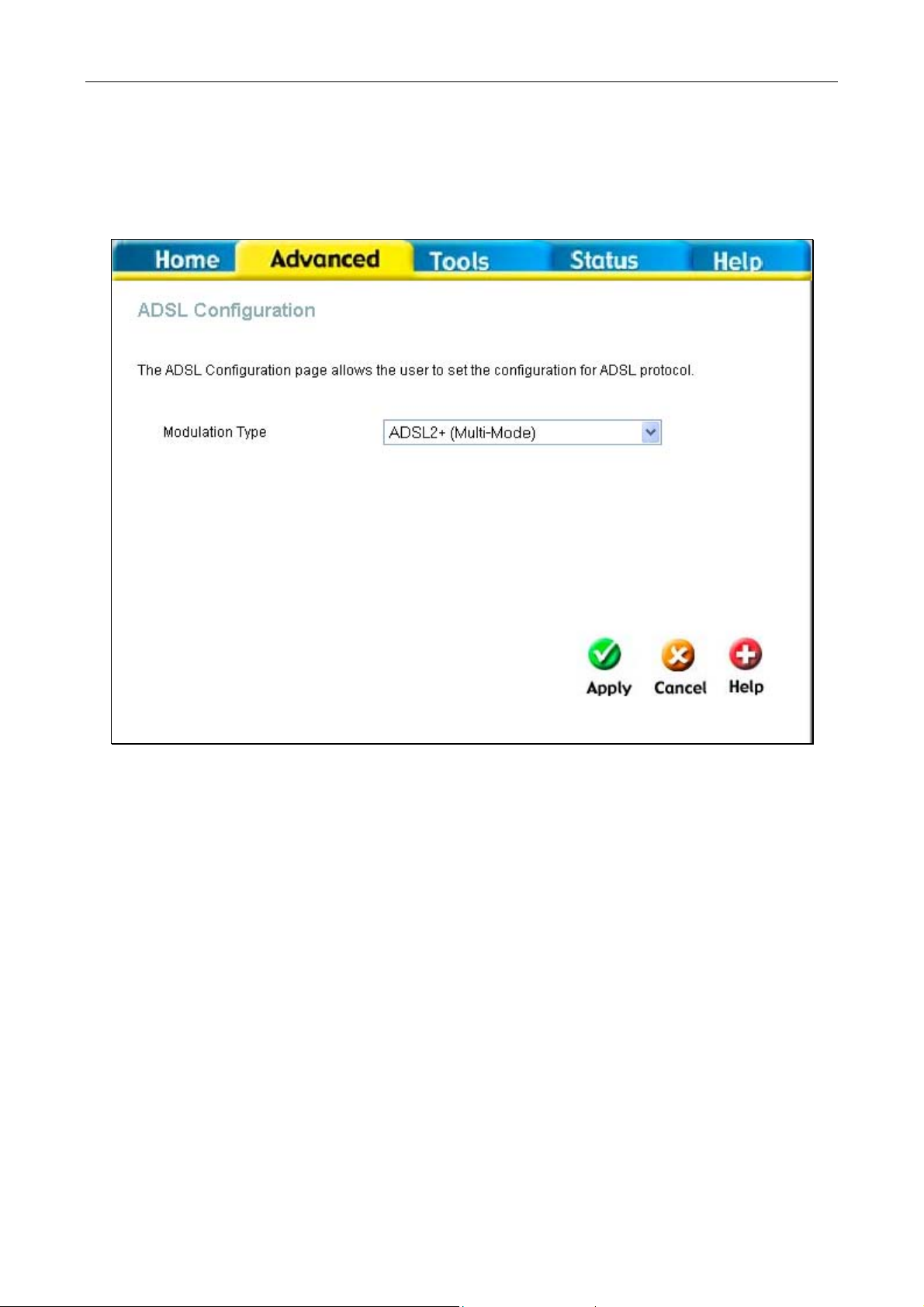

ADSL............................................................................................................................................................ 56

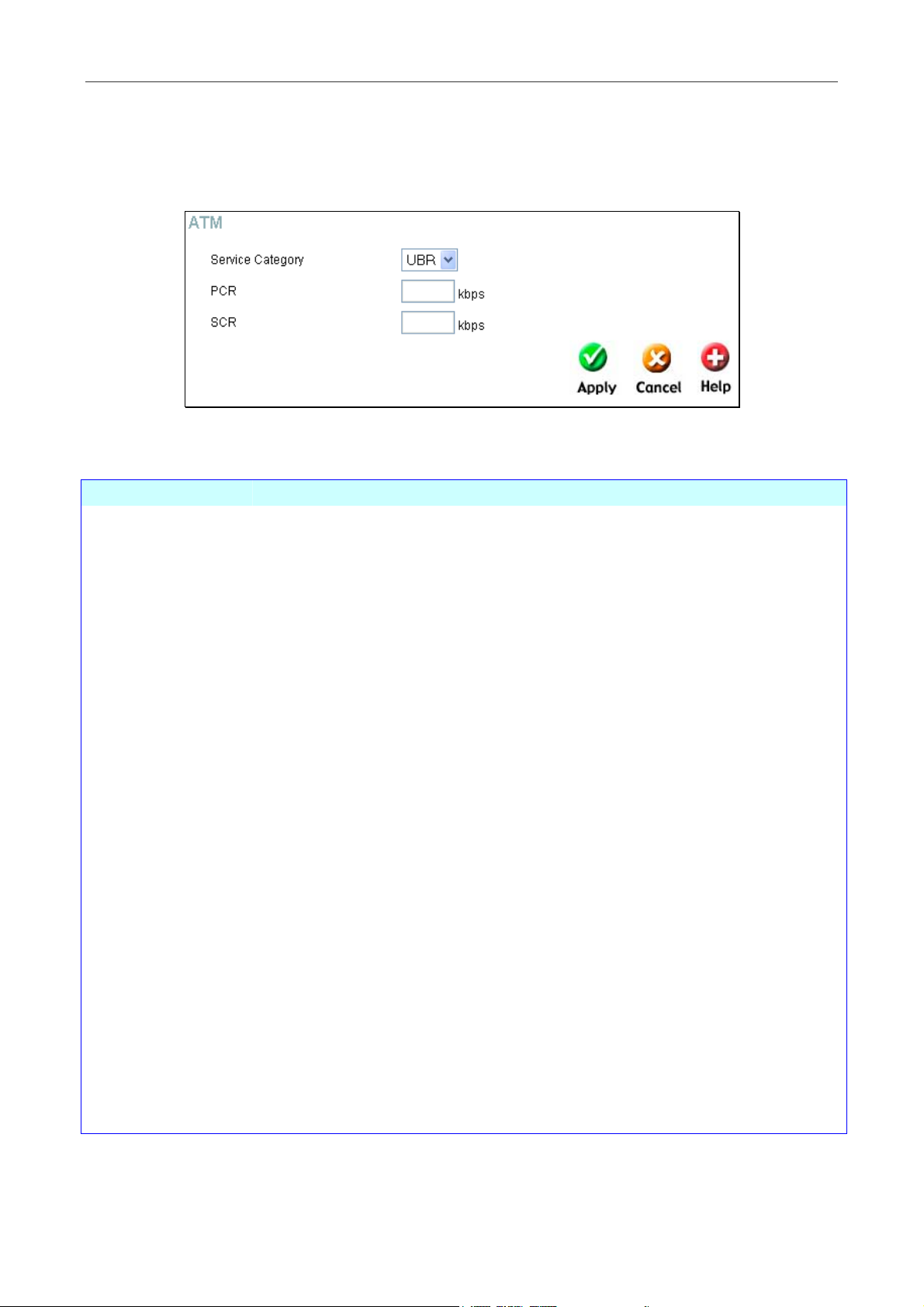

ATM VCC ..................................................................................................................................................... 57
TOOLS ..............................................................................................................................58

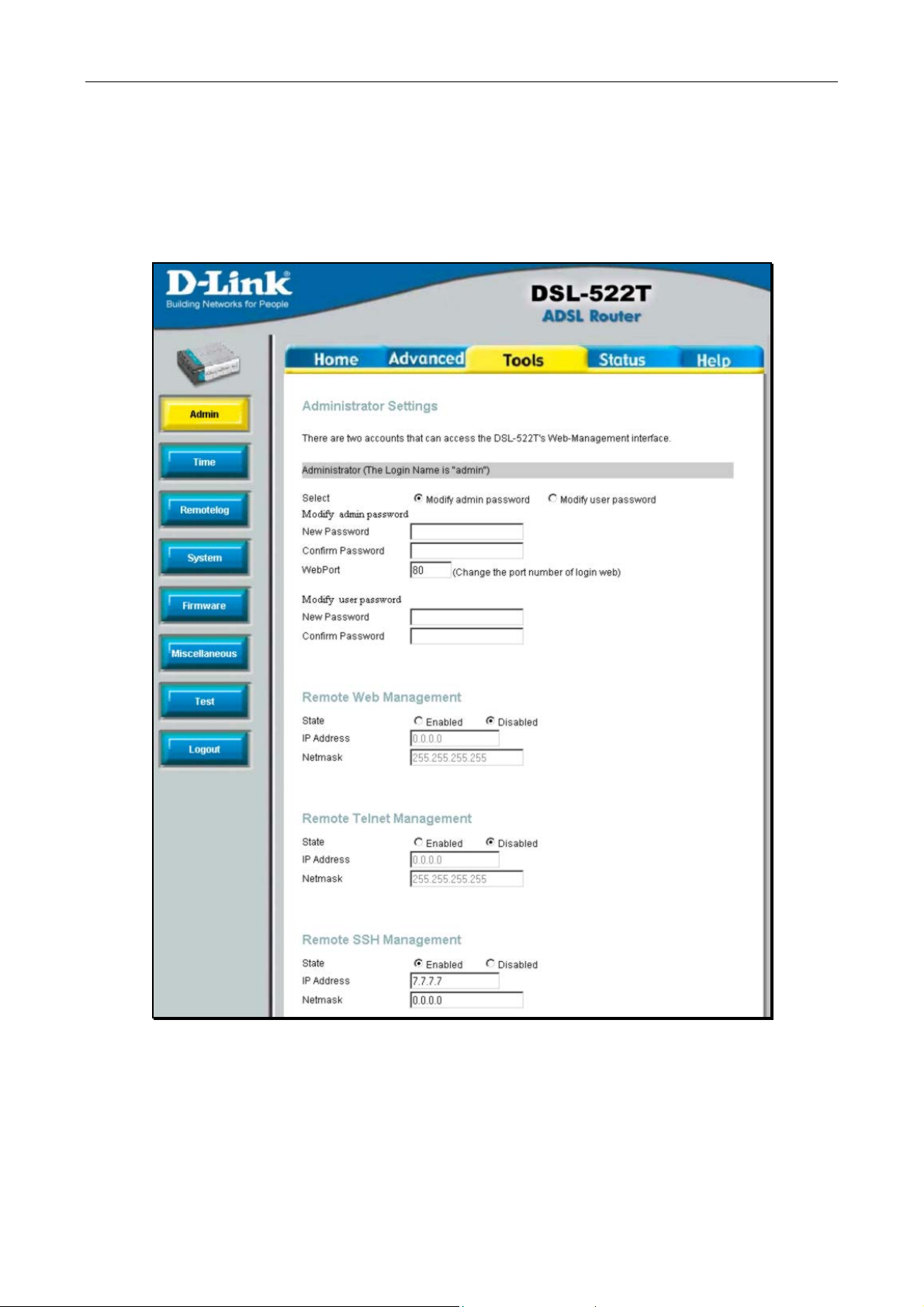

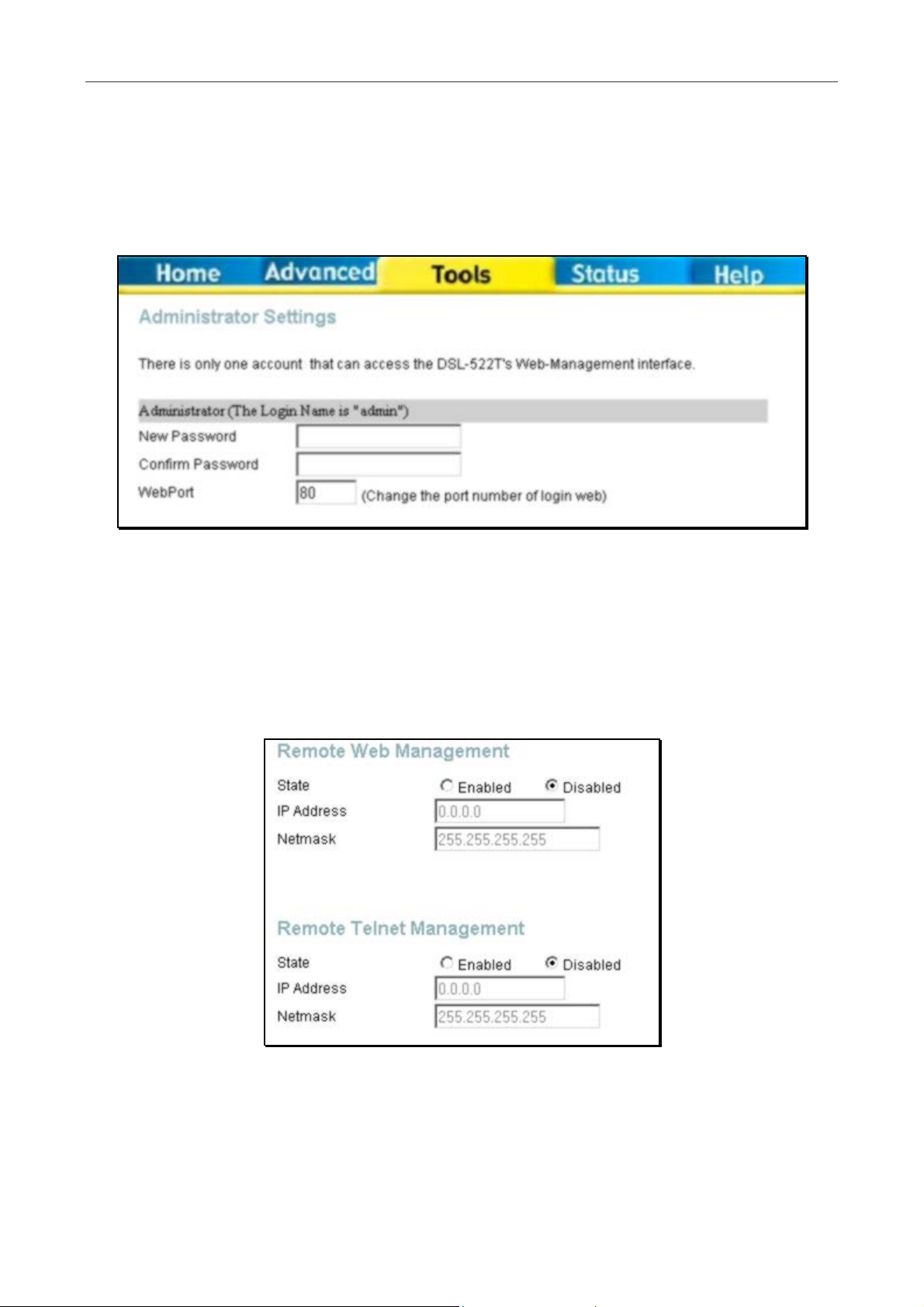

Change System Password............................................................................................................................ 59
Remote Web Management and Remote Telnet Access.............................................................................. 59
Time................................................................................................................................................................. 60
Remote Log.................................................................................................................................................. 61

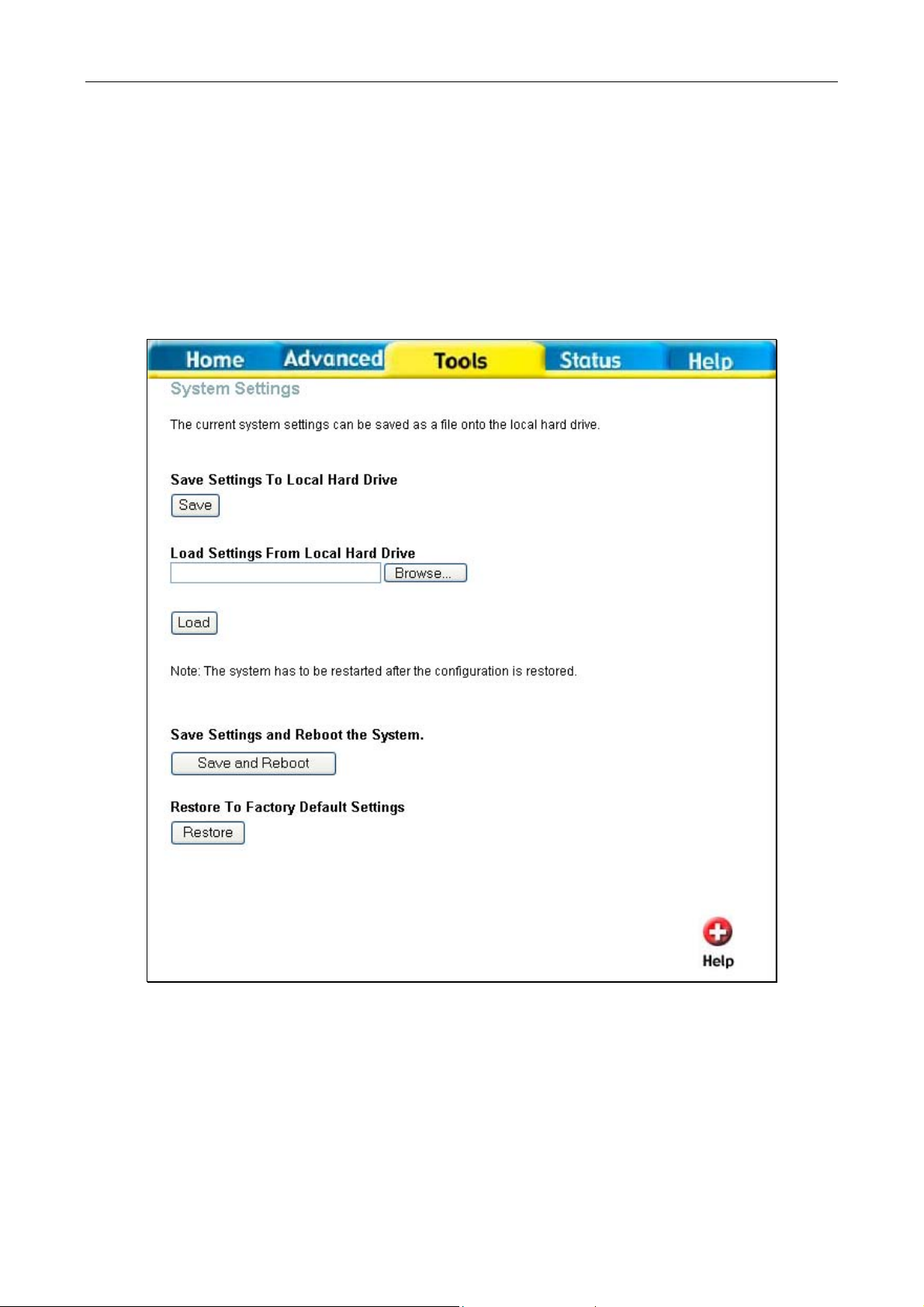

Save or Load Configuration File .................................................................................................................. 62
Restore Factory Default Settings................................................................................................................. 62
Firmware Upgrade ......................................................................................................................................... 63
Miscellaneous Configuration........................................................................................................................ 64
Ping Test ...................................................................................................................................................... 64
IGMP Proxy.................................................................................................................................................. 64

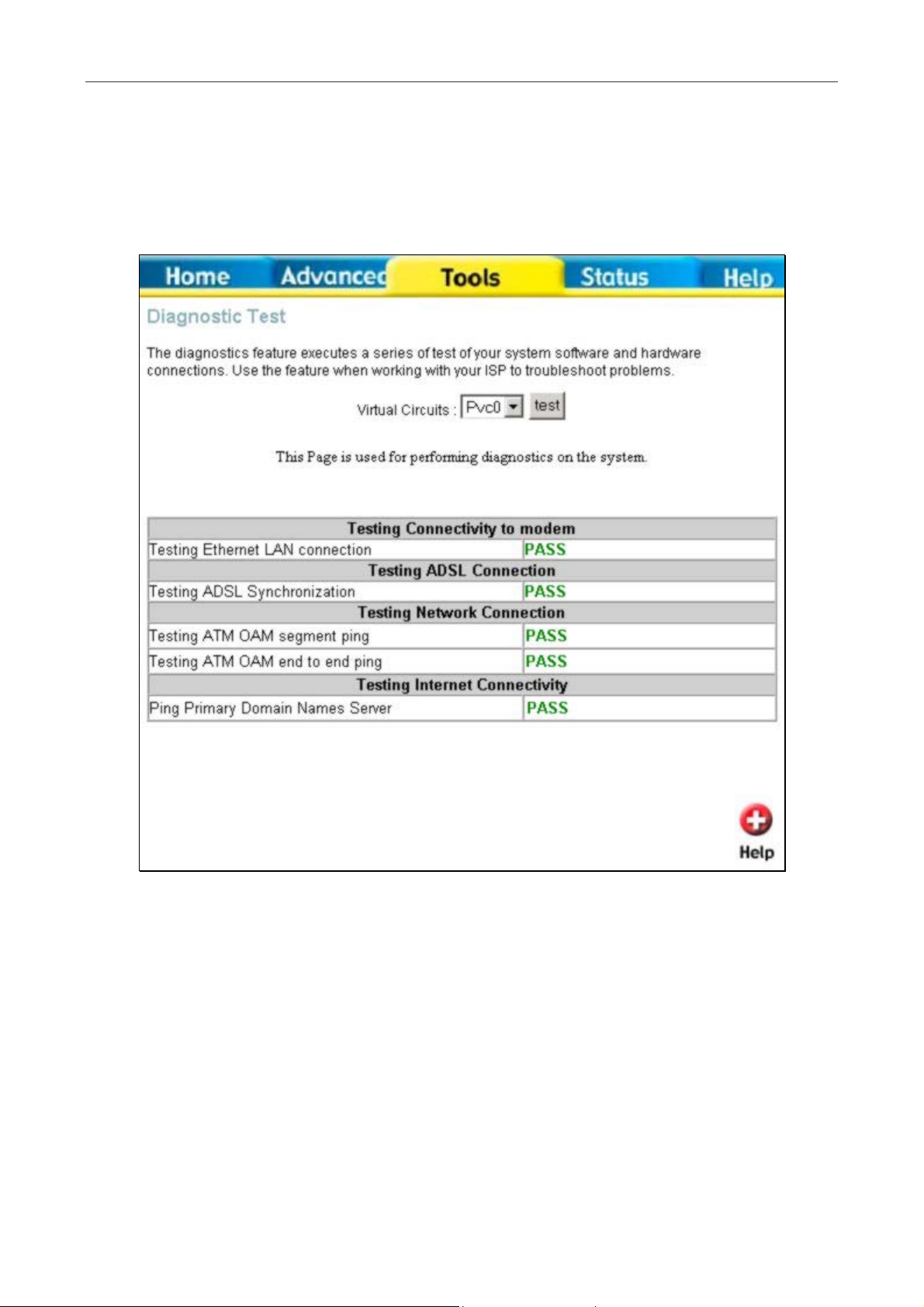

Diagnostic Test .............................................................................................................................................. 65
STATUS ............................................................................................................................66
Device Info...................................................................................................................................................... 66
DHCP Clients ............................................................................................................................................... 67
Log ............................................................................................................................................................... 68
Statistics....................................................................................................................................................... 69

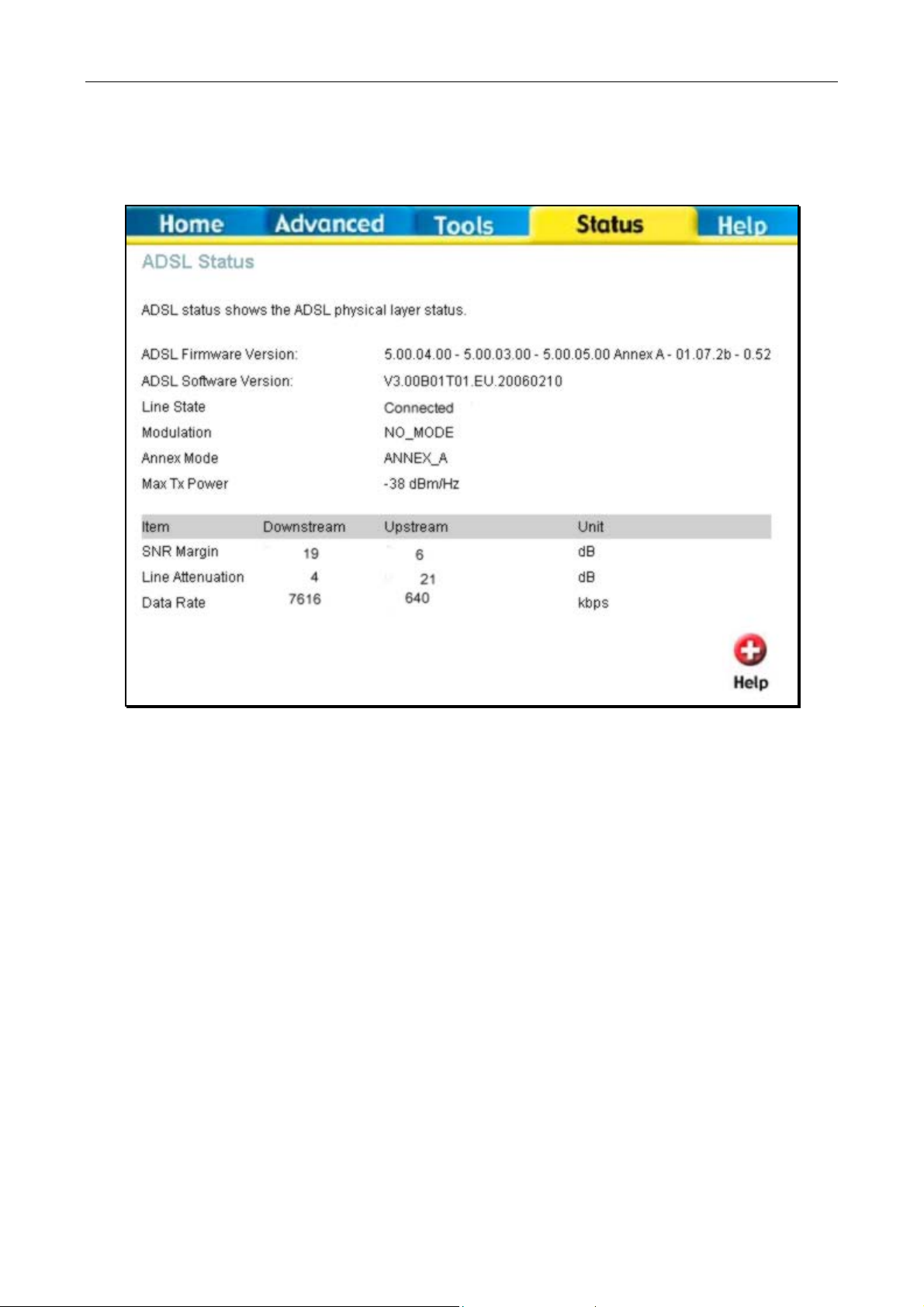

ADSL Status................................................................................................................................................. 70
Help.............................................................................................................................................................. 71
TECHNICAL SPECIFICATIONS .......................................................................................72

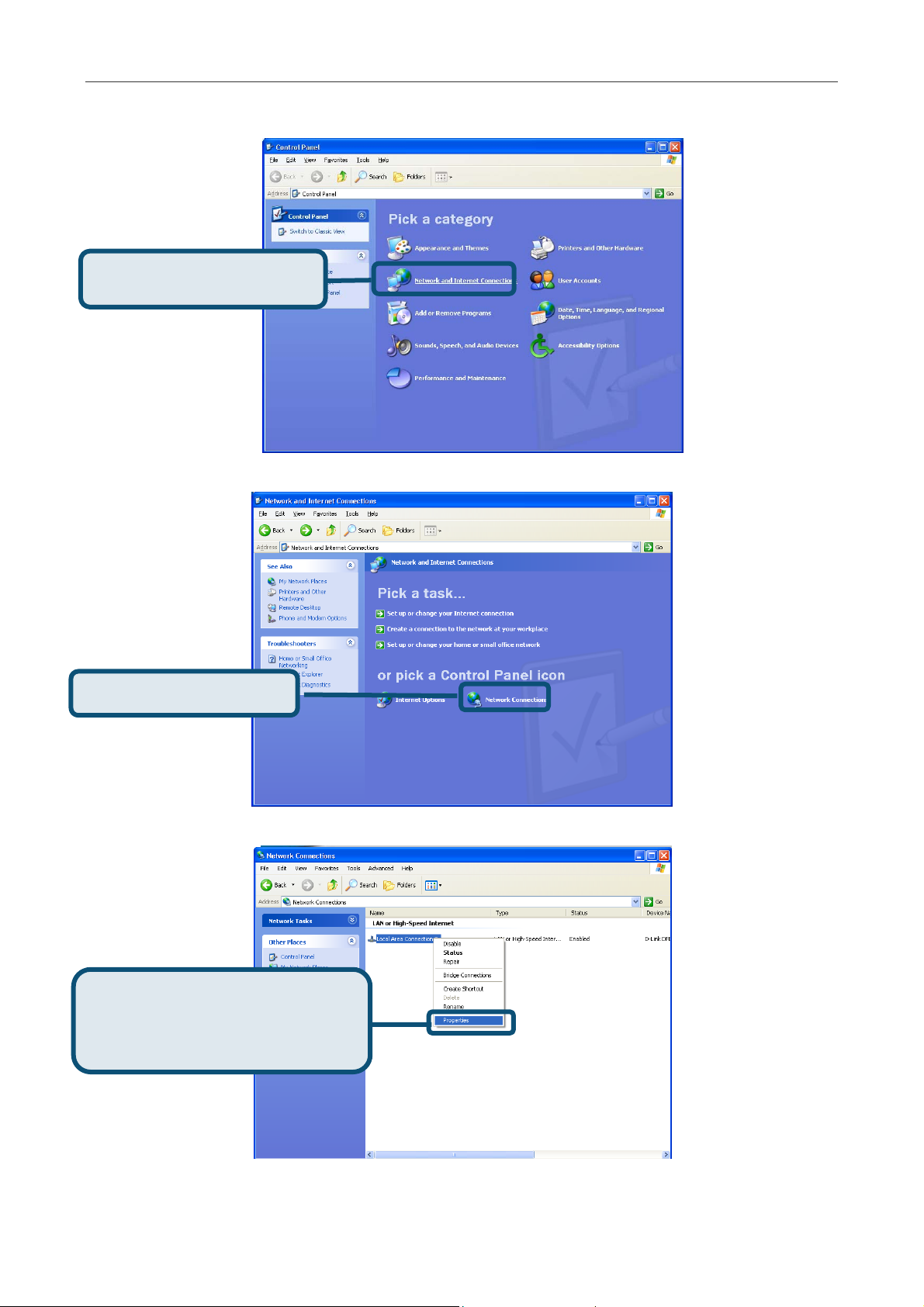

CONFIGURING IP SETTINGS ON YOUR COMPUTER ...................................................74
LOW PASS FILTERS FOR DSL .......................................................................................80
DSL-522T ADSL Router User Guide
About This User Guide
This user’s guide provides instructions on how to install the DSL-522T ADSL Router and use it to provide
Internet access for an Ethernet network or single computer.
If you are using a computer with a functioning Ethernet port, the quickest and easiest way to set up the DSL522T is to follow the instructions provided in the Quick Installation Guide. To install the USB driver, click
the “Install DSL-522T” link on the initial pop-up window that appears shortly after inserting the CD and follow
the instructions as they are presented. If the window fails to open, explore the CD, double-click the
autorun.exe file or find the file Setup.exe in the folder labeled USBDRIVER, and double-click it to launch
the installation software.
Before You Start
Please read and make sure you understand all the prerequisites for proper installation of your new Router.
Have all the necessary information and equipment on hand before beginning the installation.
Installation Overview
The procedure to install the Router can be described in general terms in the following steps:
1. Gather information and equipment needed to install the device. Before you begin the actual
installation make sure you have all the necessary information and equipment.
2. Install the hardware, connect the cables to the device, and connect the power adapter. You will need
to install a software driver to use the USB port. See the instructions below or go to the QIG for more
details.
3. Check the IP settings on your computer and change them if necessary so the computer can access
the web-based software built into the Router.
4. Use the web-based management software to configure the device to suit the requirements of your
ADSL service and requirements of your local network
.
Setup Wizard
Many users will be able to configure all the settings necessary to use the DSL-522T with the Setup Wizard.
For ADSL connections that use PPPoE or PPPoA connections, the simplest way to set up the DSL-522T is
to use the Setup Wizard to configure the Internet connection. Once you access the web interface used to
configure the device, just launch the Setup Wizard to configure your Internet connection.
If you are connecting a computer to the Router via the USB interface, you must first install the USB driver.
Follow the installation instructions below to install the USB driver.
Packing List
Open the shipping carton and carefully remove all items. Make sure that you have the items listed here.
• One DSL-522T ADSL Ethernet Router
• One CD-ROM containing the User’s Guide, USB driver, and Quick Installation Guide
• One twisted-pair telephone cable used for ADSL connection
• One straight-through Ethernet cable
• One USB cable
• One AC power adapter suitable for your electric service
• One Quick Installation Guide
iv
DSL-522T ADSL Router User Guide
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Router that
will be stored in its memory. For some users, only their account information (Username and Password) is
required. For others, various parameters that control and define the Internet connection will be required. You
can print out the two pages below and use the tables to list this information. This way you have a hard copy
of all the information needed to setup the Router. If it is necessary to reconfigure the device, all the
necessary information can be easily accessed. Be sure to keep this information safe and private.

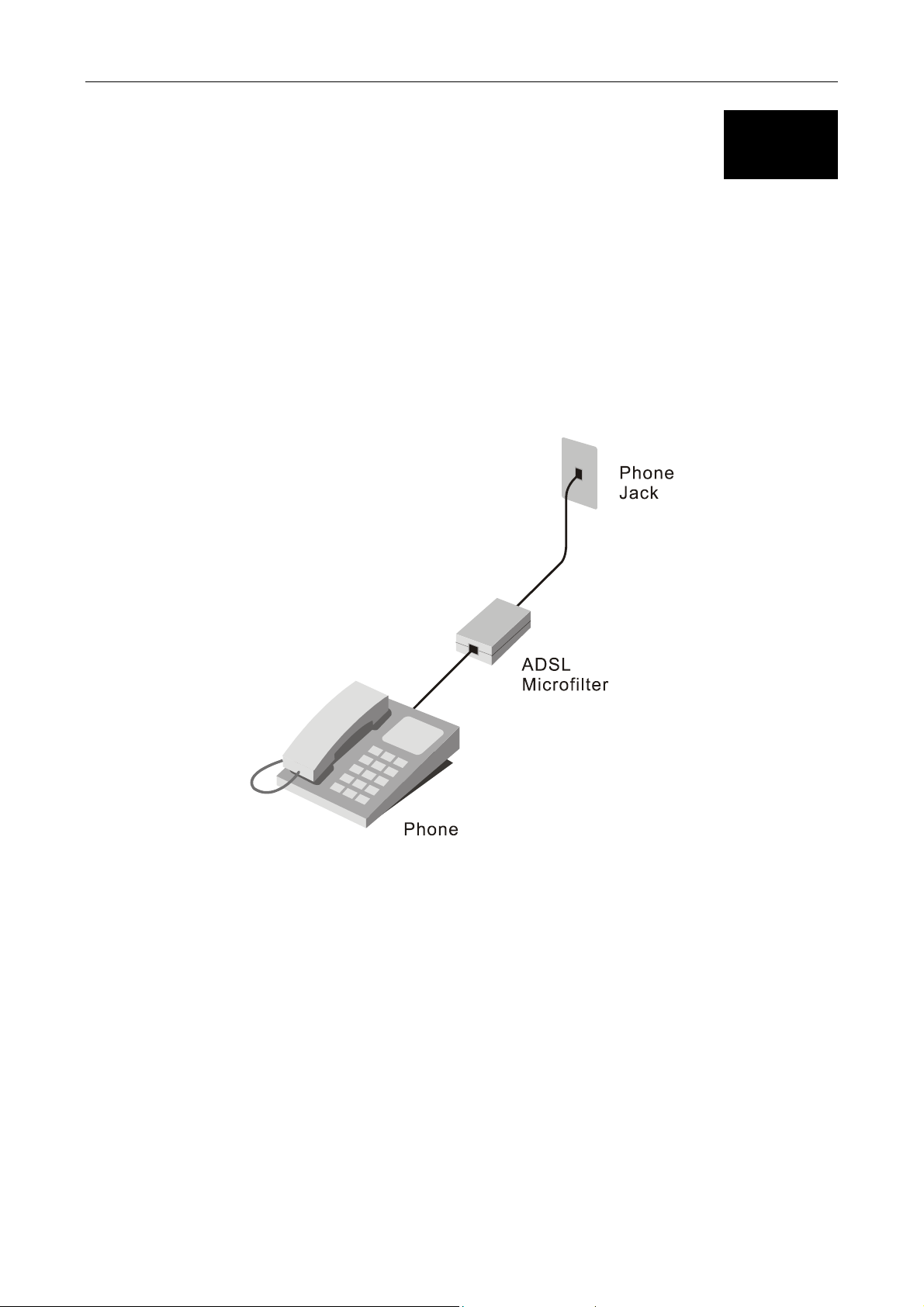

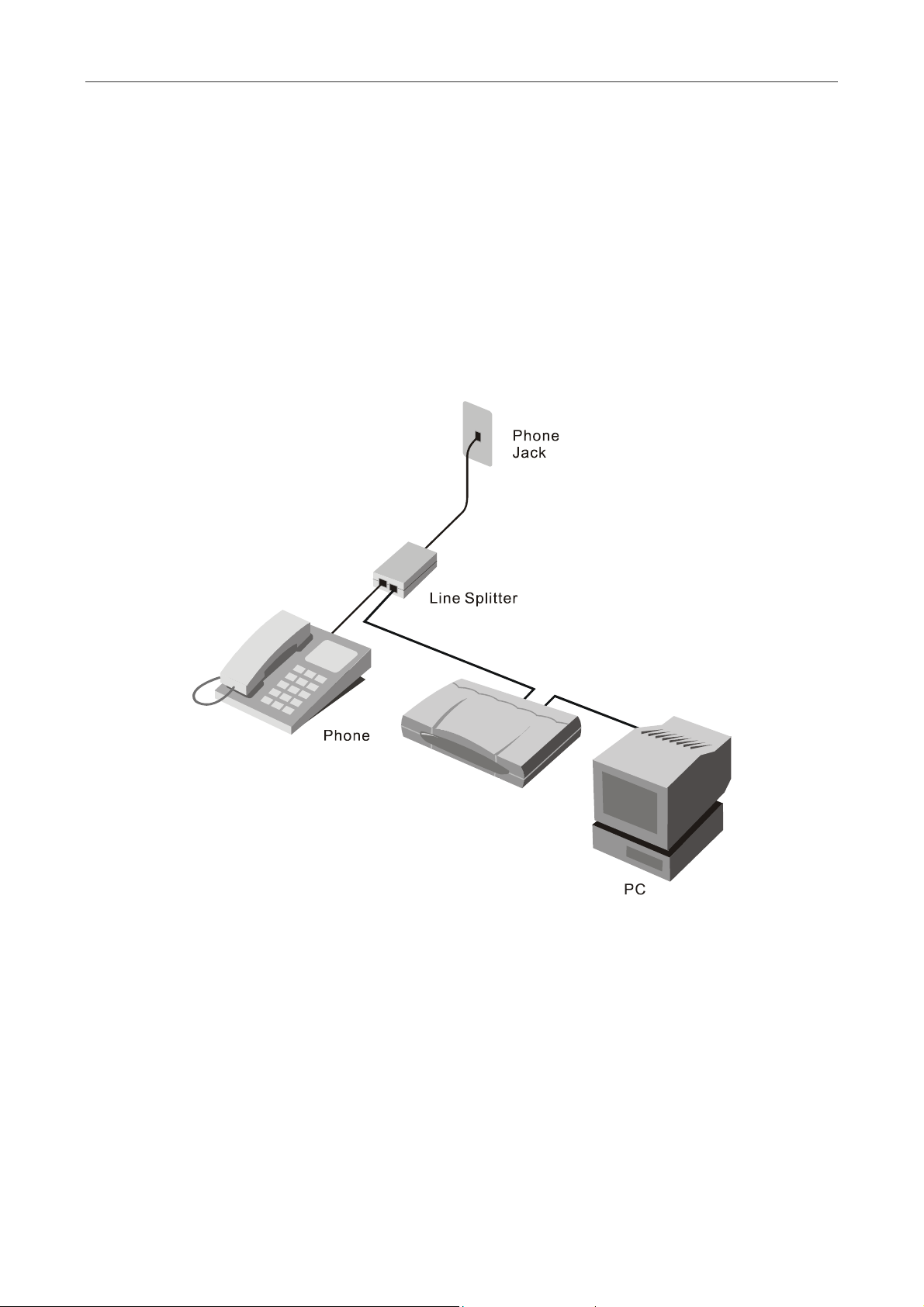

Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering
mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each
telephone that shares the line with the ADSL line. These filters are easy to install passive devices that
connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for
more information about the use of low pass filters with your installation.
Operating Systems
The DSL-522T uses an HTML-based web interface for setup and management. The web configuration
manager may be accessed using any operating system capable of running web browser software, including
Windows 98 SE, Windows ME, Windows 2000, and Windows XP.
Web Browser
Most of common web browsers can be used to configure the Router using the web configuration
management software. The program is designed to work best with more recently released browsers such as
Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later versions. The web
browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure
JavaScript has not been disabled by other software (such as virus protection or web user security packages)
that may be running on your computer.
USB Port or Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through either the Ethernet port or USB port
on the Router. The easiest method of installation is via the Ethernet connection and therefore requires that
your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an
Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet
NIC adapter as standard equipment. If your computer does not have an Ethernet port and you do not wish to
use a USB connection, you must install an Ethernet NIC adapter before you can use the Router. If you must
install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.
Additional Software
For a bridged connection, the information needed to make and maintain the Internet connection is stored on
another computer or gateway device using PPP client or similar third party client software, not in the Router
itself.
If your ADSL service is delivered through a PPPoE, PPPoA or Static IP connection, the information needed
to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary
to install software on your computer. It may however be necessary to change some settings in the device,
including account information used to identify and verify the connection.
Note
If you plan to use the DSL-522T’s USB port to connect to your computer, do
not connect the USB cable to the Router until you have finished all of the steps
to install the USB driver, and your computer has restarted.
v
DSL-522T ADSL Router User Guide
Information you will need from your ADSL service provider:
Username
Password
WAN Setting /
Connection Type
This is the Username used to log on to your ADSL service
provider’s network. It is commonly in the form −
user@isp.co.uk. Your ADSL service provider uses this to
identify your account.
This is the Password used, in conjunction with the Username
above, to log on to your ADSL service provider’s network.
This is used to verify the identity of your account.
These settings describe the method your ADSL service
provider uses to transport data between the Internet and your
computer. Most users will use the default settings. You may
need to specify one of the following WAN Setting and
Connection Type configurations (Connection Type settings
listed in parenthesis):

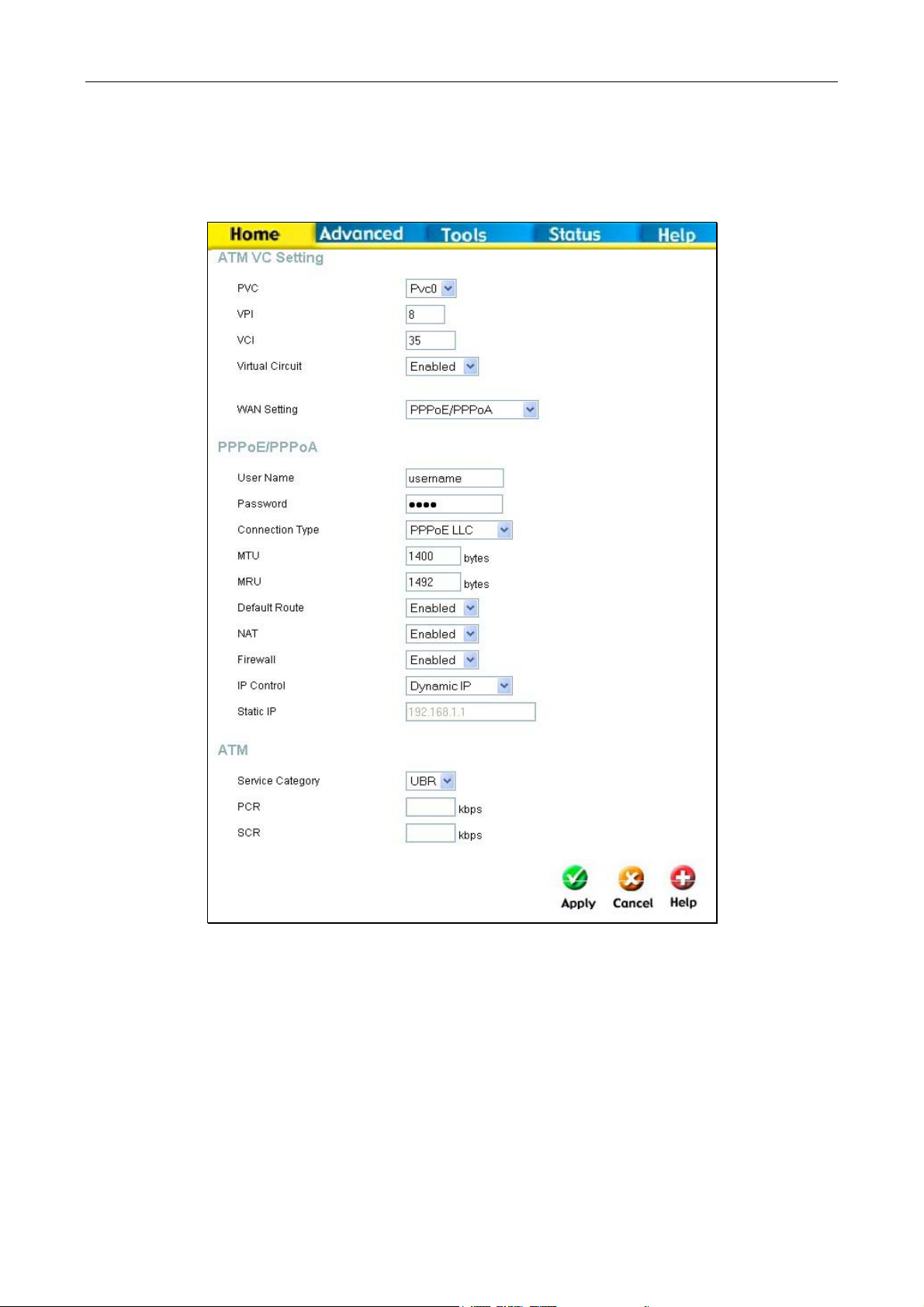

PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)
Bridge Mode (1483 Bridged IP LLC or
1483 Bridged IP VC-Mux)

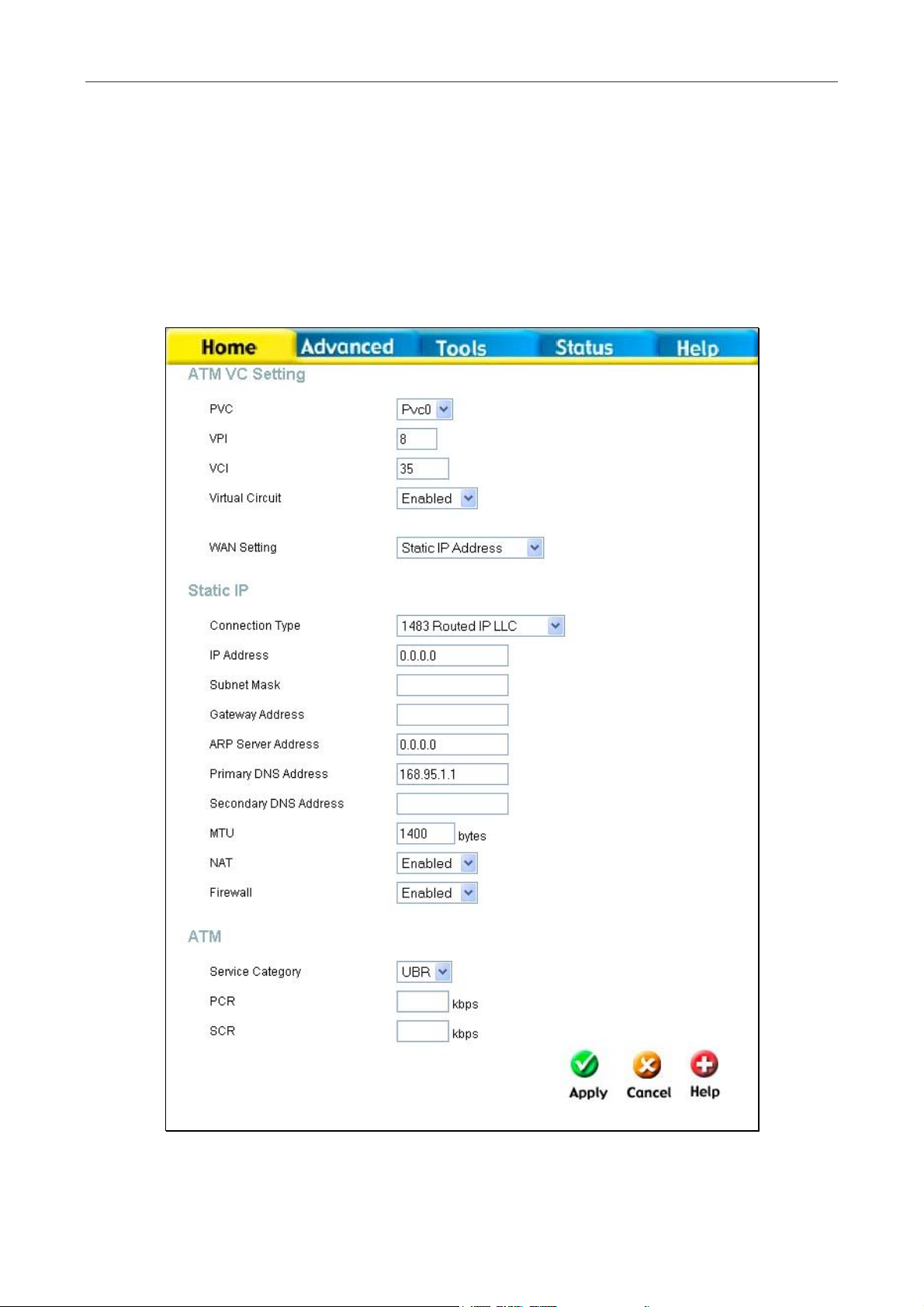

Static IP Address (Bridged IP LLC, 1483 Bridged IP VC-Mux,
1483 Routed IP LLC, 1483 Routed IP VC-Mux or IPoA)
Dynamic IP Address (1483 Bridged IP LLC or
1483 Bridged IP VC-Mux)
Record info here
VPI
VCI
Default = PPPoE/PPPoA (PPPoE LLC)
Most users will not be required to change this setting. The
Virtual Path Identifier (VPI) is used in conjunction with the
Virtual Channel Identifier (VCI) to identify the data path
between your ADSL service provider’s network and your
computer. If you are setting up the Router for multiple virtual
connections, you will need to configure the VPI and VCI as
instructed by your ADSL service provider for the additional
connections. This setting can be changed in the WAN
Settings window of the web management interface. Default
value = 8

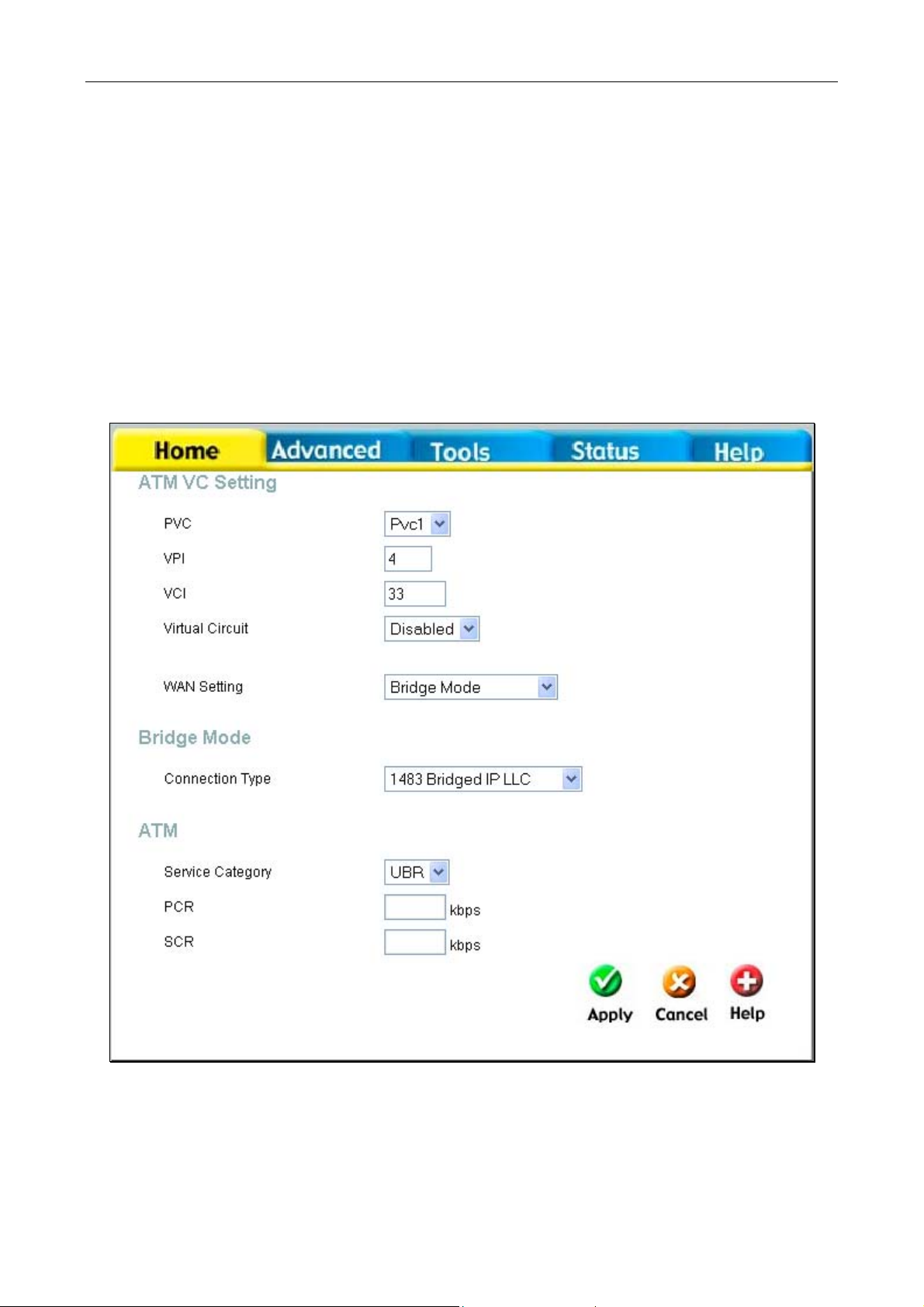

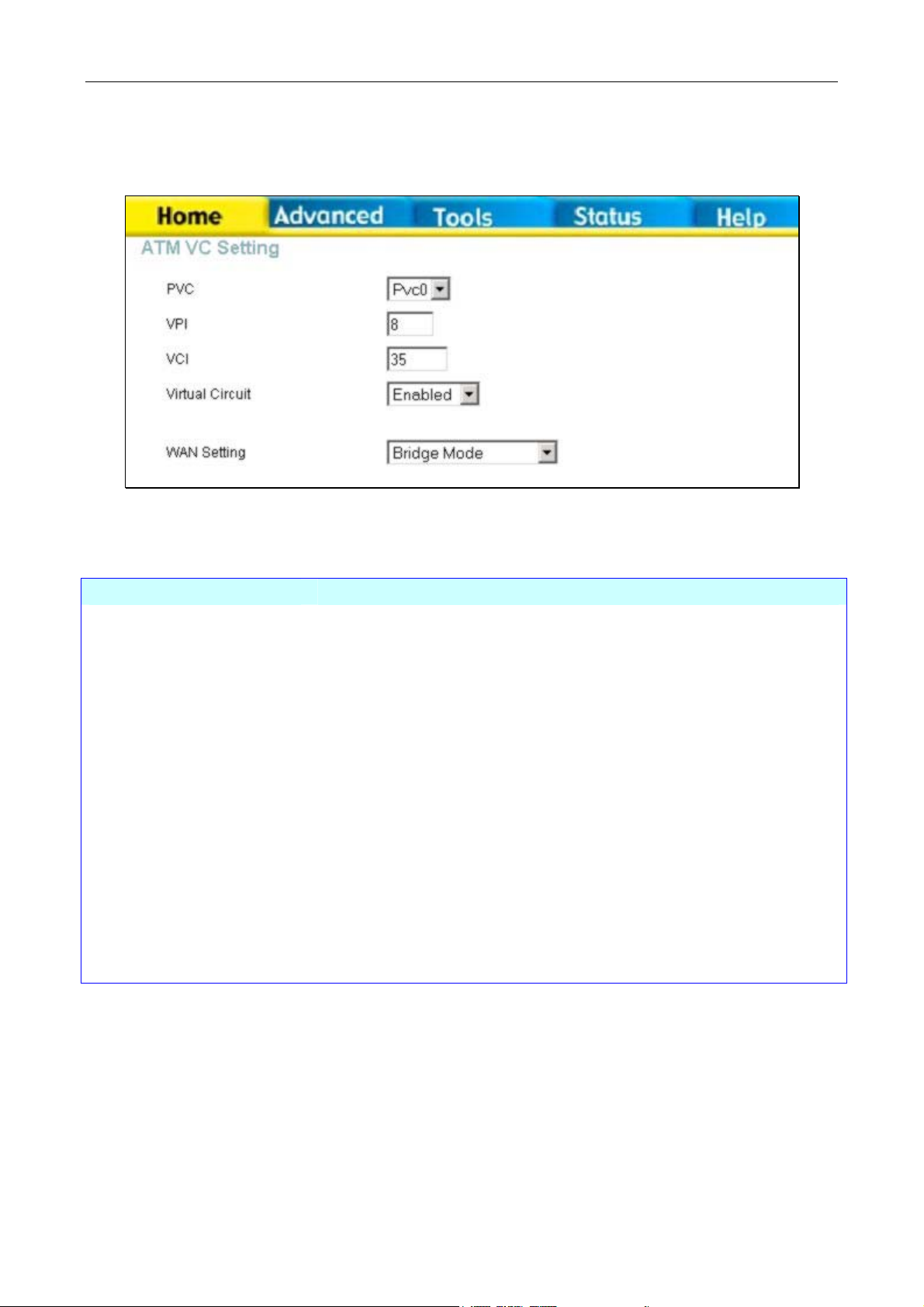

Most users will not be required to change this setting. The
Virtual Channel Identifier (VCI) used in conjunction with the
VPI to identify the data path between your ADSL service
provider’s network and your computer. If you are setting up
the Router for multiple virtual connections, you will need to
configure the VPI and VCI as instructed by your ADSL
service provider for the additional connections. This setting
can be changed in the WAN Settings window of the web
management interface. Default value = 35
Note
The Setup Wizard can be used to configure the Internet connection for most users.
vi
DSL-522T ADSL Router User Guide
Information you will need about your DSL-522T ADSL Router:
Username
Password
LAN IP addresses for
the DSL-522T
LAN Subnet Mask for
the DSL-522T
This is the Username needed access the Router’s
management interface. When you attempt to connect to
the device through a web browser you will be prompted
to enter this Username. The default Username for the
Router is “admin.” The user cannot change this.
This is the Password you will be prompted to enter
when you access the Router’s management interface.
The default Password is “admin.” The user may change
this.

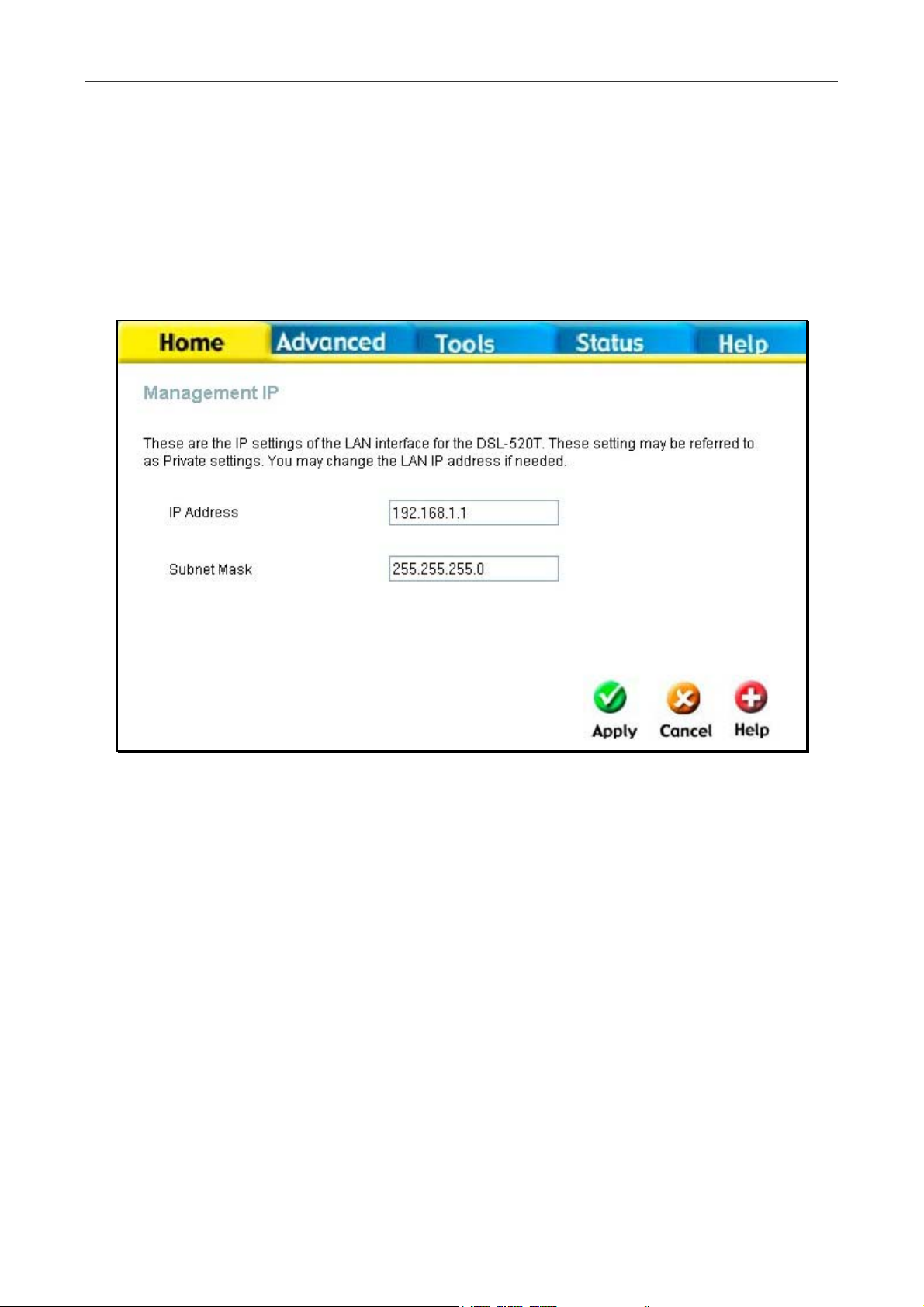

This is the IP address you will enter into the Address
field of your web browser to access the Router’s
configuration graphical user interface (GUI) using a
web browser. The default IP address is 192.168.1.1.
This may be changed to suit any IP address scheme
the user desires. This address will be the base IP
address used for DHCP service on the LAN when
DHCP is enabled.
This is the subnet mask used by the DSL-522T, and
will be used throughout your LAN. The default subnet
mask is 255.255.255.0. This can be changed later.
Record info here
Information you will need about your LAN or computer:
If your computer has an Ethernet NIC, you can
connect the DSL-522T to this Ethernet port using an
Ethernet NIC
DHCP Client status
It is recommended that your collect and record this information here, or in some other secure place, in case
you have to re-configure your ADSL connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-522T ADSL Router.
Ethernet cable. You can also use the Ethernet ports
on the DSL-522T to connect to other computer or
Ethernet devices.
Your DSL-522T ADSL Router is configured, by
default, to be a DHCP server. This means that it can
assign an IP address, subnet mask, and a default
gateway address to computers on your LAN. The
default range of IP addresses the DSL-522T will
assign are from 192.168.1.2 to 192.168.1.254. Your

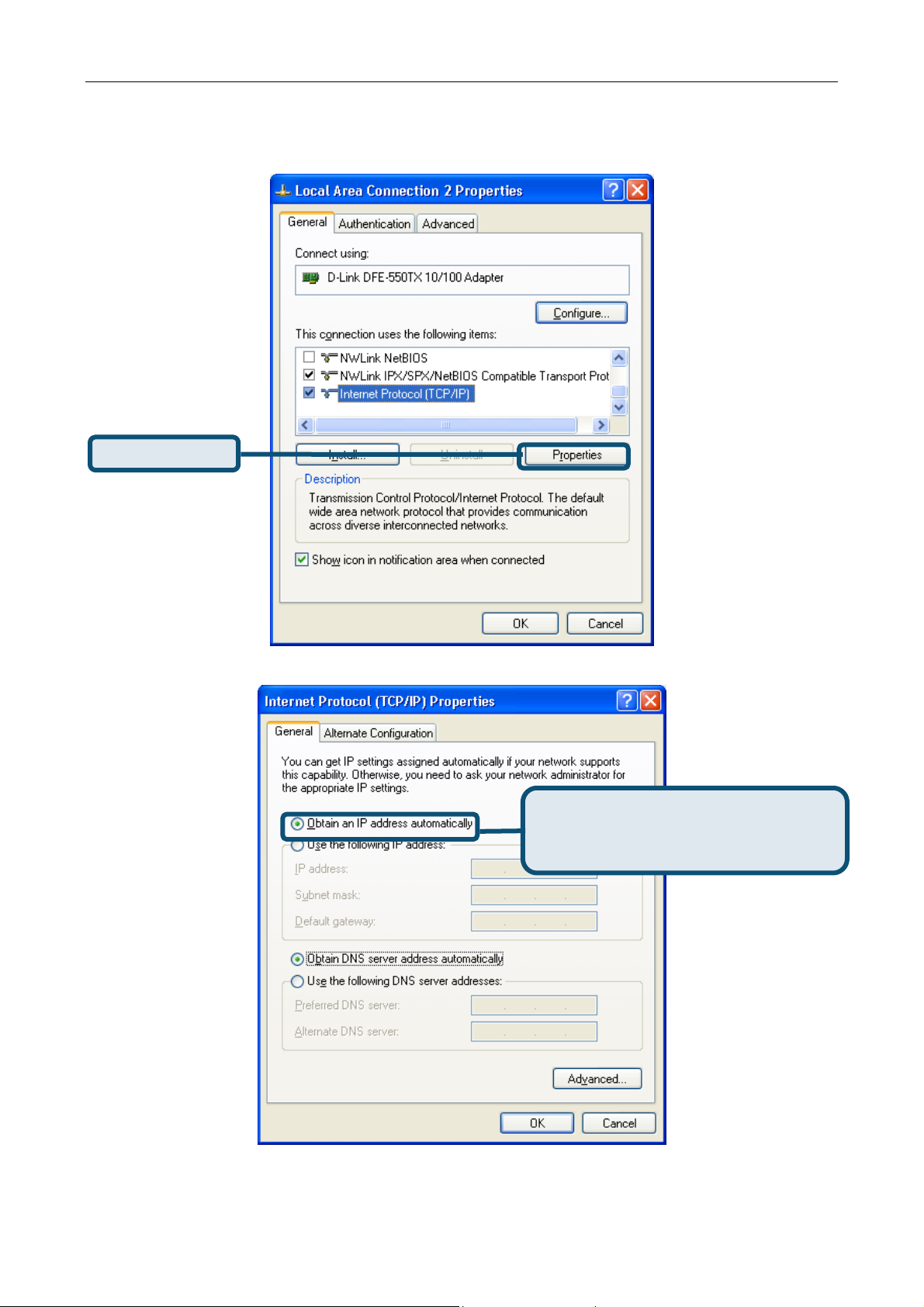

computer (or computers) needs to be configured to
Obtain an IP address automatically (that is, they
need to be configured as DHCP clients.)
Record info here
Installing the USB Driver
IMPORTANT: Do not connect the USB cable to your PC before completing the below steps.
vii
DSL-522T ADSL Router User Guide
The CD-ROM shipped with the Router contains the USB driver software.
Insert the DSL-522T CD-ROM into
the CD drive. Within a few seconds you should see a window that offers the following options: Install DSL522T, Quick Install Guide, View Manaual, Install Acrobat Reader, and Exit. If you do not see this auto-run
pop-up window, explore the CD-ROM and double-click the setup application file autorun.exe or find the file
Setup.exe in the folder labeled USBDRIVER and double-click it to launch the installation software. The autorun USB driver setup must be completed before connecting the router to your PC with the USB cable. To
install the driver follow these instructions:
1. Click the Install DSL-522T link in the to launch the USB driver installation software.
2. Click Next on the InstallShield window.
3. Click Install to begin the installation.
viii
DSL-522T ADSL Router User Guide
4. Click Finish to complete the InstallShield wizard.
When the USB driver has been installed, insert one end of the USB cable included with the router into the
DSL-522T router’s USB port. Insert the other end of the USB cable into a USB port on your PC. Connect the
power adapter to the power input at the back panel of the DSL-522T and then plug the other end of the
power adapter to a wall outlet or power strip. On the front of the device, the Power LED will turn ON to
indicate proper operation. Insert the telephone cable included with the Router into the ADSL port, and then
connect the cable to your telephone line. Check the LED display on the front of the Router to confirm that the
connections have been made.
ix
DSL-522T ADSL Router User Guide
1
Introduction
This section provides a brief description of the Router, its associated technologies, and a list of Router
features.
Router Description and Operation
The DSL-522T Router is designed to provide a simple and cost-effective ADSL Internet connection for a
private Ethernet network. The Router combines high-speed ADSL Internet connection, IP routing for the
Local Area Network (LAN) connectivity in one package.
The Router is easy to install and use. The DSL-522T connects to an Ethernet LAN or computers via standard
Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors.
Multiple workstations can be networked and connected to the Internet using a single Wide Area Network
(WAN) interface and single global IP address. The advanced security enhancements, packet filtering and
port redirection, can help protect your network from potentially devastating intrusions by malicious agents
from outside your network.
ADSL
Asymmetric Digital Subscriber Line (ADSL) is a broadband network technology that utilizes standard twistedpair copper wire telephone lines to enable broadband high-speed digital data transmission and bandwidth
hungry applications for business and residential customers.
ADSL routers and modems provide faster downloads and more reliable connectivity to the user without loss
of quality or disruption of voice/fax telephone capabilities.
ADSL service operates at speeds of up to 24 Mbps downstream and up to 1 Mbps upstream. A secure
dedicated point-to-point connection is established between the user and the central office of the service
provider.
1
DSL-522T ADSL Router User Guide
Router Features
The DSL-522T ADSL Router utilizes the latest ADSL enhancements to provide a reliable Internet portal
suitable for most small to medium sized offices. DSL-522T advantages include:
• PPP (Point-to-Point Protocol) Security – The DSL-522T ADSL Router supports PAP (Password
Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) for PPP
connections.
• DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP
settings to each host on your network. This eliminates the need to reconfigure every host whenever
changes in network topology occur.
• Network Address Translation (NAT) – For small office environments, the DSL-522T allows multiple
users on the LAN to access the Internet concurrently through a single Internet account. This provides
Internet access to everyone in the office for the price of a single user.
NAT improves network security in effect by hiding the private network behind one global and visible IP
address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.
• TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-522T supports TCP/IP protocol, the
language used for the Internet. It is compatible with access servers manufactured by major vendors.

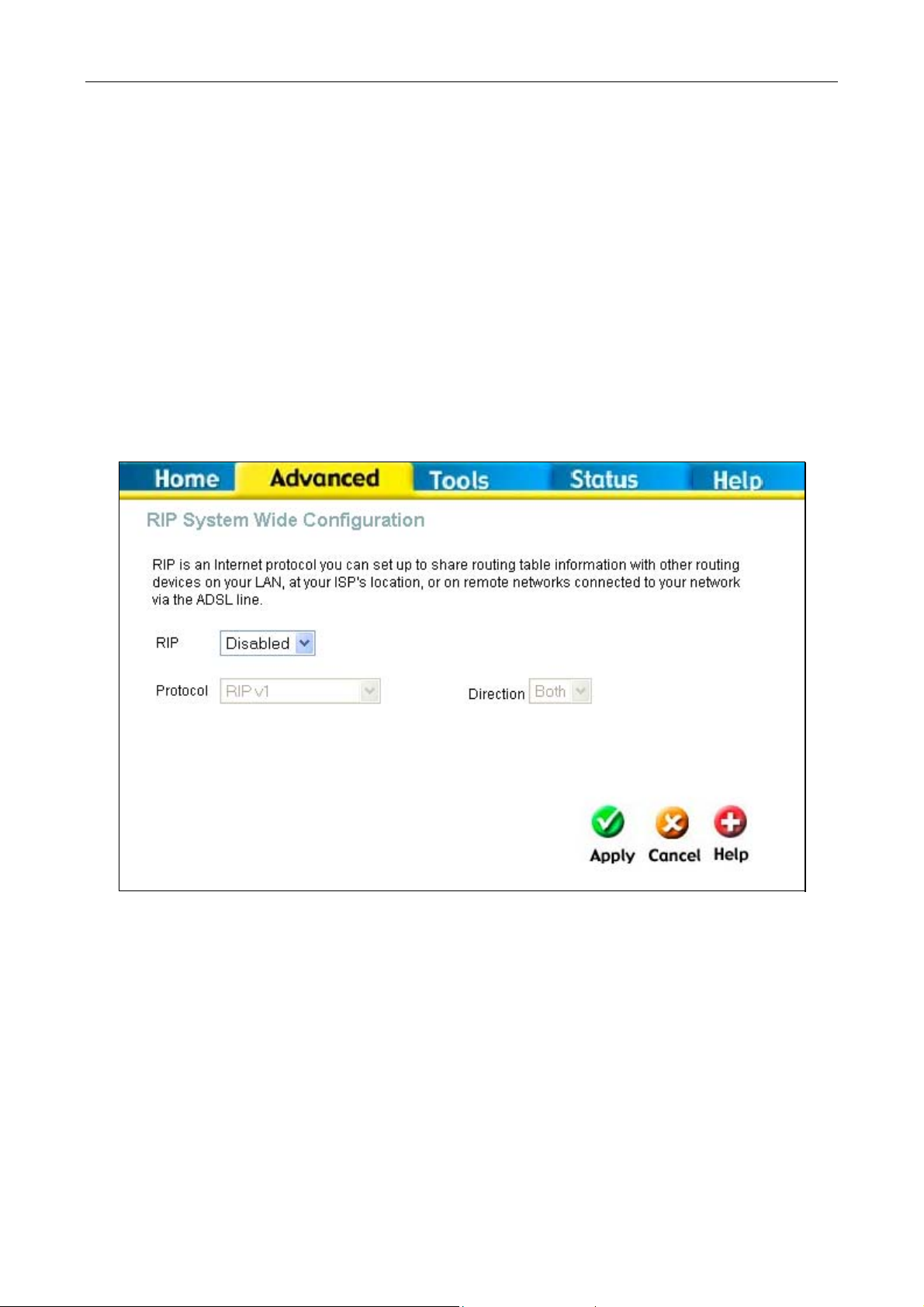

• RIP-1/RIP-2 – The DSL-522T supports both RIP-1 and RIP-2 exchanges with other routers. Using both
versions lets the Router to communicate with all RIP enabled devices.
• Static Routing – This allows you to select a data path to a particular network destination that will remain
in the routing table and never “age out”. If you wish to define a specific route that will always be used for
data traffic from your LAN to a specific destination within your LAN (for example to another router or a
server) or outside your network (to an ISP defined default gateway for instance).
• Default Routing – This allows you to choose a default path for incoming data packets for which the
destination address is unknown. This is particularly useful when/if the Router functions as the sole
connection to the Internet.
• ATM (Asynchronous Transfer Mode) – The DSL-522T supports Bridged Ethernet over ATM
(RFC1483), IP over ATM (RFC1577) and PPP over ATM (RFC 2364).
• Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data
cells. This function helps to establish the Quality of Service for ATM data transfer.
• G.hs (Auto-handshake) – This allows the Router to automatically choose either the G.lite or G.dmt
ADSL connection standards.
• High Performance – Very high rates of data transfer are possible with the Router. Up to 8 Mbps
downstream bit rate using the G.dmt standard.
• Full Network Management – The DSL-522T incorporates SNMP (Simple Network Management
Protocol) support for web-based management and text-based network management via an RS-232 or
Telnet connection.
• Telnet Connection – The Telnet enables a network manager to access the Router’s management
software remotely.
• Easy Installation – The DSL-522T uses a web-based graphical user interface program for convenient
management access and easy set up. Any common web browser software can be used to manage the
Router.
2
DSL-522T ADSL Router User Guide
Front Panel Display
Place the Router in a location that permits an easy view of the LED indicators on the front panel.
The LED indicators on the front panel include Power, Status, ADSL, Ethernet, and USB. The ADSL,
Ethernet, and USB indicators monitor link status and activity (Link/Act).
Power
Status
ADSL (Link/Act)
Ethernet (Link/Act)
USB (Link/Act)
Steady green light indicates the unit is powered on. When the device is
powered off this remains dark.
Lights steady green during power on self-test (POST). Once the connection
status has been settled, the light will blink green. If the indicator lights steady
green after the POST, the system has failed and the device should be
rebooted.
Steady green light indicates a valid ADSL connection. This will light after the
ADSL negotiation process has been settled. A blinking green light indicates
activity on the WAN (ADSL) interface.
A solid green light indicates a valid link on startup. This light will blink when
there is activity currently on the Ethernet port.
Steady green light indicates a valid USB connection. A blinking green light
indicates activity on the USB interface.
3
DSL-522T ADSL Router User Guide
Rear Panel Connections
All cable connections to the Router are made at the rear panel. Connect the power adapter here to power on
the Router. Use the Reset button to restore the settings to the factory default values in the next chapter for
instructions on using the reset button).
Connect network cables:
1. Insert the ADSL (telephone) cable included with the Router into the ADSL port and then connect the
cable to your telephone line.
2. Insert one end of the Ethernet cable into the Ethernet (LAN) port on the back panel of the Router and
the other end of the cable to an Ethernet Adapter or available Ethernet port on your computer.
ADSL Port
Use the ADSL cable to
connect to the your telephone
line (RJ-11 port)
Connect USB cable here
and install USB driver
USB Port
Ethernet Port
Use the Ethernet port
to connect the Router
to your Ethernet LAN
or computer
Reset Button
To manually reset, depress
button with the power on
for at least seven seconds
Power Insert
Use the adapter
shipped with the
Router to connect to
power source
4
DSL-522T ADSL Router User Guide
2
Hardware Installation
The DSL-522T maintains three separate interfaces, an ADSL, an Ethernet, and a USB interface. Place the
Router in a location where it can be connected to the various devices as well as to a power source. The
Router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables
and power cord are placed safely out of the way so they do not create a tripping hazard. As with any
electrical appliance, observe common sense safety procedures.
The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the
front if you need to view them for troubleshooting.
Power on Router
CAUTION: The Router must be used with the power adapter included with the device.
To power on the Router:
1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and
plug the adapter into a suitable nearby power source.
2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid green
and begin to blink after a few seconds.
3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make
sure the connection is valid. The Router will attempt to establish the ADSL connection, if the ADSL line is
connected and the Router is properly configured this should light up after several seconds. If this is the
first time installing the device, some settings may need to be changed before the Router can establish a
connection.
Factory Reset Button
The Router may be reset to the original factory default settings by depressing the reset button for a few
seconds while the device is powered on. Use a ballpoint or paperclip to gently push down the reset button.
Remember that this will wipe out any settings stored in flash memory including user account information and
LAN IP settings. The device settings will be restored to the factory default IP address 192.168.1.1 and the
subnet mask is 255.255.255.0, the default management Username is “admin” and the default Password is
“admin.”
5
DSL-522T ADSL Router User Guide
Network Connections
Network connections are provided through the ADSL port, the Ethernet port and the USB port on the back of
the Router. See the Rear Panel diagram above and the illustrations below for examples. See Installing the
USB Driver above for a description of the USB driver installation procedure.
Connect ADSL Line
Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one
end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other
end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with
the device or given to you by your service provider. The ADSL connection represents the WAN interface, the
connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to
the Internet.
Connect Router to Ethernet
The Router may be connected to a single computer or Ethernet device through the 10/100 BASE-TX
Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub
must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is
capable of operating at speeds between 0~100Mbps, be sure that the device has auto-negotiation (NWay)
enabled for the connecting port.
Use Category 5 or better twisted-pair Ethernet cable with RJ-45 connectors. The RJ-45 port on the Router is
auto MDI-X/MDI-II meaning that is will link correctly with either MDI-II through or MDI-X crossed ports.
The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable
connecting the LAN to the Router does not exceed 100 meters.
6
DSL-522T ADSL Router User Guide
3
Basic Router Configuration
The first time you setup the Router it is recommended that you configure the WAN connection using a single
computer connected directly to the Router. Once the WAN connection is functioning properly, you may
continue to make changes to Router configuration including IP settings and DHCP setup. For information on
how to configure advanced features such as port redirection, filtering and firewall, please skip ahead to the
Advanced Router Management section on page.
Configuration Summary
1. Connect to the Router To configure various settings used by the Router for Internet and access it is
first necessary to access the Router’s management HTML-based interface. This is done using an
ordinary web browser. Your computer must be able to “see” the Router before it can manage it using
a browser. If the Router is in the same “neighborhood” or subnet as the Router, you should be able
to access the management software. Therefore you must first make sure your computer has IP
settings that place it in the same subnet as the Router. The easiest way to make sure your computer
has the correct IP settings is to configure it to use the DHCP server in the Router. The DHCP server
will automatically enable your computer to use a browser to manage the Router. The next section
describes how to change the IP configuration for a computer running a Windows operating system to
be a DHCP client. If you are running another operating system, make sure your computer is
configured as a DHCP client so it can automatically obtain IP settings from the Router. Some
operating systems will automatically select the best IP settings. Consult the user manual for the
operating system (OS) if you are unsure.
2. Configure the Internet (WAN) Connection Most users will be able to complete this process using
the Setup Wizard. The Setup Wizard can be launched once you have successfully connected with
the Router’s management software. There are different methods used to establish the WAN
connection to the service provider’s network and ultimately to the Internet. Your Router may already
have most of the settings configured by default. However you will probably at least have to type in a
user name and password given to you by your ISP. You may also need to know the encapsulation
and connection type required to use for your ADSL service. Your service provider should provide all
the information needed to configure the WAN connection.
Computer IP Settings
In order to configure your system to receive IP settings from the Router your computer must first have the
TCP/IP protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP
protocol installed. If you are using Windows XP the TCP/IP is enabled by default for standard installations.
Instructions for configuring your computer to receive IP settings from the Router are provided in Appendix B
on page 74.
For computers running non-Windows operating systems, follow the instructions for your OS that configure
the system to receive an IP address from the Router, that is, configure the system to be a DHCP client.
If you are not sure how to configure your Windows computer to be a DHCP client, see
Note
Configuring IP Settings on Your Computer begiining on page 74.
7
DSL-522T ADSL Router User Guide
Access the Configuration Manager
In order to make sure your computer’s IP settings allow it to communicate with the Router, it is advisable to
configure your system be a DHCP client – that is, it will get IP settings from the Router. Appendix B
describes how to configure different Windows operating systems to “Obtain IP settings automatically”.
Be sure that the web browser on your computer is not configured to use a proxy server in the
Internet settings. In Windows Internet Explorer, you can check if a proxy server is enabled using the
following procedure:

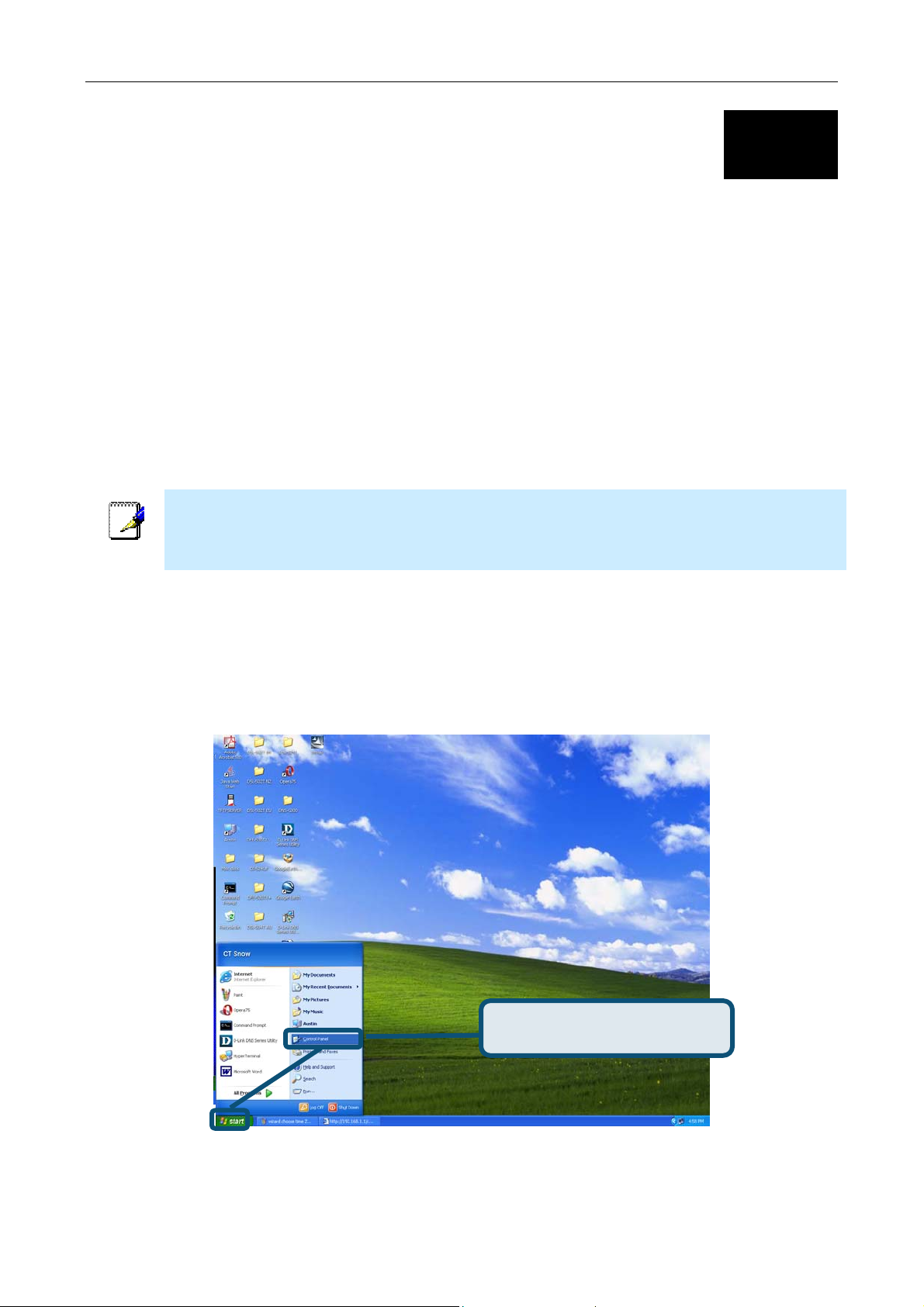

1. In Windows, click on the Start button and choose Control Panel.
2. In the Control Panel window, click on the Network and Internet Options icon.
3. In the Network and Internet Connections window, click the Internet Options icon.
4. In the Internet Properties window, click on the Connections tab and click on the LAN Settings
Note
button
5. Verify that the “Use a proxy server for your LAN (These settings will not apply to dial-up or VPN
connections).” option is NOT checked. If it is checked, click in the checked box to deselect the
option and click OK.
Alternatively, you can access this Internet Options menu using the Tools pull-down menu in
Internet Explorer.
Login to Home Page
To use the web-based management software, launch a suitable web browser and direct it to the IP address
of the Router. Type in http:// followed by the default IP address, 192.168.1.1 in the address bar of the
browser. The URL in the address bar should read: http://192.168.1.1.
A dialog box prompts for the User Name and Password. Type in the default User Name “admin,” and the
default Password “admin” then click the OK button to access the web-based manager.
Enter Password
You should change the web-based manager access user name and password once you have verified that a
connection can be established. The user name and password allows any PC within the same subnet as the
Router to access the web-based manger.
The user name and password used to access the web-based manager is NOT the same as the
ADSL account user name and password needed for PPPoE/PPPoA connections to access the
Note
Internet.
8
DSL-522T ADSL Router User Guide
Configure the Router
When you successfully connect to the web manager, the Home directory tab will display the Setup Wizard
window. You can launch the Setup Wizard from this page or use the buttons located in the left panel of the
web page to view other windows used for basic configuration.
Click on a directory tab to
view the windows available
in that directory
Click on a button to use or
view the window
Click the Run Wizard
button to launch the
Setup Wizard
Web Manager – First Time Log On
All configuration and management of the Router is done using the web-based management interface
pictured in the above example. The configuration windows are accessed by clicking on the directory tabs:
Home, Advanced, Tools, Status, and Help. Each tab has associated window buttons in the left hand panel
of the web interface. Basic setup of the Router can be completed in the windows accessed from the Home
directory including: (Setup) Wizard, WAN (Internet), LAN (to configure the IP address of the Router) DHCP,
DNS and Dynamic DNS.
9
DSL-522T ADSL Router User Guide
Wizard
To use the Setup Wizard, click the Run Wizard button in the first browser window and follow the instructions
in the pop-up window that appears.
The initial window summarizes the setup process. Click the Next button to proceed. You may stop using the
Setup Wizard at any time by clicking the Exit button. If you exit the wizard you will return to the Setup
Wizard window without saving any of the settings changed during the process.
The first pop-up window of the Setup Wizard lists the basic steps in the process. These steps are as follows:
1. Set the system time.
2. Configure the connection to the Internet.
3. Save the new configuration settings and reboot the system.
10
DSL-522T ADSL Router User Guide
Using the Setup Wizard - Choose Time Zone
Choose the time zone you are in from the pull-down menu and click Next. This sets the system time used for
the Router. If you wish to return to the previous window during the setup process, click the Back button.
11
DSL-522T ADSL Router User Guide
Using the Setup Wizard - Choose Connection Type
Now select the Connection Type used for the Internet connection. Your ISP has given this information to you.
The connection types available for “Multi-User” Mode are PPPoE/PPPoA, Dynamic IP Address, Static IP
Address, and Bridge Mode. Each connection type has different settings that are configured in the next
Setup Wizard pop-up window.
Select the Connection Type specific to your service and click Next to go to the next Setup Wizard pop-up
window. Follow the instructions below for the type of connection you have selected.
12
DSL-522T ADSL Router User Guide
Using the Setup Wizard - For PPPoE/PPPoA connections:
1. Type in the Username and Password used to identify and verify your account to the ISP.
2. Select the specific Connection Type from the drop-down menu. The available PPP connection and
encapsulation types are PPPoE LLC, PPPoA LLC and PPPoA VC-Mux.
3. If you are instructed to change the VPI or VCI number, type in the correct setting in the available
entry fields. Most users will not need to change these settings. The Internet connection cannot
function if these values are incorrect.
4. Click Next to go to the next window and complete the Setup Wizard.
13
DSL-522T ADSL Router User Guide
Using the Setup Wizard - For Dynamic IP Address connections:
1. Select the specific Connection Type from the drop-down menu. The available Dynamic IP Address
connection and encapsulation types are 1483 Bridged IP LLC and 1483 Bridged IP VC-Mux.
2. If you are instructed to change the VPI or VCI number, type in the correct setting in the available
entry fields. Most users will not need to change these settings. The Internet connection cannot
function if these values are incorrect.
3. You may want to copy the MAC address of your Ethernet adapter to the Router. Some ISPs record
the unique MAC address of your computer’s Ethernet adapter when you first access their network.
This can prevent the Router (which has a different MAC address) from being allowed access to the
ISPs network (and the Internet). To clone the MAC address of your computer’s Ethernet adapter,
type in the MAC address in the Cloned MAC Address field and click the Clone MAC Address
button. This will copy the information to a file used by the Router to present to the ISP’s server used
for DHCP.
4. Click Next to go to the next pop-up window and complete the Setup Wizard.
14
DSL-522T ADSL Router User Guide
Using the Setup Wizard - For Static IP Address connections:
1. Select the specific Connection Type from the drop-down menu. The available Static IP Address
connection and encapsulation types are 1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483
Routed IP LLC, 1483 Routed IP VC-Mux and IPoA.
2. Change the IP Address, Subnet Mask, ISP Gateway Address, Primary DNS Address, and
Secondary DNS Server IP Address as instructed by your ISP. For IPoA connections it may also be
necessary to change the ARP Server Address. IPoA connection users who have not been given
this information should leave the field blank.
3. If you are instructed to change the VPI or VCI number, type in the correct setting in the available
entry fields. Most users will not need to change these settings. The Internet connection cannot
function if these values are incorrect.
4. Click Next to go to the next window and complete the Setup Wizard.
15
DSL-522T ADSL Router User Guide
Using the Setup Wizard - For Bridge Mode connections:
1. Select the specific Connection Type from the drop-down menu. The available Bridge Mode
connection and encapsulation types are 1483 Bridged IP LLC and 1483 Bridged IP VC-Mux.
2. If you are instructed to change the VPI or VCI number, type in the correct setting in the available
entry fields. Most users will not need to change these settings. The Internet connection cannot
function if these values are incorrect.
3. Click Next to go to the next window and complete the Setup Wizard.
16
DSL-522T ADSL Router User Guide

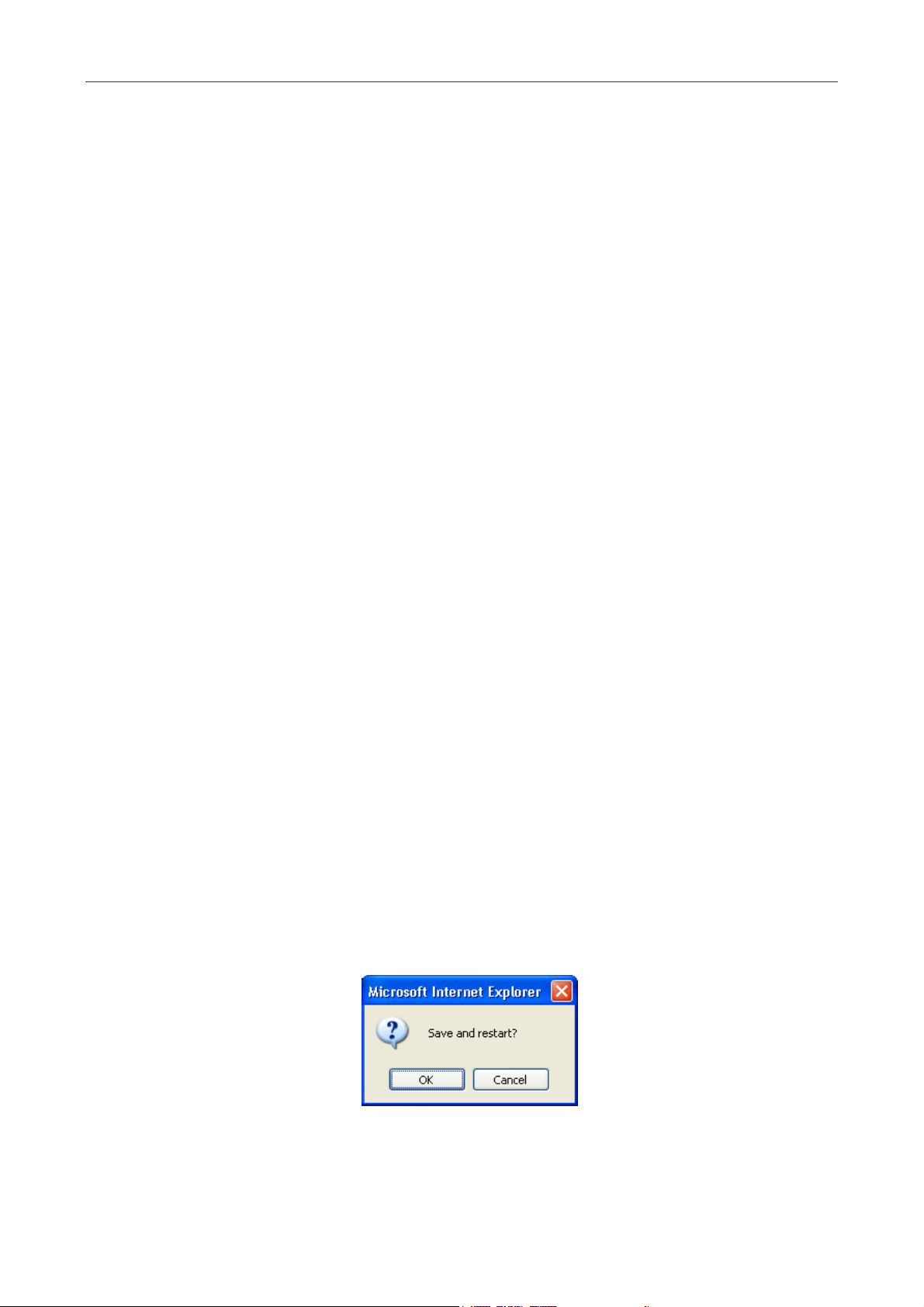

Using the Setup Wizard - Finish and Restart
Finally you can confirm that the setup process is completed. If you are satisfied that you have entered all the
necessary information correctly, click the Restart button to save the new configuration settings and restart
the Router. If you need to change settings from a previous window, click the Back button.
Do not turn the Router off while it is restarting. After the Router is finished restarting, you are now ready
to continue to configure the Router as desired. You may want to test the WAN connection by accessing the
Internet with your browser.
17
DSL-522T ADSL Router User Guide
WAN
To configure the Router’s basic configuration settings without running the Setup Wizard, you can access the
windows used to configure WAN, LAN, DHCP, and DNS settings directly from the Home directory. To
access the WAN Settings window, click on the WAN link button on the left side of the first window that
appears when you successfully access the web manager.

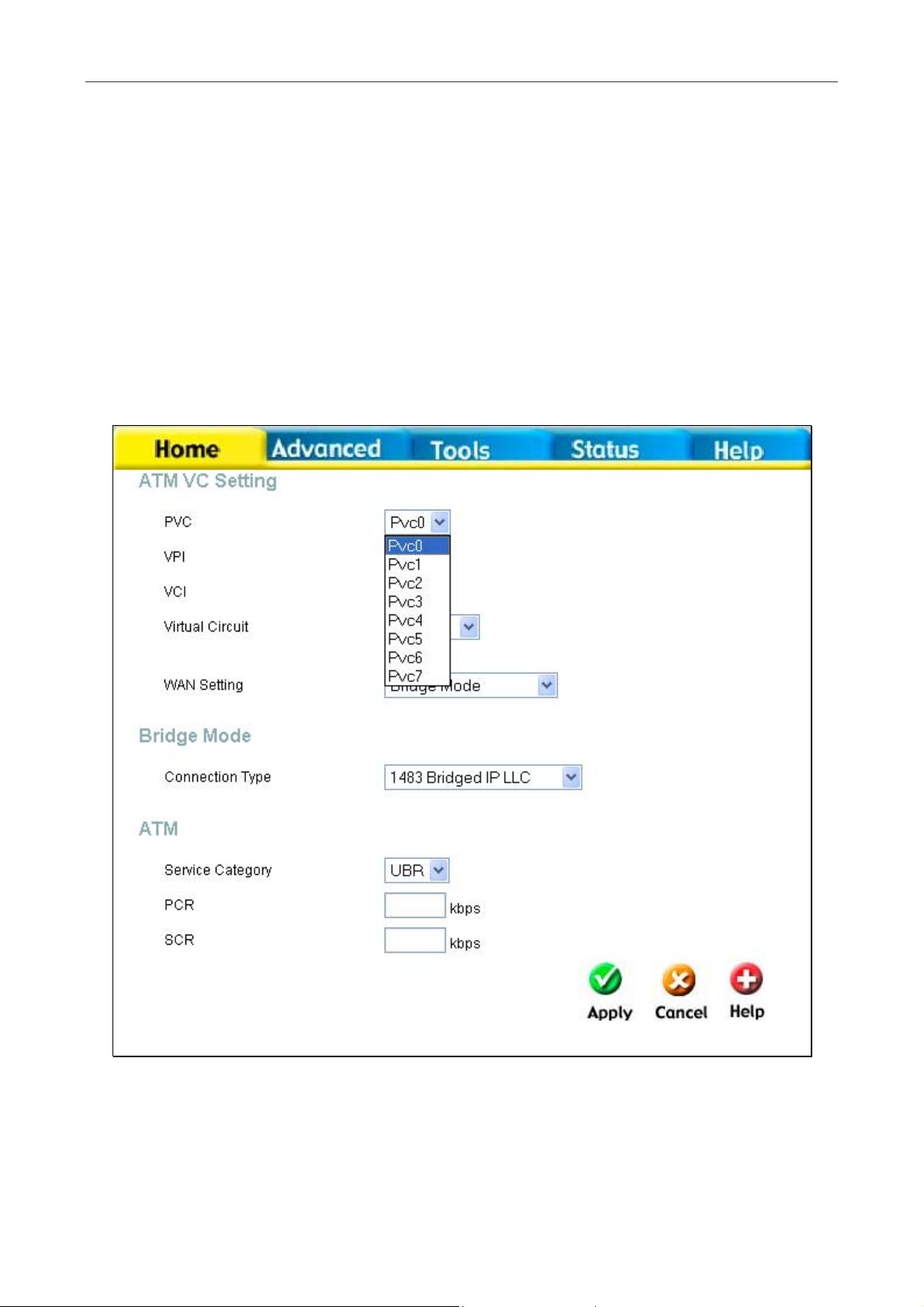

Bridge Mode
The WAN Settings window is also used to configure the Router for multiple virtual connections (Multiple
PVCs).
WAN Settings window – Bridge Mode
Select the connection type used for your account. The window will display settings that are appropriate for
the connection type you select. Follow the instruction below according to the type of connection you select in
the WAN Settings window.
For Bridged connections it will be necessary for most users to install additional software on any computer
that will the Router for Internet access. The additional software is used for the purpose of identifying and
verifying your account, and then granting Internet access to the computer requesting the connection. The
18
Loading...
