D-Link DSL-504T User Guide

DSL-504T User’s Manual

Table of Contents

Table of Contents ............................................................................................... 2

Package Contents ..............................................................................................4

Installation Overview ..........................................................................................5

Installation Requirements ..................................................................................6

Information you will need from your ADSL service provider ..............................8

Information you will need about your DSL-504T ADSL service router ............... 9

Information you will need about your LAN or computer ..................................10

Introduction .....................................................................................................11

Table of Contents

Features and Beneﬁts .......................................................................................12

Standards Compatibility & Compliance ............................................................14

Front Panel Display ..........................................................................................16

Rear Panel Connections ................................................................................... 17

Hardware Installation .......................................................................................18

Power ON Router ............................................................................................. 19

Network Connections ....................................................................................... 20

Basic Router Conﬁguration ..............................................................................22

Access the Conﬁguration Manager ..................................................................29

Conﬁgure the Router ...................................................................................... 31

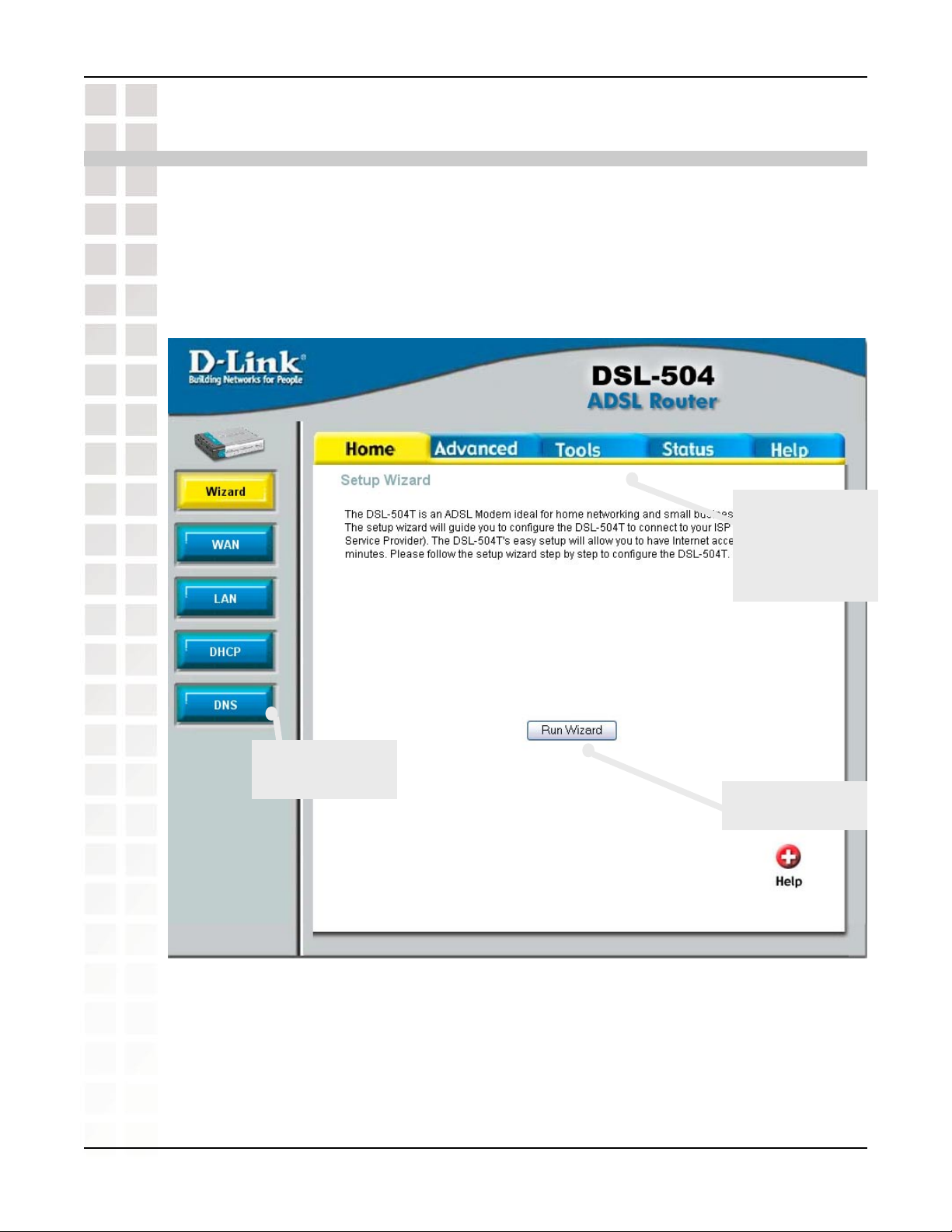

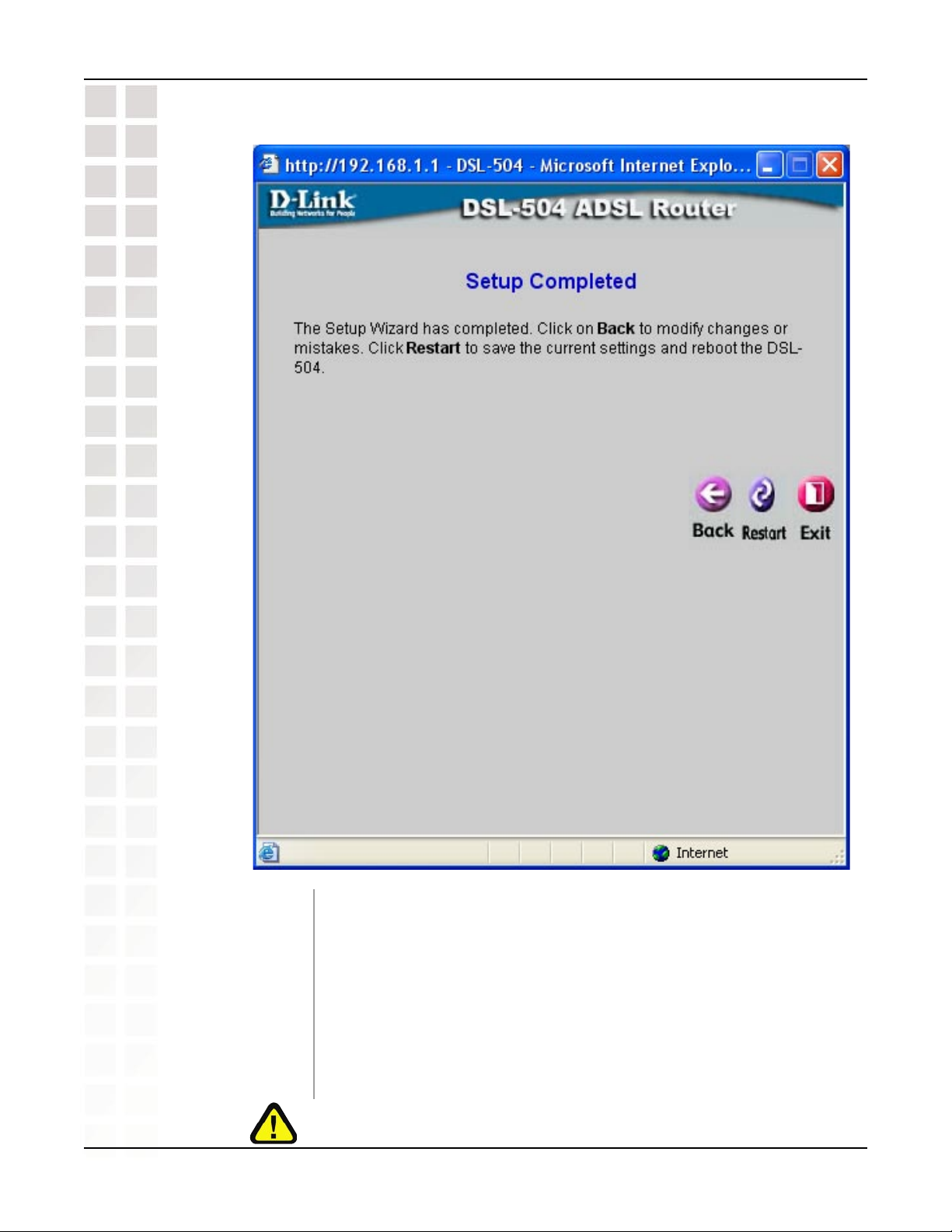

Using the Setup Wizard ....................................................................................33

Conﬁguring the WAN connection ..................................................................... 46

LAN IP Settings ................................................................................................ 55

DHCP Server Settings ......................................................................................56

DNS Server Settings ........................................................................................58

D-Link Systems, Inc.

DSL-504T User’s Manual

Advanced Settings ...........................................................................................60

Tools ................................................................................................................72

Status ...............................................................................................................79

Multiple Virtual Connections ............................................................................83

Technical Speciﬁcations ................................................................................... 85

Appendix A: IP Address Setup .........................................................................87

Appendix B: IP Concepts .................................................................................. 90

Appendix C: Microﬁlters & Splitters ................................................................. 93

Contacting Technical Support ..........................................................................95

Warranty ..........................................................................................................96

Table of Contents

Registration .....................................................................................................99

D-Link Systems, Inc.

DSL-504T User’s Manual

Package Contents

 D-Link DSL-504T

ADSL Ethernet Router

 One twisted-pair telephone cable used for ADSL connection

 One straight-through Ethernet cable

 Manual on CD

 Quick Installation Guide

 One AC power adapter

If any of the above items are missing, please contact your reseller.

D-Link Systems, Inc.

DSL-504T User’s Manual

Installation Overview

The procedure to install the Router can be described in general terms in the following steps:

1. Gather information and equipment needed to install the device. Before you begin the actual installation make sure you have all the necessary information and equipment.

2. Install the hardware, that is, connect the cables (Ethernet and telephone) to the device and connect the power adapter.

3. Check the IP settings on your computer and change them if necessary so the computer can access the web-based software built into the Router.

4. Use the web-based management software to conﬁgure the device to suit the requirements of your ADSL account.

D-Link Systems, Inc.

DSL-504T User’s Manual

Installation Requirements

In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their account information (Username and Password) is required. For others, various parameters that control and deﬁne the Internet connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to reconﬁgure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.

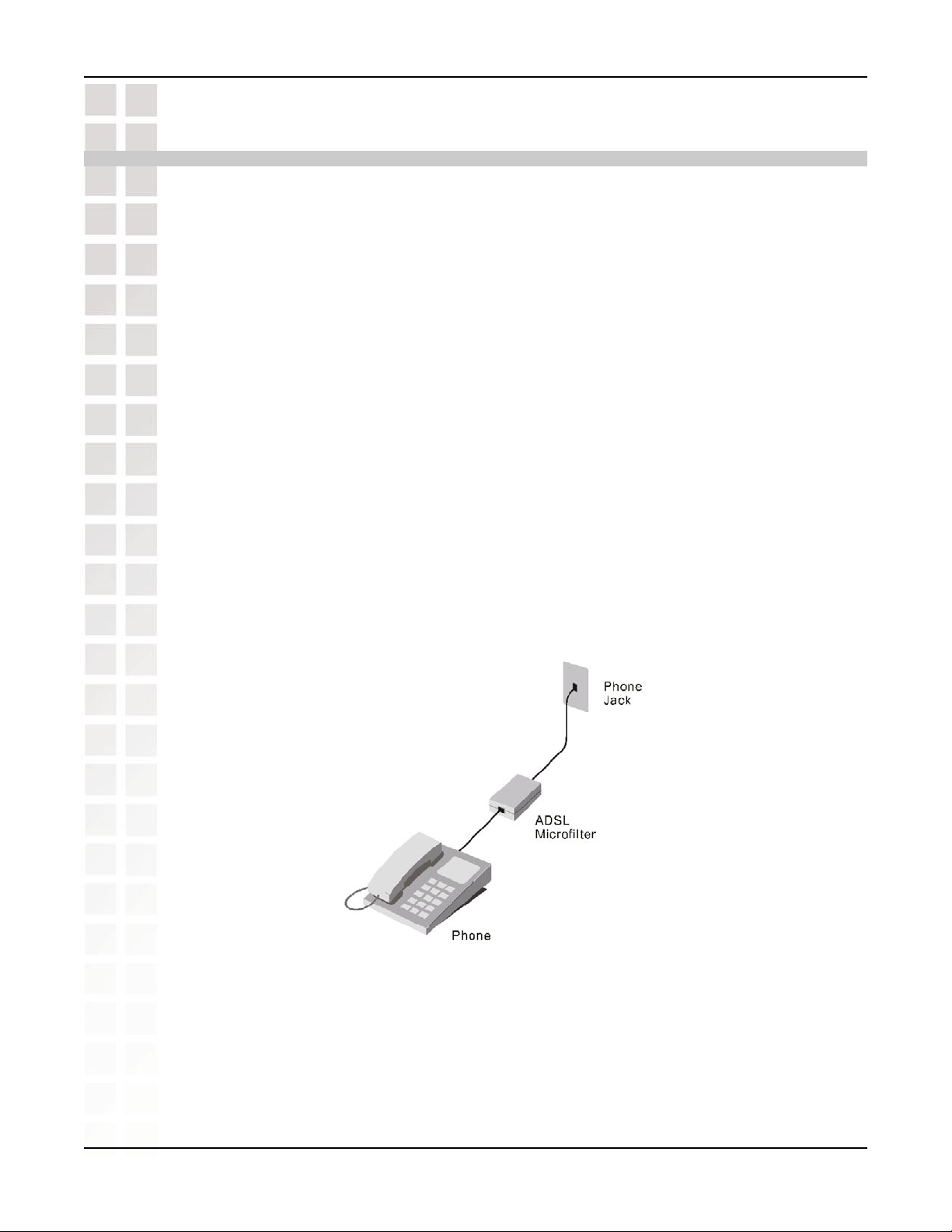

Low Pass Filters

Since ADSL and telephone services share the same copper wiring to carry their respective signals, a ﬁltering mechanism may be necessary to avoid mutual interference. A low pass ﬁlter device can be installed for each telephone that shares the line with the ADSL line. These ﬁlters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass ﬁlters with your installation.

Operating Systems

The DSL-504T uses an HTML-based web interface for setup and management. The web conﬁguration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

Web Browser

Any common Web browser can be used to conﬁgure the Router using the web conﬁguration management software. The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 5.0, Netscape Navigator® version 4.7, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.

Ethernet Port (NIC Adapter)

Any computer that uses the router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

D-Link Systems, Inc.

DSL-504T User’s Manual

Additional Software

It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the Router itself. If your ADSL service is delivered through a Dynamic, PPPoE/PPPoA, Static, or Bridge connection, the information needed to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information used to identify and verify the connection. All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN side of the bridge, such as a PC, a server, a gateway device such as a router or similar ﬁrewall hardware. The IP address can be assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC conﬁguration that may be required.

D-Link Systems, Inc.

DSL-504T User’s Manual

Information you will need from your ADSL service provider

Username This is the Username used to log on to your ADSL service provider’s network. It is commonly in the form - user@isp.com. Your ADSL service provider uses this to identify your account.

Password This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.

Connection Protocol This is the method your ADSL service provider uses to send and

receive data between the Internet and your computer. Your Modem supports the following connection protocols: Dynamic, PPPoE/PPPoA, Static, or Bridge.

Protocol This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Modem supports the PAP and CHAP protocols.

VPI This is the Virtual Path Identiﬁer (VPI). It is used in conjunction with the Virtual Channel Identiﬁer (VCI) below, to identify the data path between your ADSL service provider’s network and your computer.

VCI This is the Virtual Channel Identiﬁer (VCI). It is used in conjunction with the VPI above to identify the data path between your ADSL service

D-Link Systems, Inc.

DSL-504T User’s Manual

Information you will need about your DSL-504T ADSL router

Username This is the Username needed access the Modem’s management interface. When you attempt to connect to the device through a web browser you will be prompted to enter this Username. The default Username for the Modem is admin. This is a default setting and can NOT be changed.

Password This is the Password you will be prompted to enter when you access the Modem’s management interface. The default Password is admin. This may be changed by the user.

LAN IP addresses for the DSL-504T

LAN Subnet Mask for the

This is the IP address you will enter into the Address ﬁeld of your web browser to access the Modem’s conﬁguration graphical user interface (GUI) using a web browser. The default IP address is 192.168.1.1 and it is referred to as the “Management IP” address in this User’s Manual. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on the LAN when DHCP is enabled.

This is the subnet mask used by the DSL-504T, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.

D-Link Systems, Inc.

DSL-504T User’s Manual

Information you will need about your LAN or computer

Ethernet NIC If your computer has an Ethernet NIC, you can connect the DSL-504T to this Ethernet port using an Ethernet cable. You can also use the Ethernet port on the DSL-504T to connect to other Ethernet devices, such as a Wireless Access Point.

DHCP Client status Your DSL-504T ADSL Modem is conﬁgured, by default, to be

a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to computers on your LAN. The default range of IP addresses the DSL504T will assign are from 192.168.1.2 to 192.168.1.254. Your computer (or computers) needs to be conﬁgured to Obtain an IP address automatically (that is, they need to be conﬁgured as

It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-conﬁgure your ADSL connection in the future.

Once you have the above information, you are ready to setup and conﬁgure your DSL-504T ADSL Router.

The Modem may be reset to its factory default settings by performing a Restore settings operation within the management interface (see System Commands). If you cannot gain access to the management interface, you may opt to use the Reset button on the rear panel of the device).

D-Link Systems, Inc.

DSL-504T User’s Manual

Introduction

Router Description and Operation

The DSL-504T ADSL Router is designed to provide a simple and cost-effective ADSL Internet connection for individual computers through the Ethernet ports, or use it to bridge your Ethernet LAN to the Internet. The DSL-504T combines the beneﬁts of high-speed ADSL technology and LAN IP management in one compact and convenient package. ADSL technology enables many interactive multi-media applications such as video conferencing and collaborative computing. The Router is easy to install and use. The DSL-504T connects to computers or an Ethernet LAN via a standard Ethernet interface. The ADSL connection is made using ordinary twisted-pair telephone line with standard connectors. Multiple PCs can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address. The Router supports transparent bridging and can be used for IP packet routing over the Internet. Cost saving features of the Router such as NAT (Network Address Translator) and DHCP (Dynamic Host Conﬁguration Protocol) improve administration efﬁciency and improve security for your private network. The advanced security enhancements, packet ﬁltering and port redirection, can help protect your network from potentially devastating intrusions by malicious agents from outside your network.

Introduction

What is ADSL?

Asymmetric Digital Subscriber Line (ADSL) is an access technology that utilizes ordinary copper telephone lines to enable broadband high-speed digital data transmission and interactive multimedia applications for business and residential customers. ADSL greatly increases the signal carrying capacity of copper telephone lines without interfering with regular telephone services. For the ADSL user, this means faster downloads and more reliable connectivity. ADSL devices make it possible to enjoy beneﬁts such as high-speed Internet access without experiencing any loss of quality or disruption of voice/fax telephone capabilities. ADSL provides a dedicated service over a single telephone line operating at speeds of up to 8 Mbps downstream and up to 640 Kbps upstream, depending on local telephone line conditions. A secure point-to-point connection is established between the user and the central ofﬁce of the service provider. D-Link ADSL devices incorporate the recommendations of the ADSL Forum regarding framing, data format, and upper layer protocols.

D-Link Systems, Inc.

DSL-504T User’s Manual

Features and Beneﬁts

The DSL-504T ADSL Router utilizes the latest ADSL enhancements to provide a reliable Internet portal suitable for most small to medium sized ofﬁces. DSL-504T advantages include:

PPP (Point-to-Point Protocol) Security – The DSL-504T ADSL Router supports



PAP (Password Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) for PPP connections.

DHCP Support – Dynamic Host Conﬁguration Protocol automatically and dynamically



assigns all LAN IP settings to each host on your network. This eliminates the need to reconﬁgure every host whenever changes in network topology occur.

Network Address Translation (NAT) – For small office environments, the



DSL-504T allows multiple users on the LAN to access the Internet concurrently through a single Internet account. This provides Internet access to everyone in the ofﬁce for the price of a single user.

Features and Beneﬁts

NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.

TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-504T supports



TCP/IP protocol, the language used for the Internet. It is compatible with access servers manufactured by major vendors.



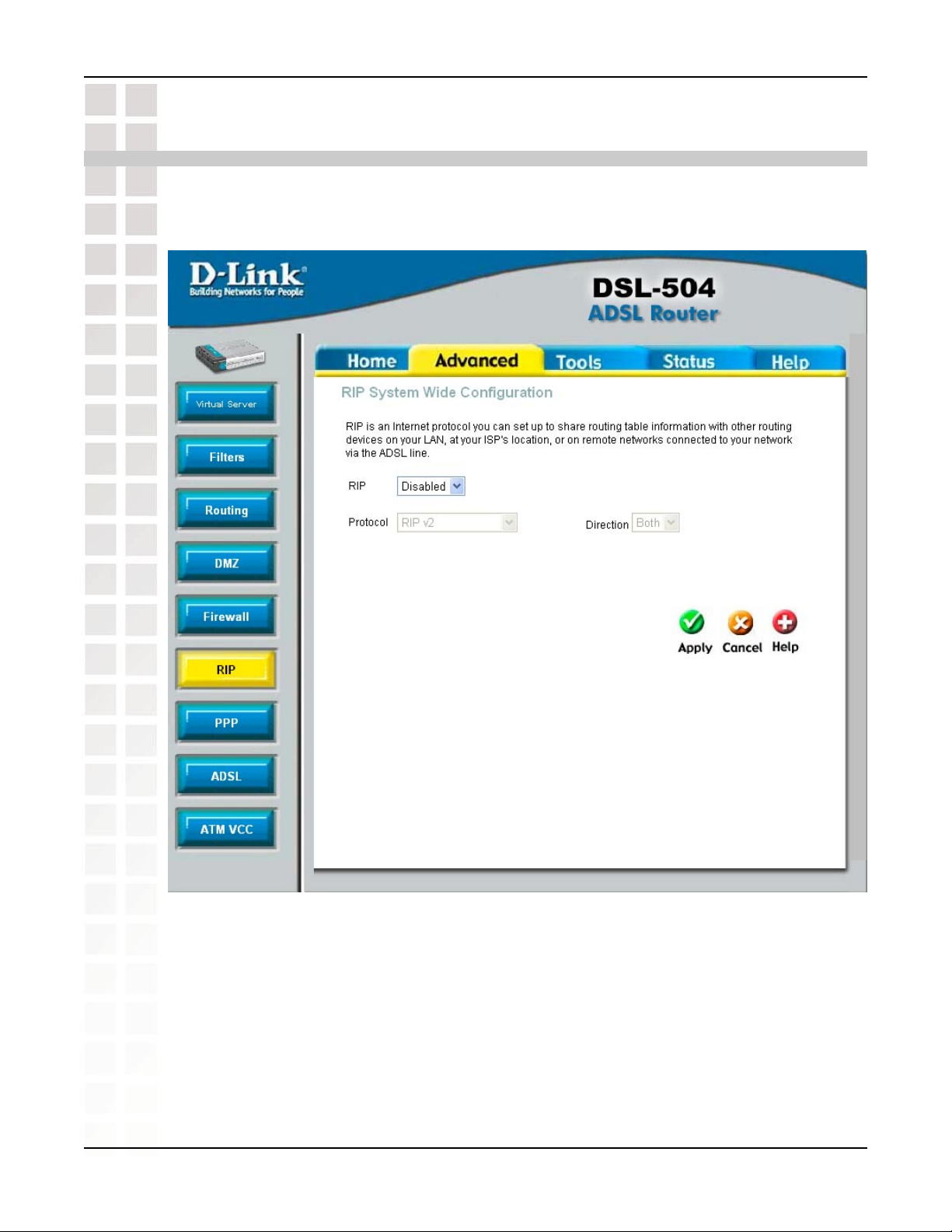

RIP-1/RIP-2 – The DSL-504T supports both RIP1 and RIP-2 exchanges with other routers. Using both versions allows the Router to communicate with all RIP enabled devices

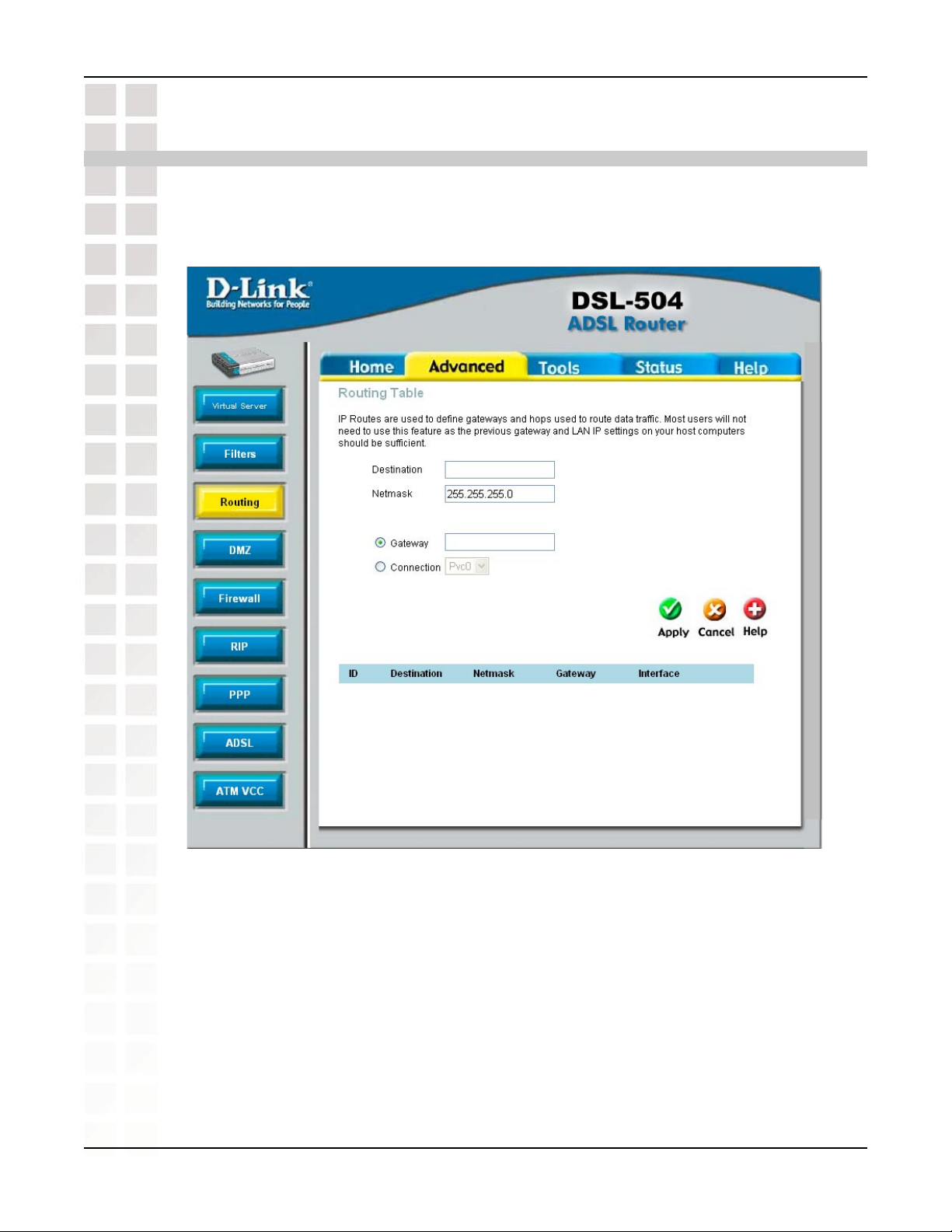

Static Routing – This allows you to select a data path to a particular network



destination that will remain in the routing table and never “age out”. If you wish to deﬁne a speciﬁc route that will always be used for data trafﬁc from your LAN to a speciﬁc destination within your LAN (for example to another router or a server) or outside your network (to a ISP deﬁned default gateway for instance).



Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is particularly useful when the Router functions as the sole connection to the Internet.

ATM (Asynchronous Transfer Mode) – The DSL-504T supports Bridged Ethernet



over ATM (RFC1483), IP over ATM (RFC1577) and PPP over ATM (RFC 2364).

D-Link Systems, Inc.

DSL-504T User’s Manual

Precise ATM Trafﬁc Shaping – Trafﬁc shaping is a method of controlling the ﬂow



rate of ATM data cells. This function helps to establish the Quality of Service for ATM data transfer

G.hs (Auto-handshake) – This allows the Router to automatically choose either



the G.lite or G.dmt ADSL connection standards.

High Performance – Very high rates of data transfer are possible with the



Router. Up to eight Mbps downstream bit rate using the G.dmt standard.

Full Network Management – The DSL-504T incorporates SNMP (Simple Network



Management Protocol) support for web-based management and text-based network management via Telnet connection.

Telnet Connection – Telnet enables a network manager to access the Router’s



management software remotely.

Features and Beneﬁts

Easy Installation – The DSL-504T uses a web-based graphical user interface



program for convenient management access and easy set up. Any Web browser, that meets the minimum requirements, can be used to manage the Router.

D-Link Systems, Inc.

DSL-504T User’s Manual

Standards Compatibility & Compli-

The DSL-504T complies with or is compatible with the following standards as recognized by their respective agencies.

· ITU G.992.2 (G.lite, “splitterless ADSL”) compliant

· ITU-T Rec. I.361 compliant

· RFC 791 Internet Protocol compliant

· RFC 792 UDP compliant

· RFC 826 Address Resolution Protocol compliant (ARP) compliant

· RFC 1058 Routing Information Protocol (RIP) compliant

· RFC 1213 MIB II for IP compliant

· RFC 1334 PPP Authentication Protocol compliant

· RFC 1389 Routing Information Protocol 2 (RIP2) compliant

· RFC 1483 IP over AAL5/ Bridged Ethernet over AAL5 compliant

Standards Compatibility & Compliance

· RFC 1557 Classical IP over ATM (IPoA) compliant

· RFC 1661 Point to Point Protocol (PPP) compliant

· RFC 1877 Automatic IP assignment compliant

· RFC 1994 Challenge Handshake Authentication Protocol compliant

· Supports RFC 2131 and RFC 2132 DHCP functions including: automatic assignment of IP address, use of subnet mask and default gateway and

provision of DNS server address for all hosts

· RFC 2364 PPP over ATM compliant (PPPoA) compliant

· RFC 2516 PPP over Ethernet compliant (PPPoE) compliant

· RFC 2684 Bridged/Routed Ethernet over ATM compliant

· IEEE 802.3 compliant

· IEEE 802.3u compliant

· IEEE 802.1d compliant

· IEEE 802.3x compliant

· Embedded web server support

· Supports Dynamic Learning

· Supports Static Routing

D-Link Systems, Inc.

DSL-504T User’s Manual

· Supports NAPT for up to 4096 connections

· Supports DHCP for up to 253 hot connections

· Supports IGMP

· Supports ATM Forum UNI 3.1/4.0

· Supports ATM VCC (Virtual Channel Circuit) for up to eight sessions

· Supports TELNET and TFTP

· Supports back pressure for half-duplex

Standards Compatibility & Compliance

D-Link Systems, Inc.

DSL-504T User’s Manual

Front Panel Display

Place the Router in a location that permits an easy view of the LED indicators on the front panel. The LED indicators on the front panel include the Power, Status, ADSL and WLAN and Ethernet (1-4) Link/Act indicators. The ADSL, WLAN and Ethernet indicators monitor link status and activity (Link/Act).

Front Panel Display

Power

Status

ADSL (Link/Act)

A solid green light indicates the unit is powered on. When the device is powered off this remains off.

Lights solid green during power on self-test (POST). Once the connection status has been settled, the light will blink gre en. If the indicator light is off after the POST, the system has failed and the device should be rebooted.

A solid green light indicates a valid ADSL connection. A blinking green light indicates activity on the WAN (ADSL) interface.

Ethernet Ports (1-4):

D-Link Systems, Inc.

A solid light indicates a connection on the associated port. A blinking light indicates activity on the associated port.

DSL-504T User’s Manual

Rear Panel Connections

All cable connections to the Router are made at the rear panel. Connect the power adapter here to power on the Router. Use the Reset button to restore the settings to the factory default values. Please see the Hardware Installation section in this manual for more information about the Reset button.

ADSL Port

Use the ADSL cable to connect to the your telephone line (RJ-11 port)

Ethernet ports

Use the Ethernet ports to connect the Router to your Ethernet LAN or Ethernet devices

Reset button

To manually reset to the manufacturer’s default setting, depress button with the power on for at least seven seconds

Power Insert

Use the adapter shipped with the Router to connect to power source

D-Link Systems, Inc.

To manually reboot the Router, disconnect and then reconnect the power.

DSL-504T User’s Manual

Hardware Installation

The DSL-504T maintains ﬁve separate interfaces, four Ethernet and one ADSL interface. Place the Router in a location where it can be safely connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety precautions.

The access point can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Hardware Installation

D-Link Systems, Inc.

DSL-504T User’s Manual

Power On Router

To power on the Router:

1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby power source.

2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid green and begin to blink after a few seconds.

3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make sure the connection is valid. The Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Router is properly conﬁgured this should light up after several seconds. If this is the ﬁrst time installing the device, some settings may need to be changed before the Router can establish a connection.

Power On Router

CAUTION: The Router must be used with the power adapter included with the device.

Factory Reset Button

The Router may be reset to the original factory default settings by depressing the reset button for at least seven seconds while the device is powered on. Use a ballpoint or paperclip to gently push down the reset button. Remember that this will wipe out any settings stored in ﬂash memory including user account information and LAN IP settings. The device settings will be restored to the factory default IP address

192.168.1.1 and the subnet mask is 255.255.255.0, the default management

Username is admin and the default Password is admin.

D-Link Systems, Inc.

DSL-504T User’s Manual

Network Connections

Network connections are provided through the ADSL port and the four Ethernet ports on the back of the Router. See the Rear Panel diagram and the illustrations below for examples.

Connect ADSL Line

Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass ﬁlter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.

Connect Router to Ethernet

The Router may be connected to a single computer or Ethernet device through the 10/100 BASE-TX Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds between 0~100Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straightthrough cable when connecting it to an uplink (MDI-II) port on a hub or switch.

Wired Network Connections

The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.

D-Link Systems, Inc.

DSL-504T User’s Manual

Hub or Switch to Router Connection

Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable as shown in the diagram below:

Computer to Router Connection

Wired Network Connections

If you wish to reserve the uplink port on the switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.

You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided as shown in this diagram.

D-Link Systems, Inc.

DSL-504T User’s Manual

Basic Router Conﬁguration

The ﬁrst time you setup the Router it is recommended that you conﬁgure the WAN connection using a single computer making sure that both the computer and the Router are not connected to the LAN. Once the WAN connection is functioning properly, you may continue to make changes to Router conﬁguration including IP settings and DHCP setup. This chapter is concerned with using your computer to conﬁgure the WAN connection. The following chapter describes the various menus used to conﬁgure and monitor the Router including how to change IP settings and DHCP server setup.

Wan Conﬁguration Summary

1. Connect to the Router To conﬁgure the WAN connection used by the Router

it is ﬁrst necessary to communicate with the Router through its management interface, which is HTML-based and can be accessed using a web browser. To access the management section, your computer must be able to “see” the Router. Your computer can see the Router if it is in the same “neighborhood” or subnet as the Router. This is accomplished by making sure your computer has IP settings that place it in the same subnet as the Router. The easiest way to make sure your computer has the correct IP settings is to conﬁgure it to use the DHCP server in the Router. The next section describes how to change the IP conﬁguration for a computer running a Windows operating system to be a DHCP client.

2. Conﬁgure the WAN Connection Once you are able to access the conﬁguration

software you can proceed to change the settings required to establish the ADSL connection and connect to the service provider’s network. There are different methods used to establish the connection to the service provider’s network and ultimately to the Internet. You should know what Encapsulation and connection type you are required to use for your ADSL service. It is also possible that you must change the PVC settings used for the ADSL connection. Your service provider should provide all the information you need to conﬁgure the WAN connection.

Basic Router Conﬁguration

Conﬁguring IP Settings on Your Computer

In order to conﬁgure your system to receive IP settings from the Router it must ﬁrst have the TCP/IP protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP protocol installed. If you are using Windows XP the TCP/IP is enabled by default for standard installations. On the following page is an illustrated example of how to conﬁgure a Windows XP system to automatically obtain IP settings from the Router. Following this example is a step-by-step description of the procedures used on the other Windows operating systems to ﬁrst check if the TCP/IP protocol has been installed; if it is not, instructions are provided for installing it. Once the protocol has been installed you can conﬁgure the system to receive IP settings from the Router. For computers running non-Windows operating systems, follow the instructions for your OS that conﬁgure the system to receive an IP address from the Router, that is,

D-Link Systems, Inc.

DSL-504T User’s Manual

If you are using this Router to provide Internet access for more than one computer, you can use these instructions later to change the IP settings for the other computers. However, you cannot use the same IP address since every computer must have its own IP address that is unique on the local network.

Conﬁgure Windows XP for DHCP

Use the following steps to conﬁgure a computer running Windows XP to be a DHCP client.

From the Start menu on your desktop, go to Settings, then click on Network Connections. If the network setting is not displayed, go to Start>Settings>Control Panel>Network Connections.

Basic Router Conﬁguration

In the Network Connections window, right-click on LAN (Local Area Connection), then click Properties.

D-Link Systems, Inc.

DSL-504T User’s Manual

In the General tab of the Local Area Connection Properties menu, highlight Internet Protocol (TCP/IP) under “This connection uses the following items:” by clicking on it once. Click on the Properties button.

Basic Router Conﬁguration

Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK button.

D-Link Systems, Inc.

DSL-504T User’s Manual

Your computer is now ready to use the Router’s DHCP server.

Windows 2000

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click

Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Local Area

Connection icon, and then select Properties.

4. The Local Area Connection Properties dialog box displays with a list of currently

installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled, skip ahead to Conﬁgure Windows 2000 for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click

Install.

6. In the Select Network Component Type dialog box, select Protocol, and then

click Add.

7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click

OK.

8. You may be prompted to install ﬁles from your Windows 2000 installation CD or

other media. Follow the instructions to install the ﬁles.

9. If prompted, click OK to restart your computer with the new settings.

Basic Router Conﬁguration

Conﬁgure Windows 2000 for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections

icon.

2. In Network and Dial-up Connections window, right-click the Local Area

Connection icon, and then select Properties.

3. In the Local Area Connection Properties dialog box, select Internet Protocol

(TCP/IP), and then click Properties.

4. In the Internet Protocol (TCP/IP) Properties dialog box, click the button labeled

Obtain an IP address automatically.

5. Double-click OK to conﬁrm and save your changes, and then close the Control

Panel.

D-Link Systems, Inc.

DSL-504T User’s Manual

Windows ME

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then

click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Network

icon, and then select Properties.

4. The Network Properties dialog box displays with a list of currently installed

network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip ahead to Conﬁgure Windows ME for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click

Add.

6. In the Select Network Component Type dialog box, select Protocol, and

then click Add.

7. Select Microsoft in the Manufacturers box.

Basic Router Conﬁguration

8. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click

OK.

9. You may be prompted to install ﬁles from your Windows Me installation CD or

other media. Follow the instructions to install the ﬁles.

10. If prompted, click OK to restart your computer with the new settings.

Conﬁgure Windows ME for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections

icon.

2. In the Network and Dial-up Connections window, right-click the Network

icon, and then select Properties.

3. In the Network Properties dialog box, select TCP/IP, and then click

Properties.

4. In the TCP/IP Settings dialog box, click the Obtain and IP address

automatically option.

5. Double-click OK twice to conﬁrm and save your changes, and then close the

Control Panel.

Your computer is now ready to use the Router’s DHCP server.

D-Link Systems, Inc.

DSL-504T User’s Manual

Windows 98

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click

Control Panel. Double-click the Network icon.

2. The Network dialog box displays with a list of currently installed network

components. If the list includes TCP/IP, and then the protocol has already been enabled, skip to Conﬁgure IP Information Windows 95, 98.

3. If TCP/IP does not display as an installed component, click Add. The Select

Network Component Type dialog box displays.

4. Select Protocol, and then click Add. The Select Network Protocol dialog box

displays.

5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the

Network Protocols list box.

6. Click OK to return to the Network dialog box, and then click OK again. You may

be prompted to install ﬁles from your Windows 95/98 installation CD. Follow the instructions to install the ﬁles.

Basic Router Conﬁguration

7. Click OK to restart the PC and complete the TCP/IP installation.

Conﬁgure Windows 98 for DHCP

Open the Control Panel window, and then click the Network icon.

2. Select the network component labeled TCP/IP, and then click Properties.

3. If you have multiple TCP/IP listings, select the listing associated with your network

card or adapter.

4. In the TCP/IP Properties dialog box, click the IP Address tab.

5. Click the Obtain an IP address automatically option.

6. Double-click OK to conﬁrm and save your changes. You will be prompted to

restart Windows.

7. Click Yes.

When it has restarted, your computer is ready to use the Router’s DHCP server.

D-Link Systems, Inc.

DSL-504T User’s Manual

Windows NT 4.0 Workstations

First, check for the IP protocol and, if necessary, install it:

1. In the Windows NT task bar, click the Start button, point to Settings, and then

click Control Panel.

2. In the Control Panel window, double-click the Network icon.

3. In the Network dialog box, click the Protocols tab.

4. The Protocols tab displays a list of currently installed network protocols. If the list

includes TCP/IP, then the protocol has already been enabled. Skip to “Conﬁgure IP Information”

5. If TCP/IP does not display as an installed component, click Add.

6. In the Select Network Protocol dialog box, select TCP/IP, and then click OK.

You may be prompted to install ﬁles from your Windows NT installation CD or other media. Follow the instructions to install the ﬁles.

7. After all ﬁles are installed, a window displays to inform you that a TCP/IP service

called DHCP can be set up to dynamically assign IP information.

8. Click Yes to continue, and then click OK if prompted to restart your computer.

Basic Router Conﬁguration

Conﬁgure Windows NT 4.0 for DHCP

1. Open the Control Panel window, and then double-click the Network icon.

2. In the Network dialog box, click the Protocols tab.

3. In the Protocols tab, select TCP/IP, and then click Properties.

4. In the Microsoft TCP/IP Properties dialog box, click the Obtain an IP address

automatically option.

5. Click OK twice to conﬁrm and save your changes, and then close the Control

Panel.

D-Link Systems, Inc.

DSL-504T User’s Manual

Access the Conﬁguration Manager

Now that your computer’s IP settings allow it to communicate with the Router, you can access the conﬁguration software.

Be sure that the web browser on your computer is not conﬁgured to use a proxy server in the Internet settings. In Windows Internet Explorer, you can check if a proxy server is enabled using the following procedure:

1. In Windows, click on the Start button, go to Settings and choose Control Panel.

2. In the Control Panel window, double-click on the Internet Options icon.

3. Click the Connections tab and click on the LAN Settings button.

4. Verify that the “Use proxy server” option is NOT checked. If it is checked, click in the checked box to deselect the option and click OK.

Access the Conﬁguration Manager

Alternatively, you can access this Internet Options menu using the Tools

D-Link Systems, Inc.

DSL-504T User’s Manual

To use the web-based management software, launch a suitable web browser and direct it to the IP address of the Router. Type in http:// followed by the default IP address,

192.168.1.1 in the address bar of the browser. The URL in the address bar should read: http://192.168.1.1.

A dialog box prompts for the User Name and Password. Type in the default User Name admin and default Password admin and click the OK button to access the web-based manager.

You should change the web-based manager access user name and password once you have veriﬁed that a connection can be established. The user name and password allows any computer within the same subnet as the Router to access the web-based manger.

Do not confuse the user name and password used to access the web-based manager with the ADSL account user name and password needed for PPP connections to access the Internet.

D-Link Systems, Inc.

+ 69 hidden pages
