D-Link DSL-322T User Manual
DSL-322T
ADSL Modem
User Guide
October 2006
ESL322TEU.A1G
DSL-322T ADSL Modem User Guide
ii
Table Of Contents
BEFORE YOU START...................................................................................................... IV
Installation Overview.......................................................................................................................................iv
Setup Wizard....................................................................................................................................................iv
Packing List......................................................................................................................................................iv
Installation Notes..............................................................................................................................................v
Installing the USB Driver ..............................................................................................................................viii
INTRODUCTION .................................................................................................................1
Modem Description and Operation.................................................................................................................1
Modem Features...............................................................................................................................................1
Front Panel Display..........................................................................................................................................2
Rear Panel Connections ..................................................................................................................................3
HARDWARE INSTALLATION ............................................................................................4
Power on Modem..............................................................................................................................................4
Factory Reset Button .......................................................................................................................................4
Network Connections.......................................................................................................................................5
BASIC MODEM CONFIGURATION....................................................................................6
Computer IP Settings.......................................................................................................................................6
Access the Configuration Manager................................................................................................................7
HOME..................................................................................................................................8
Wizard................................................................................................................................................................8
WAN ................................................................................................................................................................ 15
PPPoE/PPPoA ..............................................................................................................................................................17

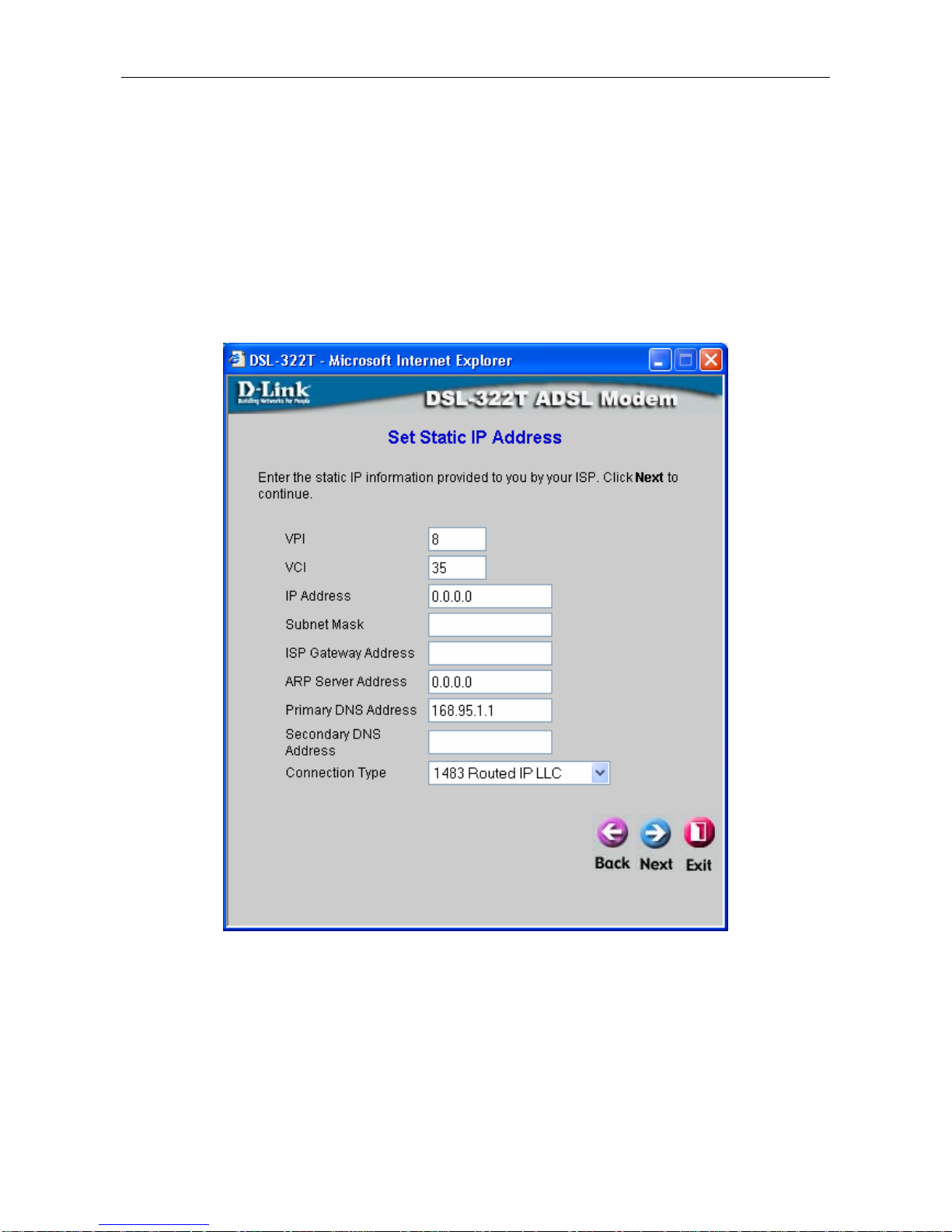

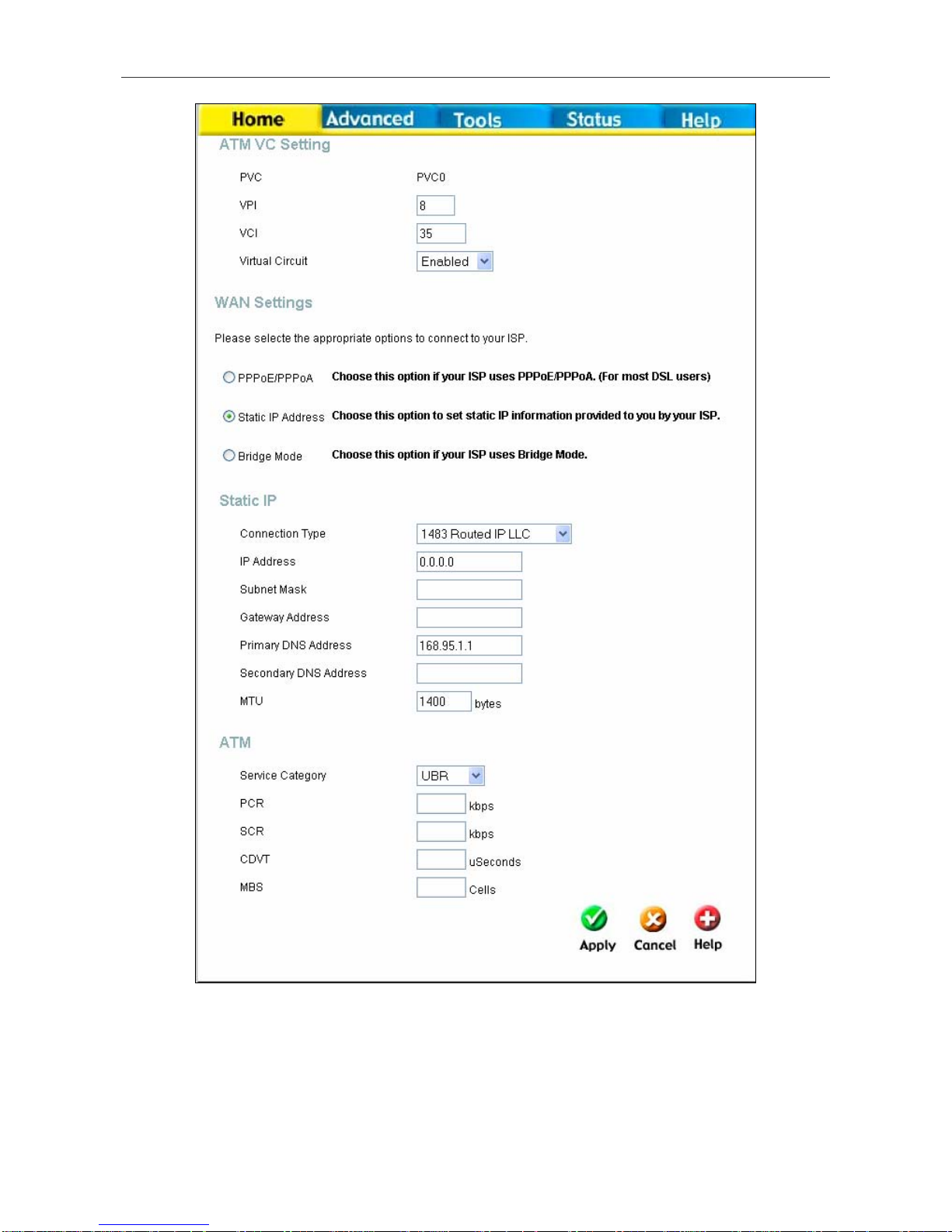

Static IP Address ..........................................................................................................................................................20

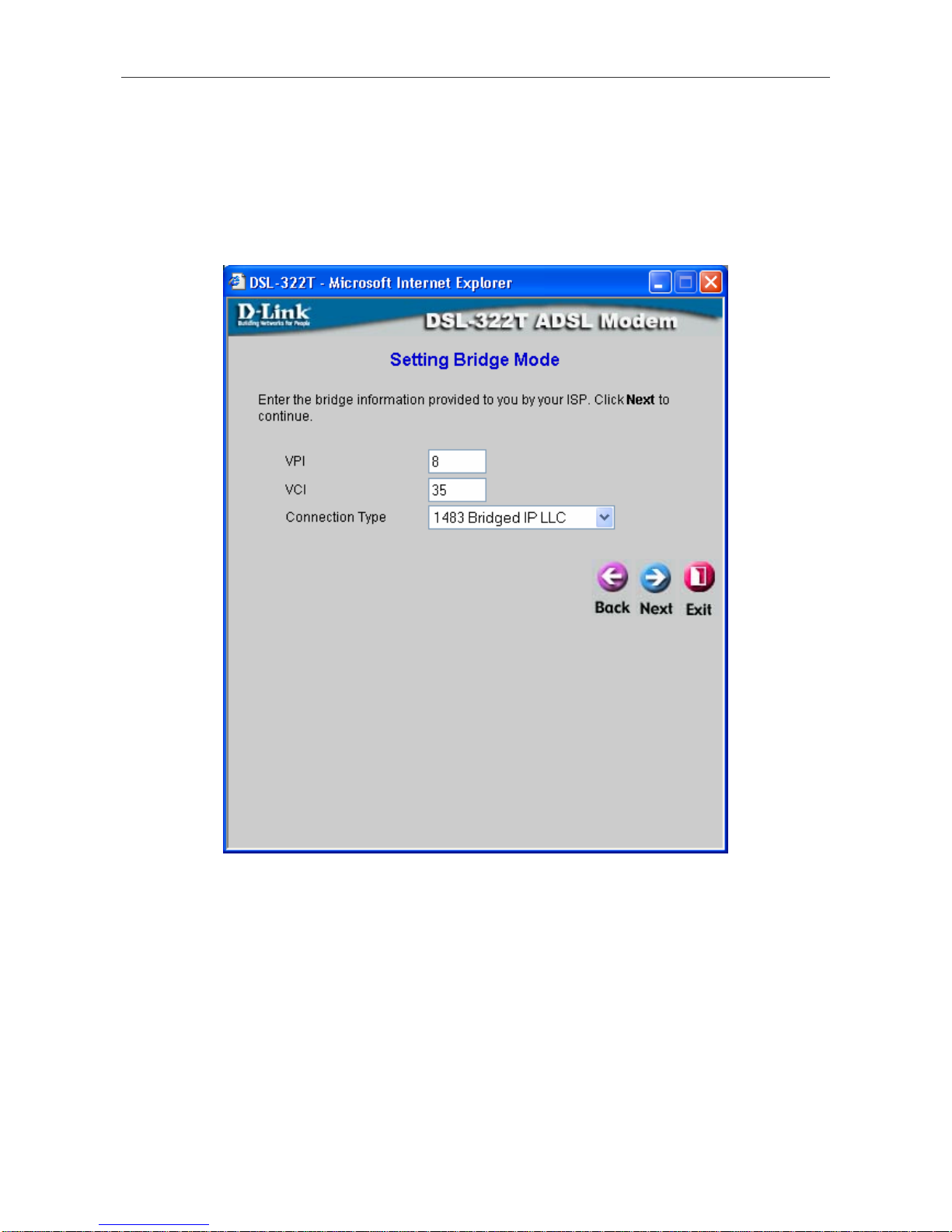

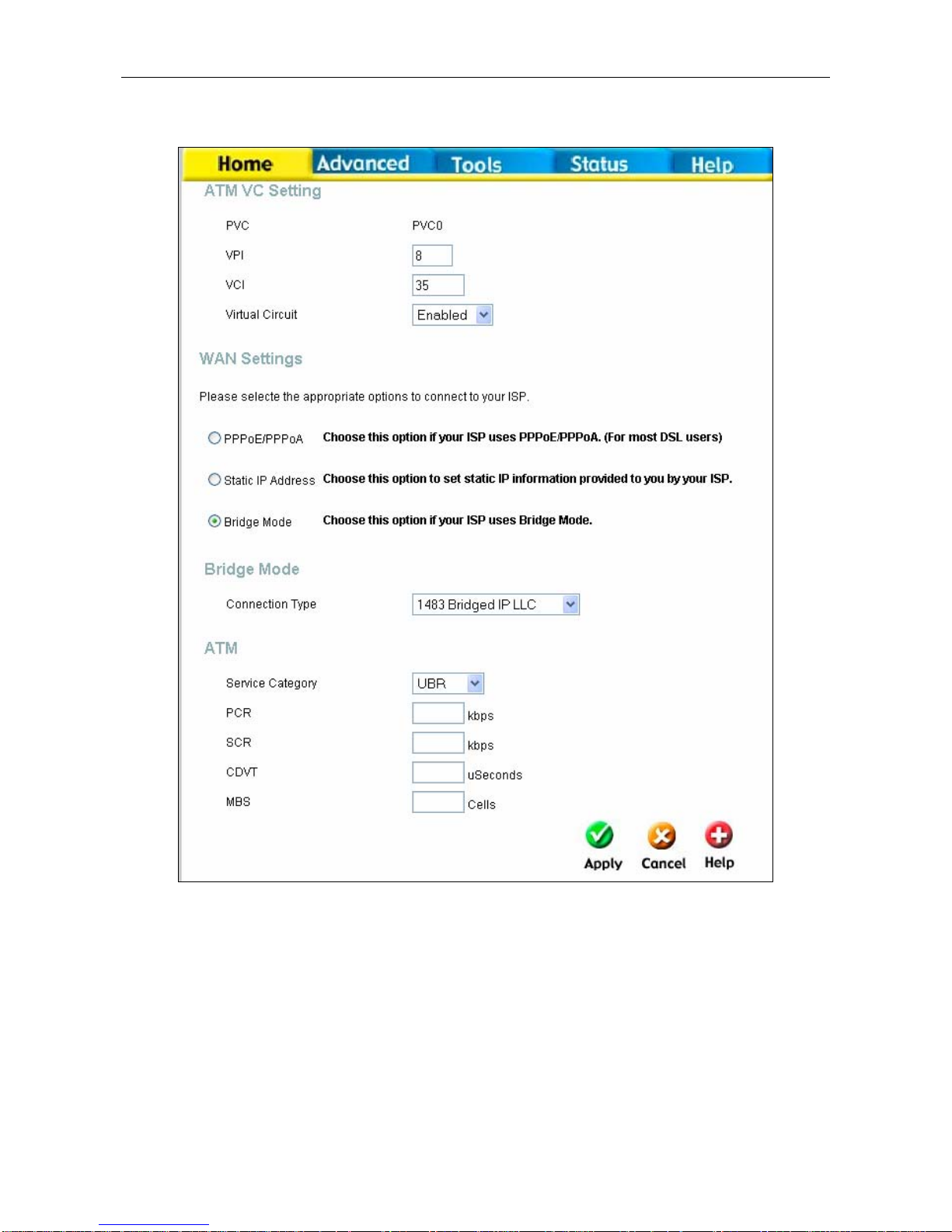

Bridge Mode.................................................................................................................................................................24
ATM Traffic Shaping...................................................................................................................................................26

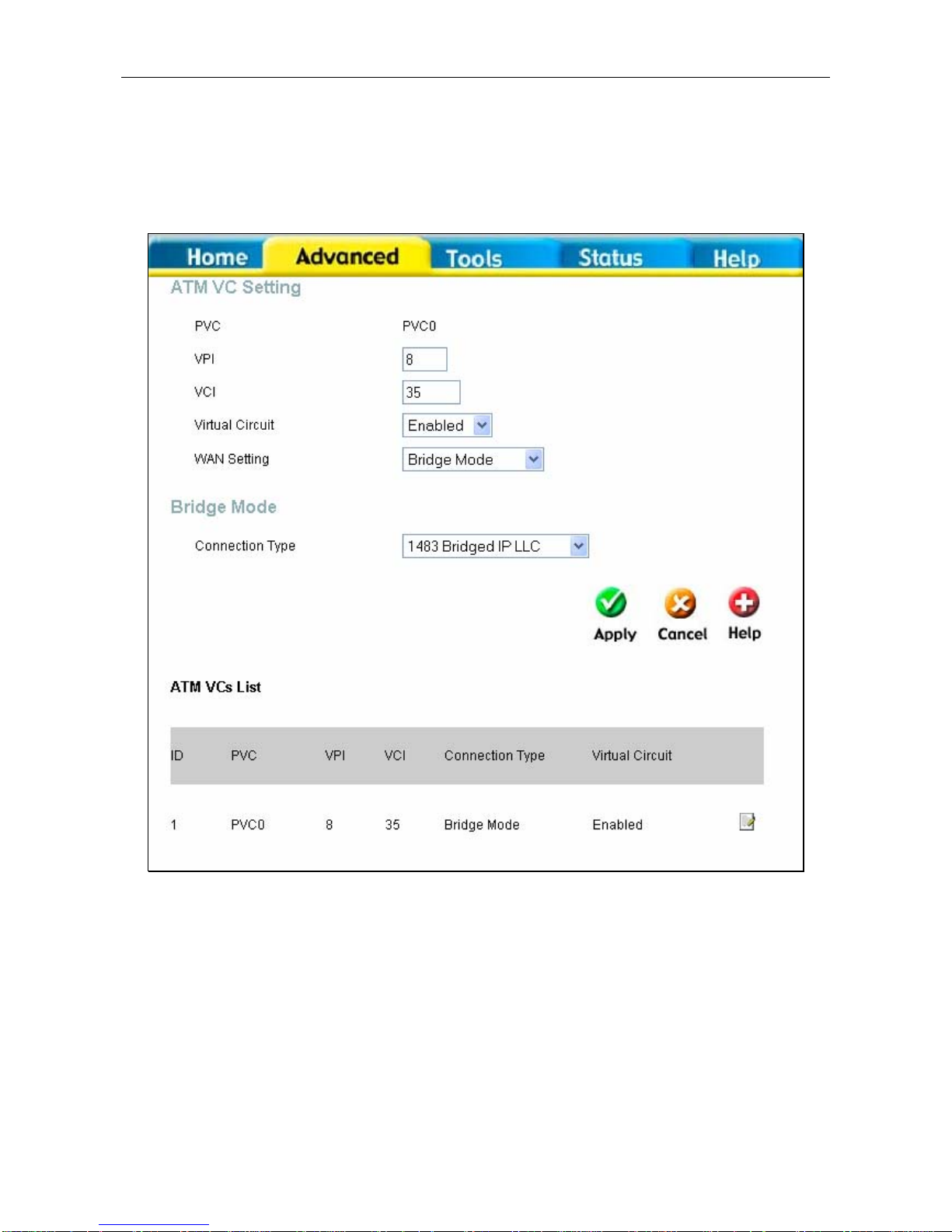

ATM VC Setting ..........................................................................................................................................................27
LAN.................................................................................................................................................................. 28
DHCP............................................................................................................................................................... 29

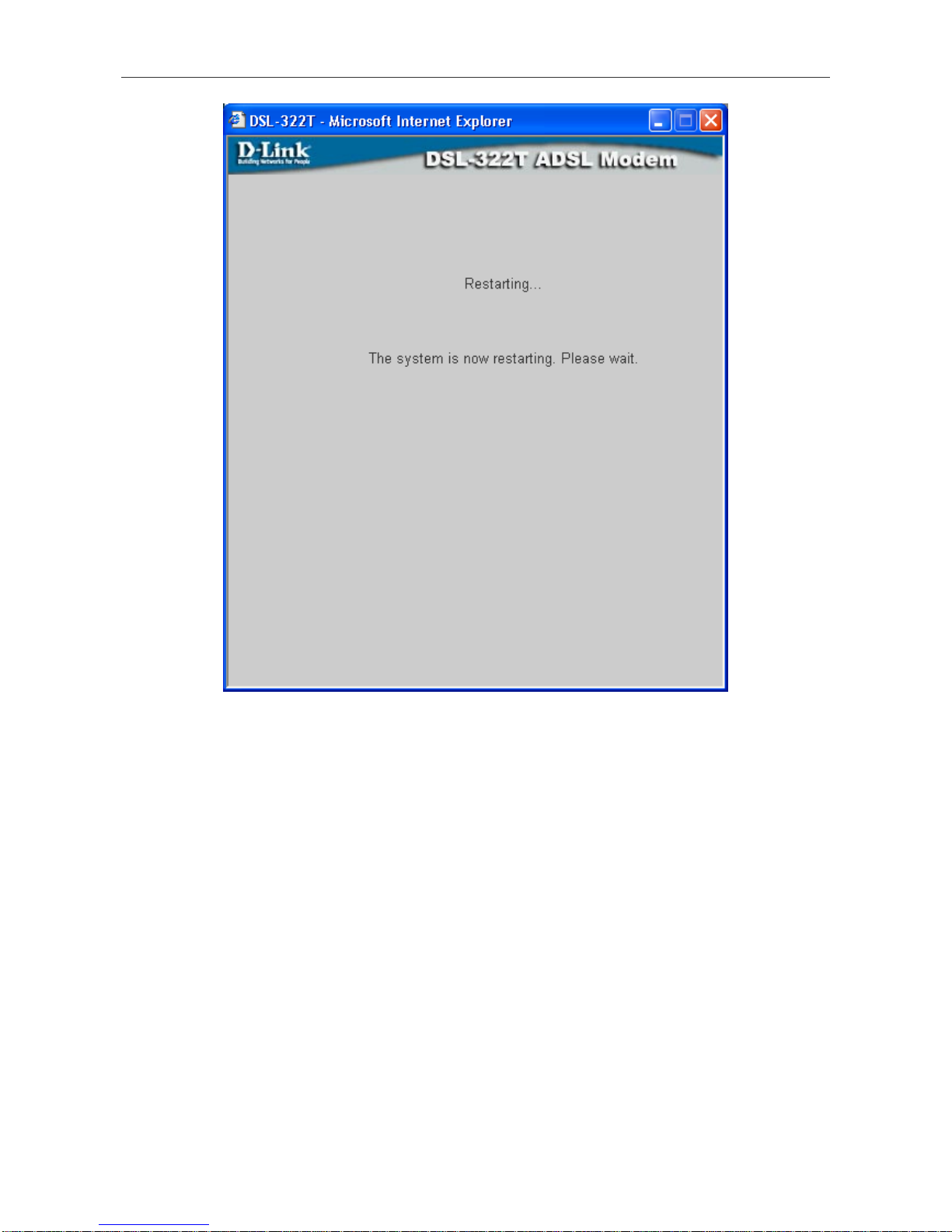

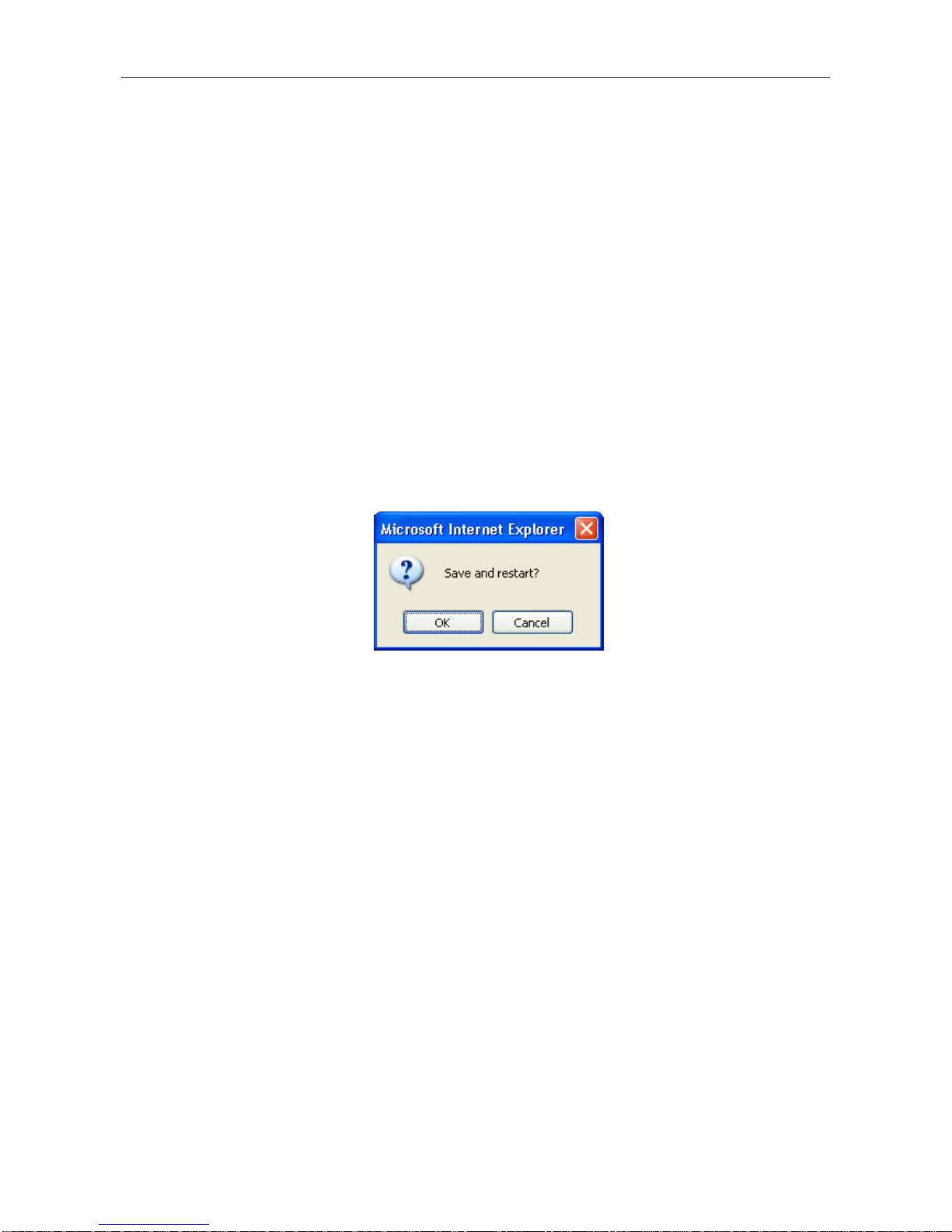

Save Settings and Reboot............................................................................................................................ 31
ADVANCED MODEM MANAGEMENT.............................................................................32

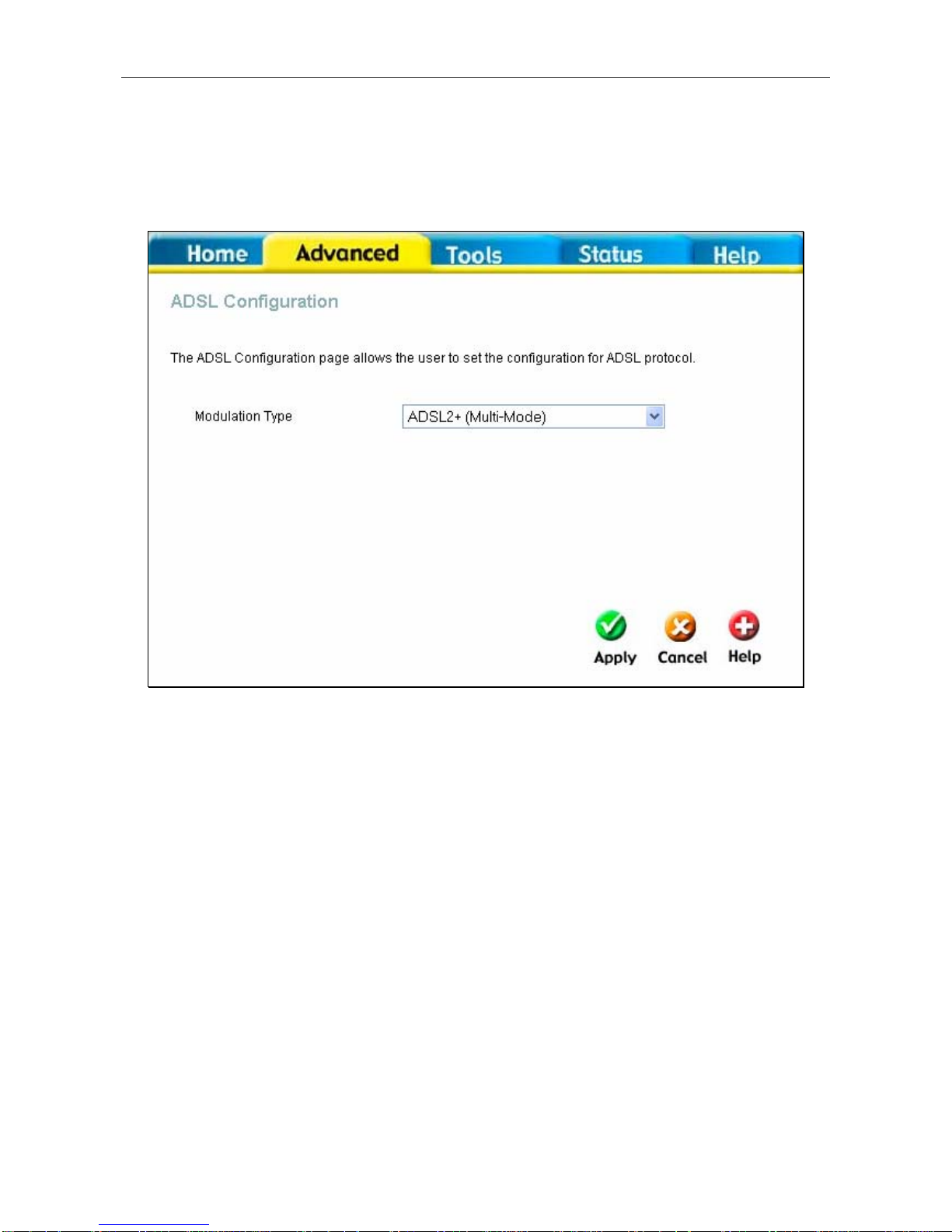

ADSL............................................................................................................................................................... 33
ATM VCC ........................................................................................................................................................ 34
TOOLS ..............................................................................................................................35

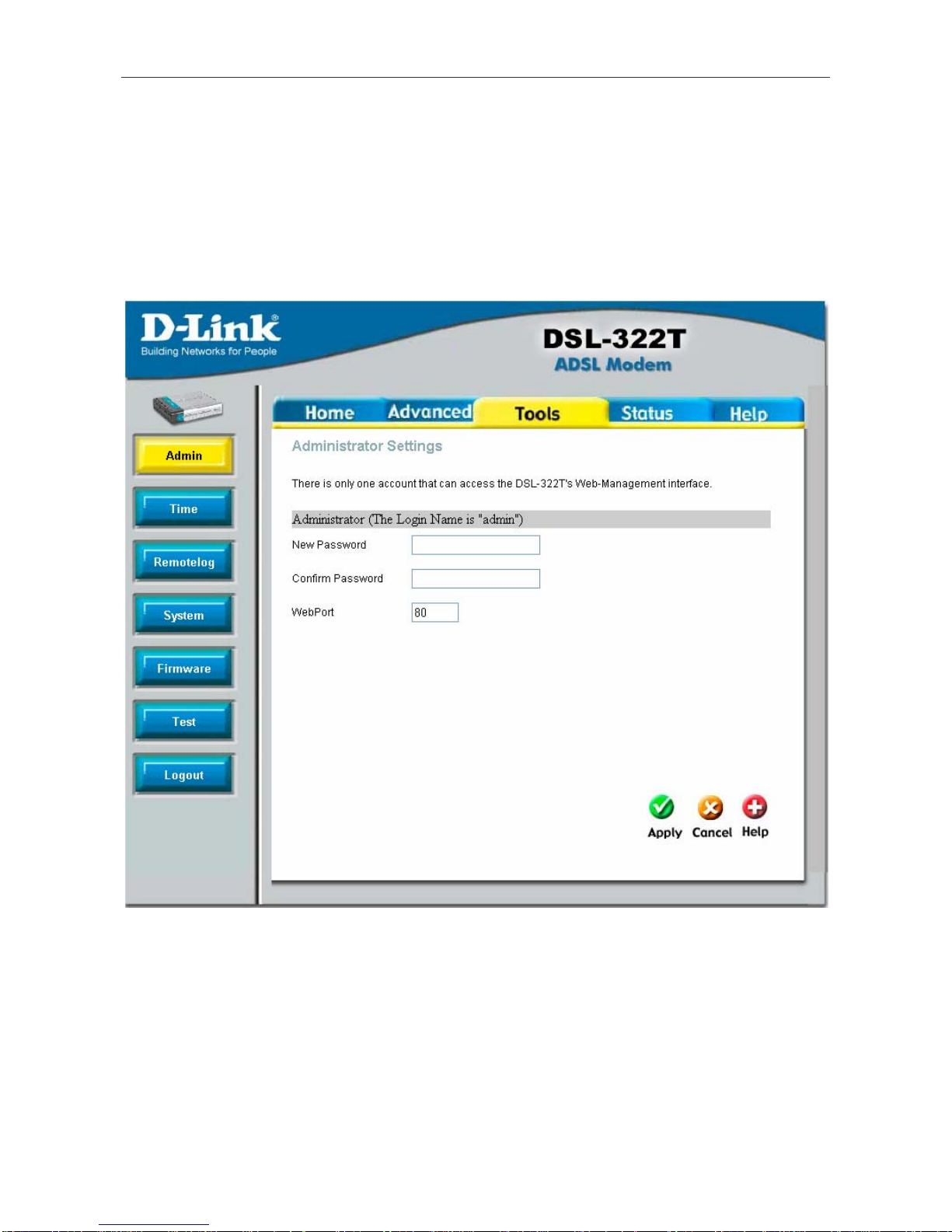

Admin.............................................................................................................................................................. 35

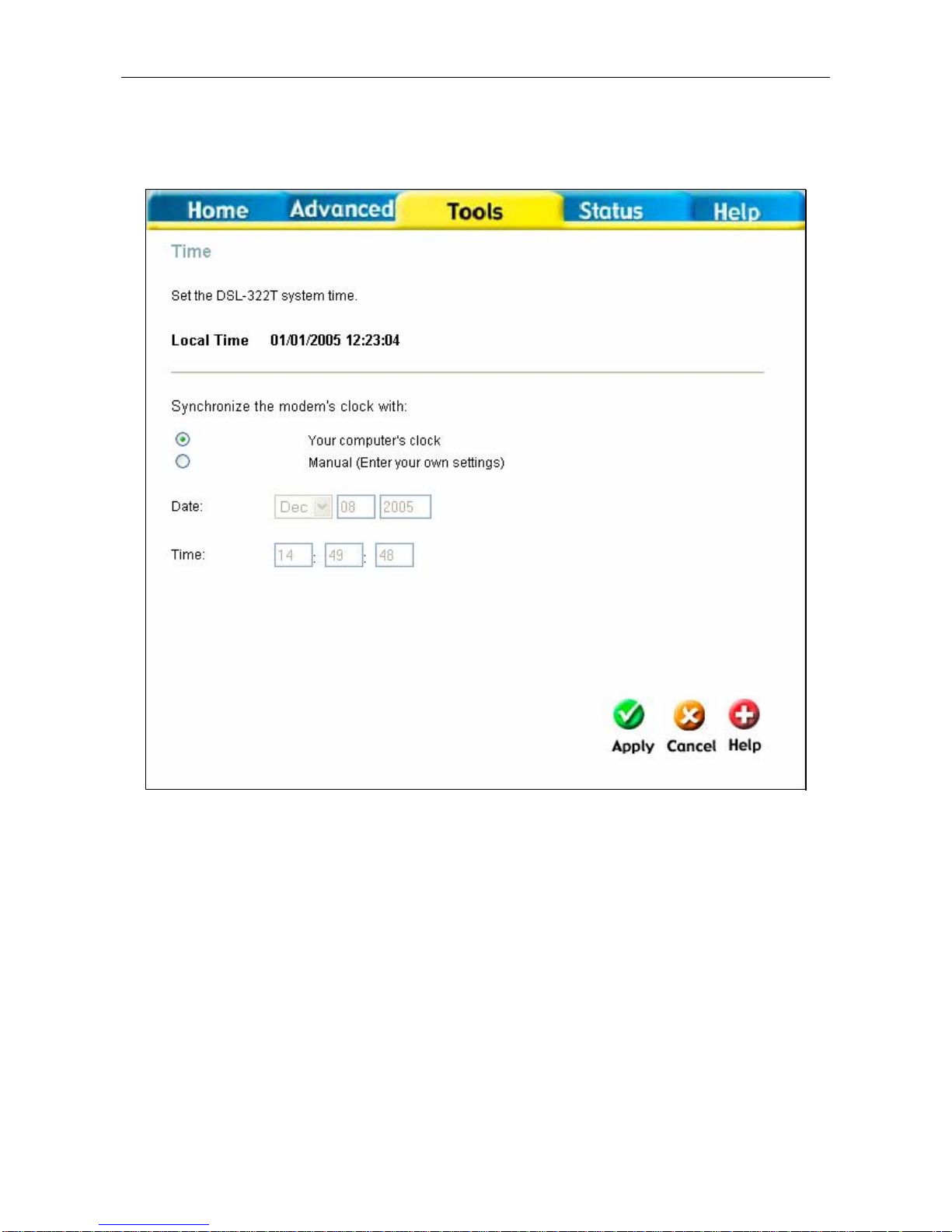

Time................................................................................................................................................................. 36

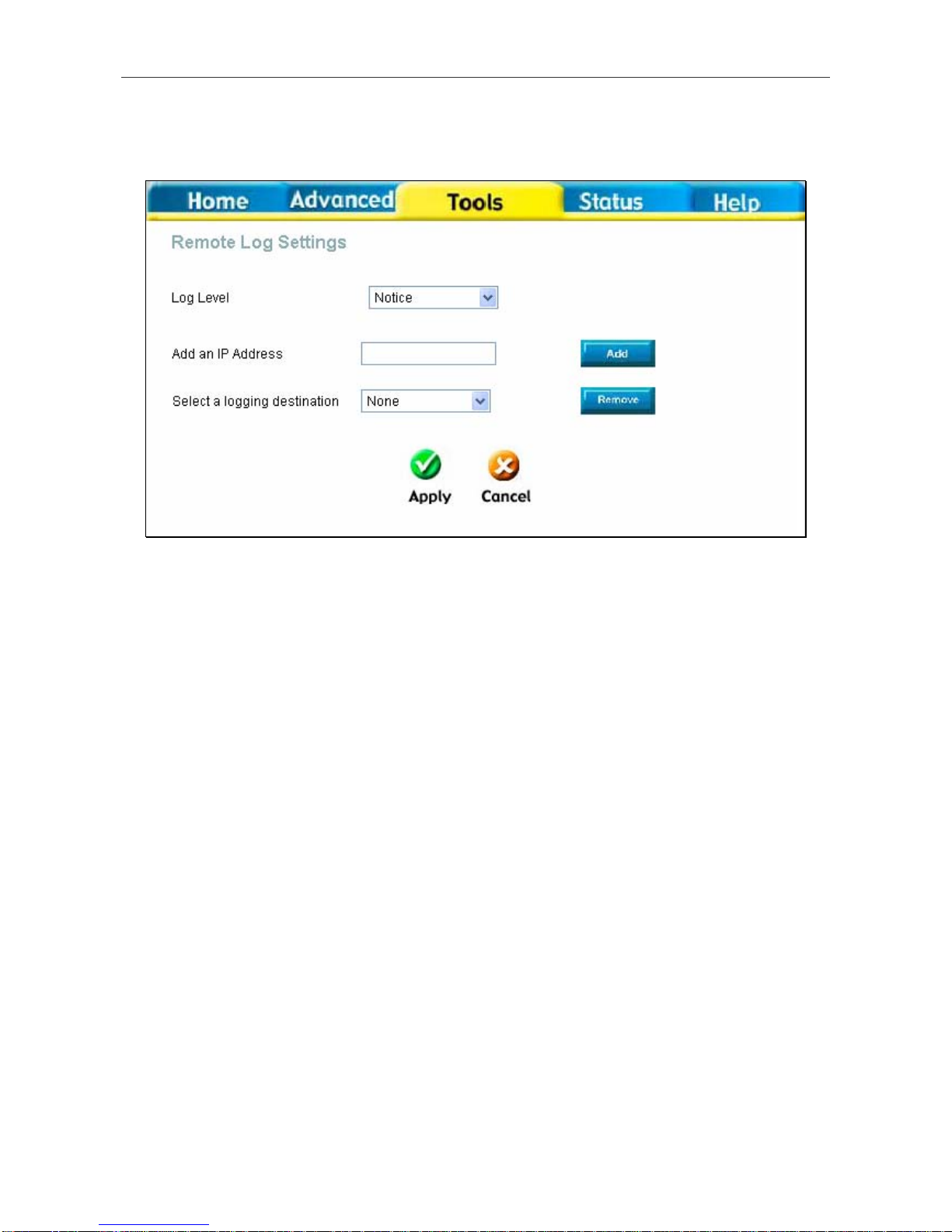

Remote Log.................................................................................................................................................... 37

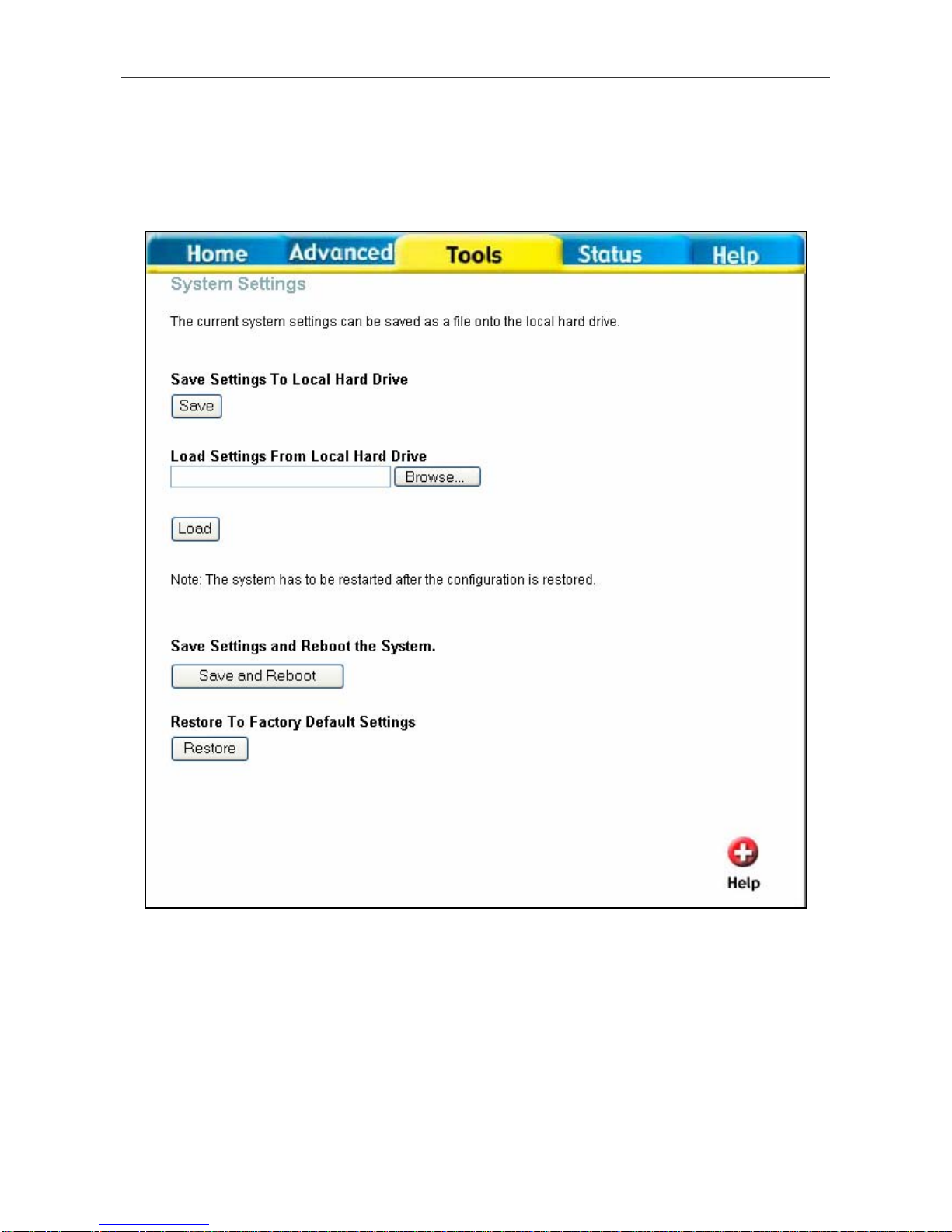

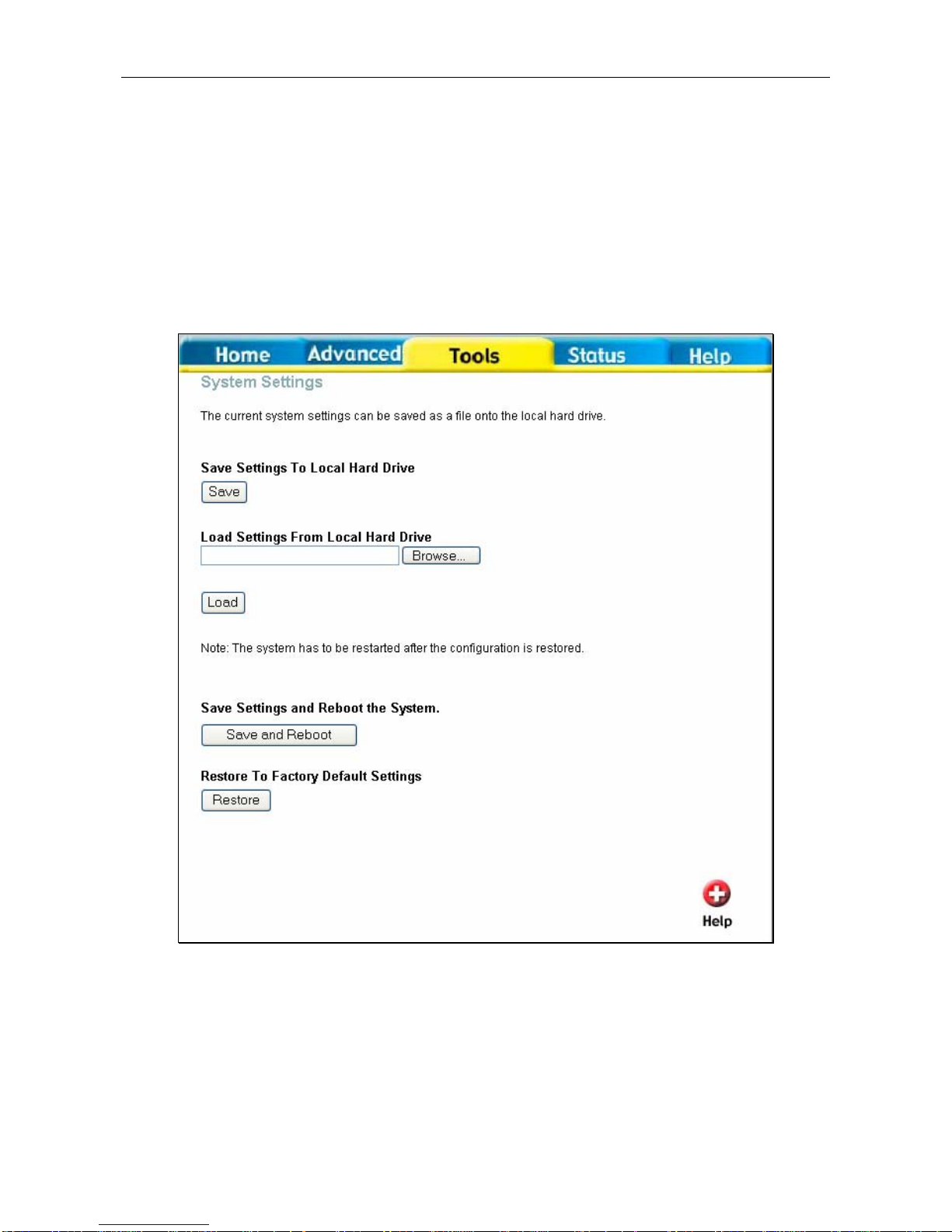

System............................................................................................................................................................ 38

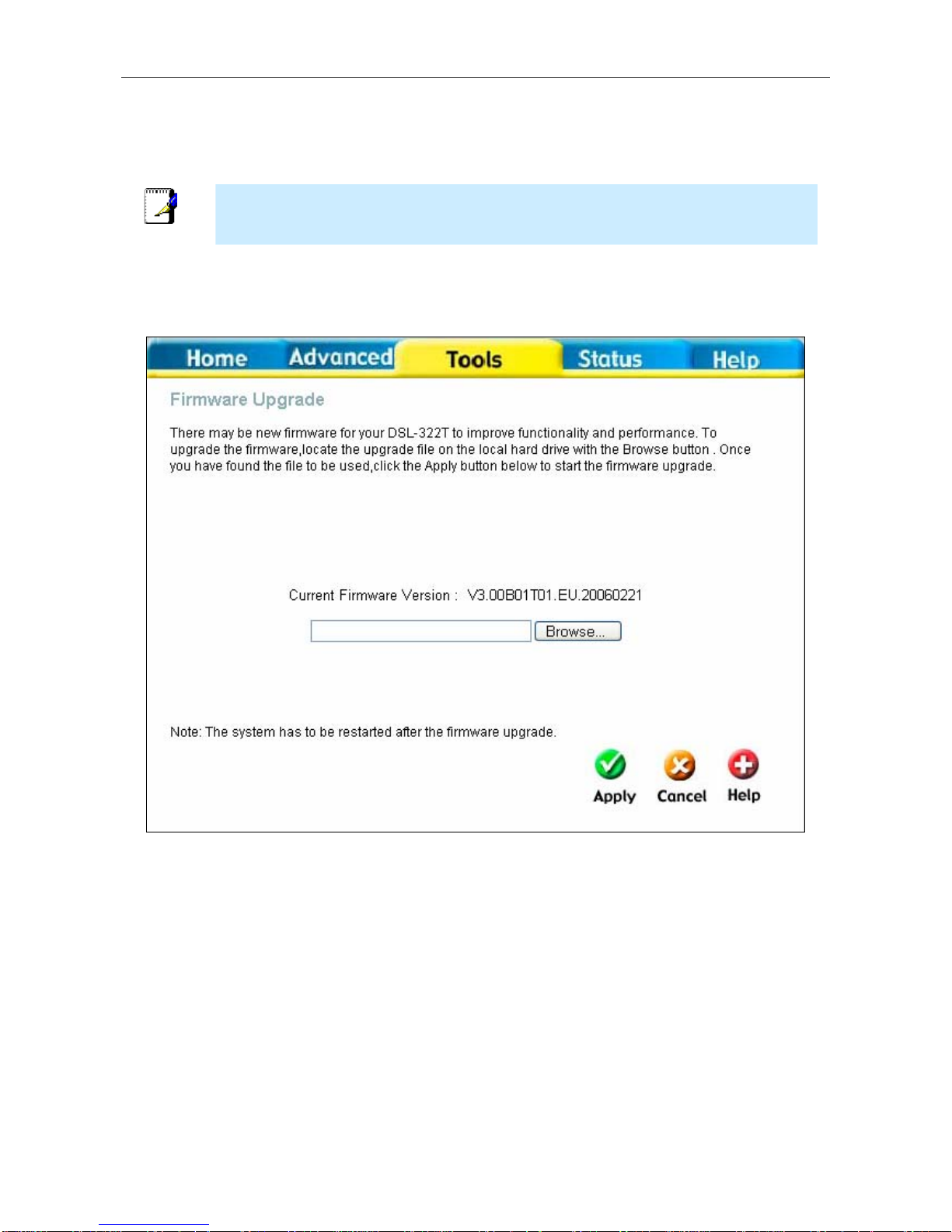

Firmware......................................................................................................................................................... 39

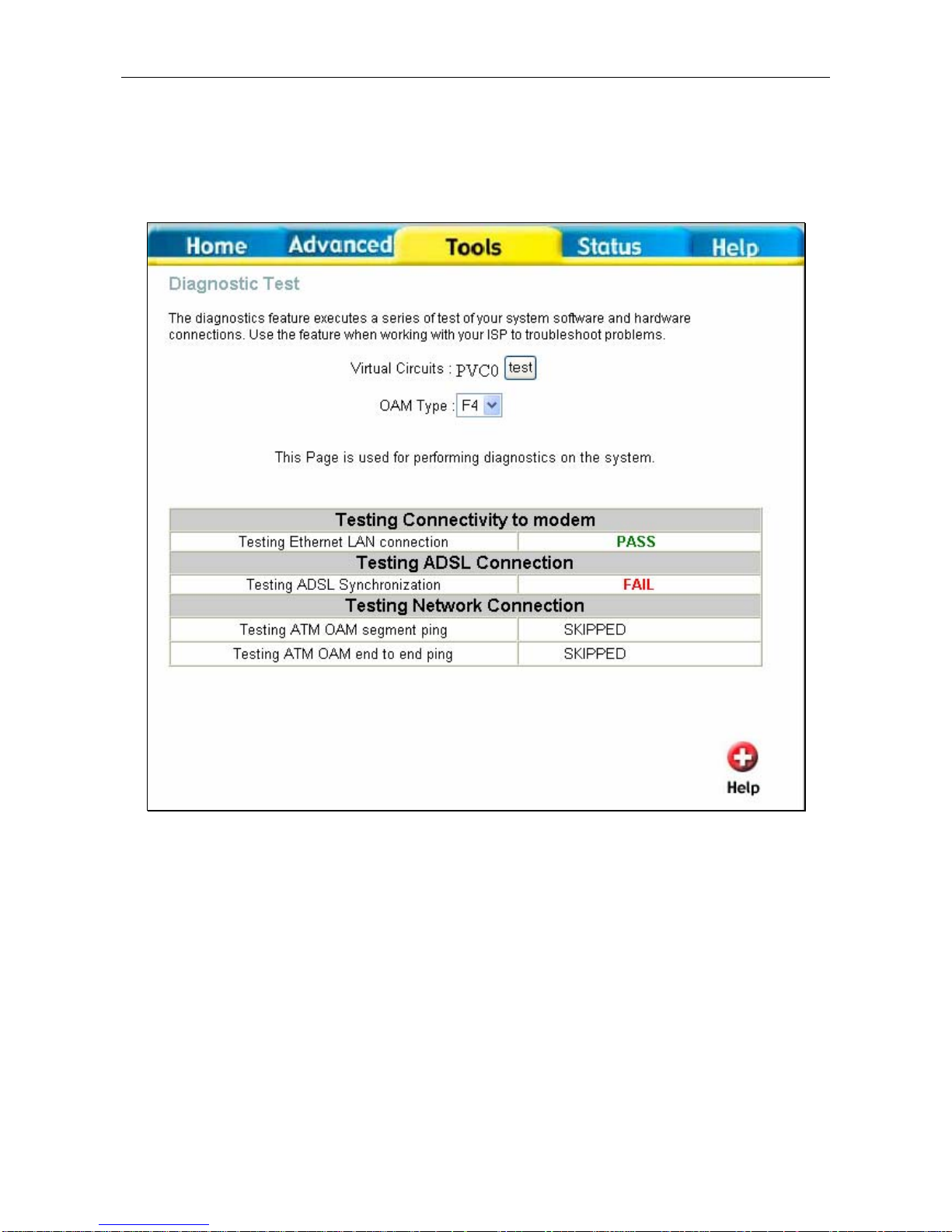

Test.................................................................................................................................................................. 40
STATUS ............................................................................................................................41

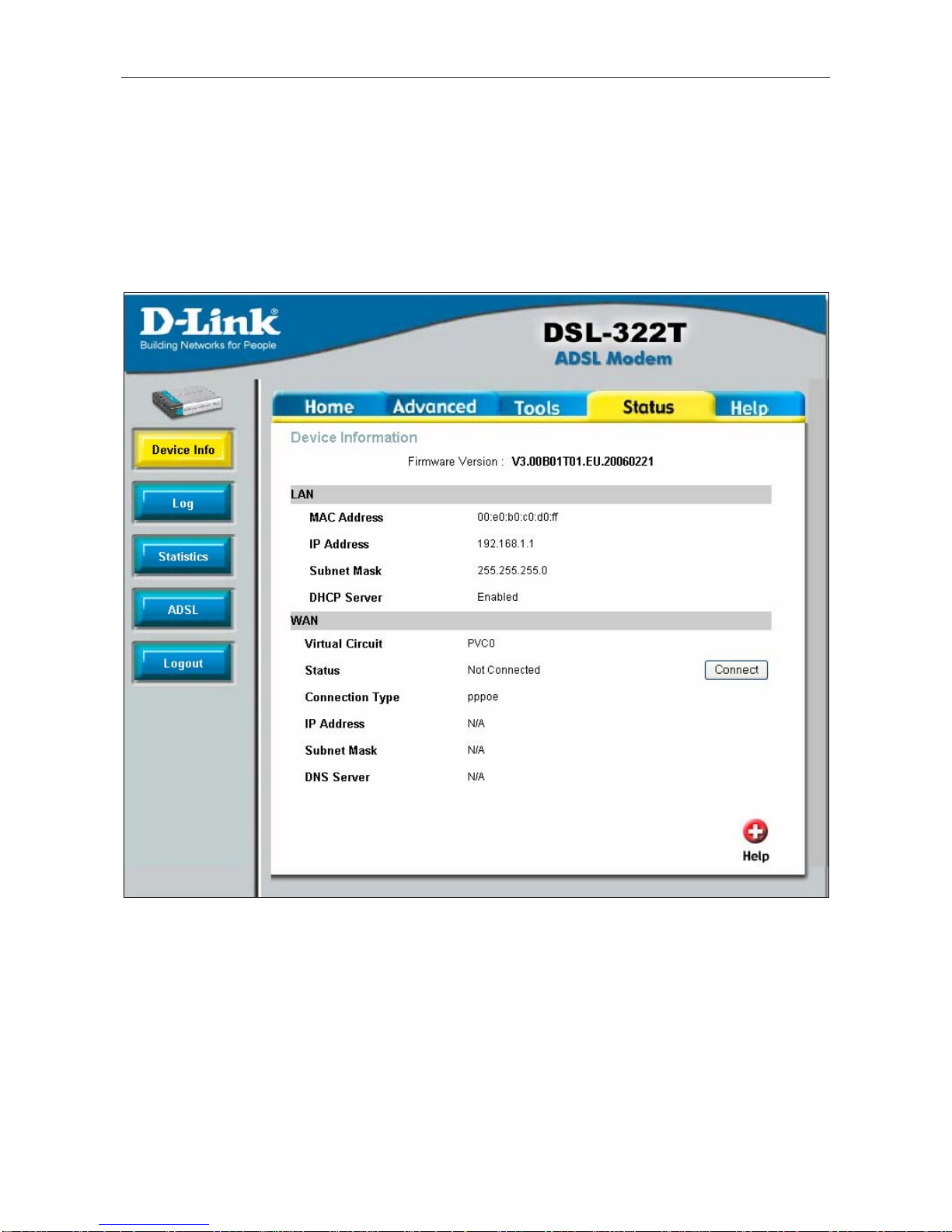

Device Info...................................................................................................................................................... 41

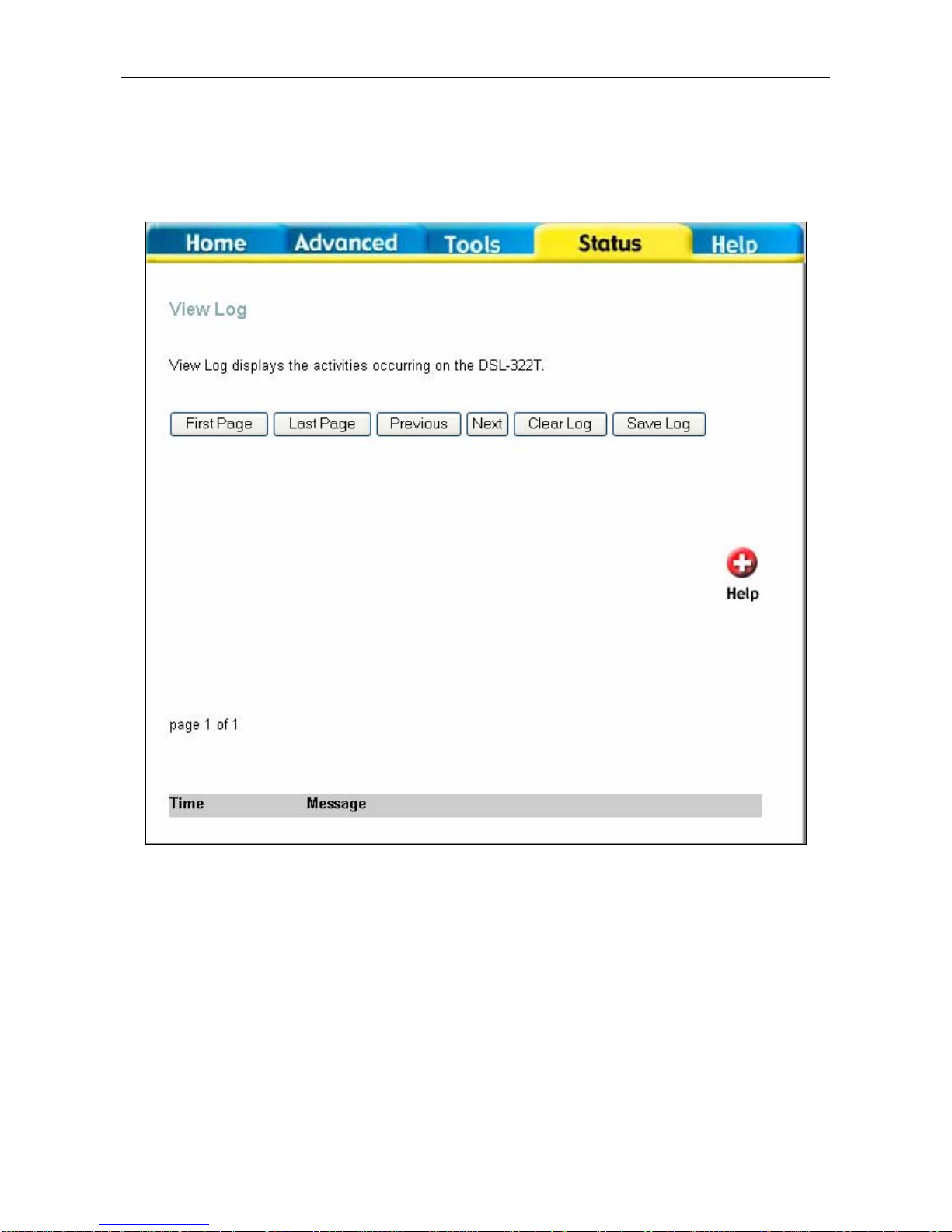

Log .................................................................................................................................................................. 42

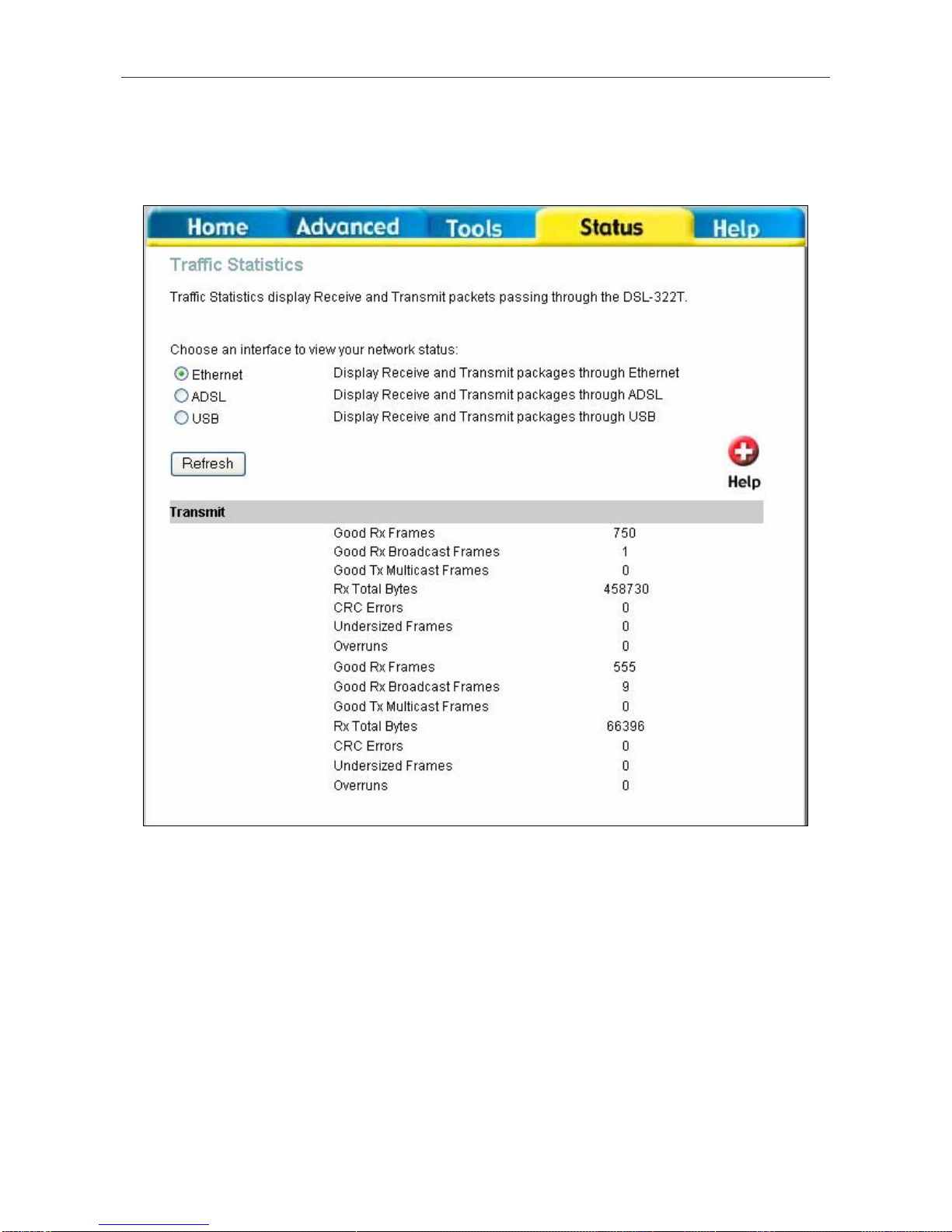

Statistics......................................................................................................................................................... 43

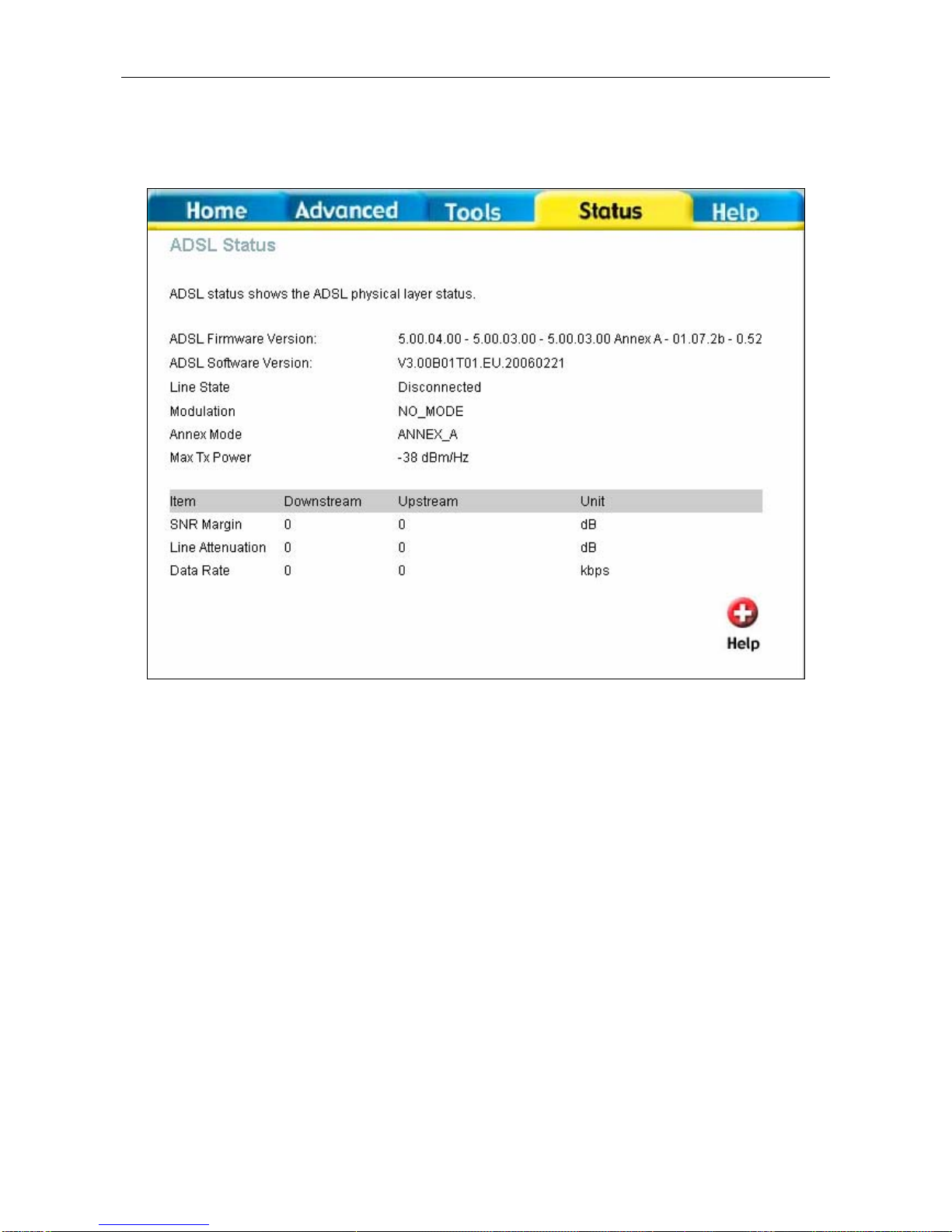

ADSL............................................................................................................................................................... 44
HELP.................................................................................................................................45
TECHNICAL SPECIFICATIONS.......................................................................................46
CONFIGURING IP SETTINGS ON YOUR COMPUTER...................................................48
LOW PASS FILTERS FOR DSL.......................................................................................54
DSL-322T ADSL Modem User Guide
iv
About This User Guide
This user’s guide provides instructions on how to install the DSL-322T ADSL Modem and use it to provide Internet
access for an Ethernet network or single computer.
If you are using a computer with a functioning Ethernet port, the quickest and easiest way to set up the DSL-322T is to
insert the Installation CD into the CD-ROM drive of your computer and follo w the instructions provided in the Quick
Installation Guide.
Before You Start
Please read and make sure you understand all the prerequisites for proper installation of your new Modem. Have all the
necessary information and equipment on hand before beginning the installation.
Installation Overview
The procedure to install the Modem can be described in general terms in the following steps:
1. Gather information and equipment needed to install the device. Before you begin the actual installation make
sure you have all the necessary information and equipment.
2. Install the hardware, connect the cables to the device, and connect the power adapter.
3. Check the IP settings on your computer and change them if necessary so the computer can access the web-
based software built into the Modem.
4. Use the web-based management software to configure the device to suit the requirements of your ADSL
service and private Ethernet network.

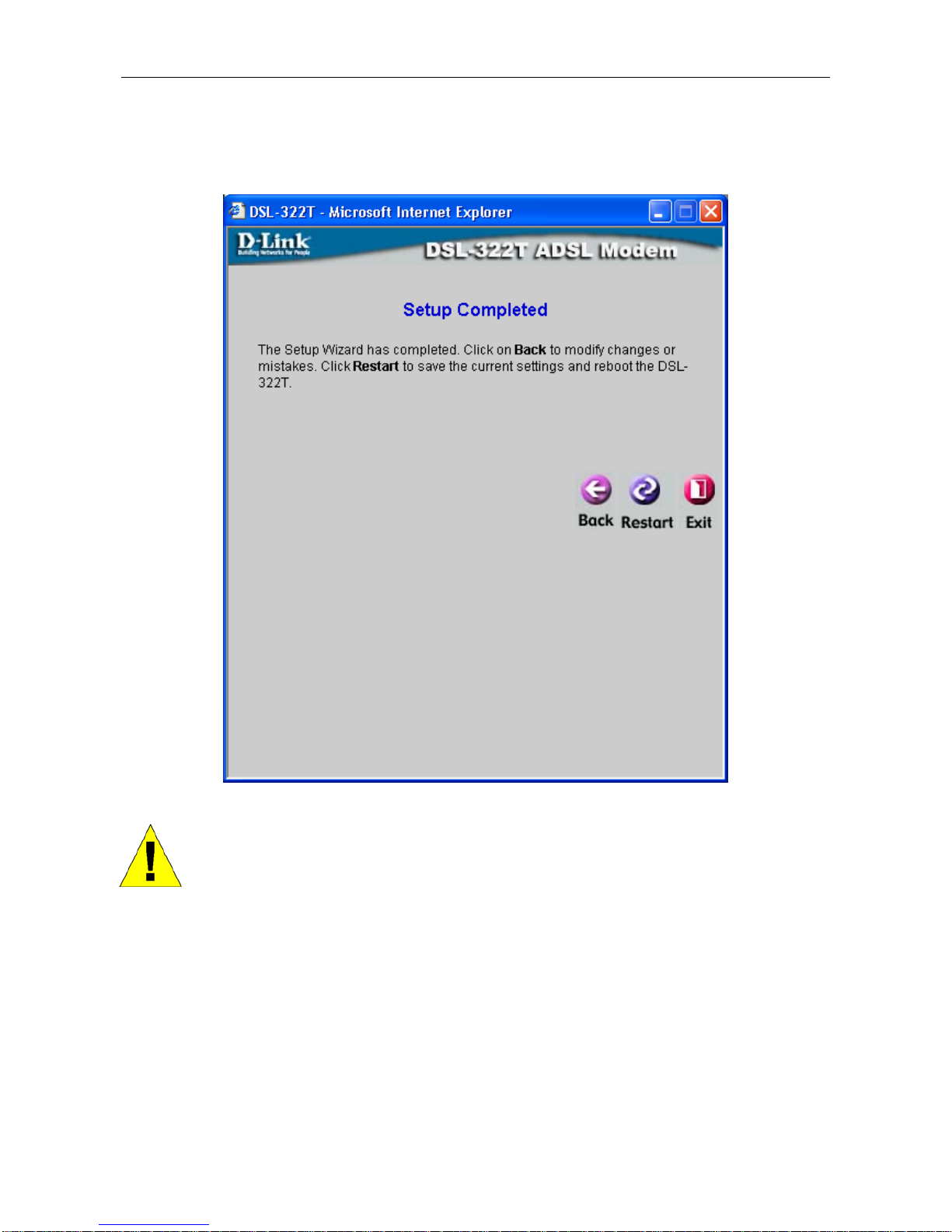

Setup Wizard
Once you access the web interface use the Setup Wizard to configure your Internet connection. For instructions on how
to configure the Internet connection with the Setup Wizard, read the section entitled Wizard later in this manual after
you have configured your computer’s IP settings to connect to the Modem.
Packing List
Open the shipping carton and carefully remove all items. Make sure that you have the items listed here.
• One DSL-322T ADSL Modem
• One CD-ROM containing the User’s Guide
• One twisted-pair telephone cable used for ADSL connection
• One straight-through Ethernet cable
• One USB cable
• One AC power adapter suitable for your electric service
• One Quick Installation Guide
DSL-322T ADSL Modem User Guide
v
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Modem that will be
stored in its memory. For some users, only their account information (Username and Password) is required. For others,
various parameters that control and define the Internet connection will be required. You can print out the two pages
below and use the tables to list this information. This way you have a hard copy of all the information needed to setup
the Modem. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be sure to
keep this information safe and private.

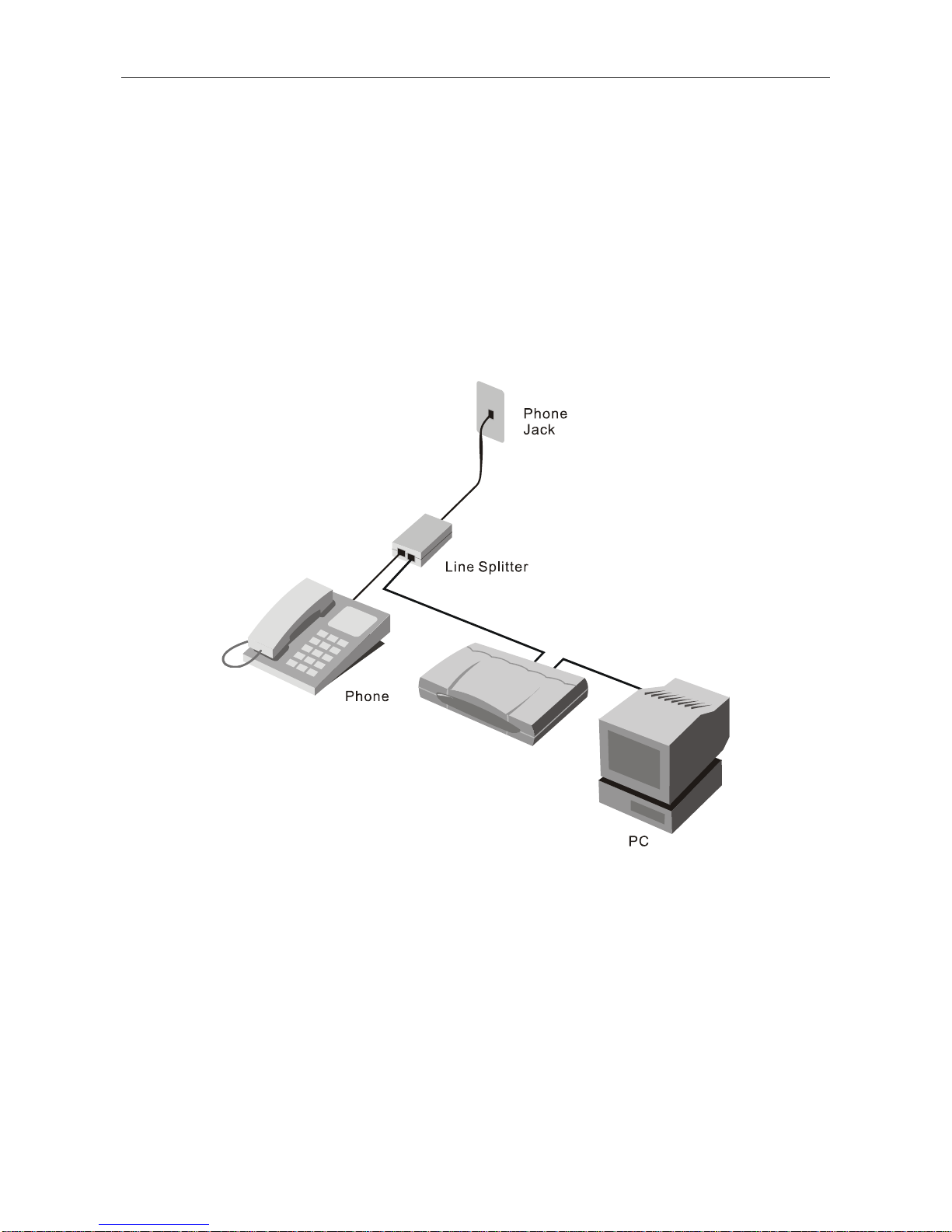

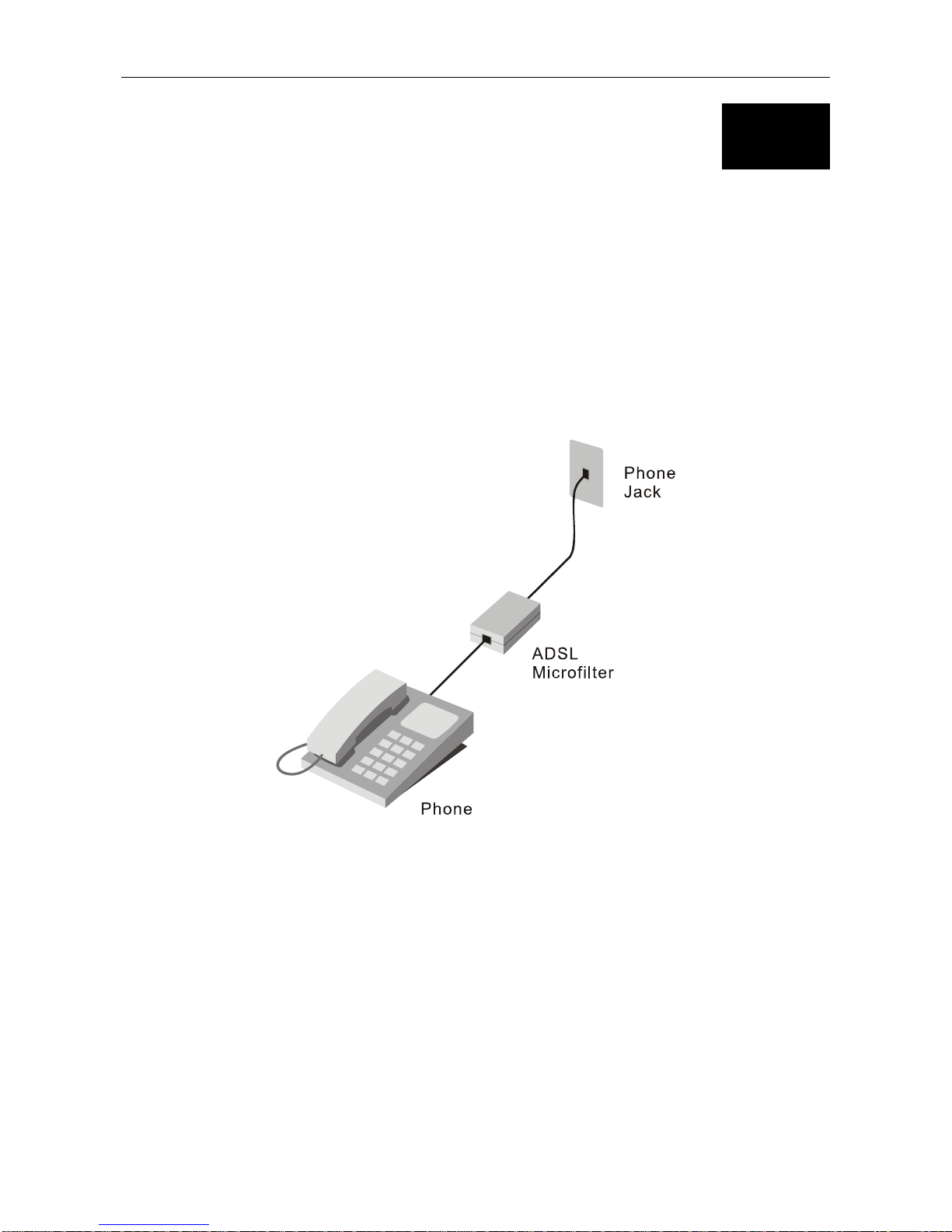

Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering
mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone
that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device
and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low
pass filters with your installation.
Operating Systems
The DSL-322T uses an HTML-based web interface for setup and management. The web configuration manager may be
accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows
ME, Windows 2000, and Windows XP.
Web Browser
Any common web browser can be used to configure the Modem using the web configuration management software.
The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet
Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later versions. The web browser must have JavaScript
enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other
software (such as virus protection or web user security packages) that may be running on your computer.
USB Port or Ethernet Port (NIC Adapter)
Any computer that uses the Modem must be able to connect to it through either the Ethernet port or USB port on the
Modem. The easiest method of installation is via the Ethernet connection and therefore requires that your computer be
equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed.
Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your
computer does not have an Ethernet port and you do not wish to use a USB connection, you must install an Ethernet
NIC adapter before you can use the Modem. If you must install an adapter, follow the installation instructions th at come
with the Ethernet NIC adapter.
Additional Software
For a bridged connection, the information needed to make and maintain the Internet connection is stored on another
computer or gateway device using PPP client or similar third party client software, not in the Modem itself.
If your ADSL service is delivered through a PPPoE, PPPoA or Static IP connection, the information needed to establish
and maintain the Internet connection can be stored in the Modem. In this case, it is not necessary to install software on
your computer. It may however be necessary to change some settings in the device, including account information used
to identify and verify the connection.
Note
If you plan to use the DSL-322T’s USB port to connect to your computer, do
not connect the USB cable to the Modem until you have finished all of the
steps to install the USB driver, and your computer has restarted.
DSL-322T ADSL Modem User Guide
vi
Information you will need from your ADSL service provider:
Username
This is the Username used to log on to your ADSL service
provider’s network. It is commonly in the form −
user@isp.co.uk Your ADSL service provider uses this to
identify your account.
Record info here
Password
This is the Password used, in conjunction with the Username
above, to log on to your ADSL service provider’s network.
This is used to verify the identity of your account.

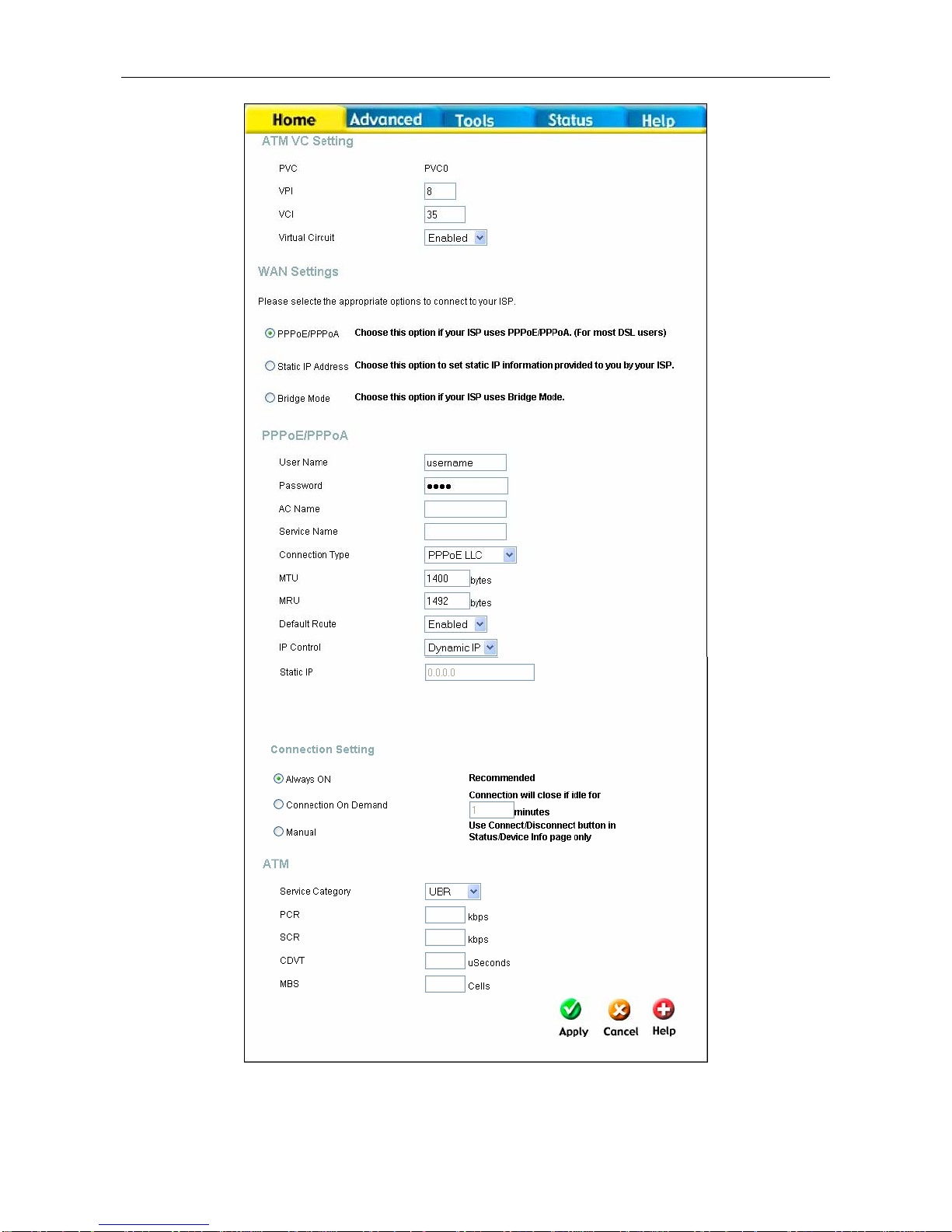

WAN Setting /
Connection Type
These settings describe the method your ADSL service
provider uses to transport data between the Internet and
your computer. Most users will use the default settings. You
may need to specify one of the following WAN Setting and
Connection Type configurations (Connection Type settings
listed in parenthesis):
PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)
Bridge Mode (1483 Bridged IP LLC or
1483 Bridged IP VC-Mux)
Static IP Address (1483 Routed IP LLC, 1483 Routed IP VC-
Mux)
Default = PPPoE/PPPoA (PPPoE LLC)
VPI
Most users will not be required to change this setting. The
Virtual Path Identifier (VPI) is used in conjunction with the
Virtual Channel Identifier (VCI) to identify the data path
between your ADSL service provider’s network and your
computer. This setting can be changed in the WAN window
of the web manager. Default value = 8
VCI
Most users will not be required to change this setting. The
Virtual Channel Identifier (VCI) used in conjunction with the
VPI to identify the data path between your ADSL service
provider’s network and your computer. This setting can be
changed in the WAN window of the web manager. Default
value = 35
Note
The Setup Wizard can be used to configure the Internet connection for most users.
DSL-322T ADSL Modem User Guide
vii
Information you will need about your DSL-322T ADSL Modem:
Username
This is the Username needed access the Modem’s
management interface. When you attempt to connect
to the device through a web browser you will be
prompted to enter this Username. The default
Username for the Modem is admin. The user cannot
change this.
Record info here
Password
This is the Password you will be prompted to enter
when you access the Modem’s management interface.
The default Password is admin. The user may change
this.

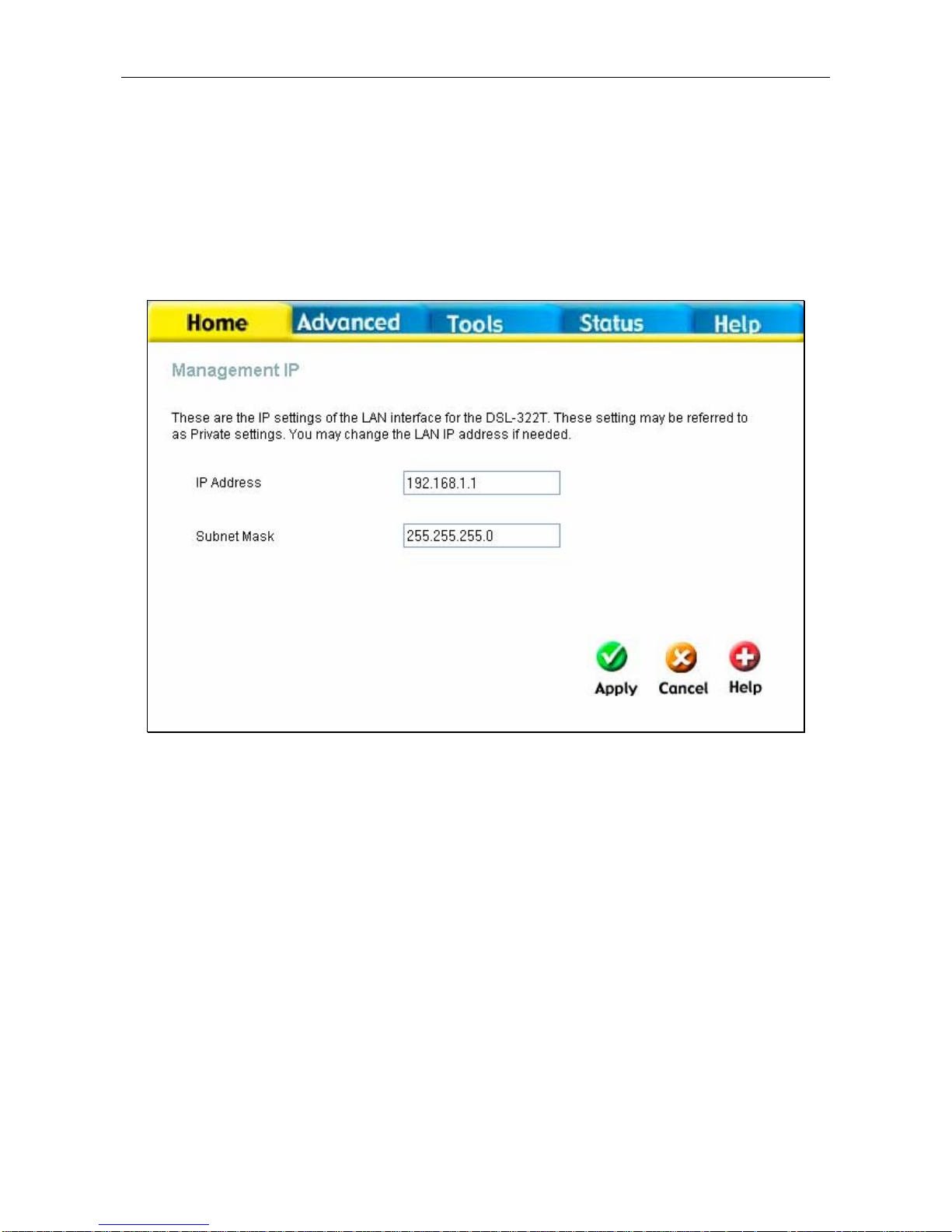

LAN IP addresses for
the DSL-322T
This is the IP address you will enter into the Address
field of your web browser to access the Modem’s
configuration graphical user interface (GUI) using a
web browser. The default IP address is 192.168.1.1.
This may be changed to suit any IP address scheme
the user desires. This address will be the base IP
address used for DHCP service on the LAN when DHCP
is enabled.
LAN Subnet Mask for
the DSL-322T
This is the subnet mask used by the DSL-322T, and will
be used throughout your LAN. The default subnet mask
is 255.255.255.0. This can be changed later.
Information you will need about your LAN or computer:
Ethernet NIC
If your computer has an Ethernet NIC, you can
connect the DSL-322T to this Ethernet port using an
Ethernet cable. You can also use the Ethernet ports
on the DSL-322T to connect to other computer or
Ethernet devices.
Record info here

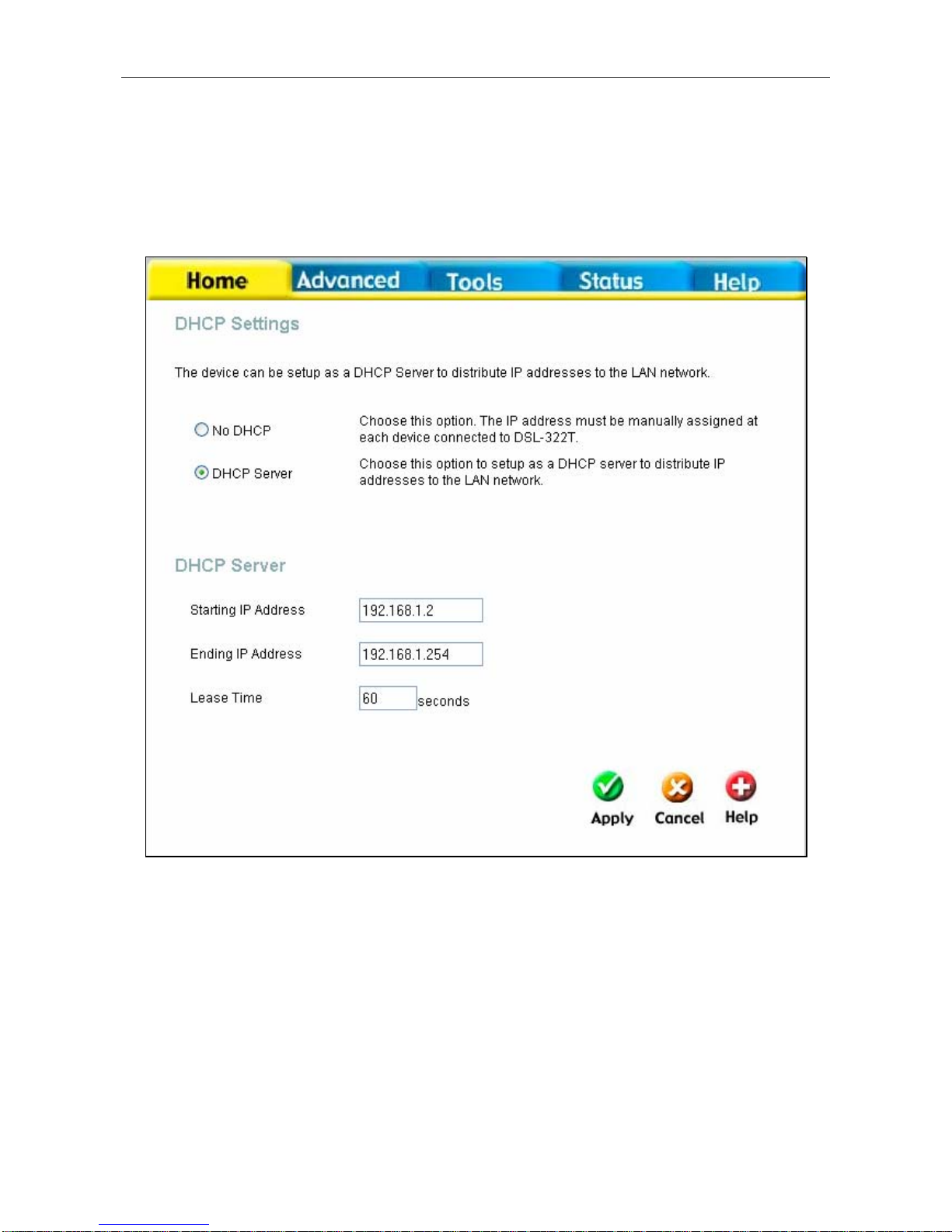

DHCP Client status
Your DSL-322T ADSL Modem is configured, by
default, to be a DHCP server. This means that it can
assign an IP address, subnet mask, and a default
gateway address to computers on your LAN. The
default range of IP addresses the DSL-322T will
assign are from 192.168.1.2 to 192.168.1.254.
Your computer (or computers) needs to be configured
to Obtain an IP address automatically (that is,
they need to be configured as DHCP clients.)
It is recommended that your collect and record this information here, or in some other secure place, in case you have to
re-configure your ADSL connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-322T ADSL Modem.
DSL-322T ADSL Modem User Guide
viii
Installing the USB Driver
IMPORTANT: Do not connect the USB cable to your PC before completing the below steps.
The CD-ROM shipped with the Modem contains the USB driver software.
Insert the DSL-322T CD-ROM into the CD
drive. Within a few seconds you should see a window that of fers the following op tions: Install DSL-3 22T, Quick In stall
Guide, View Manaual, Install Acrobat Reader, and Exit. If you do not see this auto-run pop-up window, explor e the
CD-ROM and double-click the setup application file autorun.exe or find the file Setup.exe in the folder labeled
USBDRIVER and double-click it to launch the installation software. The auto-run USB driver setup must be completed
before connecting the modem to your PC with the USB cable. To install the driver follow these instructions:
1. Click the Install DSL-322T link in the to launch the USB driver installation software.
2. Click Next on the InstallShield window.
DSL-322T ADSL Modem User Guide
ix
3. Click Install to begin the installation.
4. Click Finish to complete the InstallShield wizard.
When the USB driver has been installed, insert one end of the U SB cable included with the Modem into th e DSL-322T
Modem’s USB port. Insert the other end of the USB cable into a USB port on your PC. Connect the power adapter to
the power input at the back panel of the DSL-322T and then plug the o ther end of the power adap ter to a wall outlet or
power strip. On the front of the device, the Power LED will turn ON to indicate proper operation. Insert the telephone
cable included with the Modem into the ADSL port, and then connect the cable to your telephone lin e. Check the LED
display on the front of the Modem to confirm that the connections have been made.
DSL-322T ADSL Modem User Guide
1
1
Introduction
This section provides a brief description of the Modem, its associated technologies, and a list of Modem features.
Modem Description and Operation
The DSL-322T Modem is designed to provide a simple and cost-effective ADSL Internet connection for a private
Ethernet network. The Modem combines high-speed ADSL Internet connection and IP routing for the Local Area
Network (LAN) connectivity in one package.
The Modem is easy to install and use. The DSL-322T connects to an Ethernet LAN or computers via standard Ethernet
ports. The ADSL connection is made using ordinary telephone line with standard connectors.
ADSL
Asymmetric Digital Subscriber Line (ADSL) is a broadband network technology that utilizes standard twisted-pair
copper wire telephone lines to enable broadband high-speed digital data transmission and bandwidth hungry
applications for business and residential customers.
ADSL modems and modems provide faster downloads and more reliable connectivity to the user without loss of quality
or disruption of voice/fax telephone capabilities.
ADSL service operates at speeds of up to 24 Mbps downstream and up to 1 Mbps upstream. A secure dedicated pointto-point connection is established between the user and the central office of the service provider.
Modem Features
The DSL-322T ADSL Modem utilizes the latest ADSL enhancements to provide a reliable Internet portal suitable for
most small to medium sized offices. DSL-322T advantages include:
• Data rates up to 24 Mbps for downstream and 1Mbps for upstream
• Friendly web-based graphical user interface for configuration and management
• Supports most ADSL, ADSL2, and ADSL2+ standards
• Auto-handshake and rate adaptation for different ADSL flavors
• Widest range of DSLAM interoperability
• Built-in MIBs for SNMP management
• Upgradeable firmware through HTTP
DSL-322T ADSL Modem User Guide
2
Front Panel Display
Place the Modem in a location that permits an easy view of the LED indicators on the front panel.
The LED indicators on the front panel include Power, Status, ADSL, Ethernet, and USB. The ADSL, Ethernet, and
USB indicators monitor link status and activity (Link/Act).
Power
Steady green light indicates the unit is powered on. When the device is
powered off this remains dark.
Status
Lights steady green during power on self-test (POST). Once the connection
status has been settled, the light will blink green. If the indicator lights
steady green after the POST, the system has failed and the device should be
rebooted.
ADSL (Link/Act)
Steady green light indicates a valid ADSL connection. This will light after the
ADSL negotiation process has been settled. A blinking green light indicates
activity on the WAN (ADSL) interface.
Ethernet (Link/Act)
A solid green light indicates a valid link on startup. This light will blink when
there is activity currently on the Ethernet port.
USB (Link/Act)
Steady green light indicates a valid USB connection. A blinking green light
indicates activity on the USB interface.
DSL-322T ADSL Modem User Guide
3
Rear Panel Connections
All cable connections to the Modem are made at the rear panel. Connect the power adapter here to power on the Modem.
Use the Reset button to restore the settings to the factory default values in the next chapter for instructions on using the
reset button).
Connect network cables:
1. Insert the ADSL (telephone) cable into the ADSL port and then connect the cable to your telephone line.
2. Insert one end of the Ethernet cable into the Ethernet (LAN) port on the back panel of the Modem and the
other end of the cable to an Ethernet Adapter or available Ethernet port on your computer.
ADSL Port
Use the ADSL cable to
connect to the your telephone
line (RJ-11 port)
Ethernet Port
Use the Ethernet port
to connect the Modem
to your Ethernet LAN
or computer
Reset Button
To manually reset, depress
button with the power on
for at least seven seconds
Power Insert
Use the adapter
shipped with the
Modem to connect to
power source
USB Port
Connect USB cable here
and install USB driver
DSL-322T ADSL Modem User Guide
4
2
Hardware Installation
The DSL-322T maintains three separate interfaces, an ADSL, an Ethernet, and a USB interface. Place the Modem in a
location where it can be connected to the various devices as well as to a power source. The Modem should not be
located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord are placed safely
out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety
procedures.
The Modem can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you
need to view them for troubleshooting.
Power on Modem
CAUTION: The Modem must be used with the power adapter included with the
device.
To power on the Modem:
1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Modem and plug the
adapter into a suitable nearby power source.
2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid green and begin
to blink after a few seconds.
3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make sure the
connection is valid. The Modem will attempt to establish the ADSL connection, if the ADSL line is connected and
the Modem is properly configured this should light up after several seconds. If this is the first time installing the
device, some settings may need to be changed before the Modem can establish a connection.
Factory Reset Button
The Modem may be reset to the original factory default settings by depressing the reset button for a few seconds while
the device is powered on. Use a ballpoint or paperclip to gently push down the reset button. Remember that this will
wipe out any settings stored in flash memory including user account information and LAN IP settings. The device
settings will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255 .255.255.0, the default
management Username is “admin” and the default Password is “admin.”
DSL-322T ADSL Modem User Guide
5
Network Connections
Wired network connections are provided thro ugh the ADSL port and the Ethernet por t on the back of the Modem. See
the Rear Panel diagram above and the illustrations below for examples.
Connect ADSL Line
Use the ADSL cable included with the Modem to connect it to a telephone wall socket or receptacle. Plug one end of
the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Modem and insert the other end into the RJ-11
wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by
your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the
physical link to the service provider’s network backbone and ultimately to the Internet.
Connect Modem to Ethernet
The Modem may be connected to a single computer or Ethernet device through the 10/100 BA SE-TX Ethernet port on
the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of
10/100 Mbps only. When connecting the Modem to any Ethernet device that is capable of operating at speeds between
0~100Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port.
Use Category 5 or better twisted-pair Ethernet cable with RJ-45 connectors. The RJ-45 port on the Modem is auto MDIX/MDI-II meaning that is will link correctly with either MDI-II through or MDI-X crossed ports.
The rules governing Ethernet cable lengths apply to the LAN to Modem connection. Be sure that the cable connecting
the LAN to the Modem does not exceed 100 meters.
DSL-322T ADSL Modem User Guide
6
3
Basic Modem Configuration
The first time you setup the Modem it is recommended that you configure th e WAN con n ection using a single computer
connected directly to the Modem. Once the WAN connection is functioning properly, you may continue to make
changes to Modem configuration including IP settings and DHCP setup. For information on how to configure advanced
features such as port redirection, filtering, and firewall, please skip ahead to the Advanced Modem Management section
on page 32.
Configuration Summary
1. Connect to the Modem To configure various settings used by the Modem for Internet and access it is first
necessary to access the Modem’s management HTML-based interface. This is done using an ordinary web
browser. Your computer must be able to “see” the Modem before it can manage it using a browser. If the
Modem is in the same “neighborhood” or subnet as the Modem, you should be able to access the management
software. Therefore you must first make sure your computer has IP settings that place it in the same subnet as
the Modem. The easiest way to make sure your computer has the correct IP settings is to configure it to use the
DHCP server in the Modem. The DHCP server will automatically enable your computer to use a browser to
manage the Modem. The next section describes how to change the IP configuration for a computer running a
Windows operating system to be a DHCP client. If you are running another operating system, make sure your
computer is configured as a DHCP client so it can automatically obtain IP settings from the Modem. Some
operating systems will automatically select the best IP settings. Consult the user manual for the operating
system (OS) if you are unsure.
2. Configure the Inte rnet (WAN) Conn ection Most users will be able to complete this p rocess using the Setup
Wizard. The Setup Wizard can be launched once you have successfully connected with the Modem’s
management software. There are different methods used to establish the WAN connection to the service
provider’s network and ultimately to the Internet. Your Modem may already have most of the settings
configured by default. However you will probably at least have to type in a user name and password given to
you by your ISP. You may also need to know the encapsulation and connection type required to use for your
ADSL service. Your service provider should provide all the information needed to configure the WAN
connection.
Computer IP Settings
In order to configure your system to receive IP settings from the Modem your computer must first have the TCP/IP
protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP protocol installed. If
you are using Windows XP the TCP/IP is enabled by default for standard installatio n s. Instructio ns fo r configu ring your
computer to receive IP settings from the Modem are provided in Appendix B on page 48.
For computers running non-Windows operating systems, follow the instructions for your OS that configure the system
to receive an IP address from the Modem, that is, configure the system to be a DHCP client.
Note
If you are not sure how to configure your Windows computer to be a DHCP client, see
Configuring IP Settings on Your Computer beginning on page 48.
DSL-322T ADSL Modem User Guide
7
Access the Configuration Manager
In order to make sure your computer’s IP settings allow it to communicate with the Modem, it is advisable to configure
your system be a DHCP client – that is, it will get IP settings from the Modem. Appendix B describes how to configure
different Windows operating systems to “Obtain IP settings automatically.”
Note
Be sure that the web browser on your computer is not configured to use a proxy server in the
Internet settings. In Windows Internet Explorer, you can check if a proxy server is enabled using the
following procedure:
1. In Windows, click on the Start button and go to the Control Panel.
2. In the Control Panel window, click on the Network and Internet Options icon.
3. In the Network and Internet Connections window, click the Internet Options icon.
4. In the Internet Properties window, click on the Connections tab and click on the LAN Settings
button.
5. Verify that the “Use a proxy server for your LAN (These settings will not apply to dial-up or VPN
connections).” option is NOT checked. If it is checked, click in the checked box to deselect the
option and click OK.
Alternatively, you can access this Internet Options menu using the Tools pull-down menu in
Internet Explorer.
Login to Home Page
To use the web-based management software, launch a suitable web browser and direct it to the IP address of the Modem.
Type in http:// followed by the default IP address, 192.168.1.1 in the address bar of the browser. The URL in the
address bar should read: http://192.168.1.1.
A dialog box prompts for the User Name and Password. Type in the default User Name “admin,” and the default
Password “admin” then click the OK button to access the web-based manager.
Enter Password dialog box
You should change the web-based manager access user name and password once you have verified that a connection
can be established. The user name and password allows any PC within the same subnet as the Modem to access the
web-based manger.
Note
The user name and password used to access the web-based manager is NOT the same as the
ADSL account user name and password needed for PPPoE/PPPoA connections to access the
Internet.
DSL-322T ADSL Modem User Guide
8
Home
When you successfully connect to the web manager, the Home directory tab will display the Setup Wizard window.
You can launch the Setup Wizard from this page or use the buttons located in the left panel of the web page to view
other windows used for basic configuration.
Web Manager – First Time Log On
All configuration and management of the Modem is done using the web-based management interface pictured in the
above example. The configuration windows are accessed by clicking on the directory tabs: Home, Advanced, Tools,
Status, and Help. Each tab has associated window buttons in the left hand panel of the web interface. Basic setup of the
Modem can be completed in the windows accessed from the Home directory including: (Setup) Wizard, WAN
(Internet), LAN (to configure the IP address of the Modem), and DHCP.
Wizard
To use the Setup Wizard, click the Run Wizard button in the first browser window and follow the instructions in the
pop-up window that appears.
Click on a directory tab to
view the windows available
in that directory
Click on a button to use or
view the window
Click the Run Wizard
button to launch the
Setup Wizard
DSL-322T ADSL Modem User Guide
9
The initial window summarizes the setup process. Click the Next button to proceed. You may stop using the Setup
Wizard at any time by clicking the Exit button. If you exit the wizard you will return to the opening Setup W izard
window without saving any of the settings changed during the process.
The first window of the Setup Wizard lists the basic steps in the process. These steps are as follows:
1. Configure the connection to the Internet.
2. Save the new configuration settings and reboot the system.
DSL-322T ADSL Modem User Guide
10
Using the Setup Wizard - Choose Connection Type
Now select the Connection Type used for the Internet connection. Your ISP has given this information to you. The
connection types available for “Multi-User” Mode are PPPoE/PPPoA, Static IP Address, and Bridge Mode. Each
connection type has different settings that are configured in the next window of the Setup Wizard.
Select the Connection Type specific to your service and click Next to go to the next Setup Wizard window. Follow
the instructions below for the type of connection you have selected.
DSL-322T ADSL Modem User Guide
11
Using the Setup Wizard - For PPPoE/PPPoA connections:
1. Type in the Username and Password used to identify and verify your account to the ISP.
2. Select the specific Connection Type from the drop-down menu. The available PPP connection and
encapsulation types are PPPoE LLC, PPPoA LLC and PPPoA VC-Mux.
3. If you are instructed to change the VPI or VCI value, type in the correct setting in the available entry fields.
Most users will not need to change these settings. The Internet connection cannot function if these values are
incorrect.
4. Click Next to go to the next window and complete the Setup Wizard.
Loading...
