D-Link DSL-224 Datasheet

Product Highlights

HIGH-SPEED CONNECTION
VDSL2/VDSL/ADSL2+/

ADSL2/ADSL, Fast Ethernet

802.11N
Faster rate

and superior wireless range

IPV6 SUPPORT
All needed functions

for up-to-date networking

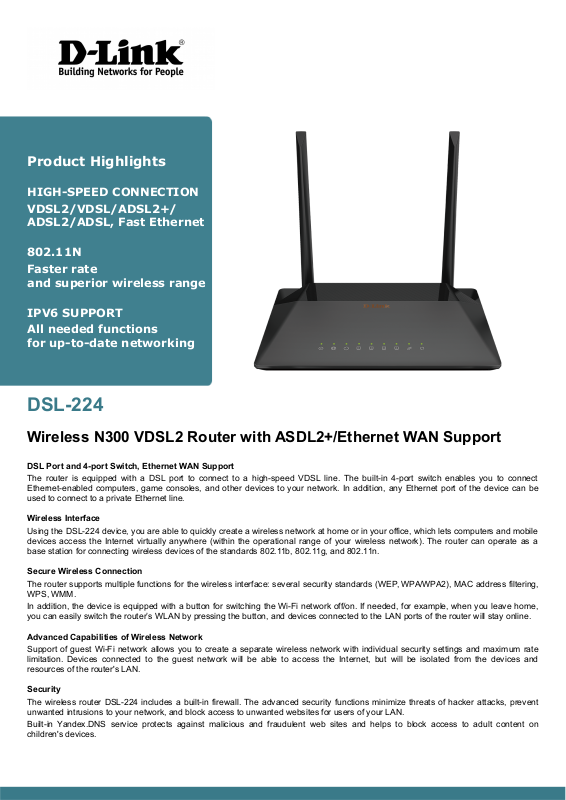

DSL-224

Wireless N300 VDSL2 Router with ASDL2+/Ethernet WAN Support

DSL Port and 4-port Switch, Ethernet WAN Support

The router is equipped with a DSL port to connect to a high-speed VDSL line. The built-in 4-port switch enables you to connect
Ethernet-enabled computers, game consoles, and other devices to your network. In addition, any Ethernet port of the device can be
used to connect to a private Ethernet line.

Wireless Interface

Using the DSL-224 device, you are able to quickly create a wireless network at home or in your office, which lets computers and mobile
devices access the Internet virtually anywhere (within the operational range of your wireless network). The router can operate as a
base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.

Secure Wireless Connection

The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering,
WPS, WMM.

In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home,
you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.

Advanced Capabilities of Wireless Network

Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings and maximum rate
limitation. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and
resources of the router's LAN.

Security

The wireless router DSL-224 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent
unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.

Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on
children's devices.

DSL-224

Wireless N300 VDSL2 Router with
ASDL2+/Ethernet WAN Support

Easy configuration and update

You can configure the settings of the wireless router DSL-224 via the user-friendly web-based interface (the interface is available in
several languages).

The fast and easy configuration wizard allows you to specify all needed parameters in several simple steps.

Also DSL-224 supports configuration and management via mobile application for Android and iPhone smartphones.

You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install
it.

Hardware

Processor · RTL8685S (500MHz)

RAM · 32MB, DDR2 SDRAM

Flash · 8MB, SPI

Interfaces · RJ-11 DSL port

· 4 10/100BASE-TX LAN ports

LEDs · POWER

· INTERNET

· DSL

· 4 LAN LEDs

· WLAN

· WPS

Buttons · POWER button to power on/power off

· RESET button to restore factory default settings

· WPS button to set up wireless connection

· WIFI button to enable/disable wireless network

Antenna · Two external non-detachable omnidirectional antennas (5dBi gain)

MIMO · 2 x 2

Power connector · Power input connector (DC)

DSL Parameters

VDSL/ADSL Standards · VDSL2: ITU G.993.2, support of 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a profiles

· ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2
(G.lite) Annex A, ITU-T G.994.1 (G.hs)

· ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A

· ADSL2+: ITU-T G.992.5 Annex A/L/M

ATM/PPP Protocols · Bridged and routed Ethernet encapsulation

· VC-based or LLC-based multiplexing

· ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)

· ATM Adaptation Layer Type 5 (AAL5)

· ITU-T I.610 OAM F4/F5 loopback

· ATM QoS

· PPP over ATM (RFC 2364)

· PPP over Ethernet (PPPoE)

· Keep-alive for PPP connections
