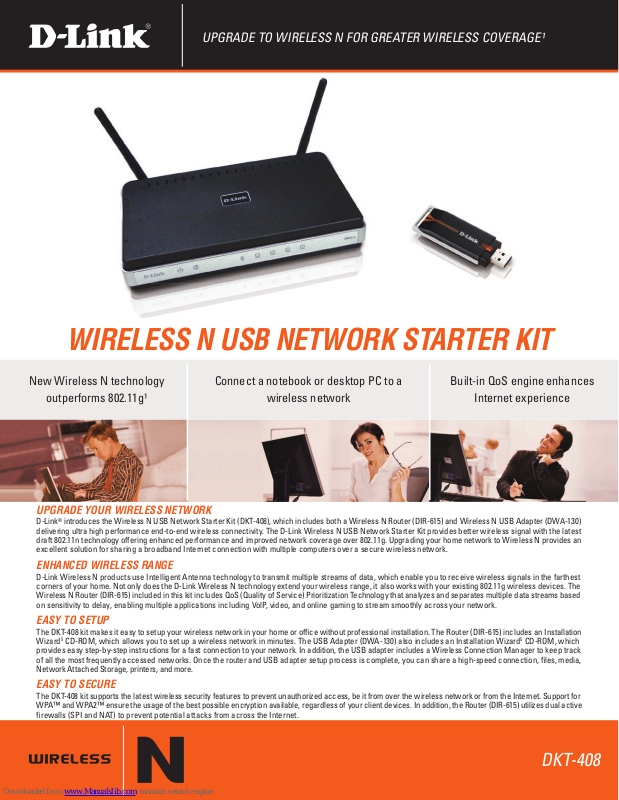

D-Link DKT-408 Datasheet

UPGRADE TO WIRELESS N FOR GREATER WIRELESS COVERAGE¹

WIRELESS N USB NETWORK STARTER KIT

New Wireless N technology

outperforms 802.11g¹

Connect a notebook or desktop PC to a

wireless network

UPGRADE YOUR WIRELESS NETWORK

D-Link® introduces the Wireless N USB Network Starter Kit (DKT-408), which includes both a Wireless N Router (DIR-615) and Wireless N USB Adapter (DWA-130)
delivering ultra high performance end-to-end wireless connectivity. The D-Link Wireless N USB Network Starter Kit provides better wireless signal with the latest
draft 802.11n technology offering enhanced performance and improved network coverage over 802.11g. Upgrading your home network to Wireless N provides an
excellent solution for sharing a broadband Internet connection with multiple computers over a secure wireless network.

ENHANCED WIRELESS RANGE

D-Link Wireless N products use Intelligent Antenna technology to transmit multiple streams of data, which enable you to receive wireless signals in the farthest
corners of your home. Not only does the D-Link Wireless N technology extend your wireless range, it also works with your existing 802.11g wireless devices. The
Wireless N Router (DIR-615) included in this kit includes QoS (Quality of Service) Prioritization Technology that analyzes and separates multiple data streams based
on sensitivity to delay, enabling multiple applications including VolP, video, and online gaming to stream smoothly across your network.

EASY TO SETUP

The DKT-408 kit makes it easy to setup your wireless network in your home or offi ce without professional installation. The Router (DIR-615) includes an Installation
Wizard5 CD-ROM, which allows you to set up a wireless network in minutes. The USB Adapter (DWA-130) also includes an Installation Wizard5 CD-ROM, which
provides easy step-by-step instructions for a fast connection to your network. In addition, the USB adapter includes a Wireless Connection Manager to keep track
of all the most frequently accessed networks. Once the router and USB adapter setup process is complete, you can share a high-speed connection, fi les, media,
Network Attached Storage, printers, and more.

EASY TO SECURE

The DKT-408 kit supports the latest wireless security features to prevent unauthorized access, be it from over the wireless network or from the Internet. Support for
WPA™ and WPA2™ ensure the usage of the best possible encryption available, regardless of your client devices. In addition, the Router (DIR-615) utilizes dual active
fi rewalls (SPI and NAT) to prevent potential attacks from across the Internet.

Built-in QoS engine enhances

Internet experience

DKT-408

UPGRADE TO WIRELESS N FOR GREATER WIRELESS COVERAGE¹

TECHNICAL SPECIFICATIONS

ROUTER

NOTEBOOK ADAPTER

DKT-408

WHAT THIS PRODUCT DOES

Create a wireless network to share high-speed

Internet access with notebook or desktop PCs,

gaming consoles, and media players from greater

distances around your home.

WHY WIRELESS N IS BETTER

The Wireless N Router (DIR-615) and Wireless N

USB Adapter (DWA-130) use draft 802.11n technology

to maximize the speed and range of your wireless

signal to signifi cantly outperform standard Wireless G

devices¹. Both devices make use of your home or

offi ce environment by bouncing multiple wireless

signals off walls and ceilings to work around

obstructions and help eliminate dead spots.

YOUR NETWORK SETUP

STANDARDS

+ IEEE 802.11n (draft) + IEEE 802.11g
+ IEEE 802.3 + IEEE 802.3u

SECURITY

+ Wi-Fi Protected Access™ (WPA™, WPA2™)

ADVANCED FIREWALL FEATURES

+ Network Address Translation (NAT)
+ Stateful Packet Inspection (SPI)
+ VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec

DEVICE MANAGEMENT

+ Internet Explorer® v6 or later; Mozilla® Firefox® v2.0 or later; or
other Java-enabled Browsers

LEDs

+ Power + WLAN (Wireless Connection)
+ Internet + WAN + LAN (10/100)

CERTIFICATIONS

+ FCC Class B + Wi-Fi

®

+ IC + IPv6 Gold

DIMENSIONS

+ Item (WxDxH): 5.5” x 7.8” x 1.2”
+ Packaging (WxDxH): 9.8” x 11.3” x 3.3”

WEIGHT

+ Item: 0.7 lbs + Packaging: 2.0 lbs

INTERFACE

6

USB 2.0

FREQUENCY RANGE

2.4GHz to 2.483GHz

SECURITY

+ Wi-Fi Protected Access™ (WPA™, WPA2™)

LED

+ Link
+ Activity

CERTIFICATIONS

+FCC Class B
+IC

DIMENSIONS

+ Item (WxDxH): 1.1” x 3.2” x 0.5”
+ Packaging (WxDxH): 9.8” x 11.3” x 3.3”

WEIGHT

+ Item: 0.1 lbs
+ Packaging: 0.5 lbs

WARRANTY

+ 1-Year Limited

3

WARRANTY

+ 1-Year Limited

MINIMUM SYSTEM REQUIREMENTS

+ Cable or DSL Modem for High-Speed Internet

Connection
For Router
+ Computer with:
+ Windows Vista®, Windows® XP SP23, or Mac OS® X

(v10.4)
+ Internet Explorer® v6 or Mozilla® Firefox® v2.0
+ CD-ROM Drive
+ Network Interface Card

1

Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specifi cations. Actual data throughput will vary. Network conditions and environmental factors,

including volume of network traffi c, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless
signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

2

1-Year Limited Warranty available only in the U.S.A and Canada.

3

Computer must adhere to Microsoft’s recommended System Requirements.

4

The software included with this product is not Mac-compatible.

5

Latest software and documentation are available at http://support.dlink.com.

6

Using a USB 1.1 port will affect device performance.

This product is based on IEEE draft 802.11n specifi cations and is not guaranteed to be forward compatible with future versions of IEEE 802.11n devices. Compatibility with draft 802.11n

devices from other manufacturers is not guaranteed. All references to speed are for comparison purposes only. Product specifi cations, size and shape are subject to change without
notice, and actual product appearance may differ from that depicted herein.

3

For USB Adapter
+ Computer with:

- Windows Vista®, Windows® XP SP23

-CD-ROM Drive

-20MB Hard Disk Space

4

-USB Port

For Internet Access:
+ Cable or DSL Modem for High-Speed Internet Connection

6

D-Link Systems, Inc. 17595 Herrmann Street Fountain Valley, CA 92708 www.dlink.com
©2009 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the
D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the
United States and/or other countries. Other trademarks or registered trademarks are
the property of their respective owners.

PACKAGE CONTENTS

+ Wireless N Router (DIR-615)
+ Wireless N USB Adapter (DWA-130)
+ CAT5 Ethernet Cable
+ Power Adapter
+ USB Extension Cradle
+ Quick Installation Guide
+ 2 CD-ROM5 with

- Installation Wizard

- Drivers

- Product Documentation
