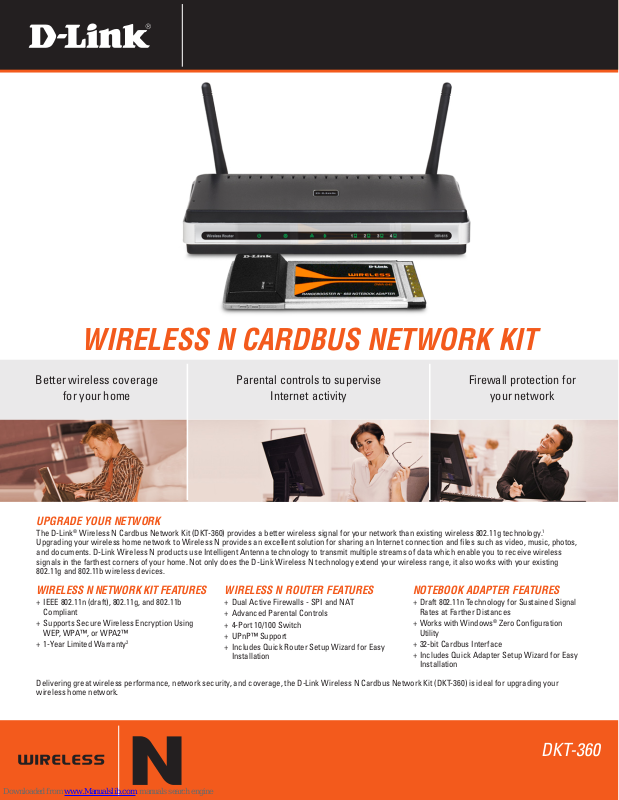

WIRELESS N CARDBUS NETWORK KIT
Better wireless coverage
for your home
Parental controls to supervise
Internet activity
Firewall protection for
your network
UPGRADE YOUR NETWORK
The D-Link® Wireless N Cardbus Network Kit (DKT-360) provides a better wireless signal for your network than existing wireless 802.11g technology.1
Upgrading your wireless home network to Wireless N provides an excellent solution for sharing an Internet connection and les such as video, music, photos,
and documents. D-Link Wireless N products use Intelligent Antenna technology to transmit multiple streams of data which enable you to receive wireless
signals in the farthest corners of your home. Not only does the D-Link Wireless N technology extend your wireless range, it also works with your existing
802.11g and 802.11b wireless devices.
WIRELESS N NETWORK KIT FEATURES
+ IEEE 802.11n (draft), 802.11g, and 802.11b
Compliant
+ Supports Secure Wireless Encryption Using
WEP, WPA™, or WPA2™
+ 1-Year Limited Warranty
2
WIRELESS N ROUTER FEATURES
+ Dual Active Firewalls - SPI and NAT
+ Advanced Parental Controls
+ 4-Port 10/100 Switch
+ UPnP™ Support
+ Includes Quick Router Setup Wizard for Easy
Installation
NOTEBOOK ADAPTER FEATURES
+ Draft 802.11n Technology for Sustained Signal
Rates at Farther Distances
+ Works with Windows® Zero Conguration
Utility
+ 32-bit Cardbus Interface
+ Includes Quick Adapter Setup Wizard for Easy
Installation
Delivering great wireless performance, network security, and coverage, the D-Link Wireless N Cardbus Network Kit (DKT-360) is ideal for upgrading your
wireless home network.
DKT-360
WHAT THIS PRODUCT DOES
Create a wireless network to share high-speed
Internet access with computers, game consoles,
and media players from greater distances around
your home. Connect the network adapter to your
cardbus enabled notebook to enable a faster
wireless connection and superior reception.
1
BENEFITS OF A WIRELESS N
CARDBUS NETWORK KIT
The router in DKT-360 uses 802.11n draft
technology with multiple external antennas to
maximize the speed and range of your wireless
signal to signicantly outperform 802.11g MIMO
devices.1 The antennas on the Wireless N Router
make use of your home’s environment by bouncing
multiple wireless signals off walls and ceilings to
work around obstructions and help eliminate dead
spots.
YOUR NETWORK SETUP
DKT-360
TECHNICAL SPECIFICATIONS
DKT-360 - KIT
SECURITY
+ 64/128-bit WEP (Wired Equivalent Privacy)
+ Wi-Fi® Protected Access (WPA™, WPA2™)
DIMENSIONS
+ Packaging (WxDxH): 8.1” x 10.9” x 2.6”
CERTIFICATIONS
+ FCC Class B
+ CE
WEIGHT
Packaging: 2.7 lbs
WARRANTY
1-Year Limited
2
DIR-615 - ROUTER
STANDARDS
+ IEEE 802.11n (draft)
+ IEEE 802.11g
+ IEEE 802.11b
+ IEEE 802.3
+ IEEE 802.3u
INTERFACE TYPE
+ 4 10/100 LAN Ports
+ 1 10/100 WAN Port
ANTENNA TYPE
2 External Reversed SMA Antennas
ADVANCED FIREWALL FEATURES
+ Network Address Translation (NAT)
+ Stateful Packet Inspection (SPI)
+ VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec
1
Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect
wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard 802.11g MIMO
product from D-Link.
2
1-Year Limited Warranty available only in the USA and Canada.
3
Computer must adhere to Microsoft’s recommended System Requirements.
4
The software included with this product is not Mac-compatible.
5
Latest software and documentation are available at http://support.dlink.com.
This product is based on IEEE draft 802.11n specications and is not guaranteed to be forward compatible with future versions of IEEE 802.11n specications. Compatibility with draft
802.11n devices from other manufacturers is not guaranteed. All references to speed and range, are for comparison purposes only. Product specications, size, and shape are subject
to change without notice, and actual product appearance may differ from that depicted herein.
©2007 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, and RangeBooster N are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and other countries. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/
or other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks or registered trademarks
are the property of their respective owners.
DEVICE MANAGEMENT
Internet Explorer® v6 or Later; Mozilla Firefox® v1.5 or Later; or
other Java-enabled Browsers
LEDs
+ Power
+ Status
+ WAN
+ WLAN (Wireless Connection)
+ LAN (10/100)
DIMENSIONS
Item (WxDxH): 4.6” x 7.6” x 1.2”
WEIGHT
Item: 0.7 lbs
DWA-645 - CARDBUS ADAPTER
STANDARDS
+ IEEE 802.11n (draft)
+ IEEE 802.11g
+ IEEE 802.11b
INTERFACE
32-bit Cardbus
LEDs
+ Link
+ Activity
DIMENSIONS
Item (WxDxH): 2.1” x 4.7” x 0.3”
WEIGHT
Item: 0.1 lbs
MINIMUM SYSTEM REQUIREMENTS
+ Computer with:
- Windows Vista
Windows® 2000 SP4, or Mac OS® X (v10.4)
- Internet Explorer v6 or Mozilla Firefox v1.5
- CD-ROM Drive
- Network Interface Card
+ For Internet Access:
- Cable or DSL Modem
- Subscription with an Internet Service Provider
(ISP)
3
™
, Windows® XP SP2,
PACKAGE CONTENTS
Wireless N Router (DIR-615)
+ 2 Detachable Antennas
4
+ CAT5 Ethernet Cable
+ Power Adapter
+ CD-ROM5 with
- Installation Wizard
- Product Documentation
RangeBooster N® 650 Cardbus Adapter (DWA-645)
+ CD-ROM5 with
- Drivers
- Product Documentation
