D-Link DHP-309AV/E User Manual

Hardware Installation Guide
Product Model : DGS-6600 Series
6
7
8
Layer 3 Chassis Ethernet Managed Switch Release 3.0
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Information in this document is subject to change without notice.
© 2013 D-Link Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden.
Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
January 2013 P/N 651GS6604035G
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede requerirse al usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique, ce produit pourrait causer des interférences radio, auquel cas l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati.
VCCI Warning
BSMI
此為甲類的資訊技術設備,在居住環境中使用時,可能會造成射頻擾動,在這種情況下,使用者會被要求採取某些適當的對 策。
仅适用于海拔2000米以下地区安全使用
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Intended Readers...............................................................................................................................................vii
Typographical Conventions................................................................................................................................vii
Notes, Notices, and Cautions.............................................................................................................................ix
Safety Suggestions ............................................................................................................................................ix
Safety Recommendations for Handling the Switch ....................................................................................... ix
Safety Recommendations for Removing and replacing Batteries.................................................................ix
Safety Precautions for Installing and Removing the Switch.......................................................................... x
Electrical Safety ............................................................................................................................................ x
Laser Safety.................................................................................................................................................. xiii
Chapter 1 Introduction .......................................................................................................... 1
DGS-6600 Series Switch Description ................................................................................................................1
DGS-6604 Product Specifications...................................................................................................................... 1
Product Features ..........................................................................................................................................1
DGS-6604 Product Appearance ........................................................................................................................3
DGS-6604 Hardware Composition..................................................................................................................... 4
Chassis .........................................................................................................................................................4
Module Plug-in Frame................................................................................................................................... 4
DGS-6604 Ventilation/Heat Dissipation System ................................................................................................5
DGS-6608 Product Specifications...................................................................................................................... 5
Product Features ..........................................................................................................................................5
DGS-6608 Product Appearance ........................................................................................................................7
DGS-6608 Hardware Composition..................................................................................................................... 8
Chassis .........................................................................................................................................................8
Module Plug-in Frame................................................................................................................................... 8
DGS-6608 Ventilation/Heat Dissipation System ................................................................................................9
DGS-6600 CPU & I/O Modules.......................................................................................................................... 10
DGS-6600-CM Module ................................................................................................................................. 11
DGS-6600-CM-II management module: ....................................................................................................... 14
DGS-6600-24SC2XS Module .......................................................................................................................17
DGS-6600-16XS-D ...........................................................................................................................
DGS-6600-48P Module................................................................................................................................. 21
DGS-6600-48S Module................................................................................................................................. 24
DGS-6600-48T Module.................................................................................................................................26
DGS-6600-48TS Module .............................................................................................................................. 28
DGS-6600-8XG Module................................................................................................................................31
............19
Chapter 2 Installation ............................................................................................................ 33
Installation Site Requirements ...........................................................................................................................33
Rack Mounting Requirements.......................................................................................................................33
Ventilation Requirements..............................................................................................................................34
Power Requirements .................................................................................................................................... 35
System Grounding Requirements.................................................................................................................35
Safety Grounding .......................................................................................................................................... 35
Lightning Grounding...................................................................................................................................... 35
EMI Considerations....................................................................................................................................... 36
Precautions for Fiber Connections................................................................................................................37
Installation Tool Requirements...........................................................................................................................37
Inspection Requirements when Unpacking the Switch ......................................................................................37
Inventory ....................................................................................................................................................... 37
Installation Flowchart ......................................................................................................................................... 38
Verifying the Installation ..................................................................................................................................... 38
Installing the Cabinet..........................................................................................................................................39
Cabinet Installation Precautions ................................................................................................................... 39
iv
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Simple Installation Steps...............................................................................................................................40
Mounting the DGS-6600 Series Switch into the Cabinet ................................................................................... 40
Fan Tray Installation...........................................................................................................................................41
Power Supply Installation...................................................................................................................................43
Air Filter Installation............................................................................................................................................44
System Ground Connection ............................................................................................................................... 45
Grounding Precautions .................................................................................................................................45
Simple Grounding Steps ............................................................................................................................... 45
Connecting the AC Power Supply to the Power Module .................................................................................... 46
AC Power Supply Connection Precautions................................................................................................... 46
Simple AC Power Connection Steps ............................................................................................................46
Connecting the Management Module Cable......................................................................................................47
Simple Management Module Cable Connection Steps ................................................................................47

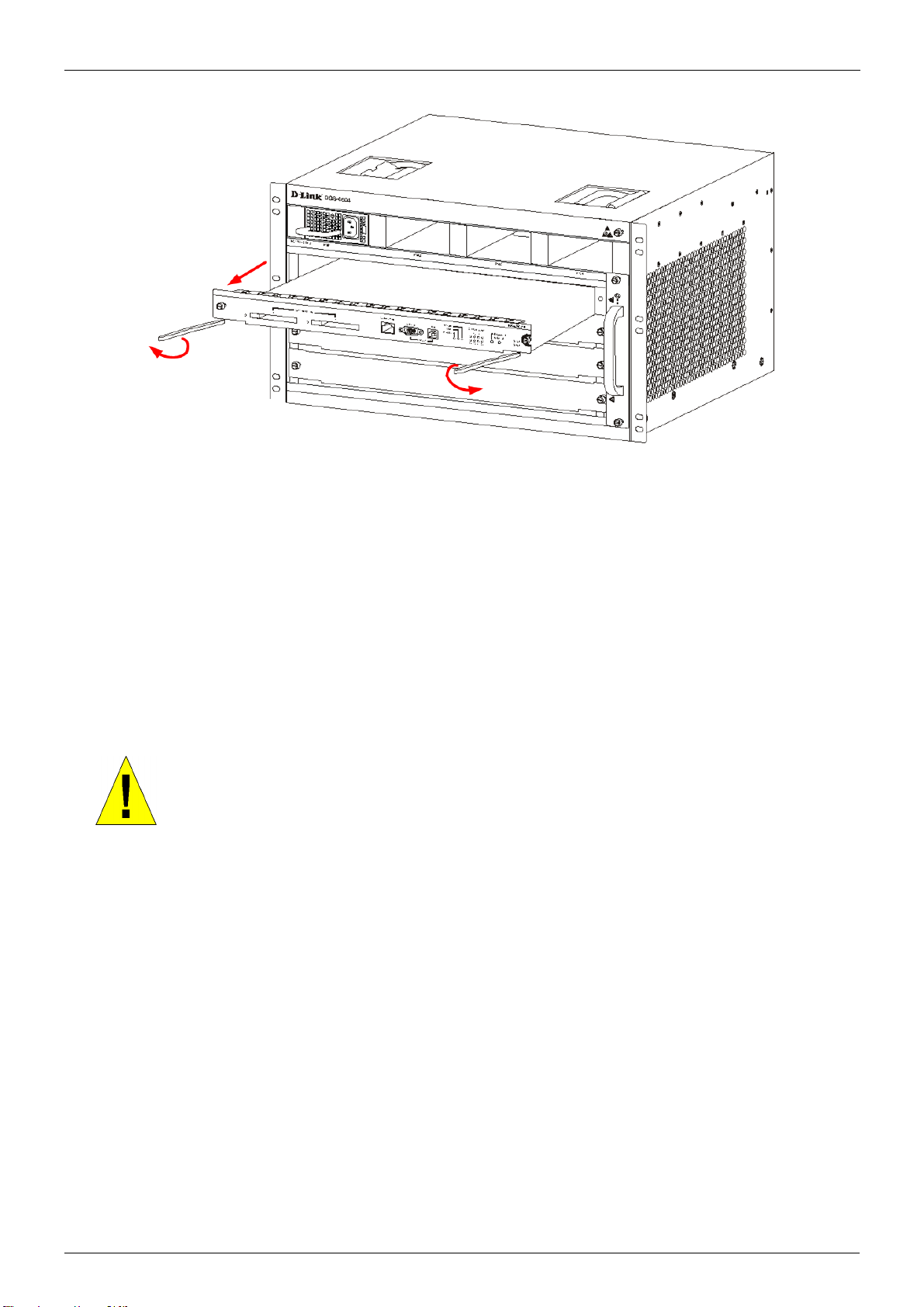

Removing Line Cards from the DGS-6600 Series Switch..................................................................................47
Installing Line Cards in the DGS-6600 Series Switch ........................................................................................ 48
Connecting the External Interface Cables.......................................................................................................... 50
Connecting External Interface Cable Precautions ........................................................................................ 50
Simple External Interface Cable Connection Steps ......................................................................................50
Cable Management............................................................................................................................................50
Cable Management Precautions...................................................................................................................50
Simple Cable Management Steps ................................................................................................................ 50
Installation Checks .............................................................................................................................................51
Checking the Cabinet.................................................................................................................................... 51
Checking the Cables.....................................................................................................................................51
Checking the Power Supply..........................................................................................................................51
Chapter 3 Connecting the Switch ....................................................................................... 52
Switch to End Node............................................................................................................................................52
Chassis to Switch...............................................................................................................................................53
Connecting To Network Backbone or Server..................................................................................................... 54
Connecting the Management Module Cable......................................................................................................55
Connecting the External Interface Cables.......................................................................................................... 55
Cable Management............................................................................................................................................55
Chapter 4 Introduction to Switch Management .................................................................. 56
Management Options.........................................................................................................................................56
Web-based User Interface ............................................................................................................................ 56
SNMP-Based Management ..........................................................................................................................56
Remote Command Line Interface using Telnet ............................................................................................56
Command Line Interface through the Serial Ports........................................................................................57
Connecting the Console Port ............................................................................................................................. 57
To connect a terminal to the console port:.................................................................................................... 57
First Time Connecting to the Switch ..................................................................................................................60
Connecting to the Ethernet Management Port...................................................................................................61
Password Protection ..........................................................................................................................................62
Saving Configuration Changes ..........................................................................................................................63
SNMP Settings...................................................................................................................................................63
Traps............................................................................................................................................................. 64
Management Information Base (MIB) ...........................................................................................................64
Chapter 5 Web-based Switch Management ........................................................................ 65
Introduction ........................................................................................................................................................65
Enabling and Configuring the Web User Interface.............................................................................................66
Logging onto the Web Manager......................................................................................................................... 67
Web-based User Interface (Web UI).................................................................................................................. 67
Areas of the User Interface ........................................................................................................................... 68
Configuring the Management Interface using the Web UI .................................................................................69
Chapter 6 Maintenance ......................................................................................................... 70
v
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
DGS-6600 Series Switch Monitoring Function................................................................................................... 71
Maintaining the DGS-6600 Series Switch Hardware ......................................................................................... 71
Maintaining the DGS-6600 Modules .............................................................................................................71
Maintaining the Ventilation System............................................................................................................... 71
Maintaining the Power Supply ...................................................................................................................... 72
Remote Maintenance ......................................................................................................................................... 72
Chapter 7 Troubleshooting................................................................................................... 73
General Flow Chart for Troubleshooting Installation Faults ............................................................................... 73
Common Troubleshooting Procedures ..............................................................................................................74
Technical Specifications 6604............................................................................................................................77
Technical Specifications 6608............................................................................................................................79
Connection Modules .....................................................................................................................................83
1000BASE-T/100BASE-TX/10BASE-T Port ...................................................................................................... 84
Optical Fiber Connection....................................................................................................................................85
vi
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

Intended Readers

The DGS-6600 Series Switch Hardware Installation Guide contains information on how to install the Switch hardware. This manual is intended for network or I.T. managers familiar with network management concepts and terminology.

Typographical Conventions

The conventions used in this Configuration Guide are explained in the following table:
Convention Description Example
Typewriter Font
Boldface Typewriter Font
BOLD UPPER CASE ITALIC TYPEWRITER FONT
Square brackets [ ]
Vertical bar | This token separates the alternative elements. dhcp | bootp
Braces { } This token specifies a required element. The user must
, - These tokens specify that multiple interfaces can be
This is used in the CLI examples to represent the text that is seen in the Switch console window and the output. This is also used to indicate Switch responses.
This is used in the CLI examples to represent the commands that the user will type in the Switch console window. The commands must be typed exactly as printed in the manual.
This is used in the CLI examples to indicate the parameters in a CLI command.
This token specifies optional elements. A user can specify zero, one, or multiple elements.
specify one of the elements.
specified. The ‘-' symbol is used to represent a range of interfaces and the ‘,’ symbol is used to connect multiple ranges.
DGS-6600:2>
configure terminal
VLAN-NAME
[view VIEW-NAME]
{1 | 2c | 3 {auth | noauth | priv}}
[,|-]
Angle brackets <>This token represents the numeric range of a
parameter. The available range is enclosed in the <> symbols.
Bold Font Indicates a Switch command or a Keyword. configure terminal
Italic Font Indicates a variable or parameter that is replaced with
an appropriate word or string.
vii
<1-10>
Type the IP address of your TFTP Server.
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

Notes, Notices, and Cautions

A NOTE indicates important information that helps make better use of the device
.
A NOTICE indicates either potential damage to hardware or loss of data and tells how to avoid the problem.
A CAUTION indicates a potential for property damage, personal injury, or death.

Safety Suggestions

While DGS-6600 series switches are designed and manufactured to meet accepted safety standards improper use can result in electrical shock, fire hazards and personal injury. Please read the safety suggestions carefully before installing the DGS-6600 series switch.
NOTE: The following safety suggestions do not cover all potential dangers.

Safety Recommendations for Handling the Switch

• The DGS-6600 Series chassis (6604 and 6608 models) is heavy, particularly if it has been completely configured with the power units, command module and line modules. Please do not risk personal injury or equipment damage by attempting to transport or lift the DGS-6600 series switch chassis without assistance.
• When lifting or handling the DGS-6600 series switch use the lifting handles show in Figure 1. No other parts of the DGS-6600 series switch should be used for lifting or handling.
• Do not place the Switch in a location that will obstruct a walkway or cause a safety hazard.
• Do not wear loose clothing or items that may become caught in the chassis during handling, installation or maintenance.

Safety Recommendations for Removing and replacing Batteries

Batteries included with DGS-6600 Series products are encapsulated and must be replaced only by qualified Service personnel. Contact your qualified Service personnel for product replacement. Do not attempt to replace the battery. If these instructions are disregarded and replacement of these batteries is attempted, the following guidelines must be followed to avoid danger of explosion:
ix
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
• Replace with the same or equivalent battery type as recommended by the battery manufacturer.
• Dispose of the battery in accordance with the battery manufacturers recommendation.

Safety Precautions for Installing and Removing the Switch

Before moving the chassis, remove all line cards, the fan tray, and all power modules. After removing all line cards, the fan tray, and all power modules, use the handles on the top of the chassis (Please see Figure 1.) to move the Switch to avoid causing any damage.
• Before installing or removing any part of the DGS-6604/6608 (line cards, the fan tray or power modules) please ensure that you, the equipment rack and any line cards are at ground potential to prevent elec­trostatic discharge (ESD).
• Before installing or removing the chassis, ensure that all the power supplies are turned off and that all power cables are unplugged.
Figure 1 Diagram showing how to correctly hold, while moving, the DGS-6604
NOTE: Do not move the equipment by grasping the panel, power supply handle, or the
ventilation holes of the chassis as they are not designed to bear the weight of the entire equipment. Attempting to move the Switch in this way may cause damage or cause you an injury.

Electrical Safety

• Please follow any applicable safety regulations and laws when performing electrical work. All electrical work should be carried out by a qualified individual.
• Before beginning any work with the switch carefully check for any potential dangers in the working area, eg. a damp or wet floor, an ungrounded power supply, or an unreliable grounding of the power supply.
• Locate the emergency power off switch in the room before installing or working on the switch.
• If an electrical accident occurs, cut off the power supply to the Switch first.
x
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
• Avoid carrying out maintenance on the equipment alone when the Switch is powered on.
• Before shutting down the power supply, check that it is safe to do so.
• Do not place the Switch in a damp/wet location. Ensure that no liquid enters the chassis.
• Ensure that all grounding conductors are connected both before, and after the line and neutral (AC) conductors are connected.
• Disconnect all power supply cords before servicing.
• Connect the power cable to a circuit breaker rated not greater than 20A.
• When installing multiple power supplies, connect each power supply to a different, independent over­current protection device, such as a circuit breaker. If a single power source fails, it will affect only the power supply to which it is connected.
xi
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Grounding requirements
Proper grounding of the switch will help ensure stable and reliable operation of the DGS-6600 series switch. it is important to verify that the grounding conditions during and after installation of the switch meet the grounding requirements and grounds all devices properly.
All grounding conductors should be connected before the AC power is applied to the DGS-6600 series switch installed AC power supplies.
2
The DGS-6604 series switch with AC power supplies must be grounded with a minimum of 0.823 mm 18AWG) of conductive grounding cable. This cable is connected between the Equipment Room Ground and the DGS-6600 series Chassis Ground Terminal.
The DGS-6608 series switch with AC power supplies must be grounded with a minimum of 1.32 mm2 (or16AWG) of conductive grounding cable.
CAUTION: Indirectly or directly contacting the mains supply with a wet object can cause a fatal danger.
(or
CAUTION: Hazards, including electrical shocks and fires, can be caused by any non-standard and inaccurate electrical operation. This may cause severe or fatal damage to the human body or equipment.
Preventing Static Discharge Damage
While all precautions have been taken with the design of the DGS-6600 series switch to prevent damage from static electricity, if the static electricity exceeds a certain limit, damage may be caused to the Switch's circuitry and equipment.
Electrostatic induction may come from the following sources on the network that the DGS-6600 series switch is a member of:
• External electric fields produced by high-voltage cable supplies, lightning etc.
• Internal building factors, such as the internal floor or the building structure.
The following factors must be paid attention to in order to prevent damage from static electricity: To prevent damage from static electricity, please use the following guidelines:
1. Be sure to install an adequate ground for all electronic equipment.
2. Use appropriate dust prevention measures.
3. Maintain the required humidity in the operating environment.
4. Hold circuit boards by their edges. Do not touch any components on the printed circuit board (PCB).
5. Always wear an anti-static wrist strap when working near any electronic circuitry.
6. Do not allow clothing to touch circuit boards. An antistatic wrist strap will only prevent static electricity from the human body, it will not reduce the static electricity build up on clothing.
xii
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

Laser Safety

A number of the optical modules included in the DGS-6600 series switches are Class I laser products. Therefore, when using these products pay careful attention to the following:
• Ensure that any working fiber transceivers are either connected to a working optical fiber connection or covered with a dust cap, to keep out of dust and avoid damaging your eyesight.
• Never look into any optical port.
CAUTION: Never stare into any optical port under any circumstances, as this may damage your eye sight.
xiii
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

Chapter 1 Introduction

DGS-6600 Series Switch Description

DGS-6604 Product Specifications

DGS-6604 Product Appearance
DGS-6604 Hardware Composition
DGS-6604 Ventilation/Heat Dissipation System
DGS-6608 Product Specifications
DGS-6608 Hardware Composition
DGS-6608 Ventilation/Heat Dissipation System
DGS-6600 CPU & I/O Modules
DGS-6600 Series Switch Description
The D-Link's DGS-6600 series switch is a modular, chassis-based Ethernet backbone switch designed for adaptability and scalability. Currently, the DGS-6600 series chassis is available in a 4-slot chassis (DGS-6604) and 8 slot chassis (DGS-6608). The DGS-6600 Switch provides a management platform with a backplane switch capacity of 576Gbps per Management Module. The chassis contains, one slot for the management module and three slots for line card modules in the DGS-6604, and two slots for the management module with six slots for the line card modules in the DGS-6608. All the supported modules are capable of being hot-swapped. The DGS­6600 chassis provides a built-in power shelf that supports, depending DGS-6604 or DGS-6608 chassis type; up to four or eight, redundant power modules. Multiple redundant power modules enable continuous operation in the event of a power module failure.
DGS-6604 Product Specifications
Product Features
• Powerful Expansion Capabilities
The DGS-6604 is capable of supporting strategic routing and IPv6. With support for multiple types of line cards, the DGS-6600 allows users to customize their Switch configuration to meet their network requirements.
• Hot-Swappable Line Cards, Fan Tray, and Power Supplies
The DGS-6604 supports the hot-swapping of line cards, the fan tray, and power supplies to minimize disruption to the network when a fault occurs.
• Power Supply Redundancy
The DGS-6604 has a built-in power shelf that can host multiple power modules. If the DGS-6600 is running in a non-PoE environment, the Switch can operate using only one power supply. in a worst case scenario with three 48-port PoE line cards installed, all PSUs being inserted can meet the power request.
• Efficient Data Processing Design
The DGS-6604 implements complicated functions, such as switching, routing, ACL, and QoS via the Switch hardware. Using the Switch hardware avoids the issues that can occur when implementing complex functions within software.
Several functions are performed by the management module, including network management, route management, and providing network services. The line card modules are capable of using their hardware to independently implement functions like routing, switching, and multicast using their hardware. The individual switch ports are capable of using their hardware to implement ACL and QoS functions. These combined features greatly improve the equipment processing capability.
• Physical Resilience
1
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
The DGS-6604 includes several features that ensure physical resilience, including multiple redundant power supplies and the capability of hot-swapping line cards or modules in the event of a fault.
• Secure Switch Management Methods
The DGS-6604 supports several features to prevent non-administrators from logging into the Switch and potentially causing disruption to the network. These features include the Secure Shell (SSH) encrypted login function and the option of restricting Telnet and web access to a specific group of source IP addresses.
• Support for 802.1X
The DGS-6604 supports 802.1X. 802.1X is a mechanism that is designed to only allow authorized users, or other network devices, access to network resources by establishing criteria for each port on the Switch that a user or network device must meet before allowing that port to forward or receive frames.
• Support for a Wide Range of Applications
The DGS-6604 supports a wide range of applications including QoS and multicast.
The QoS techniques supported by the Switch include Strict Priority Mode, Weighted Round Robin (WRR), Deficit Round Robin (DRR), and Head of Line (HOL) blocking. These QoS techniques help to provide bandwidth assurance for the various applications.
The multiple multicast support techniques supported by the Switch include IGMP snooping, IGMP, PIM (SM,DM), and DVMRP. These multicast support techniques ensure that the minimum bandwidth required for multicast applications is provided on the network.
• Support for Equal-Cost Multipath Routing (ECMP)
When traditional routing techniques are used on a network that has multiple links that can reach the same address, packets can only take one of the links to reach their destination, with all other links being in standby or inactive. Another issue with traditional routing techniques is that the switching between the various links can take some time in an environment that is using dynamic routing. Compared to traditional routing techniques, ECMP is a great improvement as it can use multiple links at the same time in a resilient network environment. As well as increasing transmission bandwidth, ECMP also backs up the data transmission on the link that has failed without causing any delays or packet loss.
• STP and VRRP Support
The DGS-6604 supports both the Spanning-Tree Protocol (STP) and Virtual Router Redundancy Protocol (VRRP). The Spanning-Tree Protocol (STP) versions supported by the Switch include Spanning-Tree Protocol (IEEE 802.1D), Rapid Spanning-Tree Protocol (IEEE 802.1w), and Multiple Spanning-Tree Protocol (IEEE 802.1s).
2
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6604 Product Appearance

Figure 1-1 DGS-6604 Product Appearance
Number Item Name Description
1 Power Layer The built-in power shelf can host up to four power modules.
2 Module Layer The module layer offers 4 module slots.
3 Air Outlet The air outlet is located on the right side of the Switch.
4 Fan Tray The fan tray is installed in the slot on the right side of the Switch.
The fan tray is the Switch’s main heat dissipation unit.
Table 1-1 DGS-6604 Product Appearance Descriptions
3
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6604 Hardware Composition

The DGS-6604 hardware consists of a chassis, management card, line cards, power system and a fan system.
Chassis
The DGS-6604 uses a standard 19-inch chassis, which has a height of 280mm, a width of 484mm, and a depth of 470mm. The chassis consists of the system module layer, fan layer, and power layer.
The layer that handles system modules consists of a module plug-in frame, which is used for connecting the various DGS-6604 modules.
The built-in power shelf is located at the top of the chassis.
The fan tray is located on the right-hand side of the chassis. The fan tray consists of eight fans. The dimension of each fan is 80x80x20mm.
Module Plug-in Frame
The module plug-in frame of the DGS-6604 consists of the module slots and the backplane.
The DGS-6604 supports four module slots. The slot at the top of the Switch can only be used for the control management module. The other three slots can be used to connect to various line cards. All the modules supported by the DGS-6604 are of the same height, width and depth. The dimensions of each module are a height of 42mm, a width of 388mm, and a depth of 422mm. The modules of the DGS-6604 are inserted into the Switch horizontally. The backplane of the DGS-6604 is used to interconnect the control management card and the line cards that have been installed in the Switch.
The main functions of the DGS-6604 backplane are listed below:
• Providing a mechanism for transmitting various signals between the modules and providing channels for high-speed communication.
• Acting as a passive backplane.
• Automatically identifying the type of line card that has been installed in each slot.
• Managing the load distribution among the installed power supplies.
When the slots of the DGS-6604 are fully populated, the modules of the DGS-6604 will have the following layout:
• One control management module.
• Three line card modules to meet the network requirements.
The slot number used for the Control Management module is 1. Slots 2, 3, and 4 are used for line card modules.
4
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6604 Ventilation/Heat Dissipation System

The DGS-6604 operates at a temperature of 0-50ºC. The hardware of the DGS-6604 has been thermally designed so the surface temperature of the components does not exceed the allowed ambient temperature of 50ºC without affecting the reliability, security, and repairability of the Switch. The thermal design of the DGS-6604 hardware uses fans to induct air in a forced convection so that the equipment operates normally in the specified environment. The diagram below shows the ventilation/heat dissipation system that has been implemented on the DGS-6604.
Figure 1-2 DGS-6604 Ventilation/Heat Dissipation System
NOTE: The air flow direction for the DGS-6604 is from the left to the right.

DGS-6608 Product Specifications

Product Features
• Powerful Expansion Capabilities
The DGS-6608 is capable of supporting strategic routing and IPv6. With support for multiple types of line cards, the DGS-6608 allows users to customize their Switch configuration to meet their network requirements.
• Hot-Swappable Line Cards, Fan Tray, and Power Supplies
The DGS-6608 supports the hot-swapping of line cards, the fan tray, and power supplies to minimize disruption to the network when a fault occurs.
• Power Supply Redundancy
The DGS-6608 has two built-in power shelves that can host up to eight power modules. If the DGS­6608 is running in a non-PoE environment, the Switch can operate using only two power supply. in a worst case scenario with six 48-port PoE line cards installed, all 8 x PSUs inserting can meet the power request. In this case, the system does not support RPS.
5
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
• Efficient Data Processing Design
The DGS-6608 implements complicated functions, such as switching, routing, ACL, and QoS via the Switch hardware. Using the Switch hardware avoids the issues that can occur when implementing complex functions within software.
Several functions are performed by the management module, including network management, route management, and providing network services. The line card modules are capable of using their hardware to independently implement functions like routing, switching, and multicast using their hardware. The individual switch ports are capable of using their hardware to implement ACL and QoS functions. These combined features greatly improve the equipment processing capability.
• Physical Resilience
The DGS-6608 includes several features that ensure physical resilience, including multiple redundant power supplies and the capability of hot-swapping line cards or modules in the event of a fault.
• Secure Switch Management Methods
The DGS-6608 supports several features to prevent non-administrators from logging into the Switch and potentially causing disruption to the network. These features include the Secure Shell (SSH) encrypted login function and the option of restricting Telnet and web access to a specific group of source IP addresses.
• Support for 802.1X
The DGS-6608 supports 802.1X. 802.1X is a mechanism that is designed to only allow authorized users, or other network devices, access to network resources by establishing criteria for each port on the Switch that a user or network device must meet before allowing that port to forward or receive frames.
• Support for a Wide Range of Applications
The DGS-6608 supports a wide range of applications including QoS and multicast.
The QoS techniques supported by the Switch include Strict Priority Mode, Weighted Round Robin (WRR), Deficit Round Robin (DRR), and Head of Line (HOL) blocking. These QoS techniques help to provide bandwidth assurance for the various applications.
The multiple multicast support techniques supported by the Switch include IGMP snooping, IGMP, PIM (SM,DM), and DVMRP. These multicast support techniques ensure that the minimum bandwidth required for multicast applications is provided on the network.
• Support for Equal-Cost Multipath Routing (ECMP)
When traditional routing techniques are used on a network that has multiple links that can reach the same address, packets can only take one of the links to reach their destination, with all other links being in standby or inactive. Another issue with traditional routing techniques is that the switching between the various links can take some time in an environment that is using dynamic routing. Compared to traditional routing techniques, ECMP is a great improvement as it can use multiple links at the same time in a resilient network environment. As well as increasing transmission bandwidth, ECMP also backs up the data transmission on the link that has failed without causing any delays or packet loss.
• STP and VRRP Support
The DGS-6608 supports both the Spanning-Tree Protocol (STP) and Virtual Router Redundancy Protocol (VRRP). The Spanning-Tree Protocol (STP) versions supported by the Switch include Spanning-Tree Protocol (IEEE 802.1D), Rapid Spanning-Tree Protocol (IEEE 802.1w), and Multiple Spanning-Tree Protocol (IEEE 802.1s).
• High Port Density
The DGS-6608 supports up to 288 gigabit Ethernet ports or 96 ten gigabit Ethernet ports.
6
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6608 Product Appearance

Figure 1-3 DGS-6608 Product Appearance
Number Item Name Description
1 Power Layer The built-in power shelf can host up to eight power modules.
2 Module Layer The module layer offers 8 module slots.
3 Air Outlet The air outlet is located on the right side of the Switch.
4 Fan Tray The fan tray is installed in the slot on the right side of the Switch.
The fan tray is the Switch’s main heat dissipation unit.
Table 1-2 DGS-6608 Product Appearance Descriptions
7
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6608 Hardware Composition

The DGS-6608 hardware consists of a chassis, management card, line cards, power system and a fan system.
Chassis
The DGS-6608 uses a standard 19-inch chassis. The chassis consists of the system module layer, fan layer, and power layer.
The layer that handles system modules consists of a module plug-in frame, which is used for connecting the various DGS-6608 modules.
The built-in power shelf is located at the top of the chassis.
The fan tray is located on the right-hand side of the chassis. The fan tray consists of Sixteen fans. The dimension of each fan is 80x80x20mm.
Module Plug-in Frame
The module plug-in frame of the DGS-6608 consists of the module slots and the backplane.
The DGS-6608 supports eight module slots. The slots 4 and 5 of the Switch can only be used for the control management module. The other six slots can be used to connect to various line cards. All the modules supported by the DGS-6608 are of the same height, width and depth. The dimensions of each module are a height of 42mm, a width of 388mm, and a depth of 422mm. The modules of the DGS-6608 are inserted into the Switch horizontally. The backplane of the DGS-6608 is used to interconnect the control management card and the line cards that have been installed in the Switch.
The main functions of the DGS-6608 backplane are listed below:
• Providing a mechanism for transmitting various signals between the modules and providing channels for high-speed communication.
• Acting as a passive backplane.
• Automatically identifying the type of line card that has been installed in each slot.
• Managing the load distribution among the installed power supplies.
When the slots of the DGS-6608 are fully populated, the modules of the DGS-6608 will have the following layout:
• Two control management module.
• Six line card modules to meet the network requirements.
The slot number used for the Control Management module is 4 and 5. Slots 1-3 to 6-8 are used for line card modules.
8
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6608 Ventilation/Heat Dissipation System

The DGS-6608 operates at a temperature of 0-50ºC. The hardware of the DGS-6608 has been thermally designed so the surface temperature of the components does not exceed the allowed ambient temperature of 50ºC without affecting the reliability, security, and repairability of the Switch. The thermal design of the DGS-6608 hardware uses fans to induct air in a forced convection so that the equipment operates normally in the specified environment. The diagram below shows the ventilation/heat dissipation system that has been implemented on the DGS-6608.
Figure 1-4 DGS-6608 Ventilation/Heat Dissipation System
NOTE: The air flow direction for the DGS-6608 is from the left to the right.
9
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide

DGS-6600 CPU & I/O Modules

The DGS-6604/6608 supports the modules described below:
DGS-6600-CM: The DGS-6600-CM is a CPU module for the DGS-6604 Series. The CPU module is used to manage the entire system, including layer 2 and layer 3 processes, controlling and managing user access, managing routes, and maintenance on the network and operations.
DGS-6600-CM-II: The DGS-6600-CM-II is a CPU module for the DGS-6604/6608, the DGS-6608 is able to support 2 x CM.
DGS-6600-24SC2XS: This module includes 12 SFP ports, 12 combo ports (10/100/1000Base-T/SFP Module) and 2 SFP+ ports.
DGS-6600-16XS-D: This module includes 16 10G SFP+ ports.
DGS-6600-48P: This module includes 48 10/100/1000 Base -T ports and PoE.
DGS-6600-48S: This module includes 48 SFP interfaces.
DGS-6600-48T: This module includes 48 10/100/1000 Base-T ports.
DGS-660048TS: This module includes 24 10/100/1000 Base-T ports and 24 SFP interfaces.
DGS-6600-8XG: This module includes 8 10G XFP interfaces and is only supported by the DGS-6604.
10
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
DGS-6600-CM Module
The basic appearance of the DGS-6600-CM management module is shown in Figure 1-5. The DGS-6600-CM management module is designed to manage all features of the DGS-6604 model including: system switching, controlling user access, managing user access, controlling the system status, managing routing, controlling maintenance on the network and controlling network operations. The DGS-6600-CM management module needs to be inserted in slot 1 of the chassis.
NOTE: The DGS-6604 needs one DGS-6600-CM management module to operate.
Figure 1-5 Basic Appearance of DGS-6600-CM
Interface
UART Console Interface
The DGS-6600-CM front panel provides two types of UART Console Interface. The first console interface is an RS-232 connector and the second console interface is a USB connector. These two interfaces are mutually exclusive; the USB interface has a higher priority. If the Switch is being managed via the RS-232 console connection and a USB connection is established, the CLI engine will use the USB connection and automatically disconnect the user that is connected to the Switch via the RS-232 console connection.
Out-of-Band Management Port
The DGS-6600-CM module features an out-of-band Management port. The management port uses an RJ-45 connected so it can be easily connected to a notebook computer using a standard Ethernet cable. Connect to the port for out-of-band management using a web browser or Telnet command prompt interface. The Management port is enabled by default, so it can be used for the first time that you connect to the Switch.
To use the management port, use an Ethernet cable to connect the port to the Ethernet interface of a computer used for Switch management. The default IP address of the management port is 10.90.90.90 with a subnet mask of 255.0.0.0, make sure the computer used for Switch management has a non-conflicting IP address in the
10.0.0.0/8 subnet.
11
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
LEDs
The DGS-6600-CM uses different colored LEDs to indicate different systems status, as described in Table 1-3.
LED Indicator Color and Status Description
Power Solid Green This LED will light solid green when the Switch is powered on.
Off This LED will remain off when the Switch is powered off.
System Solid Green This LED will light solid green when the Switch is operating
normally.
Solid Red This LED will light solid red when the Switch has failed.
Blinking Green This LED will blink green while the Switch is booting up or
shutting down.
Off This LED will remain off when the Switch is shut down.
CPU Utilization Solid Green These LEDs are used to indicate the percentage of CPU
utilization. The valid values are from 30% to 100%.
Master Solid Green This LED will light green when the CPU module is acting as the
master management card.
Off This LED will remain off when the CPU module is acting as the
backup management card.
USB Solid Green This LED will light green when a user has logged into the
Switch via the USB console port.
Off This LED will remain off when the USB console port is not in
use.
RS-232 Solid Green This LED will light green when a user has logged into the
Switch via the RS-232 console port.
Off This LED will remain off when the RS-232 console port is not in
use.
Compact Flash Blinking Green This LED will blink green when the CF card is being read or
written to.
Table 1-3 DGS-6600-CM LED Behavior
12
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Technical Specifications
Item Description
Standard Compliance
Management Mode
Port Type 1x Female DCE RS-232 DB-9 console port
LED Power
Hot Swap Ability
Power Consumption
EMC
Management port supports IEEE802.3, IEEE802.3u, IEEE802.3ab Half/Full-duplex support
CLI Telnet Web-based
1x Female USB series type B console port 1x RJ-45 management port
System CPU Utilization Master USB RS-232 Compact Flash
Not-supported
53.856 Watts
EMC (Class A):
FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55024, AS/NZS 3548, VCCI V-3.
Safety Regulation
MTBF 263581 Hours
Heat Dissipation
Operating Temperature
Storage Temperature
Operating Humidity
Weight 3.605 Kilograms
Dimensions height - 42mm, width - 388mm , depth - 422mm
UL 1950, CSA C22.2 No. 950, 73/23/EEC, EN 60825, EN 60950, IEC 950
183.6 BTU/Hour
0~50ºC
-40~70ºC
10% - 90% RH non-condensed
Table 1-4 DGS-6600-CM Technical Specifications
13
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
DGS-6600-CM-II management module:
The basic appearance of the DGS-6600-CM-II management module is shown in Figure 1-6. The DGS-6600-CM­II management module is designed to manage all features of the DGS-6608 Switch including: system switching, controlling user access, managing user access, controlling the system status, managing routing, controlling maintenance on the network and controlling network operations. The DGS-6600-CM-II management module needs to be inserted in slot 1 in DGS-6604 and slot 4 and 5 in the DGS-6608
NOTE: The DGS-6608 needs at least one DGS-6600-CM-II management modules to oper­ate.
Figure 1-6 Basic Appearance of DGS-6600-CM-II
Interface
UART Console Interface
The DGS-6600-CM-II front panel provides two types of UART Console Interface. The first console interface is an RS-232 connector and the second console interface is a USB connector. These two interfaces are mutually exclusive; the USB interface has a higher priority. If the Switch is being managed via the RS-232 console connection and a USB connection is established, the CLI engine will use the USB connection and automatically disconnect the user that is connected to the Switch via the RS-232 console connection.
Out-of-Band Management Port
The DGS-6600-CM-II module features an out-of-band Management port. The management port uses an RJ-45 connected so it can be easily connected to a notebook computer using a standard Ethernet cable. Connect to the port for out-of-band management using a web browser or Telnet command prompt interface. The Management port is enabled by default, so it can be used for the first time that you connect to the Switch.
To use the management port, use an Ethernet cable to connect the port to the Ethernet interface of a computer used for Switch management. The default IP address of the management port is 10.90.90.90 with a subnet mask of 255.0.0.0, make sure the computer used for Switch management has a non-conflicting IP address in the
10.0.0.0/8 subnet.
14
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
LEDs
The DGS-6600-CM-II uses different colored LEDs to indicate different systems status, as described in Table 1-5.
LED Indicator Color and Status Description
Power Solid Green This LED will light solid green when the Switch is powered on.
Off This LED will remain off when the Switch is powered off.
System Solid Green This LED will light solid green when the Switch is operating
normally.
Solid Red This LED will light solid red when the Switch has failed.
Blinking Green This LED will blink green while the Switch is booting up or
shutting down.
Off This LED will remain off when the Switch is shut down.
CPU Utilization Solid Green These LEDs are used to indicate the percentage of CPU
utilization. The valid values are from 30% to 100%.
Master Solid Green This LED will light green when the CPU module is acting as the
master management card.
Off This LED will remain off when the CPU module is acting as the
backup management card.
USB Solid Green This LED will light green when a user has logged into the
Switch via the USB console port.
Off This LED will remain off when the USB console port is not in
use.
RS-232 Solid Green This LED will light green when a user has logged into the
Switch via the RS-232 console port.
Off This LED will remain off when the RS-232 console port is not in
use.
Compact Flash Blinking Green This LED will blink green when the CF card is being read or
written to.
Table 1-5 DGS-6600-CM-II LED Behavior
15
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Technical Specifications
Item Description
Standard Compliance
Management Mode
Port Type 1x Female DCE RS-232 DB-9 console port
LED Power
Hot Swap Ability
Power Consumption
EMC
Management port supports IEEE802.3, IEEE802.3u, IEEE802.3ab Half/Full-duplex support
CLI Telnet Web-based
1x Female USB series type B console port 1x RJ-45 management port
System CPU Utilization Master USB RS-232 Compact Flash
Supported
54.86 Watts
EMC (Class A):
FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55024, AS/NZS 3548, VCCI V-3.
Safety Regulation
MTBF 317755 Hours
Heat Dissipation
Operating Temperature
Storage Temperature
Operating Humidity
Weight 3.76 Kilograms
Dimensions height - 42mm, width - 388mm, depth - 422mm
UL 1950, CSA C22.2 No. 950, 73/23/EEC, EN 60825, EN 60950, IEC 950
187.19 BTU/Hour
0~50ºC
-40~70ºC
10% - 90% RH non-condensed
Table 1-6 DGS-6600-CM-II Technical Specifications
16
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
DGS-6600-24SC2XS Module
The basic appearance of the DGS-6600-24SC2XS module is shown in Figure 1-7. The DGS-6600-24SC2XS is a line card module of the DGS-6604, which provides 12 SFP ports, 12 combo ports (10/100/1000Base-T/SFP Module) and 2 SFP+ ports.
Figure 1-7 Basic Appearance of DGS-6600-24SC2XS
Interface
The DGS-6600-24SC2XS features 12 SFP ports, 12 combo ports (10/100/1000Base-T/SFP Module) and 2 SFP+ ports, please note that the DGS-6600-24SC2XS last two SFP+ ports do not support DEM-310GT/311GT/312GT2/
314GT/315GT/330T/R/331T/R/210/211/220/T/R or DGS-712 transceiver
.
LEDs
The DGS-6600-24SC2XS uses different colored LEDs to indicate different systems status, described in Table 1-
7.
LED
Indicator
Power Solid Green This LED will light solid green when the Switch is powered on.
System Solid Green This LED will light solid green when the Switch is operating
Link/Act/ Speed Mode
Color and Status Description
Off This LED will remain off when the Switch is powered off.
normally.
Solid Red This LED will light solid red when the Switch has failed.
Blinking Green This LED will blink green while the Switch is booting up or
shutting down.
Off This LED will remain off when the Switch is shut down.
Solid Green This LED will light solid green when there is a secure
connection (or link) to a device. (Either 1000 Mbps or 10 Gbps, depending on if it is a 10/100/1000 Mbps port, SFP port or a 10G port.)
Blinking Green This LED will blink green when there is activity occurring on a
port that is operating. (Either 1000 Mbps or 10 Gbps, depending on if it is a 10/100/1000 Mbps port, SFP port or a 10G port.)
Solid Amber When there is a secure connection or link at any of the ports.
(Either 10/100 Mbps or 100 Mbps, depending on if it is a 10/ 100/1000 Mbps port or an SFP port.)
Blinking Amber When there is a reception of transmission. (Either 10/100 Mbps
or 100 Mbps, depending on if it is a 10/100/1000 Mbps port or an SFP port.)
Off This LED will remain off when there is no link on the port.
Table 1-7 DGS-6600-24SC2XS LED Behavior
17
DGS-6600 Layer 3 Chassis Ethernet Managed Switch Hardware Installation Guide
Technical Specifications
Item Compliance
Standard Compliance
Port Type 12 SFP ports, 12 combo ports (10/100/1000Base-T/SFP Module) and 2 SFP+ ports.
LED Power
Hot Swap Ability
Power Consumption
EMC
IEEE 802.3 IEEE 802.3ab IEEE 802.3ae IEEE 802.3aq IEEE 802.3u IEEE 802.3z Full-duplex support/Half-duplex support (IEEE 802.3x Flow Control support for Full-Duplex mode) SFF-8431 compliant transceiver support
System
Supported
105.5 Watts
EMC (Class A):
FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55024, AS/NZS 3548, VCCI V-3.
Safety Regulation
MTBF 349982.9658 Hours
Heat Dissipation
Weight 3.328 Kilograms
UL 1950, CSA C22.2 No. 950, 73/23/EEC, EN 60825, EN 60950, IEC 950
379.8 BTU/Hour
Table 1-8 DGS-6600-24SC2XS Technical Specifications
18
