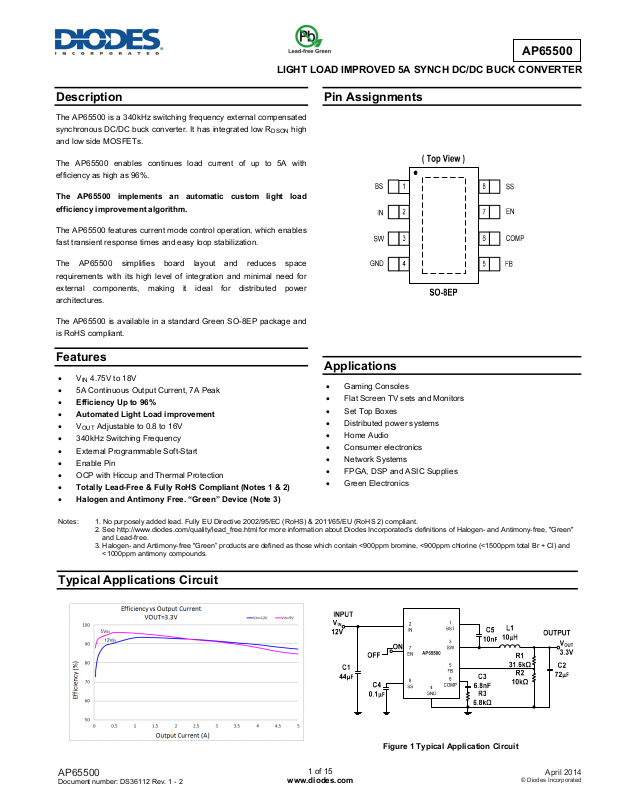

Diodes AP65500 User Manual

A

P65500

LIGHT LOAD IMPROVED 5A SYNCH DC/DC BUCK CONVERTER

high

Pin Assignments

Description

The AP65500 is a 340kHz switching frequency external compensated

synchronous DC/DC buck converter. It has integrated low R

and low side MOSFETs.

The AP65500 enables continues load current of up to 5A with

efficiency as high as 96%.

The AP65500 implements an automatic custom light load

efficiency improvement algorithm.

The AP65500 features current mode control operation, which enables

fast transient response times and easy loop stabilization.

The AP65500 simplifies board layout and reduces space

requirements with its high level of integration and minimal need for

external components, making it ideal for distributed power

architectures.

The AP65500 is available in a standard Green SO-8EP package and

is RoHS compliant.

DSON

Features

Applications

• VIN 4.75V to 18V

• 5A Continuous Output Current, 7A Peak

• Efficiency Up to 96%

• Automated Light Load improvement

• V

• 340kHz Switching Frequency

• External Programmable Soft-Start

• Enable Pin

• OCP with Hiccup and Thermal Protection

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

Adjustable to 0.8 to 16V

OUT

• Gaming Consoles

• Flat Screen TV sets and Monitors

• Set Top Boxes

• Distributed power systems

• Home Audio

• Consumer electronics

• Network Systems

• FPGA, DSP and ASIC Supplies

• Green Electronics

Typical Applications Circuit

AP65500

Document number: DS36112 Rev. 1 - 2

1 of 15

www.diodes.com

Figure 1 Typical Application Circuit

April 2014

A

Pin Descriptions

P65500

Name

BS 1

IN 2

SW 3

GND 4 Ground

FB 5

COMP 6

EN 7

SS 8

EP EP Exposed Pad is connected to ground

Number

High-Side Gate Drive Boost Input. BS supplies the drive for the high-side N-Channel MOSFET a

0.01µF or greater capacitor from SW to BS to power the high side switch.

Power Input. IN supplies the power to the IC, as well as the step-down converter switches. Drive IN with a 4.75V to 18V power source. Bypass IN to GND with a suitably large capacitor to eliminate noise on the input to the IC. See Input Capacitor.

Power Switching Output. SW is the switching node that supplies power to the output. Connect the output LC filter from SW to the output load. Note that a capacitor is required from SW to BS to power the high-side switch.

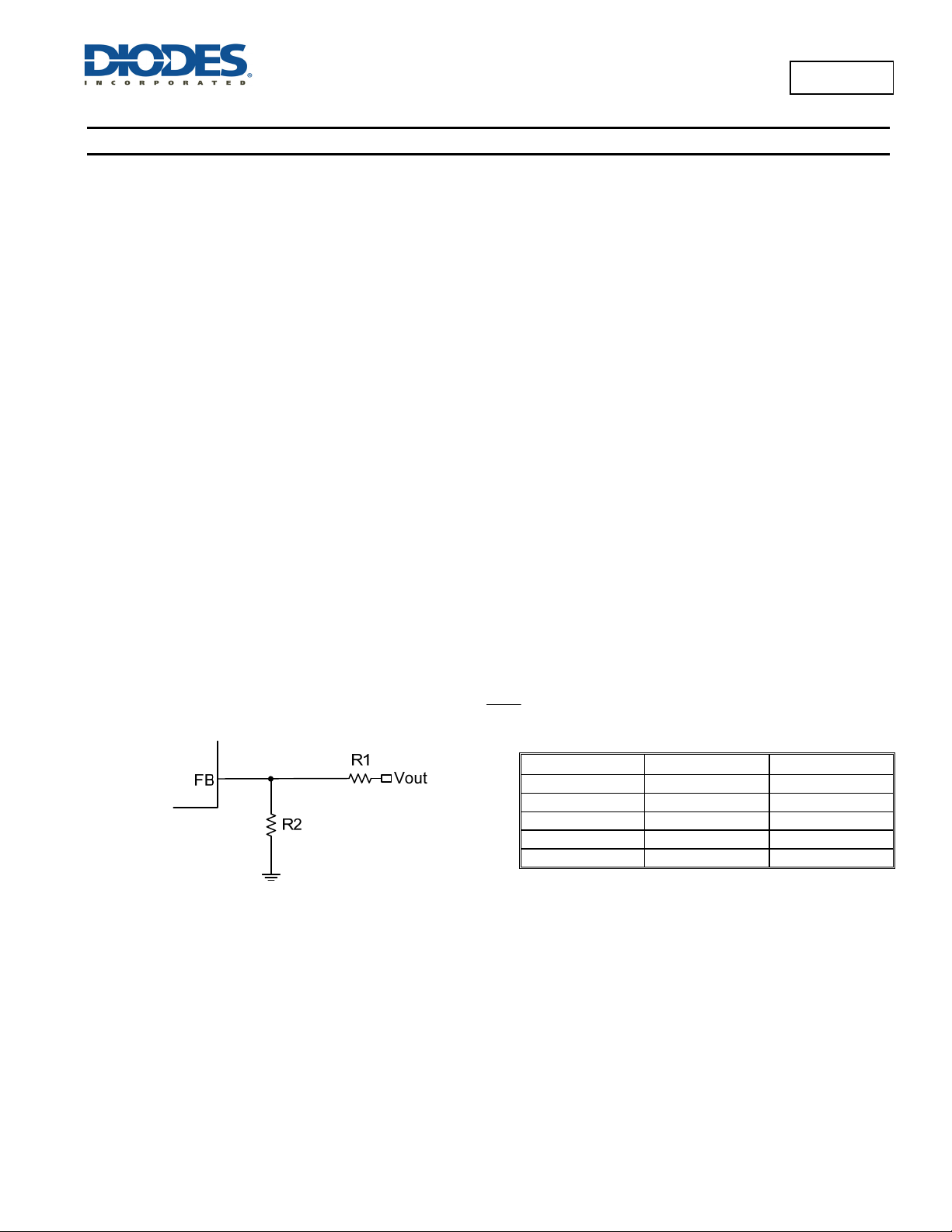

Feedback Input. FB senses the output voltage and regulates it. Drive FB with a resistive voltage divider connected to it from the output voltage. The feedback threshold is 0.800V. See Setting the Output Voltage.

Compensation Node. COMP is used to compensate the regulation control loop. Connect a series RC network from COMP to GND. In some cases, an additional capacitor from COMP to GND is required. See Compensation Components.

Enable Input. EN is a digital input that turns the regulator on or off. Drive EN high to turn on the regulator; low to turn it off. Attach to IN with a 100k pull up resistor for automatic startup.

Soft-Start Control Input. SS controls the soft-start period. Connect a capacitor from SS to GND to set the soft-start period. A 0.1µF capacitor sets the soft-start period to 13ms. To disable the soft-start feature, leave SS floating.

Functional Block Diagram

Function

AP65500

Document number: DS36112 Rev. 1 - 2

Figure 2 Functional Block Diagram

2 of 15

www.diodes.com

April 2014

A

P65500

Absolute Maximum Ratings (Note 4) (@T

Symbol Parameter Rating Unit

VIN

VSW

VBS

VFB

VEN

V

COMP

TST

TJ

TL

ESD Susceptibility (Note 5)

HBM Human Body Model 1.5 kV

MM Machine Model 150 V

Notes: 4. Stresses greater than the 'Absolute Maximum Ratings' specified above may cause permanent damage to the device. These are stress ratings only; functional operation of the device at these or any other conditions exceeding those indicated in this specification is not implied. Device reliability may be affected by exposure to absolute maximum rating conditions for extended periods of time.

5. Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and transporting these devices.

Supply Voltage

Switch Node Voltage

Bootstrap Voltage

Feedback Voltage -0.3V to +6.0 V

Enable/UVLO Voltage -0.3V to +6.0 V

Comp Voltage -0.3V to +6.0 V

Storage Temperature -65 to +150 °C

Junction Temperature +160 °C

Lead Temperature +260 °C

= +25°C, unless otherwise specified.)

A

-0.3 to 20

-1.0 to V

V

-0.3 to VSW +6.0

SW

IN

+0.3

V

Thermal Resistance

Symbol Parameter Rating Unit

JA

JC

Note: 6. Test condition: SO-8EP: Device mounted on FR-4 substrate (2s2p) 2"x2" PCB, with 2oz copper trace thickness and minimum recommended pad on top

layer and thermal vias to bottom layer ground plane.

Recommended Operating Conditions (Note 7) (@T

Symbol Parameter Min Max Unit

VIN

TA

Note: 7. The device function is not guaranteed outside of the recommended operating conditions.

Junction to Ambient SO-8EP (Note 6) 43 °C/W

Junction to Case SO-8EP (Note 6) 6.3 °C/W

= +25°C, unless otherwise specified.)

A

Supply Voltage

Operating Ambient Temperature Range

4.75

-40

18.0 V

+85 °C

AP65500

Document number: DS36112 Rev. 1 - 2

3 of 15

www.diodes.com

April 2014

A

P65500

Electrical Characteristics (@T

= +25°C, VIN = 12V, unless otherwise specified.)

A

Symbol Parameter Test Conditions Min Typ Max Unit

I

SHDN

R

DS(ON)1

R

DS(ON)2

I

LIMIT

I

LIMIT

IQ

Shutdown Supply Current

Supply Current (Quiescent)

High-Side Switch On-Resistance (Note 8) 80 m

Low-Side Switch On-Resistance (Note 8) 32 m

HS Current Limit Minimum duty cycle 7 A

LS Current Limit From Drain to Source 0.9 A

High-Side Switch Leakage Current

AVEA

Error Amplifier Voltage Gain (Note 8)

GEA Error Amplifier Transconductance

GCS

FSW

FFB

D

MAX

TON

VFB

COMP to Current Sense Transconductance

Oscillator Frequency

Fold-back Frequency

Maximum Duty Cycle

Minimum On Time 160 ns

Feedback Voltage

VEN = 0V

VEN = 2.0V, VFB = 1.0V

V

= 0V, VSW = 0V, V

EN

SW

=12V

800 V/V

I

= ±10µA

C

2.8 A/V

V

= 0.75V

FB

V

= 0V

FB

VFB = 800mV

TA = -40°C to +85°C

0.3 3.0 µA

0.3 1.5 mA

0 10 A

1000 µA/V

300 340 380 kHz

0.30

fSW

90 %

800 mV

Feedback Overvoltage Threshold 1.0 V

V

EN_RISING

EN Rising Threshold 0.7 0.8 1.2 V

EN Lockout Threshold Voltage 2.2 2.5 2.7 V

EN Lockout Hysteresis 220 mV

INUV

V

VTH

VIN Under Voltage Threshold Hysteresis

HYS

Under Voltage Threshold Rising

IN

Soft-Start Current

Soft-Start Period

TSD

Note: 8. Guaranteed by design

Thermal Shutdown (Note 8) 160 °C

3.80 4.05 4.40 V

250 mV

V

SS

C

SS

= 0V

= 0.1µF

6 A

13 ms

AP65500

Document number: DS36112 Rev. 1 - 2

4 of 15

www.diodes.com

April 2014

A

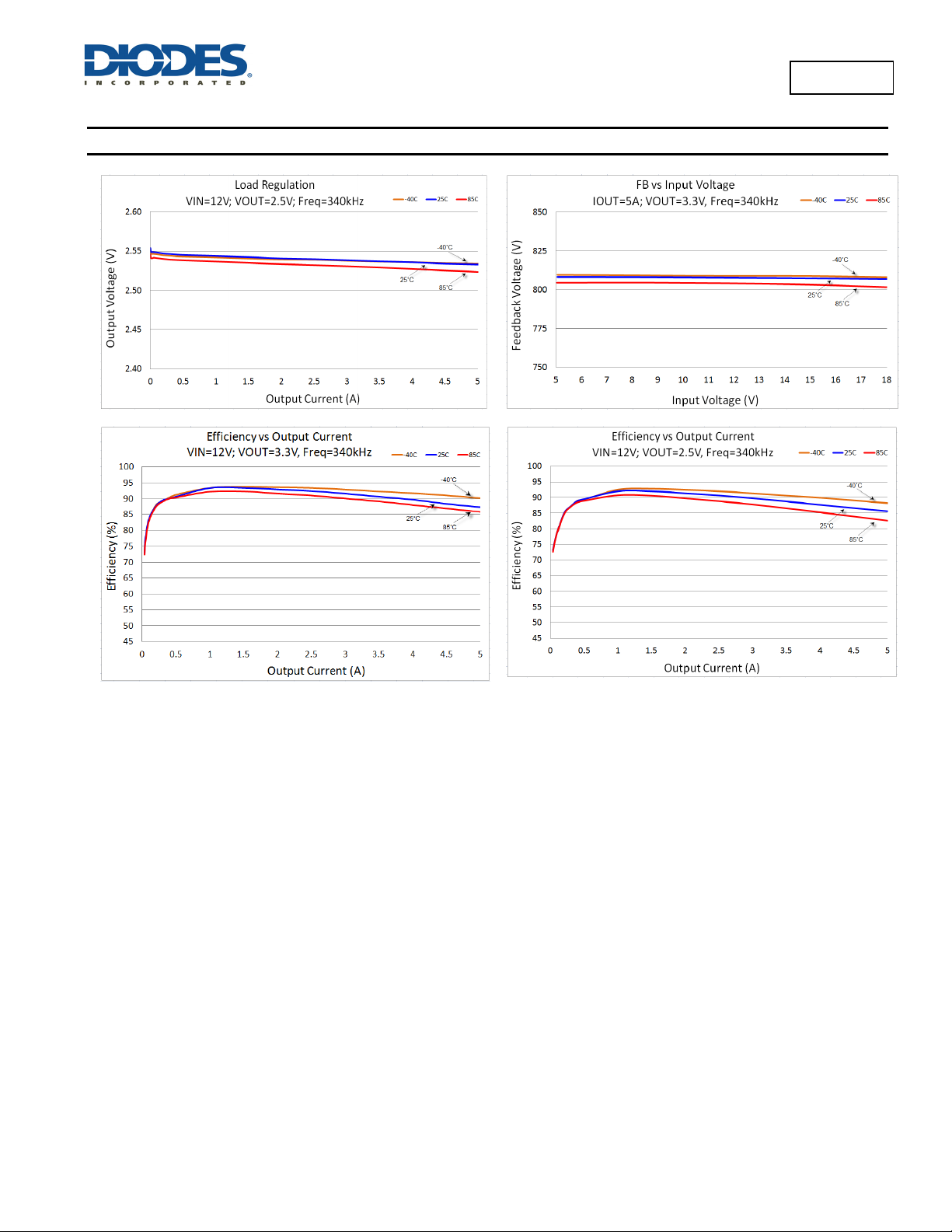

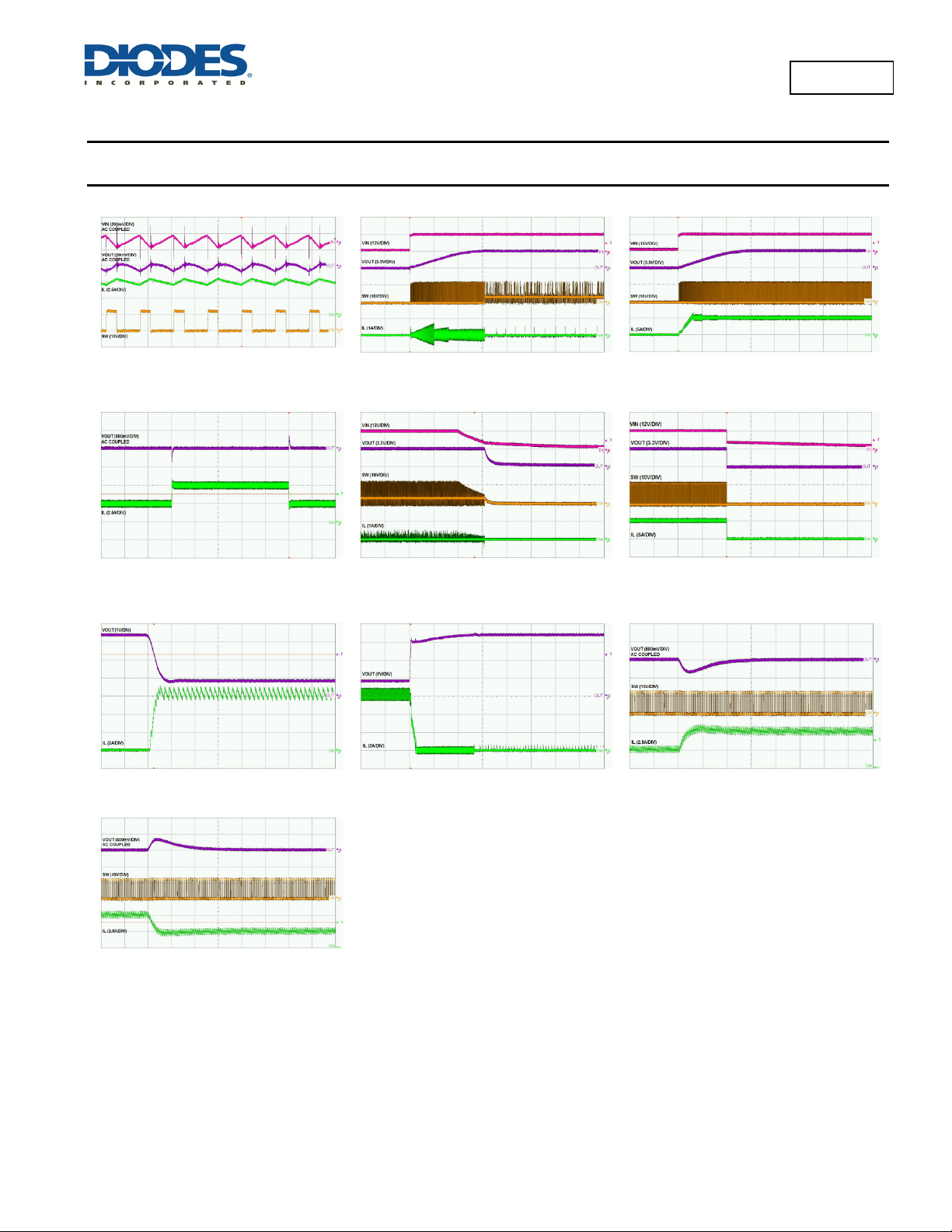

Typical Performance Characteristics (@T

= +25°C, VIN = 12V, V

A

= 3.3V, unless otherwise specified.)

OUT

P65500

AP65500

Document number: DS36112 Rev. 1 - 2

5 of 15

www.diodes.com

April 2014
