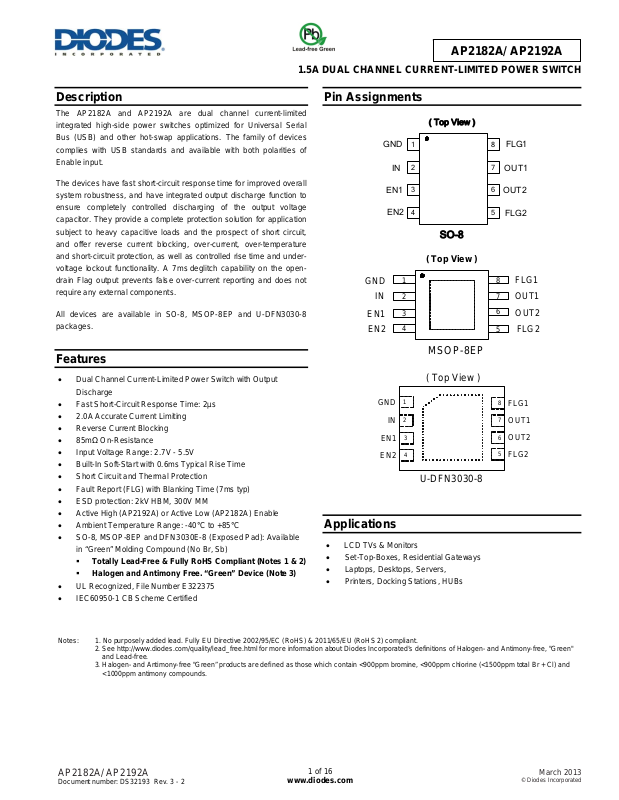

AP2182A/ AP2192A

1.5A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH

Description

The AP2182A and AP2192A are dual channel current-limited
integrated high-side power switches optimized for Universal Serial
Bus (USB) and other hot-swap applications. The family of devices
complies with USB standards and available with both polarities of
Enable input.

The devices have fast short-circuit response time for improved overall
system robustness, and have integrated output discharge function to
ensure completely controlled discharging of the output voltage
capacitor. They provide a complete protection solution for application
subject to heavy capacitive loads and the prospect of short circuit,
and offer reverse current blocking, over-current, over-temperature
and short-circuit protection, as well as controlled rise time and under­voltage lockout functionality. A 7ms deglitch capability on the open­drain Flag output prevents false over-current reporting and does not
require any external components.

All devices are available in SO-8, MSOP-8EP and U-DFN3030-8
packages.

Features

 Dual Channel Current-Limited Power Switch with Output

Discharge

 Fast Short-Circuit Response Time: 2µs
 2.0A Accurate Current Limiting
 Reverse Current Blocking
 85m On-Resistance
 Input Voltage Range: 2.7V - 5.5V
 Built-In Soft-Start with 0.6ms Typical Rise Time
 Short Circuit and Thermal Protection
 Fault Report (FLG) with Blanking Time (7ms typ)
 ESD protection: 2kV HBM, 300V MM
 Active High (AP2192A) or Active Low (AP2182A) Enable
 Ambient Temperature Range: -40°C to +85°C
 SO-8, MSOP-8EP and DFN3030E-8 (Exposed Pad): Available

in “Green” Molding Compound (No Br, Sb)

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)

 UL Recognized, File Number E322375
 IEC60950-1 CB Scheme Certified

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

Pin Assignments

( Top View )

1

GND

2

IN

3

EN1

EN2

4

SO-8

( Top View )

IN

1
2
3

4

GND

EN1
EN2

MSOP-8EP

GND

IN

EN1
EN2

( Top View )

1

2

3

4

U-DFN3030-8

Applications

 LCD TVs & Monitors
 Set-Top-Boxes, Residential Gateways
 Laptops, Desktops, Servers,
 Printers, Docking Stations, HUBs

8

FLG1

7

OUT1

6

OUT2

5

FLG2

8
7
6
5

8

7

6

5

FLG1
OUT1
OUT2

FLG2

FLG1
OUT1
OUT2
FLG2

AP2182A/ AP2192A

Document number: DS32193 Rev. 3 - 2

1 of 16

www.diodes.com

March 2013

© Diodes Incorporated

Typical Applications Circuit

AP2192 A Enable Active High



AP2182A/ AP2192A

Power Supply

2.7V to 5.5V
10k

10k

ON

OFF

1uF

IN

FLG1
FLG2

EN1
EN2

GND

OUT1

OUT2

1uF

1uF

Load

10uF*

Load

10uF*

Not e: * USB 2.0 requires 120uF per hub

Available Options

Part Number Channel

AP2182A 2 Active Low 2.0A 1.5A
AP2192A 2 Active High 2.0A 1.5A

Enable Pin

(EN)

Current Limit

(typ)

Recommended Maximum
Continuous Load Current

Pin Descriptions

Pin Number

Pin Name

GND 1 1 Ground

IN
EN1 3 3 Switch 1 enable input, active low (AP2142A) or a ctive high (AP2152 A)
EN2 4 4 Switch 2 enable input, active low (AP2142A) or a ctive high (AP2152 A)

FLG2 5 5 Switch 2 over-current and over-temperature fault re port; open-dra in flag is act ive low w hen triggered
OUT2
OUT1
FLG1 8 8 Switch 1 over-current and over-temperature fault re port; open-dra in flag is act ive low w hen triggered

Exposed Pad — Exposed Pad

SO-8

2 2 Voltage input pin

6 6 Switch 2 voltage output pin
7 7 Switch 1 voltage output pin

AP2182A/ AP2192A

Document number: DS32193 Rev. 3 - 2

MSOP-8EP

U-DFN3030-8

Exposed Pad:
It should be connected to GND and thermal mass for enhanced thermal impedance.
It should not be used as electrical ground conduction path.

2 of 16

www.diodes.com

Function

March 2013

© Diodes Incorporated

Functional Block Diagram

AP2182A, AP2192A

EN1

UVLO

Thermal

Sense

Driver

Current

Limit

AP2182A/ AP2192A

FLG1

D eg litch

GND

Cu rrent

Sense

Discharge

IN

EN2

UVLO

Driver

Thermal

Sense

Cu rrent

Sense

Current

Limit

Control

Discharge

Control

D eg litch

GND

Absolute Maximum Ratings (@T

= +25°C, unless otherwise specified.)

A

Symbol Parameter Ratings Unit

ESD HBM Human Body Model ESD Protection 2 kV

ESD MM Machine Model ESD Protection 300 V

VIN

V

OUT

V

EN , VFLG

T

I

LOAD
J(MAX)

TST

Note: 4. UL Recognized Rating from -30°C to +70°C (Diodes qualified TST from -65°C to +150°C)

Input Voltage 6.5 V
Output Voltage

VIN +0.3
Enable Voltage 6.5 V
Maximum Continuous Load Current Internal Limited A
Maximum Junction Temperature 150 °C
Storage Temperature Range (Note 4) -65 to +150 °C

Recommended Operating Conditions (@T

= +25°C, unless otherwise specified.)

A

Symbol Parameter Min Max Unit

VIN

I

OUT

VIH

VIL
TA

Input Voltage 2.7 5.5 V
Output Current 0 1.5 A
High-Level Input Voltage on EN or

Low-Level Input Voltage on EN or

EN

EN

2
0 0.8 V

V

IN

Operating Ambient Temperature Range -40 +85 °C

AP2182A/ AP2192A

Document number: DS32193 Rev. 3 - 2

3 of 16

www.diodes.com

OUT1

OUT2

FLG2

V

V

March 2013

© Diodes Incorporated

AP2182A/ AP2192A

Electrical Characteristics (@T

= +25°C, VIN = +5.0V, unless otherwise specified.)

A

Symbol Parameter Test Conditions (Note 5) Min Typ Max Unit

Input UVLO 1.6 2.0 2.4 V

UVLO

Input Shutdown Current
Input Quiescent Current, Dual

I

Q

Disabled, I
Enabled, I

OUT

OUT

= 0

= 0

0.1 1 µA

115 180 µA
Input Leakage Current Disabled, OUT grounded 1 µA
Reverse Leakage Current

REV

Switch On-Resistance

Over-Load Current Limit
Ganged Over-Load Current Limit
Current Limiting Trigger Threshold

Trig

Ganged Current Limiting Trigger
Threshold

Short-Circuit Current per Channel

IOS

Ganged Short-Circuit Current
Short-Circuit Response Time

EN Input Logic Low Voltage

V

IL

EN Input Logic High Voltage

V

IH

EN Input Leakage
Output Leakage Current
Output Turn-On Rise Time

TR

Output Turn-Off Fall Time

TF

Output Turn-On Delay Time
Output Turn-Off Delay Time
FLG Output FET On-Resistance

FLG

FLG Off Current

FOH

FLG Blanking Time

Blank

Discharge Resistance (Note 6)

DIS

Thermal Shutdown Threshold
Thermal Shutdown Hysteresis 25

HYS

Disabled, VIN = 0V, V
V

= 5V, I

IN

= +25°C

T

A

VIN = 5V, I
VIN = 3.3V, I

= +25°C

T

A

= 3.3V, I

V

IN

VIN = 5V, V

= 5V, V

V

IN

= 1.5A,

OUT

= 1.5A, -40°C  TA  +85°C

OUT

= 1.5A,

OUT

= 1.5A, -40°C  TA  +85°C

OUT

= 4V, CL = 10µF -40°C  TA  +85°C

OUT

= 4.6V, OUT1 &

OUT

OUT2 tied together, C

OUT

= 10µF

L

= 5V, I

at VIN

REV

SO-8 90 110
MSOP-8EP,

U-DFN3030-8

SO-8 110 130
MSOP-8EP,

U-DFN3030-8

-40°C  T

 +85°C

A

Output Current Slew rate (<100A/s), CL = 10µF
OUT1 & OUT2 tied together, Output Current Slew rate

(<100A/s), C

= 10µF

L

OUTx connected to ground, device enabled into short
circuit, C

= 10µF

L

OUT1 & OUT2 connected to ground, device enabled into
short-circuit, C

V

= 0V to I

OUT

= 2.7V to 5.5V

V

IN

V

= 2.7V to 5.5V

IN

= 0V to 5.5V

V

EN

Disabled, V
CL = 1µF, R
CL = 1µF, R
CL = 100µF, R
CL = 100µF, R
I

= 10mA

FLG

= 5V

V

FLG

OUT

LOAD
LOAD

= 10µF

L

OUT

= 0V

= 5
= 5

LOAD
LOAD

= I

(output shorted to ground)

LIMIT

= 5
= 5

CL = 10µF
V

= 5V, disabled, I

IN

Enabled, R

LOAD

=1k

OUT

=1mA

0.01 0.1 µA

85 105

135

105 125

170

1.6 2.0 2.4 A

3.2 4.0 4.8 A

2.5 A

5.0 A

2.0 A

3.2 4.0 4.8 A
2 µs

0.8 V

2 V

1 µA

0.5 1 µA

0.6 1.5 ms

0.05 0.3 ms

0.2 0.5 ms

0.1 0.3 ms
20 40 

0.01 1 µA

4 7 15 ms

100 
140

V

I

SHDN

I

LEAK

I

R

DS(ON)

I

LIMIT

I

LIMIT_G

I

I

Trig_G

I

OS_G

T

SHORT

I

SINK

I

LEAK-O

T

D(ON)

T

D(OFF)

R

I

T

R

T

SHDN

T

SO-8 (Note 7) 115

Thermal Resistance Junction-to-Ambient



JA

MSOP-8EP (Note 8) 75

°C/W

U-DFN3030-8 (Note 8) 60

Notes: 5. Pulse-testing techniques maintain junction temperature close to ambient temperature; thermal effects must be taken into account separately.

6. The discharge function is active when the device is disabled (when enable is de-asserted or during power-up / power-down when V
discharge function offers a resistive discharge path for the external storage capacitor for limited time.

7. Test condition for SO-8: Device mounted on FR-4 substrate PCB with minimum recommended pad layout.

8. Test condition for MSOP-8EP and U-DFN3030-8: Device mounted on 2” x 2” FR-4 substrate PCB, 2oz copper, with minimum recommended pad on top
layer and thermal vias to bottom layer ground plane.

< V

). The

IN

UVLO

AP2182A/ AP2192A

Document number: DS32193 Rev. 3 - 2

4 of 16

www.diodes.com

March 2013

© Diodes Incorporated

m

C
C

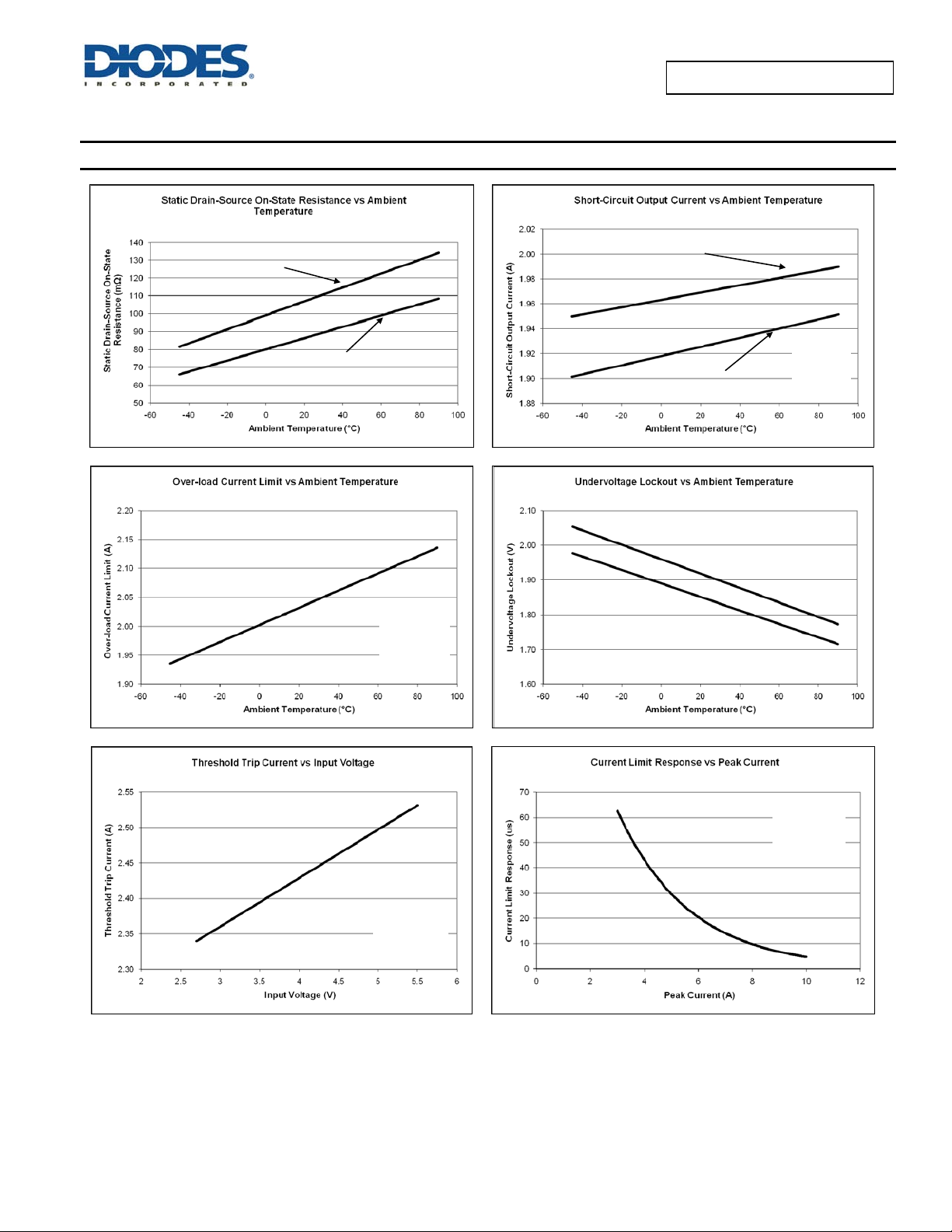

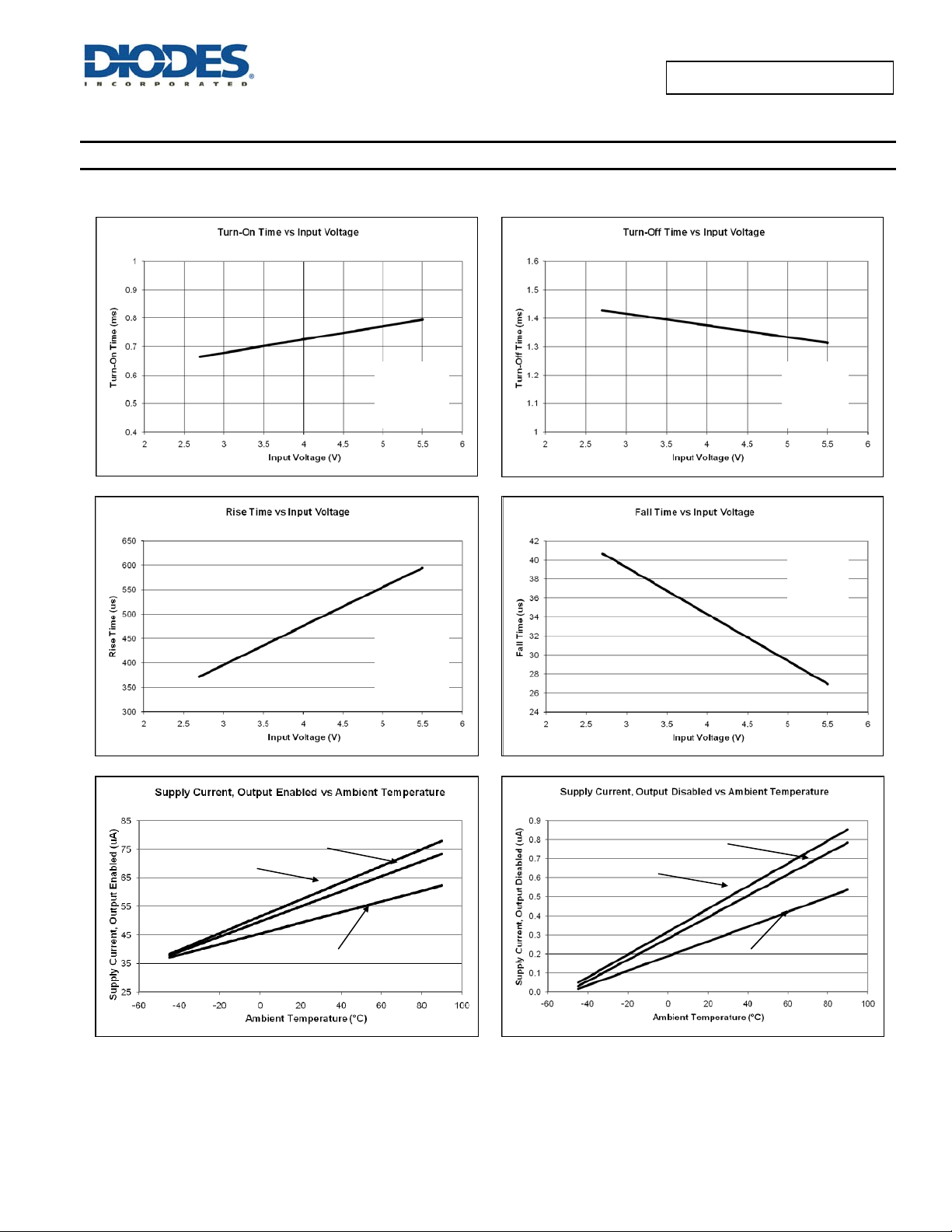

Typical Performance Characteristics

AP2182A/ AP2192A

V

EN

V

OUT

50%

T

D(ON)

T

10%

50%

T

R

90%

D(OFF)

90%

10%

T

F

V

EN

50%

T

T

D(ON)

V

OUT

10%

50%

T

R

90%

D(OFF)

90%

10%

T

F

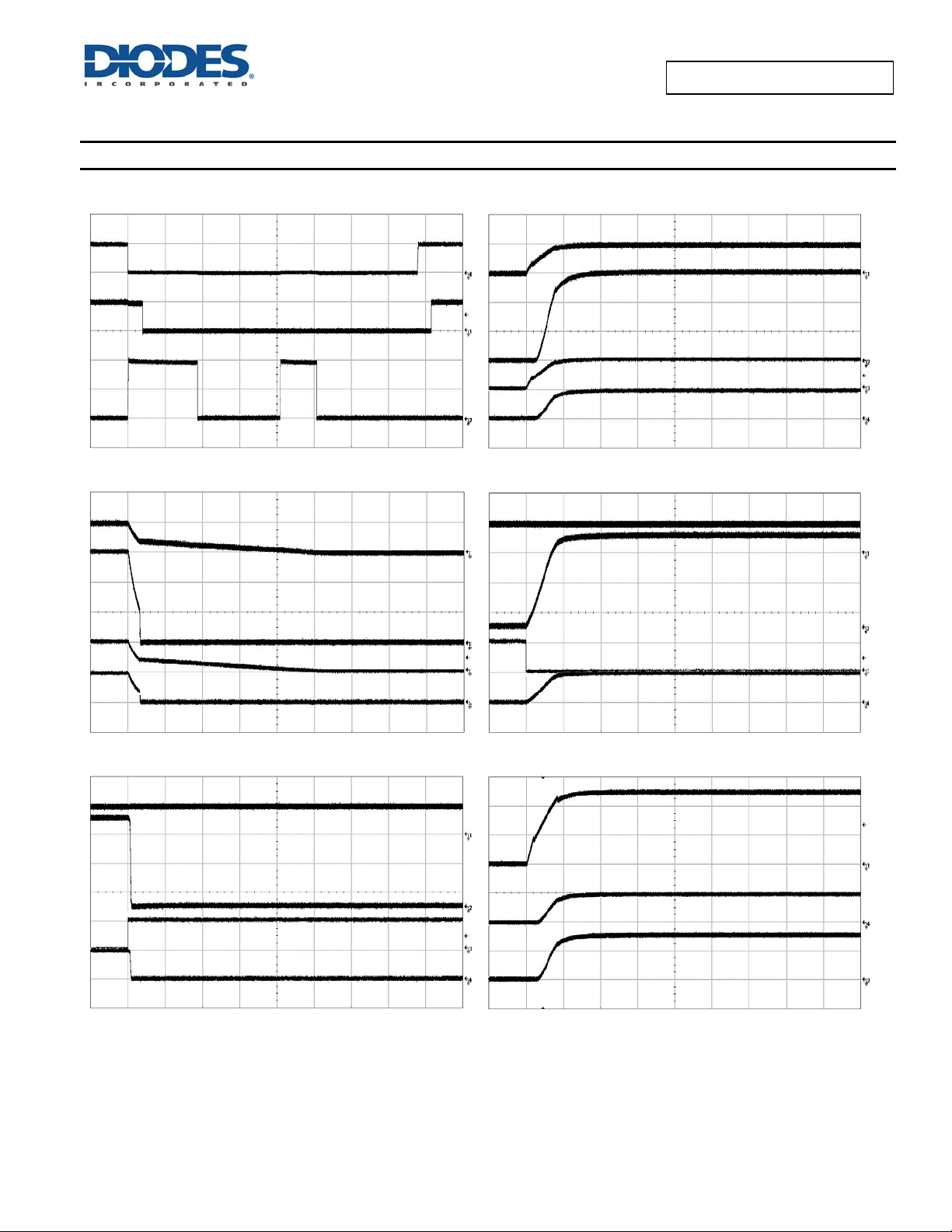

Figure 1. Voltage Waveforms: AP2182A (left), AP2192A (right)

Figure 2. Response Time to Short Circuit Waveform

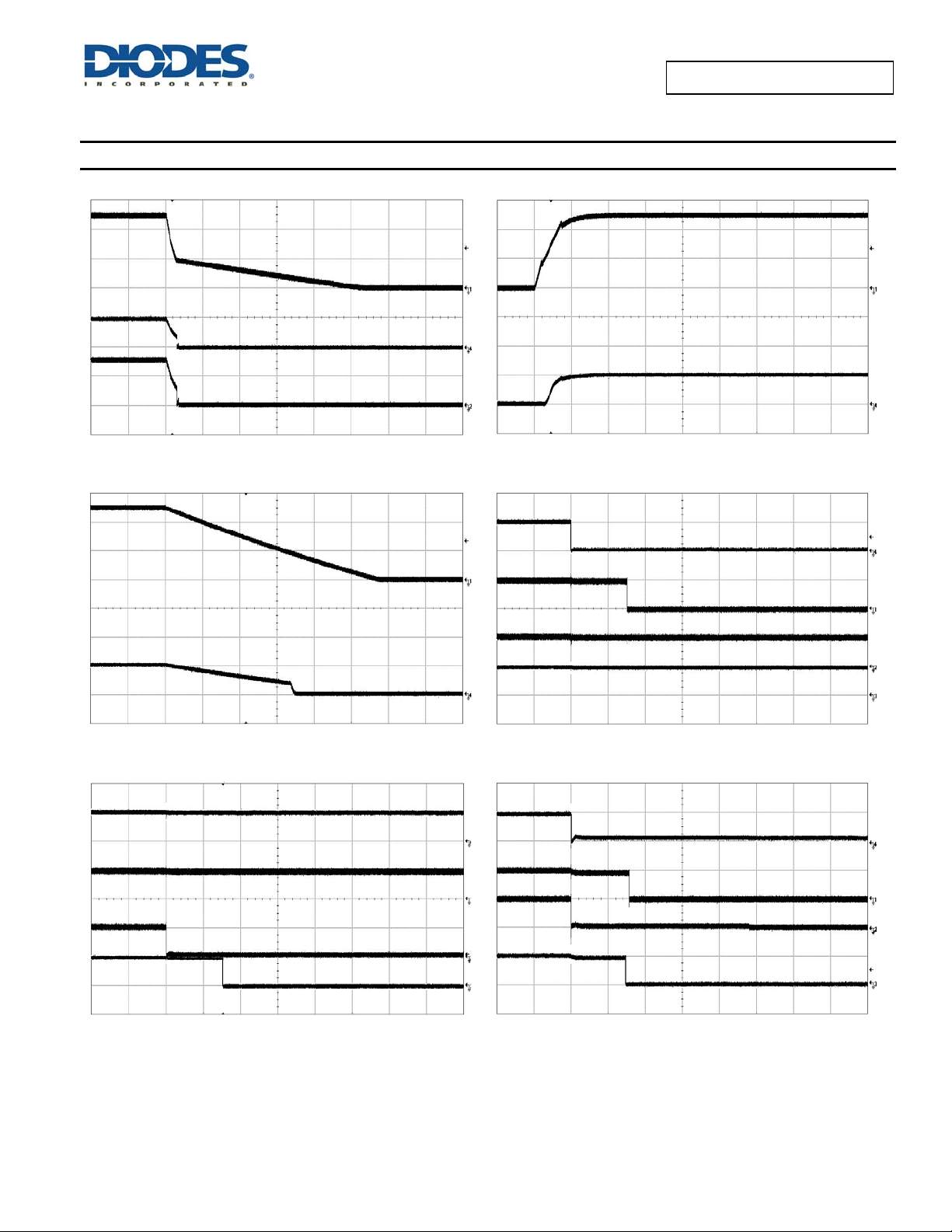

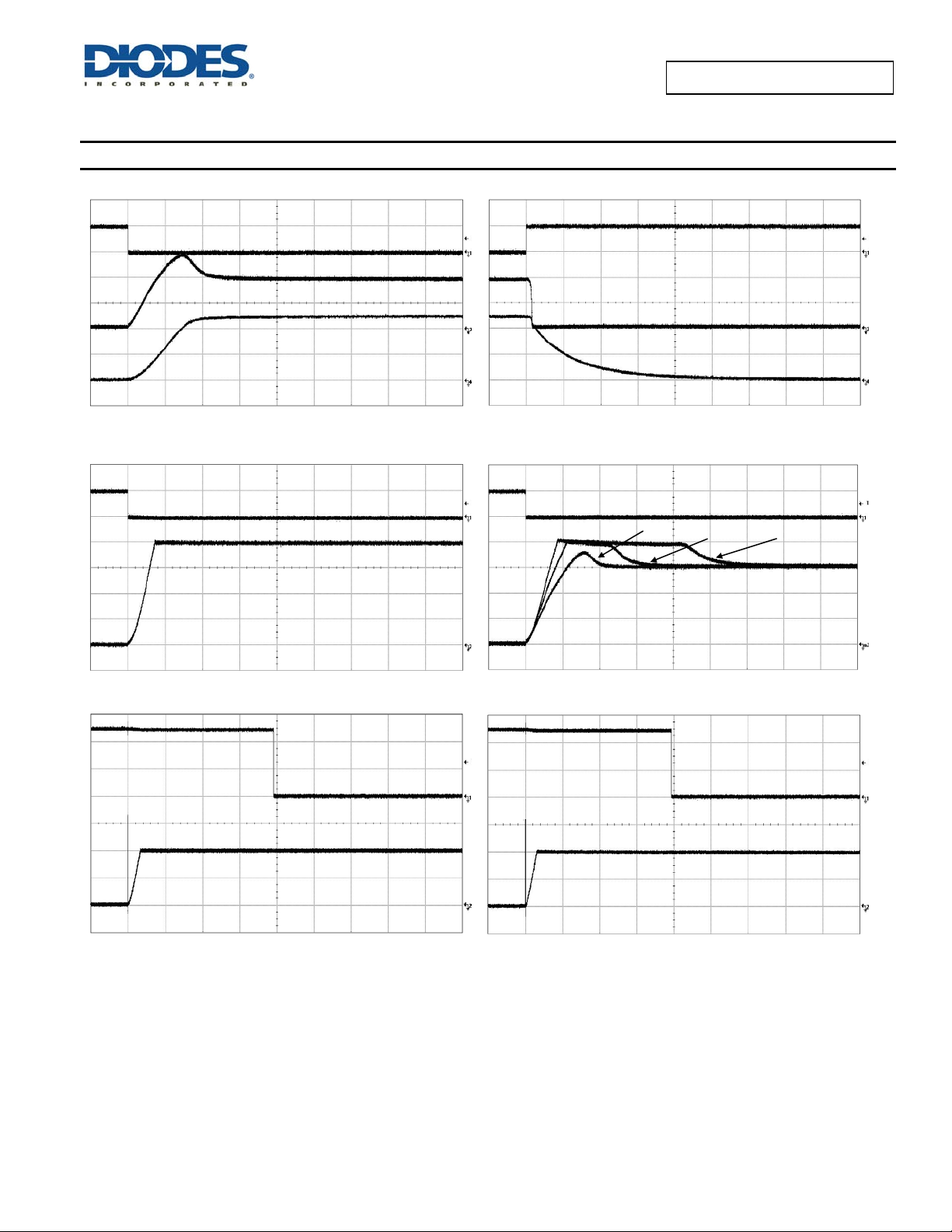

All Enable Plots are for AP2182A Active Low

Turn-On Delay and Rise Time

Turn-Off Delay and Fall Time

EN
5V/div

Iin
500mA/div

Vout
2V/div

AP2182A/ AP2192A

Document number: DS32193 Rev. 3 - 2

500µs/div

CL=1F
TA= +25°C
RL=5

5 of 16

www.diodes.com

EN
5V/div

Iin
500mA/div

Vout
2V/div

500µs/div

CL=1F
TA= +25°C
R

=5

L

March 2013

© Diodes Incorporated
