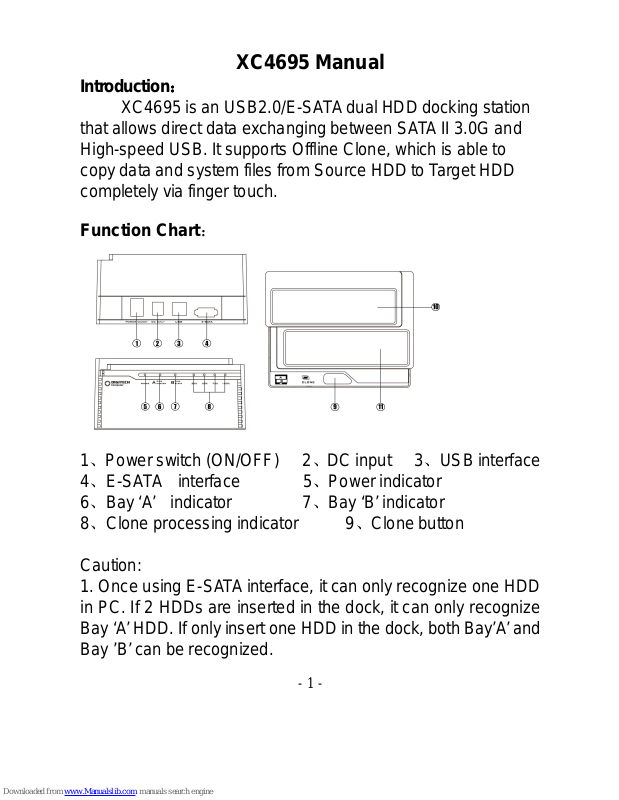

XC4695 Manual
Introduction::
XC4695 is an USB2.0/E-SATA dual HDD docking station that allows direct data exchanging between SATA II 3.0G and High-speed USB. It supports Offline Clone, which is able to copy data and system files from Source HDD to Target HDD completely via finger touch.
Function Chart
1、Power switch (ON/OFF) 2、DC input 3、USB interface 4、E-SATA interface 5、Power indicator 6、Bay ‘A’ indicator 7Bay ‘B’ indicator 8、Clone processing indicator 9、Clone button
Caution:
1. Once using E-SATA interface, it can only recognize one HDD in PC. If 2 HDDs are inserted in the dock, it can only recognize Bay ‘A’ HDD. If only insert one HDD in the dock, both Bay’A’ and Bay ’B’ can be recognized.
- 2 -
Function::
* Complies with Serial ATA International Organization:
Serial ATA Revision 2.6 * Supports SATA 1.5G/3.0G Speed * Supports SATA Hot swap * Supports SATA Host/Device controller configuration * Complies with USB 2.0 electrical specification * Supports USB 2.0 High-Speed and Full-Speed * Complies with USB Mass Storage Class, Bulk-Only Transport
Specification * Supports clone function *Supports
Win 98/ME/2000/XP/VISTA /WIN7 MAC OS 9.X/10.X /Linux
CLONE:
Please note the below conditions before clone:
- Bay ‘A’ = SOURCE HDD,
- Bay ’B’ = TARGET HDD
- TARGET HDD ‘s capacity MUST be larger than SOURCE
HDD, otherwise the CLONE cannot be completed. (Same capacity is also not acceptable)
- Before CLONE function starts, make sure the information
in TARGET HDD is not important; once CLONE started, all information from the SOURCE HDD will be covered into
TARGET HDD..
- Once the docking is connected to USB interface, the offline
Clone will be invalid. Clone can only process by using USB Clone Function.
- 3 -
1,
1,1,
1, Offline clone
a、Insert source HDD to Bay ‘A’; target HDD to Bay ‘B’, and then turn on the power
b、Once the Bays indicators are on, that means XC4695 is ready for clone.
- 4 -
c、Press and hold the clone button for 3 seconds until the indicator light is on, press the button once more for Clone confirmation. Offline clone is starting to process.
d、Clone progress indicator flashes and shows the progress (25%, 50%, 75%, 100%).
- 5 -
e、Once clone is finished, all progress indicators will light up.
f、Turn off power and take out the HDD carefully 2, USB Clone
Drive Installation a、Please insert the CD drive and click “setup.exe”. Choose your language and click “ Next”
- 6 -
b、Fill in the S/N # accordingly (you can find the S/N# on the cover of CD drive)
c、Click “Install” for installation
- 7 -
d、Installation progress is showed
e、please click “Done” once installation is finished.
- 8 -
3,
3,3,
3, Clone from Source HDD to Target HDD
a、Please insert Source HDD and Target HDD well to the docking, connect XC4695 to PC via USB cable. Turn on the power, you can find the clone icon on the right bottom of window, then double click the CLONE Icon to start the program.
CLONE Icon
b、Clone drive activated, please click “Start”
- 9 -
c、Press start to proceed with Clone.
d、Clone progress is showed
- 10 -
e、Click “OK” once clone is finished
f、You should find the same contents of Source HDD in Target
HDD
- 11 -
g、If your target HDD has extra space, the system will allocate it to “unallocated” area automatically, please refer to the below picture. (Windows system only allows a maximum of four primary partitions, if the original disc already exist four primary partitions, then it can not distinguish the extra space but logical drives can have more than one
HDD Partition
a、Open Disk management and select the unallocated area
- 12 -
b、Right click 〝New partition〞for further action
c、“Next”
- 13 -
d、Base on your need and click “Next”
e、Please enter the new partition capacity and click “Next” for
further action
- 14 -
f、Assign the drive letter and “Next”
g、Select “quick format” to format the new partition
- 15 -
h、Click “finish”
i、Partition completed, the new partition can be found.
